springboot +vue 前后端分离实现五级行政区划树形菜单及设备管理

一、项目概述

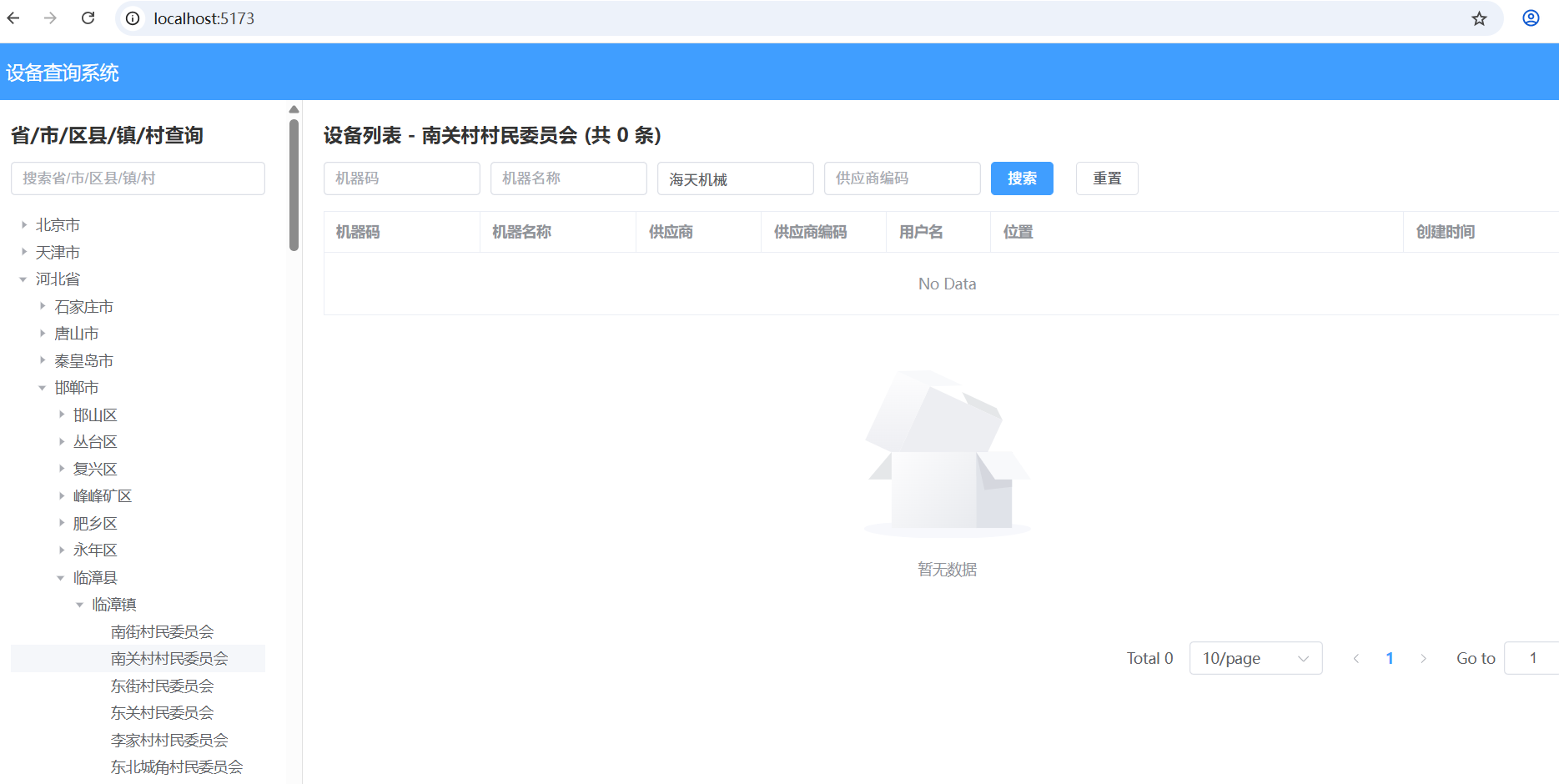

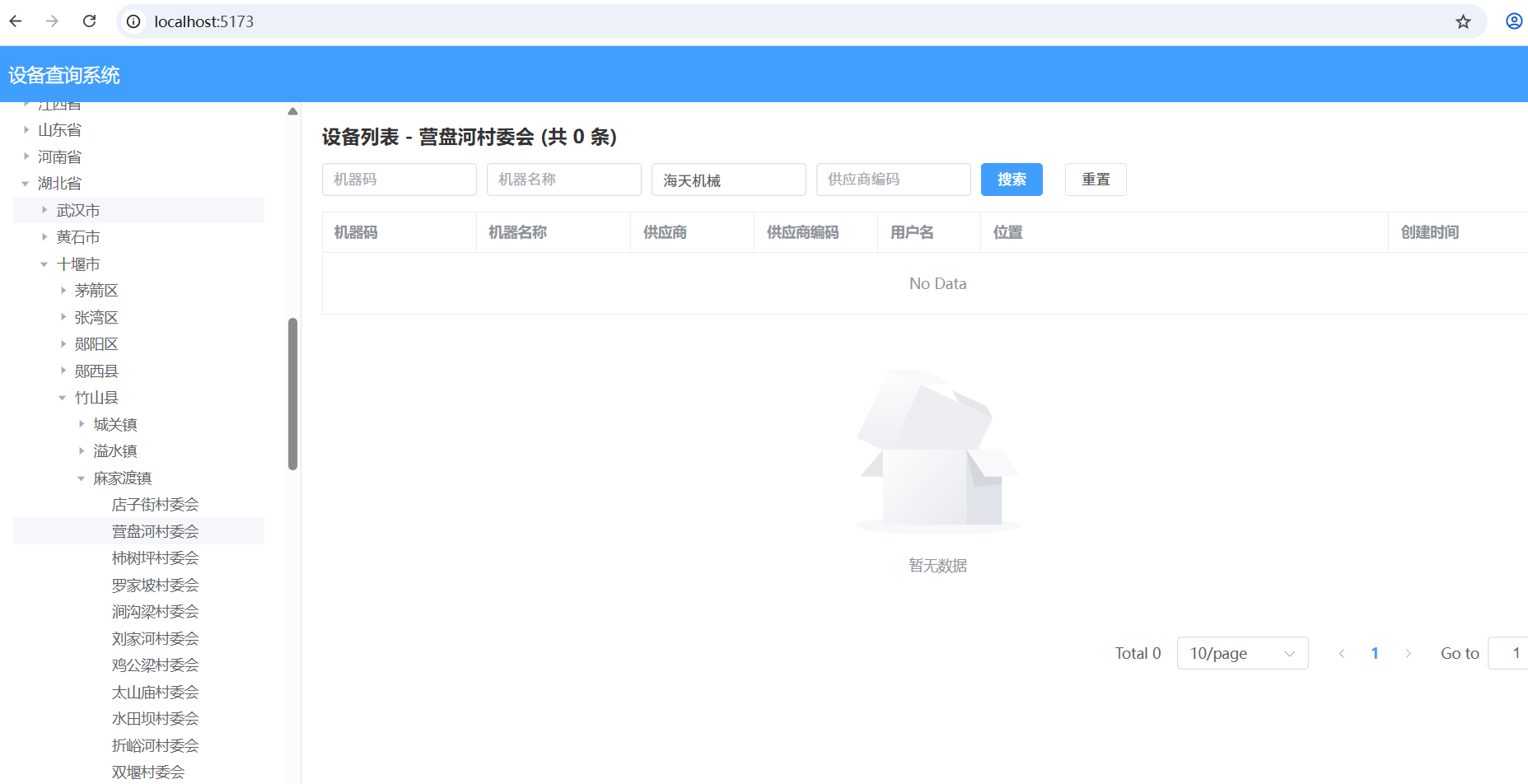

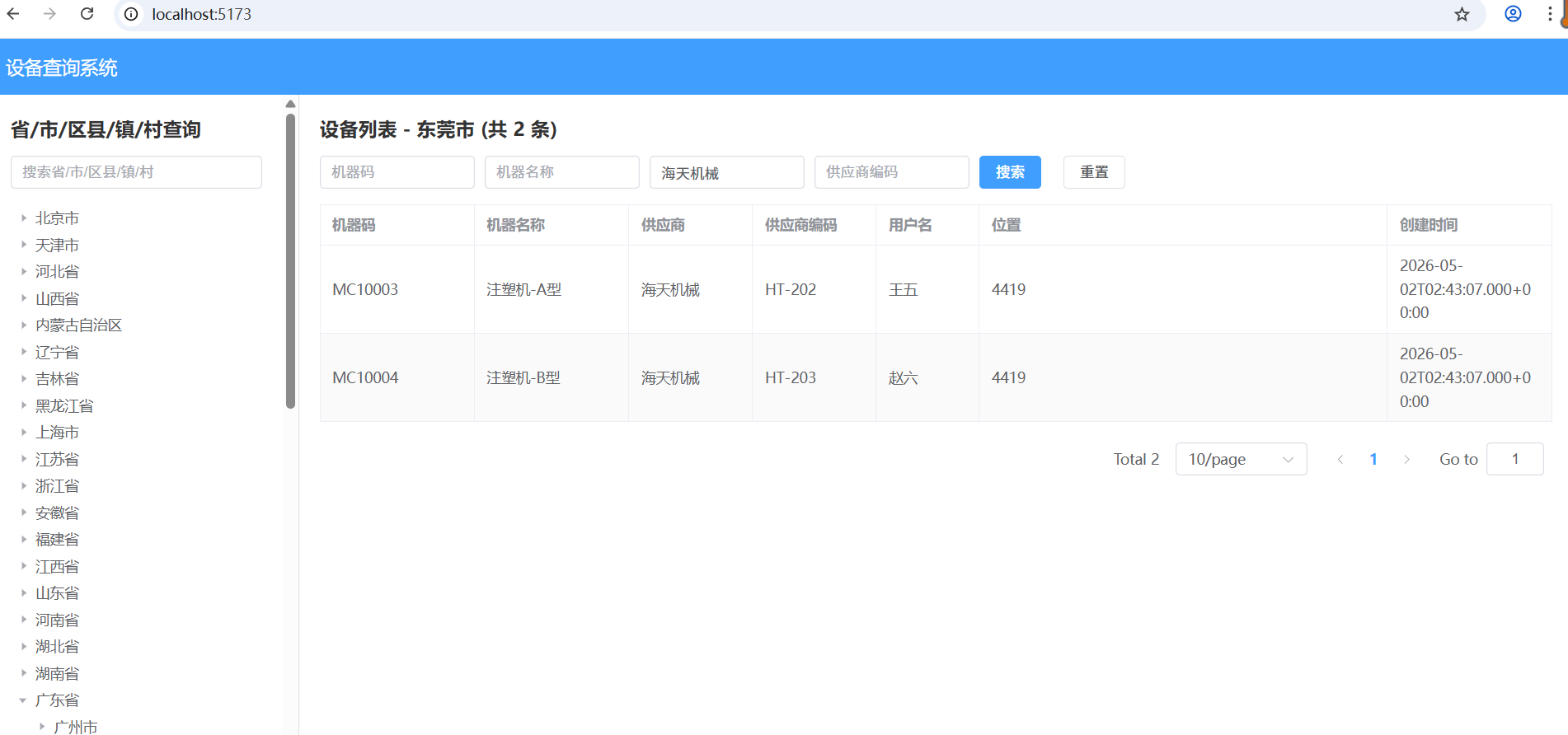

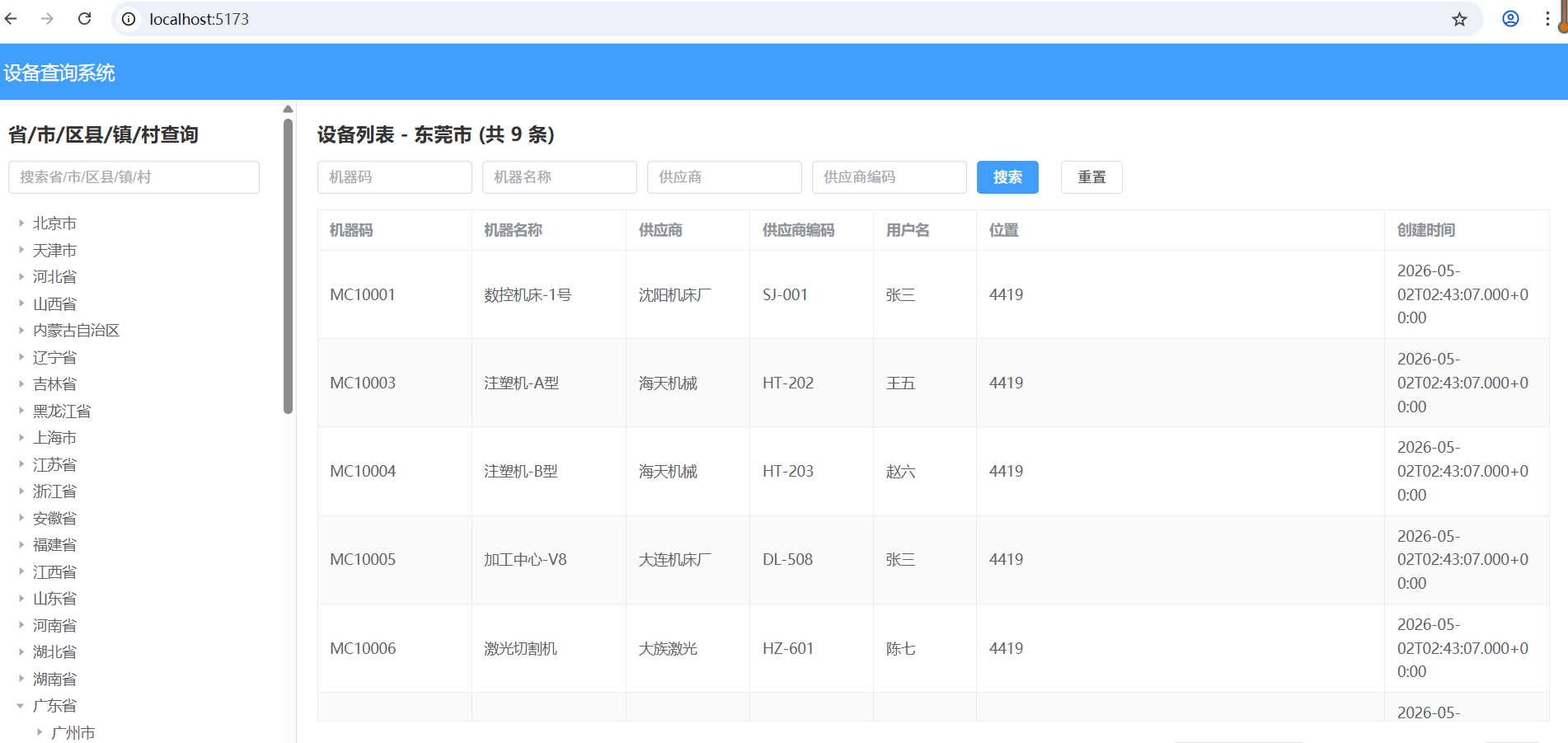

本文基于下图中的"设备查询系统"功能，实现一个完整的五级行政区划（省/市/区县/镇/村）树形菜单 ，点击树节点右侧展示该区域下的设备列表。项目采用Spring Boot + JPA 作为后端，Vue + Element UI作为前端，提供完整的API接口和前端交互。如果我要查询某个地区的设备情况，如下图：

1.1 功能需求

  • 左侧树形菜单：展示省→市→区县→镇→村五级行政区划，支持懒加载或一次性加载（本文采用懒加载，性能更优）。

  • 右侧设备列表：点击树节点，表格展示该区域下的设备信息（机器码、机器名称、供应商、位置、创建时间等）。

  • 分页功能：设备列表支持分页查询。

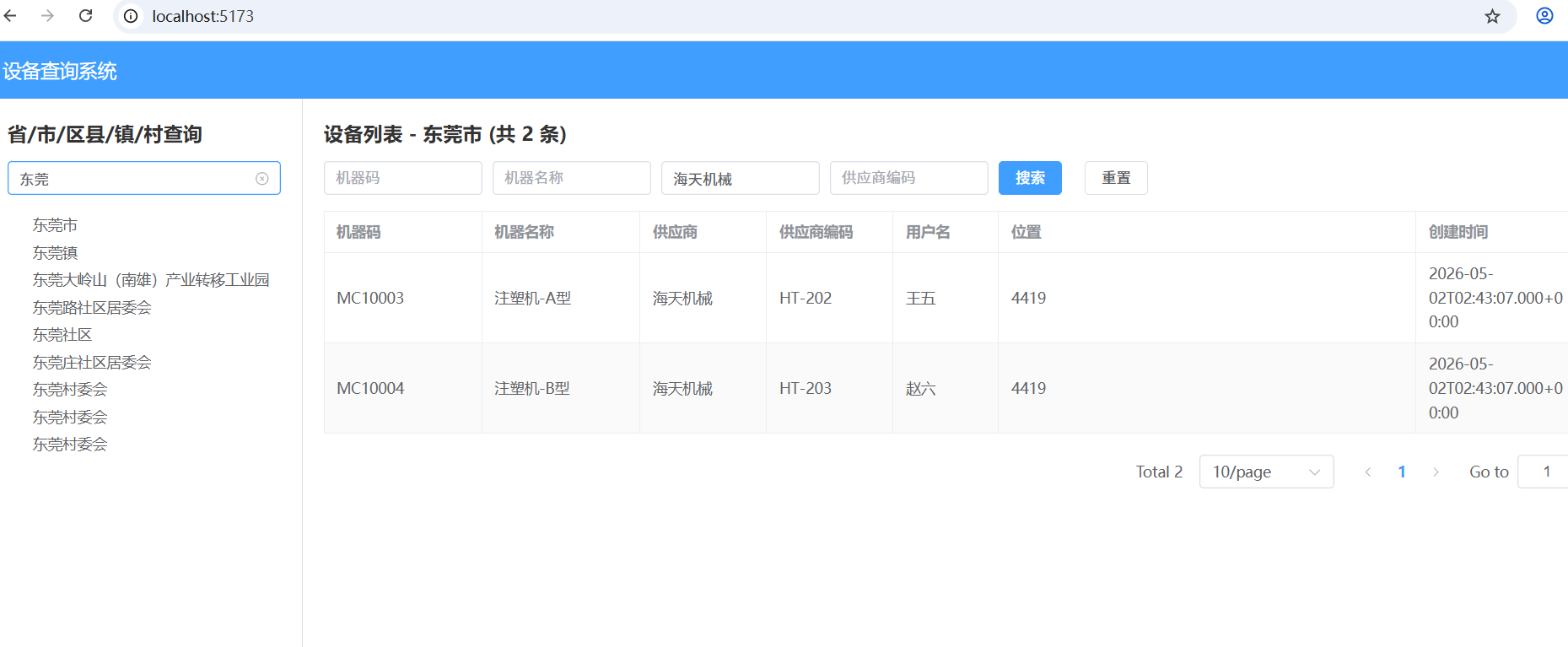

  • 搜索功能：支持按设备名称、机器码等条件筛选（可扩展）。

1.2 技术栈

层次 技术选型
后端框架 Spring Boot 2.x
ORM Spring Data JPA + Hibernate
数据库 MySQL 8.0/sqlite
前端框架 Vue 2.x / 3.x + Element UI
HTTP客户端 Axios
构建工具 Maven / npm

二、数据库设计

2.1 行政区划表（region）

设计一张自关联的行政区划表，支持无限层级（五级），也可按前文五张表设计。为简化，这里采用单表递归结构。

行政区的数据固定我们可以存在sqlite里面，这样获取数据非常快，当然也可以放在缓存中

复制代码

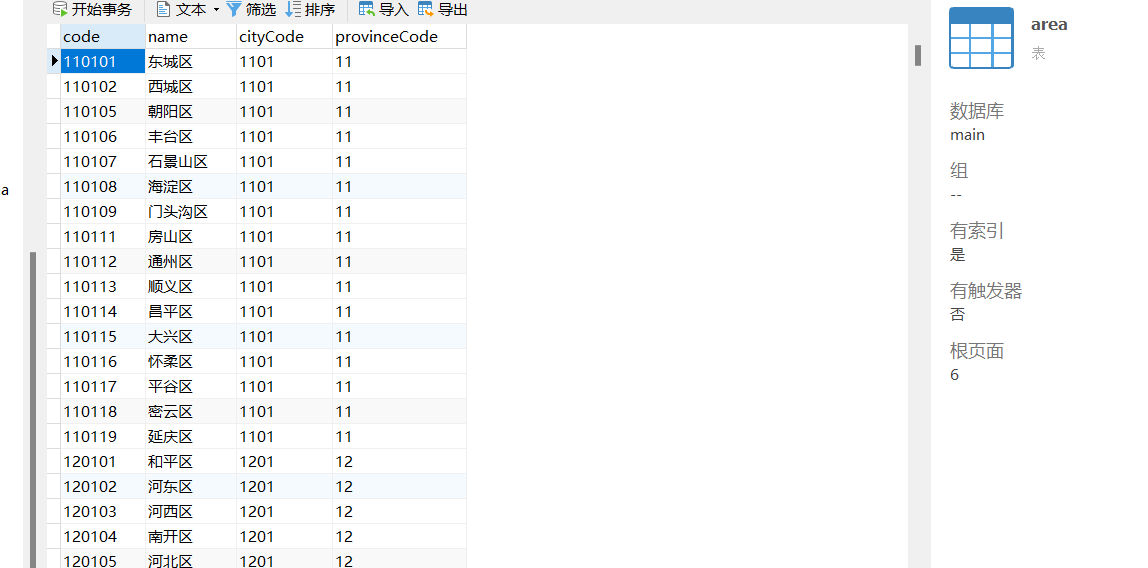

CREATE TABLE `area` (`code` VARCHAR(255) PRIMARY KEY, `name` VARCHAR(255), `cityCode` VARCHAR(255) REFERENCES `city` (`code`) ON DELETE SET NULL ON UPDATE CASCADE, `provinceCode` VARCHAR(255) REFERENCES `province` (`code`) ON DELETE SET NULL ON UPDATE CASCADE);

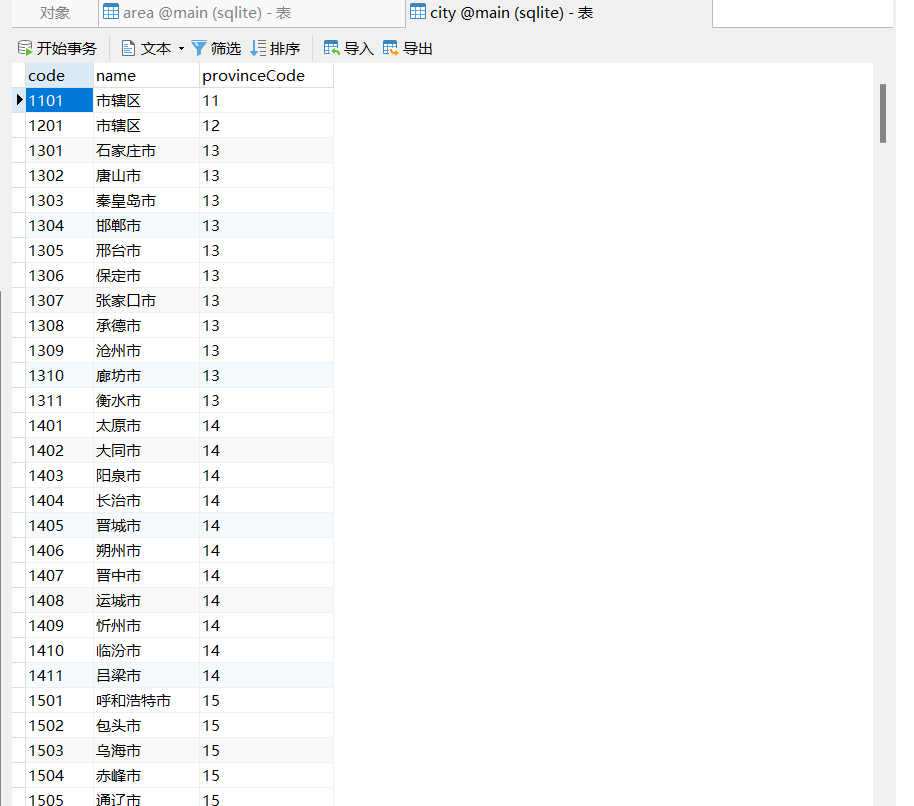

CREATE TABLE `city` (`code` VARCHAR(255) PRIMARY KEY, `name` VARCHAR(255), `provinceCode` VARCHAR(255) REFERENCES `province` (`code`) ON DELETE SET NULL ON UPDATE CASCADE);

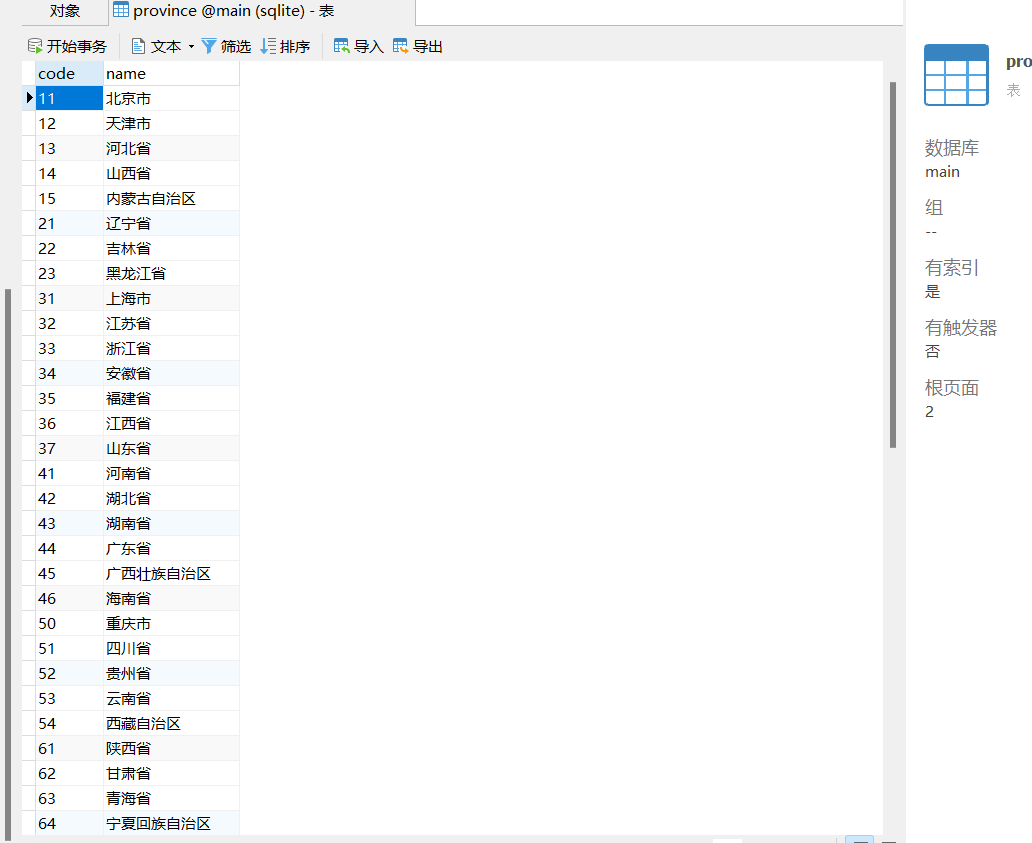

CREATE TABLE `province` (`code` VARCHAR(255) PRIMARY KEY, `name` VARCHAR(255));

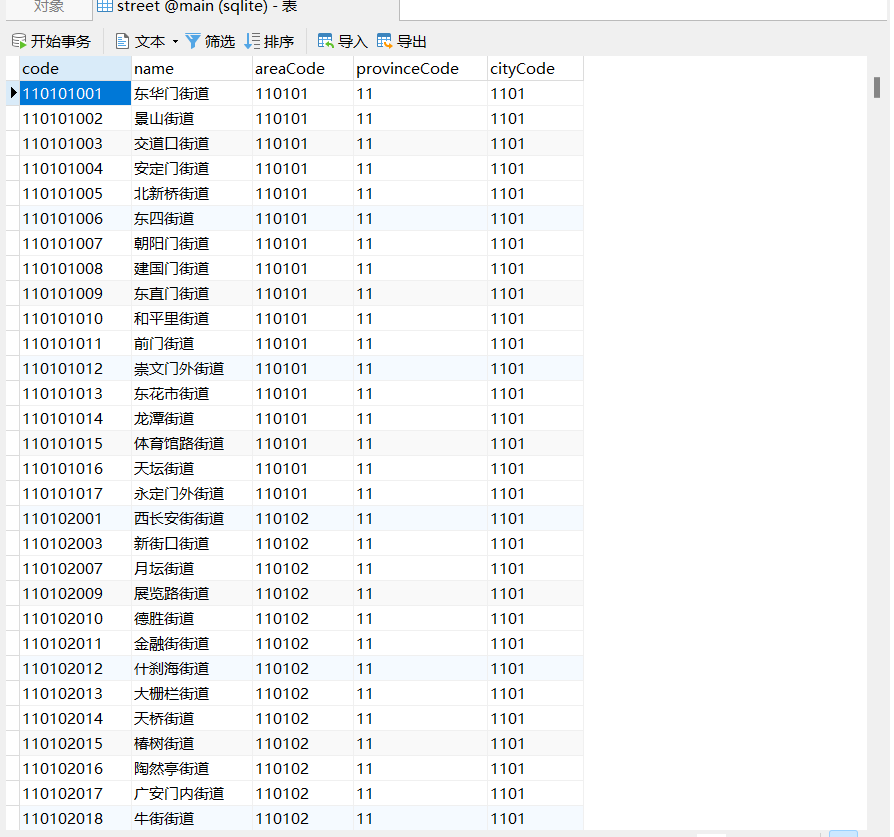

CREATE TABLE `street` (`code` VARCHAR(255) PRIMARY KEY, `name` VARCHAR(255), `areaCode` VARCHAR(255) REFERENCES `area` (`code`) ON DELETE SET NULL ON UPDATE CASCADE, `provinceCode` VARCHAR(255) REFERENCES `province` (`code`) ON DELETE SET NULL ON UPDATE CASCADE, `cityCode` VARCHAR(255) REFERENCES `city` (`code`) ON DELETE SET NULL ON UPDATE CASCADE);

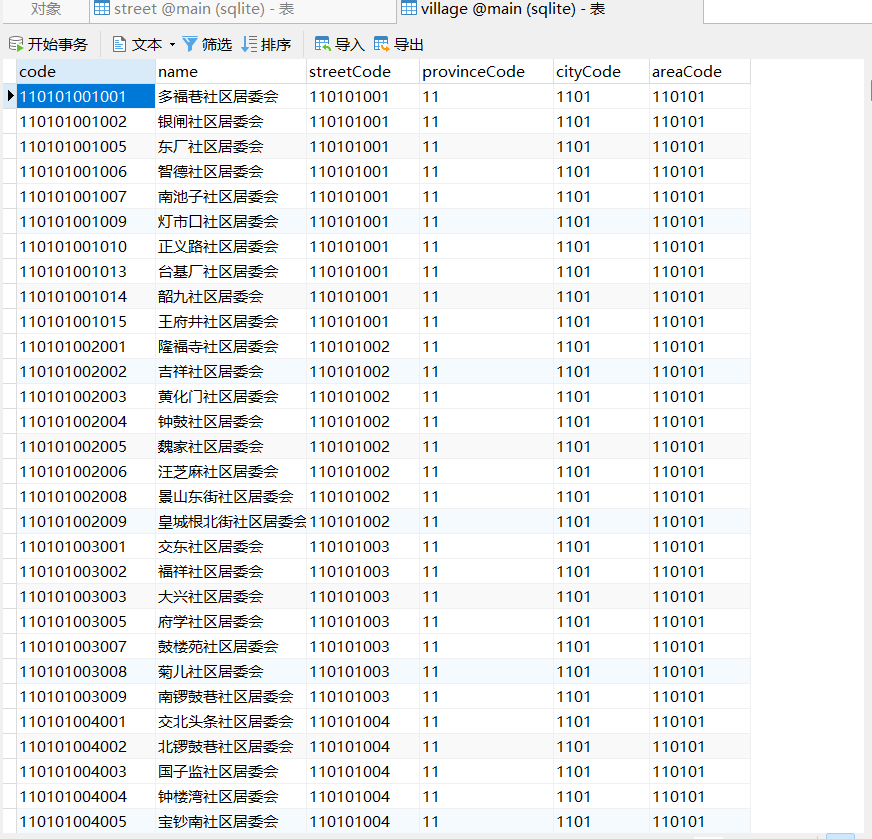

CREATE TABLE `village` (`code` VARCHAR(255) PRIMARY KEY, `name` VARCHAR(255), `streetCode` VARCHAR(255) REFERENCES `street` (`code`) ON DELETE SET NULL ON UPDATE CASCADE, `provinceCode` VARCHAR(255) REFERENCES `province` (`code`) ON DELETE SET NULL ON UPDATE CASCADE, `cityCode` VARCHAR(255) REFERENCES `city` (`code`) ON DELETE SET NULL ON UPDATE CASCADE, `areaCode` VARCHAR(255) REFERENCES `area` (`code`) ON DELETE SET NULL ON UPDATE CASCADE);

实际项目中也可按省、市、区、镇、村分五张表，但单表更易维护，且JPA通过自关联查询方便。

2.2 设备表（device）

sql

复制代码

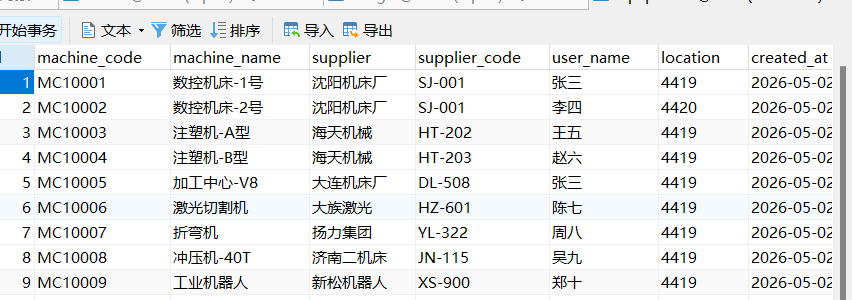

CREATE TABLE `equipment` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `machine_code` varchar(64) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT '机器码',
  `machine_name` varchar(128) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT '机器名称',
  `supplier` varchar(128) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '供应商',
  `supplier_code` varchar(64) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '供应商编码',
  `user_name` varchar(64) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '用户名',
  `location` varchar(255) COLLATE utf8mb4_unicode_ci DEFAULT NULL COMMENT '省/市/区/县/镇',
  `created_at` timestamp NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `updated_at` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE KEY `machine_code` (`machine_code`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=11 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci ROW_FORMAT=DYNAMIC COMMENT='设备表';

三、后端 Spring Boot + JPA 实现

3.1 项目依赖（pom.xml 核心片段）

xml

复制代码
<dependency>
    <groupId>org.xerial</groupId>
    <artifactId>sqlite-jdbc</artifactId>
    <version>3.45.1.0</version>
</dependency>

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>

<dependency>
    <groupId>com.mysql</groupId>
    <artifactId>mysql-connector-j</artifactId>
    <version>8.0.33</version>
</dependency>

<dependency>
    <groupId>com.github.gwenn</groupId>
    <artifactId>sqlite-dialect</artifactId>
    <version>0.1.2</version>
</dependency>

yaml

复制代码
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/device_db?useSSL=false&serverTimezone=Asia/Shanghai
    username: root
    password: 123456
  jpa:
    hibernate:
      ddl-auto: update
    show-sql: true
    properties:
      hibernate:
        dialect: org.hibernate.dialect.MySQL8Dialect

3.3 实体类

Area.java

java

复制代码
@Entity
@Table(name = "area")
public class Area {
    @Id
    @Column(name = "code")
    private String code;

    private String name;

    @Column(name = "cityCode")
    private String cityCode;

    public Area() {}

    public Area(String code, String name, String cityCode) {
        this.code = code;
        this.name = name;
        this.cityCode = cityCode;
    }

    public String getCode() { return code; }
    public void setCode(String code) { this.code = code; }
    public String getName() { return name; }
    public void setName(String name) { this.name = name; }
    public String getCityCode() { return cityCode; }
    public void setCityCode(String cityCode) { this.cityCode = cityCode; }
}
复制代码
@Entity
@Table(name = "city")
public class City {
    @Id
    @Column(name = "code")
    private String code;

    private String name;

    @Column(name = "provinceCode")
    private String provinceCode;

    public City() {}

    public City(String code, String name, String provinceCode) {
        this.code = code;
        this.name = name;
        this.provinceCode = provinceCode;
    }

    public String getCode() { return code; }
    public void setCode(String code) { this.code = code; }
    public String getName() { return name; }
    public void setName(String name) { this.name = name; }
    public String getProvinceCode() { return provinceCode; }
    public void setProvinceCode(String provinceCode) { this.provinceCode = provinceCode; }
}
复制代码
@Entity
@Table(name = "province")
public class Province {
    @Id
    @Column(name = "code")
    private String code;

    private String name;

    public Province() {}

    public Province(String code, String name) {
        this.code = code;
        this.name = name;
    }

    public String getCode() { return code; }
    public void setCode(String code) { this.code = code; }
    public String getName() { return name; }
    public void setName(String name) { this.name = name; }
}
复制代码
@Entity
@Table(name = "street")
public class Street {
    @Id
    @Column(name = "code")
    private String code;

    private String name;

    @Column(name = "areaCode")
    private String areaCode;

    public Street() {}

    public Street(String code, String name, String areaCode) {
        this.code = code;
        this.name = name;
        this.areaCode = areaCode;
    }

    public String getCode() { return code; }
    public void setCode(String code) { this.code = code; }
    public String getName() { return name; }
    public void setName(String name) { this.name = name; }
    public String getAreaCode() { return areaCode; }
    public void setAreaCode(String areaCode) { this.areaCode = areaCode; }
}
复制代码
@Entity
@Table(name = "village")
public class Village {
    @Id
    @Column(name = "code")
    private String code;

    private String name;

    @Column(name = "streetCode")
    private String streetCode;

    public Village() {}

    public Village(String code, String name, String streetCode) {
        this.code = code;
        this.name = name;
        this.streetCode = streetCode;
    }

    public String getCode() { return code; }
    public void setCode(String code) { this.code = code; }
    public String getName() { return name; }
    public void setName(String name) { this.name = name; }
    public String getStreetCode() { return streetCode; }
    public void setStreetCode(String streetCode) { this.streetCode = streetCode; }
}
Machine.java

java

复制代码
@Entity
@Table(name = "equipment")
public class Machine {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;

    @Column(name = "machine_code")
    private String machineCode;

    @Column(name = "machine_name")
    private String machineName;

    private String supplier;

    @Column(name = "supplier_code")
    private String supplierCode;

    @Column(name = "user_name")
    private String userName;

    private String location;

    @Column(name = "created_at")
    private Timestamp createdAt;

    @Column(name = "updated_at")
    private Timestamp updatedAt;

    public Machine() {}

    public Integer getId() { return id; }
    public void setId(Integer id) { this.id = id; }
    public String getMachineCode() { return machineCode; }
    public void setMachineCode(String machineCode) { this.machineCode = machineCode; }
    public String getMachineName() { return machineName; }
    public void setMachineName(String machineName) { this.machineName = machineName; }
    public String getSupplier() { return supplier; }
    public void setSupplier(String supplier) { this.supplier = supplier; }
    public String getSupplierCode() { return supplierCode; }
    public void setSupplierCode(String supplierCode) { this.supplierCode = supplierCode; }
    public String getUserName() { return userName; }
    public void setUserName(String userName) { this.userName = userName; }
    public String getLocation() { return location; }
    public void setLocation(String location) { this.location = location; }
    public Timestamp getCreatedAt() { return createdAt; }
    public void setCreatedAt(Timestamp createdAt) { this.createdAt = createdAt; }
    public Timestamp getUpdatedAt() { return updatedAt; }
    public void setUpdatedAt(Timestamp updatedAt) { this.updatedAt = updatedAt; }
}

3.4 Repository 层

AreaRepository .java

java

复制代码
@Repository
public interface AreaRepository extends JpaRepository<Area, String> {

    List<Area> findByCityCode(String cityCode);
}

其他类似这个，就不写了。

MachineRepository.java

java

复制代码
@Repository
public interface MachineRepository extends JpaRepository<Machine, Integer>, JpaSpecificationExecutor<Machine> {

    @Query("SELECT m FROM Machine m WHERE " +
           "(:locationPrefix IS NULL OR m.location LIKE :locationPrefix) AND " +
           "(:machineCode IS NULL OR m.machineCode LIKE :machineCode) AND " +
           "(:machineName IS NULL OR m.machineName LIKE :machineName) AND " +
           "(:supplier IS NULL OR m.supplier LIKE :supplier) AND " +
           "(:supplierCode IS NULL OR m.supplierCode LIKE :supplierCode)")
    List<Machine> findByConditions(
            @Param("locationPrefix") String locationPrefix,
            @Param("machineCode") String machineCode,
            @Param("machineName") String machineName,
            @Param("supplier") String supplier,
            @Param("supplierCode") String supplierCode,
            Pageable pageable);

    @Query("SELECT COUNT(m) FROM Machine m WHERE " +
           "(:locationPrefix IS NULL OR m.location LIKE :locationPrefix) AND " +
           "(:machineCode IS NULL OR m.machineCode LIKE :machineCode) AND " +
           "(:machineName IS NULL OR m.machineName LIKE :machineName) AND " +
           "(:supplier IS NULL OR m.supplier LIKE :supplier) AND " +
           "(:supplierCode IS NULL OR m.supplierCode LIKE :supplierCode)")
    long countByConditions(
            @Param("locationPrefix") String locationPrefix,
            @Param("machineCode") String machineCode,
            @Param("machineName") String machineName,
            @Param("supplier") String supplier,
            @Param("supplierCode") String supplierCode);
}

3.5 Service 层

RegionService.java
复制代码
@Service
public class RegionService {

    @Autowired
    private ProvinceRepository provinceRepository;

    @Autowired
    private CityRepository cityRepository;

    @Autowired
    private AreaRepository areaRepository;

    @Autowired
    private StreetRepository streetRepository;

    @Autowired
    private VillageRepository villageRepository;

    @Autowired
    private MachineRepository machineRepository;

    @Transactional("sqliteTransactionManager")
    public List<Province> getAllProvinces() {
        return provinceRepository.findAll();
    }

    @Transactional("sqliteTransactionManager")
    public Province getProvinceByCode(String code) {
        return provinceRepository.findByCode(code).orElse(null);
    }

    @Transactional("sqliteTransactionManager")
    public List<City> getCitiesByProvince(String provinceCode) {
        return cityRepository.findByProvinceCode(provinceCode);
    }

    @Transactional("sqliteTransactionManager")
    public List<Area> getAreasByCity(String cityCode) {
        return areaRepository.findByCityCode(cityCode);
    }

    @Transactional("sqliteTransactionManager")
    public List<Street> getStreetsByArea(String areaCode) {
        return streetRepository.findByAreaCode(areaCode);
    }

    @Transactional("sqliteTransactionManager")
    public List<Village> getVillagesByStreet(String streetCode) {
        return villageRepository.findByStreetCode(streetCode);
    }

    @Transactional("mysqlTransactionManager")
    public PageResult<Machine> getMachinesPaged(int page, int size, String locationPrefix,
                                               String machineCode, String machineName,
                                               String supplier, String supplierCode) {
        Pageable pageable = PageRequest.of(page - 1, size);
        List<Machine> data = machineRepository.findByConditions(
                locationPrefix, machineCode, machineName, supplier, supplierCode, pageable);
        long total = machineRepository.countByConditions(
                locationPrefix, machineCode, machineName, supplier, supplierCode);
        return new PageResult<>(data, total, page, size);
    }
}
DeviceService.java

java

复制代码
package com.example.demo.service;

import com.example.demo.entity.Device;
import com.example.demo.repository.DeviceRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.stereotype.Service;

@Service
public class DeviceService {

    @Autowired
    private DeviceRepository deviceRepository;

    public Page<Device> getDevicesByLocation(String locationCode, int page, int size) {
        Pageable pageable = PageRequest.of(page - 1, size);
        return deviceRepository.findByLocationCode(locationCode, pageable);
    }
}

3.6 Controller 层

RegionController.java

java

复制代码
package com.example.demo.controller;

import com.example.demo.entity.Region;
import com.example.demo.service.RegionService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/api/region")
public class RegionController {

    @Autowired
    private RegionService regionService;

    @GetMapping("/provinces")
    public List<Region> getProvinces() {
        return regionService.getProvinces();
    }

    @GetMapping("/children")
    public List<Region> getChildren(@RequestParam String parentCode) {
        return regionService.getChildren(parentCode);
    }

    // 懒加载专用（树节点点击时调用）
    @GetMapping("/lazy")
    public List<Region> getLazyChildren(@RequestParam String parentCode) {
        return regionService.getLazyChildren(parentCode);
    }

    // 获取完整树（可选）
    @GetMapping("/tree")
    public List<Region> getFullTree() {
        return regionService.getFullTree();
    }
}
复制代码
RegionController

java

复制代码
@RestController
@RequestMapping("/api")
public class RegionController {

    @Autowired
    private RegionService regionService;

    @GetMapping("/provinces")
    public List<Province> getAllProvinces() {
        return regionService.getAllProvinces();
    }

    @GetMapping("/provinces/{code}")
    public Province getProvinceByCode(@PathVariable String code) {
        return regionService.getProvinceByCode(code);
    }

    @GetMapping("/provinces/{provinceCode}/cities")
    public List<City> getCitiesByProvince(@PathVariable String provinceCode) {
        return regionService.getCitiesByProvince(provinceCode);
    }

    @GetMapping("/cities/{cityCode}/areas")
    public List<Area> getAreasByCity(@PathVariable String cityCode) {
        return regionService.getAreasByCity(cityCode);
    }

    @GetMapping("/areas/{areaCode}/streets")
    public List<Street> getStreetsByArea(@PathVariable String areaCode) {
        return regionService.getStreetsByArea(areaCode);
    }

    @GetMapping("/streets/{streetCode}/villages")
    public List<Village> getVillagesByStreet(@PathVariable String streetCode) {
        return regionService.getVillagesByStreet(streetCode);
    }

    @GetMapping("/machines")
    public PageResult<Machine> getMachines(
            @RequestParam(defaultValue = "1") int page,
            @RequestParam(defaultValue = "10") int size,
            @RequestParam(required = false) String locationPrefix,
            @RequestParam(required = false) String machineCode,
            @RequestParam(required = false) String machineName,
            @RequestParam(required = false) String supplier,
            @RequestParam(required = false) String supplierCode) {
        return regionService.getMachinesPaged(page, size, locationPrefix, machineCode, machineName, supplier, supplierCode);
    }
}

3.7 跨域配置（解决前后端分离跨域问题）

java

复制代码
@Bean
public CorsFilter corsFilter() {
    CorsConfiguration config = new CorsConfiguration();
    config.setAllowCredentials(true);
    config.addAllowedOriginPattern("*");
    config.addAllowedHeader("*");
    config.addAllowedMethod("*");

    UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
    source.registerCorsConfiguration("/**", config);
    return new CorsFilter(source);
}

四、前端 Vue + Element UI 实现

4.1 初始化 Vue 项目

bash

复制代码
vue create device-manager
cd device-manager
npm install element-ui axios

4.2 封装 API 请求（src/api/index.js）

javascript

复制代码
export default defineConfig({
  plugins: [vue()],
  server: {
    port: 5173,
    proxy: {
      '/api': {
        target: 'http://localhost:9988',
        changeOrigin: true
      }
    }
  }
})

4.3 主页面组件（src/views/DeviceQuery.vue）

vue

复制代码
<template>
  <div class="app">
    <div class="header">设备查询系统</div>
    <div class="container">
      <div class="tree-panel">
        <h3>省/市/区县/镇/村查询</h3>
        <el-input v-model="treeSearch" placeholder="搜索省/市/区县/镇/村" clearable @input="filterTree" />
        <el-tree
          v-loading="treeLoading"
          :data="filteredTreeData"
          :props="treeProps"
          :load="loadNode"
          :default-expanded-keys="expandedKeys"
          :expand-on-click-node="false"
          lazy
          node-key="code"
          @node-click="handleNodeClick"
        />
      </div>
      <div class="table-panel">
        <h3>设备列表 - {{ currentLocationName }} (共 {{ total }} 条)</h3>

        <!-- 搜索条件 -->
        <div class="search-form">
          <el-input v-model="searchForm.machineCode" placeholder="机器码" clearable @keyup.enter="search" />
          <el-input v-model="searchForm.machineName" placeholder="机器名称" clearable @keyup.enter="search" />
          <el-input v-model="searchForm.supplier" placeholder="供应商" clearable @keyup.enter="search" />
          <el-input v-model="searchForm.supplierCode" placeholder="供应商编码" clearable @keyup.enter="search" />
          <el-button type="primary" @click="search">搜索</el-button>
          <el-button @click="reset">重置</el-button>
        </div>

        <el-table :data="equipmentList" border stripe style="width: 100%">
          <el-table-column prop="machineCode" label="机器码" width="150" />
          <el-table-column prop="machineName" label="机器名称" width="150" />
          <el-table-column prop="supplier" label="供应商" width="120" />
          <el-table-column prop="supplierCode" label="供应商编码" width="120" />
          <el-table-column prop="userName" label="用户名" width="100" />
          <el-table-column prop="location" label="位置" />
          <el-table-column prop="createdAt" label="创建时间" width="160" />
        </el-table>
        <el-empty v-if="equipmentList.length === 0 && hasSearched" description="暂无数据" />
        <div class="pagination">
          <el-pagination
            v-model:current-page="currentPage"
            v-model:page-size="pageSize"
            :page-sizes="[10, 20, 50, 100]"
            :total="total"
            layout="total, sizes, prev, pager, next, jumper"
            @size-change="handleSizeChange"
            @current-change="handleCurrentChange"
          />
        </div>
      </div>
    </div>
  </div>
</template>

<script setup>
import { ref, reactive } from 'vue'
import axios from 'axios'
import { ElMessage } from 'element-plus'

const API_BASE = 'http://localhost:9988/api'

const treeData = ref([])
const treeProps = {
  label: 'name',
  children: 'children',
  isLeaf: (data, node) => data.isLeaf === true
}

const currentLocationName = ref('请选择区域')
const currentLocationCode = ref('')
const equipmentList = ref([])
const hasSearched = ref(false)

// 树形搜索
const treeSearch = ref('')
const filteredTreeData = ref([])
const expandedKeys = ref([])
const treeLoading = ref(false)

// 分页参数
const currentPage = ref(1)
const pageSize = ref(10)
const total = ref(0)

// 搜索表单
const searchForm = reactive({
  machineCode: '',
  machineName: '',
  supplier: '',
  supplierCode: ''
})

// 加载省份
const loadProvinces = async () => {
  try {
    const res = await axios.get(`${API_BASE}/provinces`)
    const provinces = res.data.map(p => ({
      code: p.code,
      name: p.name,
      level: 1
    }))
    treeData.value = provinces
    filteredTreeData.value = provinces
  } catch (err) {
    ElMessage.error('加载省份失败')
  }
}

loadProvinces()

// 搜索树节点
const filterTree = async () => {
  const keyword = treeSearch.value.trim()
  if (!keyword) {
    filteredTreeData.value = treeData.value
    expandedKeys.value = []
    return
  }

  treeLoading.value = true

  try {
    const res = await axios.get(`${API_BASE}/dictRegion/search`, {
      params: { keyword }
    })
    filteredTreeData.value = res.data

    const keys = new Set()
    const collectKeys = (nodes) => {
      nodes.forEach(node => {
        keys.add(node.code)
        if (node.children && node.children.length > 0) {
          collectKeys(node.children)
        }
      })
    }
    collectKeys(res.data)
    expandedKeys.value = Array.from(keys)
  } catch (err) {
    console.error('搜索失败:', err)
  } finally {
    treeLoading.value = false
  }
}

// 懒加载子节点
const loadNode = async (node, resolve) => {
  if (node.level === 0) return

  const parentCode = node.data.code
  const level = node.level + 1
  let url = ''

  if (level === 2) {
    url = `${API_BASE}/provinces/${parentCode}/cities`
  } else if (level === 3) {
    url = `${API_BASE}/cities/${parentCode}/areas`
  } else if (level === 4) {
    url = `${API_BASE}/areas/${parentCode}/streets`
  } else if (level === 5) {
    url = `${API_BASE}/streets/${parentCode}/villages`
  } else if (level === 6) {
    url = `${API_BASE}/villages/${parentCode}/children`
  }

  try {
    const res = await axios.get(url)
    const data = res.data.map(item => ({
      code: item.code,
      name: item.name,
      level,
      isLeaf: level >= 5
    }))
    resolve(data)
  } catch (err) {
    resolve([])
  }
}

// 加载设备数据（带分页和搜索）
const loadMachines = async () => {
  try {
    const params = {
      page: currentPage.value,
      size: pageSize.value
    }
    if (currentLocationCode.value) {
      params.locationPrefix = currentLocationCode.value
    }
    if (searchForm.machineCode) {
      params.machineCode = searchForm.machineCode
    }
    if (searchForm.machineName) {
      params.machineName = searchForm.machineName
    }
    if (searchForm.supplier) {
      params.supplier = searchForm.supplier
    }
    if (searchForm.supplierCode) {
      params.supplierCode = searchForm.supplierCode
    }
    const res = await axios.get(`${API_BASE}/machines`, { params })
    equipmentList.value = res.data.data
    total.value = res.data.total
    hasSearched.value = true
  } catch (err) {
    console.error('查询设备失败:', err)
    ElMessage.error('查询设备失败')
    equipmentList.value = []
  }
}

// 点击节点查询设备
const handleNodeClick = async (data) => {
  currentLocationName.value = data.name
  currentLocationCode.value = data.code
  currentPage.value = 1
  await loadMachines()
}

// 搜索
const search = () => {
  currentPage.value = 1
  loadMachines()
}

// 重置
const reset = () => {
  searchForm.machineCode = ''
  searchForm.machineName = ''
  searchForm.supplier = ''
  searchForm.supplierCode = ''
  currentPage.value = 1
  loadMachines()
}

// 页码改变
const handleCurrentChange = async (page) => {
  currentPage.value = page
  await loadMachines()
}

// 每页条数改变
const handleSizeChange = async (size) => {
  pageSize.value = size
  currentPage.value = 1
  await loadMachines()
}
</script>

<style scoped>
.app { height: 100vh; display: flex; flex-direction: column; }
.header { padding: 15px; background: #409EFF; color: white; font-size: 18px; }
.container { flex: 1; display: flex; overflow: hidden; }
.tree-panel { width: 300px; border-right: 1px solid #e0e0e0; padding: 20px; overflow-y: auto; }
.tree-panel .el-input { margin-bottom: 15px; }
.table-panel { flex: 1; padding: 20px; overflow-y: auto; display: flex; flex-direction: column; }
h3 { margin-bottom: 15px; color: #333; }
.search-form { display: flex; gap: 10px; margin-bottom: 15px; flex-wrap: wrap; }
.search-form .el-input { width: 150px; }
.pagination { margin-top: 20px; display: flex; justify-content: flex-end; }
</style>

五、运行与测试

  1. 启动后端 Spring Boot 应用（默认端口 9988）。

  2. 启动前端 Vue 项目：npm run serve（默认端口 8080可能冲突，可修改前端端口为 5173，并在跨域配置中允许）。

  3. 访问 http://localhost:5173，左侧展示省级树，点击展开子级，右侧展示该区域设备列表。

六、扩展建议

  • 搜索功能：可在后端增加接口，根据关键字匹配设备名称或机器码，并支持分页。

  • 权限控制：可根据用户角色限制可见区域。

通过以上步骤，即可完整实现图中的"设备查询系统"功能。

相关推荐
92year1 小时前
从零写一个MCP Server：让Claude Code直接操作你的数据库
typescript·sqlite·ai agent·mcp·claude code
码界筑梦坊2 小时前
282-基于Python的豆瓣音乐可视化分析推荐系统
开发语言·python·信息可视化·数据分析·flask·vue
码哥字节4 小时前
升到 Spring Boot 4.1，虚拟线程开了，HikariCP 连接池却崩了
java·springboot·claude code
ggabb4 小时前
中英诗歌对比：各有千秋，中文诗词独具极致美学与思想高度
sqlite
chushiyunen6 小时前
滑块验证(滑动验证)
vue
abcy0712136 小时前
【无标题】
数据库·sqlite
Dxy12393102168 小时前
Django 模型查询中的数据库连接池配置指南
数据库·django·sqlite
极光代码工作室19 小时前
基于SpringBoot的校园论坛系统
java·springboot·web开发·后端开发
源码宝2 天前
MES系统源码：Java8 + SpringBoot2.7 + MySQL8 + Redis，后端源码清爽易扩展
java·后端·源码·springboot·mes系统·源码二开·mes源码
热门推荐
01GitHub 镜像站点02【AI】2026 年具身智能模型和世界模型总结03【踩坑记录 | 第一篇】微软商店无法使用时，如何手动安装 OpenAI Codex？附`.msix`文件系统错误解决方法042026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf05Codex 接入 DeepSeek API 完整配置文档06CC-Switch & Claude 基于 Linux 服务器安装使用指南07裂开！ChatGPT 居然开始要手机号验证，附详细解决方法08DeepSeek V4 + Claude Code thinking mode 400 错误修复方案09几个好用的ip纯净度检测网站10API Key 登录 Codex 也能用插件了，还支持会话删除和导出
