WPF 获取一个控件某个依赖属性的默认绑定方式

参考:WPF控件的Binding.Mode=Default的默认值是什么?-腾讯云开发者社区-腾讯云

另外这里给一个案例,

我想通过:

cs 复制代码
FieldInfo field = typeof(RadNumericUpDown).GetField("ValueProperty",
    BindingFlags.Public | BindingFlags.Static);

结果发现field为null,

var a = new RadNumericUpDown();

var b = a.Value;

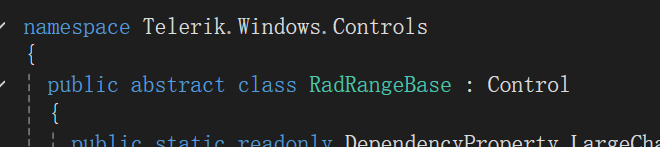

通过new一个新的RadNumericUpDown的对象,通过F12查看Value定义,发现定义在基类上:

cs 复制代码
public double? Value
 {
   get => (double?) this.GetValue(RadRangeBase.ValueProperty);
   set => this.SetValue(RadRangeBase.ValueProperty, (object) value);
 }

然后把代码改为:

cs 复制代码
// 从基类 RadRangeBase 获取
var field = typeof(RadRangeBase).GetField("ValueProperty",
    BindingFlags.Public | BindingFlags.Static);

if (field != null)
{
    var valueProperty = field.GetValue(null) as DependencyProperty;
    // 关键:将 metadata 转换为 FrameworkPropertyMetadata

    //PropertyMetadata是FrameworkPropertyMetadata的基类
    var metadata = valueProperty.GetMetadata(typeof(RadNumericUpDown))
        as FrameworkPropertyMetadata;

    if (metadata != null)
    {
        Console.WriteLine($"BindsTwoWayByDefault: {metadata.BindsTwoWayByDefault}");
        // 输出应该是: BindsTwoWayByDefault: True
    }

    //Console.WriteLine($"BindsTwoWayByDefault: {metadata.BindsTwoWayByDefault}");
}
