自定义starter 可以导入SpringBoot直接使用

自定义一个空的Maven项目

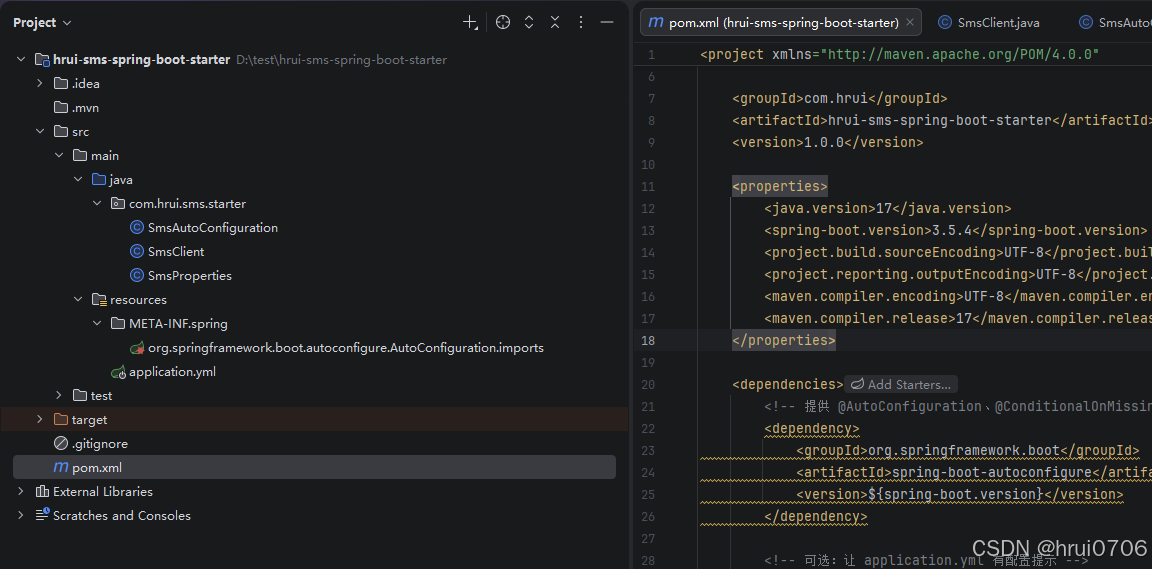

项目结构

依赖

复制代码

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>

    <groupId>com.hrui</groupId>
    <artifactId>hrui-sms-spring-boot-starter</artifactId>
    <version>1.0.0</version>

    <properties>
        //UTF8设置 为了打包时候编码不冲突
        <java.version>17</java.version>
        <spring-boot.version>3.5.4</spring-boot.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <maven.compiler.encoding>UTF-8</maven.compiler.encoding>
        <maven.compiler.release>17</maven.compiler.release>
    </properties>

    <dependencies>
        <!-- 提供 @AutoConfiguration、@ConditionalOnMissingBean 等注解 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-autoconfigure</artifactId>
            <version>${spring-boot.version}</version>
        </dependency>

        <!-- 可选：让 application.yml 有配置提示 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <version>${spring-boot.version}</version>
            <optional>true</optional>
        </dependency>
    </dependencies>

</project>

三个类

复制代码

package com.hrui.sms.starter;

import org.springframework.boot.autoconfigure.AutoConfiguration;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;

@AutoConfiguration
@EnableConfigurationProperties(SmsProperties.class)
public class SmsAutoConfiguration {

    @Bean
    @ConditionalOnMissingBean
    public SmsClient smsClient(SmsProperties properties) {
        return new SmsClient(properties);
    }
}

package com.hrui.sms.starter;

public class SmsClient {

    private final SmsProperties properties;

    public SmsClient(SmsProperties properties) {
        this.properties = properties;
    }

    public void send(String phone, String content) {
        System.out.println("短信供应商：" + properties.getProvider());
        System.out.println("发送短信：" + phone + " -> " + content);
    }
}

package com.hrui.sms.starter;

import org.springframework.boot.context.properties.ConfigurationProperties;

@ConfigurationProperties(prefix = "hrui.sms")
public class SmsProperties {

    /**
     * 短信供应商
     */
    private String provider = "default";

    /**
     * accessKey
     */
    private String accessKey;

    /**
     * secretKey
     */
    private String secretKey;

    public String getProvider() {
        return provider;
    }

    public void setProvider(String provider) {
        this.provider = provider;
    }

    public String getAccessKey() {
        return accessKey;
    }

    public void setAccessKey(String accessKey) {
        this.accessKey = accessKey;
    }

    public String getSecretKey() {
        return secretKey;
    }

    public void setSecretKey(String secretKey) {
        this.secretKey = secretKey;
    }
}

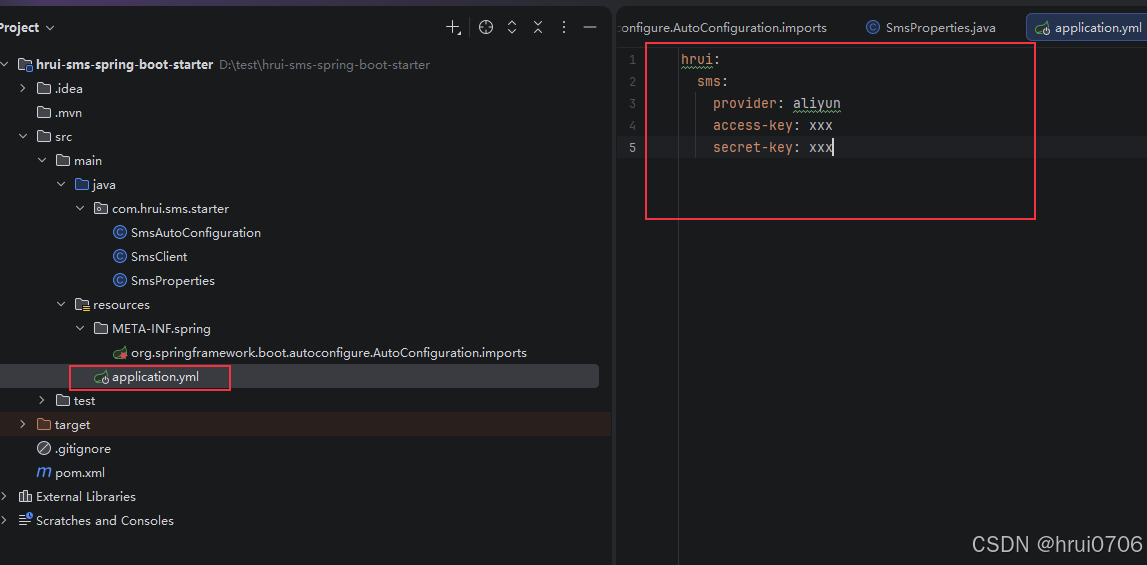

application.yml

resources下创建 META-INF 再创建spring包

创建

复制代码

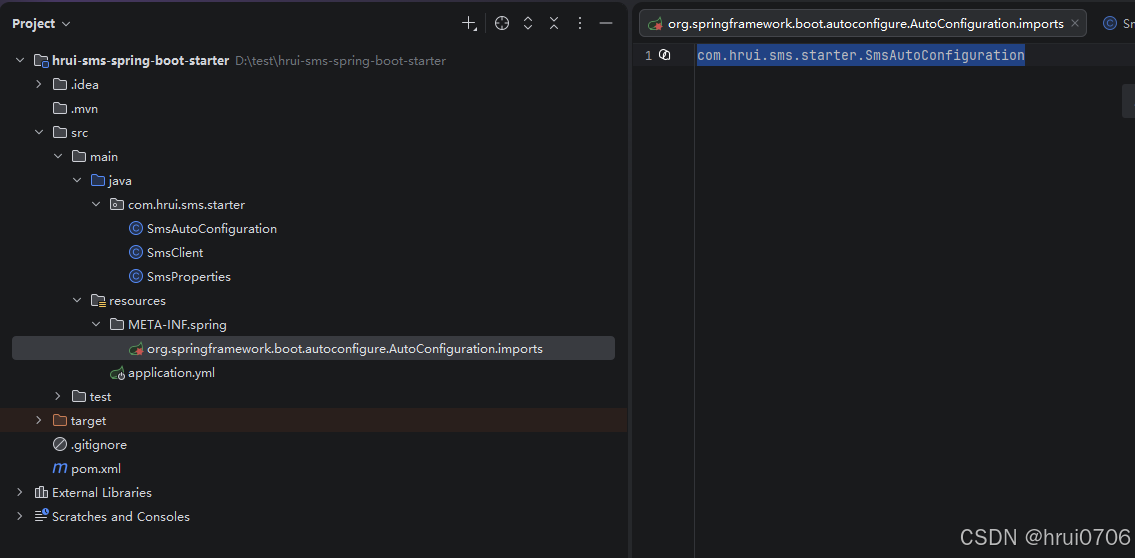

org.springframework.boot.autoconfigure.AutoConfiguration.imports文件

内部写入

复制代码

com.hrui.sms.starter.SmsAutoConfiguration

mvn clean install 打包

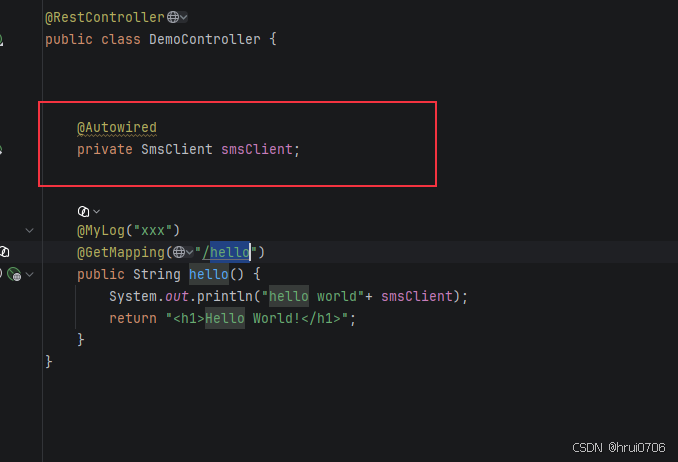

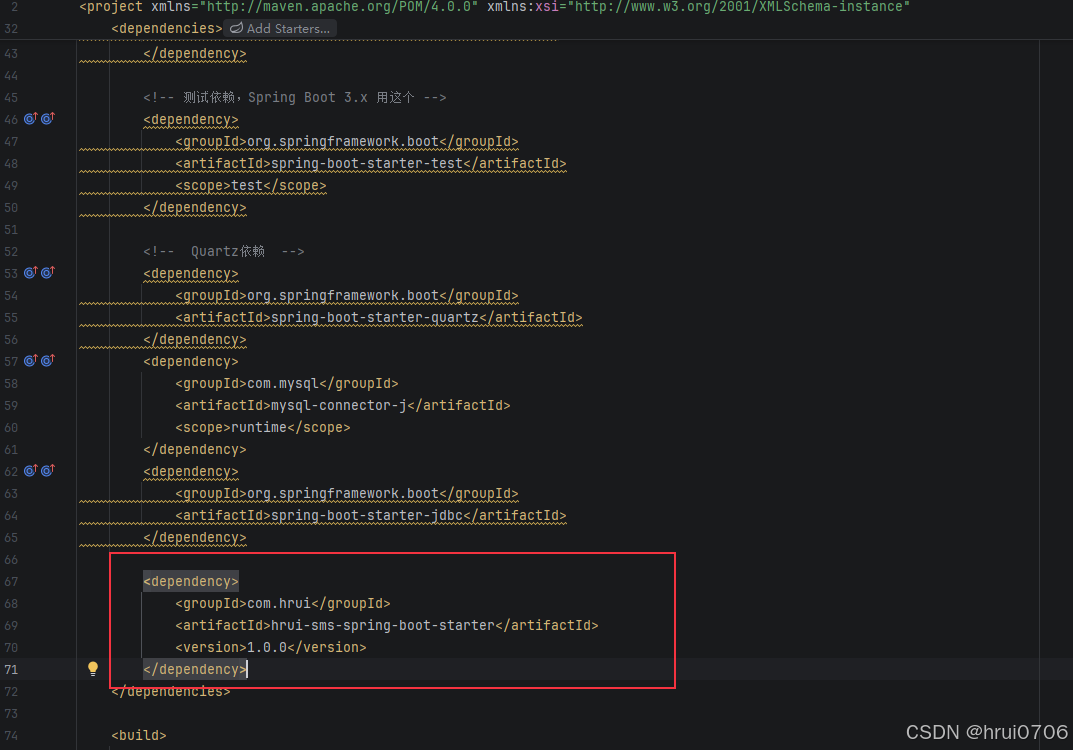

在其他SpringBoot中引入

就可以自动装配了

Spring Boot 项目启动时，会从 整个 classpath 里找所有 jar 包中的这个文件，然后把里面的自动配置类都读出来。Spring Boot 官方文档也说明，发布的 jar 中可以通过这个 AutoConfiguration.imports 文件声明 auto-configuration class，每行一个类名

spring-boot-autoconfigure.jar

└── META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports

├── DataSourceAutoConfiguration

├── RedisAutoConfiguration

└── ...

你的 hrui-sms-spring-boot-starter.jar

└── META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports

└── com.hrui.sms.starter.SmsAutoConfiguration

读取 Spring Boot 自己的 AutoConfiguration.imports

读取你 starter 里的 AutoConfiguration.imports

读取其他 starter 里的 AutoConfiguration.imports

最终自动配置类列表
