单片机USB虚拟串口实验

崇山峻岭之间2026-06-07 9:33

单片机 ：STM32F407

开发板：DMF407电机开发板

平台：keil V5.31

HSE 为8MHZ

HSI为16MHZ

一、初始化USB

复制代码
USBD_Init(&USBD_Device, &VCP_Desc, DEVICE_FS);                      /* 初始化USB */

typedef struct _USBD_HandleTypeDef
{
  uint8_t                 id;
  uint32_t                dev_config;
  uint32_t                dev_default_config;
  uint32_t                dev_config_status;
  USBD_SpeedTypeDef       dev_speed;
  USBD_EndpointTypeDef    ep_in[16];
  USBD_EndpointTypeDef    ep_out[16];
  __IO uint32_t           ep0_state;
  uint32_t                ep0_data_len;
  __IO uint8_t            dev_state;
  __IO uint8_t            dev_old_state;
  uint8_t                 dev_address;
  uint8_t                 dev_connection_status;
  uint8_t                 dev_test_mode;
  uint32_t                dev_remote_wakeup;
  uint8_t                 ConfIdx;

  USBD_SetupReqTypedef    request;
  USBD_DescriptorsTypeDef *pDesc;
  USBD_ClassTypeDef       *pClass;
  void                    *pClassData;
  void                    *pUserData;
  void                    *pData;
  void                    *pBosDesc;
  void                    *pConfDesc;
} USBD_HandleTypeDef;

USBD_HandleTypeDef USBD_Device;         /* USB Device处理结构体 */

/* Private variables --------------------------------------------------------- */
USBD_DescriptorsTypeDef VCP_Desc = {
  USBD_VCP_DeviceDescriptor,
  USBD_VCP_LangIDStrDescriptor,
  USBD_VCP_ManufacturerStrDescriptor,
  USBD_VCP_ProductStrDescriptor,
  USBD_VCP_SerialStrDescriptor,
  USBD_VCP_ConfigStrDescriptor,
  USBD_VCP_InterfaceStrDescriptor,
};

/* USB Device descriptors structure */
typedef struct
{
  uint8_t *(*GetDeviceDescriptor)(USBD_SpeedTypeDef speed, uint16_t *length);
  uint8_t *(*GetLangIDStrDescriptor)(USBD_SpeedTypeDef speed, uint16_t *length);
  uint8_t *(*GetManufacturerStrDescriptor)(USBD_SpeedTypeDef speed, uint16_t *length);
  uint8_t *(*GetProductStrDescriptor)(USBD_SpeedTypeDef speed, uint16_t *length);
  uint8_t *(*GetSerialStrDescriptor)(USBD_SpeedTypeDef speed, uint16_t *length);
  uint8_t *(*GetConfigurationStrDescriptor)(USBD_SpeedTypeDef speed, uint16_t *length);
  uint8_t *(*GetInterfaceStrDescriptor)(USBD_SpeedTypeDef speed, uint16_t *length);
#if (USBD_CLASS_USER_STRING_DESC == 1)
  uint8_t *(*GetUserStrDescriptor)(USBD_SpeedTypeDef speed, uint8_t idx, uint16_t *length);
#endif
#if ((USBD_LPM_ENABLED == 1U) || (USBD_CLASS_BOS_ENABLED == 1))
  uint8_t *(*GetBOSDescriptor)(USBD_SpeedTypeDef speed, uint16_t *length);
#endif
} USBD_DescriptorsTypeDef;

USBD_StatusTypeDef USBD_Init(USBD_HandleTypeDef *pdev,
                             USBD_DescriptorsTypeDef *pdesc, uint8_t id)
{
  USBD_StatusTypeDef ret;

  /* Check whether the USB Host handle is valid */
  if (pdev == NULL)
  {
#if (USBD_DEBUG_LEVEL > 1U)
    USBD_ErrLog("Invalid Device handle");
#endif
    return USBD_FAIL;
  }

  /* Unlink previous class resources */
  pdev->pClass = NULL;
  pdev->pUserData = NULL;
  pdev->pConfDesc = NULL;

  /* Assign USBD Descriptors */
  if (pdesc != NULL)
  {
    pdev->pDesc = pdesc;
  }

  /* Set Device initial State */
  pdev->dev_state = USBD_STATE_DEFAULT;
  pdev->id = id;

  /* Initialize low level driver */
  ret = USBD_LL_Init(pdev);

  return ret;
}

USBD_StatusTypeDef USBD_LL_Init(USBD_HandleTypeDef *pdev)
{
    if (pdev->id == DEVICE_FS)
    {
        g_pcd_usb_otg_fs.pData = pdev;                          /* g_pcd_usb_otg_fs的pData指向pdev */
        pdev->pData = &g_pcd_usb_otg_fs;                        /* pdev的pData指向g_pcd_usb_otg_fs */

        g_pcd_usb_otg_fs.Instance = USB_OTG_FS;                 /* 使用USB OTG FS*/
        g_pcd_usb_otg_fs.Init.dev_endpoints = 4;                /* 端点数为4 */
        g_pcd_usb_otg_fs.Init.speed = PCD_SPEED_FULL;           /* USB全速(12Mbps) */
        g_pcd_usb_otg_fs.Init.dma_enable = DISABLE;             /* 不使能DMA */
        g_pcd_usb_otg_fs.Init.phy_itface = PCD_PHY_EMBEDDED;    /* 使用内部PHY */
        g_pcd_usb_otg_fs.Init.Sof_enable = DISABLE;             /* 不使能SOF中断 */
        g_pcd_usb_otg_fs.Init.low_power_enable = DISABLE;       /* 不使能低功耗模式 */
        g_pcd_usb_otg_fs.Init.lpm_enable = DISABLE;             /* 不使能连接电源管理 */
        g_pcd_usb_otg_fs.Init.vbus_sensing_enable = DISABLE;    /* 不使能VBUS检测 */
        g_pcd_usb_otg_fs.Init.use_dedicated_ep1 = DISABLE;      /* 禁止EP1 dedicated中断 */

        HAL_PCD_Init(&g_pcd_usb_otg_fs);

        HAL_PCDEx_SetRxFiFo(&g_pcd_usb_otg_fs, 0x80);           /* 设置接收FIFO大小为0X80(128字节) */
        HAL_PCDEx_SetTxFiFo(&g_pcd_usb_otg_fs, 0, 0x40);        /* 设置发送FIFO 0的大小为0X40(64字节) */
        HAL_PCDEx_SetTxFiFo(&g_pcd_usb_otg_fs, 1, 0x80);        /* 设置发送FIFO 1的大小为0X80(128字节) */
    }

    return USBD_OK;
}

HAL_StatusTypeDef HAL_PCD_Init(PCD_HandleTypeDef *hpcd)
{
  USB_OTG_GlobalTypeDef *USBx;
  uint8_t i;

  /* Check the PCD handle allocation */
  if (hpcd == NULL)
  {
    return HAL_ERROR;
  }

  /* Check the parameters */
  assert_param(IS_PCD_ALL_INSTANCE(hpcd->Instance));

  USBx = hpcd->Instance;

  if (hpcd->State == HAL_PCD_STATE_RESET)
  {
    /* Allocate lock resource and initialize it */
    hpcd->Lock = HAL_UNLOCKED;

#if (USE_HAL_PCD_REGISTER_CALLBACKS == 1U)
    hpcd->SOFCallback = HAL_PCD_SOFCallback;
    hpcd->SetupStageCallback = HAL_PCD_SetupStageCallback;
    hpcd->ResetCallback = HAL_PCD_ResetCallback;
    hpcd->SuspendCallback = HAL_PCD_SuspendCallback;
    hpcd->ResumeCallback = HAL_PCD_ResumeCallback;
    hpcd->ConnectCallback = HAL_PCD_ConnectCallback;
    hpcd->DisconnectCallback = HAL_PCD_DisconnectCallback;
    hpcd->DataOutStageCallback = HAL_PCD_DataOutStageCallback;
    hpcd->DataInStageCallback = HAL_PCD_DataInStageCallback;
    hpcd->ISOOUTIncompleteCallback = HAL_PCD_ISOOUTIncompleteCallback;
    hpcd->ISOINIncompleteCallback = HAL_PCD_ISOINIncompleteCallback;
    hpcd->LPMCallback = HAL_PCDEx_LPM_Callback;
    hpcd->BCDCallback = HAL_PCDEx_BCD_Callback;

    if (hpcd->MspInitCallback == NULL)
    {
      hpcd->MspInitCallback = HAL_PCD_MspInit;
    }

    /* Init the low level hardware */
    hpcd->MspInitCallback(hpcd);
#else
    /* Init the low level hardware : GPIO, CLOCK, NVIC... */
    HAL_PCD_MspInit(hpcd);
#endif /* (USE_HAL_PCD_REGISTER_CALLBACKS) */
  }

  hpcd->State = HAL_PCD_STATE_BUSY;

  /* Disable DMA mode for FS instance */
  if ((USBx->CID & (0x1U << 8)) == 0U)
  {
    hpcd->Init.dma_enable = 0U;
  }

  /* Disable the Interrupts */
  __HAL_PCD_DISABLE(hpcd);

  /*Init the Core (common init.) */
  if (USB_CoreInit(hpcd->Instance, hpcd->Init) != HAL_OK)
  {
    hpcd->State = HAL_PCD_STATE_ERROR;
    return HAL_ERROR;
  }

  /* Force Device Mode*/
  (void)USB_SetCurrentMode(hpcd->Instance, USB_DEVICE_MODE);

  /* Init endpoints structures */
  for (i = 0U; i < hpcd->Init.dev_endpoints; i++)
  {
    /* Init ep structure */
    hpcd->IN_ep[i].is_in = 1U;
    hpcd->IN_ep[i].num = i;
    hpcd->IN_ep[i].tx_fifo_num = i;
    /* Control until ep is activated */
    hpcd->IN_ep[i].type = EP_TYPE_CTRL;
    hpcd->IN_ep[i].maxpacket = 0U;
    hpcd->IN_ep[i].xfer_buff = 0U;
    hpcd->IN_ep[i].xfer_len = 0U;
  }

  for (i = 0U; i < hpcd->Init.dev_endpoints; i++)
  {
    hpcd->OUT_ep[i].is_in = 0U;
    hpcd->OUT_ep[i].num = i;
    /* Control until ep is activated */
    hpcd->OUT_ep[i].type = EP_TYPE_CTRL;
    hpcd->OUT_ep[i].maxpacket = 0U;
    hpcd->OUT_ep[i].xfer_buff = 0U;
    hpcd->OUT_ep[i].xfer_len = 0U;
  }

  /* Init Device */
  if (USB_DevInit(hpcd->Instance, hpcd->Init) != HAL_OK)
  {
    hpcd->State = HAL_PCD_STATE_ERROR;
    return HAL_ERROR;
  }

  hpcd->USB_Address = 0U;
  hpcd->State = HAL_PCD_STATE_READY;
  #if defined(STM32F446xx) || defined(STM32F469xx) || defined(STM32F479xx) || defined(STM32F412Zx) || defined(STM32F412Vx) || defined(STM32F412Rx) || defined(STM32F412Cx) || defined(STM32F413xx) || defined(STM32F423xx)
  /* Activate LPM */
  if (hpcd->Init.lpm_enable == 1U)
  {
    (void)HAL_PCDEx_ActivateLPM(hpcd);
  }
#endif /* defined(STM32F446xx) || defined(STM32F469xx) || defined(STM32F479xx) || defined(STM32F412Zx) || defined(STM32F412Vx) || defined(STM32F412Rx) || defined(STM32F412Cx) || defined(STM32F413xx) || defined(STM32F423xx) */
  (void)USB_DevDisconnect(hpcd->Instance);

  return HAL_OK;
}

void HAL_PCD_MspInit(PCD_HandleTypeDef *hpcd)
{
    GPIO_InitTypeDef gpio_init_struct = {0};

    if (hpcd->Instance == USB_OTG_FS)
    {

        __HAL_RCC_GPIOA_CLK_ENABLE();                       /* 使能GPIOA时钟 */
        gpio_init_struct.Pin = GPIO_PIN_11 | GPIO_PIN_12;
        gpio_init_struct.Mode = GPIO_MODE_AF_PP;            /* 复用 */
        gpio_init_struct.Pull = GPIO_NOPULL;                /* 浮空 */
        gpio_init_struct.Speed = GPIO_SPEED_FREQ_VERY_HIGH; /* 高速 */
        gpio_init_struct.Alternate = GPIO_AF10_OTG_FS;      /* 复用为OTG_FS */
        HAL_GPIO_Init(GPIOA, &gpio_init_struct);            /* 初始化PA11和PA12引脚 */

        __HAL_RCC_USB_OTG_FS_CLK_ENABLE();                  /* 使能OTG FS时钟 */

        HAL_NVIC_SetPriority(OTG_FS_IRQn, 1, 0);            /* 优先级设置为抢占1,子优先级0 */
        HAL_NVIC_EnableIRQ(OTG_FS_IRQn);                    /* 使能OTG FS中断 */
    }
    else if (hpcd->Instance == USB_OTG_HS)
    {
        /* USB OTG HS本例程没用到,故不做处理 */
    }
}

二、添加类

复制代码
USBD_RegisterClass(&USBD_Device, USBD_CDC_CLASS);                   /* 添加类 */

#define USBD_CDC_CLASS &USBD_CDC

/* CDC interface class callbacks structure */
USBD_ClassTypeDef  USBD_CDC =
{
  USBD_CDC_Init,
  USBD_CDC_DeInit,
  USBD_CDC_Setup,
  NULL,                 /* EP0_TxSent, */
  USBD_CDC_EP0_RxReady,
  USBD_CDC_DataIn,
  USBD_CDC_DataOut,
  NULL,
  NULL,
  NULL,
  USBD_CDC_GetHSCfgDesc,
  USBD_CDC_GetFSCfgDesc,
  USBD_CDC_GetOtherSpeedCfgDesc,
  USBD_CDC_GetDeviceQualifierDescriptor,
};

typedef struct _Device_cb
{
  uint8_t (*Init)(struct _USBD_HandleTypeDef *pdev, uint8_t cfgidx);
  uint8_t (*DeInit)(struct _USBD_HandleTypeDef *pdev, uint8_t cfgidx);
  /* Control Endpoints*/
  uint8_t (*Setup)(struct _USBD_HandleTypeDef *pdev, USBD_SetupReqTypedef  *req);
  uint8_t (*EP0_TxSent)(struct _USBD_HandleTypeDef *pdev);
  uint8_t (*EP0_RxReady)(struct _USBD_HandleTypeDef *pdev);
  /* Class Specific Endpoints*/
  uint8_t (*DataIn)(struct _USBD_HandleTypeDef *pdev, uint8_t epnum);
  uint8_t (*DataOut)(struct _USBD_HandleTypeDef *pdev, uint8_t epnum);
  uint8_t (*SOF)(struct _USBD_HandleTypeDef *pdev);
  uint8_t (*IsoINIncomplete)(struct _USBD_HandleTypeDef *pdev, uint8_t epnum);
  uint8_t (*IsoOUTIncomplete)(struct _USBD_HandleTypeDef *pdev, uint8_t epnum);

  uint8_t  *(*GetHSConfigDescriptor)(uint16_t *length);
  uint8_t  *(*GetFSConfigDescriptor)(uint16_t *length);
  uint8_t  *(*GetOtherSpeedConfigDescriptor)(uint16_t *length);
  uint8_t  *(*GetDeviceQualifierDescriptor)(uint16_t *length);
#if (USBD_SUPPORT_USER_STRING_DESC == 1U)
  uint8_t  *(*GetUsrStrDescriptor)(struct _USBD_HandleTypeDef *pdev, uint8_t index,  uint16_t *length);
#endif

} USBD_ClassTypeDef;

USBD_StatusTypeDef USBD_RegisterClass(USBD_HandleTypeDef *pdev, USBD_ClassTypeDef *pclass)
{
  uint16_t len = 0U;

  if (pclass == NULL)
  {
#if (USBD_DEBUG_LEVEL > 1U)
    USBD_ErrLog("Invalid Class handle");
#endif
    return USBD_FAIL;
  }

  /* link the class to the USB Device handle */
  pdev->pClass = pclass;

  /* Get Device Configuration Descriptor */
#ifdef USE_USB_HS
  if (pdev->pClass->GetHSConfigDescriptor != NULL)
  {
    pdev->pConfDesc = (void *)pdev->pClass->GetHSConfigDescriptor(&len);
  }
#else /* Default USE_USB_FS */
  if (pdev->pClass->GetFSConfigDescriptor != NULL)
  {
    pdev->pConfDesc = (void *)pdev->pClass->GetFSConfigDescriptor(&len);
  }
#endif /* USE_USB_FS */

  return USBD_OK;
}

三、添加回调函数

复制代码
USBD_CDC_RegisterInterface(&USBD_Device, &USBD_CDC_fops);           /* 为MSC类添加回调函数 */

/* 虚拟串口配置函数(供USB内核调用) */
USBD_CDC_ItfTypeDef USBD_CDC_fops =
{
    CDC_Itf_Init,
    CDC_Itf_DeInit,
    CDC_Itf_Control,
    CDC_Itf_Receive
};

typedef struct _USBD_CDC_Itf
{
  int8_t (* Init)(void);
  int8_t (* DeInit)(void);
  int8_t (* Control)(uint8_t cmd, uint8_t *pbuf, uint16_t length);
  int8_t (* Receive)(uint8_t *Buf, uint32_t *Len);
  int8_t (* TransmitCplt)(uint8_t *Buf, uint32_t *Len, uint8_t epnum);
} USBD_CDC_ItfTypeDef;

uint8_t USBD_CDC_RegisterInterface(USBD_HandleTypeDef *pdev,
                                   USBD_CDC_ItfTypeDef *fops)
{
  if (fops == NULL)
  {
    return (uint8_t)USBD_FAIL;
  }

  pdev->pUserData = fops;

  return (uint8_t)USBD_OK;
}

四、开启ＵＳＢ

复制代码
USBD_Start(&USBD_Device);                                           /* 开启USB */

USBD_StatusTypeDef USBD_Start(USBD_HandleTypeDef *pdev)
{
  /* Start the low level driver  */
  return USBD_LL_Start(pdev);
}

USBD_StatusTypeDef USBD_LL_Start(USBD_HandleTypeDef *pdev)
{
    HAL_StatusTypeDef hal_status = HAL_OK;
    USBD_StatusTypeDef usb_status = USBD_OK;

    hal_status = HAL_PCD_Start(pdev->pData);

    usb_status =  USBD_Get_USB_Status(hal_status);

    return usb_status;
}

USBD_StatusTypeDef USBD_Get_USB_Status(HAL_StatusTypeDef hal_status)
{
    USBD_StatusTypeDef usb_status = USBD_OK;

    switch (hal_status)
    {
        case HAL_OK :
            usb_status = USBD_OK;
            break;

        case HAL_ERROR :
            usb_status = USBD_FAIL;
            break;

        case HAL_BUSY :
            usb_status = USBD_BUSY;
            break;

        case HAL_TIMEOUT :
            usb_status = USBD_FAIL;
            break;

        default :
            usb_status = USBD_FAIL;
            break;
    }

    return usb_status;
}

五、延时

复制代码
delay_ms(1800);

六、串口处理

复制代码
 while (1)
    {
        delay_ms(1);
        if (usbstatus != g_device_state)    /* USB连接状态发生了改变 */
        {
            usbstatus = g_device_state;     /* 记录新的状态 */

            if (usbstatus == 1)
            {
                lcd_show_string(30, 110, 200, 16, 16, "USB Connected    ", RED); /* 提示USB连接成功 */
                LED1(0);    /* 绿灯亮 */
            }
            else
            {
                lcd_show_string(30, 110, 200, 16, 16, "USB disConnected ", RED); /* 提示USB断开 */
                LED1(1);    /* 绿灯灭 */
            }
        }

        if (g_usb_usart_rx_sta & 0x8000)
        {
            len = g_usb_usart_rx_sta & 0x3FFF;  /* 得到此次接收到的数据长度 */
            usb_printf("\r\n您发送的消息长度为:%d\r\n\r\n", len);
            cdc_vcp_data_tx(g_usb_usart_rx_buffer, len);
            usb_printf("\r\n\r\n");             /* 插入换行 */
            g_usb_usart_rx_sta = 0;
        }
        else
        {
            times++;

            if (times % 5000 == 0)
            {
                usb_printf("\r\nSTM32开发板USB虚拟串口实验\r\n");
                usb_printf("正点原子@ALIENTEK\r\n\r\n");
            }

            if (times % 200 == 0)
            {
                usb_printf("请输入数据,以回车键结束\r\n");
            }

            if (times % 30 == 0)
            {
                LED0_TOGGLE();  /* 闪烁LED,提示系统正在运行 */
            }

            delay_ms(10);
        }
    }

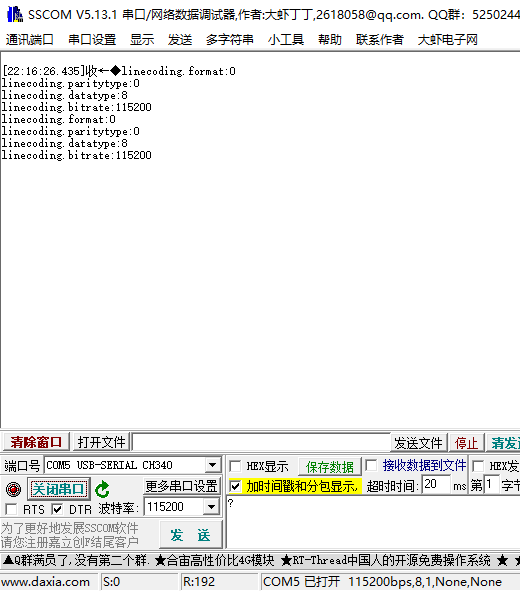

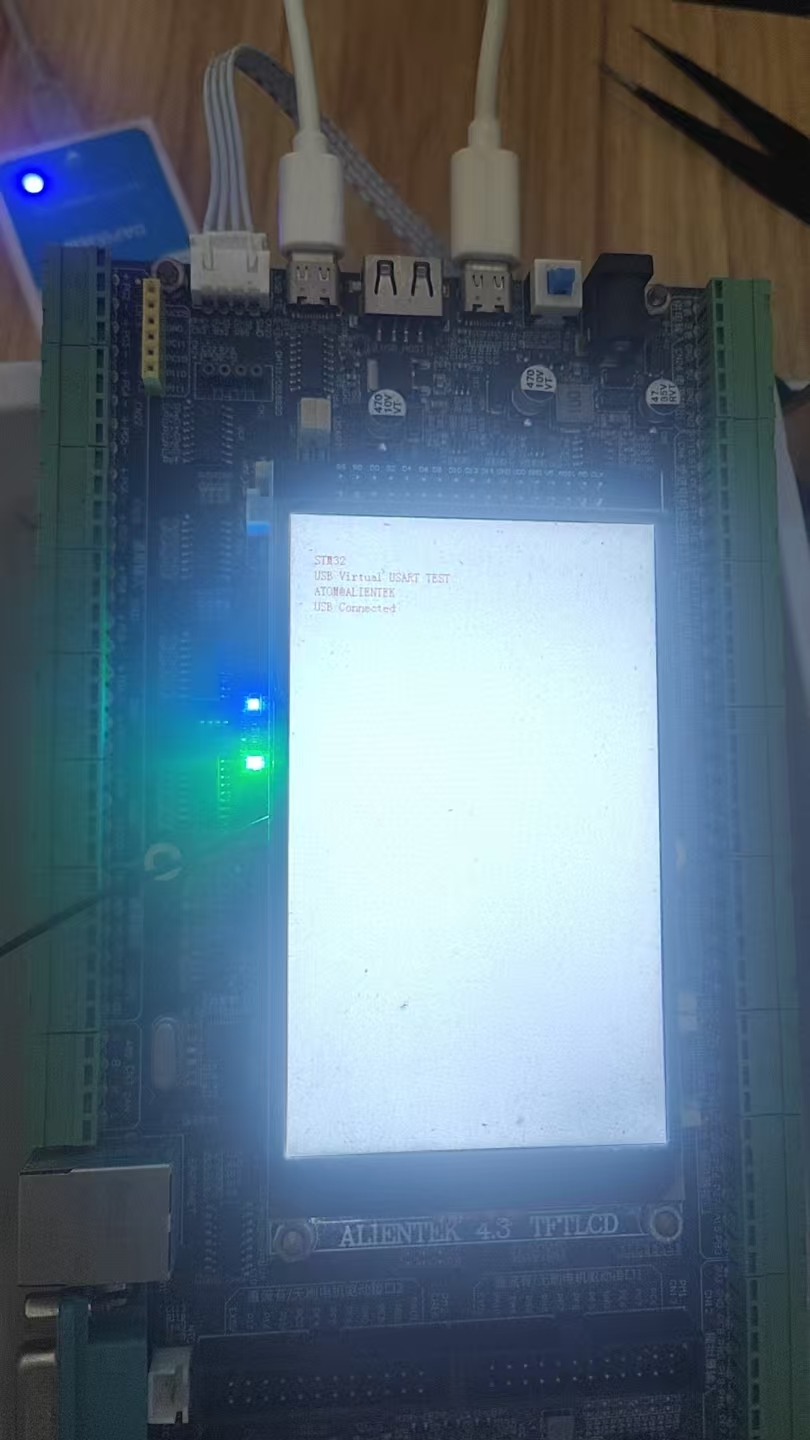

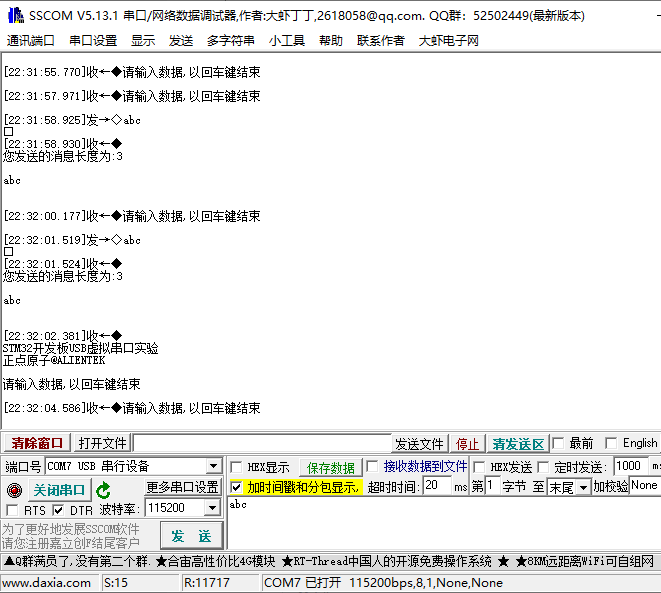

七、测试结果：

相关推荐
FreakStudio5 天前
W55MH32L-EVB 上手测评：硬件 TCP/IP 加持的以太网单片机，MicroPython 零门槛开发
python·单片机·嵌入式·大学生·面向对象·并行计算·电子diy·电子计算机
✎ ﹏梦醒͜ღ҉繁华落℘10 天前
单片机基础知识---stm32单片机的优先级
stm32·单片机·mongodb
u1521096484910 天前
S.S.Audio PRO A2音频隔离器
嵌入式硬件·音视频·实时音视频·视频编解码·视频
zd84510150010 天前
RS485 总线详解
单片机·嵌入式硬件
半条-咸鱼10 天前
【STM32】I2C协议原理、HAL读写与OLED显示操作
嵌入式硬件·c·信息与通信
wohoo_wangzi10 天前
苏州晟雅泰电子：关于W25Q128JVSIQ这个芯片物料的参数，规格及应用领域
嵌入式硬件
✎ ﹏梦醒͜ღ҉繁华落℘10 天前
编程基础 --高内聚，低耦合
c语言·单片机
科芯创展10 天前
1A,1MHz,30VIN,XZ4115,降压恒流LED驱动芯片
单片机·嵌入式硬件
集芯微电科技有限公司10 天前
四通道2A输出集成功率电感降压模块专为紧凑型方案设计
人工智能·单片机·嵌入式硬件·生成对抗网络·计算机外设
踏着七彩祥云的小丑10 天前
嵌入式测试学习第 37 天：异常场景测试：断电、拔插、干扰、非法指令
单片机·嵌入式硬件·学习
热门推荐
012026年6月AI大模型全景报告：GPT-5.6、Claude Opus 4.8、Gemini 3.5，中美AI三足鼎立谁主沉浮？022026年6月AI行业全景：从百模大战到Agent元年，这30天发生了什么？032026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf04飞书长连接_事件订阅（接收消息，审批任务状态变更）05Trae国际版与国内版深度测评：AI原生IDE的双生花06【AI】2026 年具身智能模型和世界模型总结07GitHub 镜像站点08Claude Code、Codex、Cursor三分天下：2026年AI编程Agent生态全景剖析092026年AI架构实战：彻底解决OpenAI接口超时与封号，Python调用GPT-5.2/Sora2企业级架构详解（附源码+压测报告）10【AI总结】2026年6月 主流国内外大模型总结
