OpenClaw 节点屏幕共享：远程显示与控制实战

摘要：本文深入解析 OpenClaw 节点的屏幕共享能力体系，涵盖屏幕截图（screen.snapshot）、屏幕录制（screen.record）、Canvas 远程呈现与控制、实时投屏等核心功能。通过三个完整实战案例------远程桌面演示、多屏幕监控、屏幕录制与回放，展示如何利用 OpenClaw 节点命令表面（command surface）构建高效的远程协作与监控方案。文章结合 Mermaid 架构图、配置代码与 CLI 命令，帮助开发者快速掌握从节点配对到屏幕共享落地的全链路实践。

- 一、屏幕共享基础
- - [1.1 什么是 OpenClaw 节点](#1.1 什么是 OpenClaw 节点)
  - [1.2 节点配对流程](#1.2 节点配对流程)
  - [1.3 屏幕共享命令概览](#1.3 屏幕共享命令概览)
  - [1.4 命令策略双门机制](#1.4 命令策略双门机制)
- 二、显示控制详解
- - [2.1 Canvas 远程呈现](#2.1 Canvas 远程呈现)
  - - 基本呈现操作
    - [页面导航与 JavaScript 执行](#页面导航与 JavaScript 执行)
  - [2.2 Canvas 截图](#2.2 Canvas 截图)
  - [2.3 屏幕截图（screen.snapshot）](#2.3 屏幕截图（screen.snapshot）)
  - [2.4 A2UI：Agent 到 UI 的实时推送](#2.4 A2UI：Agent 到 UI 的实时推送)
- 三、远程投屏功能解析
- - [3.1 屏幕录制（screen.record）](#3.1 屏幕录制（screen.record）)
  - [3.2 实时投屏架构](#3.2 实时投屏架构)
  - [3.3 批量截图与定时巡检](#3.3 批量截图与定时巡检)
- 四、实战案例1：远程桌面演示
- - [4.1 场景描述](#4.1 场景描述)
  - [4.2 架构设计](#4.2 架构设计)
  - [4.3 实现代码](#4.3 实现代码)
  - [4.4 远程控制补充](#4.4 远程控制补充)
- 五、实战案例2：多屏幕监控
- - [5.1 场景描述](#5.1 场景描述)
  - [5.2 多节点配置](#5.2 多节点配置)
  - [5.3 巡检脚本](#5.3 巡检脚本)
  - [5.4 监控流程图](#5.4 监控流程图)
- 六、实战案例3：屏幕录制与回放
- - [6.1 场景描述](#6.1 场景描述)
  - [6.2 录制脚本](#6.2 录制脚本)
  - [6.3 回放与标注](#6.3 回放与标注)
  - [6.4 自动分析流水线](#6.4 自动分析流水线)
- 七、安全与权限模型
- - [7.1 命令分类与默认策略](#7.1 命令分类与默认策略)
  - [7.2 配置授权](#7.2 配置授权)
  - [7.3 前台要求](#7.3 前台要求)
  - [7.4 macOS TCC 权限](#7.4 macOS TCC 权限)
- 八、性能优化与最佳实践
- - [8.1 截图参数优化](#8.1 截图参数优化)
  - [8.2 录屏参数优化](#8.2 录屏参数优化)
  - [8.3 带宽与 Payload 限制](#8.3 带宽与 Payload 限制)
  - [8.4 最佳实践清单](#8.4 最佳实践清单)
- 九、总结与展望
- - [9.1 核心能力总结](#9.1 核心能力总结)
  - [9.2 与传统方案对比](#9.2 与传统方案对比)
  - [9.3 未来方向](#9.3 未来方向)
- [📚 参考链接](#📚 参考链接)

一、屏幕共享基础

1.1 什么是 OpenClaw 节点

OpenClaw 节点（Node）是连接到 Gateway WebSocket 的伴侣设备，包括 macOS 应用、iOS/Android 移动端以及无头主机（headless node host）。节点通过 role: "node" 身份认证，向 Gateway 暴露一组命令表面（command surface），如 canvas.*、camera.*、screen.*、device.* 等。

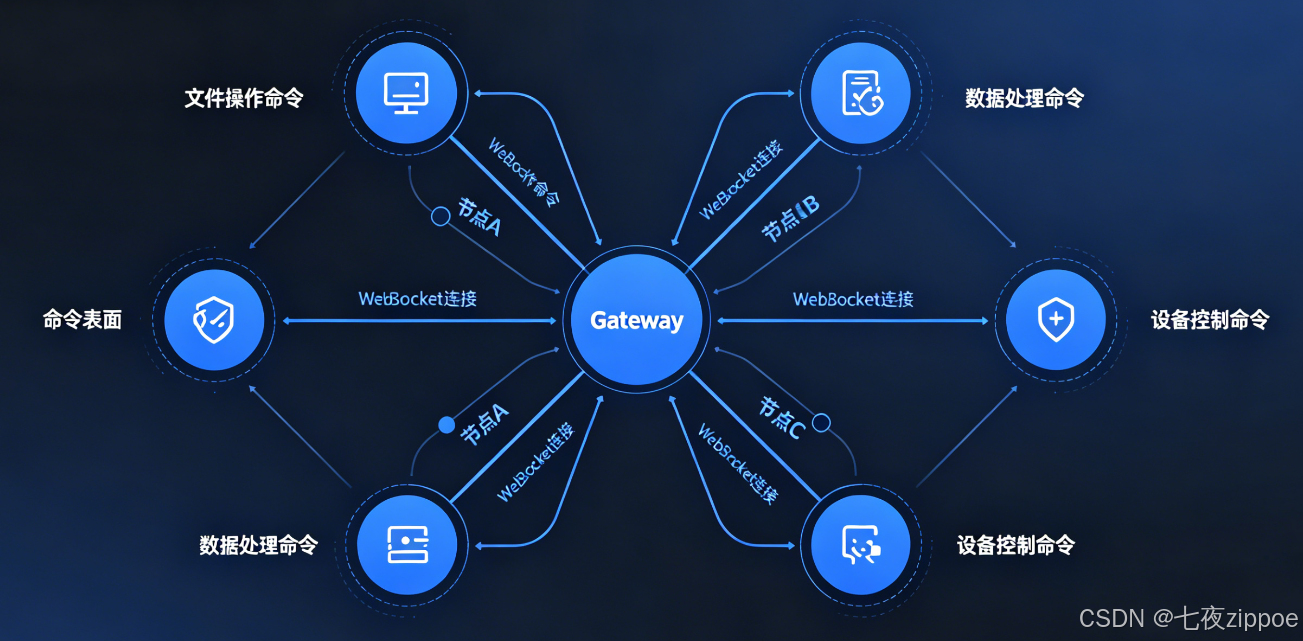

图1：OpenClaw 节点架构示意图，Gateway 作为中心枢纽与多个节点建立 WebSocket 连接，每个节点暴露不同的命令表面

理解节点与 Gateway 的关系是掌握屏幕共享的前提：

概念	说明
Gateway	消息路由中心，接收聊天消息、运行模型、转发工具调用
Node	外围设备，执行本地命令（截图、录屏、Canvas 渲染等）
Command Surface	节点声明的可调用命令集合，如 `screen.snapshot`、`screen.record`
Device Pairing	节点连接 Gateway 时的身份认证与审批流程

1.2 节点配对流程

屏幕共享功能依赖节点成功配对到 Gateway。配对流程如下：
操作员CLI Gateway 节点设备操作员CLI Gateway 节点设备 #mermaid-svg-jHo7MoGhAPIFYzj9{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-jHo7MoGhAPIFYzj9 .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-jHo7MoGhAPIFYzj9 .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-jHo7MoGhAPIFYzj9 .error-icon{fill:#552222;}#mermaid-svg-jHo7MoGhAPIFYzj9 .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-jHo7MoGhAPIFYzj9 .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-jHo7MoGhAPIFYzj9 .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-jHo7MoGhAPIFYzj9 .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-jHo7MoGhAPIFYzj9 .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-jHo7MoGhAPIFYzj9 .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-jHo7MoGhAPIFYzj9 .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-jHo7MoGhAPIFYzj9 .marker{fill:#333333;stroke:#333333;}#mermaid-svg-jHo7MoGhAPIFYzj9 .marker.cross{stroke:#333333;}#mermaid-svg-jHo7MoGhAPIFYzj9 svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-jHo7MoGhAPIFYzj9 p{margin:0;}#mermaid-svg-jHo7MoGhAPIFYzj9 .actor{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-jHo7MoGhAPIFYzj9 text.actor>tspan{fill:black;stroke:none;}#mermaid-svg-jHo7MoGhAPIFYzj9 .actor-line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-jHo7MoGhAPIFYzj9 .innerArc{stroke-width:1.5;stroke-dasharray:none;}#mermaid-svg-jHo7MoGhAPIFYzj9 .messageLine0{stroke-width:1.5;stroke-dasharray:none;stroke:#333;}#mermaid-svg-jHo7MoGhAPIFYzj9 .messageLine1{stroke-width:1.5;stroke-dasharray:2,2;stroke:#333;}#mermaid-svg-jHo7MoGhAPIFYzj9 #arrowhead path{fill:#333;stroke:#333;}#mermaid-svg-jHo7MoGhAPIFYzj9 .sequenceNumber{fill:white;}#mermaid-svg-jHo7MoGhAPIFYzj9 #sequencenumber{fill:#333;}#mermaid-svg-jHo7MoGhAPIFYzj9 #crosshead path{fill:#333;stroke:#333;}#mermaid-svg-jHo7MoGhAPIFYzj9 .messageText{fill:#333;stroke:none;}#mermaid-svg-jHo7MoGhAPIFYzj9 .labelBox{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-jHo7MoGhAPIFYzj9 .labelText,#mermaid-svg-jHo7MoGhAPIFYzj9 .labelText>tspan{fill:black;stroke:none;}#mermaid-svg-jHo7MoGhAPIFYzj9 .loopText,#mermaid-svg-jHo7MoGhAPIFYzj9 .loopText>tspan{fill:black;stroke:none;}#mermaid-svg-jHo7MoGhAPIFYzj9 .loopLine{stroke-width:2px;stroke-dasharray:2,2;stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);}#mermaid-svg-jHo7MoGhAPIFYzj9 .note{stroke:#aaaa33;fill:#fff5ad;}#mermaid-svg-jHo7MoGhAPIFYzj9 .noteText,#mermaid-svg-jHo7MoGhAPIFYzj9 .noteText>tspan{fill:black;stroke:none;}#mermaid-svg-jHo7MoGhAPIFYzj9 .activation0{fill:#f4f4f4;stroke:#666;}#mermaid-svg-jHo7MoGhAPIFYzj9 .activation1{fill:#f4f4f4;stroke:#666;}#mermaid-svg-jHo7MoGhAPIFYzj9 .activation2{fill:#f4f4f4;stroke:#666;}#mermaid-svg-jHo7MoGhAPIFYzj9 .actorPopupMenu{position:absolute;}#mermaid-svg-jHo7MoGhAPIFYzj9 .actorPopupMenuPanel{position:absolute;fill:#ECECFF;box-shadow:0px 8px 16px 0px rgba(0,0,0,0.2);filter:drop-shadow(3px 5px 2px rgb(0 0 0 / 0.4));}#mermaid-svg-jHo7MoGhAPIFYzj9 .actor-man line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;}#mermaid-svg-jHo7MoGhAPIFYzj9 .actor-man circle,#mermaid-svg-jHo7MoGhAPIFYzj9 line{stroke:hsl(259.6261682243, 59.7765363128%, 87.9019607843%);fill:#ECECFF;stroke-width:2px;}#mermaid-svg-jHo7MoGhAPIFYzj9 :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} "WebSocket connect (role: node, commands: $...$ )" "创建设备配对请求" "openclaw devices list" "返回待审批请求列表" "openclaw devices approve <requestId>" "存储配对记录 + 授权范围" "连接成功，节点已配对" "后续 node.invoke 调用"

配对完成后，可通过 openclaw nodes status 查看节点状态：

bash 复制代码

# 查看所有节点状态
openclaw nodes status

# 查看特定节点详情
openclaw nodes describe --node my-mac-node

1.3 屏幕共享命令概览

OpenClaw 节点暴露的屏幕相关命令主要包括：

命令	功能	支持平台	需要显式授权
`screen.snapshot`	屏幕截图，返回 base64 图像	macOS, iOS, Android	否（默认允许）
`screen.record`	屏幕录制，返回 mp4 视频	macOS	是（需 `gateway.nodes.allowCommands`）
`canvas.snapshot`	Canvas WebView 截图	macOS, iOS, Android	否（默认允许）
`canvas.present`	在 Canvas 中呈现 URL 或本地文件	macOS, iOS, Android	否（默认允许）
`canvas.navigate`	Canvas 内页面导航	macOS, iOS, Android	否（默认允许）
`canvas.eval`	在 Canvas 中执行 JavaScript	macOS, iOS, Android	否（默认允许）

⚠️ 注意：screen.record 属于隐私敏感命令，需要在 Gateway 配置中显式允许。screen.snapshot 则属于安全命令，默认即可使用。

1.4 命令策略双门机制

节点命令必须通过两道关卡才能被调用：

节点声明门 ：节点在 WebSocket connect.commands 列表中声明该命令
Gateway 策略门：Gateway 的平台策略允许该声明命令

#mermaid-svg-gu0EEkjEYjggIg3D{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-gu0EEkjEYjggIg3D .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-gu0EEkjEYjggIg3D .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-gu0EEkjEYjggIg3D .error-icon{fill:#552222;}#mermaid-svg-gu0EEkjEYjggIg3D .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-gu0EEkjEYjggIg3D .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-gu0EEkjEYjggIg3D .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-gu0EEkjEYjggIg3D .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-gu0EEkjEYjggIg3D .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-gu0EEkjEYjggIg3D .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-gu0EEkjEYjggIg3D .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-gu0EEkjEYjggIg3D .marker{fill:#333333;stroke:#333333;}#mermaid-svg-gu0EEkjEYjggIg3D .marker.cross{stroke:#333333;}#mermaid-svg-gu0EEkjEYjggIg3D svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-gu0EEkjEYjggIg3D p{margin:0;}#mermaid-svg-gu0EEkjEYjggIg3D .label{font-family:"trebuchet ms",verdana,arial,sans-serif;color:#333;}#mermaid-svg-gu0EEkjEYjggIg3D .cluster-label text{fill:#333;}#mermaid-svg-gu0EEkjEYjggIg3D .cluster-label span{color:#333;}#mermaid-svg-gu0EEkjEYjggIg3D .cluster-label span p{background-color:transparent;}#mermaid-svg-gu0EEkjEYjggIg3D .label text,#mermaid-svg-gu0EEkjEYjggIg3D span{fill:#333;color:#333;}#mermaid-svg-gu0EEkjEYjggIg3D .node rect,#mermaid-svg-gu0EEkjEYjggIg3D .node circle,#mermaid-svg-gu0EEkjEYjggIg3D .node ellipse,#mermaid-svg-gu0EEkjEYjggIg3D .node polygon,#mermaid-svg-gu0EEkjEYjggIg3D .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-gu0EEkjEYjggIg3D .rough-node .label text,#mermaid-svg-gu0EEkjEYjggIg3D .node .label text,#mermaid-svg-gu0EEkjEYjggIg3D .image-shape .label,#mermaid-svg-gu0EEkjEYjggIg3D .icon-shape .label{text-anchor:middle;}#mermaid-svg-gu0EEkjEYjggIg3D .node .katex path{fill:#000;stroke:#000;stroke-width:1px;}#mermaid-svg-gu0EEkjEYjggIg3D .rough-node .label,#mermaid-svg-gu0EEkjEYjggIg3D .node .label,#mermaid-svg-gu0EEkjEYjggIg3D .image-shape .label,#mermaid-svg-gu0EEkjEYjggIg3D .icon-shape .label{text-align:center;}#mermaid-svg-gu0EEkjEYjggIg3D .node.clickable{cursor:pointer;}#mermaid-svg-gu0EEkjEYjggIg3D .root .anchor path{fill:#333333!important;stroke-width:0;stroke:#333333;}#mermaid-svg-gu0EEkjEYjggIg3D .arrowheadPath{fill:#333333;}#mermaid-svg-gu0EEkjEYjggIg3D .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-gu0EEkjEYjggIg3D .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-gu0EEkjEYjggIg3D .edgeLabel{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-gu0EEkjEYjggIg3D .edgeLabel p{background-color:rgba(232,232,232, 0.8);}#mermaid-svg-gu0EEkjEYjggIg3D .edgeLabel rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-gu0EEkjEYjggIg3D .labelBkg{background-color:rgba(232, 232, 232, 0.5);}#mermaid-svg-gu0EEkjEYjggIg3D .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-gu0EEkjEYjggIg3D .cluster text{fill:#333;}#mermaid-svg-gu0EEkjEYjggIg3D .cluster span{color:#333;}#mermaid-svg-gu0EEkjEYjggIg3D div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-gu0EEkjEYjggIg3D .flowchartTitleText{text-anchor:middle;font-size:18px;fill:#333;}#mermaid-svg-gu0EEkjEYjggIg3D rect.text{fill:none;stroke-width:0;}#mermaid-svg-gu0EEkjEYjggIg3D .icon-shape,#mermaid-svg-gu0EEkjEYjggIg3D .image-shape{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-gu0EEkjEYjggIg3D .icon-shape p,#mermaid-svg-gu0EEkjEYjggIg3D .image-shape p{background-color:rgba(232,232,232, 0.8);padding:2px;}#mermaid-svg-gu0EEkjEYjggIg3D .icon-shape .label rect,#mermaid-svg-gu0EEkjEYjggIg3D .image-shape .label rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-gu0EEkjEYjggIg3D .label-icon{display:inline-block;height:1em;overflow:visible;vertical-align:-0.125em;}#mermaid-svg-gu0EEkjEYjggIg3D .node .label-icon path{fill:currentColor;stroke:revert;stroke-width:revert;}#mermaid-svg-gu0EEkjEYjggIg3D :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} 否
是
否
是
调用请求
节点已声明?
❌ 拒绝: 未声明
Gateway策略允许?
❌ 拒绝: 策略禁止
✅ 执行命令

如果节点更新了声明的命令列表，需要拒绝旧的设备配对请求并审批新请求，使 Gateway 存储更新后的命令快照。

二、显示控制详解

2.1 Canvas 远程呈现

Canvas 是 OpenClaw 节点上的 WebView 容器，支持远程呈现网页内容、本地文件以及 Agent 生成的 UI（A2UI）。这是实现远程显示控制的核心载体。

基本呈现操作

bash 复制代码

# 在节点 Canvas 中打开网页
openclaw nodes canvas present --node my-mac-node --target https://example.com

# 呈现本地 HTML 文件
openclaw nodes canvas present --node my-mac-node --target ./dashboard.html

# 指定 Canvas 窗口位置和大小
openclaw nodes canvas present --node my-mac-node \
  --target https://monitor.example.com \
  --x 100 --y 100 --width 1280 --height 720

# 隐藏 Canvas
openclaw nodes canvas hide --node my-mac-node

上述命令中，--target 参数支持 URL 和本地文件路径两种形式。--x/--y/--width/--height 可选参数用于精确控制 Canvas 窗口在节点设备屏幕上的位置和尺寸，这在多窗口布局场景中非常实用。

页面导航与 JavaScript 执行

Canvas 不仅支持静态呈现，还支持动态交互：

bash 复制代码

# Canvas 内页面导航
openclaw nodes canvas navigate https://new-page.example.com --node my-mac-node

# 执行 JavaScript 获取页面信息
openclaw nodes canvas eval --node my-mac-node --js "document.title"

# 执行复杂 JS 操作
openclaw nodes canvas eval --node my-mac-node --js "
  const elements = document.querySelectorAll('.status-item');
  JSON.stringify(Array.from(elements).map(e => e.textContent));
"

canvas.eval 是实现远程控制的关键------通过注入 JavaScript，可以操作页面 DOM、触发事件、读取状态，从而实现完整的远程交互闭环。

2.2 Canvas 截图

Canvas 截图（canvas.snapshot）返回当前 WebView 内容的 base64 编码图像，适用于获取 Agent 渲染的 UI 状态：

bash 复制代码

# PNG 格式截图
openclaw nodes canvas snapshot --node my-mac-node --format png

# JPEG 格式，控制宽度和质量
openclaw nodes canvas snapshot --node my-mac-node \
  --format jpg --max-width 1200 --quality 0.9

返回数据结构为 { format, base64 }，CLI helper 会自动将 base64 解码写入临时文件并输出保存路径。

2.3 屏幕截图（screen.snapshot）

与 Canvas 截图不同，screen.snapshot 捕获的是节点设备的整个屏幕内容，而非仅 Canvas WebView 区域。这是远程桌面监控的基础能力。

bash 复制代码

# 通过底层 invoke 调用屏幕截图
openclaw nodes invoke --node my-mac-node \
  --command screen.snapshot \
  --params '{}'

💡 Canvas vs Screen 截图 ：canvas.snapshot 仅捕获 WebView 内容，文件更小、速度更快；screen.snapshot 捕获全屏，包含所有窗口和桌面元素，信息更完整。根据场景选择合适的截图方式。

2.4 A2UI：Agent 到 UI 的实时推送

A2UI（Agent-to-UI）是 Canvas 上的高级功能，允许 Agent 实时推送结构化 UI 内容到节点设备：

bash 复制代码

# 推送文本内容
openclaw nodes canvas a2ui push --node my-mac-node --text "操作完成：部署成功 ✅"

# 推送 JSONL 格式的富 UI 内容
openclaw nodes canvas a2ui push --node my-mac-node --jsonl ./payload.jsonl

# 重置 A2UI 状态
openclaw nodes canvas a2ui reset --node my-mac-node

A2UI 的典型应用场景包括：

实时状态推送：将 Agent 的执行进度、结果推送到移动端
交互式表单：推送带按钮的 UI，用户点击后触发回调
监控仪表盘：实时更新监控数据可视化

📱 移动端注意：iOS 和 Android 节点使用内置的 app-owned A2UI 页面渲染，按钮操作仅从该内置页面分发。Gateway 托管的 HTTP/HTTPS A2UI 页面在移动端为纯渲染模式。

三、远程投屏功能解析

3.1 屏幕录制（screen.record）

screen.record 是 OpenClaw 节点提供的屏幕录制能力，输出 mp4 格式视频。这是实现"投屏"的核心原语。

bash 复制代码

# 基础录屏：10秒，10fps
openclaw nodes screen record --node my-mac-node --duration 10s --fps 10

# 无音频录屏（适合纯屏幕操作录制）
openclaw nodes screen record --node my-mac-node --duration 10s --fps 10 --no-audio

# 多屏幕环境选择指定显示器
openclaw nodes screen record --node my-mac-node --duration 30s --fps 15 --screen 1

录屏参数说明：

参数	说明	默认值/限制
`--duration`	录制时长	最长 60 秒
`--fps`	帧率	建议 10-15
`--no-audio`	禁用麦克风捕获	默认包含音频
`--screen`	选择显示器索引（多屏环境）	默认主屏幕

⚠️ macOS 权限要求 ：screen.record 需要授予 macOS Screen Recording 权限（TCC 系统设置）。首次使用时系统会弹出权限请求对话框。

3.2 实时投屏架构

OpenClaw 的"实时投屏"并非传统 VNC 式的持续像素流，而是基于定时截图 + Agent 分析的智能投屏模式。这种架构在带宽效率和智能理解之间取得了良好平衡。
#mermaid-svg-6HBNHMpPbly4FM8r{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-6HBNHMpPbly4FM8r .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-6HBNHMpPbly4FM8r .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-6HBNHMpPbly4FM8r .error-icon{fill:#552222;}#mermaid-svg-6HBNHMpPbly4FM8r .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-6HBNHMpPbly4FM8r .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-6HBNHMpPbly4FM8r .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-6HBNHMpPbly4FM8r .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-6HBNHMpPbly4FM8r .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-6HBNHMpPbly4FM8r .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-6HBNHMpPbly4FM8r .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-6HBNHMpPbly4FM8r .marker{fill:#333333;stroke:#333333;}#mermaid-svg-6HBNHMpPbly4FM8r .marker.cross{stroke:#333333;}#mermaid-svg-6HBNHMpPbly4FM8r svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-6HBNHMpPbly4FM8r p{margin:0;}#mermaid-svg-6HBNHMpPbly4FM8r .label{font-family:"trebuchet ms",verdana,arial,sans-serif;color:#333;}#mermaid-svg-6HBNHMpPbly4FM8r .cluster-label text{fill:#333;}#mermaid-svg-6HBNHMpPbly4FM8r .cluster-label span{color:#333;}#mermaid-svg-6HBNHMpPbly4FM8r .cluster-label span p{background-color:transparent;}#mermaid-svg-6HBNHMpPbly4FM8r .label text,#mermaid-svg-6HBNHMpPbly4FM8r span{fill:#333;color:#333;}#mermaid-svg-6HBNHMpPbly4FM8r .node rect,#mermaid-svg-6HBNHMpPbly4FM8r .node circle,#mermaid-svg-6HBNHMpPbly4FM8r .node ellipse,#mermaid-svg-6HBNHMpPbly4FM8r .node polygon,#mermaid-svg-6HBNHMpPbly4FM8r .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-6HBNHMpPbly4FM8r .rough-node .label text,#mermaid-svg-6HBNHMpPbly4FM8r .node .label text,#mermaid-svg-6HBNHMpPbly4FM8r .image-shape .label,#mermaid-svg-6HBNHMpPbly4FM8r .icon-shape .label{text-anchor:middle;}#mermaid-svg-6HBNHMpPbly4FM8r .node .katex path{fill:#000;stroke:#000;stroke-width:1px;}#mermaid-svg-6HBNHMpPbly4FM8r .rough-node .label,#mermaid-svg-6HBNHMpPbly4FM8r .node .label,#mermaid-svg-6HBNHMpPbly4FM8r .image-shape .label,#mermaid-svg-6HBNHMpPbly4FM8r .icon-shape .label{text-align:center;}#mermaid-svg-6HBNHMpPbly4FM8r .node.clickable{cursor:pointer;}#mermaid-svg-6HBNHMpPbly4FM8r .root .anchor path{fill:#333333!important;stroke-width:0;stroke:#333333;}#mermaid-svg-6HBNHMpPbly4FM8r .arrowheadPath{fill:#333333;}#mermaid-svg-6HBNHMpPbly4FM8r .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-6HBNHMpPbly4FM8r .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-6HBNHMpPbly4FM8r .edgeLabel{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-6HBNHMpPbly4FM8r .edgeLabel p{background-color:rgba(232,232,232, 0.8);}#mermaid-svg-6HBNHMpPbly4FM8r .edgeLabel rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-6HBNHMpPbly4FM8r .labelBkg{background-color:rgba(232, 232, 232, 0.5);}#mermaid-svg-6HBNHMpPbly4FM8r .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-6HBNHMpPbly4FM8r .cluster text{fill:#333;}#mermaid-svg-6HBNHMpPbly4FM8r .cluster span{color:#333;}#mermaid-svg-6HBNHMpPbly4FM8r div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-6HBNHMpPbly4FM8r .flowchartTitleText{text-anchor:middle;font-size:18px;fill:#333;}#mermaid-svg-6HBNHMpPbly4FM8r rect.text{fill:none;stroke-width:0;}#mermaid-svg-6HBNHMpPbly4FM8r .icon-shape,#mermaid-svg-6HBNHMpPbly4FM8r .image-shape{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-6HBNHMpPbly4FM8r .icon-shape p,#mermaid-svg-6HBNHMpPbly4FM8r .image-shape p{background-color:rgba(232,232,232, 0.8);padding:2px;}#mermaid-svg-6HBNHMpPbly4FM8r .icon-shape .label rect,#mermaid-svg-6HBNHMpPbly4FM8r .image-shape .label rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-6HBNHMpPbly4FM8r .label-icon{display:inline-block;height:1em;overflow:visible;vertical-align:-0.125em;}#mermaid-svg-6HBNHMpPbly4FM8r .node .label-icon path{fill:currentColor;stroke:revert;stroke-width:revert;}#mermaid-svg-6HBNHMpPbly4FM8r :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} 通知渠道
Gateway
节点设备
screen.snapshot
base64 图像
screen.record
mp4 视频
定时触发器
调用节点截图
Media Understanding
图像描述/OCR
Agent 决策
canvas.eval 远程控制
Telegram/飞书/Slack
Web Control UI

这种架构的优势：

带宽友好：截图体积远小于视频流，适合移动网络
智能理解：通过 Media Understanding 自动提取屏幕内容语义
按需控制：Agent 根据屏幕内容智能决定是否需要远程操作
多渠道通知：屏幕变化可推送到任意聊天渠道

3.3 批量截图与定时巡检

通过组合 CLI 命令和定时任务，可以实现批量截图巡检：

bash 复制代码

#!/bin/bash
# screen-patrol.sh - 屏幕巡检脚本
# 每隔 N 秒对指定节点执行截图并保存

NODE="my-mac-node"
INTERVAL=30
OUTPUT_DIR="./screen-captures"
mkdir -p "$OUTPUT_DIR"

while true; do
  TIMESTAMP=$(date +%Y%m%d_%H%M%S)
  openclaw nodes canvas snapshot --node "$NODE" --format png \
    2>/dev/null | tail -1 | xargs -I{} cp {} "$OUTPUT_DIR/capture_${TIMESTAMP}.png"
  echo "[$TIMESTAMP] 截图已保存"
  sleep "$INTERVAL"
done

这个脚本每 30 秒对节点执行一次 Canvas 截图，以时间戳命名保存到本地目录。结合 Media Understanding，可以进一步对截图进行自动分析和异常检测。

四、实战案例1：远程桌面演示

4.1 场景描述

团队技术分享会中，演讲者在 macOS 上操作演示，远程参与者通过 OpenClaw 节点实时观看演示内容。Agent 自动截取关键画面并推送到群聊渠道。

4.2 架构设计

#mermaid-svg-p1hYabctzAczjP6Z{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-p1hYabctzAczjP6Z .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-p1hYabctzAczjP6Z .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-p1hYabctzAczjP6Z .error-icon{fill:#552222;}#mermaid-svg-p1hYabctzAczjP6Z .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-p1hYabctzAczjP6Z .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-p1hYabctzAczjP6Z .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-p1hYabctzAczjP6Z .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-p1hYabctzAczjP6Z .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-p1hYabctzAczjP6Z .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-p1hYabctzAczjP6Z .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-p1hYabctzAczjP6Z .marker{fill:#333333;stroke:#333333;}#mermaid-svg-p1hYabctzAczjP6Z .marker.cross{stroke:#333333;}#mermaid-svg-p1hYabctzAczjP6Z svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-p1hYabctzAczjP6Z p{margin:0;}#mermaid-svg-p1hYabctzAczjP6Z .label{font-family:"trebuchet ms",verdana,arial,sans-serif;color:#333;}#mermaid-svg-p1hYabctzAczjP6Z .cluster-label text{fill:#333;}#mermaid-svg-p1hYabctzAczjP6Z .cluster-label span{color:#333;}#mermaid-svg-p1hYabctzAczjP6Z .cluster-label span p{background-color:transparent;}#mermaid-svg-p1hYabctzAczjP6Z .label text,#mermaid-svg-p1hYabctzAczjP6Z span{fill:#333;color:#333;}#mermaid-svg-p1hYabctzAczjP6Z .node rect,#mermaid-svg-p1hYabctzAczjP6Z .node circle,#mermaid-svg-p1hYabctzAczjP6Z .node ellipse,#mermaid-svg-p1hYabctzAczjP6Z .node polygon,#mermaid-svg-p1hYabctzAczjP6Z .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-p1hYabctzAczjP6Z .rough-node .label text,#mermaid-svg-p1hYabctzAczjP6Z .node .label text,#mermaid-svg-p1hYabctzAczjP6Z .image-shape .label,#mermaid-svg-p1hYabctzAczjP6Z .icon-shape .label{text-anchor:middle;}#mermaid-svg-p1hYabctzAczjP6Z .node .katex path{fill:#000;stroke:#000;stroke-width:1px;}#mermaid-svg-p1hYabctzAczjP6Z .rough-node .label,#mermaid-svg-p1hYabctzAczjP6Z .node .label,#mermaid-svg-p1hYabctzAczjP6Z .image-shape .label,#mermaid-svg-p1hYabctzAczjP6Z .icon-shape .label{text-align:center;}#mermaid-svg-p1hYabctzAczjP6Z .node.clickable{cursor:pointer;}#mermaid-svg-p1hYabctzAczjP6Z .root .anchor path{fill:#333333!important;stroke-width:0;stroke:#333333;}#mermaid-svg-p1hYabctzAczjP6Z .arrowheadPath{fill:#333333;}#mermaid-svg-p1hYabctzAczjP6Z .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-p1hYabctzAczjP6Z .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-p1hYabctzAczjP6Z .edgeLabel{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-p1hYabctzAczjP6Z .edgeLabel p{background-color:rgba(232,232,232, 0.8);}#mermaid-svg-p1hYabctzAczjP6Z .edgeLabel rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-p1hYabctzAczjP6Z .labelBkg{background-color:rgba(232, 232, 232, 0.5);}#mermaid-svg-p1hYabctzAczjP6Z .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-p1hYabctzAczjP6Z .cluster text{fill:#333;}#mermaid-svg-p1hYabctzAczjP6Z .cluster span{color:#333;}#mermaid-svg-p1hYabctzAczjP6Z div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-p1hYabctzAczjP6Z .flowchartTitleText{text-anchor:middle;font-size:18px;fill:#333;}#mermaid-svg-p1hYabctzAczjP6Z rect.text{fill:none;stroke-width:0;}#mermaid-svg-p1hYabctzAczjP6Z .icon-shape,#mermaid-svg-p1hYabctzAczjP6Z .image-shape{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-p1hYabctzAczjP6Z .icon-shape p,#mermaid-svg-p1hYabctzAczjP6Z .image-shape p{background-color:rgba(232,232,232, 0.8);padding:2px;}#mermaid-svg-p1hYabctzAczjP6Z .icon-shape .label rect,#mermaid-svg-p1hYabctzAczjP6Z .image-shape .label rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-p1hYabctzAczjP6Z .label-icon{display:inline-block;height:1em;overflow:visible;vertical-align:-0.125em;}#mermaid-svg-p1hYabctzAczjP6Z .node .label-icon path{fill:currentColor;stroke:revert;stroke-width:revert;}#mermaid-svg-p1hYabctzAczjP6Z :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} screen.snapshot
Media Understanding
推送
推送
canvas.eval
演讲者 macOS

Canvas 呈现演示内容
Gateway
图像描述
飞书群聊
Slack 频道
远程控制

翻页/高亮

4.3 实现代码

bash 复制代码

#!/bin/bash
# remote-demo.sh - 远程演示助手
# 监听演示节点，定时截图并推送关键画面

NODE="presenter-mac"
CHANNEL="feishu:demo-group"
LAST_SCREENHASH=""

while true; do
  # 1. 截取当前屏幕
  SCREENSHOT=$(openclaw nodes canvas snapshot \
    --node "$NODE" --format jpg --max-width 1280 --quality 0.8 2>/dev/null | tail -1)

  if [ -z "$SCREENSHOT" ] || [ ! -f "$SCREENSHOT" ]; then
    echo "截图失败，等待重试..."
    sleep 5
    continue
  fi

  # 2. 计算图像哈希判断是否有显著变化
  CURRENT_HASH=$(md5sum "$SCREENSHOT" | cut -d' ' -f1)

  if [ "$CURRENT_HASH" != "$LAST_SCREENHASH" ]; then
    # 3. 屏幕内容变化，推送到群聊
    openclaw message send \
      --target "$CHANNEL" \
      --media "$SCREENSHOT" \
      --message "📢 演示画面更新 $(date +%H:%M:%S)"

    LAST_SCREENHASH="$CURRENT_HASH"
    echo "[$(date +%H:%M:%S)] 画面已推送"
  fi

  sleep 3
done

代码解析 ：该脚本实现了一个轻量级远程演示推送器。核心逻辑是每 3 秒截取一次 Canvas 画面，通过 MD5 哈希比对判断画面是否发生变化。只有画面真正改变时才推送，避免重复消息轰炸。--max-width 1280 控制截图尺寸，兼顾清晰度和传输效率。推送使用 openclaw message send 的 --media 参数，支持图片+文字组合发送。

4.4 远程控制补充

远程参与者不仅观看，还可以通过 Agent 发送控制指令：

bash 复制代码

# 演示翻页（假设演示是网页幻灯片）
openclaw nodes canvas eval --node presenter-mac --js "
  document.querySelector('.next-slide').click();
"

# 高亮当前内容
openclaw nodes canvas eval --node presenter-mac --js "
  const sel = window.getSelection();
  if (sel.rangeCount > 0) {
    const range = sel.getRangeAt(0);
    const highlight = document.createElement('mark');
    highlight.style.background = 'yellow';
    range.surroundContents(highlight);
  }
"

五、实战案例2：多屏幕监控

5.1 场景描述

运维团队需要同时监控多台服务器的状态仪表盘。每台服务器运行一个 Web 监控页面，通过多个 OpenClaw 节点分别呈现，Agent 定时巡检所有画面并汇总异常。

5.2 多节点配置

json5 复制代码

// openclaw.json - 多节点监控配置
{
  gateway: {
    nodes: {
      // 允许屏幕录制命令
      allowCommands: ["screen.record", "screen.snapshot"],
    },
  },
  tools: {
    media: {
      image: {
        // 配置图像理解模型用于自动分析截图
        models: [
          {
            type: "provider",
            provider: "openai",
            model: "gpt-4o",
            prompt: "分析这个监控仪表盘截图，指出任何异常指标或告警信息。用中文回答，不超过200字。",
            maxChars: 200,
            capabilities: ["image"],
          },
        ],
      },
    },
  },
}

配置解析 ：这段 JSON5 配置做了两件事。第一，通过 gateway.nodes.allowCommands 显式允许 screen.record 和 screen.snapshot 命令------因为 screen.record 是隐私敏感命令，默认不在安全命令列表中。第二，配置 Media Understanding 的图像理解模型，使用 GPT-4o 自动分析监控截图内容，maxChars: 200 限制输出长度以控制 token 消耗。这样 Agent 截图后可以自动获得图像语义描述，无需人工查看每张截图。

5.3 巡检脚本

bash 复制代码

#!/bin/bash
# multi-screen-monitor.sh - 多屏幕监控巡检

declare -A NODES=(
  ["prod-server-1"]="https://grafana.example.com/d/prod1"
  ["prod-server-2"]="https://grafana.example.com/d/prod2"
  ["staging-server"]="https://grafana.example.com/d/staging"
)

ALERT_CHANNEL="slack:ops-alerts"

for node in "${!NODES[@]}"; do
  url="${NODES[$node]}"

  # 1. 在各节点 Canvas 中呈现监控页面
  openclaw nodes canvas present --node "$node" --target "$url" \
    --width 1920 --height 1080

  # 2. 等待页面加载
  sleep 5

  # 3. 截图并分析
  openclaw nodes canvas snapshot --node "$node" --format jpg \
    --max-width 1920 --quality 0.9 2>/dev/null

  echo "[$(date +%H:%M:%S)] 节点 $node 巡检完成"
done

# 4. 汇总巡检结果（由 Agent 通过 Media Understanding 自动分析）
echo "所有节点巡检完成，Agent 正在分析截图..."

5.4 监控流程图

#mermaid-svg-rcHQSEOmD8CQgkhf{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-rcHQSEOmD8CQgkhf .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-rcHQSEOmD8CQgkhf .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-rcHQSEOmD8CQgkhf .error-icon{fill:#552222;}#mermaid-svg-rcHQSEOmD8CQgkhf .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-rcHQSEOmD8CQgkhf .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-rcHQSEOmD8CQgkhf .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-rcHQSEOmD8CQgkhf .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-rcHQSEOmD8CQgkhf .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-rcHQSEOmD8CQgkhf .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-rcHQSEOmD8CQgkhf .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-rcHQSEOmD8CQgkhf .marker{fill:#333333;stroke:#333333;}#mermaid-svg-rcHQSEOmD8CQgkhf .marker.cross{stroke:#333333;}#mermaid-svg-rcHQSEOmD8CQgkhf svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-rcHQSEOmD8CQgkhf p{margin:0;}#mermaid-svg-rcHQSEOmD8CQgkhf .label{font-family:"trebuchet ms",verdana,arial,sans-serif;color:#333;}#mermaid-svg-rcHQSEOmD8CQgkhf .cluster-label text{fill:#333;}#mermaid-svg-rcHQSEOmD8CQgkhf .cluster-label span{color:#333;}#mermaid-svg-rcHQSEOmD8CQgkhf .cluster-label span p{background-color:transparent;}#mermaid-svg-rcHQSEOmD8CQgkhf .label text,#mermaid-svg-rcHQSEOmD8CQgkhf span{fill:#333;color:#333;}#mermaid-svg-rcHQSEOmD8CQgkhf .node rect,#mermaid-svg-rcHQSEOmD8CQgkhf .node circle,#mermaid-svg-rcHQSEOmD8CQgkhf .node ellipse,#mermaid-svg-rcHQSEOmD8CQgkhf .node polygon,#mermaid-svg-rcHQSEOmD8CQgkhf .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-rcHQSEOmD8CQgkhf .rough-node .label text,#mermaid-svg-rcHQSEOmD8CQgkhf .node .label text,#mermaid-svg-rcHQSEOmD8CQgkhf .image-shape .label,#mermaid-svg-rcHQSEOmD8CQgkhf .icon-shape .label{text-anchor:middle;}#mermaid-svg-rcHQSEOmD8CQgkhf .node .katex path{fill:#000;stroke:#000;stroke-width:1px;}#mermaid-svg-rcHQSEOmD8CQgkhf .rough-node .label,#mermaid-svg-rcHQSEOmD8CQgkhf .node .label,#mermaid-svg-rcHQSEOmD8CQgkhf .image-shape .label,#mermaid-svg-rcHQSEOmD8CQgkhf .icon-shape .label{text-align:center;}#mermaid-svg-rcHQSEOmD8CQgkhf .node.clickable{cursor:pointer;}#mermaid-svg-rcHQSEOmD8CQgkhf .root .anchor path{fill:#333333!important;stroke-width:0;stroke:#333333;}#mermaid-svg-rcHQSEOmD8CQgkhf .arrowheadPath{fill:#333333;}#mermaid-svg-rcHQSEOmD8CQgkhf .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-rcHQSEOmD8CQgkhf .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-rcHQSEOmD8CQgkhf .edgeLabel{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-rcHQSEOmD8CQgkhf .edgeLabel p{background-color:rgba(232,232,232, 0.8);}#mermaid-svg-rcHQSEOmD8CQgkhf .edgeLabel rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-rcHQSEOmD8CQgkhf .labelBkg{background-color:rgba(232, 232, 232, 0.5);}#mermaid-svg-rcHQSEOmD8CQgkhf .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-rcHQSEOmD8CQgkhf .cluster text{fill:#333;}#mermaid-svg-rcHQSEOmD8CQgkhf .cluster span{color:#333;}#mermaid-svg-rcHQSEOmD8CQgkhf div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-rcHQSEOmD8CQgkhf .flowchartTitleText{text-anchor:middle;font-size:18px;fill:#333;}#mermaid-svg-rcHQSEOmD8CQgkhf rect.text{fill:none;stroke-width:0;}#mermaid-svg-rcHQSEOmD8CQgkhf .icon-shape,#mermaid-svg-rcHQSEOmD8CQgkhf .image-shape{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-rcHQSEOmD8CQgkhf .icon-shape p,#mermaid-svg-rcHQSEOmD8CQgkhf .image-shape p{background-color:rgba(232,232,232, 0.8);padding:2px;}#mermaid-svg-rcHQSEOmD8CQgkhf .icon-shape .label rect,#mermaid-svg-rcHQSEOmD8CQgkhf .image-shape .label rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-rcHQSEOmD8CQgkhf .label-icon{display:inline-block;height:1em;overflow:visible;vertical-align:-0.125em;}#mermaid-svg-rcHQSEOmD8CQgkhf .node .label-icon path{fill:currentColor;stroke:revert;stroke-width:revert;}#mermaid-svg-rcHQSEOmD8CQgkhf :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} 是
否
定时触发
遍历节点列表
节点1: canvas.present
节点2: canvas.present
节点N: canvas.present
canvas.snapshot
canvas.snapshot
canvas.snapshot
Media Understanding

GPT-4o 图像分析
检测到异常?
🚨 推送告警到 Slack
✅ 记录正常状态

六、实战案例3：屏幕录制与回放

6.1 场景描述

QA 团队需要录制 Bug 复现步骤，自动保存录屏并生成操作日志。录屏完成后，Agent 自动分析视频内容，生成文字描述和关键帧截图。

6.2 录制脚本

bash 复制代码

#!/bin/bash
# screen-recorder.sh - 屏幕录制与回放

NODE="qa-mac-node"
BUG_ID="${1:-BUG-$(date +%Y%m%d%H%M%S)}"
OUTPUT_DIR="./recordings/$BUG_ID"
mkdir -p "$OUTPUT_DIR"

echo "🎬 开始录制 Bug $BUG_ID ..."

# 1. 开始屏幕录制（30秒片段循环）
for i in $(seq 1 100); do
  openclaw nodes screen record \
    --node "$NODE" \
    --duration 30s \
    --fps 15 \
    --no-audio \
    2>/dev/null | tail -1 | xargs -I{} cp {} "$OUTPUT_DIR/segment_${i}.mp4"

  echo "  片段 $i 已保存"

  # 检查是否收到停止信号
  if [ -f "$OUTPUT_DIR/STOP" ]; then
    echo "⏹️ 收到停止信号，结束录制"
    break
  fi
done

# 2. 合并视频片段
echo "📦 合并视频片段..."
concat_file="$OUTPUT_DIR/concat.txt"
for f in "$OUTPUT_DIR"/segment_*.mp4; do
  echo "file '$f'" >> "$concat_file"
done

ffmpeg -f concat -safe 0 -i "$concat_file" \
  -c copy "$OUTPUT_DIR/full_recording.mp4" 2>/dev/null

# 3. 提取关键帧
echo "📸 提取关键帧..."
ffmpeg -i "$OUTPUT_DIR/full_recording.mp4" \
  -vf "fps=1/5" \
  -q:v 2 \
  "$OUTPUT_DIR/keyframe_%03d.jpg" 2>/dev/null

echo "✅ 录制完成！"
echo "  视频文件: $OUTPUT_DIR/full_recording.mp4"
echo "  关键帧目录: $OUTPUT_DIR/"
ls -la "$OUTPUT_DIR"/keyframe_*.jpg | wc -l | xargs -I{} echo "  关键帧数量: {}"

代码解析 ：这是一个完整的 Bug 复现录制工具。录制采用 30 秒片段循环策略，避免单次录屏超过 60 秒的限制。通过创建 STOP 文件作为停止信号，QA 人员可以随时终止录制。录制完成后，使用 ffmpeg 合并所有片段为完整视频，并以每 5 秒一帧的频率提取关键帧截图。这些关键帧可后续通过 Media Understanding 进行自动分析，生成 Bug 描述文字。

6.3 回放与标注

录制完成后，可以通过 Canvas 回放并添加标注：

bash 复制代码

# 在 Canvas 中回放录制视频
openclaw nodes canvas present --node qa-mac-node \
  --target "file://$OUTPUT_DIR/full_recording.mp4"

# 通过 JS 控制视频播放
openclaw nodes canvas eval --node qa-mac-node --js "
  const video = document.querySelector('video');
  video.currentTime = 15;  // 跳转到15秒处
  video.pause();           // 暂停
"

# 添加标注覆盖层
openclaw nodes canvas eval --node qa-mac-node --js "
  const overlay = document.createElement('div');
  overlay.style.cssText = 'position:fixed;top:20px;left:20px;
    background:red;color:white;padding:8px 16px;
    border-radius:4px;font-size:14px;z-index:9999';
  overlay.textContent = '🔴 Bug 位置：此处点击无响应';
  document.body.appendChild(overlay);
"

6.4 自动分析流水线

#mermaid-svg-sNcnlT4phWLbdUGL{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-sNcnlT4phWLbdUGL .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-sNcnlT4phWLbdUGL .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-sNcnlT4phWLbdUGL .error-icon{fill:#552222;}#mermaid-svg-sNcnlT4phWLbdUGL .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-sNcnlT4phWLbdUGL .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-sNcnlT4phWLbdUGL .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-sNcnlT4phWLbdUGL .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-sNcnlT4phWLbdUGL .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-sNcnlT4phWLbdUGL .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-sNcnlT4phWLbdUGL .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-sNcnlT4phWLbdUGL .marker{fill:#333333;stroke:#333333;}#mermaid-svg-sNcnlT4phWLbdUGL .marker.cross{stroke:#333333;}#mermaid-svg-sNcnlT4phWLbdUGL svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-sNcnlT4phWLbdUGL p{margin:0;}#mermaid-svg-sNcnlT4phWLbdUGL .label{font-family:"trebuchet ms",verdana,arial,sans-serif;color:#333;}#mermaid-svg-sNcnlT4phWLbdUGL .cluster-label text{fill:#333;}#mermaid-svg-sNcnlT4phWLbdUGL .cluster-label span{color:#333;}#mermaid-svg-sNcnlT4phWLbdUGL .cluster-label span p{background-color:transparent;}#mermaid-svg-sNcnlT4phWLbdUGL .label text,#mermaid-svg-sNcnlT4phWLbdUGL span{fill:#333;color:#333;}#mermaid-svg-sNcnlT4phWLbdUGL .node rect,#mermaid-svg-sNcnlT4phWLbdUGL .node circle,#mermaid-svg-sNcnlT4phWLbdUGL .node ellipse,#mermaid-svg-sNcnlT4phWLbdUGL .node polygon,#mermaid-svg-sNcnlT4phWLbdUGL .node path{fill:#ECECFF;stroke:#9370DB;stroke-width:1px;}#mermaid-svg-sNcnlT4phWLbdUGL .rough-node .label text,#mermaid-svg-sNcnlT4phWLbdUGL .node .label text,#mermaid-svg-sNcnlT4phWLbdUGL .image-shape .label,#mermaid-svg-sNcnlT4phWLbdUGL .icon-shape .label{text-anchor:middle;}#mermaid-svg-sNcnlT4phWLbdUGL .node .katex path{fill:#000;stroke:#000;stroke-width:1px;}#mermaid-svg-sNcnlT4phWLbdUGL .rough-node .label,#mermaid-svg-sNcnlT4phWLbdUGL .node .label,#mermaid-svg-sNcnlT4phWLbdUGL .image-shape .label,#mermaid-svg-sNcnlT4phWLbdUGL .icon-shape .label{text-align:center;}#mermaid-svg-sNcnlT4phWLbdUGL .node.clickable{cursor:pointer;}#mermaid-svg-sNcnlT4phWLbdUGL .root .anchor path{fill:#333333!important;stroke-width:0;stroke:#333333;}#mermaid-svg-sNcnlT4phWLbdUGL .arrowheadPath{fill:#333333;}#mermaid-svg-sNcnlT4phWLbdUGL .edgePath .path{stroke:#333333;stroke-width:2.0px;}#mermaid-svg-sNcnlT4phWLbdUGL .flowchart-link{stroke:#333333;fill:none;}#mermaid-svg-sNcnlT4phWLbdUGL .edgeLabel{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-sNcnlT4phWLbdUGL .edgeLabel p{background-color:rgba(232,232,232, 0.8);}#mermaid-svg-sNcnlT4phWLbdUGL .edgeLabel rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-sNcnlT4phWLbdUGL .labelBkg{background-color:rgba(232, 232, 232, 0.5);}#mermaid-svg-sNcnlT4phWLbdUGL .cluster rect{fill:#ffffde;stroke:#aaaa33;stroke-width:1px;}#mermaid-svg-sNcnlT4phWLbdUGL .cluster text{fill:#333;}#mermaid-svg-sNcnlT4phWLbdUGL .cluster span{color:#333;}#mermaid-svg-sNcnlT4phWLbdUGL div.mermaidTooltip{position:absolute;text-align:center;max-width:200px;padding:2px;font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:12px;background:hsl(80, 100%, 96.2745098039%);border:1px solid #aaaa33;border-radius:2px;pointer-events:none;z-index:100;}#mermaid-svg-sNcnlT4phWLbdUGL .flowchartTitleText{text-anchor:middle;font-size:18px;fill:#333;}#mermaid-svg-sNcnlT4phWLbdUGL rect.text{fill:none;stroke-width:0;}#mermaid-svg-sNcnlT4phWLbdUGL .icon-shape,#mermaid-svg-sNcnlT4phWLbdUGL .image-shape{background-color:rgba(232,232,232, 0.8);text-align:center;}#mermaid-svg-sNcnlT4phWLbdUGL .icon-shape p,#mermaid-svg-sNcnlT4phWLbdUGL .image-shape p{background-color:rgba(232,232,232, 0.8);padding:2px;}#mermaid-svg-sNcnlT4phWLbdUGL .icon-shape .label rect,#mermaid-svg-sNcnlT4phWLbdUGL .image-shape .label rect{opacity:0.5;background-color:rgba(232,232,232, 0.8);fill:rgba(232,232,232, 0.8);}#mermaid-svg-sNcnlT4phWLbdUGL .label-icon{display:inline-block;height:1em;overflow:visible;vertical-align:-0.125em;}#mermaid-svg-sNcnlT4phWLbdUGL .node .label-icon path{fill:currentColor;stroke:revert;stroke-width:revert;}#mermaid-svg-sNcnlT4phWLbdUGL :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} screen.record

屏幕录制
mp4 片段
ffmpeg 合并
完整视频
关键帧提取
关键帧 JPG
Media Understanding

GPT-4o 图像分析
操作步骤描述
异常检测
Canvas 回放
JS 标注覆盖
标注后截图
📝 Bug 报告生成

七、安全与权限模型

7.1 命令分类与默认策略

OpenClaw 对节点命令采用分级安全策略：

分类	命令示例	默认策略	说明
安全命令	`canvas.*`, `camera.list`, `screen.snapshot`	默认允许	只读或低风险操作
隐私敏感	`camera.snap`, `camera.clip`, `screen.record`	需显式授权	涉及摄像头/麦克风/录屏
高危命令	`system.run`, `system.which`	需 `operator.admin`	可执行任意系统命令

7.2 配置授权

在 openclaw.json 中配置允许的命令：

json5 复制代码

{
  gateway: {
    nodes: {
      // 允许隐私敏感命令
      allowCommands: ["screen.record", "camera.snap", "camera.clip"],
      // 禁止特定命令（优先级最高）
      denyCommands: ["system.run"],
    },
  },
}

🔒 安全原则 ：denyCommands 始终优先于 allowCommands 和默认策略。即使命令同时在两个列表中，denyCommands 也会生效。

7.3 前台要求

iOS 和 Android 节点要求应用处于前台才能执行 canvas.* 和 camera.* 命令。后台调用会返回 NODE_BACKGROUND_UNAVAILABLE 错误。

这意味着：

屏幕截图需要节点应用在前台活跃
屏幕录制同样需要前台状态
设计监控方案时需考虑节点应用的生命周期

7.4 macOS TCC 权限

macOS 节点使用 screen.record 需要系统级 Screen Recording 权限：

打开 系统设置 → 隐私与安全性 → 屏幕录制
找到 OpenClaw 应用并勾选允许
重启 OpenClaw 节点应用使权限生效

八、性能优化与最佳实践

8.1 截图参数优化

不同场景对截图质量和尺寸的要求不同：

场景	推荐参数	说明
快速巡检	`--format jpg --max-width 800 --quality 0.6`	小体积，低延迟
常规监控	`--format jpg --max-width 1280 --quality 0.8`	平衡质量与体积
高清存档	`--format png --max-width 1920`	无损，大体积
移动端推送	`--format jpg --max-width 640 --quality 0.7`	适配小屏幕

8.2 录屏参数优化

场景	fps	音频	说明
操作演示	15	包含	需要语音讲解
Bug 复现	10	不含	纯操作步骤，无需音频
性能监控	5	不含	低帧率节省资源

8.3 带宽与 Payload 限制

OpenClaw 对节点返回的 Payload 有内置保护：

照片：base64 不超过 5 MB（自动重压缩）
视频片段：时长不超过 60 秒
Canvas 截图 ：通过 --max-width 和 --quality 控制体积

在大规模监控场景中，建议：

使用 JPEG 格式而非 PNG（体积差异可达 5-10 倍）
合理设置 --max-width（通常 1280px 足够识别内容）
采用变化检测策略，仅在画面变化时推送
利用 Media Understanding 在 Gateway 端压缩语义，只传输文字描述

8.4 最佳实践清单

✅ 配对后验证 ：openclaw nodes status 确认节点已配对且在线
✅ 最小权限原则 ：只 allowCommands 真正需要的命令
✅ 前台保障：移动端节点确保应用在前台，或实现自动前台唤醒
✅ 变化检测：截图巡检使用哈希比对，避免重复推送
✅ 分段录制：长时录屏采用分段策略，每段 ≤ 60 秒
✅ 错误处理 ：检查 NODE_BACKGROUND_UNAVAILABLE 等错误码并重试
✅ 资源清理：定期清理临时截图和录屏文件

九、总结与展望

9.1 核心能力总结

OpenClaw 节点的屏幕共享能力构建了一套完整的远程显示与控制体系：
#mermaid-svg-vGShie12i0MJIKvs{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;fill:#333;}@keyframes edge-animation-frame{from{stroke-dashoffset:0;}}@keyframes dash{to{stroke-dashoffset:0;}}#mermaid-svg-vGShie12i0MJIKvs .edge-animation-slow{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 50s linear infinite;stroke-linecap:round;}#mermaid-svg-vGShie12i0MJIKvs .edge-animation-fast{stroke-dasharray:9,5!important;stroke-dashoffset:900;animation:dash 20s linear infinite;stroke-linecap:round;}#mermaid-svg-vGShie12i0MJIKvs .error-icon{fill:#552222;}#mermaid-svg-vGShie12i0MJIKvs .error-text{fill:#552222;stroke:#552222;}#mermaid-svg-vGShie12i0MJIKvs .edge-thickness-normal{stroke-width:1px;}#mermaid-svg-vGShie12i0MJIKvs .edge-thickness-thick{stroke-width:3.5px;}#mermaid-svg-vGShie12i0MJIKvs .edge-pattern-solid{stroke-dasharray:0;}#mermaid-svg-vGShie12i0MJIKvs .edge-thickness-invisible{stroke-width:0;fill:none;}#mermaid-svg-vGShie12i0MJIKvs .edge-pattern-dashed{stroke-dasharray:3;}#mermaid-svg-vGShie12i0MJIKvs .edge-pattern-dotted{stroke-dasharray:2;}#mermaid-svg-vGShie12i0MJIKvs .marker{fill:#333333;stroke:#333333;}#mermaid-svg-vGShie12i0MJIKvs .marker.cross{stroke:#333333;}#mermaid-svg-vGShie12i0MJIKvs svg{font-family:"trebuchet ms",verdana,arial,sans-serif;font-size:16px;}#mermaid-svg-vGShie12i0MJIKvs p{margin:0;}#mermaid-svg-vGShie12i0MJIKvs .edge{stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .section--1 rect,#mermaid-svg-vGShie12i0MJIKvs .section--1 path,#mermaid-svg-vGShie12i0MJIKvs .section--1 circle,#mermaid-svg-vGShie12i0MJIKvs .section--1 polygon,#mermaid-svg-vGShie12i0MJIKvs .section--1 path{fill:hsl(240, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section--1 text{fill:#ffffff;}#mermaid-svg-vGShie12i0MJIKvs .node-icon--1{font-size:40px;color:#ffffff;}#mermaid-svg-vGShie12i0MJIKvs .section-edge--1{stroke:hsl(240, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth--1{stroke-width:17;}#mermaid-svg-vGShie12i0MJIKvs .section--1 line{stroke:hsl(60, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-0 rect,#mermaid-svg-vGShie12i0MJIKvs .section-0 path,#mermaid-svg-vGShie12i0MJIKvs .section-0 circle,#mermaid-svg-vGShie12i0MJIKvs .section-0 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-0 path{fill:hsl(60, 100%, 73.5294117647%);}#mermaid-svg-vGShie12i0MJIKvs .section-0 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-0{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-0{stroke:hsl(60, 100%, 73.5294117647%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-0{stroke-width:14;}#mermaid-svg-vGShie12i0MJIKvs .section-0 line{stroke:hsl(240, 100%, 83.5294117647%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-1 rect,#mermaid-svg-vGShie12i0MJIKvs .section-1 path,#mermaid-svg-vGShie12i0MJIKvs .section-1 circle,#mermaid-svg-vGShie12i0MJIKvs .section-1 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-1 path{fill:hsl(80, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-1 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-1{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-1{stroke:hsl(80, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-1{stroke-width:11;}#mermaid-svg-vGShie12i0MJIKvs .section-1 line{stroke:hsl(260, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-2 rect,#mermaid-svg-vGShie12i0MJIKvs .section-2 path,#mermaid-svg-vGShie12i0MJIKvs .section-2 circle,#mermaid-svg-vGShie12i0MJIKvs .section-2 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-2 path{fill:hsl(270, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-2 text{fill:#ffffff;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-2{font-size:40px;color:#ffffff;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-2{stroke:hsl(270, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-2{stroke-width:8;}#mermaid-svg-vGShie12i0MJIKvs .section-2 line{stroke:hsl(90, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-3 rect,#mermaid-svg-vGShie12i0MJIKvs .section-3 path,#mermaid-svg-vGShie12i0MJIKvs .section-3 circle,#mermaid-svg-vGShie12i0MJIKvs .section-3 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-3 path{fill:hsl(300, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-3 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-3{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-3{stroke:hsl(300, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-3{stroke-width:5;}#mermaid-svg-vGShie12i0MJIKvs .section-3 line{stroke:hsl(120, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-4 rect,#mermaid-svg-vGShie12i0MJIKvs .section-4 path,#mermaid-svg-vGShie12i0MJIKvs .section-4 circle,#mermaid-svg-vGShie12i0MJIKvs .section-4 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-4 path{fill:hsl(330, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-4 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-4{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-4{stroke:hsl(330, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-4{stroke-width:2;}#mermaid-svg-vGShie12i0MJIKvs .section-4 line{stroke:hsl(150, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-5 rect,#mermaid-svg-vGShie12i0MJIKvs .section-5 path,#mermaid-svg-vGShie12i0MJIKvs .section-5 circle,#mermaid-svg-vGShie12i0MJIKvs .section-5 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-5 path{fill:hsl(0, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-5 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-5{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-5{stroke:hsl(0, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-5{stroke-width:-1;}#mermaid-svg-vGShie12i0MJIKvs .section-5 line{stroke:hsl(180, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-6 rect,#mermaid-svg-vGShie12i0MJIKvs .section-6 path,#mermaid-svg-vGShie12i0MJIKvs .section-6 circle,#mermaid-svg-vGShie12i0MJIKvs .section-6 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-6 path{fill:hsl(30, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-6 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-6{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-6{stroke:hsl(30, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-6{stroke-width:-4;}#mermaid-svg-vGShie12i0MJIKvs .section-6 line{stroke:hsl(210, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-7 rect,#mermaid-svg-vGShie12i0MJIKvs .section-7 path,#mermaid-svg-vGShie12i0MJIKvs .section-7 circle,#mermaid-svg-vGShie12i0MJIKvs .section-7 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-7 path{fill:hsl(90, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-7 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-7{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-7{stroke:hsl(90, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-7{stroke-width:-7;}#mermaid-svg-vGShie12i0MJIKvs .section-7 line{stroke:hsl(270, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-8 rect,#mermaid-svg-vGShie12i0MJIKvs .section-8 path,#mermaid-svg-vGShie12i0MJIKvs .section-8 circle,#mermaid-svg-vGShie12i0MJIKvs .section-8 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-8 path{fill:hsl(150, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-8 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-8{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-8{stroke:hsl(150, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-8{stroke-width:-10;}#mermaid-svg-vGShie12i0MJIKvs .section-8 line{stroke:hsl(330, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-9 rect,#mermaid-svg-vGShie12i0MJIKvs .section-9 path,#mermaid-svg-vGShie12i0MJIKvs .section-9 circle,#mermaid-svg-vGShie12i0MJIKvs .section-9 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-9 path{fill:hsl(180, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-9 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-9{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-9{stroke:hsl(180, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-9{stroke-width:-13;}#mermaid-svg-vGShie12i0MJIKvs .section-9 line{stroke:hsl(0, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-10 rect,#mermaid-svg-vGShie12i0MJIKvs .section-10 path,#mermaid-svg-vGShie12i0MJIKvs .section-10 circle,#mermaid-svg-vGShie12i0MJIKvs .section-10 polygon,#mermaid-svg-vGShie12i0MJIKvs .section-10 path{fill:hsl(210, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-10 text{fill:black;}#mermaid-svg-vGShie12i0MJIKvs .node-icon-10{font-size:40px;color:black;}#mermaid-svg-vGShie12i0MJIKvs .section-edge-10{stroke:hsl(210, 100%, 76.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .edge-depth-10{stroke-width:-16;}#mermaid-svg-vGShie12i0MJIKvs .section-10 line{stroke:hsl(30, 100%, 86.2745098039%);stroke-width:3;}#mermaid-svg-vGShie12i0MJIKvs .disabled,#mermaid-svg-vGShie12i0MJIKvs .disabled circle,#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:lightgray;}#mermaid-svg-vGShie12i0MJIKvs .disabled text{fill:#efefef;}#mermaid-svg-vGShie12i0MJIKvs .section-root rect,#mermaid-svg-vGShie12i0MJIKvs .section-root path,#mermaid-svg-vGShie12i0MJIKvs .section-root circle,#mermaid-svg-vGShie12i0MJIKvs .section-root polygon{fill:hsl(240, 100%, 46.2745098039%);}#mermaid-svg-vGShie12i0MJIKvs .section-root text{fill:#ffffff;}#mermaid-svg-vGShie12i0MJIKvs .section-root span{color:#ffffff;}#mermaid-svg-vGShie12i0MJIKvs .section-2 span{color:#ffffff;}#mermaid-svg-vGShie12i0MJIKvs .icon-container{height:100%;display:flex;justify-content:center;align-items:center;}#mermaid-svg-vGShie12i0MJIKvs .edge{fill:none;}#mermaid-svg-vGShie12i0MJIKvs .mindmap-node-label{dy:1em;alignment-baseline:middle;text-anchor:middle;dominant-baseline:middle;text-align:center;}#mermaid-svg-vGShie12i0MJIKvs :root{--mermaid-font-family:"trebuchet ms",verdana,arial,sans-serif;} OpenClaw 屏幕共享
截图
Canvas 截图
全屏截图
批量巡检
录制
screen.record
分段策略
关键帧提取
显示
Canvas 呈现
A2UI 推送
JS 远程控制
安全
命令策略双门
TCC 权限
前台要求

9.2 与传统方案对比

维度	传统 VNC/RDP	OpenClaw 节点屏幕共享
连接方式	持续像素流	按需截图/录屏
带宽消耗	高（持续传输）	低（按需传输）
智能理解	无	Media Understanding 自动分析
多渠道推送	仅桌面客户端	任意聊天渠道
远程控制	专用协议	Canvas JS 注入
安全模型	VPN/密码	命令策略 + 设备配对 + TCC

9.3 未来方向

随着 OpenClaw 的持续演进，屏幕共享能力有望在以下方向增强：

更高帧率实时投屏：突破当前 60 秒录屏限制，支持更长时间的连续录制
WebRTC 实时流：基于 WebRTC 的低延迟像素流，接近 VNC 体验
多节点协同：多个节点屏幕拼接为虚拟大屏
AI 驱动的智能监控：Agent 主动识别屏幕异常并自动告警

OpenClaw 节点屏幕共享：远程显示与控制实战

目录

一、屏幕共享基础

1.1 什么是 OpenClaw 节点

1.2 节点配对流程

1.3 屏幕共享命令概览

1.4 命令策略双门机制

二、显示控制详解

2.1 Canvas 远程呈现

基本呈现操作

页面导航与 JavaScript 执行

2.2 Canvas 截图

2.3 屏幕截图（screen.snapshot）

2.4 A2UI：Agent 到 UI 的实时推送

三、远程投屏功能解析

3.1 屏幕录制（screen.record）

3.2 实时投屏架构

3.3 批量截图与定时巡检

四、实战案例1：远程桌面演示

4.1 场景描述

4.2 架构设计

4.3 实现代码

4.4 远程控制补充

五、实战案例2：多屏幕监控

5.1 场景描述

5.2 多节点配置

5.3 巡检脚本

5.4 监控流程图

六、实战案例3：屏幕录制与回放

6.1 场景描述

6.2 录制脚本

6.3 回放与标注

6.4 自动分析流水线

七、安全与权限模型

7.1 命令分类与默认策略

7.2 配置授权

7.3 前台要求

7.4 macOS TCC 权限

八、性能优化与最佳实践

8.1 截图参数优化

8.2 录屏参数优化

8.3 带宽与 Payload 限制

8.4 最佳实践清单

九、总结与展望

9.1 核心能力总结

9.2 与传统方案对比

9.3 未来方向

📚 参考链接
