docker部署开源实时观测系统hertzbeat

写代码的学渣2026-06-17 9:10

bash 复制代码

1、安装docker
1、安装依赖包

yum install -y yum-utils device-mapper-persistent-data lvm2

2、配置docker yum源

yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

3、安装docker

yum install -y docker-ce

4、修改docker配置文件

mkdir /etc/docker -p

sudo tee /etc/docker/daemon.json <<-'EOF'

{

    "registry-mirrors": [

      "https://docker.credclouds.com",

      "https://k8s.credclouds.com",

      "https://quay.credclouds.com",

      "https://gcr.credclouds.com",

      "https://k8s-gcr.credclouds.com",

      "https://ghcr.credclouds.com",

      "https://do.nark.eu.org",

      "https://docker.m.daocloud.io",

      "https://docker.nju.edu.cn",

      "https://docker.mirrors.sjtug.sjtu.edu.cn",

      "https://docker.1panel.live",

      "https://docker.rainbond.cc"

    ],

   "data-root": "/etc/docker"

}

EOF

5、启动docker

systemctl daemon-reload

systemctl enable docker --now

systemctl restart docker

6、安装docker-compose

#下载docker-compose文件

curl -L "https://github.com/docker/compose/releases/download/v2.29.0/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

#给他一个执行权限

chmod +x /usr/local/bin/docker-compose

ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose

#查看是否安装成功

docker-compose --version

2、拉取hertzbeat镜像
docker pull apache/hertzbeat:latest

3、创建数据目录
mkdir -p /data/hertzbeat/{data,logs}

chmod 777 /data/hertzbeat

4、docker安装hertzbeat
docker run -d -p 1157:1157 -p 1158:1158 \

    -e LANG=zh_CN.UTF-8 \

    -e TZ=Asia/Shanghai \

    -v /data/hertzbeat/data:/opt/hertzbeat/data \

    -v /data/hertzbeat/logs:/opt/hertzbeat/logs \

    --restart=always \

    --name hertzbeat apache/hertzbeat:latest

5、编辑docker-compose.yaml文件
vi /data/hertzbeat/docker-compose.yaml

version: '2.4'

services:

  hertzbeat:

    image: apache/hertzbeat:latest

    container_name: hertzbeat

    environment:

      - TZ=Asia/Shanghai

      - LANG=zh_CN.UTF-8

    ports:

      - 1157:1157

    volumes:

      - /data/hertzbeat/data:/opt/hertzbeat/data

      - /data/hertzbeat/logs:/opt/hertzbeat/logs

    restart: always

6、启动hertzbeat容器
cd /data/hertzbeat/

docker-compose up -d

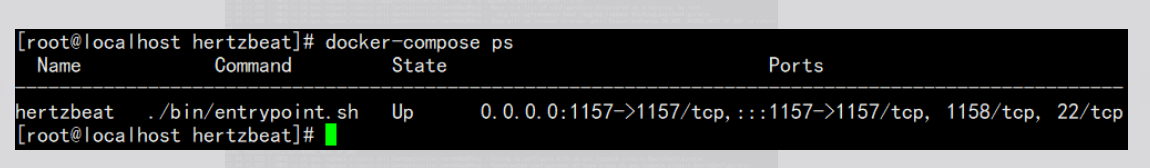

docker-compose ps

bash 复制代码

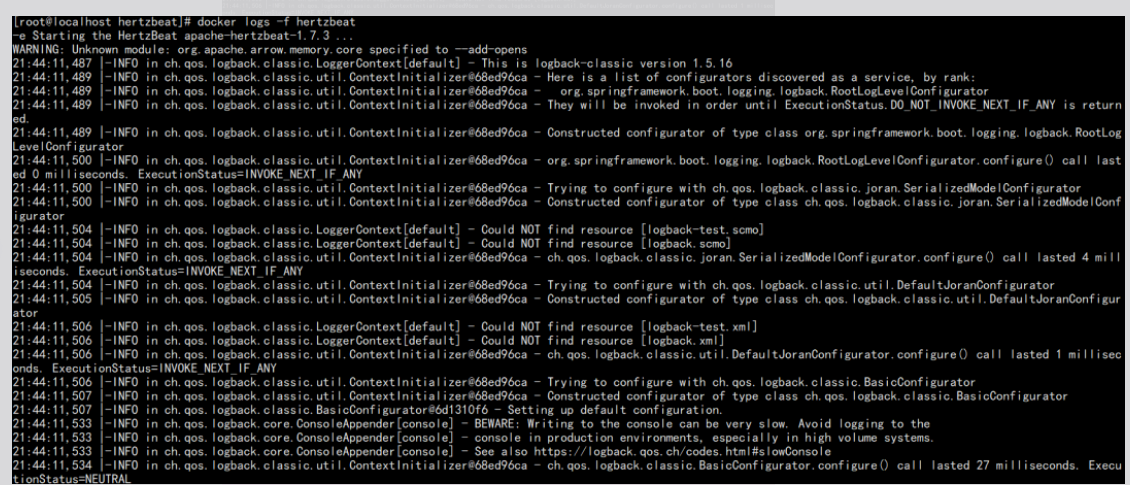

7、查看容器日志
docker logs -f hertzbeat

bash 复制代码

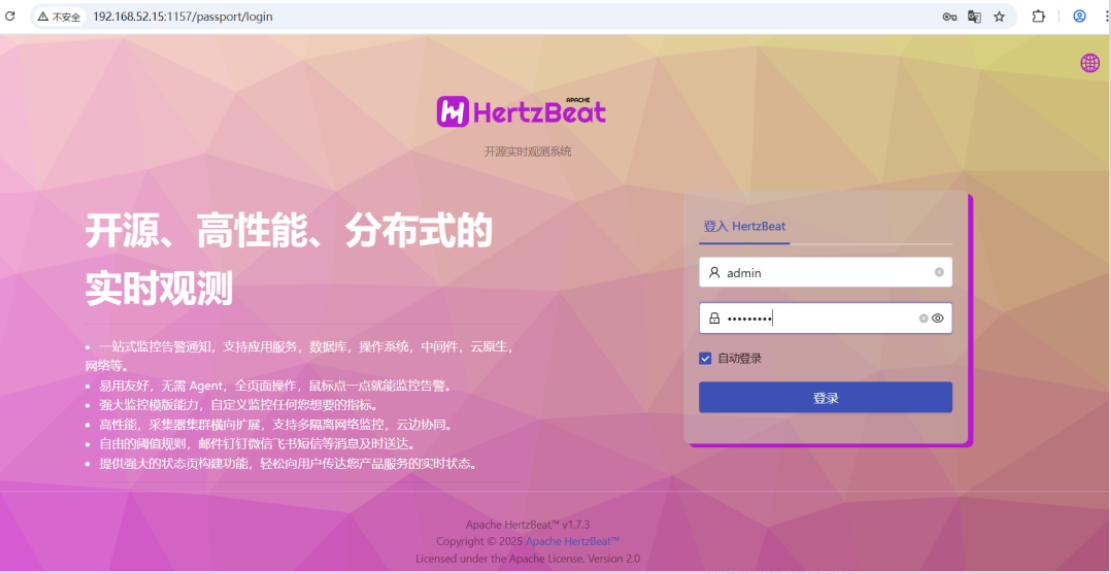

8、访问hertzbeat服务
浏览器访问: http://192.168.52.15:1157

默认账密: admin/hertzbeat

bash 复制代码

9、hertzbeat基本使用

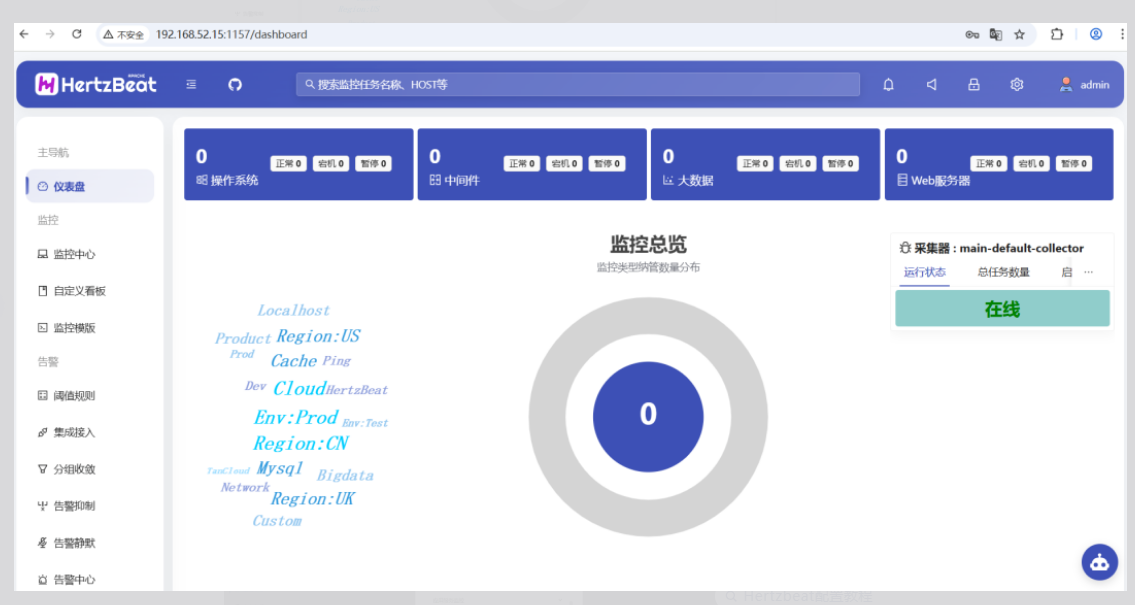

首页展示:

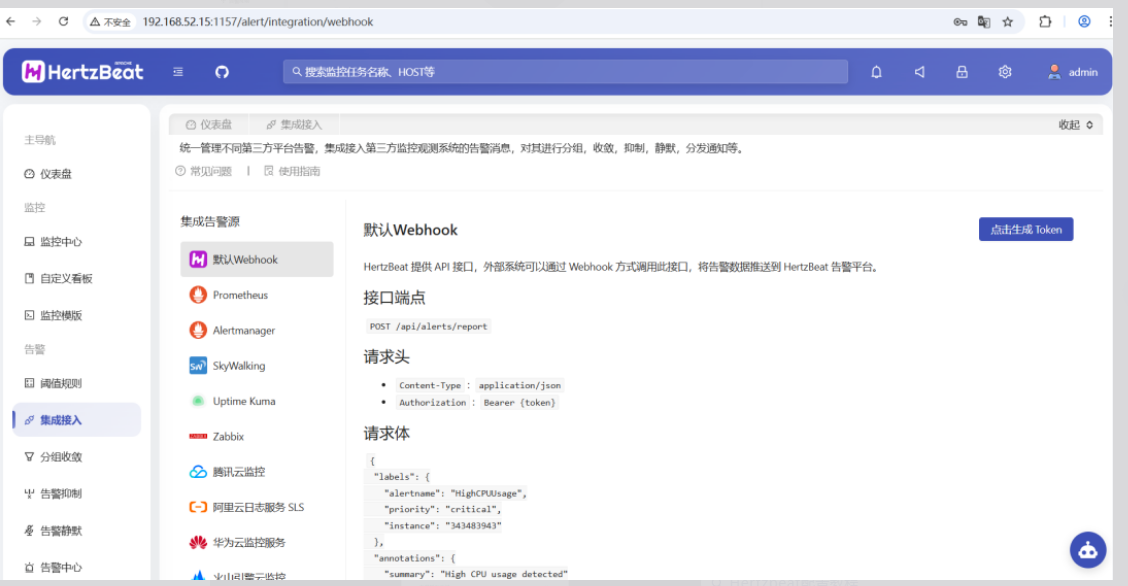

集成接入第三方监控观测系统:

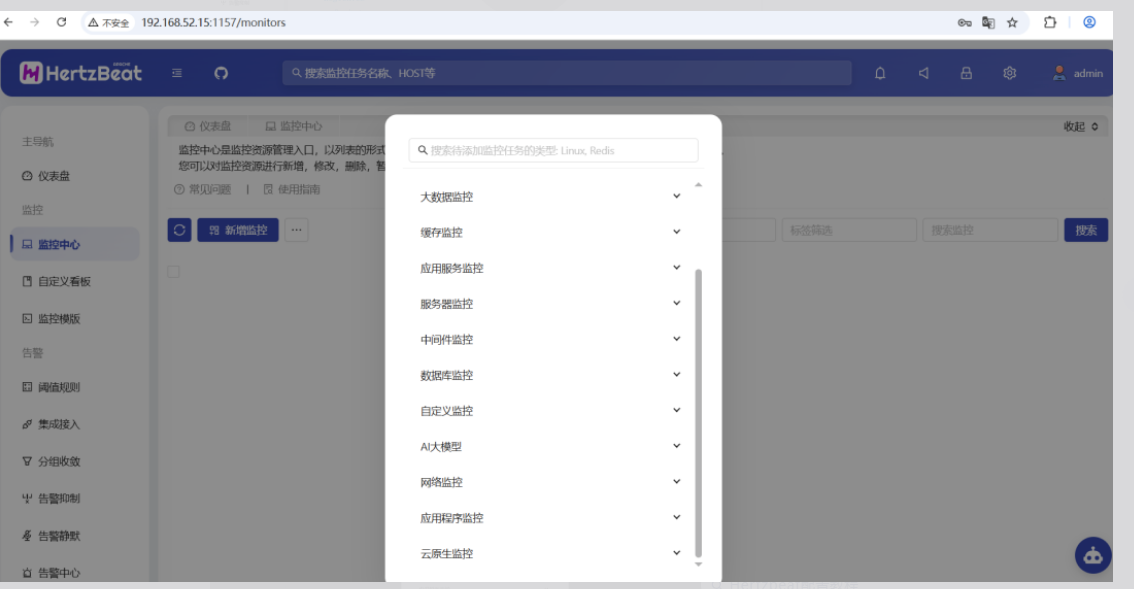

监控中心

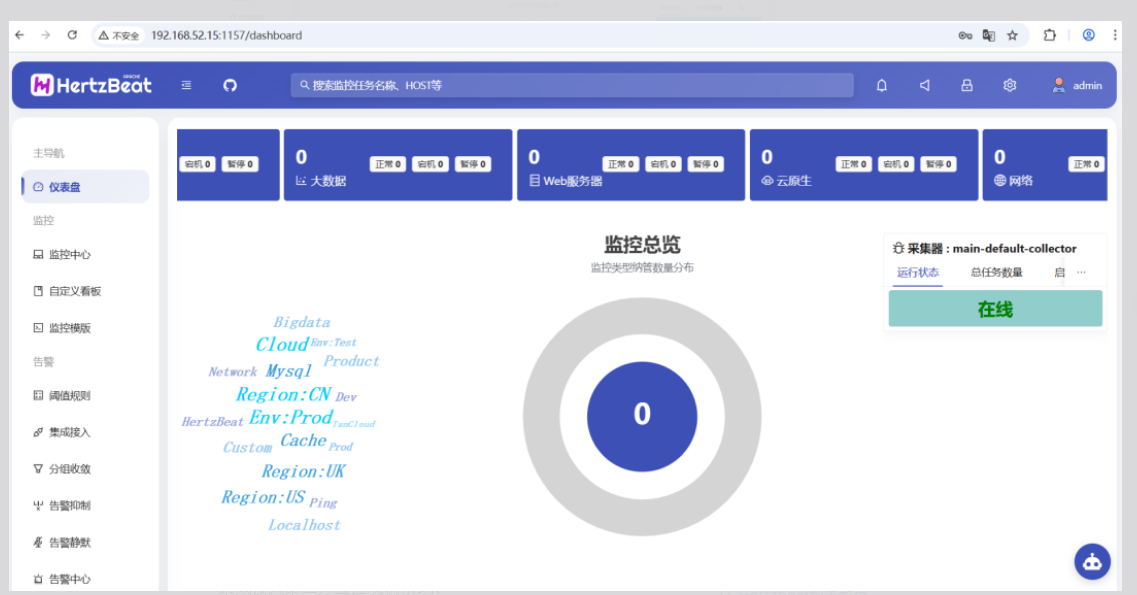

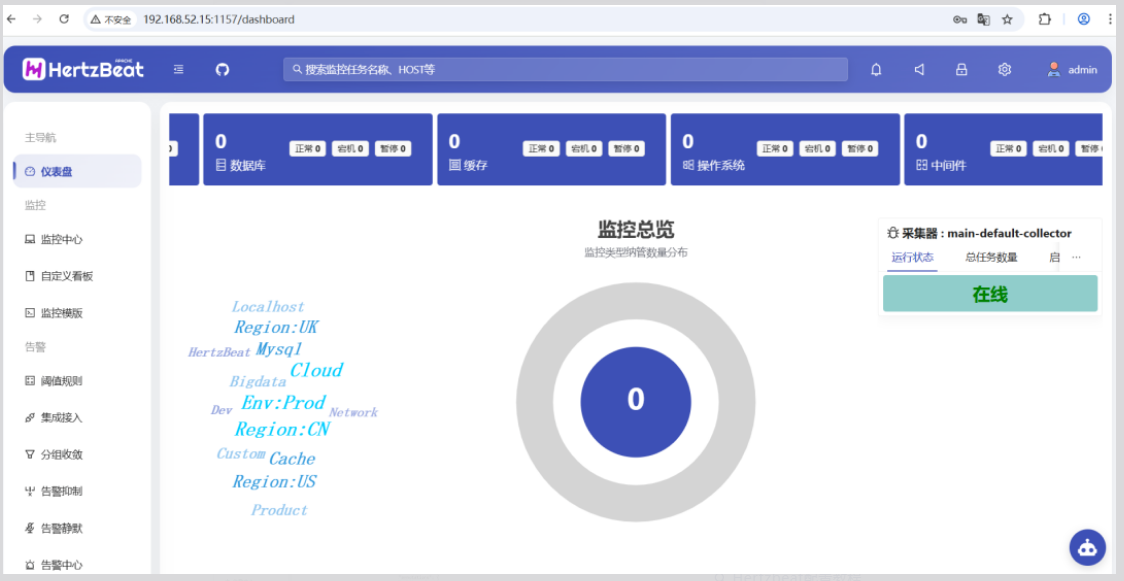

仪表盘
