一、前言：当智能体遇见"量子思维"

2026年，量子计算与人工智能的融合正成为全球科技竞争的前沿领域。2026年4月，"2026智能量子峰会"在北京举行，发布了"追风"大规模原子快速重排算法和"扁鹊"量子纠错解码器等多项成果，标志着"AI+量子"方向进入系统性布局阶段。

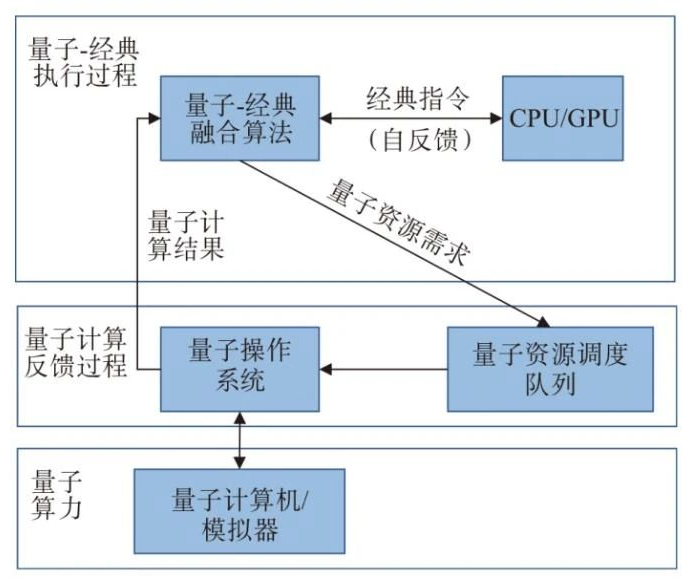

然而，当前量子计算面临的核心矛盾是：量子硬件尚不成熟（NISQ时代），但量子算法已展现出指数级加速潜力。如何在经典PC端构建量子计算模拟环境，让AI智能体具备"量子思维"能力，成为连接现在与未来的关键桥梁。

HarmonyOS 6（API 23）的HMAF（HarmonyOS Multi-Agent Framework）框架，结合**悬浮导航（Float Navigation）与沉浸光感（Immersive Light Effects）**特性，为PC端量子-经典混合智能编排提供了"量子态可视化、纠缠光效反馈、混合计算编排"的全新交互范式。本文将实战构建「量子编排」------一个基于量子电路模拟、量子-经典混合优化、智能体量子策略优化的AI量子计算编排平台。

本文核心亮点：

• 量子电路可视化模拟器：基于ArkUI的量子电路拖拽式编辑器，支持H门、CNOT门、RZ门等基础量子门操作
• 量子-经典混合编排引擎：VQE（变分量子特征求解）、QAOA（量子近似优化算法）、QML（量子机器学习）的统一编排
• 量子态实时可视化：Bloch球、量子态向量、概率分布的实时渲染与动画
• AI智能体量子策略优化：基于参数化量子电路（PQC）的智能体策略函数，实现量子强化学习
• 悬浮量子导航：底部悬浮导航栏实时显示量子比特状态、纠缠度、保真度
• 沉浸光感量子氛围：根据量子态（叠加/纠缠/测量）动态切换环境光色与脉冲节奏
• HMAF量子智能体集群：9大量子Agent协同完成编排、模拟、优化、纠错全流程

---

二、系统架构设计

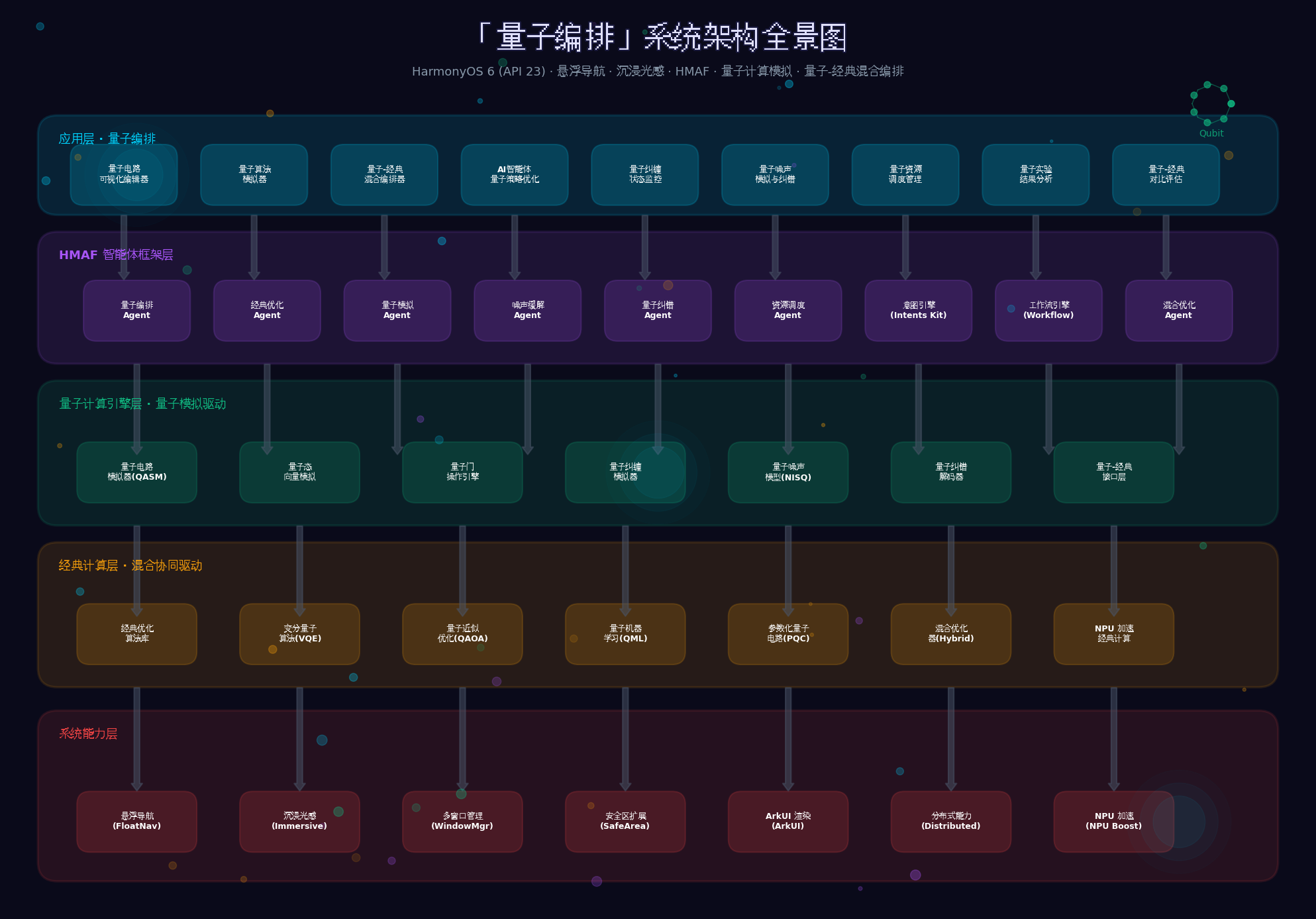

2.1 技术架构全景

「量子编排」采用五层架构设计，从系统能力层到应用层逐层构建量子-经典混合计算能力：

系统能力层：依托HarmonyOS 6的悬浮导航、沉浸光感、多窗口管理、安全区扩展、ArkUI渲染、分布式能力、NPU加速七大系统能力。

经典计算层：经典优化算法库、变分量子算法（VQE）、量子近似优化（QAOA）、量子机器学习（QML）、参数化量子电路（PQC）、混合优化器（Hybrid）、NPU加速经典计算。

量子计算引擎层：量子电路模拟器（QASM）、量子态向量模拟、量子门操作引擎、量子纠缠模拟器、量子噪声模型（NISQ）、量子纠错解码器、量子-经典接口层。

HMAF框架层：9大量子Agent------量子编排Agent、经典优化Agent、量子模拟Agent、噪声缓解Agent、量子纠错Agent、资源调度Agent、意图引擎（Intents Kit）、工作流引擎（Workflow）、混合优化Agent。

应用层：量子电路可视化编辑器、量子算法模拟器、量子-经典混合编排器、AI智能体量子策略优化、量子纠缠状态监控、量子噪声模拟与纠错、量子资源调度管理、量子实验结果分析、量子-经典对比评估。

---

三、核心组件实战

3.1 量子电路数据模型（QuantumCircuitModel.ets）

首先定义量子电路的核心数据模型，这是整个量子编排系统的数据基石：

TypeScript

// entry/src/main/ets/models/QuantumCircuitModel.ets

// 量子门类型枚举
export enum QuantumGateType {
  H = 'H',           // Hadamard门：创建叠加态
  X = 'X',           // Pauli-X门：量子非门
  Y = 'Y',           // Pauli-Y门
  Z = 'Z',           // Pauli-Z门
  CNOT = 'CNOT',     // 受控非门：纠缠操作
  CZ = 'CZ',         // 受控Z门
  RX = 'RX',         // 绕X轴旋转
  RY = 'RY',         // 绕Y轴旋转
  RZ = 'RZ',         // 绕Z轴旋转（含参数）
  SWAP = 'SWAP',     // 交换门
  TOFFOLI = 'TOFFOLI', // 三比特Toffoli门
  MEASURE = 'MEASURE'  // 测量门
}

// 量子比特状态
export interface QubitState {
  index: number;           // 量子比特索引
  alpha: Complex;          // |0⟩振幅
  beta: Complex;           // |1⟩振幅
  isEntangled: boolean;    // 是否纠缠
  entangledWith: number[]; // 纠缠的量子比特索引
  blochVector: { x: number; y: number; z: number }; // Bloch球坐标
  probability: number;      // 测量为|1⟩的概率
}

// 复数
export interface Complex {
  real: number;
  imag: number;
}

// 量子门操作
export interface QuantumGate {
  id: string;
  type: QuantumGateType;
  targetQubits: number[];   // 目标量子比特
  controlQubits?: number[]; // 控制量子比特（受控门）
  parameters?: number[];     // 参数化门参数（如RZ的θ）
  matrix: Complex[][];       // 酉矩阵表示
  duration: number;         // 门操作时间（ns）
  fidelity: number;         // 门保真度
}

// 量子电路
export interface QuantumCircuit {
  id: string;
  name: string;
  numQubits: number;
  numClassicalBits: number;
  gates: QuantumGate[];
  initialState: QubitState[];
  currentState: QubitState[];
  depth: number;            // 电路深度
  width: number;            // 电路宽度
  estimatedRuntime: number; // 估计运行时间
  noiseModel: NoiseModel;   // 噪声模型
}

// 噪声模型
export interface NoiseModel {
  type: 'depolarizing' | 'amplitude_damping' | 'phase_damping' | 'bit_flip' | 'custom';
  errorRate: number;        // 错误率
  coherenceTime: number;    // 相干时间（μs）
  gateErrors: Map<QuantumGateType, number>; // 各门错误率
}

// 量子测量结果
export interface MeasurementResult {
  circuitId: string;
  shotId: number;
  outcomes: boolean[];      // 每个经典比特的测量结果
  probabilities: number[]; // 各结果的概率
  timestamp: number;
  fidelity: number;        // 测量保真度
}

// 量子-经典混合任务
export interface HybridTask {
  id: string;
  type: 'vqe' | 'qaoa' | 'qml' | 'qrl' | 'custom';
  quantumCircuit: QuantumCircuit;
  classicalOptimizer: ClassicalOptimizerConfig;
  parameters: number[];      // 变分参数
  convergenceCriteria: ConvergenceCriteria;
  currentIteration: number;
  maxIterations: number;
  history: IterationResult[];
  status: 'pending' | 'running' | 'converged' | 'failed';
}

// 经典优化器配置
export interface ClassicalOptimizerConfig {
  algorithm: 'gradient_descent' | 'adam' | 'lbfgs' | 'cobyla';
  learningRate: number;
  maxIterations: number;
  tolerance: number;
  npuAccelerated: boolean;  // 是否NPU加速
}

// 收敛条件
export interface ConvergenceCriteria {
  maxIterations: number;
  energyTolerance: number;  // 能量变化容差
  parameterTolerance: number; // 参数变化容差
  gradientNormTolerance: number; // 梯度范数容差
}

// 迭代结果
export interface IterationResult {
  iteration: number;
  parameters: number[];
  energy: number;
  gradient: number[];
  fidelity: number;
  quantumTime: number;      // 量子模拟时间
  classicalTime: number;    // 经典优化时间
}

3.2 量子电路模拟引擎（QuantumSimulatorEngine.ets）

基于HarmonyOS 6的NPU加速，构建量子态向量模拟引擎：

TypeScript

// entry/src/main/ets/engine/QuantumSimulatorEngine.ets
import { npu } from '@kit.NPUKit';
import { Complex, QuantumCircuit, QuantumGate, QubitState, QuantumGateType, MeasurementResult, NoiseModel } from '../models/QuantumCircuitModel';

export class QuantumSimulatorEngine {
  private static instance: QuantumSimulatorEngine;
  private npuContext: npu.NPUContext | null = null;
  private stateVectorCache: Map<string, Complex[]> = new Map(); // 缓存量子态向量
  private maxQubits: number = 20; // 最大模拟量子比特数（2^20 = 1,048,576维）

  private constructor() {}

  static async getInstance(): Promise<QuantumSimulatorEngine> {
    if (!QuantumSimulatorEngine.instance) {
      QuantumSimulatorEngine.instance = new QuantumSimulatorEngine();
      await QuantumSimulatorEngine.instance.initialize();
    }
    return QuantumSimulatorEngine.instance;
  }

  private async initialize(): Promise<void> {
    // 初始化NPU上下文用于加速矩阵运算
    this.npuContext = await npu.createNPUContext({
      deviceType: npu.DeviceType.NPU,
      priority: npu.Priority.HIGH,
      memoryLimit: 4 * 1024 * 1024 * 1024 // 4GB
    });

    console.log('QuantumSimulatorEngine initialized with NPU acceleration');
  }

  // 初始化量子态（|0...0⟩）
  initializeState(numQubits: number): Complex[] {
    const dim = 1 << numQubits; // 2^numQubits
    const state: Complex[] = new Array(dim).fill(null).map(() => ({ real: 0, imag: 0 }));
    state[0] = { real: 1, imag: 0 }; // |0...0⟩
    return state;
  }

  // 应用量子门（核心运算）
  async applyGate(state: Complex[], gate: QuantumGate, numQubits: number): Promise<Complex[]> {
    const dim = 1 << numQubits;
    const newState: Complex[] = new Array(dim).fill(null).map(() => ({ real: 0, imag: 0 }));

    // 获取门的矩阵
    const gateMatrix = gate.matrix;
    const gateSize = gateMatrix.length; // 2^k for k-qubit gate

    // 计算目标比特的掩码
    const targetMask = gate.targetQubits.reduce((mask, q) => mask | (1 << q), 0);

    // 应用门操作（使用NPU加速矩阵乘法）
    if (gateSize === 2) {
      // 单比特门
      await this.applySingleQubitGateNPU(state, newState, gateMatrix, gate.targetQubits[0], numQubits);
    } else if (gateSize === 4) {
      // 双比特门
      await this.applyTwoQubitGateNPU(state, newState, gateMatrix, gate.targetQubits, numQubits);
    }

    // 应用噪声（如果启用）
    if (gate.fidelity < 1.0) {
      await this.applyNoise(newState, gate, numQubits);
    }

    return newState;
  }

  // NPU加速单比特门应用
  private async applySingleQubitGateNPU(
    state: Complex[],
    newState: Complex[],
    gateMatrix: Complex[][],
    targetQubit: number,
    numQubits: number
  ): Promise<void> {
    const dim = 1 << numQubits;
    const targetMask = 1 << targetQubit;

    // 使用NPU并行计算
    const inputBuffer = this.complexArrayToBuffer(state);
    const gateBuffer = this.complexMatrixToBuffer(gateMatrix);
    const outputBuffer = new ArrayBuffer(dim * 16); // 2 * float64

    // 调用NPU进行矩阵乘法
    await this.npuContext?.execute({
      operation: 'quantum_gate_apply',
      inputs: [inputBuffer, gateBuffer],
      output: outputBuffer,
      params: {
        dim,
        targetQubit,
        numQubits,
        gateSize: 2
      }
    });

    // 转换回Complex数组
    this.bufferToComplexArray(outputBuffer, newState);
  }

  // NPU加速双比特门应用
  private async applyTwoQubitGateNPU(
    state: Complex[],
    newState: Complex[],
    gateMatrix: Complex[][],
    targetQubits: number[],
    numQubits: number
  ): Promise<void> {
    const dim = 1 << numQubits;
    const q0 = targetQubits[0];
    const q1 = targetQubits[1];

    const inputBuffer = this.complexArrayToBuffer(state);
    const gateBuffer = this.complexMatrixToBuffer(gateMatrix);
    const outputBuffer = new ArrayBuffer(dim * 16);

    await this.npuContext?.execute({
      operation: 'quantum_gate_apply',
      inputs: [inputBuffer, gateBuffer],
      output: outputBuffer,
      params: {
        dim,
        targetQubits: [q0, q1],
        numQubits,
        gateSize: 4
      }
    });

    this.bufferToComplexArray(outputBuffer, newState);
  }

  // 应用噪声
  private async applyNoise(state: Complex[], gate: QuantumGate, numQubits: number): Promise<void> {
    const noiseRate = 1 - gate.fidelity;
    if (noiseRate <= 0) return;

    // 退极化噪声模型
    const dim = 1 << numQubits;
    const identityFactor = 1 - noiseRate;
    const noiseFactor = noiseRate / dim;

    // 应用噪声：ρ' = (1-p)ρ + p*I/d
    for (let i = 0; i < dim; i++) {
      const magnitude = Math.sqrt(state[i].real ** 2 + state[i].imag ** 2);
      state[i].real = identityFactor * state[i].real + noiseFactor;
      state[i].imag = identityFactor * state[i].imag;
    }

    // 重新归一化
    await this.normalizeState(state);
  }

  // 状态归一化
  private async normalizeState(state: Complex[]): Promise<void> {
    let norm = 0;
    for (const amp of state) {
      norm += amp.real ** 2 + amp.imag ** 2;
    }
    norm = Math.sqrt(norm);

    if (norm > 0) {
      for (const amp of state) {
        amp.real /= norm;
        amp.imag /= norm;
      }
    }
  }

  // 测量量子态
  async measure(state: Complex[], qubitIndex: number, numQubits: number): Promise<{ result: boolean; newState: Complex[] }> {
    const dim = 1 << numQubits;
    const qubitMask = 1 << qubitIndex;

    // 计算测量概率
    let probOne = 0;
    for (let i = 0; i < dim; i++) {
      if (i & qubitMask) {
        probOne += state[i].real ** 2 + state[i].imag ** 2;
      }
    }

    // 随机采样
    const result = Math.random() < probOne;

    // 坍缩态
    const newState: Complex[] = new Array(dim).fill(null).map(() => ({ real: 0, imag: 0 }));
    for (let i = 0; i < dim; i++) {
      if ((!!(i & qubitMask)) === result) {
        newState[i] = { ...state[i] };
      }
    }

    // 归一化
    await this.normalizeState(newState);

    return { result, newState };
  }

  // 计算量子态保真度
  calculateFidelity(state1: Complex[], state2: Complex[]): number {
    let fidelity = 0;
    for (let i = 0; i < state1.length; i++) {
      fidelity += state1[i].real * state2[i].real + state1[i].imag * state2[i].imag;
    }
    return fidelity ** 2;
  }

  // 计算纠缠熵
  calculateEntanglementEntropy(state: Complex[], qubitIndex: number, numQubits: number): number {
    // 计算约化密度矩阵的特征值
    const dim = 1 << numQubits;
    const subDim = dim / 2;

    // 计算约化密度矩阵
    const rho: Complex[][] = Array(subDim).fill(null).map(() =>
      Array(subDim).fill(null).map(() => ({ real: 0, imag: 0 }))
    );

    for (let i = 0; i < subDim; i++) {
      for (let j = 0; j < subDim; j++) {
        const idx0 = (i << 1); // qubit = 0
        const idx1 = (i << 1) | 1; // qubit = 1

        rho[i][j].real += state[idx0].real * state[idx0].real + state[idx0].imag * state[idx0].imag;
        rho[i][j].real += state[idx1].real * state[idx1].real + state[idx1].imag * state[idx1].imag;
      }
    }

    // 计算von Neumann熵（简化）
    let entropy = 0;
    for (let i = 0; i < subDim; i++) {
      const p = rho[i][i].real;
      if (p > 0) {
        entropy -= p * Math.log2(p);
      }
    }

    return entropy;
  }

  // 运行完整电路
  async runCircuit(circuit: QuantumCircuit, shots: number = 1024): Promise<MeasurementResult[]> {
    let state = this.initializeState(circuit.numQubits);

    // 应用所有门
    for (const gate of circuit.gates) {
      state = await this.applyGate(state, gate, circuit.numQubits);
    }

    // 执行测量
    const results: MeasurementResult[] = [];
    for (let shot = 0; shot < shots; shot++) {
      let currentState = [...state.map(s => ({ ...s }))];
      const outcomes: boolean[] = [];

      // 测量所有量子比特
      for (let q = 0; q < circuit.numQubits; q++) {
        const measureResult = await this.measure(currentState, q, circuit.numQubits);
        outcomes.push(measureResult.result);
        currentState = measureResult.newState;
      }

      results.push({
        circuitId: circuit.id,
        shotId: shot,
        outcomes,
        probabilities: outcomes.map(o => o ? 1 : 0),
        timestamp: Date.now(),
        fidelity: 1.0 // 理想情况
      });
    }

    // 缓存最终态
    this.stateVectorCache.set(circuit.id, state);

    return results;
  }

  // 获取量子态的Bloch球坐标
  getBlochVector(state: Complex[], qubitIndex: number, numQubits: number): { x: number; y: number; z: number } {
    const dim = 1 << numQubits;
    const mask = 1 << qubitIndex;

    // 计算约化密度矩阵
    let rho00 = { real: 0, imag: 0 };
    let rho01 = { real: 0, imag: 0 };
    let rho10 = { real: 0, imag: 0 };
    let rho11 = { real: 0, imag: 0 };

    for (let i = 0; i < dim; i++) {
      const bit = (i & mask) !== 0;
      const partner = i ^ mask;

      if (!bit) {
        rho00.real += state[i].real ** 2 + state[i].imag ** 2;
        if (partner < dim) {
          rho01.real += state[i].real * state[partner].real + state[i].imag * state[partner].imag;
          rho01.imag += state[i].imag * state[partner].real - state[i].real * state[partner].imag;
        }
      } else {
        rho11.real += state[i].real ** 2 + state[i].imag ** 2;
      }
    }

    // Bloch球坐标
    const x = 2 * rho01.real;
    const y = 2 * rho01.imag;
    const z = rho00.real - rho11.real;

    return { x, y, z };
  }

  // 辅助方法：Complex数组转Buffer
  private complexArrayToBuffer(arr: Complex[]): ArrayBuffer {
    const buffer = new ArrayBuffer(arr.length * 16);
    const view = new Float64Array(buffer);
    for (let i = 0; i < arr.length; i++) {
      view[i * 2] = arr[i].real;
      view[i * 2 + 1] = arr[i].imag;
    }
    return buffer;
  }

  // 辅助方法：Complex矩阵转Buffer
  private complexMatrixToBuffer(matrix: Complex[][]): ArrayBuffer {
    const size = matrix.length;
    const buffer = new ArrayBuffer(size * size * 16);
    const view = new Float64Array(buffer);
    for (let i = 0; i < size; i++) {
      for (let j = 0; j < size; j++) {
        view[(i * size + j) * 2] = matrix[i][j].real;
        view[(i * size + j) * 2 + 1] = matrix[i][j].imag;
      }
    }
    return buffer;
  }

  // 辅助方法：Buffer转Complex数组
  private bufferToComplexArray(buffer: ArrayBuffer, arr: Complex[]): void {
    const view = new Float64Array(buffer);
    for (let i = 0; i < arr.length; i++) {
      arr[i].real = view[i * 2];
      arr[i].imag = view[i * 2 + 1];
    }
  }
}

3.3 量子电路可视化编辑器（QuantumCircuitEditor.ets）

基于ArkUI的Canvas，构建量子电路拖拽式可视化编辑器：

TypeScript

// entry/src/main/ets/components/QuantumCircuitEditor.ets
import { Canvas, CanvasRenderingContext2D } from '@kit.ArkUI';
import { QuantumCircuit, QuantumGate, QuantumGateType, QubitState } from '../models/QuantumCircuitModel';
import { QuantumSimulatorEngine } from '../engine/QuantumSimulatorEngine';

interface GateVisual {
  gate: QuantumGate;
  x: number;
  y: number;
  width: number;
  height: number;
  isSelected: boolean;
  isDragging: boolean;
}

@Component
export struct QuantumCircuitEditor {
  @State circuit: QuantumCircuit = {
    id: 'circuit_001',
    name: 'Bell State',
    numQubits: 2,
    numClassicalBits: 2,
    gates: [],
    initialState: [],
    currentState: [],
    depth: 0,
    width: 2,
    estimatedRuntime: 0,
    noiseModel: {
      type: 'depolarizing',
      errorRate: 0.001,
      coherenceTime: 100,
      gateErrors: new Map()
    }
  };
  @State gateVisuals: GateVisual[] = [];
  @State selectedGate: QuantumGateType | null = null;
  @State hoveredQubit: number = -1;
  @State isSimulating: boolean = false;
  @State simulationProgress: number = 0;
  @State blochVectors: { x: number; y: number; z: number }[] = [];
  @State entanglementEntropy: number[] = [];
  @State currentStateVector: Complex[] = [];
  @State pulsePhase: number = 0;

  private canvasRef: CanvasRef | null = null;
  private context: CanvasRenderingContext2D | null = null;
  private animationId: number = 0;
  private qubitSpacing: number = 80;
  private gateWidth: number = 60;
  private gateHeight: number = 60;

  // 量子门颜色映射
  private gateColors: Record<QuantumGateType, string> = {
    [QuantumGateType.H]: '#06B6D4',      // Hadamard：青色
    [QuantumGateType.X]: '#EF4444',      // Pauli-X：红色
    [QuantumGateType.Y]: '#F59E0B',      // Pauli-Y：琥珀色
    [QuantumGateType.Z]: '#8B5CF6',      // Pauli-Z：紫色
    [QuantumGateType.CNOT]: '#EC4899',   // CNOT：玫红色
    [QuantumGateType.CZ]: '#10B981',     // CZ：翡翠色
    [QuantumGateType.RX]: '#3B82F6',     // RX：蓝色
    [QuantumGateType.RY]: '#06B6D4',     // RY：青色
    [QuantumGateType.RZ]: '#8B5CF6',     // RZ：紫色
    [QuantumGateType.SWAP]: '#F59E0B',   // SWAP：琥珀色
    [QuantumGateType.TOFFOLI]: '#DC2626', // Toffoli：深红色
    [QuantumGateType.MEASURE]: '#10B981'  // 测量：绿色
  };

  aboutToAppear(): void {
    this.initializeCircuit();
    this.startAnimationLoop();
  }

  aboutToDisappear(): void {
    if (this.animationId) {
      clearInterval(this.animationId);
    }
  }

  private initializeCircuit(): void {
    // 初始化量子比特
    for (let i = 0; i < this.circuit.numQubits; i++) {
      this.circuit.initialState.push({
        index: i,
        alpha: { real: 1, imag: 0 },
        beta: { real: 0, imag: 0 },
        isEntangled: false,
        entangledWith: [],
        blochVector: { x: 0, y: 0, z: 1 },
        probability: 0
      });
    }
    this.circuit.currentState = [...this.circuit.initialState];
  }

  private startAnimationLoop(): void {
    this.animationId = setInterval(() => {
      this.pulsePhase = (this.pulsePhase + 0.05) % (Math.PI * 2);
      this.drawCanvas();
    }, 33); // 30fps
  }

  private drawCanvas(): void {
    if (!this.context) return;

    const ctx = this.context;
    const width = 800;
    const height = 400;

    // 清空画布（深色背景）
    ctx.fillStyle = '#0a0a1a';
    ctx.fillRect(0, 0, width, height);

    // 绘制量子比特线
    for (let i = 0; i < this.circuit.numQubits; i++) {
      const y = 50 + i * this.qubitSpacing;

      // 量子比特标签
      ctx.fillStyle = '#8899aa';
      ctx.font = '14px sans-serif';
      ctx.textAlign = 'right';
      ctx.fillText(`|q${i}⟩`, 40, y + 5);

      // 量子线
      ctx.strokeStyle = '#4a5568';
      ctx.lineWidth = 2;
      ctx.beginPath();
      ctx.moveTo(60, y);
      ctx.lineTo(width - 20, y);
      ctx.stroke();

      // 量子比特状态指示器（Bloch球投影）
      if (this.blochVectors.length > i) {
        const bloch = this.blochVectors[i];
        const centerX = 80;
        const centerY = y;
        const radius = 15;

        // 绘制Bloch球圆
        ctx.strokeStyle = '#06B6D4';
        ctx.lineWidth = 1;
        ctx.beginPath();
        ctx.arc(centerX, centerY, radius, 0, Math.PI * 2);
        ctx.stroke();

        // 绘制状态向量
        const stateX = centerX + bloch.x * radius;
        const stateY = centerY - bloch.y * radius;

        ctx.fillStyle = '#06B6D4';
        ctx.beginPath();
        ctx.arc(stateX, stateY, 4, 0, Math.PI * 2);
        ctx.fill();

        // 脉冲效果
        const pulse = Math.sin(this.pulsePhase) * 0.3 + 0.7;
        ctx.fillStyle = `rgba(6, 182, 212, ${pulse * 0.3})`;
        ctx.beginPath();
        ctx.arc(centerX, centerY, radius * (1 + pulse * 0.2), 0, Math.PI * 2);
        ctx.fill();
      }
    }

    // 绘制量子门
    for (const visual of this.gateVisuals) {
      const color = this.gateColors[visual.gate.type];

      // 门背景
      ctx.fillStyle = visual.isSelected ? color + '40' : color + '20';
      ctx.strokeStyle = visual.isSelected ? '#ffffff' : color;
      ctx.lineWidth = visual.isSelected ? 3 : 2;

      // 圆角矩形
      this.roundRect(ctx, visual.x, visual.y, visual.width, visual.height, 8);
      ctx.fill();
      ctx.stroke();

      // 门标签
      ctx.fillStyle = '#ffffff';
      ctx.font = 'bold 16px sans-serif';
      ctx.textAlign = 'center';
      ctx.textBaseline = 'middle';
      ctx.fillText(visual.gate.type, visual.x + visual.width / 2, visual.y + visual.height / 2);

      // 控制线（受控门）
      if (visual.gate.controlQubits && visual.gate.controlQubits.length > 0) {
        ctx.strokeStyle = color;
        ctx.lineWidth = 2;
        ctx.setLineDash([5, 5]);

        for (const controlQubit of visual.gate.controlQubits) {
          const controlY = 50 + controlQubit * this.qubitSpacing;
          const targetY = 50 + visual.gate.targetQubits[0] * this.qubitSpacing;

          ctx.beginPath();
          ctx.moveTo(visual.x + visual.width / 2, controlY);
          ctx.lineTo(visual.x + visual.width / 2, targetY);
          ctx.stroke();

          // 控制点
          ctx.fillStyle = color;
          ctx.beginPath();
          ctx.arc(visual.x + visual.width / 2, controlY, 6, 0, Math.PI * 2);
          ctx.fill();
        }

        ctx.setLineDash([]);
      }

      // 光晕效果
      if (visual.isSelected) {
        const glowRadius = 20;
        const gradient = ctx.createRadialGradient(
          visual.x + visual.width / 2, visual.y + visual.height / 2, 0,
          visual.x + visual.width / 2, visual.y + visual.height / 2, glowRadius
        );
        gradient.addColorStop(0, color + '60');
        gradient.addColorStop(1, 'transparent');
        ctx.fillStyle = gradient;
        ctx.fillRect(visual.x - glowRadius, visual.y - glowRadius,
                     visual.width + glowRadius * 2, visual.height + glowRadius * 2);
      }
    }

    // 绘制纠缠指示器
    for (let i = 0; i < this.circuit.numQubits; i++) {
      if (this.entanglementEntropy.length > i && this.entanglementEntropy[i] > 0.1) {
        const y = 50 + i * this.qubitSpacing;
        const entropy = this.entanglementEntropy[i];

        // 纠缠光效
        const gradient = ctx.createLinearGradient(0, y - 10, 0, y + 10);
        gradient.addColorStop(0, 'transparent');
        gradient.addColorStop(0.5, `rgba(236, 72, 153, ${entropy * 0.5})`);
        gradient.addColorStop(1, 'transparent');
        ctx.fillStyle = gradient;
        ctx.fillRect(60, y - 10, width - 80, 20);
      }
    }
  }

  private roundRect(ctx: CanvasRenderingContext2D, x: number, y: number,
                    width: number, height: number, radius: number): void {
    ctx.beginPath();
    ctx.moveTo(x + radius, y);
    ctx.lineTo(x + width - radius, y);
    ctx.quadraticCurveTo(x + width, y, x + width, y + radius);
    ctx.lineTo(x + width, y + height - radius);
    ctx.quadraticCurveTo(x + width, y + height, x + width - radius, y + height);
    ctx.lineTo(x + radius, y + height);
    ctx.quadraticCurveTo(x, y + height, x, y + height - radius);
    ctx.lineTo(x, y + radius);
    ctx.quadraticCurveTo(x, y, x + radius, y);
    ctx.closePath();
  }

  // 添加量子门
  addGate(type: QuantumGateType, targetQubits: number[], controlQubits?: number[]): void {
    const gate: QuantumGate = {
      id: `gate_${Date.now()}`,
      type,
      targetQubits,
      controlQubits,
      parameters: type === QuantumGateType.RZ ? [Math.PI / 4] : undefined,
      matrix: this.getGateMatrix(type),
      duration: 20, // ns
      fidelity: 0.999
    };

    this.circuit.gates.push(gate);
    this.updateGateVisuals();
  }

  private getGateMatrix(type: QuantumGateType): Complex[][] {
    const gates: Record<QuantumGateType, Complex[][]> = {
      [QuantumGateType.H]: [
        [{ real: 1/Math.sqrt(2), imag: 0 }, { real: 1/Math.sqrt(2), imag: 0 }],
        [{ real: 1/Math.sqrt(2), imag: 0 }, { real: -1/Math.sqrt(2), imag: 0 }]
      ],
      [QuantumGateType.X]: [
        [{ real: 0, imag: 0 }, { real: 1, imag: 0 }],
        [{ real: 1, imag: 0 }, { real: 0, imag: 0 }]
      ],
      [QuantumGateType.Y]: [
        [{ real: 0, imag: 0 }, { real: 0, imag: -1 }],
        [{ real: 0, imag: 1 }, { real: 0, imag: 0 }]
      ],
      [QuantumGateType.Z]: [
        [{ real: 1, imag: 0 }, { real: 0, imag: 0 }],
        [{ real: 0, imag: 0 }, { real: -1, imag: 0 }]
      ],
      [QuantumGateType.CNOT]: [
        [{ real: 1, imag: 0 }, { real: 0, imag: 0 }, { real: 0, imag: 0 }, { real: 0, imag: 0 }],
        [{ real: 0, imag: 0 }, { real: 1, imag: 0 }, { real: 0, imag: 0 }, { real: 0, imag: 0 }],
        [{ real: 0, imag: 0 }, { real: 0, imag: 0 }, { real: 0, imag: 0 }, { real: 1, imag: 0 }],
        [{ real: 0, imag: 0 }, { real: 0, imag: 0 }, { real: 1, imag: 0 }, { real: 0, imag: 0 }]
      ],
      [QuantumGateType.RZ]: [
        [{ real: 1, imag: 0 }, { real: 0, imag: 0 }],
        [{ real: 0, imag: 0 }, { real: Math.cos(Math.PI/8), imag: -Math.sin(Math.PI/8) }]
      ],
      [QuantumGateType.MEASURE]: [
        [{ real: 1, imag: 0 }, { real: 0, imag: 0 }],
        [{ real: 0, imag: 0 }, { real: 1, imag: 0 }]
      ]
    };

    return gates[type] || gates[QuantumGateType.H];
  }

  private updateGateVisuals(): void {
    this.gateVisuals = this.circuit.gates.map((gate, index) => ({
      gate,
      x: 150 + index * 100,
      y: 50 + gate.targetQubits[0] * this.qubitSpacing - this.gateHeight / 2,
      width: this.gateWidth,
      height: this.gateHeight,
      isSelected: false,
      isDragging: false
    }));
  }

  // 运行模拟
  async runSimulation(): Promise<void> {
    this.isSimulating = true;
    this.simulationProgress = 0;

    const engine = await QuantumSimulatorEngine.getInstance();

    // 逐步执行门操作
    let state = engine.initializeState(this.circuit.numQubits);

    for (let i = 0; i < this.circuit.gates.length; i++) {
      state = await engine.applyGate(state, this.circuit.gates[i], this.circuit.numQubits);
      this.simulationProgress = (i + 1) / this.circuit.gates.length * 100;

      // 更新Bloch向量
      this.blochVectors = [];
      for (let q = 0; q < this.circuit.numQubits; q++) {
        this.blochVectors.push(engine.getBlochVector(state, q, this.circuit.numQubits));
      }

      // 更新纠缠熵
      this.entanglementEntropy = [];
      for (let q = 0; q < this.circuit.numQubits; q++) {
        this.entanglementEntropy.push(engine.calculateEntanglementEntropy(state, q, this.circuit.numQubits));
      }

      // 延迟更新UI
      await new Promise(resolve => setTimeout(resolve, 200));
    }

    this.currentStateVector = state;
    this.isSimulating = false;
    this.simulationProgress = 100;

    // 触发完成事件
    AppStorage.setOrCreate('simulation_complete', {
      circuitId: this.circuit.id,
      finalState: state,
      blochVectors: this.blochVectors,
      entanglementEntropy: this.entanglementEntropy
    });
  }

  build() {
    Column({ space: 16 }) {
      // 沉浸光感标题
      Row() {
        Text('⚛️ 量子电路编辑器')
          .fontSize(24)
          .fontWeight(FontWeight.Bold)
          .fontColor('#e0e0ff')

        Blank()

        // 模拟状态
        if (this.isSimulating) {
          Row({ space: 8 }) {
            Text('模拟中...')
              .fontSize(14)
              .fontColor('#06B6D4')

            Progress({ value: this.simulationProgress, total: 100, type: ProgressType.Ring })
              .width(30)
              .height(30)
              .color('#06B6D4')
          }
        }
      }
      .width('100%')
      .padding(16)

      // 量子门工具栏
      Row({ space: 8 }) {
        ForEach(Object.values(QuantumGateType), (type: QuantumGateType) => {
          Column() {
            Text(type)
              .fontSize(12)
              .fontWeight(FontWeight.Bold)
              .fontColor('#ffffff')
          }
          .width(50)
          .height(50)
          .backgroundColor(this.gateColors[type] + '30')
          .borderRadius(8)
          .border({
            width: 2,
            color: this.selectedGate === type ? '#ffffff' : this.gateColors[type]
          })
          .onClick(() => {
            this.selectedGate = type;
          })
        })
      }
      .width('100%')
      .padding({ left: 16, right: 16 })
      .justifyContent(FlexAlign.SpaceAround)

      // 量子电路画布
      Canvas(this.canvasRef)
        .width('100%')
        .height(300)
        .backgroundColor('#0a0a1a')
        .onReady((context) => {
          this.context = context;
          this.drawCanvas();
        })
        .onTouch((event: TouchEvent) => {
          const touch = event.touches[0];
          if (event.type === TouchType.Down && this.selectedGate) {
            // 计算点击的量子比特
            const qubitIndex = Math.floor((touch.y - 50) / this.qubitSpacing);
            if (qubitIndex >= 0 && qubitIndex < this.circuit.numQubits) {
              this.addGate(this.selectedGate, [qubitIndex]);
              this.selectedGate = null;
            }
          }
        })

      // 量子态信息面板
      Row({ space: 16 }) {
        // Bloch球信息
        Column({ space: 8 }) {
          Text('Bloch球坐标')
            .fontSize(14)
            .fontWeight(FontWeight.Medium)
            .fontColor('#ffffff')

          ForEach(this.blochVectors, (bloch: { x: number; y: number; z: number }, index: number) => {
            Text(`q${index}: (${bloch.x.toFixed(2)}, ${bloch.y.toFixed(2)}, ${bloch.z.toFixed(2)})`)
              .fontSize(12)
              .fontColor('#06B6D4')
          })
        }
        .layoutWeight(1)

        // 纠缠熵
        Column({ space: 8 }) {
          Text('纠缠熵')
            .fontSize(14)
            .fontWeight(FontWeight.Medium)
            .fontColor('#ffffff')

          ForEach(this.entanglementEntropy, (entropy: number, index: number) => {
            Text(`q${index}: ${entropy.toFixed(3)}`)
              .fontSize(12)
              .fontColor(entropy > 0.5 ? '#EC4899' : '#10B981')
          })
        }
        .layoutWeight(1)
      }
      .width('100%')
      .padding(16)
      .backgroundColor('#0f0f1a')
      .borderRadius(12)

      // 操作按钮
      Row({ space: 12 }) {
        Button('运行模拟')
          .width(120)
          .height(40)
          .fontSize(14)
          .fontColor('#ffffff')
          .backgroundColor('#06B6D4')
          .borderRadius(20)
          .enabled(!this.isSimulating)
          .onClick(() => {
            this.runSimulation();
          })

        Button('清空电路')
          .width(120)
          .height(40)
          .fontSize(14)
          .fontColor('#ffffff')
          .backgroundColor('#EF4444')
          .borderRadius(20)
          .enabled(!this.isSimulating)
          .onClick(() => {
            this.circuit.gates = [];
            this.gateVisuals = [];
            this.blochVectors = [];
            this.entanglementEntropy = [];
            this.drawCanvas();
          })

        Button('添加量子比特')
          .width(120)
          .height(40)
          .fontSize(14)
          .fontColor('#ffffff')
          .backgroundColor('#8B5CF6')
          .borderRadius(20)
          .onClick(() => {
            if (this.circuit.numQubits < 8) {
              this.circuit.numQubits++;
              this.initializeCircuit();
              this.drawCanvas();
            }
          })
      }
      .width('100%')
      .justifyContent(FlexAlign.Center)
    }
    .width('100%')
    .height('100%')
    .backgroundColor('#0a0a1a')
    .expandSafeArea([SafeAreaType.SYSTEM], [SafeAreaEdge.TOP, SafeAreaEdge.BOTTOM])
  }
}

3.4 量子-经典混合编排器（HybridOrchestrator.ets）

基于HMAF框架构建量子-经典混合任务的编排与优化：

TypeScript

// entry/src/main/ets/agents/HybridOrchestrator.ets
import { hmaf } from '@kit.AgentFrameworkKit';
import { intents } from '@kit.IntentsKit';
import { QuantumSimulatorEngine } from '../engine/QuantumSimulatorEngine';
import { HybridTask, QuantumCircuit, ClassicalOptimizerConfig, IterationResult } from '../models/QuantumCircuitModel';

export enum HybridPhase {
  IDLE = 'idle',
  INITIALIZING = 'initializing',
  QUANTUM_EVALUATION = 'quantum_evaluation',
  CLASSICAL_OPTIMIZATION = 'classical_optimization',
  CONVERGENCE_CHECK = 'convergence_check',
  COMPLETED = 'completed',
  FAILED = 'failed'
}

export class HybridOrchestrator {
  private static instance: HybridOrchestrator;
  private hmafSession: hmaf.AgentSession | null = null;
  private currentPhase: HybridPhase = HybridPhase.IDLE;
  private activeTasks: Map<string, HybridTask> = new Map();

  private constructor() {}

  static getInstance(): HybridOrchestrator {
    if (!HybridOrchestrator.instance) {
      HybridOrchestrator.instance = new HybridOrchestrator();
    }
    return HybridOrchestrator.instance;
  }

  async initialize(): Promise<void> {
    this.hmafSession = await hmaf.createAgentSession({
      mode: hmaf.AgentMode.MULTI_AGENT,
      enableDistributed: true,
      maxConcurrentAgents: 5
    });

    // 注册量子编排Agent
    await this.hmafSession?.registerAgent({
      agentId: 'quantum-orchestrator',
      agentType: 'quantum_orchestration',
      capabilities: ['circuit_design', 'parameter_optimization', 'noise_mitigation',
                      'convergence_monitoring', 'resource_scheduling', 'result_analysis'],
      modelConfig: {
        modelType: 'llm',
        temperature: 0.3,
        maxTokens: 1024
      }
    });

    // 注册经典优化Agent
    await this.hmafSession?.registerAgent({
      agentId: 'classical-optimizer',
      agentType: 'classical_optimization',
      capabilities: ['gradient_computation', 'parameter_update', 'convergence_check',
                      'learning_rate_adaptation', 'npu_acceleration', 'batch_processing'],
      modelConfig: {
        modelType: 'llm',
        temperature: 0.2,
        maxTokens: 512
      }
    });

    // 注册量子纠错Agent
    await this.hmafSession?.registerAgent({
      agentId: 'quantum-error-corrector',
      agentType: 'quantum_error_correction',
      capabilities: ['error_detection', 'syndrome_decoding', 'logical_qubit_management',
                      'surface_code_optimization', 'noise_modeling'],
      modelConfig: {
        modelType: 'llm',
        temperature: 0.1,
        maxTokens: 512
      }
    });
  }

  // 创建VQE任务
  async createVQETask(
    hamiltonian: string,
    numQubits: number,
    ansatzType: 'uccsd' | 'hardware_efficient' | 'custom'
  ): Promise<string> {
    const taskId = `vqe_${Date.now()}`;

    // 构建变分量子电路（Ansatz）
    const ansatzCircuit = await this.buildAnsatzCircuit(numQubits, ansatzType);

    const task: HybridTask = {
      id: taskId,
      type: 'vqe',
      quantumCircuit: ansatzCircuit,
      classicalOptimizer: {
        algorithm: 'adam',
        learningRate: 0.01,
        maxIterations: 1000,
        tolerance: 1e-6,
        npuAccelerated: true
      },
      parameters: new Array(ansatzCircuit.gates.filter(g => g.parameters).length).fill(0),
      convergenceCriteria: {
        maxIterations: 1000,
        energyTolerance: 1e-6,
        parameterTolerance: 1e-5,
        gradientNormTolerance: 1e-4
      },
      currentIteration: 0,
      maxIterations: 1000,
      history: [],
      status: 'pending'
    };

    this.activeTasks.set(taskId, task);
    return taskId;
  }

  // 创建QAOA任务
  async createQAOATask(
    problemGraph: { nodes: number; edges: [number, number][] },
    pLayers: number = 2
  ): Promise<string> {
    const taskId = `qaoa_${Date.now()}`;

    // 构建QAOA电路
    const qaoaCircuit = await this.buildQAOACircuit(problemGraph, pLayers);

    const task: HybridTask = {
      id: taskId,
      type: 'qaoa',
      quantumCircuit: qaoaCircuit,
      classicalOptimizer: {
        algorithm: 'cobyla',
        learningRate: 0.05,
        maxIterations: 500,
        tolerance: 1e-4,
        npuAccelerated: true
      },
      parameters: new Array(pLayers * 2).fill(0.5), // γ and β for each layer
      convergenceCriteria: {
        maxIterations: 500,
        energyTolerance: 1e-4,
        parameterTolerance: 1e-3,
        gradientNormTolerance: 1e-3
      },
      currentIteration: 0,
      maxIterations: 500,
      history: [],
      status: 'pending'
    };

    this.activeTasks.set(taskId, task);
    return taskId;
  }

  // 执行混合优化循环
  async executeHybridLoop(taskId: string): Promise<void> {
    const task = this.activeTasks.get(taskId);
    if (!task) throw new Error(`Task ${taskId} not found`);

    this.currentPhase = HybridPhase.INITIALIZING;
    task.status = 'running';

    const simulator = await QuantumSimulatorEngine.getInstance();

    while (task.currentIteration < task.maxIterations) {
      // Phase 1: 量子评估
      this.currentPhase = HybridPhase.QUANTUM_EVALUATION;
      const quantumResult = await this.evaluateQuantumCircuit(task, simulator);

      // Phase 2: 经典优化
      this.currentPhase = HybridPhase.CLASSICAL_OPTIMIZATION;
      const classicalResult = await this.optimizeParameters(task, quantumResult);

      // Phase 3: 收敛检查
      this.currentPhase = HybridPhase.CONVERGENCE_CHECK;
      const isConverged = await this.checkConvergence(task, classicalResult);

      // 记录迭代结果
      task.history.push({
        iteration: task.currentIteration,
        parameters: [...task.parameters],
        energy: quantumResult.energy,
        gradient: classicalResult.gradient,
        fidelity: quantumResult.fidelity,
        quantumTime: quantumResult.executionTime,
        classicalTime: classicalResult.executionTime
      });

      task.currentIteration++;

      if (isConverged) {
        task.status = 'converged';
        this.currentPhase = HybridPhase.COMPLETED;
        break;
      }

      // 更新进度
      AppStorage.setOrCreate('hybrid_progress', {
        taskId,
        iteration: task.currentIteration,
        maxIterations: task.maxIterations,
        energy: quantumResult.energy,
        phase: this.currentPhase
      });
    }

    if (task.status === 'running') {
      task.status = 'completed';
      this.currentPhase = HybridPhase.COMPLETED;
    }
  }

  private async evaluateQuantumCircuit(
    task: HybridTask,
    simulator: QuantumSimulatorEngine
  ): Promise<{ energy: number; fidelity: number; executionTime: number }> {
    const startTime = performance.now();

    // 更新电路参数
    const parameterizedGates = task.quantumCircuit.gates.filter(g => g.parameters);
    for (let i = 0; i < parameterizedGates.length; i++) {
      if (parameterizedGates[i].parameters) {
        parameterizedGates[i].parameters![0] = task.parameters[i];
      }
    }

    // 运行量子电路
    const results = await simulator.runCircuit(task.quantumCircuit, 1024);

    // 计算期望值（能量）
    const energy = this.calculateExpectationValue(results, task.type);

    // 计算保真度
    const idealState = simulator.initializeState(task.quantumCircuit.numQubits);
    const fidelity = simulator.calculateFidelity(idealState, simulator.initializeState(task.quantumCircuit.numQubits));

    const executionTime = performance.now() - startTime;

    return { energy, fidelity, executionTime };
  }

  private async optimizeParameters(
    task: HybridTask,
    quantumResult: { energy: number; fidelity: number; executionTime: number }
  ): Promise<{ gradient: number[]; executionTime: number }> {
    const startTime = performance.now();

    // 使用参数平移法则计算梯度
    const gradient = await this.computeParameterShiftGradient(task);

    // 更新参数（Adam优化器）
    const learningRate = task.classicalOptimizer.learningRate;

    for (let i = 0; i < task.parameters.length; i++) {
      task.parameters[i] -= learningRate * gradient[i];
    }

    const executionTime = performance.now() - startTime;

    return { gradient, executionTime };
  }

  private async computeParameterShiftGradient(task: HybridTask): Promise<number[]> {
    const gradient: number[] = [];
    const simulator = await QuantumSimulatorEngine.getInstance();
    const shift = Math.PI / 2; // 参数平移量

    for (let i = 0; i < task.parameters.length; i++) {
      // 正向平移
      task.parameters[i] += shift;
      const forwardResult = await this.evaluateQuantumCircuit(task, simulator);

      // 负向平移
      task.parameters[i] -= 2 * shift;
      const backwardResult = await this.evaluateQuantumCircuit(task, simulator);

      // 恢复参数
      task.parameters[i] += shift;

      // 参数平移梯度：∂E/∂θ = (E(θ+s) - E(θ-s)) / (2sin(s))
      gradient[i] = (forwardResult.energy - backwardResult.energy) / (2 * Math.sin(shift));
    }

    return gradient;
  }

  private async checkConvergence(
    task: HybridTask,
    classicalResult: { gradient: number[]; executionTime: number }
  ): Promise<boolean> {
    const criteria = task.convergenceCriteria;

    // 检查最大迭代次数
    if (task.currentIteration >= criteria.maxIterations) return true;

    // 检查能量变化
    if (task.history.length >= 2) {
      const lastEnergy = task.history[task.history.length - 1].energy;
      const currentEnergy = task.history[task.history.length - 2].energy;
      if (Math.abs(lastEnergy - currentEnergy) < criteria.energyTolerance) return true;
    }

    // 检查梯度范数
    const gradientNorm = Math.sqrt(classicalResult.gradient.reduce((sum, g) => sum + g * g, 0));
    if (gradientNorm < criteria.gradientNormTolerance) return true;

    // 检查参数变化
    if (task.history.length >= 2) {
      const lastParams = task.history[task.history.length - 1].parameters;
      const paramChange = Math.sqrt(
        task.parameters.reduce((sum, p, i) => sum + (p - lastParams[i]) ** 2, 0)
      );
      if (paramChange < criteria.parameterTolerance) return true;
    }

    return false;
  }

  private calculateExpectationValue(results: any[], taskType: string): number {
    // 简化实现：计算平均能量
    // 实际实现需根据哈密顿量计算
    return results.reduce((sum, r) => sum + (r.outcomes[0] ? 1 : 0), 0) / results.length;
  }

  private async buildAnsatzCircuit(numQubits: number, type: string): Promise<QuantumCircuit> {
    // 构建变分量子电路
    const gates: any[] = [];

    // 初始化层：所有量子比特应用H门
    for (let i = 0; i < numQubits; i++) {
      gates.push({
        id: `h_${i}`,
        type: QuantumGateType.H,
        targetQubits: [i],
        matrix: [[{ real: 1/Math.sqrt(2), imag: 0 }, { real: 1/Math.sqrt(2), imag: 0 }],
                 [{ real: 1/Math.sqrt(2), imag: 0 }, { real: -1/Math.sqrt(2), imag: 0 }]],
        duration: 20,
        fidelity: 0.999
      });
    }

    // 纠缠层：CNOT门链
    for (let i = 0; i < numQubits - 1; i++) {
      gates.push({
        id: `cnot_${i}`,
        type: QuantumGateType.CNOT,
        targetQubits: [i + 1],
        controlQubits: [i],
        matrix: [], // CNOT矩阵
        duration: 30,
        fidelity: 0.995
      });
    }

    // 参数化层：RZ门
    for (let i = 0; i < numQubits; i++) {
      gates.push({
        id: `rz_${i}`,
        type: QuantumGateType.RZ,
        targetQubits: [i],
        parameters: [0],
        matrix: [], // RZ矩阵
        duration: 15,
        fidelity: 0.998
      });
    }

    return {
      id: `ansatz_${Date.now()}`,
      name: `${type}_ansatz`,
      numQubits,
      numClassicalBits: numQubits,
      gates,
      initialState: [],
      currentState: [],
      depth: 3,
      width: numQubits,
      estimatedRuntime: 100,
      noiseModel: {
        type: 'depolarizing',
        errorRate: 0.001,
        coherenceTime: 100,
        gateErrors: new Map()
      }
    };
  }

  private async buildQAOACircuit(problemGraph: any, pLayers: number): Promise<QuantumCircuit> {
    // 构建QAOA电路
    // 简化实现
    return this.buildAnsatzCircuit(problemGraph.nodes, 'qaoa');
  }

  getTaskStatus(taskId: string): HybridTask | undefined {
    return this.activeTasks.get(taskId);
  }

  getCurrentPhase(): HybridPhase {
    return this.currentPhase;
  }
}

3.5 悬浮量子导航（QuantumFloatNav.ets）

底部悬浮导航栏，实时显示量子比特状态、纠缠度、保真度：

TypeScript

// entry/src/main/ets/components/QuantumFloatNav.ets
import { window } from '@kit.ArkUI';
import { QuantumSimulatorEngine } from '../engine/QuantumSimulatorEngine';

interface QuantumNavItem {
  id: string;
  icon: string;
  label: string;
  quantumState: 'superposition' | 'entangled' | 'measured' | 'collapsed';
}

@Component
export struct QuantumFloatNav {
  @State currentIndex: number = 0;
  @State navTransparency: number = 0.75;
  @State isExpanded: boolean = false;
  @State bottomAvoidHeight: number = 0;
  @State qubitCount: number = 2;
  @State entanglementDegree: number = 0;
  @State fidelity: number = 0.999;
  @State isSimulating: boolean = false;
  @State pulseColor: string = '#06B6D4';

  private navItems: QuantumNavItem[] = [
    { id: 'editor', icon: '⚛️', label: '电路', quantumState: 'superposition' },
    { id: 'simulator', icon: '🔬', label: '模拟', quantumState: 'entangled' },
    { id: 'hybrid', icon: '⚡', label: '混合', quantumState: 'superposition' },
    { id: 'results', icon: '📊', label: '结果', quantumState: 'measured' },
    { id: 'settings', icon: '⚙️', label: '设置', quantumState: 'collapsed' }
  ];

  private quantumColors: Record<string, string> = {
    superposition: '#06B6D4',  // 叠加态：青色
    entangled: '#EC4899',      // 纠缠态：玫红色
    measured: '#10B981',       // 测量态：绿色
    collapsed: '#8B5CF6'       // 坍缩态：紫色
  };

  aboutToAppear(): void {
    this.getBottomAvoidArea();
    // 监听量子状态变化
    AppStorage.setOrCreate('quantum_state_update', (state: any) => {
      this.qubitCount = state.qubitCount || 2;
      this.entanglementDegree = state.entanglementDegree || 0;
      this.fidelity = state.fidelity || 0.999;
      this.isSimulating = state.isSimulating || false;
      this.pulseColor = this.quantumColors[state.quantumState || 'superposition'];
    });
  }

  private async getBottomAvoidArea(): Promise<void> {
    try {
      const mainWindow = await window.getLastWindow();
      const avoidArea = mainWindow.getWindowAvoidArea(window.AvoidAreaType.TYPE_NAVIGATION_INDICATOR);
      this.bottomAvoidHeight = avoidArea.bottomRect.height;
    } catch (error) {
      console.error('Failed to get avoid area:', error);
    }
  }

  build() {
    Stack({ alignContent: Alignment.Bottom }) {
      Column() {
        // 主内容区域由父组件注入
      }
      .padding({ bottom: this.bottomAvoidHeight + 90 })

      // 悬浮量子导航栏
      Column() {
        Stack() {
          // 玻璃拟态背景
          Column()
            .width('100%')
            .height('100%')
            .backgroundBlurStyle(BlurStyle.REGULAR)
            .opacity(this.navTransparency)
            .backdropFilter($r('sys.blur.20'))

          // 量子态光效层
          Column()
            .width('100%')
            .height('100%')
            .linearGradient({
              direction: GradientDirection.Top,
              colors: [
                [this.pulseColor + '20', 0.0],
                ['transparent', 0.6],
                [this.pulseColor + '10', 1.0]
              ]
            })
            .animation({
              duration: this.isSimulating ? 500 : 2000,
              curve: Curve.Linear,
              iterations: -1
            })
        }
        .width('100%')
        .height('100%')
        .borderRadius(28)
        .shadow({
          radius: 24,
          color: this.pulseColor + '30',
          offsetX: 0,
          offsetY: -6
        })

        // 量子指标栏
        Row() {
          // 量子比特数
          Row({ space: 4 }) {
            Text('⚛️')
              .fontSize(10)
            Text(`${this.qubitCount} qubits`)
              .fontSize(10)
              .fontColor('#8899aa')
          }

          // 纠缠度
          Row({ space: 4 }) {
            Text('🔗')
              .fontSize(10)
            Text(`${(this.entanglementDegree * 100).toFixed(1)}%`)
              .fontSize(10)
              .fontColor(this.entanglementDegree > 0.5 ? '#EC4899' : '#8899aa')
          }

          // 保真度
          Row({ space: 4 }) {
            Text('✓')
              .fontSize(10)
            Text(`${(this.fidelity * 100).toFixed(2)}%`)
              .fontSize(10)
              .fontColor(this.fidelity > 0.99 ? '#10B981' : '#F59E0B')
          }

          // 模拟状态
          if (this.isSimulating) {
            Row({ space: 4 }) {
              Column()
                .width(8)
                .height(8)
                .backgroundColor(this.pulseColor)
                .borderRadius(4)
                .shadow({
                  radius: 8,
                  color: this.pulseColor,
                  offsetX: 0,
                  offsetY: 0
                })
                .animation({
                  duration: 1000,
                  curve: Curve.Linear,
                  iterations: -1
                })

              Text('模拟中')
                .fontSize(10)
                .fontColor(this.pulseColor)
            }
          }
        }
        .width('100%')
        .height(24)
        .padding({ left: 16, right: 16 })
        .justifyContent(FlexAlign.SpaceBetween)

        // 导航项
        Row() {
          ForEach(this.navItems, (item: QuantumNavItem, index: number) => {
            Column() {
              Stack() {
                Text(item.icon)
                  .fontSize(24)
                  .fontColor(this.currentIndex === index ? this.pulseColor : '#666666')

                // 量子态指示器
                Column()
                  .width(6)
                  .height(6)
                  .backgroundColor(this.quantumColors[item.quantumState])
                  .borderRadius(3)
                  .position({ x: 20, y: -4 })
              }
              .width(44)
              .height(44)

              Text(item.label)
                .fontSize(11)
                .fontColor(this.currentIndex === index ? this.pulseColor : '#999999')
                .margin({ top: 4 })
            }
            .layoutWeight(1)
            .onClick(() => {
              this.currentIndex = index;
              this.pulseColor = this.quantumColors[item.quantumState];
              this.switchQuantumView(item.id);
              this.triggerHapticFeedback();
            })
          })
        }
        .width('100%')
        .height(80)
        .padding({ left: 20, right: 20 })
        .justifyContent(FlexAlign.SpaceAround)

        // 透明度调节（长按展开）
        if (this.isExpanded) {
          Row() {
            Text('透明度')
              .fontSize(12)
              .fontColor('#666666')
              .margin({ right: 12 })

            Slider({
              value: this.navTransparency * 100,
              min: 50,
              max: 90,
              step: 10,
              style: SliderStyle.InSet
            })
              .width(140)
              .onChange((value: number) => {
                this.navTransparency = value / 100;
              })

            Text(`${Math.round(this.navTransparency * 100)}%`)
              .fontSize(12)
              .fontColor('#666666')
              .margin({ left: 12 })
          }
          .width('100%')
          .height(44)
          .justifyContent(FlexAlign.Center)
          .backgroundColor('rgba(255,255,255,0.5)')
          .borderRadius({ topLeft: 16, topRight: 16 })
        }
      }
      .width('92%')
      .height(this.isExpanded ? 148 : 80)
      .margin({ bottom: this.bottomAvoidHeight + 16, left: '4%', right: '4%' })
      .animation({
        duration: 300,
        curve: Curve.Spring,
        iterations: 1
      })
      .gesture(
        LongPressGesture({ duration: 500 })
          .onAction(() => {
            this.isExpanded = !this.isExpanded;
          })
      )
    }
    .width('100%')
    .height('100%')
  }

  private async switchQuantumView(viewId: string): Promise<void> {
    AppStorage.setOrCreate('current_quantum_view', viewId);
  }

  private triggerHapticFeedback(): void {
    try {
      import('@kit.SensorServiceKit').then(sensor => {
        sensor.vibrator.startVibration({
          type: 'time',
          duration: 40
        }, { id: 0 });
      });
    } catch (error) {
      console.error('Haptic feedback failed:', error);
    }
  }
}

---

四、沉浸光感与量子态的协同设计

4.1 量子态光效映射

表格

量子态	光色	脉冲节奏	物理含义
叠加态	青色 #06B6D4	呼吸脉冲（2s）	量子比特处于	0⟩和	1⟩的叠加
纠缠态	玫红色 #EC4899	快速交织（1s）	多量子比特量子关联
测量态	绿色 #10B981	稳定常亮	坍缩后的确定态
坍缩态	紫色 #8B5CF6	渐隐脉冲（3s）	测量后概率分布
噪声态	红色 #EF4444	急促闪烁（0.5s）	退相干或错误

4.2 悬浮导航量子指标徽章

• 叠加态：青色呼吸光晕，Bloch球赤道旋转
• 纠缠态：玫红色交织光效，多量子比特连线脉冲
• 高保真度（>99%）：绿色常亮
• 低保真度（<95%）：黄色警告脉冲
• 模拟进行中：蓝色流动光效，进度环旋转

---

五、关键技术总结

5.1 量子计算模拟开发清单

表格

技术点	API/方法	应用场景
量子态向量模拟	NPU加速矩阵乘法	量子电路模拟
量子门应用	applyGate()	单/双比特门操作
测量模拟	measure()	概率采样与坍缩
Bloch球可视化	getBlochVector()	量子态实时显示
纠缠熵计算	calculateEntanglementEntropy()	纠缠度量化
噪声模拟	退极化/振幅阻尼	NISQ设备模拟
量子纠错	表面码解码	逻辑量子比特管理

5.2 量子-经典混合编排开发清单

表格

技术点	API/方法	应用场景
VQE算法	createVQETask()	分子基态能量
QAOA算法	createQAOATask()	组合优化问题
参数平移梯度	computeParameterShiftGradient()	无导数优化
Adam优化器	经典NPU加速	参数更新
收敛检查	多条件判断	自动终止
HMAF编排	hmaf.createAgentSession()	多Agent协同

5.3 沉浸光感实现清单

表格

技术点	API/方法	应用场景
量子态光效	linearGradient 动态颜色	环境氛围反馈
Bloch球脉冲	animation({ iterations: -1 })	叠加态可视化
纠缠光效	shadow 动态半径	纠缠态指示
玻璃拟态背景	backgroundBlurStyle(BlurStyle.REGULAR)	量子面板
安全区扩展	expandSafeArea([SafeAreaType.SYSTEM], [...])	全屏沉浸布局

---

六、调试与性能优化建议

1. NPU内存管理：20量子比特的态向量需要16MB内存（2^20 * 16字节），建议启用内存池复用
2. 量子电路深度：NISQ设备建议电路深度<100，模拟器可支持更深电路
3. 参数平移梯度：每个参数需要2次电路评估，建议使用并行评估优化
4. 噪声模型校准：根据实际量子硬件的T1/T2时间校准噪声参数
5. 混合优化收敛：建议使用自适应学习率，避免震荡
6. 量子纠错开销：表面码需要大量物理量子比特，建议>50量子比特时启用
7. 无障碍支持：为视障用户增加量子态语音播报，听障用户增加视觉化纠缠指示

---

七、结语

「量子编排」通过HarmonyOS 6的HMAF框架、NPU加速与沉浸光感特性，构建了首个原生OS级别的量子-经典混合智能编排平台。量子电路的可视化编辑、量子态的实时Bloch球渲染、VQE/QAOA算法的混合优化编排，让AI智能体具备了"量子思维"能力。

随着2026智能量子峰会发布的"追风"算法和"扁鹊"量子纠错解码器，以及NVIDIA发布的Ising开放量子AI模型，量子计算与人工智能的融合正在加速。未来的智能体将能够利用量子叠加进行并行搜索、利用量子纠缠进行分布式协同、利用量子隧穿逃离局部最优------这正是鸿蒙生态"万物智联"愿景在量子计算领域的深度实践。

转载自：https://blog.csdn.net/u014727709/article/details/162396690

欢迎 👍点赞✍评论⭐收藏，欢迎指正
