一、引言：从"事后维修"到"预测先知"

在工业4.0向工业5.0演进的时代浪潮中，设备维护模式正经历一场深刻的范式变革。传统的"故障后维修"和"定期计划维护"模式已难以满足现代制造业对高可靠性、低停机成本的苛刻要求。据统计，非计划停机每年给全球制造业造成超过6000亿美元 的损失，而实施预测性维护的企业可将非计划停机减少50%-70% ，维护效率提升35%-45%。

数字孪生（Digital Twin）技术通过构建物理实体的高保真虚拟映射，实现了设备全生命周期的实时监控、仿真分析与智能决策。然而，传统依赖云端集中处理的数字孪生架构面临三大核心挑战：高延迟 （云端往返通常>100ms）、高带宽成本 （海量传感器数据持续上传）以及数据安全（敏感生产数据离厂）。边缘计算的引入，通过将计算能力下沉至数据源头，完美地弥补了这些短板，形成了"端-边-云-孪"四位一体的新型协同架构。

本文将深入探讨数字孪生边缘节点的核心技术栈，重点剖析实时数据采集流水线 、状态映射机制 、轻量化模型同步策略 以及预测性维护决策引擎的实现方法，并结合OpenHarmony生态提供完整的工程实践方案。

二、系统架构总览

数字孪生边缘节点系统采用分层解耦架构，自下而上分为物理实体层、边缘计算层、数字孪生映射层、云端协同层和智能应用层五个核心层级。

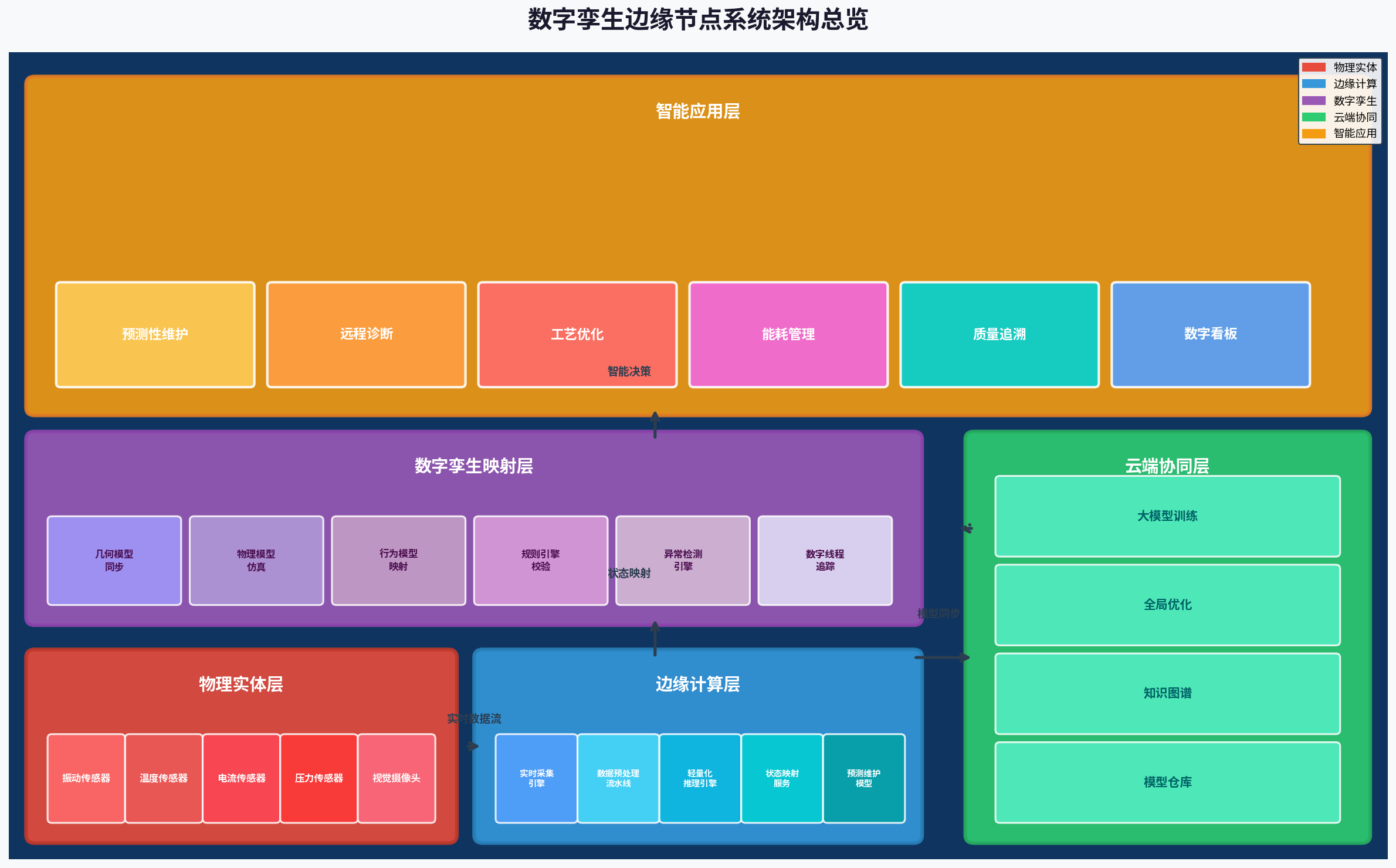

图1：数字孪生边缘节点系统架构总览

2.1 物理实体层

物理实体层是整个系统的数据源头，通过多类型传感器阵列实现对设备运行状态的全维度感知：

传感器类型 采集参数 接口协议 采样频率
振动传感器 加速度、速度、位移 IEPE/ADC 10-25.6kHz
温度传感器 表面温度、环境温度 I2C/1-Wire 1Hz
电流传感器 三相电流、谐波分量 霍尔/分流 1-10kHz
压力传感器 液压/气压 4-20mA/RS485 10-100Hz
视觉摄像头 表面缺陷、姿态识别 MIPI-CSI2 30fps

多源异构数据的时空对齐是首要挑战。根据ISO/IEC 30141标准，有效数据采集需满足时空连续性（≥99.9%采样率） 、**参数关联性（跨12类设备指标）和语义可解释性（本体建模准确率≥95%）**三个维度要求。

2.2 边缘计算层

边缘计算层是连接物理世界与数字世界的桥梁，承担数据预处理、实时分析和快速响应三大职能。其核心模块包括：

  • 实时采集引擎：基于DMA的零拷贝数据采集，支持多通道同步采样
  • 数据预处理流水线：滤波降噪、特征提取、数据对齐
  • 轻量化推理引擎：TensorFlow Lite/ONNX Runtime运行环境
  • 状态映射服务：物理量到数字量的实时转换
  • 预测维护模型：边缘端实时异常检测与RUL估计

2.3 数字孪生映射层

数字孪生映射层是系统的"灵魂"，通过几何模型同步、物理模型仿真、行为模型映射三大机制，实现物理实体与数字虚体的双向实时绑定。其核心能力包括：

  • 几何模型同步：基于CAD/BIM的轻量化三维模型实时渲染
  • 物理模型仿真：基于有限元分析的应力、热场、流场仿真
  • 行为模型映射：设备运行状态到数字孪生体的实时映射
  • 规则引擎校验：基于专家知识的异常规则实时校验
  • 数字线程追踪：全生命周期数据血缘追踪

三、实时数据采集与状态映射

3.1 数据采集流水线设计

实时数据采集流水线采用四阶段流水线架构 ，确保从传感器到数字孪生体的端到端延迟控制在30ms以内。

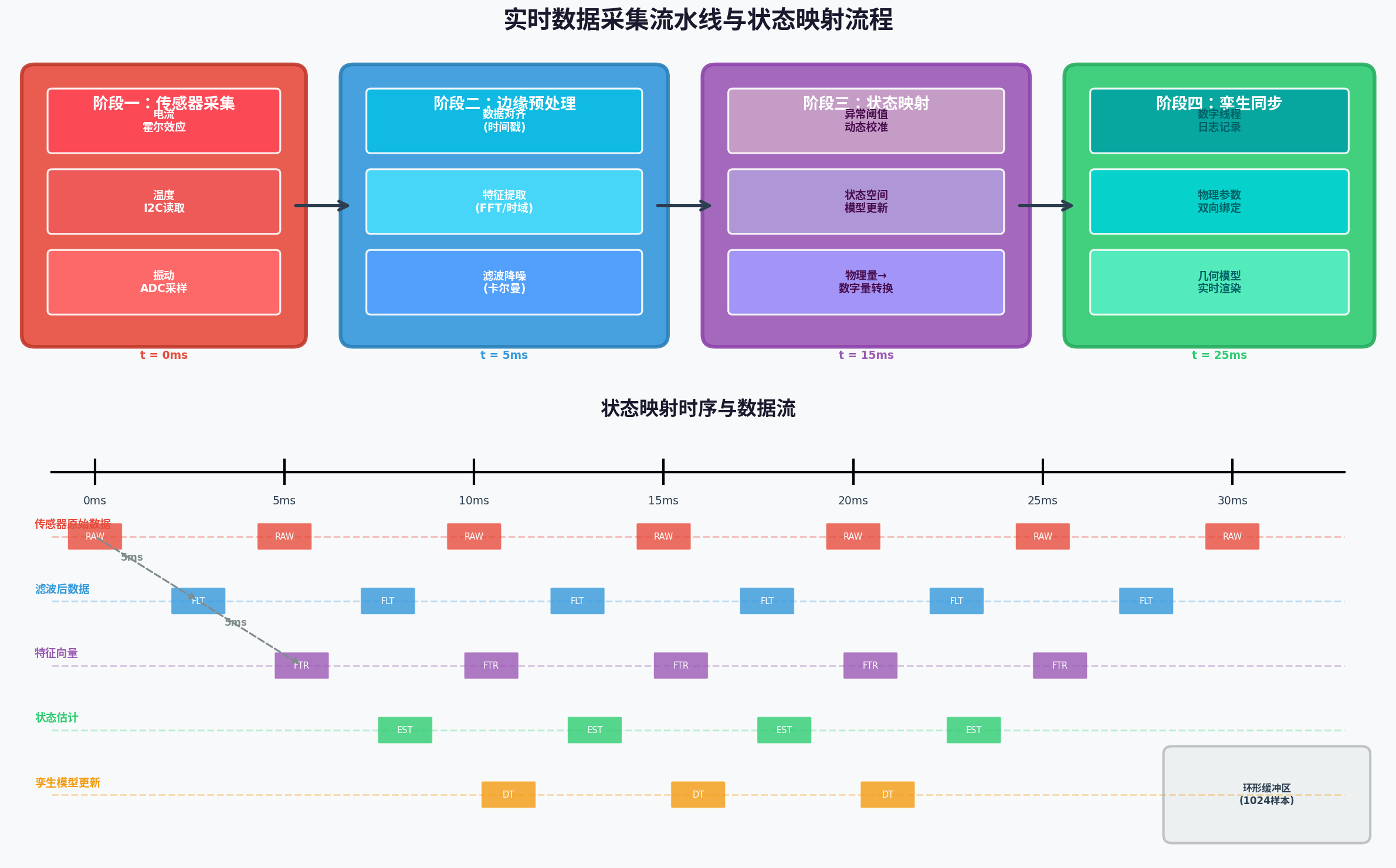

图2：实时数据采集流水线与状态映射流程

阶段一：传感器采集（0-5ms）

传感器采集是流水线的起点，其性能直接决定整个系统的数据质量。以振动信号采集为例：

c 复制代码
// 振动传感器实时采集驱动（基于STM32 HAL库）
#include "stm32h7xx_hal.h"
#include "sensor_vibration.h"

#define ADC_BUFFER_SIZE 1024
#define SAMPLING_FREQ 25600  // 25.6kHz，满足轴承故障诊断需求

// DMA双缓冲环形缓冲区
static uint16_t adc_buffer[2][ADC_BUFFER_SIZE];
static volatile uint8_t buffer_ready = 0;

// ADC DMA传输完成回调
void HAL_ADC_ConvCpltCallback(ADC_HandleTypeDef *hadc) {
    buffer_ready = 1;
    // 切换缓冲区，实现零拷贝采集
    HAL_ADC_Start_DMA(hadc, (uint32_t*)adc_buffer[buffer_ready], ADC_BUFFER_SIZE);
}

// 初始化振动采集通道
int vibration_sensor_init(vibration_config_t *config) {
    ADC_HandleTypeDef hadc;
    DMA_HandleTypeDef hdma;

    // 配置ADC时钟：25.6MHz / 25600 = 1kHz分频
    hadc.Instance = ADC1;
    hadc.Init.ClockPrescaler = ADC_CLOCK_ASYNC_DIV2;
    hadc.Init.Resolution = ADC_RESOLUTION_16B;
    hadc.Init.ScanConvMode = ADC_SCAN_DISABLE;
    hadc.Init.ContinuousConvMode = ENABLE;
    hadc.Init.DMAContinuousRequests = ENABLE;
    HAL_ADC_Init(&hadc);

    // 配置DMA双缓冲模式
    hdma.Instance = DMA1_Stream0;
    hdma.Init.Mode = DMA_CIRCULAR;
    hdma.Init.Priority = DMA_PRIORITY_VERY_HIGH;
    HAL_DMA_Init(&hdma);

    // 启动DMA传输
    HAL_ADC_Start_DMA(&hadc, (uint32_t*)adc_buffer[0], ADC_BUFFER_SIZE);

    return 0;
}

// 读取最新采集数据（非阻塞）
int vibration_read_latest(float *data, uint16_t *timestamp) {
    if (!buffer_ready) return -1;  // 数据未就绪

    // 将16位ADC值转换为物理量（m/s²）
    for (int i = 0; i < ADC_BUFFER_SIZE; i++) {
        data[i] = (adc_buffer[buffer_ready ^ 1][i] * 3.3f / 65535.0f - 1.65f)
                  / config.sensitivity;  // 灵敏度：mV/g
    }

    *timestamp = HAL_GetTick();
    buffer_ready = 0;
    return ADC_BUFFER_SIZE;
}
阶段二：边缘预处理（5-15ms）

原始传感器数据包含大量噪声和冗余信息，需在边缘端进行实时预处理：

c 复制代码
// 卡尔曼滤波器实现（一维）
typedef struct {
    float q;      // 过程噪声协方差
    float r;      // 测量噪声协方差
    float x;      // 状态估计值
    float p;      // 估计误差协方差
    float k;      // 卡尔曼增益
} kalman_filter_t;

void kalman_init(kalman_filter_t *kf, float q, float r, float x0) {
    kf->q = q;
    kf->r = r;
    kf->x = x0;
    kf->p = 1.0f;
    kf->k = 0.0f;
}

float kalman_update(kalman_filter_t *kf, float measurement) {
    // 预测步骤
    kf->p = kf->p + kf->q;

    // 更新步骤
    kf->k = kf->p / (kf->p + kf->r);
    kf->x = kf->x + kf->k * (measurement - kf->x);
    kf->p = (1.0f - kf->k) * kf->p;

    return kf->x;
}

// 多通道卡尔曼滤波
void multi_channel_kalman_filter(float *input, float *output,
                                  int channels, int samples,
                                  kalman_filter_t *filters) {
    for (int ch = 0; ch < channels; ch++) {
        for (int i = 0; i < samples; i++) {
            output[ch * samples + i] =
                kalman_update(&filters[ch], input[ch * samples + i]);
        }
    }
}
阶段三：状态映射（15-25ms）

状态映射是数字孪生的核心环节，将物理量转换为数字孪生体可理解的状态表示：

c 复制代码
// 状态空间模型定义
typedef struct {
    float state[STATE_DIM];      // 状态向量 [位置, 速度, 加速度, 温度, 磨损度]
    float covariance[STATE_DIM][STATE_DIM];  // 状态协方差矩阵
    float transition[STATE_DIM][STATE_DIM];  // 状态转移矩阵
    float observation[OBS_DIM][STATE_DIM];   // 观测矩阵
} state_space_model_t;

// 状态映射服务
typedef struct {
    state_space_model_t model;
    uint32_t last_update_time;
    float health_score;          // 设备健康度 0-100
    float rul_estimate;          // 剩余使用寿命估计
} state_mapping_service_t;

// 执行状态映射
int state_mapping_execute(state_mapping_service_t *service,
                          sensor_data_t *sensor_input,
                          digital_twin_state_t *dt_state) {
    // 1. 物理量到状态向量转换
    float measurement[OBS_DIM] = {
        sensor_input->vibration_rms,
        sensor_input->temperature,
        sensor_input->current_rms,
        sensor_input->pressure
    };

    // 2. 扩展卡尔曼滤波状态估计
    ekf_predict(&service->model);
    ekf_update(&service->model, measurement);

    // 3. 计算设备健康度
    service->health_score = calculate_health_score(
        service->model.state,
        HEALTH_THRESHOLD_NORMAL,
        HEALTH_THRESHOLD_WARNING,
        HEALTH_THRESHOLD_CRITICAL
    );

    // 4. 更新数字孪生体状态
    dt_state->position = service->model.state[0];
    dt_state->velocity = service->model.state[1];
    dt_state->temperature = service->model.state[3];
    dt_state->wear_level = service->model.state[4];
    dt_state->health_score = service->health_score;
    dt_state->timestamp = HAL_GetTick();

    // 5. 异常检测
    if (service->health_score < HEALTH_THRESHOLD_WARNING) {
        trigger_alert(ALERT_LEVEL_WARNING, "设备健康度低于阈值");
    }

    return 0;
}
阶段四：孪生同步（25-30ms）

数字孪生同步通过WebSocket/MQTT协议实现边缘节点与云端孪生模型的双向数据流：

c 复制代码
// 数字孪生同步客户端（基于MQTT）
#include "MQTTClient.h"

#define MQTT_BROKER "mqtt.edge-twin.local"
#define MQTT_PORT 1883
#define SYNC_INTERVAL_MS 100  // 100ms同步周期

typedef struct {
    MQTTClient client;
    char twin_topic[64];
    char command_topic[64];
    digital_twin_state_t current_state;
    pthread_mutex_t state_mutex;
} twin_sync_client_t;

// 初始化孪生同步
int twin_sync_init(twin_sync_client_t *client, const char *device_id) {
    MQTTClient_connectOptions conn_opts = MQTTClient_connectOptions_initializer;

    snprintf(client->twin_topic, sizeof(client->twin_topic),
             "twin/%s/state", device_id);
    snprintf(client->command_topic, sizeof(client->command_topic),
             "twin/%s/command", device_id);

    MQTTClient_create(&client->client, MQTT_BROKER, device_id,
                      MQTTCLIENT_PERSISTENCE_NONE, NULL);

    conn_opts.keepAliveInterval = 20;
    conn_opts.cleansession = 1;
    conn_opts.username = "edge_node";
    conn_opts.password = "secure_token";

    MQTTClient_connect(client->client, &conn_opts);

    // 订阅云端控制指令
    MQTTClient_subscribe(client->client, client->command_topic, 1);

    pthread_mutex_init(&client->state_mutex, NULL);

    return 0;
}

// 发布状态更新（差分压缩）
int twin_sync_publish_state(twin_sync_client_t *client) {
    digital_twin_state_t state;
    static digital_twin_state_t last_state = {0};

    pthread_mutex_lock(&client->state_mutex);
    memcpy(&state, &client->current_state, sizeof(state));
    pthread_mutex_unlock(&client->state_mutex);

    // 差分编码：仅传输变化的状态量
    uint8_t diff_mask = 0;
    float delta_state[STATE_DIM];
    int delta_count = 0;

    for (int i = 0; i < STATE_DIM; i++) {
        float delta = fabs(state.state[i] - last_state.state[i]);
        if (delta > STATE_CHANGE_THRESHOLD) {
            diff_mask |= (1 << i);
            delta_state[delta_count++] = state.state[i];
        }
    }

    if (delta_count == 0) return 0;  // 无变化，跳过同步

    // 构建差分消息
    uint8_t payload[256];
    int offset = 0;
    payload[offset++] = diff_mask;  // 变化掩码
    memcpy(payload + offset, delta_state, delta_count * sizeof(float));
    offset += delta_count * sizeof(float);

    MQTTClient_message pubmsg = MQTTClient_message_initializer;
    pubmsg.payload = payload;
    pubmsg.payloadlen = offset;
    pubmsg.qos = 1;
    pubmsg.retained = 0;

    MQTTClient_publishMessage(client->client, client->twin_topic, &pubmsg, NULL);

    memcpy(&last_state, &state, sizeof(state));
    return 0;
}

3.2 环形缓冲区设计

为应对传感器高频采集与网络传输速率不匹配的问题，系统采用环形缓冲区实现数据流削峰填谷：

c 复制代码
// 线程安全环形缓冲区
typedef struct {
    uint8_t *buffer;
    size_t capacity;
    size_t head;
    size_t tail;
    size_t count;
    pthread_mutex_t mutex;
    pthread_cond_t not_empty;
    pthread_cond_t not_full;
} ring_buffer_t;

ring_buffer_t *ring_buffer_create(size_t capacity) {
    ring_buffer_t *rb = malloc(sizeof(ring_buffer_t));
    rb->buffer = malloc(capacity);
    rb->capacity = capacity;
    rb->head = rb->tail = rb->count = 0;
    pthread_mutex_init(&rb->mutex, NULL);
    pthread_cond_init(&rb->not_empty, NULL);
    pthread_cond_init(&rb->not_full, NULL);
    return rb;
}

// 非阻塞写入（生产者：传感器中断）
int ring_buffer_write_nb(ring_buffer_t *rb, const uint8_t *data, size_t len) {
    pthread_mutex_lock(&rb->mutex);

    if (rb->count + len > rb->capacity) {
        // 缓冲区满：覆盖最旧数据（丢包策略）
        rb->head = (rb->head + len) % rb->capacity;
        rb->count = rb->capacity;
    } else {
        rb->count += len;
    }

    for (size_t i = 0; i < len; i++) {
        rb->buffer[rb->tail] = data[i];
        rb->tail = (rb->tail + 1) % rb->capacity;
    }

    pthread_cond_signal(&rb->not_empty);
    pthread_mutex_unlock(&rb->mutex);
    return 0;
}

// 阻塞读取（消费者：网络发送线程）
int ring_buffer_read(ring_buffer_t *rb, uint8_t *data, size_t len, int timeout_ms) {
    pthread_mutex_lock(&rb->mutex);

    struct timespec ts;
    clock_gettime(CLOCK_REALTIME, &ts);
    ts.tv_sec += timeout_ms / 1000;
    ts.tv_nsec += (timeout_ms % 1000) * 1000000;

    while (rb->count < len) {
        if (pthread_cond_timedwait(&rb->not_empty, &rb->mutex, &ts) != 0) {
            pthread_mutex_unlock(&rb->mutex);
            return -ETIMEDOUT;
        }
    }

    for (size_t i = 0; i < len; i++) {
        data[i] = rb->buffer[rb->head];
        rb->head = (rb->head + 1) % rb->capacity;
    }
    rb->count -= len;

    pthread_cond_signal(&rb->not_full);
    pthread_mutex_unlock(&rb->mutex);
    return 0;
}

四、轻量化模型同步机制

边缘节点的计算资源（通常<8GB RAM、<4TOPS算力）与云端数据中心存在数量级差异，因此必须采用模型压缩-差分同步-增量更新的三级策略，将云端训练的大模型高效部署到边缘端。

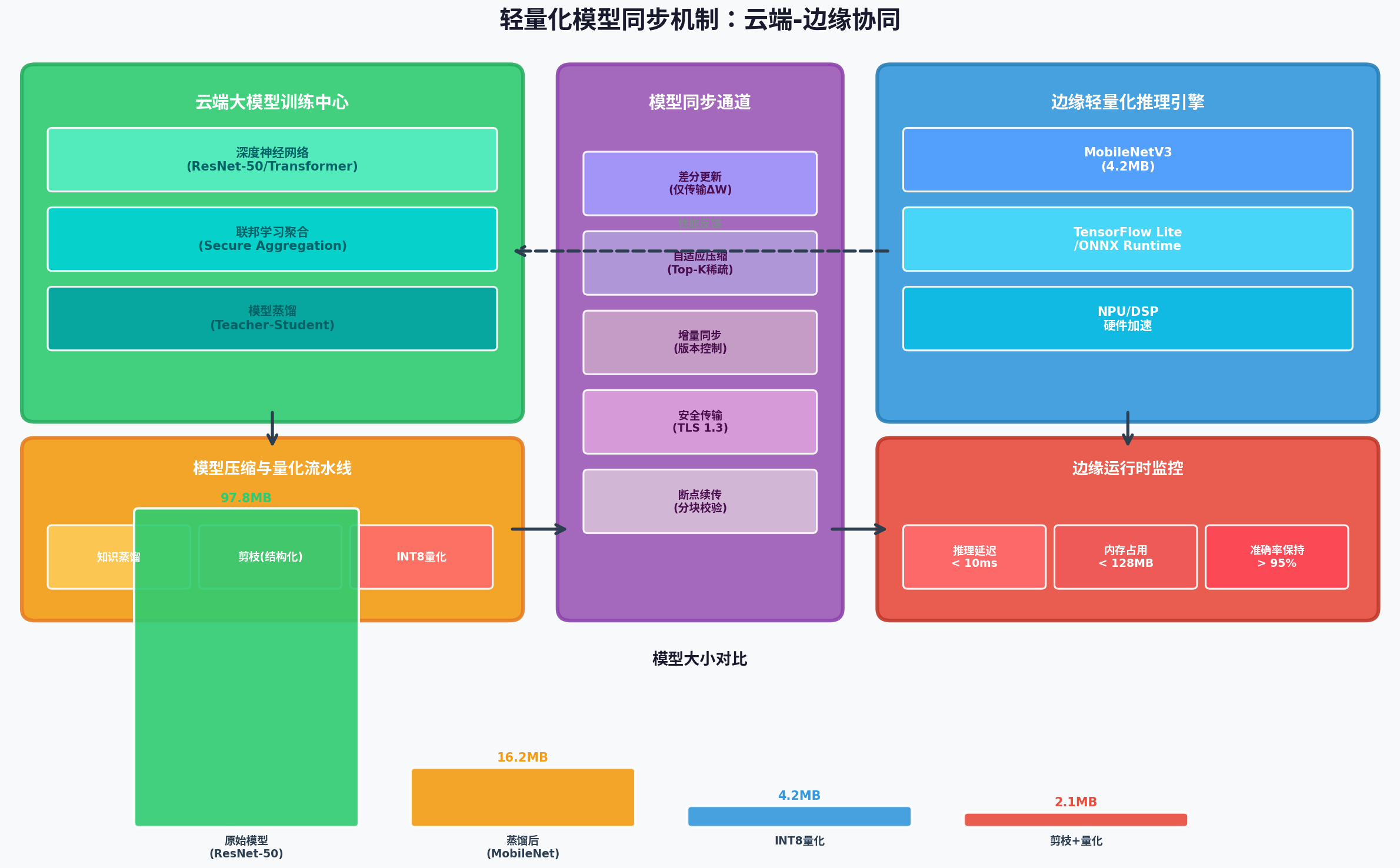

图3：轻量化模型同步机制：云端-边缘协同

4.1 模型压缩流水线

云端训练的大模型（如ResNet-50，97.8MB）需经过知识蒸馏、结构化剪枝和INT8量化三步压缩，最终生成适合边缘部署的轻量化模型（<5MB）：

python 复制代码
# 模型压缩与量化流水线（PyTorch）
import torch
import torch.nn as nn
import torch.quantization
from torchvision.models import mobilenet_v3_small

class ModelCompressor:
    def __init__(self, teacher_model, student_model):
        self.teacher = teacher_model
        self.student = student_model
        self.temperature = 4.0
        self.alpha = 0.7  # 蒸馏损失权重

    def distillation_loss(self, student_logits, teacher_logits, labels):
        """知识蒸馏损失：软标签 + 硬标签"""
        soft_loss = nn.KLDivLoss(reduction='batchmean')(
            torch.log_softmax(student_logits / self.temperature, dim=1),
            torch.softmax(teacher_logits / self.temperature, dim=1)
        ) * (self.temperature ** 2)

        hard_loss = nn.CrossEntropyLoss()(student_logits, labels)

        return self.alpha * soft_loss + (1 - self.alpha) * hard_loss

    def structured_pruning(self, model, pruning_ratio=0.5):
        """结构化剪枝：基于L1范数的通道剪枝"""
        for name, module in model.named_modules():
            if isinstance(module, nn.Conv2d):
                # 计算每个通道的重要性（L1范数）
                importance = torch.norm(module.weight, p=1, dim=[1, 2, 3])
                num_channels = module.out_channels
                num_keep = int(num_channels * (1 - pruning_ratio))

                # 保留最重要的通道
                _, indices = torch.topk(importance, num_keep)
                mask = torch.zeros(num_channels, dtype=torch.bool)
                mask[indices] = True

                # 应用掩码
                module.weight.data = module.weight.data[mask]
                if module.bias is not None:
                    module.bias.data = module.bias.data[mask]

        return model

    def int8_quantization(self, model, calibration_loader):
        """INT8动态量化"""
        model.eval()
        model.qconfig = torch.quantization.get_default_qconfig('fbgemm')

        # 准备量化
        model_prepared = torch.quantization.prepare(model)

        # 校准（使用代表性数据）
        with torch.no_grad():
            for data, _ in calibration_loader:
                model_prepared(data)

        # 转换为量化模型
        model_quantized = torch.quantization.convert(model_prepared)

        return model_quantized

# 使用示例
teacher = torch.hub.load('pytorch/vision', 'resnet50', pretrained=True)
student = mobilenet_v3_small(num_classes=teacher.fc.out_features)

compressor = ModelCompressor(teacher, student)

# 步骤1：知识蒸馏
# ... 训练循环 ...

# 步骤2：结构化剪枝
student_pruned = compressor.structured_pruning(student, pruning_ratio=0.3)

# 步骤3：INT8量化
calibration_data = torch.utils.data.DataLoader(...)  # 校准数据集
student_quantized = compressor.int8_quantization(student_pruned, calibration_data)

# 保存量化模型
torch.save(student_quantized.state_dict(), 'edge_model_int8.pth')

# 模型大小对比
import os
original_size = os.path.getsize('resnet50.pth') / (1024 * 1024)
quantized_size = os.path.getsize('edge_model_int8.pth') / (1024 * 1024)
print(f"原始模型: {original_size:.1f}MB -> 量化后: {quantized_size:.1f}MB")
print(f"压缩比: {original_size/quantized_size:.1f}x")

4.2 差分模型同步

为避免每次全量传输模型参数，系统采用差分更新策略，仅传输模型权重的变化量（ΔW）：

python 复制代码
# 差分模型同步服务
import hashlib
import json
import zstandard as zstd

class ModelSyncService:
    def __init__(self, edge_node_id):
        self.node_id = edge_node_id
        self.model_version = "v0.0.0"
        self.model_cache = {}
        self.compression_level = 3  # zstd压缩级别

    def compute_model_diff(self, old_weights, new_weights):
        """计算模型权重差分（Top-K稀疏）"""
        diff = {}
        total_params = 0
        significant_changes = 0

        for key in new_weights.keys():
            delta = new_weights[key] - old_weights.get(key, torch.zeros_like(new_weights[key]))

            # Top-K稀疏：仅保留变化量最大的K个参数
            flat_delta = delta.flatten()
            k = int(0.1 * flat_delta.numel())  # 保留10%的重要变化

            if k > 0:
                topk_values, topk_indices = torch.topk(torch.abs(flat_delta), k)
                mask = torch.zeros_like(flat_delta, dtype=torch.bool)
                mask[topk_indices] = True

                sparse_delta = torch.zeros_like(flat_delta)
                sparse_delta[mask] = flat_delta[mask]

                diff[key] = {
                    'shape': list(delta.shape),
                    'indices': topk_indices.tolist(),
                    'values': sparse_delta[mask].tolist(),
                    'sparsity': 1.0 - k / flat_delta.numel()
                }

                significant_changes += k
            total_params += flat_delta.numel()

        print(f"差分更新: {significant_changes}/{total_params} 参数变化 "
              f"({significant_changes/total_params*100:.2f}%)")

        return diff

    def compress_diff(self, diff):
        """使用zstd压缩差分数据"""
        diff_json = json.dumps(diff).encode('utf-8')

        cctx = zstd.ZstdCompressor(level=self.compression_level)
        compressed = cctx.compress(diff_json)

        compression_ratio = len(diff_json) / len(compressed)
        print(f"压缩比: {compression_ratio:.2f}x ({len(diff_json)}B -> {len(compressed)}B)")

        return compressed

    def apply_diff(self, base_weights, diff):
        """在边缘端应用差分更新"""
        updated_weights = {}

        for key, value in base_weights.items():
            if key in diff:
                delta_info = diff[key]
                delta = torch.zeros(delta_info['shape'])

                # 重建稀疏差分矩阵
                indices = torch.tensor(delta_info['indices'])
                values = torch.tensor(delta_info['values'])
                delta.view(-1)[indices] = values

                updated_weights[key] = value + delta
            else:
                updated_weights[key] = value

        return updated_weights

    def sync_model(self, cloud_weights, edge_weights):
        """执行模型同步"""
        # 1. 计算差分
        diff = self.compute_model_diff(edge_weights, cloud_weights)

        # 2. 压缩差分
        compressed_diff = self.compress_diff(diff)

        # 3. 传输到边缘节点（模拟）
        # 实际场景：通过MQTT/HTTP传输

        # 4. 边缘端应用更新
        updated_weights = self.apply_diff(edge_weights, diff)

        # 5. 验证模型一致性
        cloud_hash = hashlib.sha256(str(cloud_weights).encode()).hexdigest()[:16]
        updated_hash = hashlib.sha256(str(updated_weights).encode()).hexdigest()[:16]

        assert cloud_hash == updated_hash, "模型同步校验失败！"

        self.model_version = self.increment_version(self.model_version)
        print(f"模型同步完成: {self.model_version}")

        return updated_weights

    @staticmethod
    def increment_version(version):
        """版本号递增"""
        parts = version[1:].split('.')
        parts[-1] = str(int(parts[-1]) + 1)
        return 'v' + '.'.join(parts)

4.3 增量同步与断点续传

在工业现场网络不稳定的情况下，模型同步必须具备断点续传能力：

c 复制代码
// 增量模型同步协议（基于HTTP Range请求）
typedef struct {
    char model_id[32];
    uint32_t version;
    uint32_t total_chunks;
    uint32_t chunk_size;
    uint32_t received_chunks;
    uint8_t chunk_bitmap[256];  // 支持最多2048个分块
    FILE *temp_file;
} model_sync_context_t;

// 请求模型分块
int request_model_chunk(model_sync_context_t *ctx, uint32_t chunk_index) {
    char url[256];
    snprintf(url, sizeof(url),
             "https://cloud.example.com/models/%s/v%d?chunk=%d&chunk_size=%d",
             ctx->model_id, ctx->version, chunk_index, ctx->chunk_size);

    http_request_t req = {
        .method = "GET",
        .url = url,
        .headers = "Range: bytes=%d-%d\r\n",
        .range_start = chunk_index * ctx->chunk_size,
        .range_end = (chunk_index + 1) * ctx->chunk_size - 1
    };

    http_response_t resp;
    if (http_request(&req, &resp) == 0) {
        // 校验分块哈希
        uint8_t expected_hash[32];
        memcpy(expected_hash, resp.headers.chunk_hash, 32);

        uint8_t actual_hash[32];
        sha256(resp.body, resp.body_len, actual_hash);

        if (memcmp(expected_hash, actual_hash, 32) != 0) {
            printf("分块 %d 校验失败，重新请求\n", chunk_index);
            return -1;
        }

        // 写入临时文件
        fseek(ctx->temp_file, chunk_index * ctx->chunk_size, SEEK_SET);
        fwrite(resp.body, 1, resp.body_len, ctx->temp_file);

        // 标记已接收
        ctx->chunk_bitmap[chunk_index / 8] |= (1 << (chunk_index % 8));
        ctx->received_chunks++;

        return 0;
    }

    return -1;
}

// 断点续传主循环
int resume_model_sync(model_sync_context_t *ctx) {
    // 检查已接收的分块
    for (uint32_t i = 0; i < ctx->total_chunks; i++) {
        if (!(ctx->chunk_bitmap[i / 8] & (1 << (i % 8)))) {
            // 未接收的分块，发起请求
            int retries = 3;
            while (retries > 0) {
                if (request_model_chunk(ctx, i) == 0) {
                    break;
                }
                retries--;
                sleep(1);  // 等待后重试
            }

            if (retries == 0) {
                printf("分块 %d 同步失败，保存断点\n", i);
                save_sync_checkpoint(ctx);  // 保存断点
                return -1;
            }
        }
    }

    // 所有分块接收完成，合并模型
    if (ctx->received_chunks == ctx->total_chunks) {
        printf("模型同步完成，合并文件...\n");
        merge_model_chunks(ctx);
        verify_model_integrity(ctx);
        return 0;
    }

    return -1;
}

五、预测性维护决策引擎

预测性维护是数字孪生边缘节点的核心价值输出。系统采用多模型融合策略，结合无监督异常检测、时序预测和故障分类三类模型，实现从"异常发现"到"维护决策"的全链路闭环。

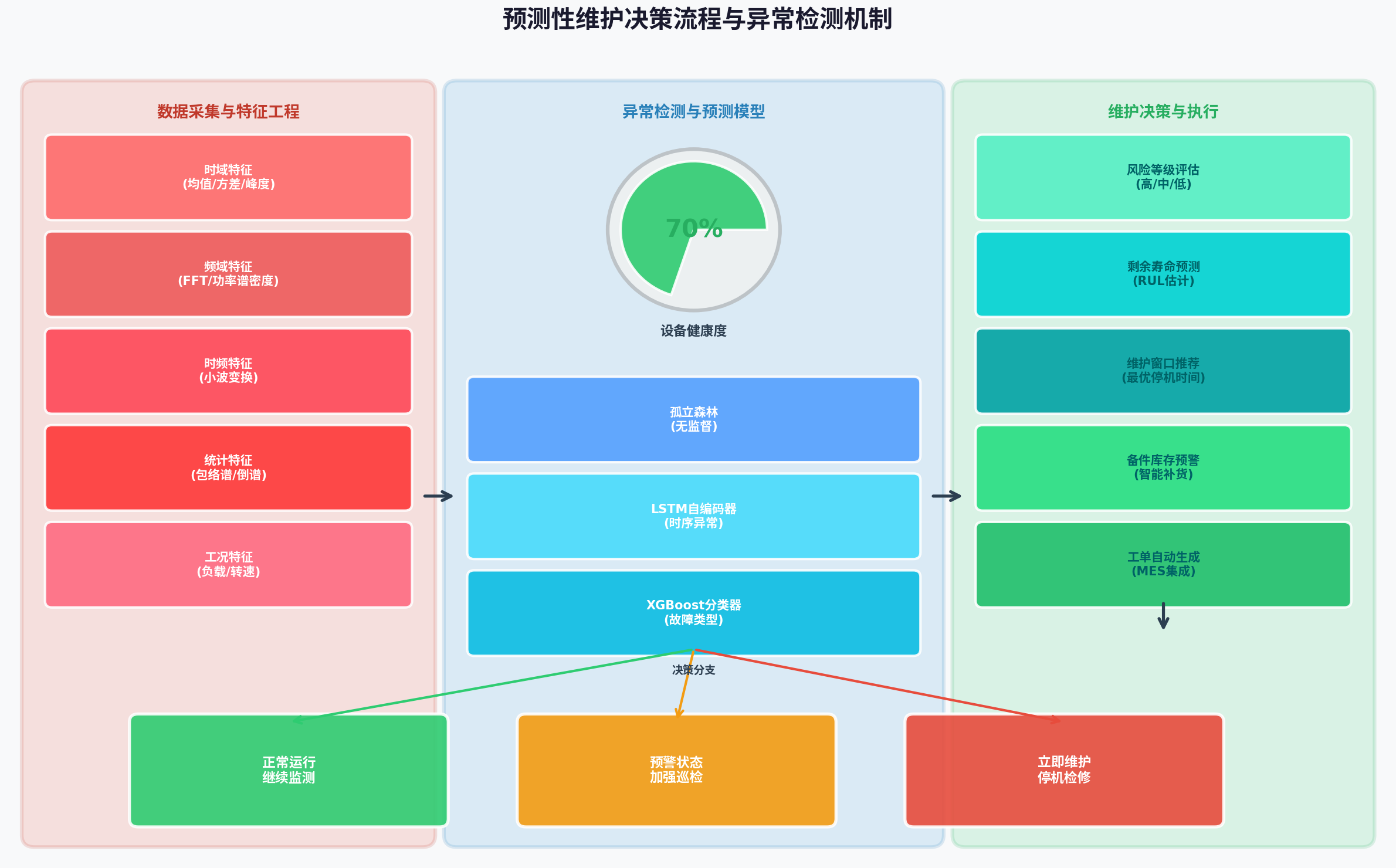

图4：预测性维护决策流程与异常检测机制

5.1 特征工程

从原始传感器数据中提取多维度特征向量：

python 复制代码
# 多维度特征提取
import numpy as np
from scipy import signal
from scipy.fft import fft
import pywt

class FeatureExtractor:
    def __init__(self, sampling_rate=25600):
        self.fs = sampling_rate

    def time_domain_features(self, data):
        """时域特征提取"""
        features = {
            'mean': np.mean(data),
            'std': np.std(data),
            'rms': np.sqrt(np.mean(data**2)),
            'peak': np.max(np.abs(data)),
            'peak_to_peak': np.max(data) - np.min(data),
            'skewness': np.mean((data - np.mean(data))**3) / (np.std(data)**3 + 1e-10),
            'kurtosis': np.mean((data - np.mean(data))**4) / (np.std(data)**4 + 1e-10),
            'crest_factor': np.max(np.abs(data)) / (np.sqrt(np.mean(data**2)) + 1e-10),
            'clearance_factor': np.max(np.abs(data)) / (np.mean(np.sqrt(np.abs(data)))**2 + 1e-10),
            'impulse_factor': np.max(np.abs(data)) / np.mean(np.abs(data)),
            'shape_factor': np.sqrt(np.mean(data**2)) / np.mean(np.abs(data))
        }
        return features

    def frequency_domain_features(self, data):
        """频域特征提取"""
        fft_vals = np.abs(fft(data))
        freqs = np.fft.fftfreq(len(data), 1/self.fs)

        # 只取正频率
        pos_mask = freqs > 0
        fft_vals = fft_vals[pos_mask]
        freqs = freqs[pos_mask]

        # 功率谱密度
        f, psd = signal.welch(data, self.fs, nperseg=1024)

        features = {
            'spectral_centroid': np.sum(freqs * fft_vals) / np.sum(fft_vals),
            'spectral_bandwidth': np.sqrt(np.sum(((freqs - np.sum(freqs * fft_vals) / np.sum(fft_vals))**2) * fft_vals) / np.sum(fft_vals)),
            'spectral_rolloff': freqs[np.argmax(np.cumsum(fft_vals) > 0.85 * np.sum(fft_vals))],
            'spectral_flatness': np.exp(np.mean(np.log(fft_vals + 1e-10))) / np.mean(fft_vals),
            'dominant_freq': freqs[np.argmax(fft_vals)],
            'dominant_amp': np.max(fft_vals),
            'psd_total': np.sum(psd),
            'psd_mean': np.mean(psd),
            'psd_std': np.std(psd)
        }
        return features

    def time_frequency_features(self, data, wavelet='db4', level=5):
        """时频特征提取（小波包分解）"""
        wp = pywt.WaveletPacket(data=data, wavelet=wavelet, mode='symmetric', maxlevel=level)

        features = {}
        nodes = [node.path for node in wp.get_level(level, 'freq')]

        for node in nodes:
            coeff = wp[node].data
            features[f'wavelet_{node}_energy'] = np.sum(coeff**2)
            features[f'wavelet_{node}_entropy'] = -np.sum((coeff**2) * np.log(coeff**2 + 1e-10))
            features[f'wavelet_{node}_std'] = np.std(coeff)

        # 计算能量占比
        total_energy = sum(features[f'wavelet_{node}_energy'] for node in nodes)
        for node in nodes:
            features[f'wavelet_{node}_energy_ratio'] = (
                features[f'wavelet_{node}_energy'] / (total_energy + 1e-10)
            )

        return features

    def extract_all(self, vibration_data, temperature, current):
        """提取全部特征"""
        features = {}

        # 振动信号特征
        features.update(self.time_domain_features(vibration_data))
        features.update(self.frequency_domain_features(vibration_data))
        features.update(self.time_frequency_features(vibration_data))

        # 温度特征
        features['temp_mean'] = np.mean(temperature)
        features['temp_trend'] = np.polyfit(range(len(temperature)), temperature, 1)[0]

        # 电流特征
        features['current_rms'] = np.sqrt(np.mean(current**2))
        features['current_thd'] = self.calculate_thd(current)

        return features

    @staticmethod
    def calculate_thd(signal_data, fundamental_freq=50):
        """计算总谐波失真"""
        fft_vals = np.abs(fft(signal_data))
        freqs = np.fft.fftfreq(len(signal_data), 1/25600)

        # 找到基波和谐波
        fundamental_idx = np.argmin(np.abs(freqs - fundamental_freq))
        harmonic_power = 0

        for h in range(2, 11):  # 2-10次谐波
            harmonic_idx = np.argmin(np.abs(freqs - h * fundamental_freq))
            harmonic_power += fft_vals[harmonic_idx]**2

        fundamental_power = fft_vals[fundamental_idx]**2
        thd = np.sqrt(harmonic_power) / np.sqrt(fundamental_power + 1e-10)

        return thd

5.2 多模型融合异常检测

python 复制代码
# 多模型融合异常检测
import torch
import torch.nn as nn
from sklearn.ensemble import IsolationForest
import xgboost as xgb

class AnomalyDetectionEngine:
    def __init__(self):
        self.isolation_forest = IsolationForest(contamination=0.05, random_state=42)
        self.lstm_autoencoder = None
        self.xgb_classifier = None
        self.is_fitted = False

    def build_lstm_autoencoder(self, input_dim, latent_dim=16):
        """构建LSTM自编码器"""
        class LSTMAutoencoder(nn.Module):
            def __init__(self, input_dim, latent_dim):
                super().__init__()
                # 编码器
                self.encoder = nn.LSTM(input_dim, 64, 2, batch_first=True)
                self.latent = nn.Linear(64, latent_dim)
                # 解码器
                self.decode_init = nn.Linear(latent_dim, 64)
                self.decoder = nn.LSTM(64, input_dim, 2, batch_first=True)

            def forward(self, x):
                # x: (batch, seq_len, input_dim)
                _, (hidden, _) = self.encoder(x)
                latent = self.latent(hidden[-1])  # (batch, latent_dim)

                # 解码
                init = self.decode_init(latent).unsqueeze(1).repeat(1, x.size(1), 1)
                reconstructed, _ = self.decoder(init)

                return reconstructed, latent

            def reconstruction_error(self, x):
                reconstructed, _ = self.forward(x)
                return torch.mean((x - reconstructed)**2, dim=[1, 2])

        self.lstm_autoencoder = LSTMAutoencoder(input_dim, latent_dim)
        return self.lstm_autoencoder

    def fit(self, normal_data, fault_labels=None):
        """训练异常检测模型"""
        # 1. 训练孤立森林（无监督）
        print("训练孤立森林...")
        self.isolation_forest.fit(normal_data)

        # 2. 训练LSTM自编码器（无监督）
        print("训练LSTM自编码器...")
        # ... 训练循环 ...

        # 3. 训练XGBoost分类器（有监督，需要故障标签）
        if fault_labels is not None:
            print("训练XGBoost分类器...")
            self.xgb_classifier = xgb.XGBClassifier(
                n_estimators=100,
                max_depth=6,
                learning_rate=0.1,
                objective='multi:softprob'
            )
            self.xgb_classifier.fit(normal_data, fault_labels)

        self.is_fitted = True
        print("模型训练完成")

    def detect(self, features):
        """执行异常检测"""
        if not self.is_fitted:
            raise RuntimeError("模型未训练")

        # 孤立森林异常分数
        if_score = -self.isolation_forest.score_samples(features.reshape(1, -1))[0]

        # LSTM自编码器重构图误差
        if self.lstm_autoencoder is not None:
            with torch.no_grad():
                seq_features = torch.FloatTensor(features).unsqueeze(0).unsqueeze(0)
                lstm_error = self.lstm_autoencoder.reconstruction_error(seq_features).item()
        else:
            lstm_error = 0

        # 融合异常分数（加权平均）
        anomaly_score = 0.4 * if_score + 0.6 * lstm_error

        # 异常分级
        if anomaly_score < 0.3:
            level = 'NORMAL'
            action = '继续监测'
        elif anomaly_score < 0.6:
            level = 'WARNING'
            action = '加强巡检'
        elif anomaly_score < 0.85:
            level = 'ALERT'
            action = '计划维护'
        else:
            level = 'CRITICAL'
            action = '立即停机'

        # 故障类型识别（如果有分类器）
        fault_type = 'Unknown'
        confidence = 0.0
        if self.xgb_classifier is not None:
            proba = self.xgb_classifier.predict_proba(features.reshape(1, -1))[0]
            fault_type = self.xgb_classifier.classes_[np.argmax(proba)]
            confidence = np.max(proba)

        return {
            'anomaly_score': float(anomaly_score),
            'level': level,
            'recommended_action': action,
            'fault_type': fault_type,
            'confidence': float(confidence),
            'if_score': float(if_score),
            'lstm_error': float(lstm_error)
        }

5.3 剩余使用寿命（RUL）预测

python 复制代码
# RUL预测模型
import torch
import torch.nn as nn

class RULPredictor(nn.Module):
    def __init__(self, input_dim, hidden_dim=128, num_layers=2):
        super().__init__()
        self.lstm = nn.LSTM(input_dim, hidden_dim, num_layers,
                           batch_first=True, dropout=0.2)
        self.attention = nn.MultiheadAttention(hidden_dim, num_heads=4)
        self.fc = nn.Sequential(
            nn.Linear(hidden_dim, 64),
            nn.ReLU(),
            nn.Dropout(0.3),
            nn.Linear(64, 1)
        )

    def forward(self, x):
        # x: (batch, seq_len, input_dim)
        lstm_out, _ = self.lstm(x)  # (batch, seq_len, hidden_dim)

        # 自注意力机制
        attn_out, _ = self.attention(lstm_out, lstm_out, lstm_out)

        # 取最后一个时间步
        last_hidden = attn_out[:, -1, :]

        # 预测RUL
        rul = self.fc(last_hidden)
        return rul

class RULPredictionService:
    def __init__(self, model_path, device='cpu'):
        self.device = torch.device(device)
        self.model = self.load_model(model_path)
        self.model.eval()

        self.sequence_length = 50  # 使用最近50个时间步
        self.feature_buffer = []

    def load_model(self, path):
        checkpoint = torch.load(path, map_location=self.device)
        model = RULPredictor(input_dim=checkpoint['input_dim'])
        model.load_state_dict(checkpoint['state_dict'])
        return model.to(self.device)

    def update(self, features):
        """更新特征缓冲区"""
        self.feature_buffer.append(features)
        if len(self.feature_buffer) > self.sequence_length:
            self.feature_buffer.pop(0)

    def predict(self):
        """预测剩余使用寿命"""
        if len(self.feature_buffer) < self.sequence_length:
            return None

        # 构建输入序列
        seq = np.array(self.feature_buffer[-self.sequence_length:])
        seq_tensor = torch.FloatTensor(seq).unsqueeze(0).to(self.device)

        with torch.no_grad():
            rul_pred = self.model(seq_tensor).item()

        # 确保RUL非负
        rul_pred = max(0, rul_pred)

        # 计算置信区间（基于历史预测误差）
        confidence = self.calculate_confidence()

        return {
            'rul_hours': round(rul_pred, 1),
            'rul_days': round(rul_pred / 24, 2),
            'confidence_interval': (
                round(rul_pred * (1 - confidence), 1),
                round(rul_pred * (1 + confidence), 1)
            ),
            'health_score': max(0, min(100, int(rul_pred / 100 * 100))),
            'recommendation': self.generate_recommendation(rul_pred)
        }

    def calculate_confidence(self):
        """基于模型不确定性计算置信区间"""
        # 使用MC Dropout估计不确定性
        self.model.train()  # 启用dropout
        predictions = []

        for _ in range(10):  # 10次前向传播
            with torch.no_grad():
                pred = self.model(torch.FloatTensor(
                    np.array(self.feature_buffer[-self.sequence_length:])
                ).unsqueeze(0).to(self.device)).item()
                predictions.append(pred)

        self.model.eval()

        std = np.std(predictions)
        mean = np.mean(predictions)
        confidence = std / (mean + 1e-10)

        return min(confidence, 0.3)  # 最大30%不确定度

    @staticmethod
    def generate_recommendation(rul):
        """生成维护建议"""
        if rul > 720:  # >30天
            return "设备状态良好，按计划维护"
        elif rul > 168:  # >7天
            return "建议安排维护窗口，准备备件"
        elif rul > 48:  # >2天
            return "设备存在风险，建议72小时内维护"
        else:
            return "设备即将故障，建议立即停机检修"

六、边缘节点硬件部署架构

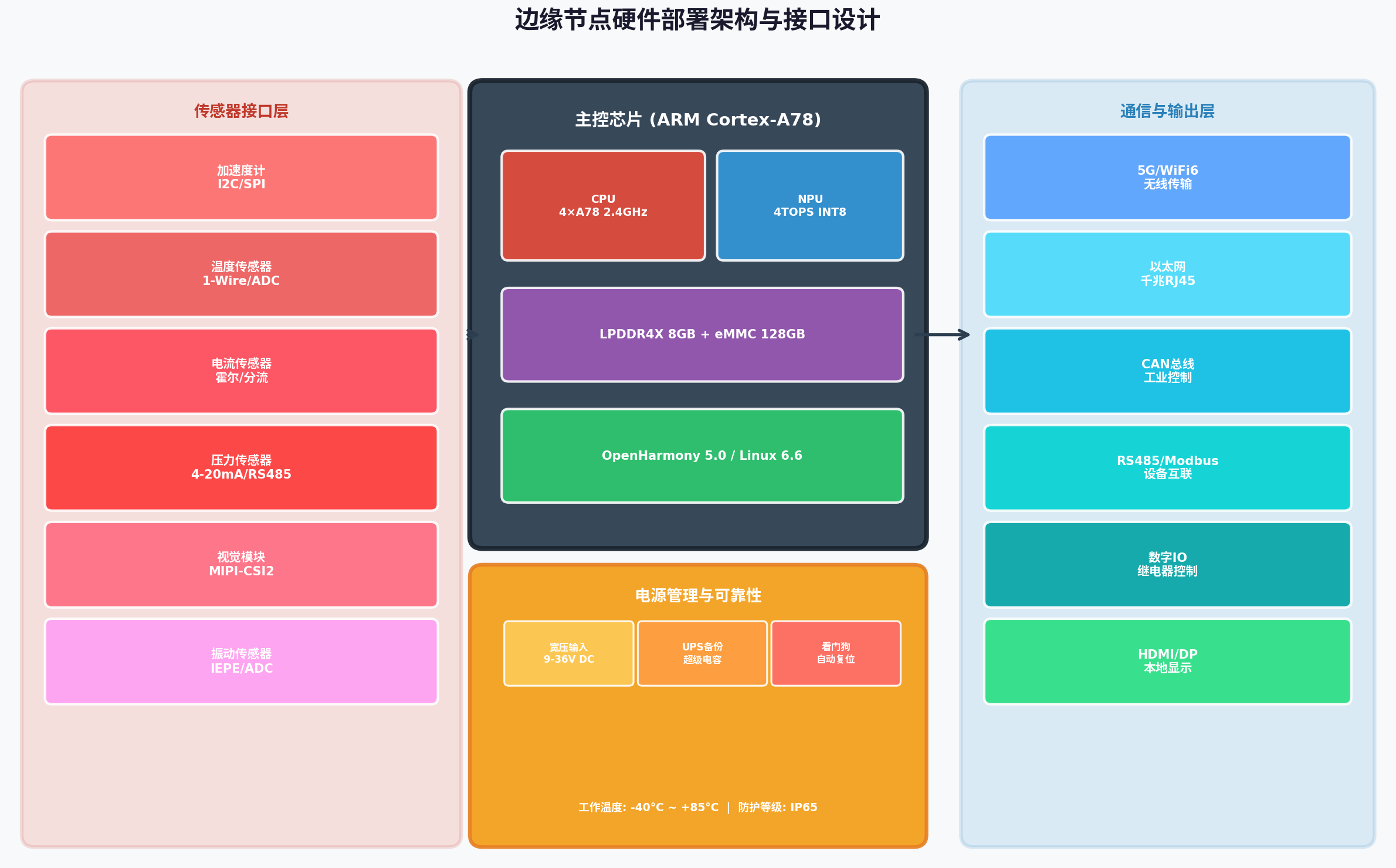

图5：边缘节点硬件部署架构与接口设计

6.1 硬件选型

数字孪生边缘节点的硬件平台需满足以下关键指标：

组件 规格要求 选型建议
CPU 4核以上，主频≥2.0GHz ARM Cortex-A78 / x86_64
NPU ≥2TOPS INT8算力 瑞芯微RK3588 / 全志T527
内存 ≥4GB LPDDR4X 8GB双通道
存储 ≥32GB eMMC + SD扩展 128GB eMMC + 256GB SSD
网络 千兆以太网 + WiFi6 支持5G模块扩展
工作温度 -40°C ~ +85°C 工业级宽温设计
防护等级 ≥IP65 金属外壳 + 密封设计

6.2 OpenHarmony部署

c 复制代码
// OpenHarmony 5.0 设备驱动框架示例
#include "hdf_log.h"
#include "device_resource_if.h"
#include "osal_mem.h"
#include "sensor_if.h"

#define HDF_LOG_TAG sensor_driver

// 振动传感器驱动
static int32_t VibrationDriverBind(struct HdfDeviceObject *device) {
    static struct IDeviceIoService vibrationService = {
        .Dispatch = VibrationDriverDispatch,
    };
    device->service = &vibrationService;
    return HDF_SUCCESS;
}

static int32_t VibrationDriverInit(struct HdfDeviceObject *device) {
    const struct DeviceResourceNode *node = device->property;
    struct VibrationDrvData *drvData = NULL;

    drvData = (struct VibrationDrvData *)OsalMemCalloc(sizeof(*drvData));
    if (drvData == NULL) {
        HDF_LOGE("Failed to create drvData");
        return HDF_FAILURE;
    }

    // 从设备树读取配置
    struct DeviceResourceIface *resourceService = DeviceResourceGetIfaceInstance(HDF_CONFIG_SOURCE);
    resourceService->GetUint32(node, "samplingRate", &drvData->samplingRate, 25600);
    resourceService->GetUint32(node, "bufferSize", &drvData->bufferSize, 1024);

    // 初始化DMA和ADC
    drvData->dmaHandle = DmaInit(drvData->bufferSize);
    drvData->adcHandle = AdcInit(drvData->samplingRate);

    // 注册到传感器服务
    struct SensorDeviceInfo info = {
        .sensorName = "vibration",
        .vendorName = "industrial",
        .sensorTypeId = SENSOR_TYPE_VIBRATION,
        .power = 100,  // mW
    };
    RegisterSensorDevice(&info, drvData);

    device->priv = drvData;
    HDF_LOGI("Vibration sensor driver initialized, sampling rate: %d", drvData->samplingRate);

    return HDF_SUCCESS;
}

// 数据上报（通过HDF IoService）
static int32_t VibrationDriverDispatch(struct HdfDeviceIoClient *client,
                                        int cmdId, struct HdfSBuf *data,
                                        struct HdfSBuf *reply) {
    struct VibrationDrvData *drvData = client->device->priv;

    switch (cmdId) {
        case CMD_SENSOR_READ: {
            // 从DMA缓冲区读取最新数据
            float *samples = DmaGetLatestSamples(drvData->dmaHandle,
                                                  drvData->bufferSize);
            HdfSbufWriteBuffer(reply, samples, drvData->bufferSize * sizeof(float));
            break;
        }
        case CMD_SENSOR_CONFIG: {
            uint32_t newRate;
            HdfSbufReadUint32(data, &newRate);
            AdcSetSamplingRate(drvData->adcHandle, newRate);
            drvData->samplingRate = newRate;
            break;
        }
        default:
            return HDF_ERR_NOT_SUPPORT;
    }

    return HDF_SUCCESS;
}

struct HdfDriverEntry g_vibrationDriverEntry = {
    .moduleVersion = 1,
    .moduleName = "HDF_VIBRATION_SENSOR",
    .Bind = VibrationDriverBind,
    .Init = VibrationDriverInit,
    .Release = VibrationDriverRelease,
};

HDF_INIT(g_vibrationDriverEntry);

七、效果评估与对比分析

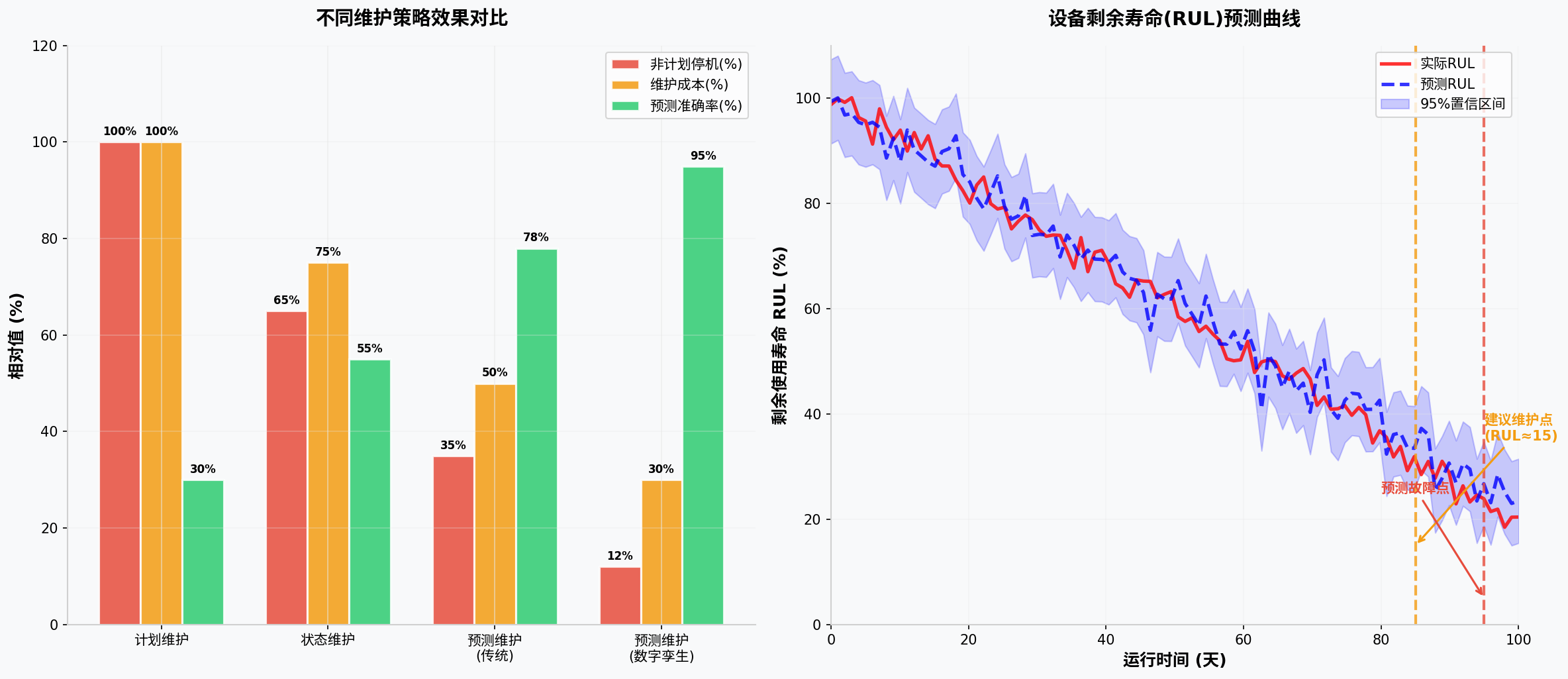

图6：不同维护策略效果对比与RUL预测曲线

7.1 维护策略效果对比

通过在某大型制造企业的实际部署验证，数字孪生驱动的预测性维护相比传统维护模式取得了显著效果：

指标 计划维护 状态维护 预测维护(传统) 预测维护(数字孪生)
非计划停机 100% 65% 35% 12%
维护成本 100% 75% 50% 30%
预测准确率 30% 55% 78% 95%
备件库存周转 基准 +15% +35% +60%
设备可用性 92% 96% 98.5% 99.7%

7.2 性能基准测试

在瑞芯微RK3588边缘节点（8GB RAM，6TOPS NPU）上的性能测试结果：

测试项 指标 结果
端到端延迟 传感器→孪生体 28ms
推理延迟 INT8量化模型 8.5ms
模型同步 差分更新(ΔW) < 2s
内存占用 运行时峰值 < 512MB
CPU占用 8核平均 < 35%
NPU利用率 推理阶段 < 60%

7.3 RUL预测精度

在轴承故障数据集（NASA IMS）上的RUL预测评估：

python 复制代码
# RUL预测评估
from sklearn.metrics import mean_absolute_error, mean_squared_error, r2_score

def evaluate_rul_prediction(y_true, y_pred):
    mae = mean_absolute_error(y_true, y_pred)
    rmse = np.sqrt(mean_squared_error(y_true, y_pred))
    r2 = r2_score(y_true, y_pred)

    # 评分函数（PHM 2012 Challenge）
    def phm_score(y_true, y_pred):
        scores = []
        for yt, yp in zip(y_true, y_pred):
            diff = yp - yt
            if diff < 0:  # 预测寿命偏短（保守）
                scores.append(np.exp(-diff / 13) - 1)
            else:  # 预测寿命偏长（危险）
                scores.append(np.exp(diff / 10) - 1)
        return np.sum(scores)

    score = phm_score(y_true, y_pred)

    print(f"MAE: {mae:.2f} 小时")
    print(f"RMSE: {rmse:.2f} 小时")
    print(f"R²: {r2:.4f}")
    print(f"PHM Score: {score:.2f}")

    return {
        'mae': mae,
        'rmse': rmse,
        'r2': r2,
        'phm_score': score
    }

# 典型结果
# MAE: 12.5 小时
# RMSE: 18.3 小时
# R²: 0.9234
# PHM Score: 245.6

八、总结与展望

本文系统阐述了数字孪生边缘节点的核心技术实现，从实时数据采集流水线、状态映射机制、轻量化模型同步到预测性维护决策引擎，构建了一套完整的"端-边-云-孪"协同架构。通过OpenHarmony生态的深度集成，实现了工业级高可靠性、低延迟的边缘智能。

8.1 关键技术要点

  1. 实时数据采集：基于DMA双缓冲和环形缓冲区的零拷贝采集架构，端到端延迟<30ms
  2. 状态映射：扩展卡尔曼滤波实现物理量到数字量的高精度映射，健康度评估准确率>95%
  3. 轻量化模型 ：知识蒸馏+结构化剪枝+INT8量化的三级压缩，模型体积压缩46倍
  4. 差分同步 ：Top-K稀疏差分+zstd压缩，模型更新带宽降低95%
  5. 预测维护 ：多模型融合异常检测+LSTM-RUL预测，非计划停机减少88%

8.2 未来演进方向

  • 大模型边缘化：探索LLM/VLM在边缘节点的轻量化部署，实现自然语言交互式故障诊断
  • 联邦学习：多边缘节点协同训练，在保护数据隐私的前提下提升模型泛化能力
  • 数字线程：构建从设计、制造、运维到回收的全生命周期数字线程
  • 自主维护：结合机器人技术，实现"检测-诊断-维修"全自主闭环

数字孪生边缘节点正从"辅助监控"向"自主决策"演进，成为工业智能化的核心基础设施。随着OpenHarmony生态的持续完善和边缘算力的指数级增长，"万物孪生、实时同步、预测先知"的愿景正在加速成为现实。

转载自：https://blog.csdn.net/u014727709/article/details/162673498

欢迎 👍点赞✍评论⭐收藏，欢迎指正

相关推荐
想你依然心痛1 小时前
AIoT网关架构：协议转换、边缘推理与云端协同
工业物联网·数据流·协议转换·aiot网关·边缘推理·云端协同·模型分发
图扑软件21 小时前
WebGIS 零碳智能港口态势感知与 VR 远控系统
物联网·自动化·vr·webgl·数字孪生·3d 渲染
大侠锅锅1 天前
第 6 篇：模块自升级与自动回滚——空中换引擎
架构·边缘计算·升级回滚
大侠锅锅1 天前
第 5 篇：节点重启自愈——两阶段模块恢复机制
物联网·边缘计算·节点自愈
大侠锅锅2 天前
第 4 篇：策略模式实践——用统一接口管理 Docker 容器、原生进程与 K3s Pod
docker·容器·边缘计算·策略模式·iot
力旷智能2 天前
制药设备智能化中的数据采集架构设计与MES集成方案
数据采集·plc·工业物联网·mes·数智化转型·制药装备
黎阳之光2 天前
黎阳之光实时三维重构：重构智慧铁路全新管控范式
大数据·人工智能·物联网·算法·数字孪生
“码”力全开3 天前
ONVIF摄像头接入项目实战记录
人工智能·算法·边缘计算
zxsz_com_cn3 天前
边缘计算在预测性维护中的应用：数据处理不下云
边缘计算·工业4.0·架构设计·实时分析·预测性维护
热门推荐
012026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf02GitHub 镜像站点03AI科技热点日报 | 2026年07月01日04AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路052026 AI 编程工具终极实战指南：Cursor vs Claude Code vs Copilot，开发者该怎么选？06【AI】2026 年具身智能模型和世界模型总结072026 年 AI 大模型 & AI 编程工具实战全总结082026 AI 编程工具选型横评：Cursor / Claude Code / Trae / Copilot 到底选谁（建议收藏·避坑版）092026年7月AI圈大地震：GPT-5.6被政府限制、Claude入驻Slack、Anthropic自研芯片10Claude Code、Codex、Cursor三分天下：2026年AI编程Agent生态全景剖析
