基于 jenkins Version 2.541.3 实操案例

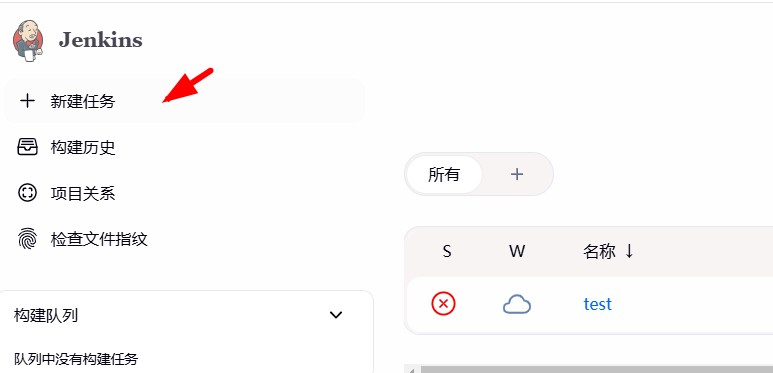

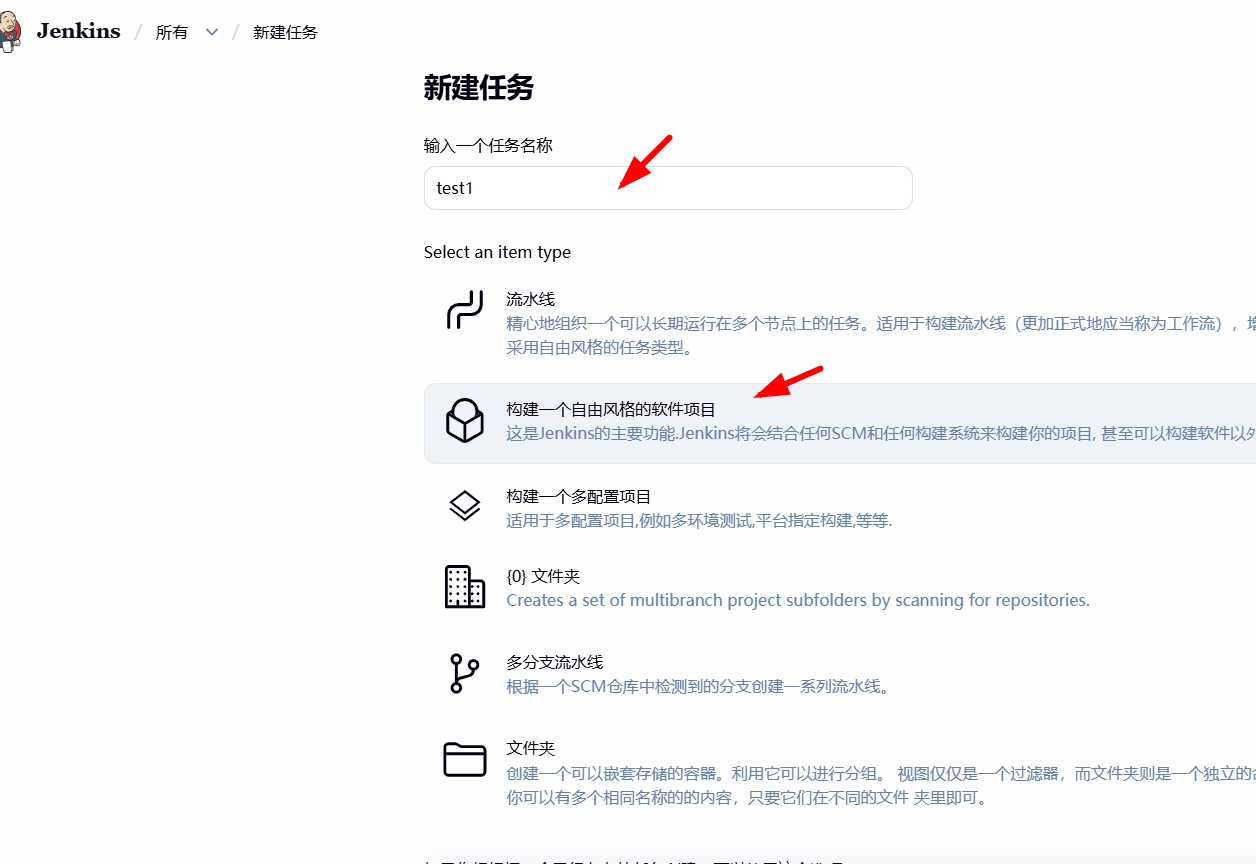

添加任务

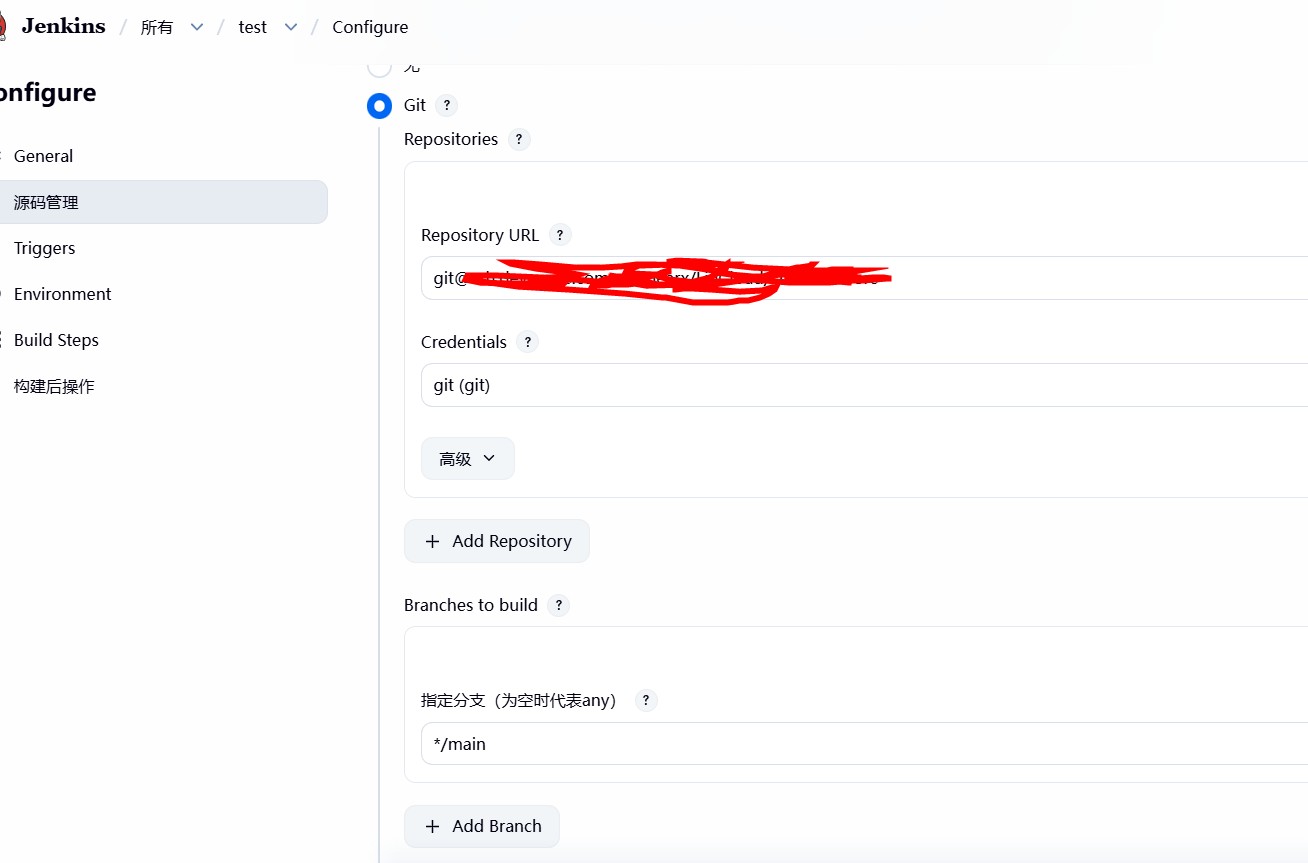

配置git拉取项目

配置maven

确保maven的settings.xml配置正确，这里直接通过宿主机部署，所以只需要将宿主机settings.xml替换为正确就可以

• maven settings.xml，如果没有nexus(私服)得先部署

xml

<?xml version="1.0" encoding="UTF-8"?>
<class="tk-tag">settings xmlns="http://maven.apache.org/SETTINGS/1.2.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0
          https://maven.apache.org/xsd/settings-1.2.0.xsd">
  <class="tk-tag">servers>
    <class="tk-tag">server>
      <class="tk-tag">id>nexus-repo</class="tk-tag">id>
      <class="tk-tag">username>nexus账号</class="tk-tag">username>
      <class="tk-tag">password>nexus密码</class="tk-tag">password>
    </class="tk-tag">server>
  </class="tk-tag">servers>
  <class="tk-tag">profiles>
    <class="tk-tag">profile>
      <class="tk-tag">id>nexus</class="tk-tag">id>
      <class="tk-tag">repositories>
        <class="tk-tag">repository>
          <class="tk-tag">id>nexus-repo</class="tk-tag">id>
          <class="tk-tag">url>http://你的nexus地址/repository/maven-public/</class="tk-tag">url>
          <class="tk-tag">releases><class="tk-tag">enabled>true</class="tk-tag">enabled></class="tk-tag">releases>
          <class="tk-tag">snapshots><class="tk-tag">enabled>true</class="tk-tag">enabled></class="tk-tag">snapshots>
        </class="tk-tag">repository>
      </class="tk-tag">repositories>
      <class="tk-tag">pluginRepositories>
        <class="tk-tag">pluginRepository>
          <class="tk-tag">id>nexus-repo</class="tk-tag">id>
          <class="tk-tag">url>http://你的nexus地址/repository/maven-public/</class="tk-tag">url>
          <class="tk-tag">releases><class="tk-tag">enabled>true</class="tk-tag">enabled></class="tk-tag">releases>
          <class="tk-tag">snapshots><class="tk-tag">enabled>true</class="tk-tag">enabled></class="tk-tag">snapshots>
        </class="tk-tag">pluginRepository>
      </class="tk-tag">pluginRepositories>
    </class="tk-tag">profile>
  </class="tk-tag">profiles>
  <class="tk-tag">activeProfiles>
    <class="tk-tag">activeProfile>nexus</class="tk-tag">activeProfile>
  </class="tk-tag">activeProfiles>
</class="tk-tag">settings>

• maven 默认本地仓库位置(因settings.xml没有指定)

/data/jenkins/.m2/repository

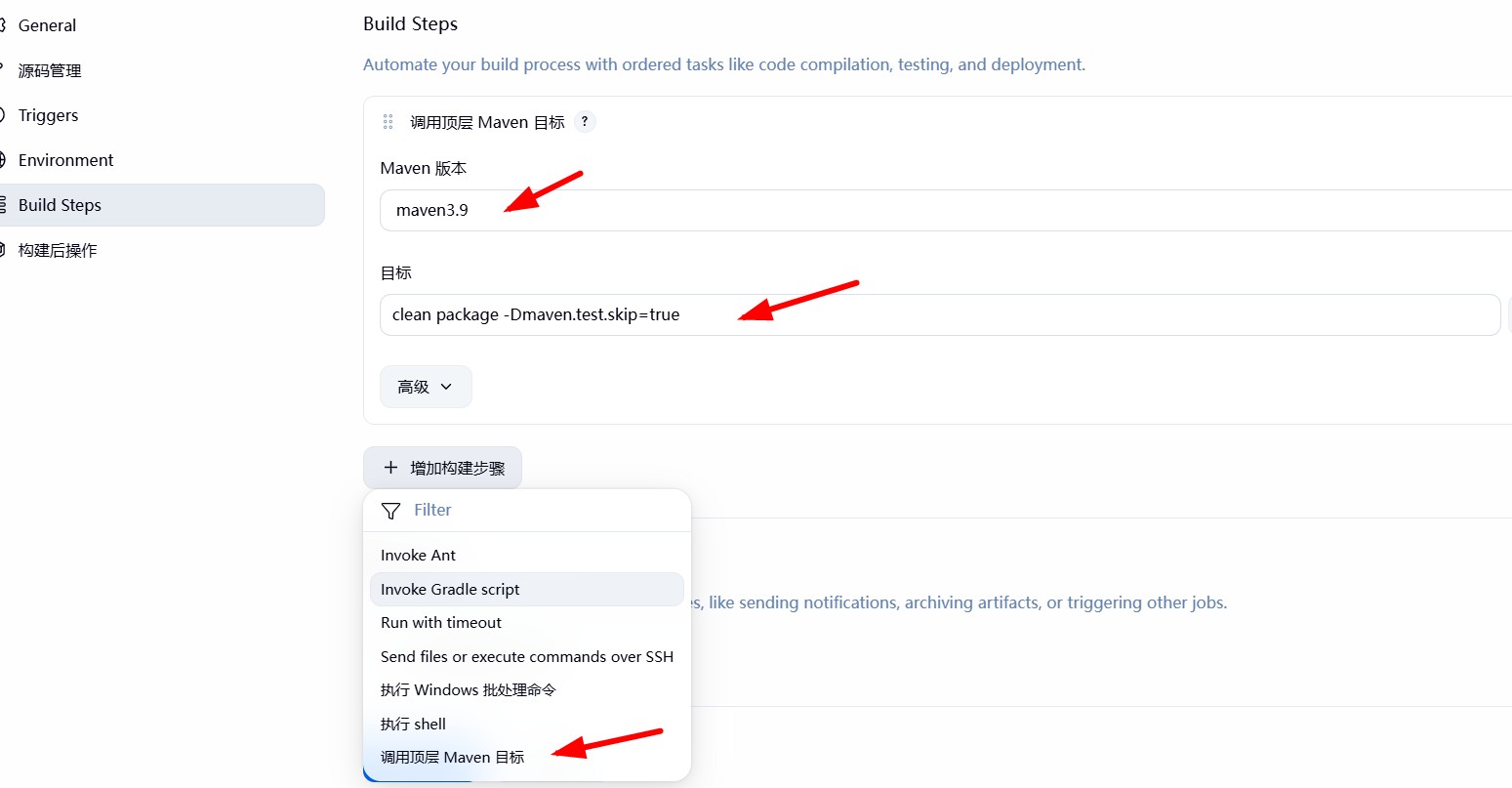

• maven 命令

clean package -Dmaven.test.skip=true

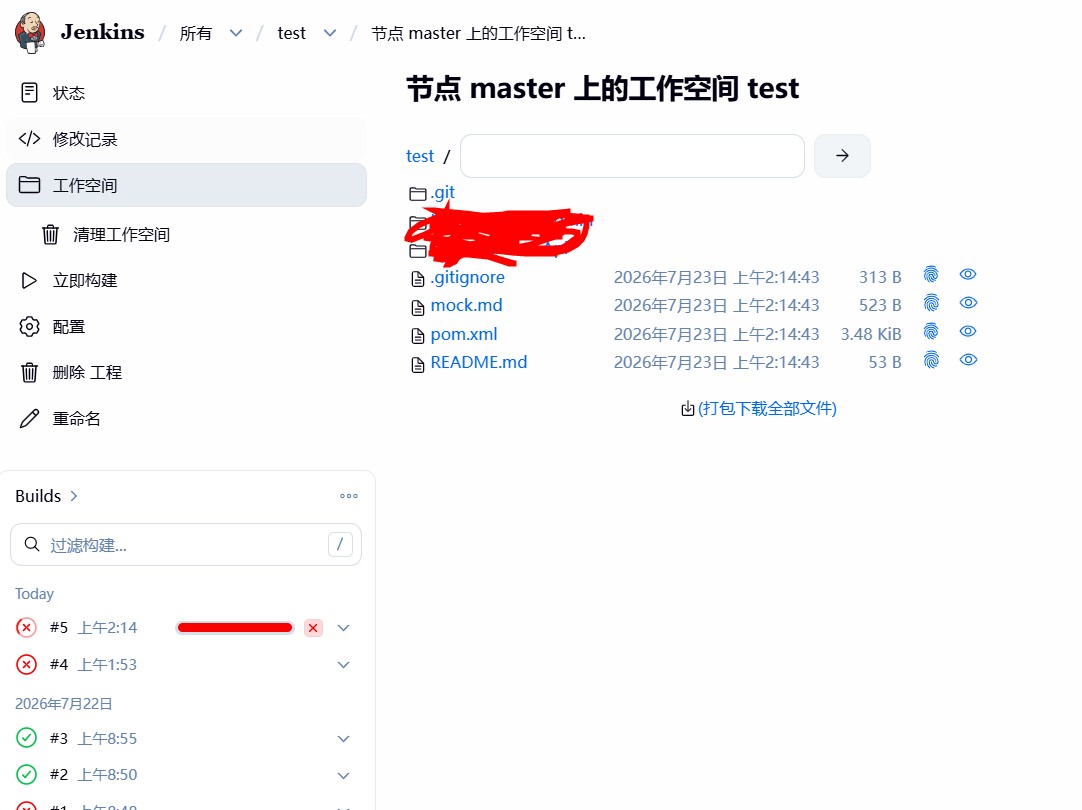

构建项目

首次构建比较慢，会下载pom所有依赖jar

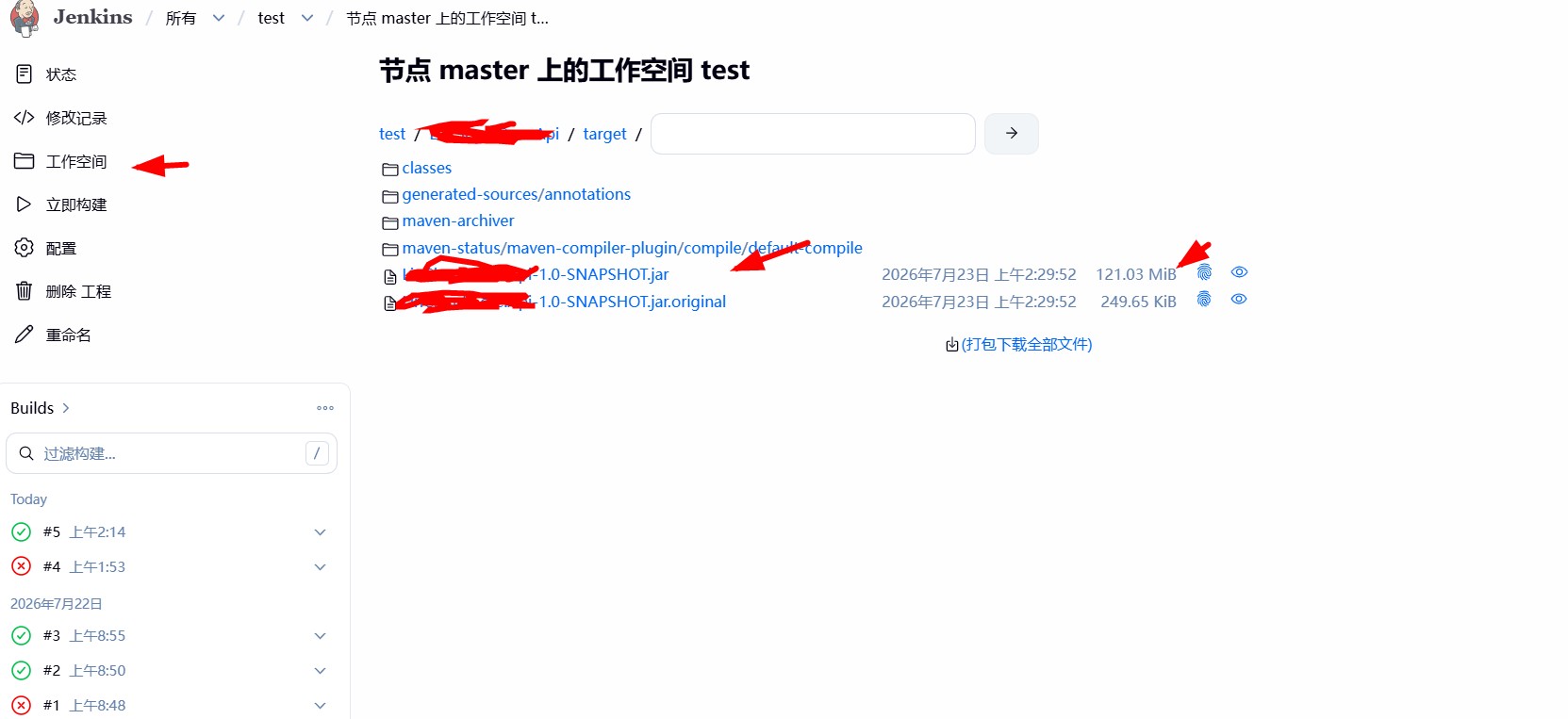

• 编译和打包之后

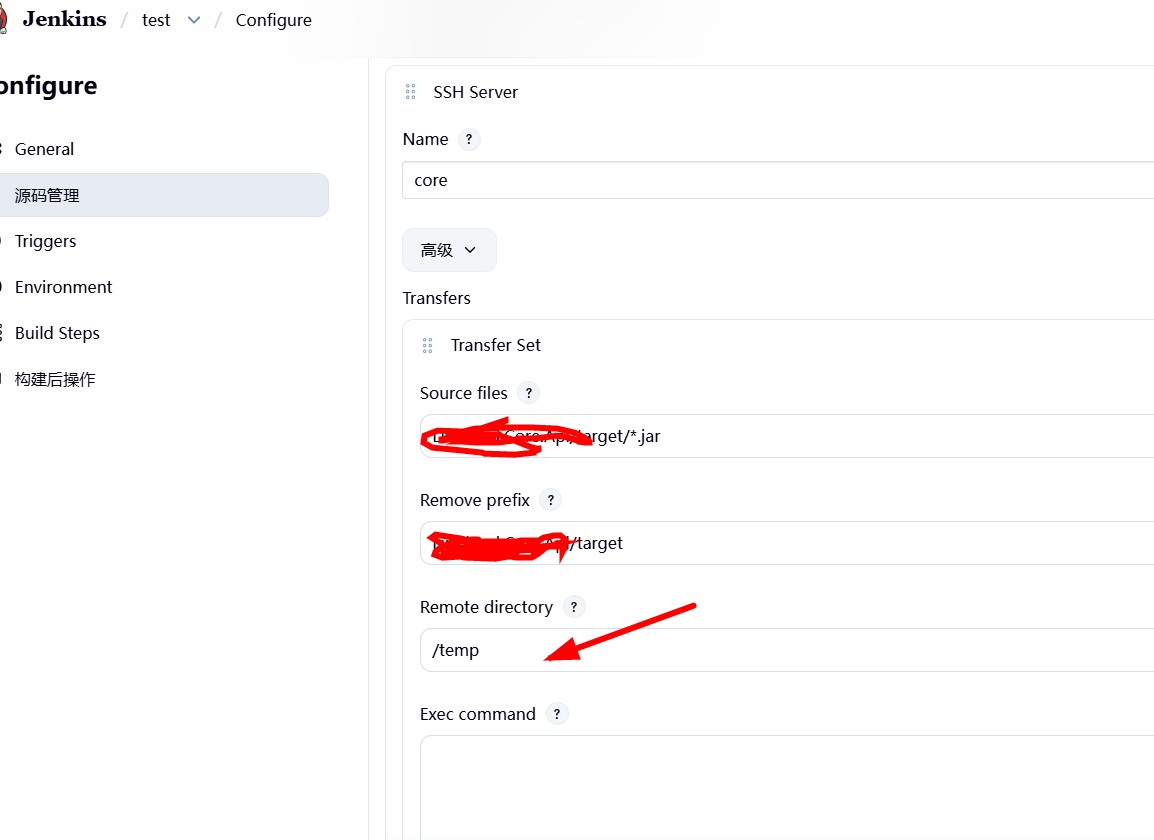

• 构建远程部署目录

Remote directory 需要注意/temp,远程服务器完整目录为(Publish over SSH)里面Remote Directory+/temp

构建shell和进行远程发布

shell脚本

bash

#!/bin/bash
app_name="Core.Api"
app_pattern="${app_name}-*.jar"
port=8085
temp_path=/usr/local/temp
deploy_path=/usr/local
JAVA_HOME=/usr/local/jdk-21.0.11
log_path=/data/log
log_file=${log_path}/core-api.log
deploy_log=${log_path}/deploy-api-$(date +%Y%m%d_%H%M%S).log

exec > "${deploy_log}" 2>&1
mkdir -p "${log_path}"
echo "=====部署开始 ${app_name}====="

# 等待Jar包上传完成，最多10s
new_jar=""
for ((i=0;i<10;i++)); do
    new_jar=$(find "${temp_path}" -maxdepth 1 -name "${app_pattern}" | head -1)
    [ -f "${new_jar}" ] && break
    echo "等待Jar包上传 $i/10"
    sleep 1
done
[ ! -f "${new_jar}" ] && echo "错误：未找到Jar包" && exit 1

jar_name=$(basename "${new_jar}")
target_jar="${deploy_path}/${jar_name}"
echo "待部署包：${new_jar}"

# 停止旧进程并等待进程消亡
run_pid=$(ps -ef | grep "java -jar" | grep "${app_name}" | grep -v grep | awk '{print $2}')
if [ -n "${run_pid}" ]; then
    echo "终止旧进程 ${run_pid}"
    kill -15 "${run_pid}"
    # 等待进程退出，最多16s
    for ((i=0;i<8;i++)); do
        ! ps -p "${run_pid}" >/dev/null && break
        echo "等待旧进程退出..."
        sleep 2
    done
    if ps -p "${run_pid}" >/dev/null; then
        echo "超时，强制杀死 ${run_pid}"
        kill -9 "${run_pid}"
        sleep 2
    fi
fi

# 端口兜底释放
while lsof -t -i:"${port}" >/dev/null; do
    echo "端口${port}占用，等待释放"
    sleep 2
done

# 更新jar
rm -f "${deploy_path}/${app_pattern}"
mv "${new_jar}" "${target_jar}"

# 启动服务
echo "启动应用 port:${port}"
nohup ${JAVA_HOME}/bin/java -jar \
-Dserver.port=${port} \
-Xmx512m -Xms256m \
"${target_jar}" >> "${log_file}" 2>&1 &
new_pid=$!
echo "新进程PID: ${new_pid}"

sleep 3
if ! ps -p "${new_pid}" >/dev/null; then
    echo "警告：进程启动异常，请查看日志 ${log_file}"
fi

rm -rf "${temp_path:?}"/*
echo "=====部署完成====="
exit 0

执行shell脚本(两种方式)

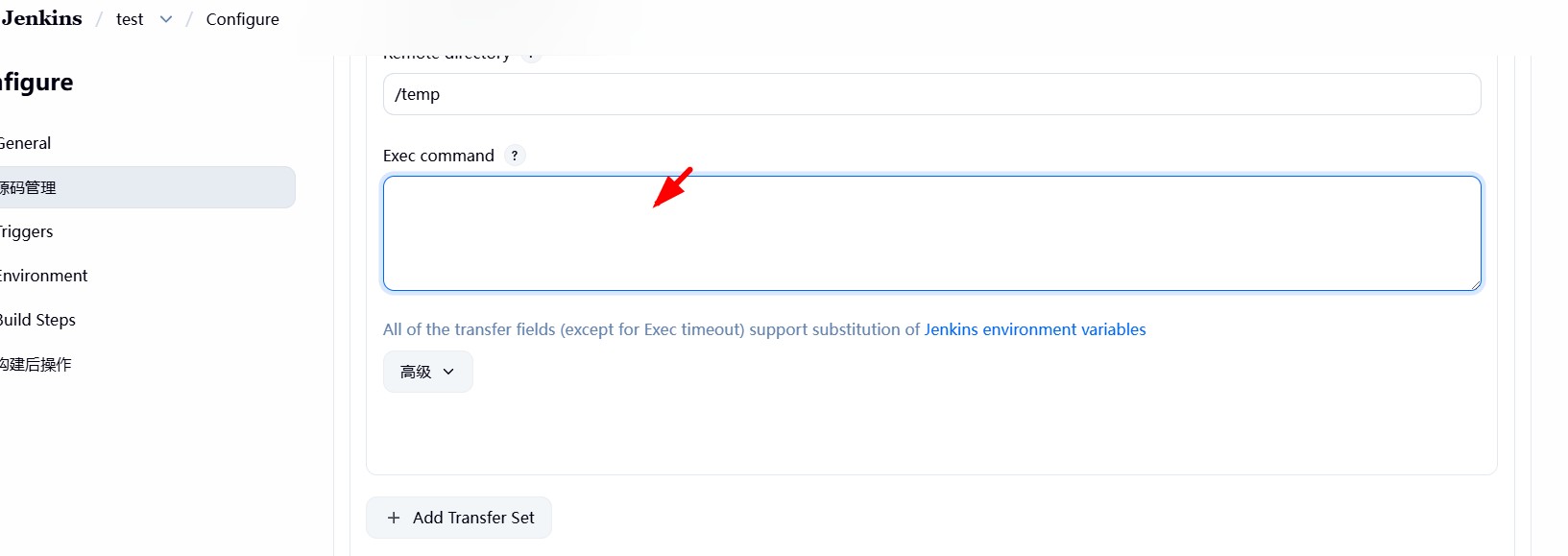

第一种jenkins直接配置执行

直接将上面shell命令复制进去

第二种远程服务器部署sh命令调用

将上面shell命令，部署到远程服务器

bash

vim /usr/local/deploy.sh
# 粘贴完整脚本内容，保存退出(权限一定核实开通)
chmod +x /usr/local/deploy.sh

• 上面文本框填入

base

bash /usr/local/deploy.sh

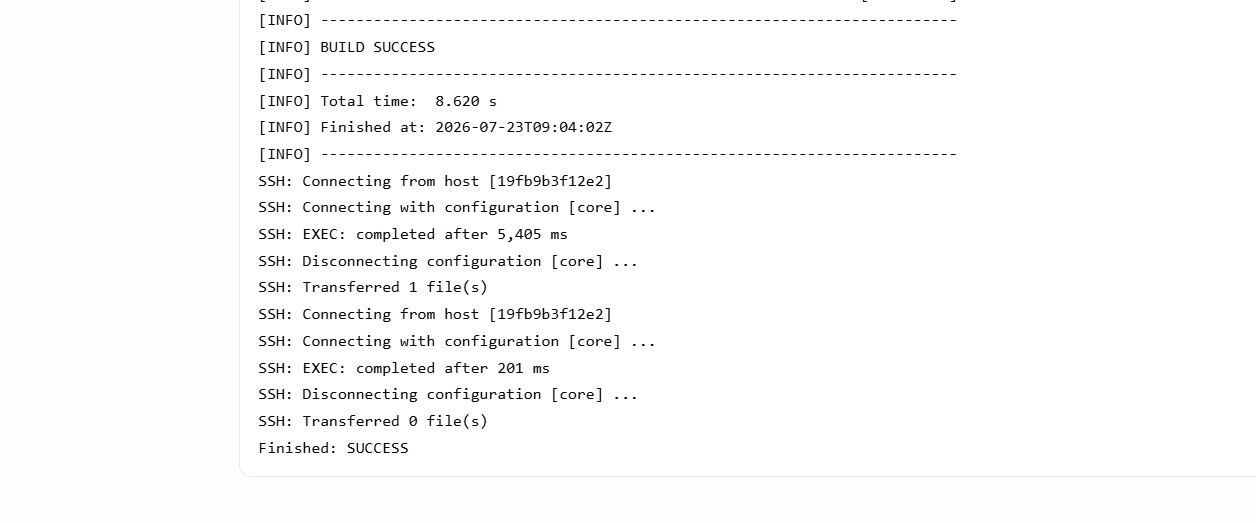

远程发布验证结果
