Grafana中GeoMap实现展示网络线路

文章目录

• 前言
• 一、Grafana
• 二、使用步骤
• • 1.新建GeoMap面板
  • 2.添加查询A
  • 2.添加查询B

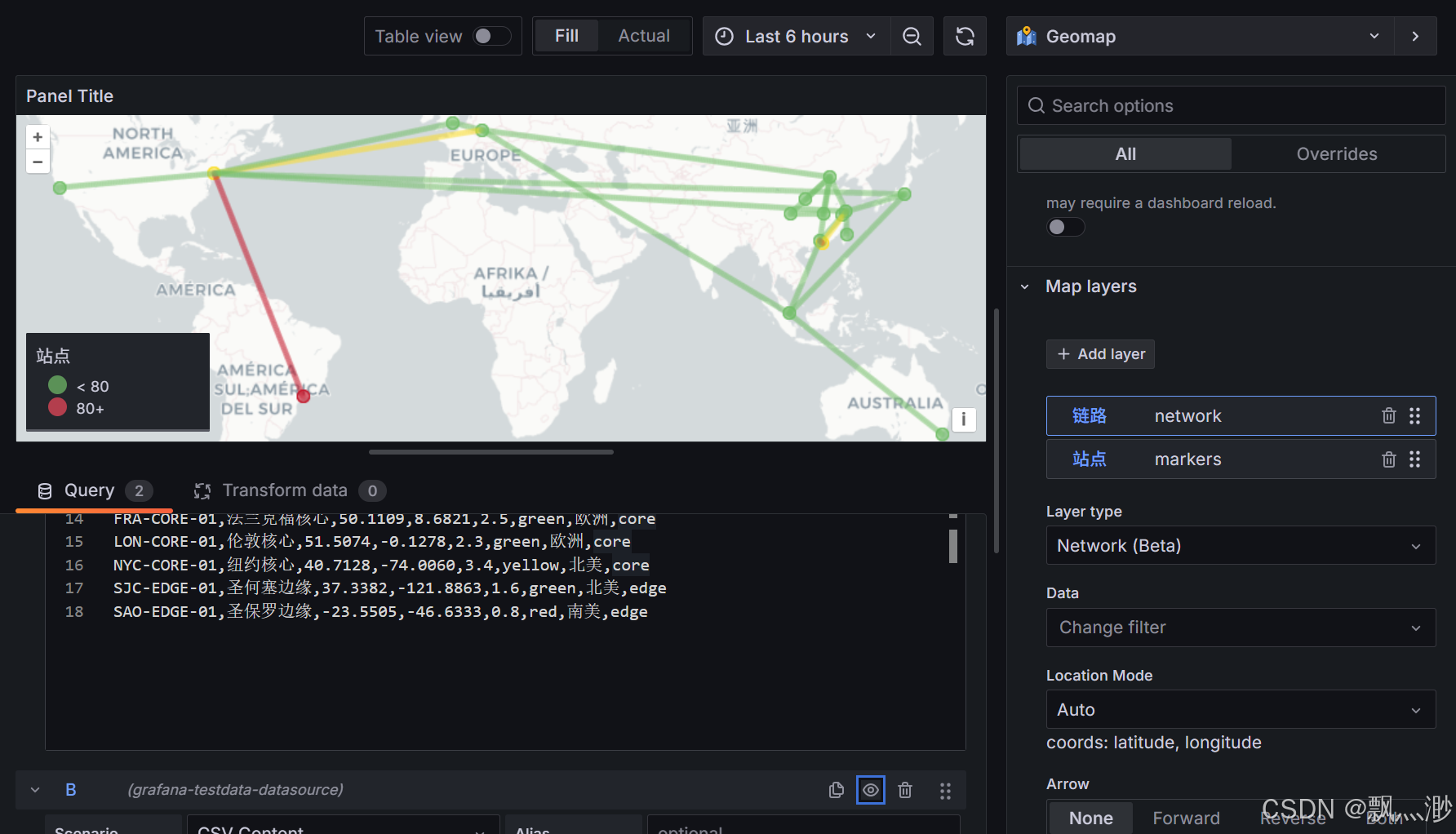

  • [2.添加Network Layer](#2.添加Network Layer)

---

前言

Grafana中使用GeoMap面板展示网络线路状态

---

一、Grafana

Grafana 版本是v10.4.7

二、使用步骤

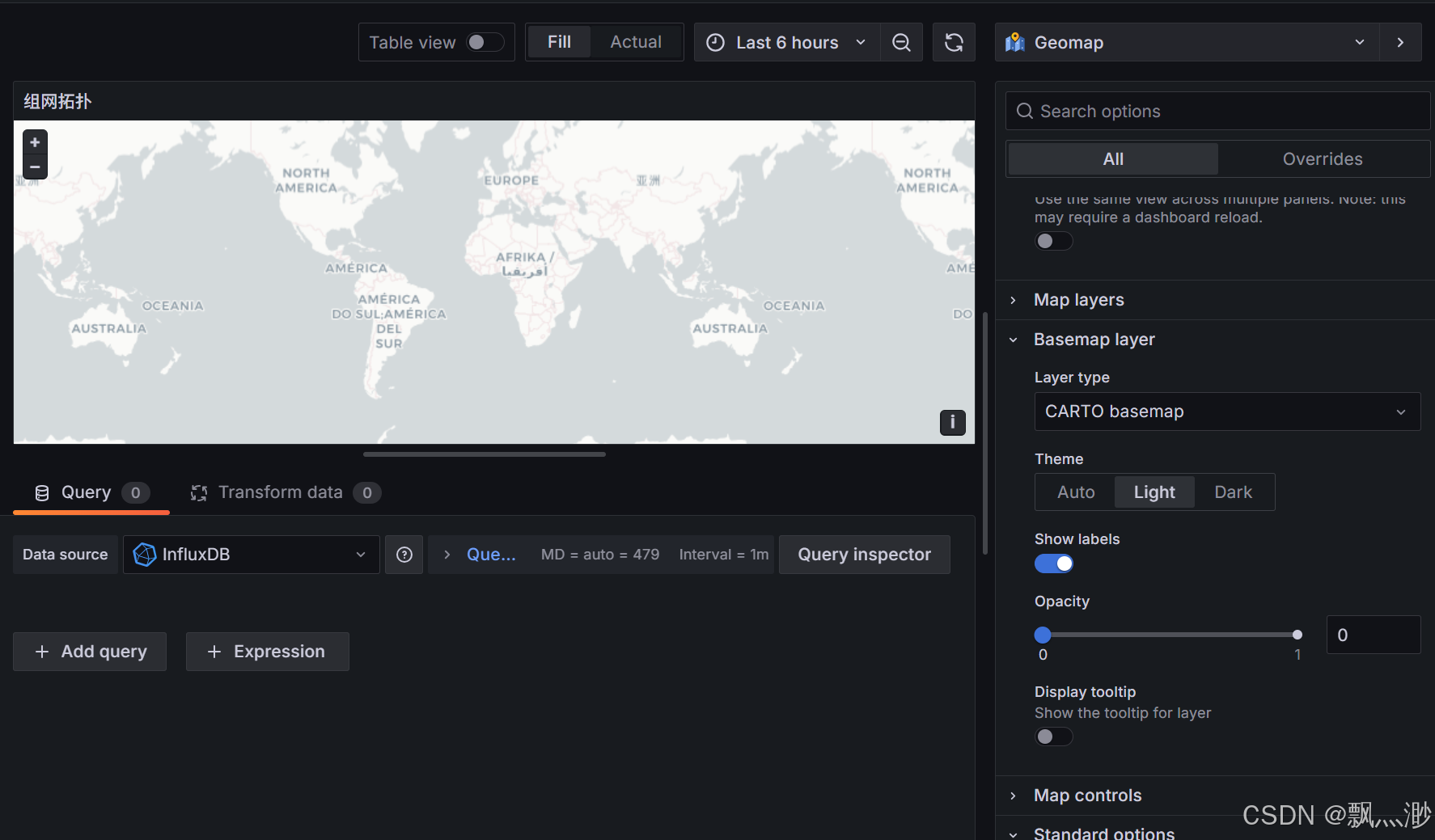

1.新建GeoMap面板

2.添加查询A

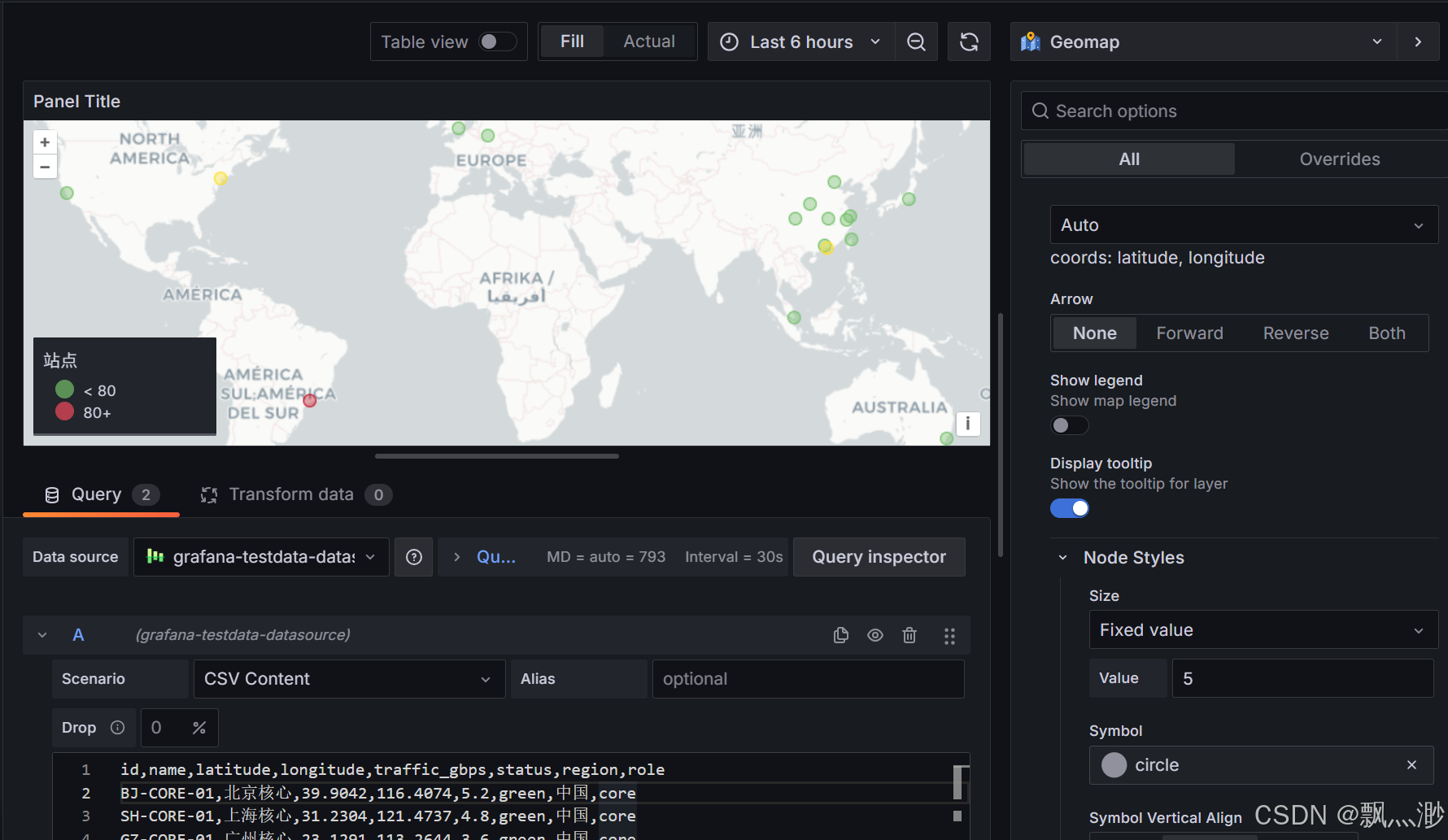

数据源选择 testdata,场景选择csv,数据如下

id,name,latitude,longitude,traffic_gbps,status,region,role
BJ-CORE-01,北京核心,39.9042,116.4074,5.2,green,中国,core
SH-CORE-01,上海核心,31.2304,121.4737,4.8,green,中国,core
GZ-CORE-01,广州核心,23.1291,113.2644,3.6,green,中国,core
SZ-EDGE-01,深圳边缘,22.5431,114.0579,1.8,yellow,中国,edge
CD-CORE-01,成都核心,30.5728,104.0668,2.2,green,中国,core
WH-EDGE-01,武汉边缘,30.5928,114.3055,1.1,green,中国,edge
XA-EDGE-01,西安边缘,34.3416,108.9398,0.9,green,中国,edge
HZ-EDGE-01,杭州边缘,30.2741,120.1551,1.5,green,中国,edge
TY-EDGE-01,台北节点,25.0330,121.5654,0.7,green,中国,edge
TYO-CORE-01,东京核心,35.6762,139.6503,3.1,green,亚太,core
SIN-CORE-01,新加坡核心,1.3521,103.8198,2.8,green,亚太,core
SYD-EDGE-01,悉尼边缘,-33.8688,151.2093,1.2,green,亚太,edge
FRA-CORE-01,法兰克福核心,50.1109,8.6821,2.5,green,欧洲,core
LON-CORE-01,伦敦核心,51.5074,-0.1278,2.3,green,欧洲,core
NYC-CORE-01,纽约核心,40.7128,-74.0060,3.4,yellow,北美,core
SJC-EDGE-01,圣何塞边缘,37.3382,-121.8863,1.6,green,北美,edge
SAO-EDGE-01,圣保罗边缘,-23.5505,-46.6333,0.8,red,南美,edge

---

2.添加查询B

主要是source 和target 是上一查询的id

id,source,target,source_lat,source_lon,target_lat,target_lon,utilization,latency_ms,loss_pct,bw_mbps,status
L01,BJ-CORE-01,SH-CORE-01,39.9042,116.4074,31.2304,121.4737,65,12,0.01,40000,green
L02,BJ-CORE-01,GZ-CORE-01,39.9042,116.4074,23.1291,113.2644,58,24,0.01,40000,green
L03,SH-CORE-01,GZ-CORE-01,31.2304,121.4737,23.1291,113.2644,52,18,0.01,40000,green
L04,SH-CORE-01,HZ-EDGE-01,31.2304,121.4737,30.2741,120.1551,72,5,0.01,10000,green
L05,SH-CORE-01,SZ-EDGE-01,31.2304,121.4737,22.5431,114.0579,78,22,0.02,10000,yellow
L06,GZ-CORE-01,SZ-EDGE-01,23.1291,113.2644,22.5431,114.0579,85,4,0.03,10000,red
L07,BJ-CORE-01,CD-CORE-01,39.9042,116.4074,30.5728,104.0668,44,28,0.01,10000,green
L08,BJ-CORE-01,WH-EDGE-01,39.9042,116.4074,30.5928,114.3055,38,16,0.01,10000,green
L09,BJ-CORE-01,XA-EDGE-01,39.9042,116.4074,34.3416,108.9398,35,14,0.01,10000,green
L10,WH-EDGE-01,CD-CORE-01,30.5928,114.3055,30.5728,104.0668,42,15,0.01,10000,green
L11,SH-CORE-01,TYO-CORE-01,31.2304,121.4737,35.6762,139.6503,68,42,0.02,10000,green
L12,SH-CORE-01,TY-EDGE-01,31.2304,121.4737,25.0330,121.5654,55,28,0.01,10000,green
L13,GZ-CORE-01,SIN-CORE-01,23.1291,113.2644,1.3521,103.8198,71,36,0.02,10000,green
L14,SIN-CORE-01,SYD-EDGE-01,1.3521,103.8198,-33.8688,151.2093,48,85,0.03,10000,green
L15,TYO-CORE-01,SIN-CORE-01,35.6762,139.6503,1.3521,103.8198,56,72,0.02,10000,green
L16,BJ-CORE-01,FRA-CORE-01,39.9042,116.4074,50.1109,8.6821,62,165,0.05,10000,green
L17,FRA-CORE-01,LON-CORE-01,50.1109,8.6821,51.5074,-0.1278,58,12,0.01,10000,green
L18,FRA-CORE-01,NYC-CORE-01,50.1109,8.6821,40.7128,-74.0060,82,95,0.06,10000,yellow
L19,NYC-CORE-01,SJC-EDGE-01,40.7128,-74.0060,37.3382,-121.8863,74,68,0.03,10000,green
L20,SH-CORE-01,NYC-CORE-01,31.2304,121.4737,40.7128,-74.0060,66,185,0.07,10000,green
L21,NYC-CORE-01,SAO-EDGE-01,40.7128,-74.0060,-23.5505,-46.6333,32,210,0.12,10000,red
L22,LON-CORE-01,NYC-CORE-01,51.5074,-0.1278,40.7128,-74.0060,69,78,0.03,10000,green
L23,SIN-CORE-01,FRA-CORE-01,1.3521,103.8198,50.1109,8.6821,45,155,0.04,10000,green
L24,TYO-CORE-01,NYC-CORE-01,35.6762,139.6503,40.7128,-74.0060,59,138,0.04,10000,green

2.添加Network Layer
