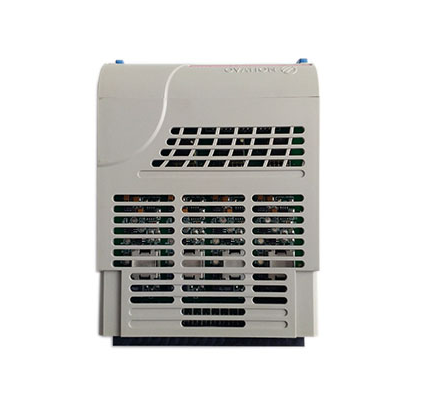

The Emerson 1C31129G03 is an analog input module used for the Emerson DCS control system. It collects standard analog signals from field transmitters and converts them into digital data for the controller to complete process monitoring and closed-loop regulation.
This module supports multi-channel signal acquisition and built-in channel self-diagnosis. It is commonly stocked as spare parts for automation cabinet maintenance and renovation in power, petrochemical and water treatment industries.
Main Specifications
- Brand: Emerson; Model: 1C31129G03; Type: Analog Input Module
- Applicable System: Emerson distributed control system
- Core Tasks: Field analog signal acquisition, A/D conversion, data uploading, channel fault detection
- Signal Interface: Field wiring terminals, rack backplane connector
- Installation: Plug-in slot mounting in standard DCS rack chassis
- Compatible Devices: Pressure, temperature and flow field transmitters
- Operating Environment: 0℃ ~ +60℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
- Certifications: CE, compliant with industrial DCS EMC and safety standards
Core Functions
- Receive standard analog signals from field instruments and complete high-precision analog-to-digital conversion.
- Transmit converted digital process data to the main controller through the rack backplane bus.
- Continuously diagnose each channel to detect open circuit, short circuit and abnormal signal faults for alarm feedback.
- Work cooperatively with the controller to realize real-time monitoring and automatic adjustment of production parameters.
- Adopt plug-in modular design for quick replacement during equipment overhaul and reduce system downtime.
- Built-in signal isolation circuit to suppress electromagnetic interference in complex factory environments.
Application Scenarios
- Spare-part replacement for Emerson DCS racks in thermal power plants, oil refineries and chemical factories.
- Signal acquisition hardware for temperature, pressure, liquid level and flow monitoring of production equipment.
- Maintenance backup inventory for renovation and after-sales maintenance projects of distributed control systems.
- Matching I/O module cooperating with DCS controller, power supply and analog output modules.
- Retrofit replacement for aged modules with acquisition deviation, channel failure and data loss faults.
- Global aftermarket spare supply for automation maintenance teams maintaining Emerson DCS equipment worldwide.
