k8s部署

无望__wsk2026-08-23 7:26

一、Kubernetes 简单介绍

Kubernetes 简称 K8s，是 Google 开源容器编排平台，用于自动化容器部署、扩缩容、故障自愈。

K8s 集群分为控制平面（Master） 和工作节点（Node）：

  • Master：apiserver、etcd、scheduler、controller‑manager，负责集群调度、存储集群所有资源状态
  • Node：kubelet、kube‑proxy、容器运行时，真正执行业务 Pod 运行
  • Pod：K8s 最小调度单元，一个 Pod 内部可以运行多个容器

二、环境规划

主机名 IP 配置 角色
harbor.timinglee.org 172.25.254.250 1C1G Harbor 私有镜像仓库
master‑node 172.25.254.100 4C4G+ K8s 控制节点 master
node1 172.25.254.10 2C2G worker 工作节点
node2 172.25.254.20 2C2G worker 工作节点

三、部署 Harbor 私有镜像仓库

3.1 部署 Docker 本地 yum 源（harbor 节点）

复制代码
[root@harbor ~]# cat > /etc/yum.repos.d/docker.repo <<EOF
> [docker]
> name = docker
> baseurl = https://mirrors.aliyun.com/docker-ce/linux/rhel/9.6/x86_64/stable/
> gpgcheck = 0
> EOF

[root@harbor ~]#  dnf install httpd createrepo -y
正在更新 Subscription Management 软件仓库。
无法读取客户身份

本系统尚未在权利服务器中注册。可使用 "rhc" 或 "subscription-manager" 进行注册。

已杀死
[root@harbor ~]# mkdir  /var/www/html/docker/ -p

#修改httpd监听端口
[root@harbor ~]#  vim /etc/httpd/conf/httpd.conf
Listen 4444


[root@harbor ~]#  systemctl enable --now httpd
[root@harbor ~]# dnf  install docker-ce --downloadonly  --destdir /mnt/ -y

#下载docker‑ce rpm包到本地
[root@harbor ~]# mv /mnt/*.rpm /var/www/html/docker/
[root@harbor ~]# createrepo -v /var/www/html/docker/

#所有节点使用这个内网源
[root@harbor ~]#  cat > /etc/yum.repos.d/docker.repo <<EOF
[docker]
name = docker
baseurl = http://172.25.254.250:4444/docker
gpgcheck = 0
EOF

3.2 harbor 节点安装 docker，内核参数调优

复制代码
[root@harbor ~]# dnf install docker-ce -y

#加载br_netfilter模块
[root@harbor ~]# echo br_netfilter > /etc/modules-load.d/docker_mod.conf
[root@harbor ~]# modprobe -a br_netfilter
[root@harbor ~]# vim /etc/sysctl.d/docker.conf
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1

[root@harbor ~]# systemctl restart  systemd-modules-load.service
[root@harbor ~]#  sysctl  --system

#修改docker.service参数
[root@harbor ~]# vim /lib/systemd/system/docker.service
ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --iptables=true

[root@harbor ~]# systemctl daemon-reload
[root@harbor ~]#  systemctl enable --now docker

3.3 生成自签 TLS 证书

复制代码
[root@harbor ~]#  mkdir /data/certs -p
[root@harbor ~]# openssl req -newkey  rsa:4096 \-nodes -sha256 -keyout /data/certs/timinglee.org.key \-addext "subjectAltName = DNS:reg.timinglee.org" \-x509 -days 365 -out /data/certs/timinglee.org.crt

交互填写信息：
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:Shangxi
Locality Name (eg, city) [Default City]:xi'an
Organization Name (eg, company) [Default Company Ltd]:kubernetes
Organizational Unit Name (eg, section) []:harbor
Common Name (eg, your name or your server's hostname) []:reg.timinglee.org
Email Address []:admin@timinglee.org

3.4 修改 harbor 配置，安装 harbor

复制代码
[root@harbor ~]# tar zxf harbor-offline-installer-v2.5.4.tgz -C /opt/
[root@harbor ~]# cd /opt/harbor/
[root@harbor harbor]# ls
common  common.sh  docker-compose.yml  harbor.v2.5.4.tar.gz   harbor.yml.tmpl  install.sh  LICENSE  prepare
[root@harbor harbor]#  cp harbor.yml.tmpl harbor.yml
[root@harbor harbor]# vim harbor.yml
hostname: reg.timinglee.org
  certificate: /data/certs/timinglee.org.crt
  private_key: /data/certs/timinglee.org.key
harbor_admin_password: lee

#安装开启chartmuseum支持helm仓库

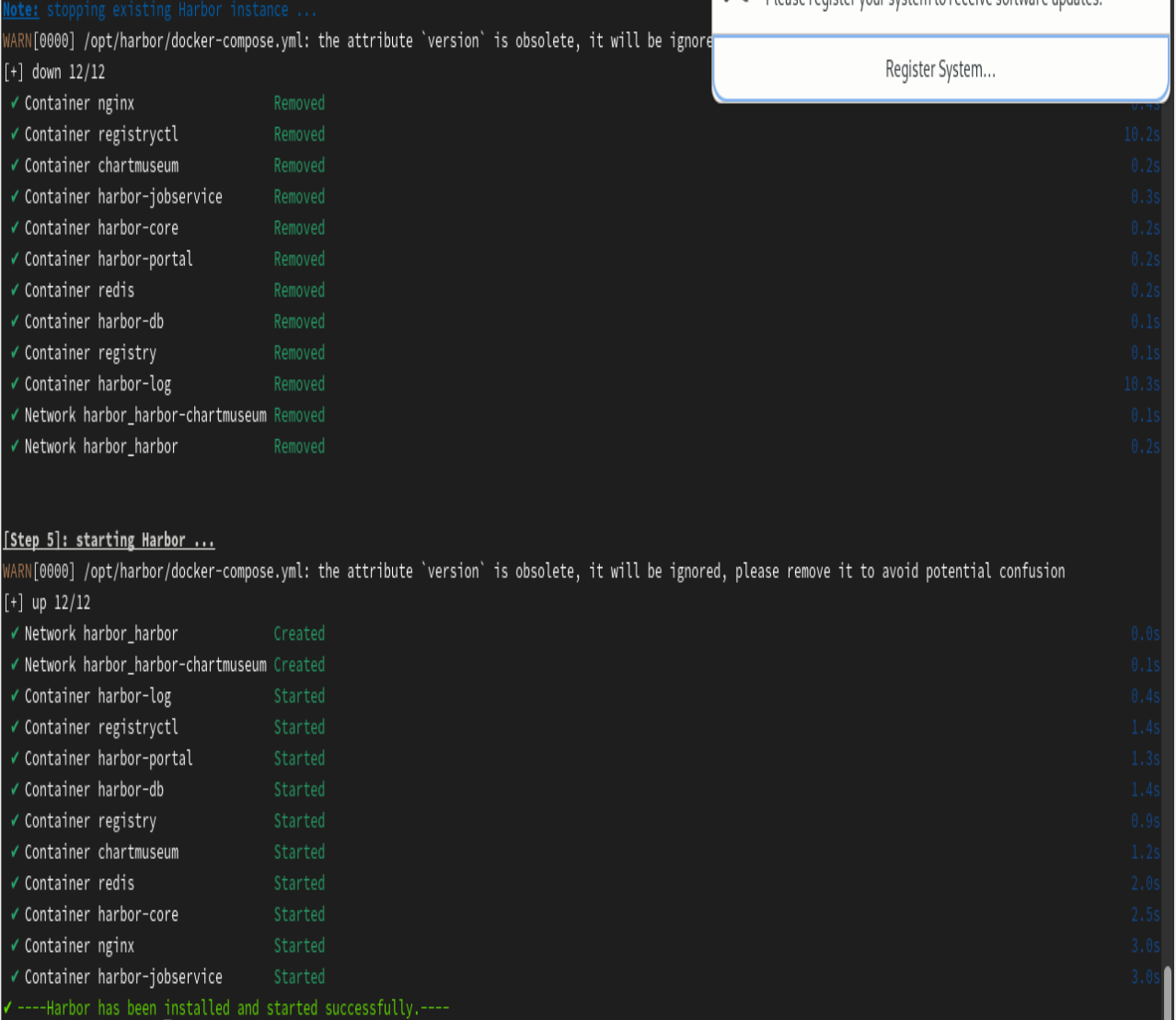

[root@harbor harbor]# ./install.sh --with-chartmuseum

3.5 systemd 管理 harbor 服务

复制代码
[root@harbor harbor]# vim /lib/systemd/system/harbor.service
[Unit]
Description=harbor with Docker Compose
Documentation=https://reg.timinglee.com/compose/
After=docker.service network-online.target
Requires=docker.service

[Service]
Type=oneshot
WorkingDirectory=/opt/harbor
ExecStart=/usr/bin/docker compose up -d
ExecStop=/usr/bin/docker compose down
RemainAfterExit=yes

[Install]
WantedBy=multi-user.target

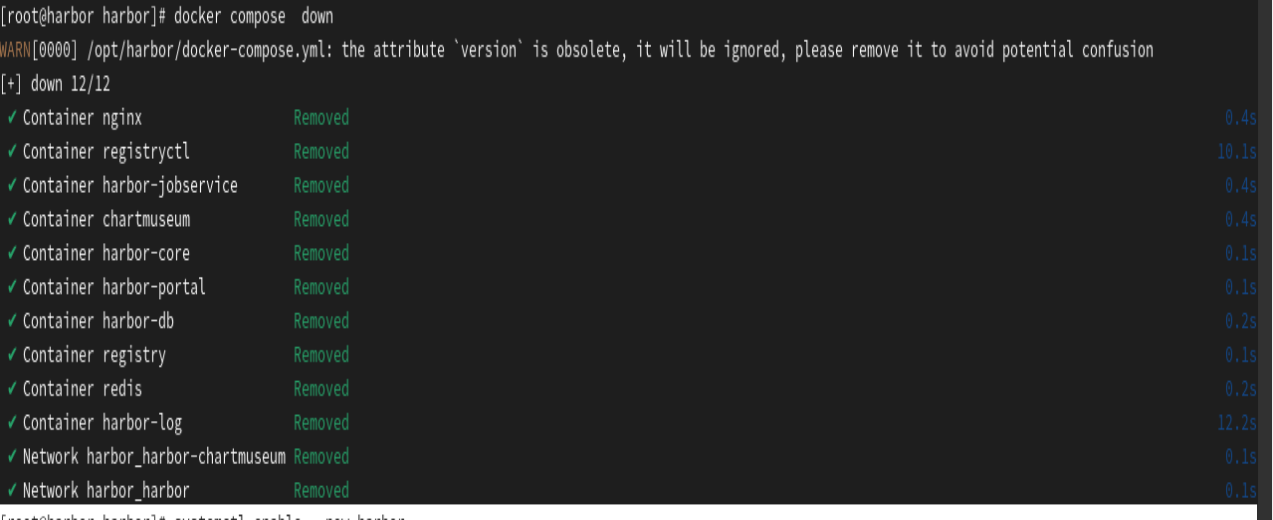

[root@harbor harbor]# docker compose  down
[root@harbor harbor]# systemctl enable --now harbor
[root@harbor harbor]# docker compose  ps

3.6 验证 harbor 登录

复制代码
[root@harbor harbor]#  mkdir  /etc/docker/certs.d/reg.timinglee.org/ -p
[root@harbor harbor]# cp /data/certs/timinglee.org.crt /etc/docker/certs.d/reg.timinglee.org/ca.crt
[root@harbor harbor]# vim /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
172.25.254.250     harbor reg.timinglee.org

[root@harbor harbor]# systemctl restart docker

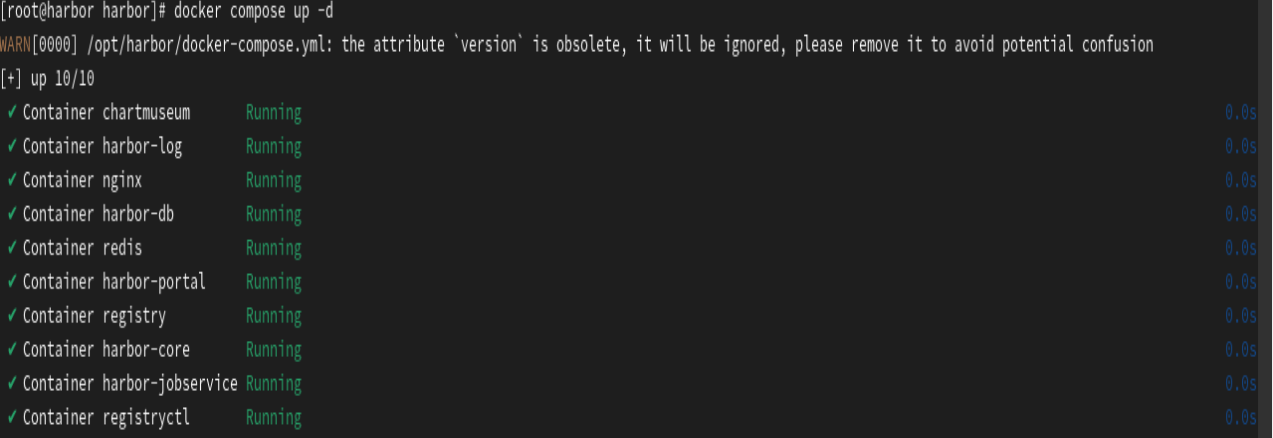

[root@harbor harbor]# docker compose up -d
[root@harbor harbor]# docker login  reg.timinglee.org -u admin
Password:
Login Succeeded

harbor 节点执行，预先把证书推送到三台 k8s 节点，后面 ansible 也会二次同步证书

复制代码
[root@harbor harbor]# for i in 100 10 20
> do
> scp /data/certs/timinglee.org.crt root@172.25.254.$i:/etc/docker/certs.d/reg.timinglee.org/ca.crt
> done

方案一：手动部署 k8s 集群（适合新手理解每一步原理）

四、所有 k8s 节点统一环境初始化

下面操作master、node1、node2 三台机器全部执行

4.1 关闭 swap

复制代码
[root@k8s-master ~]# systemctl disable --now  swap.target
[root@k8s-master ~]# systemctl mask swap.target
[root@k8s-master ~]# sed '/swap/s/^/#/g' -i /etc/fstab
#验证，无输出代表成功
[root@k8s-master ~]# swapon -s

4.2 docker 配置镜像加速器指向内网 harbor

复制代码
[root@k8s-master ~]# cat >/etc/docker/daemon.json <<EOF
> {
> "registry-mirrors":["https://reg.timinglee.org"]
> }
> EOF
[root@k8s-master ~]# systemctl enable  docker
[root@k8s-master ~]# systemctl restart docker
[root@k8s-master ~]# docker info
可以看到
Registry Mirrors:
  https://reg.timinglee.org/

4.3 hosts 主机解析

复制代码
[root@k8s-master ~]# vim /etc/hosts

127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
172.25.254.100      k8s-master
172.25.254.10       k8s-nade1
172.25.254.20       k8s-node2
172.25.254.250     harbor reg.timinglee.org

4.4 kubernetes yum 源

复制代码
[root@k8s-master ~]# vim /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name = kubernetes
baseurl = https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.35/rpm/
gpgcheck = 0

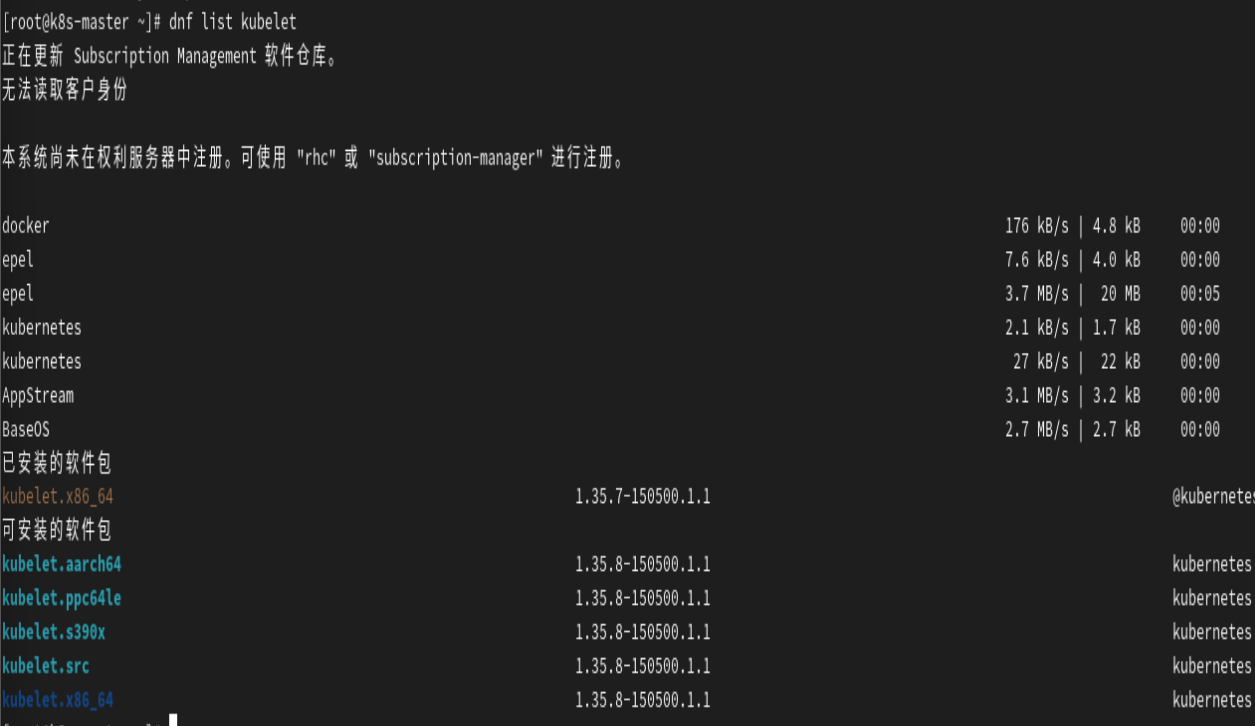

[root@k8s-master ~]# dnf list kubelet

五、所有节点部署 cri‑dockerd（适配 docker 运行时）

二进制部署方式：

复制代码
[root@k8s-master ~]#  wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.4.4/cri-dockerd-0.4.4.amd64.tgz
[root@k8s-master ~]# tar zxf cri-dockerd-0.4.4.amd64.tgz
[root@k8s-master ~]# cd cri-dockerd/
[root@k8s-master cri-dockerd]# ls
cri-dockerd  cri-docker.service  cri-docker.socket
[root@k8s-master cri-dockerd]# install -o root -g root -m 0755 cri-dockerd  /usr/local/bin/cri-dockerd
[root@k8s-master cri-dockerd]# ls -l /usr/local/bin/cri-dockerd
-rwxr-xr-x 1 root root 51638434  8月 22 19:38 /usr/local/bin/cri-dockerd
[root@k8s-master cri-dockerd]# cp cri-docker.s* /lib/systemd/system
[root@k8s-master cri-dockerd]# chmod  +x /lib/systemd/system/cri-docker.s*
[root@k8s-master cri-dockerd]# vim /lib/systemd/system/cri-docker.service
[Service]
Type=notify
ExecStart=/usr/local/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=reg.timinglee.org/k8s/pause:3.10.1 --container-runtime-endpoint fd://
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always

[root@k8s-master cri-dockerd]# systemctl daemon-reload
[root@k8s-master cri-dockerd]# systemctl enable --now cri-docker.service
[root@k8s-master cri-dockerd]# systemctl status cri-docker.service
● cri-docker.service - CRI Interface for Docker Application Container Engine
     Loaded: loaded (/usr/lib/systemd/system/cri-docker.service; enabled; preset: disabled)
     Active: active (running) since Sat 2026-08-22 18:04:30 CST; 1h 35min ago
TriggeredBy: ● cri-docker.socket
       Docs: https://docs.mirantis.com
   Main PID: 2856 (cri-dockerd)
      Tasks: 10
     Memory: 49.5M (peak: 92.0M)
        CPU: 37.468s
     CGroup: /system.slice/cri-docker.service
             └─2856 /usr/bin/cri-dockerd --container-runtime-endpoint fd:// --network-plugin=cni --pod-infra-container-image=reg.timinglee.org/k8s/pause:3.10

验证 socket 文件存在

复制代码
[root@k8s-master cri-dockerd]# ll /var/run/cri-dockerd.sock
srw-rw---- 1 root docker 0  8月 22 18:04 /var/run/cri-dockerd.sock

六、安装 k8s 组件

master 节点

复制代码
[root@k8s-master ~]# dnf install kubelet kubeadm kubectl -y
[root@k8s-master ~]# systemctl enable --now kubelet.service
[root@k8s-master ~]# echo "source <(kubectl completion bash)" >> ~/.bashrc
[root@k8s-master ~]# echo "source <(kubeadm completion bash)" >> ~/.bashrc
[root@k8s-master ~]# source  ~/.bashrc

node 节点

复制代码
[root@k8s-node2 ~]# dnf install kubelet kubeadm  -y
[root@k8s-node2 ~]# systemctl enable --now kubelet.service

七、master 节点拉取镜像并推送到内网 Harbor

复制代码
#查看需要哪些镜像
[root@k8s-master ~]#  kubeadm config images list


#拉取镜像，指定阿里源，指定cri‑socket
[root@k8s-master ~]# kubeadm config images pull \--image-repository registry.aliyuncs.com/google_containers \--kubernetes-version v1.35.7 \--cri-socket=unix:///var/run/cri-dockerd.sock

#登录harbor
[root@k8s-master ~]# docker  login  reg.timinglee.org -u admin

#打标签推送到私有harbor仓库
[root@k8s-master ~]#  docker images  --format  "{{.Repository}}:{{.Tag}}" | awk -F "/" '/google/{system("docker tag "$0" reg.timinglee.org/k8s/"$3)}'
[root@k8s-master ~]# docker images  --format  "{{.Repository}}:{{.Tag}}" | awk -F "/" '/timinglee/{system("docker push "$0)}'

八、kubeadm 初始化集群（master 节点）

复制代码
[root@k8s-master ~]# kubeadm init --pod-network-cidr=10.244.0.0/16 \--image-repository reg.timinglee.org/k8s \--kubernetes-version v1.35.7 \--cri-socket=unix:///var/run/cri-dockerd.sock

执行成功后输出 join 命令，类似：

复制代码
kubeadm join 172.25.254.100:6443 --token h9725j.s6q4mrz25fpcua3q --discovery-token-ca-cert-hash sha256:bb480a79316ad10f529e7cd4627508daca68c39e6c5a3fe1671bbdb92a9ff87a

如果忘了

复制代码
[root@k8s-master ~]# kubeadm token create --print-join-command
kubeadm join 172.25.254.100:6443 --token h9725j.s6q4mrz25fpcua3q --discovery-token-ca-cert-hash sha256:bb480a79316ad10f529e7cd4627508daca68c39e6c5a3fe1671bbdb92a9ff87a

如果初始化集群失败

复制代码
[root@master ~]# kubeadm reset  --cri-socket=unix:///var/run/cri-dockerd.sock

九、node 节点加入集群

复制 master 输出的 kubeadm join 命令，每个 node 节点执行，务必带上 cri‑socket 参数

添加kubernets环境变量到本机

复制代码
[root@k8s-master ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" > ~/.bash_profile
[root@k8s-master ~]# source  ~/.bash_profile
[root@k8s-master ~]#  kubectl get nodes
NAME     STATUS     ROLES           AGE    VERSION
master   NotReady   control-plane   102s   v1.35.3

添加node节点到本集群

复制代码
[root@k8s-node2 ~]# kubeadm join 172.25.254.100:6443 --token h9725j.s6q4mrz25fpcua3q --discovery-token-ca-cert-hash sha256:bb480a79316ad10f529e7cd4627508daca68c39e6c5a3fe1671bbdb92a9ff87a --cri-socket=unix:///var/run/cri-dockerd.sock

测试
[root@k8s-master ~]#  kubectl get nodes
NAME         STATUS   ROLES           AGE    VERSION
k8s-master   NotReady    control-plane   2d9h   v1.35.7
k8s-node1    NotReady    <none>          2d4h   v1.35.7
k8s-node2    NotReady    <none>          2d9h   v1.35.7

十、部署 flannel 网络插件

pod 网络必须安装，否则节点不会 Ready

复制代码
[root@k8s-master ~]# tar zxf kube-flannel-v0.28.9.tar.gz

[root@k8s-master ~]# cd flannel/
[root@k8s-master flannel]# docker load  -i kube-flannel-v0.28.9.tar
Loaded image: ghcr.io/flannel-io/flannel-cni-plugin:v1.9.1-flannel3
Loaded image: ghcr.io/flannel-io/flannel:v0.28.9
[root@k8s-master ~]# docker tag ghcr.io/flannel-io/flannel-cni-plugin:v1.9.1-flannel3 reg.timinglee.org/flannel-io/flannel-cni-plugin:v1.9.1-flannel3
[root@k8s-master ~]#  docker push  reg.timinglee.org/flannel-io/flannel-cni-plugin:v1.9.1-flanne3
[root@k8s-master ~]# docker tag ghcr.io/flannel-io/flannel:v0.28.9 reg.timinglee.org/flannel-io/flannel:v0.28.9
[root@k8s-master ~]# docker push reg.timinglee.org/flannel-io/flannel:v0.28.9
[root@k8s-master ~]# vim kube-flannel.yml
image: flannel-io/flannel:v0.28.9
image: flannel-io/flannel-cni-plugin:v1.9.1-flannel3
image: flannel-io/flannel:v0.28.9

[root@k8s-master flannel]# grep -n  image: kube-flannel.yml
148:        image: ghcr.io/flannel-io/flannel:v0.28.9
175:        image: ghcr.io/flannel-io/flannel-cni-plugin:v1.9.1-flannel3
186:        image: ghcr.io/flannel-io/flannel:v0.28.9
[root@k8s-master flannel]# kubectl apply -f kube-flannel.yml
namespace/kube-flannel unchanged
serviceaccount/flannel unchanged
clusterrole.rbac.authorization.k8s.io/flannel unchanged
clusterrolebinding.rbac.authorization.k8s.io/flannel unchanged
configmap/kube-flannel-cfg unchanged
daemonset.apps/kube-flannel-ds unchanged
[root@k8s-master flannel]#  kubectl get  nodes
NAME         STATUS   ROLES           AGE    VERSION
k8s-master   Ready    control-plane   2d9h   v1.35.7
k8s-node1    Ready    <none>          2d4h   v1.35.7
k8s-node2    Ready    <none>          2d9h   v1.35.7

方案二：Ansible 自动化初始化 K8s 节点环境

🎯适用场景：多台 k8s 节点重复配置，解放双手。只做环境预处理，集群初始化、join、网络插件依旧沿用方案一第八、九、十章节手动

Ansible 自动化部署（适合多节点，批量做环境初始化，提高部署效率）

步骤 1：部署 Ansible（在 harbor 节点执行，作为 ansible 控制机）

复制代码
[root@harbor ~]# vim /etc/yum.repos.d/epel.repo
[epel]
name = epel
baseurl = https://mirrors.aliyun.com/epel/9/Everything/x86_64/
gpgcheck = 0
[root@harbor ~]#  dnf install ansible-core.x86_64 ansible.noarch -y

步骤 2：创建 ansible 工作目录与用户

复制代码
root@harbor ~]# useradd  devops
[root@harbor ~]# echo lee | passwd --stdin devops
更改用户 devops 的密码 。
passwd：所有的身份验证令牌已经成功更新。
[root@harbor ~]# su - devops
[devops@harbor ~]$ mkdir  ansible

[devops@harbor ~]$ cd ansible/

2.1 主机清单 inventory

文件名：inventory

复制代码
[devops@harbor ansible]$ vim inventory
[servers]
172.25.254.100
172.25.254.20
172.25.254.10

2.2 ansible.cfg 配置文件

文件名：ansible.cfg

复制代码
[devops@harbor ansible]$ vim ansible.cfg
[defaults]
inventory = /home/devops/ansible/inventory
remote_user = devops
ask_pass = false
host_key_checking = false

[privilege_escalation]
become = true
become_method = sudo
become_user = root
become_ask_pass = false

2.3 推送 devops 用户与 sudo 权限到所有 k8s 节点

执行 ping 连通性测试，确认网络与 ssh 正常

复制代码
[devops@harbor ansible]$ ansible all -m ping --ask-pass
SSH password:
172.25.254.100 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
172.25.254.20 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
172.25.254.10 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}

批量创建 devops 用户，免密 sudo

复制代码
[devops@harbor ansible]$ ansible all -m user -a "name=devops state=present"
[devops@harbor ansible]$ ansible all -m shell -a 'echo "lee" | passwd --stdin devops'
[devops@harbor ansible]$ ansible all -m lineinfile -a 'path=/etc/sudoers line="devops    ALL=(ALL)    NOPASSWD: ALL" insertafter=EOF'

步骤 3：准备 cri‑dockerd 二进制文件

把 cri‑dockerd 压缩包上传到 ansible 工作目录，解压，playbook 会把二进制、service 文件分发到远端主机

复制代码
[devops@harbor ansible]$ wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.4.4/cri-dockerd-0.4.4.amd64.tgz
[devops@harbor ansible]$ tar zxf cri-dockerd-0.4.4.amd64.tgz

修改cri-dockerd/cri-docker.service启动参数，指定内网 pause 镜像

复制代码
[devops@harbor ansible]$ cd cri-dockerd/
[devops@harbor cri-dockerd]$ ls
cri-dockerd  cri-docker.service  cri-docker.socket
[devops@harbor cri-dockerd]$ vim cri-docker.service
[Service]
Type=notify
ExecStart=/usr/bin/cri-dockerd --container-runtime-endpoint fd:// --network-plugin=cni --pod-infra-container-image=reg.timinglee.org/k8s/pause:3.10.1
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always

步骤 4：完整 playbook k8s-init.yml

playbook 完成工作：关闭 swap、配置 docker 源、安装 docker、修改 docker 启动参数、daemon.json 镜像加速器、分发 harbor 证书、内核模块与 sysctl 参数、推送 cri‑dockerd 二进制与 service 文件、配置 k8s yum 源、区分 master/node 安装不同 k8s 软件、配置 kubectl 命令补全、启动 docker 与 cri‑dockerd、kubelet。

复制代码
[devops@harbor ansible]$ vim kubernetes-devops.yml
- name: k8s nodes environment init
  hosts: all
  tasks:
    # 1.关闭swap
    - name: disable swap service
      shell: |
        systemctl disable --now swap.target
        systemctl mask swap.target
        sed -i '/swap/s/^/#/' /etc/fstab
      ignore_errors: yes

    # 2.配置docker yum源
    - name: setup docker repo
      yum_repository:
        name: docker
        description: docker repo
        baseurl: http://172.25.254.254:4444/docker
        file: docker
        gpgcheck: no

    #3.安装docker-ce
    - name: install docker-ce
      dnf:
        name: docker-ce
        state: present

    #4.修改docker.service启动参数
    - name: modify docker service ExecStart
      replace:
        path: /lib/systemd/system/docker.service
        regexp: 'ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock'
        replace: 'ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --iptables=true'

    #5.docker daemon.json配置镜像加速器
    - name: config docker daemon.json
      copy:
        content: |
          {
            "registry-mirrors":["https://reg.timinglee.org"]
          }
        dest: /etc/docker/daemon.json

    #6.创建harbor证书目录，拷贝ca证书
    - name: create cert dir
      file:
        path: /etc/docker/certs.d/reg.timinglee.org
        state: directory
        mode: '0755'

    - name: copy harbor ca cert
      copy:
        src: /data/certs/timinglee.org.crt
        dest: /etc/docker/certs.d/reg.timinglee.org/ca.crt
        remote_src: no

    - name: copy cert to system trust
      copy:
        src: /data/certs/timinglee.org.crt
        dest: /etc/pki/ca-trust/source/anchors/ca.crt

    #7.内核模块 br_netfilter
    - name: load br_netfilter module config
      copy:
        dest: /etc/modules-load.d/docker_mod.conf
        content: br_netfilter

    - name: sysctl bridge and ip_forward
      copy:
        dest: /etc/sysctl.d/docker.conf
        content: |
          net.bridge.bridge-nf-call-iptables = 1
          net.bridge.bridge-nf-call-ip6tables = 1
          net.ipv4.ip_forward = 1

    #8.分发cri‑dockerd二进制和systemd单元
    - name: copy cri‑dockerd binary & service file
      copy:
        src: "{{item.src}}"
        dest: "{{item.dest}}"
        mode: "{{item.mode | default('0644')}}"
      loop:
        - { src: "./cri-dockerd/cri-dockerd", dest: "/usr/local/bin/cri-dockerd", mode: "0755" }
        - { src: "./cri-dockerd/cri-docker.service", dest: "/lib/systemd/system/cri-docker.service" }
        - { src: "./cri-dockerd/cri-docker.socket", dest: "/lib/systemd/system/cri-docker.socket" }

    #9.更新ca信任、sysctl、重载systemd
    - name: apply sysctl and ca trust
      shell: |
        update-ca-trust extract
        sysctl --system
        systemctl daemon-reload

    #10.配置kubernetes yum源
    - name: setup kubernetes repo
      yum_repository:
        name: kubernetes
        description: kubernetes repo
        baseurl: https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.35/rpm
        file: kubernetes
        gpgcheck: no

    #11.区分master和node安装组件
    - name: install k8s component for master(172.25.254.100)
      dnf:
        name: "{{item}}"
        state: present
      loop:
        - kubelet
        - kubeadm
        - kubectl
      when: inventory_hostname == "172.25.254.100"

    - name: install k8s component for worker node
      dnf:
        name: "{{item}}"
        state: present
      loop:
        - kubelet
        - kubeadm
      when: inventory_hostname in ["172.25.254.10","172.25.254.20"]

    #12.master节点配置命令补齐
    - name: kubectl kubeadm bash completion
      lineinfile:
        path: /root/.bashrc
        line: |
          source <(kubectl completion bash)
          source <(kubeadm completion bash)
      when: inventory_hostname == "172.25.254.100"

    #13.启动服务
    - name: enable and start service
      service:
        name: "{{item}}"
        state: restarted
        enabled: yes
      loop:
        - docker
        - systemd-modules-load.service
        - cri-docker
        - kubelet

执行 playbook

复制代码
[devops@harbor ansible]$  ansible-playbook kubernetes-devops.yml
相关推荐
万里侯13 小时前
GitOps 2026年演进趋势：从配置管理到环境即代码的范式转移及Pull vs Push模型的再思考
微服务·容器·k8s
acd1200913 小时前
一次线上OOM排查实录：从jmap到代码重构，我踩过的坑全在这了
容器·重构·kubernetes
易番番ERP14 小时前
以销定采模式下，ERP如何帮助贸易企业管住订单真实利润
大数据·低代码·微服务·云原生·成本核算·易番番erp·以销定采
吕海洋15 小时前
目前可用的docker源2026.08
运维·docker·容器
人间凡尔赛16 小时前
2026 后端架构三驾马车：Wasm 容器上 K8s、存算分离与 AI 原生
后端·云原生·架构
gsls20080817 小时前
Penpot Docker 部署与 MCP 服务配置文档
运维·docker·容器·原型·penpot
天蓝不会忘记0217 小时前
k8s集群部署的方法原理
云原生·容器·kubernetes
红球yyds19 小时前
用anisble搭建k8s集群及原理
云原生·容器·kubernetes
Thneonl1 天前
让恢复动作敢按下去:dry-run、审批门、自动回滚与 mutable twin
rust·kubernetes
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02GitHub 镜像站点03微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新042026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？05历年考研数学一、数学二、数学三真题试卷及答案PDF06Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费07AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路082026年7月AI圈大地震：GPT-5.6被政府限制、Claude入驻Slack、Anthropic自研芯片09VSCode+CodeX扩展，无法启动10如何新建文件夹？ 电脑新建文件夹的4种方法
