sam3新手使用教程

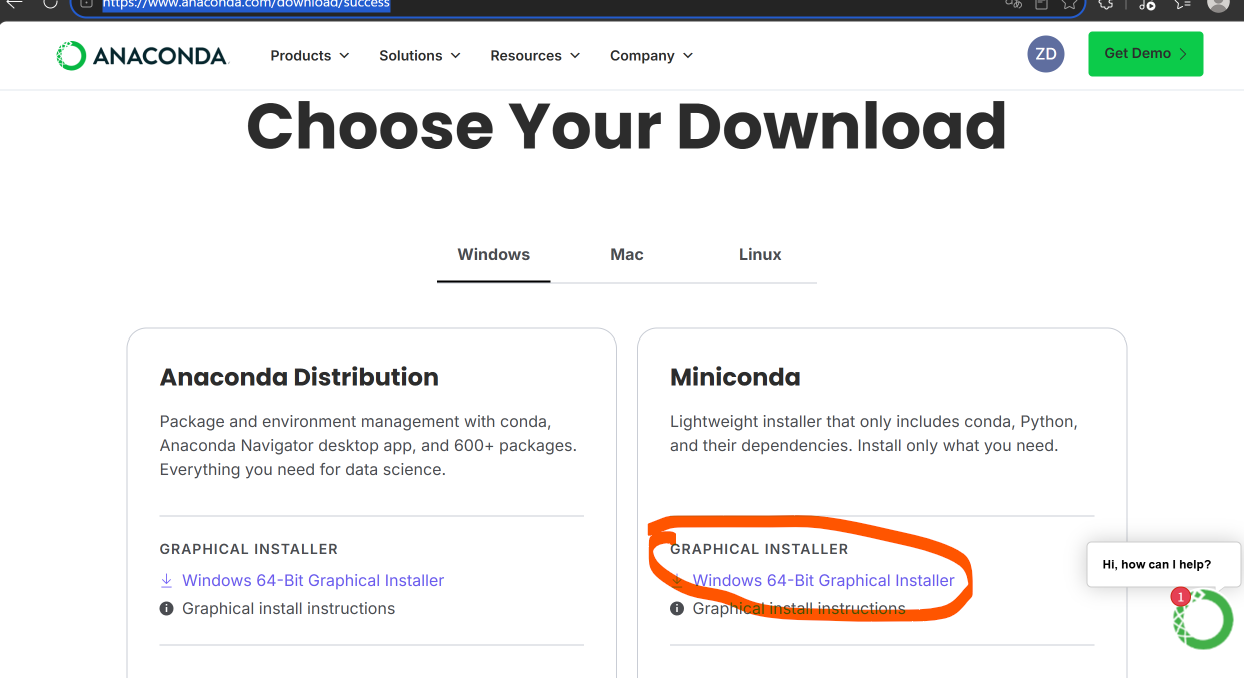

1.下载anacoda

地址：https://www.anaconda.com/download/success

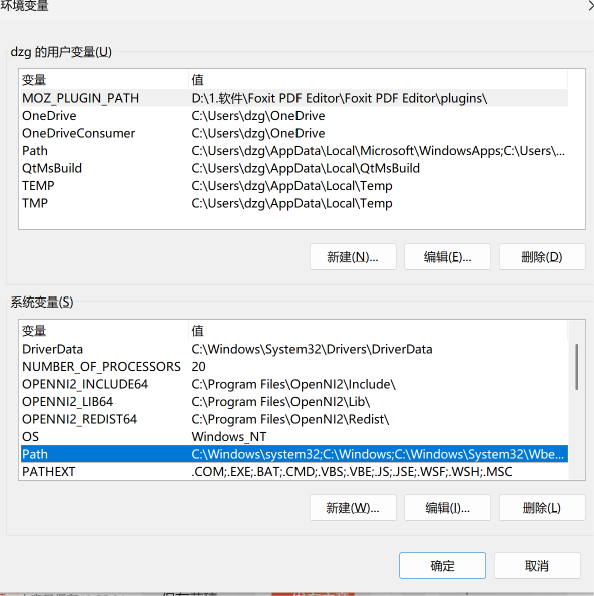

2.给电脑配置anacoda的环境

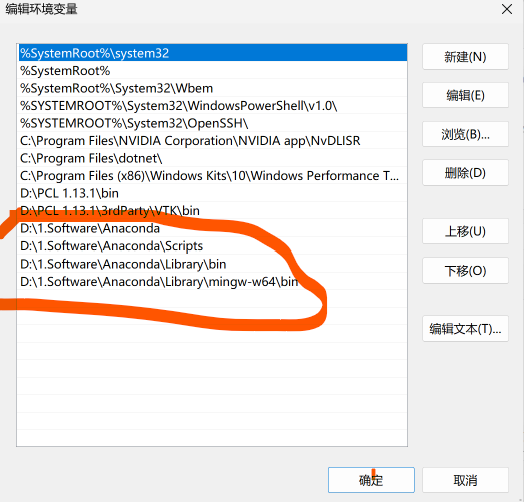

选择系统变量的Path

新增下载的地址（文件名可以自定义，但是保持末尾文件夹位置一致）

点击【确定】

3.验证conda是否安装完成

win+r

输入

bash 复制代码

conda --version

有输出就说明安装成功

4.下载sam3的项目文件

项目地址

bash 复制代码

https://github.com/facebookresearch/sam3

配置环境

依次执行

bash 复制代码

conda create -n sam3 python=3.12
conda deactivate
conda activate sam3

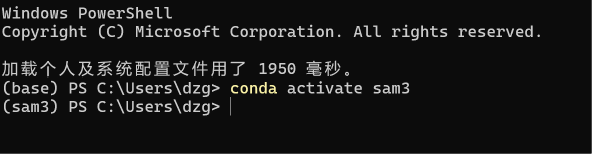

激活成功

安装pytorch

bash 复制代码

pip install torch==2.10.0 torchvision --index-url https://download.pytorch.org/whl/cu128

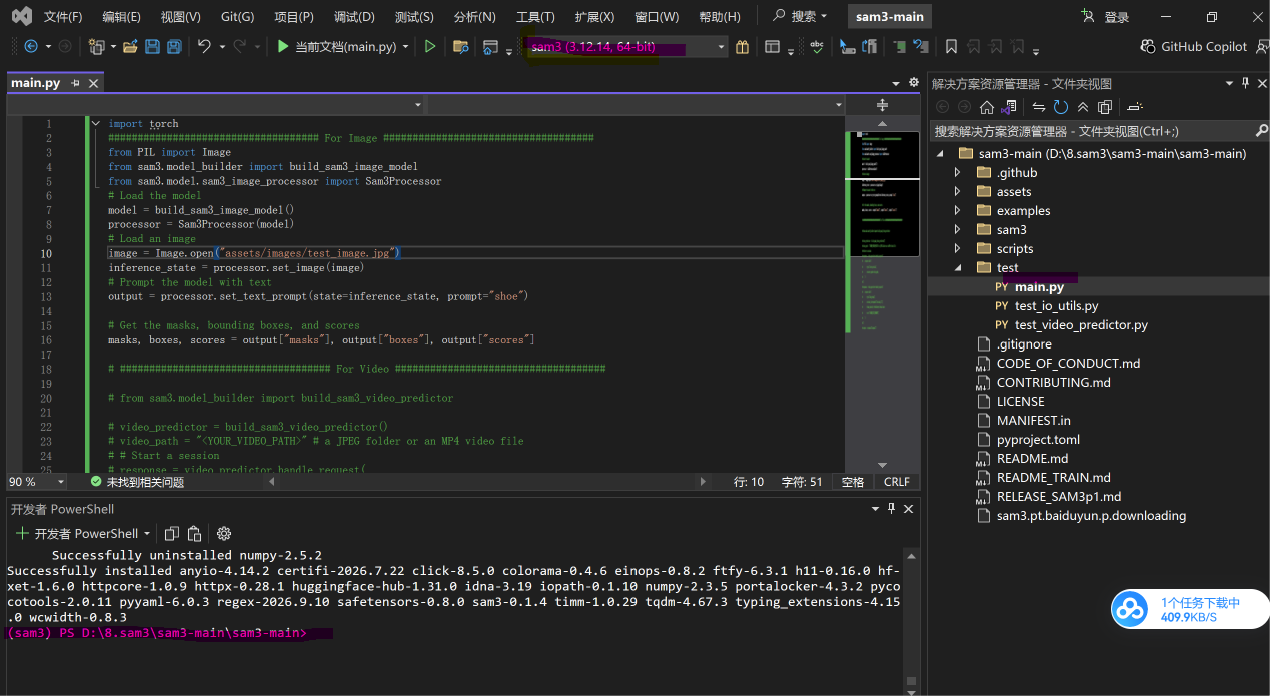

5.打开项目

新建main.py

bash 复制代码

import torch
#################################### For Image ####################################
from PIL import Image
from sam3.model_builder import build_sam3_image_model
from sam3.model.sam3_image_processor import Sam3Processor
# Load the model
model = build_sam3_image_model()
processor = Sam3Processor(model)
# Load an image
image = Image.open("assets/images/test_image.jpg")
inference_state = processor.set_image(image)
# Prompt the model with text
output = processor.set_text_prompt(state=inference_state, prompt="shoe")

# Get the masks, bounding boxes, and scores
masks, boxes, scores = output["masks"], output["boxes"], output["scores"]

选择安装好的编译环境

先运行，报错，没有sam3

安装

bash 复制代码

pip install sam3

报错没有No module named 'triton'

安装

bash 复制代码

pip install triton-windows==3.3.0.post19

同理，报错没有psutil，安装psutil

bash 复制代码

pip install psutil

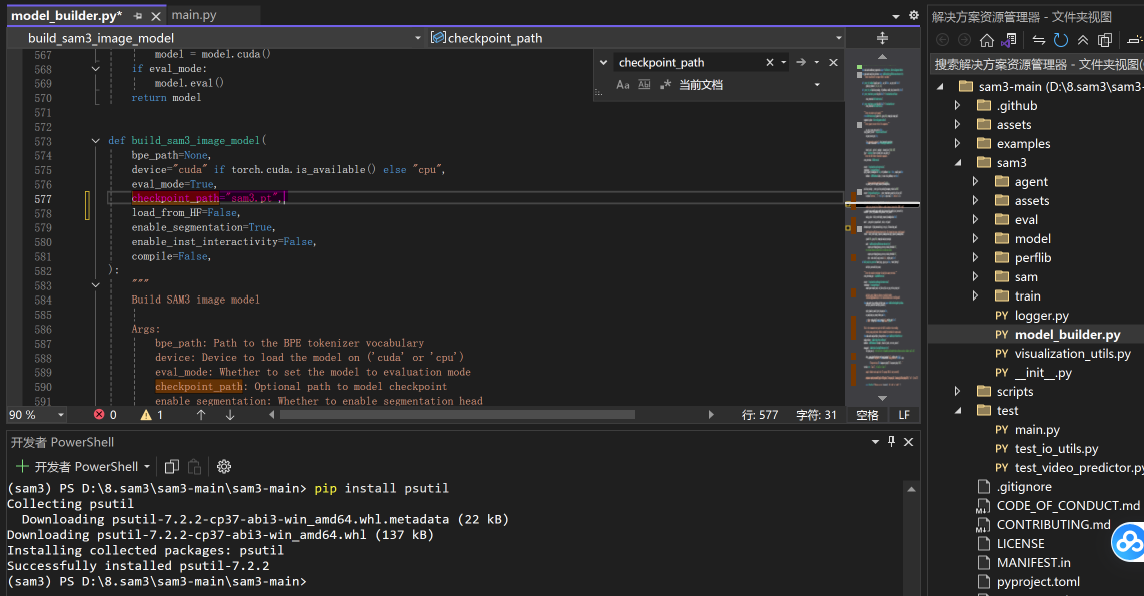

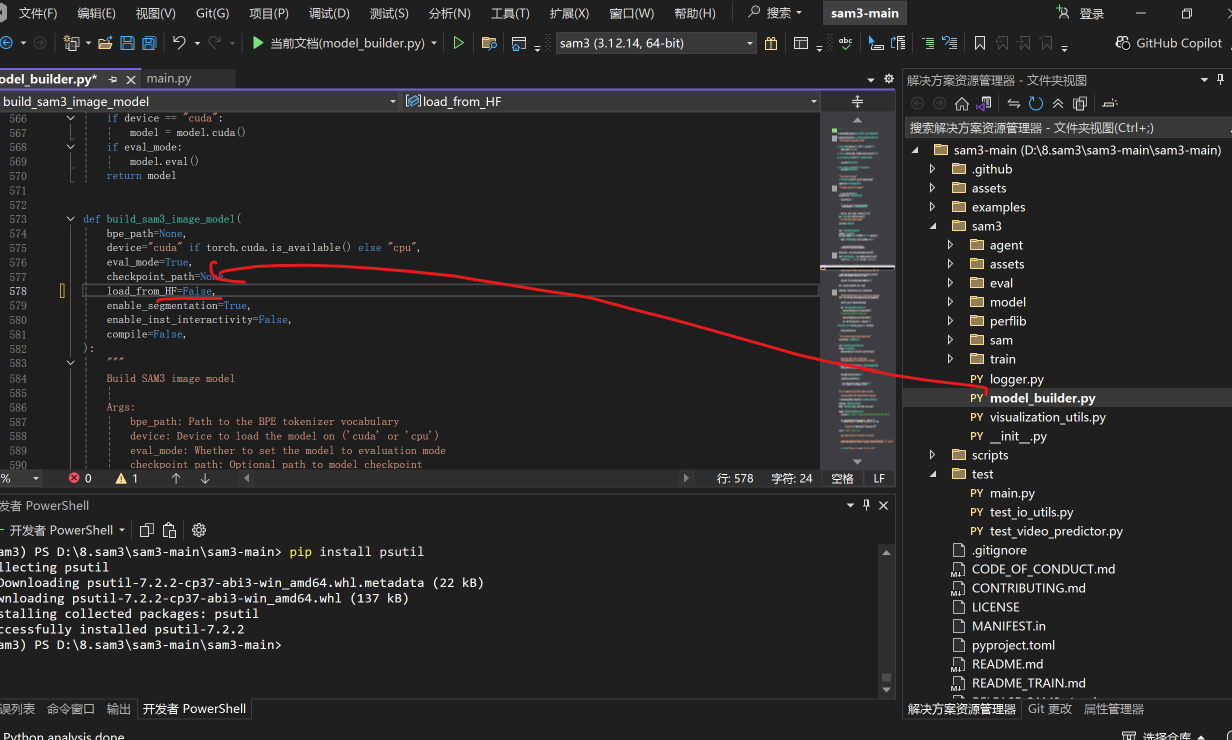

读取本地sam3权重

将下面文件下的这个bool改成False

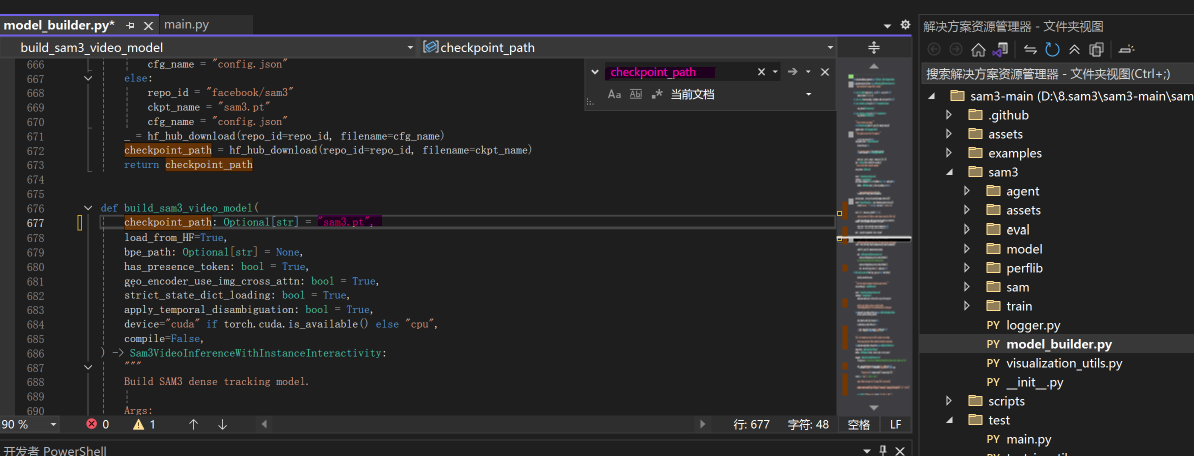

x修改sam3的权重地址，（记得将sam3下载放置在main.py的通一目录下）

报错No module named 'pkg_resources'

bash 复制代码

pip install "setuptools<82"

这条命令会把 setuptools 降级到 82 版本以下，自动恢复 pkg_resources 模块。

报错cannot import name 'DecoupledTransformerDecoderLayerv2' from 'sam3.model.decoder' (C:\Users\dzg.conda\envs\sam3\Lib\site-packages\sam3\model\decoder.py)

报错原因一句话

环境里同时存在两套 SAM3：一套是你pip install sam3装在 conda 环境 site-packages 的 PyPI 包；另一套是你本地 D 盘下载的 github 源码文件夹。两个版本代码不一致，类名DecoupledTransformerDecoderLayerv2在 pip 安装包里面不存在，源码里面才有，发生冲突！

看报错路径：C:\Users\dzg\.conda\envs\sam3\Lib\site-packages\sam3\model\decoder.py

它跑到 conda 环境的 site-packages（pip 安装的 sam3 包）里面找文件，没有读取你 D 盘本地源码文件夹里面的 sam3 代码。

两种修复方案，选一个就行

方案 A（推荐，用本地源码）

在(sam3)终端，卸载 pip 安装的 sam3 包

pip uninstall sam3
在源码根目录（D:\8.sam3\sam3-main\sam3-main）执行本地可编辑安装：

pip install -e .

-e . 的含义：把当前文件夹源码作为包，让 python 优先读取本地源码，不再读 C 盘 site-packages 里旧版本 sam3。

再次运行代码：python main.py
新增展示结果的代码

bash 复制代码

import torch
#################################### For Image ####################################
from PIL import Image
from sam3.model_builder import build_sam3_image_model
from sam3.model.sam3_image_processor import Sam3Processor
from sam3.visualization_utils import draw_box_on_image, normalize_bbox,plot_results

# Load the model
model = build_sam3_image_model()
processor = Sam3Processor(model)
# Load an image
image = Image.open("assets/images/test_image.jpg")
inference_state = processor.set_image(image)
# Prompt the model with text
output = processor.set_text_prompt(state=inference_state, prompt="shoe")

# Get the masks, bounding boxes, and scores
masks, boxes, scores = output["masks"], output["boxes"], output["scores"]

plot_results(image,inference_state)

报错No module named 'cv2'

安装cv2

bash 复制代码

pip install opencv-python

报错No module named 'matplotlib'

bash 复制代码

pip install matplotlib

报错No module named 'pandas'

bash 复制代码

pip install pandas

报错No module named 'skimage'

bash 复制代码

python -m pip install --upgrade pip wheel
pip install scikit-image --prefer-binary

报错No module named 'sklearn'

bash 复制代码

pip install scikit-learn --prefer-binary

报错RuntimeError: mat1 and mat2 must have the same dtype, but got BFloat16 and Float

mat1 and mat2 must have the same dtype, but got BFloat16 and Float 的本质是：

某个 Linear 层的权重是 BFloat16

送进来的输入张量是 Float32

两边 dtype 不一致，矩阵乘法直接崩。

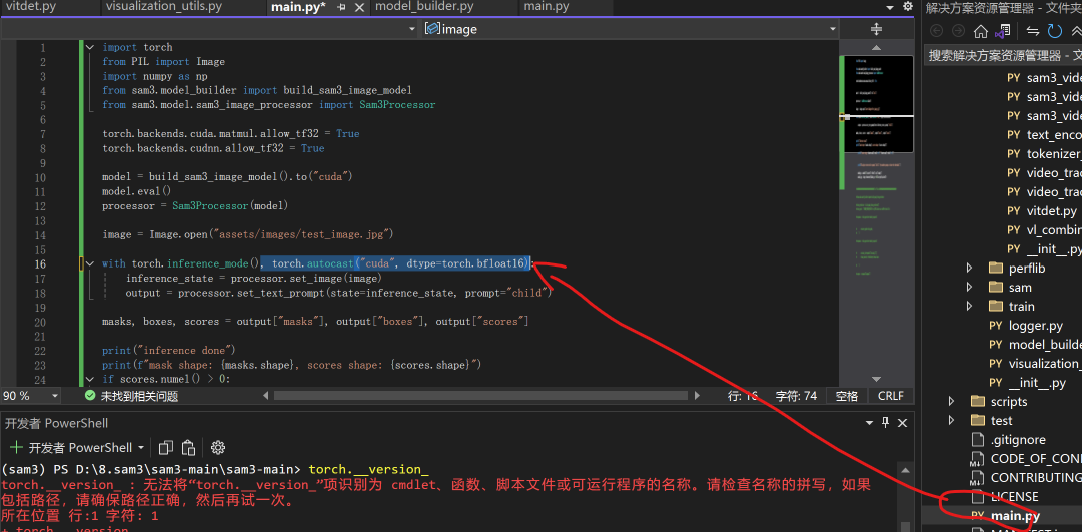

就多了 torch.autocast("cuda", dtype=torch.bfloat16) 这一项，用逗号并到同一个 with 里。

修改后的main.py 文件

bash 复制代码

import torch
from PIL import Image
import numpy as np
from sam3.model_builder import build_sam3_image_model
from sam3.model.sam3_image_processor import Sam3Processor

torch.backends.cuda.matmul.allow_tf32 = True
torch.backends.cudnn.allow_tf32 = True

model = build_sam3_image_model().to("cuda")
model.eval()
processor = Sam3Processor(model)

image = Image.open("assets/images/test_image.jpg")

with torch.inference_mode(), torch.autocast("cuda", dtype=torch.bfloat16):
    inference_state = processor.set_image(image)
    output = processor.set_text_prompt(state=inference_state, prompt="child")

masks, boxes, scores = output["masks"], output["boxes"], output["scores"]

print("inference done")
print(f"mask shape: {masks.shape}, scores shape: {scores.shape}")
if scores.numel() > 0:
    print(f"score range: {scores.min().item():.4f} ~ {scores.max().item():.4f}")

if masks.shape[0] == 0:
    print("No object detected for prompt 'child'. Try another prompt or lower the threshold.")
else:
    mask_np = masks[0].squeeze().float().cpu().numpy()
    mask_img = Image.fromarray((mask_np * 255).astype(np.uint8))
    mask_img.save("mask.png")
    print(f"Mask saved: mask.png, total {masks.shape[0]} instance(s) detected.")

新增可视化功能

在main函数加上

bash 复制代码

from sam3.visualization_utils import draw_box_on_image, normalize_bbox,plot_results
//保持不变
plot_results(image,inference_state)

修改后的main函数

bash 复制代码

import torch
from PIL import Image
import numpy as np
from sam3.model_builder import build_sam3_image_model
from sam3.model.sam3_image_processor import Sam3Processor
from sam3.visualization_utils import draw_box_on_image, normalize_bbox,plot_results

torch.backends.cuda.matmul.allow_tf32 = True
torch.backends.cudnn.allow_tf32 = True

model = build_sam3_image_model().to("cuda")
model.eval()
processor = Sam3Processor(model)

image = Image.open("assets/images/test_image.jpg")

with torch.inference_mode(), torch.autocast("cuda", dtype=torch.bfloat16):
    inference_state = processor.set_image(image)
    output = processor.set_text_prompt(state=inference_state, prompt="child")

masks, boxes, scores = output["masks"], output["boxes"], output["scores"]

print("inference done")
print(f"mask shape: {masks.shape}, scores shape: {scores.shape}")
if scores.numel() > 0:
    print(f"score range: {scores.min().item():.4f} ~ {scores.max().item():.4f}")

if masks.shape[0] == 0:
    print("No object detected for prompt 'child'. Try another prompt or lower the threshold.")
else:
    mask_np = masks[0].squeeze().float().cpu().numpy()
    mask_img = Image.fromarray((mask_np * 255).astype(np.uint8))
    mask_img.save("mask.png")
    print(f"Mask saved: mask.png, total {masks.shape[0]} instance(s) detected.")
plot_results(image,inference_state)

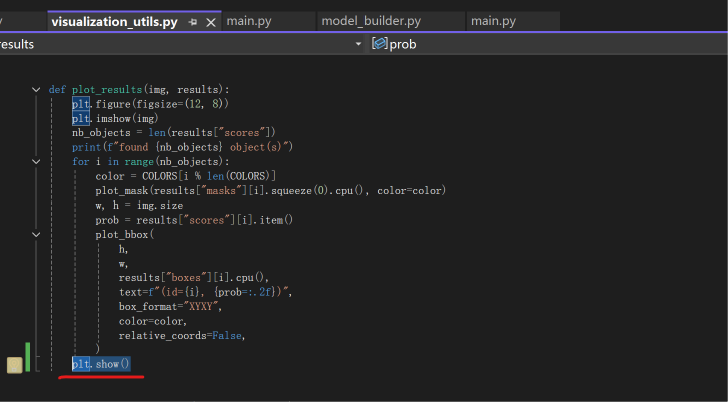

进入plot_results函数下

新增这句话

bash 复制代码

plt.show()

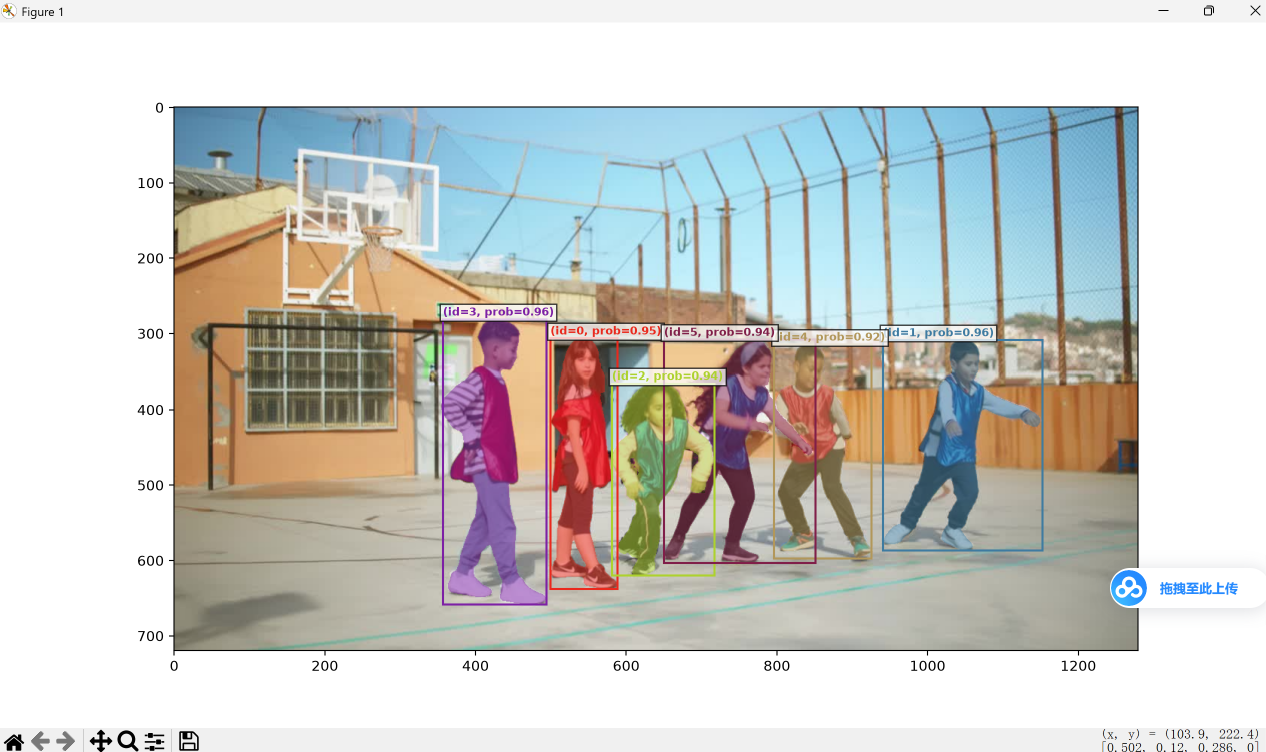

效果展示
