一、本节简介
本文介绍如何使用MT32F006的定时器，例如定时1小时。
二、实验平台
库版本：V1.0.0
编译软件：MDK5.37
硬件平台：MT32F006开发板（主芯片MT32F006）
仿真器：JLINK
三、版权声明
1）作者：甜甜的大香瓜
2）声明：喝水不忘挖井人，转载请注明出处。
3）本文出处：原创连载资料《简单粗暴学MT32F006》
四、实验前提
1、在进行本文步骤前，请先阅读以下章节：
1）《简单粗暴学MT32F006》的"第一章和第二章"章节。
2、在进行本文步骤前，请先实现以下章节：
暂无
五、基础知识
暂无
六、硬件原理
暂无
七、实验步骤
1 、编写并添加驱动
1 ）编写驱动GUA_Timer.c（存放在"......\Projects\MT006_StdPeriph_Templates\GUA"）
|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| //********************************************************************** //name: GUA_Timer.c //introduce: 定时器驱动 //author: 甜甜的大香瓜 //email: 897503845@qq.com //shop: opengua.taobao.com //changetime: 2026.06.16 //********************************************************************** #include "mt006.h" #include "GUA_Timer.h" /*********************变量************************/ volatile GUA_U32 gGUA_Timer_Count = 0; //********************************************************************** //name: GUA_Timer_GetTick //introduce: 获取当前时间 //parameter: none //return: 返回值每1代表10ms //author: 甜甜的大香瓜 //email: 897503845@qq.com //shop: opengua.taobao.com //changetime: 2026.06.16 //********************************************************************** GUA_U32 GUA_Timer_GetTick(void) { return gGUA_Timer_Count; } //********************************************************************** //name: GUA_Timer_Config //introduce: 生成一个定时器 //parameter: Channel:Timer_Channel_0,Timer_Channel_1,Timer_Channel_2,Timer_Channel_3 // us:定时器时间，单位为微秒 1~us_max(这里可以走0xffff步，每步1us) //return: none //author: 甜甜的大香瓜 //email: 897503845@qq.com //shop: opengua.taobao.com //changetime: 2026.06.16 //********************************************************************** void GUA_Timer_Config(GUA_U32 Channel, GUA_U32 us) { TIMER_InitTypeDef TIMER_InitStructure; uint64_t temp, us_max = (uint64_t)0xFFFF * (uint64_t)(TIMER_GetPrescale() + 1) * (uint64_t)1000000 / (uint64_t)RCC_GetClocksFreq(RCC_CLOCKFREQ_SYSAHBCLK); //越界处理 if (us > us_max) us = (GUA_U32)us_max; TIMER_InitStructure.TIMER_Channel = Channel; //通道 TIMER_InitStructure.TIMER_Dir = TIMER_DIR_INCREASE; //向上计数 temp = (uint64_t)RCC_GetClocksFreq(RCC_CLOCKFREQ_SYSAHBCLK) * (uint64_t)us / (uint64_t)1000000; temp /= (uint64_t)(TIMER_GetPrescale() + 1); TIMER_InitStructure.TIMER_MatchValue = (uint16_t)(temp - 1); TIMER_InitStructure.TIMER_MatchAction = TIMER_MatchAction_HOLD; //TC与MR匹配时，输出管脚MAT电平不变 TIMER_InitStructure.TIMER_MatchConfig = TIMER_MatchConfig_RESET_TC; //TC与MR匹配时，复位TC TIMER_Init(&TIMER_InitStructure); //初始化 if (Channel == Timer_Channel_0) TIMER_ITConfig(TIMER_IT_MR0I, ENABLE); else if (Channel == Timer_Channel_1) TIMER_ITConfig(TIMER_IT_MR1I, ENABLE); else if (Channel == Timer_Channel_2) TIMER_ITConfig(TIMER_IT_MR2I, ENABLE); else //if (Channel == Timer_Channel_3) TIMER_ITConfig(TIMER_IT_MR3I, ENABLE); TIMER_Cmd(Channel, ENABLE); } //********************************************************************** //name: GUA_Timer_Init //introduce: 定时器初始化 //parameter: none //return: none //author: 甜甜的大香瓜 //email: 897503845@qq.com //shop: opengua.taobao.com //changetime: 2026.06.16 //********************************************************************** void GUA_Timer_Init(void) { //开TIMER的时钟 RCC_APBPeriphClockCmd(RCC_AHBCLKCTRL_TIMER0, ENABLE); //复位TIMER配置 TIMER_DeInit(); //预分频96-1是1Mhz（1us）、96000-1是1khz（1ms）、96000000-1是1hz（1s），但寄存器最多只有16位（65535） TIMER_SetPrescale(96 - 1); //开中断 NVIC_EnableIRQ(TIMER0_IRQn); } |
2 ）编写驱动头文件GUA_ Timer.h
（存放在"......\Projects\MT006_StdPeriph_Templates\GUA"）
|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| //********************************************************************** //name: GUA_Timer.h //introduce: 定时器驱动的头文件 //author: 甜甜的大香瓜 //email: 897503845@qq.com //shop: opengua.taobao.com //changetime: 2026.06.16 //********************************************************************** #ifndef GUA_TIMER_H #define GUA_TIMER_H /*********************宏定义************************/ //类型宏 #ifndef GUA_C typedef char GUA_C; #endif #ifndef GUA_U8 typedef unsigned char GUA_U8; #endif #ifndef GUA_8 typedef signed char GUA_8; #endif #ifndef GUA_U16 typedef unsigned short GUA_U16; #endif #ifndef GUA_16 typedef signed short GUA_16; #endif #ifndef GUA_U32 typedef unsigned long GUA_U32; #endif #ifndef GUA_32 typedef signed long GUA_32; #endif extern volatile GUA_U32 gGUA_Timer_Count; /*********************外部函数声明************************/ extern GUA_U32 GUA_Timer_GetTick(void); extern void GUA_Timer_Config(GUA_U32 Channel, GUA_U32 us); extern void GUA_Timer_Stop(GUA_U32 Channel); extern void GUA_Timer_Init(void); #endif |

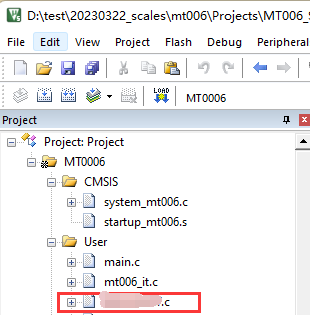

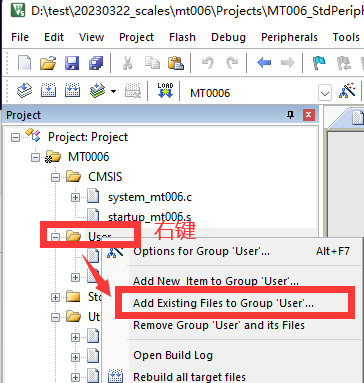

3 ）工程中添加驱动文件

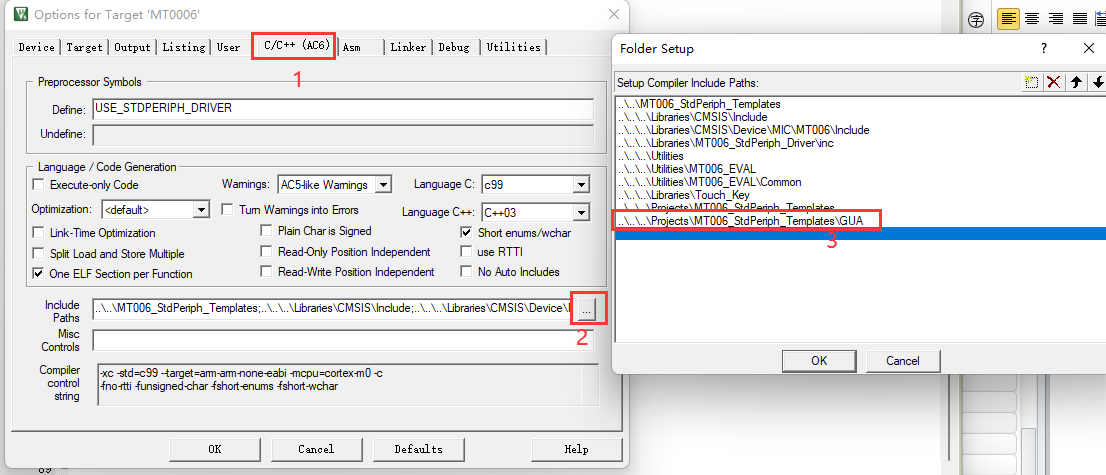

4 ）在MDK设置中添加驱动源文件路径
2 、添加库的驱动

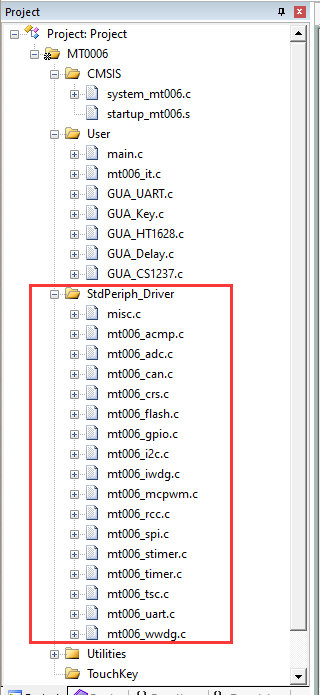

1）添加库的驱动文件（为了方便一次性都添加进来，已有则不用添加）
2 ）添加库的驱动头文件（mt006_conf.h 中）（为了方便一次性都添加进来，已有则不用添加）
3 、在应用层中调用
1 ）添加驱动头文件（main.c中）
|------------------------|
| #include "GUA_Timer.h" |
2 ）添加初始化代码（main.c的main函数中）
|----------------------------------------------------------------------------------------------|
| //开定时器 GUA_Timer_Init(); GUA_Timer_Config(Timer_Channel_0, 10000); //通道0,1us*10000=10ms一次中断 |
3 ）添加测试代码（main.c的main函数的while轮询中）
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| //刚插上usb的第一次要确认充多久电 if(gGUA_ChargeCheck_Read == GUA_CHARGE_CHECK_STATUS_NO_CHARGE) { //从0开始计数，避免过载 gGUA_Timer_Count = 0; gGUA_CurrentTime = 0; //电量<30% 1格以内 充电2小时 if(stGUA_Data.Battery < GUA_ADC_BATTERY_PERCENT_30) { gGUA_ChargeTime = 720000; //100为1秒，2小时 //gGUA_ChargeTime = 2000; //20秒 gGUA_ChargeCheck_Read = GUA_CHARGE_CHECK_STATUS_CHARGING; //正在充电 } //30%<=电量<70% 2格 充电1.5小时 else if((stGUA_Data.Battery >= GUA_ADC_BATTERY_PERCENT_30)&&(stGUA_Data.Battery < GUA_ADC_BATTERY_PERCENT_70)) { gGUA_ChargeTime = 540000; //100为1秒，1.5小时 //gGUA_ChargeTime = 1500; //15秒 gGUA_ChargeCheck_Read = GUA_CHARGE_CHECK_STATUS_CHARGING; //正在充电 } //70%<=电量<100% 3格 充电1小时 else if((stGUA_Data.Battery >= GUA_ADC_BATTERY_PERCENT_70)&&(stGUA_Data.Battery < GUA_ADC_BATTERY_PERCENT_100)) { gGUA_ChargeTime = 360000; //100为1秒，1小时 //gGUA_ChargeTime = 1000; //10秒 gGUA_ChargeCheck_Read = GUA_CHARGE_CHECK_STATUS_CHARGING; //正在充电 } //100%<=电量 不充 else { gGUA_ChargeCheck_Read = GUA_CHARGE_CHECK_STATUS_CHARGE_FULL; //已充满 } } //当计数值相等时充满电 if(gGUA_ChargeTime <= gGUA_CurrentTime) { stGUA_Data.Battery = GUA_ADC_BATTERY_PERCENT_100; //充满先填个理论电压，避免拔掉时显示lo bat gGUA_ChargeCheck_Read = GUA_CHARGE_CHECK_STATUS_CHARGE_FULL; //已充满 //为了不再重复执行,数值拉开 gGUA_CurrentTime = 0; gGUA_ChargeTime = 0xffffffff; //保存数据 GUA_Flash_Control(GUA_FLASH_CONTROL_WRITE); } |
仅供参考，是香瓜的项目代码
