devextreme-react/scheduler 简单学习

devextreme-react/scheduler组件学习


文章目录


前言

devextreme-react/scheduler官网,是英文版的;鉴于我英文太差,每次都需要打开两个页面,页面英文转中文翻译着看。看着比较累,我整理一些比较常用的属性,让大家也少花点时间,可以快速理解该scheduler组件使用


一、scheduler是什么?

scheduler故名思义:调度程序;调度程序,日程安排程序。

DevExtreme Scheduler是一个UI调度组件,用于实现灵活的数据绑定、轻松的预约编辑、多个日历视图、时区支持等。

感兴趣的直接看官网里-DevExtreme Scheduler-官网地址 里面有众多api属性介绍,我只介绍常用的几种属性。

二、使用步骤

1.准备一个react环境文件

c 复制代码
npx create-react-app
npm i

2.引入库

c 复制代码
npm devextreme-react
npm i nanoid

提示:下载nanoid依赖,是为了生成数据的唯一id

3.准备文件夹

在src目录下,新增文件夹/pages/simplePage;

在pages下在新增两个文件template.js,data.js;

4.导入代码

template.js

复制代码
import React from 'react'
import Scheduler from "devextreme-react/scheduler";
import data from './data';
export default function template() {
    return (
        <div><h2>Scheduler 学生课程表</h2>
            <Scheduler
                defaultCurrentView="day"
                dataSource={data}
                defaultCurrentDate={new Date()}
                views={["day", "week", "month"]}
                startDateExpr='startDate'
                endDateExpr='endDate'
                showAllDayPanel={false}
                startDayHour={9}
                endDayHour={24}
                height={730}
            >
            </Scheduler></div>
    )
}

data.js

复制代码
import { nanoid } from 'nanoid';

const data = [
    {
        text: '语文课',
        teacherID: 5,
        startDate: new Date('2025-03-29T16:30:00.000'),
        endDate: new Date('2025-03-29T18:30:00.000'),
    }, {
        text: '数学课',
        teacherID: 2,
        startDate: new Date('2025-03-29T19:00:00.000'),
        endDate: new Date('2025-03-29T20:00:00.000'),
    }, {
        text: '英语课',
        teacherID: 3,
        startDate: new Date('2025-03-29T21:30:00.000'),
        endDate: new Date('2025-03-29T22:30:00.000'),
    }, {
        text: '语文课',
        teacherID: 5,
        startDate: new Date('2025-03-26T17:00:00.000'),
        endDate: new Date('2025-03-26T18:00:00.000'),
    }, {
        text: '数学课',
        teacherID: 2,
        startDate: new Date('2025-03-26T19:00:00.000'),
        endDate: new Date('2025-03-26T20:35:00.000'),
    }, {
        text: '语文课',
        teacherID: 5,
        startDate: new Date('2025-03-26T21:30:00.000'),
        endDate: new Date('2025-03-26T22:45:00.000'),
    }, {
        text: '体育课',
        teacherID: 1,
        startDate: new Date('2025-03-24T16:45:00.000'),
        endDate: new Date('2025-03-24T18:15:00.000'),
    }, {
        text: '英语课',
        teacherID: 3,
        startDate: new Date('2025-03-24T19:00:00.000'),
        endDate: new Date('2025-03-24T21:00:00.000'),
    }, {
        text: '语文课',
        teacherID: 5,
        startDate: new Date('2025-03-24T22:15:00.000'),
        endDate: new Date('2025-03-24T23:30:00.000'),
    }, {
        text: '美术课',
        teacherID: 4,
        startDate: new Date('2025-03-27T18:00:00.000'),
        endDate: new Date('2025-03-27T19:00:00.000'),
    }, {
        text: '体育课',
        teacherID: 1,
        startDate: new Date('2025-03-27T19:10:00.000'),
        endDate: new Date('2025-03-27T20:30:00.000'),
    },
    {
        text: '体育课',
        teacherID: 1,
        startDate: new Date(),
        endDate: new Date('2025-03-28T23:30:00.000'),
    }
];

data.forEach((item) => {
    item.id = nanoid()
})
data.sort((a, b) => a.startDate - b.endDate)

5.启动项目

更换项目的index.js文件

复制代码
import React from 'react';
import ReactDOM from 'react-dom/client';
import './index.css';
import App from './App';
import reportWebVitals from './reportWebVitals';
import SimpleTemplate from './pages/simplePage/template';
const root = ReactDOM.createRoot(document.getElementById('root'));
root.render(
  <React.StrictMode>
    <SimpleTemplate />
  </React.StrictMode>
);
reportWebVitals();

使用启动命令

bash 复制代码
npm start

三、页面分析

1.页面样式

其页面还缺少了样式引入,在template.js文件补上css的样式引入

bash 复制代码
import 'devextreme/dist/css/dx.common.css';
import 'devextreme/dist/css/dx.light.css';

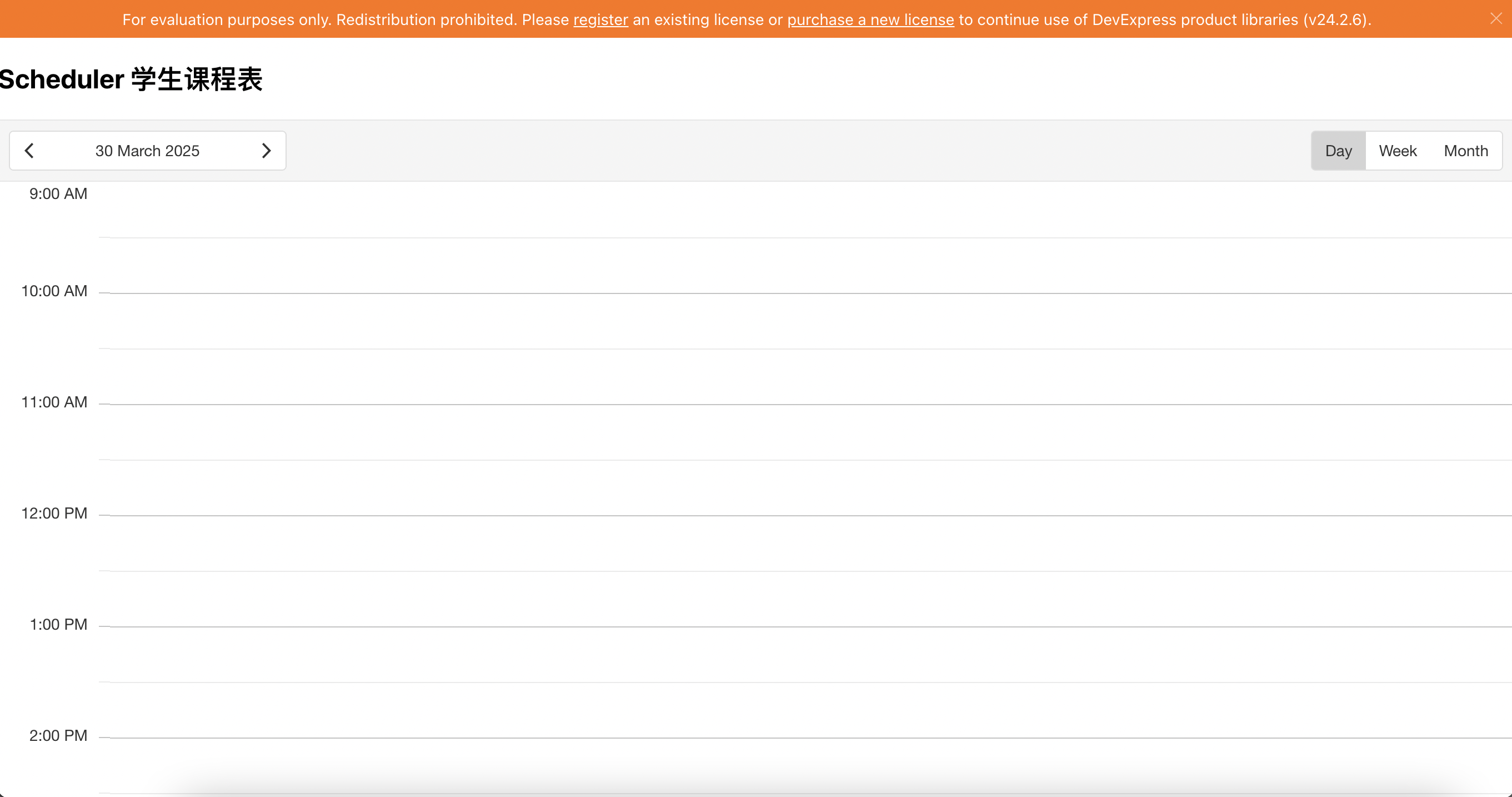

保存更改后,得到页面如下:

2.属性分析

1.views

代码中views={["day", "week", "month"]},指的是该组件有三种时间模式可以呈现,其体现页面的右上角,可以点击切换时间模式

2.defaultCurrentView

defaultCurrentView="day",指的是该组件默认时间模式是day模式,

3.defaultCurrentDate

defaultCurrentDate={new Date()},指的是该组件默认时间为是系统当天,

new Date()获取的是系统当天日期,可以自定义不同日期

4.dataSource

dataSource存放的是数据集合,在devextreme中,称约会集合。
提示:scheduler里的约会资源是默认可以托拽的

5.startDateExpr

startDateExpr绑定的约会开始时间字段,需要和dataSource里面数据对象属性相匹配才可以生效

6.endDateExpr

endDateExpr绑定的约会结束时间字段,需要和dataSource里面数据对象属性相匹配才可以生效

7.startDayHour

startDayHour指的是日历中,左边呈现开始的时间点是;可以传0-24

8.endDayHour

endDayHour指的是日历中,左边呈现最晚的时间点是;可以传0-24

9.height

日历可以呈现的高度

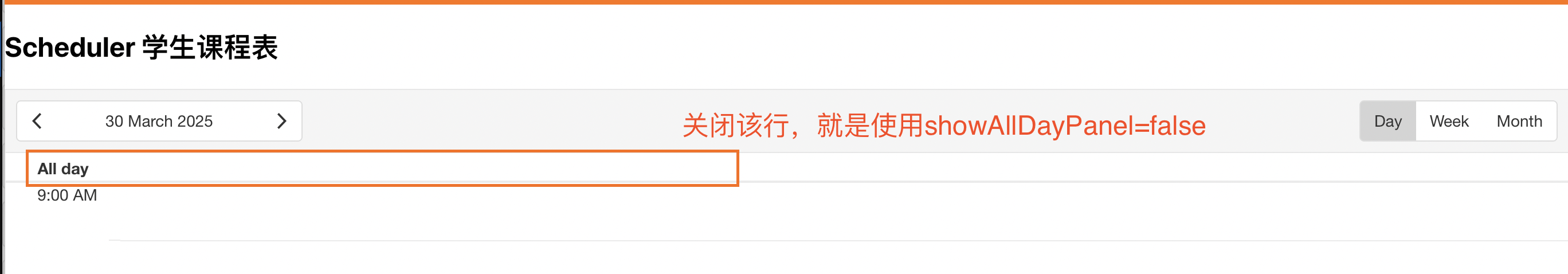

10.showAllDayPanel

showAllDayPanel=false关闭日历中allDay那行.

因为showAllDayPanel是默认true.

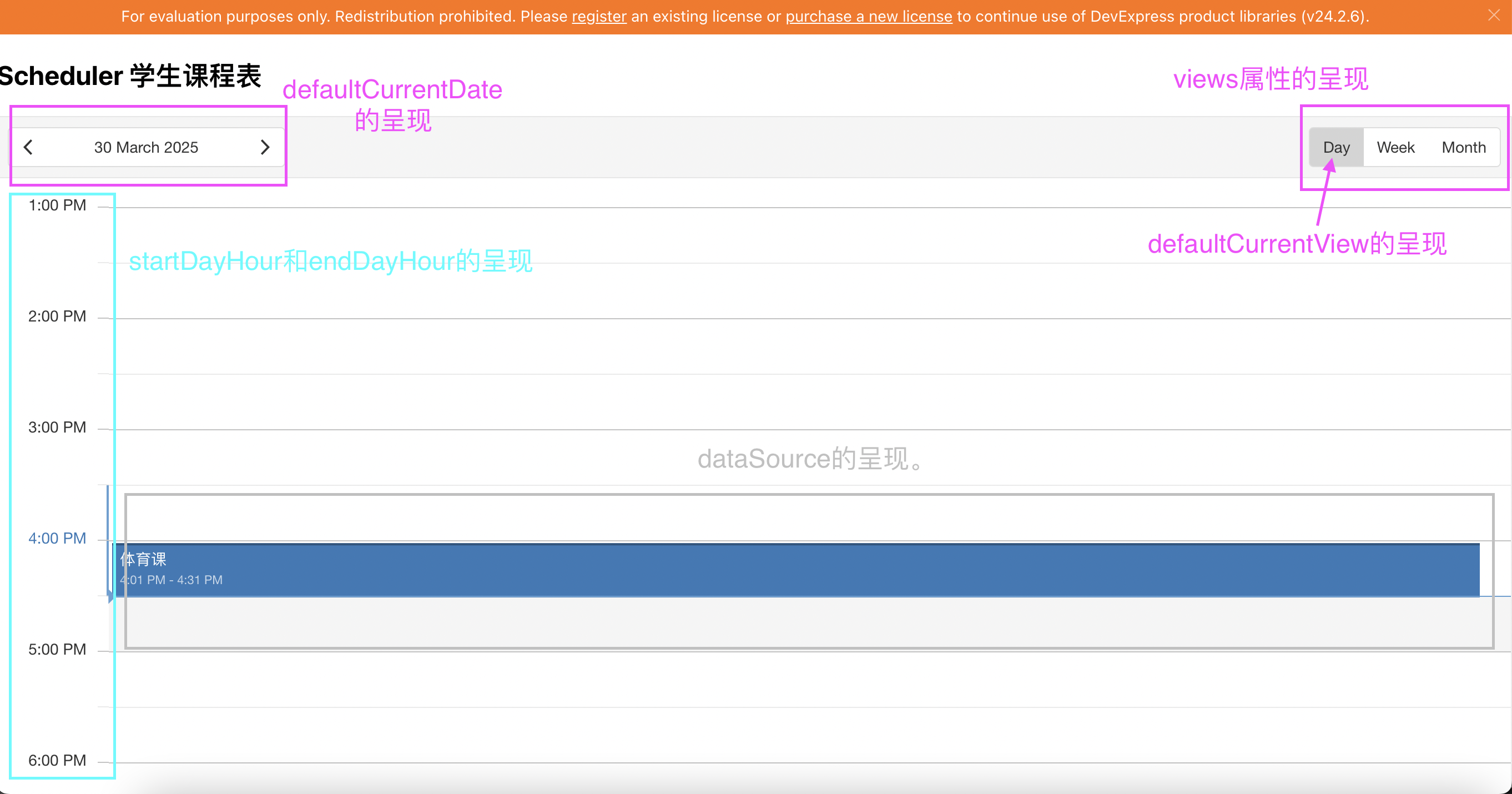

11.补充说明属性位置



总结

以上就是今天要讲的内容,本文仅仅简单介绍了scheduler的使用,下一篇,讲述scheduler如何分组资源。
