Keepalive+LVS+Nginx+NFS高可用项目

Z字小熊饼干爱吃保安2025-04-06 10:03

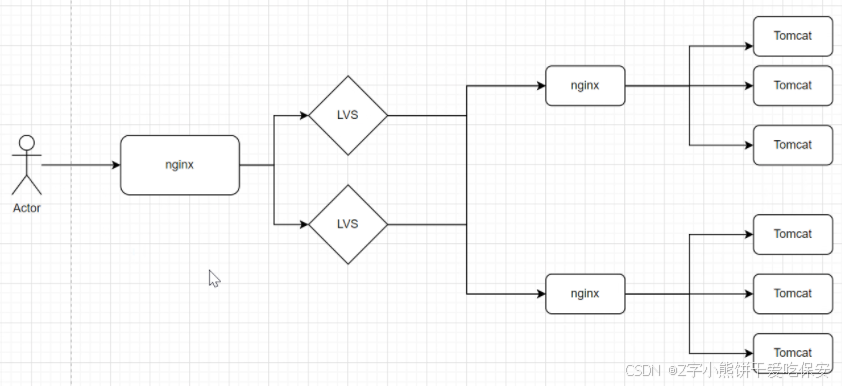

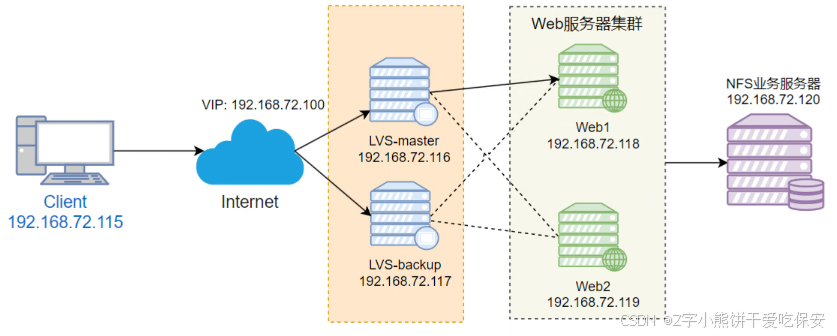

项目架构

分析

主机规划

主机 系统 安装应用 网络 IP
client redhat 9.5 无 NAT 172.25.250.115/24
lvs-master rocky 9.5 ipvsadm，keepalived NAT 172.25.250.116/24 VIP 172.25.250.100/32
lvs-backup rocky 9.5 ipvsadm，keepalived NAT 172.25.250.117/24 VIP 172.25.250.100/32
rs1 openEuler 24.03 nginx，nfs-utils NAT 172.25.250.118/24
rs2 openEuler 24.03 nginx，nfs-utils NAT 172.25.250.119/24
nfs redhat 9.5 nfs-utils NAT 172.25.250.120/24

注意：所有主机的防火墙和 Selinux 都关闭

bash 复制代码
# 关闭防火墙
systemctl disable --now firewalld

# 临时关闭selinux
setenforce 0
# 永久关闭selinux
sed -i "s/SELINUX=enforcing/SELINUX=permissive/g" /etc/selinux/config

配置 NFS

修改主机名和 IP 地址

（这一步不是必须的，可以用自己原本的主机名和IP地址，我这里是为了方便演示）

bash 复制代码
# 1、修改主机名
[root@localhost ~]# hostnamectl hostname nfs

# 2、修改网络（这一步不是必须的，可以用自己原本的IP地址，我这里是为了方便演示）
[root@localhost ~]# nmcli c m ens160 ipv4.method manual ipv4.addresses 172.25.250.120/24 ipv4.gateway 172.25.250.2 ipv4.dns 223.5.5.5 connection.autoconnect yes

# 3、重新加载网络
[root@localhost ~]# nmcli c up ens160

# 4、查看网络信息
[root@nfs ~]# nmcli d show ens160
GENERAL.DEVICE:                         ens160
GENERAL.TYPE:                           ethernet
GENERAL.HWADDR:                         00:0C:29:4F:88:54
GENERAL.MTU:                            1500
GENERAL.STATE:                          100 (connected)
GENERAL.CONNECTION:                     ens160
GENERAL.CON-PATH:                       /org/freedesktop/NetworkManager/ActiveConnection/3
WIRED-PROPERTIES.CARRIER:               on
IP4.ADDRESS[1]:                         172.25.250.120/24
IP4.GATEWAY:                            172.25.250.2
IP4.ROUTE[1]:                           dst = 172.25.250.0/24, nh = 0.0.0.0, mt = 100
IP4.ROUTE[2]:                           dst = 0.0.0.0/0, nh = 172.25.250.2, mt = 100
IP4.DNS[1]:                             223.5.5.5
IP6.ADDRESS[1]:                         fe80::20c:29ff:fe4f:8854/64
IP6.GATEWAY:                            --
IP6.ROUTE[1]:                           dst = fe80::/64, nh = ::, mt = 1024

挂载仓库并下载 nfs 服务

bash 复制代码
[root@nfs ~]# mount /dev/sr0 /mnt
mount: /mnt: WARNING: source write-protected, mounted read-only.
[root@nfs ~]# dnf -y install nfs-utils

配置 nfs 服务

bash 复制代码
# 1、创建共享目录
[root@nfs ~]# mkdir /nfs/share -p
[root@nfs ~]# cd /nfs/share

# 2、为了有所区分，共享两个页面
[root@nfs share]# echo "rs1 index.html" > index1.html
[root@nfs share]# echo "rs2 index.html" > index2.html
[root@nfs share]# cd

# 3、编写配置文件
[root@nfs ~]# vim /etc/exports

# 4、启动服务
[root@nfs ~]# systemctl start nfs-server

# 5、功能测试
[root@nfs ~]# showmount -e 172.25.250.120
Export list for 172.25.250.120:
/nfs/share 172.25.250.119,172.25.250.118

搭建 RS 服务器

rs1

修改主机名和 IP 地址

bash 复制代码
# 1、修改主机名
[root@localhost ~]# hostnamectl hostname rs1

# 2、修改IP地址
[root@localhost ~]# nmcli c m ens160 ipv4.method manual ipv4.addresses 172.25.250.118/24 ipv4.gateway 172.25.250.2 ipv4.dns 223.5.5.5 connection.autoconnect yes

# 3、重新加载
[root@localhost ~]# nmcli c up ens160

挂载仓库并下载 nginx 和 nfs 服务

bash 复制代码
[root@rs1 ~]# mount /dev/sr0 /mnt
mount: /mnt: WARNING: source write-protected, mounted read-only.
[root@rs1 ~]# dnf -y install nginx nfs-utils

挂载共享目录

bash 复制代码
[root@rs1 ~]# mount -t nfs 172.25.250.120:/nfs/share /usr/share/nginx/html/

启动服务并测试

bash 复制代码
[root@rs1 ~]# systemctl start nginx nfs-server
[root@rs1 ~]# showmount -e 172.25.250.120
Export list for 172.25.250.120:
/nfs/share 172.25.250.119,172.25.250.118

为了方便后续的操作这里我们配置一个自动挂载

bash 复制代码
[root@rs1 ~]# vim /etc/fstab
......
172.25.250.120:/nfs/share	/usr/share/nginx/html/	nfs	defaults	0 0

[root@rs1 ~]# systemctl daemon-reload
[root@rs1 ~]# mount -a

配置 nginx

bash 复制代码
[root@rs1 ~]# vim /etc/nginx/conf.d/rs1.conf
[root@rs1 ~]# cat /etc/nginx/conf.d/rs1.conf
server {
	listen 80;
	server_name 172.25.250.118;
	location / {
		root /usr/share/nginx/html;
		index index1.html;
	}
}

开机自启动 nginx 和 nfs 服务

bash 复制代码
[root@rs1 ~]# systemctl enable nginx
Created symlink /etc/systemd/system/multi-user.target.wants/nginx.service → /usr/lib/systemd/system/nginx.service.
[root@rs1 ~]# systemctl enable nfs-server
Created symlink /etc/systemd/system/multi-user.target.wants/nfs-server.service → /usr/lib/systemd/system/nfs-server.service.

测试

bash 复制代码
[root@rs1 ~]# curl 172.25.250.118

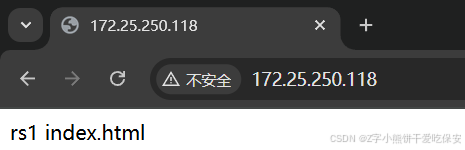

rs1 index.html

rs2

关闭 rs1 服务器，克隆这台服务器名为 rs2，然后启动 rs2 并做如下的修改。

修改主机名和 IP 地址

bash 复制代码
[root@rs1 ~]# hostnamectl hostname rs2
[root@rs1 ~]# nmcli c modify ens160 ipv4.addresses 172.25.250.119/24
[root@rs1 ~]# nmcli c up ens160

拷贝 rs1 上编写的自动挂载文件 重新加载和测试

bash 复制代码
[root@rs2 ~]# scp /etc/fstab 172.25.250.118:/etc/
The authenticity of host '172.25.250.118 (172.25.250.118)' can't be established.
ED25519 key fingerprint is SHA256:zQRVAzxowh+vQParI9tLut0o4tqknS8RIH86Oa4QB/A.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '172.25.250.118' (ED25519) to the list of known hosts.
[email protected]'s password:
fstab                            100%  743   216.7KB/s   00:00
[root@rs2 ~]# systemctl daemon-reload
[root@rs2 ~]# mount -a

配置 nginx

bash 复制代码
[root@rs2 ~]# vim /etc/nginx/conf.d/rs2.conf
[root@rs2 ~]# cat /etc/nginx/conf.d/rs2.conf
server {
	listen 80;
	server_name 172.25.250.119;
	location / {
		root /usr/share/nginx/html;
		index index2.html;
	}
}

# 重启nginx
[root@rs2 ~]# systemctl restart nginx

测试

bash 复制代码
[root@rs2 ~]# curl 172.25.250.119

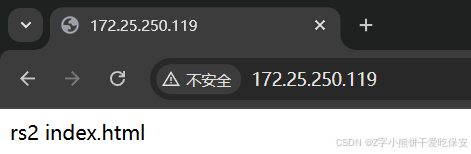

rs2 index.html

搭建 Keekalived 和 LVS 服务

配置 lvs-master

修改主机名和 IP 地址

bash 复制代码
[root@localhost ~]# hostnamectl hostname lvs-master
[root@localhost ~]#  nmcli c modify ens160 ipv4.method manual ipv4.addresses 172.25.250.116/24 ipv4.gateway 172.25.250.2 ipv4.dns 223.5.5.5
[root@localhost ~]# nmcli c up ens160

挂载仓库和安装 keepalived 和 lvs

bash 复制代码
[root@lvs-master ~]# mount /dev/sr0 /mnt
mount: /mnt: WARNING: source write-protected, mounted read-only.
[root@lvs-master ~]# dnf -y install keepalived ipvsadm

编写检测脚本

bash 复制代码
[root@lvs-master ~]# vim /etc/keepalived/check_nginx.sh
[root@lvs-master ~]# cat /etc/keepalived/check_nginx.sh
#!/bin/bash
counter=$(ps -C nginx --no-header|wc -l)
if [ $counter -eq 0 ]; then
	systemctl start nginx
	if [ `ps -C nginx --no-header|wc -l` -eq 0 ]; then
		systemctl stop keepalived
	fi
fi

# 给脚本可执行权限
[root@lvs-master ~]# chmod +x /etc/keepalived/check_nginx.sh

# 复制到 lvs-backup 上
[root@lvs-master ~]# scp /etc/keepalived/check_nginx.sh [email protected]:/etc/keepalived/
The authenticity of host '172.25.250.117 (172.25.250.117)' can't be established.
ED25519 key fingerprint is SHA256:zQRVAzxowh+vQParI9tLut0o4tqknS8RIH86Oa4QB/A.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '172.25.250.117' (ED25519) to the list of known hosts.
[email protected]'s password:
check_nginx.sh                             100%  191    37.3KB/s   00:00

配置 keepalived 和 lvs

bash 复制代码
[root@lvs-master ~]# ipvsadm-save -n >/etc/sysconfig/ipvsadm
[root@lvs-master ~]# vim /etc/keepalived/keepalived.conf
[root@lvs-master ~]# cat /etc/keepalived/keepalived.conf
global_defs {
   router_id LVS-MASTER
}

vrrp_script chk_nginx {
    script "/etc/keepalived/check_nginx.sh"
    interval 2
}


vrrp_instance VI_1 {
    state MASTER
    interface ens160
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.250.100
    }
    track_script {
        chk_nginx
    }
}
virtual_server 172.25.250.100 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 172.25.250.118 80 {
        weight 3
        TCP_CHECK {
            connect_timeout 3
            retry 3
            delay_before_retry 3
        }
    }
    real_server 172.25.250.119 80 {
        weight 1
        TCP_CHECK {
            connect_timeout 3
            retry 3
            delay_before_retry 3
        }
    }
}

启动服务

bash 复制代码
[root@lvs-master ~]# systemctl start keepalived ipvsadm

查询 LVS 配置规则

bash 复制代码
[root@lvs-master ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.25.250.100:80 rr persistent 50
  -> 172.25.250.118:80            Route   3      0          0
  -> 172.25.250.119:80            Route   1      0          0

配置 lvs-backup

关闭 lvs-master 主机，克隆出 lvs-backup ，并启动 lvs-backup，然后做如下的修改。

修改主机名和 IP 地址

bash 复制代码
[root@lvs-master ~]# hostnamectl hostname lvs-backup
[root@lvs-master ~]# nmcli c m ens160 ipv4.addresses 172.25.250.117/24
[root@lvs-master ~]# nmcli c up ens160

配置 keepalived 和 lvs

bash 复制代码
[root@lvs-backup ~]# vim /etc/keepalived/keepalived.conf
[root@lvs-backup ~]# cat /etc/keepalived/keepalived.conf
global_defs {
   router_id LVS-BACKUP
}

vrrp_script chk_nginx {
    script "/etc/keepalived/check_nginx.sh"
    interval 2
}


vrrp_instance VI_1 {
    state BACKUP
    interface ens160
    virtual_router_id 51
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        172.25.250.100
    }
    track_script {
        chk_nginx
    }
}
virtual_server 172.25.250.100 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 172.25.250.118 80 {
        weight 3
        TCP_CHECK {
            connect_timeout 3
            retry 3
            delay_before_retry 3
        }
    }
    real_server 172.25.250.119 80 {
        weight 1
        TCP_CHECK {
            connect_timeout 3
            retry 3
            delay_before_retry 3
        }
    }
}

启动服务

bash 复制代码
[root@lvs-backup ~]# systemctl start keepalived ipvsadm

查询 LVS 配置规则

bash 复制代码
[root@lvs-backup ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.25.250.100:80 rr persistent 50
  -> 172.25.250.118:80            Route   3      0          0
  -> 172.25.250.119:80            Route   1      0          0

修改 RS 服务器

rs1

配置 VIP

bash 复制代码
[root@rs1 ~]# ifconfig lo:1 172.25.250.100 netmask 255.255.255.255 broadcast 172.25.250.100 up
[root@rs1 ~]# ip a show lo
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet 172.25.250.100/32 brd 172.25.250.100 scope global lo:1
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever

添加内核参数

bash 复制代码
[root@rs1 ~]# vim /etc/sysctl.conf
[root@rs1 ~]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_announce = 2
net.ipv4.ip_forward = 0

增加一个路由

bash 复制代码
[root@rs2 ~]# route add -host 172.25.250.100 dev lo:1
[root@rs2 ~]# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.25.250.2    0.0.0.0         UG    100    0        0 ens160
172.25.250.0    0.0.0.0         255.255.255.0   U     100    0        0 ens160
172.25.250.100  0.0.0.0         255.255.255.255 UH    0      0        0 lo

rs2

配置 VIP

bash 复制代码
[root@rs2 ~]# ifconfig lo:1 172.25.250.100 netmask 255.255.255.255 broadcast 172.25.250.100 up
[root@rs2 ~]# ip a show lo
'1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet 172.25.250.100/32 brd 172.25.250.100 scope global lo:1
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever

添加内核参数

bash 复制代码
[root@rs2 ~]# vim /etc/sysctl.conf
[root@rs2 ~]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_announce = 2
net.ipv4.ip_forward = 0

增加一个路由

bash 复制代码
[root@rs2 ~]# route add -host 172.25.250.100 dev lo:1
[root@rs2 ~]# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.25.250.2    0.0.0.0         UG    100    0        0 ens160
172.25.250.0    0.0.0.0         255.255.255.0   U     100    0        0 ens160
172.25.250.100  0.0.0.0         255.255.255.255 UH    0      0        0 lo

测试

bash 复制代码
[root@client ~]# curl 172.25.250.100
rs1 index.html
[root@client ~]# curl 172.25.250.100
rs2 index.html

也可以通过浏览器测试

总结

两台 RS 服务器上需要配置内核参数和添加 VIP

启动 ipvsadm 服务时需要先初始化该文件 ipvsadm-save -n >/etc/sysconfig/ipvsadm

相关推荐
敖云岚6 分钟前
【那些年踩过的坑】Docker换源加速详细教程（截至2025年4月）
运维·docker·容器
异常君32 分钟前
Nginx 架构深度剖析：多进程单线程模型与异步事件驱动
后端·nginx·架构
柳如烟@1 小时前
Docker安装ES ：确保 Kibana 正确连接 Elasticsearch
运维·数据库·elasticsearch·docker·容器·kibana
网络工程师_ling1 小时前
【WLAN】华为无线AC双机热备负载分担—双链路热备份
运维·网络
java1234_小锋1 小时前
什么是Lua模块？你会如何使用NGINX的Lua模块来定制请求处理流程？
开发语言·nginx·lua
饭来_2 小时前
配置 RDP 远程桌面协议连接ubuntu服务器桌面
linux·运维·服务器
李菠菜2 小时前
Redis主从/哨兵/集群离线部署指南
linux·运维·redis
Ctrl С2 小时前
[三分钟]入门web自动化测试（一）：1.使用驱动管理下载web驱动(WebDriver)；2.初步认识和使用Selenium
selenium·测试工具·自动化·web
qq_400552002 小时前
CI/CD自动化部署（持续集成和持续交付/部署）
运维·ci/cd·自动化
古德赖可可2 小时前
linux的例行性工作（at）
linux·运维·服务器
热门推荐
01KGG转MP3工具|非KGM文件|解密音频02从零安装 LLaMA-Factory 微调 Qwen 大模型成功及所有的坑03我决定放弃搞 Java 了04YOLOv5改进 | 添加CA注意力机制 + 增加预测层 + 更换损失函数之GIoU05YOLOv8入门 | 重要性能衡量指标、训练结果评价及分析及影响mAP的因素【发论文关注的指标】06DeepSeek各版本说明与优缺点分析07西电B测-计算机网络综合实验(含验收问题)08yolov8，yolo11，yolo12 服务器训练到部署全流程 笔记09苍穹外卖面试总结10最新 Kubernetes 集群部署 + flannel 网络插件（保姆级教程，最新 K8S 版本）
