前言：
主要是对该文章YOLOv11改进 | YOLOv11引入MobileNetV4进行复现，以及对一些问题进行解答
1、mobilenetv4核心代码
from typing import Optional
import torch
import torch.nn as nn
import torch.nn.functional as F
__all__ = ['MobileNetV4ConvLarge', 'MobileNetV4ConvSmall', 'MobileNetV4ConvMedium', 'MobileNetV4HybridMedium', 'MobileNetV4HybridLarge']
MNV4ConvSmall_BLOCK_SPECS = {
"conv0": {
"block_name": "convbn",
"num_blocks": 1,
"block_specs": [
[3, 32, 3, 2]
]
},
"layer1": {
"block_name": "convbn",
"num_blocks": 2,
"block_specs": [
[32, 32, 3, 2],
[32, 32, 1, 1]
]
},
"layer2": {
"block_name": "convbn",
"num_blocks": 2,
"block_specs": [
[32, 96, 3, 2],
[96, 64, 1, 1]
]
},
"layer3": {
"block_name": "uib",
"num_blocks": 6,
"block_specs": [
[64, 96, 5, 5, True, 2, 3],
[96, 96, 0, 3, True, 1, 2],
[96, 96, 0, 3, True, 1, 2],
[96, 96, 0, 3, True, 1, 2],
[96, 96, 0, 3, True, 1, 2],
[96, 96, 3, 0, True, 1, 4],
]
},
"layer4": {
"block_name": "uib",
"num_blocks": 6,
"block_specs": [
[96, 128, 3, 3, True, 2, 6],
[128, 128, 5, 5, True, 1, 4],
[128, 128, 0, 5, True, 1, 4],
[128, 128, 0, 5, True, 1, 3],
[128, 128, 0, 3, True, 1, 4],
[128, 128, 0, 3, True, 1, 4],
]
},
"layer5": {
"block_name": "convbn",
"num_blocks": 2,
"block_specs": [
[128, 960, 1, 1],
[960, 1280, 1, 1]
]
}
}
MNV4ConvMedium_BLOCK_SPECS = {
"conv0": {
"block_name": "convbn",
"num_blocks": 1,
"block_specs": [
[3, 32, 3, 2]
]
},
"layer1": {
"block_name": "fused_ib",
"num_blocks": 1,
"block_specs": [
[32, 48, 2, 4.0, True]
]
},
"layer2": {
"block_name": "uib",
"num_blocks": 2,
"block_specs": [
[48, 80, 3, 5, True, 2, 4],
[80, 80, 3, 3, True, 1, 2]
]
},
"layer3": {
"block_name": "uib",
"num_blocks": 8,
"block_specs": [
[80, 160, 3, 5, True, 2, 6],
[160, 160, 3, 3, True, 1, 4],
[160, 160, 3, 3, True, 1, 4],
[160, 160, 3, 5, True, 1, 4],
[160, 160, 3, 3, True, 1, 4],
[160, 160, 3, 0, True, 1, 4],
[160, 160, 0, 0, True, 1, 2],
[160, 160, 3, 0, True, 1, 4]
]
},
"layer4": {
"block_name": "uib",
"num_blocks": 11,
"block_specs": [
[160, 256, 5, 5, True, 2, 6],
[256, 256, 5, 5, True, 1, 4],
[256, 256, 3, 5, True, 1, 4],
[256, 256, 3, 5, True, 1, 4],
[256, 256, 0, 0, True, 1, 4],
[256, 256, 3, 0, True, 1, 4],
[256, 256, 3, 5, True, 1, 2],
[256, 256, 5, 5, True, 1, 4],
[256, 256, 0, 0, True, 1, 4],
[256, 256, 0, 0, True, 1, 4],
[256, 256, 5, 0, True, 1, 2]
]
},
"layer5": {
"block_name": "convbn",
"num_blocks": 2,
"block_specs": [
[256, 960, 1, 1],
[960, 1280, 1, 1]
]
}
}
MNV4ConvLarge_BLOCK_SPECS = {
"conv0": {
"block_name": "convbn",
"num_blocks": 1,
"block_specs": [
[3, 24, 3, 2]
]
},
"layer1": {
"block_name": "fused_ib",
"num_blocks": 1,
"block_specs": [
[24, 48, 2, 4.0, True]
]
},
"layer2": {
"block_name": "uib",
"num_blocks": 2,
"block_specs": [
[48, 96, 3, 5, True, 2, 4],
[96, 96, 3, 3, True, 1, 4]
]
},
"layer3": {
"block_name": "uib",
"num_blocks": 11,
"block_specs": [
[96, 192, 3, 5, True, 2, 4],
[192, 192, 3, 3, True, 1, 4],
[192, 192, 3, 3, True, 1, 4],
[192, 192, 3, 3, True, 1, 4],
[192, 192, 3, 5, True, 1, 4],
[192, 192, 5, 3, True, 1, 4],
[192, 192, 5, 3, True, 1, 4],
[192, 192, 5, 3, True, 1, 4],
[192, 192, 5, 3, True, 1, 4],
[192, 192, 5, 3, True, 1, 4],
[192, 192, 3, 0, True, 1, 4]
]
},
"layer4": {
"block_name": "uib",
"num_blocks": 13,
"block_specs": [
[192, 512, 5, 5, True, 2, 4],
[512, 512, 5, 5, True, 1, 4],
[512, 512, 5, 5, True, 1, 4],
[512, 512, 5, 5, True, 1, 4],
[512, 512, 5, 0, True, 1, 4],
[512, 512, 5, 3, True, 1, 4],
[512, 512, 5, 0, True, 1, 4],
[512, 512, 5, 0, True, 1, 4],
[512, 512, 5, 3, True, 1, 4],
[512, 512, 5, 5, True, 1, 4],
[512, 512, 5, 0, True, 1, 4],
[512, 512, 5, 0, True, 1, 4],
[512, 512, 5, 0, True, 1, 4]
]
},
"layer5": {
"block_name": "convbn",
"num_blocks": 2,
"block_specs": [
[512, 960, 1, 1],
[960, 1280, 1, 1]
]
}
}
def mhsa(num_heads, key_dim, value_dim, px):
if px == 24:
kv_strides = 2
elif px == 12:
kv_strides = 1
query_h_strides = 1
query_w_strides = 1
use_layer_scale = True
use_multi_query = True
use_residual = True
return [
num_heads, key_dim, value_dim, query_h_strides, query_w_strides, kv_strides,
use_layer_scale, use_multi_query, use_residual
]
MNV4HybridConvMedium_BLOCK_SPECS = {
"conv0": {
"block_name": "convbn",
"num_blocks": 1,
"block_specs": [
[3, 32, 3, 2]
]
},
"layer1": {
"block_name": "fused_ib",
"num_blocks": 1,
"block_specs": [
[32, 48, 2, 4.0, True]
]
},
"layer2": {
"block_name": "uib",
"num_blocks": 2,
"block_specs": [
[48, 80, 3, 5, True, 2, 4],
[80, 80, 3, 3, True, 1, 2]
]
},
"layer3": {
"block_name": "uib",
"num_blocks": 8,
"block_specs": [
[80, 160, 3, 5, True, 2, 6],
[160, 160, 0, 0, True, 1, 2],
[160, 160, 3, 3, True, 1, 4],
[160, 160, 3, 5, True, 1, 4, mhsa(4, 64, 64, 24)],
[160, 160, 3, 3, True, 1, 4, mhsa(4, 64, 64, 24)],
[160, 160, 3, 0, True, 1, 4, mhsa(4, 64, 64, 24)],
[160, 160, 3, 3, True, 1, 4, mhsa(4, 64, 64, 24)],
[160, 160, 3, 0, True, 1, 4]
]
},
"layer4": {
"block_name": "uib",
"num_blocks": 12,
"block_specs": [
[160, 256, 5, 5, True, 2, 6],
[256, 256, 5, 5, True, 1, 4],
[256, 256, 3, 5, True, 1, 4],
[256, 256, 3, 5, True, 1, 4],
[256, 256, 0, 0, True, 1, 2],
[256, 256, 3, 5, True, 1, 2],
[256, 256, 0, 0, True, 1, 2],
[256, 256, 0, 0, True, 1, 4, mhsa(4, 64, 64, 12)],
[256, 256, 3, 0, True, 1, 4, mhsa(4, 64, 64, 12)],
[256, 256, 5, 5, True, 1, 4, mhsa(4, 64, 64, 12)],
[256, 256, 5, 0, True, 1, 4, mhsa(4, 64, 64, 12)],
[256, 256, 5, 0, True, 1, 4]
]
},
"layer5": {
"block_name": "convbn",
"num_blocks": 2,
"block_specs": [
[256, 960, 1, 1],
[960, 1280, 1, 1]
]
}
}
MNV4HybridConvLarge_BLOCK_SPECS = {
"conv0": {
"block_name": "convbn",
"num_blocks": 1,
"block_specs": [
[3, 24, 3, 2]
]
},
"layer1": {
"block_name": "fused_ib",
"num_blocks": 1,
"block_specs": [
[24, 48, 2, 4.0, True]
]
},
"layer2": {
"block_name": "uib",
"num_blocks": 2,
"block_specs": [
[48, 96, 3, 5, True, 2, 4],
[96, 96, 3, 3, True, 1, 4]
]
},
"layer3": {
"block_name": "uib",
"num_blocks": 11,
"block_specs": [
[96, 192, 3, 5, True, 2, 4],
[192, 192, 3, 3, True, 1, 4],
[192, 192, 3, 3, True, 1, 4],
[192, 192, 3, 3, True, 1, 4],
[192, 192, 3, 5, True, 1, 4],
[192, 192, 5, 3, True, 1, 4],
[192, 192, 5, 3, True, 1, 4, mhsa(8, 48, 48, 24)],
[192, 192, 5, 3, True, 1, 4, mhsa(8, 48, 48, 24)],
[192, 192, 5, 3, True, 1, 4, mhsa(8, 48, 48, 24)],
[192, 192, 5, 3, True, 1, 4, mhsa(8, 48, 48, 24)],
[192, 192, 3, 0, True, 1, 4]
]
},
"layer4": {
"block_name": "uib",
"num_blocks": 14,
"block_specs": [
[192, 512, 5, 5, True, 2, 4],
[512, 512, 5, 5, True, 1, 4],
[512, 512, 5, 5, True, 1, 4],
[512, 512, 5, 5, True, 1, 4],
[512, 512, 5, 0, True, 1, 4],
[512, 512, 5, 3, True, 1, 4],
[512, 512, 5, 0, True, 1, 4],
[512, 512, 5, 0, True, 1, 4],
[512, 512, 5, 3, True, 1, 4],
[512, 512, 5, 5, True, 1, 4, mhsa(8, 64, 64, 12)],
[512, 512, 5, 0, True, 1, 4, mhsa(8, 64, 64, 12)],
[512, 512, 5, 0, True, 1, 4, mhsa(8, 64, 64, 12)],
[512, 512, 5, 0, True, 1, 4, mhsa(8, 64, 64, 12)],
[512, 512, 5, 0, True, 1, 4]
]
},
"layer5": {
"block_name": "convbn",
"num_blocks": 2,
"block_specs": [
[512, 960, 1, 1],
[960, 1280, 1, 1]
]
}
}
MODEL_SPECS = {
"MobileNetV4ConvSmall": MNV4ConvSmall_BLOCK_SPECS,
"MobileNetV4ConvMedium": MNV4ConvMedium_BLOCK_SPECS,
"MobileNetV4ConvLarge": MNV4ConvLarge_BLOCK_SPECS,
"MobileNetV4HybridMedium": MNV4HybridConvMedium_BLOCK_SPECS,
"MobileNetV4HybridLarge": MNV4HybridConvLarge_BLOCK_SPECS
}
def make_divisible(
value: float,
divisor: int,
min_value: Optional[float] = None,
round_down_protect: bool = True,
) -> int:
"""
This function is copied from here
"https://github.com/tensorflow/models/blob/master/official/vision/modeling/layers/nn_layers.py"
This is to ensure that all layers have channels that are divisible by 8.
Args:
value: A `float` of original value.
divisor: An `int` of the divisor that need to be checked upon.
min_value: A `float` of minimum value threshold.
round_down_protect: A `bool` indicating whether round down more than 10%
will be allowed.
Returns:
The adjusted value in `int` that is divisible against divisor.
"""
if min_value is None:
min_value = divisor
new_value = max(min_value, int(value + divisor / 2) // divisor * divisor)
# Make sure that round down does not go down by more than 10%.
if round_down_protect and new_value < 0.9 * value:
new_value += divisor
return int(new_value)
def conv_2d(inp, oup, kernel_size=3, stride=1, groups=1, bias=False, norm=True, act=True):
conv = nn.Sequential()
padding = (kernel_size - 1) // 2
conv.add_module('conv', nn.Conv2d(inp, oup, kernel_size, stride, padding, bias=bias, groups=groups))
if norm:
conv.add_module('BatchNorm2d', nn.BatchNorm2d(oup))
if act:
conv.add_module('Activation', nn.ReLU6())
return conv
class InvertedResidual(nn.Module):
def __init__(self, inp, oup, stride, expand_ratio, act=False, squeeze_excitation=False):
super(InvertedResidual, self).__init__()
self.stride = stride
assert stride in [1, 2]
hidden_dim = int(round(inp * expand_ratio))
self.block = nn.Sequential()
if expand_ratio != 1:
self.block.add_module('exp_1x1', conv_2d(inp, hidden_dim, kernel_size=3, stride=stride))
if squeeze_excitation:
self.block.add_module('conv_3x3',
conv_2d(hidden_dim, hidden_dim, kernel_size=3, stride=stride, groups=hidden_dim))
self.block.add_module('red_1x1', conv_2d(hidden_dim, oup, kernel_size=1, stride=1, act=act))
self.use_res_connect = self.stride == 1 and inp == oup
def forward(self, x):
if self.use_res_connect:
return x + self.block(x)
else:
return self.block(x)
class UniversalInvertedBottleneckBlock(nn.Module):
def __init__(self,
inp,
oup,
start_dw_kernel_size,
middle_dw_kernel_size,
middle_dw_downsample,
stride,
expand_ratio
):
"""An inverted bottleneck block with optional depthwises.
Referenced from here https://github.com/tensorflow/models/blob/master/official/vision/modeling/layers/nn_blocks.py
"""
super().__init__()
# Starting depthwise conv.
self.start_dw_kernel_size = start_dw_kernel_size
if self.start_dw_kernel_size:
stride_ = stride if not middle_dw_downsample else 1
self._start_dw_ = conv_2d(inp, inp, kernel_size=start_dw_kernel_size, stride=stride_, groups=inp, act=False)
# Expansion with 1x1 convs.
expand_filters = make_divisible(inp * expand_ratio, 8)
self._expand_conv = conv_2d(inp, expand_filters, kernel_size=1)
# Middle depthwise conv.
self.middle_dw_kernel_size = middle_dw_kernel_size
if self.middle_dw_kernel_size:
stride_ = stride if middle_dw_downsample else 1
self._middle_dw = conv_2d(expand_filters, expand_filters, kernel_size=middle_dw_kernel_size, stride=stride_,
groups=expand_filters)
# Projection with 1x1 convs.
self._proj_conv = conv_2d(expand_filters, oup, kernel_size=1, stride=1, act=False)
# Ending depthwise conv.
# this not used
# _end_dw_kernel_size = 0
# self._end_dw = conv_2d(oup, oup, kernel_size=_end_dw_kernel_size, stride=stride, groups=inp, act=False)
def forward(self, x):
if self.start_dw_kernel_size:
x = self._start_dw_(x)
# print("_start_dw_", x.shape)
x = self._expand_conv(x)
# print("_expand_conv", x.shape)
if self.middle_dw_kernel_size:
x = self._middle_dw(x)
# print("_middle_dw", x.shape)
x = self._proj_conv(x)
# print("_proj_conv", x.shape)
return x
class MultiQueryAttentionLayerWithDownSampling(nn.Module):
def __init__(self, inp, num_heads, key_dim, value_dim, query_h_strides, query_w_strides, kv_strides,
dw_kernel_size=3, dropout=0.0):
"""Multi Query Attention with spatial downsampling.
Referenced from here https://github.com/tensorflow/models/blob/master/official/vision/modeling/layers/nn_blocks.py
3 parameters are introduced for the spatial downsampling:
1. kv_strides: downsampling factor on Key and Values only.
2. query_h_strides: vertical strides on Query only.
3. query_w_strides: horizontal strides on Query only.
This is an optimized version.
1. Projections in Attention is explict written out as 1x1 Conv2D.
2. Additional reshapes are introduced to bring a up to 3x speed up.
"""
super().__init__()
self.num_heads = num_heads
self.key_dim = key_dim
self.value_dim = value_dim
self.query_h_strides = query_h_strides
self.query_w_strides = query_w_strides
self.kv_strides = kv_strides
self.dw_kernel_size = dw_kernel_size
self.dropout = dropout
self.head_dim = key_dim // num_heads
if self.query_h_strides > 1 or self.query_w_strides > 1:
self._query_downsampling_norm = nn.BatchNorm2d(inp)
self._query_proj = conv_2d(inp, num_heads * key_dim, 1, 1, norm=False, act=False)
if self.kv_strides > 1:
self._key_dw_conv = conv_2d(inp, inp, dw_kernel_size, kv_strides, groups=inp, norm=True, act=False)
self._value_dw_conv = conv_2d(inp, inp, dw_kernel_size, kv_strides, groups=inp, norm=True, act=False)
self._key_proj = conv_2d(inp, key_dim, 1, 1, norm=False, act=False)
self._value_proj = conv_2d(inp, key_dim, 1, 1, norm=False, act=False)
self._output_proj = conv_2d(num_heads * key_dim, inp, 1, 1, norm=False, act=False)
self.dropout = nn.Dropout(p=dropout)
def forward(self, x):
batch_size, seq_length, _, _ = x.size()
if self.query_h_strides > 1 or self.query_w_strides > 1:
q = F.avg_pool2d(self.query_h_stride, self.query_w_stride)
q = self._query_downsampling_norm(q)
q = self._query_proj(q)
else:
q = self._query_proj(x)
px = q.size(2)
q = q.view(batch_size, self.num_heads, -1, self.key_dim) # [batch_size, num_heads, seq_length, key_dim]
if self.kv_strides > 1:
k = self._key_dw_conv(x)
k = self._key_proj(k)
v = self._value_dw_conv(x)
v = self._value_proj(v)
else:
k = self._key_proj(x)
v = self._value_proj(x)
k = k.view(batch_size, self.key_dim, -1) # [batch_size, key_dim, seq_length]
v = v.view(batch_size, -1, self.key_dim) # [batch_size, seq_length, key_dim]
# calculate attn score
attn_score = torch.matmul(q, k) / (self.head_dim ** 0.5)
attn_score = self.dropout(attn_score)
attn_score = F.softmax(attn_score, dim=-1)
context = torch.matmul(attn_score, v)
context = context.view(batch_size, self.num_heads * self.key_dim, px, px)
output = self._output_proj(context)
return output
class MNV4LayerScale(nn.Module):
def __init__(self, init_value):
"""LayerScale as introduced in CaiT: https://arxiv.org/abs/2103.17239
Referenced from here https://github.com/tensorflow/models/blob/master/official/vision/modeling/layers/nn_blocks.py
As used in MobileNetV4.
Attributes:
init_value (float): value to initialize the diagonal matrix of LayerScale.
"""
super().__init__()
self.init_value = init_value
def forward(self, x):
gamma = self.init_value * torch.ones(x.size(-1), dtype=x.dtype, device=x.device)
return x * gamma
class MultiHeadSelfAttentionBlock(nn.Module):
def __init__(
self,
inp,
num_heads,
key_dim,
value_dim,
query_h_strides,
query_w_strides,
kv_strides,
use_layer_scale,
use_multi_query,
use_residual=True
):
super().__init__()
self.query_h_strides = query_h_strides
self.query_w_strides = query_w_strides
self.kv_strides = kv_strides
self.use_layer_scale = use_layer_scale
self.use_multi_query = use_multi_query
self.use_residual = use_residual
self._input_norm = nn.BatchNorm2d(inp)
if self.use_multi_query:
self.multi_query_attention = MultiQueryAttentionLayerWithDownSampling(
inp, num_heads, key_dim, value_dim, query_h_strides, query_w_strides, kv_strides
)
else:
self.multi_head_attention = nn.MultiheadAttention(inp, num_heads, kdim=key_dim)
if self.use_layer_scale:
self.layer_scale_init_value = 1e-5
self.layer_scale = MNV4LayerScale(self.layer_scale_init_value)
def forward(self, x):
# Not using CPE, skipped
# input norm
shortcut = x
x = self._input_norm(x)
# multi query
if self.use_multi_query:
x = self.multi_query_attention(x)
else:
x = self.multi_head_attention(x, x)
# layer scale
if self.use_layer_scale:
x = self.layer_scale(x)
# use residual
if self.use_residual:
x = x + shortcut
return x
def build_blocks(layer_spec):
if not layer_spec.get('block_name'):
return nn.Sequential()
block_names = layer_spec['block_name']
layers = nn.Sequential()
if block_names == "convbn":
schema_ = ['inp', 'oup', 'kernel_size', 'stride']
for i in range(layer_spec['num_blocks']):
args = dict(zip(schema_, layer_spec['block_specs'][i]))
layers.add_module(f"convbn_{i}", conv_2d(**args))
elif block_names == "uib":
schema_ = ['inp', 'oup', 'start_dw_kernel_size', 'middle_dw_kernel_size', 'middle_dw_downsample', 'stride',
'expand_ratio', 'msha']
for i in range(layer_spec['num_blocks']):
args = dict(zip(schema_, layer_spec['block_specs'][i]))
msha = args.pop("msha") if "msha" in args else 0
layers.add_module(f"uib_{i}", UniversalInvertedBottleneckBlock(**args))
if msha:
msha_schema_ = [
"inp", "num_heads", "key_dim", "value_dim", "query_h_strides", "query_w_strides", "kv_strides",
"use_layer_scale", "use_multi_query", "use_residual"
]
args = dict(zip(msha_schema_, [args['oup']] + (msha)))
layers.add_module(f"msha_{i}", MultiHeadSelfAttentionBlock(**args))
elif block_names == "fused_ib":
schema_ = ['inp', 'oup', 'stride', 'expand_ratio', 'act']
for i in range(layer_spec['num_blocks']):
args = dict(zip(schema_, layer_spec['block_specs'][i]))
layers.add_module(f"fused_ib_{i}", InvertedResidual(**args))
else:
raise NotImplementedError
return layers
class MobileNetV4(nn.Module):
def __init__(self, model):
# MobileNetV4ConvSmall MobileNetV4ConvMedium MobileNetV4ConvLarge
# MobileNetV4HybridMedium MobileNetV4HybridLarge
"""Params to initiate MobilenNetV4
Args:
model : support 5 types of models as indicated in
"https://github.com/tensorflow/models/blob/master/official/vision/modeling/backbones/mobilenet.py"
"""
super().__init__()
assert model in MODEL_SPECS.keys()
self.model = model
self.spec = MODEL_SPECS[self.model]
# conv0
self.conv0 = build_blocks(self.spec['conv0'])
# layer1
self.layer1 = build_blocks(self.spec['layer1'])
# layer2
self.layer2 = build_blocks(self.spec['layer2'])
# layer3
self.layer3 = build_blocks(self.spec['layer3'])
# layer4
self.layer4 = build_blocks(self.spec['layer4'])
# layer5
self.layer5 = build_blocks(self.spec['layer5'])
self.width_list = [i.size(1) for i in self.forward(torch.randn(1, 3, 640, 640))]
def forward(self, x):
x0 = self.conv0(x)
x1 = self.layer1(x0)
x2 = self.layer2(x1)
x3 = self.layer3(x2)
x4 = self.layer4(x3)
# x5 = self.layer5(x4)
# x5 = nn.functional.adaptive_avg_pool2d(x5, 1)
return [x1, x2, x3, x4]
def MobileNetV4ConvSmall():
model = MobileNetV4('MobileNetV4ConvSmall')
return model
def MobileNetV4ConvMedium():
model = MobileNetV4('MobileNetV4ConvMedium')
return model
def MobileNetV4ConvLarge():
model = MobileNetV4('MobileNetV4ConvLarge')
return model
def MobileNetV4HybridMedium():
model = MobileNetV4('MobileNetV4HybridMedium')
return model
def MobileNetV4HybridLarge():
model = MobileNetV4('MobileNetV4HybridLarge')
return model
if __name__ == "__main__":
# Generating Sample image
image_size = (1, 3, 640, 640)
image = torch.rand(*image_size)
# Model
model = MobileNetV4HybridLarge()
out = model(image)
for i in range(len(out)):
print(out[i].shape)2、YOLOv11中添加MobileNetV4方式
***注：***进行这一步时，要在ultralytics安装包所在文件夹里进行修改，否则会出现以下报错信息：
WARNING ⚠️ no model scale passed. Assuming scale='n'. Traceback (most recent call last): File "/home/jetson/Desktop/ultralytics/data/train.py", line 13, in <module> model = YOLO(model_yaml_path, task='classify').load(pre_model_name) File "/usr/local/lib/python3.10/dist-packages/ultralytics/models/yolo/model.py", line 23, in init super().init(model=model, task=task, verbose=verbose) File "/usr/local/lib/python3.10/dist-packages/ultralytics/engine/model.py", line 144, in init self._new(model, task=task, verbose=verbose) File "/usr/local/lib/python3.10/dist-packages/ultralytics/engine/model.py", line 255, in _new self.model = (model or self._smart_load("model"))(cfg_dict, verbose=verbose and RANK == -1) # build model File "/usr/local/lib/python3.10/dist-packages/ultralytics/nn/tasks.py", line 437, in init self._from_yaml(cfg, ch, nc, verbose) File "/usr/local/lib/python3.10/dist-packages/ultralytics/nn/tasks.py", line 450, in _from_yaml self.model, self.save = parse_model(deepcopy(self.yaml), ch=ch, verbose=verbose) # model, savelist File "/usr/local/lib/python3.10/dist-packages/ultralytics/nn/tasks.py", line 1018, in parse_model else globals()[m] KeyError: 'MobileNetV4ConvSmall'

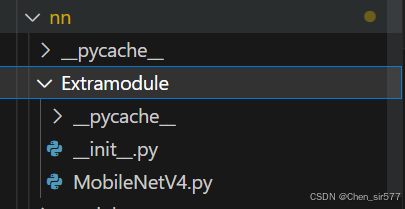

2.1 在ultralytics/nn下新建Extramodule文件夹，并在Extramodule里创建MobileNetV4.py
在MobileNetV4.py文件里添加给出的MobileNetV4代码
添加完MobileNetV4代码后，在ultralytics/nn/Extramodule/init.py文件中引用
from .MobileNetV4 import *2.2 在ultralytics/nn/tasks.py里引用

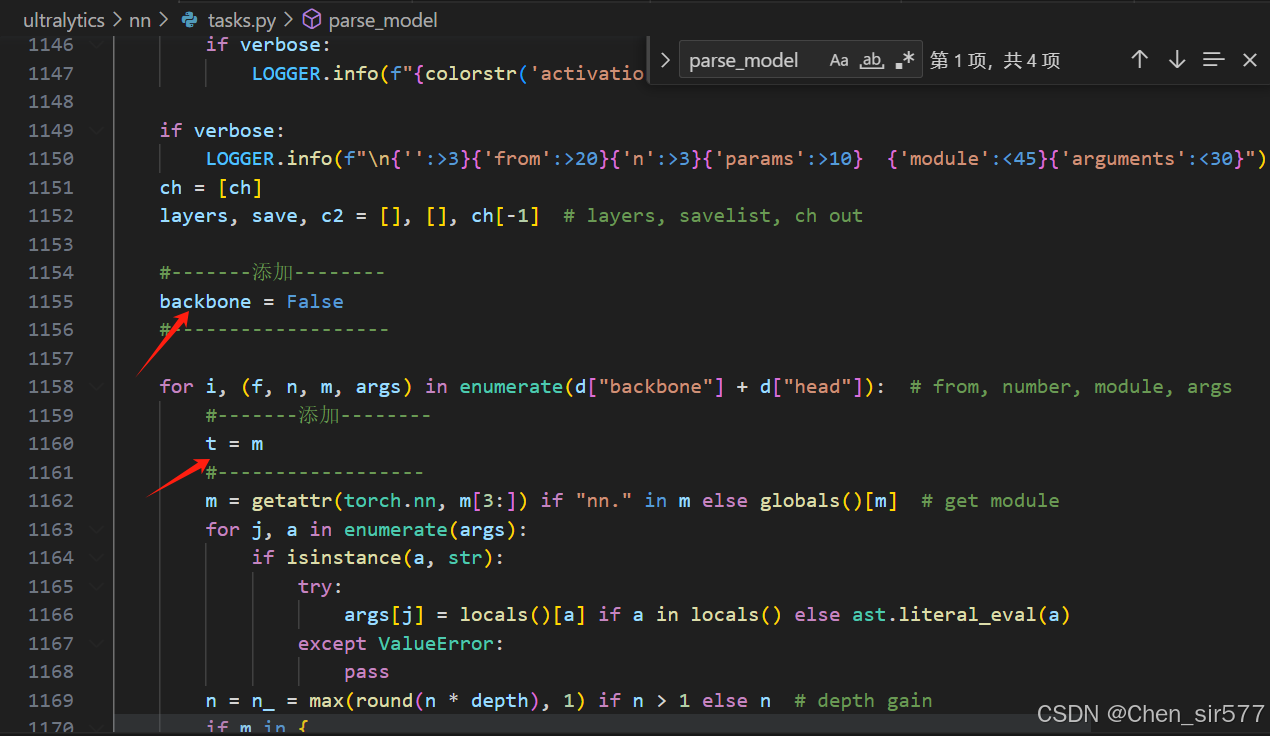

from .Extramodule import *（1）在tasks.py找到parse_model函数（ctrl+f 可以直接搜索parse_model位置），添加：

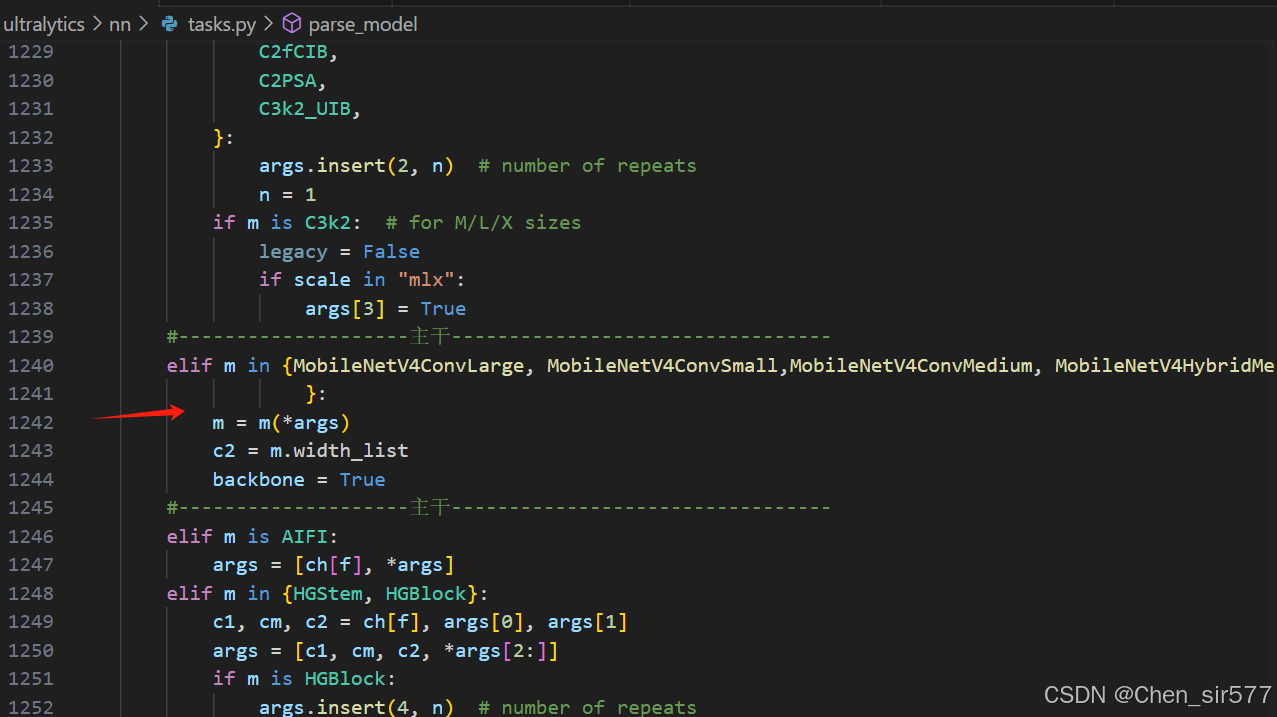

（2）添加主干代码
elif m in {MobileNetV4ConvLarge, MobileNetV4ConvSmall,MobileNetV4ConvMedium, MobileNetV4HybridMedium, MobileNetV4HybridLarge
}:
m = m(*args)
c2 = m.width_list
backbone = True （3）将elif m is AIFI 到parse_model函数的结尾:以下的代码全部替换成我给的
elif m is AIFI:
args = [ch[f], *args]
elif m in {HGStem, HGBlock}:
c1, cm, c2 = ch[f], args[0], args[1]
args = [c1, cm, c2, *args[2:]]
if m is HGBlock:
args.insert(4, n) # number of repeats
n = 1
elif m is ResNetLayer:
c2 = args[1] if args[3] else args[1] * 4
elif m is nn.BatchNorm2d:
args = [ch[f]]
elif m is Concat:
c2 = sum(ch[x] for x in f)
elif m in {Detect, WorldDetect, Segment, Pose, OBB, ImagePoolingAttn, v10Detect}:
args.append([ch[x] for x in f])
if m is Segment:
args[2] = make_divisible(min(args[2], max_channels) * width, 8)
elif m is RTDETRDecoder: # special case, channels arg must be passed in index 1
args.insert(1, [ch[x] for x in f])
elif m is CBLinear:
c2 = args[0]
c1 = ch[f]
args = [c1, c2, *args[1:]]
elif m is CBFuse:
c2 = ch[f[-1]]
else:
c2 = ch[f]
if isinstance(c2, list):
m_ = m
m_.backbone = True
else:
m_ = nn.Sequential(*(m(*args) for _ in range(n))) if n > 1 else m(*args) # module
t = str(m)[8:-2].replace('__main__.', '') # module type
m.np = sum(x.numel() for x in m_.parameters()) # number params
m_.i, m_.f, m_.type = i + 4 if backbone else i, f, t # attach index, 'from' index, type
if verbose:
LOGGER.info(f'{i:>3}{str(f):>20}{n_:>3}{m.np:10.0f} {t:<45}{str(args):<30}') # print
save.extend(
x % (i + 4 if backbone else i) for x in ([f] if isinstance(f, int) else f) if x != -1) # append to savelist
layers.append(m_)
if i == 0:
ch = []
if isinstance(c2, list):
ch.extend(c2)
if len(c2) != 5:
ch.insert(0, 0)
else:
ch.append(c2)
return nn.Sequential(*layers), sorted(save)（4）在tasks.py找到_predict_once函数，替换为：
def _predict_once(self, x, profile=False, visualize=False, embed=None):
"""
Perform a forward pass through the network.
Args:
x (torch.Tensor): The input tensor to the model.
profile (bool): Print the computation time of each layer if True, defaults to False.
visualize (bool): Save the feature maps of the model if True, defaults to False.
embed (list, optional): A list of feature vectors/embeddings to return.
Returns:
(torch.Tensor): The last output of the model.
"""
y, dt, embeddings = [], [], [] # outputs
for m in self.model:
if m.f != -1: # if not from previous layer
x = y[m.f] if isinstance(m.f, int) else [x if j == -1 else y[j] for j in m.f] # from earlier layers
if profile:
self._profile_one_layer(m, x, dt)
if hasattr(m, 'backbone'):
x = m(x)
if len(x) != 5: # 0 - 5
x.insert(0, None)
for index, i in enumerate(x):
if index in self.save:
y.append(i)
else:
y.append(None)
x = x[-1] # 最后一个输出传给下一层
else:
x = m(x) # run
y.append(x if m.i in self.save else None) # save output
if visualize:
feature_visualization(x, m.type, m.i, save_dir=visualize)
if embed and m.i in embed:
embeddings.append(nn.functional.adaptive_avg_pool2d(x, (1, 1)).squeeze(-1).squeeze(-1)) # flatten
if m.i == max(embed):
return torch.unbind(torch.cat(embeddings, 1), dim=0)
return x（5）在ultralytics/models/yolo/detect/train.py里找到build_dataset函数，替换为：
def build_dataset(self, img_path, mode="train", batch=None):
"""
Build YOLO Dataset.
Args:
img_path (str): Path to the folder containing images.
mode (str): `train` mode or `val` mode, users are able to customize different augmentations for each mode.
batch (int, optional): Size of batches, this is for `rect`. Defaults to None.
"""
gs = max(int(de_parallel(self.model).stride.max() if self.model else 0), 32)
return build_yolo_dataset(self.args, img_path, batch, self.data, mode=mode, rect=False, stride=gs)注：这里修改的是目标检测任务，如果是分类任务则不需要这个步骤。
3. 新建一个MobileNetV4.yaml文件
注：（1）这边有两个版本，版本1和版本2效果不一样，由于我只是进行复现，并没有过多的了解其原理，若有大佬了解，麻烦指出该两个版本的不同点、
（2）这里可以直接替换原yolo11-cls.yaml文件，这样训练可以通过yolo11n/s/m/l-cls.yaml选择大小。这里是分类任务，目标检测任务同理。
版本1：
# Ultralytics YOLO 🚀, AGPL-3.0 license
# YOLO11 object detection model with P3-P5 outputs. For Usage examples see https://docs.ultralytics.com/tasks/detect
# Parameters
nc: 7 # number of classes
scales: # model compound scaling constants, i.e. 'model=yolo11n.yaml' will call yolo11.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 319 layers, 2624080 parameters, 2624064 gradients, 6.6 GFLOPs
s: [0.50, 0.50, 1024] # summary: 319 layers, 9458752 parameters, 9458736 gradients, 21.7 GFLOPs
m: [0.50, 1.00, 512] # summary: 409 layers, 20114688 parameters, 20114672 gradients, 68.5 GFLOPs
l: [1.00, 1.00, 512] # summary: 631 layers, 25372160 parameters, 25372144 gradients, 87.6 GFLOPs
x: [1.00, 1.50, 512] # summary: 631 layers, 56966176 parameters, 56966160 gradients, 196.0 GFLOPs
# YOLO11n backbone
backbone:
# [from, repeats, module, args]
- [-1, 1, MobileNetV4ConvSmall, []] # 4
- [-1, 1, SPPF, [1024, 5]] # 5
- [-1, 2, C2PSA, [1024]] # 6
# YOLO11n head
head:
- [-1, 1, Classify, [nc]] # Classify版本2：
# Ultralytics YOLO ??, AGPL-3.0 license
# YOLO11 object detection model with P3-P5 outputs. For Usage examples see https://docs.ultralytics.com/tasks/detect
# Parameters
nc: 80 # number of classes
scales: # model compound scaling constants, i.e. 'model=yolo11n.yaml' will call yolo11.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 319 layers, 2624080 parameters, 2624064 gradients, 6.6 GFLOPs
s: [0.50, 0.50, 1024] # summary: 319 layers, 9458752 parameters, 9458736 gradients, 21.7 GFLOPs
m: [0.50, 1.00, 512] # summary: 409 layers, 20114688 parameters, 20114672 gradients, 68.5 GFLOPs
l: [1.00, 1.00, 512] # summary: 631 layers, 25372160 parameters, 25372144 gradients, 87.6 GFLOPs
x: [1.00, 1.50, 512] # summary: 631 layers, 56966176 parameters, 56966160 gradients, 196.0 GFLOPs
# 0-P1/2
# 1-P2/4
# 2-P3/8
# 3-P4/16
# 4-P5/32
# YOLO11n backbone
backbone:
# [from, repeats, module, args]
- [-1, 1, MobileNetV4ConvSmall, []] # 4
- [-1, 1, SPPF, [1024, 5]] # 5
- [-1, 2, C2PSA, [1024]] # 6
# YOLO11n head
head:
- [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- [[-1, 3], 1, Concat, [1]] # cat backbone P4
- [-1, 2, C3k2, [512, False]] # 9
- [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- [[-1, 2], 1, Concat, [1]] # cat backbone P3
- [-1, 2, C3k2, [256, False]] # 12 (P3/8-small)
- [-1, 1, Conv, [256, 3, 2]]
- [[-1, 9], 1, Concat, [1]] # cat head P4
- [-1, 2, C3k2, [512, False]] # 15 (P4/16-medium)
- [-1, 1, Conv, [512, 3, 2]]
- [[-1, 6], 1, Concat, [1]] # cat head P5
- [-1, 2, C3k2, [1024, True]] # 18 (P5/32-large)
- [[12, 15, 18], 1, Detect, [nc]] # Detect(P3, P4, P5)4、模型训练
#coding:utf-8
from ultralytics import YOLO
# 模型配置文件
model_yaml_path = "ultralytics/cfg/models/11/MobileNetV4.yaml"
# 数据集配置文件
data = "KDEF"
#预训练模型
pre_model_name = 'yolo11s-cls.pt'
if __name__ == '__main__':
#加载预训练模型
model = YOLO(model_yaml_path, task='classify').load(pre_model_name)
#训练模型
results = model.train(
data=data,
epochs=100,
batch=16,
name='train_emoKDEF_MobileNetV4_s',
)配置自己的数据集和训练参数即可。

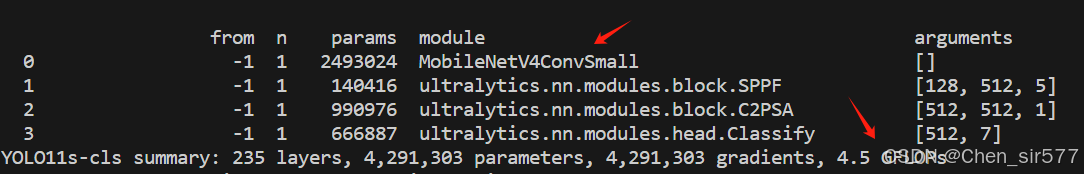

版本1的训练结果：
如图所示就是成功啦，可以看到GFLOPs相较于yolo11s-cls的12.2 GFLOPs下降了许多。
版本2的训练结果
