效果
步骤

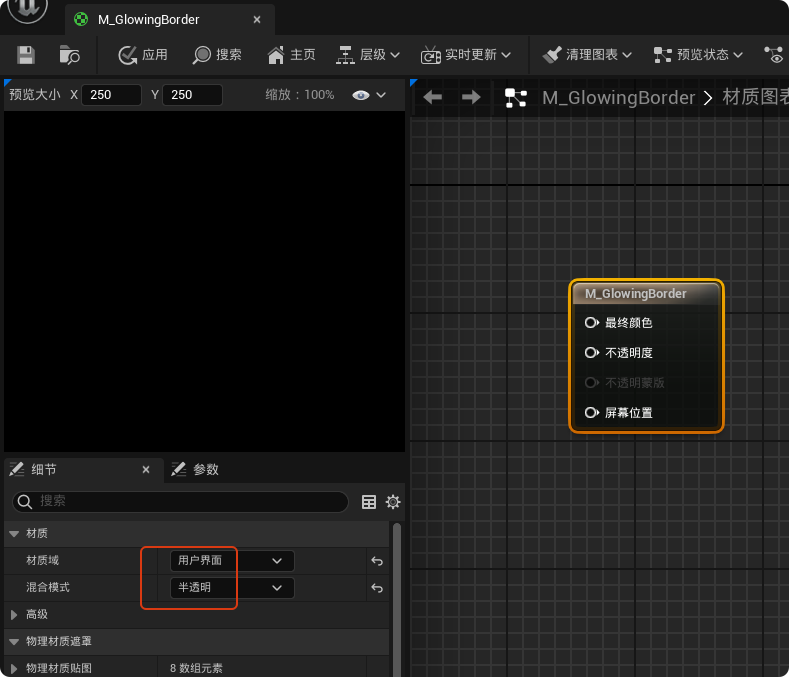

新建一个材质，这里命名为"M_GlowingBorder"，打开"M_GlowingBorder"后，设置材质域为"用户界面"，混合模式为"半透明"

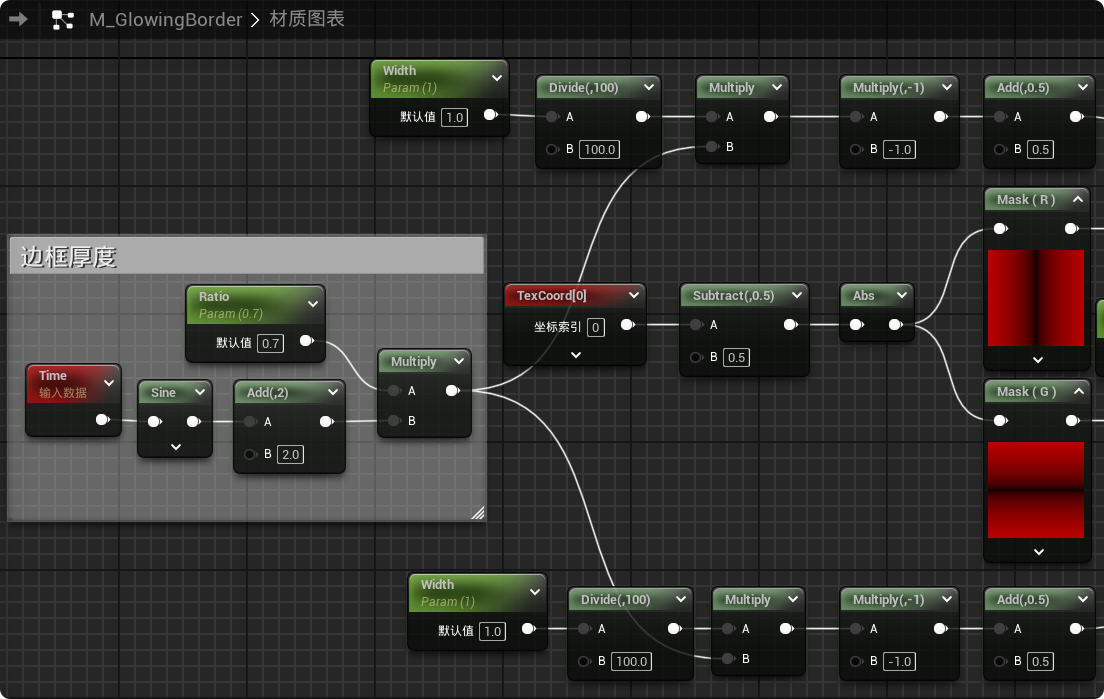

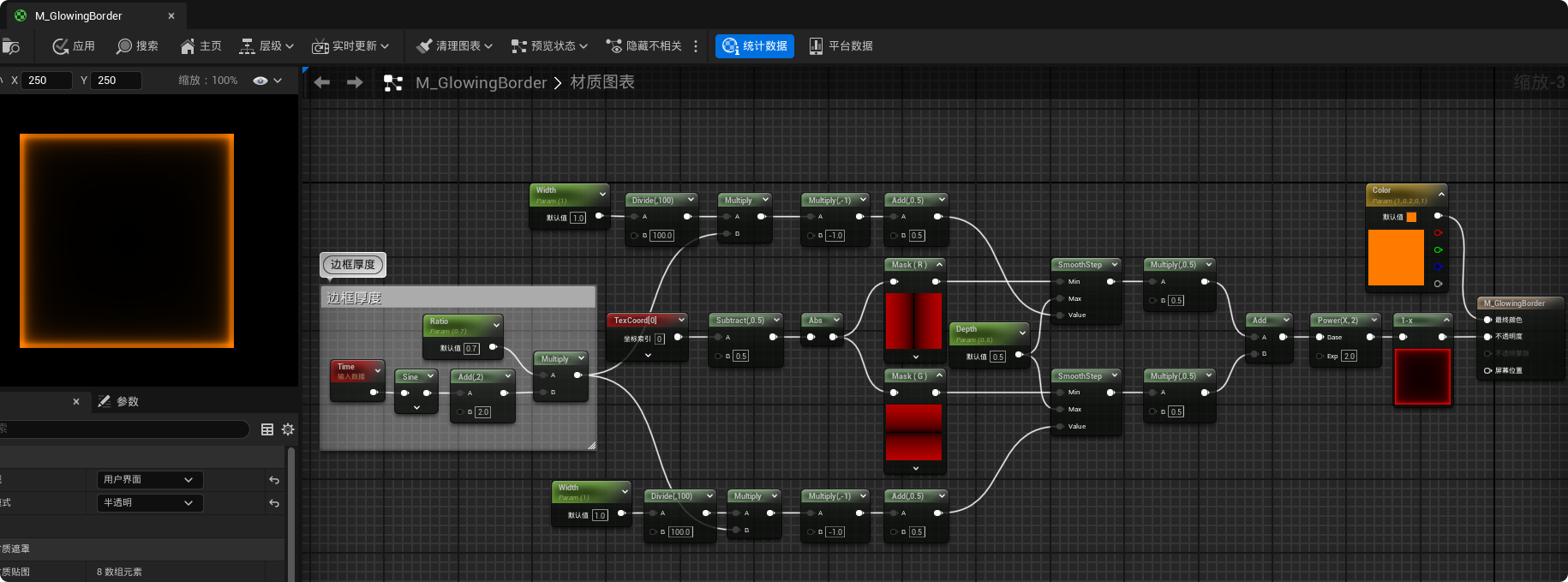

添加如下节点：
代码：
bash
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Root Name="MaterialGraphNode_Root_3"
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
NodePosX=-32
NodePosY=195
NodeGuid=E5D3363A44123149D06CD19470088CAE
CustomProperties Pin (PinId=08B867364AC64106B82098B165036F22,PinName="基础颜色",PinType.PinCategory="materialinput",PinType.PinSubCategory="5",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=33ED502E4BEEE4DDE081B3BDE2FA2B98,PinName="Metallic",PinType.PinCategory="materialinput",PinType.PinSubCategory="6",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=F9E4AD8444930ABD86B61CAB88477720,PinName="高光度",PinType.PinCategory="materialinput",PinType.PinSubCategory="7",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=41A42C9147F86F0901133CB0C247A4BE,PinName="粗糙度",PinType.PinCategory="materialinput",PinType.PinSubCategory="8",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=12D2F99A420A3CC4B32C50868A4DC7AD,PinName="各向异性",PinType.PinCategory="materialinput",PinType.PinSubCategory="9",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=5497B1C34C0706B714CF01A944E14971,PinName="最终颜色",PinType.PinCategory="materialinput",PinType.PinSubCategory="0",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_1 B048B4F140860D82C4F2AF889C8DA94F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C3DE7CD949AB4EABD3F747BA6457EAE9,PinName="不透明度",PinType.PinCategory="materialinput",PinType.PinSubCategory="1",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_24 3D1AEC28403CF10C840215892D2190A0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=A0B8D27E41538F9DA791CC9F68F1E1F9,PinName="不透明蒙版",PinType.PinCategory="materialinput",PinType.PinSubCategory="2",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=44D673FC4A7C52117B34B6AD95179A1E,PinName="Normal",PinType.PinCategory="materialinput",PinType.PinSubCategory="10",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=4C5177664FBE23A0B21F3389352C29B9,PinName="切线",PinType.PinCategory="materialinput",PinType.PinSubCategory="11",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=FFC0B22349D7F45E9AD1939607EDF7E5,PinName="屏幕位置",PinType.PinCategory="materialinput",PinType.PinSubCategory="12",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=47F1C26D47E3CEFF847C0DB5431F4920,PinName="Subsurface Color",PinType.PinCategory="materialinput",PinType.PinSubCategory="15",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=802F1AB941784832BD92239B49D5548D,PinName="Custom Data 0",PinType.PinCategory="materialinput",PinType.PinSubCategory="16",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C21437134F18F9A4749796A40BF9CA19,PinName="Custom Data 1",PinType.PinCategory="materialinput",PinType.PinSubCategory="17",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=51AB61434472771CFCA2C3968B598AB8,PinName="环境光遮挡",PinType.PinCategory="materialinput",PinType.PinSubCategory="18",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=CAD6780F4C3EBDEDD89928A867956A5C,PinName="折射",PinType.PinCategory="materialinput",PinType.PinSubCategory="19",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=2A1C17F641E3DB20919635A971F5B0EC,PinName="Customized UV0",PinType.PinCategory="materialinput",PinType.PinSubCategory="20",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=F6F428A046CE6528F845D4A580E1D0A1,PinName="Customized UV1",PinType.PinCategory="materialinput",PinType.PinSubCategory="21",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=2742577F4FA9137E16C2FA84900C370E,PinName="Customized UV2",PinType.PinCategory="materialinput",PinType.PinSubCategory="22",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=9D1A66A646995FEEF67794A66A465E1B,PinName="Customized UV3",PinType.PinCategory="materialinput",PinType.PinSubCategory="23",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=3D9440C44A40AC43BB9924896B974356,PinName="Customized UV4",PinType.PinCategory="materialinput",PinType.PinSubCategory="24",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=B83A7A9E4FE3B5602E09128F4E6EF82A,PinName="Customized UV5",PinType.PinCategory="materialinput",PinType.PinSubCategory="25",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=0E3EDFAB46D0822C49A4DFB1C2368702,PinName="Customized UV6",PinType.PinCategory="materialinput",PinType.PinSubCategory="26",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=F2D2A16248C1C358FE07768E3D4B60E7,PinName="Customized UV7",PinType.PinCategory="materialinput",PinType.PinSubCategory="27",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=A1D4758147979404A127B6B785A61294,PinName="像素深度偏移",PinType.PinCategory="materialinput",PinType.PinSubCategory="28",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=D72B414041DA6C4ACECDC7A8CAE9DB14,PinName="着色模型",PinType.PinCategory="materialinput",PinType.PinSubCategory="29",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=827372E2446E5CD2D960A0927182A49B,PinName="前方材质",PinType.PinCategory="materialinput",PinType.PinSubCategory="30",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=5A3DCDE546FF67E7DE231FA7F4369C7D,PinName="材质属性",PinType.PinCategory="materialinput",PinType.PinSubCategory="31",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_1"
Begin Object Class=/Script/Engine.MaterialExpressionVectorParameter Name="MaterialExpressionVectorParameter_0"
End Object
Begin Object Name="MaterialExpressionVectorParameter_0"
DefaultValue=(R=1.000000,G=0.200000,B=0.000000,A=1.000000)
ParameterName="Color"
ExpressionGUID=5DE9F6BE4EBD2939CBCC849D1EA62F6E
MaterialExpressionEditorX=-224
MaterialExpressionGuid=21D0EEDF45BD5A754BE8F6AF690FFD05
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionVectorParameter'"MaterialExpressionVectorParameter_0"'
NodePosX=-224
bCanRenameNode=True
NodeGuid=7D98CC0D4EBF93E4515742AD758DCD72
CustomProperties Pin (PinId=E122AE444A6A1A1D32A8319E59DF298B,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="rgba",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="(R=1.000000,G=0.200000,B=0.000000,A=1.000000)",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=B048B4F140860D82C4F2AF889C8DA94F,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Root_3 5497B1C34C0706B714CF01A944E14971,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=0A9A9E3848A2FB0B3B7CD6AE0E9DD9C1,PinName="Output2",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=3EDD5378493576E27AF3D7BA1443F7B0,PinName="Output3",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="green",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=982BC03E4F947DB7B9E27AB84756C945,PinName="Output4",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="blue",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=CAEA1D9F4A7B9F7F699E3EA68CA9BEDE,PinName="Output5",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="mask",PinType.PinSubCategory="alpha",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_2"
Begin Object Class=/Script/Engine.MaterialExpressionTextureCoordinate Name="MaterialExpressionTextureCoordinate_0"
End Object
Begin Object Name="MaterialExpressionTextureCoordinate_0"
MaterialExpressionEditorX=-1536
MaterialExpressionEditorY=224
MaterialExpressionGuid=3FAD56FB4E1D81A3FB27E3BC6F535917
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionTextureCoordinate'"MaterialExpressionTextureCoordinate_0"'
NodePosX=-1536
NodePosY=224
AdvancedPinDisplay=Hidden
NodeGuid=D2F2039D4396DCD237E38C87A8A1FE91
CustomProperties Pin (PinId=B0F807234DBB5AEF80B3489255624BE3,PinName="坐标索引",PinType.PinCategory="optional",PinType.PinSubCategory="int",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=257436984AD085F8BD4941BEC8FF3BDC,PinName="U平铺",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=AEAA150244C63B6814068687EC603A60,PinName="V平铺",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=3B53AC264DC2F3152107FD8DFD25525B,PinName="解除镜像U",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=4608EE43438724CB6E2725B22440EC3C,PinName="解除镜像V",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=CEA57BA64ECE4C752072A6ADCF10CD7A,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_4 D589D5174827707511F8E2804CE09564,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_4"
Begin Object Class=/Script/Engine.MaterialExpressionSubtract Name="MaterialExpressionSubtract_0"
End Object
Begin Object Name="MaterialExpressionSubtract_0"
A=(Expression=/Script/Engine.MaterialExpressionTextureCoordinate'"MaterialGraphNode_2.MaterialExpressionTextureCoordinate_0"')
ConstB=0.500000
MaterialExpressionEditorX=-1360
MaterialExpressionEditorY=224
MaterialExpressionGuid=2333EAF64439094966DFADB169D20921
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionSubtract'"MaterialExpressionSubtract_0"'
NodePosX=-1360
NodePosY=224
NodeGuid=18CB4C1B4BDAF3C62535CB869246AADE
CustomProperties Pin (PinId=D589D5174827707511F8E2804CE09564,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_2 CEA57BA64ECE4C752072A6ADCF10CD7A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=0D0416EF45CE64CAD935389A595A9488,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=631A40BB478B33CFCABBA28DE75C0592,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 186975A0462F8E10FBC5E193E3EECFF0,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_5"
Begin Object Class=/Script/Engine.MaterialExpressionAbs Name="MaterialExpressionAbs_0"
End Object
Begin Object Name="MaterialExpressionAbs_0"
Input=(Expression=/Script/Engine.MaterialExpressionSubtract'"MaterialGraphNode_4.MaterialExpressionSubtract_0"')
MaterialExpressionEditorX=-1200
MaterialExpressionEditorY=224
MaterialExpressionGuid=24D1612C4E11BD4CB7FE7AB9DF5ADE5F
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionAbs'"MaterialExpressionAbs_0"'
NodePosX=-1200
NodePosY=224
NodeGuid=87D9F6FC4206A628FBD566B8E50D7B9B
CustomProperties Pin (PinId=186975A0462F8E10FBC5E193E3EECFF0,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_4 631A40BB478B33CFCABBA28DE75C0592,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=8519126446986EE306765485E8A9E0BA,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_6 B9D39CC1401BAB6EF06D8F8C0F665E79,MaterialGraphNode_7 B9D39CC1401BAB6EF06D8F8C0F665E79,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_7"
Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_0"
End Object
Begin Object Name="MaterialExpressionComponentMask_0"
Input=(Expression=/Script/Engine.MaterialExpressionAbs'"MaterialGraphNode_5.MaterialExpressionAbs_0"')
G=True
MaterialExpressionEditorX=-1056
MaterialExpressionEditorY=320
MaterialExpressionGuid=7DBB809C4C550BBB6536FB988F454ED2
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
bCollapsed=False
End Object
MaterialExpression=/Script/Engine.MaterialExpressionComponentMask'"MaterialExpressionComponentMask_0"'
NodePosX=-1056
NodePosY=320
AdvancedPinDisplay=Hidden
NodeGuid=2CB1A7EF4071010C24B379AA2F0FA164
CustomProperties Pin (PinId=B9D39CC1401BAB6EF06D8F8C0F665E79,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 8519126446986EE306765485E8A9E0BA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C61D74A545C65CF467F022A099A1E2AA,PinName="R",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=E86068AF4D2DB61A62983DBCA1F45A46,PinName="G",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="true",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=BEDC862949A03C840783DFACD9B6E3A6,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=CE962AEA4A54A735F31AA0ABDB252380,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=DEF135024481A9BC86252D91531C777A,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_8 C12C667A47333A15618CAA8FCFE17B6F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_6"
Begin Object Class=/Script/Engine.MaterialExpressionComponentMask Name="MaterialExpressionComponentMask_1"
End Object
Begin Object Name="MaterialExpressionComponentMask_1"
Input=(Expression=/Script/Engine.MaterialExpressionAbs'"MaterialGraphNode_5.MaterialExpressionAbs_0"')
R=True
MaterialExpressionEditorX=-1056
MaterialExpressionEditorY=128
MaterialExpressionGuid=7DBB809C4C550BBB6536FB988F454ED2
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
bCollapsed=False
End Object
MaterialExpression=/Script/Engine.MaterialExpressionComponentMask'"MaterialExpressionComponentMask_1"'
NodePosX=-1056
NodePosY=128
AdvancedPinDisplay=Hidden
NodeGuid=F981DF824A9F203C87AF7093F3700F89
CustomProperties Pin (PinId=B9D39CC1401BAB6EF06D8F8C0F665E79,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_5 8519126446986EE306765485E8A9E0BA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C61D74A545C65CF467F022A099A1E2AA,PinName="R",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="true",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=E86068AF4D2DB61A62983DBCA1F45A46,PinName="G",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=BEDC862949A03C840783DFACD9B6E3A6,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=CE962AEA4A54A735F31AA0ABDB252380,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="bool",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="false",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=DEF135024481A9BC86252D91531C777A,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 C12C667A47333A15618CAA8FCFE17B6F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_9"
Begin Object Class=/Script/Engine.MaterialExpressionSmoothStep Name="MaterialExpressionSmoothStep_0"
End Object
Begin Object Name="MaterialExpressionSmoothStep_0"
Min=(Expression=/Script/Engine.MaterialExpressionComponentMask'"MaterialGraphNode_6.MaterialExpressionComponentMask_1"')
Max=(Expression=/Script/Engine.MaterialExpressionScalarParameter'"MaterialGraphNode_10.MaterialExpressionScalarParameter_1"')
Value=(Expression=/Script/Engine.MaterialExpressionAdd'"MaterialGraphNode_18.MaterialExpressionAdd_0"')
MaterialExpressionEditorX=-768
MaterialExpressionEditorY=128
MaterialExpressionGuid=7DCE352346FADE225905E79EFE23227C
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionSmoothStep'"MaterialExpressionSmoothStep_0"'
NodePosX=-768
NodePosY=128
NodeGuid=E4EDD32E42E4A335899199AF12D80297
CustomProperties Pin (PinId=C12C667A47333A15618CAA8FCFE17B6F,PinName="Min",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_6 DEF135024481A9BC86252D91531C777A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=506341024C5B324084B31D9067E9687D,PinName="Max",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_10 E272E90747E697D253FB5E8D3743BF2D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=046BA2004C2C2C3AA2206095F7C30FB3,PinName="Value",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_18 F752171340BA9F7CB95A15BE66EDDCA8,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=27BC8D984D576601B131CCA5CEC00CE7,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_21 7BD438C34F4FFC45A6D98C87C6B683A6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_8"
Begin Object Class=/Script/Engine.MaterialExpressionSmoothStep Name="MaterialExpressionSmoothStep_1"
End Object
Begin Object Name="MaterialExpressionSmoothStep_1"
Min=(Expression=/Script/Engine.MaterialExpressionComponentMask'"MaterialGraphNode_7.MaterialExpressionComponentMask_0"')
Max=(Expression=/Script/Engine.MaterialExpressionScalarParameter'"MaterialGraphNode_10.MaterialExpressionScalarParameter_1"')
Value=(Expression=/Script/Engine.MaterialExpressionAdd'"MaterialGraphNode_14.MaterialExpressionAdd_1"')
MaterialExpressionEditorX=-768
MaterialExpressionEditorY=320
MaterialExpressionGuid=7DCE352346FADE225905E79EFE23227C
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionSmoothStep'"MaterialExpressionSmoothStep_1"'
NodePosX=-768
NodePosY=320
NodeGuid=E8181173483FE428368C31A70F5465FB
CustomProperties Pin (PinId=C12C667A47333A15618CAA8FCFE17B6F,PinName="Min",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_7 DEF135024481A9BC86252D91531C777A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=506341024C5B324084B31D9067E9687D,PinName="Max",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_10 E272E90747E697D253FB5E8D3743BF2D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=046BA2004C2C2C3AA2206095F7C30FB3,PinName="Value",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_14 F752171340BA9F7CB95A15BE66EDDCA8,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=27BC8D984D576601B131CCA5CEC00CE7,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_20 7BD438C34F4FFC45A6D98C87C6B683A6,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_10"
Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_1"
End Object
Begin Object Name="MaterialExpressionScalarParameter_1"
DefaultValue=0.500000
ParameterName="Depth"
ExpressionGUID=17409348404B9B2D195DE08471B10FA0
MaterialExpressionEditorX=-944
MaterialExpressionEditorY=240
MaterialExpressionGuid=883B469042F8D7A4A12D77B3DFDDCB7C
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionScalarParameter'"MaterialExpressionScalarParameter_1"'
NodePosX=-944
NodePosY=240
bCanRenameNode=True
NodeGuid=82E507EE47AAA69E6C15D4BC87A6B188
CustomProperties Pin (PinId=BA9AEEF74C515BC5C44FD4BDA96EF252,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=E272E90747E697D253FB5E8D3743BF2D,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 506341024C5B324084B31D9067E9687D,MaterialGraphNode_8 506341024C5B324084B31D9067E9687D,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_15"
Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_2"
End Object
Begin Object Name="MaterialExpressionScalarParameter_2"
DefaultValue=1.000000
ParameterName="Width"
ExpressionGUID=D58ECA4A44EFC08BEA566BAEBAD0D575
MaterialExpressionEditorX=-1670
MaterialExpressionGuid=3BA3E35B415C442DF4202191F82B935A
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionScalarParameter'"MaterialExpressionScalarParameter_2"'
NodePosX=-1670
bCanRenameNode=True
NodeGuid=CDA3940A44F266E7EEF2B5AA9D54ED81
CustomProperties Pin (PinId=1F71994B42F41CA1D016F7BFF9ABAF28,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=4A5F2C4444A79DB68662759B1D8BBF51,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_16 A6C2222543E369C01E5F6CA57E6C96E4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_16"
Begin Object Class=/Script/Engine.MaterialExpressionDivide Name="MaterialExpressionDivide_0"
End Object
Begin Object Name="MaterialExpressionDivide_0"
A=(Expression=/Script/Engine.MaterialExpressionScalarParameter'"MaterialGraphNode_15.MaterialExpressionScalarParameter_2"')
ConstB=100.000000
MaterialExpressionEditorX=-1504
MaterialExpressionEditorY=16
MaterialExpressionGuid=BA88FA934B701E9C63870BB96C214E9E
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionDivide'"MaterialExpressionDivide_0"'
NodePosX=-1504
NodePosY=16
NodeGuid=E861372F4B408BCBA32838A2C7ECB783
CustomProperties Pin (PinId=A6C2222543E369C01E5F6CA57E6C96E4,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_15 4A5F2C4444A79DB68662759B1D8BBF51,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=1B5F8C9B4C499139998DE8928AAF4408,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="100.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=0B7EB41F497652E46BF76A885E869CAE,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_25 0BA3F17042DB14A6058F028ADBC5BBA4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_17"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_0"
End Object
Begin Object Name="MaterialExpressionMultiply_0"
A=(Expression=/Script/Engine.MaterialExpressionMultiply'"MaterialGraphNode_25.MaterialExpressionMultiply_6"')
ConstB=-1.000000
MaterialExpressionEditorX=-1200
MaterialExpressionEditorY=16
MaterialExpressionGuid=C83255B24FD7E63E5D870FB175834F52
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionMultiply'"MaterialExpressionMultiply_0"'
NodePosX=-1200
NodePosY=16
NodeGuid=29DEA9B6491F15F61062FFA88877CD00
CustomProperties Pin (PinId=0BA3F17042DB14A6058F028ADBC5BBA4,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_25 241F0E2146D98F91D1CDF4B0EC5AC873,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C9224228493661C61C7ED7899340300F,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="-1.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=241F0E2146D98F91D1CDF4B0EC5AC873,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_18 13268B9443D043599D38BB94CDB58E9A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_18"
Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_0"
End Object
Begin Object Name="MaterialExpressionAdd_0"
A=(Expression=/Script/Engine.MaterialExpressionMultiply'"MaterialGraphNode_17.MaterialExpressionMultiply_0"')
ConstB=0.500000
MaterialExpressionEditorX=-1056
MaterialExpressionEditorY=16
MaterialExpressionGuid=0A6675B142E59C4EC035B28D2AB1A45C
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionAdd'"MaterialExpressionAdd_0"'
NodePosX=-1056
NodePosY=16
NodeGuid=7DA19BB34F160D7488EE17842D49F60B
CustomProperties Pin (PinId=13268B9443D043599D38BB94CDB58E9A,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_17 241F0E2146D98F91D1CDF4B0EC5AC873,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=5C5BC4F3425CB0555B08EDBF72E3989D,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=F752171340BA9F7CB95A15BE66EDDCA8,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_9 046BA2004C2C2C3AA2206095F7C30FB3,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_11"
Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_3"
End Object
Begin Object Name="MaterialExpressionScalarParameter_3"
DefaultValue=1.000000
ParameterName="Width"
ExpressionGUID=D888BB5E457B86E9F76C4FA60F67F9BC
MaterialExpressionEditorX=-1632
MaterialExpressionEditorY=514
MaterialExpressionGuid=3BA3E35B415C442DF4202191F82B935A
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionScalarParameter'"MaterialExpressionScalarParameter_3"'
NodePosX=-1632
NodePosY=514
bCanRenameNode=True
NodeGuid=1DDB99234A6A2982F72AD4AA49A5BB5D
CustomProperties Pin (PinId=1F71994B42F41CA1D016F7BFF9ABAF28,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=4A5F2C4444A79DB68662759B1D8BBF51,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_12 A6C2222543E369C01E5F6CA57E6C96E4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_12"
Begin Object Class=/Script/Engine.MaterialExpressionDivide Name="MaterialExpressionDivide_1"
End Object
Begin Object Name="MaterialExpressionDivide_1"
A=(Expression=/Script/Engine.MaterialExpressionScalarParameter'"MaterialGraphNode_11.MaterialExpressionScalarParameter_3"')
ConstB=100.000000
MaterialExpressionEditorX=-1472
MaterialExpressionEditorY=528
MaterialExpressionGuid=BA88FA934B701E9C63870BB96C214E9E
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionDivide'"MaterialExpressionDivide_1"'
NodePosX=-1472
NodePosY=528
NodeGuid=F3ACEA354AC5813337BC6D99493DFF61
CustomProperties Pin (PinId=A6C2222543E369C01E5F6CA57E6C96E4,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_11 4A5F2C4444A79DB68662759B1D8BBF51,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=1B5F8C9B4C499139998DE8928AAF4408,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="100.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=0B7EB41F497652E46BF76A885E869CAE,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_29 0BA3F17042DB14A6058F028ADBC5BBA4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_29"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_1"
End Object
Begin Object Name="MaterialExpressionMultiply_1"
A=(Expression=/Script/Engine.MaterialExpressionDivide'"MaterialGraphNode_12.MaterialExpressionDivide_1"')
B=(Expression=/Script/Engine.MaterialExpressionMultiply'"MaterialGraphNode_34.MaterialExpressionMultiply_7"')
MaterialExpressionEditorX=-1328
MaterialExpressionEditorY=528
MaterialExpressionGuid=C83255B24FD7E63E5D870FB175834F52
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionMultiply'"MaterialExpressionMultiply_1"'
NodePosX=-1328
NodePosY=528
NodeGuid=F4F52298494B395FE0880F888AB3974E
CustomProperties Pin (PinId=0BA3F17042DB14A6058F028ADBC5BBA4,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_12 0B7EB41F497652E46BF76A885E869CAE,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C9224228493661C61C7ED7899340300F,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_34 686EB30F47147C8179C115963A96D2BE,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=241F0E2146D98F91D1CDF4B0EC5AC873,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_13 0BA3F17042DB14A6058F028ADBC5BBA4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_14"
Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_1"
End Object
Begin Object Name="MaterialExpressionAdd_1"
A=(Expression=/Script/Engine.MaterialExpressionMultiply'"MaterialGraphNode_13.MaterialExpressionMultiply_4"')
ConstB=0.500000
MaterialExpressionEditorX=-1056
MaterialExpressionEditorY=528
MaterialExpressionGuid=0A6675B142E59C4EC035B28D2AB1A45C
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionAdd'"MaterialExpressionAdd_1"'
NodePosX=-1056
NodePosY=528
NodeGuid=39E9C94B469617F47476F79F6A328B4F
CustomProperties Pin (PinId=13268B9443D043599D38BB94CDB58E9A,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_13 241F0E2146D98F91D1CDF4B0EC5AC873,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=5C5BC4F3425CB0555B08EDBF72E3989D,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=F752171340BA9F7CB95A15BE66EDDCA8,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_8 046BA2004C2C2C3AA2206095F7C30FB3,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_21"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_2"
End Object
Begin Object Name="MaterialExpressionMultiply_2"
A=(Expression=/Script/Engine.MaterialExpressionSmoothStep'"MaterialGraphNode_9.MaterialExpressionSmoothStep_0"')
ConstB=0.500000
MaterialExpressionEditorX=-608
MaterialExpressionEditorY=128
MaterialExpressionGuid=5440A4FA43FD5DAF5C12E899BFEB6B8B
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionMultiply'"MaterialExpressionMultiply_2"'
NodePosX=-608
NodePosY=128
NodeGuid=5AF133D6452F9A09162EAABC59A81BB9
CustomProperties Pin (PinId=7BD438C34F4FFC45A6D98C87C6B683A6,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_9 27BC8D984D576601B131CCA5CEC00CE7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=E9F5AA54499C822B6D85B086888273A6,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=A8F9149D414A401B5E9E21BE1ED73C91,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 B7F099FB488EA095901F9E98B971F394,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_20"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_3"
End Object
Begin Object Name="MaterialExpressionMultiply_3"
A=(Expression=/Script/Engine.MaterialExpressionSmoothStep'"MaterialGraphNode_8.MaterialExpressionSmoothStep_1"')
ConstB=0.500000
MaterialExpressionEditorX=-608
MaterialExpressionEditorY=320
MaterialExpressionGuid=5440A4FA43FD5DAF5C12E899BFEB6B8B
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionMultiply'"MaterialExpressionMultiply_3"'
NodePosX=-608
NodePosY=320
NodeGuid=4470CE464A5C9BA878A4D0A954A0FDBB
CustomProperties Pin (PinId=7BD438C34F4FFC45A6D98C87C6B683A6,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_8 27BC8D984D576601B131CCA5CEC00CE7,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=E9F5AA54499C822B6D85B086888273A6,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.5",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=A8F9149D414A401B5E9E21BE1ED73C91,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 A6B7BFAB44A46D8D5E3DB48A79BE2A17,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_22"
Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_2"
End Object
Begin Object Name="MaterialExpressionAdd_2"
A=(Expression=/Script/Engine.MaterialExpressionMultiply'"MaterialGraphNode_21.MaterialExpressionMultiply_2"')
B=(Expression=/Script/Engine.MaterialExpressionMultiply'"MaterialGraphNode_20.MaterialExpressionMultiply_3"')
MaterialExpressionEditorX=-432
MaterialExpressionEditorY=224
MaterialExpressionGuid=E51C91CA4582655ACD07CE83887EEBF0
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionAdd'"MaterialExpressionAdd_2"'
NodePosX=-432
NodePosY=224
NodeGuid=F5ECE1AE44B56729885BE1BD69897C2A
CustomProperties Pin (PinId=B7F099FB488EA095901F9E98B971F394,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_21 A8F9149D414A401B5E9E21BE1ED73C91,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=A6B7BFAB44A46D8D5E3DB48A79BE2A17,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_20 A8F9149D414A401B5E9E21BE1ED73C91,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=1B7526584A0B2BDD63E208844A7EEAA3,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 3578F4D743E692BAF240848930C06AAA,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_23"
Begin Object Class=/Script/Engine.MaterialExpressionPower Name="MaterialExpressionPower_0"
End Object
Begin Object Name="MaterialExpressionPower_0"
Base=(Expression=/Script/Engine.MaterialExpressionAdd'"MaterialGraphNode_22.MaterialExpressionAdd_2"')
MaterialExpressionEditorX=-320
MaterialExpressionEditorY=224
MaterialExpressionGuid=D2A4082E4B4711C63CCCD485816B2E3D
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionPower'"MaterialExpressionPower_0"'
NodePosX=-320
NodePosY=224
NodeGuid=A1C229F1495180BE46F9BF8E922DAE49
CustomProperties Pin (PinId=3578F4D743E692BAF240848930C06AAA,PinName="Base",PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_22 1B7526584A0B2BDD63E208844A7EEAA3,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=F0C666FF4719A7CDE302708515A6E6B0,PinName="Exp",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="2.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C545E4764A85C7840919B4B292206355,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_24 A64E27B5427FD855AD2E7B86BBF1FDBD,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_24"
Begin Object Class=/Script/Engine.MaterialExpressionOneMinus Name="MaterialExpressionOneMinus_0"
End Object
Begin Object Name="MaterialExpressionOneMinus_0"
Input=(Expression=/Script/Engine.MaterialExpressionPower'"MaterialGraphNode_23.MaterialExpressionPower_0"')
MaterialExpressionEditorX=-176
MaterialExpressionEditorY=224
MaterialExpressionGuid=521CE80149AF75D5A4EAFCACA5CBAA38
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
bCollapsed=False
End Object
MaterialExpression=/Script/Engine.MaterialExpressionOneMinus'"MaterialExpressionOneMinus_0"'
NodePosX=-176
NodePosY=224
NodeGuid=A542886F4BEE45EA038E0DAD7B7C1FEB
CustomProperties Pin (PinId=A64E27B5427FD855AD2E7B86BBF1FDBD,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_23 C545E4764A85C7840919B4B292206355,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=3D1AEC28403CF10C840215892D2190A0,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_Root_3 C3DE7CD949AB4EABD3F747BA6457EAE9,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_13"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_4"
End Object
Begin Object Name="MaterialExpressionMultiply_4"
A=(Expression=/Script/Engine.MaterialExpressionMultiply'"MaterialGraphNode_29.MaterialExpressionMultiply_1"')
ConstB=-1.000000
MaterialExpressionEditorX=-1200
MaterialExpressionEditorY=528
MaterialExpressionGuid=C83255B24FD7E63E5D870FB175834F52
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionMultiply'"MaterialExpressionMultiply_4"'
NodePosX=-1200
NodePosY=528
NodeGuid=6F9755B743E87B063D728CB574231888
CustomProperties Pin (PinId=0BA3F17042DB14A6058F028ADBC5BBA4,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_29 241F0E2146D98F91D1CDF4B0EC5AC873,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C9224228493661C61C7ED7899340300F,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="-1.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=241F0E2146D98F91D1CDF4B0EC5AC873,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_14 13268B9443D043599D38BB94CDB58E9A,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_25"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_6"
End Object
Begin Object Name="MaterialExpressionMultiply_6"
A=(Expression=/Script/Engine.MaterialExpressionDivide'"MaterialGraphNode_16.MaterialExpressionDivide_0"')
B=(Expression=/Script/Engine.MaterialExpressionMultiply'"MaterialGraphNode_34.MaterialExpressionMultiply_7"')
MaterialExpressionEditorX=-1344
MaterialExpressionEditorY=16
MaterialExpressionGuid=C83255B24FD7E63E5D870FB175834F52
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionMultiply'"MaterialExpressionMultiply_6"'
NodePosX=-1344
NodePosY=16
NodeGuid=3F061BDC4C2718FA8B380E9456DCBD30
CustomProperties Pin (PinId=0BA3F17042DB14A6058F028ADBC5BBA4,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_16 0B7EB41F497652E46BF76A885E869CAE,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=C9224228493661C61C7ED7899340300F,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_34 686EB30F47147C8179C115963A96D2BE,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=241F0E2146D98F91D1CDF4B0EC5AC873,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_17 0BA3F17042DB14A6058F028ADBC5BBA4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_19"
Begin Object Class=/Script/Engine.MaterialExpressionScalarParameter Name="MaterialExpressionScalarParameter_5"
End Object
Begin Object Name="MaterialExpressionScalarParameter_5"
DefaultValue=0.700000
ParameterName="Ratio"
ExpressionGUID=9C42115241536C9791CF91BE4DCEB4DB
MaterialExpressionEditorX=-1854
MaterialExpressionEditorY=226
MaterialExpressionGuid=B10D59FE4207F150F1F45AA4526A0085
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionScalarParameter'"MaterialExpressionScalarParameter_5"'
NodePosX=-1854
NodePosY=226
bCanRenameNode=True
NodeGuid=186C74354E3E555632955B9A58BCF57C
CustomProperties Pin (PinId=3A8C0FEC4A02B056D7E32DB31DBAB0BA,PinName="默认值",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.7",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=DC0A657F43F3A21FD403F88DAE291BC4,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_34 9D01EA244D928E62C9A4C08B4F33A203,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_31"
Begin Object Class=/Script/Engine.MaterialExpressionTime Name="MaterialExpressionTime_1"
End Object
Begin Object Name="MaterialExpressionTime_1"
MaterialExpressionEditorX=-2014
MaterialExpressionEditorY=305
MaterialExpressionGuid=F5C8684C4C66E1BF080FF48027561A9A
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionTime'"MaterialExpressionTime_1"'
NodePosX=-2014
NodePosY=305
NodeGuid=6A6AE04E431611A81592BE9D14CB4009
CustomProperties Pin (PinId=14A470534683D152F5F1069A77517277,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_32 BFE3F2024DDB9476EC3A67A174B23865,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_32"
Begin Object Class=/Script/Engine.MaterialExpressionSine Name="MaterialExpressionSine_1"
End Object
Begin Object Name="MaterialExpressionSine_1"
Input=(Expression=/Script/Engine.MaterialExpressionTime'"MaterialGraphNode_31.MaterialExpressionTime_1"')
MaterialExpressionEditorX=-1902
MaterialExpressionEditorY=321
MaterialExpressionGuid=2A801EAC4063F19BCC1570A8564619AD
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionSine'"MaterialExpressionSine_1"'
NodePosX=-1902
NodePosY=321
AdvancedPinDisplay=Hidden
NodeGuid=4179AD104551039CF6EB78A5E32AF31E
CustomProperties Pin (PinId=BFE3F2024DDB9476EC3A67A174B23865,PinName="Input",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),PinType.PinCategory="required",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_31 14A470534683D152F5F1069A77517277,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=65AB45484132ADD5196D42AC46E87658,PinName="周期",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=True,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=True,bOrphanedPin=False,)
CustomProperties Pin (PinId=C37E0BC345785D10F15DB4A195B04744,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_33 82F03C5041E7BE95214633BFC78C9E45,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_33"
Begin Object Class=/Script/Engine.MaterialExpressionAdd Name="MaterialExpressionAdd_3"
End Object
Begin Object Name="MaterialExpressionAdd_3"
A=(Expression=/Script/Engine.MaterialExpressionSine'"MaterialGraphNode_32.MaterialExpressionSine_1"')
ConstB=2.000000
MaterialExpressionEditorX=-1806
MaterialExpressionEditorY=321
MaterialExpressionGuid=B267A8F040BAAA0EFD5F359EF7EB8DAC
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionAdd'"MaterialExpressionAdd_3"'
NodePosX=-1806
NodePosY=321
NodeGuid=0E9B995640699A34CAAB62BAF8EF4F44
CustomProperties Pin (PinId=82F03C5041E7BE95214633BFC78C9E45,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_32 C37E0BC345785D10F15DB4A195B04744,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=01D8D21F4AC8591A1EBD67A231C10698,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="2.0",PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=9A58D042498BA58B01537EA4780B3403,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_34 CED828784A101E85E40D4994E157CCB4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode Name="MaterialGraphNode_34"
Begin Object Class=/Script/Engine.MaterialExpressionMultiply Name="MaterialExpressionMultiply_7"
End Object
Begin Object Name="MaterialExpressionMultiply_7"
A=(Expression=/Script/Engine.MaterialExpressionScalarParameter'"MaterialGraphNode_19.MaterialExpressionScalarParameter_5"')
B=(Expression=/Script/Engine.MaterialExpressionAdd'"MaterialGraphNode_33.MaterialExpressionAdd_3"')
MaterialExpressionEditorX=-1662
MaterialExpressionEditorY=290
MaterialExpressionGuid=81725B874BDB8F6A783B05A9E77A7C6C
Material=/Script/UnrealEd.PreviewMaterial'"/Engine/Transient.M_GlowingBorder"'
End Object
MaterialExpression=/Script/Engine.MaterialExpressionMultiply'"MaterialExpressionMultiply_7"'
NodePosX=-1662
NodePosY=290
NodeGuid=4DF52B3A4FEF8CFE8B0D31B59435D5EF
CustomProperties Pin (PinId=9D01EA244D928E62C9A4C08B4F33A203,PinName="A",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="0.0",LinkedTo=(MaterialGraphNode_19 DC0A657F43F3A21FD403F88DAE291BC4,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=CED828784A101E85E40D4994E157CCB4,PinName="B",PinType.PinCategory="optional",PinType.PinSubCategory="red",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,DefaultValue="1.0",LinkedTo=(MaterialGraphNode_33 9A58D042498BA58B01537EA4780B3403,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
CustomProperties Pin (PinId=686EB30F47147C8179C115963A96D2BE,PinName="Output",PinFriendlyName=NSLOCTEXT("MaterialGraphNode", "Space", " "),Direction="EGPD_Output",PinType.PinCategory="",PinType.PinSubCategory="",PinType.PinSubCategoryObject=None,PinType.PinSubCategoryMemberReference=(),PinType.PinValueType=(),PinType.ContainerType=None,PinType.bIsReference=False,PinType.bIsConst=False,PinType.bIsWeakPointer=False,PinType.bIsUObjectWrapper=False,PinType.bSerializeAsSinglePrecisionFloat=False,LinkedTo=(MaterialGraphNode_25 C9224228493661C61C7ED7899340300F,MaterialGraphNode_29 C9224228493661C61C7ED7899340300F,),PersistentGuid=00000000000000000000000000000000,bHidden=False,bNotConnectable=False,bDefaultValueIsReadOnly=False,bDefaultValueIsIgnored=False,bAdvancedView=False,bOrphanedPin=False,)
End Object
Begin Object Class=/Script/UnrealEd.MaterialGraphNode_Comment Name="MaterialGraphNode_Comment_0"
Begin Object Class=/Script/Engine.MaterialExpressionComment Name="MaterialExpressionComment_0"
End Object
Begin Object Name="MaterialExpressionComment_0"
SizeX=480
SizeY=288
Text="边框厚度"
MaterialExpressionEditorX=-2032
MaterialExpressionEditorY=176
MaterialExpressionGuid=DB8C34AA4972E8CC144156B1FF2C8555
End Object
MaterialExpressionComment=/Script/Engine.MaterialExpressionComment'"MaterialExpressionComment_0"'
NodePosX=-2032
NodePosY=176
NodeWidth=480
NodeHeight=288
NodeComment="边框厚度"
NodeGuid=9012FB6942445DCF964AF793314B0B7A
End Object参考：
