openharmony（rk3568）移植ethtool

我们已经完成了openharmony（ohos_lite）移植ethtool，参考

openharmony（ohos_lite）移植ethtool

接下来我们只需要在这个基础上改造适配 rk3568即可。

1、产品引用：把子系统及其组件加入产品定义中，rk3568产品定义文件为

vendor/hihope/rk3568/config.json 添加 ethtool

2、修改libmnl 的BUILD.gn 文件

config("common_config") {
  cflags = [
    "-Wall","-Wextra","-Werror","-g","-O2","-DHAVE_CONFIG_H","-fvisibility=hidden", "-Wno-unused-parameter"
  ]
  cflags_c = []
  ldflags=[]
  libs = [] # 定义链接库
}

common_include_dirs=
[
".",
"include/."
]


libmnl_SRC =  [
"src/attr.c","src/callback.c","src/nlmsg.c","src/socket.c"
]

if (defined(ohos_lite))
{
  # 定义可执行文件目标
  shared_library("libmnl_shared") {
    sources = libmnl_SRC  # 根据实际情况替换为正确的源文件路径
    include_dirs = common_include_dirs

    configs = []
    configs += [ ":common_config" ]
  }
}
else
{
  import("//build/ohos.gni")  # 导入编译模板

  # 定义可执行文件目标
  ohos_shared_library("libmnl_shared"){
    sources = libmnl_SRC  # 根据实际情况替换为正确的源文件路径
    include_dirs = common_include_dirs
    configs = [ ":common_config" ]

    part_name = "libmnl"
    install_enable = true  # 是否默认安装（缺省默认不安装），可选
    install_images = [ "system" ]
    subsystem_name = "thirdparty"
  }
}

3、修改ethtool 的BUILD.gn文件

#import("//build/lite/config/component/lite_component.gni")  # 导入编译模板

config("common_config") {
  cflags = [
    "-Wall","-Wextra","-D_POSIX_C_SOURCE=200809L","-g","-O2","-DHAVE_CONFIG_H","-Werror"
  ]
  cflags_c = []
  ldflags=[]
  libs = [] # 定义链接库
}

common_include_dirs=
[
".",
"//third_party/ethtool/uapi",
"//third_party/libmnl/include"
]

ethtool_SRC = ["ethtool.c", "rxclass.c", "common.c", "json_writer.c", "json_print.c", "amd8111e.c", "de2104x.c", "dsa.c", "e100.c", "e1000.c", "et131x.c", "igb.c", "fec.c", "fec_8xx.c", "fsl_enetc.c", "ibm_emac.c", "ixgb.c", "ixgbe.c", "natsemi.c", "pcnet32.c", "realtek.c", "tg3.c", "marvell.c", "vioc.c", "smsc911x.c", "at76c50x-usb.c", "sfc.c", "stmmac.c", "sff-common.c", "module-common.c", "sfpid.c", "sfpdiag.c", "ixgbevf.c", "tse.c", "vmxnet3.c", "qsfp.c", "fjes.c", "lan78xx.c", "igc.c", "cmis.c", "bnxt.c", "cpsw.c", "lan743x.c", "hns3.c"]

netlink_SRC = ["netlink/netlink.c", "netlink/msgbuff.c", "netlink/nlsock.c", "netlink/strset.c", "netlink/monitor.c", "netlink/bitset.c", "netlink/settings.c", "netlink/parser.c", "netlink/permaddr.c", "netlink/prettymsg.c", "netlink/features.c", "netlink/privflags.c", "netlink/rings.c", "netlink/channels.c", "netlink/coalesce.c", "netlink/pause.c", "netlink/eee.c", "netlink/tsinfo.c", "netlink/fec.c", "netlink/stats.c", "netlink/mm.c", "netlink/desc-ethtool.c", "netlink/desc-genlctrl.c", "netlink/module-eeprom.c", "netlink/module.c", "netlink/rss.c", "netlink/desc-rtnl.c", "netlink/cable_test.c", "netlink/tunnels.c", "netlink/plca.c", "netlink/pse-pd.c", "netlink/phy.c", "netlink/tsconfig.c"]

ethtool_SRC += netlink_SRC

common_deps = ["//third_party/libmnl:libmnl_shared"] #通过分析Makefile补充

if (defined(ohos_lite))
{
  # 定义可执行文件目标
  executable("ethtool") {
    sources = ethtool_SRC  # 根据实际情况替换为正确的源文件路径
    include_dirs = common_include_dirs
    deps = common_deps
    configs = []
    configs += [ ":common_config" ]
  }
}
else
{
  import("//build/ohos.gni")  # 导入编译模板

  # 定义可执行文件目标
  ohos_executable("ethtool") {
    sources = ethtool_SRC  # 根据实际情况替换为正确的源文件路径
    include_dirs = common_include_dirs
    deps = common_deps
    configs = [ ":common_config" ]

    part_name = "ethtool"
    install_enable = true  # 是否默认安装（缺省默认不安装），可选
    install_images = [ "system" ]
    subsystem_name = "thirdparty"

  }
}

4、编译 hb set 设置 standard --> rk3568

hb build --ccache -T ethtool

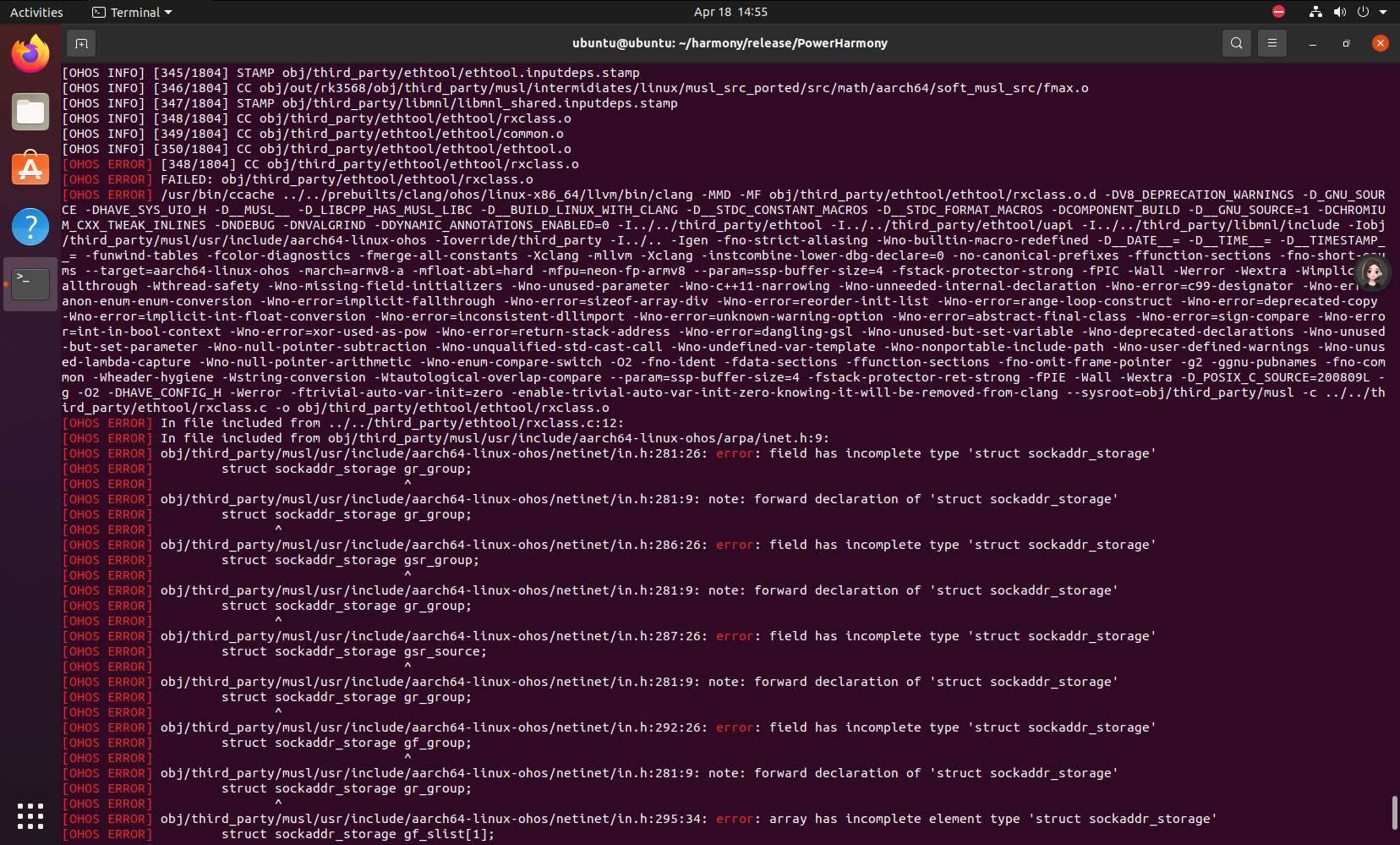

报错

解决方法

这里比较奇怪，不知道为什么会报这个错误

通过查看发现 libmnl/include/linux 下有个 socket.h ，在ethtool/uapi/linux 也有 个socket.h，这个头文件不知道是不是 跟 系统的头文件冲突了，我这里的解决方法是 删除这两个头文件

mv ethtool/uapi/linux/socket.h  ethtool/uapi/linux/socket.h.in
mv libmnl/include/linux/socket.h libmnl/include/linux/socket.h.in

重新编译

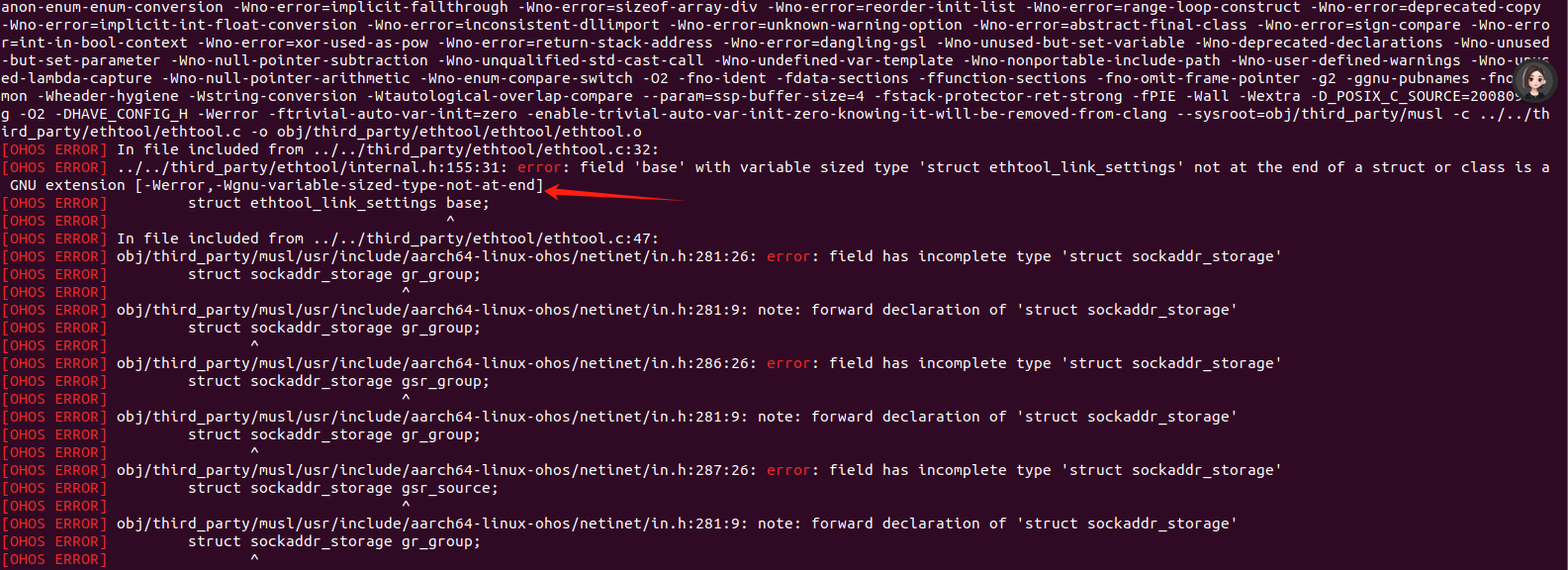

报错

解决办法

编译选项中增加 "-Wno-gnu-variable-sized-type-not-at-end","-Wno-unused-but-set-variable"

重新编译

这里看到编译通过了。

到此 openharmony（rk3568）移植ethtool 完成了
