aws(学习笔记第四十课) image-content-search

  • 使用SQS + Lambda集成
  • 数据库(Aurora Serverless
  • Cognito(用户管理)
  • rekognition(图像解析)

学习内容:

  • 使用SQS + Lambda+ Aurora Serverless + Cognito + rekognition

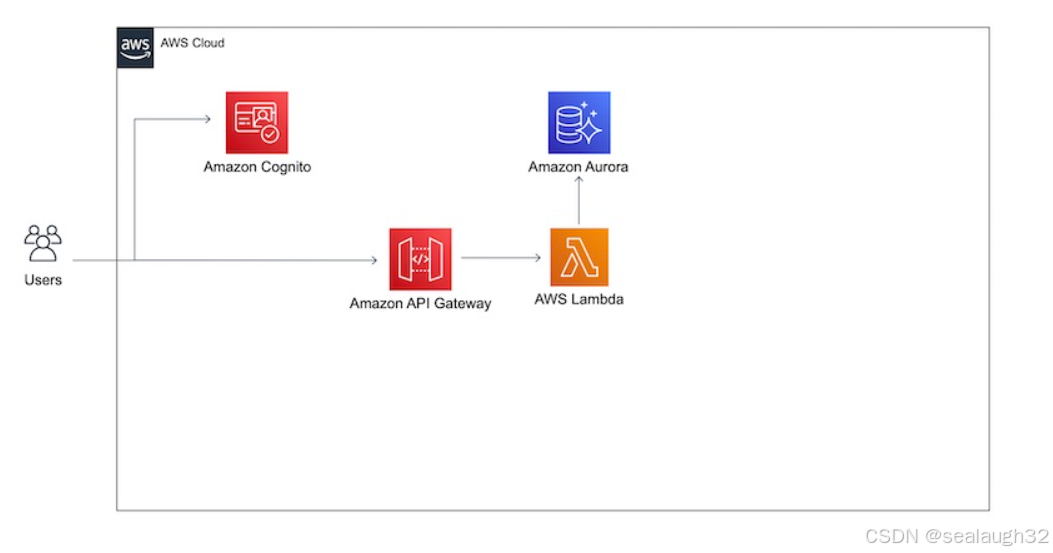

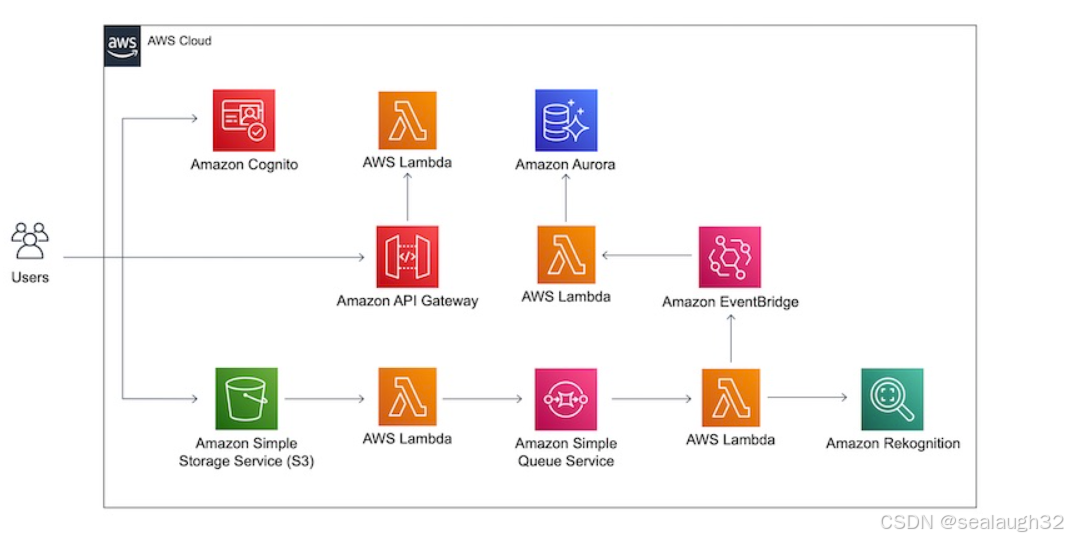

1. 整体架构

1.1 代码链接

1.2 关键架构流程

  • 用户上传图像 → S3触发Lambda → 图像分析 → 结果存入数据库
  • 前端通过API Gateway查询数据库(需Cognito认证)
  • 事件总线协调异步任务(如分析完成后触发存储操作)。

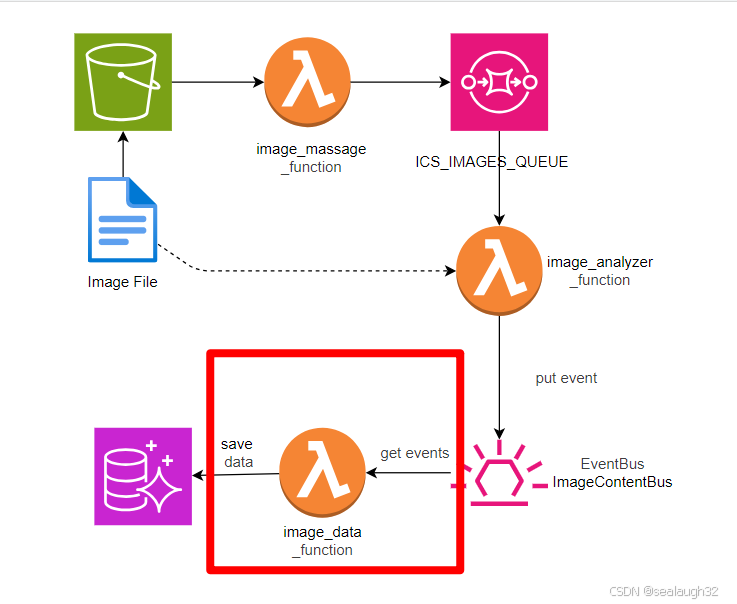

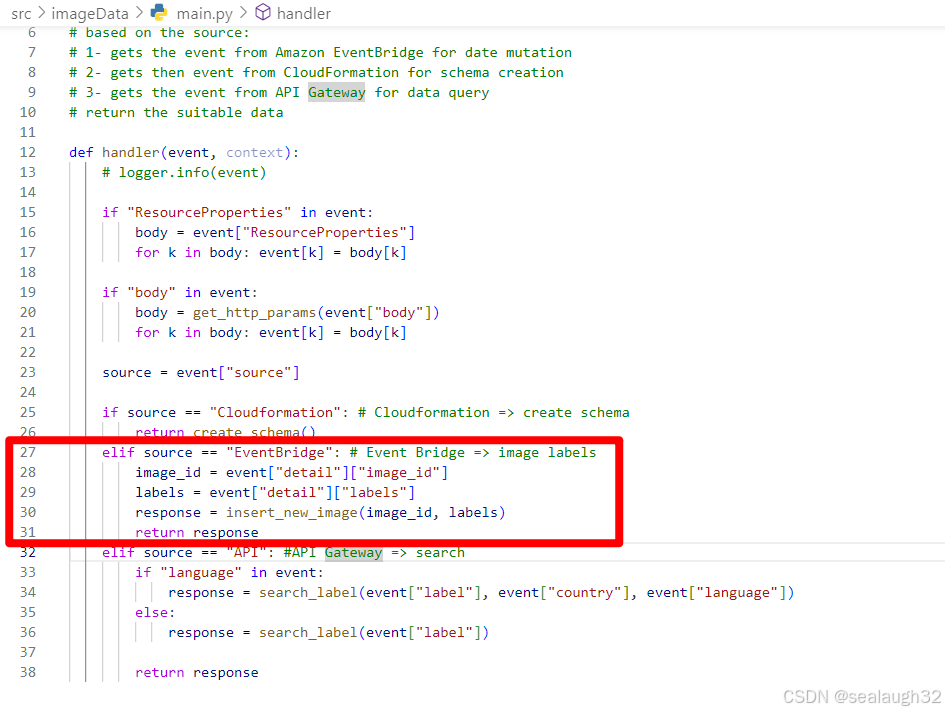

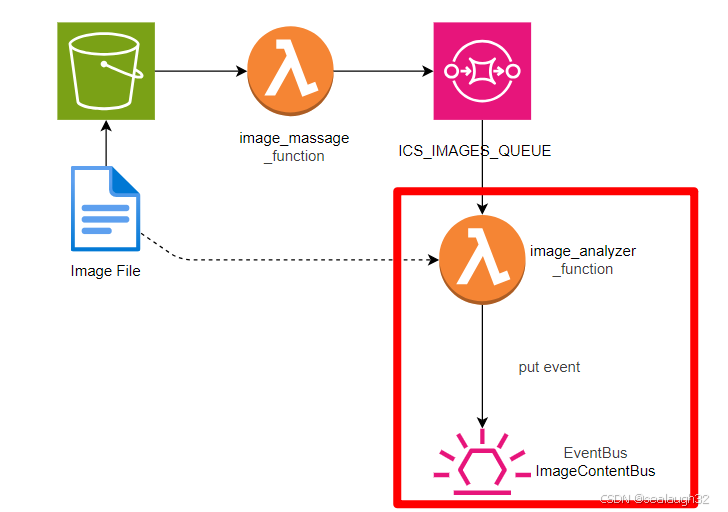

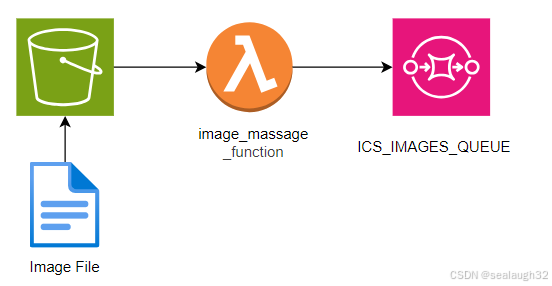

1.3 upload图像文件的动作

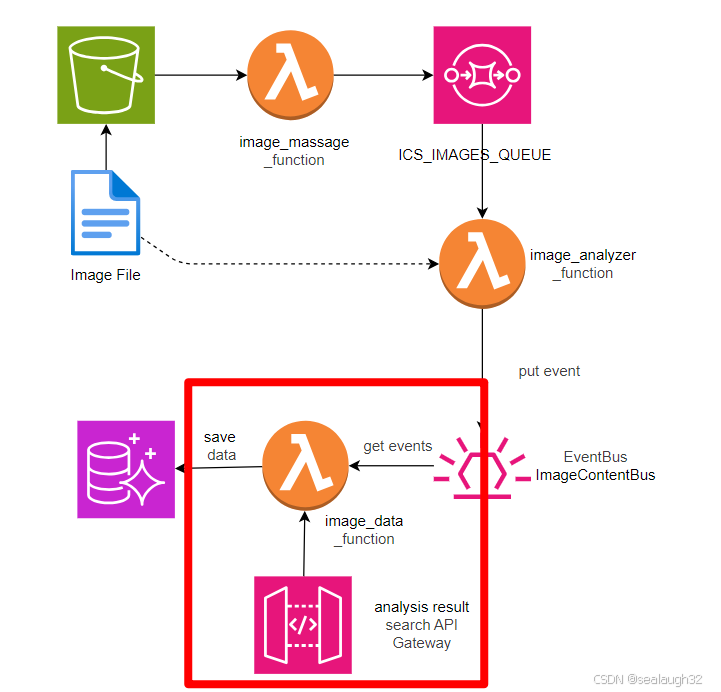

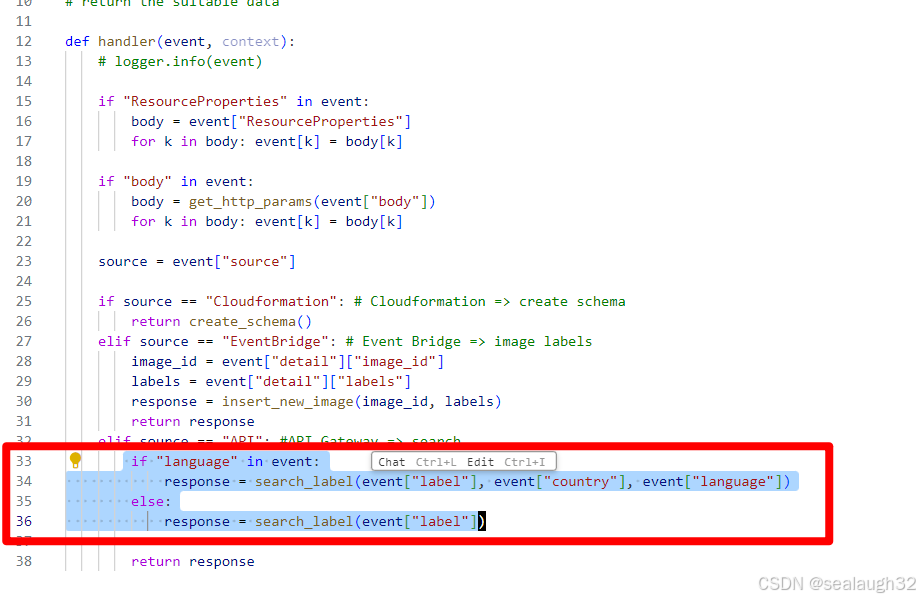

1.4 search图像文件的动作

2. 代码解析

2.1 yml文件配置详细设定

2.1.1 yml文件

这里配置了EnvironmentAuthorRegion等配置,比起写入cdk.pypython代码中,这里将配置数据写入yml文件中会更加清晰。

yaml 复制代码
Environment: Development
Author: Mohsen
Region: eu-central-1
ProjectName: ImageContentSearch

DeadLetterQueue:
    MaxReceiveCount: 3

Cognito:
    SelfSignUp: True
    DomainPrefix: image-content-search
    AllowedOAuthScopes:
        - phone
        - email
        - openid
        - profile

Database:
    Name: images_labels
    DeletionProtection: False
    Scaling:
        AutoPause: True
        Min: 2
        Max: 8
        SecondsToAutoPause: 1800

Functions:
    DefaultSignedUrlExpirySeconds: "3600"
    DefaultMaxApiCallAttempts: "5"
2.1.2 yml文件文件解析
python 复制代码
 with open("stack/config.yml", 'r') as stream:
            configs = yaml.safe_load(stream)

 # for example, use configs in image_data_function
 image_data_function = Function(self, "ICS_IMAGE_DATA",
            function_name="ICS_IMAGE_DATA",
            runtime=Runtime.PYTHON_3_7,
            timeout=Duration.seconds(5),
            role=image_data_function_role,
            environment={
                "DEFAULT_MAX_CALL_ATTEMPTS": configs["Functions"]["DefaultMaxApiCallAttempts"],
                "CLUSTER_ARN": database_cluster_arn,
                "CREDENTIALS_ARN": database_secret.secret_arn,
                "DB_NAME": database.database_name,
                "REGION": Aws.REGION
                },
            handler="main.handler",
            code=Code.from_asset("./src/imageData")
        )

2.2 创建s3 bucket

python 复制代码
        ### S3 core
        images_S3_bucket = _s3.Bucket(self, "ICS_IMAGES")

        images_S3_bucket.add_cors_rule(
            allowed_methods=[_s3.HttpMethods.POST],
            allowed_origins=["*"] # add API gateway web resource URL
        )

这里,需要从API gatewaydomain进行跨域访问S3 bucketAWSurl,因此需要CORS Cross-Origin Resource Share,是浏览器的一种安全机制,用于控制不同源(协议+域名+端口)之间的资源访问。

在之前的文章中介绍过。spring boot(学习笔记第五课) 自定义错误页,CORS(跨域支持)

2.3 创建API Gateway

python 复制代码
 ### api gateway core
        api_gateway = RestApi(self, 'ICS_API_GATEWAY', rest_api_name='ImageContentSearchApiGateway')
        api_gateway_resource = api_gateway.root.add_resource(configs["ProjectName"])
        api_gateway_landing_page_resource = api_gateway_resource.add_resource('web')
        api_gateway_get_signedurl_resource = api_gateway_resource.add_resource('signedUrl')
        api_gateway_image_search_resource = api_gateway_resource.add_resource('search')
  • api_gateway_resource作为父resouce
  • api_gateway_landing_page_resource作为子resource,作为文件上传的表示页面。
  • api_gateway_landing_page_resource作为子resource,作为文件上传S3 bucket的请求url
  • api_gateway_image_search_resource作为子resource,作为文件分析结果的页面。

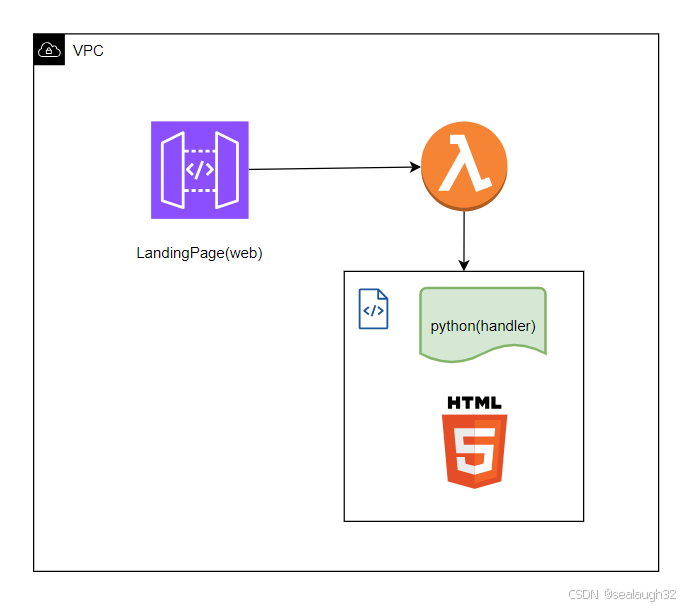

2.4 创建文件上传的表示页面

2.4.1 创建文件上传的api_gateway_resourcelambda函数
python 复制代码
 ### landing page function
        get_landing_page_function = Function(self, "ICS_GET_LANDING_PAGE",
            function_name="ICS_GET_LANDING_PAGE",
            runtime=Runtime.PYTHON_3_7,
            handler="main.handler",
            code=Code.from_asset("./src/landingPage"))
2.4.2 配置文件上传的LambdaIntegration
python 复制代码
get_landing_page_integration = LambdaIntegration(
            get_landing_page_function,
            proxy=True,
            integration_responses=[IntegrationResponse(
                status_code='200',
                response_parameters={
                    'method.response.header.Access-Control-Allow-Origin': "'*'"
                }
            )])

注意,这里配置method.response.header.Access-Control-Allow-Origin以便允许其他domain过来的跨域的访问。但是,如果是生产环境,需要将*换成特定的domain

2.4.3 配置文件上传的API Gateway Method
python 复制代码
        api_gateway_landing_page_resource.add_method('GET', get_landing_page_integration,
            method_responses=[MethodResponse(
                status_code='200',
                response_parameters={
                    'method.response.header.Access-Control-Allow-Origin': True
                }
            )])
2.4.4 配置文件上传的页面代码
2.4.4.1 pythonlambda handler

\src\landingPage\main.py

python 复制代码
# this function
# gets the simple html page
# updates the login page and logout page address
# returns the content

def handler(event, context):
    login_page = event["headers"]["Referer"]

    return {
        'statusCode': 200,
        'headers': {
            'Content-Type': 'text/html'
        },
        'body': file_get_contents("index.html").replace('###loginPage###', login_page)
    }

def file_get_contents(filename):
    with open(filename) as f:
        return f.read()

这里,直接将html的文件打开,进行返回

2.4.4.2 html的页面代码

\src\landingPage\index.html

html 复制代码
<html>

<head>
  <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <style>
    body{font-family:Arial}.tab{overflow:hidden;border:1px solid #ccc;background-color:#f1f1f1}.tab button{background-color:inherit;float:left;border:none;outline:0;cursor:pointer;padding:14px 16px;transition:.3s;font-size:17px}.tab button:hover{background-color:#ddd}.tab button.active{background-color:#ccc}.tabcontent{display:none;padding:6px 12px;-webkit-animation:fadeEffect 1s;animation:fadeEffect 1s}@-webkit-keyframes fadeEffect{from{opacity:0}to{opacity:1}}@keyframes fadeEffect{from{opacity:0}to{opacity:1}}
    input[type=text],select{width:30%;padding:12px 20px;margin:8px 0;display:inline-block;border:1px solid #ccc;border-radius:4px;box-sizing:border-box}.submit[type=submit]{width:20%;background-color:#4caf50;color:#fff;padding:14px 20px;margin:8px 0;border:none;border-radius:4px;cursor:pointer}input[type=submit]:hover{background-color:#45a049}.div{border-radius:5px;background-color:#f2f2f2;padding:20px}
    table{border-collapse:collapse;table-layout: fixed;width:100%}td,th{text-align:left;padding:8px;word-wrap:break-word;}tr:nth-child(even){background-color:#f2f2f2}
  </style>
  <script src="https://code.jquery.com/jquery-3.6.4.min.js"></script>
  <script>
    var authData = window.location.hash.substring(1);
    var idToken = authData.split('&').find((rec) => rec.split('=')[0] == 'id_token').split('=')[1]
    var getSignedUrlEndpoint = window.location.href.split('#')[0].replace('web', 'signedUrl')
    var searchImageEndpoint = window.location.href.split('#')[0].replace('web', 'search')
    var loginPage = '###loginPage###';
    var logoutPage = loginPage.replace('login', 'logout');

    function logout() {
      window.location.replace(logoutPage);
    }

    function getSignedUrl() {
      $.ajax({
          url: getSignedUrlEndpoint,
          headers: { 'Authorization': idToken },
          type: "GET",
          contentType: 'application/json; charset=utf-8',
          success: function (result) {
            console.log(result);
            $("#upload_image_form").attr('action', result.url);
            $('input[name="key"]').val(result.fields.key);
            $('input[name="X-Amz-Credential"]').val(result.fields['x-amz-credential']);
            $('input[name="X-Amz-Algorithm"]').val(result.fields['x-amz-algorithm']);
            $('input[name="X-Amz-Date"]').val(result.fields['x-amz-date']);
            $('input[name="x-amz-security-token"]').val(result.fields['x-amz-security-token']);
            $('input[name="Policy"]').val(result.fields.policy);
            $('input[name="X-Amz-Signature"]').val(result.fields['x-amz-signature']);
          },
          error: function (error) {
            console.log(error);
            if (error.status == 401) {logout();}
          }
        });
    }

    function listImagesByLabel(outputTab, label, language, country) {
      console.log('Finding images with label: ' + label);

      var formData = language ? {label, language, country} : {label}

      $.ajax({
        url: searchImageEndpoint,
        headers: { 'Authorization': idToken },
        type: "POST",
        data: {...formData, 'source': 'API'},
        contentType: 'application/json; charset=utf-8',
        success: function (results) {
          console.log(results);
          $(outputTab + " tr").remove();
          $(outputTab + " th").remove();
          if (results) {
            $(outputTab).append( '<tr><th>Image ID</th></tr>' );
            results.forEach(item => {
              $(outputTab).append( '<tr><td>' + item.id + '</th></tr>' );
            });
          }
        },
        error: function (error) {
          console.log(error.responseText, error.status);
          if (error.status == 401) {logout();}
        }
      });

    }

    $(document).ready(function () {
      if (window.location.hash) {
        // getSignedUrl();
      } else {
        console.log('Authorization information from cognito is not found!');
      }
    });

    function submitSearchQuery() {
      event.preventDefault();
      var language = $('#language').val();
      var country = $('#country').val();
      var label = $('input[name=label]').val();

      listImagesByLabel('#search_image_result', label, language, country);
    }

    function openTab(evt, tabName) {
      $("#upload_result").text('');
      $("#upload_result").css("color", "black");
      $("#file_select").val('');

      if (tabName == 'upload') {
        getSignedUrl();
      }

      if (tabName == 'report') {
        listImagesByLabel('#report_image_result', 'offensive');
      }

      var i, tabcontent, tablinks;
      tabcontent = document.getElementsByClassName("tabcontent");
      for (i = 0; i < tabcontent.length; i++) {
        tabcontent[i].style.display = "none";
      }
      tablinks = document.getElementsByClassName("tablinks");
      for (i = 0; i < tablinks.length; i++) {
        tablinks[i].className = tablinks[i].className.replace(" active", "");
      }
      document.getElementById(tabName).style.display = "block";
      evt.currentTarget.className += " active";
    }

    function submitFileUpload() {
      event.preventDefault();

      var formData = new FormData();
      var selectedFile = $('input[name="file"]')[0]

      $('#upload_image_form *').filter(':input').filter(":hidden").each(function(k, v){
        formData.append(v.name, v.defaultValue);
      });

      formData.append("file", selectedFile.files[0]);

      $.ajax({
          url: $("#upload_image_form").attr('action'),
          type: 'POST',
          data: formData,
          success: function (data) {
            $("#upload_result").text('The file has been successfully uploaded!');
            $("#upload_result").css("color", "green");
            getSignedUrl();
          },
          error: function(xhr, textStatus, errorThrown){
            $("#upload_result").text('The file upload failed!');
            $("#upload_result").css("color", "red");
            console.log(textStatus);
            console.log(errorThrown);
          },
          cache: false,
          contentType: false,
          processData: false
      });

    };

  </script>
</head>

<body>

  <div style="width: 50%; margin-left: 25%;">

    <div class="tab" style="margin-top: 10px;">
      <button class="tablinks" onclick="openTab(event, 'upload')" id="default_tab">Upload</button>
      <button class="tablinks" onclick="openTab(event, 'search')">Search</button>
      <button class="tablinks" onclick="openTab(event, 'report')">Report</button>
      <button class="tablinks" onclick="logout()" style="float: right;">Logout</button>
    </div>

    <div id="upload" class="tabcontent">
      <h3>Upload Image</h3>
      <p>Select image to upload:</p>
      <form id="upload_image_form" method="post" enctype="multipart/form-data">
        <input type="hidden" name="key"/><br />
        <input type="hidden" name="X-Amz-Credential"/>
        <input type="hidden" name="X-Amz-Algorithm"/>
        <input type="hidden" name="X-Amz-Date"/>
        <input type="hidden" name="x-amz-security-token"/>
        <input type="hidden" name="Policy"/>
        <input type="hidden" name="X-Amz-Signature"/>
        <input type="file" id="file_select" name="file"/> <br />
        <input type="submit" class="submit" value="Upload" onclick="submitFileUpload()"/>
      </form>
      <p id="upload_result"></p>
    </div>

    <div id="search" class="tabcontent">
      <h3>Search Labels</h3>

      <form id="search_image_form" method="post">
        <label >Language:</label>
        <select name="language" id="language">
          <option value="en">English</option>
          <option value="tr">Turkish</option>
          <option value="nl">Dutch</option>
        </select>
        <br />
        <label >Country:</label>
        <select name="country" id="country">
          <option value="nl">Netherlands</option>
        </select>
        <br />

        <label >Label to search:</label>
        <input type="text" name="label"/><br />
        <input class="submit" type="submit" value="Search" onclick="submitSearchQuery()"/>
      </form>

      <table id="search_image_result"></table>
    </div>

    <div id="report" class="tabcontent">
      <h3>Report of offensive photos</h3>
      <table id="report_image_result"></table>
    </div>

  </div>

  <script>
    document.getElementById("default_tab").click();
  </script>

</body>

</html>

2.5 配置cognito安全认证

python 复制代码
 ### cognito
        required_attribute = _cognito.StandardAttribute(required=True)

        users_pool = _cognito.UserPool(self, "ICS_USERS_POOL",
            auto_verify=_cognito.AutoVerifiedAttrs(email=True), #required for self sign-up
            standard_attributes=_cognito.StandardAttributes(email=required_attribute), #required for self sign-up
            self_sign_up_enabled=configs["Cognito"]["SelfSignUp"])

        user_pool_app_client = _cognito.CfnUserPoolClient(self, "ICS_USERS_POOL_APP_CLIENT",
            supported_identity_providers=["COGNITO"],
            allowed_o_auth_flows=["implicit"],
            allowed_o_auth_scopes=configs["Cognito"]["AllowedOAuthScopes"],
            user_pool_id=users_pool.user_pool_id,
            callback_urls=[api_gateway.url_for_path('/web')],
            allowed_o_auth_flows_user_pool_client=True,
            explicit_auth_flows=["ALLOW_REFRESH_TOKEN_AUTH"])

这里表示/web需要认证,并且认证之后url将重定向到/web

2.6 创建signedURLAPI Gateway

2.6.1 创建signedURLAPI Gateway
python 复制代码
        ### get signed URL function
        get_signedurl_function = Function(self, "ICS_GET_SIGNED_URL",
            function_name="ICS_GET_SIGNED_URL",
            environment={
                "ICS_IMAGES_BUCKET": images_S3_bucket.bucket_name,
                "DEFAULT_SIGNEDURL_EXPIRY_SECONDS": configs["Functions"]["DefaultSignedUrlExpirySeconds"]
            },
            runtime=Runtime.PYTHON_3_7,
            handler="main.handler",
            code=Code.from_asset("./src/getSignedUrl"))

        get_signedurl_integration = LambdaIntegration(
            get_signedurl_function,
            proxy=True,
            integration_responses=[IntegrationResponse(
                status_code='200',
                response_parameters={
                   'method.response.header.Access-Control-Allow-Origin': "'*'",
                }
            )])

        api_gateway_get_signedurl_authorizer = CfnAuthorizer(self, "ICS_API_GATEWAY_GET_SIGNED_URL_AUTHORIZER",
            rest_api_id=api_gateway_get_signedurl_resource.api.rest_api_id,
            name="ICS_API_GATEWAY_GET_SIGNED_URL_AUTHORIZER",
            type="COGNITO_USER_POOLS",
            identity_source="method.request.header.Authorization",
            provider_arns=[users_pool.user_pool_arn])

        get_signedurl_method = api_gateway_get_signedurl_resource.add_method('GET', get_signedurl_integration,
            authorization_type=AuthorizationType.COGNITO,
            method_responses=[MethodResponse(
                status_code='200',
                response_parameters={
                    'method.response.header.Access-Control-Allow-Origin': True,
                }
            )])
        signedurl_custom_resource = typing.cast("aws_cloudformation.CfnCustomResource", get_signedurl_method.node.find_child('Resource'))
        signedurl_custom_resource.add_property_override('AuthorizerId', api_gateway_get_signedurl_authorizer.ref)

        images_S3_bucket.grant_put(get_signedurl_function, objects_key_pattern="new/*")
2.6.2 创建signedURLAPI Gateway处理的lambda

这里,从前端传递来的文件被putS3 bucket

python 复制代码
import json
import boto3
import logging
import os
import time
import hashlib

from botocore.exceptions import ClientError
images_bucket = os.environ['ICS_IMAGES_BUCKET']
default_signedurl_expiry_seconds = os.environ['DEFAULT_SIGNEDURL_EXPIRY_SECONDS']

# this function
# creates a pre-sighned URL for uploading image to S3 and returns it

def handler(event, context):
    uniquehash = hashlib.sha1("{}".format(time.time_ns()).encode('utf-8')).hexdigest()
    result = create_presigned_post(images_bucket, "new/{}/{}".format(uniquehash[:2],uniquehash))

    return {
        'statusCode': 200,
        'headers': {
            'Content-Type': 'application/json; charset=UTF-8'
        },
        'body': json.dumps(result)
    }

def create_presigned_post(bucket_name, object_name, fields=None, conditions=None, expiration=default_signedurl_expiry_seconds):
    s3_client = boto3.client('s3')

    try:
        response = s3_client.generate_presigned_post(bucket_name,
            object_name,
            Fields=fields,
            Conditions=conditions,
            ExpiresIn=int(expiration)
        )
    except ClientError as e:
        logging.error(e)
        return None

    return response

2.7 监视S3 bucketlambda

2.7.1 监视架构
2.7.2 创建lmabda
python 复制代码
### image massage function
        image_massage_function = Function(self, "ICS_IMAGE_MASSAGE",
            function_name="ICS_IMAGE_MASSAGE",
            timeout=Duration.seconds(6),
            runtime=Runtime.PYTHON_3_7,
            environment={"ICS_IMAGE_MASSAGE": image_queue.queue_name},
            handler="main.handler",
            code=Code.from_asset("./src/imageMassage"))

        images_S3_bucket.grant_write(image_massage_function, "processed/*")
        images_S3_bucket.grant_delete(image_massage_function, "new/*")
        images_S3_bucket.grant_read(image_massage_function, "new/*")

        new_image_added_notification = _s3notification.LambdaDestination(image_massage_function)

        images_S3_bucket.add_event_notification(_s3.EventType.OBJECT_CREATED,
            new_image_added_notification,
            _s3.NotificationKeyFilter(prefix="new/")
            )

        image_queue.grant_send_messages(image_massage_function)
2.7.2 S3 bucket监视的lmabda代码
python 复制代码
def handler(event, context):
    s3 = boto3.resource('s3')

    for record in event['Records']:
        newKey = record['s3']['object']['key']
        bucket = record['s3']['bucket']['name']
        name = bucket.split("/")[-1]
        localfile = "/tmp/{}".format(name)

        # download the file
        new_key_obj = s3.Object(bucket, newKey)
        new_key_obj.download_file(localfile)

        # calc hash
        image_SHA1 = getSha1(localfile)

        # check if not exist
        processed_key = "processed/{}/{}".format(image_SHA1[:2], image_SHA1)
        key_is_processed = isS3ObjectExist(bucket, processed_key)
        if key_is_processed: continue

        # add to the queue
        message = json.dumps({
            "image": processed_key,
            "original_key": newKey,
            "original_last_modified": new_key_obj.last_modified,
            "etag": new_key_obj.e_tag
        }, default=str)

        queue = sqs.get_queue_by_name(QueueName=queue_name)
        response = queue.send_message(MessageBody=message)
        logger.info("Message {} has been sent.".format(response.get('MessageId')))

        #move the image
        s3.Object(bucket, processed_key).copy_from(CopySource="{}/{}".format(bucket,newKey))
        new_key_obj.delete()

        # delete local file
        os.remove(localfile)

    return True

def isS3ObjectExist(bucket, key):
    s3 = boto3.resource('s3')

    try:
        s3.Object(bucket,key)
        return False
    except botocore.exceptions.ClientError as e:
        if e.response['Error']['Code'] == "404":
            return True
        else:
            raise e

def getSha1(filepath):
    sha1 = hashlib.sha1()

    with open(filepath, 'rb') as f:
        while True:
            data = f.read(65536) # read in 64kb chunks
            if not data: break
            sha1.update(data)

    return sha1.hexdigest()

2.8 创建lambda对图像进行分析

2.8.1 图像分析架构
2.8.1 图像分析lambda函数
python 复制代码
def handler(event, context):

    for record in event['Records']:
        # receiptHandle = record['receiptHandle']
        body = record['body']
        message = json.loads(body)

        bucket = os.environ['ICS_IMAGES_BUCKET']
        key = message['image']
        # original_key = message['original_key']
        # original_last_modified = message['original_last_modified']
        # etag = message['etag']

        logger.info('Processing {}.'.format(key))

        detected_labels = rekognition_client.detect_labels(
            Image={'S3Object': {'Bucket': bucket, 'Name': key}},
            MaxLabels=20,
            MinConfidence=85)

        detected_unsafe_contents = rekognition_client.detect_moderation_labels(
            Image={'S3Object': {'Bucket': bucket, 'Name': key}})

        object_labels = []

        for l in detected_labels['Labels']:
            object_labels.append(l['Name'].lower()) # add objects in image

        for l in detected_unsafe_contents['ModerationLabels']:
            if ('offensive' not in object_labels): object_labels.append("offensive") #label image as offensive
            object_labels.append(l['Name'].lower())

        image_id = key.split("/")[-1]

        response = events_client.put_events(
            Entries=[
                {
                    'Source': "EventBridge",
                    'Resources': [
                        context.invoked_function_arn,
                    ],
                    'DetailType': 'images_labels',
                    'Detail': json.dumps({"labels": object_labels, "image_id": image_id}),
                    'EventBusName': event_bus_name
                },
            ]
        )

        if response["FailedEntryCount"] == 1:
            raise Exception(f'Failed entry observed. Count: {response["Entries"]}')

2.9 创建图像分析数据保存的数据库

2.9.1 创建数据库的密码
python 复制代码
### database
        database_secret = _secrets_manager.Secret(self, "ICS_DATABASE_SECRET",
            secret_name="rds-db-credentials/image-content-search-rds-secret",
            generate_secret_string=_secrets_manager.SecretStringGenerator(
                generate_string_key='password',
                secret_string_template='{"username": "dba"}',
                exclude_punctuation=True,
                exclude_characters='/@\" \\\'',
                require_each_included_type=True
            )
        )
2.9.2 创建数据库
python 复制代码
database = _rds.CfnDBCluster(self, "ICS_DATABASE",
            engine=_rds.DatabaseClusterEngine.aurora_mysql(version=_rds.AuroraMysqlEngineVersion.VER_5_7_12).engine_type,
            engine_mode="serverless",
            database_name=configs["Database"]["Name"],
            enable_http_endpoint=True,
            deletion_protection=configs["Database"]["DeletionProtection"],
            master_username=database_secret.secret_value_from_json("username").to_string(),
            master_user_password=database_secret.secret_value_from_json("password").to_string(),
            scaling_configuration=_rds.CfnDBCluster.ScalingConfigurationProperty(
                auto_pause=configs["Database"]["Scaling"]["AutoPause"],
                min_capacity=configs["Database"]["Scaling"]["Min"],
                max_capacity=configs["Database"]["Scaling"]["Max"],
                seconds_until_auto_pause=configs["Database"]["Scaling"]["SecondsToAutoPause"]
            ),
        )
2.9.3 将数据库密码和数据库绑定attachment
python 复制代码
        database_cluster_arn = "arn:aws:rds:{}:{}:cluster:{}".format(Aws.REGION, Aws.ACCOUNT_ID, database.ref)

        secret_target = _secrets_manager.CfnSecretTargetAttachment(self,"ICS_DATABASE_SECRET_TARGET",
            target_type="AWS::RDS::DBCluster",
            target_id=database.ref,
            secret_id=database_secret.secret_arn
        )

        secret_target.node.add_dependency(database)

2.10 创建数据库的lambda function

2.10.1 创建数据库访问role
python 复制代码
        ### database function
        image_data_function_role = _iam.Role(self, "ICS_IMAGE_DATA_FUNCTION_ROLE",
            role_name="ICS_IMAGE_DATA_FUNCTION_ROLE",
            assumed_by=_iam.ServicePrincipal("lambda.amazonaws.com"),
            managed_policies=[
                _iam.ManagedPolicy.from_aws_managed_policy_name("service-role/AWSLambdaVPCAccessExecutionRole"),
                _iam.ManagedPolicy.from_aws_managed_policy_name("service-role/AWSLambdaBasicExecutionRole"),
                _iam.ManagedPolicy.from_aws_managed_policy_name("AmazonRDSDataFullAccess")
            ]
        )
2.10.2 创建image_data_function
python 复制代码
       image_data_function = Function(self, "ICS_IMAGE_DATA",
            function_name="ICS_IMAGE_DATA",
            runtime=Runtime.PYTHON_3_7,
            timeout=Duration.seconds(5),
            role=image_data_function_role,
            environment={
                "DEFAULT_MAX_CALL_ATTEMPTS": configs["Functions"]["DefaultMaxApiCallAttempts"],
                "CLUSTER_ARN": database_cluster_arn,
                "CREDENTIALS_ARN": database_secret.secret_arn,
                "DB_NAME": database.database_name,
                "REGION": Aws.REGION
                },
            handler="main.handler",
            code=Code.from_asset("./src/imageData")
        )
python 复制代码
        image_search_integration = LambdaIntegration(
            image_data_function,
            proxy=True,
            integration_responses=[IntegrationResponse(
                status_code='200',
                response_parameters={
                   'method.response.header.Access-Control-Allow-Origin': "'*'",
                }
            )])

        api_gateway_image_search_authorizer = CfnAuthorizer(self, "ICS_API_GATEWAY_IMAGE_SEARCH_AUTHORIZER",
            rest_api_id=api_gateway_image_search_resource.api.rest_api_id,
            name="ICS_API_GATEWAY_IMAGE_SEARCH_AUTHORIZER",
            type="COGNITO_USER_POOLS",
            identity_source="method.request.header.Authorization",
            provider_arns=[users_pool.user_pool_arn])

        search_integration_method = api_gateway_image_search_resource.add_method('POST', image_search_integration,
            authorization_type=AuthorizationType.COGNITO,
            method_responses=[MethodResponse(
                status_code='200',
                response_parameters={
                    'method.response.header.Access-Control-Allow-Origin': True,
                }
            )])
        search_integration_custom_resource = typing.cast("aws_cloudformation.CfnCustomResource", search_integration_method.node.find_child('Resource'))
        search_integration_custom_resource.add_property_override('AuthorizerId', api_gateway_image_search_authorizer.ref)

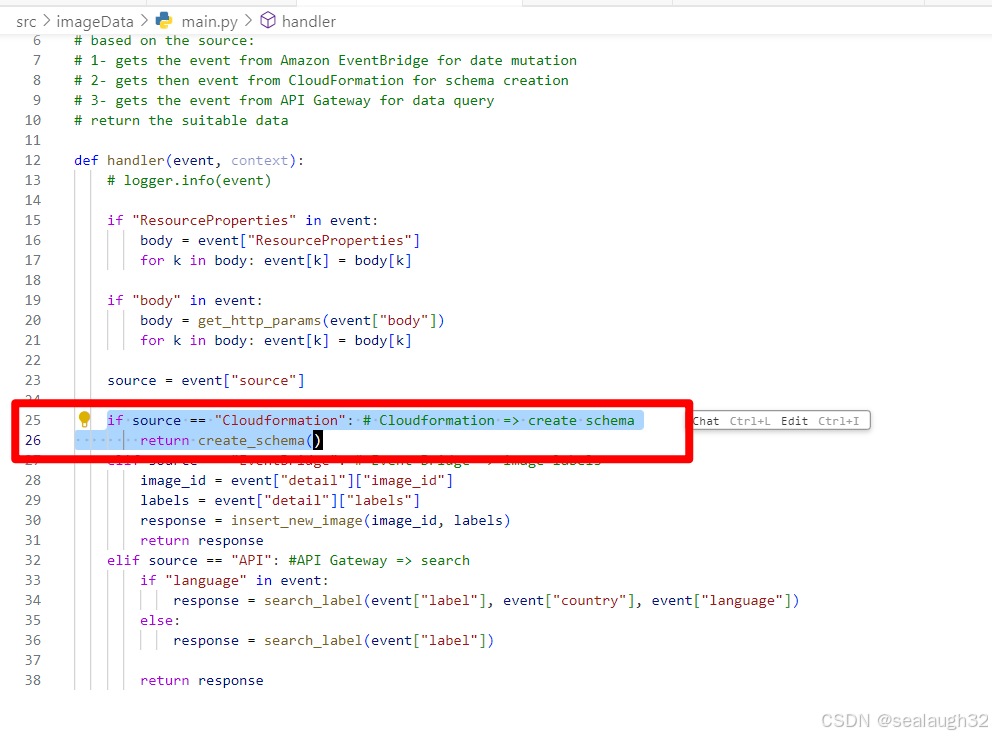

2.10.4 创建image dbschema
python 复制代码
        ### custom resource
        lambda_provider = Provider(self, 'ICS_IMAGE_DATA_PROVIDER',
            on_event_handler=image_data_function
        )

        CustomResource(self, 'ICS_IMAGE_DATA_RESOURCE',
            service_token=lambda_provider.service_token,
            pascal_case_properties=False,
            resource_type="Custom::SchemaCreation",
            properties={
                "source": "Cloudformation"
            }
        )
2.10.5 创建image db的保存lambda


image_analyzer_function保存分析结果到event_bus之中,这里继续将event_rule.add_target(_event_targets.LambdaFunction(image_data_function)),之后image_data_function会将数据保存到数据库。

python 复制代码
        ### event bridge
        event_bus = _events.EventBus(self, "ICS_IMAGE_CONTENT_BUS", event_bus_name="ImageContentBus")

        event_rule = _events.Rule(self, "ICS_IMAGE_CONTENT_RULE",
            rule_name="ICS_IMAGE_CONTENT_RULE",
            description="The event from image analyzer to store the data",
            event_bus=event_bus,
            event_pattern=_events.EventPattern(resources=[image_analyzer_function.function_arn]),
        )

        event_rule.add_target(_event_targets.LambdaFunction(image_data_function))

3 执行cdk

TODO

相关推荐
帅得不敢出门1 小时前
Android Framework学习二:Activity创建及View绘制流程
android·java·学习·framework·安卓·activity·window
Charlotte's diary1 小时前
虚拟局域网(VLAN)实验(Cisco Packet Tracer)-路由器、交换机的基本配置
经验分享·学习·计算机网络
帅云毅1 小时前
文件操作--文件包含漏洞
学习·web安全·php·xss·印象笔记
向風而行2 小时前
HarmonyOS NEXT第一课——HarmonyOS介绍
学习·华为·harmonyos
L10732034822 小时前
深度学习笔记40_中文文本分类-Pytorch实现
笔记·深度学习·分类
国际云,接待4 小时前
亚马逊云服务器性能深度优化方案(2025版)
运维·服务器·科技·架构·云计算·aws
李匠20245 小时前
C++负载均衡远程调用学习之TCP连接封装与TCPCLIENT封装
c++·网络协议·学习·tcp/ip
AI大模型学习原理5 小时前
当excel接入DeepSeek后,直接自动生成PPT分析报告
人工智能·ai·云计算·powerpoint·excel·产品经理·aws
不太可爱的叶某人6 小时前
【学习笔记】深入理解Java虚拟机学习笔记——第2章 Java内存区域与内存溢出异常
java·jvm·笔记·学习
李匠20246 小时前
C++学习之shell高级和正则表达式
c++·学习
