大纲
1.关于Nacos配置中心的几个问题
2.Nacos如何整合SpringBoot读取远程配置
3.Nacos加载读取远程配置数据的源码分析
4.客户端如何感知远程配置数据的变更
5.集群架构下节点间如何同步配置数据
4.客户端如何感知远程配置数据的变更
(1)ConfigService对象使用介绍
(2)客户端注册监听器的源码
(3)回调监听器的方法的源码
(1)ConfigService对象使用介绍
ConfigService是一个接口，定义了获取配置、发布配置、移除配置等方法。ConfigService只有一个实现类NacosConfigService，Nacos配置中心源码的核心其实就是这个NacosConfigService对象。
步骤一：手动创建ConfigService对象
首先定义好基本的Nacos信息，然后利用NacosFactory工厂类来创建ConfigService对象。
public class Demo {
public static void main(String[] args) throws Exception {
//步骤一：配置信息
String serverAddr = "124.223.102.236:8848";
String dataId = "stock-service-test.yaml";
String group = "DEFAULT_GROUP";
Properties properties = new Properties();
properties.put(PropertyKeyConst.SERVER_ADDR, serverAddr);
//步骤一：获取配置中心服务
ConfigService configService = NacosFactory.createConfigService(properties);
}
}步骤二：获取配置、发布配置
创建好ConfigService对象后，就可以使用ConfigService对象的getConfig()方法来获取配置信息，还可以使用ConfigService对象的publishConfig()方法来发布配置信息。
如下Demo先获取一次配置数据，然后发布新配置，紧接着重新获取数据。发现第二次获取的配置数据已发生变化，从而也说明发布配置成功了。
public class Demo {
public static void main(String[] args) throws Exception {
//步骤一：配置信息
String serverAddr = "124.223.102.236:8848";
String dataId = "stock-service-test.yaml";
String group = "DEFAULT_GROUP";
Properties properties = new Properties();
properties.put(PropertyKeyConst.SERVER_ADDR, serverAddr);
//步骤一：获取配置中心服务
ConfigService configService = NacosFactory.createConfigService(properties);
//步骤二：从配置中心获取配置
String content = configService.getConfig(dataId, group, 5000);
System.out.println("发布配置前" + content);
//步骤二：发布配置
configService.publishConfig(dataId, group, "userName: userName被修改了", ConfigType.PROPERTIES.getType());
Thread.sleep(300L);
//步骤二：从配置中心获取配置
content = configService.getConfig(dataId, group, 5000);
System.out.println("发布配置后" + content);
}
}步骤三：添加监听器
可以使用ConfigService对象的addListener()方法来添加监听器。通过dataId + group这两个参数，就可以注册一个监听器。当dataId + group对应的配置在服务端发生改变时，客户端的监听器就可以马上感知并对配置数据进行刷新。
public class Demo {
public static void main(String[] args) throws Exception {
//步骤一：配置信息
String serverAddr = "124.223.102.236:8848";
String dataId = "stock-service-test.yaml";
String group = "DEFAULT_GROUP";
Properties properties = new Properties();
properties.put(PropertyKeyConst.SERVER_ADDR, serverAddr);
//步骤一：获取配置中心服务
ConfigService configService = NacosFactory.createConfigService(properties);
//步骤二：从配置中心获取配置
String content = configService.getConfig(dataId, group, 5000);
System.out.println("发布配置前" + content);
//步骤二：发布配置
configService.publishConfig(dataId, group, "userName: userName被修改了", ConfigType.PROPERTIES.getType());
Thread.sleep(300L);
//步骤二：从配置中心获取配置
content = configService.getConfig(dataId, group, 5000);
System.out.println("发布配置后" + content);
//步骤三：注册监听器
configService.addListener(dataId, group, new Listener() {
@Override
public void receiveConfigInfo(String configInfo) {
System.out.println("感知配置变化:" + configInfo);
}
@Override
public Executor getExecutor() {
return null;
}
});
//阻断进程关闭
Thread.sleep(Integer.MAX_VALUE);
}
}(2)客户端注册监听器的源码
Nacos客户端是什么时候为dataId + group注册监听器的？
在nacos-config下的spring.factories文件中，有一个自动装配的配置类NacosConfigAutoConfiguration，在该配置类中定义了一个NacosContextRefresher对象，而NacosContextRefresher对象会监听ApplicationReadyEvent事件。
在NacosContextRefresher的onApplicationEvent()方法中，会执行registerNacosListenersForApplications()方法，这个方法中会遍历每一个dataId + group注册Nacos监听器。
对于每一个dataId + group，则通过调用registerNacosListener()方法来进行Nacos监听器的注册，也就是最终调用ConfigService对象的addListener()方法来注册监听器。
@Configuration(proxyBeanMethods = false)
@ConditionalOnProperty(name = "spring.cloud.nacos.config.enabled", matchIfMissing = true)
public class NacosConfigAutoConfiguration {
...
@Bean
public NacosContextRefresher nacosContextRefresher(NacosConfigManager nacosConfigManager, NacosRefreshHistory nacosRefreshHistory) {
return new NacosContextRefresher(nacosConfigManager, nacosRefreshHistory);
}
...
}
public class NacosContextRefresher implements ApplicationListener<ApplicationReadyEvent>, ApplicationContextAware {
private final ConfigService configService;
...
@Override
public void onApplicationEvent(ApplicationReadyEvent event) {
//many Spring context
if (this.ready.compareAndSet(false, true)) {
this.registerNacosListenersForApplications();
}
}
//register Nacos Listeners.
private void registerNacosListenersForApplications() {
if (isRefreshEnabled()) {
//获取全部的配置
for (NacosPropertySource propertySource : NacosPropertySourceRepository.getAll()) {
//判断当前配置是否需要刷新
if (!propertySource.isRefreshable()) {
continue;
}
String dataId = propertySource.getDataId();
//注册监听器
registerNacosListener(propertySource.getGroup(), dataId);
}
}
}
private void registerNacosListener(final String groupKey, final String dataKey) {
String key = NacosPropertySourceRepository.getMapKey(dataKey, groupKey);
Listener listener = listenerMap.computeIfAbsent(key, lst -> new AbstractSharedListener() {
@Override
public void innerReceive(String dataId, String group, String configInfo) {
//监听器的回调方法处理逻辑
refreshCountIncrement();
//记录刷新历史
nacosRefreshHistory.addRefreshRecord(dataId, group, configInfo);
//发布RefreshEvent刷新事件
applicationContext.publishEvent(new RefreshEvent(this, null, "Refresh Nacos config"));
if (log.isDebugEnabled()) {
log.debug(String.format("Refresh Nacos config group=%s,dataId=%s,configInfo=%s", group, dataId, configInfo));
}
}
});
try {
//注册监听器
configService.addListener(dataKey, groupKey, listener);
} catch (NacosException e) {
log.warn(String.format("register fail for nacos listener ,dataId=[%s],group=[%s]", dataKey, groupKey), e);
}
}
...
}(3)回调监听器的方法的源码
给每一个dataId + group注册Nacos监听器后，当Nacos服务端的配置文件发生变更时，就会回调监听器的方法，也就是会触发调用AbstractSharedListener的innerReceive()方法。然后调用applicationContext.publishEvent()发布RefreshEvent刷新事件，而发布的RefreshEvent刷新事件会被RefreshEventListener类来处理。
RefreshEventListener类不是Nacos中的类了，而是SpringCloud的类。它在处理刷新事件时，会销毁被@RefreshScope注解修饰的类的Bean，也就是会调用添加了@RefreshScope注解的类的destroy()方法。把Bean实例销毁后，后面需要用到这个Bean时才重新进行创建。重新进行创建的时候，就会获取最新的配置文件，从而完成刷新效果。
(4)总结

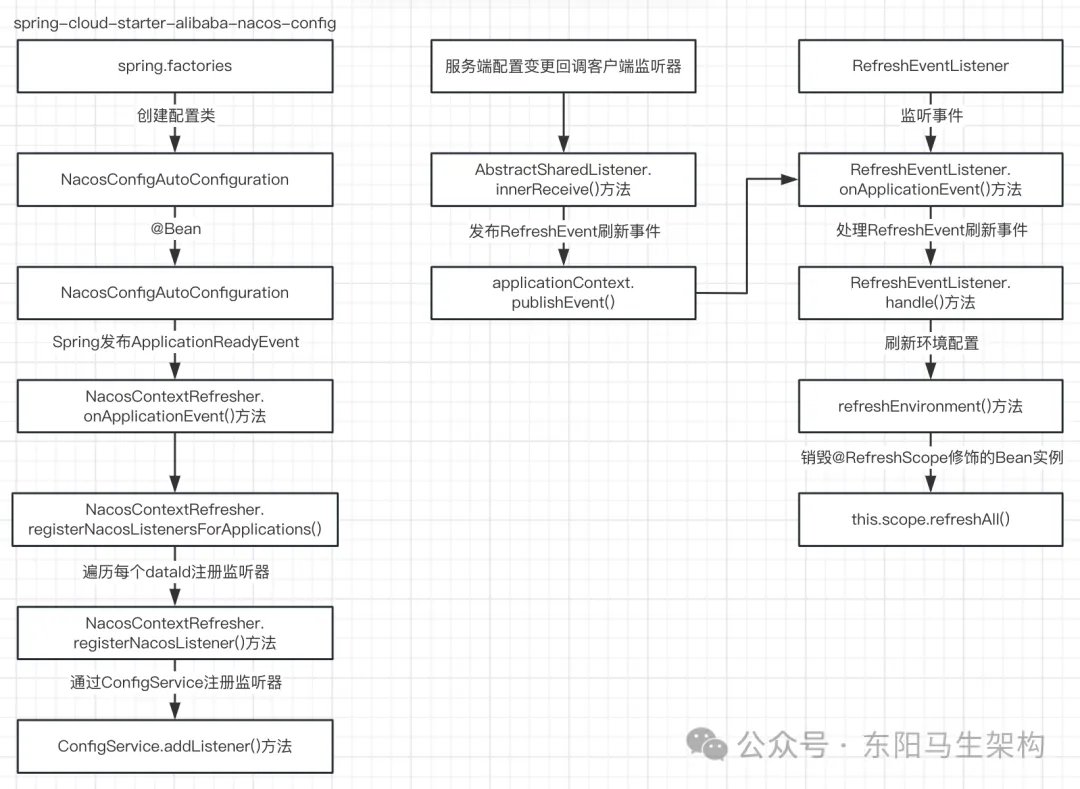

客户端注册Nacos监听器，服务端修改配置后，客户端刷新配置的流程：
5.集群架构下节点间如何同步配置数据
(1)Nacos控制台的配置管理模块
(2)变更配置数据时的源码
(3)集群节点间的配置数据变更同步
(4)服务端通知客户端配置数据已变更
(5)总结

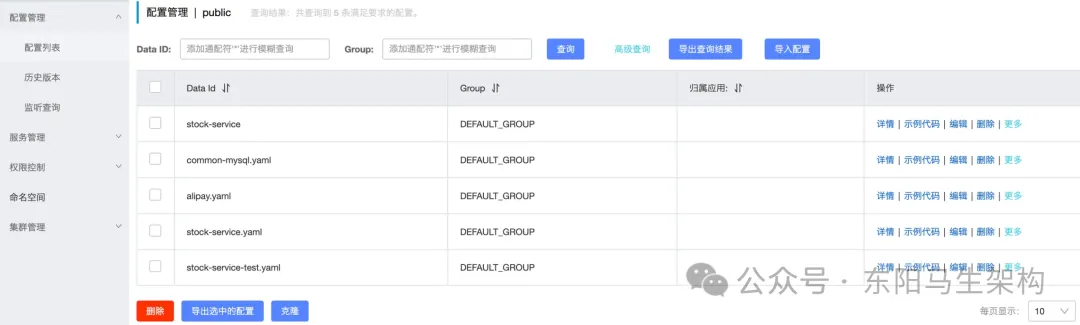

(1)Nacos控制台的配置管理模块
在这个模块中，可以通过配置列表维护我们的配置文件，可以通过历史版本找到配置的发布记录，并且支持回滚操作。当编辑配置文件时，客户端可以及时感知变化并刷新其配置文件。当服务端通知客户端配置变更时，也会通知集群节点进行数据同步。
当用户在Nacos控制台点击确认发布按钮时，Nacos会大概进行如下处理：
一.修改配置文件数据
二.保存配置发布历史
三.通知并触发客户端监听事件进行配置文件变更
四.通知集群对配置文件进行变更
点击确认发布按钮时，会发起HTTP请求，地址为"/nacos/v1/cs/configs"。通过请求地址可知处理入口是ConfigController的publishConfig()方法。
(2)变更配置数据时的源码
ConfigController的publishConfig()方法中的两行核心代码是：一.新增或修改配置数据的PersistService的insertOrUpdate()方法，二.发布配置变更事件的ConfigChangePublisher的notifyConfigChange()方法。
一.新增或者修改配置数据
其中PersistService有两个实现类：一是EmbeddedStoragePersistServiceImpl，它是Nacos内置的Derby数据库。二是ExternalStoragePersistServiceImpl，它是Nacos外置数据库如MySQL。
在ExternalStoragePersistServiceImpl的insertOrUpdate()方法中，如果执行ExternalStoragePersistServiceImpl的updateConfigInfo()方法，那么会先查询对应的配置，然后更新配置，最后保存配置历史。
@RestController
@RequestMapping(Constants.CONFIG_CONTROLLER_PATH)
public class ConfigController {
private final PersistService persistService;
...
@PostMapping
@Secured(action = ActionTypes.WRITE, parser = ConfigResourceParser.class)
public Boolean publishConfig(HttpServletRequest request, HttpServletResponse response,
@RequestParam(value = "dataId") String dataId, @RequestParam(value = "group") String group,
@RequestParam(value = "tenant", required = false, defaultValue = StringUtils.EMPTY) String tenant,
@RequestParam(value = "content") String content, @RequestParam(value = "tag", required = false) String tag,
@RequestParam(value = "appName", required = false) String appName,
@RequestParam(value = "src_user", required = false) String srcUser,
@RequestParam(value = "config_tags", required = false) String configTags,
@RequestParam(value = "desc", required = false) String desc,
@RequestParam(value = "use", required = false) String use,
@RequestParam(value = "effect", required = false) String effect,
@RequestParam(value = "type", required = false) String type,
@RequestParam(value = "schema", required = false) String schema) throws NacosException {
final String srcIp = RequestUtil.getRemoteIp(request);
final String requestIpApp = RequestUtil.getAppName(request);
srcUser = RequestUtil.getSrcUserName(request);
//check type
if (!ConfigType.isValidType(type)) {
type = ConfigType.getDefaultType().getType();
}
//check tenant
ParamUtils.checkTenant(tenant);
ParamUtils.checkParam(dataId, group, "datumId", content);
ParamUtils.checkParam(tag);
Map<String, Object> configAdvanceInfo = new HashMap<String, Object>(10);
MapUtils.putIfValNoNull(configAdvanceInfo, "config_tags", configTags);
MapUtils.putIfValNoNull(configAdvanceInfo, "desc", desc);
MapUtils.putIfValNoNull(configAdvanceInfo, "use", use);
MapUtils.putIfValNoNull(configAdvanceInfo, "effect", effect);
MapUtils.putIfValNoNull(configAdvanceInfo, "type", type);
MapUtils.putIfValNoNull(configAdvanceInfo, "schema", schema);
ParamUtils.checkParam(configAdvanceInfo);
if (AggrWhitelist.isAggrDataId(dataId)) {
LOGGER.warn("[aggr-conflict] {} attemp to publish single data, {}, {}", RequestUtil.getRemoteIp(request), dataId, group);
throw new NacosException(NacosException.NO_RIGHT, "dataId:" + dataId + " is aggr");
}
final Timestamp time = TimeUtils.getCurrentTime();
String betaIps = request.getHeader("betaIps");
ConfigInfo configInfo = new ConfigInfo(dataId, group, tenant, appName, content);
configInfo.setType(type);
if (StringUtils.isBlank(betaIps)) {
if (StringUtils.isBlank(tag)) {
//新增配置或者修改配置
persistService.insertOrUpdate(srcIp, srcUser, configInfo, time, configAdvanceInfo, true);
//发布配置改变事件
ConfigChangePublisher.notifyConfigChange(new ConfigDataChangeEvent(false, dataId, group, tenant, time.getTime()));
} else {
persistService.insertOrUpdateTag(configInfo, tag, srcIp, srcUser, time, true);
//发布配置改变事件
ConfigChangePublisher.notifyConfigChange(new ConfigDataChangeEvent(false, dataId, group, tenant, tag, time.getTime()));
}
} else {
//beta publish
persistService.insertOrUpdateBeta(configInfo, betaIps, srcIp, srcUser, time, true);
//发布配置改变事件
ConfigChangePublisher.notifyConfigChange(new ConfigDataChangeEvent(true, dataId, group, tenant, time.getTime()));
}
ConfigTraceService.logPersistenceEvent(dataId, group, tenant, requestIpApp, time.getTime(), InetUtils.getSelfIP(), ConfigTraceService.PERSISTENCE_EVENT_PUB, content);
return true;
}
...
}
//External Storage Persist Service.
@SuppressWarnings(value = {"PMD.MethodReturnWrapperTypeRule", "checkstyle:linelength"})
@Conditional(value = ConditionOnExternalStorage.class)
@Component
public class ExternalStoragePersistServiceImpl implements PersistService {
private DataSourceService dataSourceService;
...
@Override
public void insertOrUpdate(String srcIp, String srcUser, ConfigInfo configInfo, Timestamp time, Map<String, Object> configAdvanceInfo, boolean notify) {
try {
addConfigInfo(srcIp, srcUser, configInfo, time, configAdvanceInfo, notify);
} catch (DataIntegrityViolationException ive) { // Unique constraint conflict
updateConfigInfo(configInfo, srcIp, srcUser, time, configAdvanceInfo, notify);
}
}
@Override
public void updateConfigInfo(final ConfigInfo configInfo, final String srcIp, final String srcUser, final Timestamp time, final Map<String, Object> configAdvanceInfo, final boolean notify) {
boolean result = tjt.execute(status -> {
try {
//查询已存在的配置数据
ConfigInfo oldConfigInfo = findConfigInfo(configInfo.getDataId(), configInfo.getGroup(), configInfo.getTenant());
String appNameTmp = oldConfigInfo.getAppName();
if (configInfo.getAppName() == null) {
configInfo.setAppName(appNameTmp);
}
//更新配置数据
updateConfigInfoAtomic(configInfo, srcIp, srcUser, time, configAdvanceInfo);
String configTags = configAdvanceInfo == null ? null : (String) configAdvanceInfo.get("config_tags");
if (configTags != null) {
// delete all tags and then recreate
removeTagByIdAtomic(oldConfigInfo.getId());
addConfigTagsRelation(oldConfigInfo.getId(), configTags, configInfo.getDataId(), configInfo.getGroup(), configInfo.getTenant());
}
//保存到发布配置历史表
insertConfigHistoryAtomic(oldConfigInfo.getId(), oldConfigInfo, srcIp, srcUser, time, "U");
} catch (CannotGetJdbcConnectionException e) {
LogUtil.FATAL_LOG.error("[db-error] " + e.toString(), e);
throw e;
}
return Boolean.TRUE;
});
}
@Override
public ConfigInfo findConfigInfo(final String dataId, final String group, final String tenant) {
final String tenantTmp = StringUtils.isBlank(tenant) ? StringUtils.EMPTY : tenant;
try {
return this.jt.queryForObject("SELECT ID,data_id,group_id,tenant_id,app_name,content,md5,type FROM config_info WHERE data_id=? AND group_id=? AND tenant_id=?", new Object[] {dataId, group, tenantTmp}, CONFIG_INFO_ROW_MAPPER);
} catch (EmptyResultDataAccessException e) { // Indicates that the data does not exist, returns null.
return null;
} catch (CannotGetJdbcConnectionException e) {
LogUtil.FATAL_LOG.error("[db-error] " + e.toString(), e);
throw e;
}
}
...
}二.发布配置变更事件
执行ConfigChangePublisher的notifyConfigChange()方法发布配置变更事件时，最终会把事件添加到DefaultPublisher.queue阻塞队列中，完成事件发布。
NotifyCenter在其静态方法中，会创建DefaultPublisher并进行初始化。在执行DefaultPublisher的init()方法时，就会开启一个异步任务。该异步任务便会不断从阻塞队列DefaultPublisher.queue中获取事件，然后调用DefaultPublisher的receiveEvent()方法处理配置变更事件。
在DefaultPublisher的receiveEvent()方法中，会循环遍历事件订阅者。其中就会包括来自客户端，以及来自集群节点的两个订阅者。前者会通知客户端发生了配置变更事件，后者会通知各集群节点发生了配置变更事件。而且进行事件通知时，都会调用DefaultPublisher的notifySubscriber()方法。该方法会异步执行订阅者的监听逻辑，也就是subscriber.onEvent()方法。
具体的subscriber订阅者有：用来通知集群节点进行数据同步的订阅者AsyncNotifyService，用来通知客户端处理配置文件变更的订阅者LongPollingService。
**事件发布机制的实现简单总结：**发布者需要一个Set存放注册的订阅者，发布者发布事件时，需要遍历调用订阅者处理事件的方法。
public class ConfigChangePublisher {
//Notify ConfigChange.
public static void notifyConfigChange(ConfigDataChangeEvent event) {
if (PropertyUtil.isEmbeddedStorage() && !EnvUtil.getStandaloneMode()) {
return;
}
NotifyCenter.publishEvent(event);
}
}
//Unified Event Notify Center.
public class NotifyCenter {
static {
...
try {
// Create and init DefaultSharePublisher instance.
INSTANCE.sharePublisher = new DefaultSharePublisher();
INSTANCE.sharePublisher.init(SlowEvent.class, shareBufferSize);
} catch (Throwable ex) {
LOGGER.error("Service class newInstance has error : {}", ex);
}
ThreadUtils.addShutdownHook(new Runnable() {
@Override
public void run() {
shutdown();
}
});
}
//注册订阅者
public static <T> void registerSubscriber(final Subscriber consumer) {
...
addSubscriber(consumer, subscribeType);
}
private static void addSubscriber(final Subscriber consumer, Class<? extends Event> subscribeType) {
...
EventPublisher publisher = INSTANCE.publisherMap.get(topic);
//执行DefaultPublisher.addSubscriber()方法
publisher.addSubscriber(consumer);
}
...
//Request publisher publish event Publishers load lazily, calling publisher. Start () only when the event is actually published.
public static boolean publishEvent(final Event event) {
try {
return publishEvent(event.getClass(), event);
} catch (Throwable ex) {
LOGGER.error("There was an exception to the message publishing : {}", ex);
return false;
}
}
//Request publisher publish event Publishers load lazily, calling publisher.
private static boolean publishEvent(final Class<? extends Event> eventType, final Event event) {
if (ClassUtils.isAssignableFrom(SlowEvent.class, eventType)) {
return INSTANCE.sharePublisher.publish(event);
}
final String topic = ClassUtils.getCanonicalName(eventType);
EventPublisher publisher = INSTANCE.publisherMap.get(topic);
if (publisher != null) {
//执行DefaultPublisher.publish()方法
return publisher.publish(event);
}
LOGGER.warn("There are no [{}] publishers for this event, please register", topic);
return false;
}
...
}
//The default event publisher implementation.
public class DefaultPublisher extends Thread implements EventPublisher {
protected final ConcurrentHashSet<Subscriber> subscribers = new ConcurrentHashSet<Subscriber>();
private BlockingQueue<Event> queue;
...
@Override
public void addSubscriber(Subscriber subscriber) {
//注册事件订阅者
subscribers.add(subscriber);
}
@Override
public boolean publish(Event event) {
checkIsStart();
//将事件添加到阻塞队列，则表示已完成事件发布
boolean success = this.queue.offer(event);
if (!success) {
LOGGER.warn("Unable to plug in due to interruption, synchronize sending time, event : {}", event);
receiveEvent(event);
return true;
}
return true;
}
@Override
public void init(Class<? extends Event> type, int bufferSize) {
setDaemon(true);
setName("nacos.publisher-" + type.getName());
this.eventType = type;
this.queueMaxSize = bufferSize;
this.queue = new ArrayBlockingQueue<Event>(bufferSize);
start();
}
@Override
public synchronized void start() {
if (!initialized) {
//执行线程的run()方法，start just called once
super.start();
if (queueMaxSize == -1) {
queueMaxSize = ringBufferSize;
}
initialized = true;
}
}
@Override
public void run() {
openEventHandler();
}
void openEventHandler() {
try {
//This variable is defined to resolve the problem which message overstock in the queue.
int waitTimes = 60;
//To ensure that messages are not lost, enable EventHandler when waiting for the first Subscriber to register
for (; ;) {
if (shutdown || hasSubscriber() || waitTimes <= 0) {
break;
}
ThreadUtils.sleep(1000L);
waitTimes--;
}
for (; ;) {
if (shutdown) {
break;
}
final Event event = queue.take();
receiveEvent(event);
UPDATER.compareAndSet(this, lastEventSequence, Math.max(lastEventSequence, event.sequence()));
}
} catch (Throwable ex) {
LOGGER.error("Event listener exception : {}", ex);
}
}
//Receive and notifySubscriber to process the event.
void receiveEvent(Event event) {
final long currentEventSequence = event.sequence();
//循环遍历事件的订阅者
for (Subscriber subscriber : subscribers) {
// Whether to ignore expiration events
if (subscriber.ignoreExpireEvent() && lastEventSequence > currentEventSequence) {
LOGGER.debug("[NotifyCenter] the {} is unacceptable to this subscriber, because had expire", event.getClass());
continue;
}
//通知事件订阅者
notifySubscriber(subscriber, event);
}
}
@Override
public void notifySubscriber(final Subscriber subscriber, final Event event) {
LOGGER.debug("[NotifyCenter] the {} will received by {}", event, subscriber);
final Runnable job = new Runnable() {
@Override
public void run() {
//异步执行订阅者的监听逻辑
subscriber.onEvent(event);
}
};
final Executor executor = subscriber.executor();
if (executor != null) {
executor.execute(job);
} else {
try {
job.run();
} catch (Throwable e) {
LOGGER.error("Event callback exception : {}", e);
}
}
}
...
}(3)集群节点间的配置数据变更同步
核心处理方法便是AsyncNotifyService的onEvent()方法。该方法首先会获取集群节点列表，然后遍历集群列表构造通知任务NotifySingleTask，接着把通知任务NotifySingleTask添加到队列queue当中，最后根据通知任务队列queue封装一个异步任务提交到线程池去处理，也就是异步任务AsyncTask的run()方法会处理通知任务NotifySingleTask。
在异步任务AsyncTask的run()方法中，会一直从queue中获取通知任务，以便将配置数据同步到对应的集群节点。具体就是在while循环中，首先获得通知任务中对应的集群节点的IP地址。然后判断该集群节点的IP是否在当前节点的配置中，并且是否是健康状态。如果该集群节点不健康，则放入队列并将队列提交给异步任务来延迟处理。如果该集群节点是健康状态，则通过HTTP方式发起配置数据的同步，地址是"/v1/cs/communication/dataChange"。
@Service
public class AsyncNotifyService {
...
@Autowired
public AsyncNotifyService(ServerMemberManager memberManager) {
this.memberManager = memberManager;
//Register ConfigDataChangeEvent to NotifyCenter.
NotifyCenter.registerToPublisher(ConfigDataChangeEvent.class, NotifyCenter.ringBufferSize);
//Register A Subscriber to subscribe ConfigDataChangeEvent.
NotifyCenter.registerSubscriber(new Subscriber() {
@Override
public void onEvent(Event event) {
//配置中心数据变更，同步其他集群节点数据
if (event instanceof ConfigDataChangeEvent) {
ConfigDataChangeEvent evt = (ConfigDataChangeEvent) event;
long dumpTs = evt.lastModifiedTs;
String dataId = evt.dataId;
String group = evt.group;
String tenant = evt.tenant;
String tag = evt.tag;
//获取集群节点列表
Collection<Member> ipList = memberManager.allMembers();
Queue<NotifySingleTask> queue = new LinkedList<NotifySingleTask>();
//遍历集群列表构造通知任务NotifySingleTask去同步数据
for (Member member : ipList) {
//把通知任务NotifySingleTask添加到队列queue当中
queue.add(new NotifySingleTask(dataId, group, tenant, tag, dumpTs, member.getAddress(), evt.isBeta));
}
//根据通知任务队列Queue<NotifySingleTask>，封装一个异步任务AsyncTask，提交到线程池执行
ConfigExecutor.executeAsyncNotify(new AsyncTask(nacosAsyncRestTemplate, queue));
}
}
@Override
public Class<? extends Event> subscribeType() {
return ConfigDataChangeEvent.class;
}
});
}
...
class AsyncTask implements Runnable {
private Queue<NotifySingleTask> queue;
private NacosAsyncRestTemplate restTemplate;
public AsyncTask(NacosAsyncRestTemplate restTemplate, Queue<NotifySingleTask> queue) {
this.restTemplate = restTemplate;
this.queue = queue;
}
@Override
public void run() {
executeAsyncInvoke();
}
private void executeAsyncInvoke() {
while (!queue.isEmpty()) {
//一直从queue队列中获取通知任务，以便将配置数据同步到对应的集群节点
NotifySingleTask task = queue.poll();
//获取通知任务中对应的集群节点的IP地址
String targetIp = task.getTargetIP();
if (memberManager.hasMember(targetIp)) {
//start the health check and there are ips that are not monitored, put them directly in the notification queue, otherwise notify
//判断该集群节点的ip是否在当前节点的配置中，并且是否是健康状态
boolean unHealthNeedDelay = memberManager.isUnHealth(targetIp);
if (unHealthNeedDelay) {
//target ip is unhealthy, then put it in the notification list
//如果该集群节点不健康，则放入另外一个队列，同样会将队列提交给异步任务，然后延迟处理
ConfigTraceService.logNotifyEvent(task.getDataId(), task.getGroup(), task.getTenant(), null,
task.getLastModified(), InetUtils.getSelfIP(), ConfigTraceService.NOTIFY_EVENT_UNHEALTH,
0, task.target);
//get delay time and set fail count to the task
asyncTaskExecute(task);
} else {
//如果该集群节点是健康状态，则通过HTTP方式发起配置数据的同步
Header header = Header.newInstance();
header.addParam(NotifyService.NOTIFY_HEADER_LAST_MODIFIED, String.valueOf(task.getLastModified()));
header.addParam(NotifyService.NOTIFY_HEADER_OP_HANDLE_IP, InetUtils.getSelfIP());
if (task.isBeta) {
header.addParam("isBeta", "true");
}
AuthHeaderUtil.addIdentityToHeader(header);
//通过HTTP方式发起配置数据的同步，请求的HTTP地址：/v1/cs/communication/dataChange
restTemplate.get(task.url, header, Query.EMPTY, String.class, new AsyncNotifyCallBack(task));
}
}
}
}
}
private void asyncTaskExecute(NotifySingleTask task) {
int delay = getDelayTime(task);
Queue<NotifySingleTask> queue = new LinkedList<NotifySingleTask>();
queue.add(task);
AsyncTask asyncTask = new AsyncTask(nacosAsyncRestTemplate, queue);
//提交异步任务给线程池延迟执行
ConfigExecutor.scheduleAsyncNotify(asyncTask, delay, TimeUnit.MILLISECONDS);
}
}当集群节点处理"/v1/cs/communication/dataChange"这个HTTP请求时，会调用CommunicationController的notifyConfigInfo()方法，接着调用DumpService的dump()方法将请求包装成DumpTask同步数据任务，然后调用TaskManager的addTask()方法将DumpTask同步数据任务放入map。
TaskManager的父类NacosDelayTaskExecuteEngine在初始化时，会开启一个异步任务执行ProcessRunnable的run()方法，也就是会不断从map中取出DumpTask同步数据任务，然后调用DumpProcessor的process()方法处理具体的配置数据同步逻辑。也就是查询数据库最新的配置，然后持久化配置数据到磁盘上，从而完成集群之间配置数据的同步。
@RestController
@RequestMapping(Constants.COMMUNICATION_CONTROLLER_PATH)
public class CommunicationController {
private final DumpService dumpService;
...
@GetMapping("/dataChange")
public Boolean notifyConfigInfo(HttpServletRequest request, @RequestParam("dataId") String dataId,
@RequestParam("group") String group,
@RequestParam(value = "tenant", required = false, defaultValue = StringUtils.EMPTY) String tenant,
@RequestParam(value = "tag", required = false) String tag) {
dataId = dataId.trim();
group = group.trim();
String lastModified = request.getHeader(NotifyService.NOTIFY_HEADER_LAST_MODIFIED);
long lastModifiedTs = StringUtils.isEmpty(lastModified) ? -1 : Long.parseLong(lastModified);
String handleIp = request.getHeader(NotifyService.NOTIFY_HEADER_OP_HANDLE_IP);
String isBetaStr = request.getHeader("isBeta");
if (StringUtils.isNotBlank(isBetaStr) && trueStr.equals(isBetaStr)) {
dumpService.dump(dataId, group, tenant, lastModifiedTs, handleIp, true);
} else {
dumpService.dump(dataId, group, tenant, tag, lastModifiedTs, handleIp);
}
return true;
}
...
}
public abstract class DumpService {
private TaskManager dumpTaskMgr;
public DumpService(PersistService persistService, ServerMemberManager memberManager) {
...
this.processor = new DumpProcessor(this);
this.dumpTaskMgr = new TaskManager("com.alibaba.nacos.server.DumpTaskManager");
this.dumpTaskMgr.setDefaultTaskProcessor(processor);
...
}
...
public void dump(String dataId, String group, String tenant, long lastModified, String handleIp, boolean isBeta) {
String groupKey = GroupKey2.getKey(dataId, group, tenant);
dumpTaskMgr.addTask(groupKey, new DumpTask(groupKey, lastModified, handleIp, isBeta));
}
...
}
public final class TaskManager extends NacosDelayTaskExecuteEngine implements TaskManagerMBean {
...
@Override
public void addTask(Object key, AbstractDelayTask newTask) {
super.addTask(key, newTask);
MetricsMonitor.getDumpTaskMonitor().set(tasks.size());
}
...
}
public class NacosDelayTaskExecuteEngine extends AbstractNacosTaskExecuteEngine<AbstractDelayTask> {
protected final ConcurrentHashMap<Object, AbstractDelayTask> tasks;//任务池
public NacosDelayTaskExecuteEngine(String name, int initCapacity, Logger logger, long processInterval) {
super(logger);
tasks = new ConcurrentHashMap<Object, AbstractDelayTask>(initCapacity);
processingExecutor = ExecutorFactory.newSingleScheduledExecutorService(new NameThreadFactory(name));
//开启延时任务
processingExecutor.scheduleWithFixedDelay(new ProcessRunnable(), processInterval, processInterval, TimeUnit.MILLISECONDS);
}
...
@Override
public void addTask(Object key, AbstractDelayTask newTask) {
lock.lock();
try {
AbstractDelayTask existTask = tasks.get(key);
if (null != existTask) {
newTask.merge(existTask);
}
//最后放入到ConcurrentHashMap中
tasks.put(key, newTask);
} finally {
lock.unlock();
}
}
...
private class ProcessRunnable implements Runnable {
@Override
public void run() {
try {
processTasks();
} catch (Throwable e) {
getEngineLog().error(e.toString(), e);
}
}
}
@Override
public Collection<Object> getAllTaskKeys() {
Collection<Object> keys = new HashSet<Object>();
lock.lock();
try {
keys.addAll(tasks.keySet());
} finally {
lock.unlock();
}
return keys;
}
protected void processTasks() {
//获取tasks中所有的任务，然后进行遍历
Collection<Object> keys = getAllTaskKeys();
for (Object taskKey : keys) {
//通过任务key，获取具体的任务，并且从任务池中移除掉
AbstractDelayTask task = removeTask(taskKey);
if (null == task) {
continue;
}
//DumpService在初始化时会设置TaskManager的默认processor是DumpProcessor
//根据taskKey获取NacosTaskProcessor延迟任务处理器：DumpProcessor
NacosTaskProcessor processor = getProcessor(taskKey);
if (null == processor) {
getEngineLog().error("processor not found for task, so discarded. " + task);
continue;
}
try {
//ReAdd task if process failed
//调用DumpProcessor.process()方法
if (!processor.process(task)) {
//如果失败了，会重试添加task回tasks这个map中
retryFailedTask(taskKey, task);
}
} catch (Throwable e) {
getEngineLog().error("Nacos task execute error : " + e.toString(), e);
retryFailedTask(taskKey, task);
}
}
}
}(4)服务端通知客户端配置数据已变更
服务端通知客户端配置文件变更的方法是LongPollingService.onEvent()。
由前面客户端如何感知远程配置数据的变更可知，Nacos客户端启动时：会调用ConfigService的addListener()方法为每个dataId + group添加一个监听器。而NacosConfigService初始化时会创建ClientWorker对象，此时会开启多个长连接任务即执行LongPollingRunnable的run()方法。
执行LongPollingRunnable的run()方法时，会触发执行ClientWorker的checkUpdateDataIds()方法，该方法最后会调用服务端的"/v1/cs/configs/listener"接口，将当前客户端添加到LongPollingService的allSubs属性中。
这样当以后dataId + group的配置发生变更时，服务端会触发执行LongPollingService的onEvent()方法，然后遍历LongPollingService.allSubs属性通知客户端配置已变更。
客户端收到变更事件通知后，会将最新的配置刷新到容器中，同时将@RefreshScope注解修饰的Bean从缓存中删除。这样再次访问这些Bean，就会重新创建Bean，从而读取到最新的配置。
public class NacosConfigService implements ConfigService {
//long polling.
private final ClientWorker worker;
...
public NacosConfigService(Properties properties) throws NacosException {
...
this.worker = new ClientWorker(this.agent, this.configFilterChainManager, properties);
}
...
}
//Long polling.
public class ClientWorker implements Closeable {
public ClientWorker(final HttpAgent agent, final ConfigFilterChainManager configFilterChainManager, final Properties properties) {
...
this.executor.scheduleWithFixedDelay(new Runnable() {
@Override
public void run() {
try {
checkConfigInfo();
} catch (Throwable e) {
LOGGER.error("[" + agent.getName() + "] [sub-check] rotate check error", e);
}
}
}, 1L, 10L, TimeUnit.MILLISECONDS);
}
//Check config info.
public void checkConfigInfo() {
//Dispatch taskes.
int listenerSize = cacheMap.size();
//Round up the longingTaskCount.
int longingTaskCount = (int) Math.ceil(listenerSize / ParamUtil.getPerTaskConfigSize());
if (longingTaskCount > currentLongingTaskCount) {
for (int i = (int) currentLongingTaskCount; i < longingTaskCount; i++) {
//The task list is no order.So it maybe has issues when changing.
//执行长连接任务：LongPollingRunnable.run()
executorService.execute(new LongPollingRunnable(i));
}
currentLongingTaskCount = longingTaskCount;
}
}
...
class LongPollingRunnable implements Runnable {
...
@Override
public void run() {
...
//check server config
List<String> changedGroupKeys = checkUpdateDataIds(cacheDatas, inInitializingCacheList);
...
}
}
//Fetch the dataId list from server.
List<String> checkUpdateDataIds(List<CacheData> cacheDatas, List<String> inInitializingCacheList) throws Exception {
...
return checkUpdateConfigStr(sb.toString(), isInitializingCacheList);
}
//Fetch the updated dataId list from server.
List<String> checkUpdateConfigStr(String probeUpdateString, boolean isInitializingCacheList) throws Exception {
...
try {
//In order to prevent the server from handling the delay of the client's long task, increase the client's read timeout to avoid this problem.
long readTimeoutMs = timeout + (long) Math.round(timeout >> 1);
//发起HTTP请求：/v1/cs/configs/listener，将客户端添加到LongPollingService.allSubs属性中
HttpRestResult<String> result = agent.httpPost(Constants.CONFIG_CONTROLLER_PATH + "/listener", headers, params, agent.getEncode(), readTimeoutMs);
...
} catch (Exception e) {
...
}
return Collections.emptyList();
}
}
@RestController
@RequestMapping(Constants.CONFIG_CONTROLLER_PATH)
public class ConfigController {
private final ConfigServletInner inner;
...
@PostMapping("/listener")
@Secured(action = ActionTypes.READ, parser = ConfigResourceParser.class)
public void listener(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
...
//do long-polling
inner.doPollingConfig(request, response, clientMd5Map, probeModify.length());
}
...
}
@Service
public class ConfigServletInner {
...
//轮询接口.
public String doPollingConfig(HttpServletRequest request, HttpServletResponse response, Map<String, String> clientMd5Map, int probeRequestSize) throws IOException {
//Long polling.
if (LongPollingService.isSupportLongPolling(request)) {
longPollingService.addLongPollingClient(request, response, clientMd5Map, probeRequestSize);
return HttpServletResponse.SC_OK + "";
}
...
}
...
}
@Service
public class LongPollingService {
//客户端长轮询订阅者
final Queue<ClientLongPolling> allSubs;
...
public void addLongPollingClient(HttpServletRequest req, HttpServletResponse rsp, Map<String, String> clientMd5Map, int probeRequestSize) {
...
//添加订阅者
ConfigExecutor.executeLongPolling(new ClientLongPolling(asyncContext, clientMd5Map, ip, probeRequestSize, timeout, appName, tag));
}
class ClientLongPolling implements Runnable {
@Override
public void run() {
...
allSubs.add(this);
}
...
}
...
public LongPollingService() {
allSubs = new ConcurrentLinkedQueue<ClientLongPolling>();
...
NotifyCenter.registerSubscriber(new Subscriber() {
@Override
public void onEvent(Event event) {
if (isFixedPolling()) {
// Ignore.
} else {
if (event instanceof LocalDataChangeEvent) {
LocalDataChangeEvent evt = (LocalDataChangeEvent) event;
//触发执行DataChangeTask.run()方法
ConfigExecutor.executeLongPolling(new DataChangeTask(evt.groupKey, evt.isBeta, evt.betaIps));
}
}
}
...
});
}
class DataChangeTask implements Runnable {
@Override
public void run() {
try {
ConfigCacheService.getContentBetaMd5(groupKey);
//遍历订阅了配置变更事件的客户端
for (Iterator<ClientLongPolling> iter = allSubs.iterator(); iter.hasNext(); ) {
ClientLongPolling clientSub = iter.next();
if (clientSub.clientMd5Map.containsKey(groupKey)) {
...
getRetainIps().put(clientSub.ip, System.currentTimeMillis());
iter.remove(); // Delete subscribers' relationships.
//发送服务端数据变更的响应给客户端
clientSub.sendResponse(Arrays.asList(groupKey));
}
}
} catch (Throwable t) {
LogUtil.DEFAULT_LOG.error("data change error: {}", ExceptionUtil.getStackTrace(t));
}
}
}
...
}(5)总结
一.配置中心数据变更同步集群节点的整体逻辑
当在Nacos后台变更配置数据后：首先自身节点会把最新的配置数据更新到数据库中，并且添加变更历史。然后利用事件发布订阅机制来通知订阅者，其中订阅者AsyncNotifyService会通过HTTP方式来通知其他集群节点。当其他集群节点收到通知后，会重新查询数据库最新的配置数据。然后持久化到磁盘上，因为获取配置数据的接口是直接读磁盘文件的。集群节点的配置数据同步完成后，还要通知客户端配置数据已变更。
二.服务端通知客户端配置数据已变更
在客户端给dataId + group添加监听器后，会和服务端建立一个长轮询，所以另外一个订阅者LongPollingService会通过长轮询通知客户端。也就是会遍历每一个客户端，通过长轮询向客户端进行响应。最终会调用到客户端监听器的回调方法，从而去刷新客户端的配置Bean。
