论坛系统测试报告

文章目录

目录
- [1. 项目背景](#1. 项目背景)
- [2. 项目简介](#2. 项目简介)
- [3. 测试工具](#3. 测试工具)
- [4. 测试用例](#4. 测试用例)
- [5. 功能测试](#5. 功能测试)
- [6. 性能测试](#6. 性能测试)
- [7. 弱网测试](#7. 弱网测试)
- [8. 自动化测试](#8. 自动化测试)
- [9. bug简述](#9. bug简述)
- [10. 测试结论](#10. 测试结论)

论坛首页：查看用户昵称、头像；查看首页发布的贴子并且可以跳转到帖子详情页；选择不同分类查看当前分类下的帖子；查看站内信，可以回复他人给自己发的私信；切换白天和夜间模式；搜索；可以点击发布按钮并跳转到帖子发布页面

我的文章详情页：查看作者/回复者头像昵称；点赞帖子；发布回复帖子

他人文章详情页：查看作者/回复者头像昵称；点赞帖子；发布回复帖子；给帖子作者发私信

帖子发布页：选择板块、输入标题和内容并点击发布按钮

我的帖子页面：可以查看头像、昵称、发帖数、邮箱、注册日期、发布的帖子并可以点击跳转到详情页、个人介绍

他人帖子页面：可以查看头像、昵称、发帖数、邮箱、注册日期、发布的帖子并可以点击跳转到详情页、个人介绍；可以给当前用户发私信

个人中心页面：可以修改头像、昵称、邮箱地址、电话号码、密码、个人简介

3. 测试工具

在进行性能测试时，我们会用到jmeter工具；在进行弱网测试时，我们会用到fiddler工具；在进行自动化测试时，我们会用到PyCharm以及selenium库来编写自动化脚本。

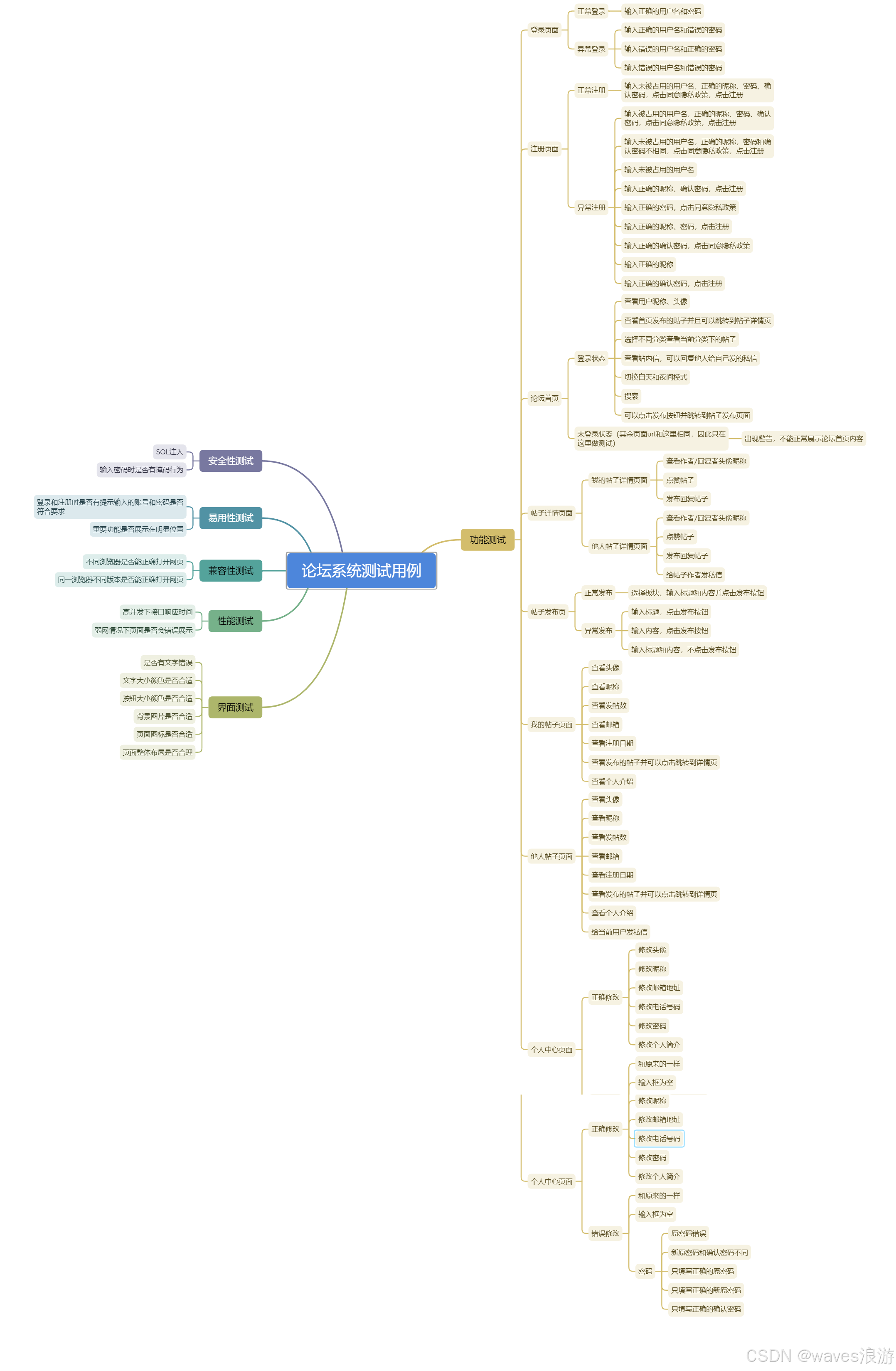

4. 测试用例

5. 功能测试

这里会展示部分功能测试的截图：

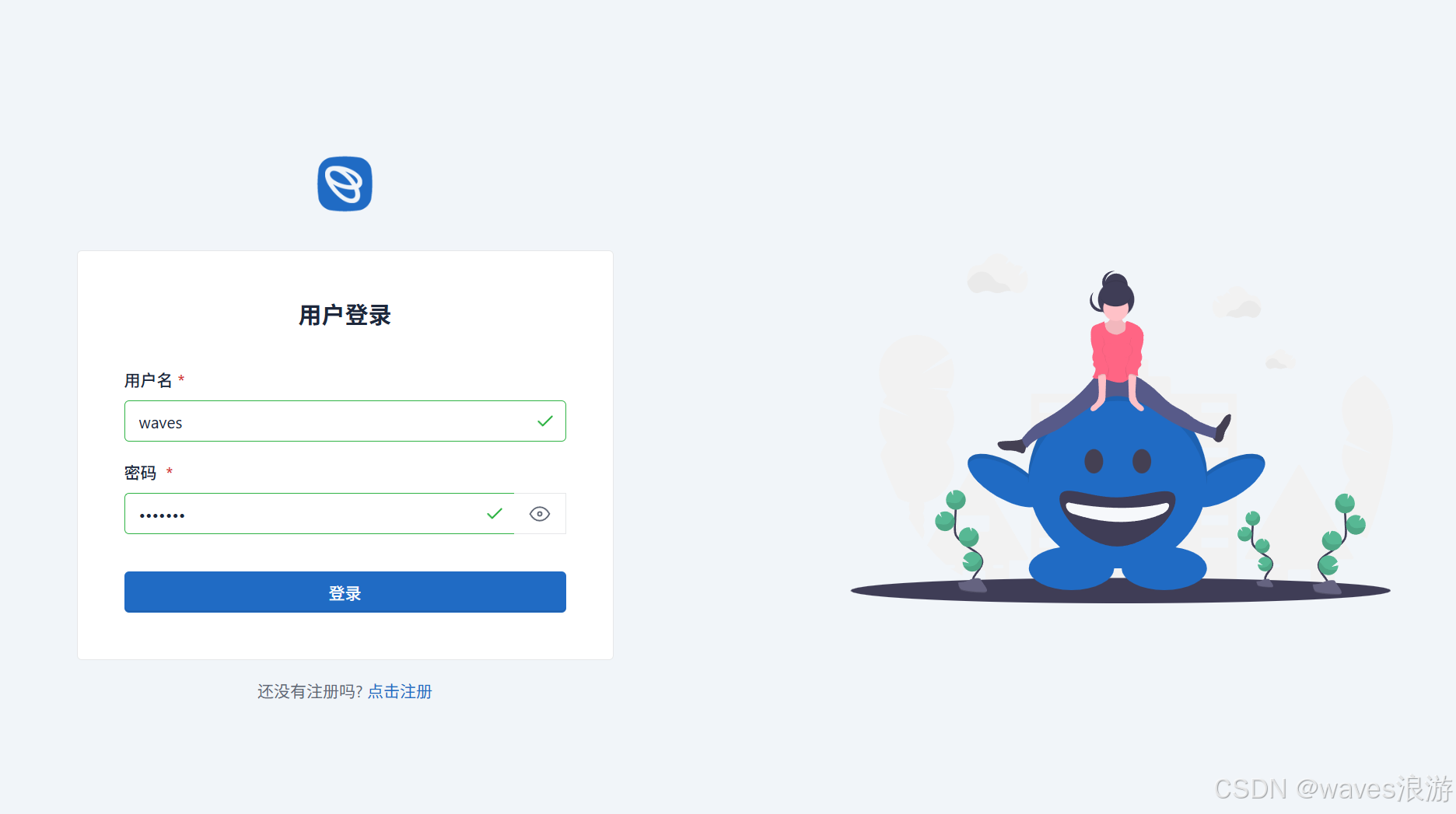

正常登录

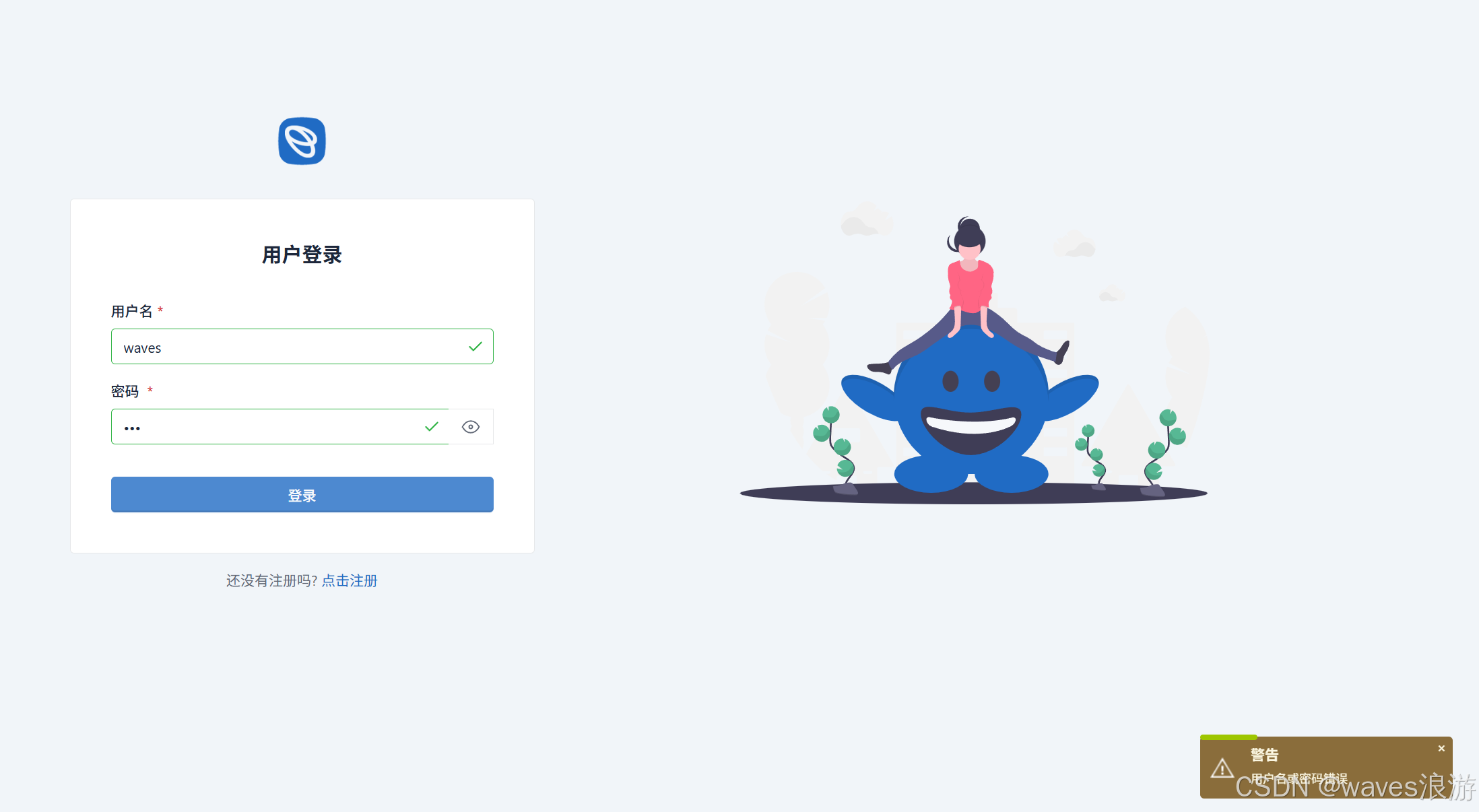

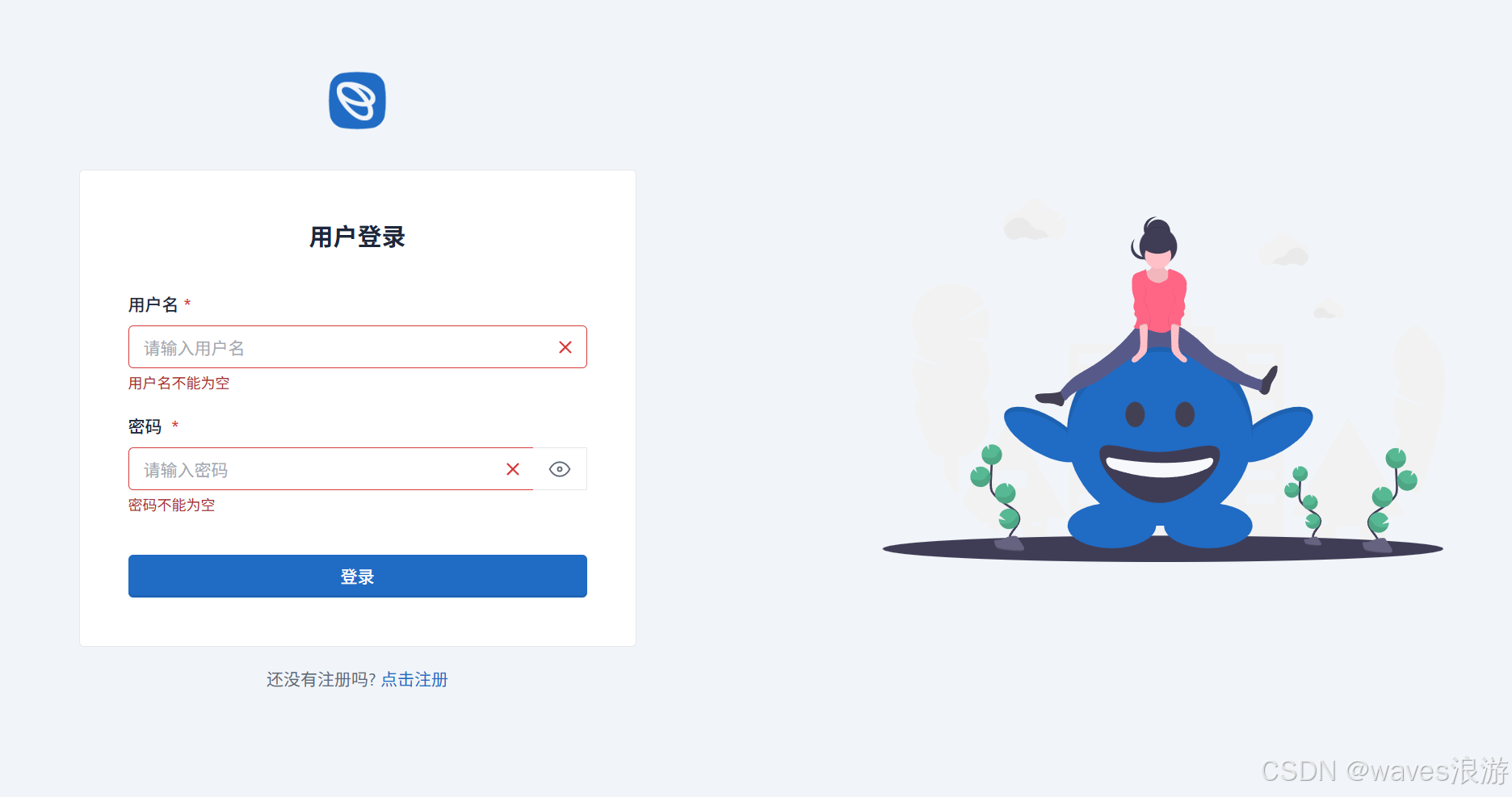

异常登录

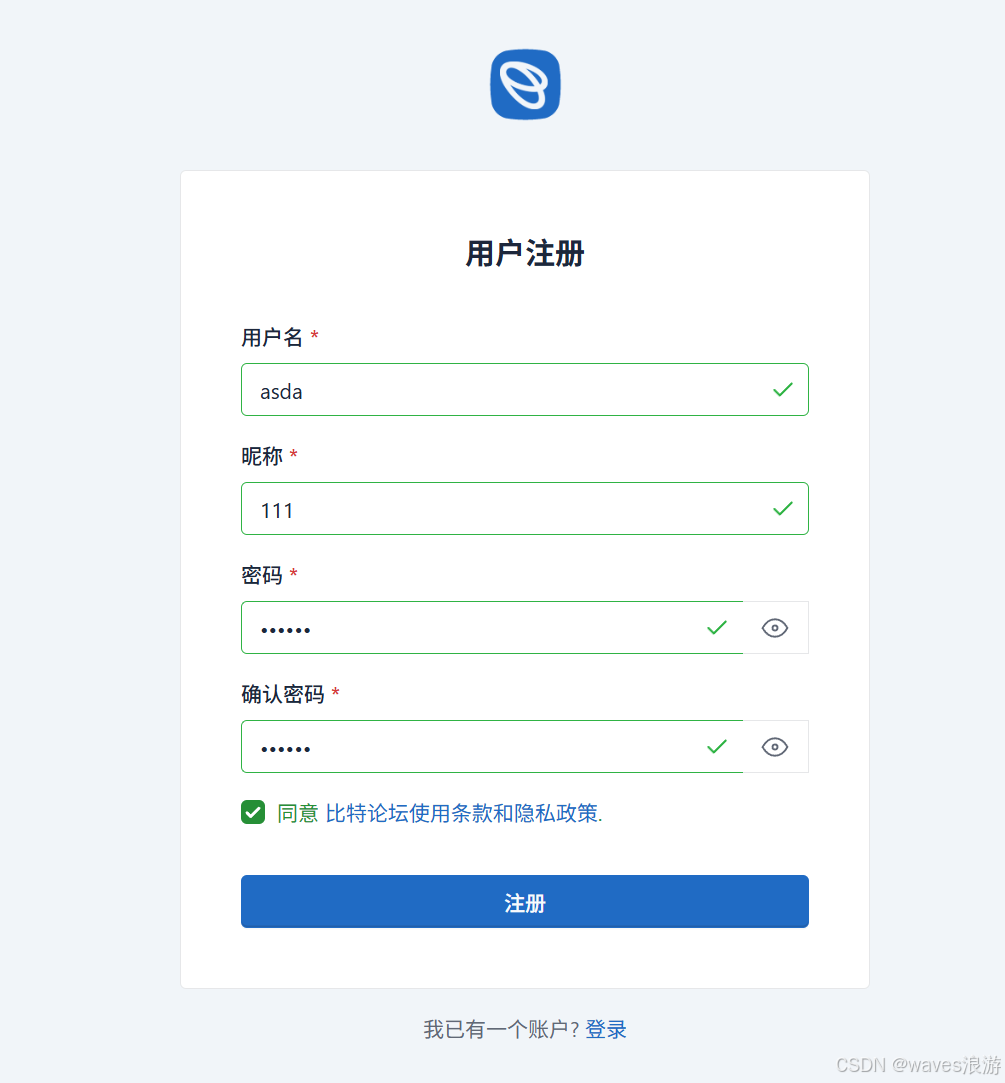

正常注册：

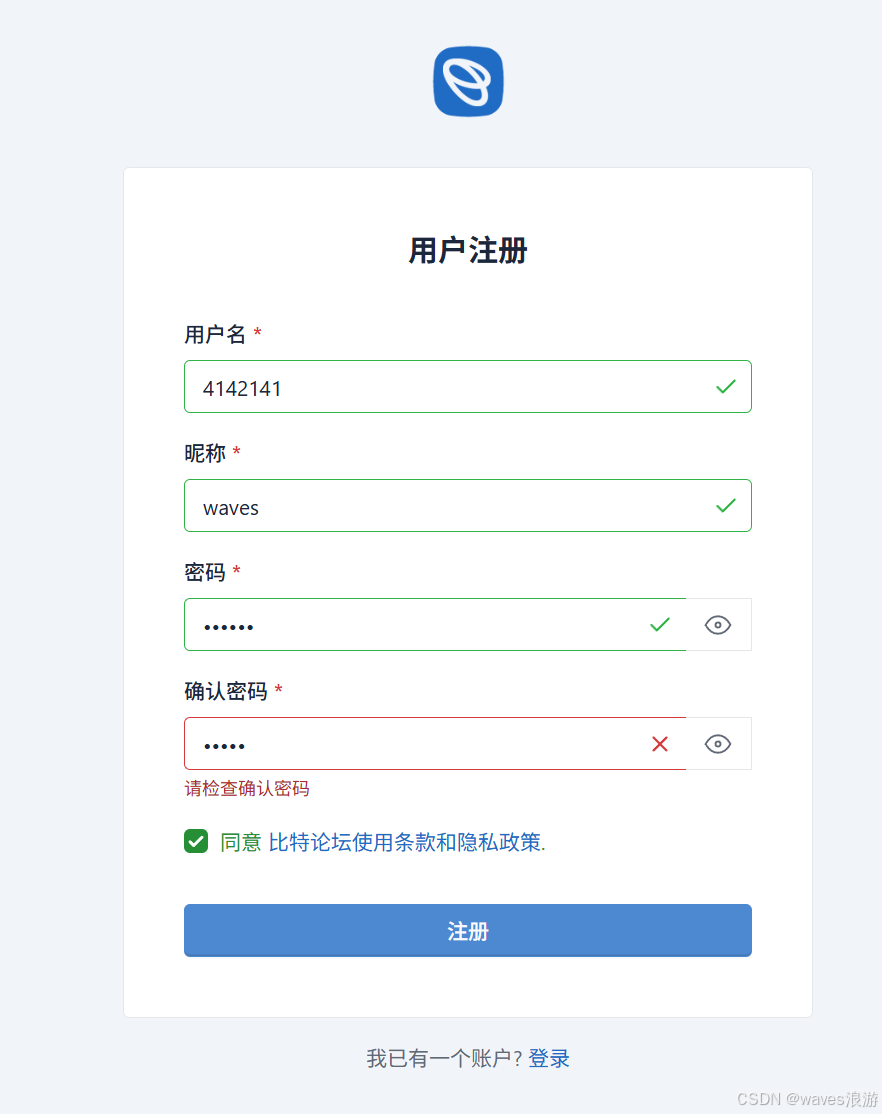

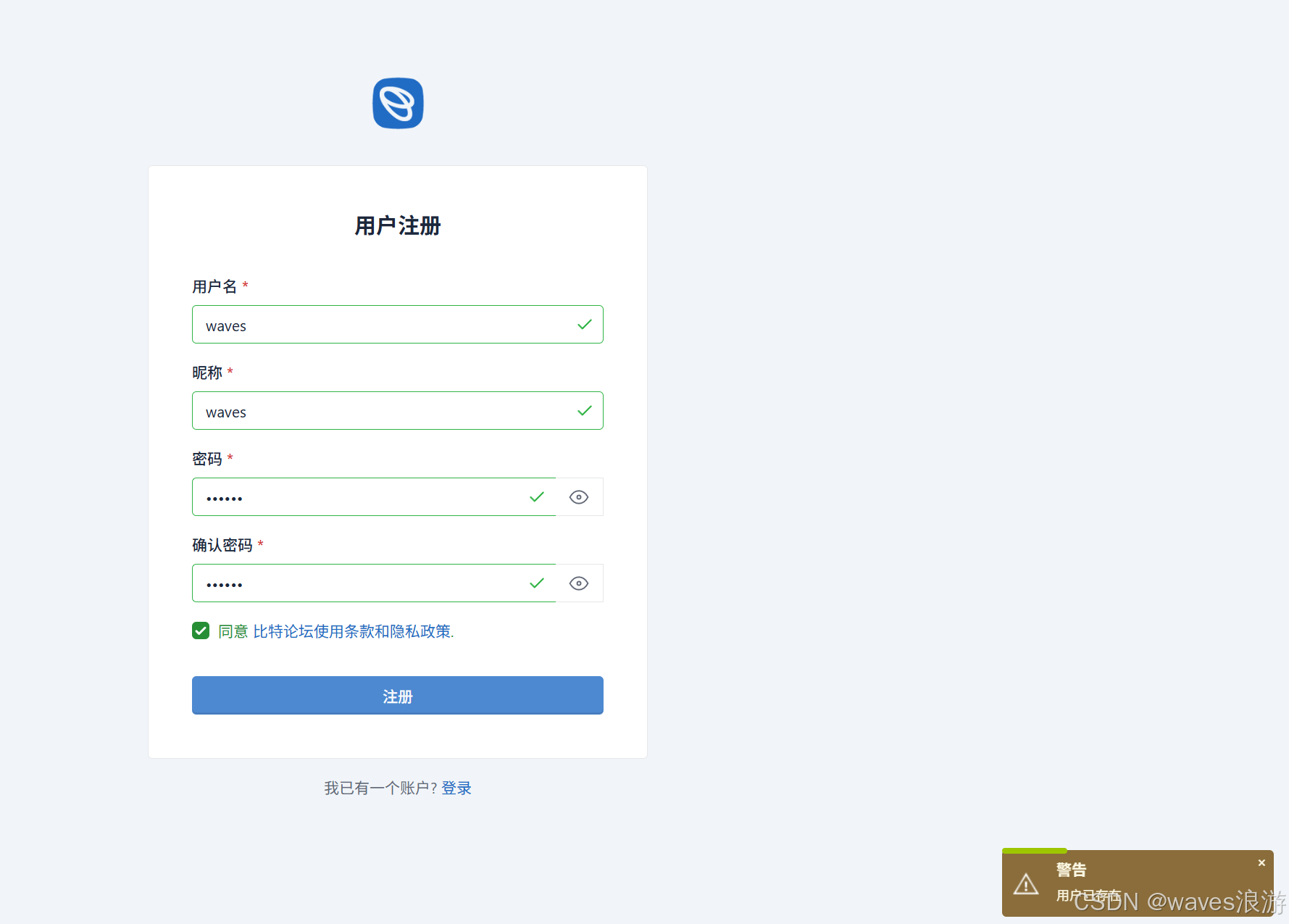

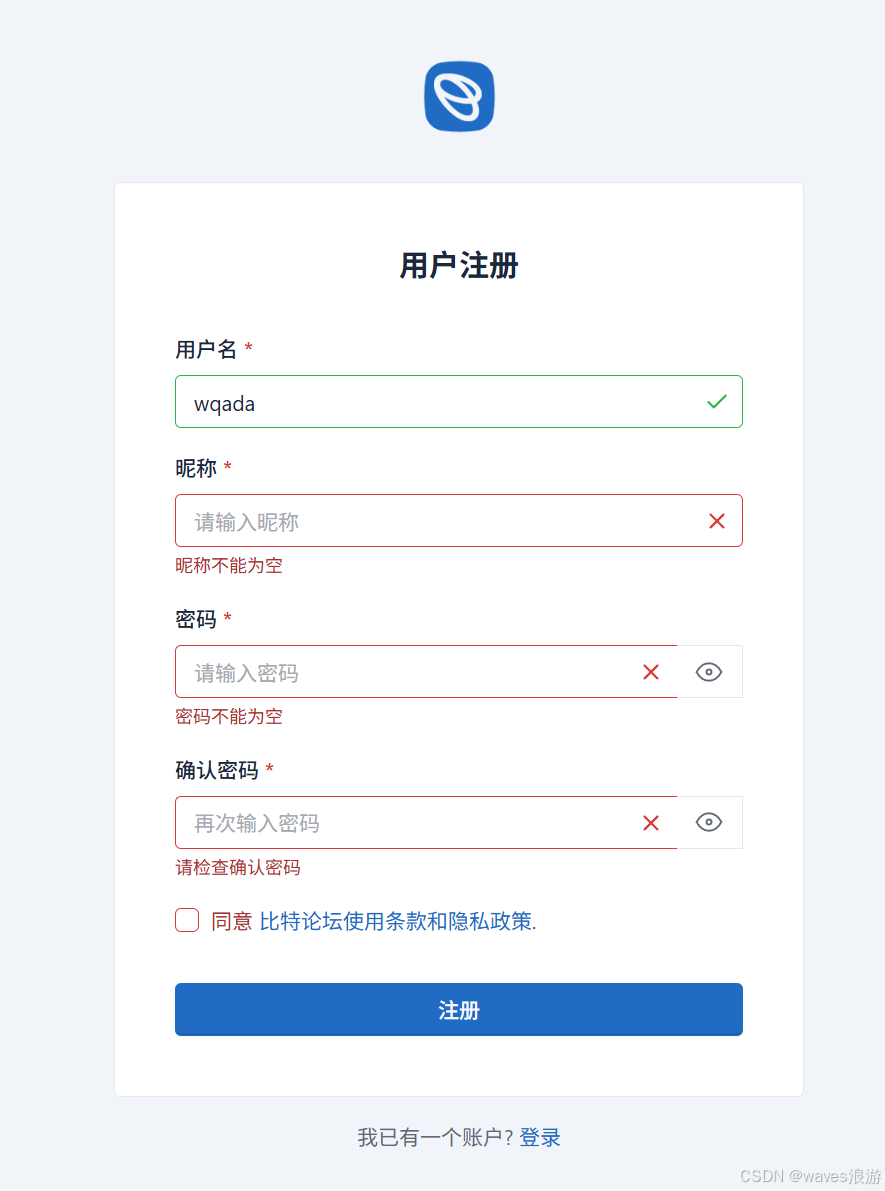

异常注册：

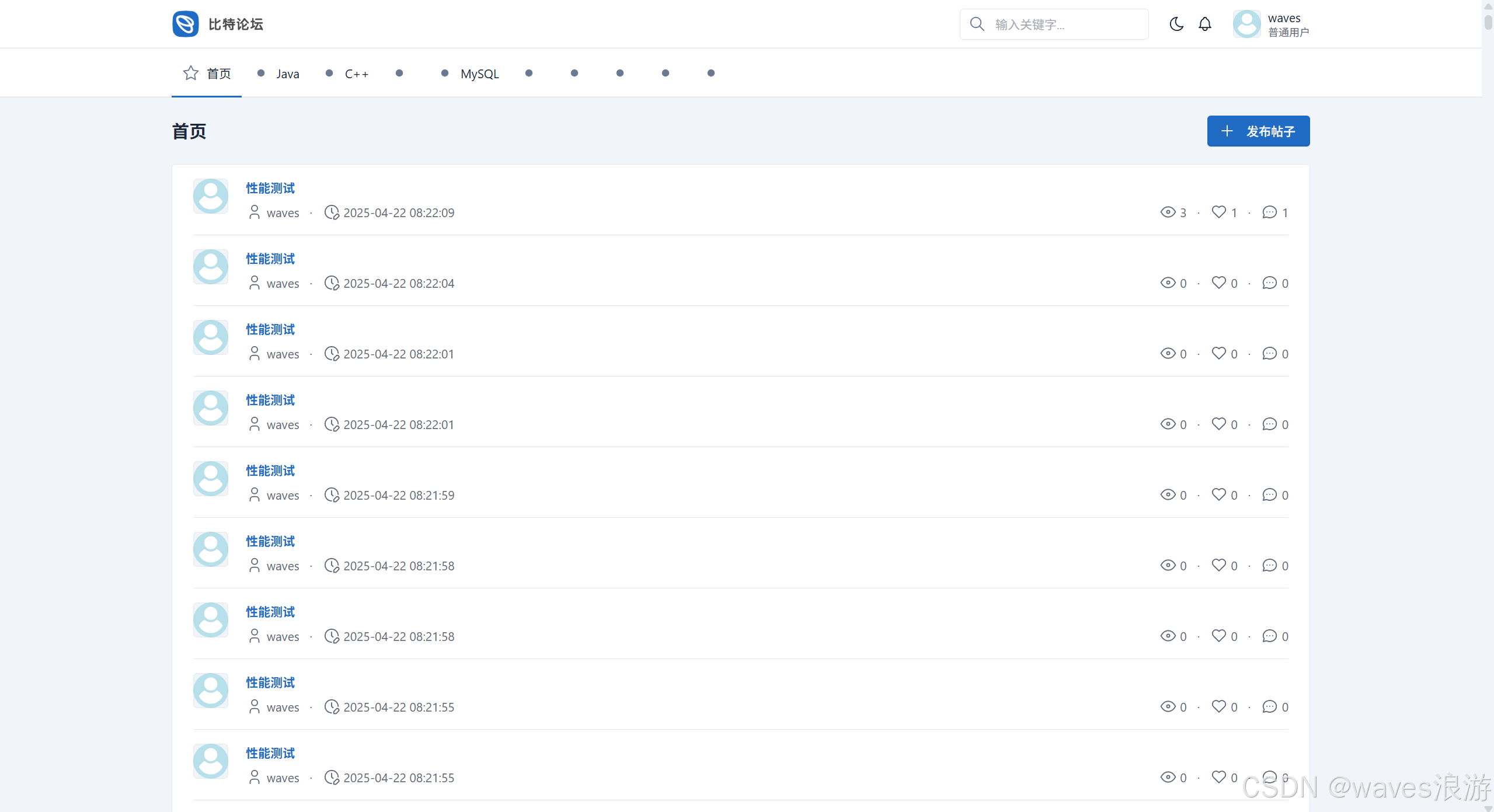

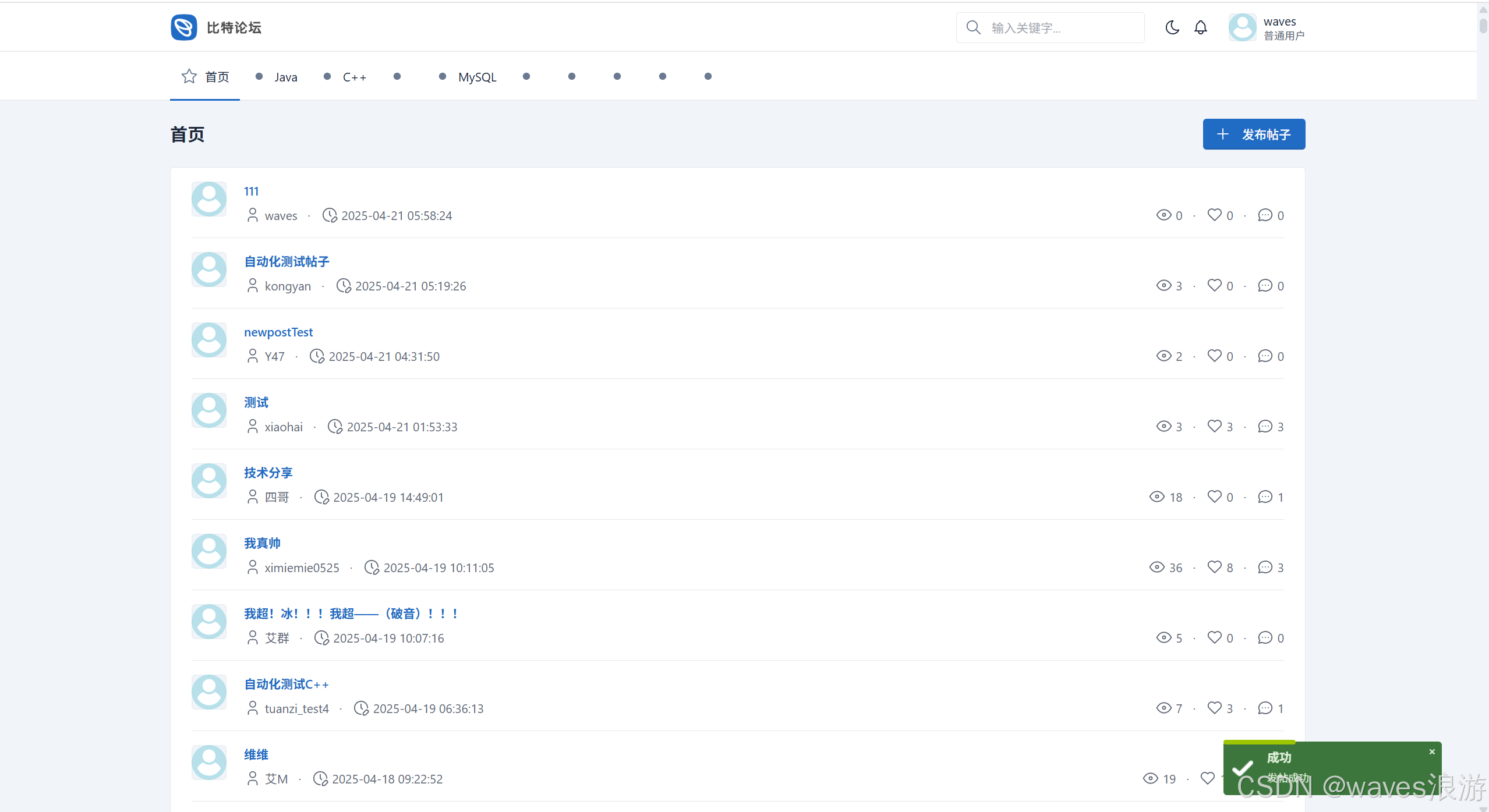

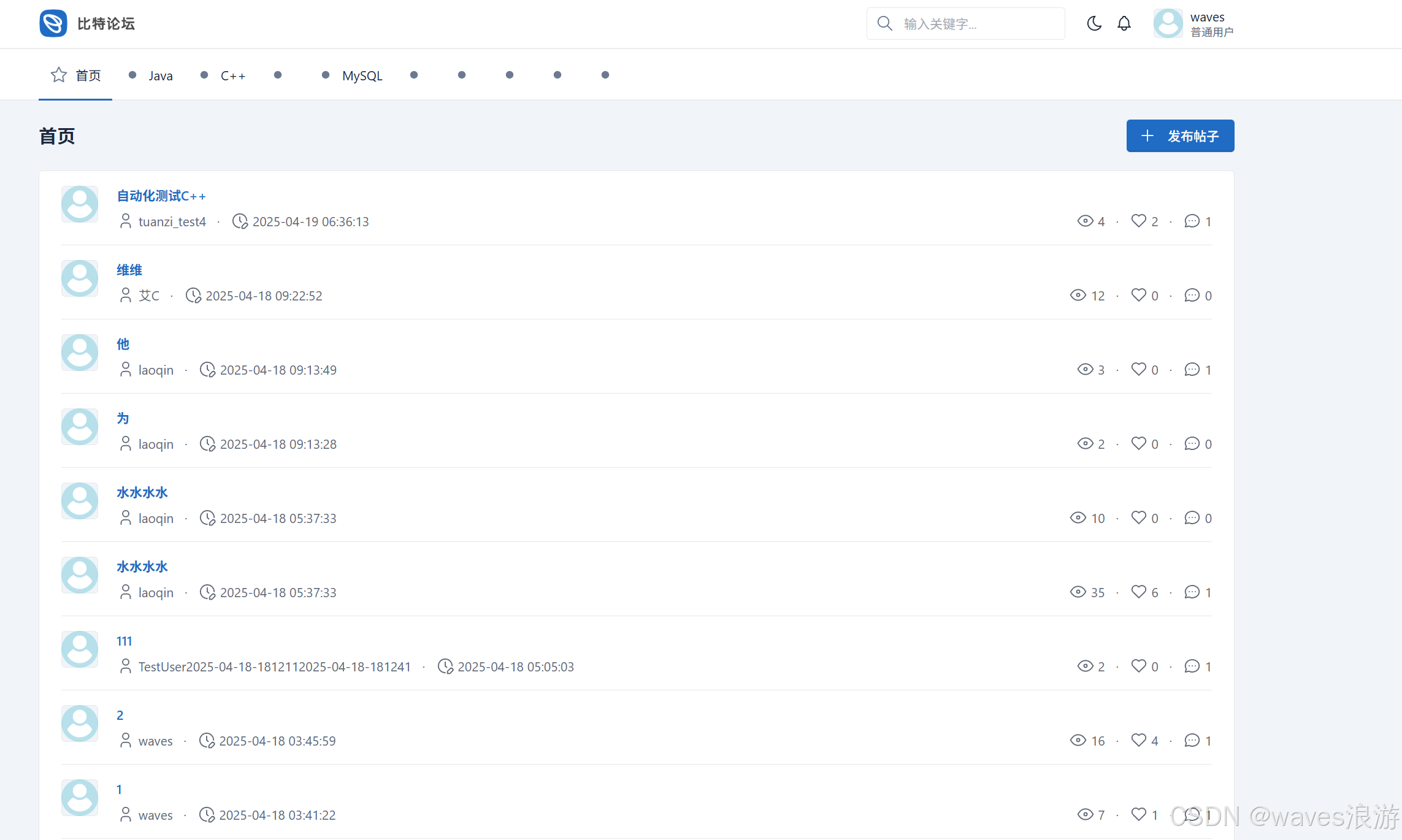

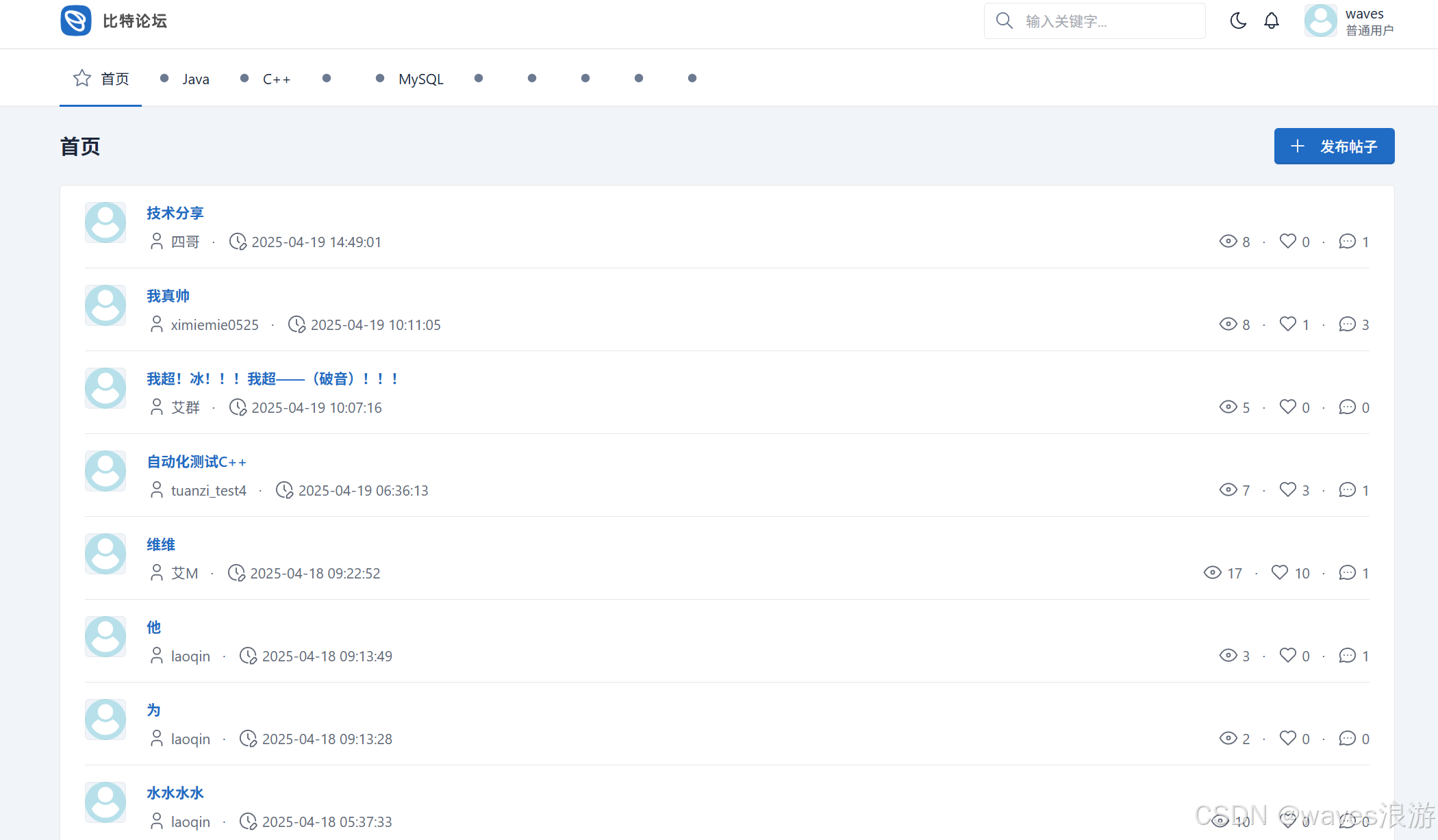

论坛首页登录状态

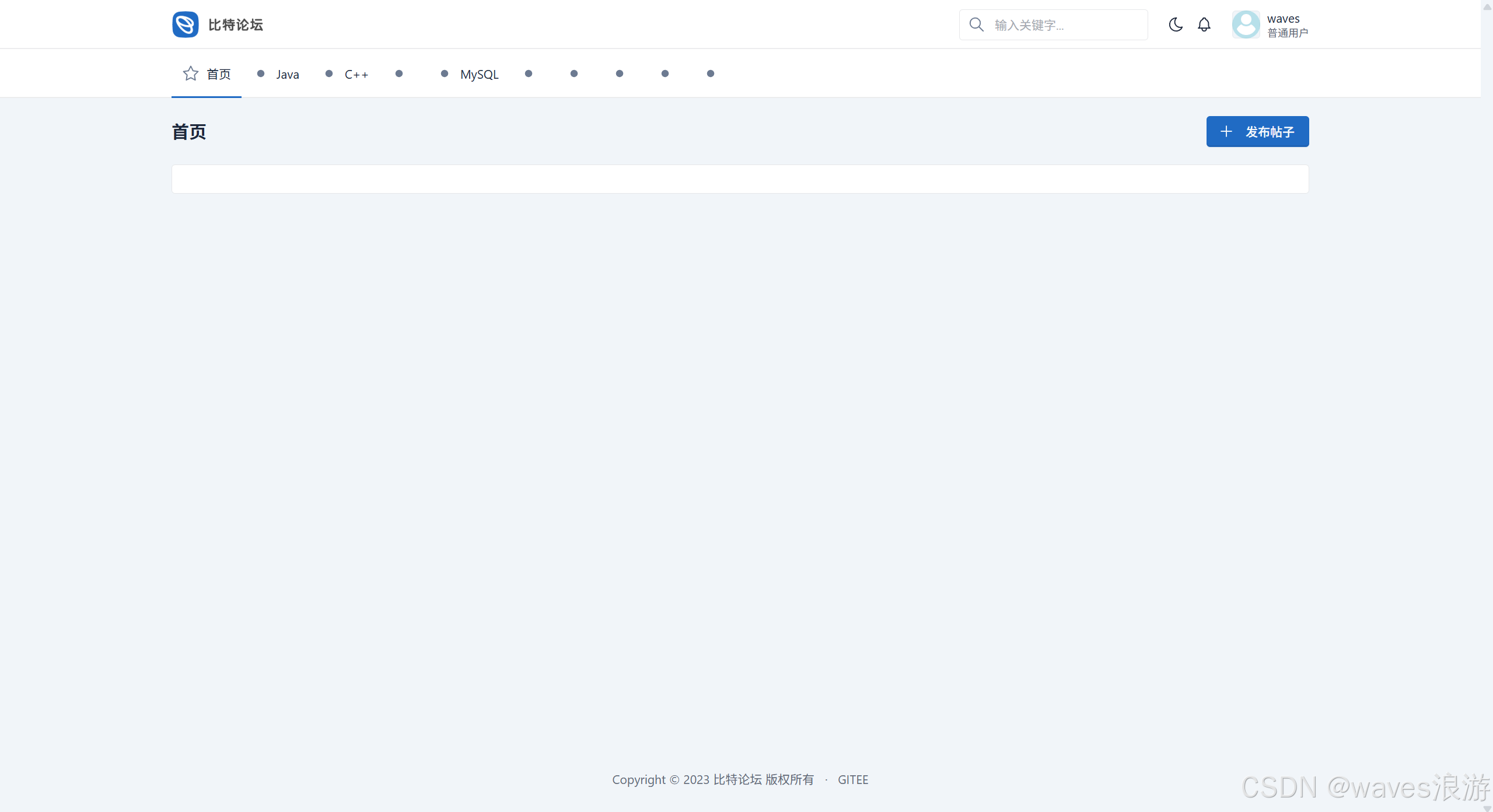

bug1：部分分类名称未显示

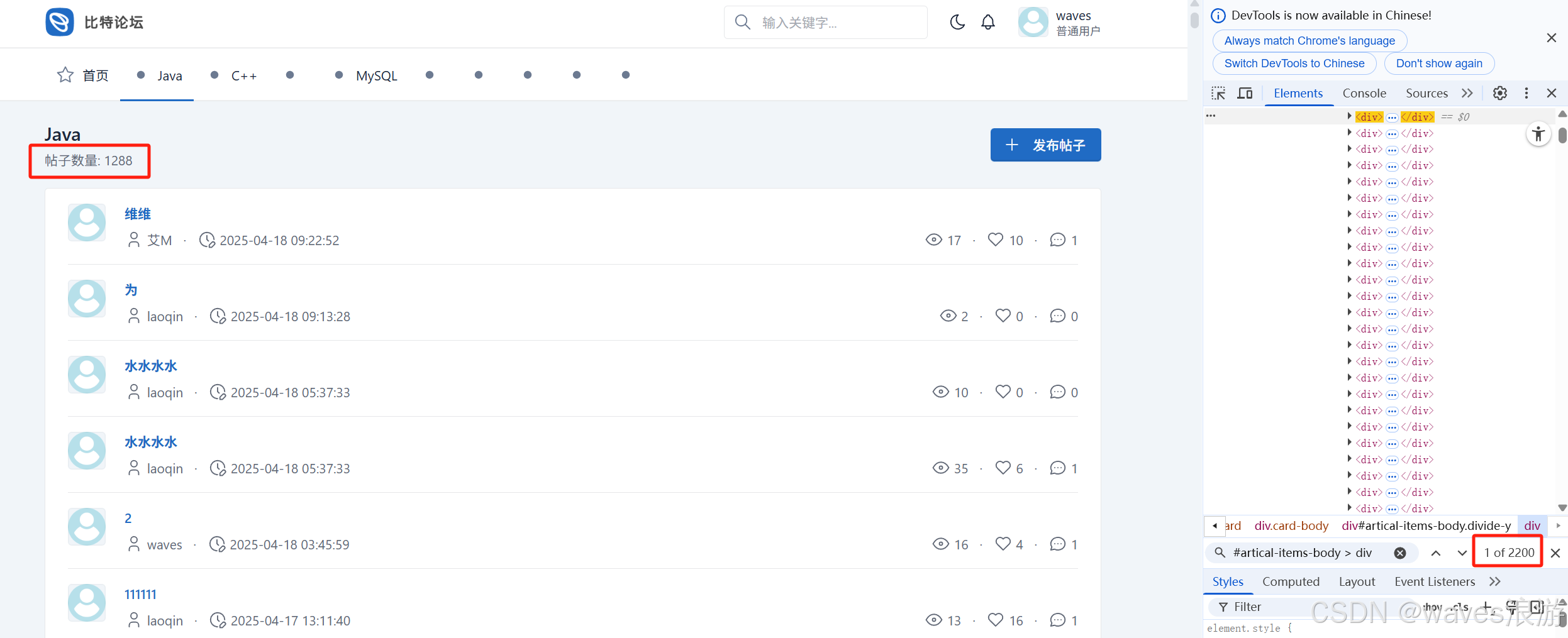

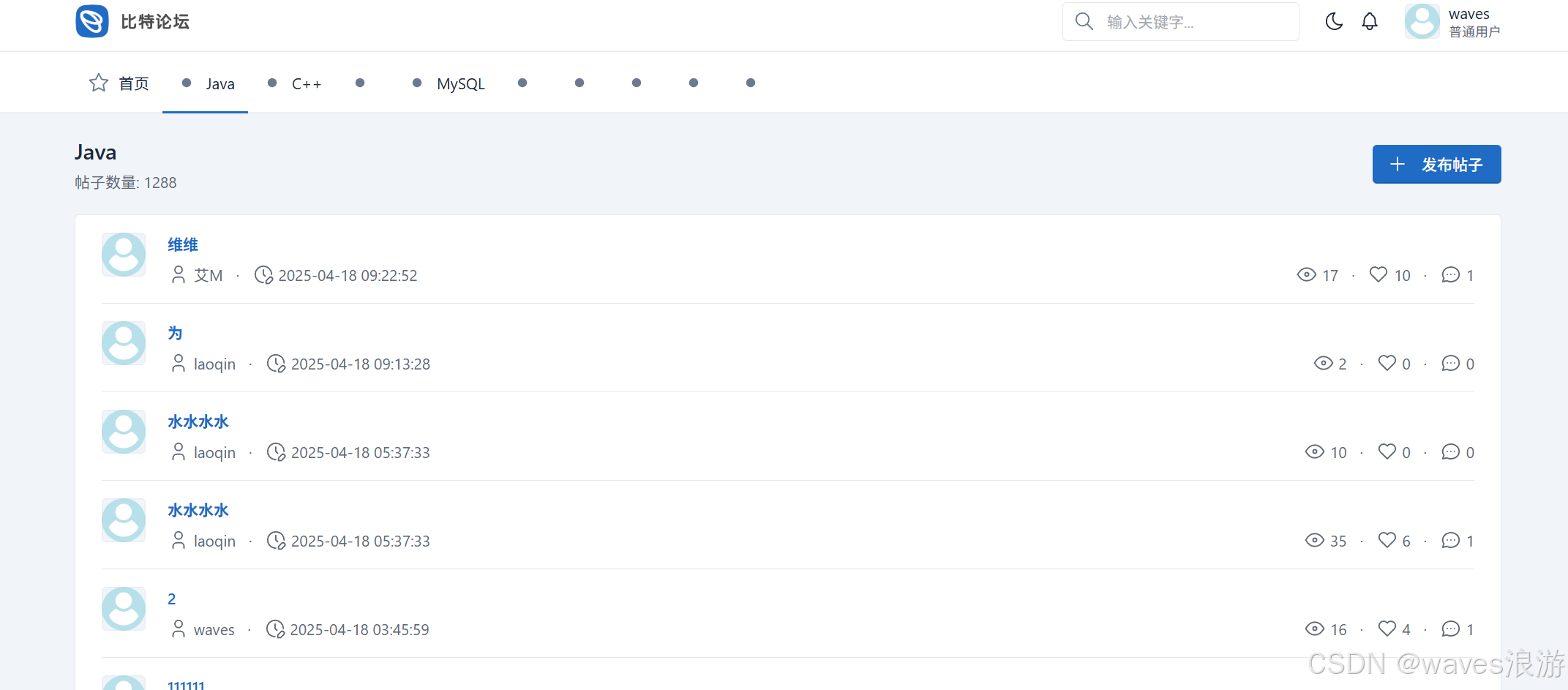

bug2：帖子数量显示不正确

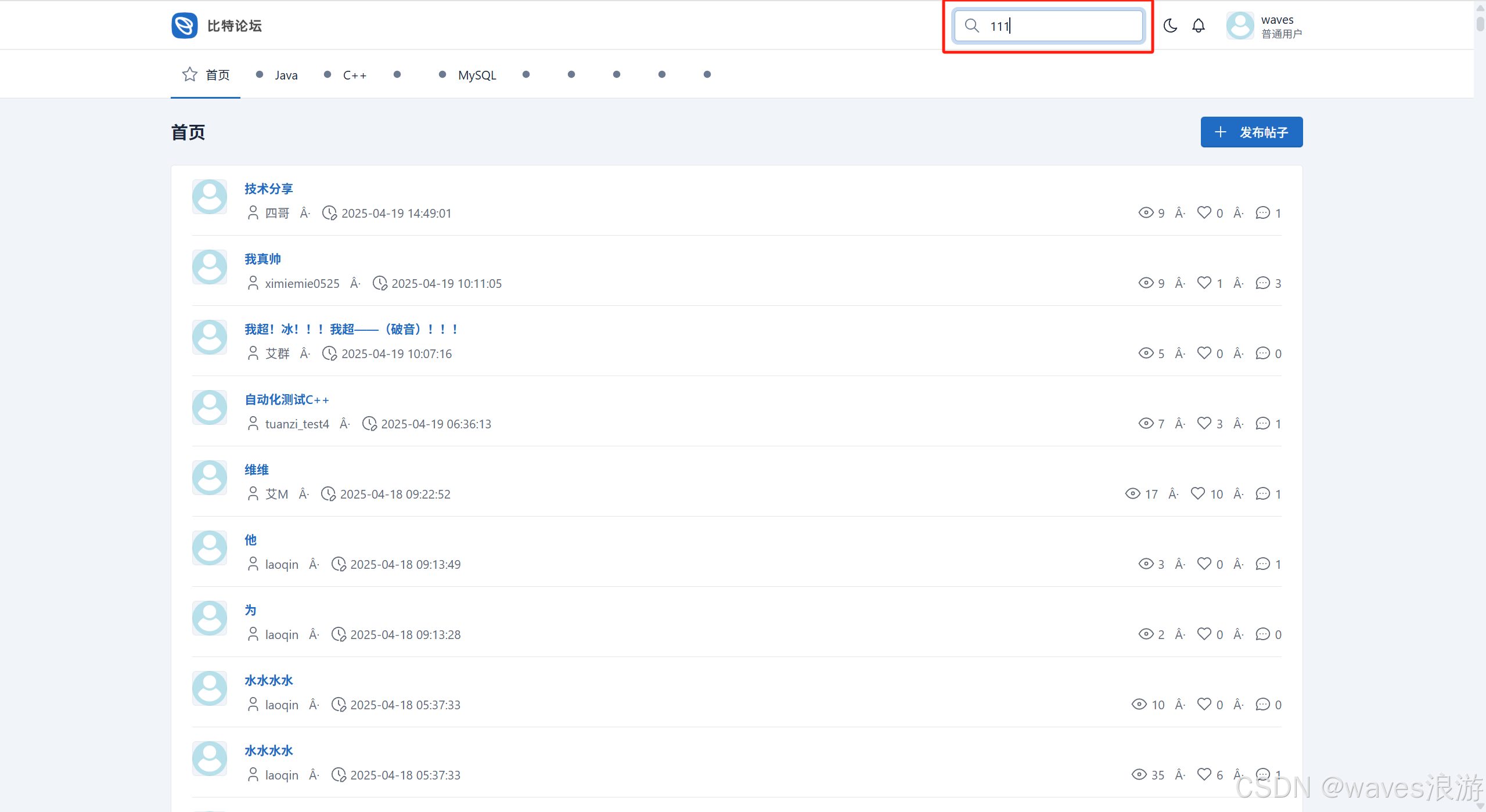

bug3：在搜索框搜索后不会跳出搜索的内容

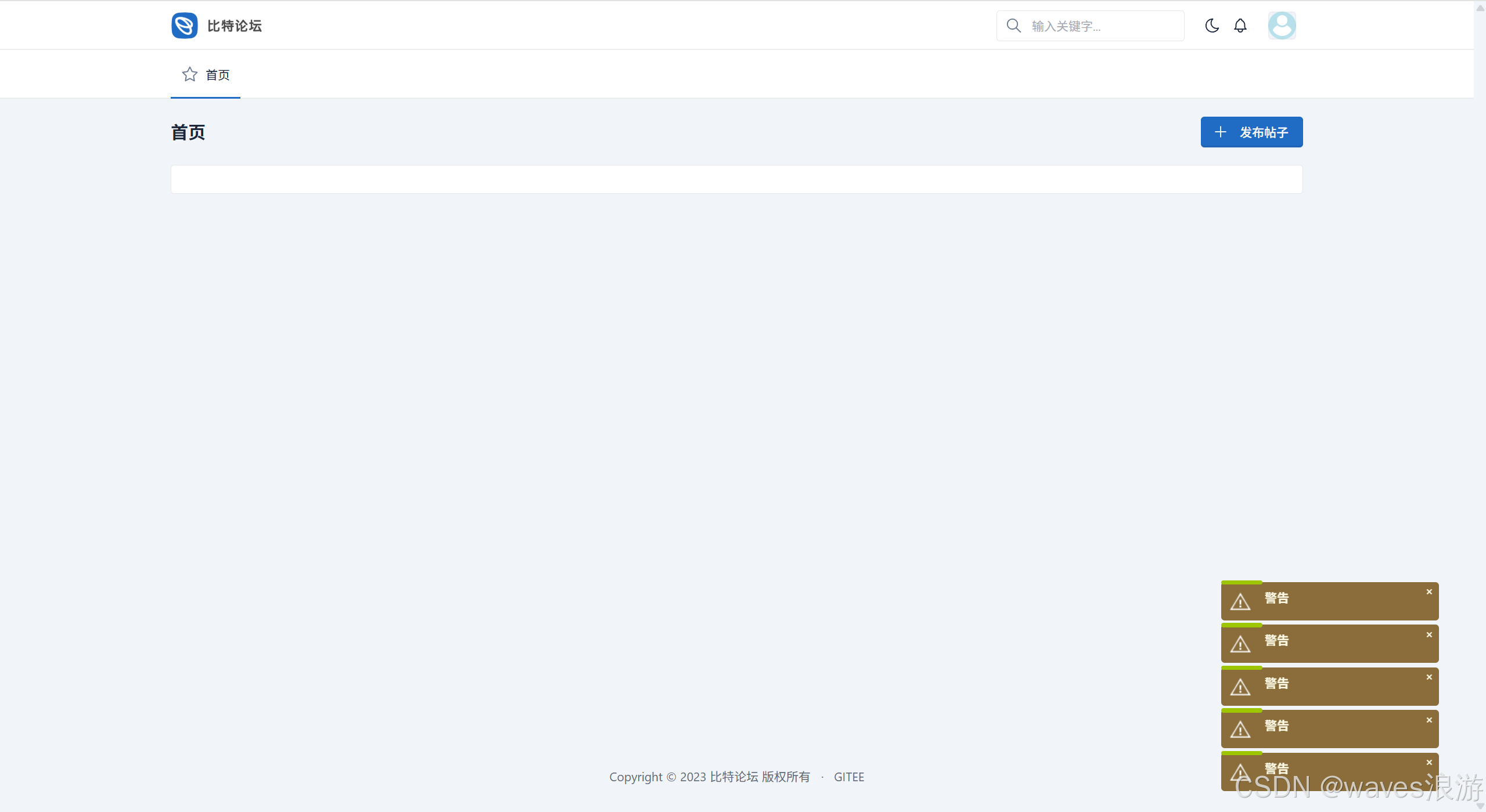

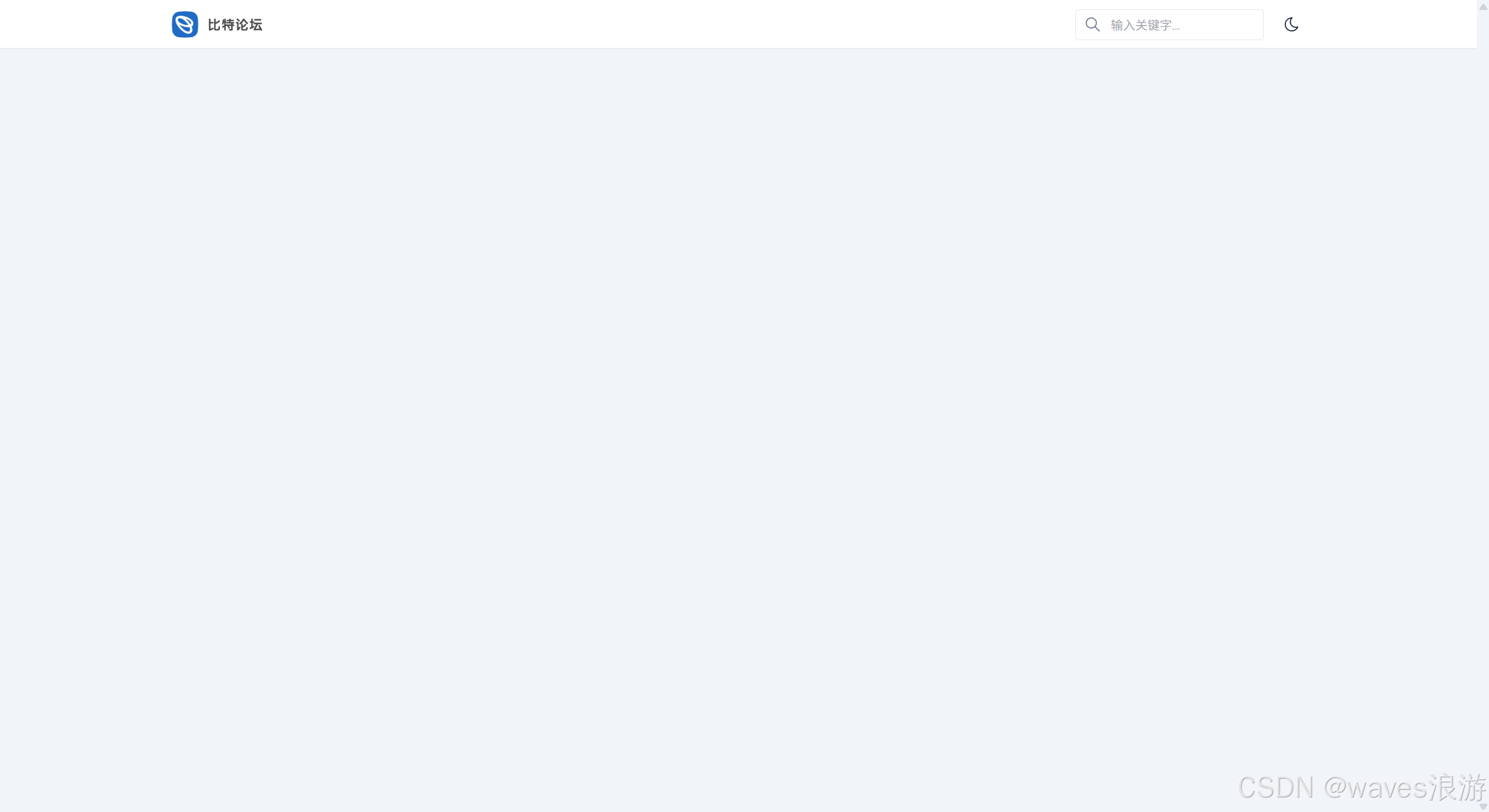

论坛首页未登录状态

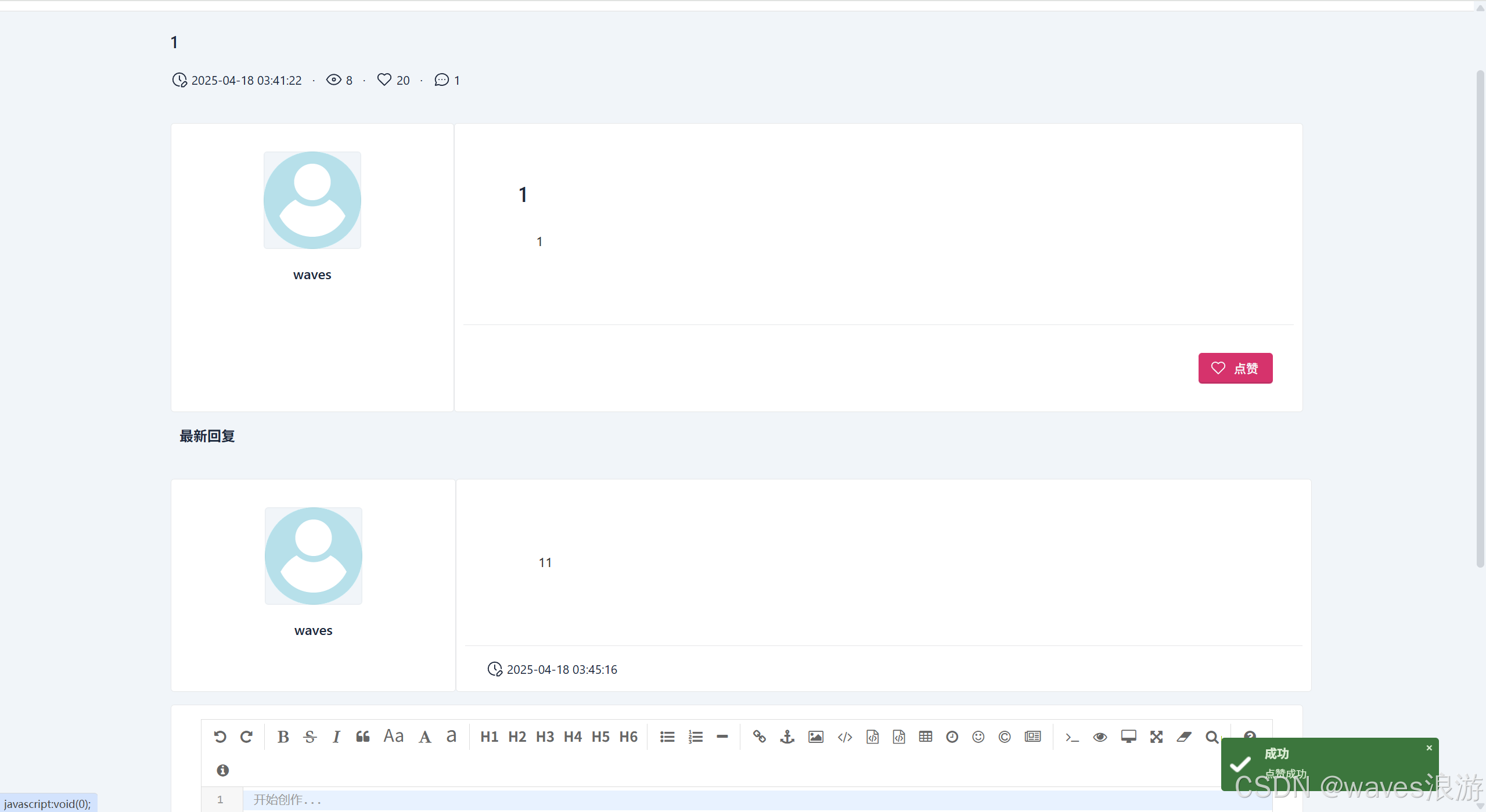

我的帖子详情页面

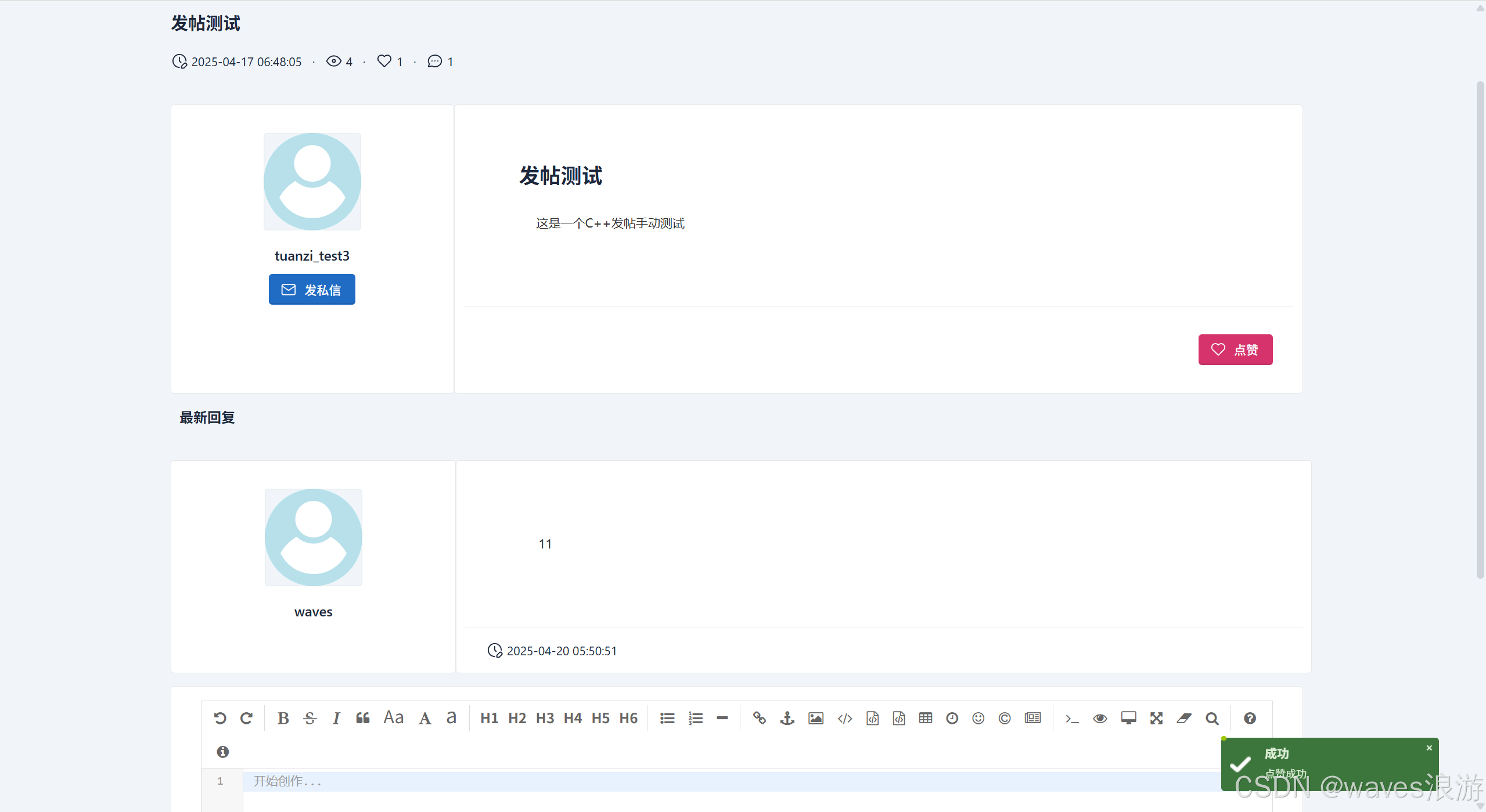

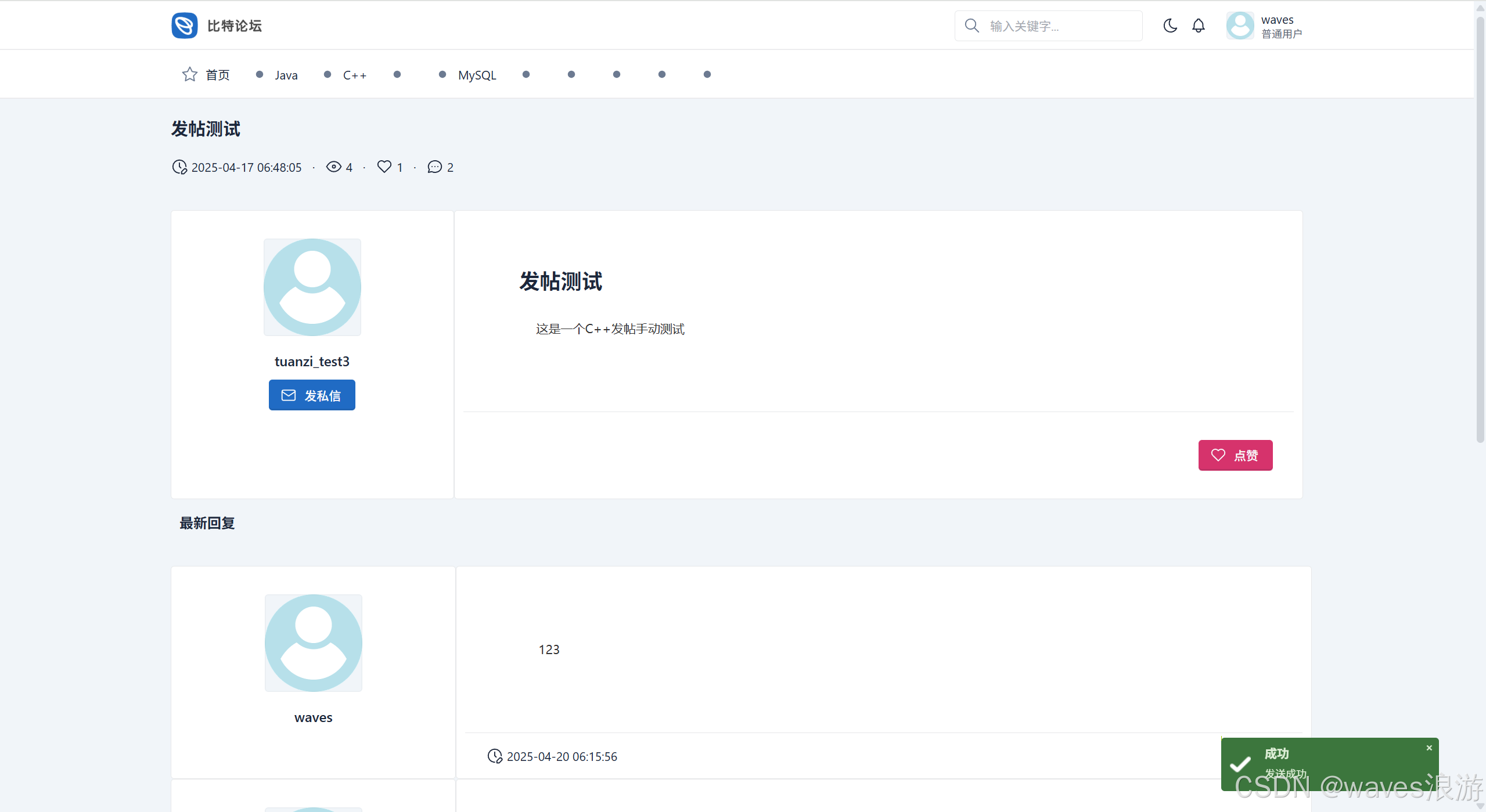

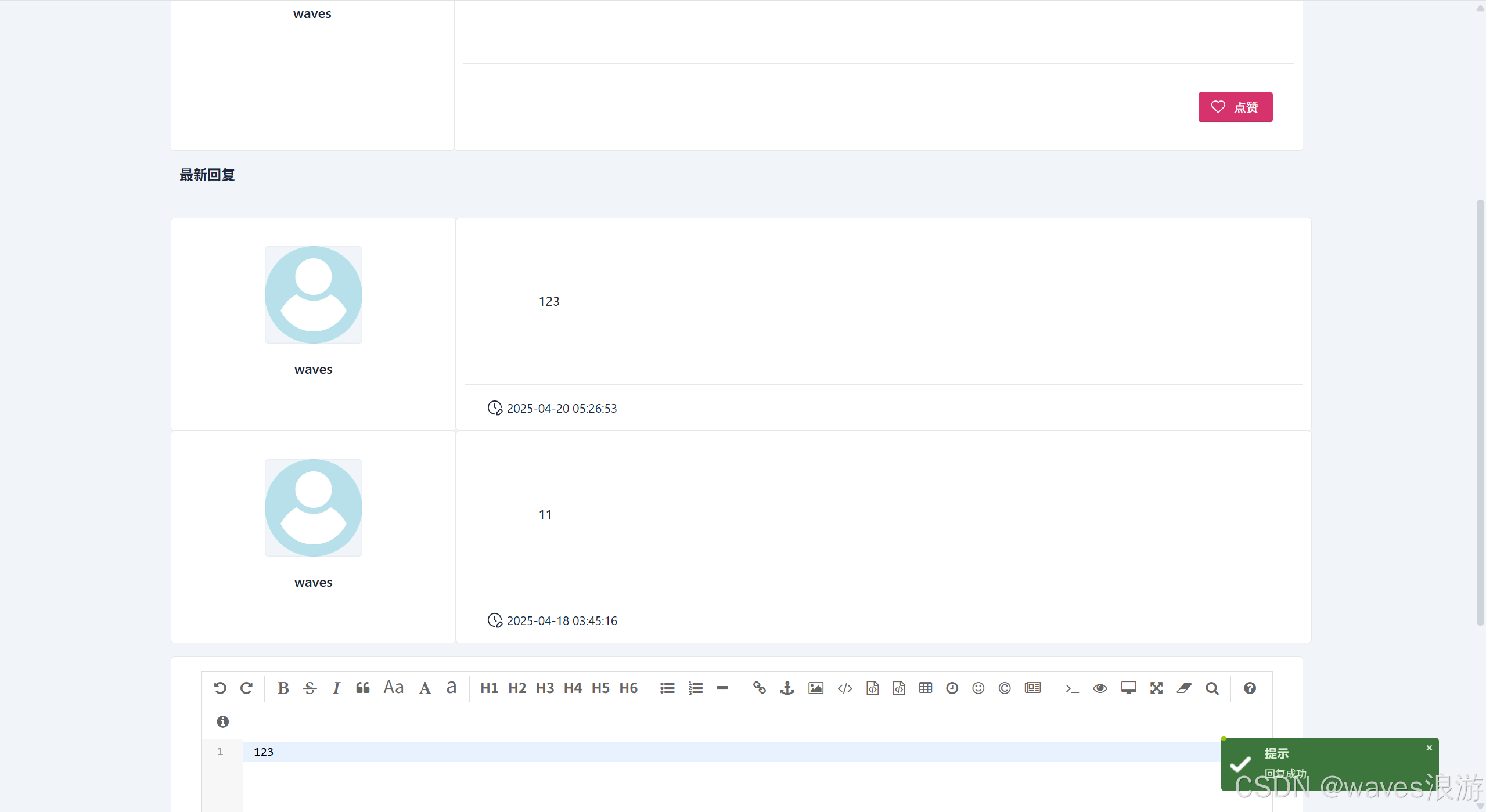

他人帖子详情页面

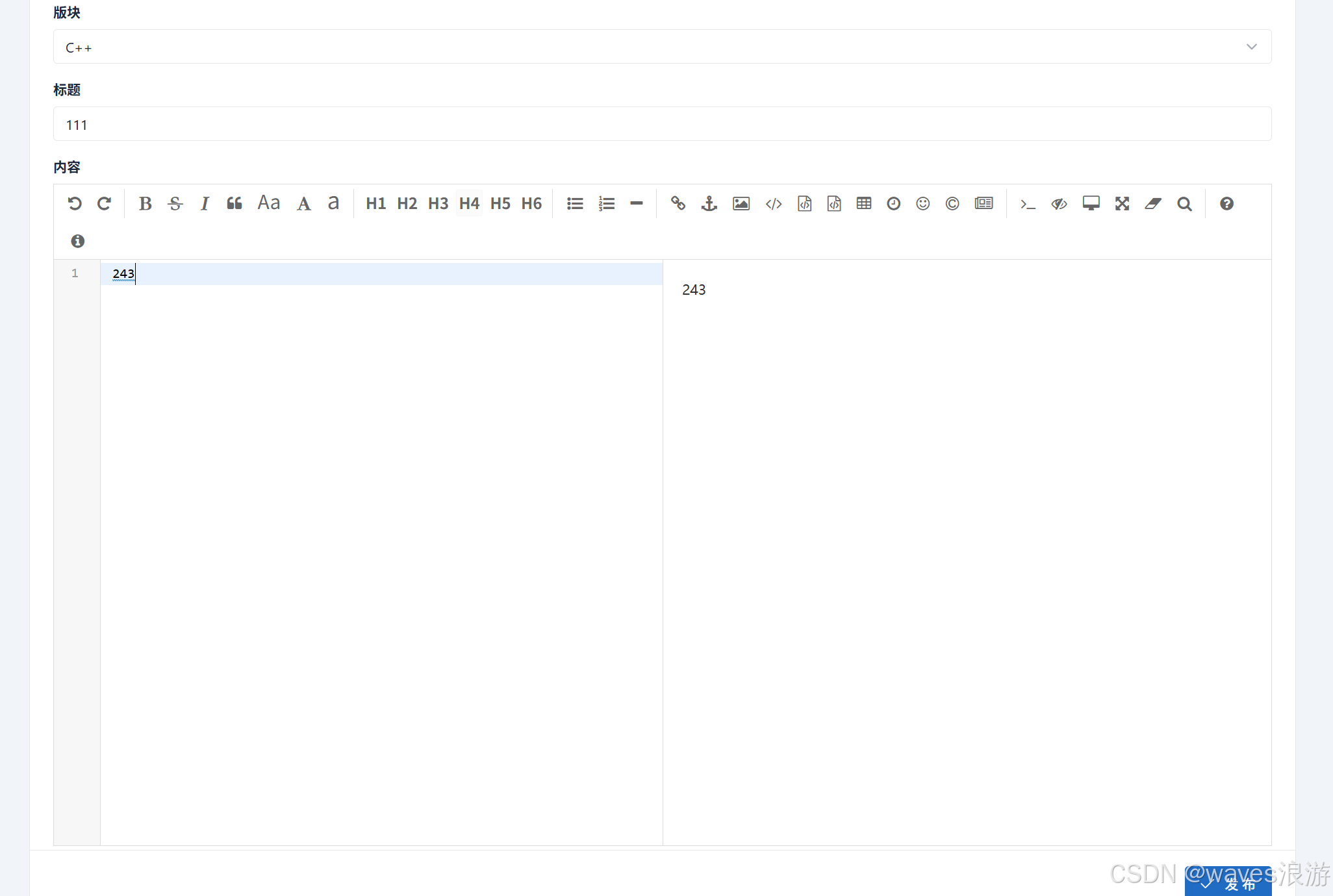

正常发布帖子

bug4：帖子发布时间显示不正确

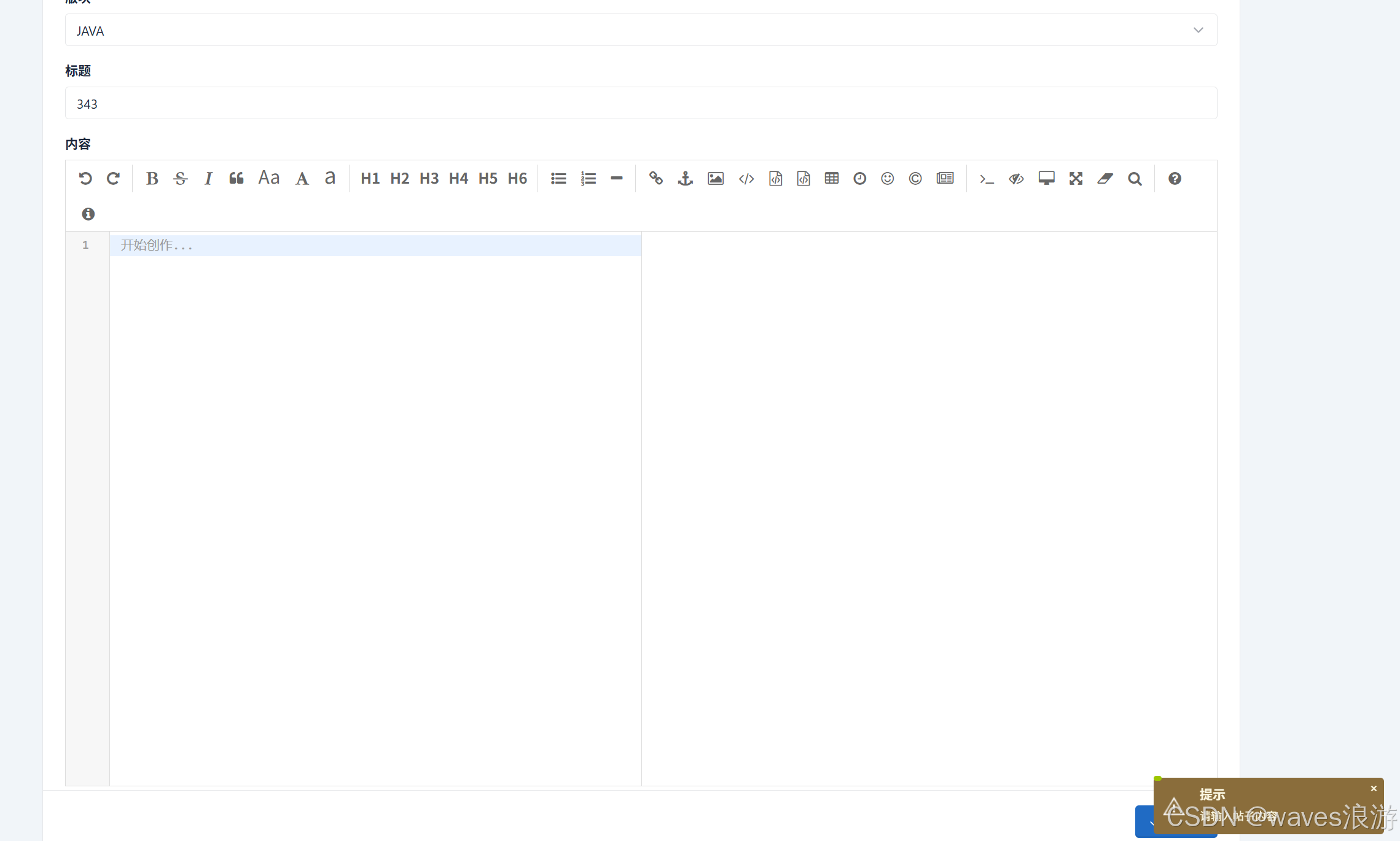

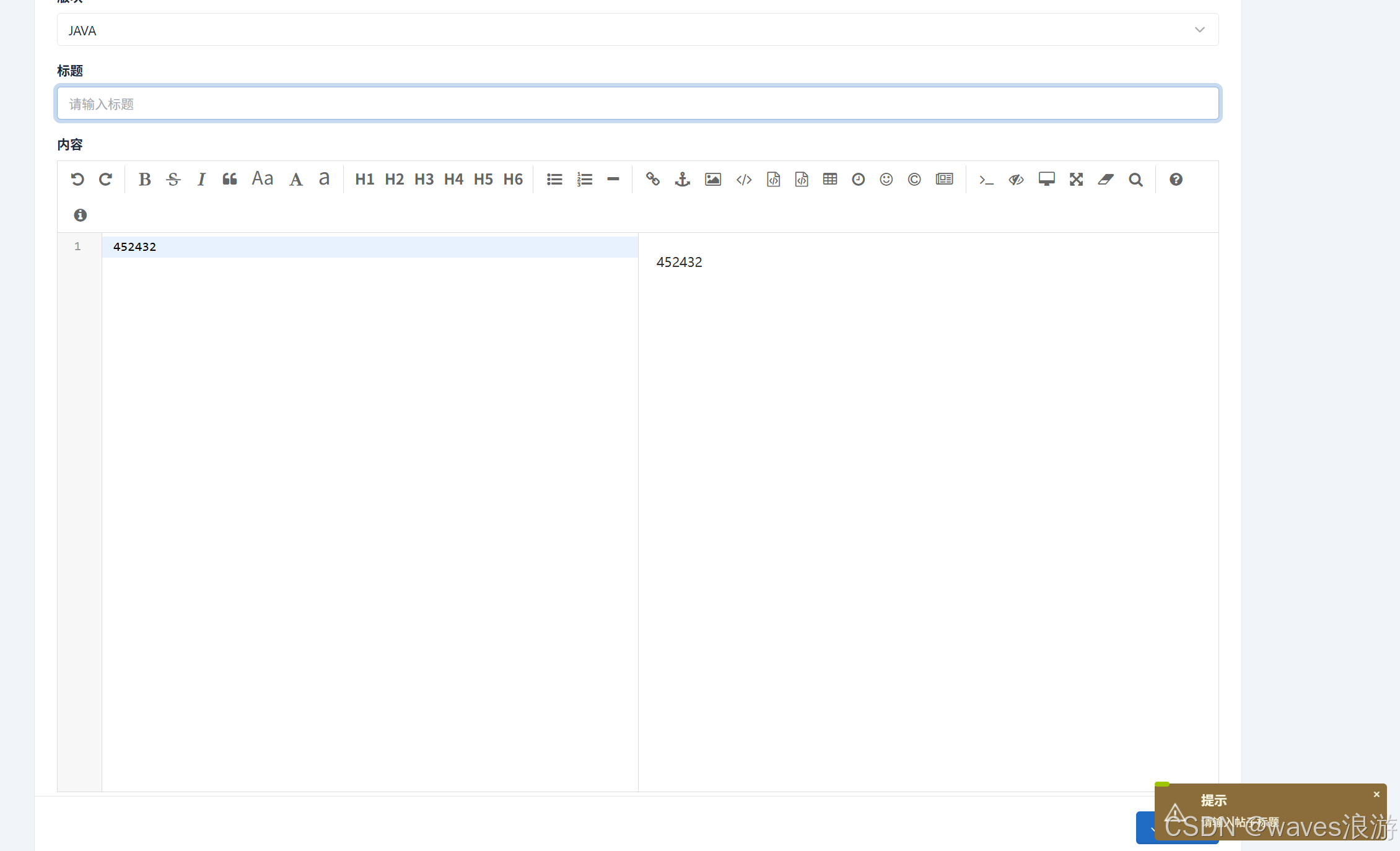

异常发布帖子

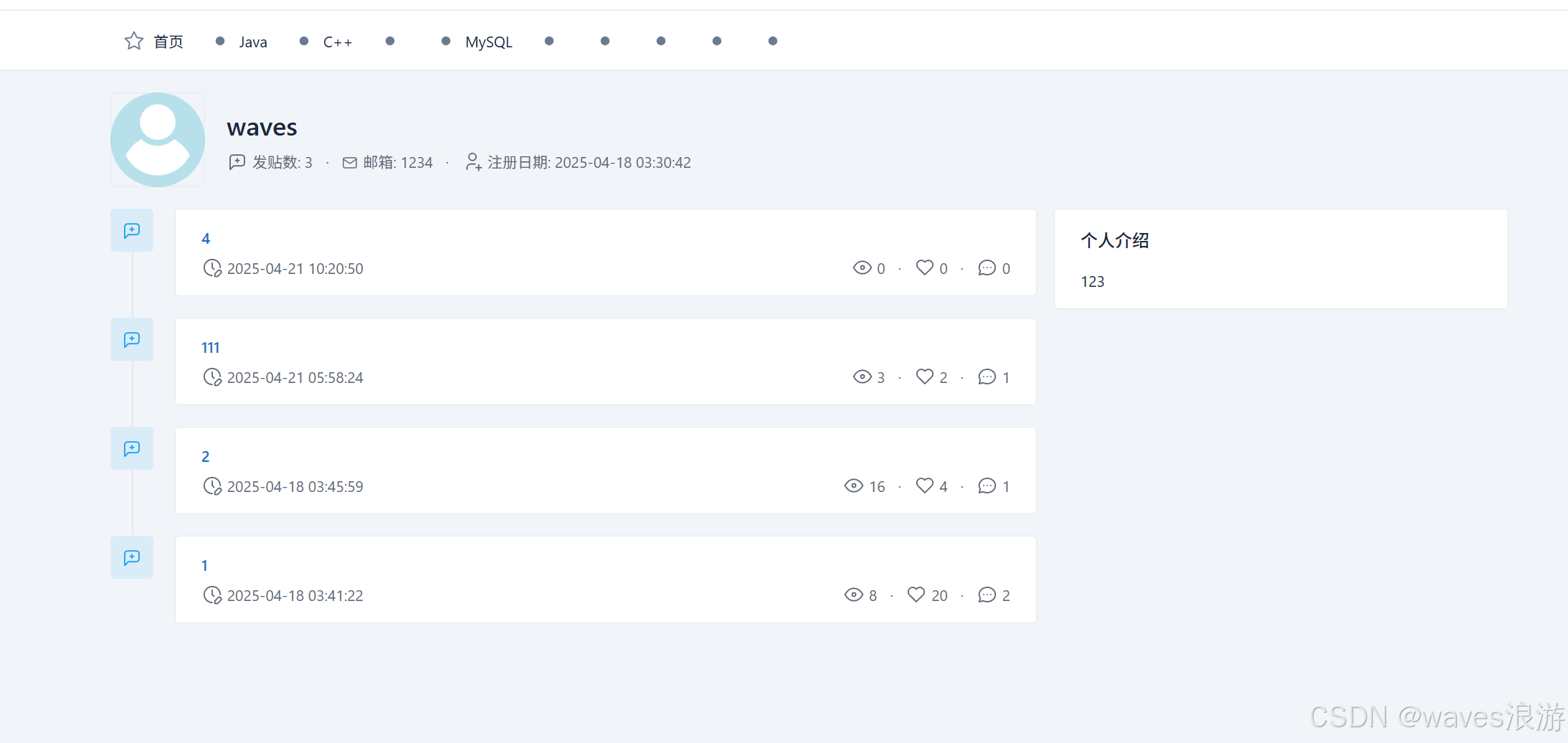

我的帖子页面

bug5：显示的发帖数和实际发帖数不一致
bug6：注册日期错误

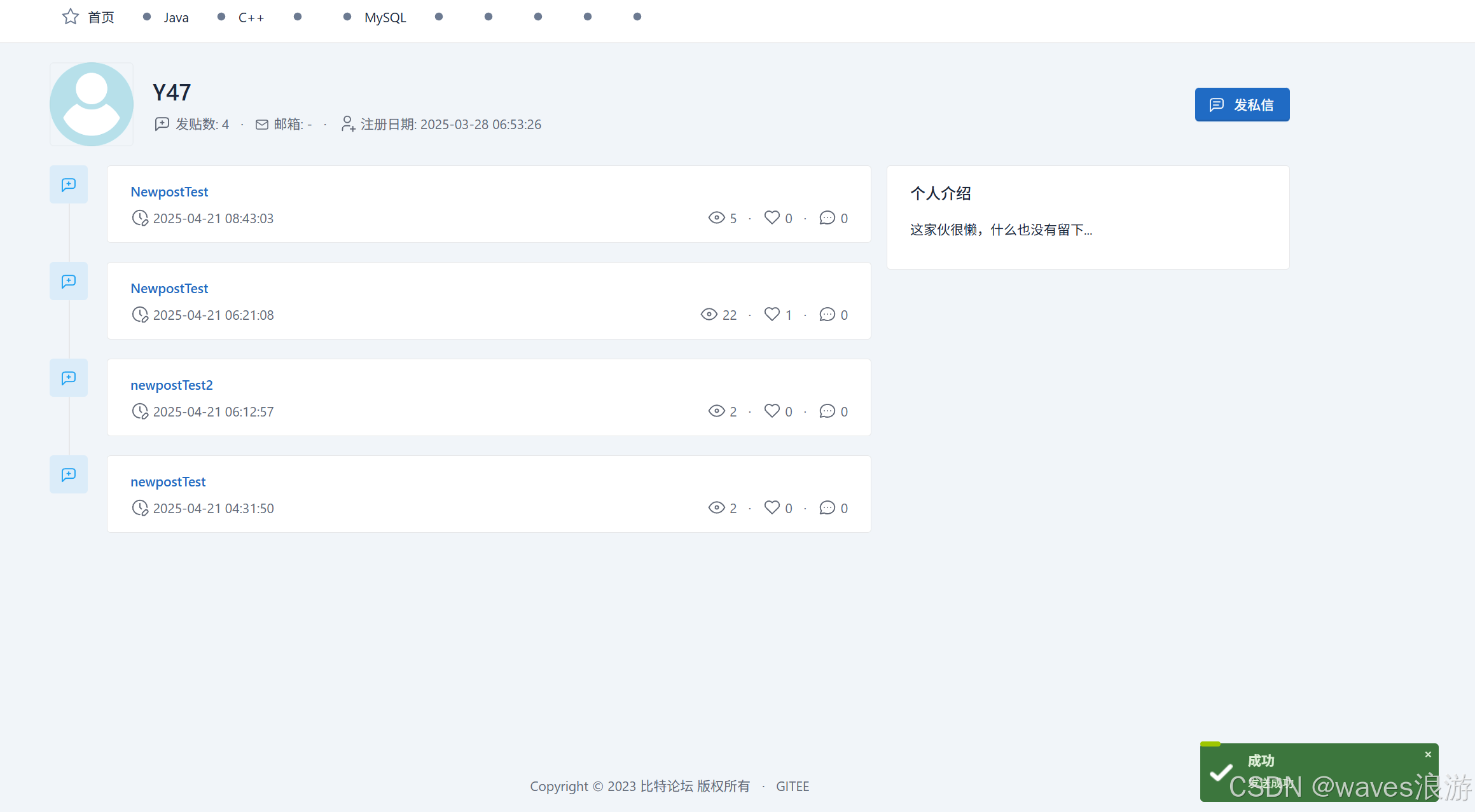

他人帖子页面

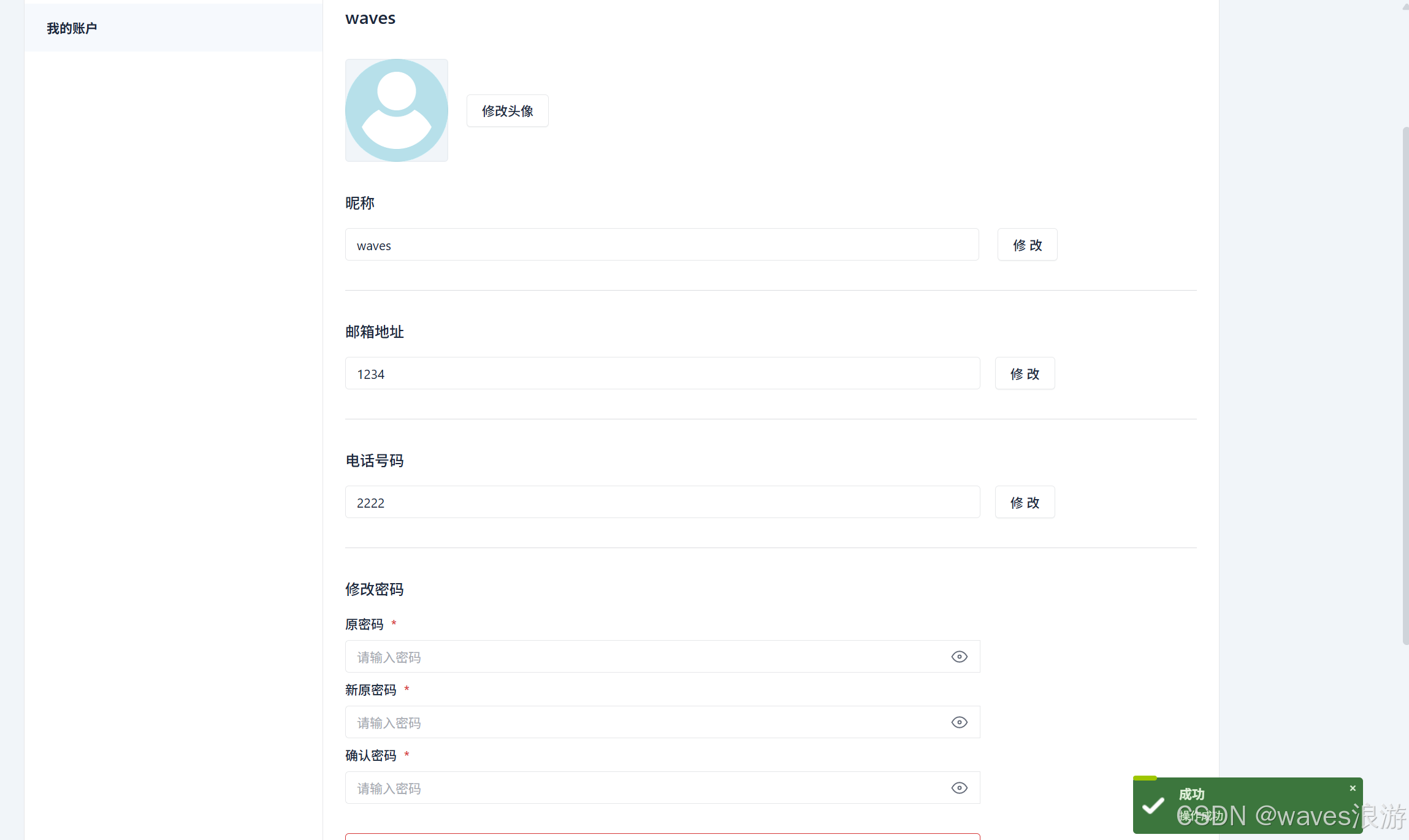

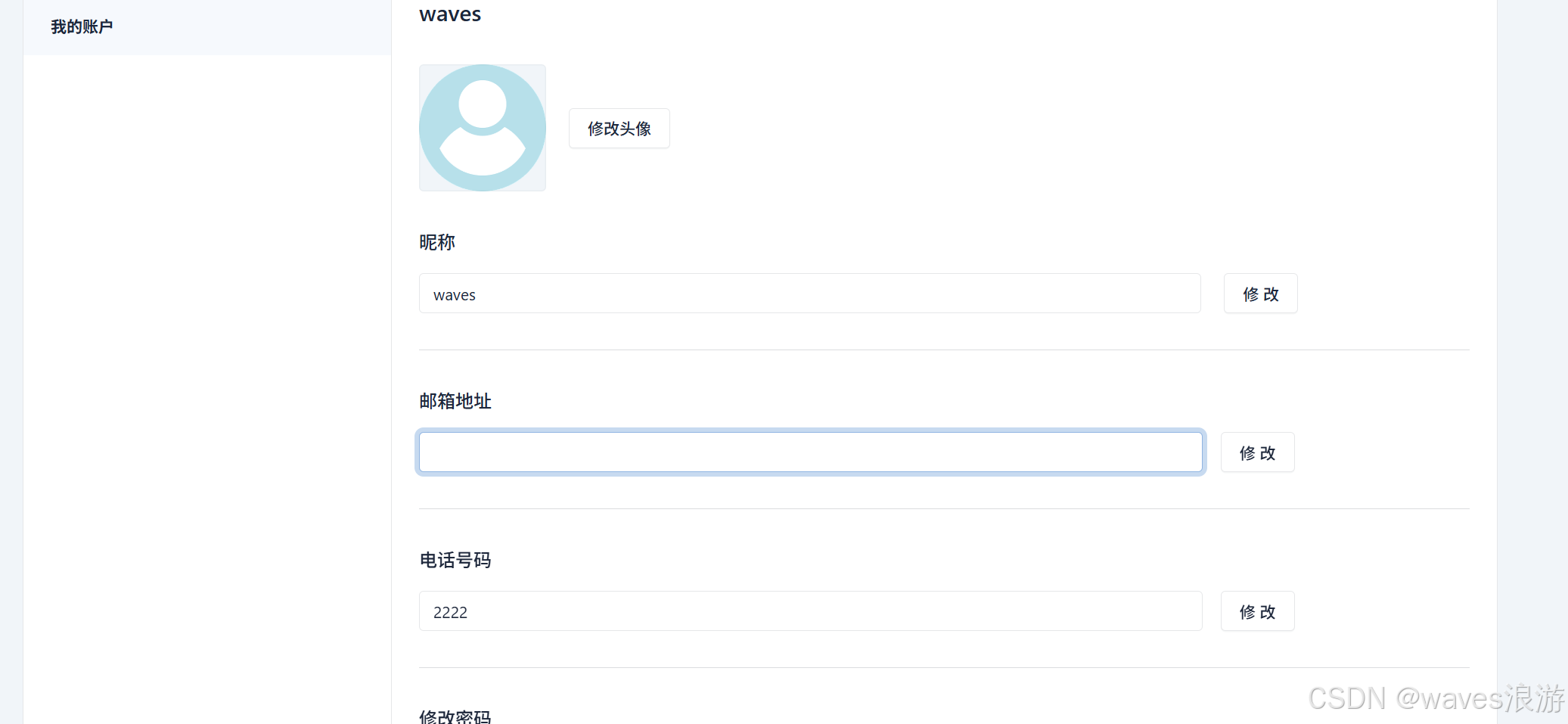

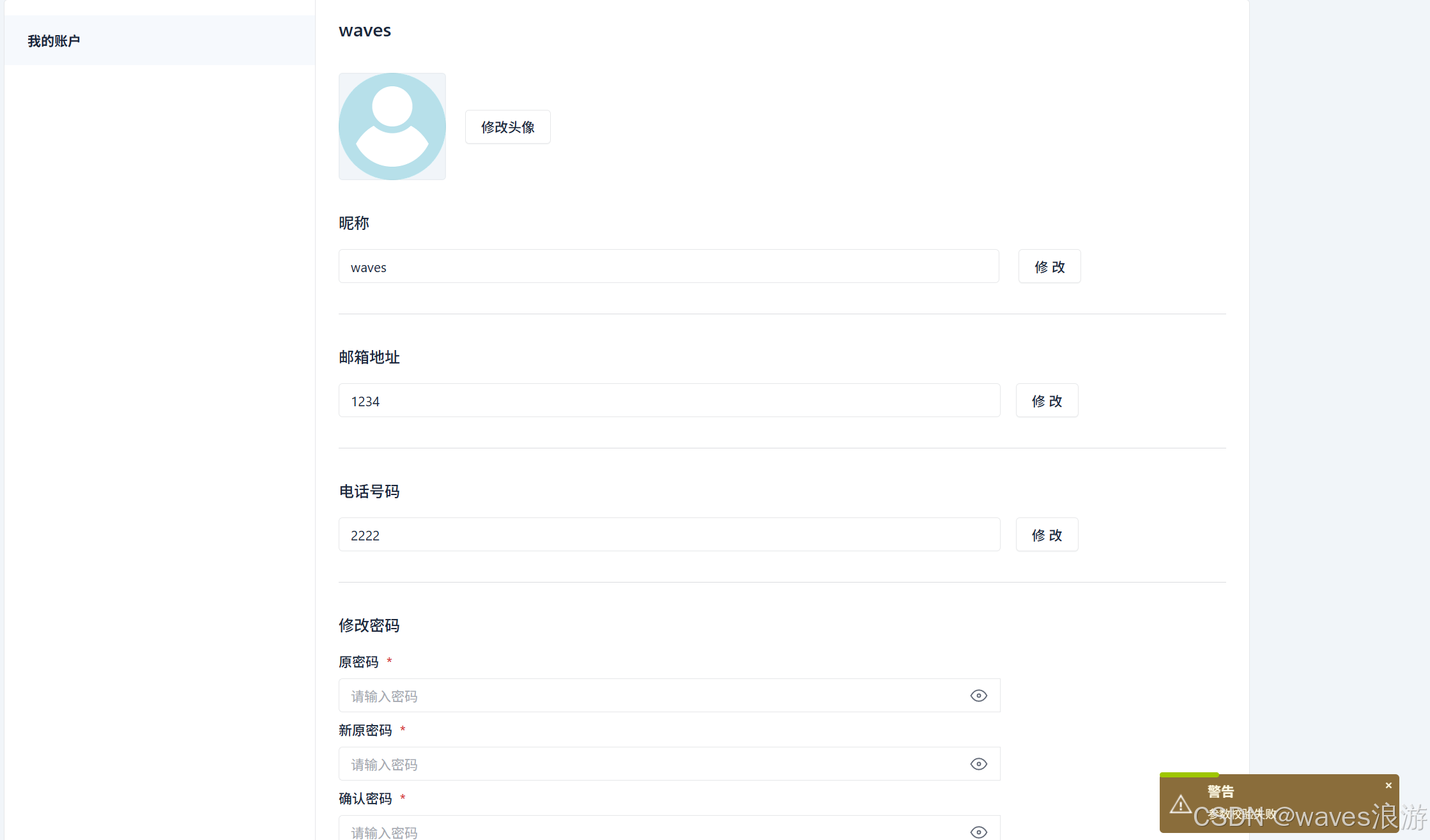

个人中心页面

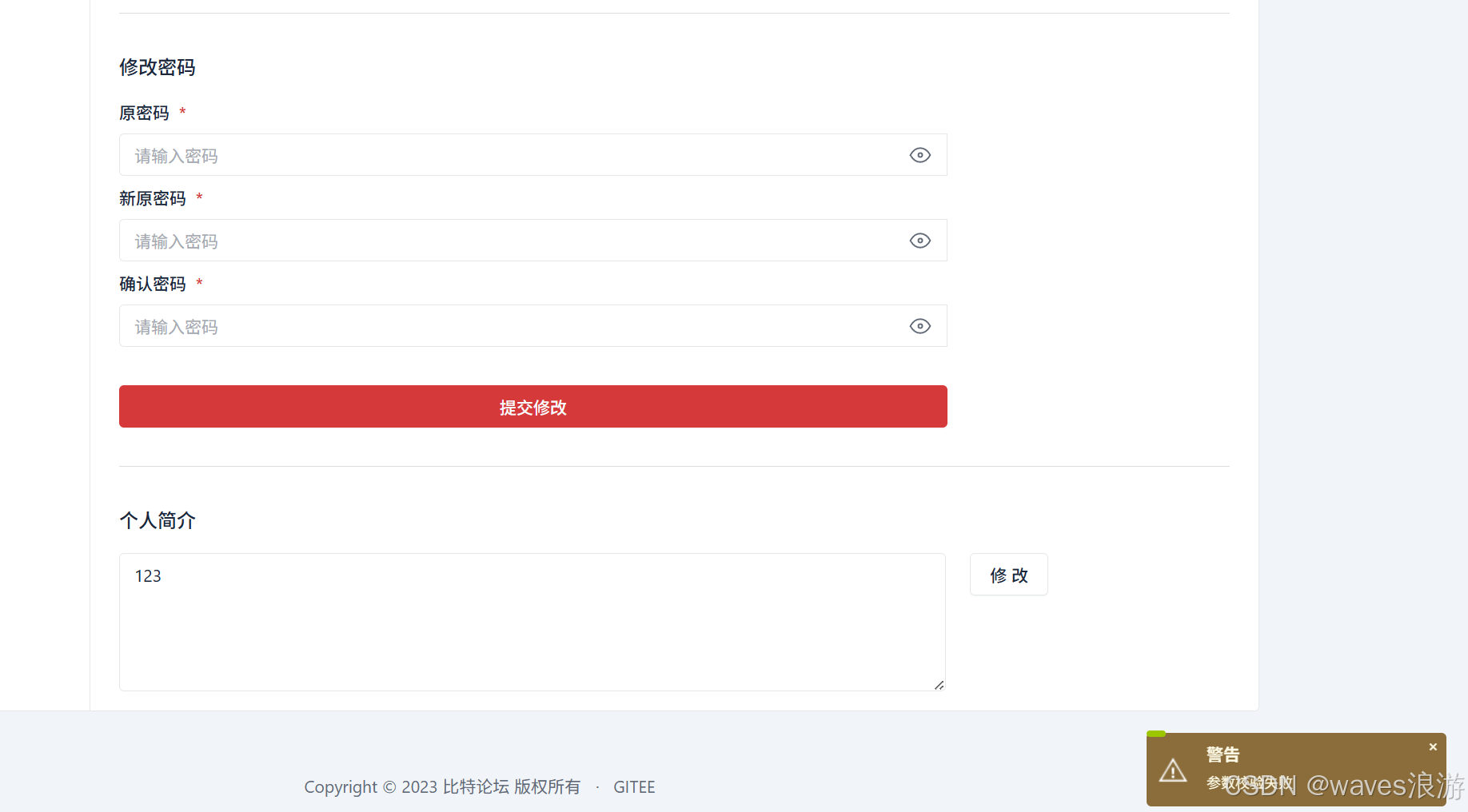

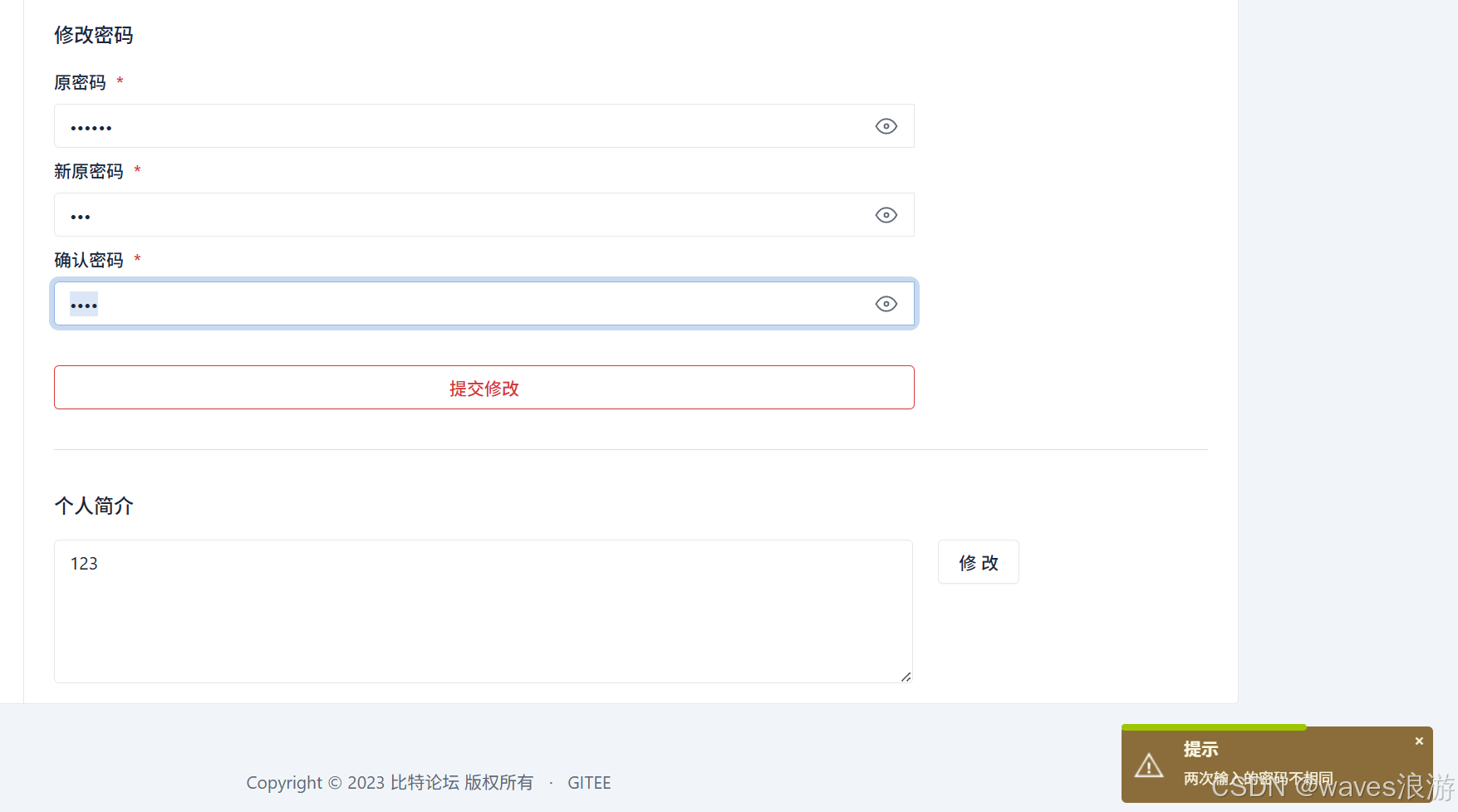

bug7：修改密码时和原来的密码相同也能修改成功

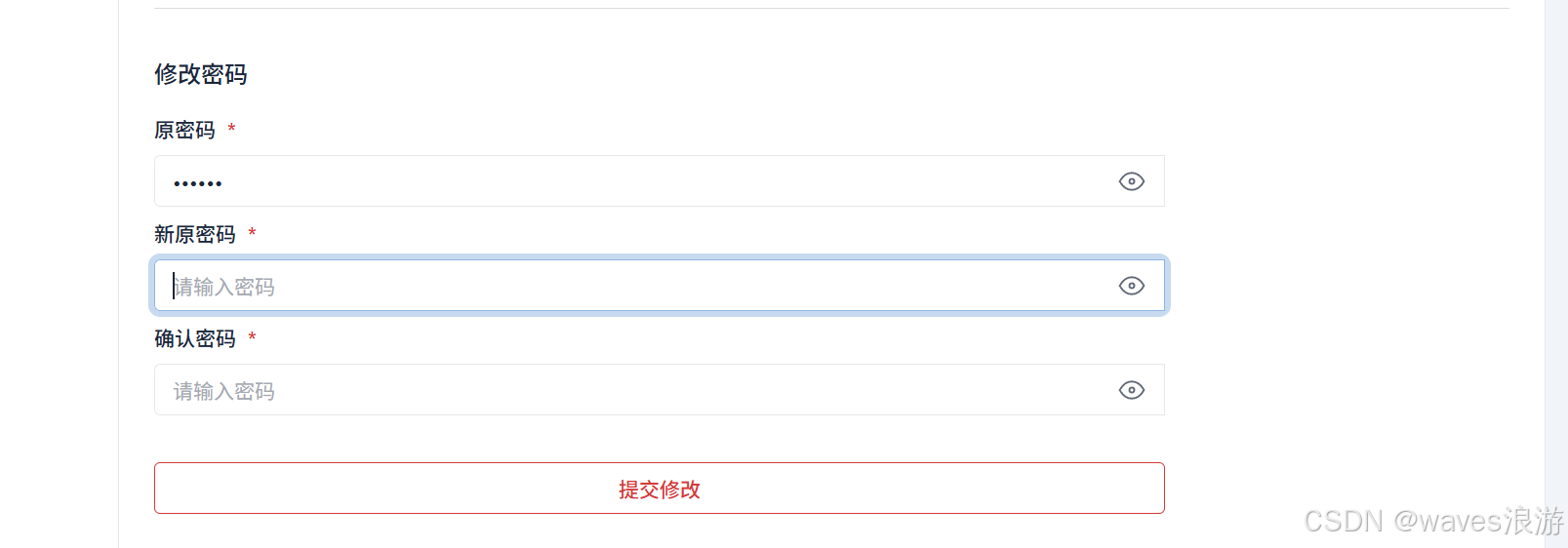

bug8：让密码取消掩码显示不成功

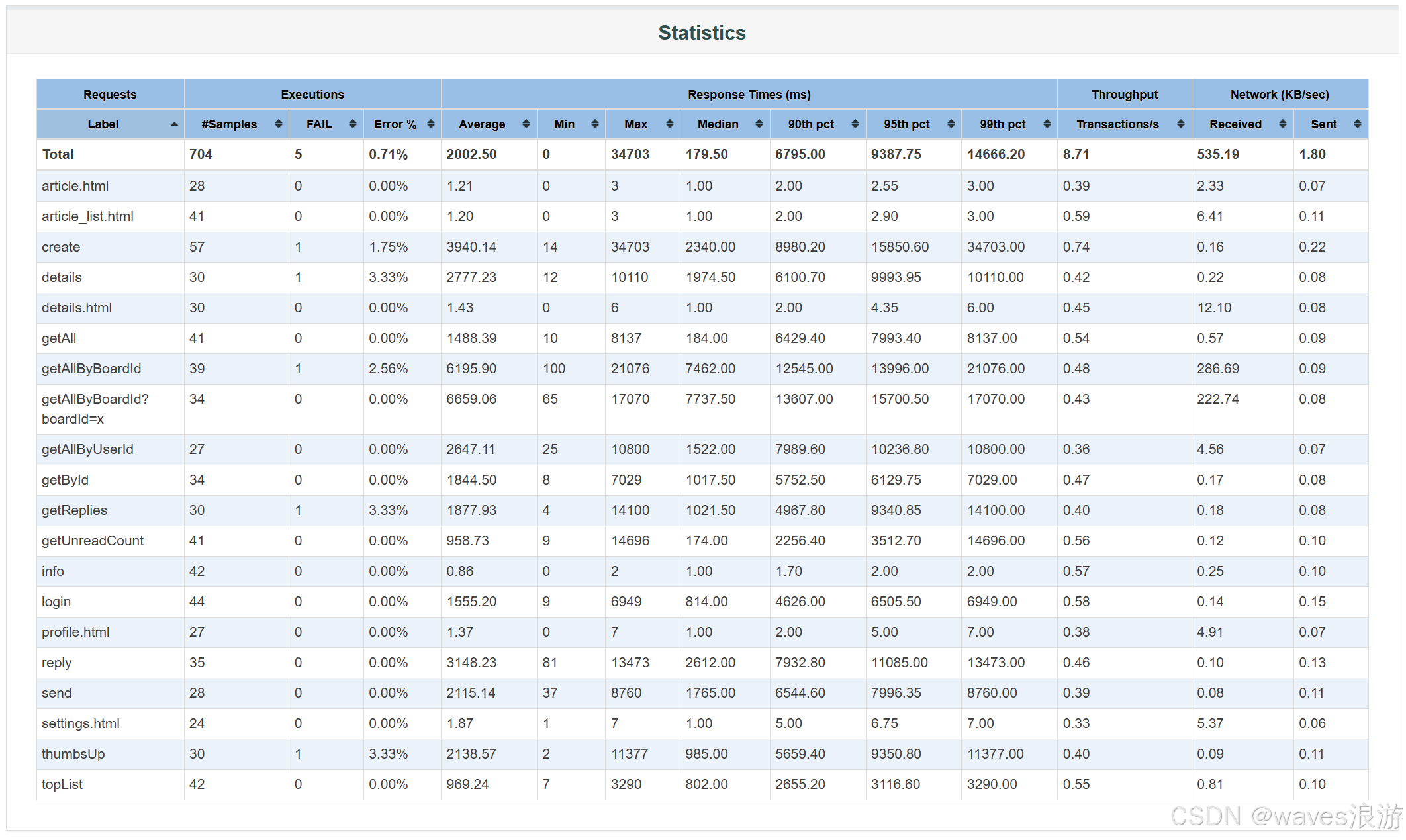

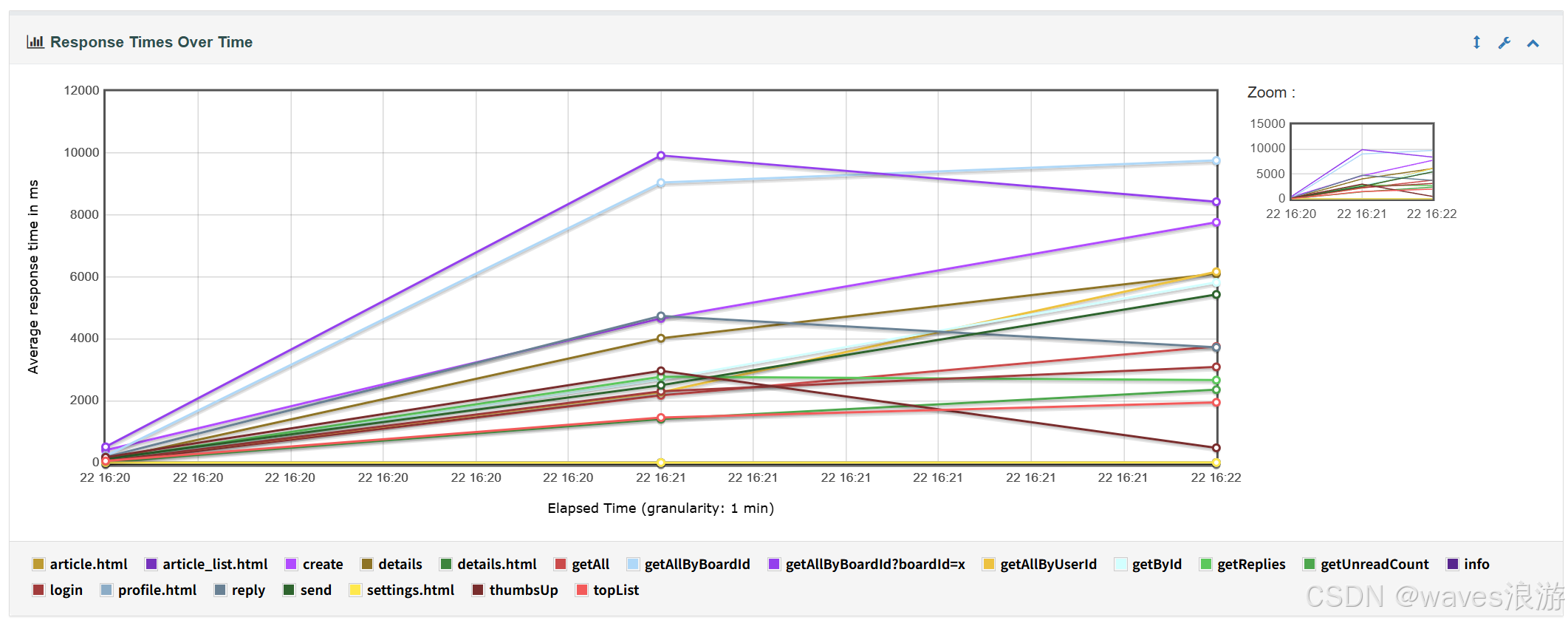

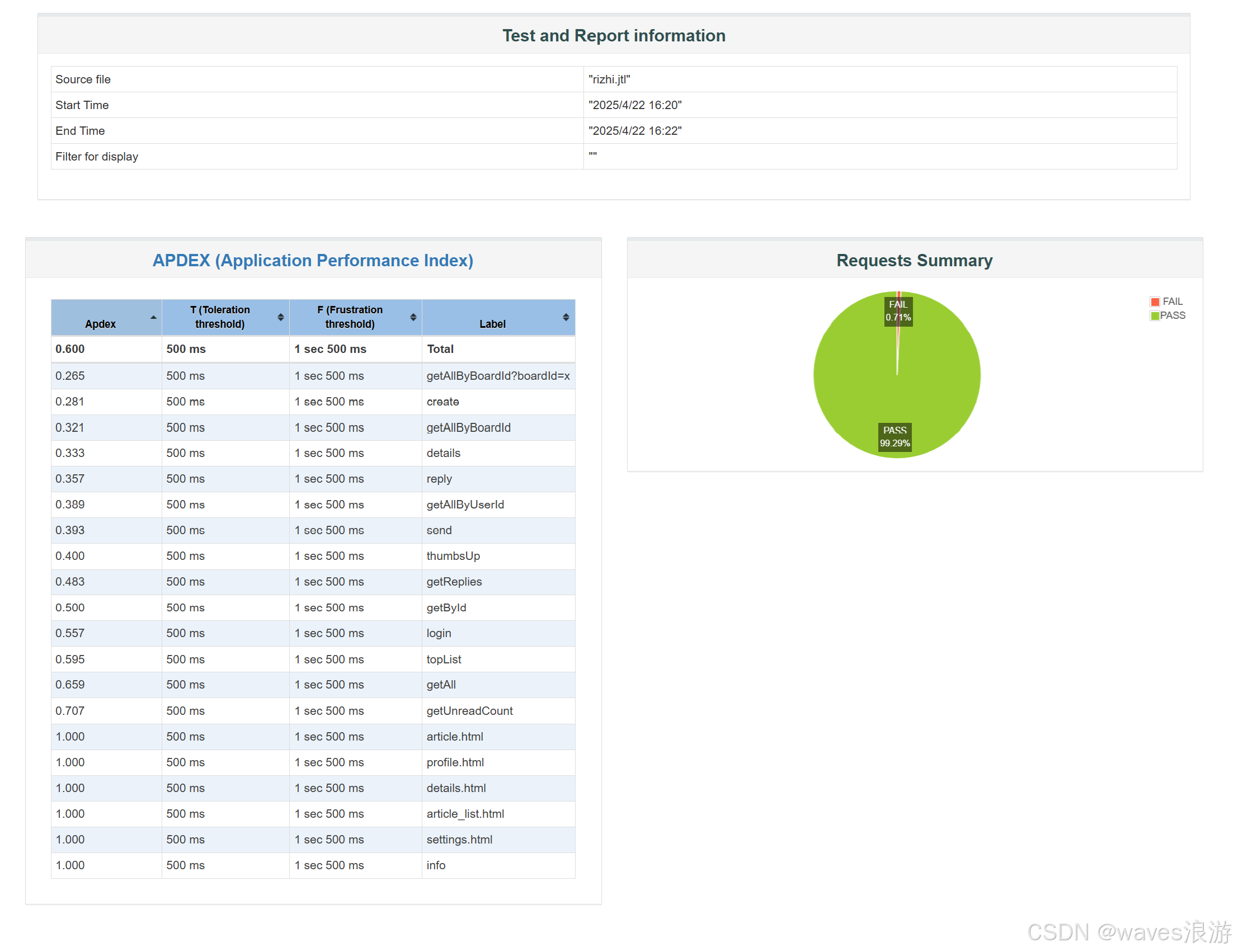

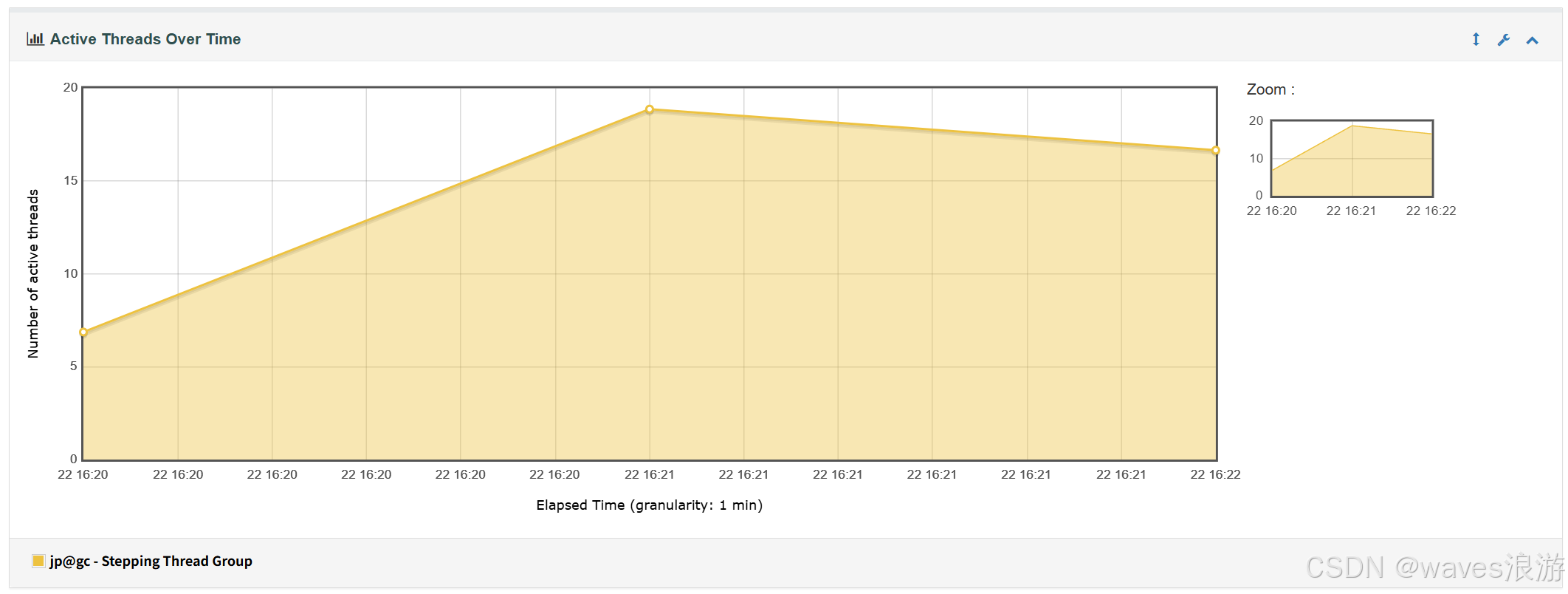

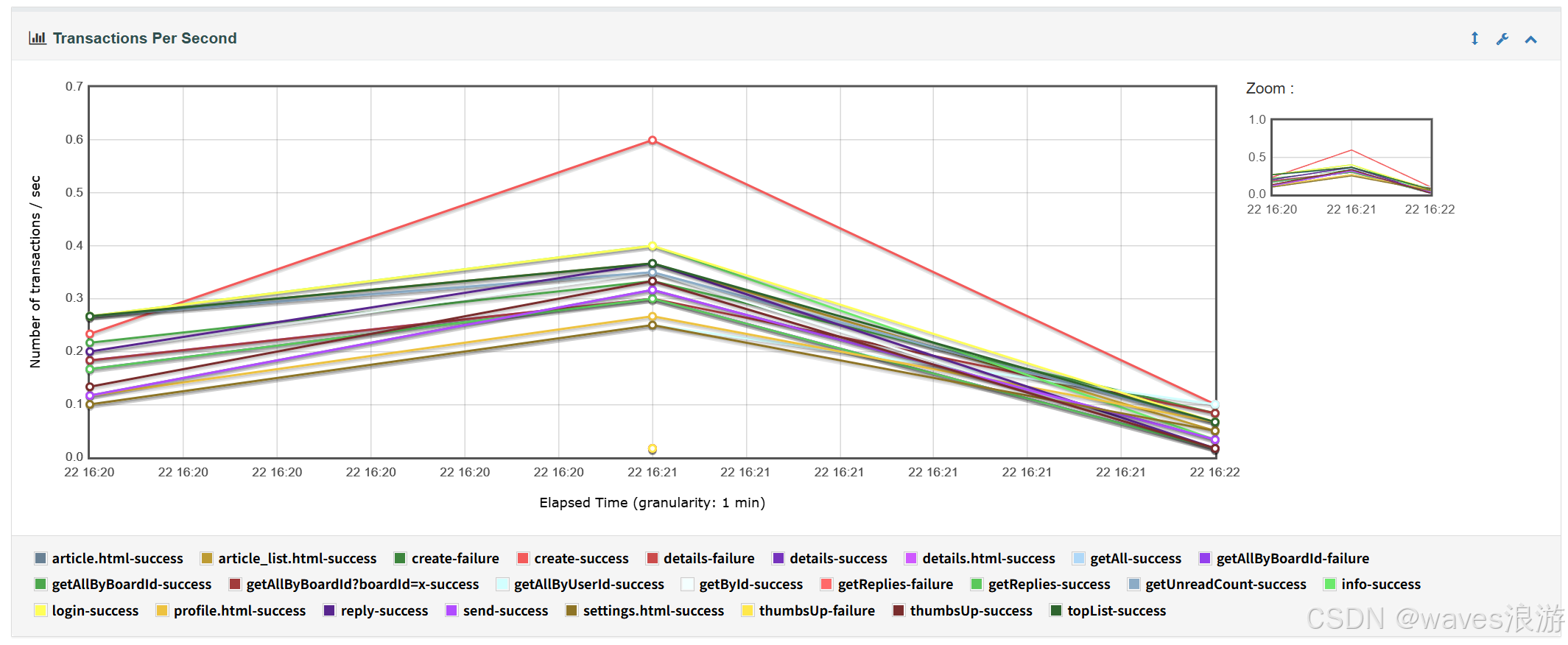

6. 性能测试

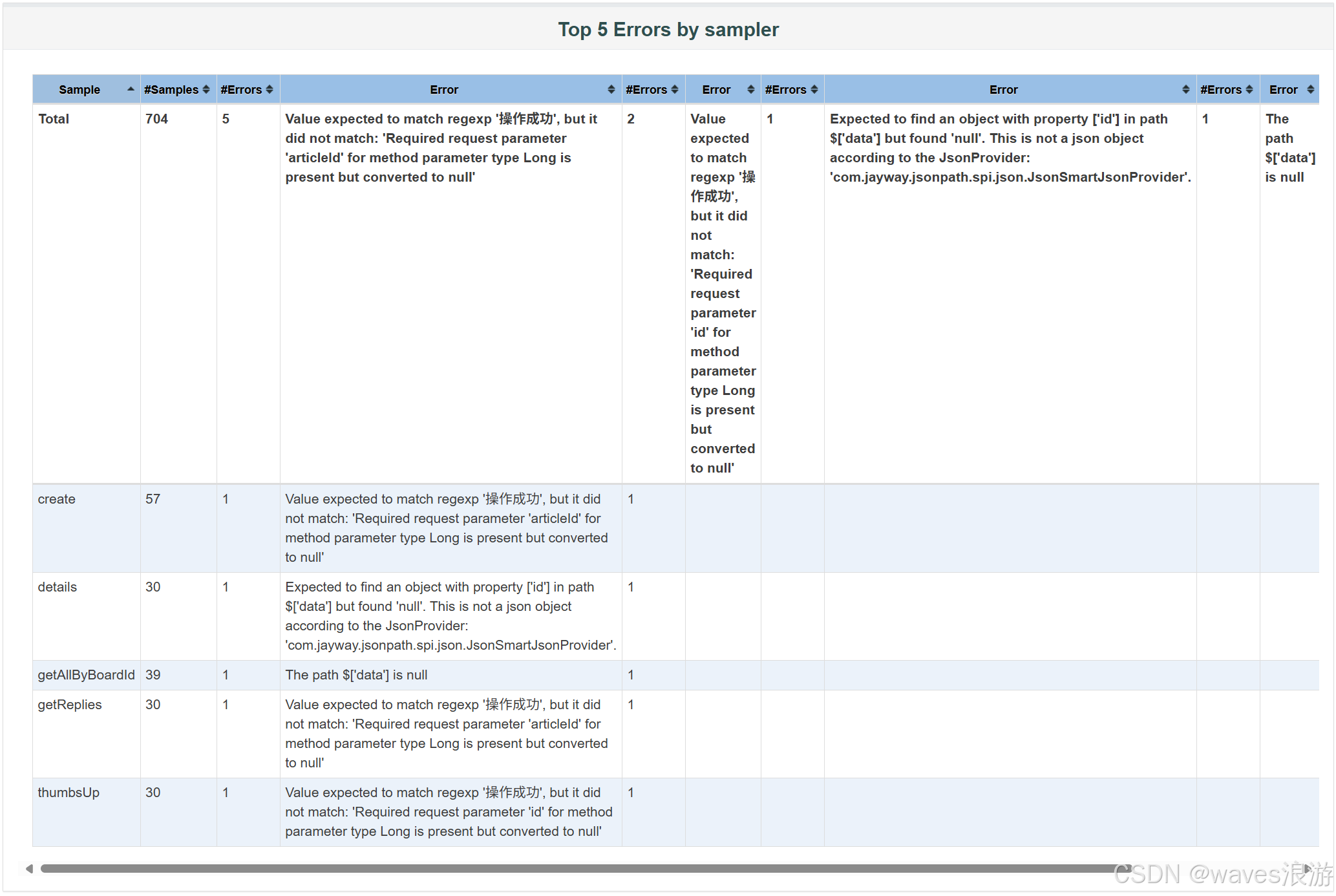

总结： 在较高的并发下，回复帖子接口、帖子详情页接口、论坛首页接口、点赞接口出现错误；且大部分接口响应时间较长。

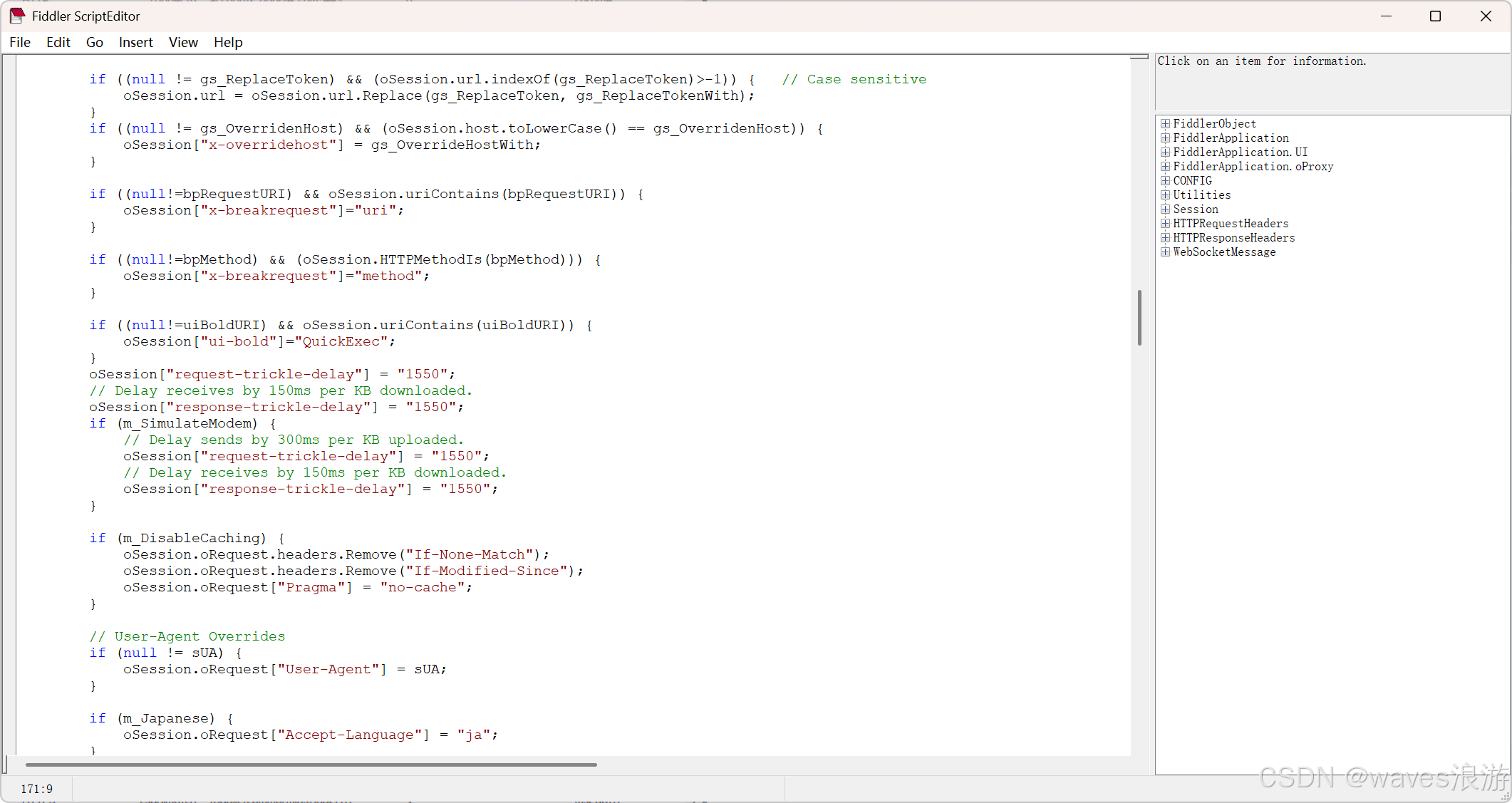

7. 弱网测试

总结： 在弱网环境下，页面加载变慢，但不会错误展示；建议页面在加载缓慢时加上默认提示来使用户体验更加良好。

8. 自动化测试

python 复制代码

# common/Utils.py

import datetime
import os.path
import sys

from selenium import webdriver
from selenium.webdriver.chrome.service import Service
from webdriver_manager.chrome import ChromeDriverManager


class Driver:
    driver = ""

    def __init__(self):
        options = webdriver.ChromeOptions()
        self.driver = webdriver.Chrome(service=Service(ChromeDriverManager().install()),options=options)
        self.driver.implicitly_wait(5)

    def getScreenShot(self):
        dirname = datetime.datetime.now().strftime("%Y-%m-%d")
        if not os.path.exists("../images/"+dirname):
            os.mkdir("../images/"+dirname)
        filename = sys._getframe().f_back.f_code.co_name+"-"+datetime.datetime.now().strftime("%Y-%m-%d-%H%M%S")+".png"
        self.driver.save_screenshot("../images/"+dirname+"/"+filename)

ForumDriver = Driver()

python 复制代码

# tests/ForumLogin.py

import time

from selenium.webdriver.common.by import By
from selenium.webdriver.support import expected_conditions as EC
from selenium.webdriver.support.wait import WebDriverWait

from common.Utils import ForumDriver


class ForumLogin:
    driver = ""
    url = ""

    def __init__(self):
        self.driver = ForumDriver.driver
        self.url = "http://127.0.0.1:9580/sign-in.html"
        self.driver.get(self.url)

    def LoginSucTest(self):
        self.driver.find_element(By.CSS_SELECTOR,"#username").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#password").clear()

        self.driver.find_element(By.CSS_SELECTOR, "#username").send_keys("waves")
        self.driver.find_element(By.CSS_SELECTOR, "#password").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR,"#submit").click()

        WebDriverWait(self.driver,3).until(EC.title_is("比特论坛"))
        ForumDriver.getScreenShot()

    def LoginFailTest(self):
        # 正确的用户名和错误的密码
        self.driver.find_element(By.CSS_SELECTOR, "#username").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#password").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#username").send_keys("waves")
        self.driver.find_element(By.CSS_SELECTOR, "#password").send_keys("1234")
        self.driver.find_element(By.CSS_SELECTOR, "#submit").click()
        WebDriverWait(self.driver,3).until(EC.visibility_of_element_located((By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")))
        ForumDriver.getScreenShot()

        time.sleep(0.5)

        # 错误的用户名和正确的密码
        self.driver.find_element(By.CSS_SELECTOR, "#username").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#password").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#username").send_keys("wave")
        self.driver.find_element(By.CSS_SELECTOR, "#password").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR, "#submit").click()
        WebDriverWait(self.driver, 3).until(EC.visibility_of_element_located((By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")))
        ForumDriver.getScreenShot()

        time.sleep(0.5)

        # 错误的用户名和错误的密码
        self.driver.find_element(By.CSS_SELECTOR, "#username").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#password").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#username").send_keys("wave")
        self.driver.find_element(By.CSS_SELECTOR, "#password").send_keys("1234")
        self.driver.find_element(By.CSS_SELECTOR, "#submit").click()
        WebDriverWait(self.driver, 3).until(EC.visibility_of_element_located((By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")))
        ForumDriver.getScreenShot()

python 复制代码

# tests/ForumRegister.py

import datetime
import time

from selenium.webdriver.common.by import By
from selenium.webdriver.support import expected_conditions as EC
from selenium.webdriver.support.wait import WebDriverWait

from common.Utils import ForumDriver


class ForumRegister:
    driver = ""
    url = ""

    def __init__(self):
        self.driver = ForumDriver.driver
        self.url = "http://127.0.0.1:9580/sign-up.html"
        self.driver.get(self.url)

    def RegisterSucTest(self):
        self.driver.find_element(By.CSS_SELECTOR,"#username").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#nickname").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#password").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#passwordRepeat").clear()

        self.driver.find_element(By.CSS_SELECTOR, "#username").send_keys(datetime.datetime.now().strftime("%Y%m%d%H%M%S"))
        self.driver.find_element(By.CSS_SELECTOR, "#nickname").send_keys(datetime.datetime.now().strftime("%Y%m%d%H%M%S"))
        self.driver.find_element(By.CSS_SELECTOR, "#password").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR, "#passwordRepeat").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR,"#policy").click()
        self.driver.find_element(By.CSS_SELECTOR,"#submit").click()
        WebDriverWait(self.driver,3).until(EC.title_is("比特论坛 - 用户登录"))
        ForumDriver.getScreenShot()

    def RegisterFailTest(self):
        # 输入被占用的用户名，正确的昵称、密码、确认密码，点击同意隐私政策，点击注册
        self.driver.find_element(By.CSS_SELECTOR,"#username").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#nickname").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#password").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#passwordRepeat").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#username").send_keys("waves")
        self.driver.find_element(By.CSS_SELECTOR, "#nickname").send_keys("waves")
        self.driver.find_element(By.CSS_SELECTOR, "#password").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR, "#passwordRepeat").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR, "#policy").click()
        self.driver.find_element(By.CSS_SELECTOR, "#submit").click()
        time.sleep(0.5)
        ForumDriver.getScreenShot()

        # 关闭警告
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div > span.close-jq-toast-single").click()
        # 把勾选的同意隐私政策取消勾选
        self.driver.find_element(By.CSS_SELECTOR, "#policy").click()
        time.sleep(0.5)

        # 输入未被占用的用户名，正确的昵称，密码和确认密码不相同，点击同意隐私政策，点击注册
        self.driver.find_element(By.CSS_SELECTOR,"#username").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#nickname").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#password").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#passwordRepeat").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#username").send_keys("waves123")
        self.driver.find_element(By.CSS_SELECTOR, "#nickname").send_keys("waves123")
        self.driver.find_element(By.CSS_SELECTOR, "#password").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR, "#passwordRepeat").send_keys("1234")
        self.driver.find_element(By.CSS_SELECTOR, "#policy").click()
        self.driver.find_element(By.CSS_SELECTOR, "#submit").click()
        text1 = self.driver.find_element(By.CSS_SELECTOR,"#signUpForm > div > div:nth-child(5) > div > div").text
        assert text1 == "请检查确认密码"
        ForumDriver.getScreenShot()

        # 把勾选的同意隐私政策取消勾选
        self.driver.find_element(By.CSS_SELECTOR, "#policy").click()
        time.sleep(0.5)

        # 输入正确的昵称、密码，点击注册
        self.driver.find_element(By.CSS_SELECTOR, "#username").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#nickname").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#password").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#passwordRepeat").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#nickname").send_keys("waves123")
        self.driver.find_element(By.CSS_SELECTOR, "#password").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR, "#submit").click()
        text2 = self.driver.find_element(By.CSS_SELECTOR, "#signUpForm > div > div:nth-child(2) > div").text
        assert text2 == "用户名不能为空"
        text3 = self.driver.find_element(By.CSS_SELECTOR, "#signUpForm > div > div:nth-child(5) > div > div").text
        assert text3 == "请检查确认密码"
        ForumDriver.getScreenShot()

python 复制代码

# tests/ForumHomepage.py

import time

from selenium.webdriver.common.by import By

from common.Utils import ForumDriver


class ForumHomepage:
    driver = ""
    url = ""

    def __init__(self):
        self.driver = ForumDriver.driver
        self.url = "http://127.0.0.1:9580/index.html"
        self.driver.get(self.url)

    def ForumHomepageByNotLogin(self):
        title = self.driver.title
        assert title == "比特论坛 - 用户登录"
        ForumDriver.getScreenShot()

    def ForumHomepageByLogin(self):
        # 查看用户头像
        self.driver.find_element(By.CSS_SELECTOR,"#index_nav_avatar")
        # 查看用户昵称
        # 把页面放大到全屏，不然没有显示出用户昵称就提取不了文本
        self.driver.maximize_window()
        nickname = self.driver.find_element(By.CSS_SELECTOR,"#index_nav_nickname").text
        assert nickname == "waves"
        # 查看首页发布的帖子
        self.driver.find_element(By.CSS_SELECTOR,"#artical-items-body > div:nth-child(1)")
        time.sleep(2)
        ForumDriver.getScreenShot()

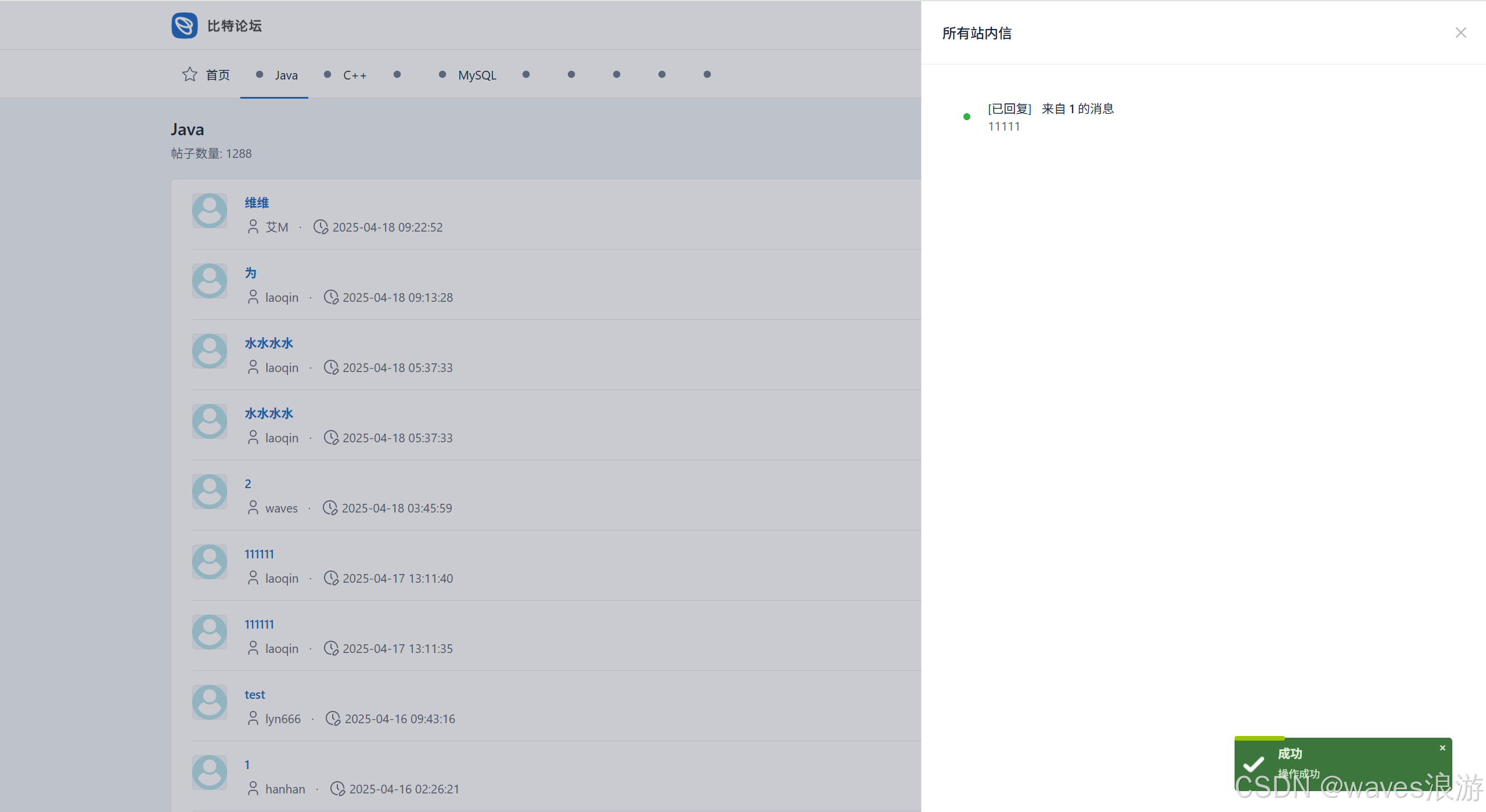

        # 查看站内信，可以回复他人给自己发的私信
        self.driver.find_element(By.CSS_SELECTOR,"body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div:nth-child(2) > div > a > svg").click()
        self.driver.find_element(By.CSS_SELECTOR,"#index_div_message_list > div:nth-child(1) > div > div.col.text-truncate > a > span:nth-child(2)").click()
        self.driver.find_element(By.CSS_SELECTOR,"#btn_index_message_reply").click()
        self.driver.find_element(By.CSS_SELECTOR,"#index_message_reply_receive_content").send_keys("hello")
        self.driver.find_element(By.CSS_SELECTOR,"#btn_index_send_message_reply").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        ForumDriver.getScreenShot()
        self.driver.find_element(By.CSS_SELECTOR,"#index_message_offcanvasEnd > div.offcanvas-header > button").click()

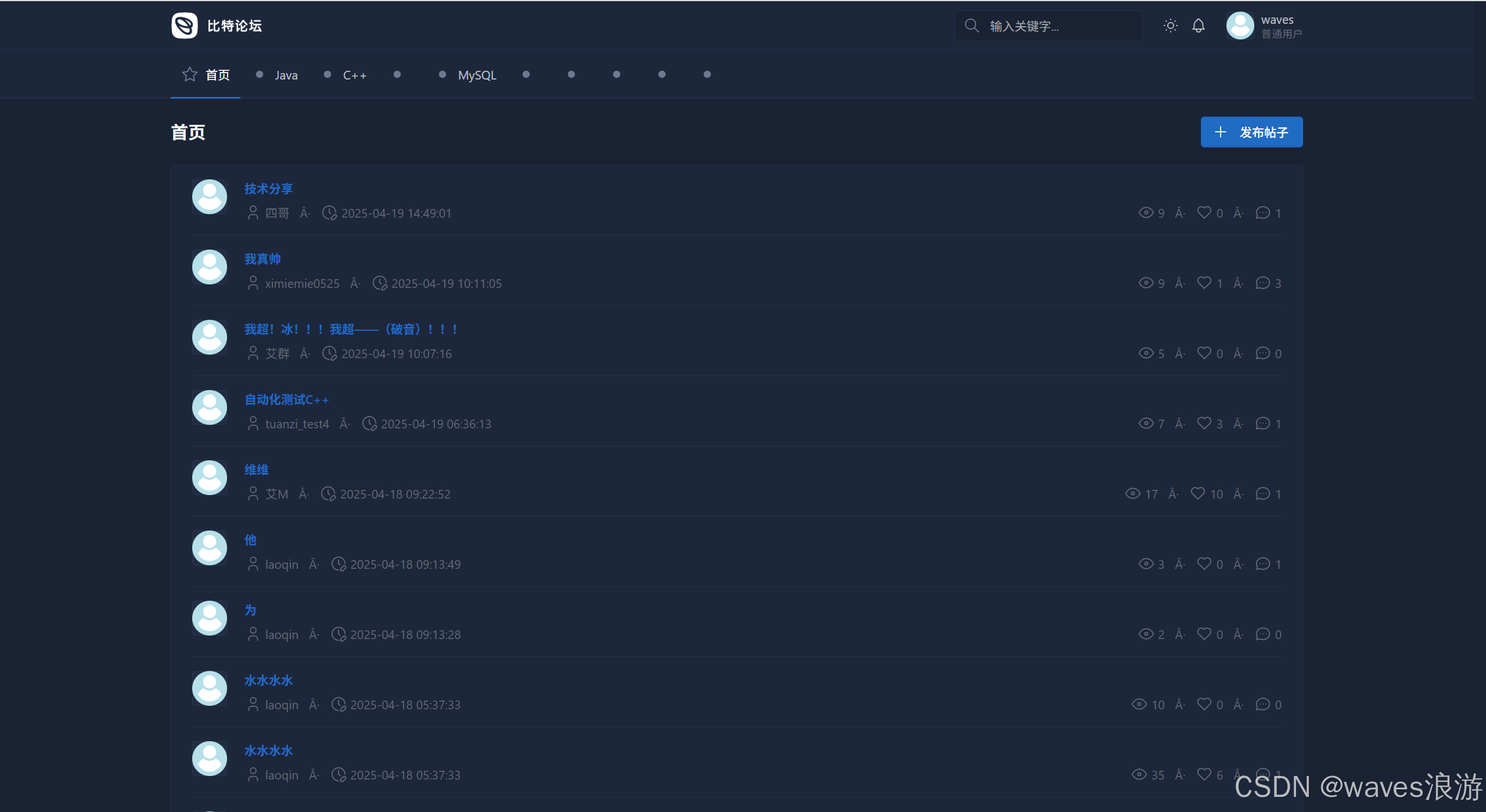

        # 切换白天和夜间模式
        self.driver.find_element(By.CSS_SELECTOR,"body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div:nth-child(2) > a.nav-link.px-0.hide-theme-dark > svg").click()
        self.driver.find_element(By.CSS_SELECTOR,"#artical-items-body > div:nth-child(1)")
        ForumDriver.getScreenShot()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div:nth-child(2) > a.nav-link.px-0.hide-theme-light > svg").click()
        self.driver.find_element(By.CSS_SELECTOR,"#artical-items-body > div:nth-child(1)")
        ForumDriver.getScreenShot()

python 复制代码

# tests/OthersForumDetail.py

import time

from selenium.webdriver.common.by import By

from common.Utils import ForumDriver


class OthersForumDetail:
    driver = ""
    url = ""

    def __init__(self):
        self.driver = ForumDriver.driver
        self.url = "http://127.0.0.1:9580/index.html"
        self.driver.get(self.url)

    def OthersForumDetail(self):
        # 选择不同分类查看当前分类下的帖子
        self.driver.find_element(By.CSS_SELECTOR, "#topBoardList > li:nth-child(2) > a").click()
        # 点击跳转到他人帖子详情页
        self.driver.find_element(By.CSS_SELECTOR, "#artical-items-body > div:nth-child(1) > div > div.col > div.text-truncate > a > strong").click()
        # 点赞帖子
        self.driver.find_element(By.CSS_SELECTOR, "#details_btn_like_count").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()

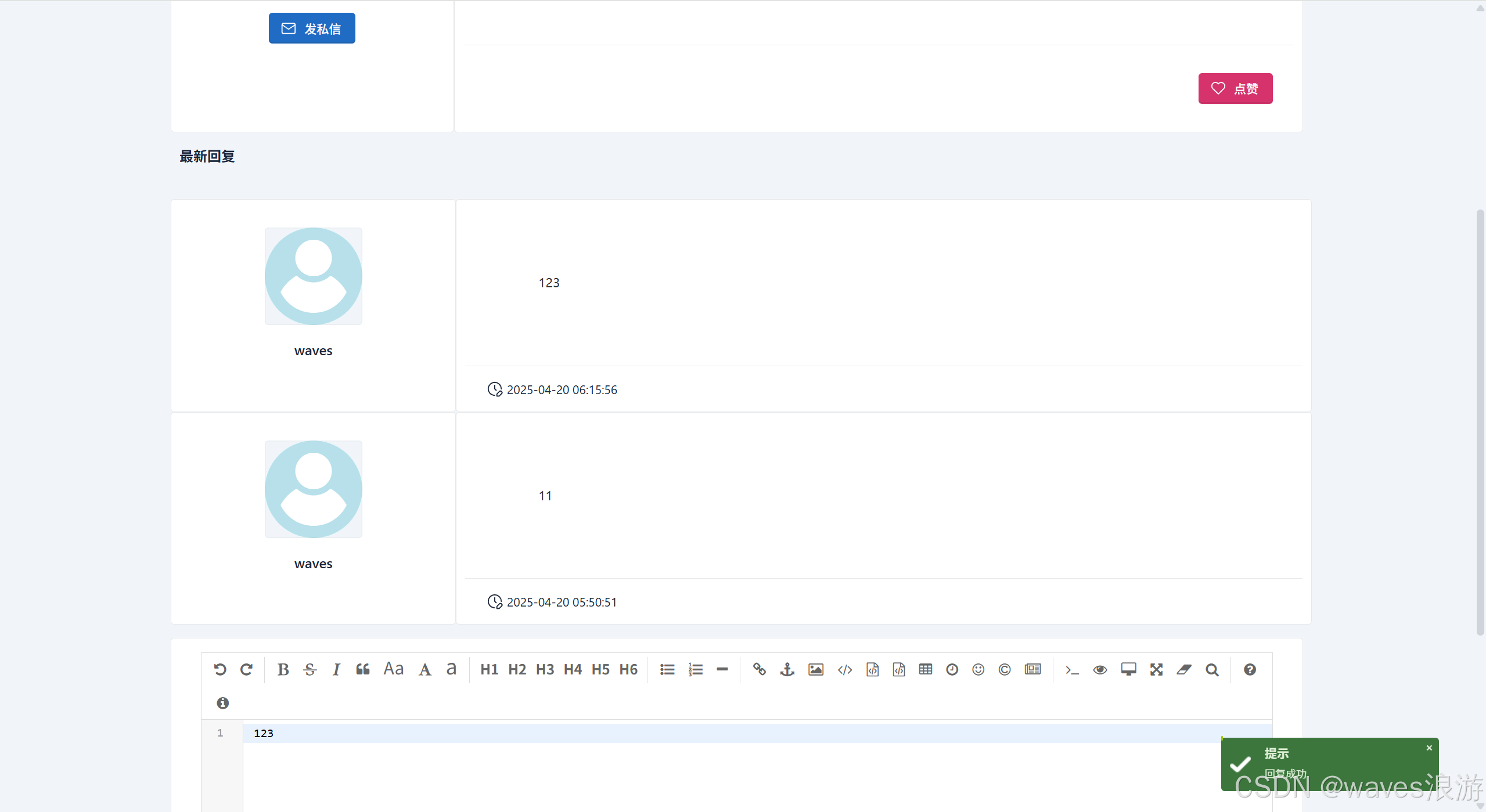

        # 发布回复帖子
        self.driver.find_element(By.CSS_SELECTOR,"#article_details_reply > div.editormd-toolbar > div > ul > li:nth-child(20) > a > i").click()
        time.sleep(0.5)
        self.driver.find_element(By.CSS_SELECTOR,"#details_btn_article_reply").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()
        time.sleep(0.5)
        # 给帖子作者发私信
        self.driver.find_element(By.CSS_SELECTOR,"#btn_details_send_message").click()
        self.driver.find_element(By.CSS_SELECTOR,"#index_message_receive_content").send_keys("hello")
        self.driver.find_element(By.CSS_SELECTOR,"#btn_index_send_message").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()
        # 查看作者/回复者头像昵称
        self.driver.find_element(By.CSS_SELECTOR, "#details_reply_area > div:nth-child(1) > div.col-3.card > div > span")
        self.driver.find_element(By.CSS_SELECTOR, "#details_reply_area > div:nth-child(1) > div.col-3.card > div > h3 > a")
        self.driver.find_element(By.CSS_SELECTOR,"#article_details_author_avatar")
        # 跳转到他人帖子页面
        self.driver.find_element(By.CSS_SELECTOR, "#article_details_author_name").click()
        # 查看头像
        self.driver.find_element(By.CSS_SELECTOR,"#profile_avatar")
        # 查看昵称
        self.driver.find_element(By.CSS_SELECTOR, "#profile_nickname")
        # 查看发帖数
        self.driver.find_element(By.CSS_SELECTOR, "#bit-forum-content > div.page-header.d-print-none > div > div > div.col > div > div:nth-child(1)")
        # 查看邮箱
        self.driver.find_element(By.CSS_SELECTOR, "#bit-forum-content > div.page-header.d-print-none > div > div > div.col > div > div:nth-child(2)")
        # 查看注册日期
        self.driver.find_element(By.CSS_SELECTOR, "#bit-forum-content > div.page-header.d-print-none > div > div > div.col > div > div:nth-child(3)")
        # 查看个人介绍
        text = self.driver.find_element(By.CSS_SELECTOR, "#bit-forum-content > div.page-body > div > div > div.col-lg-4 > div > div > div > div > h2").text
        assert text == "个人介绍"
        # 给当前用户发私信
        self.driver.find_element(By.CSS_SELECTOR, "#btn_profile_send_message").click()
        self.driver.find_element(By.CSS_SELECTOR,"#index_message_receive_content").send_keys("hello")
        self.driver.find_element(By.CSS_SELECTOR, "#btn_index_send_message").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(1)
        ForumDriver.getScreenShot()
        # 查看发布的帖子并可以点击跳转到详情页
        self.driver.find_element(By.CSS_SELECTOR,"#profile_article_body > li:nth-child(1) > div.card.timeline-event-card > div > div > div > div > div.text-truncate > a > strong").click()
        self.driver.find_element(By.CSS_SELECTOR,"#bit-forum-content > div.page-header.d-print-none > div > div.row.g-2.align-items-center > div")
        time.sleep(1)
        ForumDriver.getScreenShot()

python 复制代码

# tests/MyForum.py

import time

from selenium.webdriver.common.by import By

from common.Utils import ForumDriver


class MyForum:
    driver = ""
    url = ""

    def __init__(self):
        self.driver = ForumDriver.driver
        self.url = "http://127.0.0.1:9580/index.html"
        self.driver.get(self.url)

    def MyForum(self):
        # 进入我的帖子页面
        self.driver.find_element(By.CSS_SELECTOR,"body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div.nav-item.dropdown").click()
        self.driver.find_element(By.CSS_SELECTOR,"#index_user_profile").click()
        # 查看头像
        self.driver.find_element(By.CSS_SELECTOR,"#profile_avatar")
        # 查看昵称
        self.driver.find_element(By.CSS_SELECTOR, "#profile_nickname")
        # 查看发帖数
        self.driver.find_element(By.CSS_SELECTOR, "#bit-forum-content > div.page-header.d-print-none > div > div > div.col > div > div:nth-child(1)")
        # 查看邮箱
        self.driver.find_element(By.CSS_SELECTOR, "#bit-forum-content > div.page-header.d-print-none > div > div > div.col > div > div:nth-child(2)")
        # 查看注册日期
        self.driver.find_element(By.CSS_SELECTOR, "#bit-forum-content > div.page-header.d-print-none > div > div > div.col > div > div:nth-child(3)")
        # 查看个人介绍
        text = self.driver.find_element(By.CSS_SELECTOR, "#bit-forum-content > div.page-body > div > div > div.col-lg-4 > div > div > div > div > h2").text
        assert text == "个人介绍"
        ForumDriver.getScreenShot()
        # 查看发布的帖子并可以点击跳转到详情页
        self.driver.find_element(By.CSS_SELECTOR, "#profile_article_body > li:nth-child(1) > div.card.timeline-event-card > div > div > div > div > div.text-truncate > a > strong").click()
        # 点赞帖子
        self.driver.find_element(By.CSS_SELECTOR, "#details_btn_like_count").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()
        # 发布回复帖子
        self.driver.find_element(By.CSS_SELECTOR, "#article_details_reply > div.editormd-toolbar > div > ul > li:nth-child(20) > a > i").click()
        time.sleep(0.5)
        self.driver.find_element(By.CSS_SELECTOR, "#details_btn_article_reply").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()
        # 查看作者/回复者头像昵称
        self.driver.find_element(By.CSS_SELECTOR, "#article_details_author_avatar")
        self.driver.find_element(By.CSS_SELECTOR, "#article_details_author_name")
        self.driver.find_element(By.CSS_SELECTOR, "#details_reply_area > div:nth-child(1) > div.col-3.card > div > span")
        self.driver.find_element(By.CSS_SELECTOR, "#details_reply_area > div:nth-child(1) > div.col-3.card > div > h3 > a")

python 复制代码

# tests/ForumEdit.py

import time

from selenium.webdriver.common.by import By

from common.Utils import ForumDriver


class ForumEdit:
    driver = ""
    url = ""

    def __init__(self):
        self.driver = ForumDriver.driver
        self.url = "http://127.0.0.1:9580/index.html"
        self.driver.get(self.url)

    def ForumFailEdit(self):
        # 点击发布按钮并跳转到帖子发布页面
        self.driver.find_element(By.CSS_SELECTOR,"#bit-forum-content > div.page-header.d-print-none > div > div > div.col-auto.ms-auto.d-print-none > div > a.btn.btn-primary.d-none.d-sm-inline-block.article_post").click()
        # 输入标题，点击发布按钮
        self.driver.find_element(By.CSS_SELECTOR,"#article_post_title").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#article_post_title").send_keys("自动化测试")
        # 保证内容为空
        self.driver.find_element(By.CSS_SELECTOR, "#edit-article > div.editormd-toolbar > div > ul > li:nth-child(39) > a > i").click()
        self.driver.find_element(By.CSS_SELECTOR, "#article_post_submit").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()
        # 输入内容，点击发布按钮
        self.driver.find_element(By.CSS_SELECTOR, "#article_post_title").clear()
        self.driver.find_element(By.CSS_SELECTOR,"#edit-article > div.editormd-toolbar > div > ul > li:nth-child(39) > a > i").click()
        self.driver.find_element(By.CSS_SELECTOR,"#edit-article > div.editormd-toolbar > div > ul > li:nth-child(20) > a > i").click()
        time.sleep(0.5)
        self.driver.find_element(By.CSS_SELECTOR, "#article_post_submit").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()
        # 输入标题和内容，不点击发布按钮
        self.driver.find_element(By.CSS_SELECTOR, "#article_post_title").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#article_post_title").send_keys("自动化测试")
        self.driver.find_element(By.CSS_SELECTOR,"#edit-article > div.editormd-toolbar > div > ul > li:nth-child(39) > a > i").click()
        self.driver.find_element(By.CSS_SELECTOR,"#edit-article > div.editormd-toolbar > div > ul > li:nth-child(20) > a > i").click()
        time.sleep(0.5)
        text = self.driver.find_element(By.CSS_SELECTOR,"#bit-forum-content > div.page-header.d-print-none > div > div > div > h2").text
        assert text == "发新贴"
        ForumDriver.getScreenShot()

    def ForumSucEdit(self):
        # 点击发布按钮并跳转到帖子发布页面
        self.driver.find_element(By.CSS_SELECTOR,"#bit-forum-content > div.page-header.d-print-none > div > div > div.col-auto.ms-auto.d-print-none > div > a.btn.btn-primary.d-none.d-sm-inline-block.article_post").click()
        # 选择板块
        self.driver.find_element(By.CSS_SELECTOR,"#article_post_borad > option:nth-child(2)").click()
        # 输入标题
        self.driver.find_element(By.CSS_SELECTOR, "#article_post_title").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#article_post_title").send_keys("自动化测试")
        # 输入内容
        self.driver.find_element(By.CSS_SELECTOR,"#edit-article > div.editormd-toolbar > div > ul > li:nth-child(39) > a > i").click()
        self.driver.find_element(By.CSS_SELECTOR,"#edit-article > div.editormd-toolbar > div > ul > li:nth-child(20) > a > i").click()
        # 点击发布按钮
        time.sleep(0.5)
        self.driver.find_element(By.CSS_SELECTOR, "#article_post_submit").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        title = self.driver.find_element(By.CSS_SELECTOR,"#artical-items-body > div:nth-child(1) > div > div.col > div.text-truncate > a > strong").text
        assert title == "自动化测试"
        ForumDriver.getScreenShot()

python 复制代码

# tests/ForumPersonalCenter.py

import datetime
import time

from selenium.webdriver.common.by import By

from common.Utils import ForumDriver


class ForumPersonalCenter:
    driver = ""
    url = ""

    def __init__(self):
        self.driver = ForumDriver.driver
        self.url = "http://127.0.0.1:9580/index.html"
        self.driver.get(self.url)

    def FailModify(self):
        # 跳转到个人中心
        self.driver.find_element(By.CSS_SELECTOR,"body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div.nav-item.dropdown > a").click()
        self.driver.find_element(By.CSS_SELECTOR,"#index_user_settings").click()
        # 和原来的一样
        self.driver.find_element(By.CSS_SELECTOR,"#setting_submit_nickname").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div:nth-child(1) > span.close-jq-toast-single").click()
        self.driver.find_element(By.CSS_SELECTOR, "#setting_submit_email").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div:nth-child(1) > span.close-jq-toast-single").click()
        self.driver.find_element(By.CSS_SELECTOR, "#setting_submit_phoneNum").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_submit_remark").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()
        # 原密码错误
        self.driver.find_element(By.CSS_SELECTOR,"#settings_input_oldPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_oldPassword").send_keys("12345")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_newPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_newPassword").send_keys("1234")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_passwordRepeat").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_passwordRepeat").send_keys("1234")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_submit_password").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(1)
        ForumDriver.getScreenShot()
        # 新原密码和确认密码不同
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_oldPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_oldPassword").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_newPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_newPassword").send_keys("1234")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_passwordRepeat").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_passwordRepeat").send_keys("12345")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_submit_password").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(1)
        ForumDriver.getScreenShot()
        # 只填写正确的原密码
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_oldPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_oldPassword").send_keys("123456")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_newPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_passwordRepeat").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_submit_password").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()
        # 只填写正确的新原密码
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_oldPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_newPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_newPassword").send_keys("1234")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_passwordRepeat").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_submit_password").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(1)
        ForumDriver.getScreenShot()
        # 只填写正确的确认密码
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_oldPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_newPassword").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_passwordRepeat").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_input_passwordRepeat").send_keys("1234")
        self.driver.find_element(By.CSS_SELECTOR, "#settings_submit_password").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()

    def SucModify(self):
        # 跳转到个人中心
        self.driver.find_element(By.CSS_SELECTOR,"body > div.page > header.navbar.navbar-expand-md.navbar-light.d-print-none > div > div > div.nav-item.dropdown > a").click()
        self.driver.find_element(By.CSS_SELECTOR, "#index_user_settings").click()
        # 修改邮箱地址
        self.driver.find_element(By.CSS_SELECTOR,"#setting_input_email").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#setting_input_email").send_keys(datetime.datetime.now().strftime("%Y%m%d%H%M%S"))
        self.driver.find_element(By.CSS_SELECTOR, "#setting_submit_email").click()
        self.driver.find_element(By.CSS_SELECTOR,"body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(1)
        ForumDriver.getScreenShot()
        # 修改电话号码
        self.driver.find_element(By.CSS_SELECTOR, "#setting_input_phoneNum").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#setting_input_phoneNum").send_keys(datetime.datetime.now().strftime("%Y%m%d%H%M%S"))
        self.driver.find_element(By.CSS_SELECTOR, "#setting_submit_phoneNum").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()
        # 修改个人简介
        self.driver.find_element(By.CSS_SELECTOR, "#settings_textarea_remark").clear()
        self.driver.find_element(By.CSS_SELECTOR, "#settings_textarea_remark").send_keys(datetime.datetime.now().strftime("%Y%m%d%H%M%S"))
        self.driver.find_element(By.CSS_SELECTOR, "#settings_submit_remark").click()
        self.driver.find_element(By.CSS_SELECTOR, "body > div.jq-toast-wrap.bottom-right > div")
        time.sleep(0.5)
        ForumDriver.getScreenShot()

python 复制代码

# tests/RunTest.py

from common.Utils import ForumDriver
from tests import ForumLogin, ForumRegister, ForumHomepage, OthersForumDetail, MyForum, ForumEdit, ForumPersonalCenter

if __name__ == "__main__":
    ForumRegister.ForumRegister().RegisterFailTest()
    ForumRegister.ForumRegister().RegisterSucTest()
    ForumLogin.ForumLogin().LoginFailTest()
    ForumHomepage.ForumHomepage().ForumHomepageByNotLogin()
    ForumLogin.ForumLogin().LoginSucTest()
    ForumHomepage.ForumHomepage().ForumHomepageByLogin()
    OthersForumDetail.OthersForumDetail().OthersForumDetail()
    MyForum.MyForum().MyForum()
    ForumEdit.ForumEdit().ForumFailEdit()
    ForumEdit.ForumEdit().ForumSucEdit()
    ForumPersonalCenter.ForumPersonalCenter().FailModify()
    ForumPersonalCenter.ForumPersonalCenter().SucModify()
    ForumDriver.driver.quit()

9. bug简述

bug1：部分分类名称未显示

bug2：帖子数量显示不正确

bug3：在搜索框搜索后不会跳出搜索的内容

bug4：帖子发布时间显示不正确

bug5：显示的发帖数和实际发帖数不一致
bug6：注册日期错误

bug7：个人中心页面修改密码时和原来的密码相同也能修改成功

bug8：个人中心页面让密码取消掩码显示不成功

10. 测试结论

通过对论坛系统的测试，测试出论坛系统在功能方面还存在8个bug需要修改；性能方面在20个线程同时不断向系统各接口发生请求时，部分接口会出现异常；在弱网环境下，页面加载变慢，但不会错误展示，建议页面在加载缓慢时加上默认提示来使用户体验更加良好；界面较为美观；布局清晰，用户易上手；可以兼容不同浏览器和不同版本；在输入密码时有掩码行为，可以很好的保护用户隐私。

论坛系统测试报告

文章目录

目录

1. 项目背景

2. 项目简介

3. 测试工具

4. 测试用例

5. 功能测试

6. 性能测试

7. 弱网测试

8. 自动化测试

9. bug简述

10. 测试结论
