1. 环境准备
Lab环境访问
url
https://isovalent.com/labs/gateway-api/本套环境1 control 2个worker
bash
cilium install --version v1.17.1 \
--namespace kube-system \
--set kubeProxyReplacement=true \
--set gatewayAPI.enabled=true确认环境状态
bash
root@server:~# kubectl get crd \
gatewayclasses.gateway.networking.k8s.io \
gateways.gateway.networking.k8s.io \
httproutes.gateway.networking.k8s.io \
referencegrants.gateway.networking.k8s.io \
tlsroutes.gateway.networking.k8s.io
NAME CREATED AT
gatewayclasses.gateway.networking.k8s.io 2025-05-27T23:51:41Z
gateways.gateway.networking.k8s.io 2025-05-27T23:51:41Z
httproutes.gateway.networking.k8s.io 2025-05-27T23:51:41Z
referencegrants.gateway.networking.k8s.io 2025-05-27T23:51:42Z
tlsroutes.gateway.networking.k8s.io 2025-05-27T23:51:42Z
root@server:~# cilium status --wait
/¯¯\
/¯¯\__/¯¯\ Cilium: OK
\__/¯¯\__/ Operator: OK
/¯¯\__/¯¯\ Envoy DaemonSet: OK
\__/¯¯\__/ Hubble Relay: disabled
\__/ ClusterMesh: disabled
DaemonSet cilium Desired: 3, Ready: 3/3, Available: 3/3
DaemonSet cilium-envoy Desired: 3, Ready: 3/3, Available: 3/3
Deployment cilium-operator Desired: 1, Ready: 1/1, Available: 1/1
Containers: cilium Running: 3
cilium-envoy Running: 3
cilium-operator Running: 1
clustermesh-apiserver
hubble-relay
Cluster Pods: 3/3 managed by Cilium
Helm chart version: 1.17.1
Image versions cilium quay.io/cilium/cilium:v1.17.1@sha256:8969bfd9c87cbea91e40665f8ebe327268c99d844ca26d7d12165de07f702866: 3
cilium-envoy quay.io/cilium/cilium-envoy:v1.31.5-1739264036-958bef243c6c66fcfd73ca319f2eb49fff1eb2ae@sha256:fc708bd36973d306412b2e50c924cd8333de67e0167802c9b48506f9d772f521: 3
cilium-operator quay.io/cilium/operator-generic:v1.17.1@sha256:628becaeb3e4742a1c36c4897721092375891b58bae2bfcae48bbf4420aaee97: 1
root@server:~# k get nodes
NAME STATUS ROLES AGE VERSION
kind-control-plane Ready control-plane 3h2m v1.31.0
kind-worker Ready <none> 3h1m v1.31.0
kind-worker2 Ready <none> 3h1m v1.31.0
root@server:~# cilium config view | grep -w "enable-gateway-api"
enable-gateway-api true
enable-gateway-api-alpn false
enable-gateway-api-app-protocol false
enable-gateway-api-proxy-protocol false
enable-gateway-api-secrets-sync true验证一下 GatewayClass 是否已部署并接受：
bash
root@server:~# kubectl get GatewayClass
NAME CONTROLLER ACCEPTED AGE
cilium io.cilium/gateway-controller True 4m59sGatewayClass 是一种可以部署的 Gateway：换句话说，它是一个模板。这样做是为了让基础设施提供商提供不同类型的网关。然后，用户可以选择他们喜欢的 Gateway。
例如，基础设施提供商可以创建两个名为 internet 和 private 的 GatewayClass，以反映定义面向 Internet 与私有内部应用程序的 Gateway。
在我们的例子中，Cilium Gateway API （io.cilium/gateway-controller） 将被实例化。

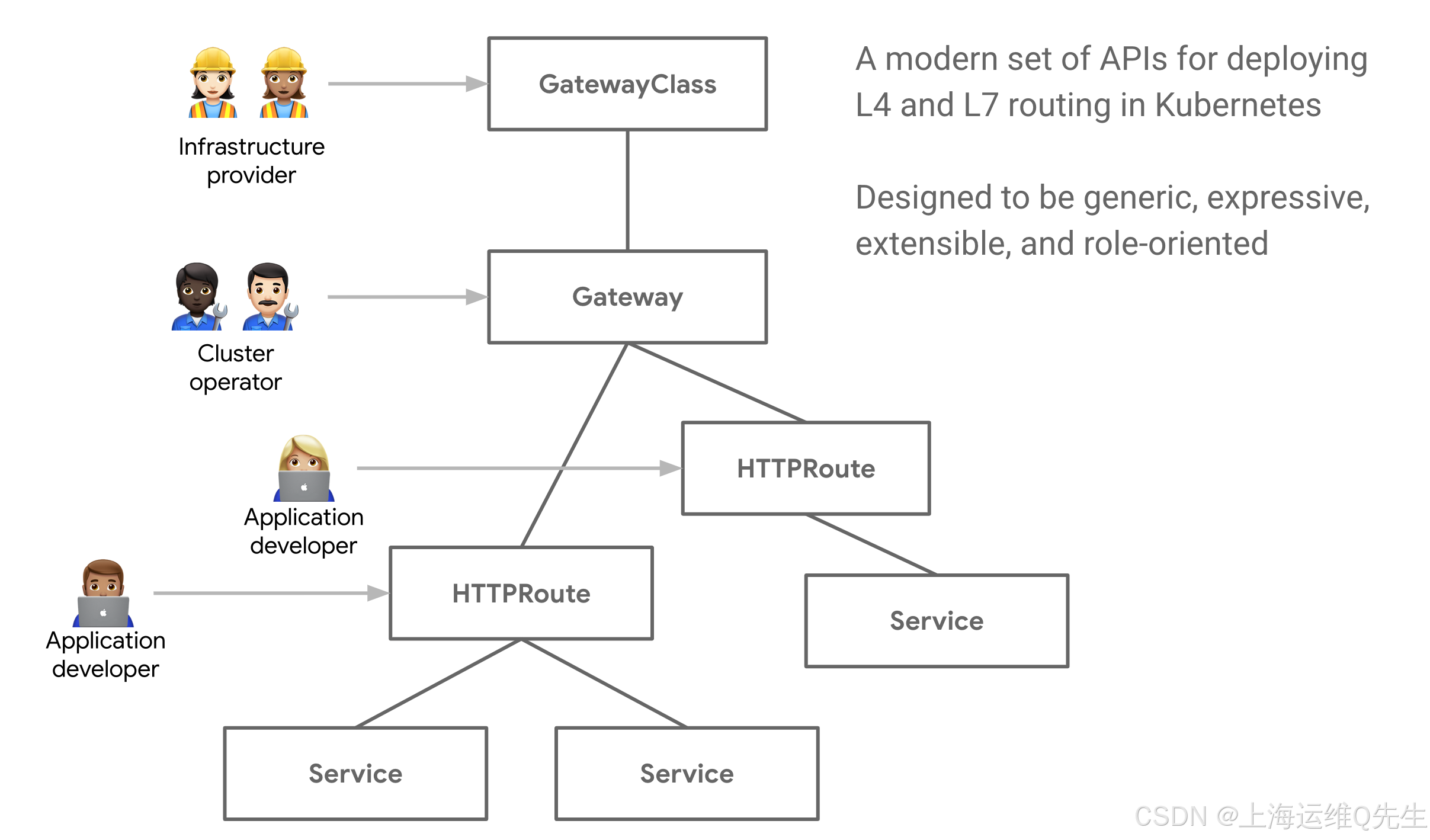

下面的架构表示网关 API 使用的各种组件。使用 Ingress 时，所有功能都在一个 API 中定义。通过将入口路由要求解构为多个 API，用户可以从更通用、更灵活和面向角色的模型中受益。
实际的 L7 流量规则在 HTTPRoute API 中定义。
2. API 网关--HTTP
2.1 部署应用
这个项目也是老演员了,Istio的Bookinfo.
- 🔍
details - ⭐
ratings - ✍
reviews - 📕
productpage
使用其中一些服务作为 Gateway API 的基础。
项目的内容
yaml
root@server:~# yq /opt/bookinfo.yml
# Copyright Istio Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
##################################################################################################
# This file defines the services, service accounts, and deployments for the Bookinfo sample.
#
# To apply all 4 Bookinfo services, their corresponding service accounts, and deployments:
#
# kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml
#
# Alternatively, you can deploy any resource separately:
#
# kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml -l service=reviews # reviews Service
# kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml -l account=reviews # reviews ServiceAccount
# kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml -l app=reviews,version=v3 # reviews-v3 Deployment
##################################################################################################
##################################################################################################
# Details service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: details
labels:
app: details
service: details
spec:
ports:
- port: 9080
name: http
selector:
app: details
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-details
labels:
account: details
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: details-v1
labels:
app: details
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: details
version: v1
template:
metadata:
labels:
app: details
version: v1
spec:
serviceAccountName: bookinfo-details
containers:
- name: details
image: docker.io/istio/examples-bookinfo-details-v1:1.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
securityContext:
runAsUser: 1000
---
##################################################################################################
# Ratings service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: ratings
labels:
app: ratings
service: ratings
spec:
ports:
- port: 9080
name: http
selector:
app: ratings
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-ratings
labels:
account: ratings
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratings-v1
labels:
app: ratings
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: ratings
version: v1
template:
metadata:
labels:
app: ratings
version: v1
spec:
serviceAccountName: bookinfo-ratings
containers:
- name: ratings
image: docker.io/istio/examples-bookinfo-ratings-v1:1.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
securityContext:
runAsUser: 1000
---
##################################################################################################
# Reviews service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: reviews
labels:
app: reviews
service: reviews
spec:
ports:
- port: 9080
name: http
selector:
app: reviews
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-reviews
labels:
account: reviews
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: reviews-v1
labels:
app: reviews
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: reviews
version: v1
template:
metadata:
labels:
app: reviews
version: v1
spec:
serviceAccountName: bookinfo-reviews
containers:
- name: reviews
image: docker.io/istio/examples-bookinfo-reviews-v1:1.16.2
imagePullPolicy: IfNotPresent
env:
- name: LOG_DIR
value: "/tmp/logs"
ports:
- containerPort: 9080
volumeMounts:
- name: tmp
mountPath: /tmp
- name: wlp-output
mountPath: /opt/ibm/wlp/output
securityContext:
runAsUser: 1000
volumes:
- name: wlp-output
emptyDir: {}
- name: tmp
emptyDir: {}
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: reviews-v2
labels:
app: reviews
version: v2
spec:
replicas: 1
selector:
matchLabels:
app: reviews
version: v2
template:
metadata:
labels:
app: reviews
version: v2
spec:
serviceAccountName: bookinfo-reviews
containers:
- name: reviews
image: docker.io/istio/examples-bookinfo-reviews-v2:1.16.2
imagePullPolicy: IfNotPresent
env:
- name: LOG_DIR
value: "/tmp/logs"
ports:
- containerPort: 9080
volumeMounts:
- name: tmp
mountPath: /tmp
- name: wlp-output
mountPath: /opt/ibm/wlp/output
securityContext:
runAsUser: 1000
volumes:
- name: wlp-output
emptyDir: {}
- name: tmp
emptyDir: {}
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: reviews-v3
labels:
app: reviews
version: v3
spec:
replicas: 1
selector:
matchLabels:
app: reviews
version: v3
template:
metadata:
labels:
app: reviews
version: v3
spec:
serviceAccountName: bookinfo-reviews
containers:
- name: reviews
image: docker.io/istio/examples-bookinfo-reviews-v3:1.16.2
imagePullPolicy: IfNotPresent
env:
- name: LOG_DIR
value: "/tmp/logs"
ports:
- containerPort: 9080
volumeMounts:
- name: tmp
mountPath: /tmp
- name: wlp-output
mountPath: /opt/ibm/wlp/output
securityContext:
runAsUser: 1000
volumes:
- name: wlp-output
emptyDir: {}
- name: tmp
emptyDir: {}
---
##################################################################################################
# Productpage services
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: productpage
labels:
app: productpage
service: productpage
spec:
ports:
- port: 9080
name: http
selector:
app: productpage
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-productpage
labels:
account: productpage
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: productpage-v1
labels:
app: productpage
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: productpage
version: v1
template:
metadata:
labels:
app: productpage
version: v1
spec:
serviceAccountName: bookinfo-productpage
containers:
- name: productpage
image: docker.io/istio/examples-bookinfo-productpage-v1:1.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
volumeMounts:
- name: tmp
mountPath: /tmp
securityContext:
runAsUser: 1000
volumes:
- name: tmp
emptyDir: {}
---部署应用
bash
kubectl apply -f /opt/bookinfo.yml检查应用程序是否已正确部署：
bash
root@server:~# kubectl apply -f /opt/bookinfo.yml
service/details created
serviceaccount/bookinfo-details created
deployment.apps/details-v1 created
service/ratings created
serviceaccount/bookinfo-ratings created
deployment.apps/ratings-v1 created
service/reviews created
serviceaccount/bookinfo-reviews created
deployment.apps/reviews-v1 created
deployment.apps/reviews-v2 created
deployment.apps/reviews-v3 created
service/productpage created
serviceaccount/bookinfo-productpage created
deployment.apps/productpage-v1 created
root@server:~# kubectl get pods
NAME READY STATUS RESTARTS AGE
details-v1-67894999b5-hswsw 1/1 Running 0 51s
productpage-v1-7bd5bd857c-shr9z 1/1 Running 0 51s
ratings-v1-676ff5568f-w467l 1/1 Running 0 51s
reviews-v1-f5b4b64f-sjk2s 1/1 Running 0 51s
reviews-v2-74b7dd9f45-rk2n6 1/1 Running 0 51s
reviews-v3-65d744df5c-zqljm 1/1 Running 0 51s
root@server:~# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
details ClusterIP 10.96.188.110 <none> 9080/TCP 93s
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3h10m
productpage ClusterIP 10.96.173.43 <none> 9080/TCP 93s
ratings ClusterIP 10.96.118.245 <none> 9080/TCP 93s
reviews ClusterIP 10.96.33.54 <none> 9080/TCP 93s请注意，使用 Cilium Service Mesh 时，没有在每个演示应用程序微服务旁边创建 Envoy sidecar。使用 sidecar 实现，输出将显示 2/2 READY： 一个用于微服务，一个用于 Envoy sidecar。
2.2 部署网关
配置文件
yaml
root@server:~# yq basic-http.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
name: my-gateway
spec:
gatewayClassName: cilium
listeners:
- protocol: HTTP
port: 80
name: web-gw
allowedRoutes:
namespaces:
from: Same
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: http-app-1
spec:
parentRefs:
- name: my-gateway
namespace: default
rules:
- matches:
- path:
type: PathPrefix
value: /details
backendRefs:
- name: details
port: 9080
- matches:
- headers:
- type: Exact
name: magic
value: foo
queryParams:
- type: Exact
name: great
value: example
path:
type: PathPrefix
value: /
method: GET
backendRefs:
- name: productpage
port: 9080部署网关
bash
root@server:~# kubectl apply -f basic-http.yaml
gateway.gateway.networking.k8s.io/my-gateway created
httproute.gateway.networking.k8s.io/http-app-1 created网关使用的配置：
yaml
spec:
gatewayClassName: cilium
listeners:
- protocol: HTTP
port: 80
name: web-gw
allowedRoutes:
namespaces:
from: Same首先，请注意 Gateway 部分中的 gatewayClassName 字段使用值 cilium。这是指之前配置的 Cilium GatewayClass。
网关将在端口 80 上侦听南向进入集群的 HTTP 流量。allowedRoutes 用于指定 Route 可以附加到此 Gateway 的命名空间。Same 表示此 Gateway 只能使用同一命名空间中的路由。
请注意，如果我们要使用 All 而不是 Same，我们将允许此网关与任何命名空间中的路由相关联，并且它将使我们能够跨多个命名空间使用单个网关，这些命名空间可能由不同的团队管理。
我们可以在 HTTPRoutes 中指定不同的命名空间 。
现在，让我们回顾一下 HTTPRoute 清单。HTTPRoute 是一种 GatewayAPI 类型，用于指定从网关侦听器到 Kubernetes 服务的 HTTP 请求的路由行为。
它由 Rules 组成，可根据您的要求引导流量。
第一条规则本质上是一个简单的 L7 代理路由：对于路径以 /details 开头的 HTTP 流量，通过端口 9080 将流量转发到 details Service。
yaml
rules:
- matches:
- path:
type: PathPrefix
value: /details
backendRefs:
- name: details
port: 9080第二条规则类似，但它利用了不同的匹配标准。如果 HTTP 请求具有：
- 名称设置为
magic且值为foo的 HTTP 标头 - HTTP 方法是 "GET"
- HTTP 查询参数命名为
great，值为example，则流量将通过 9080 端口发送到productpage服务。
yaml
rules:
- matches:
- headers:
- type: Exact
name: magic
value: foo
queryParams:
- type: Exact
name: great
value: example
path:
type: PathPrefix
value: /
method: GET
backendRefs:
- name: productpage
port: 9080如您所见，您可以部署一致的复杂 L7 流量规则（使用 Ingress API，通常需要注释来实现此类路由目标，并且这会造成一个 Ingress 控制器与另一个 Ingress 控制器之间的不一致）。
这些新 API 的好处之一是 Gateway API 基本上被拆分为单独的功能 -- 一个用于描述 Gateway，另一个用于到后端服务的路由。通过拆分这两个功能，它使运营商能够更改和交换网关，但保持相同的路由配置。
换句话说：如果您决定要改用其他 Gateway API 控制器，您将能够重复使用相同的清单。
现在，我们再看一下 Services，因为 Gateway 已经部署了：
bash
root@server:~# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cilium-gateway-my-gateway LoadBalancer 10.96.212.15 172.18.255.200 80:30157/TCP 3m2s
details ClusterIP 10.96.188.110 <none> 9080/TCP 7m4s
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3h15m
productpage ClusterIP 10.96.173.43 <none> 9080/TCP 7m4s
ratings ClusterIP 10.96.118.245 <none> 9080/TCP 7m4s
reviews ClusterIP 10.96.33.54 <none> 9080/TCP 7m4s您将看到一个名为 cilium-gateway-my-gateway 的 LoadBalancer 服务 它是为 Gateway API 创建的。
相同的外部 IP 地址也与网关关联：
bash
root@server:~# kubectl get gateway
NAME CLASS ADDRESS PROGRAMMED AGE
my-gateway cilium 172.18.255.200 True 3m22s让我们检索此 IP 地址：
bash
GATEWAY=$(kubectl get gateway my-gateway -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY2.3 HTTP路径匹配
现在，我们来检查基于 URL 路径的流量是否由 Gateway API 代理。
检查是否可以向该外部地址发出 HTTP 请求：
bash
root@server:~# curl --fail -s http://$GATEWAY/details/1 | jq
{
"id": 1,
"author": "William Shakespeare",
"year": 1595,
"type": "paperback",
"pages": 200,
"publisher": "PublisherA",
"language": "English",
"ISBN-10": "1234567890",
"ISBN-13": "123-1234567890"
}由于路径以 /details 开头，因此此流量将与第一条规则匹配，并将通过端口 9080 代理到 details Service。
2.4 HTTP头匹配
这一次，我们将根据 HTTP 参数（如标头值、方法和查询参数）路由流量。运行以下命令：
bash
root@server:~# curl -v -H 'magic: foo' "http://$GATEWAY?great=example"
* Trying 172.18.255.200:80...
* Connected to 172.18.255.200 (172.18.255.200) port 80
> GET /?great=example HTTP/1.1
> Host: 172.18.255.200
> User-Agent: curl/8.5.0
> Accept: */*
> magic: foo
>
< HTTP/1.1 200 OK
< content-type: text/html; charset=utf-8
< content-length: 1683
< server: envoy
< date: Wed, 28 May 2025 00:11:15 GMT
< x-envoy-upstream-service-time: 9
<
<!DOCTYPE html>
<html>
<head>
<title>Simple Bookstore App</title>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1">
<!-- Latest compiled and minified CSS -->
<link rel="stylesheet" href="static/bootstrap/css/bootstrap.min.css">
<!-- Optional theme -->
<link rel="stylesheet" href="static/bootstrap/css/bootstrap-theme.min.css">
</head>
<body>
<p>
<h3>Hello! This is a simple bookstore application consisting of three services as shown below</h3>
</p>
<table class="table table-condensed table-bordered table-hover"><tr><th>name</th><td>http://details:9080</td></tr><tr><th>endpoint</th><td>details</td></tr><tr><th>children</th><td><table class="table table-condensed table-bordered table-hover"><tr><th>name</th><th>endpoint</th><th>children</th></tr><tr><td>http://details:9080</td><td>details</td><td></td></tr><tr><td>http://reviews:9080</td><td>reviews</td><td><table class="table table-condensed table-bordered table-hover"><tr><th>name</th><th>endpoint</th><th>children</th></tr><tr><td>http://ratings:9080</td><td>ratings</td><td></td></tr></table></td></tr></table></td></tr></table>
<p>
<h4>Click on one of the links below to auto generate a request to the backend as a real user or a tester
</h4>
</p>
<p><a href="/productpage?u=normal">Normal user</a></p>
<p><a href="/productpage?u=test">Test user</a></p>
<!-- Latest compiled and minified JavaScript -->
<script src="static/jquery.min.js"></script>
<!-- Latest compiled and minified JavaScript -->
<script src="static/bootstrap/js/bootstrap.min.js"></script>
</body>
</html>
* Connection #0 to host 172.18.255.200 left intactcurl 查询应成功，并返回成功的 200 代码和详细的 HTML 回复（注意 Hello! This is a simple bookstore application consisting of three services as shown below ）
3. API网关--HTTPS
3.1 创建TLS证书和私钥
在此任务中，我们将使用 Gateway API 进行 HTTPS 流量路由;因此，我们需要一个 TLS 证书进行数据加密。
出于演示目的，我们将使用由虚构的自签名证书颁发机构 （CA） 签名的 TLS 证书。一种简单的方法是使用 mkcert
创建一个证书来验证 bookinfo.cilium.rocks 和 hipstershop.cilium.rocks，因为这些是此网关示例中使用的主机名：
bash
root@server:~# mkcert '*.cilium.rocks'
Created a new local CA 💥
Note: the local CA is not installed in the system trust store.
Run "mkcert -install" for certificates to be trusted automatically ⚠️
Created a new certificate valid for the following names 📜
- "*.cilium.rocks"
Reminder: X.509 wildcards only go one level deep, so this won't match a.b.cilium.rocks ℹ️
The certificate is at "./_wildcard.cilium.rocks.pem" and the key at "./_wildcard.cilium.rocks-key.pem" ✅
It will expire on 28 August 2027 🗓Mkcert 创建了一个密钥 （ _wildcard.cilium.rocks-key.pem ） 和一个证书 （_wildcard.cilium.rocks.pem），我们将用于 Gateway 服务。
使用此密钥和证书创建 Kubernetes TLS 密钥：
bash
root@server:~# kubectl create secret tls demo-cert \
--key=_wildcard.cilium.rocks-key.pem \
--cert=_wildcard.cilium.rocks.pem
secret/demo-cert created3.2 部署HTTPS网关
查看当前目录中提供的 HTTPS Gateway API 示例：
bash
root@server:~# yq basic-https.yaml
apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
name: tls-gateway
spec:
gatewayClassName: cilium
listeners:
- name: https-1
protocol: HTTPS
port: 443
hostname: "bookinfo.cilium.rocks"
tls:
certificateRefs:
- kind: Secret
name: demo-cert
- name: https-2
protocol: HTTPS
port: 443
hostname: "hipstershop.cilium.rocks"
tls:
certificateRefs:
- kind: Secret
name: demo-cert
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: https-app-route-1
spec:
parentRefs:
- name: tls-gateway
hostnames:
- "bookinfo.cilium.rocks"
rules:
- matches:
- path:
type: PathPrefix
value: /details
backendRefs:
- name: details
port: 9080
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: https-app-route-2
spec:
parentRefs:
- name: tls-gateway
hostnames:
- "hipstershop.cilium.rocks"
rules:
- matches:
- path:
type: PathPrefix
value: /
backendRefs:
- name: productpage
port: 9080它与我们之前评论的几乎相同。只需在 Gateway 清单中注意以下内容：
yaml
spec:
gatewayClassName: cilium
listeners:
- name: https-1
protocol: HTTPS
port: 443
hostname: "bookinfo.cilium.rocks"
tls:
certificateRefs:
- kind: Secret
name: demo-cert以及 HTTPRoute 清单中的以下内容：
yaml
spec:
parentRefs:
- name: tls-gateway
hostnames:
- "bookinfo.cilium.rocks"HTTPS Gateway API 示例基于 HTTP 示例中所做的作，并为两个 HTTP 路由添加了 TLS 终止：
/details前缀将路由到 HTTP 质询中部署的detailsHTTP 服务/前缀将被路由到 HTTP 挑战赛中部署的productpageHTTP 服务
这些服务将通过 TLS 进行保护，并可通过两个域名访问：
bookinfo.cilium.rockshipstershop.cilium.rocks
在我们的示例中，网关为对 bookinfo.cilium.rocks 和 hipstershop.cilium.rocks 的所有请求提供 demo-cert Secret 资源中定义的 TLS 证书。
现在，让我们将 Gateway 部署到集群：
bash
root@server:~# kubectl apply -f basic-https.yaml
gateway.gateway.networking.k8s.io/tls-gateway created
httproute.gateway.networking.k8s.io/https-app-route-1 created
httproute.gateway.networking.k8s.io/https-app-route-2 created这将创建一个 LoadBalancer 服务，大约 30 秒后，该服务应填充一个外部 IP 地址。
验证网关是否分配了负载均衡器 IP 地址：
bash
root@server:~# kubectl get gateway tls-gateway
NAME CLASS ADDRESS PROGRAMMED AGE
tls-gateway cilium 172.18.255.201 True 49s
root@server:~# GATEWAY=$(kubectl get gateway tls-gateway -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY
172.18.255.2013.3 HTTPS请求测试
将 Mkcert CA 安装到您的系统中，以便 cURL 可以信任它：
bash
root@server:~# mkcert -install
The local CA is now installed in the system trust store! ⚡️现在让我们向 Gateway 发出请求：
bash
root@server:~# curl -s \
--resolve bookinfo.cilium.rocks:443:${GATEWAY} \
https://bookinfo.cilium.rocks/details/1 | jq
{
"id": 1,
"author": "William Shakespeare",
"year": 1595,
"type": "paperback",
"pages": 200,
"publisher": "PublisherA",
"language": "English",
"ISBN-10": "1234567890",
"ISBN-13": "123-1234567890"
}应使用 HTTPS 正确检索数据（因此，正确实现了 TLS 握手）。
4. API网关--TLS 路由
4.1 部署应用
我们将使用 NGINX Web 服务器。查看 NGINX 配置。
bash
root@server:~# cat nginx.conf
events {
}
http {
log_format main '$remote_addr - $remote_user [$time_local] $status '
'"$request" $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
error_log /var/log/nginx/error.log;
server {
listen 443 ssl;
root /usr/share/nginx/html;
index index.html;
server_name nginx.cilium.rocks;
ssl_certificate /etc/nginx-server-certs/tls.crt;
ssl_certificate_key /etc/nginx-server-certs/tls.key;
}
}如您所见，它在端口 443 上侦听 SSL 流量。请注意，它指定了之前创建的证书和密钥。
在部署服务器时，我们需要将文件挂载到正确的路径 （/etc/nginx-server-certs）。
NGINX 服务器配置保存在 Kubernetes ConfigMap 中。让我们创建它。
bash
root@server:~# kubectl create configmap nginx-configmap --from-file=nginx.conf=./nginx.conf
configmap/nginx-configmap created查看 NGINX 服务器 Deployment 和它前面的 Service：
yaml
root@server:~# yq tls-service.yaml
---
apiVersion: v1
kind: Service
metadata:
name: my-nginx
labels:
run: my-nginx
spec:
ports:
- port: 443
protocol: TCP
selector:
run: my-nginx
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: my-nginx
spec:
selector:
matchLabels:
run: my-nginx
replicas: 1
template:
metadata:
labels:
run: my-nginx
spec:
containers:
- name: my-nginx
image: nginx
ports:
- containerPort: 443
volumeMounts:
- name: nginx-index-file
mountPath: /usr/share/nginx/html/
- name: nginx-config
mountPath: /etc/nginx
readOnly: true
- name: nginx-server-certs
mountPath: /etc/nginx-server-certs
readOnly: true
volumes:
- name: nginx-index-file
configMap:
name: index-html-configmap
- name: nginx-config
configMap:
name: nginx-configmap
- name: nginx-server-certs
secret:
secretName: demo-cert如您所见，我们正在部署一个带有 nginx 镜像的容器，挂载多个文件，例如 HTML 索引、NGINX 配置和证书。请注意，我们正在重复使用之前创建的 demo-cert TLS 密钥。
bash
root@server:~# kubectl apply -f tls-service.yaml
service/my-nginx created
deployment.apps/my-nginx created验证 Service 和 Deployment 已成功部署：
bash
root@server:~# kubectl get svc,deployment my-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/my-nginx ClusterIP 10.96.76.254 <none> 443/TCP 27s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/my-nginx 1/1 1 1 27s4.2 部署网关
查看当前目录中提供的 Gateway API 配置文件：
yaml
root@server:~# yq tls-gateway.yaml \
tls-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
name: cilium-tls-gateway
spec:
gatewayClassName: cilium
listeners:
- name: https
hostname: "nginx.cilium.rocks"
port: 443
protocol: TLS
tls:
mode: Passthrough
allowedRoutes:
namespaces:
from: All
---
apiVersion: gateway.networking.k8s.io/v1alpha2
kind: TLSRoute
metadata:
name: nginx
spec:
parentRefs:
- name: cilium-tls-gateway
hostnames:
- "nginx.cilium.rocks"
rules:
- backendRefs:
- name: my-nginx
port: 443它们与我们在前面的任务中回顾的几乎相同。只需注意 Gateway 清单中设置的 Passthrough 模式即可：
yaml
spec:
gatewayClassName: cilium
listeners:
- name: https
hostname: "nginx.cilium.rocks"
port: 443
protocol: TLS
tls:
mode: Passthrough
allowedRoutes:
namespaces:
from: All以前，我们使用 HTTPRoute 资源。这一次，我们使用的是 TLSRoute：
yaml
apiVersion: gateway.networking.k8s.io/v1beta1
kind: TLSRoute
metadata:
name: nginx
spec:
parentRefs:
- name: cilium-tls-gateway
hostnames:
- "nginx.cilium.rocks"
rules:
- backendRefs:
- name: my-nginx
port: 443您之前了解了如何在网关上终止 TLS 连接。那是在 Terminate 模式下使用 Gateway API。在本例中，网关处于直通模式：区别在于，流量在客户端和 Pod 之间始终保持加密状态。
在 Terminate 中：
- Client -> Gateway: HTTPS
- Gateway -> Pod: HTTP
在 Passthrough 中：
- Client -> Gateway: HTTPS
- Gateway -> Pod: HTTPS
除了使用 SNI 标头进行路由外，网关实际上不会检查流量。实际上，hostnames 字段定义了一组 SNI 名称，这些名称应与 TLS 握手中 TLS ClientHello 消息的 SNI 属性匹配。
现在，让我们将 Gateway 和 TLSRoute 部署到集群中：
bash
root@server:~# kubectl apply -f tls-gateway.yaml -f tls-route.yaml
gateway.gateway.networking.k8s.io/cilium-tls-gateway created
tlsroute.gateway.networking.k8s.io/nginx created验证网关是否已分配 LoadBalancer IP 地址：
bash
root@server:~# kubectl get gateway cilium-tls-gateway
NAME CLASS ADDRESS PROGRAMMED AGE
cilium-tls-gateway cilium 172.18.255.202 True 25s
root@server:~# GATEWAY=$(kubectl get gateway cilium-tls-gateway -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY
172.18.255.202我们还要仔细检查 TLSRoute 是否已成功预置并已连接到网关。
bash
root@server:~# kubectl get tlsroutes.gateway.networking.k8s.io -o json | jq '.items[0].status.parents[0]'
{
"conditions": [
{
"lastTransitionTime": "2025-05-28T00:30:09Z",
"message": "Accepted TLSRoute",
"observedGeneration": 1,
"reason": "Accepted",
"status": "True",
"type": "Accepted"
},
{
"lastTransitionTime": "2025-05-28T00:30:09Z",
"message": "Service reference is valid",
"observedGeneration": 1,
"reason": "ResolvedRefs",
"status": "True",
"type": "ResolvedRefs"
}
],
"controllerName": "io.cilium/gateway-controller",
"parentRef": {
"group": "gateway.networking.k8s.io",
"kind": "Gateway",
"name": "cilium-tls-gateway"
}
}4.3 测试TLS请求
现在，让我们通过 HTTPS 向网关发出请求：
bash
root@server:~# curl -v \
--resolve "nginx.cilium.rocks:443:$GATEWAY" \
"https://nginx.cilium.rocks:443"
* Added nginx.cilium.rocks:443:172.18.255.202 to DNS cache
* Hostname nginx.cilium.rocks was found in DNS cache
* Trying 172.18.255.202:443...
* Connected to nginx.cilium.rocks (172.18.255.202) port 443
* ALPN: curl offers h2,http/1.1
* TLSv1.3 (OUT), TLS handshake, Client hello (1):
* CAfile: /etc/ssl/certs/ca-certificates.crt
* CApath: /etc/ssl/certs
* TLSv1.3 (IN), TLS handshake, Server hello (2):
* TLSv1.3 (IN), TLS handshake, Encrypted Extensions (8):
* TLSv1.3 (IN), TLS handshake, Certificate (11):
* TLSv1.3 (IN), TLS handshake, CERT verify (15):
* TLSv1.3 (IN), TLS handshake, Finished (20):
* TLSv1.3 (OUT), TLS change cipher, Change cipher spec (1):
* TLSv1.3 (OUT), TLS handshake, Finished (20):
* SSL connection using TLSv1.3 / TLS_AES_256_GCM_SHA384 / X25519 / RSASSA-PSS
* ALPN: server accepted http/1.1
* Server certificate:
* subject: O=mkcert development certificate; OU=root@server
* start date: May 28 00:13:47 2025 GMT
* expire date: Aug 28 00:13:47 2027 GMT
* subjectAltName: host "nginx.cilium.rocks" matched cert's "*.cilium.rocks"
* issuer: O=mkcert development CA; OU=root@server; CN=mkcert root@server
* SSL certificate verify ok.
* Certificate level 0: Public key type RSA (2048/112 Bits/secBits), signed using sha256WithRSAEncryption
* Certificate level 1: Public key type RSA (3072/128 Bits/secBits), signed using sha256WithRSAEncryption
* using HTTP/1.x
> GET / HTTP/1.1
> Host: nginx.cilium.rocks
> User-Agent: curl/8.5.0
> Accept: */*
>
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
* old SSL session ID is stale, removing
< HTTP/1.1 200 OK
< Server: nginx/1.27.5
< Date: Wed, 28 May 2025 00:31:30 GMT
< Content-Type: text/html
< Content-Length: 100
< Last-Modified: Wed, 28 May 2025 00:27:14 GMT
< Connection: keep-alive
< ETag: "68365862-64"
< Accept-Ranges: bytes
<
<html>
<h1>Welcome to our webserver listening on port 443.</h1>
</br>
<h1>Cilium rocks.</h1>
</html
* Connection #0 to host nginx.cilium.rocks left intact应使用 HTTPS 正确检索数据（因此，正确实现了 TLS 握手）。
输出中有几点需要注意。
- 它应该是成功的（您应该在最后看到一个带有
Cilium rocks的 HTML 输出。 - 连接是通过端口 443 建立的 - 您应该会看到
Connected to nginx.cilium.rocks (172.18.255.200) port 443。 - 您应该会看到 TLS handshake 和 TLS version negotiation。预计协商将导致使用 TLSv1.3。
- 预期会看到成功的证书验证（注意
SSL 证书验证正常）。
5. API网关--流量拆分
5.1 部署应用
首先，让我们在集群中部署一个示例 echo 应用程序。应用程序将回复客户端，并在回复正文中包含有关接收原始请求的 Pod 和节点的信息。我们将使用此信息来说明流量在多个 Kubernetes 服务之间分配。
使用以下命令查看 YAML 文件。您将看到我们正在部署多个 Pod 和服务。这些服务称为 echo-1 和 echo-2，流量将在这些服务之间分配。
yaml
root@server:~# yq echo-servers.yaml
---
apiVersion: v1
kind: Service
metadata:
labels:
app: echo-1
name: echo-1
spec:
ports:
- port: 8080
name: high
protocol: TCP
targetPort: 8080
selector:
app: echo-1
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: echo-1
name: echo-1
spec:
replicas: 1
selector:
matchLabels:
app: echo-1
template:
metadata:
labels:
app: echo-1
spec:
containers:
- image: gcr.io/kubernetes-e2e-test-images/echoserver:2.2
name: echo-1
ports:
- containerPort: 8080
env:
- name: NODE_NAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: POD_IP
valueFrom:
fieldRef:
fieldPath: status.podIP
---
apiVersion: v1
kind: Service
metadata:
labels:
app: echo-2
name: echo-2
spec:
ports:
- port: 8090
name: high
protocol: TCP
targetPort: 8080
selector:
app: echo-2
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: echo-2
name: echo-2
spec:
replicas: 1
selector:
matchLabels:
app: echo-2
template:
metadata:
labels:
app: echo-2
spec:
containers:
- image: gcr.io/kubernetes-e2e-test-images/echoserver:2.2
name: echo-2
ports:
- containerPort: 8080
env:
- name: NODE_NAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: POD_IP
valueFrom:
fieldRef:
fieldPath: status.podIP部署应用
bash
root@server:~# kubectl apply -f echo-servers.yaml
service/echo-1 created
deployment.apps/echo-1 created
service/echo-2 created
deployment.apps/echo-2 created检查应用程序是否已正确部署：
bash
root@server:~# kubectl get pods
NAME READY STATUS RESTARTS AGE
details-v1-67894999b5-hswsw 1/1 Running 0 33m
echo-1-597b976bc7-5r4xb 1/1 Running 0 88s
echo-2-7ccd4fd567-2mgnn 1/1 Running 0 88s
my-nginx-7bd456664-s7mpc 1/1 Running 0 7m53s
productpage-v1-7bd5bd857c-shr9z 1/1 Running 0 33m
ratings-v1-676ff5568f-w467l 1/1 Running 0 33m
reviews-v1-f5b4b64f-sjk2s 1/1 Running 0 33m
reviews-v2-74b7dd9f45-rk2n6 1/1 Running 0 33m
reviews-v3-65d744df5c-zqljm 1/1 Running 0 33m快速浏览一下部署的服务：
bash
root@server:~# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
cilium-gateway-cilium-tls-gateway LoadBalancer 10.96.57.24 172.18.255.202 443:30846/TCP 5m20s
cilium-gateway-my-gateway LoadBalancer 10.96.212.15 172.18.255.200 80:30157/TCP 29m
cilium-gateway-tls-gateway LoadBalancer 10.96.211.194 172.18.255.201 443:31647/TCP 18m
details ClusterIP 10.96.188.110 <none> 9080/TCP 33m
echo-1 ClusterIP 10.96.235.22 <none> 8080/TCP 110s
echo-2 ClusterIP 10.96.204.162 <none> 8090/TCP 110s
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3h42m
my-nginx ClusterIP 10.96.76.254 <none> 443/TCP 8m15s
productpage ClusterIP 10.96.173.43 <none> 9080/TCP 33m
ratings ClusterIP 10.96.118.245 <none> 9080/TCP 33m
reviews ClusterIP 10.96.33.54 <none> 9080/TCP 33m5.2 负载均衡流量
让我们回顾一下 HTTPRoute 清单。
yaml
root@server:~# yq load-balancing-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: load-balancing-route
spec:
parentRefs:
- name: my-gateway
rules:
- matches:
- path:
type: PathPrefix
value: /echo
backendRefs:
- kind: Service
name: echo-1
port: 8080
weight: 50
- kind: Service
name: echo-2
port: 8090
weight: 50让我们使用以下清单部署 HTTPRoute：
bash
root@server:~# kubectl apply -f load-balancing-http-route.yaml
httproute.gateway.networking.k8s.io/load-balancing-route created此规则本质上是一个简单的 L7 代理路由：对于路径以 /echo 开头的 HTTP 流量，分别通过端口 8080 和 8090 将流量转发到 echo-1 和 echo-2 服务。
yaml
backendRefs:
- kind: Service
name: echo-1
port: 8080
weight: 50
- kind: Service
name: echo-2
port: 8090
weight: 505.3 流量拆分-- 50%比50%
让我们再次检索与网关关联的 IP 地址：
bash
GATEWAY=$(kubectl get gateway my-gateway -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY现在，我们来检查基于 URL 路径的流量是否由 Gateway API 代理。
检查是否可以向该外部地址发出 HTTP 请求：
bash
root@server:~# GATEWAY=$(kubectl get gateway my-gateway -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY
172.18.255.200
root@server:~# curl --fail -s http://$GATEWAY/echo
Hostname: echo-2-7ccd4fd567-2mgnn
Pod Information:
node name: kind-worker
pod name: echo-2-7ccd4fd567-2mgnn
pod namespace: default
pod IP: 10.244.1.161
Server values:
server_version=nginx: 1.12.2 - lua: 10010
Request Information:
client_address=10.244.2.110
method=GET
real path=/echo
query=
request_version=1.1
request_scheme=http
request_uri=http://172.18.255.200:8080/echo
Request Headers:
accept=*/*
host=172.18.255.200
user-agent=curl/8.5.0
x-envoy-internal=true
x-forwarded-for=172.18.0.1
x-forwarded-proto=http
x-request-id=b17459aa-5d2c-4cb4-9d93-ebdcc123a286
Request Body:
-no body in request-在回复中，获得接收查询的 Pod 的名称。
bash
Hostname: echo-2-7ccd4fd567-2mgnn请注意，您还可以在原始请求中看到标头。这在即将到来的任务中非常有用。
您应该会看到回复在两个 Pod/节点之间均匀平衡。
bash
root@server:~# curl --fail -s http://$GATEWAY/echo|grep Hostname
Hostname: echo-1-597b976bc7-5r4xb
root@server:~# curl --fail -s http://$GATEWAY/echo|grep Hostname
Hostname: echo-2-7ccd4fd567-2mgnn
root@server:~# curl --fail -s http://$GATEWAY/echo|grep Hostname
Hostname: echo-1-597b976bc7-5r4xb
root@server:~# curl --fail -s http://$GATEWAY/echo|grep Hostname
Hostname: echo-1-597b976bc7-5r4xb
root@server:~# curl --fail -s http://$GATEWAY/echo|grep Hostname
Hostname: echo-2-7ccd4fd567-2mgnn让我们通过运行循环并计算请求数来仔细检查流量是否在多个 Pod 之间均匀分配：
bash
for _ in {1..500}; do
curl -s -k "http://$GATEWAY/echo" >> curlresponses.txt;
done验证响应是否已（或多或少）均匀分布。
bash
root@server:~# for _ in {1..500}; do
curl -s -k "http://$GATEWAY/echo" >> curlresponses.txt;
done
root@server:~# grep -o "Hostname: echo-." curlresponses.txt | sort | uniq -c
258 Hostname: echo-1
242 Hostname: echo-2可以看到,流量几乎是1比1的.这也正符合我们配置的设定.我们再次回顾下配置文件
bash
backendRefs:
- kind: Service
name: echo-1
port: 8080
weight: 50
- kind: Service
name: echo-2
port: 8090
weight: 505.4 流量拆分-- 99%比1%
这一次，我们将应用权重改为99比1,并应用配置。
bash
root@server:~# yq load-balancing-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: load-balancing-route
spec:
parentRefs:
- name: my-gateway
rules:
- matches:
- path:
type: PathPrefix
value: /echo
backendRefs:
- kind: Service
name: echo-1
port: 8080
weight: 99
- kind: Service
name: echo-2
port: 8090
weight: 1
root@server:~# kubectl apply -f load-balancing-http-route.yaml
httproute.gateway.networking.k8s.io/load-balancing-route configured让我们运行另一个循环，并使用以下命令再次计算回复：
bash
for _ in {1..500}; do
curl -s -k "http://$GATEWAY/echo" >> curlresponses991.txt;
done验证响应是否分散，其中大约 99% 的响应分布到 echo-1，大约 1% 的响应分布到 echo-2。
bash
root@server:~# for _ in {1..500}; do
curl -s -k "http://$GATEWAY/echo" >> curlresponses991.txt;
done
root@server:~# grep -o "Hostname: echo-." curlresponses991.txt | sort | uniq -c
498 Hostname: echo-1
2 Hostname: echo-25.5 小测试
bash
× Ingress API is the long-term replacement for Gateway API
√ One of the benefits of Gateway APIs is that it is role-oriented.
× The Gateway and HTTPRoute configuration is all defined in a single API resource.
√ Cilium Gateway API requires Kube-Proxy Replacement.
× Cilium Gateway API does not support L7 HTTP Routing.6. 测验
6.1 题目
为了结束本实验，我们以一个简单的实验结束。我们将重用之前创建的服务（称为 echo-1 和 echo-2）。
要成功通过考试，我们需要：
- 可通过网关 API 访问的服务以及
- 基于 PrefixPath
/exam到达服务的 HTTP 流量 - 在
echo-1和echo-2之间按 75：25 的比例分配流量：75% 的流量将到达echo-1服务，而其余 25% 的流量将到达echo-2服务。 - 检查
/root/exam文件夹中的exam-gateway.yaml和exam-http-route.yaml文件。您需要使用正确的值更新XXXX字段。 - 服务监听不同的端口 - 你可以使用
kubectl get svc检查它们监听的端口，或者查看用于部署这些服务的echo-servers.yaml清单。 - 请记住，您需要将 HTTPRoute 引用到父 Gateway。
- 确保应用清单。
- 假设 G A T E W A Y 是分配给网关的 I P 地址， ' c u r l − − f a i l − s h t t p : / / GATEWAY 是分配给网关的 IP 地址， `curl --fail -s http:// GATEWAY是分配给网关的IP地址，'curl−−fail−shttp://GATEWAY/exam | grep Hostname` 则应返回如下输出：
bash
Hostname: echo-X-aaaaaaa-bbbbb它返回的服务器与我们正在通信的服务器相同。如果设置正确，echo-1 应该接收大约 3 倍的查询 echo-2。
- 如前所述，Gateway API IP 地址也是自动创建的 LoadBalancer Service 的外部 IP。
- 检查脚本将检查 curl 是否成功，以及分配给
echo-1的权重是否正好为 75，而分配给echo-2的权重是否设置为 25。
6.2 解题
根据题意配置exam-gateway.yaml和exam-http-route.yaml
bash
root@server:~# k get svc| grep echo-
echo-1 ClusterIP 10.96.235.22 <none> 8080/TCP 18m
echo-2 ClusterIP 10.96.204.162 <none> 8090/TCP 18m
root@server:~# yq exam/exam-gateway.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
name: exam-gateway
spec:
gatewayClassName: cilium
listeners:
- protocol: HTTP
port: 80
name: web-gw-echo
allowedRoutes:
namespaces:
from: Same
root@server:~# yq exam/exam-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: exam-route-1
spec:
parentRefs:
- name: exam-gateway
rules:
- matches:
- path:
type: PathPrefix
value: /exam
backendRefs:
- kind: Service
name: echo-1
port: 8080
weight: 75
- kind: Service
name: echo-2
port: 8090
weight: 25部署gateway和route
bash
root@server:~# k apply -f exam/exam-gateway.yaml
gateway.gateway.networking.k8s.io/exam-gateway created
root@server:~# k apply -f exam/exam-http-route.yaml
httproute.gateway.networking.k8s.io/exam-route-1 created测试
获取gateway地址
bash
GATEWAY=$(kubectl get gateway exam-gateway -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY测试访问
bash
curl --fail -s http://$GATEWAY/exam | grep Hostname比例测试
bash
for _ in {1..500}; do
curl -s -k "http://$GATEWAY/exam" >> exam.txt;
done

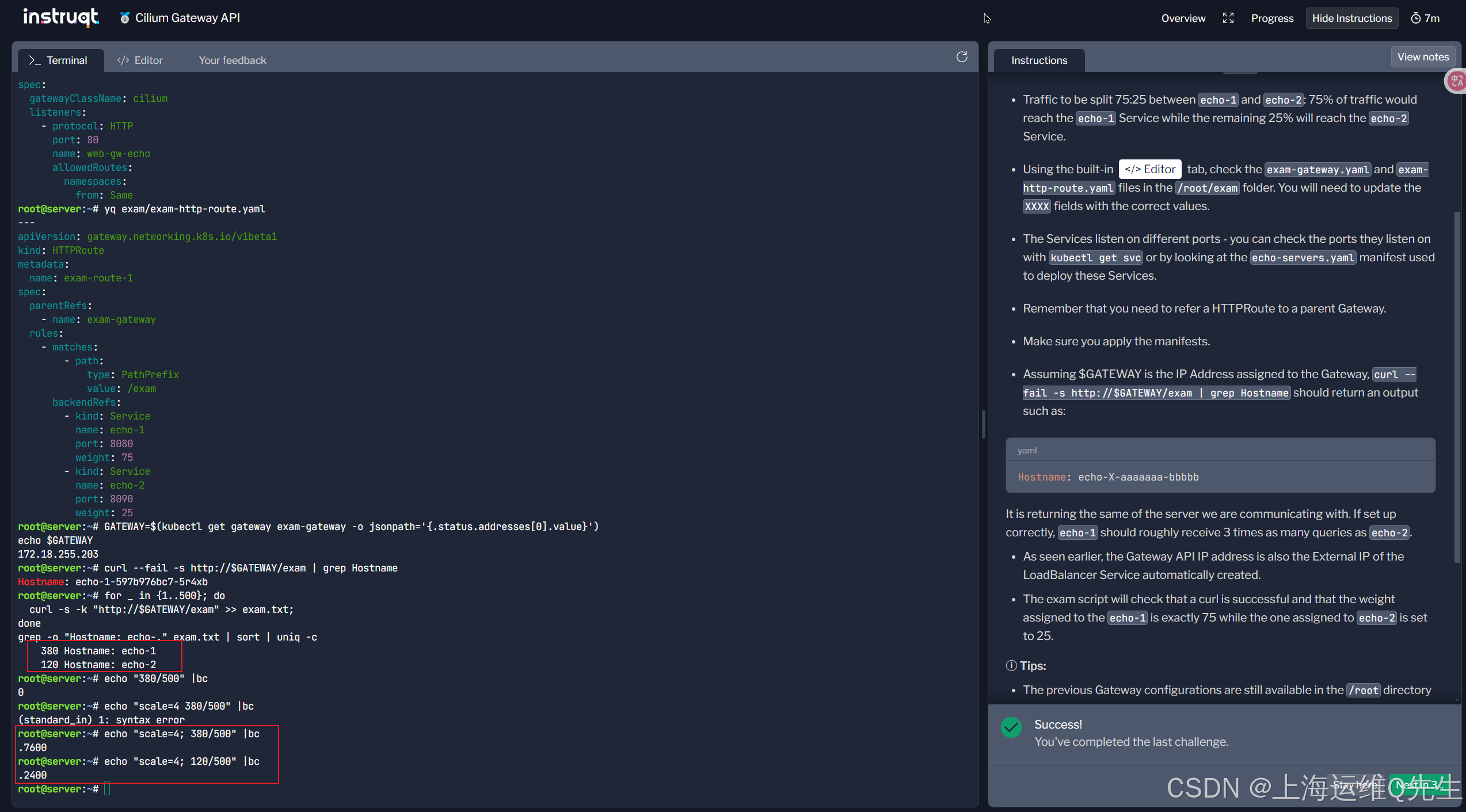

grep -o "Hostname: echo-." exam.txt | sort | uniq -c测下来也符合我们的预期,76%比24%
新徽章GET!
