Cilium动手实验室: 精通之旅---23.Advanced Gateway API Use Cases
- [1. Lab说明](#1. Lab说明)
-
- [1.1 高级网关 API 使用案例](#1.1 高级网关 API 使用案例)
- [2. 负载均衡器](#2. 负载均衡器)
-
- [2.1 部署应用程序](#2.1 部署应用程序)
- [2.2 部署 Gateway 和 HTTPRoute](#2.2 部署 Gateway 和 HTTPRoute)
- [3. HTTP 标头请求修饰符](#3. HTTP 标头请求修饰符)
-
- [3.1 部署 HTTPRoute](#3.1 部署 HTTPRoute)
- [3.2 可观测性](#3.2 可观测性)
- [4. HTTP 响应标头重写](#4. HTTP 响应标头重写)
- [5. HTTP 流量镜像](#5. HTTP 流量镜像)
-
- [5.1 demo应用部署](#5.1 demo应用部署)
- [5.2 部署镜像路由](#5.2 部署镜像路由)
- [6. HTTP URL 重写](#6. HTTP URL 重写)
- [7. HTTP 流量重定向](#7. HTTP 流量重定向)
-
- [7.1 部署流量重定向](#7.1 部署流量重定向)
- [7.2 重定向到新主机名和新前缀](#7.2 重定向到新主机名和新前缀)
- [7.3 重定向 - 新状态代码和新前缀](#7.3 重定向 - 新状态代码和新前缀)
- [7.4 重定向 - 从 HTTP 到 HTTPS 和新前缀](#7.4 重定向 - 从 HTTP 到 HTTPS 和新前缀)
- [8. 跨命名空间支持](#8. 跨命名空间支持)
-
- [8.1 ACME 的跨命名空间](#8.1 ACME 的跨命名空间)
- [8.2 跨命名空间网关](#8.2 跨命名空间网关)
- [9. 部署 gRPC 路由](#9. 部署 gRPC 路由)
-
- [9.1 部署基于 gRPC 的应用程序](#9.1 部署基于 gRPC 的应用程序)
- [9.2 部署 gRPCRoute](#9.2 部署 gRPCRoute)
- [9.3 向后端服务发出 gRPC 请求](#9.3 向后端服务发出 gRPC 请求)
- [10. 内部L7 流量管理](#10. 内部L7 流量管理)
-
- [10.1 部署示例应用程序](#10.1 部署示例应用程序)
- [10.2 部署东西 HTTPRoute](#10.2 部署东西 HTTPRoute)
- [10.3 验证东西向 L7 流量管理](#10.3 验证东西向 L7 流量管理)
- [10.4 东西向负载均衡](#10.4 东西向负载均衡)
- [10.5 90/10 流量拆分](#10.5 90/10 流量拆分)
- [10.6 超时](#10.6 超时)
- [10.7 小测验](#10.7 小测验)
- [11. 最终测试](#11. 最终测试)
-
- [11.1 题目](#11.1 题目)
- [11.2 解题](#11.2 解题)
1. Lab说明
Lab登录
url
https://isovalent.com/labs/cilium-gateway-api-advanced/1.1 高级网关 API 使用案例
在我们可以使用 Gateway API 功能安装 Cilium 之前，有几个重要的先决条件需要了解
- 必须配置
Cilium 并将 kubeProxyReplacement设置为 true。 must事先安装来自 Gateway API 的 CRD（自定义资源定义）。
作为实验室部署脚本的一部分，安装了多个 CRD。验证它们是否可用。
bash
root@server:~# kubectl get crd \
gatewayclasses.gateway.networking.k8s.io \
gateways.gateway.networking.k8s.io \
httproutes.gateway.networking.k8s.io \
referencegrants.gateway.networking.k8s.io \
tlsroutes.gateway.networking.k8s.io \
grpcroutes.gateway.networking.k8s.io
NAME CREATED AT
gatewayclasses.gateway.networking.k8s.io 2025-06-05T03:16:30Z
gateways.gateway.networking.k8s.io 2025-06-05T03:16:30Z
httproutes.gateway.networking.k8s.io 2025-06-05T03:16:31Z
referencegrants.gateway.networking.k8s.io 2025-06-05T03:16:31Z
tlsroutes.gateway.networking.k8s.io 2025-06-05T03:16:32Z
grpcroutes.gateway.networking.k8s.io 2025-06-05T03:16:32Z在实验室部署期间，使用以下标志安装 Cilium：
bash
--set kubeProxyReplacement=true \
--set gatewayAPI.enabled=true让我们看看我们的实验室环境，看看 Cilium 是否安装正确。以下命令将等待 Cilium 启动并运行并报告其状态：
bash
root@server:~# cilium status --wait
/¯¯\
/¯¯\__/¯¯\ Cilium: OK
\__/¯¯\__/ Operator: OK
/¯¯\__/¯¯\ Envoy DaemonSet: OK
\__/¯¯\__/ Hubble Relay: OK
\__/ ClusterMesh: disabled
DaemonSet cilium Desired: 3, Ready: 3/3, Available: 3/3
DaemonSet cilium-envoy Desired: 3, Ready: 3/3, Available: 3/3
Deployment cilium-operator Desired: 1, Ready: 1/1, Available: 1/1
Deployment hubble-relay Desired: 1, Ready: 1/1, Available: 1/1
Containers: cilium Running: 3
cilium-envoy Running: 3
cilium-operator Running: 1
clustermesh-apiserver
hubble-relay Running: 1
Cluster Pods: 4/4 managed by Cilium
Helm chart version: 1.17.1
Image versions cilium quay.io/cilium/cilium:v1.17.1@sha256:8969bfd9c87cbea91e40665f8ebe327268c99d844ca26d7d12165de07f702866: 3
cilium-envoy quay.io/cilium/cilium-envoy:v1.31.5-1739264036-958bef243c6c66fcfd73ca319f2eb49fff1eb2ae@sha256:fc708bd36973d306412b2e50c924cd8333de67e0167802c9b48506f9d772f521: 3
cilium-operator quay.io/cilium/operator-generic:v1.17.1@sha256:628becaeb3e4742a1c36c4897721092375891b58bae2bfcae48bbf4420aaee97: 1
hubble-relay quay.io/cilium/hubble-relay:v1.17.1@sha256:397e8fbb188157f744390a7b272a1dec31234e605bcbe22d8919a166d202a3dc: 1验证 Cilium 是否已启用并部署了 Gateway API 功能：
bash
root@server:~# cilium config view | grep -w "enable-gateway-api "
enable-gateway-api true2. 负载均衡器
2.1 部署应用程序
首先，让我们在集群中部署一个示例 echo 应用程序。应用程序将回复客户端，并在回复的正文中包含有关原始请求标头的信息。我们将使用此信息来说明 Gateway 如何修改标头和其他 HTTP 参数。
使用以下命令查看 YAML 文件。您将看到我们正在部署 Pod 和关联的服务 （echo-1）。
yaml
root@server:~# yq echo-servers.yaml
---
apiVersion: v1
kind: Service
metadata:
labels:
app: echo-1
name: echo-1
spec:
ports:
- port: 8080
name: high
protocol: TCP
targetPort: 8080
selector:
app: echo-1
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: echo-1
name: echo-1
spec:
replicas: 1
selector:
matchLabels:
app: echo-1
template:
metadata:
labels:
app: echo-1
spec:
containers:
- image: gcr.io/kubernetes-e2e-test-images/echoserver:2.2
name: echo-1
ports:
- containerPort: 8080
env:
- name: NODE_NAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: POD_IP
valueFrom:
fieldRef:
fieldPath: status.podIP应用配置
bash
kubectl apply -f echo-servers.yaml检查应用程序是否已正确部署：
bash
root@server:~# kubectl get pods,svc
NAME READY STATUS RESTARTS AGE
pod/echo-1-597b976bc7-h24jb 1/1 Running 0 52s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/echo-1 ClusterIP 10.96.145.113 <none> 8080/TCP 52s
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 136m请注意，此 Service 仅面向内部 （ClusterIP），因此无法从集群外部访问这些 Service。
2.2 部署 Gateway 和 HTTPRoute
httproute的配置
yaml
root@server:~# yq http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: example-route-1
spec:
parentRefs:
- name: cilium-gw
rules:
- matches:
- path:
type: PathPrefix
value: /echo
backendRefs:
- kind: Service
name: echo-1
port: 8080Gateway的配置
yaml
root@server:~# yq gateway.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
name: cilium-gw
spec:
gatewayClassName: cilium
listeners:
- protocol: HTTP
port: 80
name: web-gw-echo
allowedRoutes:
namespaces:
from: Same让我们使用以下清单部署 Gateway 和 HTTPRoute：
bash
kubectl apply -f gateway.yaml -f http-route.yaml确认部署的状态
bash
root@server:~# k get svc,gateway,httproutes
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/cilium-gateway-cilium-gw LoadBalancer 10.96.151.105 172.18.255.200 80:31484/TCP 4s
service/echo-1 ClusterIP 10.96.145.113 <none> 8080/TCP 3m43s
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 139m
NAME CLASS ADDRESS PROGRAMMED AGE
gateway.gateway.networking.k8s.io/cilium-gw cilium 172.18.255.200 True 4s
NAME HOSTNAMES AGE
httproute.gateway.networking.k8s.io/example-route-1 4s让我们检索此 IP 地址：
bash
root@server:~# GATEWAY=$(kubectl get gateway cilium-gw -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY
172.18.255.200请注意，此 IP 地址是由 Cilium 的 LB-IPAM（负载均衡器 IP 地址管理）功能分配的
现在，我们来检查基于 URL 路径的流量是否由 Gateway API 代理。
检查是否可以向该外部地址发出 HTTP 请求：
bash
root@server:~# curl --fail -s http://$GATEWAY/echo
Hostname: echo-1-597b976bc7-h24jb
Pod Information:
node name: kind-worker2
pod name: echo-1-597b976bc7-h24jb
pod namespace: default
pod IP: 10.244.2.66
Server values:
server_version=nginx: 1.12.2 - lua: 10010
Request Information:
client_address=10.244.2.75
method=GET
real path=/echo
query=
request_version=1.1
request_scheme=http
request_uri=http://172.18.255.200:8080/echo
Request Headers:
accept=*/*
host=172.18.255.200
user-agent=curl/8.5.0
x-envoy-internal=true
x-forwarded-for=172.18.0.1
x-forwarded-proto=http
x-request-id=b40cd4a9-89ef-497c-8170-e469f043356e
Request Body:
-no body in request-3. HTTP 标头请求修饰符
借助此功能，Cilium Gateway API 允许我们添加、删除或编辑传入流量的 HTTP 标头。
最好通过 try without with the feature 来验证这一点。我们将使用相同的 echo 服务器。
3.1 部署 HTTPRoute
HTTPRoute配置
yaml
root@server:~# yq echo-header-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: header-http-echo
spec:
parentRefs:
- name: cilium-gw
rules:
- matches:
- path:
type: PathPrefix
value: /cilium-add-a-request-header
#filters:
#- type: RequestHeaderModifier
# requestHeaderModifier:
# add:
# - name: my-cilium-header-name
# value: my-cilium-header-value
backendRefs:
- name: echo-1
port: 8080让我们使用以下清单部署一个 HTTPRoute 资源（我们使用的是上一个任务中部署的相同网关）。
bash
kubectl apply -f echo-header-http-route.yaml让我们检索网关 IP 地址：
bash
root@server:~# GATEWAY=$(kubectl get gateway cilium-gw -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY
172.18.255.200向该外部地址发出 HTTP 请求：
bash
root@server:~# curl --fail -s http://$GATEWAY/cilium-add-a-request-header
Hostname: echo-1-597b976bc7-h24jb
Pod Information:
node name: kind-worker2
pod name: echo-1-597b976bc7-h24jb
pod namespace: default
pod IP: 10.244.2.66
Server values:
server_version=nginx: 1.12.2 - lua: 10010
Request Information:
client_address=10.244.2.75
method=GET
real path=/cilium-add-a-request-header
query=
request_version=1.1
request_scheme=http
request_uri=http://172.18.255.200:8080/cilium-add-a-request-header
Request Headers:
accept=*/*
host=172.18.255.200
user-agent=curl/8.5.0
x-envoy-internal=true
x-forwarded-for=172.18.0.1
x-forwarded-proto=http
x-request-id=83eab8a2-102b-4f55-b0f8-ca052278615b
Request Body:
-no body in request-并取消注释 echo-header-http-route.yaml 的注释行
yaml
root@server:~# yq echo-header-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: header-http-echo
spec:
parentRefs:
- name: cilium-gw
rules:
- matches:
- path:
type: PathPrefix
value: /cilium-add-a-request-header
filters:
- type: RequestHeaderModifier
requestHeaderModifier:
add:
- name: my-cilium-header-name
value: my-cilium-header-value
backendRefs:
- name: echo-1
port: 8080应用 HTTPRoute：
bash
kubectl apply -f echo-header-http-route.yaml现在让我们检查一下 Cilium Gateway API 是否修改了标头：
再次向该地址发出 curl HTTP 请求：
bash
root@server:~# curl --fail -s http://$GATEWAY/cilium-add-a-request-header
Hostname: echo-1-597b976bc7-42zjq
Pod Information:
node name: kind-worker
pod name: echo-1-597b976bc7-42zjq
pod namespace: default
pod IP: 10.244.1.78
Server values:
server_version=nginx: 1.12.2 - lua: 10010
Request Information:
client_address=10.244.1.80
method=GET
real path=/cilium-add-a-request-header
query=
request_version=1.1
request_scheme=http
request_uri=http://172.18.255.200:8080/cilium-add-a-request-header
Request Headers:
accept=*/*
host=172.18.255.200
my-cilium-header-name=my-cilium-header-value
user-agent=curl/8.5.0
x-envoy-internal=true
x-forwarded-for=172.18.0.1
x-forwarded-proto=http
x-request-id=4a628c7b-ce4b-4440-9efb-37b1c23de3ea
Request Body:
-no body in request-您应该看到，在回复的 Request Headers 部分中，该标头 my-cilium-header-name=my-cilium-header-value 已添加到 HTTP 请求中。
请注意，您还可以删除或编辑从客户端发送的 HTTP 请求标头。
3.2 可观测性
可观测平台 Hubble 来观察流量，并使用 Gateway API 筛选您添加的特定 HTTP 路径：
bash
root@server:~# hubble observe --http-path "/cilium-add-a-request-header"
Jun 5 06:21:53.343: 172.18.0.1:36402 (ingress) -> default/echo-1-597b976bc7-42zjq:8080 (ID:11908) http-request FORWARDED (HTTP/1.1 GET http://172.18.255.200/cilium-add-a-request-header)
Jun 5 06:21:53.344: 172.18.0.1:36402 (ingress) <- default/echo-1-597b976bc7-42zjq:8080 (ID:11908) http-response FORWARDED (HTTP/1.1 200 1ms (GET http://172.18.255.200/cilium-add-a-request-header))您可以看到流量是如何通过 Cilium L7 Ingress（实现网关 API）发送的，并且您可以使用 Hubble 使用第 7 层过滤器（如 HTTP 路径）来观察流量。
4. HTTP 响应标头重写
HTTPRoute配置文件:
bash
root@server:~# yq response-header-modifier-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: response-header-modifier
spec:
parentRefs:
- name: cilium-gw
rules:
- matches:
- path:
type: PathPrefix
value: /multiple
filters:
- type: ResponseHeaderModifier
responseHeaderModifier:
add:
- name: X-Header-Add-1
value: header-add-1
- name: X-Header-Add-2
value: header-add-2
- name: X-Header-Add-3
value: header-add-3
backendRefs:
- name: echo-1
port: 8080让我们使用以下清单部署 HTTPRoute：
bash
kubectl apply -f response-header-modifier-http-route.yaml请注意这一次，如何使用 type： ResponseHeaderModifier 过滤器修改标头的响应 。
我们将一次性添加 3 个标头。
让我们检索网关 IP 地址：
bash
GATEWAY=$(kubectl get gateway cilium-gw -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY检查是否可以向该外部地址发出 HTTP 请求：
bash
root@server:~# curl --fail -s http://$GATEWAY/multiple
Hostname: echo-1-597b976bc7-42zjq
Pod Information:
node name: kind-worker
pod name: echo-1-597b976bc7-42zjq
pod namespace: default
pod IP: 10.244.1.78
Server values:
server_version=nginx: 1.12.2 - lua: 10010
Request Information:
client_address=10.244.1.80
method=GET
real path=/multiple
query=
request_version=1.1
request_scheme=http
request_uri=http://172.18.255.200:8080/multiple
Request Headers:
accept=*/*
host=172.18.255.200
user-agent=curl/8.5.0
x-envoy-internal=true
x-forwarded-for=172.18.0.1
x-forwarded-proto=http
x-request-id=92b055a0-5b6f-48f7-97da-6d36ad16ae16
Request Body:
-no body in request-请注意，数据包的正文包含有关原始请求的详细信息。
如果运行以下命令：
bash
root@server:~# curl --fail -s http://$GATEWAY/multiple | grep "Request Headers" -A 10
Request Headers:
accept=*/*
host=172.18.255.200
user-agent=curl/8.5.0
x-envoy-internal=true
x-forwarded-for=172.18.0.1
x-forwarded-proto=http
x-request-id=57ce6df0-0f08-41f0-b4ba-0792e67c36e9
Request Body:
-no body in request-要显示响应的标头，我们可以在详细模式下运行 curl：
bash
root@server:~# curl -v --fail -s http://$GATEWAY/multiple
* Trying 172.18.255.200:80...
* Connected to 172.18.255.200 (172.18.255.200) port 80
> GET /multiple HTTP/1.1
> Host: 172.18.255.200
> User-Agent: curl/8.5.0
> Accept: */*
>
< HTTP/1.1 200 OK
< date: Thu, 05 Jun 2025 06:26:20 GMT
< content-type: text/plain
< server: envoy
< x-envoy-upstream-service-time: 0
< x-header-add-1: header-add-1
< x-header-add-2: header-add-2
< x-header-add-3: header-add-3
< transfer-encoding: chunked
<
Hostname: echo-1-597b976bc7-42zjq
Pod Information:
node name: kind-worker
pod name: echo-1-597b976bc7-42zjq
pod namespace: default
pod IP: 10.244.1.78
Server values:
server_version=nginx: 1.12.2 - lua: 10010
Request Information:
client_address=10.244.1.80
method=GET
real path=/multiple
query=
request_version=1.1
request_scheme=http
request_uri=http://172.18.255.200:8080/multiple
Request Headers:
accept=*/*
host=172.18.255.200
user-agent=curl/8.5.0
x-envoy-internal=true
x-forwarded-for=172.18.0.1
x-forwarded-proto=http
x-request-id=dea451da-4db1-4f0c-b35a-f1cad4836325
Request Body:
-no body in request-
* Connection #0 to host 172.18.255.200 left intact同样，您可以看到使用 Cilium Gateway API 修改 HTTP 流量 - 传入请求或传出响应是多么简单。
5. HTTP 流量镜像
5.1 demo应用部署
使用 Gateway 将发往后端的流量镜像到另一个后端。
当您想要引入服务的 v2 或仅用于故障排除和分析目的时，这非常有用。
我们将使用不同的演示应用程序。此演示应用程序将部署一些 Pod 和服务 - infra-backend-v1 和 infra-backend-v2。我们会将发往 infra-backend-v1 的流量镜像到 infra-backend-v2。
验证演示应用程序是否已正确部署：
bash
root@server:~# kubectl get -f demo-app.yaml
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/infra-backend-v1 ClusterIP 10.96.128.114 <none> 8080/TCP 5m44s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/infra-backend-v1 1/1 1 1 5m44s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/infra-backend-v2 ClusterIP 10.96.222.192 <none> 8080/TCP 5m44s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/infra-backend-v2 1/1 1 1 5m44s我们准备了一个 HTTPRoute 清单，用于将 HTTP 请求镜像到不同的后端。将流量镜像到不同的后端可用于故障排除、分析和可观测性。请注意，虽然我们可以将流量镜像到另一个后端，但我们会忽略来自该后端的响应。
流量镜像配置文件:
yaml
root@server:~# yq http-mirror-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: request-mirror
spec:
parentRefs:
- name: cilium-gw
rules:
- matches:
- path:
type: PathPrefix
value: /mirror
#filters:
#- type: RequestMirror
# requestMirror:
# backendRef:
# name: infra-backend-v2
# port: 8080
backendRefs:
- name: infra-backend-v1
port: 8080部署 HTTPRoute：
bash
kubectl apply -f http-mirror-route.yaml检索网关 IP 地址：
bash
GATEWAY=$(kubectl get gateway cilium-gw -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY向网关发出请求：
bash
root@server:~# curl -s http://$GATEWAY/mirror | jq
{
"path": "/mirror",
"host": "172.18.255.200",
"method": "GET",
"proto": "HTTP/1.1",
"headers": {
"Accept": [
"*/*"
],
"User-Agent": [
"curl/8.5.0"
],
"X-Envoy-Internal": [
"true"
],
"X-Forwarded-For": [
"172.18.0.1"
],
"X-Forwarded-Proto": [
"http"
],
"X-Request-Id": [
"859931d1-dcbf-45d8-93b2-b2e4fecb0cf9"
]
},
"namespace": "default",
"ingress": "",
"service": "",
"pod": "infra-backend-v1-586756576f-j9qwb"

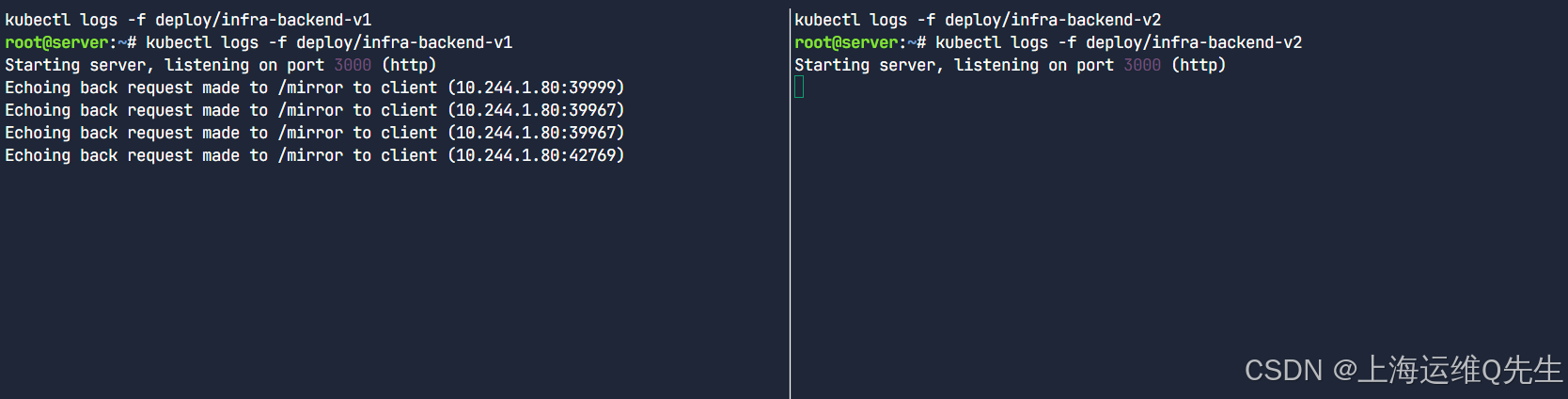

}此时,流量只在backend-v1上产生
5.2 部署镜像路由
编辑 http-mirror-route.yaml
yaml
root@server:~# yq http-mirror-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: request-mirror
spec:
parentRefs:
- name: cilium-gw
rules:
- matches:
- path:
type: PathPrefix
value: /mirror
filters:
- type: RequestMirror
requestMirror:
backendRef:
name: infra-backend-v2
port: 8080
backendRefs:
- name: infra-backend-v1
port: 8080应用它：
bash
kubectl apply -f http-mirror-route.yaml向网关发出新请求：
bash
root@server:~# curl -s http://$GATEWAY/mirror | jq
{
"path": "/mirror",
"host": "172.18.255.200",
"method": "GET",
"proto": "HTTP/1.1",
"headers": {
"Accept": [
"*/*"
],
"User-Agent": [
"curl/8.5.0"
],
"X-Envoy-Internal": [
"true"
],
"X-Forwarded-For": [
"172.18.0.1"
],
"X-Forwarded-Proto": [
"http"
],
"X-Request-Id": [
"14e70bf0-faf7-45fa-9861-eeef6a8fd21a"
]
},
"namespace": "default",
"ingress": "",
"service": "",
"pod": "infra-backend-v1-586756576f-j9qwb"

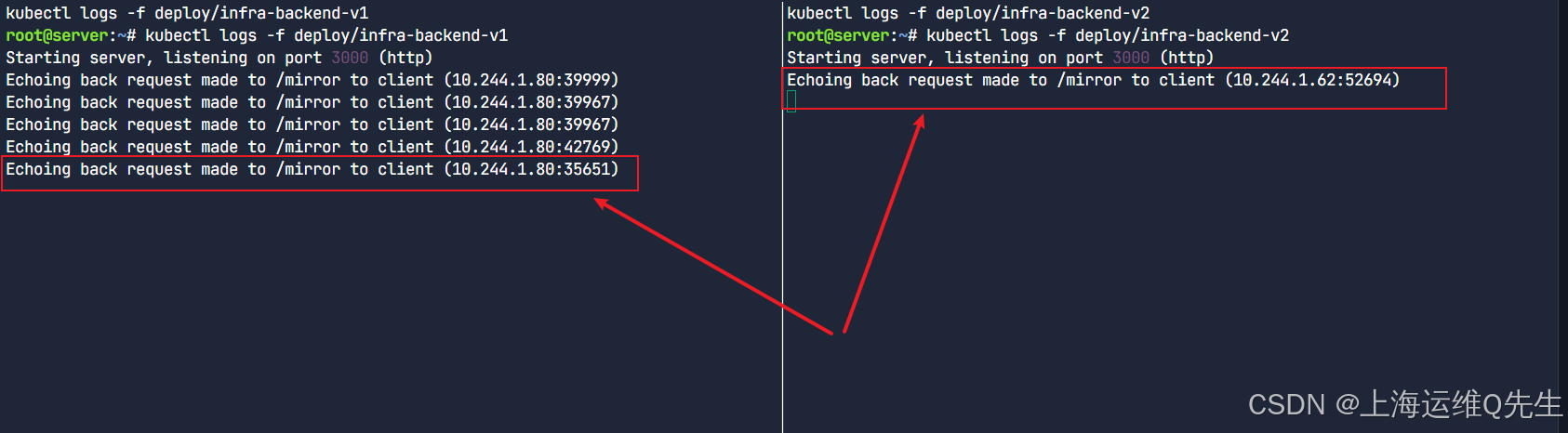

}显然镜像发生了
6. HTTP URL 重写
在此任务中，我们将使用网关重写 HTTP 请求中使用的路径。
让我们再次从检索网关 IP 地址开始：
bash
GATEWAY=$(kubectl get gateway cilium-gw -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY我们准备了一个 HTTPRoute 来重写 HTTP 请求中的 URL。
配置文件如下:
bash
root@server:~# yq http-rewrite-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: rewrite-path
spec:
parentRefs:
- name: cilium-gw
rules:
- matches:
- path:
type: PathPrefix
value: /prefix/one
filters:
- type: URLRewrite
urlRewrite:
path:
type: ReplacePrefixMatch
replacePrefixMatch: /one
backendRefs:
- name: infra-backend-v1
port: 8080让我们应用它。
bash
kubectl apply -f http-rewrite-route.yaml使用此清单，我们会将请求 URL 中的 /prefix/one 替换为 /one。
现在，我们来检查一下基于 URL 路径的流量是否由 Gateway API 代理和更改：
向该外部地址和路径发出 HTTP 请求：
bash
root@server:~# curl -s http://$GATEWAY/prefix/one | jq
{
"path": "/one",
"host": "172.18.255.200",
"method": "GET",
"proto": "HTTP/1.1",
"headers": {
"Accept": [
"*/*"
],
"User-Agent": [
"curl/8.5.0"
],
"X-Envoy-Internal": [
"true"
],
"X-Envoy-Original-Path": [
"/prefix/one"
],
"X-Forwarded-For": [
"172.18.0.1"
],
"X-Forwarded-Proto": [
"http"
],
"X-Request-Id": [
"fccacd99-9107-41b3-89db-80ba5156101c"
]
},
"namespace": "default",
"ingress": "",
"service": "",
"pod": "infra-backend-v1-586756576f-j9qwb"
}它告诉我们什么？网关将原始请求从 "/prefix/one" 更改为 "/one" （请参阅上面输出中的 "path"）。
请注意，当我们使用 Envoy 进行 L7 流量处理时，该 Envoy 还会在数据包中添加有关原始路径的信息（请参阅 "X-Envoy-Original-Path"）。
7. HTTP 流量重定向
7.1 部署流量重定向
让我们部署 HTTPRoute - 我们将在整个任务中逐节审查它。
yaml
root@server:~# yq redirect-route.yaml
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: redirect-path
spec:
parentRefs:
- name: cilium-gw
rules:
- matches:
- path:
type: PathPrefix
value: /original-prefix
filters:
- type: RequestRedirect
requestRedirect:
path:
type: ReplacePrefixMatch
replacePrefixMatch: /replacement-prefix
- matches:
- path:
type: PathPrefix
value: /path-and-host
filters:
- type: RequestRedirect
requestRedirect:
hostname: example.org
path:
type: ReplacePrefixMatch
replacePrefixMatch: /replacement-prefix
- matches:
- path:
type: PathPrefix
value: /path-and-status
filters:
- type: RequestRedirect
requestRedirect:
path:
type: ReplacePrefixMatch
replacePrefixMatch: /replacement-prefix
statusCode: 301
- matches:
- path:
type: PathPrefix
value: /scheme-and-host
filters:
- type: RequestRedirect
requestRedirect:
hostname: example.org
scheme: "https"让我们部署 HTTPRoute - 我们将在整个任务中逐节审查它。
bash
kubectl apply -f redirect-route.yaml让我们检索网关 IP 地址：
bash
GATEWAY=$(kubectl get gateway cilium-gw -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY向该外部地址和路径发出 HTTP 请求：
请注意，我们在 curl 请求中使用 -l 来跟踪重定向（默认情况下，curl 不会跟踪重定向）。请注意，我们使用 curl 的 verbose 选项来查看响应标头。
bash
root@server:~# curl -l -v http://$GATEWAY/original-prefix
* Trying 172.18.255.200:80...
* Connected to 172.18.255.200 (172.18.255.200) port 80
> GET /original-prefix HTTP/1.1
> Host: 172.18.255.200
> User-Agent: curl/8.5.0
> Accept: */*
>
< HTTP/1.1 302 Found
< location: http://172.18.255.200:80/replacement-prefix
< date: Thu, 05 Jun 2025 06:53:06 GMT
< server: envoy
< content-length: 0
<
* Connection #0 to host 172.18.255.200 left intact该位置在 Redirect messages 中用于告诉客户端要去哪里。如您所见，客户端被重定向到 http://172.18.255.200:80/replacement-prefix 。
7.2 重定向到新主机名和新前缀
您还可以将客户端定向到其他主机。检查第二条规则：
bash
root@server:~# yq '.spec.rules[1]' redirect-route.yaml
matches:
- path:
type: PathPrefix
value: /path-and-host
filters:
- type: RequestRedirect
requestRedirect:
hostname: example.org
path:
type: ReplacePrefixMatch
replacePrefixMatch: /replacement-prefix向该外部地址和路径发出 HTTP 请求：
bash
root@server:~# curl -l -v http://$GATEWAY/path-and-host
* Trying 172.18.255.200:80...
* Connected to 172.18.255.200 (172.18.255.200) port 80
> GET /path-and-host HTTP/1.1
> Host: 172.18.255.200
> User-Agent: curl/8.5.0
> Accept: */*
>
< HTTP/1.1 302 Found
< location: http://example.org:80/replacement-prefix
< date: Thu, 05 Jun 2025 06:54:45 GMT
< server: envoy
< content-length: 0
<
* Connection #0 to host 172.18.255.200 left intact如您所见，客户端被重定向到 http://example.org:80/replacement-prefix 。主机名和路径前缀均已修改。
7.3 重定向 - 新状态代码和新前缀
接下来，您还可以修改状态代码。默认情况下，如您所见，重定向状态代码为 302。这意味着资源已临时移动。
要指示客户端尝试访问的资源已永久移动，您可以使用状态代码 301。您还可以将其与前缀替换结合使用。
检查第三条规则：
bash
root@server:~# yq '.spec.rules[2]' redirect-route.yaml
matches:
- path:
type: PathPrefix
value: /path-and-status
filters:
- type: RequestRedirect
requestRedirect:
path:
type: ReplacePrefixMatch
replacePrefixMatch: /replacement-prefix
statusCode: 301向该外部地址和路径发出 HTTP 请求：
bash
root@server:~# curl -l -v http://$GATEWAY/path-and-status
* Trying 172.18.255.200:80...
* Connected to 172.18.255.200 (172.18.255.200) port 80
> GET /path-and-status HTTP/1.1
> Host: 172.18.255.200
> User-Agent: curl/8.5.0
> Accept: */*
>
< HTTP/1.1 301 Moved Permanently
< location: http://172.18.255.200:80/replacement-prefix
< date: Thu, 05 Jun 2025 06:55:55 GMT
< server: envoy
< content-length: 0
<
* Connection #0 to host 172.18.255.200 left intact如您所见，返回的状态代码为 301 Moved Permanented，客户端被重定向到 http://172.18.255.200:80/replacement-prefix 。
7.4 重定向 - 从 HTTP 到 HTTPS 和新前缀
最后，我们还可以更改方案 ，例如告诉客户端使用 HTTPS 而不是 HTTP。
您可以使用第四条规则来实现这一点：
yaml
root@server:~# yq '.spec.rules[3]' redirect-route.yaml
matches:
- path:
type: PathPrefix
value: /scheme-and-host
filters:
- type: RequestRedirect
requestRedirect:
hostname: example.org
scheme: "https"向该外部地址和路径发出 HTTP 请求：
bash
root@server:~# curl -l -v http://$GATEWAY/scheme-and-host
* Trying 172.18.255.200:80...
* Connected to 172.18.255.200 (172.18.255.200) port 80
> GET /scheme-and-host HTTP/1.1
> Host: 172.18.255.200
> User-Agent: curl/8.5.0
> Accept: */*
>
< HTTP/1.1 302 Found
< location: https://example.org:443/scheme-and-host
< date: Thu, 05 Jun 2025 06:57:05 GMT
< server: envoy
< content-length: 0
<
* Connection #0 to host 172.18.255.200 left intact如您所见，客户端最初尝试通过 HTTP 进行连接，并被重定向到 https://example.org:443/scheme-and-host 。
8. 跨命名空间支持
8.1 ACME 的跨命名空间

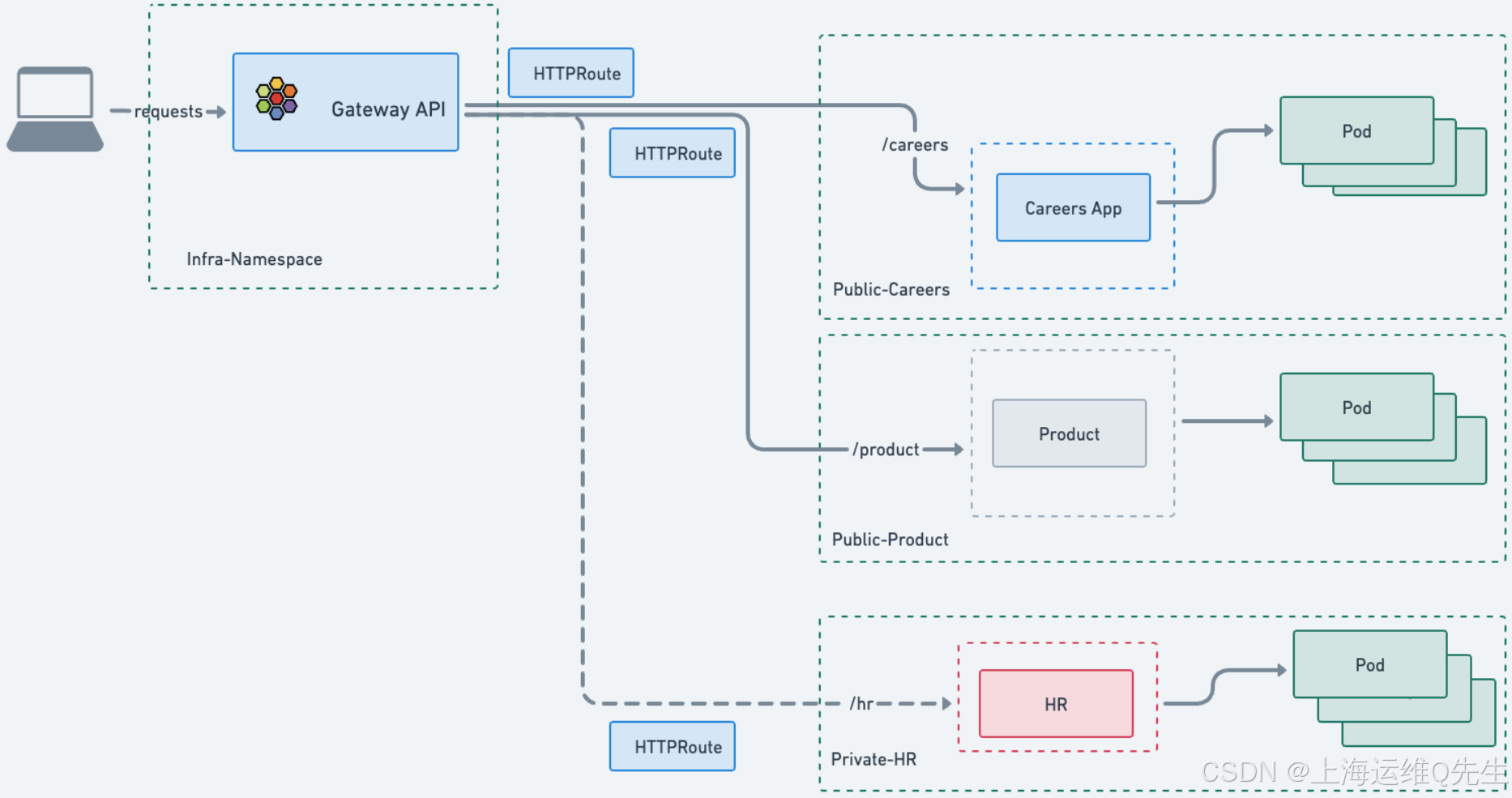

在此任务中，我们将考虑一家虚构的 ACME 公司和 ACME 中的三个不同的业务部门。它们中的每一个都有自己的环境、应用程序和命名空间。
- 招聘团队有一个面向公众的
careers应用程序，申请人可以在其中提交他们的简历。 - 产品团队有一个面向公众
product应用程序，潜在客户可以在其中了解有关 ACME 产品的更多信息。 - HR 团队有一个面向内部的
HR应用程序，用于存储私人员工详细信息。
每个应用程序都部署在其自己的 Namespace 中。由于 careers 和 product 都是面向公众的应用程序，因此安全团队批准使用共享的 Gateway API。共享 Gateway API 的一个好处是平台和安全团队可以集中控制 Gateway API，包括其证书管理。在公有云中，它还将降低成本（每个应用程序的网关 API 需要一个公有 IP 和一个云负载均衡器，它们不是免费资源）。
但是，安全团队不希望 HR 详细信息被公开和从集群外部访问，因此不批准从 hr 命名空间到网关的 HTTPRoute 附件。
8.2 跨命名空间网关
初始化此任务后，创建了四个命名空间：一个共享的 infra-ns 命名空间和三个业务部门中每个命名空间的命名空间。
使用以下方式验证：
bash
root@server:~# kubectl get ns --show-labels \
infra-ns careers product hr
NAME STATUS AGE LABELS
infra-ns Active 2m38s kubernetes.io/metadata.name=infra-ns
careers Active 2m37s kubernetes.io/metadata.name=careers,shared-gateway-access=true
product Active 2m38s kubernetes.io/metadata.name=product,shared-gateway-access=true
hr Active 2m38s kubernetes.io/metadata.name=hr请注意，product 和 careers 都有 shared-gateway-access=true 标签，但 hr 没有。
确认下配置文件内容:
yaml
root@server:~# yq cross-namespace.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: Gateway
metadata:
name: shared-gateway
namespace: infra-ns
spec:
gatewayClassName: cilium
listeners:
- name: shared-http
protocol: HTTP
port: 80
allowedRoutes:
namespaces:
from: Selector
selector:
matchLabels:
shared-gateway-access: "true"
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: cross-namespace
namespace: hr
spec:
parentRefs:
- name: shared-gateway
namespace: infra-ns
rules:
- matches:
- path:
type: PathPrefix
value: /hr
backendRefs:
- kind: Service
name: echo-hr
port: 9080
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: cross-namespace
namespace: product
spec:
parentRefs:
- name: shared-gateway
namespace: infra-ns
rules:
- matches:
- path:
type: PathPrefix
value: /product
backendRefs:
- kind: Service
name: echo-product
port: 9080
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: cross-namespace
namespace: careers
spec:
parentRefs:
- name: shared-gateway
namespace: infra-ns
rules:
- matches:
- path:
type: PathPrefix
value: /careers
backendRefs:
- kind: Service
name: echo-careers
port: 9080让我们使用以下清单部署 Gateway 和 HTTPRoutes：
bash
kubectl apply -f cross-namespace.yaml到目前为止，您应该已经熟悉了 manifest 的绝大多数内容。以下是一些差异。首先，在 Gateway 定义中，请注意它已部署在 infra-ns 命名空间中：
yaml
metadata:
name: shared-gateway
namespace: infra-ns此部分可能看起来也很陌生：
yaml
allowedRoutes:
namespaces:
from: Selector
selector:
matchLabels:
shared-gateway-access: "true"此网关使用 Namespace selector （命名空间选择器） 来定义允许附加的 HTTPRoutes。这允许基础设施团队通过允许列出一组命名空间来限制谁或哪些应用程序可以使用此网关。
只有标记为 shared-gateway-access： "true" 的命名空间才能将其路由附加到共享网关。
在 HTTPRoute 定义中，请注意我们如何在 parentRefs 中引用共享网关 。我们指定要附加到的 Gateway 及其所在的 Namespace。
让我们测试 HTTPRoutes。首先，让我们获取网关 IP：
bash
GATEWAY=$(kubectl get gateway shared-gateway -n infra-ns -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY现在，让我们连接到 product 和 careers Services：
bash
root@server:~# curl -s -o /dev/null -w "%{http_code}\n" http://$GATEWAY/product
200此命令应返回 200 状态代码。
bash
root@server:~# curl -s -o /dev/null -w "%{http_code}\n" http://$GATEWAY/careers
200此命令应返回也是 200 状态代码。
尝试连接到 hr 服务：
bash
root@server:~# curl -s -o /dev/null -w "%{http_code}\n" http://$GATEWAY/hr
404它应该返回 404。为什么？
网关将忽略 hr 命名空间中具有 infra-ns/shared-gateway 的 parentRef 的 HTTPRoute，因为未满足附件约束（命名空间标签）。
通过检查 HTTPRoutes 的状态，使用以下命令进行验证：
bash
root@server:~# echo "Product HTTPRoute Status"
kubectl get httproutes.gateway.networking.k8s.io -n product -o jsonpath='{.items[0].status.parents[0].conditions[0]}' | jq
echo "Careers HTTPRoute Status"
kubectl get httproutes.gateway.networking.k8s.io -n careers -o jsonpath='{.items[0].status.parents[0].conditions[0]}' | jq
echo "HR HTTPRoute Status"
kubectl get httproutes.gateway.networking.k8s.io -n hr -o jsonpath='{.items[0].status.parents[0].conditions[0]}' | jq
Product HTTPRoute Status
{
"lastTransitionTime": "2025-06-05T07:01:26Z",
"message": "Accepted HTTPRoute",
"observedGeneration": 1,
"reason": "Accepted",
"status": "True",
"type": "Accepted"
}
Careers HTTPRoute Status
{
"lastTransitionTime": "2025-06-05T07:01:26Z",
"message": "Accepted HTTPRoute",
"observedGeneration": 1,
"reason": "Accepted",
"status": "True",
"type": "Accepted"
}
HR HTTPRoute Status
{
"lastTransitionTime": "2025-06-05T07:01:26Z",
"message": "HTTPRoute is not allowed to attach to this Gateway due to namespace selector restrictions",
"observedGeneration": 1,
"reason": "NotAllowedByListeners",
"status": "False",
"type": "Accepted"
}前两个应该是 "Accepted HTTPRoute"，而最后一个应该被拒绝（其状态应该是 False，消息应该以 开头）。 HTTPRoute is not allowed to attach to this Gateway
此功能为工程师提供了多种选择：如果需要，可以为每个命名空间或每个应用程序使用专用的 Gateway API，或者使用共享的 Gateway API 进行集中管理并降低潜在成本。
9. 部署 gRPC 路由
9.1 部署基于 gRPC 的应用程序
使用以下命令安装应用程序。
确认配置文件内容:
yaml
root@server:~# yq /opt/gcp-microservices-demo.yml
# Copyright 2018 Google LLC
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# ----------------------------------------------------------
# WARNING: This file is autogenerated. Do not manually edit.
# ----------------------------------------------------------
# [START gke_release_kubernetes_manifests_microservices_demo]
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: emailservice
labels:
app: emailservice
spec:
selector:
matchLabels:
app: emailservice
template:
metadata:
labels:
app: emailservice
spec:
serviceAccountName: emailservice
terminationGracePeriodSeconds: 5
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/emailservice:v0.10.2
ports:
- containerPort: 8080
env:
- name: PORT
value: "8080"
- name: DISABLE_PROFILER
value: "1"
readinessProbe:
periodSeconds: 5
grpc:
port: 8080
livenessProbe:
periodSeconds: 5
grpc:
port: 8080
resources:
requests:
cpu: 100m
memory: 64Mi
limits:
cpu: 200m
memory: 128Mi
---
apiVersion: v1
kind: Service
metadata:
name: emailservice
labels:
app: emailservice
spec:
type: ClusterIP
selector:
app: emailservice
ports:
- name: grpc
port: 5000
targetPort: 8080
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: emailservice
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: checkoutservice
labels:
app: checkoutservice
spec:
selector:
matchLabels:
app: checkoutservice
template:
metadata:
labels:
app: checkoutservice
spec:
serviceAccountName: checkoutservice
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/checkoutservice:v0.10.2
ports:
- containerPort: 5050
readinessProbe:
grpc:
port: 5050
livenessProbe:
grpc:
port: 5050
env:
- name: PORT
value: "5050"
- name: PRODUCT_CATALOG_SERVICE_ADDR
value: "productcatalogservice:3550"
- name: SHIPPING_SERVICE_ADDR
value: "shippingservice:50051"
- name: PAYMENT_SERVICE_ADDR
value: "paymentservice:50051"
- name: EMAIL_SERVICE_ADDR
value: "emailservice:5000"
- name: CURRENCY_SERVICE_ADDR
value: "currencyservice:7000"
- name: CART_SERVICE_ADDR
value: "cartservice:7070"
resources:
requests:
cpu: 100m
memory: 64Mi
limits:
cpu: 200m
memory: 128Mi
---
apiVersion: v1
kind: Service
metadata:
name: checkoutservice
labels:
app: checkoutservice
spec:
type: ClusterIP
selector:
app: checkoutservice
ports:
- name: grpc
port: 5050
targetPort: 5050
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: checkoutservice
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: recommendationservice
labels:
app: recommendationservice
spec:
selector:
matchLabels:
app: recommendationservice
template:
metadata:
labels:
app: recommendationservice
spec:
serviceAccountName: recommendationservice
terminationGracePeriodSeconds: 5
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/recommendationservice:v0.10.2
ports:
- containerPort: 8080
readinessProbe:
periodSeconds: 5
grpc:
port: 8080
livenessProbe:
periodSeconds: 5
grpc:
port: 8080
env:
- name: PORT
value: "8080"
- name: PRODUCT_CATALOG_SERVICE_ADDR
value: "productcatalogservice:3550"
- name: DISABLE_PROFILER
value: "1"
resources:
requests:
cpu: 100m
memory: 220Mi
limits:
cpu: 200m
memory: 450Mi
---
apiVersion: v1
kind: Service
metadata:
name: recommendationservice
labels:
app: recommendationservice
spec:
type: ClusterIP
selector:
app: recommendationservice
ports:
- name: grpc
port: 8080
targetPort: 8080
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: recommendationservice
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: frontend
labels:
app: frontend
spec:
selector:
matchLabels:
app: frontend
template:
metadata:
labels:
app: frontend
annotations:
sidecar.istio.io/rewriteAppHTTPProbers: "true"
spec:
serviceAccountName: frontend
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/frontend:v0.10.2
ports:
- containerPort: 8080
readinessProbe:
initialDelaySeconds: 10
httpGet:
path: "/_healthz"
port: 8080
httpHeaders:
- name: "Cookie"
value: "shop_session-id=x-readiness-probe"
livenessProbe:
initialDelaySeconds: 10
httpGet:
path: "/_healthz"
port: 8080
httpHeaders:
- name: "Cookie"
value: "shop_session-id=x-liveness-probe"
env:
- name: PORT
value: "8080"
- name: PRODUCT_CATALOG_SERVICE_ADDR
value: "productcatalogservice:3550"
- name: CURRENCY_SERVICE_ADDR
value: "currencyservice:7000"
- name: CART_SERVICE_ADDR
value: "cartservice:7070"
- name: RECOMMENDATION_SERVICE_ADDR
value: "recommendationservice:8080"
- name: SHIPPING_SERVICE_ADDR
value: "shippingservice:50051"
- name: CHECKOUT_SERVICE_ADDR
value: "checkoutservice:5050"
- name: AD_SERVICE_ADDR
value: "adservice:9555"
- name: SHOPPING_ASSISTANT_SERVICE_ADDR
value: "shoppingassistantservice:80"
# # ENV_PLATFORM: One of: local, gcp, aws, azure, onprem, alibaba
# # When not set, defaults to "local" unless running in GKE, otherwies auto-sets to gcp
# - name: ENV_PLATFORM
# value: "aws"
- name: ENABLE_PROFILER
value: "0"
# - name: CYMBAL_BRANDING
# value: "true"
# - name: ENABLE_ASSISTANT
# value: "true"
# - name: FRONTEND_MESSAGE
# value: "Replace this with a message you want to display on all pages."
# As part of an optional Google Cloud demo, you can run an optional microservice called the "packaging service".
# - name: PACKAGING_SERVICE_URL
# value: "" # This value would look like "http://123.123.123"
resources:
requests:
cpu: 100m
memory: 64Mi
limits:
cpu: 200m
memory: 128Mi
---
apiVersion: v1
kind: Service
metadata:
name: frontend
labels:
app: frontend
spec:
type: ClusterIP
selector:
app: frontend
ports:
- name: http
port: 80
targetPort: 8080
---
apiVersion: v1
kind: Service
metadata:
name: frontend-external
labels:
app: frontend
spec:
type: LoadBalancer
selector:
app: frontend
ports:
- name: http
port: 80
targetPort: 8080
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: frontend
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: paymentservice
labels:
app: paymentservice
spec:
selector:
matchLabels:
app: paymentservice
template:
metadata:
labels:
app: paymentservice
spec:
serviceAccountName: paymentservice
terminationGracePeriodSeconds: 5
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/paymentservice:v0.10.2
ports:
- containerPort: 50051
env:
- name: PORT
value: "50051"
- name: DISABLE_PROFILER
value: "1"
readinessProbe:
grpc:
port: 50051
livenessProbe:
grpc:
port: 50051
resources:
requests:
cpu: 100m
memory: 64Mi
limits:
cpu: 200m
memory: 128Mi
---
apiVersion: v1
kind: Service
metadata:
name: paymentservice
labels:
app: paymentservice
spec:
type: ClusterIP
selector:
app: paymentservice
ports:
- name: grpc
port: 50051
targetPort: 50051
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: paymentservice
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: productcatalogservice
labels:
app: productcatalogservice
spec:
selector:
matchLabels:
app: productcatalogservice
template:
metadata:
labels:
app: productcatalogservice
spec:
serviceAccountName: productcatalogservice
terminationGracePeriodSeconds: 5
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/productcatalogservice:v0.10.2
ports:
- containerPort: 3550
env:
- name: PORT
value: "3550"
- name: DISABLE_PROFILER
value: "1"
readinessProbe:
grpc:
port: 3550
livenessProbe:
grpc:
port: 3550
resources:
requests:
cpu: 100m
memory: 64Mi
limits:
cpu: 200m
memory: 128Mi
---
apiVersion: v1
kind: Service
metadata:
name: productcatalogservice
labels:
app: productcatalogservice
spec:
type: ClusterIP
selector:
app: productcatalogservice
ports:
- name: grpc
port: 3550
targetPort: 3550
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: productcatalogservice
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: cartservice
labels:
app: cartservice
spec:
selector:
matchLabels:
app: cartservice
template:
metadata:
labels:
app: cartservice
spec:
serviceAccountName: cartservice
terminationGracePeriodSeconds: 5
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/cartservice:v0.10.2
ports:
- containerPort: 7070
env:
- name: REDIS_ADDR
value: "redis-cart:6379"
resources:
requests:
cpu: 200m
memory: 64Mi
limits:
cpu: 300m
memory: 128Mi
readinessProbe:
initialDelaySeconds: 15
grpc:
port: 7070
livenessProbe:
initialDelaySeconds: 15
periodSeconds: 10
grpc:
port: 7070
---
apiVersion: v1
kind: Service
metadata:
name: cartservice
labels:
app: cartservice
spec:
type: ClusterIP
selector:
app: cartservice
ports:
- name: grpc
port: 7070
targetPort: 7070
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: cartservice
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis-cart
labels:
app: redis-cart
spec:
selector:
matchLabels:
app: redis-cart
template:
metadata:
labels:
app: redis-cart
spec:
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: redis
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: redis:alpine
ports:
- containerPort: 6379
readinessProbe:
periodSeconds: 5
tcpSocket:
port: 6379
livenessProbe:
periodSeconds: 5
tcpSocket:
port: 6379
volumeMounts:
- mountPath: /data
name: redis-data
resources:
limits:
memory: 256Mi
cpu: 125m
requests:
cpu: 70m
memory: 200Mi
volumes:
- name: redis-data
emptyDir: {}
---
apiVersion: v1
kind: Service
metadata:
name: redis-cart
labels:
app: redis-cart
spec:
type: ClusterIP
selector:
app: redis-cart
ports:
- name: tcp-redis
port: 6379
targetPort: 6379
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: loadgenerator
labels:
app: loadgenerator
spec:
selector:
matchLabels:
app: loadgenerator
replicas: 1
template:
metadata:
labels:
app: loadgenerator
annotations:
sidecar.istio.io/rewriteAppHTTPProbers: "true"
spec:
serviceAccountName: loadgenerator
terminationGracePeriodSeconds: 5
restartPolicy: Always
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
initContainers:
- command:
- /bin/sh
- -exc
- |
MAX_RETRIES=12
RETRY_INTERVAL=10
for i in $(seq 1 $MAX_RETRIES); do
echo "Attempt $i: Pinging frontend: ${FRONTEND_ADDR}..."
STATUSCODE=$(wget --server-response http://${FRONTEND_ADDR} 2>&1 | awk '/^ HTTP/{print $2}')
if [ $STATUSCODE -eq 200 ]; then
echo "Frontend is reachable."
exit 0
fi
echo "Error: Could not reach frontend - Status code: ${STATUSCODE}"
sleep $RETRY_INTERVAL
done
echo "Failed to reach frontend after $MAX_RETRIES attempts."
exit 1
name: frontend-check
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: busybox:latest
env:
- name: FRONTEND_ADDR
value: "frontend:80"
containers:
- name: main
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/loadgenerator:v0.10.2
env:
- name: FRONTEND_ADDR
value: "frontend:80"
- name: USERS
value: "10"
- name: RATE
value: "1"
resources:
requests:
cpu: 300m
memory: 256Mi
limits:
cpu: 500m
memory: 512Mi
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: loadgenerator
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: currencyservice
labels:
app: currencyservice
spec:
selector:
matchLabels:
app: currencyservice
template:
metadata:
labels:
app: currencyservice
spec:
serviceAccountName: currencyservice
terminationGracePeriodSeconds: 5
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/currencyservice:v0.10.2
ports:
- name: grpc
containerPort: 7000
env:
- name: PORT
value: "7000"
- name: DISABLE_PROFILER
value: "1"
readinessProbe:
grpc:
port: 7000
livenessProbe:
grpc:
port: 7000
resources:
requests:
cpu: 100m
memory: 64Mi
limits:
cpu: 200m
memory: 128Mi
---
apiVersion: v1
kind: Service
metadata:
name: currencyservice
labels:
app: currencyservice
spec:
type: ClusterIP
selector:
app: currencyservice
ports:
- name: grpc
port: 7000
targetPort: 7000
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: currencyservice
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: shippingservice
labels:
app: shippingservice
spec:
selector:
matchLabels:
app: shippingservice
template:
metadata:
labels:
app: shippingservice
spec:
serviceAccountName: shippingservice
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/shippingservice:v0.10.2
ports:
- containerPort: 50051
env:
- name: PORT
value: "50051"
- name: DISABLE_PROFILER
value: "1"
readinessProbe:
periodSeconds: 5
grpc:
port: 50051
livenessProbe:
grpc:
port: 50051
resources:
requests:
cpu: 100m
memory: 64Mi
limits:
cpu: 200m
memory: 128Mi
---
apiVersion: v1
kind: Service
metadata:
name: shippingservice
labels:
app: shippingservice
spec:
type: ClusterIP
selector:
app: shippingservice
ports:
- name: grpc
port: 50051
targetPort: 50051
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: shippingservice
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: adservice
labels:
app: adservice
spec:
selector:
matchLabels:
app: adservice
template:
metadata:
labels:
app: adservice
spec:
serviceAccountName: adservice
terminationGracePeriodSeconds: 5
securityContext:
fsGroup: 1000
runAsGroup: 1000
runAsNonRoot: true
runAsUser: 1000
containers:
- name: server
securityContext:
allowPrivilegeEscalation: false
capabilities:
drop:
- ALL
privileged: false
readOnlyRootFilesystem: true
image: us-central1-docker.pkg.dev/google-samples/microservices-demo/adservice:v0.10.2
ports:
- containerPort: 9555
env:
- name: PORT
value: "9555"
resources:
requests:
cpu: 200m
memory: 180Mi
limits:
cpu: 300m
memory: 300Mi
readinessProbe:
initialDelaySeconds: 20
periodSeconds: 15
grpc:
port: 9555
livenessProbe:
initialDelaySeconds: 20
periodSeconds: 15
grpc:
port: 9555
---
apiVersion: v1
kind: Service
metadata:
name: adservice
labels:
app: adservice
spec:
type: ClusterIP
selector:
app: adservice
ports:
- name: grpc
port: 9555
targetPort: 9555
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: adservice
# [END gke_release_kubernetes_manifests_microservices_demo]使用以下命令安装应用程序。
bash
kubectl apply -f /opt/gcp-microservices-demo.yml由于 gRPC 是二进制编码的，因此您还需要 gRPC 服务的 proto 定义才能发出 gRPC 请求。下载此内容以用于演示应用程序：
bash
curl -o demo.proto https://raw.githubusercontent.com/GoogleCloudPlatform/microservices-demo/main/protos/demo.proto9.2 部署 gRPCRoute
您可以在 grpc-route.yaml 中找到 gRPC 定义：
yaml
root@server:~# yq grpc-route.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: GRPCRoute
metadata:
name: productcatalogservice-rule
spec:
parentRefs:
- namespace: default
name: cilium-gw
rules:
- matches:
- method:
service: hipstershop.ProductCatalogService
method: ListProducts
backendRefs:
- name: productcatalogservice
port: 3550
---
apiVersion: gateway.networking.k8s.io/v1
kind: GRPCRoute
metadata:
name: currencyservice-rule
spec:
parentRefs:
- namespace: default
name: cilium-gw
rules:
- matches:
- method:
service: hipstershop.CurrencyService
method: GetSupportedCurrencies
backendRefs:
- name: currencyservice
port: 7000这定义了将请求路由到 productcatalogservice 和 currencyservice 微服务的路径。
让我们部署它：
bash
kubectl apply -f grpc-route.yaml让我们检索负载均衡器的 IP 地址：
bash
GATEWAY=$(kubectl get gateway cilium-gw -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY9.3 向后端服务发出 gRPC 请求
在使用 Cilium Gateway API 验证 gRPC 路由之前，让我们验证一下应用程序是否已准备就绪：
bash
root@server:~# k get deployments,svc
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/adservice 1/1 1 1 2m24s
deployment.apps/cartservice 1/1 1 1 2m24s
deployment.apps/checkoutservice 1/1 1 1 2m24s
deployment.apps/currencyservice 1/1 1 1 2m24s
deployment.apps/echo-1 1/1 1 1 49m
deployment.apps/emailservice 1/1 1 1 2m24s
deployment.apps/frontend 1/1 1 1 2m24s
deployment.apps/infra-backend-v1 1/1 1 1 42m
deployment.apps/infra-backend-v2 1/1 1 1 42m
deployment.apps/loadgenerator 1/1 1 1 2m24s
deployment.apps/paymentservice 1/1 1 1 2m24s
deployment.apps/productcatalogservice 1/1 1 1 2m24s
deployment.apps/recommendationservice 1/1 1 1 2m24s
deployment.apps/redis-cart 1/1 1 1 2m24s
deployment.apps/shippingservice 1/1 1 1 2m24s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/adservice ClusterIP 10.96.51.247 <none> 9555/TCP 2m24s
service/cartservice ClusterIP 10.96.13.45 <none> 7070/TCP 2m24s
service/checkoutservice ClusterIP 10.96.249.150 <none> 5050/TCP 2m24s
service/cilium-gateway-cilium-gw LoadBalancer 10.96.89.106 172.18.255.200 80:30730/TCP 49m
service/currencyservice ClusterIP 10.96.140.54 <none> 7000/TCP 2m24s
service/echo-1 ClusterIP 10.96.69.125 <none> 8080/TCP 49m
service/emailservice ClusterIP 10.96.42.152 <none> 5000/TCP 2m24s
service/frontend ClusterIP 10.96.83.181 <none> 80/TCP 2m24s
service/frontend-external LoadBalancer 10.96.189.72 172.18.255.202 80:32276/TCP 2m24s
service/infra-backend-v1 ClusterIP 10.96.128.114 <none> 8080/TCP 42m
service/infra-backend-v2 ClusterIP 10.96.222.192 <none> 8080/TCP 42m
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 3h52m
service/paymentservice ClusterIP 10.96.183.182 <none> 50051/TCP 2m24s
service/productcatalogservice ClusterIP 10.96.127.193 <none> 3550/TCP 2m24s
service/recommendationservice ClusterIP 10.96.248.178 <none> 8080/TCP 2m24s
service/redis-cart ClusterIP 10.96.117.155 <none> 6379/TCP 2m24s
service/shippingservice ClusterIP 10.96.1.171 <none> 50051/TCP 2m24s让我们尝试访问应用程序的货币服务，其中列出了购物应用程序支持的货币：
bash
root@server:~# grpcurl -plaintext -proto ./demo.proto $GATEWAY:80 hipstershop.CurrencyService/GetSupportedCurrencies | jq
{
"currencyCodes": [
"EUR",
"USD",
"JPY",
"BGN",
"CZK",
"DKK",
"GBP",
"HUF",
"PLN",
"RON",
"SEK",
"CHF",
"ISK",
"NOK",
"HRK",
"RUB",
"TRY",
"AUD",
"BRL",
"CAD",
"CNY",
"HKD",
"IDR",
"ILS",
"INR",
"KRW",
"MXN",
"MYR",
"NZD",
"PHP",
"SGD",
"THB",
"ZAR"
]
}此外，请尝试使用以下命令访问产品目录服务：
bash
root@server:~# grpcurl -plaintext -proto ./demo.proto $GATEWAY:80 hipstershop.ProductCatalogService/ListProducts | jq
{
"products": [
{
"id": "OLJCESPC7Z",
"name": "Sunglasses",
"description": "Add a modern touch to your outfits with these sleek aviator sunglasses.",
"picture": "/static/img/products/sunglasses.jpg",
"priceUsd": {
"currencyCode": "USD",
"units": "19",
"nanos": 990000000
},
"categories": [
"accessories"
]
},
{
"id": "66VCHSJNUP",
"name": "Tank Top",
"description": "Perfectly cropped cotton tank, with a scooped neckline.",
"picture": "/static/img/products/tank-top.jpg",
"priceUsd": {
"currencyCode": "USD",
"units": "18",
"nanos": 990000000
},
"categories": [
"clothing",
"tops"
]
},
{
"id": "1YMWWN1N4O",
"name": "Watch",
"description": "This gold-tone stainless steel watch will work with most of your outfits.",
"picture": "/static/img/products/watch.jpg",
"priceUsd": {
"currencyCode": "USD",
"units": "109",
"nanos": 990000000
},
"categories": [
"accessories"
]
},
{
"id": "L9ECAV7KIM",
"name": "Loafers",
"description": "A neat addition to your summer wardrobe.",
"picture": "/static/img/products/loafers.jpg",
"priceUsd": {
"currencyCode": "USD",
"units": "89",
"nanos": 990000000
},
"categories": [
"footwear"
]
},
{
"id": "2ZYFJ3GM2N",
"name": "Hairdryer",
"description": "This lightweight hairdryer has 3 heat and speed settings. It's perfect for travel.",
"picture": "/static/img/products/hairdryer.jpg",
"priceUsd": {
"currencyCode": "USD",
"units": "24",
"nanos": 990000000
},
"categories": [
"hair",
"beauty"
]
},
{
"id": "0PUK6V6EV0",
"name": "Candle Holder",
"description": "This small but intricate candle holder is an excellent gift.",
"picture": "/static/img/products/candle-holder.jpg",
"priceUsd": {
"currencyCode": "USD",
"units": "18",
"nanos": 990000000
},
"categories": [
"decor",
"home"
]
},
{
"id": "LS4PSXUNUM",
"name": "Salt & Pepper Shakers",
"description": "Add some flavor to your kitchen.",
"picture": "/static/img/products/salt-and-pepper-shakers.jpg",
"priceUsd": {
"currencyCode": "USD",
"units": "18",
"nanos": 490000000
},
"categories": [
"kitchen"
]
},
{
"id": "9SIQT8TOJO",
"name": "Bamboo Glass Jar",
"description": "This bamboo glass jar can hold 57 oz (1.7 l) and is perfect for any kitchen.",
"picture": "/static/img/products/bamboo-glass-jar.jpg",
"priceUsd": {
"currencyCode": "USD",
"units": "5",
"nanos": 490000000
},
"categories": [
"kitchen"
]
},
{
"id": "6E92ZMYYFZ",
"name": "Mug",
"description": "A simple mug with a mustard interior.",
"picture": "/static/img/products/mug.jpg",
"priceUsd": {
"currencyCode": "USD",
"units": "8",
"nanos": 990000000
},
"categories": [
"kitchen"
]
}
]
}您应该在输出中看到 JSON 中的产品集合，包括candle holder、sunglasses和sunglasses！
10. 内部L7 流量管理
10.1 部署示例应用程序
我们把应用部署在 gamma 命名空间中
配置文件内容:
yaml
root@server:~# yq gamma-manifest.yaml
---
apiVersion: v1
kind: Namespace
metadata:
name: gamma
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: echo-v1
namespace: gamma
labels:
app: echo
spec:
selector:
matchLabels:
app: echo
version: v1
template:
metadata:
labels:
app: echo
version: v1
spec:
containers:
- name: echo
image: gcr.io/k8s-staging-gateway-api/echo-advanced:v20240412-v1.0.0-394-g40c666fd
imagePullPolicy: IfNotPresent
args:
- --tcp=9090
- --port=8080
- --grpc=7070
- --port=8443
- --tls=8443
- --crt=/cert.crt
- --key=/cert.key
---
apiVersion: v1
kind: Service
metadata:
name: echo-v1
namespace: gamma
spec:
selector:
app: echo
version: v1
ports:
- name: http
port: 80
appProtocol: http
targetPort: 8080
- name: http-alt
port: 8080
appProtocol: http
- name: https
port: 443
targetPort: 8443
- name: tcp
port: 9090
- name: grpc
port: 7070
appProtocol: grpc
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: echo-v2
namespace: gamma
labels:
app: echo
spec:
selector:
matchLabels:
app: echo
version: v2
template:
metadata:
labels:
app: echo
version: v2
spec:
containers:
- name: echo
image: gcr.io/k8s-staging-gateway-api/echo-advanced:v20240412-v1.0.0-394-g40c666fd
imagePullPolicy: IfNotPresent
args:
- --tcp=9090
- --port=8080
- --grpc=7070
- --port=8443
- --tls=8443
- --crt=/cert.crt
- --key=/cert.key
---
apiVersion: v1
kind: Service
metadata:
name: echo-v2
namespace: gamma
spec:
selector:
app: echo
version: v2
ports:
- name: http
port: 80
appProtocol: http
targetPort: 8080
- name: http-alt
port: 8080
appProtocol: http
- name: https
port: 443
targetPort: 8443
- name: tcp
port: 9090
- name: grpc
port: 7070
appProtocol: grpc
---
apiVersion: v1
kind: Service
metadata:
name: echo
namespace: gamma
spec:
selector:
app: echo
ports:
- name: http
port: 80
appProtocol: http
targetPort: 8080
- name: http-alt
port: 8080
appProtocol: http
- name: https
port: 443
targetPort: 8443
- name: tcp
port: 9090
- name: grpc
port: 7070
appProtocol: grpc
---
apiVersion: v1
kind: Pod
metadata:
name: client
namespace: gamma
spec:
containers:
- name: netshoot
image: nicolaka/netshoot:latest
command: ["sleep", "infinite"]使用以下命令安装应用程序。
bash
kubectl apply -f gamma-manifest.yaml等待所有 Pod 都运行：
bash
root@server:~# kubectl -n gamma get pods,svc
NAME READY STATUS RESTARTS AGE
pod/client 1/1 Running 0 14s
pod/echo-v1-5d8d6c7585-fbnxr 1/1 Running 0 14s
pod/echo-v2-58dd495596-jpq4p 1/1 Running 0 14s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/echo ClusterIP 10.96.156.225 <none> 80/TCP,8080/TCP,443/TCP,9090/TCP,7070/TCP 14s
service/echo-v1 ClusterIP 10.96.151.103 <none> 80/TCP,8080/TCP,443/TCP,9090/TCP,7070/TCP 14s
service/echo-v2 ClusterIP 10.96.7.131 <none> 80/TCP,8080/TCP,443/TCP,9090/TCP,7070/TCP 14s10.2 部署东西 HTTPRoute

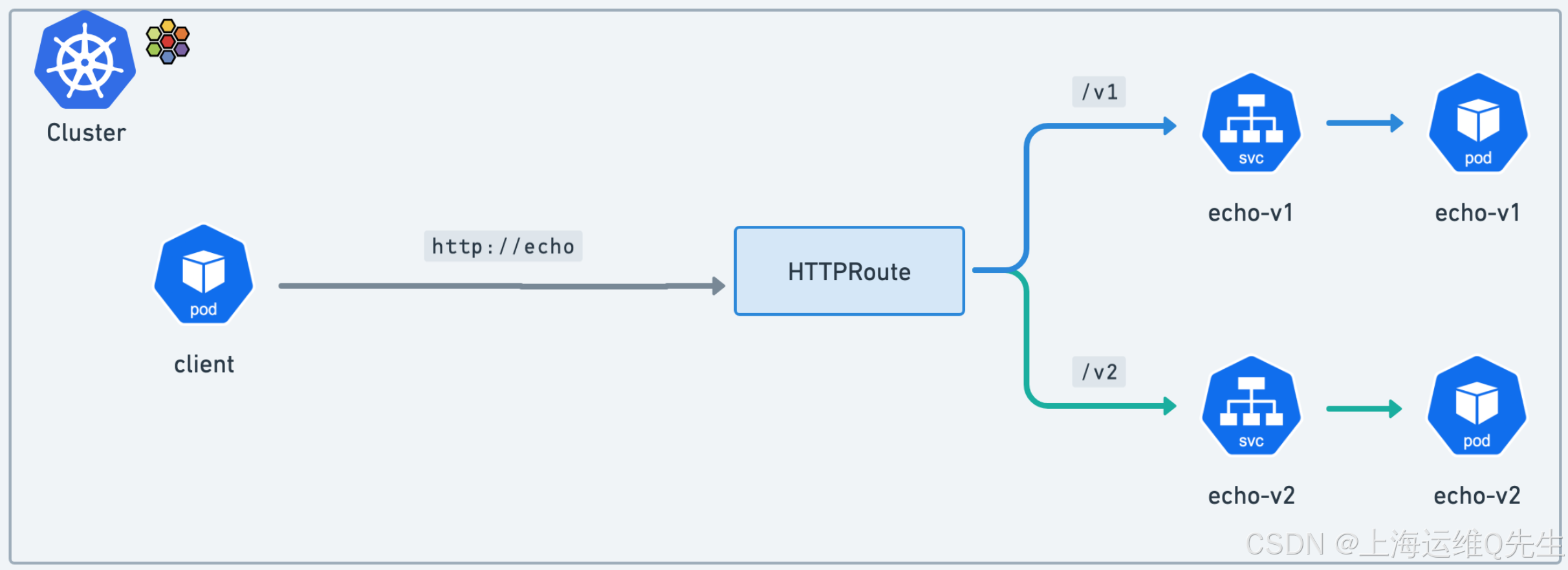

让我们在 gamma 命名空间中部署一个 HTTPRoute。
在 gamma-route.yaml 中检查它的定义：
yaml
root@server:~# yq gamma-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: gamma-route
namespace: gamma
spec:
parentRefs:
- group: ""
kind: Service
name: echo
rules:
- matches:
- path:
type: Exact
value: /v1
backendRefs:
- name: echo-v1
port: 80
- matches:
- path:
type: Exact
value: /v2
backendRefs:
- name: echo-v2
port: 80您会注意到，我们没有像之前的挑战那样将路由附加到（南/北）网关，而是使用 parentRefs 字段将路由附加到名为 echo 的父服务。
绑定到此父服务的流量将被 Cilium 拦截，并通过每个节点的 Envoy 代理路由。
请注意我们如何将流量转发到 echo-v1 服务的 /v1 路径，v2 也是如此。例如，这就是我们如何对内部应用程序进行 a/b 或绿色/蓝色金丝雀测试。
让我们部署它：
bash
kubectl apply -f gamma-route.yaml10.3 验证东西向 L7 流量管理
与之前的任务不同，我们从集群外部通过南北网关访问集群内的服务，而这次我们将从集群内部的客户端向同样位于集群（东西）流量中的服务发出请求。
让我们验证一下我们的集群客户端是否已准备就绪：
bash
root@server:~# kubectl get -n gamma pods client
NAME READY STATUS RESTARTS AGE
client 1/1 Running 0 3m14s让我们尝试从客户端访问 http://echo/v1。echo-v1 的 echo Pod 将回复信息，包括它自己的主机名。
bash
root@server:~# kubectl -n gamma exec -it client -- curl http://echo/v1
ServiceVersion=
ServicePort=8080
Host=echo
URL=/v1
Method=GET
Proto=HTTP/1.1
IP=10.244.1.80
RequestHeader=Accept:*/*
RequestHeader=User-Agent:curl/8.7.1
RequestHeader=X-Envoy-Internal:true
RequestHeader=X-Forwarded-For:10.244.1.234
RequestHeader=X-Forwarded-Proto:http
RequestHeader=X-Request-Id:a614487b-e6ec-4e99-a1b0-3c7ffba66ae6
Hostname=echo-v1-5d8d6c7585-fbnxr回复中的最后一行应遵循以下格式：
bash
Hostname=echo-v1-*********-*****现在，让我们从客户端访问 http://echo/v2。这一次，流量将被转发到为 echo-v2 服务提供服务的 echo Pod。让我们通过使用 grep 进行过滤来验证 echo-v2 Pod 是否收到了流量：
bash
root@server:~# kubectl -n gamma exec -it client -- curl http://echo/v2
ServiceVersion=
ServicePort=8080
Host=echo
URL=/v2
Method=GET
Proto=HTTP/1.1
IP=10.244.1.80
RequestHeader=Accept:*/*
RequestHeader=User-Agent:curl/8.7.1
RequestHeader=X-Envoy-Internal:true
RequestHeader=X-Forwarded-For:10.244.1.234
RequestHeader=X-Forwarded-Proto:http
RequestHeader=X-Request-Id:b60bf3f6-3993-41f3-a6d2-a523a9170671
Hostname=echo-v2-58dd495596-jpq4p如您所见，使用与 Gateway API 相同的 API 和逻辑，我们能够对集群内的东西向流量进行基于路径的路由。

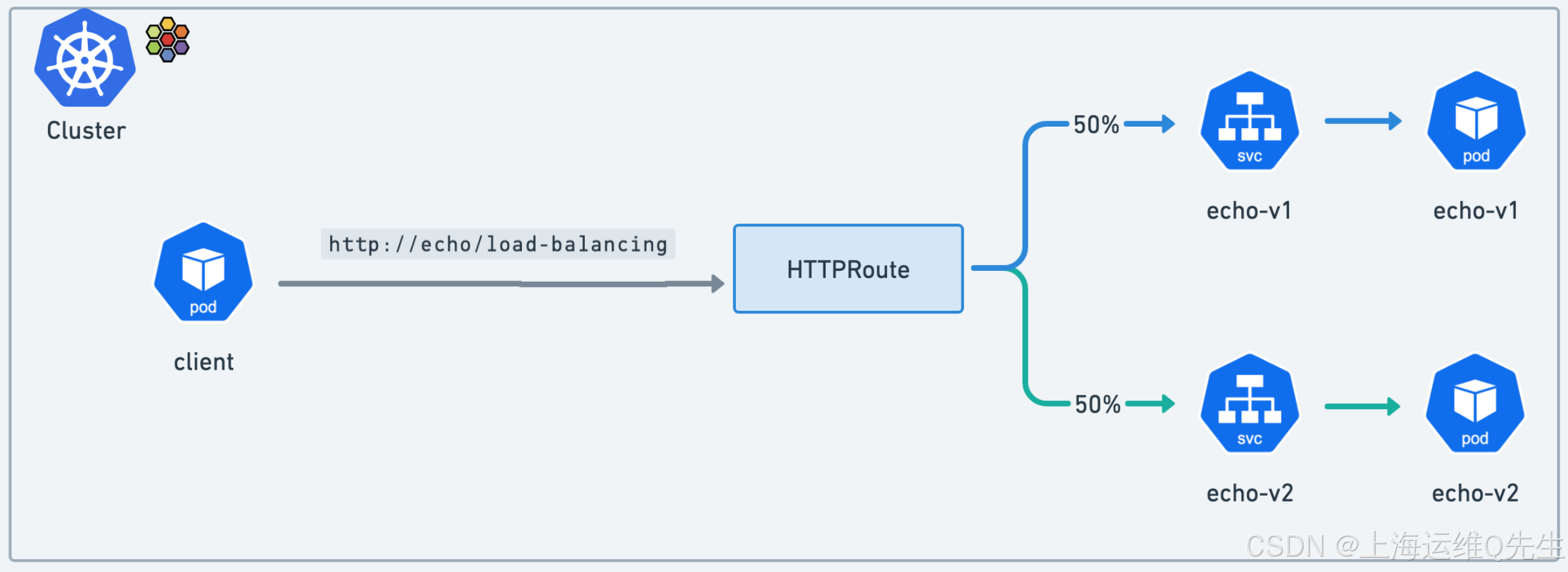

10.4 东西向负载均衡
我们在第一个 Gateway API 实验中探讨了这个用例，我们在 2 个服务之间进行了一些流量拆分。同样，使用相同的 API，我们现在可以在集群中为东西向流量执行此作。
确认下 HTTPRoute 清单。
yaml
root@server:~# yq load-balancing-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: gamma-route
namespace: gamma
spec:
parentRefs:
- group: ""
kind: Service
name: echo
rules:
- matches:
- path:
type: Exact
value: /v1
backendRefs:
- name: echo-v1
port: 80
- matches:
- path:
type: Exact
value: /v2
backendRefs:
- name: echo-v2
port: 80
- matches:
- path:
type: PathPrefix
value: /load-balancing
backendRefs:
- kind: Service
name: echo-v1
port: 80
weight: 50
- kind: Service
name: echo-v2
port: 80
weight: 50让我们使用以下清单更新 gamma HTTPRoute：
bash
kubectl apply -f load-balancing-http-route.yaml此清单添加了一个具有简单 L7 代理路由的规则：对于路径以 /load-balancing 开头的 HTTP 流量，将流量转发到 echo-v1 和 echo-v2 服务。
yaml
backendRefs:
- kind: Service
name: echo-v1
port: 80
weight: 50
- kind: Service
name: echo-v2
port: 80
weight: 50注意均匀的 50/50 权重。
让我们通过运行循环并计算请求数来仔细检查流量是否在两个服务之间均匀分配。运行以下脚本。
bash
root@server:~# kubectl -n gamma exec -it client -- bash -c '
for _ in {1..500}; do
curl -s -k "http://echo/load-balancing" >> curlresponses.txt;
done
grep -o "Hostname=echo-v1" curlresponses.txt | sort | uniq -c
grep -o "Hostname=echo-v2" curlresponses.txt | sort | uniq -c
'
257 Hostname=echo-v1
243 Hostname=echo-v210.5 90/10 流量拆分
这一次，我们将应用不同的权重。
编辑 load-balancing-http-route.yaml 文件。将权重从 echo-v1 和 echo-v2 的 50 替换为 echo-v1 的 90 和 echo-v2 的 10。
yaml
root@server:~# yq load-balancing-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: gamma-route
namespace: gamma
spec:
parentRefs:
- group: ""
kind: Service
name: echo
rules:
- matches:
- path:
type: Exact
value: /v1
backendRefs:
- name: echo-v1
port: 80
- matches:
- path:
type: Exact
value: /v2
backendRefs:
- name: echo-v2
port: 80
- matches:
- path:
type: PathPrefix
value: /load-balancing
backendRefs:
- kind: Service
name: echo-v1
port: 80
weight: 90
- kind: Service
name: echo-v2
port: 80
weight: 10应用配置:
bash
k apply -f load-balancing-http-route.yaml让我们再次运行测试脚本并计算响应数：
bash
root@server:~# kubectl -n gamma exec -it client -- bash -c '
for _ in {1..1000}; do
curl -s -k "http://echo/load-balancing" >> curlresponses9010.txt;
done
grep -o "Hostname=echo-v1" curlresponses9010.txt | sort | uniq -c
grep -o "Hostname=echo-v2" curlresponses9010.txt | sort | uniq -c
'
894 Hostname=echo-v1
106 Hostname=echo-v2验证响应是否分散，其中大约 90% 的响应传播到 echo-1，大约 10% 的响应传播到 echo-2。
10.6 超时
HTTPRoutes 支持将超时作为一项实验性功能。让我们将其应用于之前部署的 gamma-route 的 /v1 路径。
首先，检查服务的响应标头：
bash
root@server:~# kubectl -n gamma exec -it client -- curl http://echo/v1
ServiceVersion=
ServicePort=8080
Host=echo
URL=/v1
Method=GET
Proto=HTTP/1.1
IP=10.244.1.80
RequestHeader=Accept:*/*
RequestHeader=User-Agent:curl/8.7.1
RequestHeader=X-Envoy-Internal:true
RequestHeader=X-Forwarded-For:10.244.1.234
RequestHeader=X-Forwarded-Proto:http
RequestHeader=X-Request-Id:1d22cdb3-4ae2-4e07-84b2-fc48cd10088e
Hostname=echo-v1-5d8d6c7585-fbnxr此时没有提到超时的标头。
让我们为路由添加 10 毫秒的超时。
yaml
root@server:~# yq load-balancing-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: gamma-route
namespace: gamma
spec:
parentRefs:
- group: ""
kind: Service
name: echo
rules:
- matches:
- path:
type: Exact
value: /v1
backendRefs:
- name: echo-v1
port: 80
timeouts:
request: 10ms
backendRefs:
- name: echo-v1
port: 80
- matches:
- path:
type: Exact
value: /v2
backendRefs:
- name: echo-v2
port: 80
- matches:
- path:
type: PathPrefix
value: /load-balancing
backendRefs:
- kind: Service
name: echo-v1
port: 80
weight: 90
- kind: Service
name: echo-v2
port: 80
weight: 10这次我们修改了/v1部分的配置
bash
- matches:
- path:
type: Exact
value: /v1
backendRefs:
- name: echo-v1
port: 80
timeouts:
request: 10ms应用配置
bash
kubectl apply -f load-balancing-http-route.yaml现在，再次检查该服务：
bash
root@server:~# kubectl -n gamma exec -it client -- curl http://echo/v1
ServiceVersion=
ServicePort=8080
Host=echo
URL=/v1
Method=GET
Proto=HTTP/1.1
IP=10.244.1.80
RequestHeader=Accept:*/*
RequestHeader=User-Agent:curl/8.7.1
RequestHeader=X-Envoy-Expected-Rq-Timeout-Ms:10 <<---------超时设置的新 Envoy 标头
RequestHeader=X-Envoy-Internal:true
RequestHeader=X-Forwarded-For:10.244.1.234
RequestHeader=X-Forwarded-Proto:http
RequestHeader=X-Request-Id:fd77f55f-6187-4fca-a447-13181a7c4707
Hostname=echo-v1-5d8d6c7585-fbnxr再次修改超时时间,改为1,并重新发布
bash
root@server:~# yq load-balancing-http-route.yaml
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: gamma-route
namespace: gamma
spec:
parentRefs:
- group: ""
kind: Service
name: echo
rules:
- matches:
- path:
type: Exact
value: /v1
backendRefs:
- name: echo-v1
port: 80
timeouts:
request: 1ms
backendRefs:
- name: echo-v1
port: 80
- matches:
- path:
type: Exact
value: /v2
backendRefs:
- name: echo-v2
port: 80
- matches:
- path:
type: PathPrefix
value: /load-balancing
backendRefs:
- kind: Service
name: echo-v1
port: 80
weight: 90
- kind: Service
name: echo-v2
port: 80
weight: 10
root@server:~# k apply -f load-balancing-http-route.yaml
httproute.gateway.networking.k8s.io/gamma-route configured再次检查服务：
鉴于阈值非常低，您现在应该在大多数时间获得超时（如果没有，请尝试多次）：
bash
root@server:~# kubectl -n gamma exec -it client -- curl http://echo/v1
upstream request timeout
root@server:~# kubectl -n gamma exec -it client -- curl http://echo/v1
ServiceVersion=
ServicePort=8080
Host=echo
URL=/v1
Method=GET
Proto=HTTP/1.1
IP=10.244.1.80
RequestHeader=Accept:*/*
RequestHeader=User-Agent:curl/8.7.1
RequestHeader=X-Envoy-Expected-Rq-Timeout-Ms:1 <--------------
RequestHeader=X-Envoy-Internal:true
RequestHeader=X-Forwarded-For:10.244.1.234
RequestHeader=X-Forwarded-Proto:http
RequestHeader=X-Request-Id:4c47f46d-34d3-42d0-8da2-b32d08a51ad6
Hostname=echo-v1-5d8d6c7585-fbnxr10.7 小测验
yaml
× With the Gateway API, you can modify HTTP request headers but not HTTP response headers.
√ Cross-namespace attachment is bi-directional.
√ To do traffic splitting into your cluster, you can adjust the weights set to the Services.
× With the Gateway API, you can add a HTTP header to your request but you cannot remove or edit them.11. 最终测试
11.1 题目
该任务要求您将 x-request-id 标头的值设置为值 exam-header-value。这应仅适用于绑定到exam命名空间的 HTTP 请求，该命名空间只能通过之前创建的共享网关（在exam路径上）访问。
- 在后台创建了一个命名空间
exam。 echoserver-examDeployment 和echo-examService 也已在后台部署。- 已在后台预先创建了模板
HTTPRoute（exam-httproute.yaml）。 - 您需要使用正确的值更新
XXXX字段。 - 确保应用清单。
- 期末考试脚本将检查
curl --fail -s http://$GATEWAY/exam | jq -r '.request.headers."x-request-id"'的值，其中 $GATEWAY 分配给网关的 IP 地址。如果返回的值为exam-header-value，则表示您将成功完成实验。
11.2 解题
- 确认ns开启了shared-gateway-access
bash
root@server:~# k get ns --show-labels exam
NAME STATUS AGE LABELS
exam Active 56s kubernetes.io/metadata.name=exam,shared-gateway-access=true- 应用配置文件
bash
root@server:~# k apply -f exam-httproute.yaml
httproute.gateway.networking.k8s.io/exam-httproute created
root@server:~# yq exam-httproute.yaml
---
apiVersion: gateway.networking.k8s.io/v1beta1
kind: HTTPRoute
metadata:
name: exam-httproute
namespace: exam
spec:
parentRefs:
- name: shared-gateway
namespace: infra-ns
rules:
- matches:
- path:
type: PathPrefix
value: /exam
filters:
- type: RequestHeaderModifier
requestHeaderModifier:
set:
- name: 'x-request-id'
value: 'exam-header-value'
backendRefs:
- kind: Service
name: echo-exam
port: 9080获取GATEWAY
bash
GATEWAY=$(kubectl get gateway cilium-gw -o jsonpath='{.status.addresses[0].value}')
echo $GATEWAY测试
bash
curl --fail -s http://$GATEWAY/exam | jq -r '.request.headers."x-request-id"'确认无误后提交!

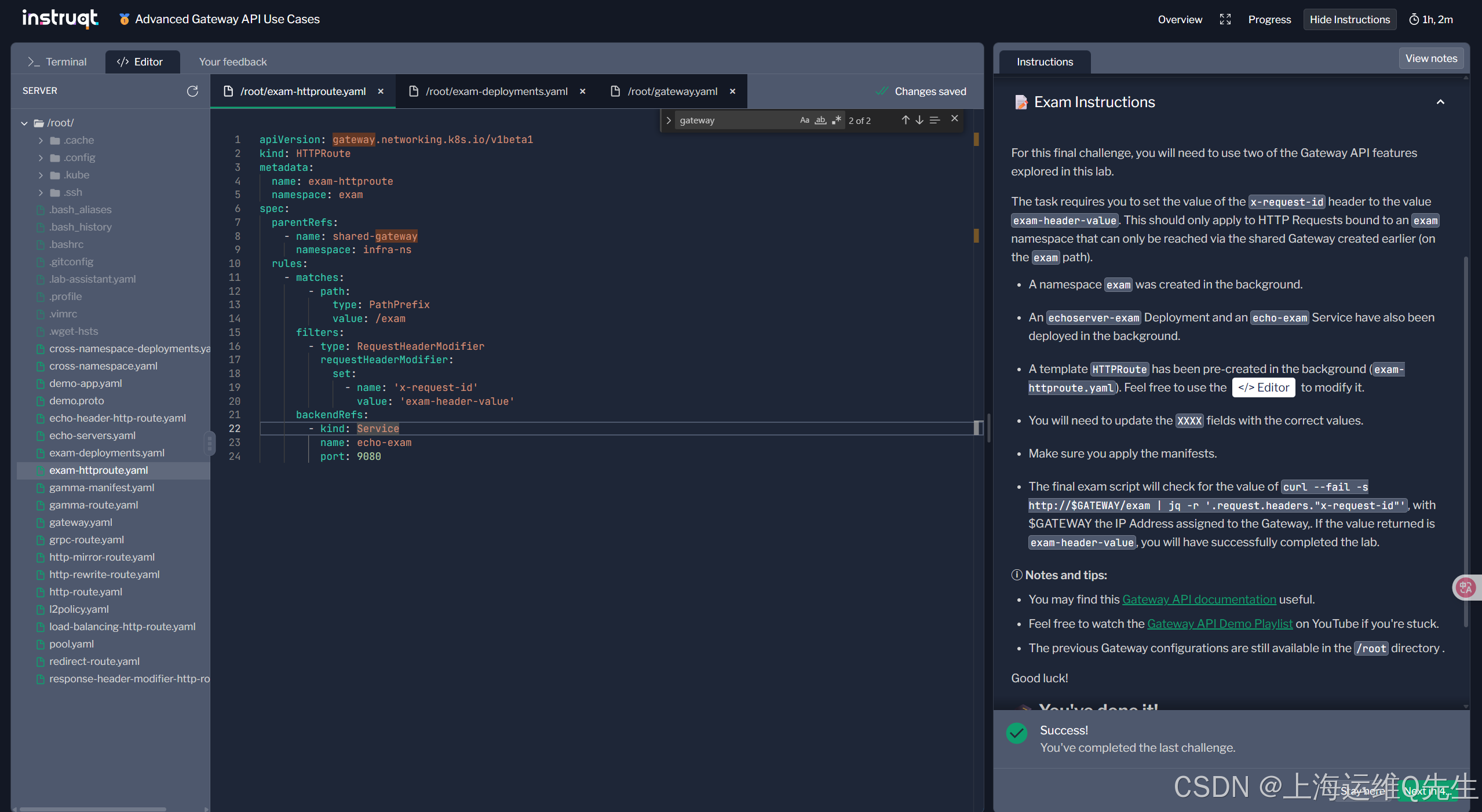

新徽标GET!
