信号量本质是一把计数器（资源数量的计数器）
信号量结构体
c
struct semaphore {
atomic_t count;
wait_queue_head_t wait;
};信号量集结构体
c
/* Obsolete, used only for backwards compatibility and libc5 compiles */
struct semid_ds {
struct ipc_perm sem_perm; /* permissions .. see ipc.h */
__kernel_time_t sem_otime; /* last semop time */
__kernel_time_t sem_ctime; /* last change time */
struct sem *sem_base; /* ptr to first semaphore in array */
struct sem_queue *sem_pending; /* pending operations to be processed */
struct sem_queue **sem_pending_last; /* last pending operation */
struct sem_undo *undo; /* undo requests on this array */
unsigned short sem_nsems; /* no. of semaphores in array */
};
struct ipc_perm
{
__kernel_key_t key;
__kernel_uid_t uid;
__kernel_gid_t gid;
__kernel_uid_t cuid;
__kernel_gid_t cgid;
__kernel_mode_t mode;
unsigned short seq;
};信号量操作接口

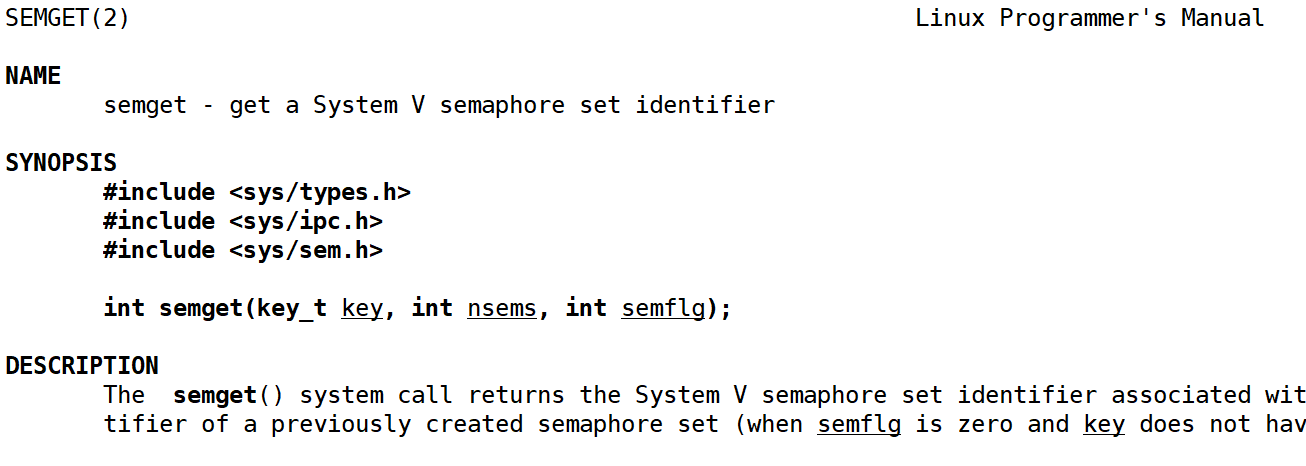

semget
c
int semget(key_t key, int nsems, int semflg);
参数介绍：
key: 信号量集的键值，同消息队列和共享内存
nsems: 信号量集中信号量的个数
semflg: 同消息队列和共享内存

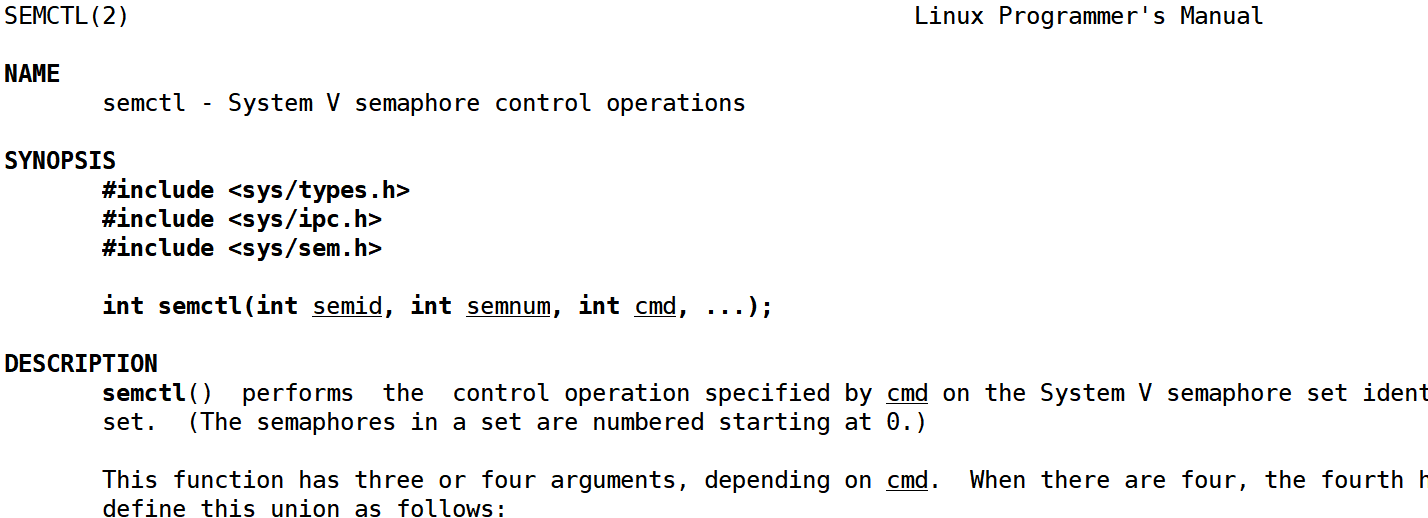

semctl
c
int semctl(int semid, int semnum, int cmd, ...);
参数介绍
semid: 由 semget 返回的信号集标识码
semnum: 信号集中信号量的序号
cmd: 将要采取的动作

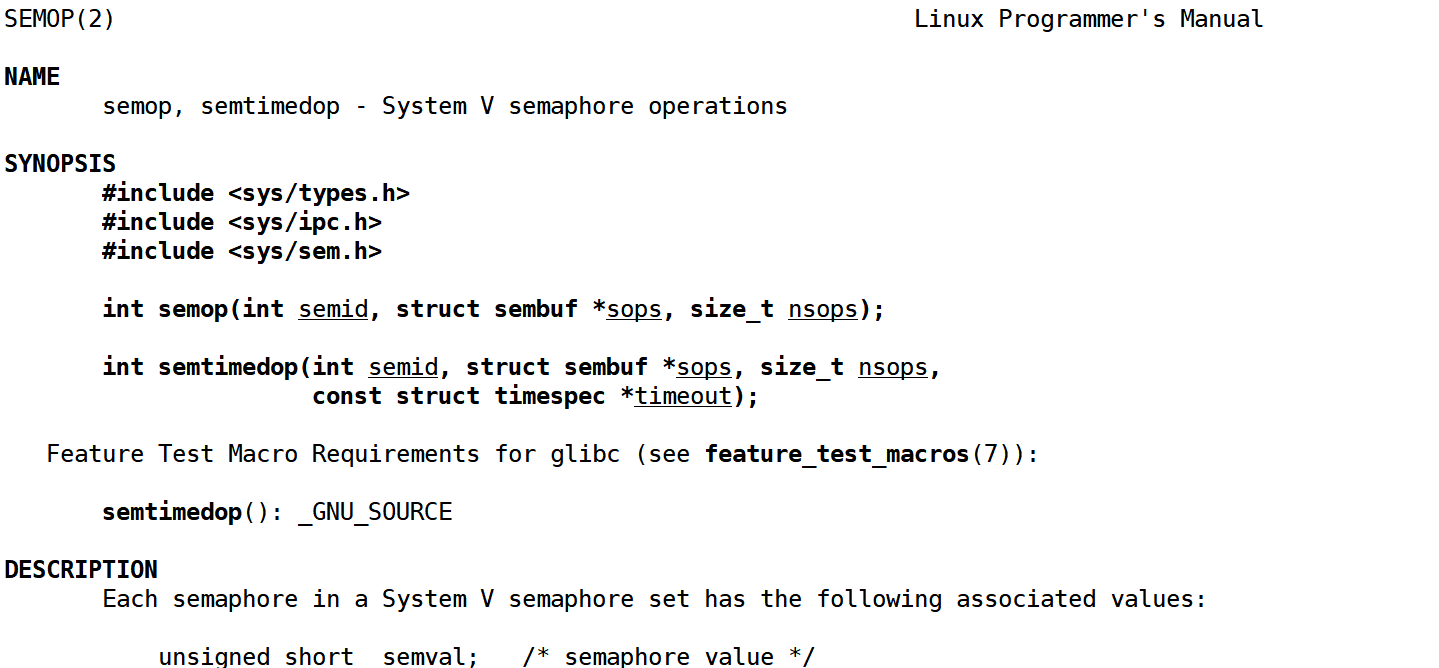

semop
c
int semop(int semid, struct sembuf *sops, size_t nsops);
参数介绍
semid: 是该信号量的标识码，也就是 semget 函数的返回值
sops: 指向⼀个结构 sembuf 的指针
nsops: <font style="color:rgb(31,35,41);">sops</font>对应的信号量的个数，也就是可以同时对多个信号量进行PV操作
使用建造者模式进行封装Sem
Sem.hpp
cpp
#ifndef SEM_HPP
#define SEM_HPP
#include <iostream>
#include <memory>
#include <string>
#include <vector>
#include <sys/types.h>
#include <sys/ipc.h>
#include <sys/sem.h>
const std::string SEM_PATH = "/tmp";
const int SEM_PROJ_ID = 0x77;
const int defaultnum = 1;
#define GET_SEM (IPC_CREAT)
#define BUILD_SEM (IPC_CREAT | IPC_EXCL)
// 一个把整数转十六进制的函数
std::string intToHex(int num)
{
char hex[64];
snprintf(hex, sizeof(hex), "0x%x", num);
return std::string(hex);
}
// 产品类, 只需要关心自己的使用即可(删除)
// 这里的Semaphore不是一个信号量！！而是一个信号量集合！！，要指明你要PV操作哪一个信号量！！
class Semaphore
{
private:
void PV(int who, int data)
{
struct sembuf sem_buf;
sem_buf.sem_num = who; // 信号量编号,从0开始
sem_buf.sem_op = data; // S + sem_buf.sem_op
sem_buf.sem_flg = SEM_UNDO; // 不关心
int n = semop(_semid, &sem_buf, 1);
if (n < 0)
{
std::cerr << "semop PV failed" << std::endl;
}
}
public:
Semaphore(int semid) : _semid(semid)
{
}
int Id() const
{
return _semid;
}
void P(int who)
{
PV(who, -1);
}
void V(int who)
{
PV(who, 1);
}
~Semaphore()
{
if (_semid >= 0)
{
int n = semctl(_semid, 0, IPC_RMID);
if (n < 0)
{
std::cerr << "semctl IPC_RMID failed" << std::endl;
}
std::cout << "Semaphore " << _semid << " removed" << std::endl;
}
}
private:
int _semid;
};
// 建造者接口
class SemaphoreBuilder
{
public:
virtual ~SemaphoreBuilder() = default;
virtual void BuildKey() = 0;
virtual void SetPermission(int perm) = 0;
virtual void SetSemNum(int num) = 0;
virtual void SetInitVal(std::vector<int> initVal) = 0;
virtual void Build(int flag) = 0;
virtual void InitSem() = 0;
virtual std::shared_ptr<Semaphore> GetSem() = 0;
};
// 具体建造者类
class ConcreteSemaphoreBuilder : public SemaphoreBuilder
{
public:
ConcreteSemaphoreBuilder() {}
virtual void BuildKey() override
{
// 1. 构建键值
std::cout << "Building a semaphore" << std::endl;
_key = ftok(SEM_PATH.c_str(), SEM_PROJ_ID);
if (_key < 0)
{
std::cerr << "ftok failed" << std::endl;
exit(1);
}
std::cout << "Got key: " << intToHex(_key) << std::endl;
}
virtual void SetPermission(int perm) override
{
_perm = perm;
}
virtual void SetSemNum(int num) override
{
_num = num;
}
virtual void SetInitVal(std::vector<int> initVal) override
{
_initVal = initVal;
}
virtual void Build(int flag) override
{
// 2. 创建信号量集合
int semid = semget(_key, _num, flag | _perm);
if (semid < 0)
{
std::cerr << "semget failed" << std::endl;
exit(2);
}
std::cout << "Got semaphore id: " << semid << std::endl;
_sem = std::make_shared<Semaphore>(semid);
}
virtual void InitSem() override
{
if (_num > 0 && _initVal.size() == _num)
{
// 3. 初始化信号量集合
for (int i = 0; i < _num; i++)
{
if (!Init(_sem->Id(), i, _initVal[i]))
{
std::cerr << "Init failed" << std::endl;
exit(3);
}
}
}
}
virtual std::shared_ptr<Semaphore> GetSem() override
{
return _sem;
}
private:
bool Init(int semid, int num, int val)
{
union semun
{
int val; /* Value for SETVAL */
struct semid_ds *buf; /* Buffer for IPC_STAT, IPC_SET */
unsigned short *array; /* Array for GETALL, SETALL */
struct seminfo *__buf; /* Buffer for IPC_INFO
(Linux-specific) */
} un;
un.val = val;
int n = semctl(semid, num, SETVAL, un);
if (n < 0)
{
std::cerr << "semctl SETVAL failed" << std::endl;
return false;
}
return true;
}
private:
key_t _key; // 信号量集合的键值
int _perm; // 权限
int _num; // 信号量集合的个数
std::vector<int> _initVal; // 初始值
std::shared_ptr<Semaphore> _sem; // 我们要创建的具体产品
};
// 指挥者类
class Director
{
public:
void Construct(std::shared_ptr<SemaphoreBuilder> builder, int flag, int perm = 0666, int num = defaultnum, std::vector<int> initVal = {1})
{
builder->BuildKey();
builder->SetPermission(perm);
builder->SetSemNum(num);
builder->SetInitVal(initVal);
builder->Build(flag);
if (flag == BUILD_SEM)
{
builder->InitSem();
}
}
};
#endif // SEM_HPPwrite.cc
cpp
#include "Sem.hpp"
#include <unistd.h>
#include <ctime>
#include <cstdio>
int main()
{
// 基于抽象接口类的具体建造者
std::shared_ptr<SemaphoreBuilder> builder = std::make_shared<ConcreteSemaphoreBuilder>();
// 指挥者对象
std::shared_ptr<Director> director = std::make_shared<Director>();
// 在指挥者的指导下，完成建造过程
director->Construct(builder, BUILD_SEM, 0600, 3, {1, 2, 3});
// 完成了对象的创建的过程，获取对象
// Semaphore
auto fsem = builder->GetSem();
srand(time(0) ^ getpid());
pid_t pid = fork();
// 我们期望的是，父子进行打印的时候，C或者F必须成对出现！保证打印是原子的.
if (pid == 0)
{
director->Construct(builder, GET_SEM);
auto csem = builder->GetSem();
while (true)
{
csem->P(0);
printf("C");
usleep(rand() % 95270);
fflush(stdout);
printf("C");
usleep(rand() % 43990);
fflush(stdout);
csem->V(0);
}
}
while (true)
{
fsem->P(0);
printf("F");
usleep(rand() % 95270);
fflush(stdout);
printf("F");
usleep(rand() % 43990);
fflush(stdout);
fsem->V(0);
}
return 0;
}
