contentprovider实验+SQLite数据库的实现

【实验目的】

  1. 掌握如何在Android 开发中使用 SQLite 数据库
  2. 熟悉设计数据库表结构的方法与步骤
  3. 理解contentprovider的使用方法及流程,理解ContentProvider、Resolver、Uri、Urimatcher等的原理。

【实验内容】

1、实现contentprovider和contentresolver通过uri的调用;

2、实现contentprovider对数据库sqlite的功能:增、删、改、查;

3、数据库的表结构自行设计;

【实验要求】

1、配置SQLite 数据库的运行环境

2、熟悉contentprovider对数据库sqlite增、删、改、查的具体操作和流程

3、充分理解SQLite数据库的使用原理和方式

【实验设计】

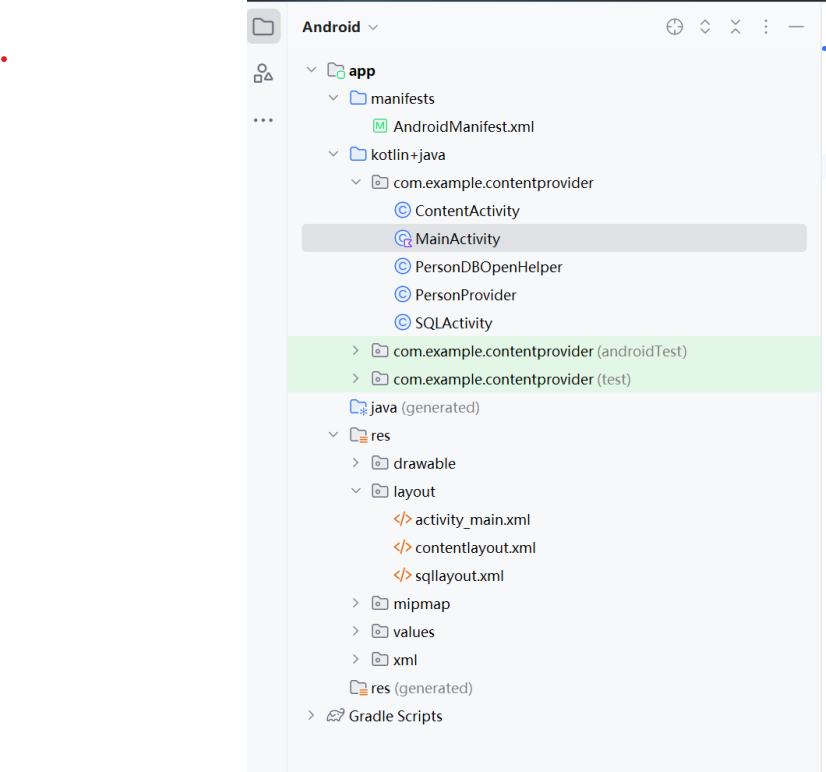

src/main/java/com/example/contentprovider/:包含所有的Java类文件。

MainActivity.java:应用的主活动,包含按钮点击事件处理。

ContentActivity.java:内容提供者活动,但未实现具体功能。

SQLActivity.java:数据库操作活动,处理增删改查操作。

PersonDBOpenHelper.java:数据库帮助类,用于创建和管理数据库。

PersonProvider.java:内容提供者类,用于管理数据的增删改查。

src/main/res/:包含资源文件。

layout/:包含布局文件。

activity_main.xml:主活动的布局。

contentlayout.xml:内容活动的布局。

sqllayout.xml:SQL活动的布局。

mipmap/:包含应用图标资源。

values/:包含字符串和其他资源值。

AndroidManifest.xml:定义应用的配置,包括活动、内容提供者等组件。

关键组件:

活动(Activity):

MainActivity:定义了跳转到其他活动的按钮和逻辑。

ContentActivity:未实现具体功能。

SQLActivity:定义了与数据库交互的按钮和逻辑。

内容提供者(ContentProvider):

PersonProvider:提供对info表的增删改查操作。

数据库帮助类(SQLiteOpenHelper):

PersonDBOpenHelper:用于创建和管理person.db数据库。

布局文件(XML):

activity_main.xml、contentlayout.xml、sqllayout.xml:定义了用户界面。

AndroidManifest.xml

<manifest xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools">
<uses-permission android:name="android.permission.READ_CONTACTS"/>
<application android:allowBackup="true" android:dataExtractionRules="@xml/data_extraction_rules" android:fullBackupContent="@xml/backup_rules" android:icon="@mipmap/ic_launcher" android:label="@string/app_name" android:roundIcon="@mipmap/ic_launcher_round" android:supportsRtl="true" android:theme="@style/Theme.ContentProvider" tools:targetApi="31">
<activity android:name=".MainActivity" android:exported="true">
<intent-filter>
<action android:name="android.intent.action.MAIN"/>
<category android:name="android.intent.category.LAUNCHER"/>
</intent-filter>
</activity>
<activity android:name=".ContentActivity"/>
<activity android:name=".SQLActivity"/>
<provider android:authorities="com.example.contentprovider.PersonProvider" android:name=".PersonProvider" android:exported="false"/>
</application>
</manifest>

ContentActivity.java

package com.example.contentprovider;

public class ContentActivity {
}

MainActivity.java

package com.example.contentprovider

import android.Manifest
import android.content.Intent
import android.content.pm.PackageManager
import android.os.Bundle
import android.view.View
import android.widget.Toast
import androidx.appcompat.app.AppCompatActivity
import androidx.core.app.ActivityCompat
import androidx.core.content.ContextCompat

class MainActivity : AppCompatActivity() {

override fun onCreate(savedInstanceState: Bundle?) {

super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main )
}

fun toOne(view: View?) {

if (ContextCompat.checkSelfPermission(

this,

Manifest.permission.READ_CONTACTS
) != PackageManager.PERMISSION_GRANTED
) {

ActivityCompat.requestPermissions(this, arrayOf (Manifest.permission.READ_CONTACTS ), 1)

Toast.makeText(this, "未允许读取通讯录权限!", Toast.LENGTH_SHORT ).show()
}

if (ContextCompat.checkSelfPermission(

this,

Manifest.permission.READ_CONTACTS
) == PackageManager.PERMISSION_GRANTED
) {

val intent = Intent(

this@MainActivity,

ContentActivity::class.java
)
startActivity(intent)
}
}

fun toTwo(view: View?) {

val intent = Intent(

this@MainActivity,

SQLActivity::class.java
)
startActivity(intent)
}
}

PersonDBOpenHelper.java

package com.example.contentprovider;

import android.content.Context;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;

public class PersonDBOpenHelper extends SQLiteOpenHelper {

public PersonDBOpenHelper(Context context) {

super(context,"person.db",null,1);
}

@Override

public void onCreate(SQLiteDatabase db) {

db.execSQL("create table info(_id integer primary key autoincrement,name varchar(50),phone varchar(20),UNIQUE(phone))");
}

@Override

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

}
}

PersonProvider.java

package com.example.contentprovider;

import android.content.ContentProvider;
import android.content.ContentUris;
import android.content.ContentValues;
import android.content.UriMatcher;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.net.Uri;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;

public class PersonProvider extends ContentProvider {

private static UriMatcher mUriMatcher = new UriMatcher(-1);

private static final int SUCCESS = 1;

private PersonDBOpenHelper helper;

static {

mUriMatcher .addURI("com.example.contentprovider.PersonProvider","info",SUCCESS );
}

@Override

public boolean onCreate() {

helper = new PersonDBOpenHelper(getContext());

return false;
}

@Nullable
@Override

public Uri insert(@NonNull Uri uri, @Nullable ContentValues values) {

int code = mUriMatcher .match(uri);

if (code == SUCCESS ) {

SQLiteDatabase db = helper.getReadableDatabase();

long rowId = db.insert("info",null,values);

if (rowId>0) {

Uri insertedUri = ContentUris.withAppendedId (uri,rowId);

getContext().getContentResolver().notifyChange(insertedUri,null);

return insertedUri;
}

db.close();

return uri;
}else {

try {

throw new IllegalAccessException("插入失败,路径不正确!");
} catch (IllegalAccessException e) {

e.printStackTrace();
}
}

return null;
}

@Nullable
@Override

public Cursor query(@NonNull Uri uri, @Nullable String[] strings, @Nullable String s, @Nullable String[] strings1, @Nullable String s1) {

int code = mUriMatcher .match(uri);

if (code == SUCCESS ) {

SQLiteDatabase db = helper.getReadableDatabase();

return db.query("info",strings,s,strings1,null,null,s1);
}else {

try {

throw new IllegalAccessException("查询失败,路径不正确!");
} catch (IllegalAccessException e) {

e.printStackTrace();
}
}

return null;
}

@Nullable
@Override

public String getType(@NonNull Uri uri) {

return null;
}

@Override

public int update(@NonNull Uri uri, @Nullable ContentValues contentValues, @Nullable String s, @Nullable String[] strings) {

int code = mUriMatcher .match(uri);

if (code == SUCCESS ) {

SQLiteDatabase db = helper.getReadableDatabase();

int count = db.update("info",contentValues,s,strings);

if (count>0) {
getContext().getContentResolver().notifyChange(uri,null);
}

db.close();

return count;
}else {

try {

throw new IllegalAccessException("更新失败,路径不正确!");
} catch (IllegalAccessException e) {

e.printStackTrace();
}
}

return 0;
}

@Override

public int delete(@NonNull Uri uri, @Nullable String s, @Nullable String[] strings) {

int code = mUriMatcher .match(uri);

if (code == SUCCESS ) {

SQLiteDatabase db = helper.getReadableDatabase();

int count = db.delete("info",s,strings);

if (count>0) {
getContext().getContentResolver().notifyChange(uri,null);
}

db.close();

return count;
}else {

try {

throw new IllegalAccessException("删除失败,路径不正确!");
} catch (IllegalAccessException e) {

e.printStackTrace();
}
}

return code;
}
}

SQLActivity.java

package com.example.contentprovider;
import android.Manifest;
import android.app.Activity;
import android.content.ContentResolver;
import android.content.ContentValues;
import android.content.pm.PackageManager;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.net.*;
import android.os.Bundle;
import android.provider.ContactsContract;
import android.view.View;
import android.widget.*;

import androidx.annotation.Nullable;
import androidx.core.app.ActivityCompat;
import androidx.core.content.ContextCompat;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class SQLActivity extends Activity {

private final Uri uri = Uri.parse ("content://com.example.contentprovider.PersonProvider/info");

private ContentValues values;

private ContentResolver resolver;

private EditText et_id;

private EditText et_name;

private EditText et_phone;

private EditText et_queryAll;

@Override

protected void onCreate(@Nullable Bundle savedInstanceState) {

super.onCreate(savedInstanceState);
setContentView(R.layout.sqllayout );

et_id = (EditText) findViewById(R.id.editText1 );

et_name = (EditText) findViewById(R.id.editText2 );

et_phone = (EditText) findViewById(R.id.editText3 );

et_queryAll = (EditText) findViewById(R.id.eT );
}

public String getAllPhoneNumbers(String lookUp_Key){

StringBuilder allPhoneNo = new StringBuilder();

String[] proj2 = {ContactsContract.CommonDataKinds.Phone.NUMBER };

String selection = ContactsContract.Data.LOOKUP_KEY +"=?";

String[] selectionArgs = {lookUp_Key};

ContentResolver resolver = getContentResolver();

Cursor cursor = resolver.query(ContactsContract.CommonDataKinds.Phone.CONTENT_URI ,proj2,selection,selectionArgs,null);

while(cursor.moveToNext()){

allPhoneNo.append(cursor.getString(0)).append(" ");
}

return allPhoneNo.toString();
}

public void btnCreate(View view) {

PersonDBOpenHelper helper = new PersonDBOpenHelper(this);

SQLiteDatabase db = helper.getWritableDatabase();

resolver = getContentResolver();

if (ContextCompat.checkSelfPermission (this, Manifest.permission.READ_CONTACTS )!= PackageManager.PERMISSION_GRANTED )
{

ActivityCompat.requestPermissions (this,new String[]{Manifest.permission.READ_CONTACTS },1);

Toast.makeText (this,"未允许读取通讯录权限!",Toast.LENGTH_SHORT ).show();
}

if (ContextCompat.checkSelfPermission (this, Manifest.permission.READ_CONTACTS )== PackageManager.PERMISSION_GRANTED )
{

Cursor cursor = resolver.query(ContactsContract.CommonDataKinds.Phone.CONTENT_URI ,

null,null,null,null);

String name = ContactsContract.Contacts.DISPLAY_NAME ;

String key = ContactsContract.Contacts.LOOKUP_KEY ;

int displayNameIndex = cursor.getColumnIndex(name);

int KeyIndex = cursor.getColumnIndex(key);

for (cursor.moveToFirst();!cursor.isAfterLast();cursor.moveToNext()) {

String displayName = cursor.getString(displayNameIndex);

String Key = cursor.getString(KeyIndex);

String displayPhone = getAllPhoneNumbers(Key);

values = new ContentValues();

values.put("name",displayName);

values.put("phone",displayPhone);

db.insert("info",null,values);
}

cursor.close();

db.close();
btnQueryAll(view);

Toast.makeText (this,"插入成功!",Toast.LENGTH_SHORT ).show();

}
}

public void btnAdd(View view) {

resolver = getContentResolver();

values = new ContentValues();

if (et_name.length() != 0 && et_phone.length() != 0){

values.put("name",et_name.getText().toString());

values.put("phone",et_phone.getText().toString());

Uri newUri = resolver.insert(uri,values);

Toast.makeText (this,"增加成功",Toast.LENGTH_SHORT ).show();
btnQueryAll(view);
} else {

et_name.setHint("请在此输入需增加的姓名");

et_phone.setHint("请在此输入需增加的号码");
}
}

public void btnQuery(View view) {

resolver = getContentResolver();

if (et_name.length() != 0){

Cursor cursor = resolver.query(uri,new String[]{"_id","name","phone"},"name=?",new String[]{et_name.getText().toString()},null);

if (cursor.getCount() != 0){

cursor.moveToFirst();

et_id.setText(cursor.getString(0));

et_name.setText(cursor.getString(1));

et_phone.setText(cursor.getString(2));

cursor.close();
}

else {

Toast.makeText (this,"未查询到结果!",Toast.LENGTH_SHORT ).show();
}
}

else {

et_name.setHint("请在此输入需查询的姓名");

et_phone.setHint("号码");
}
}

public void btnQueryAll(View view) {

resolver = getContentResolver();

List<Map<String,String>> data = new ArrayList<Map<String,String>>();

Cursor cursor = resolver.query(uri,new String[]{"_id","name","phone"},null,null,null);

while (cursor.moveToNext()){

Map<String,String> map = new HashMap<String,String>();

map.put("_id",cursor.getString(0));

map.put("name",cursor.getString(1));

map.put("phone",cursor.getString(2));

data.add(map);
}

cursor.close();

et_queryAll.setText(new String(data.toString()));
}

public void btnUpdate(View view) {

resolver = getContentResolver();

values = new ContentValues();

if (et_name.length() != 0 && et_phone.length() != 0){

values.put("phone",et_phone.getText().toString());

int updateCount = resolver.update(uri,values,"name=?",new String[]{et_name.getText().toString()});

Toast.makeText (this,"成功更新了" + updateCount + "条记录",Toast.LENGTH_SHORT ).show();
btnQueryAll(view);
} else {

et_name.setHint("请在此输入需修改的姓名");

et_phone.setHint("请在此输入修改后的号码");
}
}

public void btnDelete(View view) {

resolver = getContentResolver();

if (et_name.length() != 0){

int deleteCount = resolver.delete(uri,"name=?",new String[]{et_name.getText().toString()});

Toast.makeText (this,"成功删除了" + deleteCount + "条记录",Toast.LENGTH_SHORT ).show();
btnQueryAll(view);
} else {

et_name.setHint("请在此输入需删除的姓名");

et_phone.setHint("号码");
}
}
}

activity_main.xml

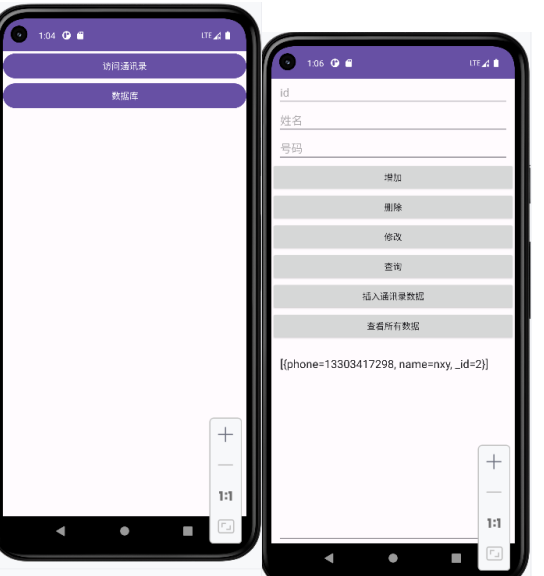

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" tools:context=".MainActivity">
<Button android:id="@+id/toOne" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="@string/toOne" android:onClick="toOne"/>
<Button android:id="@+id/toTwo" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="@string/toTwo" android:onClick="toTwo"/>
</LinearLayout>

contentlayout.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" tools:context=".ContentActivity">
<TextView android:id="@+id/hint" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="@string/hint" android:textSize="30sp"/>
<TextView android:id="@+id/callName" android:layout_width="wrap_content" android:layout_height="wrap_content" android:textSize="20sp"/>
</LinearLayout>

sqllayout.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" tools:context=".SQLActivity">
<EditText android:id="@+id/editText1" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginLeft="10dp" android:layout_marginRight="10dp" android:hint="@string/id"/>
<EditText android:id="@+id/editText2" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginLeft="10dp" android:layout_marginRight="10dp" android:hint="@string/name"/>
<EditText android:id="@+id/editText3" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginLeft="10dp" android:layout_marginRight="10dp" android:hint="@string/phone"/>
<Button android:id="@+id/add" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="@string/add" android:onClick="btnAdd"/>
<Button android:id="@+id/delete" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="@string/delete" android:onClick="btnDelete"/>
<Button android:id="@+id/update" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="@string/update" android:onClick="btnUpdate"/>
<Button android:id="@+id/query" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="@string/query" android:onClick="btnQuery"/>
<Button android:id="@+id/addContent" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="@string/addContent" android:onClick="btnCreate"/>
<Button android:id="@+id/queryAll" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="@string/queryAll" android:onClick="btnQueryAll"/>
<EditText android:id="@+id/eT" android:layout_width="match_parent" android:layout_height="0dp" android:layout_marginLeft="10dp" android:layout_marginRight="10dp" android:layout_marginTop="15dp" android:layout_weight="1" android:gravity="start|top" android:inputType="textMultiLine"/>
</LinearLayout>

【实验分析或心得】

第一部分:Android组件和生命周期

Activity:

MainActivity展示了如何处理按钮点击事件并跳转到其他活动。

活动的生命周期方法(如onCreate)用于初始化界面和事件监听器。

ContentProvider:

PersonProvider展示了如何使用内容提供者管理数据的增删改查操作。

内容提供者可以被多个应用共享和访问。

SQLiteOpenHelper:

PersonDBOpenHelper展示了如何使用SQLiteOpenHelper创建和管理数据库。

数据库帮助类负责数据库的创建、升级和管理。

第二部分:数据存储和用户界面

数据存储:

使用SQLite数据库存储数据,通过内容提供者进行数据操作。

PersonProvider和PersonDBOpenHelper共同管理数据的存储和访问。

用户界面:

使用LinearLayout和Button等UI组件构建用户界面。

布局文件(XML)定义了用户界面的结构和样式。

权限管理:

在AndroidManifest.xml中声明了READ_CONTACTS权限,确保应用有权限访问联系人数据。

相关推荐
孫治AllenSun14 分钟前
【Mysql】字段隐式转换对where条件和join关联条件的影响
数据库·mysql·oracle
生涯にわたる学び32 分钟前
数据库02 网页html01 day44
数据库·html
2301_793086871 小时前
Mysql group by
数据库·mysql
jllllyuz2 小时前
Spring中的事务是如何实现的
数据库·sql·spring
wangmengxxw2 小时前
Spring-常用注解
java·数据库·spring·注解
TDengine (老段)3 小时前
TDengine 中 TDgp 中添加机器学习模型
大数据·数据库·算法·机器学习·数据分析·时序数据库·tdengine
网安Ruler3 小时前
Web开发-PHP应用&Cookie脆弱&Session固定&Token唯一&身份验证&数据库通讯
前端·数据库·网络安全·php·渗透·红队
zfoo-framework5 小时前
线上redis的使用
数据库·redis·缓存
典孝赢麻崩乐急6 小时前
Redis学习-----Redis的基本数据类型
数据库·redis·学习
