Android第一代加固技术原理详解（附源码）
加固概述
所谓加固，其实就是通过一些手段隐藏业务代码实现的细节，增加反编译工具（如jadx等）对apk进行反编译静态分析代码的难度。
Android 加固技术代际发展概览
| 代际 | 技术名称 | 核心原理 | 主要优势 | 固有缺陷 |
|---|---|---|---|---|
| 第一代 | 动态加载（落地加载） | 将程序切分为加载器（Loader）和加密的关键逻辑（Payload），运行时解密Payload至文件系统后加载 | 实现简单，兼容性好；有效对抗静态分析 | Payload需落地文件系统，易被复制；易被自定义虚拟机拦截关键函数 |
| 第二代 | 不落地加载 | Payload在内存中解密，直接通过虚拟机内部接口加载，避免文件落地 | 避免文件泄露；开发流程零干扰 | 启动时加解密耗时，导致黑屏；内存中DEX连续完整，可被调试工具（如GDB）Dump |
| 第三代 | 指令抽离 | 发布时清除DEX函数体（CodeItem）并单独加密存储；运行时按需恢复至内存 | 函数级保护；内存中无连续DEX，增加Dump难度 | 兼容性差（依赖未公开的虚拟机特性）；与JIT优化冲突；可通过解释器记录函数内容还原DEX |
| 第四代 | 指令转换/VMP加固 | 将Java函数标记为Native（dex2c），转换为自定义指令或动态库，由私有解释器执行；通过JNI与系统交互 | 对抗内存Dump；自定义指令集提高逆向难度 | 兼容性问题（同第三代）；性能损耗大；仅保护Java层，未覆盖Native代码（C/C++） |
| 第五代 | 虚拟机源码保护 | 核心代码编译为中间二进制，在独立虚拟环境中执行；支持多语言（Java、C++、Swift等） | 全代码类型保护；可变指令集抗逆向；内置反调试探针 | 理论仍可破解（需掌握虚拟机指令机制），但难度极高；需平衡性能与安全性 |
不管技术发展到几代，第一代的原理是后续所有代际发展的基础中的基础，所以理解第一代的技术原理是重中之重。下面分享实践中编写的一个示例demo(附带大量实现源码)
项目概述
AppShield是一个完整的Android APK加壳保护系统，采用模块化设计，包含三个核心模块：
- packer: 加壳工具模块，负责将源APK和壳APK合并
- shell-app: 壳程序模块，负责运行时解密和加载源程序
- source-app: 源程序模块，被保护的目标应用
模块一：Packer 加壳工具模块
1.1 模块架构
bash
packer/
├── build.gradle.kts # 构建配置，支持fatJar打包
└── src/main/java/com/csh/packer/
├── PackerMain.java # 主入口，命令行参数解析
├── ApkPacker.java # 核心加壳逻辑
├── apktool/ # APK解包重打包工具
│ ├── ApkTool.java
│ └── ApkToolWrapper.java
├── dexUtils/ # DEX文件处理
│ └── DexProcessor.java
├── manifestUtils/ # AndroidManifest.xml处理
│ └── ManifestEditor.java
├── sign/ # APK签名工具
│ └── ApkSignAndAlignTool.java
└── utils/ # 工具类
├── FileUtils.java
└── PathsConfig.javaclassDiagram
class PackerMain {
+main(String[] args) void
-createOptions() Options
-printUsage(Options options) void
}
class ApkPacker {
-PathsConfig paths
-ApkTool apkTool
-ApkSignAndAlignTool signTool
+start() void
-prepareDirectories() void
-extractApks() void
-handleManifest() void
-handleNativeLibraries() void
-combineApks() void
-repackApk() void
-signApk() void
}
class DexProcessor {
+combineShellDexAndSrcApk() void
-fixFileSize(byte[], int) void
-fixSignature(byte[]) void
-fixCheckSum(byte[]) void
-encrypt(byte[]) byte[]
}
class ManifestEditor {
-Document document
+getApplication() String
+setApplication(String) void
+addMetaData(String, String) void
+getManifestData() String
}
class ApkSignAndAlignTool {
+resignAndAlign(String, String) boolean
-alignApk(String, String) boolean
-signApk(String, String) boolean
}
PackerMain --> ApkPacker
ApkPacker --> DexProcessor
ApkPacker --> ManifestEditor
ApkPacker --> ApkSignAndAlignTool
1.2 核心功能
1.2.1 主要依赖
- commons-cli: 命令行参数解析
- dom4j: XML文件处理
- zip4j: ZIP文件操作增强
- apksig: APK签名工具
- logback: 日志框架
1.2.2 加壳流程
sequenceDiagram
participant User as 用户
participant Main as PackerMain
participant Packer as ApkPacker
participant Tool as ApkTool
participant Dex as DexProcessor
participant Manifest as ManifestEditor
participant Sign as ApkSignAndAlignTool
User->>Main: 执行加壳命令
Main->>Packer: start()
Note over Packer: 第一阶段：解包APK
Packer->>Tool: extractApk(源APK)
Tool-->>Packer: 解包完成
Packer->>Tool: extractApk(壳APK)
Tool-->>Packer: 解包完成
Note over Packer: 第二阶段：处理Manifest
Packer->>Manifest: handleManifest()
Manifest->>Manifest: 替换Application为壳Application
Manifest->>Manifest: 添加源Application到meta-data
Manifest-->>Packer: Manifest处理完成
Note over Packer: 第三阶段：DEX合并
Packer->>Dex: combineShellDexAndSrcApk()
Dex->>Dex: 读取源APK并加密
Dex->>Dex: 合并壳DEX和加密源APK
Dex->>Dex: 修复DEX文件头
Dex-->>Packer: DEX合并完成
Note over Packer: 第四阶段：重打包签名
Packer->>Tool: repackApk()
Tool-->>Packer: 重打包完成
Packer->>Sign: resignAndAlign()
Sign-->>Packer: 签名对齐完成
Packer-->>Main: 加壳完成
Main-->>User: 返回加固APK
PackerMain.java - 程序入口
java
// 支持的命令行参数
//-src <PATH> # 源APK文件路径
//-shell <PATH> # 壳APK文件路径
//-o <PATH> # 输出APK路径（可选）
//-h # 帮助信息
package com.csh.packer;
import com.csh.packer.utils.PathsConfig;
import org.apache.commons.cli.*;
import java.nio.file.Path;
import java.nio.file.Paths;
/**
* 加壳程序主入口
*/
public class PackerMain {
public static void main(String[] args) {
Options options = createOptions();
CommandLineParser parser = new DefaultParser();
try {
CommandLine cmd = parser.parse(options, args, true);
if (cmd.hasOption("help") || !cmd.hasOption("src") || !cmd.hasOption("shell")) {
printUsage(options);
return;
}
// 获取必需参数
Path srcApk = Paths.get(cmd.getOptionValue("src"));
Path shellApk = Paths.get(cmd.getOptionValue("shell"));
// 获取输出路径，如果没有指定则使用默认值
Path outputApk;
if (cmd.hasOption("out")) {
outputApk = Paths.get(cmd.getOptionValue("out"));
} else {
String defaultName = srcApk.getFileName().toString();
int dotIndex = defaultName.lastIndexOf('.');
if (dotIndex > 0) {
defaultName = defaultName.substring(0, dotIndex) + "_protected.apk";
} else {
defaultName = defaultName + "_protected.apk";
}
outputApk = Paths.get("./out").resolve(defaultName);
}
// 创建路径配置
PathsConfig paths = new PathsConfig(srcApk, shellApk, outputApk);
System.out.println("Source APK: " + paths.getSrcApkPath());
System.out.println("Shell APK: " + paths.getShellApkPath());
System.out.println("Output APK: " + paths.getNewApkPath());
// 执行加壳
ApkPacker packer = new ApkPacker(paths);
packer.start();
} catch (ParseException e) {
System.err.println("参数解析错误: " + e.getMessage());
printUsage(options);
} catch (Exception e) {
System.err.println("加壳失败: " + e.getMessage());
e.printStackTrace();
}
}
private static Options createOptions() {
Options options = new Options();
options.addOption(Option.builder("src").longOpt("src-apk").hasArg(true).argName("PATH").desc("源APK文件路径").build());
options.addOption(Option.builder("shell").longOpt("shell-apk").hasArg(true).argName("PATH").desc("壳APK文件路径").build());
options.addOption(Option.builder("o").longOpt("out").hasArg(true).argName("PATH").desc("输出APK路径 (默认: ./out/<src-apk>_protected.apk)").build());
options.addOption(Option.builder("h").longOpt("help").desc("显示帮助信息").build());
return options;
}
private static void printUsage(Options options) {
HelpFormatter formatter = new HelpFormatter();
formatter.printHelp(74, // width
"java -jar apk-packer.jar", // cmdLineSyntax
"Android APK Packer - APK加壳工具\n\n", // header
options, // options
"\n示例:\n" + "java -jar apk-packer.jar -src source.apk -shell shell.apk\n" + "java -jar apk-packer.jar -src source.apk -shell shell.apk -o output.apk\n", // footer
true // autoUsage
);
}

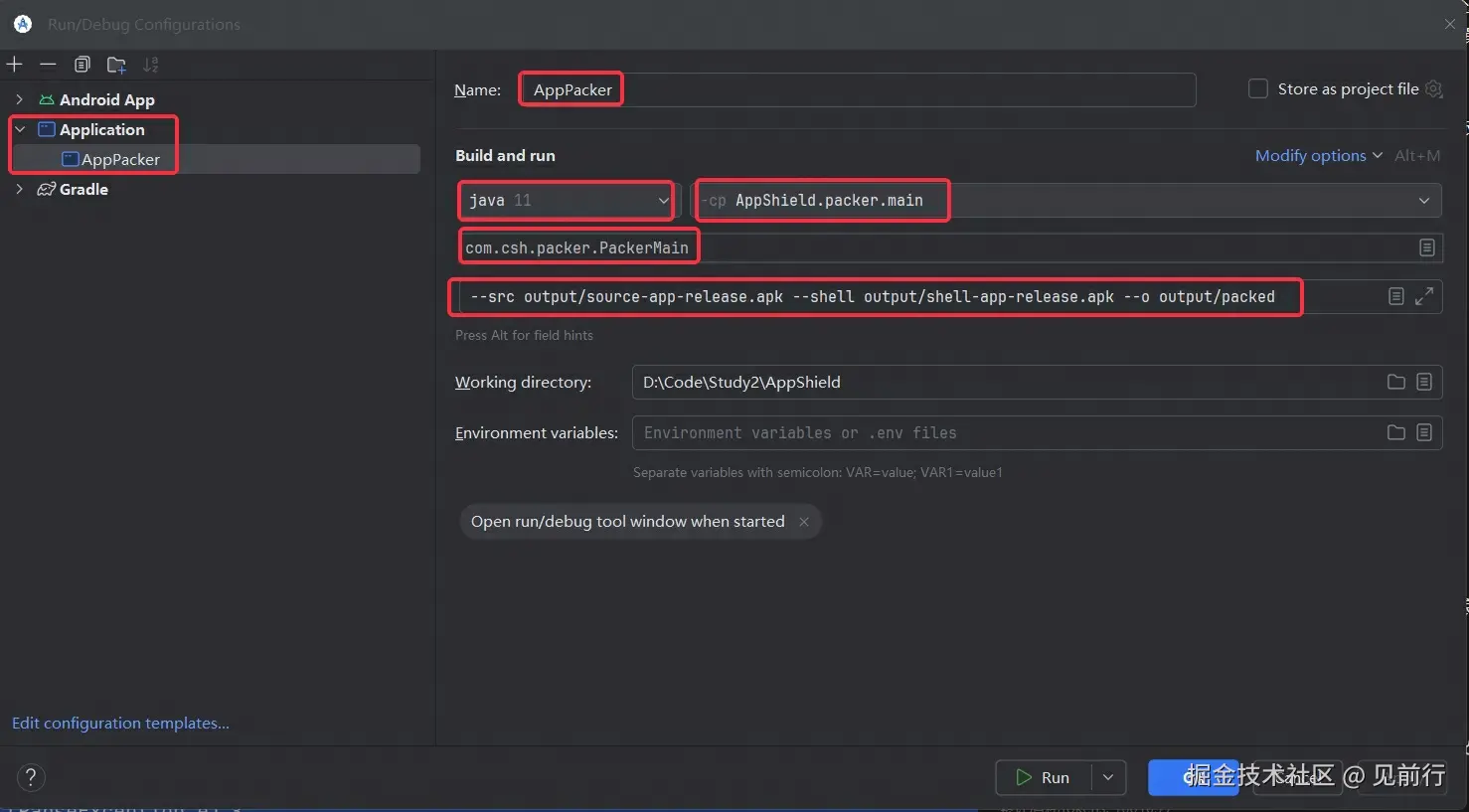

}为了方便本地调试，可以在AndroidStudio的工程使用Application的配置来进行本地debug运行，可以实现加壳程序的本地断点，如下图所示
ApkPacker.java - 核心加壳逻辑
java
package com.csh.packer;
import com.csh.packer.apktool.ApkTool;
import com.csh.packer.dexUtils.DexProcessor;
import com.csh.packer.manifestUtils.ManifestEditor;
import com.csh.packer.sign.ApkSignAndAlignTool;
import com.csh.packer.utils.FileUtils;
import com.csh.packer.utils.PathsConfig;
import java.nio.file.Files;
import java.nio.file.Path;
/**
* APK加壳程序主类
* 负责将源程序APK和壳程序APK合并成加固后的APK
*/
public class ApkPacker {
private final PathsConfig paths;
public ApkPacker(PathsConfig paths) {
this.paths = paths;
}
/**
* 执行加壳操作
*/
public void start() throws Exception {
paths.cleanupTempDirectories();
ApkTool apkTool = new ApkTool();
ApkSignAndAlignTool apkSignerTool = new ApkSignAndAlignTool();
try {
// 1. 分别解包源文件和壳文件到临时目录
System.out.println("Extracting source and shell apk...");
apkTool.extractApk(paths.getSrcApkPath(), paths.getSrcApkTempDir());
System.out.println("Extract source apk success!");
System.out.println("Extracting shell apk...");
apkTool.extractApk(paths.getShellApkPath(), paths.getShellApkTempDir());
System.out.println("Extract shell apk success!");
// 2. 复制源apk所有文件到新apk临时目录中
System.out.println("Copying source apk files to new apk temp dir...");
FileUtils.copyDirectory(paths.getSrcApkTempDir().toFile(), paths.getNewApkTempDir().toFile());
System.out.println("Copy source apk files success!");
// 3. 处理AndroidManifest.xml
System.out.println("Handling AndroidManifest.xml...");
handleManifest(paths.getSrcApkTempDir(), paths.getShellApkTempDir(), paths.getNewApkTempDir());
System.out.println("Handle AndroidManifest.xml success!");
// 4. 合并壳dex和源apk并导出文件
System.out.println("Combining shell dex and source apk...");
DexProcessor.combineShellDexAndSrcApk(paths.getSrcApkPath(), paths.getShellApkTempDir(), paths.getNewApkTempDir());
System.out.println("Combine shell dex and source apk success!");
//
// // 5. 确保native libraries正确复制
// System.out.println("Handling native libraries...");
// handleNativeLibraries(paths.getSrcApkTempDir(), paths.getNewApkTempDir());
// System.out.println("Handle native libraries success!");
//6. 重打包apk
System.out.println("Repacking apk...");
apkTool.repackApk(paths.getNewApkTempDir(), paths.getNewApkPath());
System.out.println("Repack apk success!");
// 7. 签名apk
System.out.println("Signing apk...");
apkSignerTool.setVerbose(true); // 启用详细日志
apkSignerTool.resignAndAlign(paths.getNewApkPath().toString(), paths.getNewApkSignPath().toString());
System.out.println("Resign apk success!");
} catch (Exception e) {
System.err.println("加壳失败: " + e.getMessage());
e.printStackTrace();
throw e;
} finally {
// 8. 删除临时目录
System.out.println("Deleting temp directories...");
if (Files.exists(paths.getTmpDir())) {
// paths.cleanupTempDirectories();
}
System.out.println("Delete temp directories success!");
}
}
/**
* 提取源apk的Manifest文件，修改application为壳application，输出新的Manifest文件
*/
private void handleManifest(Path srcApkTempDir, Path shellApkTempDir, Path newApkTempDir) throws Exception {
// 从源apk提取AndroidManifest.xml
Path srcManifestPath = srcApkTempDir.resolve("AndroidManifest.xml");
String srcManifestContent = Files.readString(srcManifestPath);
ManifestEditor srcManifestEditor = new ManifestEditor(srcManifestContent);
String srcApplication = srcManifestEditor.getApplication();
// 从壳apk提取AndroidManifest.xml
Path shellManifestPath = shellApkTempDir.resolve("AndroidManifest.xml");
String shellManifestContent = Files.readString(shellManifestPath);
ManifestEditor shellManifestEditor = new ManifestEditor(shellManifestContent);
String shellApplication = shellManifestEditor.getApplication();
System.out.println("ShellApplication: " + shellApplication);
// 修改源AndroidManifest.xml的application为壳的代理application
srcManifestEditor.setApplication(shellApplication);
// 写入meta-data标签保存源apk的原始application
if (srcApplication != null) {
System.out.println("Source application: " + srcApplication);
srcManifestEditor.addMetaData("APPLICATION_CLASS_NAME", srcApplication);
}
// 输出新的AndroidManifest.xml
Path newManifestPath = newApkTempDir.resolve("AndroidManifest.xml");
Files.writeString(newManifestPath, srcManifestEditor.getManifestData());
}
/**
* 处理native libraries，确保它们被正确复制和对齐
*/
private void handleNativeLibraries(Path srcApkTempDir, Path newApkTempDir) throws Exception {
Path srcLibDir = srcApkTempDir.resolve("lib");
Path destLibDir = newApkTempDir.resolve("lib");
if (!Files.exists(srcLibDir)) {
System.out.println("No native libraries found in source APK");
return;
}
System.out.println("Processing native libraries...");
// 确保目标lib目录存在
Files.createDirectories(destLibDir);
// 复制所有架构的native libraries
Files.walk(srcLibDir).forEach(sourcePath -> {
try {
Path relativePath = srcLibDir.relativize(sourcePath);
Path destPath = destLibDir.resolve(relativePath);
if (Files.isDirectory(sourcePath)) {
Files.createDirectories(destPath);
} else {
// 确保父目录存在
Files.createDirectories(destPath.getParent());
// 复制文件
Files.copy(sourcePath, destPath, java.nio.file.StandardCopyOption.REPLACE_EXISTING);
System.out.println("Copied native library: " + relativePath);
}
} catch (Exception e) {
System.err.println("Failed to copy native library: " + sourcePath + " - " + e.getMessage());
}
});
System.out.println("Native libraries processing completed");
}
}1.2.3 APKTool解包核心逻辑
ApkToolWrapper.java - APKTool包装器，关键在于保留DEX完整结构，不解析dex为smali代码，因为第一代操作的是dex整体文件，示例demo为了方便展示，限制了源程序仅打包构建出一个Dex文件，然后最后重新回编Apk时是用的源Apk的资源进行回编译。
java
public class ApkToolWrapper {
private static final String APKTOOL_JAR_PATH = "tools/apktool_2.9.3.jar";
/**
* 解包APK的核心方法
* @param apkPath APK文件路径
* @param outputDir 输出目录
* @param decodeClasses 是否解包DEX为smali代码
*/
public void decodeApkWithCommand(Path apkPath, Path outputDir, boolean decodeClasses) throws Exception {
// 构建apktool命令
List<String> command = new ArrayList<>();
command.add("java");
command.add("-jar");
command.add(APKTOOL_JAR_PATH);
// 关键：根据decodeClasses参数决定是否使用-s选项
if (!decodeClasses) {
command.add("-s"); // 精简解包,只解包资源文件，不解包DEX
}
command.add("d"); // decode操作
command.add(apkPath.toString());
command.add("-o");
command.add(outputDir.toString());
command.add("-f"); // 强制覆盖已存在的目录
// 执行命令
executeCommand(command, apkPath, outputDir);
}
/**
* 仅解包资源文件，不解包DEX（关键方法）
* 这样保留了DEX文件的完整二进制结构，避免smali转换
*/
public void extractApk(Path apkPath, Path outputDir) throws Exception {
decodeApkWithCommand(apkPath, outputDir, false); // false = 不解包DEX
}
/**
* 重新打包APK
*/
public void repackApk(Path inputDir, Path outputApk) throws Exception {
buildApkWithCommand(inputDir, outputApk, false, false);
}
/**
* 执行apktool命令的核心方法
*/
private void executeCommand(List<String> command, Path apkPath, Path outputDir) throws Exception {
ProcessBuilder processBuilder = new ProcessBuilder(command);
processBuilder.redirectErrorStream(true);
Process process = processBuilder.start();
// 读取输出用于调试
StringBuilder output = new StringBuilder();
try (BufferedReader reader = new BufferedReader(new InputStreamReader(process.getInputStream()))) {
String line;
while ((line = reader.readLine()) != null) {
output.append(line).append("\n");
}
}
// 等待进程完成（设置60秒超时）
boolean finished = process.waitFor(60, TimeUnit.SECONDS);
if (!finished) {
process.destroyForcibly();
throw new Exception("apktool命令执行超时（60秒）");
}
// 检查退出码
int exitCode = process.exitValue();
if (exitCode != 0) {
throw new Exception("apktool执行失败，退出码: " + exitCode + "\n输出: " + output.toString());
}
}
}ApkTool.java - 高级封装接口
java
public class ApkTool {
private final ApkToolWrapper wrapper;
public ApkTool() {
this.wrapper = new ApkToolWrapper();
}
/**
* 使用apktool解包APK，只解包资源不解包dex
* 这是加壳工具的关键：保持DEX文件的完整二进制格式
*/
public void extractApk(Path apkPath, Path outputDir) throws Exception {
wrapper.extractApk(apkPath, outputDir);
}
/**
* 重新打包APK
*/
public void repackApk(Path inputDir, Path outApk) throws Exception {
wrapper.repackApk(inputDir, outApk);
}
}解包策略说明：
- 使用-s参数：apktool的-s（skip）参数跳过DEX到smali的转换
- 保留DEX结构：DEX文件以原始二进制格式保存在解包目录中
- 仅解析资源：AndroidManifest.xml、资源文件等被正常解析为可编辑格式
- 避免重编译：由于DEX未被转换，重打包时无需重新编译smali代码
1.2.4 DEX文件处理核心算法
DexProcessor.java - DEX合并和加密
java
public class DexProcessor {
/**
* 合并壳DEX和源APK
* 核心算法：将加密的源APK附加到壳DEX文件末尾
*/
public static void combineShellDexAndSrcApk(Path sourceApkPath, Path shellApkTempDir, Path newApkTempDir)
throws IOException, NoSuchAlgorithmException {
// 读取源APK文件
byte[] sourceApkArray = Files.readAllBytes(sourceApkPath);
// 读取壳DEX文件
Path shellDexPath = shellApkTempDir.resolve("classes.dex");
byte[] shellDexArray = Files.readAllBytes(shellDexPath);
int sourceApkLen = sourceApkArray.length;
int shellDexLen = shellDexArray.length;
// 计算新DEX文件长度：壳DEX + 加密源APK + 4字节长度标识
int newDexLen = shellDexLen + sourceApkLen + 4;
// 加密源APK文件（简单XOR加密）
byte[] encryptedApkArray = encrypt(sourceApkArray);
// 创建新DEX文件内容
byte[] newDexArray = new byte[newDexLen];
// 复制壳DEX
System.arraycopy(shellDexArray, 0, newDexArray, 0, shellDexLen);
// 复制加密的源APK
System.arraycopy(encryptedApkArray, 0, newDexArray, shellDexLen, sourceApkLen);
// 添加源APK长度标识（小端存储）
int lengthOffset = shellDexLen + sourceApkLen;
newDexArray[lengthOffset] = (byte) (sourceApkLen & 0xFF);
newDexArray[lengthOffset + 1] = (byte) ((sourceApkLen >> 8) & 0xFF);
newDexArray[lengthOffset + 2] = (byte) ((sourceApkLen >> 16) & 0xFF);
newDexArray[lengthOffset + 3] = (byte) ((sourceApkLen >> 24) & 0xFF);
// 修复DEX文件头
fixDexHeader(newDexArray);
// 写入新的DEX文件
Path newDexPath = newApkTempDir.resolve("classes.dex");
Files.write(newDexPath, newDexArray);
System.out.println("DEX合并完成: " + newDexPath);
System.out.println("原始DEX大小: " + shellDexLen + " bytes");
System.out.println("源APK大小: " + sourceApkLen + " bytes");
System.out.println("新DEX大小: " + newDexLen + " bytes");
}
/**
* 简单XOR加密算法
*/
private static byte[] encrypt(byte[] data) {
byte[] encrypted = new byte[data.length];
byte key = (byte) 0x88; // 简单的XOR密钥
for (int i = 0; i < data.length; i++) {
encrypted[i] = (byte) (data[i] ^ key);
}
return encrypted;
}
/**
* 修复DEX文件头信息
* 更新文件大小、校验和等关键字段
*/
private static void fixDexHeader(byte[] dexArray) throws NoSuchAlgorithmException {
// 修复文件大小（偏移量4-7，小端存储）
int fileSize = dexArray.length;
dexArray[32] = (byte) (fileSize & 0xFF);
dexArray[33] = (byte) ((fileSize >> 8) & 0xFF);
dexArray[34] = (byte) ((fileSize >> 16) & 0xFF);
dexArray[35] = (byte) ((fileSize >> 24) & 0xFF);
// 计算并更新SHA-1签名（偏移量12-31）
MessageDigest sha1 = MessageDigest.getInstance("SHA-1");
sha1.update(dexArray, 32, dexArray.length - 32);
byte[] signature = sha1.digest();
System.arraycopy(signature, 0, dexArray, 12, 20);
// 计算并更新Adler32校验和（偏移量8-11）
Adler32 adler32 = new Adler32();
adler32.update(dexArray, 12, dexArray.length - 12);
int checksum = (int) adler32.getValue();
dexArray[8] = (byte) (checksum & 0xFF);
dexArray[9] = (byte) ((checksum >> 8) & 0xFF);
dexArray[10] = (byte) ((checksum >> 16) & 0xFF);
dexArray[11] = (byte) ((checksum >> 24) & 0xFF);
System.out.println("DEX文件头修复完成");
System.out.println("文件大小: " + fileSize + " bytes");
System.out.println("校验和: 0x" + Integer.toHexString(checksum));
}
}1.2.5 AndroidManifest.xml处理
ManifestEditor.java - 清单文件编辑器，这是加壳过程中最关键的组件之一，负责实现Application替换的核心逻辑。
核心功能概述：
- 解析AndroidManifest.xml：使用DOM4J解析XML文件
- 提取源Application：获取原始应用的Application类名
- 替换为壳Application：将入口Application改为壳程序的代理Application
- 保存原始信息：通过meta-data标签保存原始Application类名，供运行时恢复使用
java
package com.csh.packer.manifestUtils;
import org.dom4j.Document;
import org.dom4j.Element;
import org.dom4j.Namespace;
import org.dom4j.QName;
import org.dom4j.io.OutputFormat;
import org.dom4j.io.SAXReader;
import org.dom4j.io.XMLWriter;
import java.io.ByteArrayInputStream;
import java.io.StringWriter;
import java.util.Map;
import java.util.HashMap;
/**
* AndroidManifest.xml的编辑器，用于获取和修改标签属性，以及添加标签
* 核心作用：实现Application入口的替换和原始信息的保存
*/
public class ManifestEditor {
// Android命名空间定义
private static final String ANDROID_NS_URI = "http://schemas.android.com/apk/res/android";
private static final Namespace ANDROID_NS = Namespace.get("android", ANDROID_NS_URI);
private final Document document;
/**
* 构造函数：解析AndroidManifest.xml内容
* @param xmlContent XML文件内容（字节数组或字符串）
*/
public ManifestEditor(byte[] xmlContent) throws Exception {
SAXReader reader = new SAXReader();
this.document = reader.read(new ByteArrayInputStream(xmlContent));
}
public ManifestEditor(String xmlContent) throws Exception {
this(xmlContent.getBytes("UTF-8"));
}
/**
* 获取指定标签的android属性值
* @param tagName 标签名称（如"application"、"manifest"）
* @param attrName 属性名称（如"name"、"package"）
* @return 属性值，如果不存在返回null
*/
public String getTagAttribute(String tagName, String attrName) {
if ("manifest".equals(tagName)) {
// manifest根标签特殊处理（不在android命名空间下）
Element rootElement = document.getRootElement();
return rootElement.attributeValue(attrName);
} else {
// 其他标签在android命名空间下
Element element = (Element) document.selectSingleNode("//" + tagName);
if (element != null) {
QName qname = new QName(attrName, ANDROID_NS);
return element.attributeValue(qname);
}
}
return null;
}
/**
* 设置指定标签的属性值
* @param tagName 标签名称
* @param attrName 属性名称
* @param newValue 新属性值
* @return 是否设置成功
*/
public boolean setTagAttribute(String tagName, String attrName, String newValue) {
if ("manifest".equals(tagName)) {
Element rootElement = document.getRootElement();
rootElement.addAttribute(attrName, newValue);
return true;
} else {
Element element = (Element) document.selectSingleNode("//" + tagName);
if (element != null) {
QName qname = new QName(attrName, ANDROID_NS);
element.addAttribute(qname, newValue);
return true;
}
}
return false;
}
/**
* 添加子标签及其属性
* @param parentTagName 父标签名称
* @param childTagName 子标签名称
* @param attributes 属性映射
*/
public void addTagWithAttributes(String parentTagName, String childTagName, Map<String, String> attributes) {
Element parentElement = (Element) document.selectSingleNode("//" + parentTagName);
if (parentElement != null) {
Element childElement = parentElement.addElement(childTagName);
for (Map.Entry<String, String> entry : attributes.entrySet()) {
QName qname = new QName(entry.getKey(), ANDROID_NS);
childElement.addAttribute(qname, entry.getValue());
}
}
}
/**
* 获取Application类名（核心方法）
* @return 原始Application类名，如果没有自定义Application返回null
*/
public String getApplication() {
return getTagAttribute("application", "name");
}
/**
* 设置Application类名（核心方法）
* 将原始Application替换为壳程序的代理Application
* @param application 壳Application类名（如".ShellProxyApplicationV1"）
*/
public void setApplication(String application) {
setTagAttribute("application", "name", application);
}
/**
* 添加meta-data标签（核心方法）
* 用于保存原始Application类名，供运行时恢复使用
* @param name meta-data的name属性
* @param value meta-data的value属性
*/
public void addMetaData(String name, String value) {
Map<String, String> attrs = new HashMap<>();
attrs.put("name", name);
attrs.put("value", value);
addTagWithAttributes("application", "meta-data", attrs);
}
/**
* 获取修改后的manifest数据的XML字符串形式
* @return 格式化的XML字符串
*/
public String getManifestData() throws Exception {
OutputFormat format = OutputFormat.createPrettyPrint();
format.setEncoding("UTF-8");
format.setIndent(true);
format.setIndentSize(2);
StringWriter stringWriter = new StringWriter();
XMLWriter xmlWriter = new XMLWriter(stringWriter, format);
xmlWriter.write(document);
xmlWriter.close();
return stringWriter.toString();
}
}AndroidManifest.xml处理流程详解：
1. 处理前的文件状态
xml
<!-- 源程序的AndroidManifest.xml -->
<application android:name=".SourceApplication">
<activity android:name=".MainActivity">
<!-- 活动配置 -->
</activity>
</application>
<!-- 壳程序的AndroidManifest.xml -->
<application android:name=".ShellProxyApplicationV1">
<!-- 壳程序配置 -->
</application>2. 加壳工具的Application处理逻辑
java
// ApkPacker.java中的handleManifest方法
private void handleManifest(Path srcApkTempDir, Path shellApkTempDir, Path newApkTempDir) throws Exception {
// 1. 读取源程序的AndroidManifest.xml
Path srcManifestPath = srcApkTempDir.resolve("AndroidManifest.xml");
String srcManifestContent = Files.readString(srcManifestPath);
ManifestEditor srcManifestEditor = new ManifestEditor(srcManifestContent);
// 2. 提取源程序的Application类名
String srcApplication = srcManifestEditor.getApplication();
// 结果：".SourceApplication"
// 3. 读取壳程序的AndroidManifest.xml
Path shellManifestPath = shellApkTempDir.resolve("AndroidManifest.xml");
String shellManifestContent = Files.readString(shellManifestPath);
ManifestEditor shellManifestEditor = new ManifestEditor(shellManifestContent);
// 4. 提取壳程序的Application类名
String shellApplication = shellManifestEditor.getApplication();
// 结果：".ShellProxyApplicationV1"
// 5. 关键步骤：替换源程序的Application为壳Application
srcManifestEditor.setApplication(shellApplication);
// 6. 关键步骤：保存原始Application信息到meta-data
if (srcApplication != null) {
srcManifestEditor.addMetaData("APPLICATION_CLASS_NAME", srcApplication);
}
// 7. 输出修改后的AndroidManifest.xml
Path newManifestPath = newApkTempDir.resolve("AndroidManifest.xml");
Files.writeString(newManifestPath, srcManifestEditor.getManifestData());
}3. 处理后的文件状态
xml
<!-- 加壳后的AndroidManifest.xml -->
<application android:name=".ShellProxyApplicationV1">
<!-- 保存原始Application信息 -->
<meta-data
android:name="APPLICATION_CLASS_NAME"
android:value=".SourceApplication" />
<!-- 保留源程序的所有Activity配置 -->
<activity android:name=".MainActivity">
<!-- 活动配置 -->
</activity>
</application>4. 运行时恢复机制
当加壳后的APK运行时，Android系统会：
- 启动壳Application：系统读取AndroidManifest.xml，创建ShellProxyApplicationV1实例
- 壳程序获取原始信息：通过PackageManager读取meta-data，获取原始Application类名
- 动态替换：壳程序解密源APK，替换ClassLoader，创建原始Application实例
- 透明运行：用户看到的是原始应用的界面和功能
java
// ShellProxyApplicationV1.java中的恢复逻辑
public boolean replaceApplication() {
String appClassName = null;
try {
// 从meta-data中读取原始Application类名
ApplicationInfo applicationInfo = getPackageManager()
.getApplicationInfo(this.getPackageName(), PackageManager.GET_META_DATA);
Bundle metaData = applicationInfo.metaData;
if (metaData != null && metaData.containsKey("APPLICATION_CLASS_NAME")) {
appClassName = metaData.getString("APPLICATION_CLASS_NAME");
// 结果：".SourceApplication"
}
} catch (PackageManager.NameNotFoundException e) {
// 处理异常
}
// 使用反射创建原始Application实例并替换系统引用
// ...
}技术要点总结：
- XML命名空间处理：正确处理android命名空间，确保属性设置有效
- DOM操作：使用DOM4J进行XML解析和修改，保持文档结构完整
- 信息传递机制：通过meta-data标签实现编译时到运行时的信息传递
- 透明替换：用户和系统都感知不到Application的替换过程
- 兼容性保证：保留原始应用的所有配置信息（Activity、Service、权限等）
1.2.6 APK签名工具
ApkSignAndAlignTool.java - APK签名和对齐
java
public class ApkSignAndAlignTool {
private boolean verbose = false;
public void setVerbose(boolean verbose) {
this.verbose = verbose;
}
/**
* 重新签名并对齐APK
*/
public void resignAndAlign(String inputApkPath, String outputApkPath) throws Exception {
// 1. 创建签名配置
ApkSigner.SignerConfig signerConfig = createSignerConfig();
// 2. 配置APK签名器
ApkSigner.Builder signerBuilder = new ApkSigner.Builder(Arrays.asList(signerConfig))
.setInputApk(new File(inputApkPath))
.setOutputApk(new File(outputApkPath))
.setOtherSignersSignaturesPreserved(false)
.setV1SigningEnabled(true)
.setV2SigningEnabled(true)
.setV3SigningEnabled(false)
.setV4SigningEnabled(false)
.setVerityEnabled(false)
.setDebuggableApkPermitted(true)
.setMinSdkVersion(21);
if (verbose) {
System.out.println("开始签名APK: " + inputApkPath);
}
// 3. 执行签名
ApkSigner signer = signerBuilder.build();
signer.sign();
if (verbose) {
System.out.println("APK签名完成: " + outputApkPath);
}
}
/**
* 创建默认签名配置（使用内置测试证书）
*/
private ApkSigner.SignerConfig createSignerConfig() throws Exception {
// 使用Android SDK默认的debug证书
PrivateKey privateKey = loadPrivateKey();
X509Certificate certificate = loadCertificate();
return new ApkSigner.SignerConfig.Builder(
"CERT", privateKey, Arrays.asList(certificate))
.build();
}
private PrivateKey loadPrivateKey() throws Exception {
// 实现私钥加载逻辑
// 这里使用内置的测试私钥
return TestKeyProvider.getPrivateKey();
}
private X509Certificate loadCertificate() throws Exception {
// 实现证书加载逻辑
// 这里使用内置的测试证书
return TestKeyProvider.getCertificate();
}
}1.2.7 文件工具类
FileUtils.java - 文件操作工具
java
public class FileUtils {
/**
* 递归复制目录
*/
public static void copyDirectory(File sourceDir, File destDir) throws IOException {
if (!destDir.exists()) {
destDir.mkdirs();
}
File[] files = sourceDir.listFiles();
if (files != null) {
for (File file : files) {
File destFile = new File(destDir, file.getName());
if (file.isDirectory()) {
copyDirectory(file, destFile);
} else {
copyFile(file, destFile);
}
}
}
}
/**
* 复制单个文件
*/
public static void copyFile(File source, File dest) throws IOException {
try (FileInputStream fis = new FileInputStream(source);
FileOutputStream fos = new FileOutputStream(dest)) {
byte[] buffer = new byte[8192];
int bytesRead;
while ((bytesRead = fis.read(buffer)) != -1) {
fos.write(buffer, 0, bytesRead);
}
}
}
/**
* 递归删除目录
*/
public static void deleteDirectory(File directory) throws IOException {
if (directory.exists()) {
File[] files = directory.listFiles();
if (files != null) {
for (File file : files) {
if (file.isDirectory()) {
deleteDirectory(file);
} else {
file.delete();
}
}
}
directory.delete();
}
}
}1.2.8 路径配置管理
PathsConfig.java - 路径配置类
java
public class PathsConfig {
private final Path srcApkPath;
private final Path shellApkPath;
private final Path newApkPath;
private final Path newApkSignPath;
private final Path tmpDir;
private final Path srcApkTempDir;
private final Path shellApkTempDir;
private final Path newApkTempDir;
public PathsConfig(Path srcApkPath, Path shellApkPath, Path outputApkPath) {
this.srcApkPath = srcApkPath;
this.shellApkPath = shellApkPath;
this.newApkPath = outputApkPath;
this.newApkSignPath = Paths.get(outputApkPath.toString().replace(".apk", "_signed.apk"));
// 创建临时目录结构
this.tmpDir = Paths.get("tmp");
this.srcApkTempDir = tmpDir.resolve("src_apk");
this.shellApkTempDir = tmpDir.resolve("shell_apk");
this.newApkTempDir = tmpDir.resolve("new_apk");
}
/**
* 清理临时目录
*/
public void cleanupTempDirectories() throws IOException {
if (Files.exists(tmpDir)) {
FileUtils.deleteDirectory(tmpDir.toFile());
}
// 重新创建临时目录
Files.createDirectories(srcApkTempDir);
Files.createDirectories(shellApkTempDir);
Files.createDirectories(newApkTempDir);
}
// Getter方法
public Path getSrcApkPath() { return srcApkPath; }
public Path getShellApkPath() { return shellApkPath; }
public Path getNewApkPath() { return newApkPath; }
public Path getNewApkSignPath() { return newApkSignPath; }
public Path getTmpDir() { return tmpDir; }
public Path getSrcApkTempDir() { return srcApkTempDir; }
public Path getShellApkTempDir() { return shellApkTempDir; }
public Path getNewApkTempDir() { return newApkTempDir; }
}1.3 关键技术点
- DEX文件格式: 深入理解DEX文件结构，正确处理文件头、校验和
- APK结构: 熟悉APK文件组成，正确处理资源、清单文件、签名
- 加密算法: 实现源APK的加密保护，防止静态分析
- 文件操作: 高效的文件读写、复制、删除操作
- XML处理: 使用DOM4J处理AndroidManifest.xml文件
- APK签名: 使用apksig库进行APK的重新签名和对齐
- APK解包:仅解包资源，不解包dex, 这个至关重要
模块二：Shell-App 壳程序模块（业内也叫脱壳流程）
2.1 模块架构
bash
shell-app/
├── build.gradle.kts # Android应用构建配置
├── src/main/
│ ├── AndroidManifest.xml # 壳程序清单文件
│ └── java/com/csh/shell/
│ ├── ShellProxyApplicationV1.java # 壳代理Application（传统版本）
│ ├── ShellProxyApplicationV2.java # 壳代理Application（兼容版本）
│ ├── LoadedApkReflectionHelper.java # LoadedApk反射辅助类
│ └── Reflection.java # 反射工具类
└── release/
└── shell-app-release.apk # 编译后的壳APKclassDiagram
class ShellProxyApplicationV1 {
-String apkPath
-String dexPath
-String libPath
+attachBaseContext() void
+onCreate() void
-readDexFromApk() byte[]
-extractSrcApkFromShellDex() void
-replaceClassLoader() void
-replaceApplication() boolean
}
class ShellProxyApplicationV2 {
-String mApplicationName
-Application mSourceApplication
+attachBaseContext() void
+onCreate() void
-extractSourceApk() boolean
-replaceClassLoader() boolean
-replaceApplicationInSystem() void
}
class Reflection {
+getStaticField() Object
+setField() void
+invokeMethod() Object
}
ShellProxyApplicationV1 --> Reflection
ShellProxyApplicationV2 --> Reflection
2.2 运行时流程
sequenceDiagram
participant System as Android系统
participant Shell as 壳程序
participant Reflect as 反射工具
participant Source as 源程序
participant ActivityThread as ActivityThread
participant LoadedApk as LoadedApk
System->>Shell: 启动加固APK
Shell->>Shell: attachBaseContext()
Note over Shell: 第一阶段：解密源程序
Shell->>Shell: getDir("tmp_dex", MODE_PRIVATE)
Shell->>Shell: 创建私有目录 /data/data/pkg/app_tmp_dex
Shell->>Shell: readDexFromApk()
Shell->>Shell: 从APK中读取classes.dex
Shell->>Shell: extractSrcApkFromShellDex()
Shell->>Shell: 解析DEX文件结构
Shell->>Shell: 读取末尾4字节获取源APK大小
Shell->>Shell: 提取加密的源APK数据
Shell->>Shell: decrypt() - XOR 0xFF解密
Shell->>Shell: 写入Source.apk文件
Shell->>Shell: 提取native库文件到lib目录
Note over Shell: 第二阶段：ClassLoader替换
Shell->>Shell: replaceClassLoader()
Shell->>Reflect: getStaticField("android.app.ActivityThread", "sCurrentActivityThread")
Reflect-->>Shell: ActivityThread实例
Shell->>Reflect: getField("android.app.ActivityThread", activityThread, "mPackages")
Reflect-->>Shell: ArrayMap>
Shell->>Shell: 通过包名获取LoadedApk的WeakReference
Shell->>Shell: 从WeakReference获取LoadedApk实例
Shell->>Shell: new DexClassLoader(apkPath, dexPath, libPath, parent)
Shell->>Reflect: setField("android.app.LoadedApk", "mClassLoader", loadedApk, dexClassLoader)
Reflect-->>Shell: ClassLoader替换完成
System->>Shell: onCreate()
Note over Shell: 第三阶段：Application替换
Shell->>Shell: replaceApplication()
Shell->>Shell: 从meta-data获取源Application类名
Shell->>Shell: 通过新ClassLoader加载源Application类
Shell->>Source: 创建源Application实例
Shell->>Reflect: 获取ActivityThread.mBoundApplication
Shell->>Reflect: 获取LoadedApk实例
Shell->>Reflect: setField("android.app.LoadedApk", "mApplication", loadedApk, null)
Shell->>Reflect: getField("android.app.ActivityThread", activityThread, "mInitialApplication")
Shell->>Reflect: getField("android.app.ActivityThread", activityThread, "mAllApplications")
Shell->>Shell: 从mAllApplications中移除旧Application
Shell->>Shell: 更新ApplicationInfo.className为源Application类名

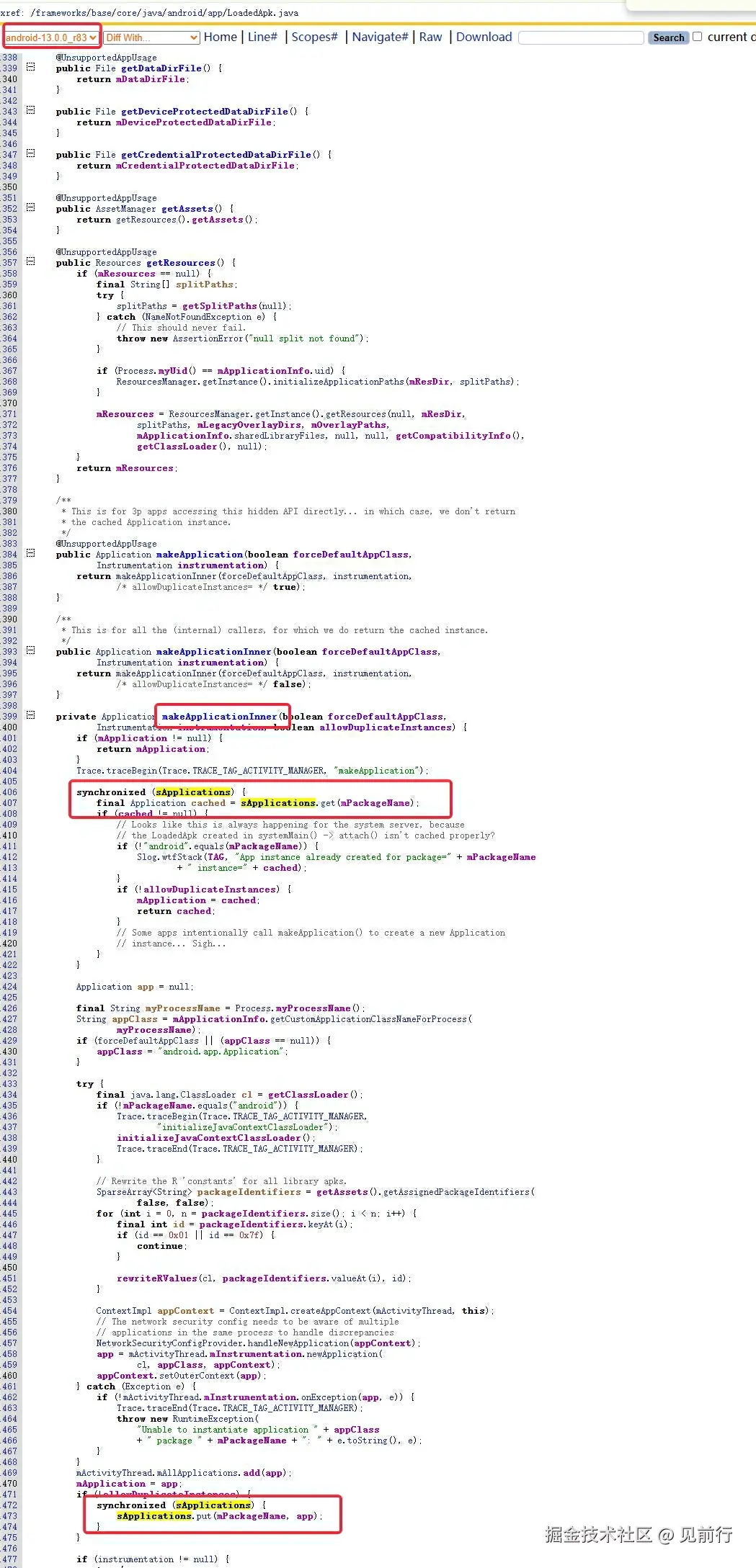

Shell->>Reflect: invokeMethod("android.app.LoadedApk", "makeApplication", loadedApk, ...)
Reflect->>Source: 创建源Application实例
Source-->>Reflect: 新Application实例
Reflect-->>Shell: 源Application创建完成
Shell->>Reflect: setField("android.app.ActivityThread", "mInitialApplication", activityThread, sourceApp)
Shell->>Shell: 处理ContentProvider引用
Shell->>Source: sourceApplication.onCreate()
Source->>Source: 执行源程序初始化逻辑
Source-->>Shell: 源程序启动完成
Shell-->>System: 加固程序运行成功
2.3 版本对比分析
2.3.1 V1与V2版本概述
ShellProxyApplicationV1 - 传统实现方案
- 适用于Android 5.0 - Android 12
- 使用
LoadedApk.makeApplication()创建源Application - 依赖反射调用系统内部方法
- 实现相对简单，但在高版本Android中受限

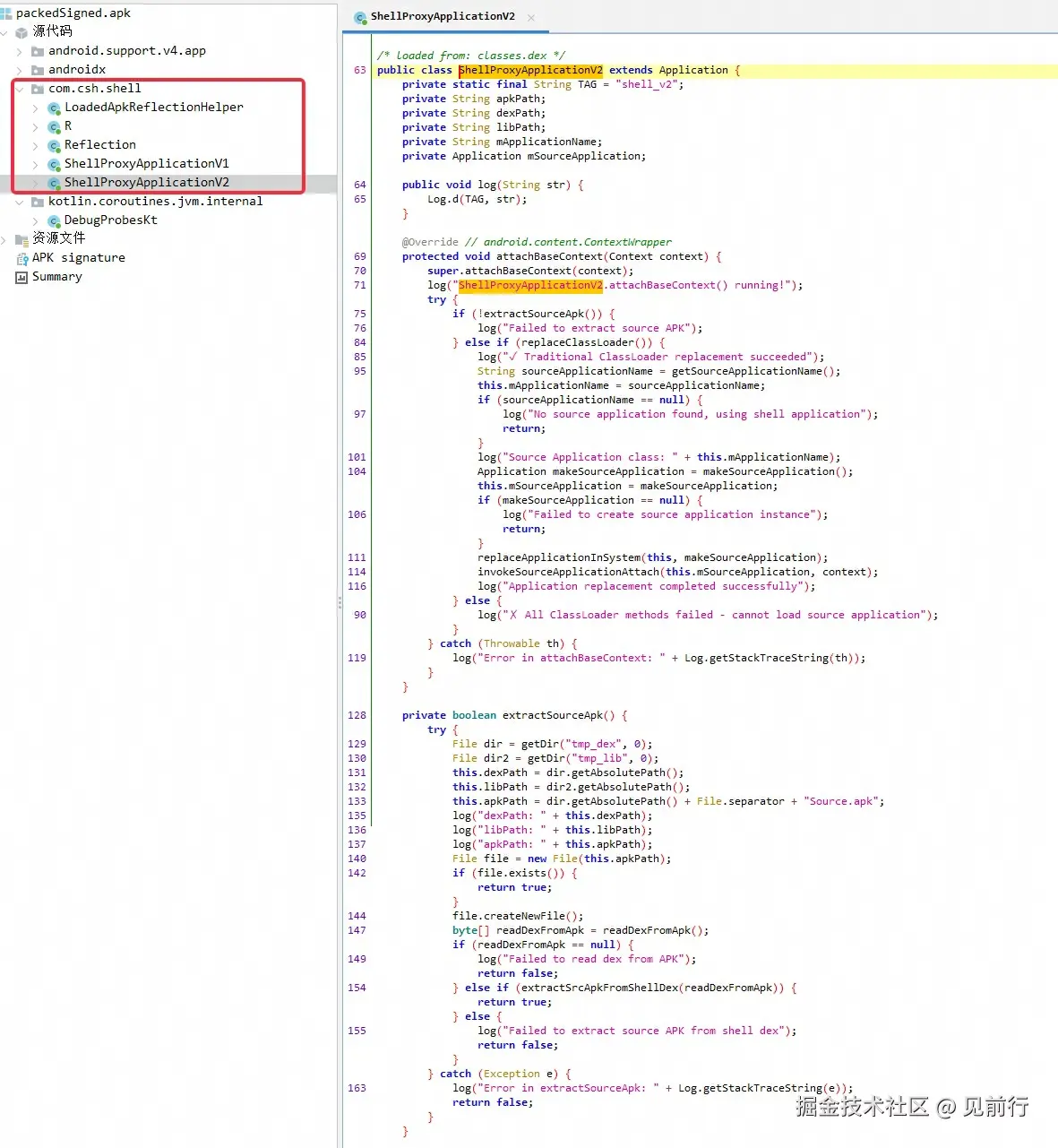

ShellProxyApplicationV2 - 兼容性增强方案
- 适用于Android 5.0+，特别优化Android 13+
- 使用直接实例化方式创建源Application
- 更完善的系统引用替换机制
- 增强的错误处理和兼容性检查
- 当前推荐使用的版本
2.3.2 构建配置特点（两版本共同）
kotlin
android {
defaultConfig {
multiDexEnabled = false // 强制单DEX，确保只生成一个classes.dex
}
signingConfigs {
create("release") {
// 使用项目统一的签名配置
storeFile = file("${project.rootDir}/JKS/AppShield")
}
}
}2.4 共同实现流程
2.4.1 阶段1: attachBaseContext() - 环境准备（两版本相同）
java
@Override
protected void attachBaseContext(Context base) {
super.attachBaseContext(base);
// 1. 创建私有目录保存解密文件
File dex = getDir("tmp_dex", MODE_PRIVATE);
File lib = getDir("tmp_lib", MODE_PRIVATE);
dexPath = dex.getAbsolutePath();
libPath = lib.getAbsolutePath();
apkPath = dex.getAbsolutePath() + File.separator + "Source.apk";
// 2. 首次运行时解密源APK
File apkFile = new File(apkPath);
if (!apkFile.exists()) {

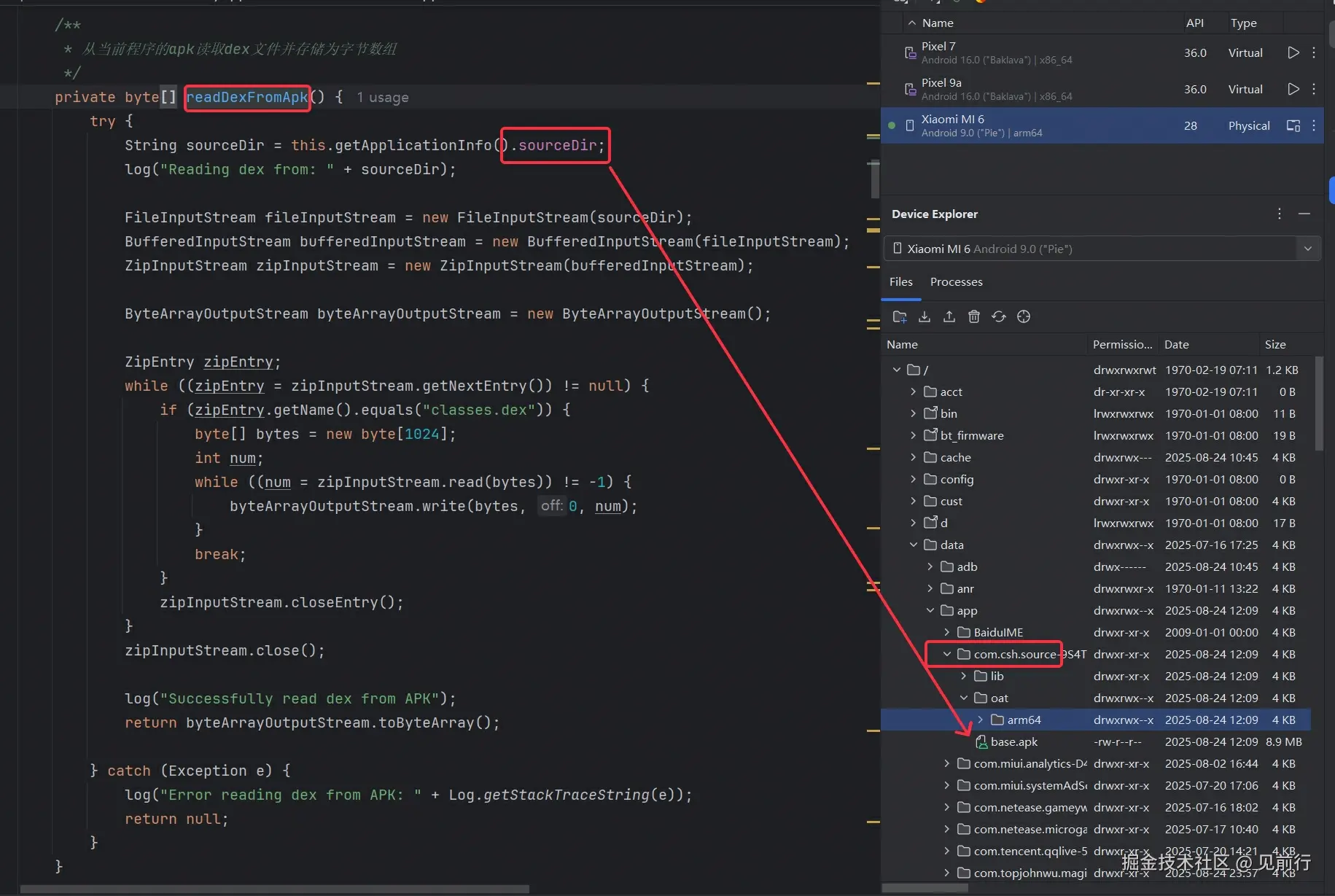

byte[] shellDexData = readDexFromApk(); // 读取当前APK的classes.dex
extractSrcApkFromShellDex(shellDexData); // 从DEX末尾提取加密的源APK
}
// 3. 替换ClassLoader
replaceClassLoader();
}2.4.2 阶段2: 源APK解密和提取（两版本相同）
java
private void extractSrcApkFromShellDex(byte[] shellDexData) throws IOException {
int shellDexLen = shellDexData.length;
// 1. 读取源APK大小（DEX末尾4字节，小端存储）
byte[] srcApkSizeBytes = new byte[4];
System.arraycopy(shellDexData, shellDexLen - 4, srcApkSizeBytes, 0, 4);
int srcApkSize = ByteBuffer.wrap(srcApkSizeBytes).order(ByteOrder.LITTLE_ENDIAN).getInt();
// 2. 提取加密的源APK数据
byte[] sourceApkData = new byte[srcApkSize];
System.arraycopy(shellDexData, shellDexLen - srcApkSize - 4, sourceApkData, 0, srcApkSize);
// 3. 解密源APK（异或0xFF）
sourceApkData = decrypt(sourceApkData);
// 4. 保存解密后的源APK到私有目录
File apkfile = new File(apkPath);
FileOutputStream apkfileOutputStream = new FileOutputStream(apkfile);
apkfileOutputStream.write(sourceApkData);
apkfileOutputStream.close();
// 5. 提取源APK中的SO库文件到libPath目录
extractNativeLibraries(apkfile);
}
/**
* 简单的异或解密
*/
private byte[] decrypt(byte[] data) {
for (int i = 0; i < data.length; i++) {
data[i] = (byte) (data[i] ^ 0xFF);
}
return data;
}2.4.3 阶段3: ClassLoader替换（两版本相同）
java
private void replaceClassLoader() {
// 1. 获取当前的ClassLoader
ClassLoader classLoader = this.getClassLoader();
// 2. 获取当前ActivityThread实例
Object sCurrentActivityThreadObj = Reflection.getStaticField("android.app.ActivityThread", "sCurrentActivityThread");
// 3. 获取当前应用的LoadedApk对象
ArrayMap mPackagesObj = (ArrayMap) Reflection.getField("android.app.ActivityThread", sCurrentActivityThreadObj, "mPackages");
String currentPackageName = this.getPackageName();
WeakReference weakReference = (WeakReference) mPackagesObj.get(currentPackageName);
Object loadedApkObj = weakReference.get();
// 4. 创建新的DexClassLoader加载源APK
DexClassLoader dexClassLoader = new DexClassLoader(apkPath, dexPath, libPath, classLoader.getParent());
// 5. 替换LoadedApk的mClassLoader
Reflection.setField("android.app.LoadedApk", "mClassLoader", loadedApkObj, dexClassLoader);
}2.5 核心差异对比：Application创建与替换
2.5.1 V1版本：反射调用系统的makeApplication()方法
V1版本的核心特点：依赖系统makeApplication()方法
java
public boolean replaceApplication() {
// 1. 获取源程序的Application类名
String appClassName = getSourceApplicationName();
if (appClassName == null) {
log("源程序中没有自定义Application");
return false;
}
// 2. 获取ActivityThread和LoadedApk实例
Object sCurrentActivityThreadObj = Reflection.getStaticField(
"android.app.ActivityThread", "sCurrentActivityThread");
Object infoObj = getLoadedApk(sCurrentActivityThreadObj);
// 3. 重置LoadedApk的mApplication为null（关键步骤）
Reflection.setField("android.app.LoadedApk", "mApplication", infoObj, null);
// 4. 从ActivityThread移除旧的Application
Object mInitialApplicationObj = Reflection.getField(
"android.app.ActivityThread", sCurrentActivityThreadObj, "mInitialApplication");
ArrayList<Application> mAllApplicationsObj = (ArrayList<Application>)
Reflection.getField("android.app.ActivityThread", sCurrentActivityThreadObj, "mAllApplications");
mAllApplicationsObj.remove(mInitialApplicationObj);
// 5. 设置新的Application类名到ApplicationInfo
ApplicationInfo applicationInfo = (ApplicationInfo) Reflection.getField(
"android.app.LoadedApk", infoObj, "mApplicationInfo");
ApplicationInfo appinfoInAppBindData = (ApplicationInfo) Reflection.getField(
"android.app.ActivityThread$AppBindData", mBoundApplicationObj, "appInfo");
applicationInfo.className = appClassName;
appinfoInAppBindData.className = appClassName;
// 6. 【关键差异】调用系统的makeApplication方法创建Application
Application application = (Application) Reflection.invokeMethod(
"android.app.LoadedApk", "makeApplication", infoObj,
new Class[]{boolean.class, Instrumentation.class},
new Object[]{false, null});
// 7. 重置ActivityThread的mInitialApplication
Reflection.setField("android.app.ActivityThread", "mInitialApplication",
sCurrentActivityThreadObj, application);
// 8. 处理ContentProvider的Application引用
updateContentProviderReferences(sCurrentActivityThreadObj, application);
// 9. 调用源程序Application的onCreate
application.onCreate();
return true;
}V1版本优势：
- 使用系统标准的Application创建流程
- 自动处理Application的生命周期
- 代码相对简洁
V1版本劣势：
- Android 13+增加了makeApplication创建Application的校验，sApplications存储者一个包名对应初始化过的Application，而这个sApplications常识过反射获取不到，修改不了
- 依赖系统内部实现，兼容性风险较高
- 错误处理相对简单
2.5.2 V2版本：直接使用反射实例化Application方式
V2版本的核心特点：绕过makeApplication限制
java
@Override
protected void attachBaseContext(Context base) {
super.attachBaseContext(base);
try {
// 1-3. 前三个阶段与V1相同
extractSrcApkFromShellDex();
replaceClassLoader();
mApplicationName = getSourceApplicationName();
// 4. 【关键差异】直接创建源Application实例
mSourceApplication = makeSourceApplication();
if (mSourceApplication == null) {
log("Failed to create source application instance");
return;
}
// 5. 【关键差异】手动替换系统中的Application引用
replaceApplicationInSystem(this, mSourceApplication);
// 6. 【关键差异】手动调用源Application的attachBaseContext
invokeSourceApplicationAttach(mSourceApplication, base);
} catch (Throwable e) {
log("Error in attachBaseContext: " + Log.getStackTraceString(e));
}
}
/**
* 【关键差异】直接实例化源Application，不依赖系统makeApplication
*/
private Application makeSourceApplication() {
try {
ClassLoader classLoader = getClassLoader();
Class<?> sourceAppClass = classLoader.loadClass(mApplicationName);
Application application = (Application) sourceAppClass.newInstance();
log("Successfully created source application: " + application.getClass().getName());
return application;
} catch (Throwable e) {
log("Error creating source application: " + Log.getStackTraceString(e));
return null;
}
}
/**
* 【关键差异】手动替换系统中的所有Application引用
*/
private void replaceApplicationInSystem(Application shellApp, Application sourceApp) throws Exception {
// 1. 替换ContextImpl中LoadedApk的mApplication
Context contextImpl = getApplicationContext();
if (contextImpl != null) {
Class<?> contextImplClass = Class.forName("android.app.ContextImpl");
Field mPackageInfoField = findField(contextImplClass, "mPackageInfo");
if (mPackageInfoField != null) {
Object loadedApk = mPackageInfoField.get(contextImpl);
if (loadedApk != null) {
Field mApplicationField = findField(loadedApk.getClass(), "mApplication");
if (mApplicationField != null) {
mApplicationField.set(loadedApk, sourceApp);
log("✓ Replaced LoadedApk.mApplication");
}
}
}
}
// 2. 替换ActivityThread中的Application引用
Object activityThread = getActivityThread();
if (activityThread != null) {
// 替换mInitialApplication
Field mInitialApplicationField = findField(activityThread.getClass(), "mInitialApplication");
if (mInitialApplicationField != null) {
mInitialApplicationField.set(activityThread, sourceApp);
log("✓ Replaced ActivityThread.mInitialApplication");
}
// 替换mAllApplications列表
Field mAllApplicationsField = findField(activityThread.getClass(), "mAllApplications");
if (mAllApplicationsField != null) {
@SuppressWarnings("unchecked")
ArrayList<Application> mAllApplications = (ArrayList<Application>) mAllApplicationsField.get(activityThread);
if (mAllApplications != null) {
mAllApplications.remove(shellApp);
mAllApplications.add(sourceApp);
log("✓ Updated ActivityThread.mAllApplications");
}
}
// 更新mBoundApplication的信息
updateBoundApplicationInfo(activityThread, mApplicationName);
}
}
/**
* 【关键差异】手动调用源Application的attachBaseContext
*/
private void invokeSourceApplicationAttach(Application application, Context baseContext) throws Exception {
try {
Method attachMethod = findMethod(Application.class, "attachBaseContext");
if (attachMethod != null) {
attachMethod.invoke(application, baseContext);
log("✓ Successfully called attachBaseContext on source application");
}
} catch (Exception e) {
log("⚠ Failed to call attachBaseContext, trying manual context attachment");
manuallyAttachContext(application, baseContext);
}
}
@Override
public void onCreate() {
super.onCreate();
// 【关键差异】在onCreate中调用源Application的onCreate
if (mSourceApplication != null) {
try {
mSourceApplication.onCreate();
log("✓ Successfully called onCreate on source application");
} catch (Exception e) {
log("✗ Error calling onCreate on source application: " + Log.getStackTraceString(e));
}
}
}V2版本优势：
- 不依赖系统makeApplication方法，兼容Android 13+
V2版本劣势：
- 需手动在壳的Application生命周期调用源程序对应的生命周期方法
- 需要更多的兼容性测试
2.6 版本选择指南
| 特性 | V1版本 | V2版本 |
|---|---|---|
| 兼容性 | Android 5.0-12 | Android 5.0+ (包括13+) |
| 实现方式 | 系统makeApplication | 直接实例化 |
| 代码复杂度 | 简单 | 复杂 |
| 错误处理 | 基础 | 完善 |
| 推荐使用 | 旧版本兼容 | 生产环境推荐 |
技术总结：
- V1版本是以前流行的公开通用版本
- V2版本是目前生产环境的最佳选择，能够应对最新的Android版本限制
- 两个版本在前三个阶段（源APK提取、解密、ClassLoader替换）完全相同
- 核心差异在于Application的创建和系统引用替换方式
2.7 反射辅助工具 (LoadedApkReflectionHelper.java)
java
public class LoadedApkReflectionHelper {
private static final String TAG = "LoadedApkHelper";
public static Object getCurrentActivityThread() throws Exception {
Class<?> activityThreadClass = Class.forName("android.app.ActivityThread");
Field sCurrentActivityThreadField = activityThreadClass.getDeclaredField("sCurrentActivityThread");
sCurrentActivityThreadField.setAccessible(true);
return sCurrentActivityThreadField.get(null);
}
public static Object getLoadedApk(Object activityThread, String packageName) throws Exception {
Field mPackagesField = activityThread.getClass().getDeclaredField("mPackages");
mPackagesField.setAccessible(true);
ArrayMap<String, WeakReference<?>> packages =
(ArrayMap<String, WeakReference<?>>) mPackagesField.get(activityThread);
WeakReference<?> loadedApkRef = packages.get(packageName);
if (loadedApkRef == null) {
throw new RuntimeException("LoadedApk not found for package: " + packageName);
}
Object loadedApk = loadedApkRef.get();
if (loadedApk == null) {
throw new RuntimeException("LoadedApk has been garbage collected");
}
return loadedApk;
}
public static ArrayMap<String, WeakReference<?>> getApplications(Object activityThread) throws Exception {
Field sApplicationsField = Class.forName("android.app.LoadedApk").getDeclaredField("sApplications");
sApplicationsField.setAccessible(true);
return (ArrayMap<String, WeakReference<?>>) sApplicationsField.get(null);
}
public static Set<String> getAllPackageNames(Object activityThread) throws Exception {
ArrayMap<String, WeakReference<?>> applications = getApplications(activityThread);
return new HashSet<>(applications.keySet());
}
}2.8 总结关键技术点
- DEX文件结构理解: 准确解析DEX文件格式，提取嵌入的源APK
- Android类加载机制: 深入理解ClassLoader层次结构和加载流程
- Application生命周期: 正确处理Application的创建和初始化时序
- 反射技术: 大量使用反射访问和修改系统私有字段和方法
- 高版本兼容性处理: V2版本通过直接实例化Application绕过Android 13+的对LoadedApk.makeApplication()限制
- 了解应用安装后源apk文件存在的目录：然后从可以从这里加载源apk,读取加密后的源dex文件
模块三：Source-App 源程序模块
3.1 模块概述
Source-App模块是AppShield项目中的被保护程序，它是一个功能完整的Android应用程序，专门设计用于演示加壳保护技术。该模块展示了现代Android开发的最佳实践，同时针对加壳需求进行了特殊优化。
3.1.1 设计目标
- 单DEX约束: 确保应用编译为单个DEX文件，满足加壳工具的处理要求，学习阶段，demo实现单dex加固会简单很多。
- 功能完整性: 提供完整的Android应用功能，包括UI、业务逻辑、数据存储等
- 技术展示: 集成多种Android技术栈，展示加壳保护的适用性
- 易于测试: 提供直观的界面和功能，便于验证加壳效果
3.2 模块架构
bash
source-app/
├── build.gradle.kts # 源程序构建配置
├── src/main/
│ ├── AndroidManifest.xml # 源程序清单文件
│ ├── cpp/ # NDK原生代码
│ │ ├── CMakeLists.txt
│ │ ├── native-lib.cpp # 静态注册JNI方法
│ │ └── dynamic-registration.cpp # 动态注册JNI方法
│ ├── java/com/csh/source/
│ │ ├── SourceApplication.kt # 自定义Application
│ │ ├── MainActivity.kt # 主Activity
│ │ ├── NativeLibrary.kt # JNI接口定义
│ │ ├── config/
│ │ │ └── AppConfig.kt # 应用配置
│ │ ├── ui/theme/ # UI主题
│ │ └── utils/
│ │ └── AppUtils.kt # 工具类
│ └── res/ # 资源文件
└── proguard-rules.pro # 混淆规则3.2 核心功能
3.2.1 单DEX文件保证机制
关键配置策略
kotlin
android {
defaultConfig {
multiDexEnabled = false // 强制单DEX
ndk {
abiFilters.addAll(arrayOf("arm64-v8a")) // 限制ABI减少方法数
}
}
buildTypes {
release {
isMinifyEnabled = true // 启用混淆压缩方法数
isShrinkResources = true // 启用资源压缩
}
}
}依赖优化策略
- 使用
implementation而不是api减少传递依赖 - 移除不必要的自动初始化器
- 限制第三方库的使用
- 通过ProGuard/R8进行代码压缩
单DEX保证的技术要点：
- 方法数限制: Android DEX文件最多支持65536个方法引用
- 依赖管理: 精简依赖，避免大型第三方库
- 代码混淆: 通过R8/ProGuard移除未使用代码
- 资源优化: 压缩资源文件，移除未使用资源
- ABI限制: 只支持主流架构，减少native库体积
3.2.2 应用架构设计
SourceApplication - 自定义Application类
- 应用生命周期管理
- 组件初始化协调
- Native库加载
- 配置管理集成
MainActivity - Compose UI主界面
- 现代化UI设计（Material Design 3）
- NDK功能测试界面
- 应用信息展示
- 配置管理界面
NDK集成 - JNI接口设计
- 静态注册JNI方法
- 动态注册JNI方法
- C++实现核心算法
- CMake构建配置
3.3 详细实现

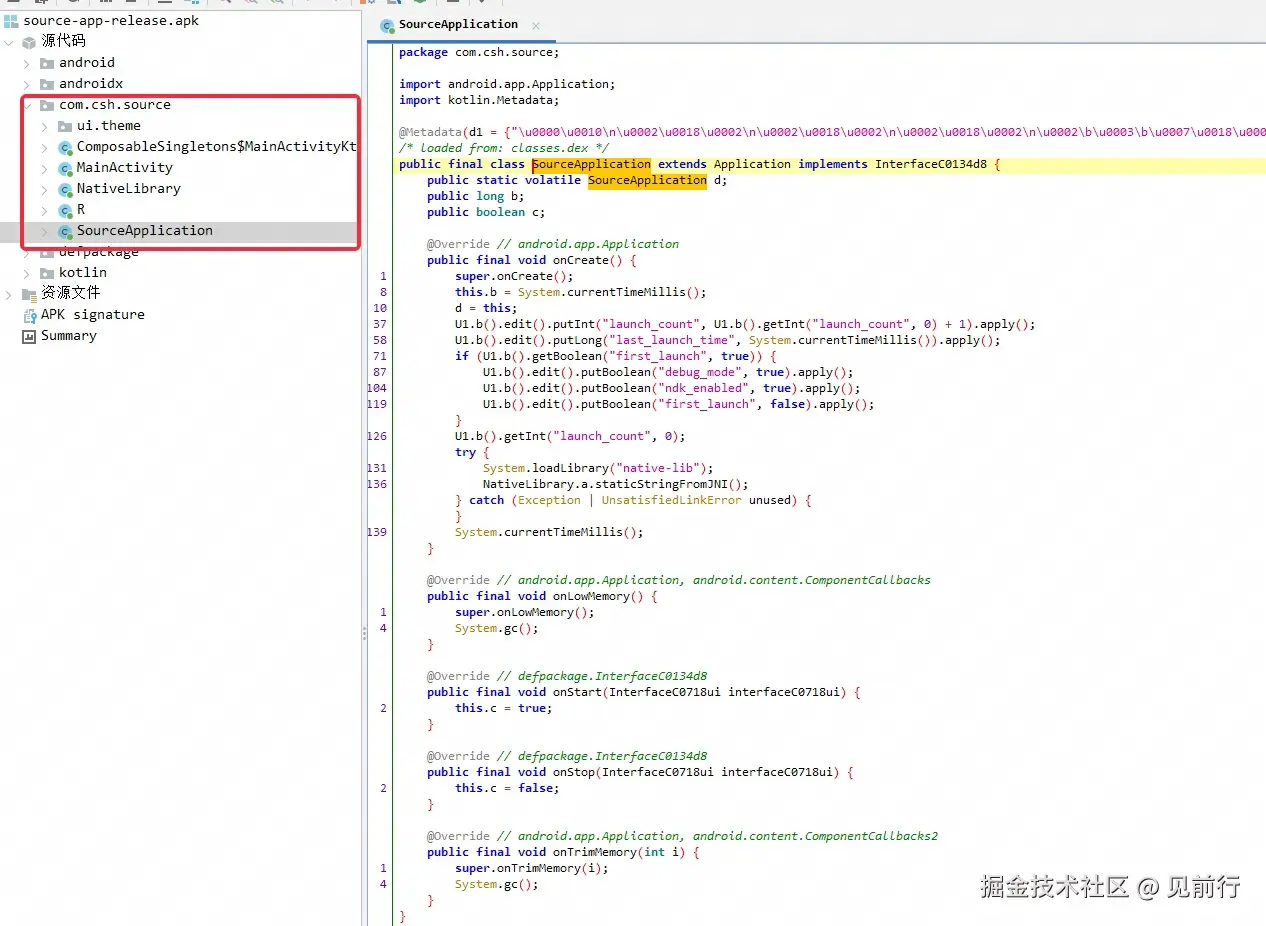

3.3.1 自定义Application (SourceApplication.kt)
kotlin
class SourceApplication : Application() {
private val tag = "SourceApplication"
override fun onCreate() {
super.onCreate()
Log.i(tag, "SourceApplication 启动")
// 初始化配置管理
AppConfig.init(this)
// 记录启动信息
logAppInfo()
}
private fun logAppInfo() {
Log.i(tag, "应用信息: ${AppUtils.getAppName()}")
Log.i(tag, "版本信息: ${AppUtils.getVersionName()} (${AppUtils.getVersionCode()})")
Log.i(tag, "包名: ${AppUtils.getPackageName()}")
}
fun getAppInfo(): String {
return buildString {
appendLine("=== SourceApplication 信息 ===")
appendLine("应用名: ${AppUtils.getAppName()}")
appendLine("包名: ${AppUtils.getPackageName()}")
appendLine("版本: ${AppUtils.getVersionName()} (${AppUtils.getVersionCode()})")
appendLine("首次启动: ${AppConfig.isFirstLaunch()}")
appendLine("调试模式: ${AppConfig.isDebugMode()}")
appendLine("启动次数: ${AppConfig.getLaunchCount()}")
}
}
companion object {
@Volatile
private var INSTANCE: SourceApplication? = null
fun getInstance(): SourceApplication {
return INSTANCE ?: throw IllegalStateException("Application not initialized")
}
internal fun setInstance(app: SourceApplication) {
INSTANCE = app
}
}
override fun attachBaseContext(base: Context?) {
super.attachBaseContext(base)
setInstance(this)
}
}3.3.2 应用工具类 (AppUtils.kt)
kotlin
object AppUtils {
private const val TAG = "AppUtils"
private lateinit var context: Context
fun init(context: Context) {
this.context = context.applicationContext
}
fun getVersionName(): String {
return try {
val packageInfo = context.packageManager.getPackageInfo(context.packageName, 0)
packageInfo.versionName ?: "Unknown"
} catch (e: Exception) {
Log.e(TAG, "获取版本名失败", e)
"Unknown"
}
}
fun getVersionCode(): Long {
return try {
val packageInfo = context.packageManager.getPackageInfo(context.packageName, 0)
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.P) {
packageInfo.longVersionCode
} else {
@Suppress("DEPRECATION")
packageInfo.versionCode.toLong()
}
} catch (e: Exception) {
Log.e(TAG, "获取版本号失败", e)
-1L
}
}
fun getPackageName(): String = context.packageName
fun getAppName(): String {
return try {
val applicationInfo = context.applicationInfo
val packageManager = context.packageManager
packageManager.getApplicationLabel(applicationInfo).toString()
} catch (e: Exception) {
Log.e(TAG, "获取应用名失败", e)
"Unknown App"
}
}
fun getFullAppInfo(): String {
return buildString {
appendLine("=== 应用详细信息 ===")
appendLine("应用名: ${getAppName()}")
appendLine("包名: ${getPackageName()}")
appendLine("版本名: ${getVersionName()}")
appendLine("版本号: ${getVersionCode()}")
appendLine("目标SDK: ${context.applicationInfo.targetSdkVersion}")
appendLine("最小SDK: ${getMinSdkVersion()}")
appendLine("")
appendLine("=== 设备信息 ===")
appendLine("设备型号: ${Build.MODEL}")
appendLine("设备厂商: ${Build.MANUFACTURER}")
appendLine("Android版本: ${Build.VERSION.RELEASE}")
appendLine("API级别: ${Build.VERSION.SDK_INT}")
appendLine("CPU架构: ${Build.SUPPORTED_ABIS.joinToString(", ")}")
appendLine("")
appendLine("=== 运行时信息 ===")
appendLine("可用内存: ${getAvailableMemory()}MB")
appendLine("总内存: ${getTotalMemory()}MB")
appendLine("存储空间: ${getAvailableStorage()}MB")
}
}
private fun getMinSdkVersion(): Int {
return try {
val packageInfo = context.packageManager.getPackageInfo(context.packageName, 0)
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.N) {
packageInfo.applicationInfo.minSdkVersion
} else {
-1
}
} catch (e: Exception) {
-1
}
}
private fun getAvailableMemory(): Long {
val activityManager = context.getSystemService(Context.ACTIVITY_SERVICE) as ActivityManager
val memoryInfo = ActivityManager.MemoryInfo()
activityManager.getMemoryInfo(memoryInfo)
return memoryInfo.availMem / (1024 * 1024)
}
private fun getTotalMemory(): Long {
val activityManager = context.getSystemService(Context.ACTIVITY_SERVICE) as ActivityManager
val memoryInfo = ActivityManager.MemoryInfo()
activityManager.getMemoryInfo(memoryInfo)
return if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN) {
memoryInfo.totalMem / (1024 * 1024)
} else {
-1L
}
}
private fun getAvailableStorage(): Long {
return try {
val stat = StatFs(context.filesDir.path)
val availableBytes = if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN_MR2) {
stat.availableBytes
} else {
@Suppress("DEPRECATION")
stat.availableBlocks.toLong() * stat.blockSize
}
availableBytes / (1024 * 1024)
} catch (e: Exception) {
-1L
}
}
}3.3.3 配置管理 (AppConfig.kt)
kotlin
object AppConfig {
private lateinit var context: Context
private lateinit var sharedPreferences: SharedPreferences
private const val TAG = "AppConfig"
private const val PREFS_NAME = "app_config"
// 配置键
private const val KEY_FIRST_LAUNCH = "first_launch"
private const val KEY_DEBUG_MODE = "debug_mode"
private const val KEY_LAST_VERSION = "last_version"
private const val KEY_LAUNCH_COUNT = "launch_count"
fun init(context: Context) {
this.context = context.applicationContext
this.sharedPreferences = context.getSharedPreferences(PREFS_NAME, Context.MODE_PRIVATE)
// 更新启动计数
updateLaunchInfo()
Log.d(TAG, "AppConfig 初始化完成")
}
private fun updateLaunchInfo() {
val currentVersion = AppUtils.getVersionCode()
val lastVersion = getLong(KEY_LAST_VERSION, -1)
val launchCount = getInt(KEY_LAUNCH_COUNT, 0)
// 更新版本信息
if (lastVersion != currentVersion) {
putLong(KEY_LAST_VERSION, currentVersion)
Log.i(TAG, "版本更新: $lastVersion -> $currentVersion")
}
// 更新启动计数
putInt(KEY_LAUNCH_COUNT, launchCount + 1)
Log.d(TAG, "应用启动次数: ${launchCount + 1}")
}
// 基础存储方法
fun putString(key: String, value: String) {
sharedPreferences.edit().putString(key, value).apply()
}
fun getString(key: String, defaultValue: String = ""): String {
return sharedPreferences.getString(key, defaultValue) ?: defaultValue
}
fun putInt(key: String, value: Int) {
sharedPreferences.edit().putInt(key, value).apply()
}
fun getInt(key: String, defaultValue: Int = 0): Int {
return sharedPreferences.getInt(key, defaultValue)
}
fun putLong(key: String, value: Long) {
sharedPreferences.edit().putLong(key, value).apply()
}
fun getLong(key: String, defaultValue: Long = 0L): Long {
return sharedPreferences.getLong(key, defaultValue)
}
fun putBoolean(key: String, value: Boolean) {
sharedPreferences.edit().putBoolean(key, value).apply()
}
fun getBoolean(key: String, defaultValue: Boolean = false): Boolean {
return sharedPreferences.getBoolean(key, defaultValue)
}
// 业务配置方法
fun isFirstLaunch(): Boolean {
val isFirst = getBoolean(KEY_FIRST_LAUNCH, true)
if (isFirst) {
putBoolean(KEY_FIRST_LAUNCH, false)
}
return isFirst
}
fun isDebugMode(): Boolean {
return getBoolean(KEY_DEBUG_MODE, BuildConfig.DEBUG)
}
fun setDebugMode(enabled: Boolean) {
putBoolean(KEY_DEBUG_MODE, enabled)
}
fun getLaunchCount(): Int {
return getInt(KEY_LAUNCH_COUNT, 0)
}
fun getLastVersion(): Long {
return getLong(KEY_LAST_VERSION, -1)
}
// 清除所有配置
fun clearAll() {
sharedPreferences.edit().clear().apply()
Log.i(TAG, "所有配置已清除")
}
// 获取配置摘要
fun getConfigSummary(): String {
return buildString {
appendLine("=== 应用配置 ===")
appendLine("首次启动: ${isFirstLaunch()}")
appendLine("调试模式: ${isDebugMode()}")
appendLine("启动次数: ${getLaunchCount()}")
appendLine("上次版本: ${getLastVersion()}")
appendLine("当前版本: ${AppUtils.getVersionCode()}")
}
}
}3.3.4 主界面Activity (MainActivity.kt)
kotlin
class MainActivity : ComponentActivity() {
private val tag = "MainActivity"
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
Log.i(tag, "MainActivity 启动")
setContent {
AppShieldTheme {
Surface(
modifier = Modifier.fillMaxSize(),
color = MaterialTheme.colorScheme.background
) {
MainScreen()
}
}
}
}
}
@Composable
fun MainScreen() {
var selectedTab by remember { mutableIntStateOf(0) }
val tabs = listOf("应用信息", "NDK测试", "配置管理")
Column {
// 顶部标题栏
TopAppBar(
title = { Text("AppShield Source App") },
colors = TopAppBarDefaults.topAppBarColors(
containerColor = MaterialTheme.colorScheme.primaryContainer
)
)
// Tab选项卡
TabRow(selectedTabIndex = selectedTab) {
tabs.forEachIndexed { index, title ->
Tab(
selected = selectedTab == index,
onClick = { selectedTab = index },
text = { Text(title) }
)
}
}
// 内容区域
when (selectedTab) {
0 -> AppInfoScreen()
1 -> NdkTestScreen()
2 -> ConfigScreen()
}
}
}
@Composable
fun AppInfoScreen() {
val context = LocalContext.current
val sourceApp = SourceApplication.getInstance()
var appInfo by remember { mutableStateOf("") }
var deviceInfo by remember { mutableStateOf("") }
LaunchedEffect(Unit) {
appInfo = sourceApp.getAppInfo()
deviceInfo = AppUtils.getFullAppInfo()
}
LazyColumn(
modifier = Modifier
.fillMaxSize()
.padding(16.dp),
verticalArrangement = Arrangement.spacedBy(16.dp)
) {
item {
InfoCard(
title = "自定义Application信息",
content = appInfo
)
}
item {
InfoCard(
title = "设备详细信息",
content = deviceInfo
)
}
item {
InfoCard(
title = "配置信息",
content = AppConfig.getConfigSummary()
)
}
}
}
@Composable
fun NdkTestScreen() {
var staticResult by remember { mutableStateOf("") }
var dynamicResult by remember { mutableStateOf("") }
var testResults by remember { mutableStateOf("") }
LazyColumn(
modifier = Modifier
.fillMaxSize()
.padding(16.dp),
verticalArrangement = Arrangement.spacedBy(16.dp)
) {
item {
Text(
text = "NDK功能测试",
style = MaterialTheme.typography.headlineMedium,
modifier = Modifier.padding(bottom = 8.dp)
)
}
// 静态注册测试
item {
Card {
Column(
modifier = Modifier.padding(16.dp)
) {
Text(
text = "静态注册方法测试",
style = MaterialTheme.typography.titleMedium
)
Spacer(modifier = Modifier.height(8.dp))
Row(
horizontalArrangement = Arrangement.spacedBy(8.dp)
) {
Button(
onClick = {
staticResult = try {
"字符串: ${NativeLibrary.staticStringFromJNI()}\n" +
"加法: ${NativeLibrary.staticAddNumbers(10, 20)}\n" +
"数组求和: ${NativeLibrary.staticSumArray(intArrayOf(1, 2, 3, 4, 5))}"
} catch (e: Exception) {
"错误: ${e.message}"
}
}
) {
Text("测试静态方法")
}
}
if (staticResult.isNotEmpty()) {
Spacer(modifier = Modifier.height(8.dp))
Text(
text = staticResult,
style = MaterialTheme.typography.bodyMedium,
modifier = Modifier
.background(
MaterialTheme.colorScheme.surfaceVariant,
RoundedCornerShape(4.dp)
)
.padding(8.dp)
.fillMaxWidth()
)
}
}
}
}
// 动态注册测试
item {
Card {
Column(
modifier = Modifier.padding(16.dp)
) {
Text(
text = "动态注册方法测试",
style = MaterialTheme.typography.titleMedium
)
Spacer(modifier = Modifier.height(8.dp))
Row(
horizontalArrangement = Arrangement.spacedBy(8.dp)
) {
Button(
onClick = {
dynamicResult = try {
"设备信息: ${NativeLibrary.dynamicGetDeviceInfo()}\n" +
"字符串反转: ${NativeLibrary.dynamicReverseString("Hello World")}\n" +
"斐波那契(10): ${NativeLibrary.dynamicFibonacci(10)}"
} catch (e: Exception) {
"错误: ${e.message}"
}
}
) {
Text("测试动态方法")
}
}
if (dynamicResult.isNotEmpty()) {
Spacer(modifier = Modifier.height(8.dp))
Text(
text = dynamicResult,
style = MaterialTheme.typography.bodyMedium,
modifier = Modifier
.background(
MaterialTheme.colorScheme.surfaceVariant,
RoundedCornerShape(4.dp)
)
.padding(8.dp)
.fillMaxWidth()
)
}
}
}
}
// 综合测试
item {
Card {
Column(
modifier = Modifier.padding(16.dp)
) {
Text(
text = "综合性能测试",
style = MaterialTheme.typography.titleMedium
)
Spacer(modifier = Modifier.height(8.dp))
Button(
onClick = {
testResults = performComprehensiveTest()
},
modifier = Modifier.fillMaxWidth()
) {
Text("运行综合测试")
}
if (testResults.isNotEmpty()) {
Spacer(modifier = Modifier.height(8.dp))
Text(
text = testResults,
style = MaterialTheme.typography.bodyMedium,
modifier = Modifier
.background(
MaterialTheme.colorScheme.surfaceVariant,
RoundedCornerShape(4.dp)
)
.padding(8.dp)
.fillMaxWidth()
)
}
}
}
}
}
}
@Composable
fun ConfigScreen() {
var debugMode by remember { mutableStateOf(AppConfig.isDebugMode()) }
LazyColumn(
modifier = Modifier
.fillMaxSize()
.padding(16.dp),
verticalArrangement = Arrangement.spacedBy(16.dp)
) {
item {
Text(
text = "应用配置",
style = MaterialTheme.typography.headlineMedium
)
}
item {
Card {
Column(
modifier = Modifier.padding(16.dp)
) {
Row(
modifier = Modifier.fillMaxWidth(),
horizontalArrangement = Arrangement.SpaceBetween,
verticalAlignment = Alignment.CenterVertically
) {
Text("调试模式")
Switch(
checked = debugMode,
onCheckedChange = {
debugMode = it
AppConfig.setDebugMode(it)
}
)
}
}
}
}
item {
InfoCard(
title = "配置详情",
content = AppConfig.getConfigSummary()
)
}
item {
Button(
onClick = {
AppConfig.clearAll()
},
colors = ButtonDefaults.buttonColors(
containerColor = MaterialTheme.colorScheme.error
),
modifier = Modifier.fillMaxWidth()
) {
Text("清除所有配置")
}
}
}
}
@Composable
fun InfoCard(
title: String,
content: String
) {
Card {
Column(
modifier = Modifier.padding(16.dp)
) {
Text(
text = title,
style = MaterialTheme.typography.titleMedium,
modifier = Modifier.padding(bottom = 8.dp)
)
Text(
text = content,
style = MaterialTheme.typography.bodyMedium,
modifier = Modifier
.background(
MaterialTheme.colorScheme.surfaceVariant,
RoundedCornerShape(4.dp)
)
.padding(8.dp)
.fillMaxWidth()
)
}
}
}
private fun performComprehensiveTest(): String {
return try {
val startTime = System.currentTimeMillis()
// 测试静态方法
val staticTests = buildString {
appendLine("=== 静态注册测试 ===")
appendLine("字符串: ${NativeLibrary.staticStringFromJNI()}")
appendLine("加法 (100+200): ${NativeLibrary.staticAddNumbers(100, 200)}")
val largeArray = IntArray(1000) { it + 1 }
val sum = NativeLibrary.staticSumArray(largeArray)
appendLine("大数组求和 (1-1000): $sum")
}
// 测试动态方法
val dynamicTests = buildString {
appendLine("\n=== 动态注册测试 ===")
appendLine("设备信息: ${NativeLibrary.dynamicGetDeviceInfo()}")
appendLine("字符串反转: ${NativeLibrary.dynamicReverseString("AppShield Test")}")
appendLine("斐波那契(20): ${NativeLibrary.dynamicFibonacci(20)}")
}
val endTime = System.currentTimeMillis()
val duration = endTime - startTime
staticTests + dynamicTests + "\n=== 性能统计 ===\n测试耗时: ${duration}ms"
} catch (e: Exception) {
"测试失败: ${e.message}"
}
}3.4 NDK集成
3.4.1 JNI接口定义 (NativeLibrary.kt)
kotlin
object NativeLibrary {
private const val TAG = "NativeLibrary"
init {
try {
System.loadLibrary("native-lib")
Log.i(TAG, "Native库加载成功")
} catch (e: UnsatisfiedLinkError) {
Log.e(TAG, "Native库加载失败", e)
throw e
}
}
// ========== 静态注册方法 ==========
/**
* 获取来自C++的字符串
*/
external fun staticStringFromJNI(): String
/**
* 两个整数相加
*/
external fun staticAddNumbers(a: Int, b: Int): Int
/**
* 计算整数数组的和
*/
external fun staticSumArray(array: IntArray): Long
// ========== 动态注册方法 ==========
/**
* 获取设备信息
*/
external fun dynamicGetDeviceInfo(): String
/**
* 反转字符串
*/
external fun dynamicReverseString(input: String): String
/**
* 计算斐波那契数列
*/
external fun dynamicFibonacci(n: Int): Long
}3.4.2 C++实现 (native-lib.cpp)
cpp
#include <jni.h>
#include <string>
#include <android/log.h>
#include <vector>
#include <sys/system_properties.h>
#define LOG_TAG "NativeLib"
#define LOGI(...) __android_log_print(ANDROID_LOG_INFO, LOG_TAG, __VA_ARGS__)
#define LOGE(...) __android_log_print(ANDROID_LOG_ERROR, LOG_TAG, __VA_ARGS__)
// 声明动态注册函数
extern "C" int registerDynamicMethods(JNIEnv *env);
// ========== 静态注册方法实现 ==========
extern "C" JNIEXPORT jstring JNICALL
Java_com_csh_source_NativeLibrary_staticStringFromJNI(JNIEnv *env, jclass clazz) {
std::string hello = "Hello from C++ (Static Registration) - AppShield";
LOGI("staticStringFromJNI called");
return env->NewStringUTF(hello.c_str());
}
extern "C" JNIEXPORT jint JNICALL
Java_com_csh_source_NativeLibrary_staticAddNumbers(JNIEnv *env, jclass clazz, jint a, jint b) {
jint result = a + b;
LOGI("staticAddNumbers: %d + %d = %d", a, b, result);
return result;
}
extern "C" JNIEXPORT jlong JNICALL
Java_com_csh_source_NativeLibrary_staticSumArray(JNIEnv *env, jclass clazz, jintArray array) {
if (array == nullptr) {
LOGE("Array is null");
return 0;
}
jsize length = env->GetArrayLength(array);
jint *elements = env->GetIntArrayElements(array, nullptr);
if (elements == nullptr) {
LOGE("Failed to get array elements");
return 0;
}
jlong sum = 0;
for (jsize i = 0; i < length; i++) {
sum += elements[i];
}
env->ReleaseIntArrayElements(array, elements, JNI_ABORT);
LOGI("staticSumArray: length=%d, sum=%lld", length, sum);
return sum;
}
// ========== JNI_OnLoad ==========
extern "C" JNIEXPORT jint JNICALL
JNI_OnLoad(JavaVM *vm, void *reserved) {
LOGI("JNI_OnLoad called");
JNIEnv *env;
if (vm->GetEnv(reinterpret_cast<void **>(&env), JNI_VERSION_1_6) != JNI_OK) {
LOGE("Failed to get JNI environment");
return JNI_ERR;
}
// 注册动态方法
if (registerDynamicMethods(env) != JNI_OK) {
LOGE("Failed to register dynamic methods");
return JNI_ERR;
}
LOGI("JNI_OnLoad completed successfully");
return JNI_VERSION_1_6;
}3.4.3 动态注册实现 (dynamic-registration.cpp)
cpp
#include <jni.h>
#include <string>
#include <android/log.h>
#include <algorithm>
#include <sys/system_properties.h>
#include <unistd.h>
#include <sys/utsname.h>
#define LOG_TAG "DynamicReg"
#define LOGI(...) __android_log_print(ANDROID_LOG_INFO, LOG_TAG, __VA_ARGS__)
#define LOGE(...) __android_log_print(ANDROID_LOG_ERROR, LOG_TAG, __VA_ARGS__)
// ========== 动态注册方法实现 ==========
jstring dynamicGetDeviceInfo(JNIEnv *env, jobject thiz) {
LOGI("dynamicGetDeviceInfo called");
char manufacturer[PROP_VALUE_MAX];
char model[PROP_VALUE_MAX];
char version[PROP_VALUE_MAX];
char sdk[PROP_VALUE_MAX];
__system_property_get("ro.product.manufacturer", manufacturer);
__system_property_get("ro.product.model", model);
__system_property_get("ro.build.version.release", version);
__system_property_get("ro.build.version.sdk", sdk);
struct utsname unameData;
uname(&unameData);
std::string deviceInfo = "设备信息:\n";
deviceInfo += "厂商: " + std::string(manufacturer) + "\n";
deviceInfo += "型号: " + std::string(model) + "\n";
deviceInfo += "Android版本: " + std::string(version) + "\n";
deviceInfo += "SDK版本: " + std::string(sdk) + "\n";
deviceInfo += "内核版本: " + std::string(unameData.release) + "\n";
deviceInfo += "架构: " + std::string(unameData.machine) + "\n";
deviceInfo += "进程ID: " + std::to_string(getpid());
return env->NewStringUTF(deviceInfo.c_str());
}
jstring dynamicReverseString(JNIEnv *env, jobject thiz, jstring input) {
if (input == nullptr) {
LOGE("Input string is null");
return env->NewStringUTF("");
}
const char *inputStr = env->GetStringUTFChars(input, nullptr);
if (inputStr == nullptr) {
LOGE("Failed to get input string");
return env->NewStringUTF("");
}
std::string str(inputStr);
std::reverse(str.begin(), str.end());
env->ReleaseStringUTFChars(input, inputStr);
LOGI("dynamicReverseString: reversed string length=%zu", str.length());
return env->NewStringUTF(str.c_str());
}
jlong dynamicFibonacci(JNIEnv *env, jobject thiz, jint n) {
LOGI("dynamicFibonacci called with n=%d", n);
if (n <= 0) return 0;
if (n == 1) return 1;
// 使用迭代方式计算，避免递归栈溢出
jlong prev = 0, curr = 1;
for (jint i = 2; i <= n; i++) {
jlong next = prev + curr;
prev = curr;
curr = next;
}
LOGI("dynamicFibonacci: fib(%d) = %lld", n, curr);
return curr;
}
// ========== 方法注册表 ==========
static JNINativeMethod gMethods[] = {
{
"dynamicGetDeviceInfo",
"()Ljava/lang/String;",
(void*)dynamicGetDeviceInfo
},
{
"dynamicReverseString",
"(Ljava/lang/String;)Ljava/lang/String;",
(void*)dynamicReverseString
},
{
"dynamicFibonacci",
"(I)J",
(void*)dynamicFibonacci
}
};
// ========== 注册函数 ==========
extern "C" int registerDynamicMethods(JNIEnv *env) {
LOGI("Registering dynamic methods...");
const char *className = "com/csh/source/NativeLibrary";
jclass clazz = env->FindClass(className);
if (clazz == nullptr) {
LOGE("Failed to find class %s", className);
return JNI_ERR;
}
int methodCount = sizeof(gMethods) / sizeof(gMethods[0]);
if (env->RegisterNatives(clazz, gMethods, methodCount) < 0) {
LOGE("Failed to register native methods");
env->DeleteLocalRef(clazz);
return JNI_ERR;
}
env->DeleteLocalRef(clazz);
LOGI("Successfully registered %d dynamic methods", methodCount);
return JNI_OK;
}3.4.4 CMake构建配置 (CMakeLists.txt)
cmake
cmake_minimum_required(VERSION 3.22.1)
# 设置项目名称
project("native-lib")
# 设置C++标准
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)
# 添加编译选项
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wall -Wextra -O2")
# 创建共享库
add_library(
native-lib
SHARED
native-lib.cpp
dynamic-registration.cpp
)
# 查找并链接所需的库
find_library(
log-lib
log
)
# 链接库
target_link_libraries(
native-lib
${log-lib}
)
# 设置包含目录
target_include_directories(
native-lib
PRIVATE
${CMAKE_CURRENT_SOURCE_DIR}
)
# 添加预处理器定义
target_compile_definitions(
native-lib
PRIVATE
ANDROID_NDK
)3.4.5 UI主题配置 (AppShieldTheme.kt)
kotlin
@Composable
fun AppShieldTheme(
darkTheme: Boolean = isSystemInDarkTheme(),
dynamicColor: Boolean = true,
content: @Composable () -> Unit
) {
val colorScheme = when {
dynamicColor && Build.VERSION.SDK_INT >= Build.VERSION_CODES.S -> {
val context = LocalContext.current
if (darkTheme) dynamicDarkColorScheme(context) else dynamicLightColorScheme(context)
}
darkTheme -> DarkColorScheme
else -> LightColorScheme
}
MaterialTheme(
colorScheme = colorScheme,
typography = Typography,
content = content
)
}
private val DarkColorScheme = darkColorScheme(
primary = Purple80,
secondary = PurpleGrey80,
tertiary = Pink80
)
private val LightColorScheme = lightColorScheme(
primary = Purple40,
secondary = PurpleGrey40,
tertiary = Pink40
)
// 颜色定义
val Purple80 = Color(0xFFD0BCFF)
val PurpleGrey80 = Color(0xFFCCC2DC)
val Pink80 = Color(0xFFEFB8C8)
val Purple40 = Color(0xFF6650a4)
val PurpleGrey40 = Color(0xFF625b71)
val Pink40 = Color(0xFF7D5260)
// 字体样式定义
val Typography = Typography(
bodyLarge = TextStyle(
fontFamily = FontFamily.Default,
fontWeight = FontWeight.Normal,
fontSize = 16.sp,
lineHeight = 24.sp,
letterSpacing = 0.5.sp
)
)3.5 技术要点
- 现代Android开发: 既可以使用Kotlin + Compose构建现代化UI，也可以用旧Ui框架
- NDK集成: 同时支持静态和动态JNI方法注册
- 单DEX优化: 通过多种手段确保生成单个DEX文件，这是这个原理学习版本最重要的。
3.6 单DEX优化策略
-
构建配置优化:
- 强制禁用MultiDex
- 限制ABI支持
- 启用代码混淆和资源压缩
-
依赖管理优化:
- 使用implementation而非api
- 移除不必要的依赖
- 禁用自动初始化器
-
资源优化:
- 排除不必要的META-INF文件
- 使用资源压缩
整体架构和工作流程
4.1 三模块协作关系
scss
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ Source-App │ │ Shell-App │ │ Packer │
│ (被保护程序) │ │ (壳程序) │ │ (加壳工具) │
└─────────────────┘ └─────────────────┘ └─────────────────┘
│ │ │
│ │ │
▼ ▼ ▼
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ source.apk │ │ shell.apk │ │ packer.jar │
│ (源APK文件) │ │ (壳APK文件) │ │ (命令行工具) │
└─────────────────┘ └─────────────────┘ └─────────────────┘
│ │ │
└───────────────────────┼───────────────────────┘
│
▼
┌─────────────────────────┐
│ protected.apk │
│ (加壳后的APK) │
└─────────────────────────┘4.2 完整工作流程
4.2.1 开发阶段
-
开发源程序 (source-app)
- 实现业务逻辑
- 配置单DEX构建
- 编译生成source.apk
-
开发壳程序 (shell-app)
- 实现解密和加载逻辑
- 配置单DEX构建
- 编译生成shell.apk
-
开发加壳工具 (packer)
- 实现APK合并逻辑
- 编译生成packer.jar
4.2.2 加壳阶段
bash
# 使用packer工具进行加壳
java -jar packer.jar -src source.apk -shell shell.apk -o protected.apk加壳过程详细步骤:
- 解包source.apk和shell.apk
- 读取shell.apk的classes.dex
- 加密source.apk内容（异或0xFF）
- 将加密的source.apk追加到shell的classes.dex末尾
- 添加source.apk大小标识（4字节）
- 修复DEX文件头（大小、校验和、签名）
- 修改AndroidManifest.xml，设置壳Application
- 重新打包并签名
4.2.3 运行阶段
用户安装并启动protected.apk时:
-
系统启动壳Application (ShellProxyApplicationV1) attachBaseContext() → onCreate()
-
壳程序解密源程序 读取classes.dex → 提取加密的source.apk → 解密 → 保存到私有目录
-
替换运行环境 创建DexClassLoader → 替换LoadedApk.mClassLoader → 替换Application
-
启动源程序 调用源程序Application.onCreate() → 正常运行源程序逻辑
4.2.4 应用启动流程对比
V1 版本流程
sequenceDiagram
participant System as Android系统
participant V1 as ShellProxyApplicationV1
participant Reflection as 反射工具
participant Source as 源Application
System->>V1: attachBaseContext()
V1->>V1: 解密APK
V1->>V1: 替换ClassLoader
System->>V1: onCreate()
V1->>Reflection: 反射调用系统makeApplication，创建源Application
Reflection->>Source: 创建实例
V1->>Source: onCreate()
V2 版本流程
sequenceDiagram
participant System as Android系统
participant V2 as ShellProxyApplicationV2
participant Source as 源Application
System->>V2: attachBaseContext()
V2->>V2: 解密APK
V2->>V2: 替换ClassLoader
V2->>Source: 反射直接创建实例
V2->>System: 替换系统引用
V2->>Source: attachBaseContext()
System->>V2: onCreate()
V2->>Source: onCreate()
4.3 安全性分析
4.3.1 保护机制
- 代码隐藏: 源程序代码被加密隐藏在DEX文件中
源程序反编译
加固后只能看到壳shell的代码，看不到源程序的代码，但是源程序的dex代码又的确在apk中，在这加固后的apk里面的唯一一个dex的尾部，这部分不会被反编译软件静态给反编译出来。
- 动态解密: 运行时才解密，增加静态分析难度
每个应用程序被安装到系统后，都会在内部存储中保留自己的apk文件（root手机可以直接看到），而我们运行时的时候直接从apk里面读取壳和源程序组成的dex
java
/**
* 从壳APK中解密并提取源APK文件
*/
private boolean extractSourceApk() {
try {
// 1. 创建私有目录,保存dex,lib和源apk， 具体路径为data/user/0/<package_name>/app_tmp_dex（root机可看）
File dex = getDir("tmp_dex", MODE_PRIVATE);
File lib = getDir("tmp_lib", MODE_PRIVATE);
oDexPath = dex.getAbsolutePath();
libPath = lib.getAbsolutePath();
sourceDexPath = dex.getAbsolutePath() + File.separator + "Source.apk";
log("oDexPath: " + oDexPath);
log("libPath: " + libPath);
log("sourceDexPath: " + sourceDexPath);
// 2. 根据文件路径创建File对象
File apkFile = new File(sourceDexPath);
// 只有首次运行时需要创建相关文件
if (!apkFile.exists()) {
// 根据路径创建文件
apkFile.createNewFile();
// 3. 读取Classes.dex文件
byte[] shellDexData = readDexFromApk();
if (shellDexData == null) {
log("Failed to read dex from APK");
return false;
}
// 4. 从中分离出源apk文件
if (!extractSrcApkFromShellDex(shellDexData)) {
log("Failed to extract source APK from shell dex");
return false;
}
}
return true;
} catch (Exception e) {
log("Error in extractSourceApk: " + Log.getStackTraceString(e));
return false;
}
}然后分离他们出来放到对应目录，最后通过构建他们的dexclassLoader来加载真正的源程序代码，最后替换当前应用的classLoader为我们新创建的用来加载源程序dex的。
java
/**
* 替换壳App的ClassLoader为源App的ClassLoader
*/
private boolean replaceClassLoader() {
try {
// 1. 获取当前的classloader
ClassLoader classLoader = this.getClassLoader();
log("Current ClassLoader: " + classLoader.toString());
// 2. 反射获取ActivityThread
Object sCurrentActivityThreadObj = Reflection.getStaticField("android.app.ActivityThread", "sCurrentActivityThread");
if (sCurrentActivityThreadObj == null) {
log("Failed to get ActivityThread");
return false;
}
// 3. 反射获取LoadedApk
ArrayMap mPackagesObj = (ArrayMap) Reflection.getField("android.app.ActivityThread", sCurrentActivityThreadObj, "mPackages");
if (mPackagesObj == null) {
log("Failed to get mPackages");
return false;
}
String currentPackageName = this.getPackageName();
WeakReference weakReference = (WeakReference) mPackagesObj.get(currentPackageName);
if (weakReference == null) {
log("Failed to get WeakReference for package: " + currentPackageName);
return false;
}
Object loadedApkObj = weakReference.get();
if (loadedApkObj == null) {
log("Failed to get LoadedApk from WeakReference");
return false;
}
// 4. 替换ClassLoader
DexClassLoader dexClassLoader = new DexClassLoader(sourceDexPath, oDexPath, libPath, classLoader.getParent());
Reflection.setField("android.app.LoadedApk", "mClassLoader", loadedApkObj, dexClassLoader);
log("Successfully replaced ClassLoader with: " + dexClassLoader);
return true;
} catch (Exception e) {
log("Error replacing ClassLoader: " + Log.getStackTraceString(e));
return false;
}
}
ini
DexClassLoader dexClassLoader = new DexClassLoader(sourceDexPath, oDexPath, libPath, classLoader.getParent());这个就是前面文章重点介绍的 Android ClassLoader 重点解析
4.3.2 落地加载的安全性缺失
1、源程序的dex被加密放在壳的dex后面，通过root机就能直接拿到喊加密后的源apk
2、运行时解密出来了源程序的dex，放在了本地路径
bash
data/user/0/<package_name>/app_tmp_dex使用这个路径去构建加载源程序dex的classLoader
5 不落地加载方案
由于第一代落地加载方案的弊端，由此引发了不落地加载的方案，这将在下一篇文章讲解。如感兴趣，建议关注收藏。
InMemoryDexClassLoader将是下篇文章的重点，建议重点回看Android ClassLoader 重点解析
