我们知道应用层的一个Activity对应一个窗口，那么一个窗口对应一个Surface， 一个Surface在SurfaceFlinger 进程中对应一个Layer对象， SurfaceView比较特殊不依赖于窗口单独绘制，一个SurfaceView单独对应一个Surface和Layer,接下来我们看下Surface的创建和销毁流程。
3.1 Layer创建

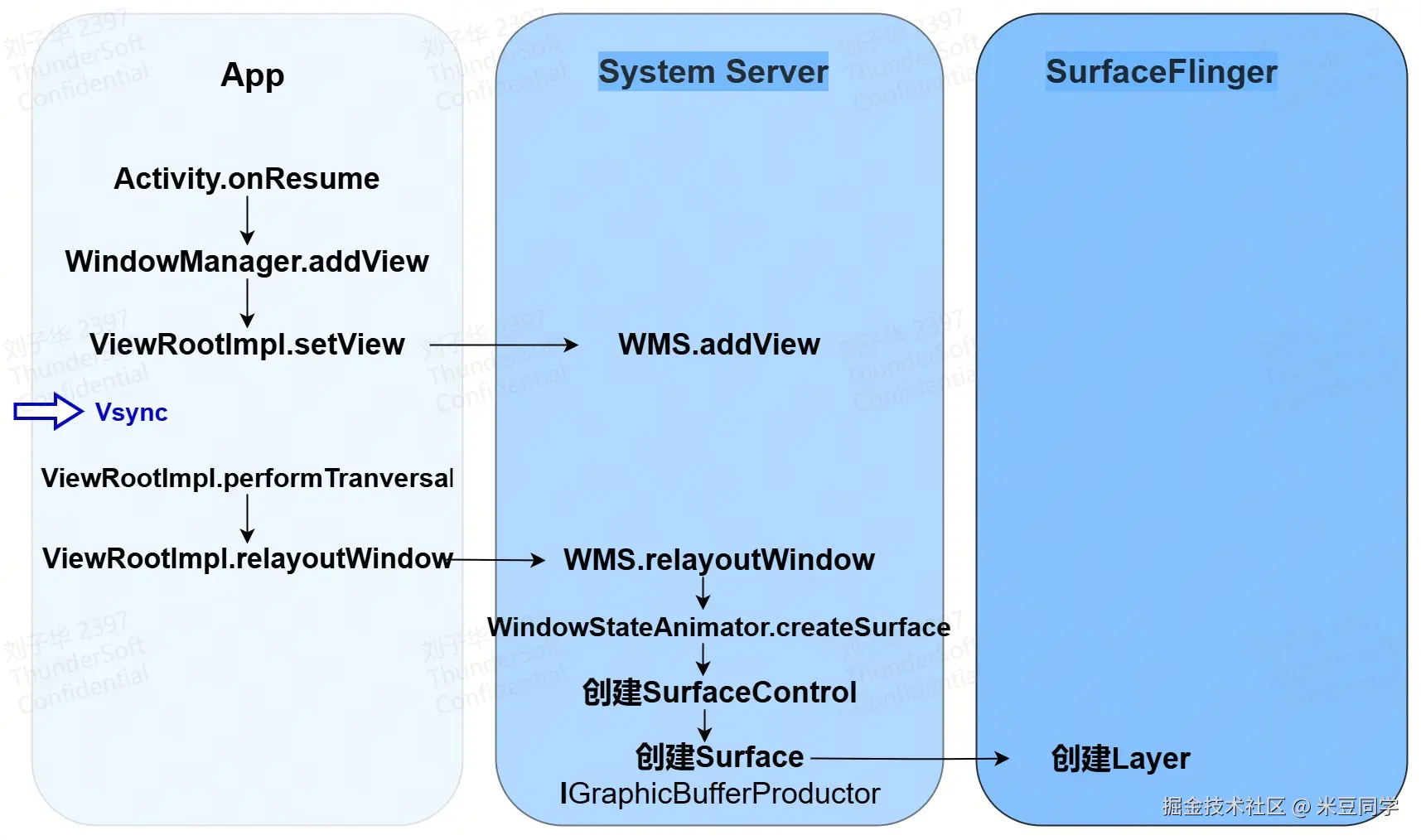

应用窗口的创建要经历Actvity生命周期和ViewRootImpl的调度，大概流程如下:
应用窗口的创建要经历Actvity生命周期和ViewRootImpl的调度，大概流程如下:
下图为WMS 中的窗口和SF中的Layer 对应图：
- 与WMS 一样，SurfaceFlinger 对layer也采用树形管理
- Root、Display、Activity 对应的layer 为ContainerLayer ,代表容器;Task 对应EffectLayer;真正绘制的Layer BufferQueueLayer
- 在树形层级中SF端多出了RelativeLayer ,把Layer A 设置为Layer B的RelativeLayer，那么Layer A的层级要相对于B去计算，不会受其parent影响，常用于在窗口下面显示模糊或者半透明背景， 在task 中的dimmer layer 就是使用了relativeLayer
SF 和 WMS树形数据结构代码定义：
/frameworks/native/services/surfaceflinger/Layer.h
ini
SortedVector<wp<Layer>> zOrderRelatives;
LayerVector mCurrentChildren{LayerVector::StateSet::Current};
wp<Layer> mCurrentParent;/frameworks/base/services/core/java/com/android/server/wm/WindowContainer.java
ini
private WindowContainer<WindowContainer> mParent = null;
protected final WindowList<E> mChildren = new WindowList<E>();我们从创建SurfaceControl开始,SurfaceControl 的构造方法中回调用nativeCreate
/frameworks/base/core/jni/android_view_SurfaceControl.cpp
kotlin
static jlong nativeCreate(JNIEnv* env, jclass clazz, jobject sessionObj,
jstring nameStr, jint w, jint h, jint format, jint flags, jlong parentObject,
jobject metadataParcel) {
ScopedUtfChars name(env, nameStr);
sp<SurfaceComposerClient> client;
... ...
status_t err = client->createSurfaceChecked(String8(name.c_str()), w, h, format, &surface,
flags, parentHandle, std::move(metadata));
surface->incStrong((void *)nativeCreate);
return reinterpret_cast<jlong>(surface.get());
}nativeCreate 继续调用SurfaceComposerClient::createWithSurfaceParent，返回一个native的SurfaceControl 给java层。
/frameworks/native/libs/gui/SurfaceComposerClient.cpp
ini
status_t SurfaceComposerClient::createSurfaceChecked(const String8& name, uint32_t w, uint32_t h,
PixelFormat format,
sp<SurfaceControl>* outSurface, uint32_t flags,
const sp<IBinder>& parentHandle,
LayerMetadata metadata,
uint32_t* outTransformHint) {
sp<SurfaceControl> sur;
status_t err = mStatus;
if (mStatus == NO_ERROR) {
sp<IBinder> handle;
sp<IGraphicBufferProducer> gbp;
uint32_t transformHint = 0;
int32_t id = -1;
err = mClient->createSurface(name, w, h, format, flags, parentHandle, std::move(metadata),
&handle, &gbp, &id, &transformHint);
if (outTransformHint) {
*outTransformHint = transformHint;
}
ALOGE_IF(err, "SurfaceComposerClient::createSurface error %s", strerror(-err));
if (err == NO_ERROR) {
*outSurface =
new SurfaceControl(this, handle, gbp, id, w, h, format, transformHint, flags);
}
}
return err;
}createSurfaceChecked涉及到下面几个对象：
- sp handle;
Layer 句柄，每次应用进程或system server 设置surface信息，传递handle, SF 通过handle 找到相应的layer,再设置其属性
- sp gbp;
BpGraphicBufferProducer对象，保存在native 的SurfaceControl 对象和Surface对象中，用于实现对BufferQueue 的操作
- mClient
ISurfaceComposerClient代理对象， 服务端是SurfaceFlinger 进程的Client
接着来到SurfaceFlinger进程：
/frameworks/native/services/surfaceflinger/Client.cpp
arduino
status_t Client::createSurface(const String8& name, uint32_t w, uint32_t h, PixelFormat format,
uint32_t flags, const sp<IBinder>& parentHandle,
LayerMetadata metadata, sp<IBinder>* handle,
sp<IGraphicBufferProducer>* gbp, int32_t* outLayerId,
uint32_t* outTransformHint) {
// We rely on createLayer to check permissions.
return mFlinger->createLayer(name, this, w, h, format, flags, std::move(metadata), handle, gbp,
parentHandle, outLayerId, nullptr, outTransformHint);
}/frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp
c
status_t SurfaceFlinger::createLayer(const String8& name, const sp<Client>& client, uint32_t w,
uint32_t h, PixelFormat format, uint32_t flags,
LayerMetadata metadata, sp<IBinder>* handle,
sp<IGraphicBufferProducer>* gbp,
const sp<IBinder>& parentHandle, int32_t* outLayerId,
const sp<Layer>& parentLayer, uint32_t* outTransformHint) {
... ...
sp<Layer> layer;
//1. 获取layer 名字，如果有同名layer 在原来名字后面加#1， #2
std::string uniqueName = getUniqueLayerName(name.string());
//2. 根据flags 创建不同类型的layer
switch (flags & ISurfaceComposerClient::eFXSurfaceMask) {
case ISurfaceComposerClient::eFXSurfaceBufferQueue:
case ISurfaceComposerClient::eFXSurfaceBufferState: {
result = createBufferStateLayer(client, std::move(uniqueName), w, h, flags,
std::move(metadata), handle, &layer);
std::atomic<int32_t>* pendingBufferCounter = layer->getPendingBufferCounter();
if (pendingBufferCounter) {
std::string counterName = layer->getPendingBufferCounterName();
mBufferCountTracker.add((*handle)->localBinder(), counterName,
pendingBufferCounter);
}
} break;
case ISurfaceComposerClient::eFXSurfaceEffect:
// check if buffer size is set for color layer.
if (w > 0 || h > 0) {
ALOGE("createLayer() failed, w or h cannot be set for color layer (w=%d, h=%d)",
int(w), int(h));
return BAD_VALUE;
}
result = createEffectLayer(client, std::move(uniqueName), w, h, flags,
std::move(metadata), handle, &layer);
break;
case ISurfaceComposerClient::eFXSurfaceContainer:
// check if buffer size is set for container layer.
if (w > 0 || h > 0) {
ALOGE("createLayer() failed, w or h cannot be set for container layer (w=%d, h=%d)",
int(w), int(h));
return BAD_VALUE;
}
result = createContainerLayer(client, std::move(uniqueName), w, h, flags,
std::move(metadata), handle, &layer);
break;
default:
result = BAD_VALUE;
break;
}
if (result != NO_ERROR) {
return result;
}
bool addToRoot = callingThreadHasUnscopedSurfaceFlingerAccess();
//3.Layer创建后续工作
result = addClientLayer(client, *handle, *gbp, layer, parentHandle, parentLayer, addToRoot,
outTransformHint);
if (result != NO_ERROR) {
return result;
}
mInterceptor->saveSurfaceCreation(layer);
setTransactionFlags(eTransactionNeeded);
*outLayerId = layer->sequence;
return result;
}SurfaceFlinger::createLayer主要工作如注释。
Layer的类型：
- BufferStateLayer：标准的Surface
- EffectLayer：纯色或阴影的显示效果的Surface，Task就是EffectLayer
- ContainerLayer：创建surface容器。此surface没有缓冲区，仅用作其他surfaces或InputInfo的容器。
arduino
status_t SurfaceFlinger::addClientLayer(const sp<Client>& client, const sp<IBinder>& handle,
const sp<IGraphicBufferProducer>& gbc, const sp<Layer>& lbc,
const sp<IBinder>& parentHandle,
const sp<Layer>& parentLayer, bool addToRoot,
uint32_t* outTransformHint) {
.. ...
// Create a transaction includes the initial parent and producer.
Vector<ComposerState> states;
Vector<DisplayState> displays;
ComposerState composerState;
composerState.state.what = layer_state_t::eLayerCreated;
composerState.state.surface = handle;
states.add(composerState);
lbc->updateTransformHint(mDefaultDisplayTransformHint);
if (outTransformHint) {
*outTransformHint = mDefaultDisplayTransformHint;
}
// attach this layer to the client
client->attachLayer(handle, lbc);
return setTransactionState(FrameTimelineInfo{}, states, displays, 0 /* flags */, nullptr,
InputWindowCommands{}, -1 /* desiredPresentTime */,
true /* isAutoTimestamp */, {}, false /* hasListenerCallbacks */, {},
0 /* Undefined transactionId */);
}设置eLayerCreated flag, 将Layer添加到相应的client里，主要工作在setTransactionState里
c
status_t SurfaceFlinger::setTransactionState(
const FrameTimelineInfo& frameTimelineInfo, const Vector<ComposerState>& states,
const Vector<DisplayState>& displays, uint32_t flags, const sp<IBinder>& applyToken,
const InputWindowCommands& inputWindowCommands, int64_t desiredPresentTime,
bool isAutoTimestamp, const client_cache_t& uncacheBuffer, bool hasListenerCallbacks,
const std::vector<ListenerCallbacks>& listenerCallbacks, uint64_t transactionId) {
ATRACE_CALL();
... ...
IPCThreadState* ipc = IPCThreadState::self();
const int originPid = ipc->getCallingPid();
const int originUid = ipc->getCallingUid();
TransactionState state{frameTimelineInfo, states,
displays, flags,
applyToken, inputWindowCommands,
desiredPresentTime, isAutoTimestamp,
uncacheBuffer, postTime,
permissions, hasListenerCallbacks,
listenerCallbacks, originPid,
originUid, transactionId};
// Check for incoming buffer updates and increment the pending buffer count.
state.traverseStatesWithBuffers([&](const layer_state_t& state) {
mBufferCountTracker.increment(state.surface->localBinder());
});
queueTransaction(state);//放入待合成队列 mTransactionQueue
// Check the pending state to make sure the transaction is synchronous.
//触发SF合成
if (state.transactionCommittedSignal) {
waitForSynchronousTransaction(*state.transactionCommittedSignal);
}
return NO_ERROR;
}SurfaceFlinger 合成Vsync 到来后会调用： SurfaceFlinger::flushTransactionQueues 遍历mTransactionQueue 调用applyTransactionState
-> setClientStateLocked
-> handleLayerCreatedLocked 设置layer 合成位置，如果有parent 则加入到parent中，否则按照z order加入到mCurrentState
scss
sp<Layer> SurfaceFlinger::handleLayerCreatedLocked(const sp<IBinder>& handle) {
... ...
if (parent == nullptr && allowAddRoot) {
layer->setIsAtRoot(true);
mCurrentState.layersSortedByZ.add(layer);
} else if (parent == nullptr) {
layer->onRemovedFromCurrentState();
} else if (parent->isRemovedFromCurrentState()) {
parent->addChild(layer);
layer->onRemovedFromCurrentState();
} else {
parent->addChild(layer);
}
layer->updateTransformHint(mDefaultDisplayTransformHint);
... ...
return layer;
}3.2 Layer销毁
窗口销毁时会释放surface,首先调用到 SurfaceControl.release -> nativeRelease -> ~SurfaceControl(),我们就从native的SurfaceControl 类析构函数开始。
scss
SurfaceControl::~SurfaceControl()
{
// Trigger an IPC now, to make sure things
// happen without delay, since these resources are quite heavy.
mClient.clear();
mHandle.clear();
mGraphicBufferProducer.clear();
IPCThreadState::self()->flushCommands();
}mHandle的类型是sp<IBinder> ，在调用mHandle.clear(); 时只是引用计数减1，并不是马上释放。当mHandle可以被释放时，由于Binder生命周期的设计，当所有的代理对象（BpBinder）被销毁时，Binder 实体对象也会被销毁，此时会走到服务端Handle 的析构函数：
frameworks/native/services/surfaceflinger/Layer.h
kotlin
class Handle : public BBinder, public LayerCleaner {
public:
Handle(const sp<SurfaceFlinger>& flinger, const sp<Layer>& layer)
: LayerCleaner(flinger, layer), owner(layer) {}
wp<Layer> owner;
};
class LayerCleaner {
sp<SurfaceFlinger> mFlinger;
sp<Layer> mLayer;
protected:
~LayerCleaner() {
// destroy client resources
mFlinger->onHandleDestroyed(mLayer);
}
public:
LayerCleaner(const sp<SurfaceFlinger>& flinger, const sp<Layer>& layer)
: mFlinger(flinger), mLayer(layer) {}
};调用到 LayerCleaner析构，LayerCleaner析构调用SurfaceFlinger 的onHandleDestroyed
frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp
scss
void SurfaceFlinger::onHandleDestroyed(sp<Layer>& layer){
Mutex::Autolock lock(mStateLock);
// If a layer has a parent, we allow it to out-live it's handle
// with the idea that the parent holds a reference and will eventually
// be cleaned up. However no one cleans up the top-level so we do so
// here.
if (layer->getParent() == nullptr) {
mCurrentState.layersSortedByZ.remove(layer);
}
markLayerPendingRemovalLocked(layer);
auto it = mLayersByLocalBinderToken.begin();
while (it != mLayersByLocalBinderToken.end()) {
if (it->second == layer) {
it = mLayersByLocalBinderToken.erase(it);
} else {
it++;
}
}
layer.clear();
}这里注意，如果layer 还被parent引用，就暂时不释放，等parent也被释放时，当前layer 才会被释放，所以在Activity中使用SurfaceView 的场景，要尤其注意SurfaceView 的生命周期和其所在的Activity 的surface 生命周期是否一致， 否则有可能造成layer 泄漏，直到Activity stop 流程后才会释放SurfaceView layer. Activity 的surface 要在 stoped 流程才会被释放 ，调用堆栈如下：
php
05-23 18:19:40.611 798 1303 E lzh100 : lzh100 release Surface(name=com.autonavi.amapauto/com.autonavi.amapauto.MainMapActivity)/@0x25e983f
05-23 18:19:40.611 798 1303 E lzh100 : java.lang.RuntimeException
05-23 18:19:40.611 798 1303 E lzh100 : at android.view.SurfaceControl.release(SurfaceControl.java:1141)
05-23 18:19:40.611 798 1303 E lzh100 : at android.view.SurfaceControl$Transaction.remove(SurfaceControl.java:3126)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.WindowSurfaceController.destroyNotInTransaction(WindowSurfaceController.java:185)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.WindowStateAnimator.destroySurface(WindowStateAnimator.java:1562)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.WindowStateAnimator.destroySurfaceLocked(WindowStateAnimator.java:633)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.WindowState.destroySurfaceUnchecked(WindowState.java:3293)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.WindowState.destroySurface(WindowState.java:3267)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.ActivityRecord.destroySurfaces(ActivityRecord.java:4557)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.ActivityRecord.destroySurfaces(ActivityRecord.java:4538)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.ActivityRecord.notifyAppStopped(ActivityRecord.java:4591)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.ActivityRecord.activityStopped(ActivityRecord.java:5170)
05-23 18:19:40.611 798 1303 E lzh100 : at com.android.server.wm.ActivityTaskManagerService.activityStopped(ActivityTaskManagerService.java:2355)
05-23 18:19:40.611 798 1303 E lzh100 : at android.app.IActivityTaskManager$Stub.onTransact(IActivityTaskManager.java:2052)
05-23 18:19:40.611 798 1303 E lzh100 : at android.os.Binder.execTransactInternal(Binder.java:1159)
05-23 18:19:40.611 798 1303 E lzh100 : at android.os.Binder.execTransact(Binder.java:1123)最后调用到各个子类的析构，如
scss
BufferQueueLayer::~BufferQueueLayer() {
mContentsChangedListener->abandon();
mConsumer->abandon();
}至此Layer对象被彻底销毁。
