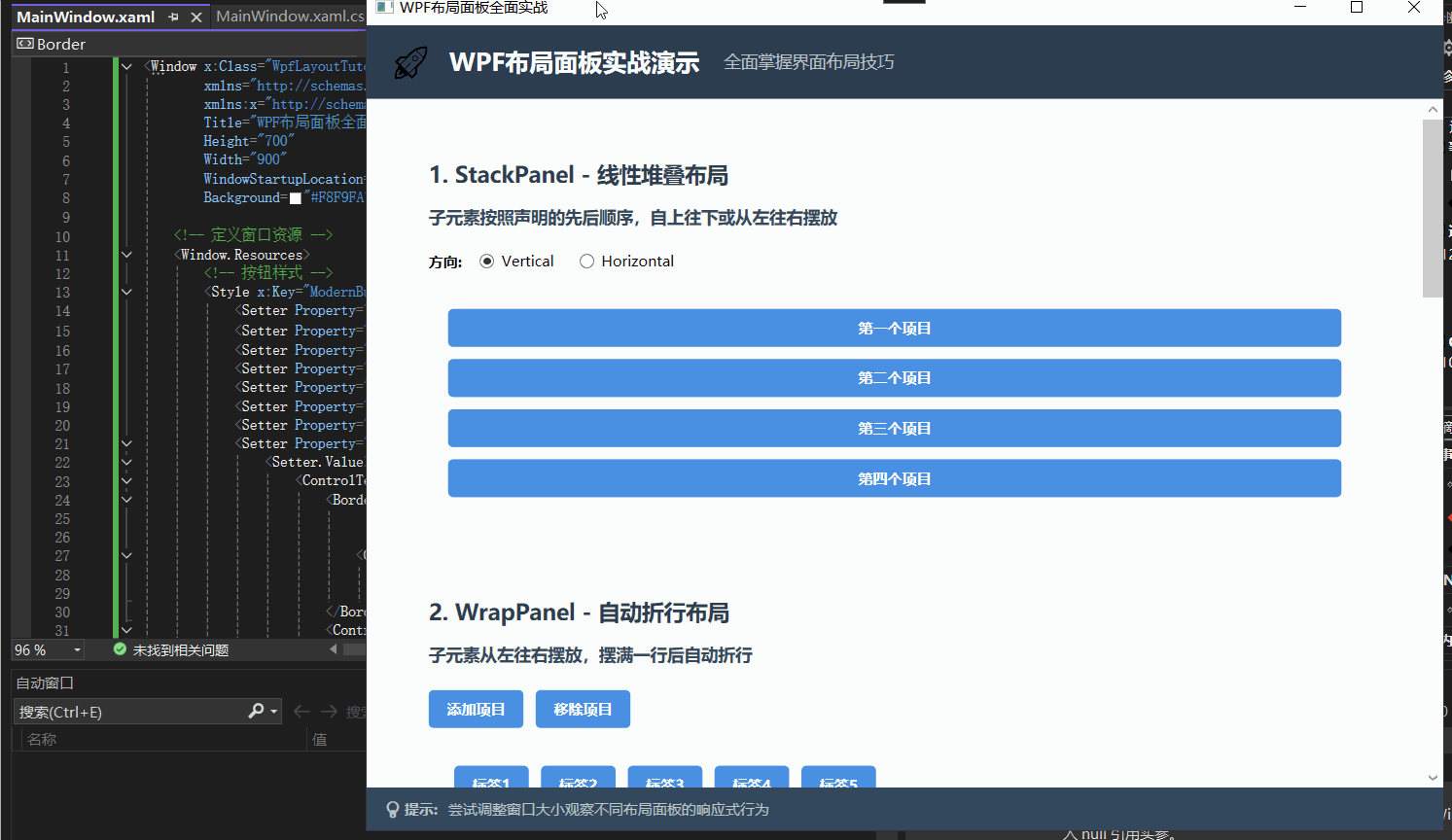

[8. 实战综合示例：复杂界面布局](#8. 实战综合示例：复杂界面布局)
[8.1 MainWindow.xaml](#8.1 MainWindow.xaml)
[8.2 MainWindow.xaml.cs](#8.2 MainWindow.xaml.cs)
[8.3 功能特点说明](#8.3 功能特点说明)
[8.3.1 StackPanel演示](#8.3.1 StackPanel演示)
[8.3.2 WrapPanel演示](#8.3.2 WrapPanel演示)
[8.3.3 DockPanel演示](#8.3.3 DockPanel演示)
[8.3.4 Canvas演示](#8.3.4 Canvas演示)
[8.3.5 UniformGrid演示](#8.3.5 UniformGrid演示)
[8.3.6 综合布局演示](#8.3.6 综合布局演示)
[9. 各布局面板适用场景📖](#9. 各布局面板适用场景📖)
[10. 总结与展望](#10. 总结与展望)
引言
传统Windows Forms采用基于像素的绝对定位系统，开发者需要精确指定每个控件的坐标和尺寸。这种方法在固定分辨率环境下尚可应对，但随着高DPI显示器、多种屏幕尺寸和移动设备的普及，其局限性日益凸显。开发人员不得不编写大量适配代码，手动计算控件位置，这不仅降低了开发效率，还使界面在不同设备上的表现难以保证一致性。
WPF彻底颠覆了这一模式，引入了先进的流式布局（Flow Layout）和智能容器概念。与绝对定位不同，流式布局的核心思想是描述元素之间的相对关系，而非固定位置。系统根据容器规则、内容尺寸和可用空间动态计算最优布局，实现了真正的自适应设计。这种声明式的布局方式让界面能够智能地响应窗口缩放、内容变化和显示设置的调整。
1. 容器驱动的布局架构🎀
WPF布局系统的精髓在于其丰富的布局面板体系。每个面板都是专门的布局容器，实现了不同的排列策略：
-
Canvas 提供精确的坐标定位，适用于图形绘制和游戏界面
-
DockPanel 模拟传统窗口的停靠行为，适合应用主框架
-
StackPanel 实现线性排列，简化列表和表单项布局
-
WrapPanel 支持自动折行，完美契合工具栏和图标视图
-
Grid 提供强大的网格系统，胜任复杂的数据表单
-
UniformGrid 保证均匀分布，适合图库和网格视图
这些面板可以无限嵌套组合，形成层次化的布局结构。开发者通过选择适当的布局策略，而非手动计算位置，大幅提升了开发效率和代码可维护性。
2. 🐱👓响应式设计的原生支持
WPF布局系统天生支持响应式设计理念。通过结合使用星号（*）比例尺寸、自动（Auto）尺寸约束和最小最大范围限制，界面元素能够根据可用空间智能调整。例如，一个设置为Height="2*"的元素将获得两倍于Height="*"元素的空间，这种相对比例关系确保了布局的整体协调性。更重要的是，WPF内置了分辨率无关的测量系统。所有尺寸都使用与设备无关的单位（1/96英寸），在不同DPI设置下自动保持视觉一致性。这意味着同一套界面在普通显示器和高清视网膜屏幕上都能呈现完美的视觉效果，彻底解决了传统WinForms应用在高DPI环境下的显示模糊问题。
从开发角度看，WPF布局系统带来了革命性的改进。XAML声明式语法使得布局代码更加直观和易于维护。开发者可以专注于"要什么"而不是"怎么做"，布局逻辑变得清晰明了。数据绑定和样式系统的结合，进一步实现了界面与业务逻辑的彻底分离，支持真正的MVVM开发模式。
这种现代化的布局体系不仅提升了开发效率，更重要的是为创建丰富、动态、自适应的用户界面提供了坚实的技术基础。无论是企业级应用的数据看板，还是创意工具的多媒体界面，WPF布局系统都能提供强大而灵活的解决方案，真正实现了"一次设计，多设备适配"的理想目标。
3. Canvas布局面板 - 绝对定位的利器💖
3.1 Canvas基础特性
-
绝对定位布局，通过坐标精确控制元素位置
-
使用附加属性：Canvas.Left、Canvas.Top、Canvas.Right、Canvas.Bottom
-
不支持自动调整和流式布局

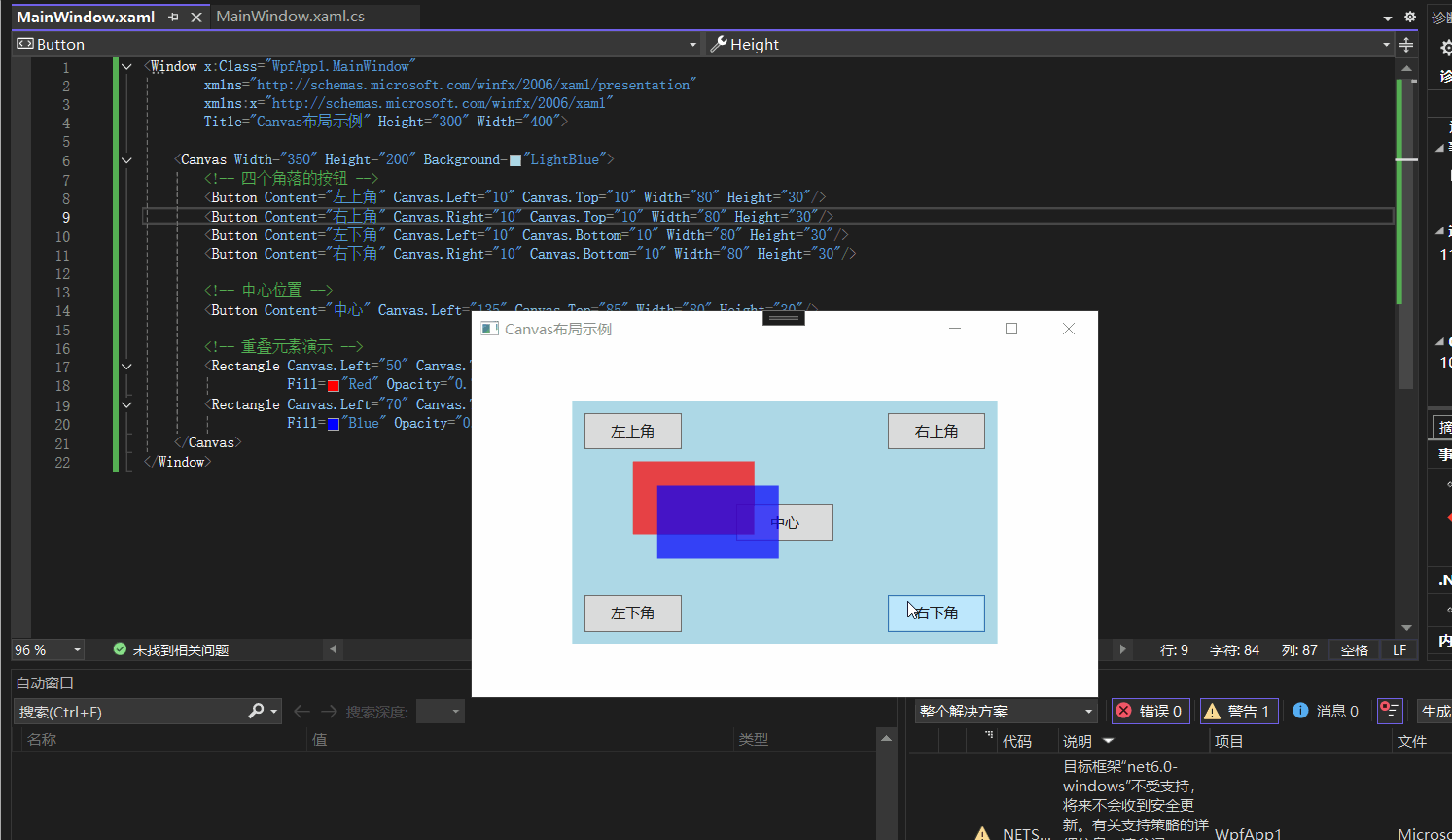

3.2 基础定位示例
XML
<Window x:Class="WpfLayoutDemo.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="Canvas布局示例" Height="300" Width="400">
<Canvas Width="350" Height="200" Background="LightBlue">
<!-- 四个角落的按钮 -->
<Button Content="左上角" Canvas.Left="10" Canvas.Top="10" Width="80" Height="30"/>
<Button Content="右上角" Canvas.Right="10" Canvas.Top="10" Width="80" Height="30"/>
<Button Content="左下角" Canvas.Left="10" Canvas.Bottom="10" Width="80" Height="30"/>
<Button Content="右下角" Canvas.Right="10" Canvas.Bottom="10" Width="80" Height="30"/>
<!-- 中心位置 -->
<Button Content="中心" Canvas.Left="135" Canvas.Top="85" Width="80" Height="30"/>
<!-- 重叠元素演示 -->
<Rectangle Canvas.Left="50" Canvas.Top="50" Width="100" Height="60"
Fill="Red" Opacity="0.7"/>
<Rectangle Canvas.Left="70" Canvas.Top="70" Width="100" Height="60"
Fill="Blue" Opacity="0.7"/>
</Canvas>
</Window>

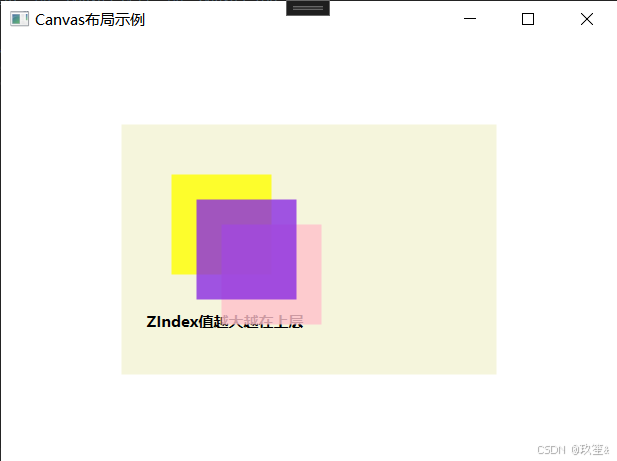

3.3 ZIndex重叠控制
XML
<Canvas Width="300" Height="200" Background="Beige">
<!-- 使用Canvas.ZIndex控制重叠顺序 -->
<Rectangle Canvas.ZIndex="1" Width="80" Height="80" Canvas.Left="40" Canvas.Top="40"
Fill="Yellow" Opacity="0.8"/>
<Rectangle Canvas.ZIndex="3" Width="80" Height="80" Canvas.Left="60" Canvas.Top="60"
Fill="BlueViolet" Opacity="0.8"/>
<Rectangle Canvas.ZIndex="2" Width="80" Height="80" Canvas.Left="80" Canvas.Top="80"
Fill="Pink" Opacity="0.8"/>
<TextBlock Canvas.Left="20" Canvas.Top="150" Text="ZIndex值越大越在上层" FontWeight="Bold"/>
</Canvas>
4. 🐱👤DockPanel布局面板 - 停靠式布局专家
4.1 DockPanel核心特性
-
子元素可以停靠在面板的四条边上
-
最后一个元素默认填充剩余空间
-
类似Windows窗体的Dock属性

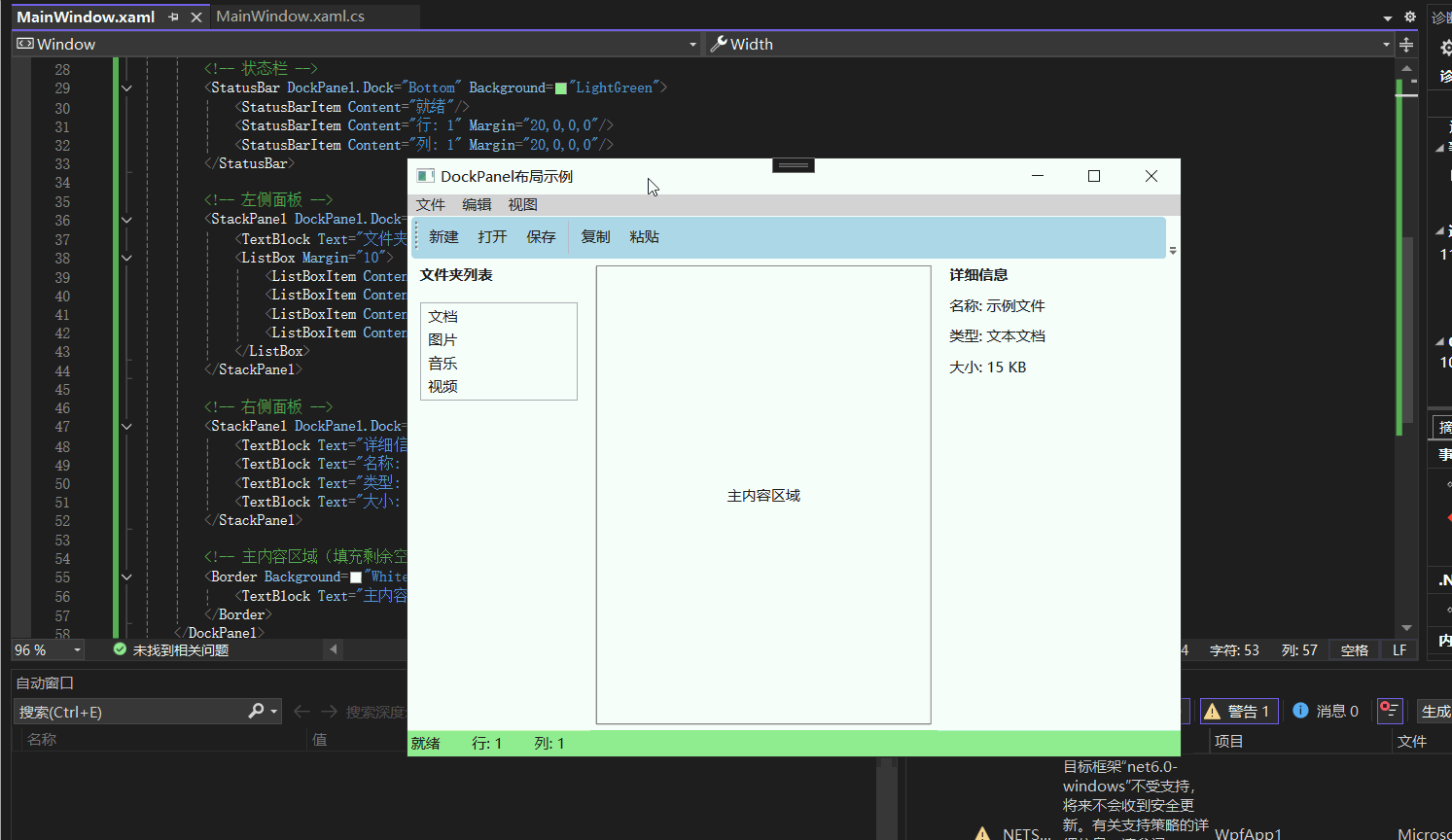

4.2 经典窗口布局实现
XML
<Window x:Class="WpfLayoutDemo.DockPanelDemo"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="DockPanel布局示例" Height="400" Width="600">
<DockPanel LastChildFill="True">
<!-- 菜单栏 -->
<Menu DockPanel.Dock="Top" Background="LightGray">
<MenuItem Header="文件">
<MenuItem Header="新建"/>
<MenuItem Header="打开"/>
<MenuItem Header="保存"/>
</MenuItem>
<MenuItem Header="编辑"/>
<MenuItem Header="视图"/>
</Menu>
<!-- 工具栏 -->
<ToolBar DockPanel.Dock="Top" Background="LightBlue">
<Button Content="新建" Margin="5"/>
<Button Content="打开" Margin="5"/>
<Button Content="保存" Margin="5"/>
<Separator/>
<Button Content="复制" Margin="5"/>
<Button Content="粘贴" Margin="5"/>
</ToolBar>
<!-- 状态栏 -->
<StatusBar DockPanel.Dock="Bottom" Background="LightGreen">
<StatusBarItem Content="就绪"/>
<StatusBarItem Content="行: 1" Margin="20,0,0,0"/>
<StatusBarItem Content="列: 1" Margin="20,0,0,0"/>
</StatusBar>
<!-- 左侧面板 -->
<StackPanel DockPanel.Dock="Left" Width="150" Background="LightYellow">
<TextBlock Text="文件夹列表" FontWeight="Bold" Margin="10,5"/>
<ListBox Margin="10">
<ListBoxItem Content="文档"/>
<ListBoxItem Content="图片"/>
<ListBoxItem Content="音乐"/>
<ListBoxItem Content="视频"/>
</ListBox>
</StackPanel>
<!-- 右侧面板 -->
<StackPanel DockPanel.Dock="Right" Width="200" Background="LightCyan">
<TextBlock Text="详细信息" FontWeight="Bold" Margin="10,5"/>
<TextBlock Text="名称: 示例文件" Margin="10,5"/>
<TextBlock Text="类型: 文本文档" Margin="10,5"/>
<TextBlock Text="大小: 15 KB" Margin="10,5"/>
</StackPanel>
<!-- 主内容区域（填充剩余空间） -->
<Border Background="White" BorderBrush="Gray" BorderThickness="1" Margin="5">
<TextBlock Text="主内容区域" HorizontalAlignment="Center" VerticalAlignment="Center"/>
</Border>
</DockPanel>
</Window>

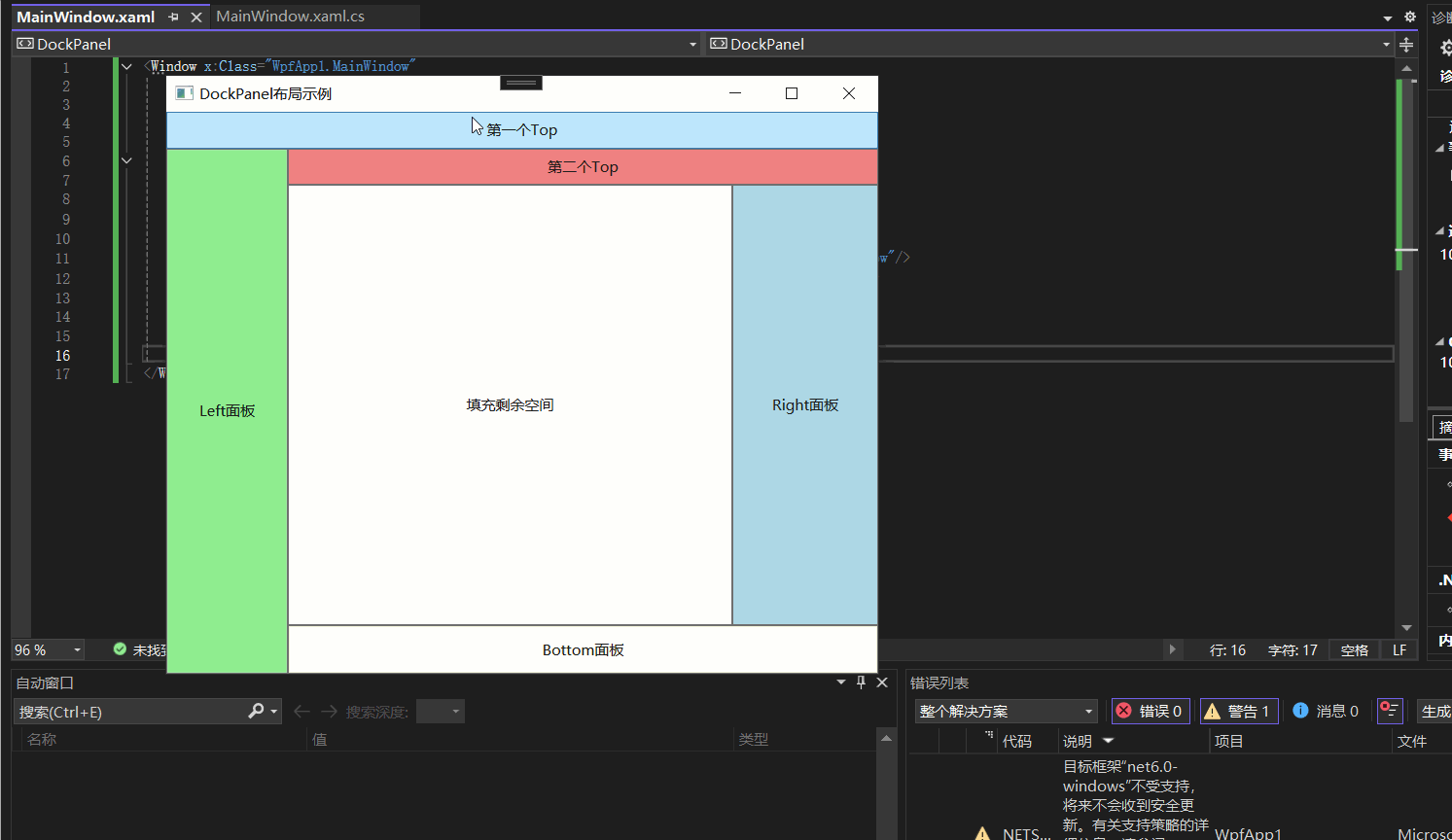

4.3 声明顺序的影响
XML
<DockPanel LastChildFill="True" Background="AliceBlue">
<!-- 注意声明顺序对布局的影响 -->
<Button DockPanel.Dock="Top" Content="第一个Top" Height="30" Background="LightPink"/>
<Button DockPanel.Dock="Left" Content="Left面板" Width="100" Background="LightGreen"/>
<Button DockPanel.Dock="Top" Content="第二个Top" Height="30" Background="LightCoral"/>
<Button DockPanel.Dock="Bottom" Content="Bottom面板" Height="40" Background="LightYellow"/>
<Button DockPanel.Dock="Right" Content="Right面板" Width="120" Background="LightBlue"/>
<!-- 最后一个元素填充剩余空间 -->
<Button Content="填充剩余空间" Background="White"/>
</DockPanel>
5. 🌤StackPanel布局面板 - 线性布局专家
5.1 StackPanel核心特性
-
线性排列子元素（水平或垂直）
-
通过Orientation属性控制方向
-
适合局部布局和简单列表

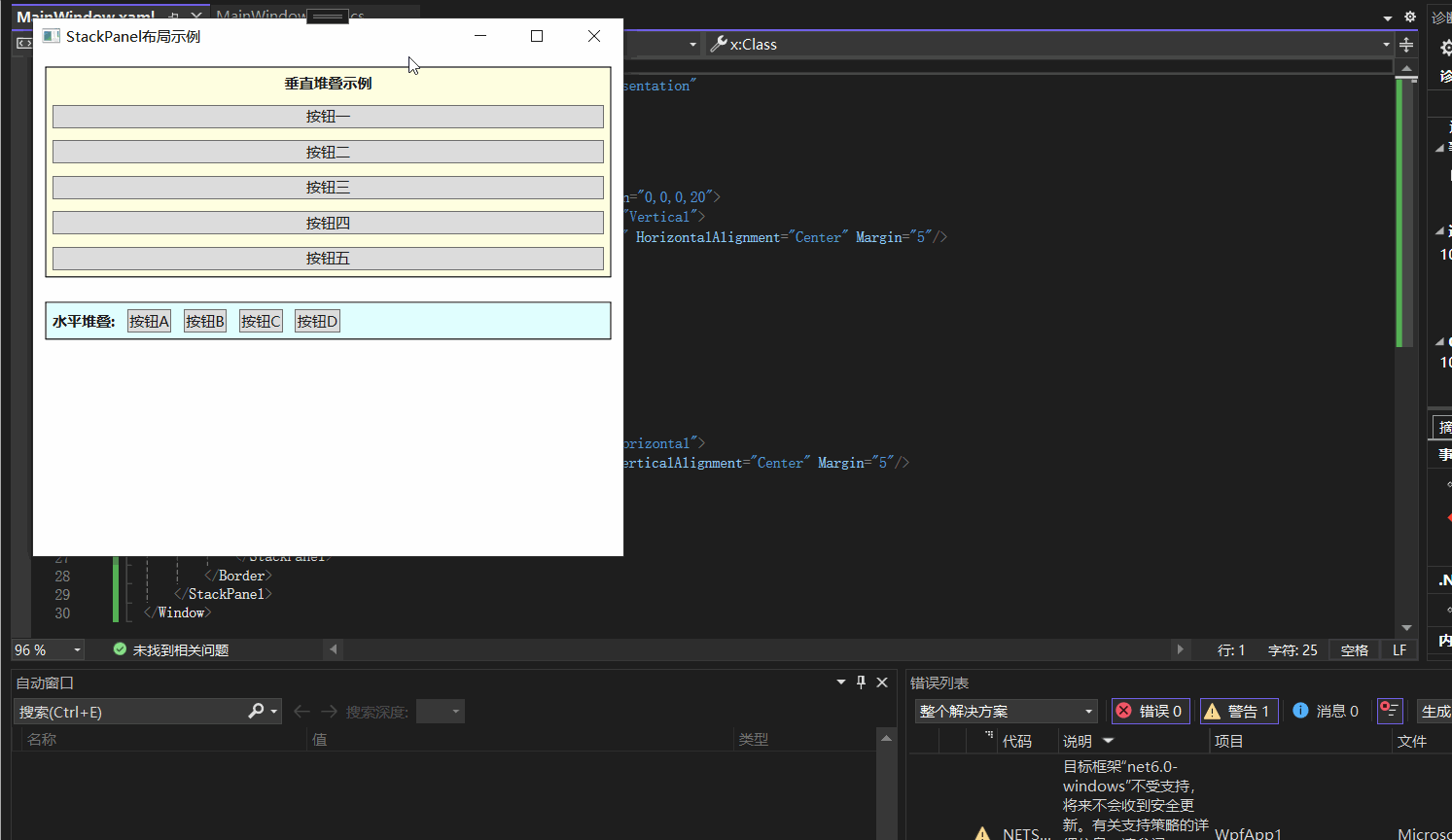

5.2 垂直和水平堆叠
XML
<Window x:Class="WpfLayoutDemo.StackPanelDemo"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="StackPanel布局示例" Height="450" Width="500">
<StackPanel Margin="10">
<!-- 垂直堆叠示例 -->
<Border BorderBrush="Black" BorderThickness="1" Margin="0,0,0,20">
<StackPanel Background="LightYellow" Orientation="Vertical">
<TextBlock Text="垂直堆叠示例" FontWeight="Bold" HorizontalAlignment="Center" Margin="5"/>
<Button Content="按钮一" Margin="5"/>
<Button Content="按钮二" Margin="5"/>
<Button Content="按钮三" Margin="5"/>
<Button Content="按钮四" Margin="5"/>
<Button Content="按钮五" Margin="5"/>
</StackPanel>
</Border>
<!-- 水平堆叠示例 -->
<Border BorderBrush="Black" BorderThickness="1">
<StackPanel Background="LightCyan" Orientation="Horizontal">
<TextBlock Text="水平堆叠:" FontWeight="Bold" VerticalAlignment="Center" Margin="5"/>
<Button Content="按钮A" Margin="5"/>
<Button Content="按钮B" Margin="5"/>
<Button Content="按钮C" Margin="5"/>
<Button Content="按钮D" Margin="5"/>
</StackPanel>
</Border>
</StackPanel>
</Window>

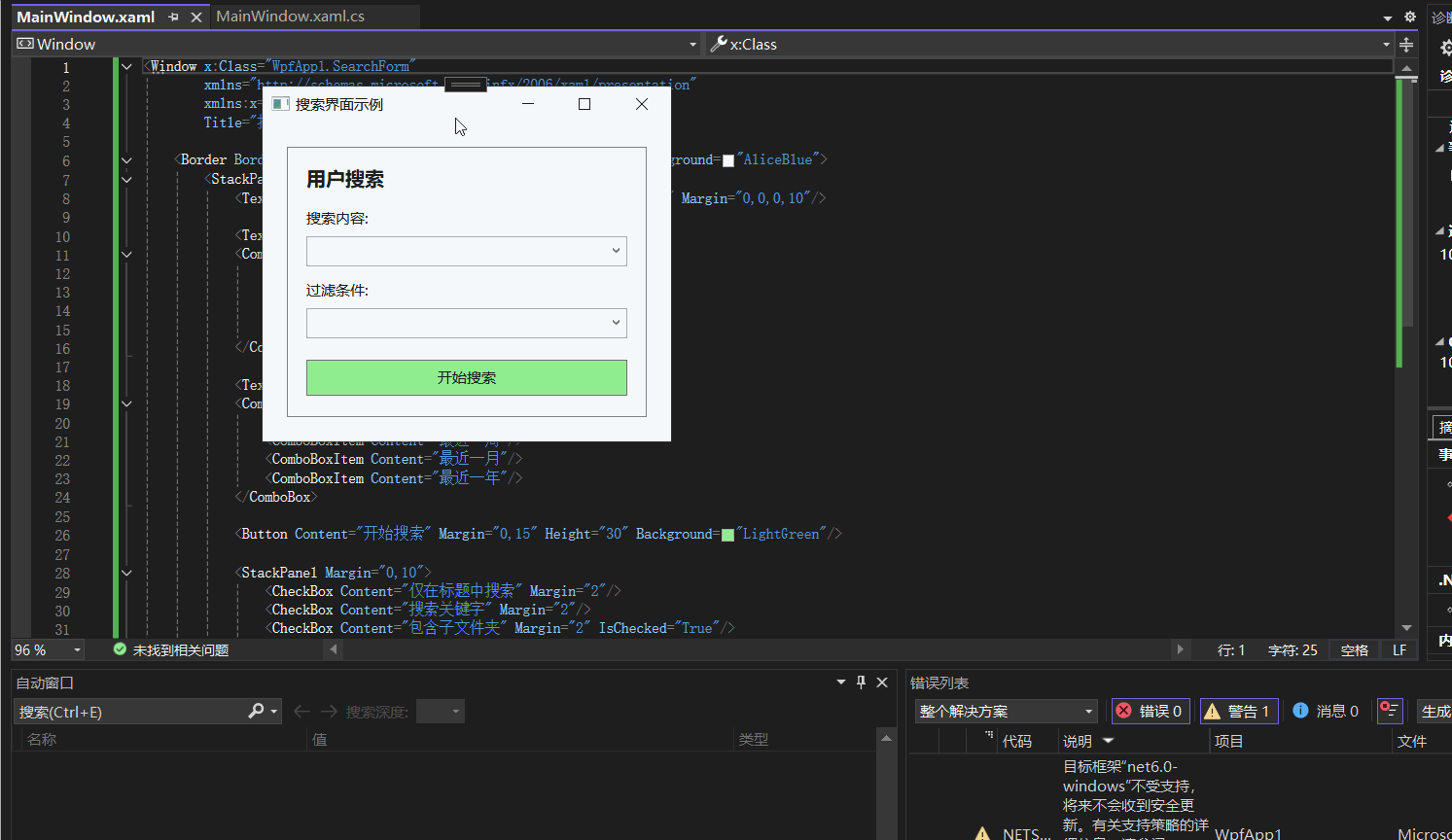

5.3 实际应用：用户搜索界面
XML
<Window x:Class="WpfLayoutDemo.SearchForm"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="搜索界面示例" Height="300" Width="350">
<Border BorderBrush="Gray" BorderThickness="1" Margin="20" Background="AliceBlue">
<StackPanel Margin="15">
<TextBlock Text="用户搜索" FontSize="16" FontWeight="Bold" Margin="0,0,0,10"/>
<TextBlock Text="搜索内容:" Margin="0,5"/>
<ComboBox Margin="0,2" Height="25">
<ComboBoxItem Content="所有内容"/>
<ComboBoxItem Content="文档"/>
<ComboBoxItem Content="图片"/>
<ComboBoxItem Content="音乐"/>
</ComboBox>
<TextBlock Text="过滤条件:" Margin="0,10,0,5"/>
<ComboBox Margin="0,2" Height="25">
<ComboBoxItem Content="无过滤"/>
<ComboBoxItem Content="最近一周"/>
<ComboBoxItem Content="最近一月"/>
<ComboBoxItem Content="最近一年"/>
</ComboBox>
<Button Content="开始搜索" Margin="0,15" Height="30" Background="LightGreen"/>
<StackPanel Margin="0,10">
<CheckBox Content="仅在标题中搜索" Margin="2"/>
<CheckBox Content="搜索关键字" Margin="2"/>
<CheckBox Content="包含子文件夹" Margin="2" IsChecked="True"/>
</StackPanel>
</StackPanel>
</Border>
</Window>
6. 🐱👓WrapPanel布局面板 - 自动折行布局
6.1 WrapPanel核心特性
-
从左到右排列，自动折行
-
类似HTML中的流式布局
-
可设置ItemWidth和ItemHeight统一尺寸

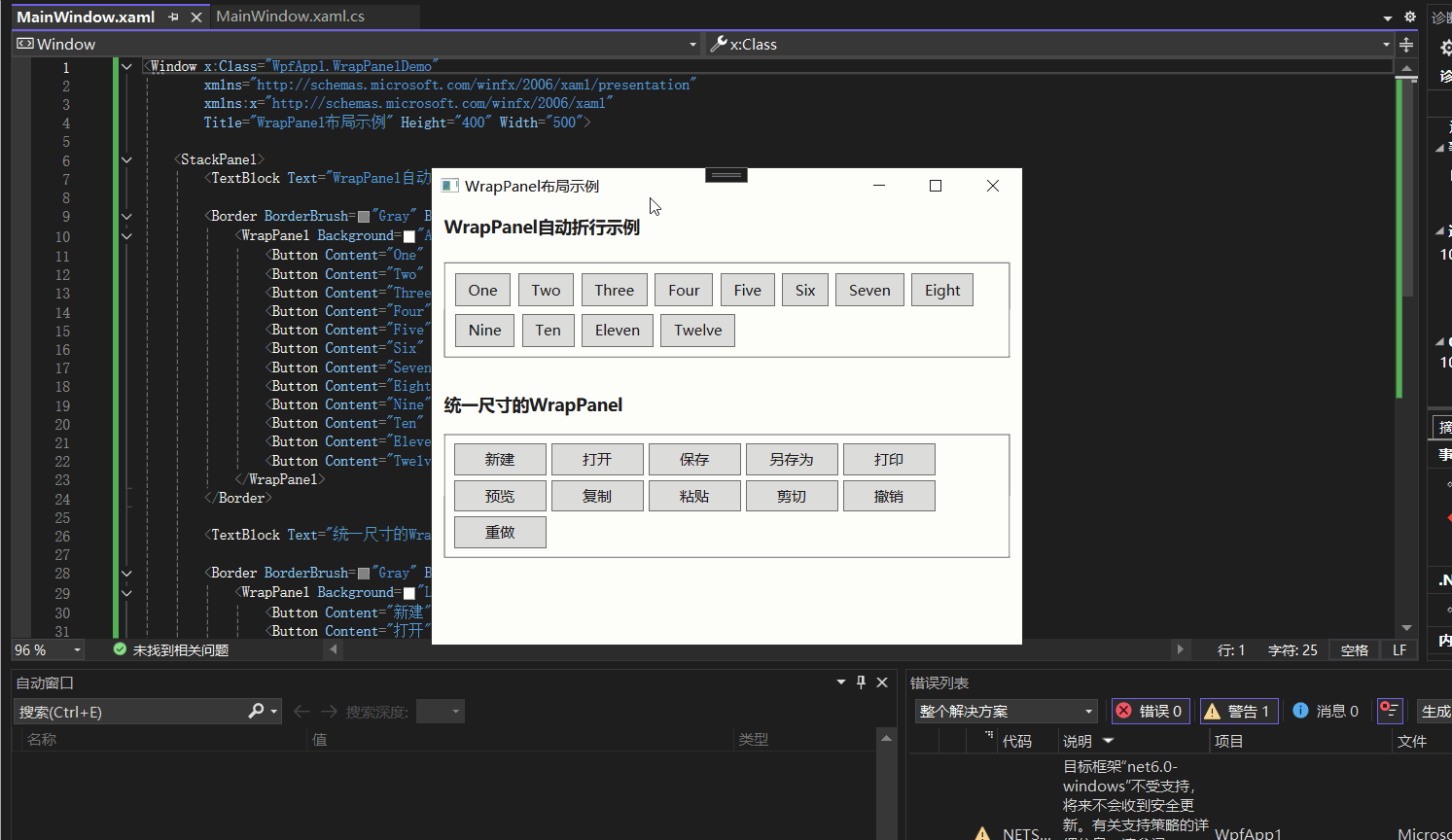

6.2 基础流式布局
XML
<Window x:Class="WpfLayoutDemo.WrapPanelDemo"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="WrapPanel布局示例" Height="400" Width="500">
<StackPanel>
<TextBlock Text="WrapPanel自动折行示例" FontSize="14" FontWeight="Bold" Margin="10"/>
<Border BorderBrush="Gray" BorderThickness="1" Margin="10">
<WrapPanel Background="AliceBlue" Margin="5">
<Button Content="One" Margin="3" Padding="10,5"/>
<Button Content="Two" Margin="3" Padding="10,5"/>
<Button Content="Three" Margin="3" Padding="10,5"/>
<Button Content="Four" Margin="3" Padding="10,5"/>
<Button Content="Five" Margin="3" Padding="10,5"/>
<Button Content="Six" Margin="3" Padding="10,5"/>
<Button Content="Seven" Margin="3" Padding="10,5"/>
<Button Content="Eight" Margin="3" Padding="10,5"/>
<Button Content="Nine" Margin="3" Padding="10,5"/>
<Button Content="Ten" Margin="3" Padding="10,5"/>
<Button Content="Eleven" Margin="3" Padding="10,5"/>
<Button Content="Twelve" Margin="3" Padding="10,5"/>
</WrapPanel>
</Border>
<TextBlock Text="统一尺寸的WrapPanel" FontSize="14" FontWeight="Bold" Margin="10,20,10,5"/>
<Border BorderBrush="Gray" BorderThickness="1" Margin="10">
<WrapPanel Background="LightYellow" ItemWidth="80" ItemHeight="30" Margin="5">
<Button Content="新建" Margin="2"/>
<Button Content="打开" Margin="2"/>
<Button Content="保存" Margin="2"/>
<Button Content="另存为" Margin="2"/>
<Button Content="打印" Margin="2"/>
<Button Content="预览" Margin="2"/>
<Button Content="复制" Margin="2"/>
<Button Content="粘贴" Margin="2"/>
<Button Content="剪切" Margin="2"/>
<Button Content="撤销" Margin="2"/>
<Button Content="重做" Margin="2"/>
</WrapPanel>
</Border>
</StackPanel>
</Window>
7. 👀UniformGrid布局面板 - 均匀网格布局
7.1 UniformGrid核心特性
-
所有单元格大小相同
-
自动计算行列数
-
适合图标布局和网格状界面

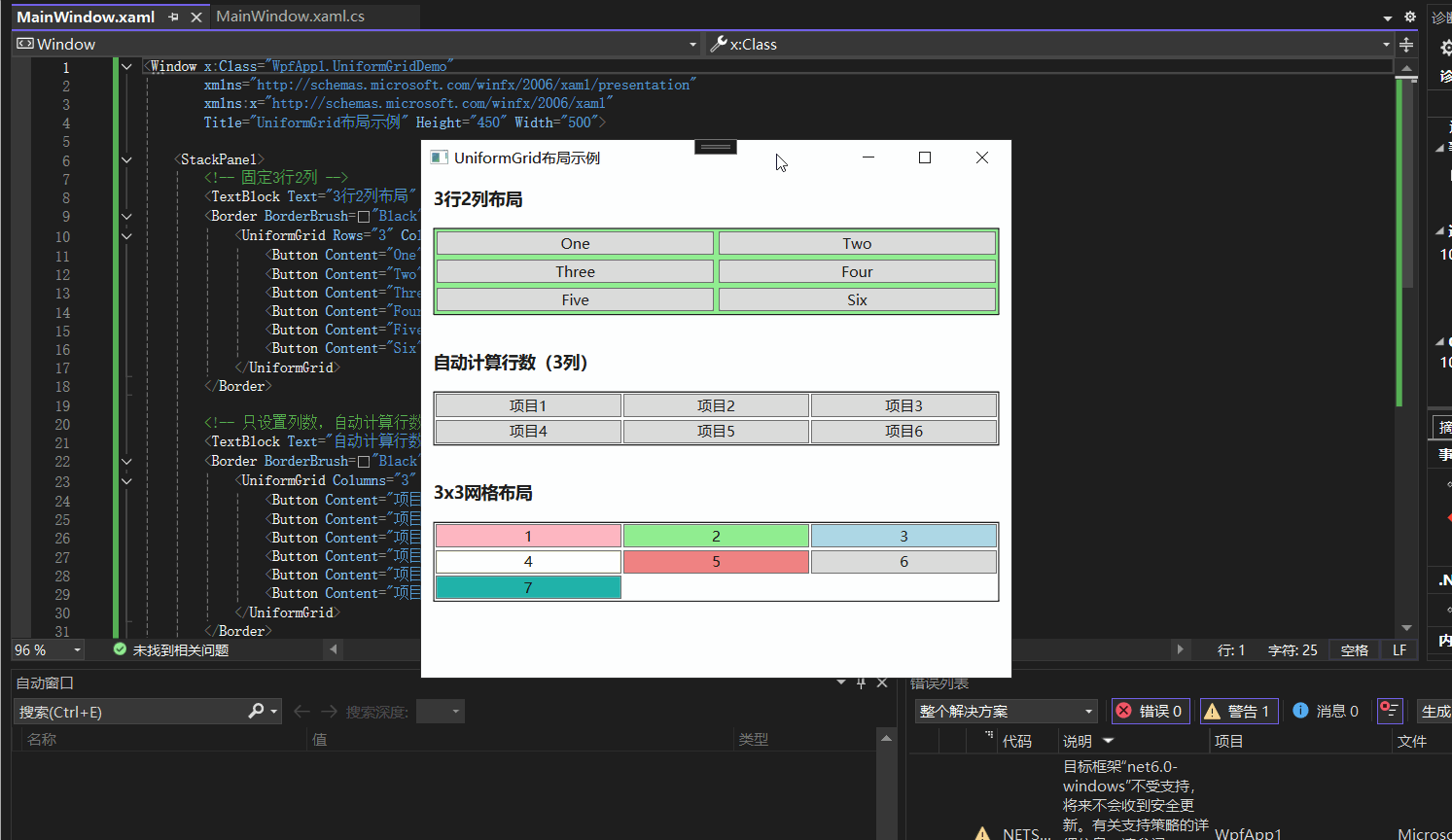

7.2 基础网格布局
XML
<Window x:Class="WpfLayoutDemo.UniformGridDemo"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="UniformGrid布局示例" Height="450" Width="500">
<StackPanel>
<!-- 固定3行2列 -->
<TextBlock Text="3行2列布局" FontSize="14" FontWeight="Bold" Margin="10,10,10,5"/>
<Border BorderBrush="Black" BorderThickness="1" Margin="10">
<UniformGrid Rows="3" Columns="2" Background="LightGreen">
<Button Content="One" Margin="2"/>
<Button Content="Two" Margin="2"/>
<Button Content="Three" Margin="2"/>
<Button Content="Four" Margin="2"/>
<Button Content="Five" Margin="2"/>
<Button Content="Six" Margin="2"/>
</UniformGrid>
</Border>
<!-- 只设置列数，自动计算行数 -->
<TextBlock Text="自动计算行数（3列）" FontSize="14" FontWeight="Bold" Margin="10,20,10,5"/>
<Border BorderBrush="Black" BorderThickness="1" Margin="10">
<UniformGrid Columns="3" Background="LightCyan">
<Button Content="项目1" Margin="1"/>
<Button Content="项目2" Margin="1"/>
<Button Content="项目3" Margin="1"/>
<Button Content="项目4" Margin="1"/>
<Button Content="项目5" Margin="1"/>
<Button Content="项目6" Margin="1"/>
</UniformGrid>
</Border>
<!-- 3x3网格演示 -->
<TextBlock Text="3x3网格布局" FontSize="14" FontWeight="Bold" Margin="10,20,10,5"/>
<Border BorderBrush="Black" BorderThickness="1" Margin="10">
<UniformGrid Columns="3" Rows="3" Background="AliceBlue">
<Button Content="1" Margin="1" Background="LightPink"/>
<Button Content="2" Margin="1" Background="LightGreen"/>
<Button Content="3" Margin="1" Background="LightBlue"/>
<Button Content="4" Margin="1" Background="LightYellow"/>
<Button Content="5" Margin="1" Background="LightCoral"/>
<Button Content="6" Margin="1" Background="LightGray"/>
<Button Content="7" Margin="1" Background="LightSeaGreen"/>
</UniformGrid>
</Border>
</StackPanel>
</Window>
8. 实战综合示例：复杂界面布局
8.1 MainWindow.xaml
XML
<Window x:Class="WpfLayoutTutorial.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="WPF布局面板全面实战"
Height="700"
Width="900"
WindowStartupLocation="CenterScreen"
Background="#F8F9FA">
<!-- 定义窗口资源 -->
<Window.Resources>
<!-- 按钮样式 -->
<Style x:Key="ModernButton" TargetType="Button">
<Setter Property="Background" Value="#4A90E2"/>
<Setter Property="Foreground" Value="White"/>
<Setter Property="BorderThickness" Value="0"/>
<Setter Property="Padding" Value="15,8"/>
<Setter Property="FontSize" Value="12"/>
<Setter Property="FontWeight" Value="SemiBold"/>
<Setter Property="Cursor" Value="Hand"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="Button">
<Border x:Name="border"
Background="{TemplateBinding Background}"
CornerRadius="4">
<ContentPresenter HorizontalAlignment="Center"
VerticalAlignment="Center"
Margin="{TemplateBinding Padding}"/>
</Border>
<ControlTemplate.Triggers>
<Trigger Property="IsMouseOver" Value="True">
<Setter TargetName="border" Property="Background" Value="#357ABD"/>
</Trigger>
<Trigger Property="IsPressed" Value="True">
<Setter TargetName="border" Property="Background" Value="#2C5F95"/>
</Trigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
<!-- 卡片样式 -->
<Style x:Key="CardStyle" TargetType="Border">
<Setter Property="Background" Value="White"/>
<Setter Property="BorderBrush" Value="#E1E5E9"/>
<Setter Property="BorderThickness" Value="1"/>
<Setter Property="CornerRadius" Value="8"/>
<Setter Property="Padding" Value="20"/>
<Setter Property="Margin" Value="10"/>
</Style>
<!-- 标题文本样式 -->
<Style x:Key="TitleStyle" TargetType="TextBlock">
<Setter Property="FontSize" Value="18"/>
<Setter Property="FontWeight" Value="Bold"/>
<Setter Property="Foreground" Value="#2C3E50"/>
<Setter Property="Margin" Value="0,0,0,15"/>
</Style>
<!-- 副标题样式 -->
<Style x:Key="SubtitleStyle" TargetType="TextBlock">
<Setter Property="FontSize" Value="14"/>
<Setter Property="FontWeight" Value="SemiBold"/>
<Setter Property="Foreground" Value="#34495E"/>
<Setter Property="Margin" Value="0,0,0,10"/>
</Style>
</Window.Resources>
<!-- 主布局容器 -->
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
<RowDefinition Height="Auto"/>
</Grid.RowDefinitions>
<!-- 头部区域 -->
<Border Grid.Row="0" Background="#2C3E50" Padding="20,15">
<StackPanel Orientation="Horizontal">
<TextBlock Text="🚀" FontSize="24" VerticalAlignment="Center"/>
<TextBlock Text="WPF布局面板实战演示"
FontSize="20"
FontWeight="Bold"
Foreground="White"
Margin="15,0,0,0"
VerticalAlignment="Center"/>
<TextBlock Text="全面掌握界面布局技巧"
FontSize="14"
Foreground="#BDC3C7"
Margin="20,0,0,0"
VerticalAlignment="Center"/>
</StackPanel>
</Border>
<!-- 主内容区域 -->
<ScrollViewer Grid.Row="1" VerticalScrollBarVisibility="Auto">
<StackPanel Margin="20">
<!-- StackPanel示例 -->
<Border Style="{StaticResource CardStyle}">
<StackPanel>
<TextBlock Text="1. StackPanel - 线性堆叠布局" Style="{StaticResource TitleStyle}"/>
<TextBlock Text="子元素按照声明的先后顺序，自上往下或从左往右摆放" Style="{StaticResource SubtitleStyle}"/>
<StackPanel Orientation="Horizontal" Margin="0,10">
<TextBlock Text="方向: " FontWeight="SemiBold" VerticalAlignment="Center"/>
<RadioButton Content="Vertical" IsChecked="True" Margin="10,0" GroupName="Orientation"/>
<RadioButton Content="Horizontal" Margin="10,0" GroupName="Orientation"/>
</StackPanel>
<Border BorderBrush="#E1E5E9" BorderThickness="1" Background="#F8F9FA" Padding="15">
<StackPanel x:Name="StackPanelDemo" Orientation="Vertical">
<Button Content="第一个项目" Style="{StaticResource ModernButton}" Margin="0,5"/>
<Button Content="第二个项目" Style="{StaticResource ModernButton}" Margin="0,5"/>
<Button Content="第三个项目" Style="{StaticResource ModernButton}" Margin="0,5"/>
<Button Content="第四个项目" Style="{StaticResource ModernButton}" Margin="0,5"/>
</StackPanel>
</Border>
</StackPanel>
</Border>
<!-- WrapPanel示例 -->
<Border Style="{StaticResource CardStyle}">
<StackPanel>
<TextBlock Text="2. WrapPanel - 自动折行布局" Style="{StaticResource TitleStyle}"/>
<TextBlock Text="子元素从左往右摆放，摆满一行后自动折行" Style="{StaticResource SubtitleStyle}"/>
<StackPanel Orientation="Horizontal" Margin="0,10">
<Button Content="添加项目" Click="AddWrapPanelItem" Style="{StaticResource ModernButton}"/>
<Button Content="移除项目" Click="RemoveWrapPanelItem" Style="{StaticResource ModernButton}" Margin="10,0"/>
</StackPanel>
<Border BorderBrush="#E1E5E9" BorderThickness="1" Background="#F8F9FA" Padding="15">
<WrapPanel x:Name="WrapPanelDemo">
<Button Content="标签1" Style="{StaticResource ModernButton}" Margin="5"/>
<Button Content="标签2" Style="{StaticResource ModernButton}" Margin="5"/>
<Button Content="标签3" Style="{StaticResource ModernButton}" Margin="5"/>
<Button Content="标签4" Style="{StaticResource ModernButton}" Margin="5"/>
<Button Content="标签5" Style="{StaticResource ModernButton}" Margin="5"/>
</WrapPanel>
</Border>
</StackPanel>
</Border>
<!-- DockPanel示例 -->
<Border Style="{StaticResource CardStyle}">
<StackPanel>
<TextBlock Text="3. DockPanel - 停靠布局" Style="{StaticResource TitleStyle}"/>
<TextBlock Text="子元素可以停靠在面板的四条边上，最后一个元素填充剩余空间" Style="{StaticResource SubtitleStyle}"/>
<Border BorderBrush="#E1E5E9" BorderThickness="1" Background="#F8F9FA" Padding="5">
<DockPanel LastChildFill="True" Height="200">
<Border DockPanel.Dock="Top" Background="#E74C3C" Height="40">
<TextBlock Text="顶部停靠区域" Foreground="White" HorizontalAlignment="Center" VerticalAlignment="Center"/>
</Border>
<Border DockPanel.Dock="Bottom" Background="#3498DB" Height="35">
<TextBlock Text="底部停靠区域" Foreground="White" HorizontalAlignment="Center" VerticalAlignment="Center"/>
</Border>
<Border DockPanel.Dock="Left" Background="#2ECC71" Width="120">
<TextBlock Text="左侧停靠" Foreground="White" HorizontalAlignment="Center" VerticalAlignment="Center" TextAlignment="Center"/>
</Border>
<Border DockPanel.Dock="Right" Background="#9B59B6" Width="100">
<TextBlock Text="右侧停靠" Foreground="White" HorizontalAlignment="Center" VerticalAlignment="Center" TextAlignment="Center"/>
</Border>
<Border Background="#F39C12">
<TextBlock Text="填充剩余空间区域"
HorizontalAlignment="Center"
VerticalAlignment="Center"
FontWeight="Bold"
Foreground="White"/>
</Border>
</DockPanel>
</Border>
</StackPanel>
</Border>
<!-- Canvas示例 -->
<Border Style="{StaticResource CardStyle}">
<StackPanel>
<TextBlock Text="4. Canvas - 绝对定位布局" Style="{StaticResource TitleStyle}"/>
<TextBlock Text="通过坐标精确控制元素位置，适合图形绘制和自定义布局" Style="{StaticResource SubtitleStyle}"/>
<Border BorderBrush="#E1E5E9" BorderThickness="1" Background="#F8F9FA" Padding="15">
<Canvas Width="400" Height="250" Background="White">
<!-- 使用Canvas进行绝对定位 -->
<Rectangle Canvas.Left="50" Canvas.Top="30"
Width="80" Height="40"
Fill="#E74C3C" Opacity="0.8"
Stroke="#C0392B" StrokeThickness="2"/>
<Ellipse Canvas.Right="60" Canvas.Top="20"
Width="60" Height="60"
Fill="#3498DB" Opacity="0.8"
Stroke="#2980B9" StrokeThickness="2"/>
<Polygon Points="30,150 80,100 130,150"
Canvas.Left="150" Canvas.Top="50"
Fill="#9B59B6" Opacity="0.8"
Stroke="#8E44AD" StrokeThickness="2"/>
<TextBlock Canvas.Left="200" Canvas.Bottom="30"
Text="自由定位元素"
FontWeight="Bold"
Foreground="#2C3E50"/>
<!-- 坐标指示器 -->
<Line X1="0" Y1="0" X2="400" Y2="250"
Stroke="#BDC3C7" StrokeThickness="1" StrokeDashArray="2,2"/>
<Line X1="400" Y1="0" X2="0" Y2="250"
Stroke="#BDC3C7" StrokeThickness="1" StrokeDashArray="2,2"/>
</Canvas>
</Border>
</StackPanel>
</Border>
<!-- UniformGrid示例 -->
<Border Style="{StaticResource CardStyle}">
<StackPanel>
<TextBlock Text="5. UniformGrid - 均匀网格布局" Style="{StaticResource TitleStyle}"/>
<TextBlock Text="所有单元格大小相同，自动创建相同的行列数" Style="{StaticResource SubtitleStyle}"/>
<StackPanel Orientation="Horizontal" Margin="0,10">
<TextBlock Text="列数: " FontWeight="SemiBold" VerticalAlignment="Center"/>
<ComboBox x:Name="ColumnCountComboBox" SelectedIndex="1" Margin="10,0">
<ComboBoxItem Content="2"/>
<ComboBoxItem Content="3"/>
<ComboBoxItem Content="4"/>
</ComboBox>
<TextBlock Text="行数: " FontWeight="SemiBold" VerticalAlignment="Center" Margin="20,0,0,0"/>
<ComboBox x:Name="RowCountComboBox" SelectedIndex="1" Margin="10,0">
<ComboBoxItem Content="2"/>
<ComboBoxItem Content="3"/>
<ComboBoxItem Content="4"/>
</ComboBox>
</StackPanel>
<Border BorderBrush="#E1E5E9" BorderThickness="1" Background="#F8F9FA" Padding="15">
<UniformGrid x:Name="UniformGridDemo" Columns="3" Rows="3">
<Button Content="1" Style="{StaticResource ModernButton}" Background="#1ABC9C"/>
<Button Content="2" Style="{StaticResource ModernButton}" Background="#2ECC71"/>
<Button Content="3" Style="{StaticResource ModernButton}" Background="#3498DB"/>
<Button Content="4" Style="{StaticResource ModernButton}" Background="#9B59B6"/>
<Button Content="5" Style="{StaticResource ModernButton}" Background="#E74C3C"/>
<Button Content="6" Style="{StaticResource ModernButton}" Background="#F39C12"/>
<Button Content="7" Style="{StaticResource ModernButton}" Background="#34495E"/>
<Button Content="8" Style="{StaticResource ModernButton}" Background="#16A085"/>
<Button Content="9" Style="{StaticResource ModernButton}" Background="#2980B9"/>
</UniformGrid>
</Border>
</StackPanel>
</Border>
<!-- 综合布局示例 -->
<Border Style="{StaticResource CardStyle}">
<StackPanel>
<TextBlock Text="6. 综合布局实战 - 模拟文件管理器" Style="{StaticResource TitleStyle}"/>
<TextBlock Text="组合使用多种布局面板创建复杂界面" Style="{StaticResource SubtitleStyle}"/>
<Border BorderBrush="#E1E5E9" BorderThickness="1" Background="White">
<DockPanel LastChildFill="True">
<!-- 顶部工具栏 -->
<StackPanel DockPanel.Dock="Top" Orientation="Horizontal" Background="#34495E" Padding="10">
<Button Content="📁 新建" Style="{StaticResource ModernButton}" Background="Transparent" BorderThickness="1" BorderBrush="#5D6D7E"/>
<Button Content="📂 打开" Style="{StaticResource ModernButton}" Background="Transparent" BorderThickness="1" BorderBrush="#5D6D7E" Margin="10,0,0,0"/>
<Button Content="💾 保存" Style="{StaticResource ModernButton}" Background="Transparent" BorderThickness="1" BorderBrush="#5D6D7E" Margin="10,0,0,0"/>
</StackPanel>
<!-- 左侧导航 -->
<StackPanel DockPanel.Dock="Left" Width="180" Background="#2C3E50">
<TextBlock Text="导航面板" Foreground="White" FontWeight="Bold" Margin="15,15,15,10"/>
<StackPanel Margin="10,0">
<Button Content="📁 文档" Style="{StaticResource ModernButton}" Background="Transparent" HorizontalContentAlignment="Left"/>
<Button Content="🖼️ 图片" Style="{StaticResource ModernButton}" Background="Transparent" HorizontalContentAlignment="Left" Margin="0,5,0,0"/>
<Button Content="🎵 音乐" Style="{StaticResource ModernButton}" Background="Transparent" HorizontalContentAlignment="Left" Margin="0,5,0,0"/>
<Button Content="📹 视频" Style="{StaticResource ModernButton}" Background="Transparent" HorizontalContentAlignment="Left" Margin="0,5,0,0"/>
</StackPanel>
</StackPanel>
<!-- 主内容区域 -->
<Grid Background="#ECF0F1">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<!-- 地址栏 -->
<StackPanel Grid.Row="0" Orientation="Horizontal" Background="White" Padding="15">
<TextBlock Text="当前位置: " VerticalAlignment="Center" FontWeight="SemiBold"/>
<TextBox Text="C:\WPF布局演示\综合示例" BorderThickness="1" BorderBrush="#BDC3C7" Padding="8,5" MinWidth="300" Margin="10,0,0,0"/>
</StackPanel>
<!-- 文件列表 -->
<ScrollViewer Grid.Row="1" VerticalScrollBarVisibility="Auto">
<WrapPanel Margin="15">
<!-- 文件项 -->
<Border Width="120" Height="120" Background="White" Margin="5" CornerRadius="4" BorderBrush="#E1E5E9" BorderThickness="1">
<StackPanel VerticalAlignment="Center" HorizontalAlignment="Center">
<TextBlock Text="📄" FontSize="32" HorizontalAlignment="Center"/>
<TextBlock Text="文档.docx" HorizontalAlignment="Center" Margin="0,5,0,0" FontWeight="SemiBold"/>
<TextBlock Text="修改: 今天" HorizontalAlignment="Center" FontSize="10" Foreground="#7F8C8D" Margin="0,2,0,0"/>
</StackPanel>
</Border>
<!-- 更多文件项... -->
<Border Width="120" Height="120" Background="White" Margin="5" CornerRadius="4" BorderBrush="#E1E5E9" BorderThickness="1">
<StackPanel VerticalAlignment="Center" HorizontalAlignment="Center">
<TextBlock Text="📊" FontSize="32" HorizontalAlignment="Center"/>
<TextBlock Text="数据表.xlsx" HorizontalAlignment="Center" Margin="0,5,0,0" FontWeight="SemiBold"/>
<TextBlock Text="修改: 昨天" HorizontalAlignment="Center" FontSize="10" Foreground="#7F8C8D" Margin="0,2,0,0"/>
</StackPanel>
</Border>
<Border Width="120" Height="120" Background="White" Margin="5" CornerRadius="4" BorderBrush="#E1E5E9" BorderThickness="1">
<StackPanel VerticalAlignment="Center" HorizontalAlignment="Center">
<TextBlock Text="🖼️" FontSize="32" HorizontalAlignment="Center"/>
<TextBlock Text="图片.jpg" HorizontalAlignment="Center" Margin="0,5,0,0" FontWeight="SemiBold"/>
<TextBlock Text="修改: 2天前" HorizontalAlignment="Center" FontSize="10" Foreground="#7F8C8D" Margin="0,2,0,0"/>
</StackPanel>
</Border>
</WrapPanel>
</ScrollViewer>
</Grid>
</DockPanel>
</Border>
</StackPanel>
</Border>
</StackPanel>
</ScrollViewer>
<!-- 底部状态栏 -->
<Border Grid.Row="2" Background="#34495E" Padding="15,10">
<StackPanel Orientation="Horizontal">
<TextBlock Text="💡 提示: " Foreground="#BDC3C7" FontWeight="SemiBold"/>
<TextBlock Text="尝试调整窗口大小观察不同布局面板的响应式行为" Foreground="#BDC3C7" Margin="5,0,0,0"/>
</StackPanel>
</Border>
</Grid>
</Window>8.2 MainWindow.xaml.cs
cpp
using System.Windows;
using System.Windows.Controls;
using System.Windows.Controls.Primitives;
using System.Windows.Media;
namespace WpfLayoutTutorial
{
public partial class MainWindow : Window
{
private int wrapPanelItemCount = 5;
public MainWindow()
{
InitializeComponent();
// 绑定ComboBox变化事件
ColumnCountComboBox.SelectionChanged += UniformGridSettingsChanged;
RowCountComboBox.SelectionChanged += UniformGridSettingsChanged;
// 绑定RadioButton变化事件
foreach (var child in FindVisualChildren<RadioButton>(this))
{
child.Checked += OrientationRadioButton_Checked;
}
}
private void AddWrapPanelItem(object sender, RoutedEventArgs e)
{
wrapPanelItemCount++;
var newButton = new Button
{
Content = $"标签{wrapPanelItemCount}",
Style = (Style)FindResource("ModernButton"),
Margin = new Thickness(5)
};
WrapPanelDemo.Children.Add(newButton);
}
private void RemoveWrapPanelItem(object sender, RoutedEventArgs e)
{
if (WrapPanelDemo.Children.Count > 0)
{
WrapPanelDemo.Children.RemoveAt(WrapPanelDemo.Children.Count - 1);
if (wrapPanelItemCount > 0) wrapPanelItemCount--;
}
}
private void UniformGridSettingsChanged(object sender, SelectionChangedEventArgs e)
{
if (ColumnCountComboBox.SelectedItem is ComboBoxItem columnItem &&
RowCountComboBox.SelectedItem is ComboBoxItem rowItem)
{
UniformGridDemo.Columns = int.Parse(columnItem.Content.ToString());
UniformGridDemo.Rows = int.Parse(rowItem.Content.ToString());
}
}
private void OrientationRadioButton_Checked(object sender, RoutedEventArgs e)
{
var radioButton = sender as RadioButton;
if (radioButton != null && StackPanelDemo != null)
{
StackPanelDemo.Orientation = radioButton.Content.ToString() == "Horizontal"
? Orientation.Horizontal
: Orientation.Vertical;
}
}
// 辅助方法：在可视化树中查找特定类型的子元素
public static System.Collections.Generic.IEnumerable<T> FindVisualChildren<T>(DependencyObject depObj) where T : DependencyObject
{
if (depObj != null)
{
for (int i = 0; i < VisualTreeHelper.GetChildrenCount(depObj); i++)
{
DependencyObject child = VisualTreeHelper.GetChild(depObj, i);
if (child != null && child is T)
{
yield return (T)child;
}
foreach (T childOfChild in FindVisualChildren<T>(child))
{
yield return childOfChild;
}
}
}
}
}
}
8.3 功能特点说明
8.3.1 StackPanel演示
-
展示垂直和水平两种方向的堆叠布局
-
通过单选按钮实时切换方向
-
演示线性排列的特点
8.3.2 WrapPanel演示
-
展示自动折行布局行为
-
提供添加/移除项目的交互功能
-
演示流式布局的适应性
8.3.3 DockPanel演示
-
展示四种停靠位置（上、下、左、右）
-
演示LastChildFill属性的作用
-
展示传统窗口布局的实现
8.3.4 Canvas演示
-
展示绝对定位能力
-
包含多种形状元素的定位
-
演示坐标系统的使用
8.3.5 UniformGrid演示
-
展示均匀网格布局
-
提供行列数动态调整
-
演示网格系统的规整性
8.3.6 综合布局演示
-
模拟真实文件管理器界面
-
组合使用多种布局面板
-
展示复杂界面的构建方法
9. 各布局面板适用场景📖
| 布局面板 | 适用场景 | 优点 | 缺点 |
|---|---|---|---|
| Canvas | 图形绘制、游戏界面、绝对定位需求 | 精确控制位置，性能好 | 不支持响应式布局 |
| DockPanel | 窗口布局、停靠式界面 | 类似传统窗口布局，简单直观 | 布局相对固定 |
| StackPanel | 列表布局、表单项排列 | 简单线性布局，易于使用 | 不适合复杂布局 |
| WrapPanel | 工具栏、图标排列、流式布局 | 自动折行，适应性强 | 布局不可预测 |
| UniformGrid | 网格状界面、图标视图 | 单元格均匀，布局整齐 | 灵活性较差 |
10. 总结与展望
通过本WPF布局面板的全面学习，我们深入掌握了各种布局容器的核心特性和应用场景。从简单的StackPanel线性布局到复杂的DockPanel停靠布局，每种面板都为特定场景提供了最优解决方案。现代WPF开发强调响应式设计和自适应布局，这正是这些布局面板的价值所在。
展望未来，WPF布局系统将继续演进，与现代化设计趋势深度结合。随着.NET跨平台战略的推进，这些布局理念将延伸至MAUI等新一代框架中。人工智能辅助布局、动态自适应界面、3D空间布局等新技术将为WPF注入新的活力。掌握这些核心布局技术，不仅有助于开发现代Windows应用，更为拥抱未来跨平台开发奠定了坚实基础。布局系统的精髓------"描述关系而非固定位置"的理念，将继续指引我们构建更加智能、优雅的用户界面。
如果本专题对你有帮助：
🔥 点赞 + 🌟 收藏 + ➕ 关注！
这是对我持续创作WPF深度内容的最大动力！
💬 欢迎在评论区积极参与：
👉 「布局经验分享！」 -- 展示你的界面布局作品与设计心得
👉 「下期重点投票！」 -- 留言最想深入研究的布局面板（Grid/StackPanel/DockPanel）
👉 「布局难题求助」 -- 描述具体布局挑战，共同探讨解决方案
👉 「企业实战案例」 -- 分享实际项目中的布局设计经验
愿你的界面布局精准优雅，用户体验流畅自然！我们布局实战篇再见！✨
💫 💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫💫
实战预热：
接下来我们将进入《WPF编程基础【2.3】Grid》
