仿神秘海域/美末环境交互的程序化动画学习

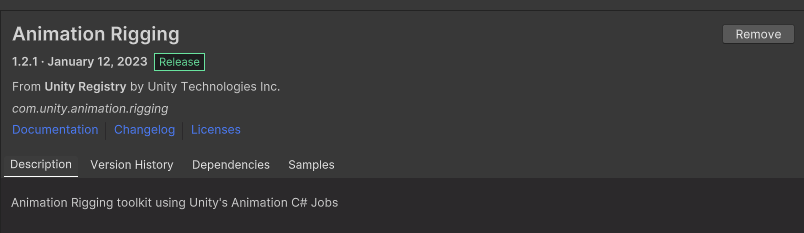

插件安装

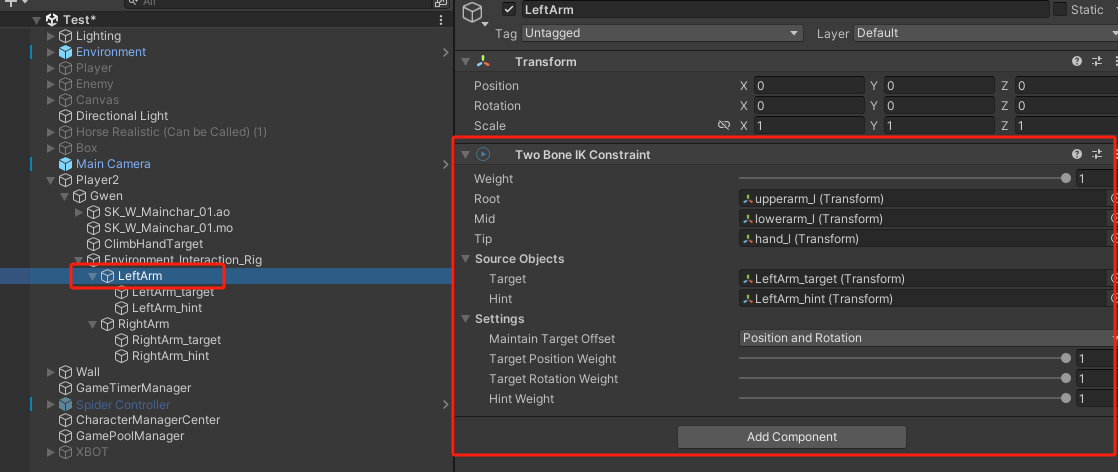

为角色添加组件

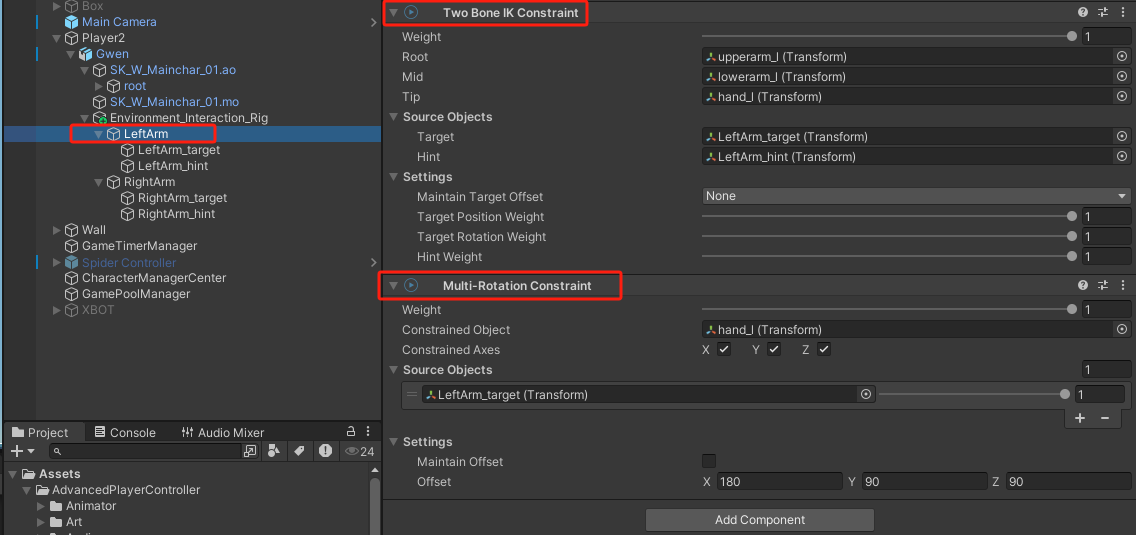

右手同理

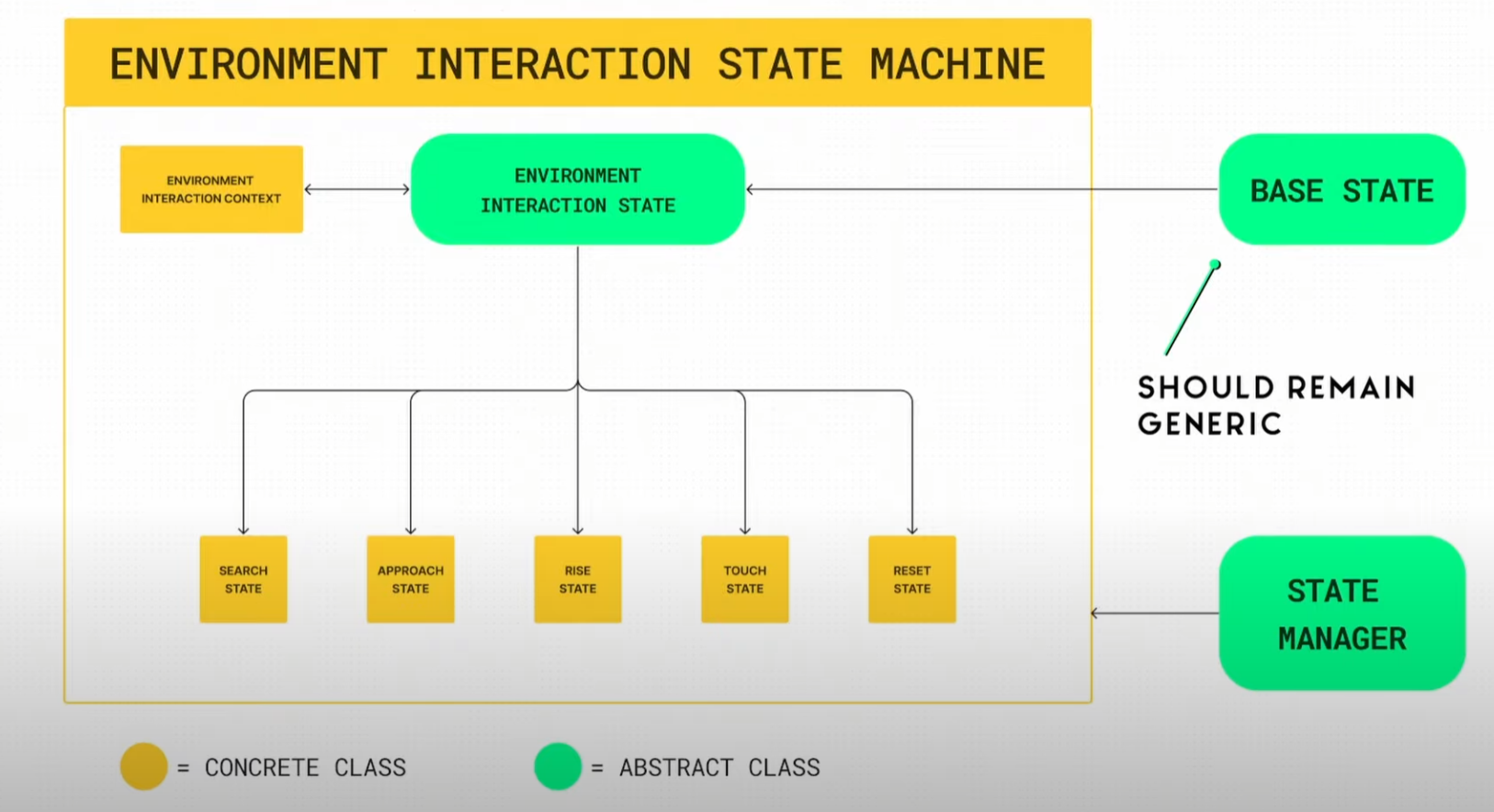

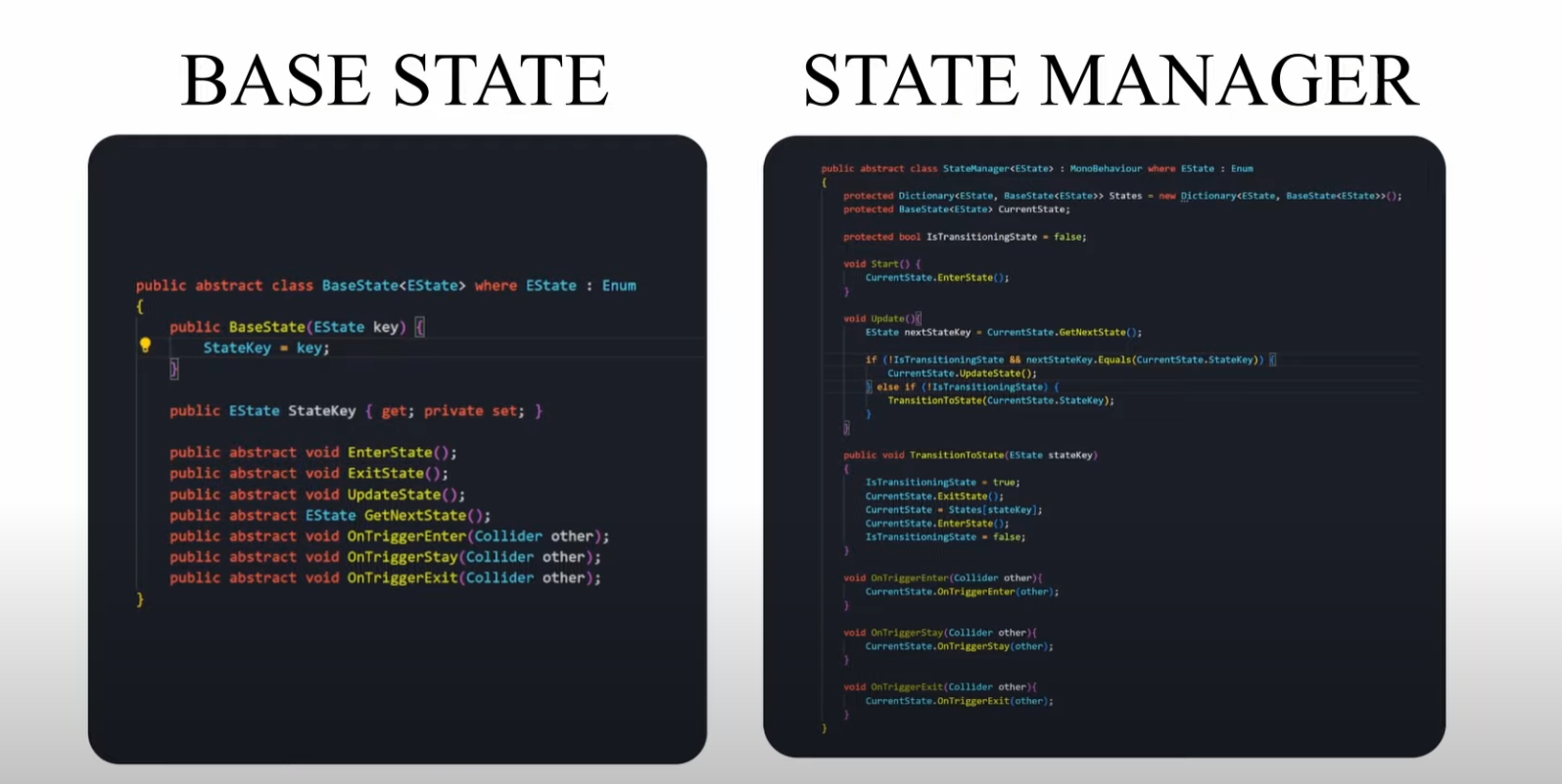

状态机脚本编写

BaseState.cs

复制代码

using UnityEngine;
using System;

/// <summary>
/// 状态基类，定义了状态机中所有状态的基本行为规范
/// 泛型参数EEState限制为枚举类型，用于表示具体的状态类型
/// </summary>
/// <typeparam name="EState">状态枚举类型，继承自Enum</typeparam>
public abstract class BaseState<EState> where EState : Enum
{
    //构造函数
    public BaseState(EState key)
    {
        StateKey = key;
    }
    public EState StateKey { get; private set; }

    public abstract void EnterState();
    public abstract void ExitState();
    public abstract void UpdateState();
    public abstract EState GetNextState();
    public abstract void OnTriggerEnter(Collider other);
    public abstract void OnTriggerStay(Collider other);
    public abstract void OnTriggerExit(Collider other);
}

NewBaseState.cs

复制代码

using UnityEngine;
using System;
using System.Collections.Generic;

/// <summary>
/// 状态管理器泛型抽象类
/// </summary>
/// <typeparam name="EState">状态枚举类型，需继承自Enum</typeparam>
public abstract class StateManager<EState> : MonoBehaviour where EState : Enum
{
    // 存储所有状态的字典，键为状态枚举，值为对应的状态实例
    protected Dictionary<EState, BaseState<EState>> States = new Dictionary<EState, BaseState<EState>>();
    // 当前激活的状态
    protected BaseState<EState> CurrentState;

    // 标志位：是否处于状态切换中
    protected bool IsTransitioningState = false;

    void Start()
    {
        CurrentState.EnterState();
    }

    void Update()
    {
        EState nextStateKey = CurrentState.GetNextState();

        if (!IsTransitioningState && nextStateKey.Equals(CurrentState.StateKey))
        {
            // 如果当前状态和下一状态相同，则更新当前状态
            CurrentState.UpdateState();
        }
        else if(!IsTransitioningState)
        {
            // 不同，则切换到下一状态
            TransitionToState(nextStateKey);
        }
    }

    /// <summary>
    /// 状态切换方法，用于从当前状态切换到目标状态
    /// </summary>
    /// <param name="stateKey">目标状态的枚举标识</param>
    protected virtual void TransitionToState(EState stateKey)
    {
        IsTransitioningState = true;

        // 退出当前状态
        CurrentState.ExitState();
        // 进入目标状态
        CurrentState = States[stateKey];
        CurrentState.EnterState();

        IsTransitioningState = false;
    }

    /// <summary>
    /// 当碰撞体进入触发器时调用的方法，转发给当前状态处理
    /// </summary>
    /// <param name="other">进入触发器的碰撞体</param>
    void OnTriggerEnter(Collider other)
    {
        CurrentState.OnTriggerEnter(other);
    }

    /// <summary>
    /// 当碰撞体持续处于触发器中时调用的方法，转发给当前状态处理
    /// </summary>
    /// <param name="other">处于触发器中的碰撞体</param>
    void OnTriggerStay(Collider other)
    {
        CurrentState.OnTriggerStay(other);
    }

    /// <summary>
    /// 当碰撞体退出触发器时调用的方法，转发给当前状态处理
    /// </summary>
    /// <param name="other">退出触发器的碰撞体</param>
    void OnTriggerExit(Collider other)
    {
        CurrentState.OnTriggerExit(other);
    }
}

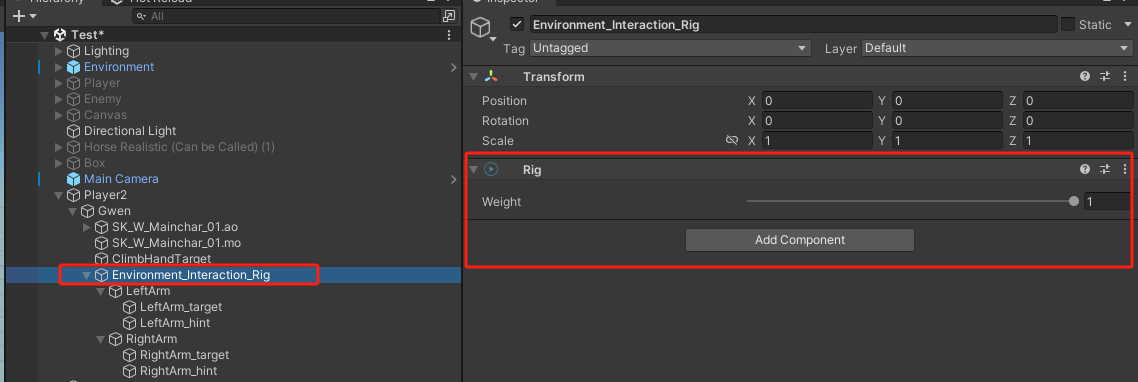

Animation Rigging

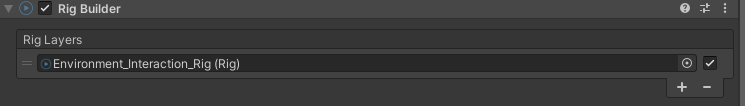

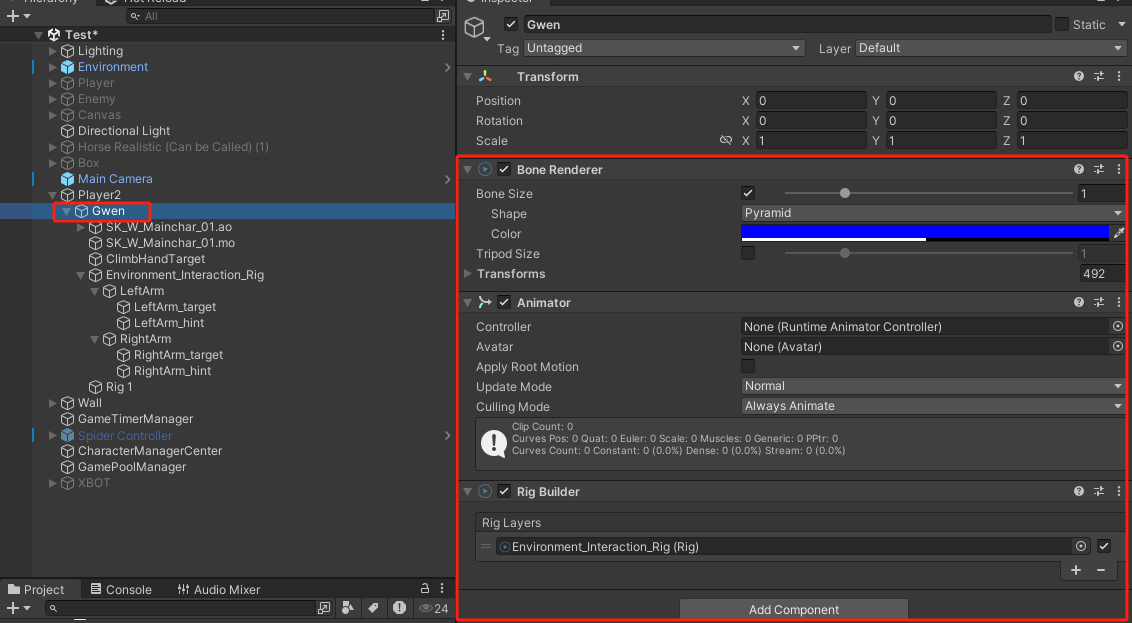

Rig Builder组件要放在Animator的同级

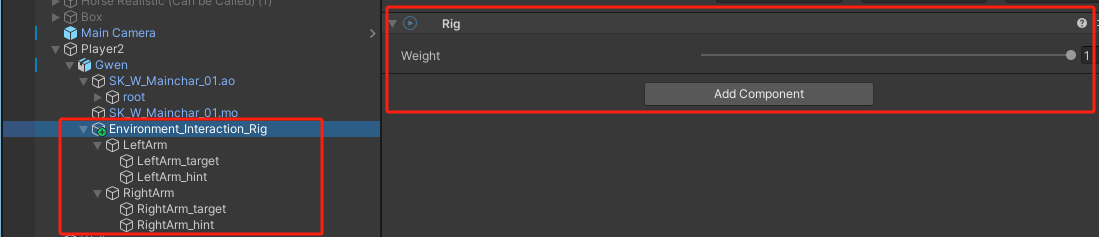

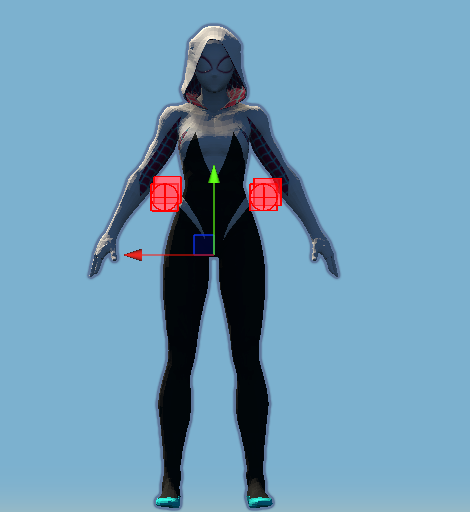

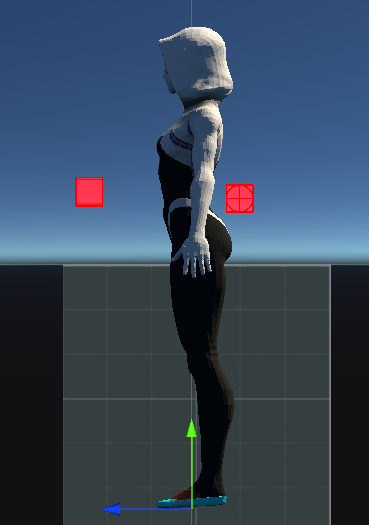

Rig放置的位置

环境交互状态机的编写

EnvironmentInteractionStateMachine

复制代码

using UnityEngine;
using UnityEngine.Animations.Rigging;
using UnityEngine.Assertions;   //调试用


public class EnvironmentInteractionStateMachine : StateManager<EnvironmentInteractionStateMachine.EEnvironmentInteractionState>
{
    // 环境交互状态
    public enum EEnvironmentInteractionState
    {
        Search,   // 搜索状态
        Approach, // 接近状态
        Rise,     // 起身状态
        Touch,    // 触碰状态
        Reset     // 重置状态
    }

    private EnvironmentInteractionContext _context;

    // 约束、组件等引用
    [SerializeField] private TwoBoneIKConstraint _leftIkConstraint;
    [SerializeField] private TwoBoneIKConstraint _rightIkConstraint;
    [SerializeField] private MultiRotationConstraint _leftMultiRotationConstraint;
    [SerializeField] private MultiRotationConstraint _rightMultiRotationConstraint;
    [SerializeField] private CharacterController characterController;

    void Awake()
    {
        ValidateConstraints();

        _context = new EnvironmentInteractionContext(_leftIkConstraint, _rightIkConstraint, _leftMultiRotationConstraint, _rightMultiRotationConstraint, characterController);
    }

    // 校验各类约束、组件是否正确赋值
    private void ValidateConstraints()
    {
        Assert.IsNotNull(_leftIkConstraint, "Left IK constraint 没有赋值");
        Assert.IsNotNull(_rightIkConstraint, "Right IK constraint 没有赋值");
        Assert.IsNotNull(_leftMultiRotationConstraint, "Left multi-rotation constraint 没有赋值");
        Assert.IsNotNull(_rightMultiRotationConstraint, "Right multi-rotation constraint 没有赋值");
        Assert.IsNotNull(characterController, "characterController used to control character 没有赋值");
    }


}

EnvironmentInteractionContext用来管理各种属性

复制代码

using UnityEngine;
using UnityEngine.Animations.Rigging;

public class EnvironmentInteractionContext
{
    private TwoBoneIKConstraint _leftIkConstraint;
    private TwoBoneIKConstraint _rightIkConstraint;
    private MultiRotationConstraint _leftMultiRotationConstraint;
    private MultiRotationConstraint _rightMultiRotationConstraint;
    private CharacterController _characterController;

    public EnvironmentInteractionContext(
        TwoBoneIKConstraint leftIkConstraint,
        TwoBoneIKConstraint rightIkConstraint,
        MultiRotationConstraint leftMultiRotationConstraint,
        MultiRotationConstraint rightMultiRotationConstraint,
        CharacterController characterController)
    {
        _leftIkConstraint = leftIkConstraint;
        _rightIkConstraint = rightIkConstraint;
        _leftMultiRotationConstraint = leftMultiRotationConstraint;
        _rightMultiRotationConstraint = rightMultiRotationConstraint;
        _characterController = characterController;
    }

    // 外部可以访问的属性
    public TwoBoneIKConstraint LeftIkConstraint => _leftIkConstraint;
    public TwoBoneIKConstraint RightIkConstraint => _rightIkConstraint;
    public MultiRotationConstraint LeftMultiRotationConstraint => _leftMultiRotationConstraint;
    public MultiRotationConstraint RightMultiRotationConstraint => _rightMultiRotationConstraint;
    public CharacterController CharacterController => _characterController;
}

从ResetState开始

复制代码

using UnityEngine;

public class ResetState : EnvironmentInteractionState
{
    // 构造函数
    public ResetState(EnvironmentInteractionContext context, EnvironmentInteractionStateMachine.EEnvironmentInteractionState estate) : base(context, estate)
    {
        EnvironmentInteractionContext Context = context;
    }
    public override void EnterState(){}
    public override void ExitState() { }
    public override void UpdateState() { }
    public override EnvironmentInteractionStateMachine.EEnvironmentInteractionState GetNextState()
    {
        return StateKey;
    }

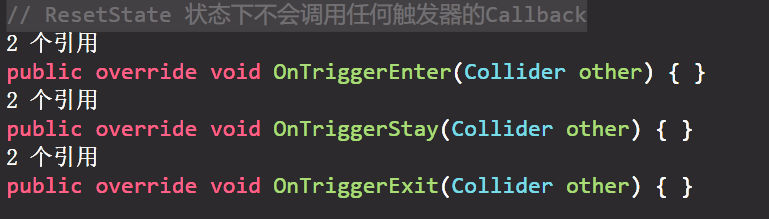

    public override void OnTriggerEnter(Collider other) { }
    public override void OnTriggerStay(Collider other) { }
    public override void OnTriggerExit(Collider other) { }
}

EnvironmentInteractionStateMachine中加入初始化函数

复制代码

    void Awake()
    {
	//原来的代码

        InitalizeStates();
    }

    /// <summary>
    /// 初始化状态机
    /// </summary>
    private void InitalizeStates()
    {
        //添加状态
        States.Add(EEnvironmentInteractionState.Reset, new ResetState(_context, EEnvironmentInteractionState.Reset));
        States.Add(EEnvironmentInteractionState.Search, new SearchState(_context, EEnvironmentInteractionState.Search));
        States.Add(EEnvironmentInteractionState.Approach, new ApproachState(_context, EEnvironmentInteractionState.Approach));
        States.Add(EEnvironmentInteractionState.Rise, new RiseState(_context, EEnvironmentInteractionState.Rise));
        States.Add(EEnvironmentInteractionState.Touch, new TouchState(_context, EEnvironmentInteractionState.Touch));

        //设置初始状态为Reset
        CurrentState = States[EEnvironmentInteractionState.Reset];

    }

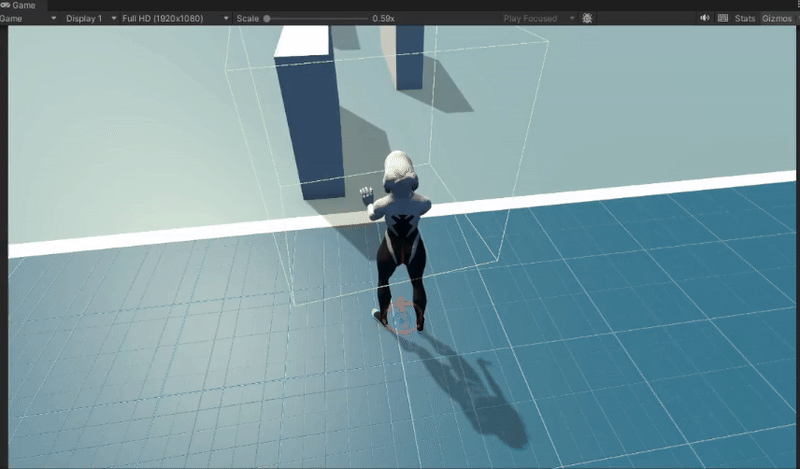

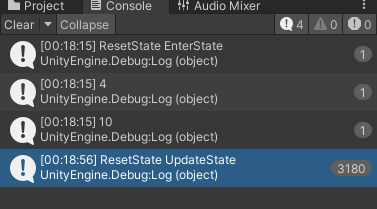

状态机运行正常

环境检测

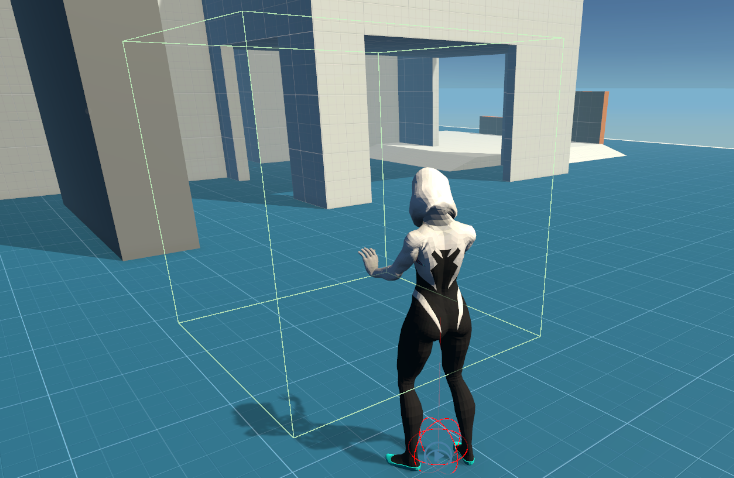

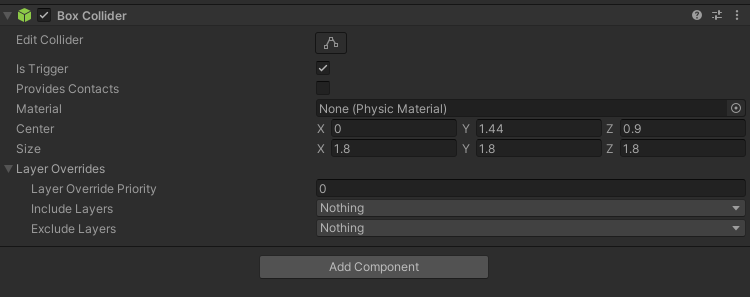

1.在角色身上创建一个稍大于臂展的碰撞盒

EnvironmentInteractionStateMachine

复制代码

    void Awake()
    {
        ///原来的代码

        ConstructEnvironmentDetectionCollider();
    }

    /// <summary>
    /// 创建一个环境检测用的碰撞体
    /// </summary>
    private void ConstructEnvironmentDetectionCollider()
    {
        // 碰撞体大小的基准值
        float wingspan = characterController.height;

        // 给当前游戏对象添加盒型碰撞体组件
        BoxCollider boxCollider = gameObject.AddComponent<BoxCollider>();

        // 设置碰撞体大小为立方体，各边长度等于翼展
        boxCollider.size = new Vector3(wingspan, wingspan, wingspan);

        // 设置碰撞体中心位置
        // 基于角色控制器的中心位置进行偏移：
        // Y轴方向上移翼展的25%，Z轴方向前移翼展的50%
        boxCollider.center = new Vector3(
            characterController.center.x,
            characterController.center.y + (.25f * wingspan),
            characterController.center.z + (.5f * wingspan)
        );

        // 将碰撞体设置为触发器模式（用于检测碰撞而非物理碰撞响应）
        boxCollider.isTrigger = true;
    }

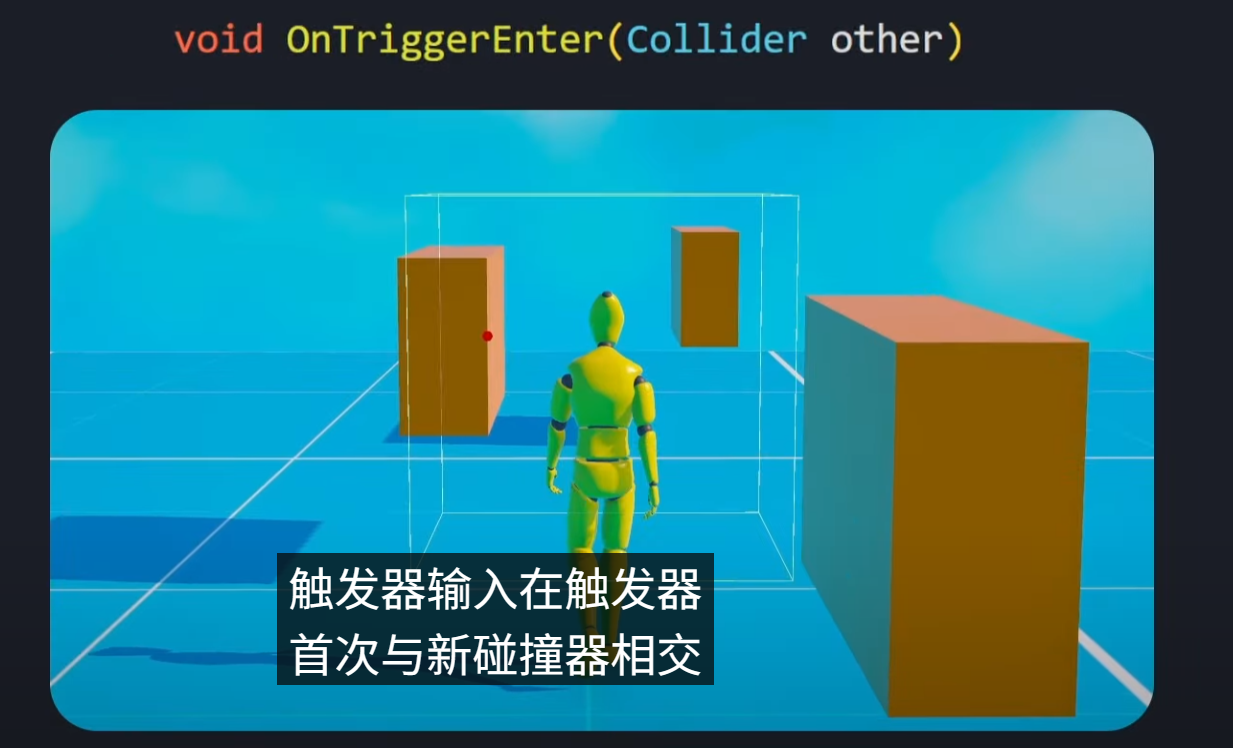

2.碰撞体触发器的交互机制

角色进入 "触发器区域" → OnTriggerEnter 触发（一次）

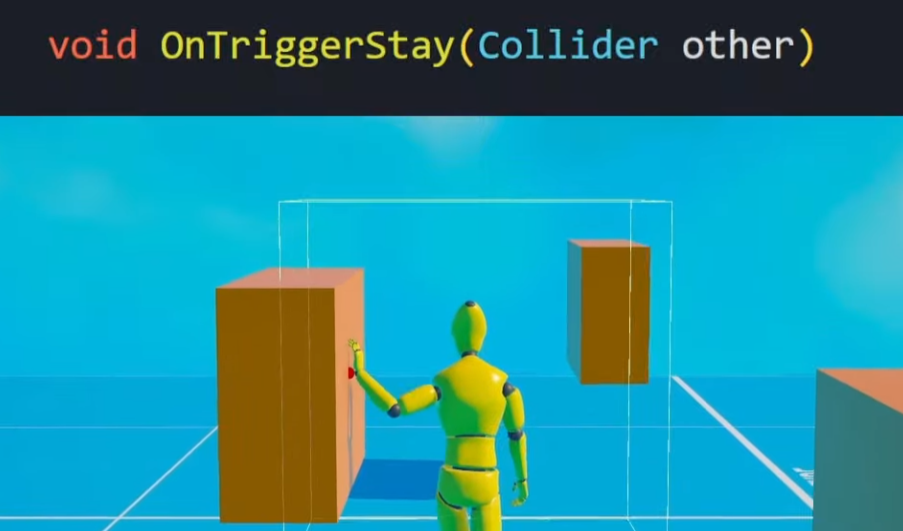

角色持续待在区域内 → 每帧触发 OnTriggerStay

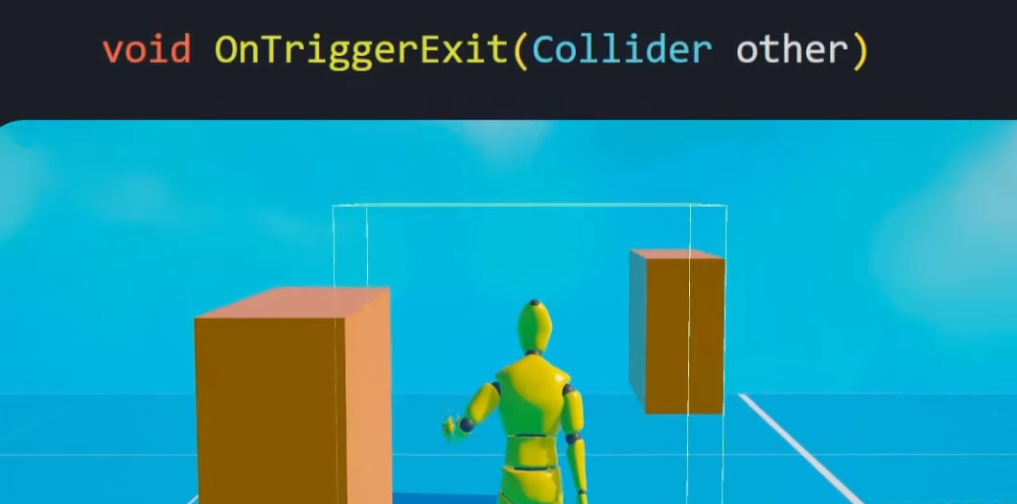

角色离开区域 → OnTriggerExit 触发（一次）

3.找到离角色更近的一侧，用来决定后面开启哪边的IK

在EnvironmentInteractionContext加入：判断碰撞相交位置更靠近哪一侧

复制代码

    // 身体两侧
    public enum EBodySide
    {
        RIGHT,
        LEFT
    }

    // 当前IK约束
    public TwoBoneIKConstraint CurrentIkConstraint { get; private set; }
    // 当前多旋转约束
    public MultiRotationConstraint CurrentMultiRotationConstraint { get; private set; }
    // 当前IK控制的目标位置
    public Transform CurrentIkTargetTransform { get; private set; }
    // 当前肩部骨骼
    public Transform CurrentShoulderTransform { get; private set; }
    // 当前身体的侧边（左或右）
    public EBodySide CurrentBodySide { get; private set; }

    /// <summary>
    /// 根据传入位置，判断目标更靠近左侧还是右侧肩部，设置当前身体的侧边
    /// </summary>
    /// <param name="positionToCheck">需要检测的目标位置</param>
    public void SetCurrentSide(Vector3 positionToCheck)
    {
        // 左肩部骨骼
        Vector3 leftShoulder = _leftIkConstraint.data.root.transform.position;
        // 右肩部骨骼
        Vector3 rightShoulder = _rightIkConstraint.data.root.transform.position;

        // 标志位：目标位置是否更靠近左侧
        bool isLeftCloser = Vector3.Distance(positionToCheck, leftShoulder) <
                            Vector3.Distance(positionToCheck, rightShoulder);
        if (isLeftCloser)
        {
            CurrentBodySide = EBodySide.LEFT;
            CurrentIkConstraint = _leftIkConstraint;
            CurrentMultiRotationConstraint = _leftMultiRotationConstraint;
        }
        else
        {
            CurrentBodySide = EBodySide.RIGHT;
            CurrentIkConstraint = _rightIkConstraint;
            CurrentMultiRotationConstraint = _rightMultiRotationConstraint;
        }
        // 记录当前肩部骨骼 和 IK控制的目标位置
        CurrentShoulderTransform = CurrentIkConstraint.data.root.transform;
        CurrentIkTargetTransform = CurrentIkConstraint.data.target.transform;
    }

EnvironmentInteractionState

复制代码

    /// <summary>
    /// 启动 IK 目标位置追踪
    /// </summary>
    /// <param name="intersectingCollider">相交的碰撞体，作为追踪关联对象</param>
    protected void StartIkTargetPositionTracking(Collider intersectingCollider)
    {
        //只有碰撞体的层级为Interactable时才进行IK目标位置追踪
        if (intersectingCollider.gameObject.layer == LayerMask.NameToLayer("Interactable"))
        {
            // 最近的碰撞点
            Vector3 closestPointFromRoot = GetClosestPointOnCollider(intersectingCollider, Context.RootTransform.position);
            // 设置当前更靠近的侧面(根据最近的碰撞点)
            Context.SetCurrentSide(closestPointFromRoot);
        }

    }

    /// <summary>
    /// 更新 IK 目标位置
    /// </summary>
    /// <param name="intersectingCollider">相交的碰撞体，依据其状态更新目标位置</param>
    protected void UpdateIkTargetPosition(Collider intersectingCollider)
    {

    }

    /// <summary>
    /// 重置 IK 目标位置追踪
    /// </summary>
    /// <param name="intersectingCollider">相交的碰撞体，针对其执行追踪重置</param>
    protected void ResetIkTargetPositionTracking(Collider intersectingCollider)
    {

    }

这里要用到一个新的变量RootTransform 用来在GetClosestPointOnCollider() 方法中传入参数positionToCheck

EnvironmentInteractionContext

复制代码

    // 根对象
    private Transform _rootTransform;

构造函数要加入这个变量

复制代码

    public EnvironmentInteractionContext(
        TwoBoneIKConstraint leftIkConstraint,
        TwoBoneIKConstraint rightIkConstraint,
        MultiRotationConstraint leftMultiRotationConstraint,
        MultiRotationConstraint rightMultiRotationConstraint,
        CharacterController characterController,
        Transform rootTransform)
    {
        _leftIkConstraint = leftIkConstraint;
        _rightIkConstraint = rightIkConstraint;
        _leftMultiRotationConstraint = leftMultiRotationConstraint;
        _rightMultiRotationConstraint = rightMultiRotationConstraint;
        _characterController = characterController;
        _rootTransform = rootTransform;
    }

    public Transform RootTransform => _rootTransform;

当然，在EnvironmentInteractionStateMachine中也要传入这个变量

Awake()

复制代码

        _context = new EnvironmentInteractionContext(_leftIkConstraint, _rightIkConstraint, _leftMultiRotationConstraint, _rightMultiRotationConstraint, characterController,transform.root);

写一下ResetState的GetNextState()的下一状态切换逻辑

复制代码

    public override EnvironmentInteractionStateMachine.EEnvironmentInteractionState GetNextState()
    {
        // 下一个状态为 SearchState
        return EnvironmentInteractionStateMachine.EEnvironmentInteractionState.Search;
        //return StateKey;
    }

注意：

在SearchState 的OnTriggerEnter() 中调用**StartIkTargetPositionTracking()**启动 IK 目标位置追踪

复制代码

    public override void OnTriggerEnter(Collider other) {
        // 进入搜索状态时，开始跟踪目标位置
        StartIkTargetPositionTracking(other);
    }

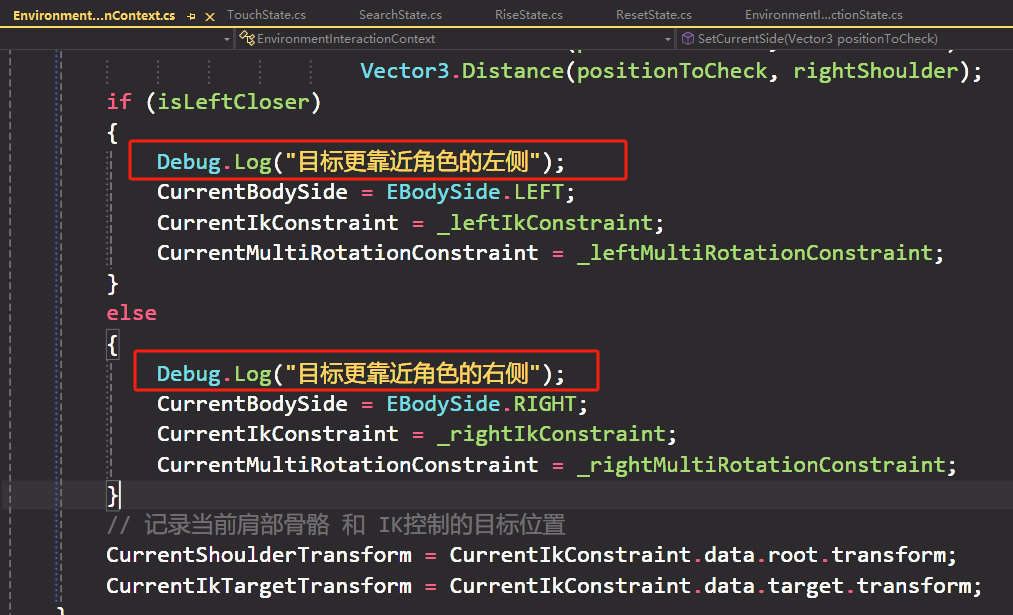

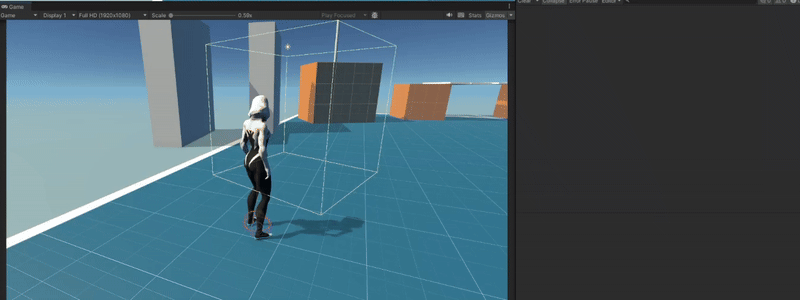

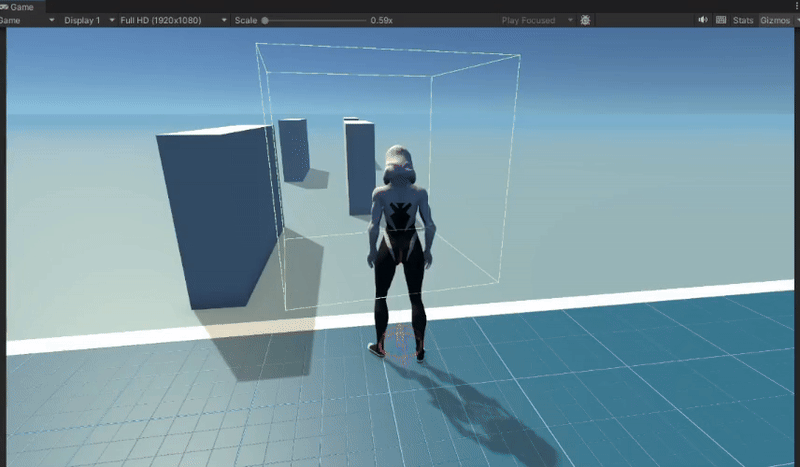

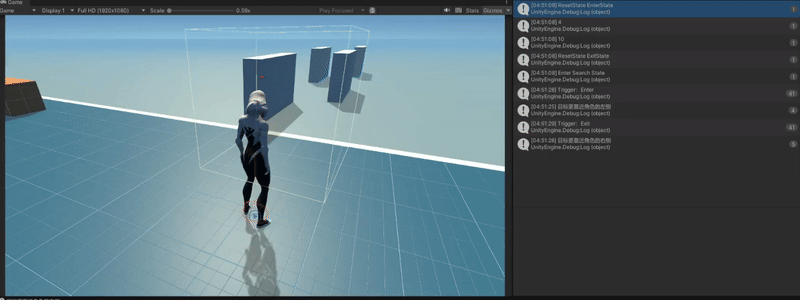

测试一下功能是否正常：

效果倒是正常，不过这是我调试好久发现的问题，只有挂载rigidbody的物体才会触发Trigger回调函数，正常来说只要一方有rigidbody就能触发，不知道为什么这里会出现这个问题，角色身上的这个触发器肯定是rigidbody，那已经满足条件了，为什么还要其他物体也要挂载rigidbody，想不明白。。。

不过实现了就好，后面再排查问题吧，先完成最要紧

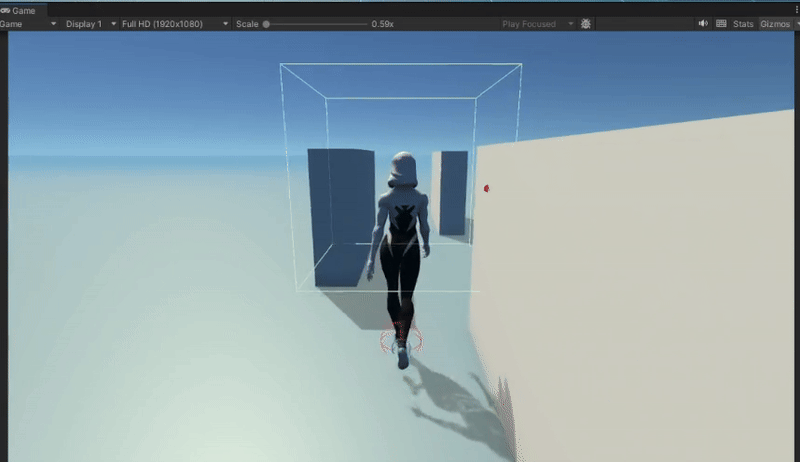

4.解决一下在狭窄通道走过的时候，左右频繁触发的问题

EnvironmentInteractionContext

复制代码

    // 当前交互的碰撞体
    public Collider CurrentIntersectingCollider { get; set; }

EnvironmentInteractionState

复制代码

    /// <summary>
    /// 启动 IK 目标位置追踪
    /// </summary>
    /// <param name="intersectingCollider">相交的碰撞体，作为追踪关联对象</param>
    protected void StartIkTargetPositionTracking(Collider intersectingCollider)
    {
        //只有碰撞体的层级为Interactable && 当前没有可交互的碰撞体 时才进行IK目标位置追踪
        // 防止频繁触发
        if (intersectingCollider.gameObject.layer == LayerMask.NameToLayer("Interactable") && Context.CurrentIntersectingCollider == null)
        {
            // 记录当前碰撞体
            Context.CurrentIntersectingCollider = intersectingCollider;
            // 最近的碰撞点
            Vector3 closestPointFromRoot = GetClosestPointOnCollider(intersectingCollider, Context.RootTransform.position);
            // 设置当前更靠近的侧面(根据最近的碰撞点)
            Context.SetCurrentSide(closestPointFromRoot);
        }
    }

    /// <summary>
    /// 重置 IK 目标位置追踪
    /// </summary>
    /// <param name="intersectingCollider">相交的碰撞体，针对其执行追踪重置</param>
    protected void ResetIkTargetPositionTracking(Collider intersectingCollider)
    {
        if(intersectingCollider == Context.CurrentIntersectingCollider)
        {
            Context.CurrentIntersectingCollider = null;
        }
    }

SearchState

复制代码

    public override void OnTriggerEnter(Collider other) {
        Debug.Log("Trigger：Enter");
        // 进入搜索状态，开始跟踪目标位置
        StartIkTargetPositionTracking(other);
    }
    public override void OnTriggerStay(Collider other) { }
    public override void OnTriggerExit(Collider other) {
        Debug.Log("Trigger：Exit");
        // 退出搜索状态，停止跟踪目标位置
        ResetIkTargetPositionTracking(other);
    }

5.设置IK的目标位置

EnvironmentInteractionContext

复制代码

    // 相交碰撞体的最近点------默认值设为无穷大
    public Vector3 ClosestPointOnColliderFromShoulder { get; set; } = Vector3.positiveInfinity;

EnvironmentInteractionState

复制代码

    /// <summary>
    /// 设置 IK 目标位置
    /// </summary>
    /// <param name="targetPosition"></param>
    private void SetIkTargetPosition()
    {
        // 最近的碰撞点
        Context.ClosestPointOnColliderFromShoulder = GetClosestPointOnCollider(Context.CurrentIntersectingCollider, Context.CurrentShoulderTransform.position);
    }

    /// <summary>
    /// 启动 IK 目标位置追踪
    /// </summary>
    /// <param name="intersectingCollider">相交的碰撞体，作为追踪关联对象</param>
    protected void StartIkTargetPositionTracking(Collider intersectingCollider)
    {
        //只有碰撞体的层级为Interactable && 当前没有可交互的碰撞体 时才进行IK目标位置追踪
        // 防止频繁触发
        if (intersectingCollider.gameObject.layer == LayerMask.NameToLayer("Interactable") && Context.CurrentIntersectingCollider == null)
        {
            // 原来的代码不变


            //设置IK目标位置
            SetIkTargetPosition();
        }
    }

    /// <summary>
    /// 更新 IK 目标位置
    /// </summary>
    /// <param name="intersectingCollider">相交的碰撞体，依据其状态更新目标位置</param>
    protected void UpdateIkTargetPosition(Collider intersectingCollider)
    {
        // 在接触过程中，一直更新IK目标位置
        if (Context.CurrentIntersectingCollider == intersectingCollider)
        {
            SetIkTargetPosition();
        }
    }

SearchState

复制代码

    public override void OnTriggerStay(Collider other) {
        // 跟踪目标位置
        UpdateIkTargetPosition(other);
    }

然后在EnvironmentInteractionStateMachine中加入可视化

复制代码

    /// <summary>
    /// 当物体被选中时调用Gizmos绘制
    /// </summary>
    private void OnDrawGizmosSelected()
    {
        Gizmos.color = Color.red;

        // 在最近碰撞点处绘制一个红色的球
        if (_context != null && _context.ClosestPointOnColliderFromShoulder != null)
        {
            Gizmos.DrawSphere(_context.ClosestPointOnColliderFromShoulder, 0.03f);
        }
    }

新的问题出现了：

当角色行走的时候，由于身体会浮动，这个最近的碰撞点也在上下浮动，后面加上动画会出现手一直在墙上上下乱摸。。。

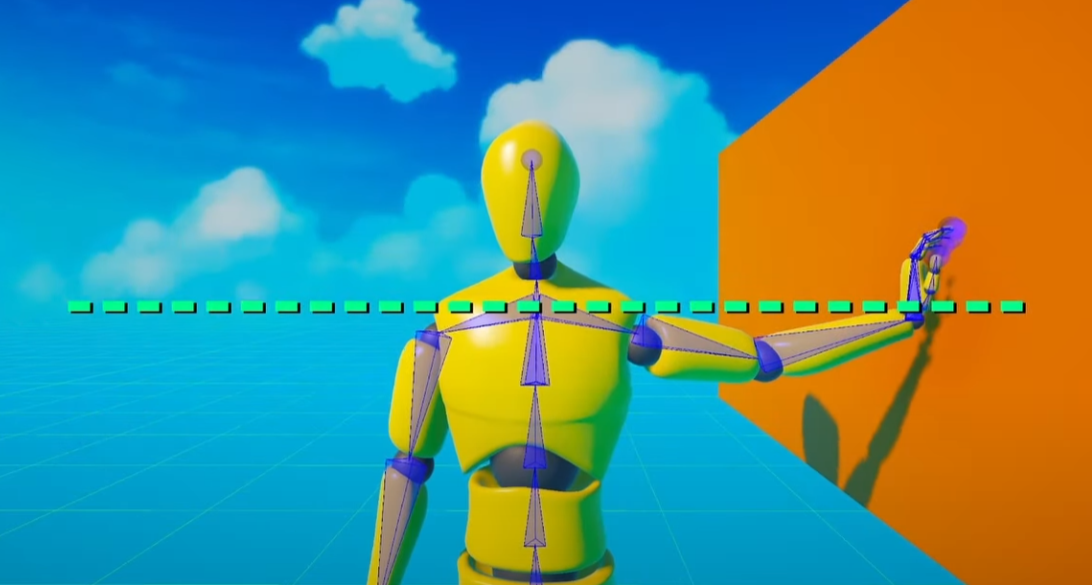

6.解决最近碰撞点上下浮动问题

其实加一个变量记录一下角色的肩高就行，设定ik位置的时候传入该参数，这个点的高度就保持不变了

EnvironmentInteractionContext的构造函数加入一个角色的肩部高度变量

复制代码

    public EnvironmentInteractionContext(
        TwoBoneIKConstraint leftIkConstraint,
        TwoBoneIKConstraint rightIkConstraint,
        MultiRotationConstraint leftMultiRotationConstraint,
        MultiRotationConstraint rightMultiRotationConstraint,
        CharacterController characterController,
        Transform rootTransform)
    {
        _leftIkConstraint = leftIkConstraint;
        _rightIkConstraint = rightIkConstraint;
        _leftMultiRotationConstraint = leftMultiRotationConstraint;
        _rightMultiRotationConstraint = rightMultiRotationConstraint;
        _characterController = characterController;
        _rootTransform = rootTransform;

        CharacterShoulderHeight = leftIkConstraint.data.root.transform.position.y;
    }

    // 角色的肩部高度,用来约束Ik的高度
    public float CharacterShoulderHeight { get; private set; }

EnvironmentInteractionState 传入目标位置的参数的y轴改成角色肩高CharacterShoulderHeight

复制代码

    /// <summary>
    /// 设置 IK 目标位置
    /// </summary>
    /// <param name="targetPosition"></param>
    private void SetIkTargetPosition()
    {
        // 最近的碰撞点
        Context.ClosestPointOnColliderFromShoulder = GetClosestPointOnCollider(Context.CurrentIntersectingCollider,
            // 目标位置：上半身的xz位置 角色肩高的y位置(高度位置)
            new Vector3(Context.RootTransform.position.x, Context.CharacterShoulderHeight, Context.RootTransform.position.z));
    }

问题解决

7.在离开当前碰撞体后，重置Ik的目标位置为无穷大

EnvironmentInteractionState

复制代码

    /// <summary>
    /// 重置 IK 目标位置追踪
    /// </summary>
    /// <param name="intersectingCollider">相交的碰撞体，针对其执行追踪重置</param>
    protected void ResetIkTargetPositionTracking(Collider intersectingCollider)
    {
        if(intersectingCollider == Context.CurrentIntersectingCollider)
        {
            // 重置当前碰撞体为空
            Context.CurrentIntersectingCollider = null;
            // 重置IK目标位置为无穷大
            Context.ClosestPointOnColliderFromShoulder = Vector3.positiveInfinity;
        }
    }

效果：

8.开始对手部的IK组件目标位置进行更新

注意：需要为ik的目标位置加一个法向的偏移，防止手部穿模(因为手是有厚度的，不是纸片人)

EnvironmentInteractionState

复制代码

    /// <summary>
    /// 设置 IK 目标位置
    /// </summary>
    /// <param name="targetPosition"></param>
    private void SetIkTargetPosition()
    {
        // 最近的碰撞点
        Context.ClosestPointOnColliderFromShoulder = GetClosestPointOnCollider(Context.CurrentIntersectingCollider,
            // 目标位置：上半身的xz位置 角色肩高的y位置(高度位置)
            new Vector3(Context.RootTransform.position.x, Context.CharacterShoulderHeight, Context.RootTransform.position.z));

        #region 让手部的IK目标移动到这个最近碰撞点
        // 1. 射线方向：从"最近碰撞点"指向"当前肩部位置"的向量
        Vector3 rayDirection = Context.CurrentShoulderTransform.position
                             - Context.ClosestPointOnColliderFromShoulder;
            // Unity 中向量的运算：Vector3 终点 - Vector3 起点

        // 2. 归一化，得到单位向量
        Vector3 normalizedRayDirection = rayDirection.normalized;

        // 3. 偏移距离，防止手部穿模
        float offsetDistance = 0.05f;

        // 4. 最终要到达的位置：在"最近碰撞点"基础上，加上 沿rayDirection射线方向偏移 offsetDistance 距离
        Vector3 targettPosition = Context.ClosestPointOnColliderFromShoulder
            + normalizedRayDirection * offsetDistance;

        // 5. 更新 IK 目标位置
        Context.CurrentIkTargetTransform.position = targettPosition;
        #endregion
    }

如果把权重一开始就拉到1，效果是这样的：

当然，我们还得根据具体的状态写Ik权重的控制脚本

每个具体状态的Ik控制逻辑的脚本编写

也就是根据状态决定是否/怎样更新手部Two Bone IK Constraint的权重

1.对现有代码进行一些小改动，更符合真实世界的运作机制

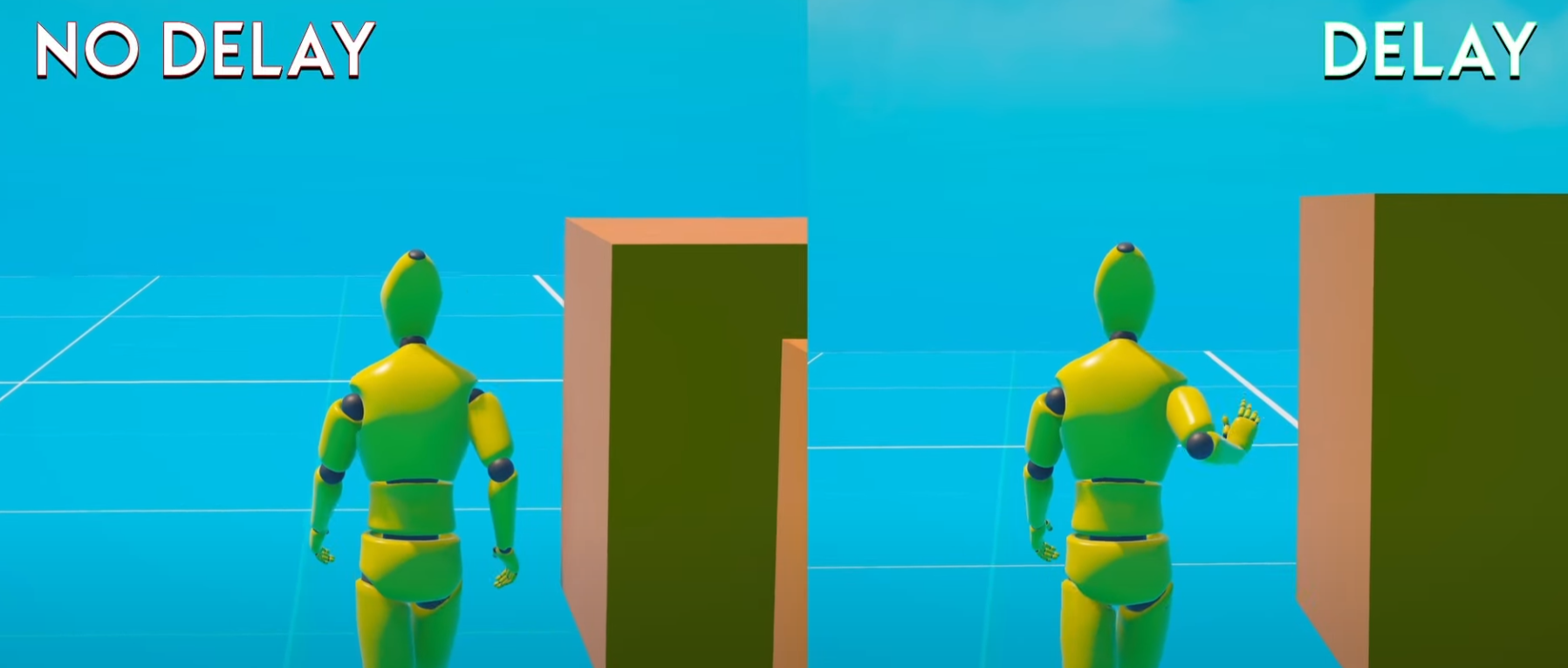

ResetState <-> SearchState：这个切换不应该是瞬时发生的，应该要加入一个延迟

1）先解决 ResetState `->` SearchState

复制代码

    // 持续时间计时器
    float _elapsedTimer = 0.0f;
    // 持续时间的阈值
    float _resetDuration = 2.0f;

    public override void EnterState(){
        // 重置 持续时间计时器
        _elapsedTimer = 0.0f;
        // 重置 最近碰撞点 和 当前碰撞体
        Context.ClosestPointOnColliderFromShoulder = Vector3.positiveInfinity;
        Context.CurrentIntersectingCollider = null;
        Debug.Log("ResetState EnterState");
    }

    public override void UpdateState() {
        _elapsedTimer += Time.deltaTime;
    }

    public override EnvironmentInteractionStateMachine.EEnvironmentInteractionState GetNextState()
    {
        bool isMoving = Context.CharacterController.velocity != Vector3.zero;
        //只有当持续时间超过阈值，且角色正在移动时，才会切换到 SearchState
        if(_elapsedTimer > _resetDuration && isMoving)
        {
            // 下一个状态为 SearchState
            return EnvironmentInteractionStateMachine.EEnvironmentInteractionState.Search;
        }
        return StateKey;
    }

2）解决 SearchState 的状态跳转

复制代码

    // 接近碰撞点的距离阈值
    public float _approachDistanceThreshold = 2.0f;

    public override EnvironmentInteractionStateMachine.EEnvironmentInteractionState GetNextState()
    {
        // 标志位：是否接近目标
        bool isCloseToTarget = Vector3.Distance(Context.ClosestPointOnColliderFromShoulder, Context.RootTransform.position) < _approachDistanceThreshold;
        // 标志位：是否是最近碰撞点(只要不是无穷大，就是最近碰撞点)
        bool isClosestPointOnColliderValid = Context.ClosestPointOnColliderFromShoulder != Vector3.positiveInfinity;
        // 状态转移到接近状态ApproachState
        if (isCloseToTarget && isClosestPointOnColliderValid)
        {
            return EnvironmentInteractionStateMachine.EEnvironmentInteractionState.Approach;
        }
        return StateKey;
    }

3）ApproachState

复制代码

    // 接近状态的计时器
    float _elapsedTimer = 0.0f;
    // 过渡时间
    float _lerpduration = 5.0f;
    // 接近状态的目标权重
    float _approachWeight = 0.5f;

    public override void EnterState() {
        Debug.Log("ApproachState OnTriggerEnter");
        // 重置计时器
        _elapsedTimer = 0.0f;
    }
    public override void ExitState() { }
    public override void UpdateState() {
        _elapsedTimer += Time.deltaTime;
        // 从当前的权重过渡到接近状态的权重
        Context.CurrentIkConstraint.weight = Mathf.Lerp(Context.CurrentIkConstraint.weight, _approachWeight, _elapsedTimer / _lerpduration);
    }

    public override void OnTriggerEnter(Collider other) {
        StartIkTargetPositionTracking(other);
        }
    public override void OnTriggerStay(Collider other) {
        UpdateIkTargetPosition(other);
    }
    public override void OnTriggerExit(Collider other) {
        ResetIkTargetPositionTracking(other);
    }

现在能够在进入ApproachState状态时，随时间从当前的权重平滑过渡到Approach的目标权重

仿神秘海域/美末环境交互的程序化动画学习

插件安装

为角色添加组件

状态机脚本编写

Animation Rigging

环境交互状态机的编写

环境检测

1.在角色身上创建一个稍大于臂展的碰撞盒

2.碰撞体触发器的交互机制

3.找到离角色更近的一侧，用来决定后面开启哪边的IK

4.解决一下在狭窄通道走过的时候，左右频繁触发的问题

5.设置IK的目标位置

6.解决最近碰撞点上下浮动问题

7.在离开当前碰撞体后，重置Ik的目标位置为无穷大

8.开始对手部的IK组件目标位置进行更新

每个具体状态的Ik控制逻辑的脚本编写

1.对现有代码进行一些小改动，更符合真实世界的运作机制

1）先解决 ResetState -> SearchState

2）解决 SearchState 的状态跳转

3）ApproachState

1）先解决 ResetState `->` SearchState
