Apple M3 MacOS arm64 编译QGroundControl5.0.8(base on Qt 6.8.3)

林鸿群2025-10-11 7:04

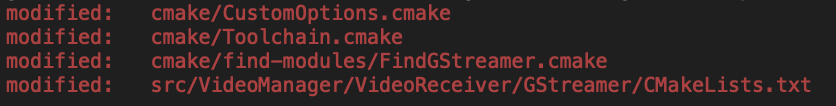

1.修改相关.cmake文件

CMake版本: cmake version 4.1.0

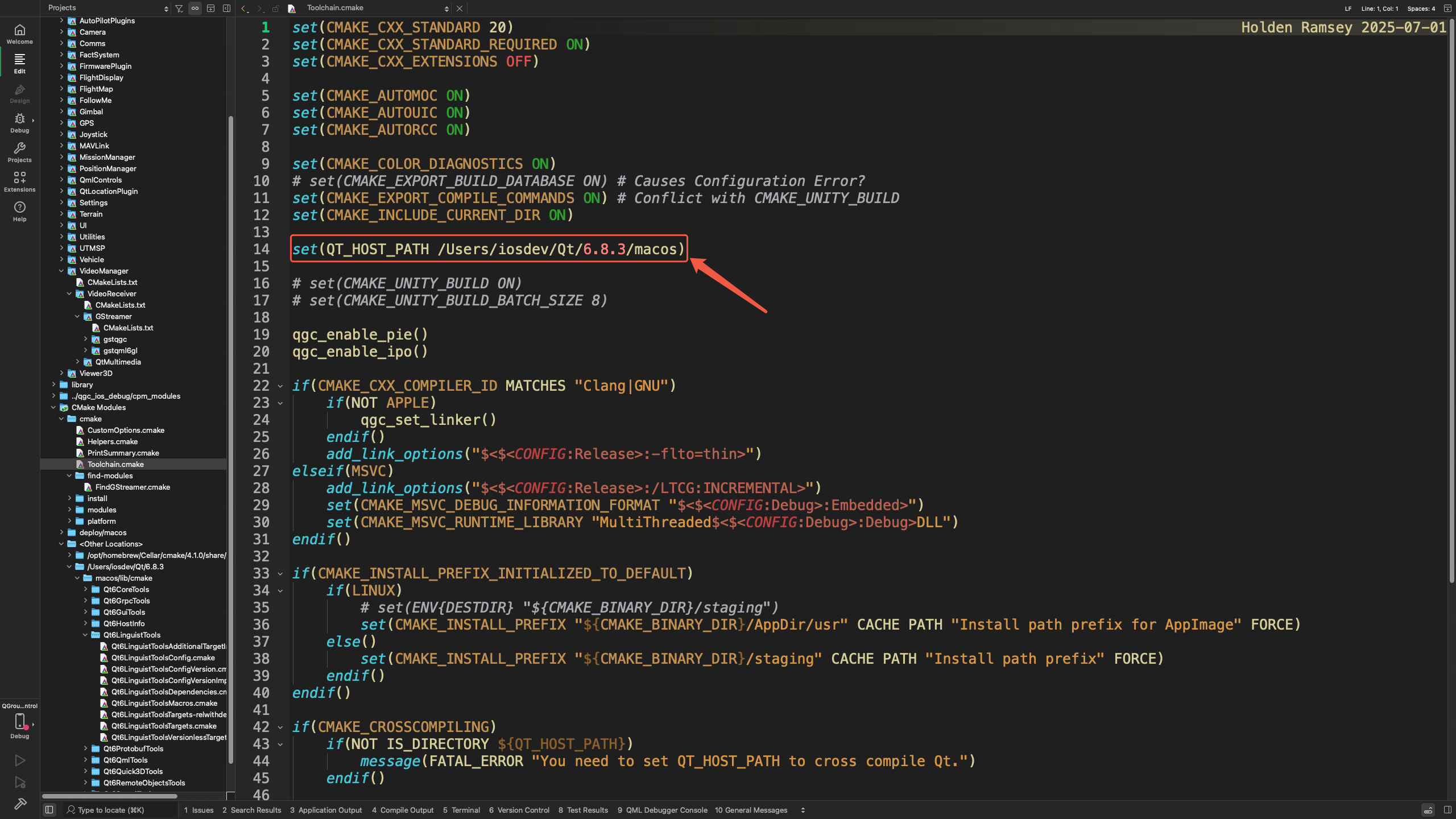

Toolchain.cmake修改如下

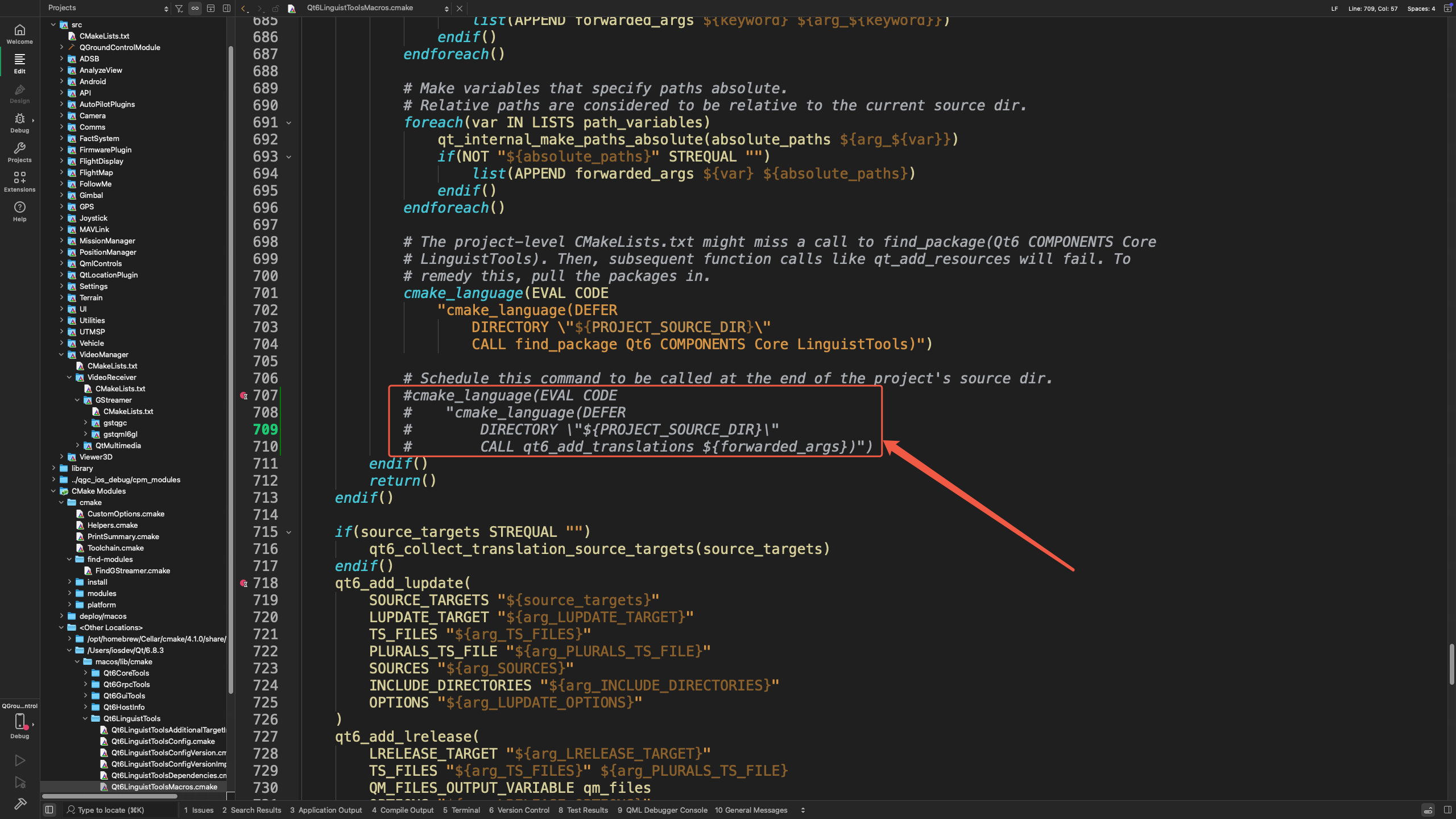

Qt6LinguistToolsMacros.cmake

注释掉下图所示:

FindGStreamer.cmake

修改如下：

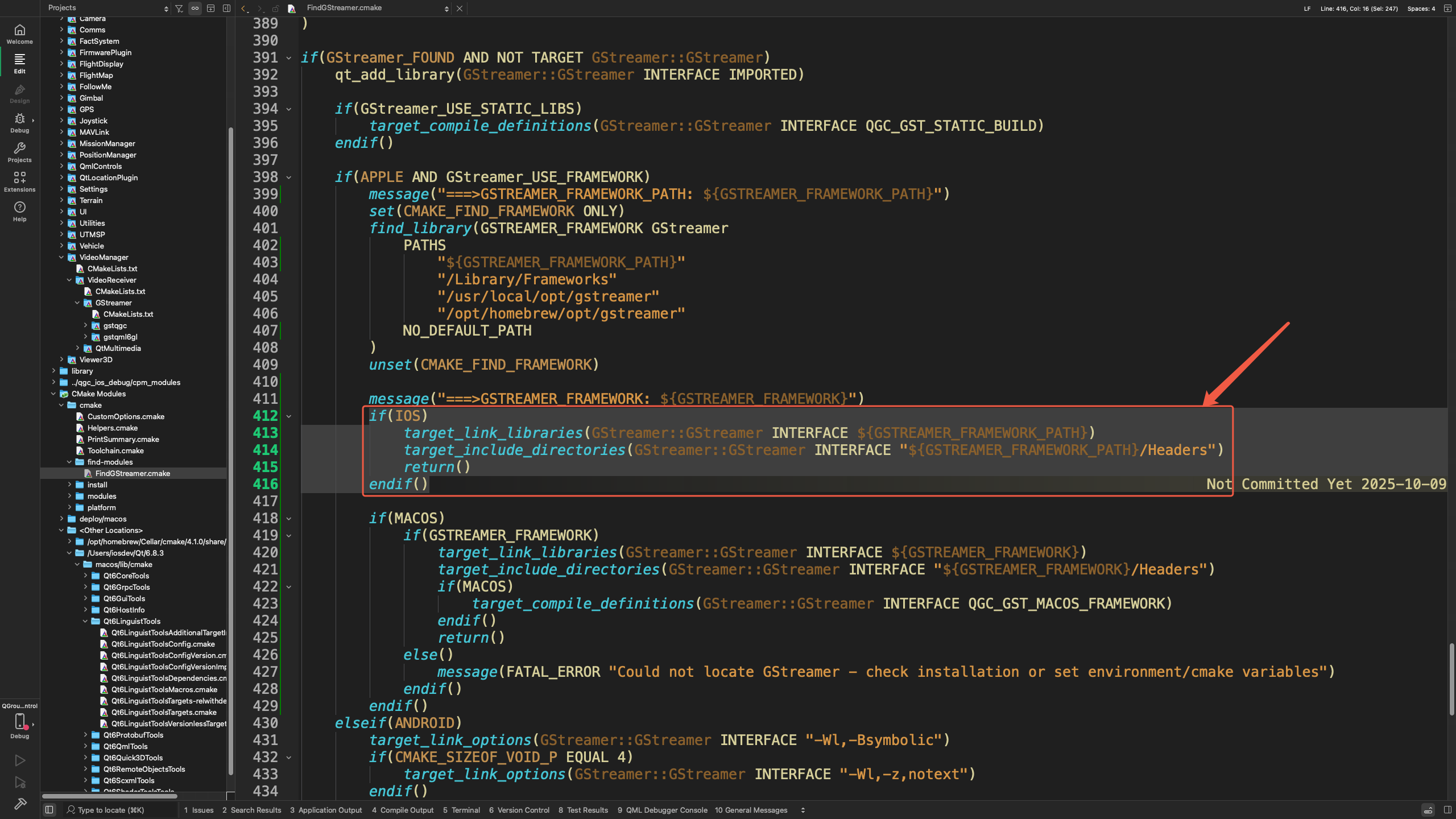

增加iOS平台GStreamer链接目录

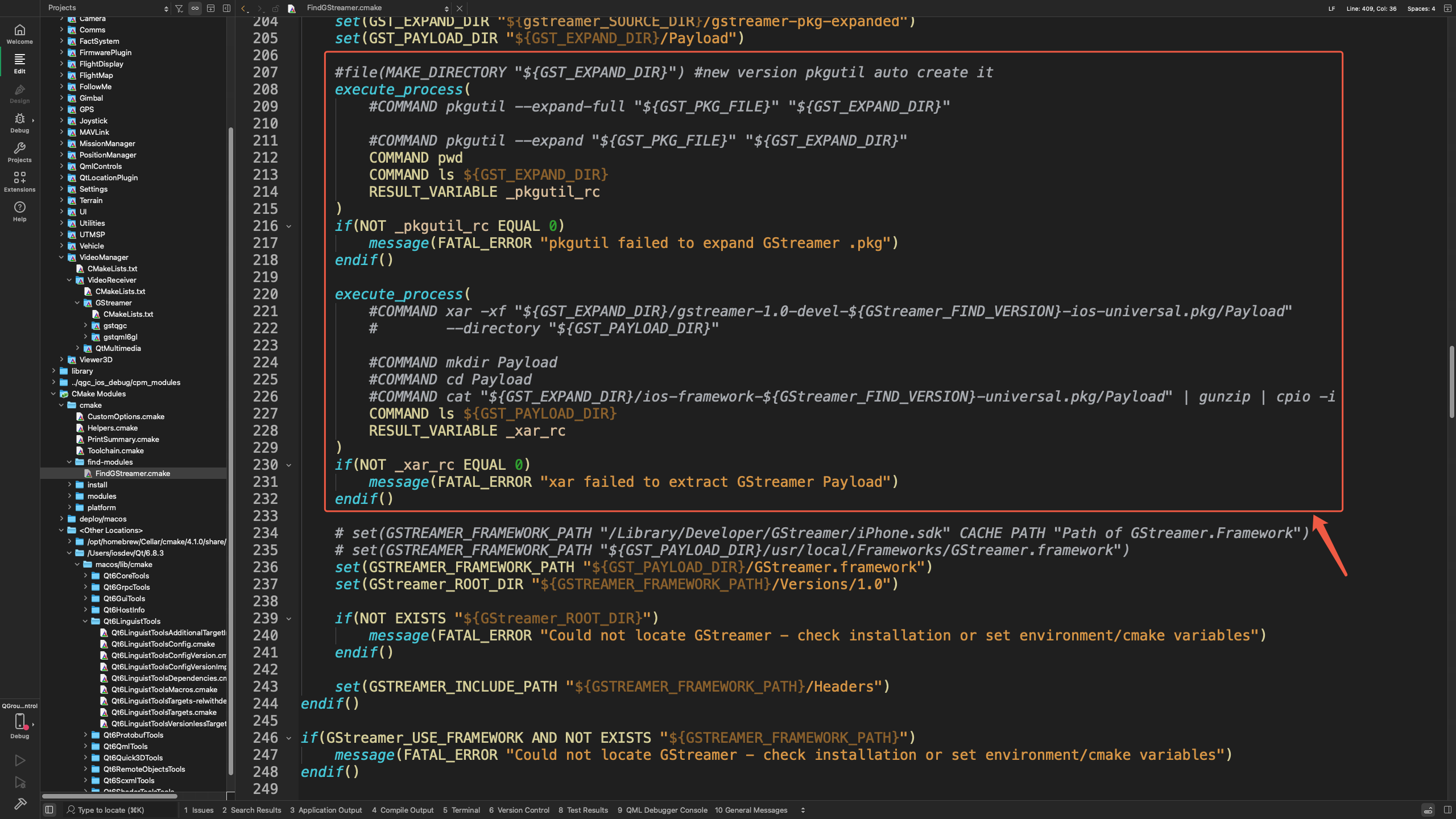

去掉GStreamer.pkg自动下载，改为手动下载

bash 复制代码
https://gstreamer.freedesktop.org/data/pkg/ios/1.26.5/gstreamer-1.0-devel-1.26.5-ios-universal.pkg

变改版本为1.26.5

手动下载操作如下：

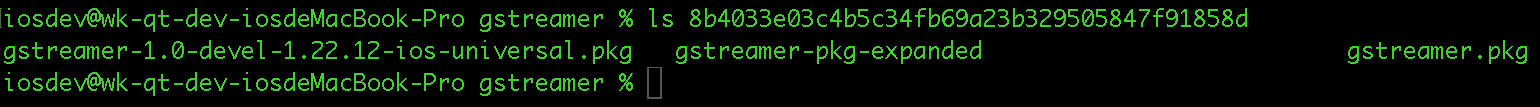

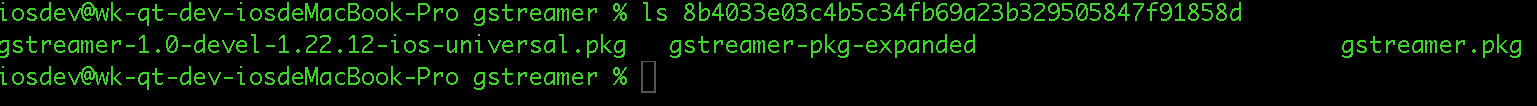

注意，每次重新生成是8b4033e03c4b5c34fb69a23b329505847f91858d这个guid是会变的，需要重新命名为最新的

下载好pkg

重命名为gstreamer.pkg

手动解压到Payload文件中

解压gstreamer-1.0-devel-1.22.12-ios-universal.pkg到gstreamer-pkg-expanded中

bash 复制代码
pkgutil --expand gstreamer.pkg gstreamer-pkg-expanded

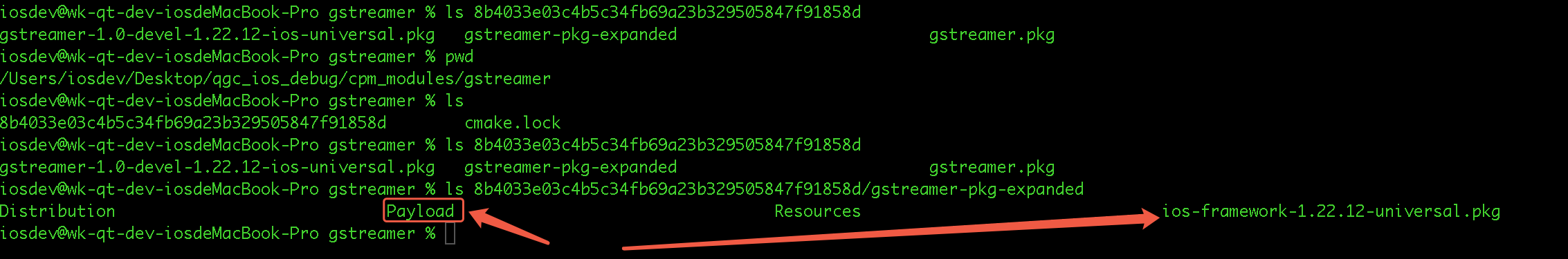

进入gstreamer-pkg-expanded解压ios-framework-1.22.12-universal.pkg

bash 复制代码
mkdir Payload
cd Payload
cat ios-framework-1.22.12-universal.pkg/Payload | gunzip | cpio -i

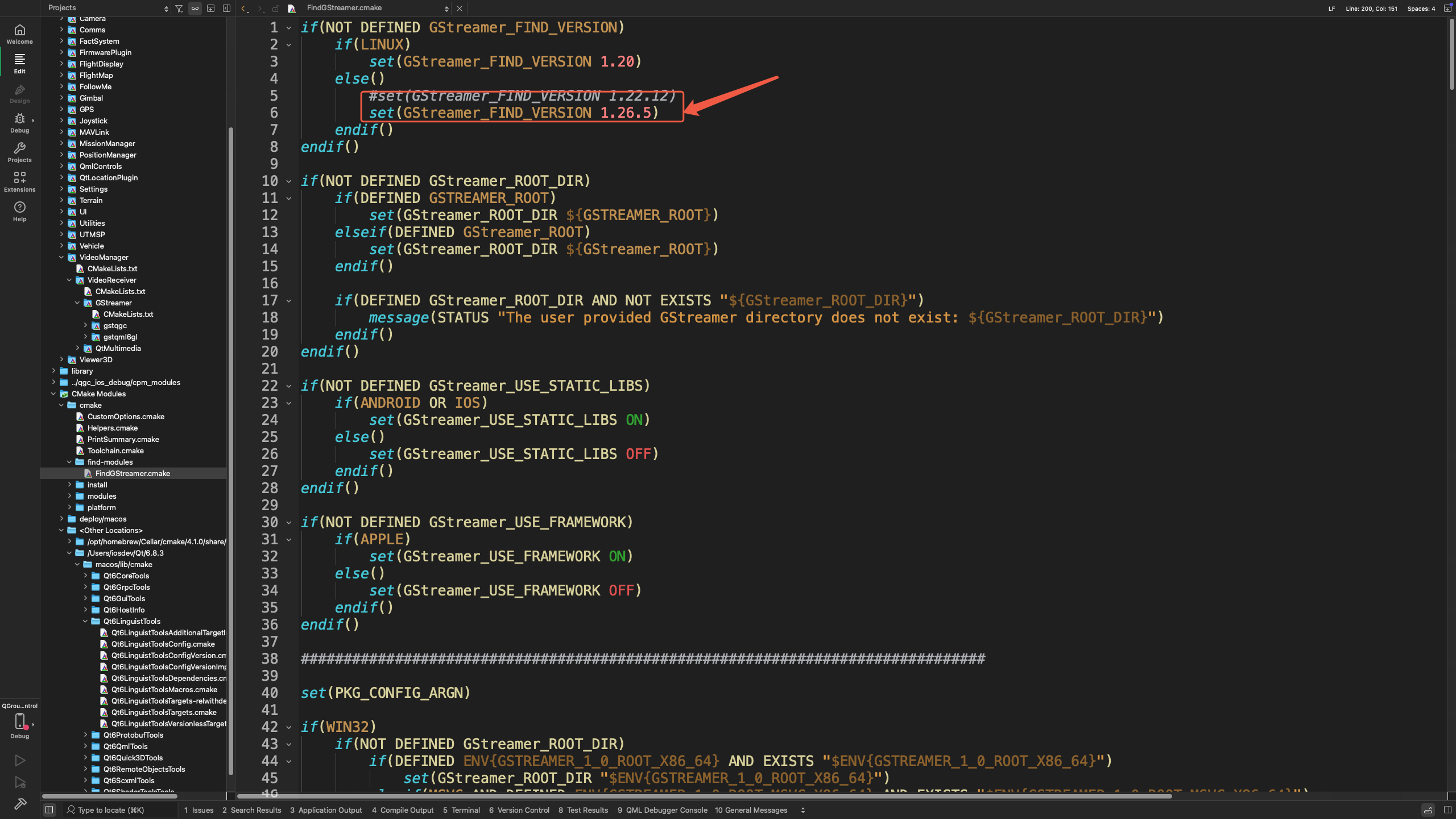

修改后的FindGStreamer.cmake

路径: ~/Desktop/qgroundcontrol/cmake/find-modules/FindGStreamer.cmake

bash 复制代码
if(NOT DEFINED GStreamer_FIND_VERSION)
    if(LINUX)
        set(GStreamer_FIND_VERSION 1.20)
    else()
        #set(GStreamer_FIND_VERSION 1.22.12)
        set(GStreamer_FIND_VERSION 1.26.5)
    endif()
endif()

if(NOT DEFINED GStreamer_ROOT_DIR)
    if(DEFINED GSTREAMER_ROOT)
        set(GStreamer_ROOT_DIR ${GSTREAMER_ROOT})
    elseif(DEFINED GStreamer_ROOT)
        set(GStreamer_ROOT_DIR ${GStreamer_ROOT})
    endif()

    if(DEFINED GStreamer_ROOT_DIR AND NOT EXISTS "${GStreamer_ROOT_DIR}")
        message(STATUS "The user provided GStreamer directory does not exist: ${GStreamer_ROOT_DIR}")
    endif()
endif()

if(NOT DEFINED GStreamer_USE_STATIC_LIBS)
    if(ANDROID OR IOS)
        set(GStreamer_USE_STATIC_LIBS ON)
    else()
        set(GStreamer_USE_STATIC_LIBS OFF)
    endif()
endif()

if(NOT DEFINED GStreamer_USE_FRAMEWORK)
    if(APPLE)
        set(GStreamer_USE_FRAMEWORK ON)
    else()
        set(GStreamer_USE_FRAMEWORK OFF)
    endif()
endif()

################################################################################

set(PKG_CONFIG_ARGN)

if(WIN32)
    if(NOT DEFINED GStreamer_ROOT_DIR)
        if(DEFINED ENV{GSTREAMER_1_0_ROOT_X86_64} AND EXISTS "$ENV{GSTREAMER_1_0_ROOT_X86_64}")
            set(GStreamer_ROOT_DIR "$ENV{GSTREAMER_1_0_ROOT_X86_64}")
        elseif(MSVC AND DEFINED ENV{GSTREAMER_1_0_ROOT_MSVC_X86_64} AND EXISTS "$ENV{GSTREAMER_1_0_ROOT_MSVC_X86_64}")
            set(GStreamer_ROOT_DIR "$ENV{GSTREAMER_1_0_ROOT_MSVC_X86_64}")
        elseif(MINGW AND DEFINED ENV{GSTREAMER_1_0_ROOT_MINGW_X86_64} AND EXISTS "$ENV{GSTREAMER_1_0_ROOT_MINGW_X86_64}")
            set(GStreamer_ROOT_DIR "$ENV{GSTREAMER_1_0_ROOT_MINGW_X86_64}")
        elseif(EXISTS "C:/Program Files/gstreamer/1.0/msvc_x86_64")
            set(GStreamer_ROOT_DIR "C:/Program Files/gstreamer/1.0/msvc_x86_64")
        elseif(EXISTS "C:/gstreamer/1.0/msvc_x86_64")
            set(GStreamer_ROOT_DIR "C:/gstreamer/1.0/msvc_x86_64")
        endif()
    endif()

    cmake_path(CONVERT "${GStreamer_ROOT_DIR}" TO_CMAKE_PATH_LIST GStreamer_ROOT_DIR NORMALIZE)
    if(NOT EXISTS "${GStreamer_ROOT_DIR}")
        message(FATAL_ERROR "Could not locate GStreamer - check installation or set environment/cmake variables")
    endif()

    set(GSTREAMER_LIB_PATH "${GStreamer_ROOT_DIR}/lib")
    set(GSTREAMER_PLUGIN_PATH "${GSTREAMER_LIB_PATH}/gstreamer-1.0")
    set(GSTREAMER_INCLUDE_PATH "${GStreamer_ROOT_DIR}/include")

    set(ENV{PKG_CONFIG} "${GStreamer_ROOT_DIR}/bin")
    set(PKG_CONFIG_EXECUTABLE "$ENV{PKG_CONFIG}/pkg-config.exe")
    set(ENV{PKG_CONFIG_PATH} "${GSTREAMER_LIB_PATH}/pkgconfig;${GSTREAMER_PLUGIN_PATH}/pkgconfig;$ENV{PKG_CONFIG_PATH}")
    list(APPEND PKG_CONFIG_ARGN
        --dont-define-prefix
        --define-variable=prefix=${GStreamer_ROOT_DIR}
        --define-variable=libdir=${GSTREAMER_LIB_PATH}
        --define-variable=includedir=${GSTREAMER_INCLUDE_PATH}
    )
elseif(LINUX)
    if(NOT DEFINED GStreamer_ROOT_DIR)
        if(EXISTS "/usr")
            set(GStreamer_ROOT_DIR "/usr")
        endif()
    endif()

    cmake_path(CONVERT "${GStreamer_ROOT_DIR}" TO_CMAKE_PATH_LIST GStreamer_ROOT_DIR NORMALIZE)
    if(NOT EXISTS "${GStreamer_ROOT_DIR}")
        message(FATAL_ERROR "Could not locate GStreamer - check installation or set environment/cmake variables")
    endif()

    if((EXISTS "${GStreamer_ROOT_DIR}/lib/${CMAKE_SYSTEM_PROCESSOR}-linux-gnu" ) AND (EXISTS "${GStreamer_ROOT_DIR}/lib/${CMAKE_SYSTEM_PROCESSOR}-linux-gnu/gstreamer-1.0"))
        set(GSTREAMER_LIB_PATH "${GStreamer_ROOT_DIR}/lib/${CMAKE_SYSTEM_PROCESSOR}-linux-gnu")
    elseif(EXISTS "${GStreamer_ROOT_DIR}/lib")
        set(GSTREAMER_LIB_PATH "${GStreamer_ROOT_DIR}/lib")
    else()
        message(FATAL_ERROR "Could not locate GStreamer - check installation or set environment/cmake variables")
    endif()

    set(GSTREAMER_PLUGIN_PATH "${GSTREAMER_LIB_PATH}/gstreamer-1.0")
    set(GSTREAMER_INCLUDE_PATH "${GStreamer_ROOT_DIR}/include")

    set(ENV{PKG_CONFIG_PATH} "${GSTREAMER_LIB_PATH}/pkgconfig:$ENV{PKG_CONFIG_PATH}")
elseif(ANDROID)
    if(QGC_CUSTOM_GST_PACKAGE)
        set(_gst_android_url "https://qgroundcontrol.s3.us-west-2.amazonaws.com/android-gstreamer/qgc-android-gstreamer-${GStreamer_FIND_VERSION}.tar.xz")
    else()
        set(_gst_android_url "https://gstreamer.freedesktop.org/data/pkg/android/${GStreamer_FIND_VERSION}/gstreamer-1.0-android-universal-${GStreamer_FIND_VERSION}.tar.xz")
        # https://gstreamer.freedesktop.org/data/pkg/android/${GStreamer_FIND_VERSION}/gstreamer-1.0-android-universal-${GStreamer_FIND_VERSION}.tar.xz.sha256sum
        # set(_gst_android_url_hash "be92cf477d140c270b480bd8ba0e26b1e01c8db042c46b9e234d87352112e485")
    endif()

    CPMAddPackage(
        NAME gstreamer
        VERSION ${GStreamer_FIND_VERSION}
        URL ${_gst_android_url}
        # URL_HASH ${_gst_android_url_hash}
    )

    if(NOT DEFINED GStreamer_ROOT_DIR)
        if(CMAKE_ANDROID_ARCH_ABI STREQUAL "armeabi-v7a")
            set(GStreamer_ROOT_DIR "${gstreamer_SOURCE_DIR}/armv7")
        elseif(CMAKE_ANDROID_ARCH_ABI STREQUAL "arm64-v8a")
            set(GStreamer_ROOT_DIR "${gstreamer_SOURCE_DIR}/arm64")
        elseif(CMAKE_ANDROID_ARCH_ABI STREQUAL "x86")
            set(GStreamer_ROOT_DIR "${gstreamer_SOURCE_DIR}/x86")
        elseif(CMAKE_ANDROID_ARCH_ABI STREQUAL "x86_64")
            set(GStreamer_ROOT_DIR "${gstreamer_SOURCE_DIR}/x86_64")
        endif()
    endif()

    cmake_path(CONVERT "${GStreamer_ROOT_DIR}" TO_CMAKE_PATH_LIST GStreamer_ROOT_DIR NORMALIZE)
    if(NOT EXISTS "${GStreamer_ROOT_DIR}")
        message(FATAL_ERROR "Could not locate GStreamer - check installation or set environment/cmake variables")
    endif()

    set(GSTREAMER_LIB_PATH "${GStreamer_ROOT_DIR}/lib")
    set(GSTREAMER_PLUGIN_PATH "${GSTREAMER_LIB_PATH}/gstreamer-1.0")
    set(GSTREAMER_INCLUDE_PATH "${GStreamer_ROOT_DIR}/include")

    set(ENV{PKG_CONFIG_PATH} "")
    if(CMAKE_HOST_WIN32)
        set(ENV{PKG_CONFIG} "${GStreamer_ROOT_DIR}/share/gst-android/ndk-build/tools/windows")
        set(PKG_CONFIG_EXECUTABLE "$ENV{PKG_CONFIG}/pkg-config.exe")
        set(ENV{PKG_CONFIG_LIBDIR} "${GSTREAMER_LIB_PATH}/pkgconfig;${GSTREAMER_PLUGIN_PATH}/pkgconfig")
        list(APPEND PKG_CONFIG_ARGN --dont-define-prefix)
    elseif(CMAKE_HOST_UNIX)
        set(ENV{PKG_CONFIG_LIBDIR} "${GSTREAMER_LIB_PATH}/pkgconfig:${GSTREAMER_PLUGIN_PATH}/pkgconfig")
    endif()
    list(APPEND PKG_CONFIG_ARGN
        --define-variable=prefix=${GStreamer_ROOT_DIR}
        --define-variable=libdir=${GSTREAMER_LIB_PATH}
        --define-variable=includedir=${GSTREAMER_INCLUDE_PATH}
    )
elseif(MACOS)
    if(NOT DEFINED GStreamer_ROOT_DIR)
        if(EXISTS "/Library/Frameworks/GStreamer.framework")
            set(GStreamer_ROOT_DIR "/Library/Frameworks/GStreamer.framework/Versions/1.0")
        elseif(EXISTS "/opt/homebrew/opt/gstreamer")
            set(GStreamer_ROOT_DIR "/opt/homebrew/opt/gstreamer")
        elseif(EXISTS "/usr/local/opt/gstreamer")
            set(GStreamer_ROOT_DIR "/usr/local/opt/gstreamer")
        endif()
    endif()

    cmake_path(CONVERT "${GStreamer_ROOT_DIR}" TO_CMAKE_PATH_LIST GStreamer_ROOT_DIR NORMALIZE)
    if(NOT EXISTS "${GStreamer_ROOT_DIR}")
        message(FATAL_ERROR "Could not locate GStreamer - check installation or set environment/cmake variables")
    endif()

    if(GStreamer_USE_FRAMEWORK)
        set(GSTREAMER_FRAMEWORK_PATH "${GStreamer_ROOT_DIR}/../..")
    endif()

    set(GSTREAMER_INCLUDE_PATH "${GStreamer_ROOT_DIR}/include")
    set(GSTREAMER_LIB_PATH "${GStreamer_ROOT_DIR}/lib")
    #set(GSTREAMER_PLUGIN_PATH "${GSTREAMER_LIB_PATH}/gstreamer-1.0")
    set(GSTREAMER_PLUGIN_PATH "${GSTREAMER_LIB_PATH}/libexec/gstreamer-1.0")

    message("GStreamer_ROOT_DIR: ${GStreamer_ROOT_DIR}")
    message("GSTREAMER_FRAMEWORK_PATH: ${GSTREAMER_FRAMEWORK_PATH}")
    message("GSTREAMER_INCLUDE_PATH: ${GSTREAMER_INCLUDE_PATH}")
    message("GSTREAMER_LIB_PATH: ${GSTREAMER_LIB_PATH}")
    message("GSTREAMER_PLUGIN_PATH: ${GSTREAMER_PLUGIN_PATH}")

    set(ENV{PKG_CONFIG} "${GStreamer_ROOT_DIR}/bin")
    set(PKG_CONFIG_EXECUTABLE "$ENV{PKG_CONFIG}/pkg-config")
    set(ENV{PKG_CONFIG_PATH} "${GSTREAMER_LIB_PATH}/pkgconfig:${GSTREAMER_PLUGIN_PATH}/pkgconfig:$ENV{PKG_CONFIG_PATH}")
    list(APPEND PKG_CONFIG_ARGN
        --dont-define-prefix
        --define-variable=prefix=${GStreamer_ROOT_DIR}
        --define-variable=libdir=${GSTREAMER_LIB_PATH}
        --define-variable=includedir=${GSTREAMER_INCLUDE_PATH}
    )

    if(NOT EXISTS "${GStreamer_ROOT_DIR}" OR NOT EXISTS "${GSTREAMER_LIB_PATH}" OR NOT EXISTS "${GSTREAMER_PLUGIN_PATH}" OR NOT EXISTS "${GSTREAMER_INCLUDE_PATH}")
        message(FATAL_ERROR "Could not locate GStreamer - check installation or set environment/cmake variables")
    endif()
elseif(IOS)
    #message(FATAL_ERROR "GStreamer for iOS is Currently Unsupported.")

    CPMAddPackage(
        NAME gstreamer
        VERSION ${GStreamer_FIND_VERSION}
        URL "https://gstreamer.freedesktop.org/data/pkg/ios/${GStreamer_FIND_VERSION}/gstreamer-1.0-devel-${GStreamer_FIND_VERSION}-ios-universal.pkg"
    )

    set(GST_PKG_FILE "${gstreamer_SOURCE_DIR}/gstreamer.pkg")
    set(GST_EXPAND_DIR "${gstreamer_SOURCE_DIR}/gstreamer-pkg-expanded")
    set(GST_PAYLOAD_DIR "${GST_EXPAND_DIR}/Payload")

    #file(MAKE_DIRECTORY "${GST_EXPAND_DIR}") #new version pkgutil auto create it
    execute_process(
        #COMMAND pkgutil --expand-full "${GST_PKG_FILE}" "${GST_EXPAND_DIR}"

        #COMMAND pkgutil --expand "${GST_PKG_FILE}" "${GST_EXPAND_DIR}"
        COMMAND pwd
        COMMAND ls ${GST_EXPAND_DIR}
        RESULT_VARIABLE _pkgutil_rc
    )
    if(NOT _pkgutil_rc EQUAL 0)
        message(FATAL_ERROR "pkgutil failed to expand GStreamer .pkg")
    endif()

    execute_process(
        #COMMAND xar -xf "${GST_EXPAND_DIR}/gstreamer-1.0-devel-${GStreamer_FIND_VERSION}-ios-universal.pkg/Payload"
        #        --directory "${GST_PAYLOAD_DIR}"

        #COMMAND mkdir Payload
        #COMMAND cd Payload
        #COMMAND cat "${GST_EXPAND_DIR}/ios-framework-${GStreamer_FIND_VERSION}-universal.pkg/Payload" | gunzip | cpio -i
        COMMAND ls ${GST_PAYLOAD_DIR}
        RESULT_VARIABLE _xar_rc
    )
    if(NOT _xar_rc EQUAL 0)
        message(FATAL_ERROR "xar failed to extract GStreamer Payload")
    endif()

    # set(GSTREAMER_FRAMEWORK_PATH "/Library/Developer/GStreamer/iPhone.sdk" CACHE PATH "Path of GStreamer.Framework")
    # set(GSTREAMER_FRAMEWORK_PATH "${GST_PAYLOAD_DIR}/usr/local/Frameworks/GStreamer.framework")
    set(GSTREAMER_FRAMEWORK_PATH "${GST_PAYLOAD_DIR}/GStreamer.framework")
    set(GStreamer_ROOT_DIR "${GSTREAMER_FRAMEWORK_PATH}/Versions/1.0")

    if(NOT EXISTS "${GStreamer_ROOT_DIR}")
        message(FATAL_ERROR "Could not locate GStreamer - check installation or set environment/cmake variables")
    endif()

    set(GSTREAMER_INCLUDE_PATH "${GSTREAMER_FRAMEWORK_PATH}/Headers")
endif()

if(GStreamer_USE_FRAMEWORK AND NOT EXISTS "${GSTREAMER_FRAMEWORK_PATH}")
    message(FATAL_ERROR "Could not locate GStreamer - check installation or set environment/cmake variables")
endif()

################################################################################

if(GStreamer_USE_STATIC_LIBS)
    set(GSTREAMER_EXTRA_DEPS
        gstreamer-base-1.0
        gstreamer-video-1.0
        gstreamer-gl-1.0
        gstreamer-gl-prototypes-1.0
        gstreamer-rtsp-1.0
        # gstreamer-gl-egl-1.0
        # gstreamer-gl-wayland-1.0
        # gstreamer-gl-x11-1.0
    )

    set(GSTREAMER_PLUGINS
        coreelements
        dav1d
        isomp4
        libav
        matroska
        mpegtsdemux
        opengl
        openh264
        playback
        rtp
        rtpmanager
        rtsp
        sdpelem
        tcp
        typefindfunctions
        udp
        videoparsersbad
        vpx
    )
    if(ANDROID)
        list(APPEND GSTREAMER_PLUGINS androidmedia) # vulkan
    elseif(APPLE)
        list(APPEND GSTREAMER_PLUGINS applemedia vulkan)
    elseif(WIN32)
        list(APPEND GSTREAMER_PLUGINS d3d d3d11 d3d12 dxva nvcodec)
    elseif(LINUX)
        list(APPEND GSTREAMER_PLUGINS nvcodec qsv va vulkan) # qml6 - GStreamer provided qml6 is xcb only
    endif()
endif()

if(ANDROID)
    set(GStreamer_Mobile_MODULE_NAME gstreamer_android)
    set(G_IO_MODULES openssl)
    set(G_IO_MODULES_PATH "${GStreamer_ROOT_DIR}/lib/gio/modules")

    set(GStreamer_NDK_BUILD_PATH  "${GStreamer_ROOT_DIR}/share/gst-android/ndk-build/")
    set(GSTREAMER_ANDROID_MODULE_NAME gstreamer_android)
    set(GSTREAMER_JAVA_SRC_DIR "${CMAKE_BINARY_DIR}/android-build-${CMAKE_PROJECT_NAME}/src")
    set(GSTREAMER_ASSETS_DIR "${CMAKE_BINARY_DIR}/android-build-${CMAKE_PROJECT_NAME}/assets")

    configure_file(
        "${GStreamer_NDK_BUILD_PATH}/gstreamer_android-1.0.c.in"
        "${GStreamer_Mobile_MODULE_NAME}.c"
    )
endif()

################################################################################

if(GStreamer_USE_FRAMEWORK)
    list(APPEND CMAKE_FRAMEWORK_PATH "${GSTREAMER_FRAMEWORK_PATH}")
endif()

if(GStreamer_USE_STATIC_LIBS)
    list(APPEND PKG_CONFIG_ARGN "--static")
endif()

find_package(PkgConfig REQUIRED QUIET)

list(PREPEND CMAKE_PREFIX_PATH ${GStreamer_ROOT_DIR})
if(LINUX)
    pkg_check_modules(PC_GSTREAMER REQUIRED gstreamer-1.0>=${GStreamer_FIND_VERSION})
else()
    pkg_check_modules(PC_GSTREAMER REQUIRED gstreamer-1.0=${GStreamer_FIND_VERSION})
endif()
set(GStreamer_VERSION "${PC_GSTREAMER_VERSION}")

################################################################################

function(find_gstreamer_component component pkgconfig_name)
    set(target GStreamer::${component})

    if(NOT TARGET ${target})
        string(TOUPPER ${component} upper)
        pkg_check_modules(PC_GSTREAMER_${upper} IMPORTED_TARGET ${pkgconfig_name})
        if(TARGET PkgConfig::PC_GSTREAMER_${upper})
            qt_add_library(GStreamer::${component} INTERFACE IMPORTED)
            target_link_libraries(GStreamer::${component} INTERFACE PkgConfig::PC_GSTREAMER_${upper})
            if("PC_GSTREAMER_${upper}" MATCHES "PC_GSTREAMER_GL")
                get_target_property(_qt_incs PkgConfig::PC_GSTREAMER_GL INTERFACE_INCLUDE_DIRECTORIES)
                set(__qt_fixed_incs)
                foreach(path IN LISTS _qt_incs)
                    if(IS_DIRECTORY "${path}")
                        list(APPEND __qt_fixed_incs "${path}")
                    endif()
                endforeach()
                set_property(TARGET PkgConfig::PC_GSTREAMER_GL PROPERTY INTERFACE_INCLUDE_DIRECTORIES "${__qt_fixed_incs}")
            endif()
        endif()
    endif()

    if(TARGET ${target})
        set(GStreamer_${component}_FOUND TRUE PARENT_SCOPE)
    endif()
endfunction()

################################################################################

find_gstreamer_component(Core gstreamer-1.0)
find_gstreamer_component(Base gstreamer-base-1.0)
find_gstreamer_component(Video gstreamer-video-1.0)
find_gstreamer_component(Gl gstreamer-gl-1.0)
find_gstreamer_component(GlPrototypes gstreamer-gl-prototypes-1.0)
find_gstreamer_component(Rtsp gstreamer-rtsp-1.0)

################################################################################

if(GlEgl IN_LIST GStreamer_FIND_COMPONENTS)
    find_gstreamer_component(GlEgl gstreamer-gl-egl-1.0)
endif()

if(GlWayland IN_LIST GStreamer_FIND_COMPONENTS)
    find_gstreamer_component(GlWayland gstreamer-gl-wayland-1.0)
endif()

if(GlX11 IN_LIST GStreamer_FIND_COMPONENTS)
    find_gstreamer_component(GlX11 gstreamer-gl-x11-1.0)
endif()

################################################################################

include(FindPackageHandleStandardArgs)
find_package_handle_standard_args(GStreamer
    VERSION_VAR GStreamer_VERSION
    HANDLE_COMPONENTS
)

if(GStreamer_FOUND AND NOT TARGET GStreamer::GStreamer)
    qt_add_library(GStreamer::GStreamer INTERFACE IMPORTED)

    if(GStreamer_USE_STATIC_LIBS)
        target_compile_definitions(GStreamer::GStreamer INTERFACE QGC_GST_STATIC_BUILD)
    endif()

    if(APPLE AND GStreamer_USE_FRAMEWORK)
        message("===>GSTREAMER_FRAMEWORK_PATH: ${GSTREAMER_FRAMEWORK_PATH}")
        set(CMAKE_FIND_FRAMEWORK ONLY)
        find_library(GSTREAMER_FRAMEWORK GStreamer
            PATHS
                "${GSTREAMER_FRAMEWORK_PATH}"
                "/Library/Frameworks"
                "/usr/local/opt/gstreamer"
                "/opt/homebrew/opt/gstreamer"
            NO_DEFAULT_PATH
        )
        unset(CMAKE_FIND_FRAMEWORK)

        message("===>GSTREAMER_FRAMEWORK: ${GSTREAMER_FRAMEWORK}")
        if(IOS)
            target_link_libraries(GStreamer::GStreamer INTERFACE ${GSTREAMER_FRAMEWORK_PATH})
            target_include_directories(GStreamer::GStreamer INTERFACE "${GSTREAMER_FRAMEWORK_PATH}/Headers")
            return()
        endif()

        if(MACOS)
            if(GSTREAMER_FRAMEWORK)
                target_link_libraries(GStreamer::GStreamer INTERFACE ${GSTREAMER_FRAMEWORK})
                target_include_directories(GStreamer::GStreamer INTERFACE "${GSTREAMER_FRAMEWORK}/Headers")
                if(MACOS)
                    target_compile_definitions(GStreamer::GStreamer INTERFACE QGC_GST_MACOS_FRAMEWORK)
                endif()
                return()
            else()
                message(FATAL_ERROR "Could not locate GStreamer - check installation or set environment/cmake variables")
            endif()
        endif()
    elseif(ANDROID)
        target_link_options(GStreamer::GStreamer INTERFACE "-Wl,-Bsymbolic")
        if(CMAKE_SIZEOF_VOID_P EQUAL 4)
            target_link_options(GStreamer::GStreamer INTERFACE "-Wl,-z,notext")
        endif()
    endif()

    target_link_directories(GStreamer::GStreamer INTERFACE ${GSTREAMER_LIB_PATH})

    target_link_libraries(GStreamer::GStreamer
        INTERFACE
            GStreamer::Core
            GStreamer::Base
            GStreamer::Video
            GStreamer::Gl
            GStreamer::GlPrototypes
            GStreamer::Rtsp
    )

    foreach(component IN LISTS GStreamer_FIND_COMPONENTS)
        if(GStreamer_${component}_FOUND)
            target_link_libraries(GStreamer::GStreamer INTERFACE GStreamer::${component})
        endif()
    endforeach()

################################################################################

    if(GStreamer_USE_STATIC_LIBS)
        qt_add_library(GStreamer::Plugins INTERFACE IMPORTED)
        target_link_directories(GStreamer::Plugins INTERFACE ${GSTREAMER_PLUGIN_PATH})

        foreach(plugin IN LISTS GSTREAMER_PLUGINS)
            pkg_check_modules(GST_PLUGIN_${plugin} QUIET IMPORTED_TARGET gst${plugin})
            if(GST_PLUGIN_${plugin}_FOUND)
                target_link_libraries(GStreamer::Plugins INTERFACE PkgConfig::GST_PLUGIN_${plugin})
            else()
                find_library(GST_PLUGIN_${plugin}_LIBRARY
                    NAMES gst${plugin}
                    PATHS
                        ${GSTREAMER_LIB_PATH}
                        ${GSTREAMER_PLUGIN_PATH}
                )
                if(GST_PLUGIN_${plugin}_LIBRARY)
                    target_link_libraries(GStreamer::Plugins INTERFACE ${GST_PLUGIN_${plugin}_LIBRARY})
                    set(GST_PLUGIN_${plugin}_FOUND TRUE)
                endif()
            endif()
            if(GST_PLUGIN_${plugin}_FOUND)
                target_compile_definitions(GStreamer::Plugins INTERFACE GST_PLUGIN_${plugin}_FOUND)
            endif()
        endforeach()

        target_link_libraries(GStreamer::GStreamer INTERFACE GStreamer::Plugins)
    endif()
endif()

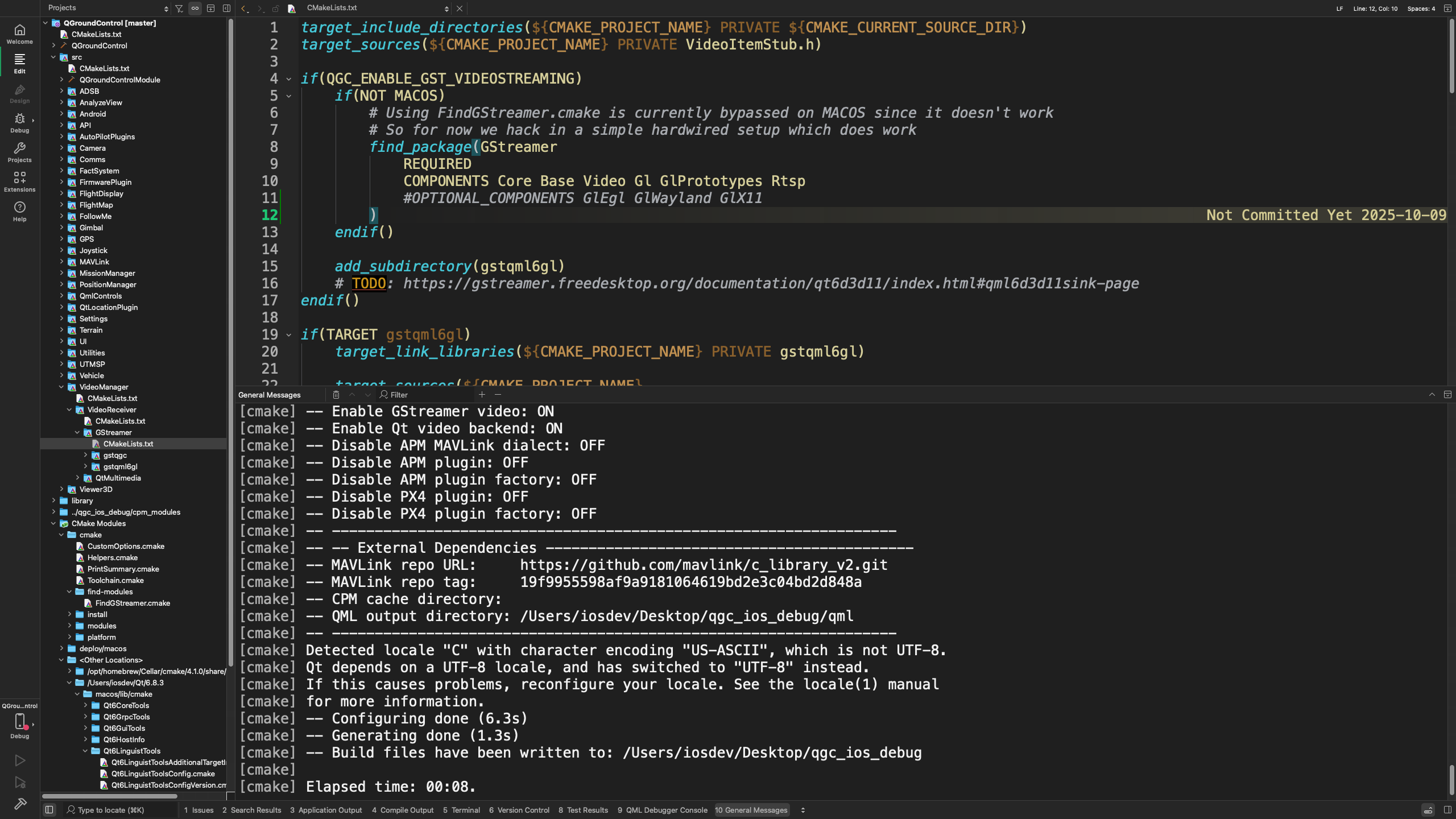

修改后的CMakeLists.txt

路径: ~/Desktop/qgroundcontrol/src/VideoManager/VideoReceiver/GStreamer/CMakeLists.txt

bash 复制代码
target_include_directories(${CMAKE_PROJECT_NAME} PRIVATE ${CMAKE_CURRENT_SOURCE_DIR})
target_sources(${CMAKE_PROJECT_NAME} PRIVATE VideoItemStub.h)

if(QGC_ENABLE_GST_VIDEOSTREAMING)
    if(NOT MACOS)
        # Using FindGStreamer.cmake is currently bypassed on MACOS since it doesn't work
        # So for now we hack in a simple hardwired setup which does work
        find_package(GStreamer
            REQUIRED
            COMPONENTS Core Base Video Gl GlPrototypes Rtsp
            #OPTIONAL_COMPONENTS GlEgl GlWayland GlX11
        )
    endif()

    add_subdirectory(gstqml6gl)
    # TODO: https://gstreamer.freedesktop.org/documentation/qt6d3d11/index.html#qml6d3d11sink-page
endif()

if(TARGET gstqml6gl)
    target_link_libraries(${CMAKE_PROJECT_NAME} PRIVATE gstqml6gl)

    target_sources(${CMAKE_PROJECT_NAME}
        PRIVATE
            GStreamer.cc
            GStreamer.h
            GStreamerHelpers.cc
            GStreamerHelpers.h
            GstVideoReceiver.cc
            GstVideoReceiver.h
    )

    add_subdirectory(gstqgc)

    target_compile_definitions(${CMAKE_PROJECT_NAME} PRIVATE QGC_GST_STREAMING)

    if(LINUX)
        install(
            DIRECTORY
                "${GSTREAMER_PLUGIN_PATH}"
                "${GSTREAMER_LIB_PATH}/gio"
            DESTINATION "${CMAKE_INSTALL_LIBDIR}"
            FILES_MATCHING
                PATTERN "*.so"
                PATTERN "*.so.*"
            PATTERN "*/include" EXCLUDE
        )
        install(
            DIRECTORY "${GSTREAMER_LIB_PATH}/gstreamer1.0"
            DESTINATION "${CMAKE_INSTALL_LIBDIR}"
            FILE_PERMISSIONS
                OWNER_READ OWNER_WRITE OWNER_EXECUTE
                GROUP_READ             GROUP_EXECUTE
                WORLD_READ             WORLD_EXECUTE
            FILES_MATCHING
                PATTERN "gst-*"
        )
    elseif(WIN32)
        install(
            DIRECTORY "${GStreamer_ROOT_DIR}/bin/"
            DESTINATION "${CMAKE_INSTALL_BINDIR}"
            FILES_MATCHING
                PATTERN "*.dll"
        )
        install(
            DIRECTORY "${GSTREAMER_LIB_PATH}/gio/modules/"
            DESTINATION "${CMAKE_INSTALL_LIBDIR}/gio/modules"
            FILES_MATCHING
                PATTERN "*.dll"
        )
        install(
            DIRECTORY "${GSTREAMER_PLUGIN_PATH}/"
            DESTINATION "${CMAKE_INSTALL_LIBDIR}/gstreamer-1.0"
            FILES_MATCHING
                PATTERN "*.dll"
        )
        install(
            DIRECTORY "${GStreamer_ROOT_DIR}/libexec/gstreamer-1.0/"
            DESTINATION "${CMAKE_INSTALL_LIBEXECDIR}/gstreamer-1.0"
            FILE_PERMISSIONS
                OWNER_READ OWNER_WRITE OWNER_EXECUTE
                GROUP_READ             GROUP_EXECUTE
                WORLD_READ             WORLD_EXECUTE
            FILES_MATCHING
                PATTERN "*.exe"
        )
    elseif(MACOS)
        if(GSTREAMER_FRAMEWORK)
            install(
                DIRECTORY "${GSTREAMER_FRAMEWORK}"
                DESTINATION "${CMAKE_INSTALL_PREFIX}/${CMAKE_PROJECT_NAME}.app/Contents/Frameworks"
                PATTERN "*.la" EXCLUDE
                PATTERN "*.a" EXCLUDE
                PATTERN "*/bin" EXCLUDE
                PATTERN "*/etc" EXCLUDE
                PATTERN "*/gst-validate-launcher" EXCLUDE
                PATTERN "*/Headers" EXCLUDE
                PATTERN "*/include" EXCLUDE
                PATTERN "*/pkgconfig" EXCLUDE
                PATTERN "*/share" EXCLUDE
            )
        endif()
    endif()
endif()

Qt6LinguistToolsMacros.cmake

路径: ~/Qt/6.8.3/macos/lib/cmake/Qt6LinguistTools/Qt6LinguistToolsMacros.cmake

修改后的CustomOptions.cmake

bash 复制代码
include(CMakeDependentOption)
# The following options can be overriden by custom builds using the CustomOverrides.cmake file

# App
set(QGC_APP_NAME "QGroundControl" CACHE STRING "App Name")
set(QGC_APP_COPYRIGHT "Copyright (c) 2025 QGroundControl. All rights reserved." CACHE STRING "Copyright")
set(QGC_APP_DESCRIPTION "Open Source Ground Control App" CACHE STRING "Description")
set(QGC_ORG_NAME "QGroundControl" CACHE STRING "Org Name")
set(QGC_ORG_DOMAIN "qgroundcontrol.com" CACHE STRING "Domain")
set(QGC_PACKAGE_NAME "org.mavlink.qgroundcontrol" CACHE STRING "Package Name")
set(QGC_SETTINGS_VERSION "9" CACHE STRING "Settings Version") # If you need to make an incompatible changes to stored settings, bump this version number up by 1. This will caused store settings to be cleared on next boot.

# Build
option(BUILD_SHARED_LIBS "Build using shared libraries" OFF)
option(QGC_STABLE_BUILD "Stable Build" OFF)
option(QGC_USE_CACHE "Use Build Caching" ON)
option(QGC_BUILD_INSTALLER "Build Installer" ON)
cmake_dependent_option(QGC_BUILD_TESTING "Enable testing" ON "CMAKE_BUILD_TYPE STREQUAL Debug" OFF)
cmake_dependent_option(QGC_DEBUG_QML "Build QGroundControl with QML debugging/profiling support." ON "CMAKE_BUILD_TYPE STREQUAL Debug" OFF)

# Features
option(QGC_UTM_ADAPTER "Enable UTM Adapter" OFF)
option(QGC_VIEWER3D "Enable Viewer3D" ON) # Qt6Quick3D_FOUND
# option(QGC_DISABLE_MAVLINK_INSPECTOR "Disable Mavlink Inspector" OFF) # This removes QtCharts which is GPL licensed

# Comms
option(QGC_ENABLE_BLUETOOTH "Enable Bluetooth Links" ON) # Qt6Bluetooth_FOUND
option(QGC_ZEROCONF_ENABLED "Enable ZeroConf Compatibility" OFF)
option(QGC_AIRLINK_DISABLED "Disable AIRLink" ON)
option(QGC_NO_SERIAL_LINK "Disable Serial Links" OFF) # NOT IOS AND Qt6SerialPort_FOUND

# Video
option(QGC_ENABLE_UVC "Enable UVC Devices" ON) # Qt6Multimedia_FOUND
option(QGC_ENABLE_GST_VIDEOSTREAMING "Enable GStreamer Video Backend" ON)
cmake_dependent_option(QGC_CUSTOM_GST_PACKAGE "Enable Using QGC Provided Custom GStreamer Packages" OFF "QGC_ENABLE_GST_VIDEOSTREAMING" OFF)
option(QGC_ENABLE_QT_VIDEOSTREAMING "Enable QtMultimedia Video Backend" ON) # Qt6Multimedia_FOUND

# Joystick
# set(SDL_GAMECONTROLLERCONFIG "0300000009120000544f000011010000,OpenTX Radiomaster TX16S Joystick,leftx:a3,lefty:a2,rightx:a0,righty:a1,platform:Linux" CACHE STRING "Custom SDL Joystick Mappings")

# MAVLink
set(QGC_MAVLINK_GIT_REPO "https://github.com/mavlink/c_library_v2.git" CACHE STRING "URL to MAVLink Git Repo")
set(QGC_MAVLINK_GIT_TAG "19f9955598af9a9181064619bd2e3c04bd2d848a" CACHE STRING "Tag of MAVLink Git Repo")

# APM
option(QGC_DISABLE_APM_MAVLINK "Disable APM Dialect" OFF)
option(QGC_DISABLE_APM_PLUGIN "Disable APM Plugin" OFF)
option(QGC_DISABLE_APM_PLUGIN_FACTORY "Disable APM Plugin Factory" OFF)

# PX4
option(QGC_DISABLE_PX4_PLUGIN "Disable PX4 Plugin" OFF)
option(QGC_DISABLE_PX4_PLUGIN_FACTORY "Disable PX4 Plugin Factory" OFF)

# Android
set(QGC_QT_ANDROID_TARGET_SDK_VERSION "36" CACHE STRING "Android Target SDK Version")
set(QGC_ANDROID_PACKAGE_NAME "${QGC_PACKAGE_NAME}" CACHE STRING "Android Package Name")
set(QGC_ANDROID_PACKAGE_SOURCE_DIR "${CMAKE_SOURCE_DIR}/android" CACHE PATH "Android Package Path")
set(QT_ANDROID_DEPLOYMENT_TYPE "" CACHE STRING "Forces Signing if Set to Release")
option(QT_ANDROID_SIGN_APK "Enable Signing APK" OFF)
option(QT_ANDROID_SIGN_AAB "Enable Signing AAB" OFF)
option(QT_USE_TARGET_ANDROID_BUILD_DIR "Use Target Android Build Dir" OFF)
set(QGC_QT_MINIMUM_VERSION "6.8.3" CACHE STRING "Minimum Supported Qt Version")
set(QGC_QT_MAXIMUM_VERSION "6.8.3" CACHE STRING "Maximum Supported Qt Version")
set(QGC_QT_ANDROID_MIN_SDK_VERSION "28" CACHE STRING "Android Min SDK Version")

# MacOS
set(QGC_MACOS_PLIST_PATH "${CMAKE_SOURCE_DIR}/deploy/macos/MacOSXBundleInfo.plist.in" CACHE FILEPATH "MacOS PList Path")
set(QGC_MACOS_BUNDLE_ID "${QGC_PACKAGE_NAME}" CACHE STRING "MacOS Bundle ID")
set(QGC_MACOS_ICON_PATH "${CMAKE_SOURCE_DIR}/deploy/macos/qgroundcontrol.icns" CACHE FILEPATH "MacOS Icon Path")
set(QGC_MACOS_ENTITLEMENTS_PATH "${CMAKE_SOURCE_DIR}/deploy/macos/qgroundcontrol.entitlements" CACHE FILEPATH "MacOS Entitlements Path")
option(QGC_MACOS_UNIVERSAL_BUILD "Build MacOS Universal Build (arm64;x86_64)" ON)

# Linux
option(QGC_CREATE_APPIMAGE "Build an AppImage after build" ON)
set(QGC_APPIMAGE_ICON_256_PATH "${CMAKE_SOURCE_DIR}/deploy/linux/QGroundControl_256.png" CACHE FILEPATH "AppImage Icon 256x256 Path")
set(QGC_APPIMAGE_ICON_SCALABLE_PATH "${CMAKE_SOURCE_DIR}/deploy/linux/QGroundControl.svg" CACHE FILEPATH "AppImage Icon SVG Path")
set(QGC_APPIMAGE_APPRUN_PATH "${CMAKE_SOURCE_DIR}/deploy/linux/AppRun" CACHE FILEPATH "AppImage AppRun Path")
set(QGC_APPIMAGE_DESKTOP_ENTRY_PATH "${CMAKE_SOURCE_DIR}/deploy/linux/org.mavlink.qgroundcontrol.desktop.in" CACHE FILEPATH "AppImage Desktop Entry Path")
set(QGC_APPIMAGE_METADATA_PATH "${CMAKE_SOURCE_DIR}/deploy/linux/org.mavlink.qgroundcontrol.appdata.xml.in" CACHE FILEPATH "AppImage Metadata Path")
set(QGC_APPIMAGE_APPDATA_DEVELOPER "qgroundcontrol" CACHE STRING "AppImage Metadata Developer")

# Windows
set(QGC_WINDOWS_INSTALL_HEADER_PATH "${CMAKE_SOURCE_DIR}/deploy/windows/installheader.bmp" CACHE FILEPATH "Windows Install Header Path")
set(QGC_WINDOWS_ICON_PATH "${CMAKE_SOURCE_DIR}/deploy/windows/WindowsQGC.ico" CACHE FILEPATH "Windows Icon Path")
set(QGC_WINDOWS_RESOURCE_FILE_PATH "${CMAKE_SOURCE_DIR}/deploy/windows/QGroundControl.rc" CACHE FILEPATH "Windows Resource File Path")

# CPM
set(QGC_CPM_SOURCE_CACHE "" CACHE PATH "Directory to Download CPM Dependencies, Overrides CPM_SOURCE_CACHE Env Variable")
# set(CPM_USE_NAMED_CACHE_DIRECTORIES ON CACHE BOOL "Use additional directory of package name in cache on the most nested level.")

# Qt
set(QT_QML_OUTPUT_DIRECTORY "${CMAKE_BINARY_DIR}/qml" CACHE PATH "Install path for QML")
set(QML_IMPORT_PATH "${QT_QML_OUTPUT_DIRECTORY}" CACHE STRING "Extra QML Import Paths")
option(QT_SILENCE_MISSING_DEPENDENCY_TARGET_WARNING "Silence Missing Dependency Warnings" OFF)
option(QT_ENABLE_VERBOSE_DEPLOYMENT "Verbose Deployment" ON)
option(QT_DEBUG_FIND_PACKAGE "Print Used Search Paths When a Package is Not Found" ON)
option(QT_QML_GENERATE_QMLLS_INI "https://doc.qt.io/qt-6/cmake-variable-qt-qml-generate-qmlls-ini.html" ON)
# set(ENV{QT_DEBUG_PLUGINS} "1")
# set(ENV{QML_IMPORT_TRACE} "1")

# CMAKE
# option(CMAKE_FIND_DEBUG_MODE "Print Used Search Paths When Finding a Package" OFF)

修改完成后run CMake重新生成

相关推荐
行思理11 分钟前
macos 如何清空IntelliJ IDEA安装记录
java·macos·intellij-idea
美狐美颜SDK开放平台21 分钟前
美颜SDK跨平台适配实战解析：让AI美颜功能在iOS与Android都丝滑运行
android·人工智能·ios·美颜sdk·直播美颜sdk·第三方美颜sdk·美颜api
憨憨崽&1 小时前
Mac如何安装mysql和完全卸载mysql
macos
stayhungry_c1 小时前
Quarto生成PDF无法正常显示中文的问题
python·macos·r语言·pdf
2501_915918411 小时前
uni-app 上架 iOS 应用全流程 从云打包到开心上架（Appuploader）免 Mac 上传发布指南
android·macos·ios·小程序·uni-app·iphone·webview
2501_915921433 小时前
iOS 抓包工具有哪些，开发者的选型与实战指南
android·ios·小程序·https·uni-app·iphone·webview
木易 士心3 小时前
在 Mac 上配置 ADB 环境变量：解决 “command not found: adb” 问题
macos·adb
2501_915918413 小时前
iOS 26 应用管理实战 多工具协同构建开发与调试的高效体系
macos·ios·小程序·uni-app·objective-c·cocoa·iphone
2501_938780283 小时前
Kotlin Multiplatform Mobile（KMM）：实现 iOS 与 Android 共享业务逻辑
android·ios·kotlin
ttghgfhhjxkl3 小时前
《macOS 配置 GO 语言后，如何切换不同 GO 版本？》
开发语言·macos·golang
热门推荐
01GitHub 镜像站点02UV安装并设置国内源03BongoCat - 跨平台键盘猫动画工具04GitLab 零基础入门指南：从安装到项目管理全流程05Linux下V2Ray安装配置指南06NVIDIA显卡驱动、CUDA、cuDNN 和 TensorRT 版本匹配指南07Labelme从安装到标注：零基础完整指南08安娜的档案(Anna’s Archive) 镜像网站/国内最新可访问入口（持续更新）09在VSCode配置Java开发环境的保姆级教程（适配各类AI编程IDE）10jdk21下载、安装（Windows、Linux、macOS）
