MefBootstrapper在Prism引导程序中的使用

前言

MefBootstrapper 是使用 MEF(Managed Extensibility Framework)作为依赖注入容器的 Prism 引导程序。

1、创建Bootstrapper引导程序类

CreateShell方法用于从容器中获取主窗口;InitializeShell中用于设置主窗体以及显示主窗体,注意这里要引用Prism.Mef.Wpf.dll。

csharp 复制代码
 class BootStrapper : MefBootstrapper
    {
        private readonly string ApplicationPath = Environment.CurrentDirectory + "\\lib\\";
        protected override DependencyObject CreateShell()
        {
            return this.Container.GetExportedValue<MyShell>();
        }
        protected override void InitializeShell()
        {
            base.InitializeShell();
            Application.Current.MainWindow = (Window)Shell;
            Application.Current.MainWindow.Show();
        }

        protected override void ConfigureAggregateCatalog()
        {
            base.ConfigureAggregateCatalog();
            this.AggregateCatalog.Catalogs.Add(new AssemblyCatalog(typeof(BootStrapper).Assembly));
            DirectoryCatalog catalog = new DirectoryCatalog(ApplicationPath);
            this.AggregateCatalog.Catalogs.Add(catalog);
        }
        protected override void ConfigureModuleCatalog()
        {
            base.ConfigureModuleCatalog();
        }
    }
csharp 复制代码
启动流程
Application.Startup()
    ↓
BootStrapper 实例化
    ↓
CreateLogger() - 创建日志
    ↓
ConfigureModuleCatalog- 配置模块目录
    ↓
ConfigureAggregateCatalog- 配置组件目录
    ↓
CreateShell() - 创建主窗口
    ↓
InitializeShell() - 初始化主窗口
    ↓
InitializeModules() - 初始化所有模块
    ↓
应用程序就绪

2、使用引导程序

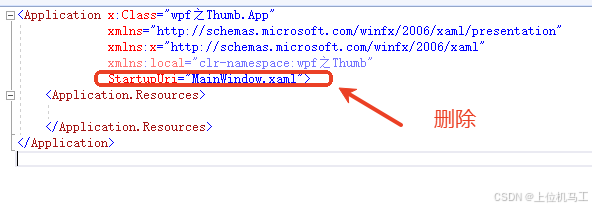

1)删除 StartupUri

2)重写OnStartup方法

在App.xaml.cs类中重写OnStartup方法,实例化BootStrapper类,并调用Run方法

3、导出主窗体MyShell类

csharp 复制代码
  public partial class App : Application
    {

        protected override void OnStartup(StartupEventArgs e)
        {
            base.OnStartup(e);
            BootStrapper bootStrapper = new BootStrapper();
            bootStrapper.Run();
        }
    }
