elasticSearch之API：Ingest Pipeline & Painless Script

文章目录

[一、Ingest Pipeline & Painless Script](#一、Ingest Pipeline & Painless Script)
- 1、应用场景
- [2、Ingest Node](#2、Ingest Node)
- [3、Pipeline & Processor](#3、Pipeline & Processor)
- - （1）简介
  - （2）创建pipeline
  - （3）使用pipeline更新数据
  - （4）借助update_by_query更新已存在的文档
  - [（5）Ingest Node VS Logstash](#（5）Ingest Node VS Logstash)
  - （6）Painless
  - （7）脚本缓存

一、Ingest Pipeline & Painless Script

1、应用场景

应用场景：修复与增强写入数据

案例

需求：Tags字段中，逗号分隔的文本应该是数组，而不是一个字符串。后期需要对Tags进行Aggregation统计

bash 复制代码

#Blog数据，包含3个字段，tags用逗号间隔
PUT tech_blogs/_doc/1
{
  "title":"Introducing big data......",
  "tags":"hadoop,elasticsearch,spark",
  "content":"You konw, for big data"
}

2、Ingest Node

Elasticsearch 5.0后，引入的一种新的节点类型。默认配置下，每个节点都是Ingest Node：

具有预处理数据的能力，可拦截lndex或 Bulk API的请求

对数据进行转换，并重新返回给Index或 Bulk APl

无需Logstash，就可以进行数据的预处理，例如：

为某个字段设置默认值;重命名某个字段的字段名;对字段值进行Split 操作

支持设置Painless脚本，对数据进行更加复杂的加工

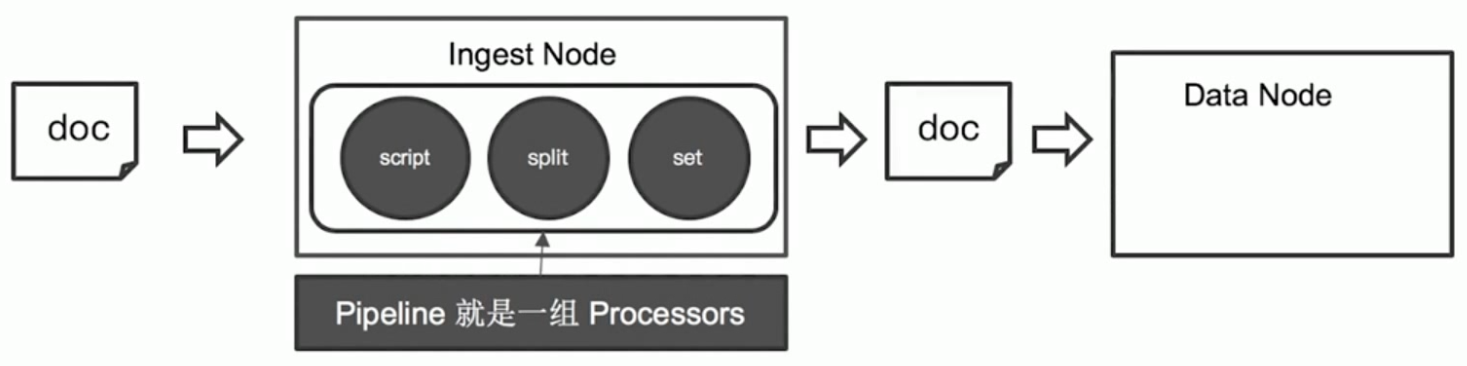

3、Pipeline & Processor

（1）简介

Pipeline ------管道会对通过的数据(文档)，按照顺序进行加工

Processor------Elasticsearch 对一些加工的行为进行了抽象包装

Elasticsearch 有很多内置的Processors，也支持通过插件的方式，实现自己的Processor

一些内置的Processors
https://www.elastic.co/guide/en/elasticsearch/reference/7.17/ingest-processors.html

Split Processor ：将给定字段值分成一个数组

Remove / Rename Processor ：移除一个重命名字段

Append ：为商品增加一个新的标签

Convert：将商品价格，从字符串转换成float 类型

Date / JSON：日期格式转换，字符串转JSON对象

Date lndex Name Processor︰将通过该处理器的文档,分配到指定时间格式的索引中

Fail Processor︰一旦出现异常，该Pipeline 指定的错误信息能返回给用户

Foreach Process︰数组字段，数组的每个元素都会使用到一个相同的处理器

Grok Processor︰日志的日期格式切割)

Gsub / Join / Split︰字符串替换│数组转字符串/字符串转数组

Lowercase / upcase︰大小写转换

bash 复制代码

# 测试split tags
POST _ingest/pipeline/_simulate
{
  "pipeline": {
    "description": "to split blog tags",
    "processors": [
      {
        "split": {
          "field": "tags",
          "separator": ","
        }
      }
    ]
  },
  "docs": [
    {
      "_index": "index",
      "_id": "id",
      "_source": {
        "title": "Introducing big data......",
        "tags": "hadoop,elasticsearch,spark",
        "content": "You konw, for big data"
      }
    },
    {
      "_index": "index",
      "_id": "idxx",
      "_source": {
        "title": "Introducing cloud computering",
        "tags": "openstack,k8s",
        "content": "You konw, for cloud"
      }
    }
  ]
}

#同时为文档，增加一个字段。blog查看量
POST _ingest/pipeline/_simulate
{
  "pipeline": {
    "description": "to split blog tags",
    "processors": [
      {
        "split": {
          "field": "tags",
          "separator": ","
        }
      },

      {
        "set":{
          "field": "views",
          "value": 0
        }
      }
    ]
  },

  "docs": [
    {
      "_index":"index",
      "_id":"id",
      "_source":{
        "title":"Introducing big data......",
        "tags":"hadoop,elasticsearch,spark",
        "content":"You konw, for big data"
      }
    },
    {
      "_index":"index",
      "_id":"idxx",
      "_source":{
        "title":"Introducing cloud computering",
        "tags":"openstack,k8s",
        "content":"You konw, for cloud"
      }
    }

    ]
}

（2）创建pipeline

bash 复制代码

# 为ES添加一个 Pipeline
PUT _ingest/pipeline/blog_pipeline
{
  "description": "a blog pipeline",
  "processors": [
      {
        "split": {
          "field": "tags",
          "separator": ","
        }
      },

      {
        "set":{
          "field": "views",
          "value": 0
        }
      }
    ]
}

#查看Pipleline
GET _ingest/pipeline/blog_pipeline

（3）使用pipeline更新数据

bash 复制代码

#不使用pipeline更新数据
PUT tech_blogs/_doc/1
{
  "title":"Introducing big data......",
  "tags":"hadoop,elasticsearch,spark",
  "content":"You konw, for big data"
}

#使用pipeline更新数据
PUT tech_blogs/_doc/2?pipeline=blog_pipeline
{
  "title": "Introducing cloud computering",
  "tags": "openstack,k8s",
  "content": "You konw, for cloud"
}

（4）借助update_by_query更新已存在的文档

bash 复制代码

#update_by_query 会导致错误
POST tech_blogs/_update_by_query?pipeline=blog_pipeline
{
}

#增加update_by_query的条件
POST tech_blogs/_update_by_query?pipeline=blog_pipeline
{
    "query": {
        "bool": {
            "must_not": {
                "exists": {
                    "field": "views"
                }
            }
        }
    }
}

GET tech_blogs/_search

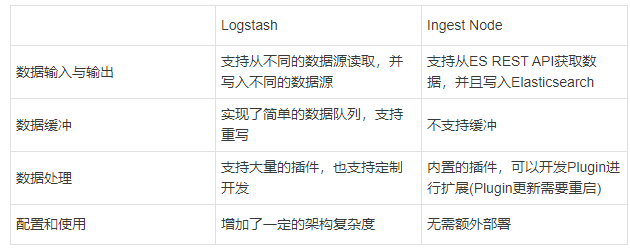

（5）Ingest Node VS Logstash

（6）Painless

自Elasticsearch 5.x后引入，专门为Elasticsearch 设计，扩展了Java的语法。6.0开始，ES只支持 Painless。Groovy，JavaScript和 Python 都不再支持。Painless支持所有Java 的数据类型及Java API子集。

Painless Script具备以下特性：

高性能/安全

支持显示类型或者动态定义类型

Painless的用途：

可以对文档字段进行加工处理

.更新或删除字段，处理数据聚合操作

.Script Field:对返回的字段提前进行计算

.Function Score:对文档的算分进行处理

在lngest Pipeline中执行脚本

在Reindex APl，Update By Query时，对数据进行处理

通过Painless脚本访问字段

测试：

bash 复制代码

# 增加一个 Script Prcessor
POST _ingest/pipeline/_simulate
{
  "pipeline": {
    "description": "to split blog tags",
    "processors": [
      {
        "split": {
          "field": "tags",
          "separator": ","
        }
      },
      {
        "script": {
          "source": """
          if(ctx.containsKey("content")){
            ctx.content_length = ctx.content.length();
          }else{
            ctx.content_length=0;
          }


          """
        }
      },

      {
        "set":{
          "field": "views",
          "value": 0
        }
      }
    ]
  },

  "docs": [
    {
      "_index":"index",
      "_id":"id",
      "_source":{
        "title":"Introducing big data......",
  "tags":"hadoop,elasticsearch,spark",
  "content":"You konw, for big data"
      }
    },


    {
      "_index":"index",
      "_id":"idxx",
      "_source":{
        "title":"Introducing cloud computering",
  "tags":"openstack,k8s",
  "content":"You konw, for cloud"
      }
    }

    ]
}

DELETE tech_blogs
PUT tech_blogs/_doc/1
{
  "title":"Introducing big data......",
  "tags":"hadoop,elasticsearch,spark",
  "content":"You konw, for big data",
  "views":0
}

POST tech_blogs/_update/1
{
  "script": {
    "source": "ctx._source.views += params.new_views",
    "params": {
      "new_views":100
    }
  }
}

# 查看views计数
POST tech_blogs/_search



#保存脚本在 Cluster State
POST _scripts/update_views
{
  "script":{
    "lang": "painless",
    "source": "ctx._source.views += params.new_views"
  }
}

POST tech_blogs/_update/1
{
  "script": {
    "id": "update_views",
    "params": {
      "new_views":1000
    }
  }
}


GET tech_blogs/_search
{
  "script_fields": {
    "rnd_views": {
      "script": {
        "lang": "painless",
        "source": """
          java.util.Random rnd = new Random();
          doc['views'].value+rnd.nextInt(1000);
        """
      }
    }
  },
  "query": {
    "match_all": {}
  }
}

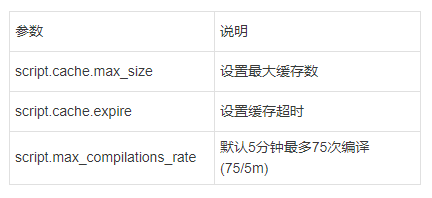

（7）脚本缓存

脚本编译的开销较大，Elasticsearch会将脚本编译后缓存在Cache 中

.Inline scripts和 Stored Scripts都会被缓存

.默认缓存100个脚本
