解决步骤：整体替换【为buildroot的】rkbin目录，clean掉uboot目录并重新编译uboot，然后再打包就OK了！

rootroot@rootroot-X99-Turbo:~$

rootroot@rootroot-X99-Turbo:~$ cd Linux_SDK/

rootroot@rootroot-X99-Turbo:~/Linux_SDK$ cd Firefly_SDK/

rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ tar --use-compress-program=pigz -cvpf rkbin1buildroot.tgz rkbin/

rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$

rootroot@rootroot-X99-Turbo:~/Linux_SDK/Firefly_SDK$ cd ~/proj/

rootroot@rootroot-X99-Turbo:~/proj$ ll

rootroot@rootroot-X99-Turbo:~/proj$ cd RK3576_Android14.0/

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ mv rkbin/ rkbin2

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ tar --use-compress-program=pigz -xvpf rkbin1buildroot.tgz

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0 $cd u-boot/ rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0/u-boot$ make distclean
rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot $make rk3576_defconfig rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0/u-boot$ ll .config
-rw-rw-r-- 1 rootroot rootroot 42065 10月 28 09:03 .config

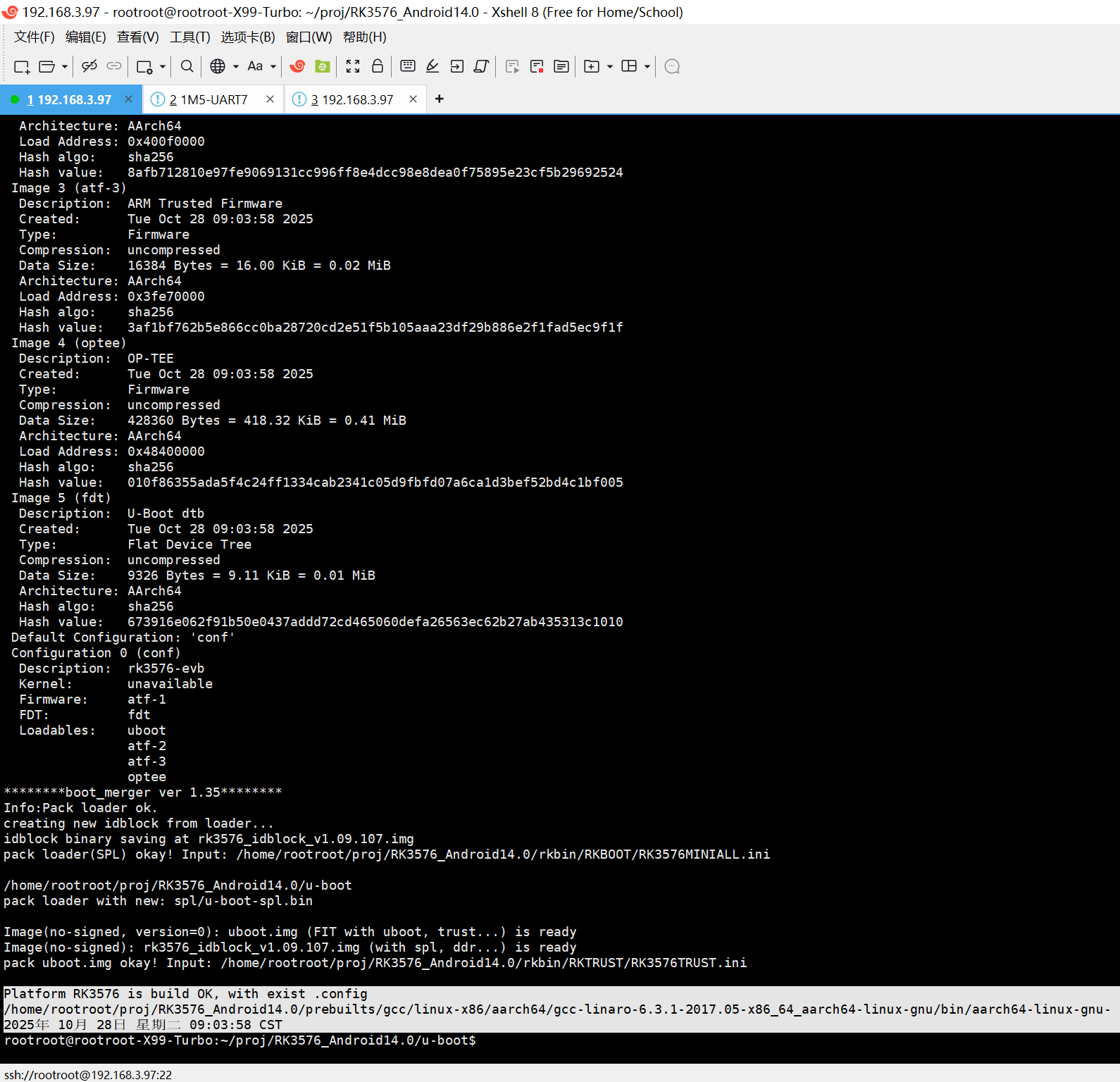

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot $./make.sh --spl-new rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0/u-boot$ cd ..

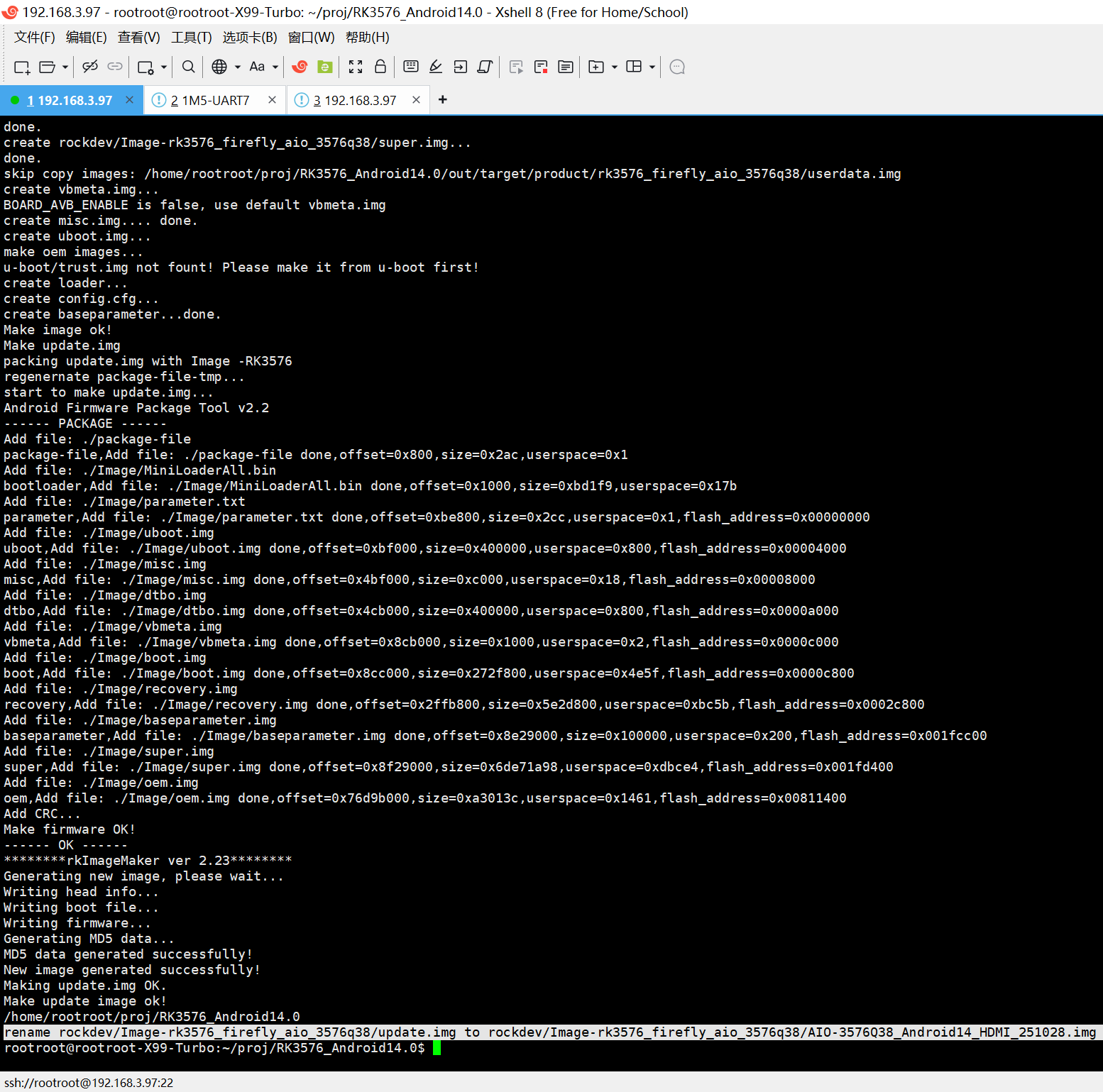

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ./FFTools/mkupdate/mkupdate.sh -l rk3576_firefly_aio_3576q38-userdebug

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$

20251028解决编译AIO-3576Q38开发板的Android14刷机之后进MASKROM模式的问题

2025/10/28 11:16

缘起：编译firefly的AIO-3576Q38开发板的Android14。

开动！

https://www.t-firefly.com/doc/download/320.html

AIO-3576C

源代码

https://pan.baidu.com/s/1mGkGxlxodHedXJZqLKRRRg?pwd=1234

Android14.0 bundle

提取码：1234

https://wiki.t-firefly.com/zh_CN/AIO-3576Q38/android_compile_android14.0_firmware.html

AIO-3576Q38

AIO-3576Q38开发板的Android14编译完成了，但是启动不了。卡在maskrom模式了。

能否让 cym 支持一下？[疑问]

看打印，他应该知道怎么解决？

现象：AIO-3576Q38开发板的Buildroot/Linux系统刷机之后可以启动。

但是刷机Android14启动不了，直接进MASKROM模式。

以前做乐晓电子的开发板KickPi的K7的时候也出现过这个问题。

直接用Buildroot的rkbin目录提前掉Android14的就OK了。

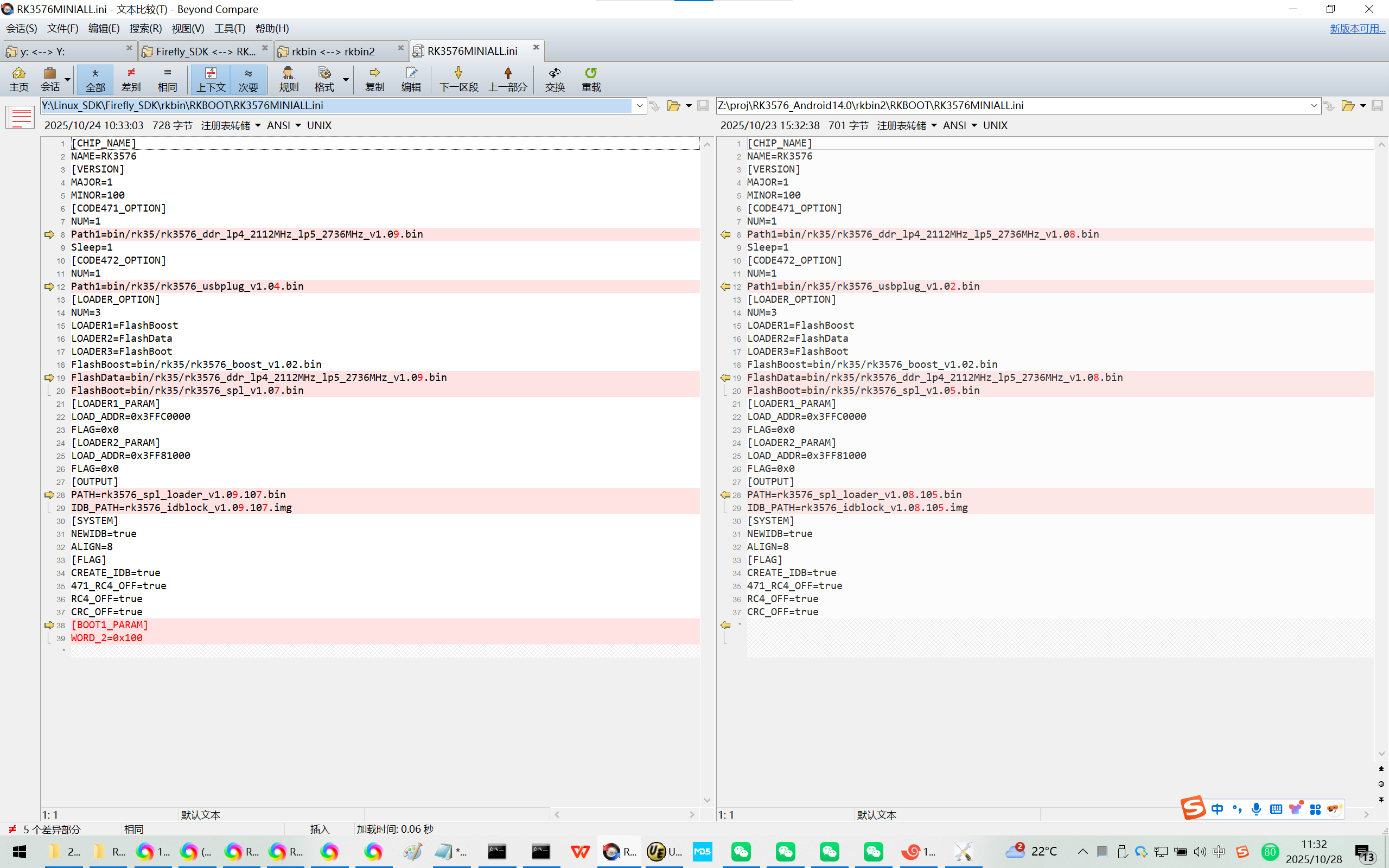

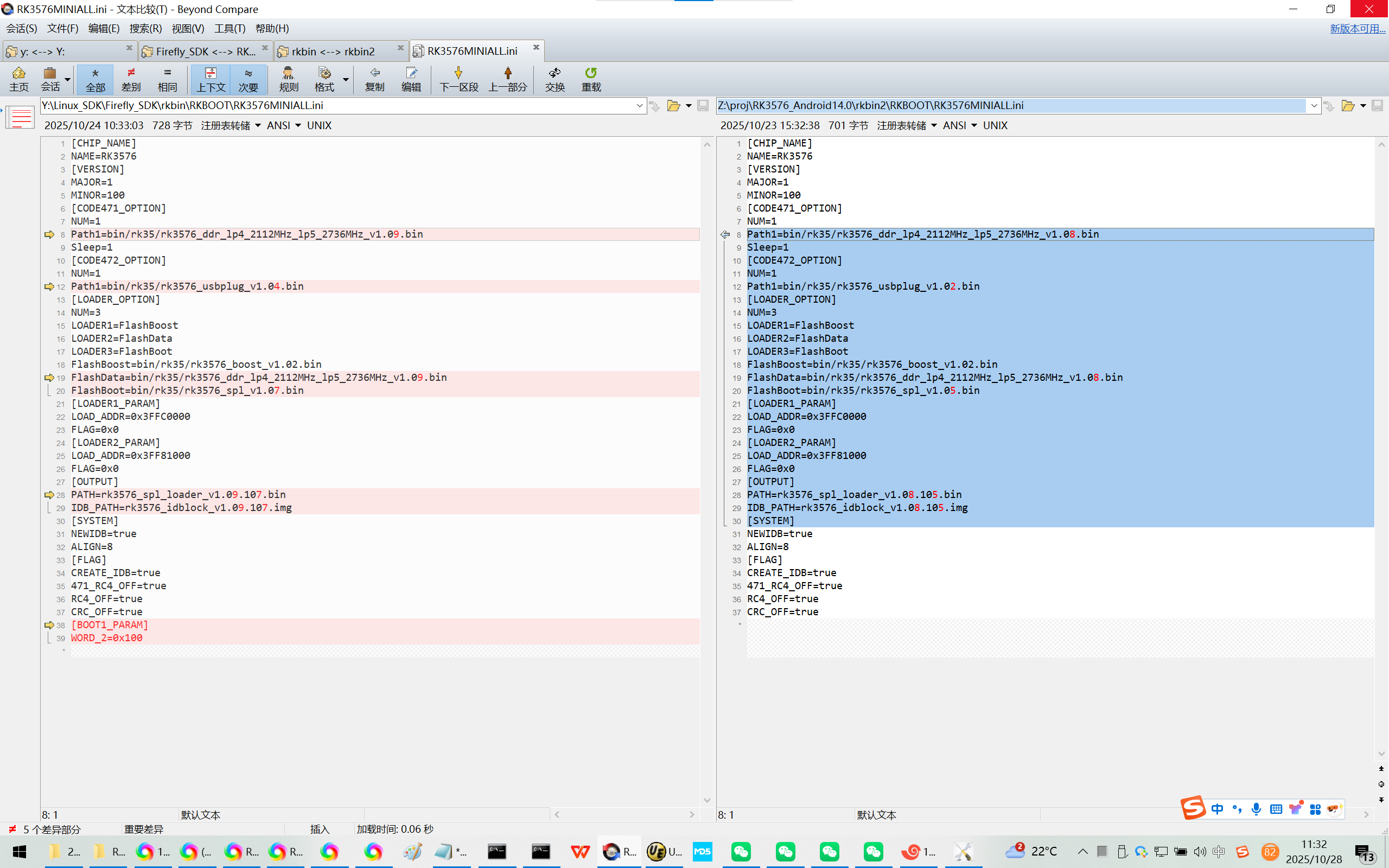

经过比对，Buildroot的rkbin目录中的引导文件的版本比Android14至少高一个版本。

乐晓回复：以前用的进口的DDR4/eMMC，现在进口的买不到了，换国产的DDR4/eMMC了！

U-Boot 2017.09(u-boot commit id: d9c1d6ebf7)(sdk version: rk3576_linux_next)-gd9c1d6ebf7-240923 #lzj (Sep 11 2025 - 09:23:00 +0800)

Model: Rockchip RK3576 Evaluation board

MPIDR: 0x0

PreSerial: 0, raw, 0x2ad40000

DRAM: 8 GiB

Sysmem: init

Relocation Offset: bd9f4000

Relocation fdt: fb7fa770 - fb7fecd8

CR: M/C/I

Using default environment

optee api revision: 2.0

mmc@2a310000: 1, mmc@2a330000: 0

Bootdev(atags): mmc 0

MMC0: HS400 Enhanced Strobe, 200Mhz

PartType: EFI

TEEC: Waring: Could not find security partition

DM: v2

=================begin===================

282326 bytes read in 6 ms (44.9 MiB/s)

DTB(Distro): rk-kernel.dtb

boot mode: loader

dw_dp_bind zyb enter

I2c1 speed: 100000Hz

PMIC: RK8060 (on=0x40, off=0x00)

vdd_cpu_big_s0 init 850000 uV

vdd_npu_s0 750000 uV

vdd_cpu_lit_s0 init 850000 uV

vdd_gpu_s0 init 750000 uV

vdd_logic_s0 init 750000 uV

vdd_ddr_s0 850000 uV

I2c2 speed: 100000Hz

Error reading output register

Device 'gpio@2ae10000': seq 1 is in use by 'gpio@21'

Could not find baseparameter partition

Model: Firefly AIO-3576Q38 Linux HDMI

No resource file: logo.bmp

=================begin===================

512 bytes read in 3 ms (166 KiB/s)

logo(Distro): logo.bmp

=================begin===================

751554 bytes read in 3 ms (238.9 MiB/s)

logo(Distro): logo.bmp

Rockchip UBOOT DRM driver version: v1.0.1

Assign plane mask automatically

VOP have 2 active VP

vp0 have layer nr:1[2 ], primary plane: 2

vp1 have layer nr:0[], primary plane: 0

vp2 have layer nr:1[8 ], primary plane: 8

Monitor has basic audio support

Could not find baseparameter partition

color_format:1

hdmi_select_link_config use tmds mode

mode:1920x1080 bus_format:0x2025

hdmi@27da0000: detailed mode clock 148500 kHz, flags[5]

H: 1920 2008 2052 2200

V: 1080 1084 1089 1125

bus_format: 2025

VOP update mode to: 1920x1080p60, type: HDMI0 for VP0

disp_info is empty

VP0 set crtc_clock to 148500KHz

VOP VP0 enable Esmart0[500x501->500x501@710x289] fmt[1] addr[0xfdfb8000]

CEA mode used vic=16

mtmdsclock:148500000

hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000

hdptx phy pll locked!

dw_hdmi_setup HDMI mode

don't use dsc mode

dw hdmi qp use tmds mode

bus_width:0x16a8c8,bit_rate:1485000

hdptx phy lane locked!

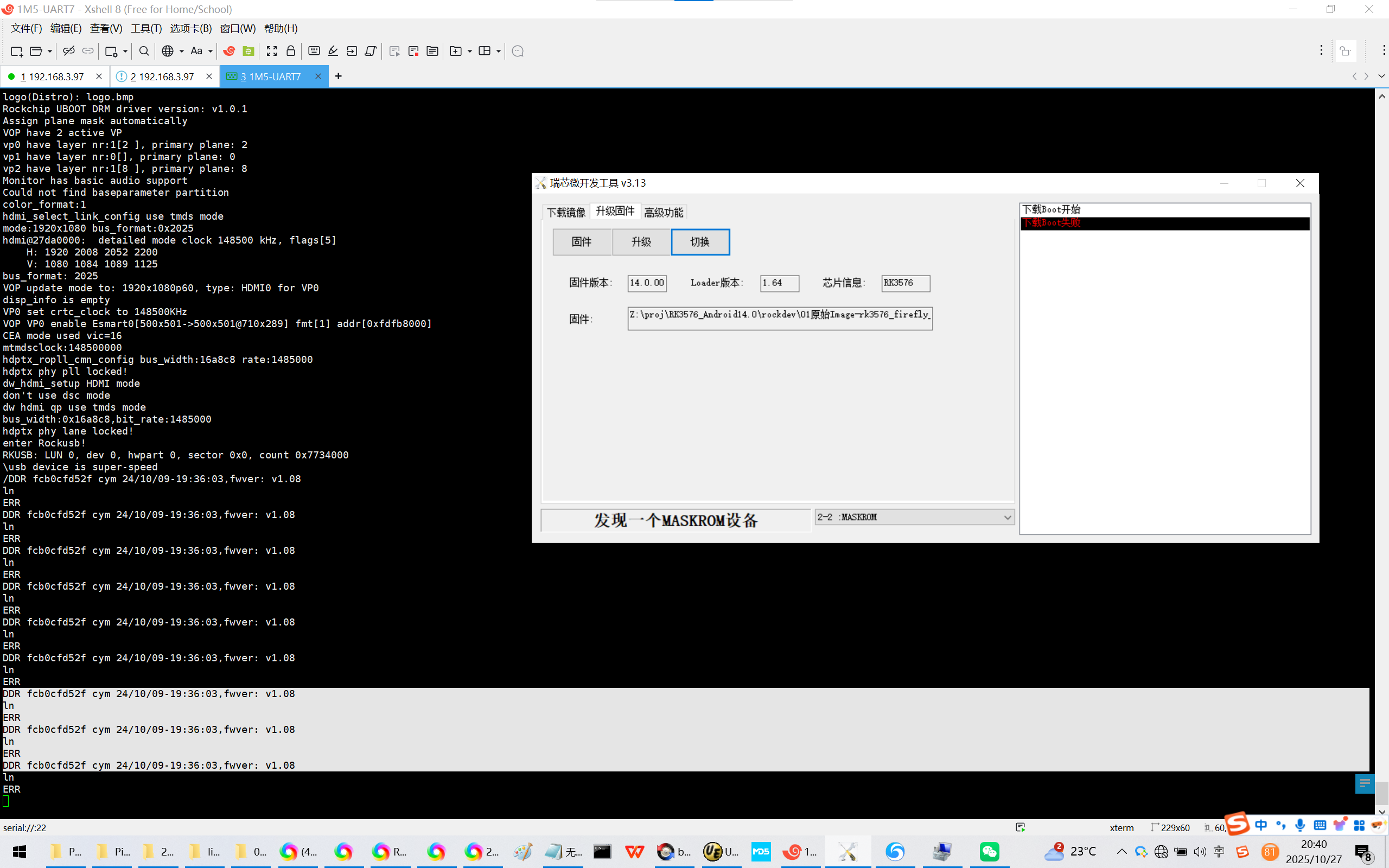

enter Rockusb!

RKUSB: LUN 0, dev 0, hwpart 0, sector 0x0, count 0x7734000

\usb device is super-speed
/DDR fcb0cfd52f cym 24/10/09-19:36:03,fwver: v1.08
ln
ERR
DDR fcb0cfd52f cym 24/10/09-19:36:03,fwver: v1.08

解决步骤：整体替换【为buildroot的】rkbin目录，clean掉uboot目录并重新编译uboot，然后再打包就OK了！

精简的LOG：

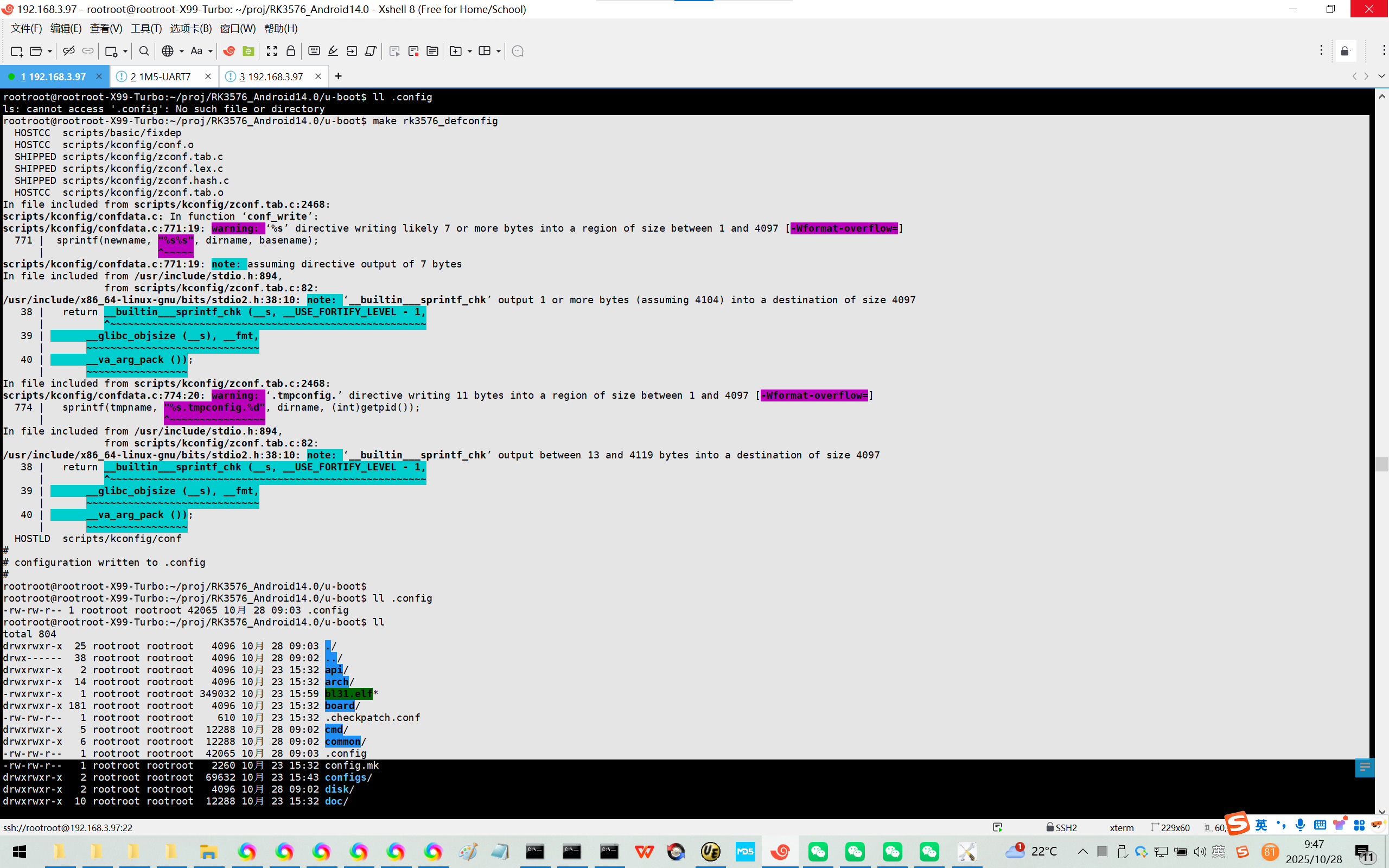

BEGIN\] 2025/10/28 9:00:36 rootroot@rootroot-X99-Turbo:\~$ ll rootroot@rootroot-X99-Turbo:\~$ cd Linux_SDK/ rootroot@rootroot-X99-Turbo:\~/Linux_SDK$ ll rootroot@rootroot-X99-Turbo:\~/Linux_SDK$ cd Firefly_SDK/ rootroot@rootroot-X99-Turbo:\~/Linux_SDK/Firefly_SDK$ ll rootroot@rootroot-X99-Turbo:\~/Linux_SDK/Firefly_SDK$ tar --use-compress-program=pigz -cvpf rkbin1buildroot.tgz rk rkbin/ rkflash.sh rootroot@rootroot-X99-Turbo:\~/Linux_SDK/Firefly_SDK$ tar --use-compress-program=pigz -cvpf rkbin1buildroot.tgz rkbin/ rootroot@rootroot-X99-Turbo:\~/Linux_SDK/Firefly_SDK$ ll rootroot@rootroot-X99-Turbo:\~/Linux_SDK/Firefly_SDK$ rootroot@rootroot-X99-Turbo:\~/Linux_SDK/Firefly_SDK$ cd \~/proj/ rootroot@rootroot-X99-Turbo:\~/proj$ ll rootroot@rootroot-X99-Turbo:\~/proj$ cd RK3576_Android14.0/ rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ ll rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ mv rkbin/ rkbin2 rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ ll rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ tar --use-compress-program=pigz -xvpf rkbin1buildroot.tgz rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ ll rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ cd u-boot/ rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0/u-boot$ ll rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0/u-boot$ make distclean rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0/u-boot$ ll rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0/u-boot$ ll .config ls: cannot access '.config': No such file or directory rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0/u-boot$ make rk3576_defconfig HOSTCC scripts/basic/fixdep HOSTCC scripts/kconfig/conf.o SHIPPED scripts/kconfig/zconf.tab.c SHIPPED scripts/kconfig/zconf.lex.c SHIPPED scripts/kconfig/zconf.hash.c HOSTCC scripts/kconfig/zconf.tab.o In file included from scripts/kconfig/zconf.tab.c:2468: scripts/kconfig/confdata.c: In function 'conf_write': scripts/kconfig/confdata.c:771:19: warning: '%s' directive writing likely 7 or more bytes into a region of size between 1 and 4097 \[-Wformat-overflow=

771 | sprintf(newname, "%s%s", dirname, basename);

| ^~~~~~

scripts/kconfig/confdata.c:771:19: note: assuming directive output of 7 bytes

In file included from /usr/include/stdio.h:894,

from scripts/kconfig/zconf.tab.c:82:

/usr/include/x86_64-linux-gnu/bits/stdio2.h:38:10: note: '__builtin___sprintf_chk' output 1 or more bytes (assuming 4104) into a destination of size 4097

38 | return __builtin___sprintf_chk (__s, __USE_FORTIFY_LEVEL - 1,

| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

39 | __glibc_objsize (__s), __fmt,

| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

40 | __va_arg_pack ());

| ~~~~~~~~~~~~~~~~~

In file included from scripts/kconfig/zconf.tab.c:2468:

scripts/kconfig/confdata.c:774:20: warning: '.tmpconfig.' directive writing 11 bytes into a region of size between 1 and 4097 [-Wformat-overflow=]

774 | sprintf(tmpname, "%s.tmpconfig.%d", dirname, (int)getpid());

| ^~~~~~~~~~~~~~~~~

In file included from /usr/include/stdio.h:894,

from scripts/kconfig/zconf.tab.c:82:

/usr/include/x86_64-linux-gnu/bits/stdio2.h:38:10: note: '__builtin___sprintf_chk' output between 13 and 4119 bytes into a destination of size 4097

38 | return __builtin___sprintf_chk (__s, __USE_FORTIFY_LEVEL - 1,

| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

39 | __glibc_objsize (__s), __fmt,

| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

40 | __va_arg_pack ());

| ~~~~~~~~~~~~~~~~~

HOSTLD scripts/kconfig/conf

configuration written to .config

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll .config

-rw-rw-r-- 1 rootroot rootroot 42065 10月 28 09:03 .config

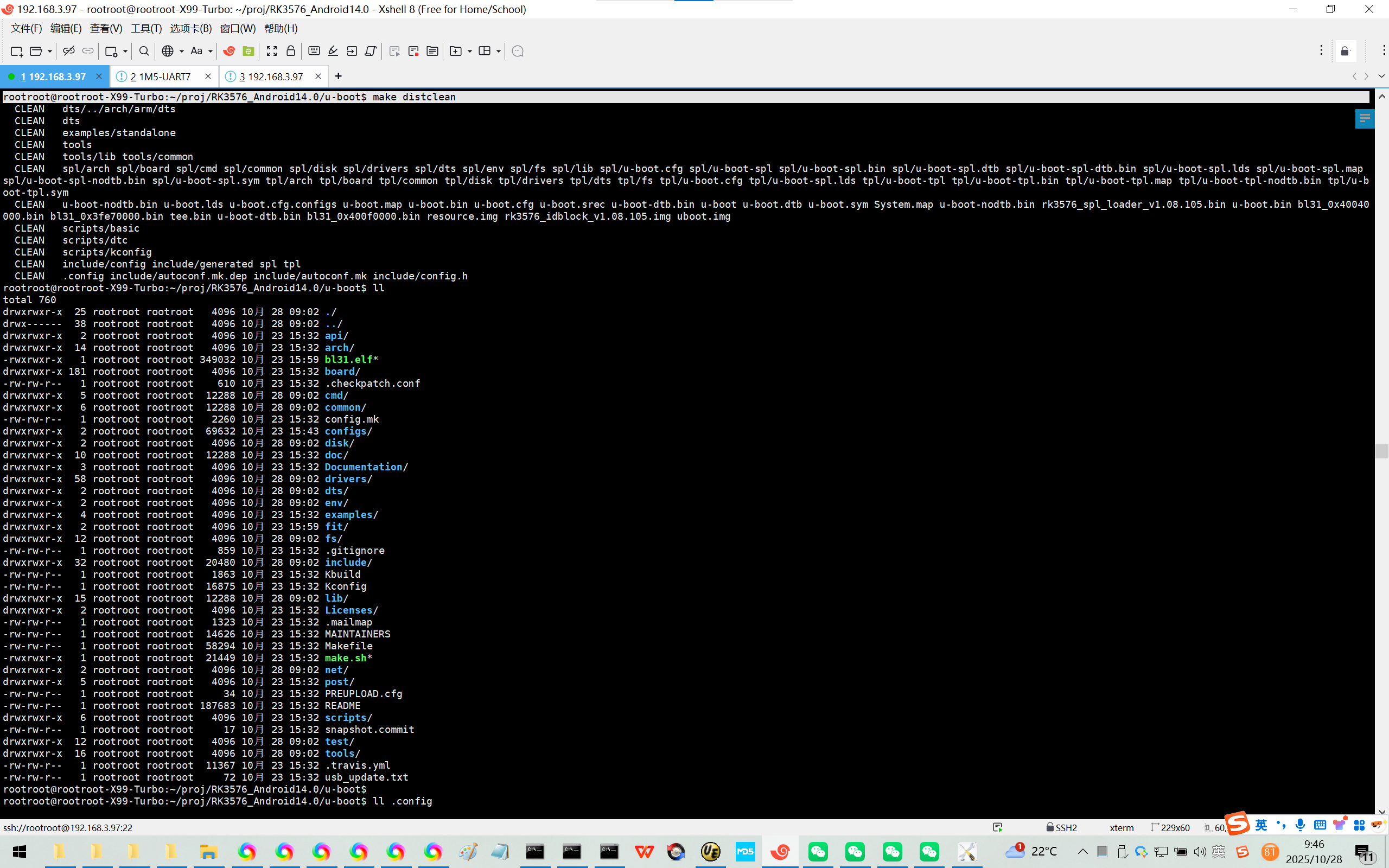

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ./make.sh --spl-new

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ cd ..

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll

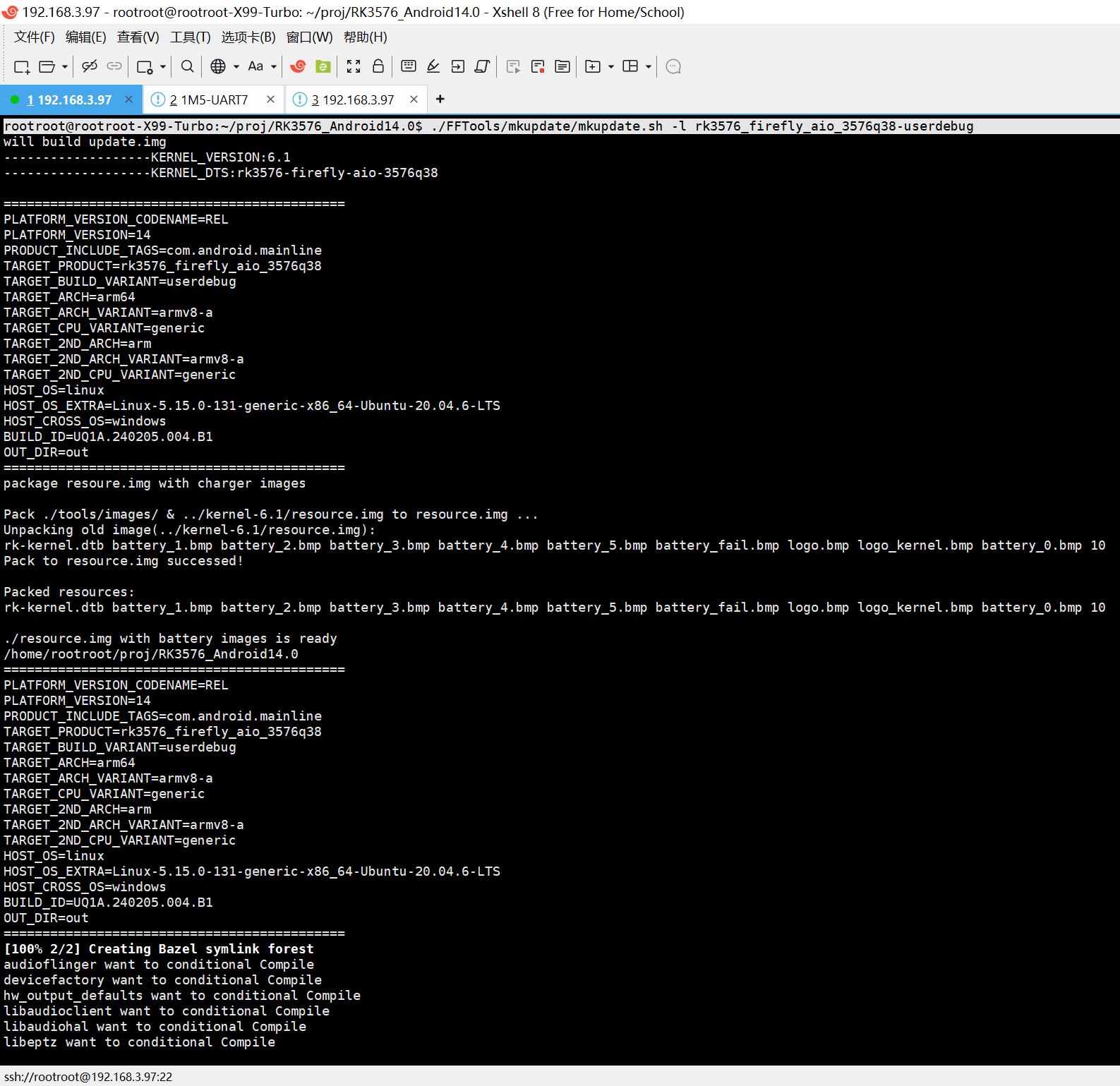

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ./FFTools/mkupdate/mkupdate.sh -l rk3576_firefly_aio_3576q38-userdebug

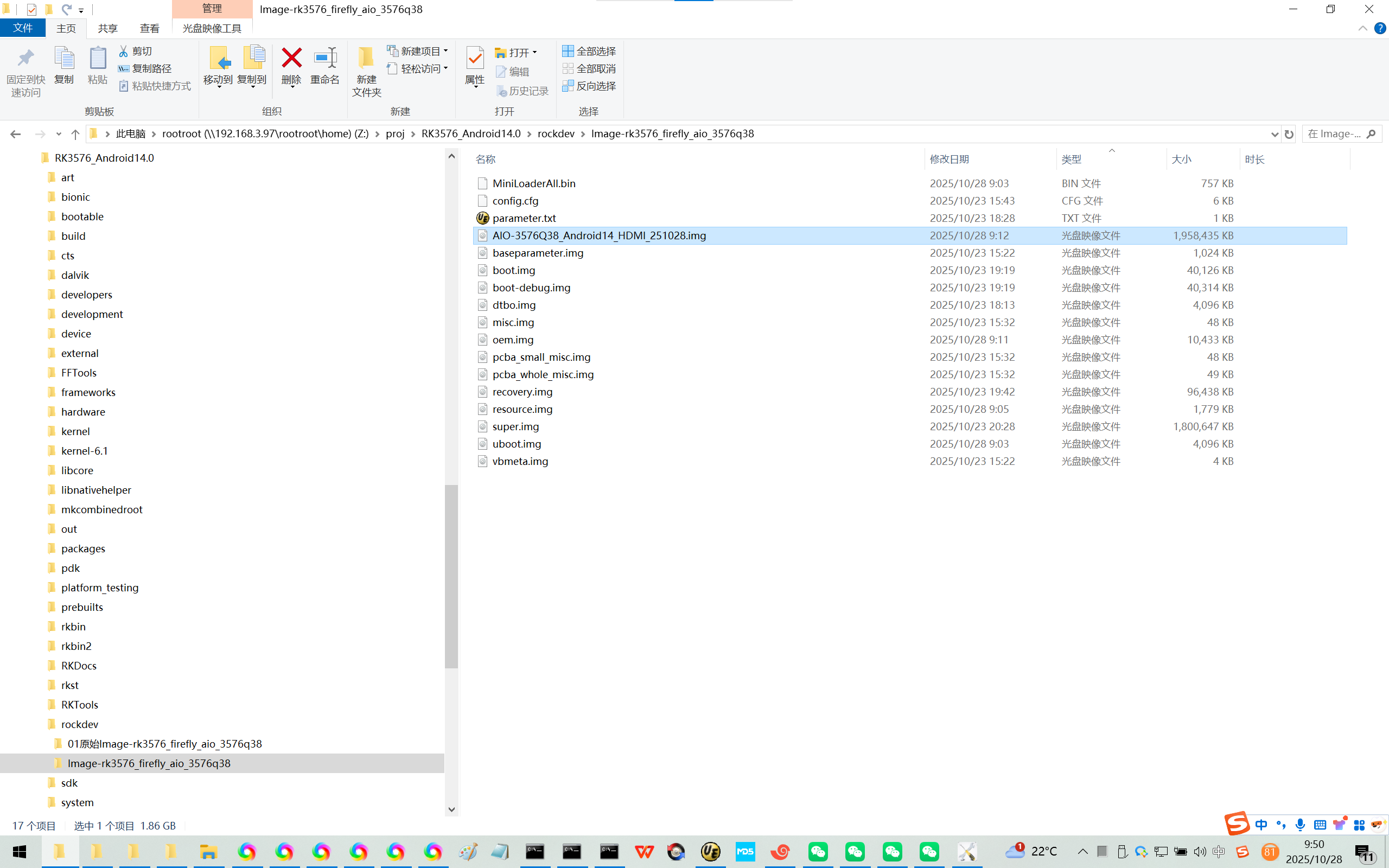

rename rockdev/Image-rk3576_firefly_aio_3576q38/update.img to rockdev/Image-rk3576_firefly_aio_3576q38/AIO-3576Q38_Android14_HDMI_251028.img

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$

771 | sprintf(newname, "%s%s", dirname, basename);

| ^~~~~~

scripts/kconfig/confdata.c:771:19: note: assuming directive output of 7 bytes

In file included from /usr/include/stdio.h:894,

from scripts/kconfig/zconf.tab.c:82:

/usr/include/x86_64-linux-gnu/bits/stdio2.h:38:10: note: '__builtin___sprintf_chk' output 1 or more bytes (assuming 4104) into a destination of size 4097

38 | return __builtin___sprintf_chk (__s, __USE_FORTIFY_LEVEL - 1,

| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

39 | __glibc_objsize (__s), __fmt,

| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

40 | __va_arg_pack ());

| ~~~~~~~~~~~~~~~~~

In file included from scripts/kconfig/zconf.tab.c:2468:

scripts/kconfig/confdata.c:774:20: warning: '.tmpconfig.' directive writing 11 bytes into a region of size between 1 and 4097 [-Wformat-overflow=]

774 | sprintf(tmpname, "%s.tmpconfig.%d", dirname, (int)getpid());

| ^~~~~~~~~~~~~~~~~

In file included from /usr/include/stdio.h:894,

from scripts/kconfig/zconf.tab.c:82:

/usr/include/x86_64-linux-gnu/bits/stdio2.h:38:10: note: '__builtin___sprintf_chk' output between 13 and 4119 bytes into a destination of size 4097

38 | return __builtin___sprintf_chk (__s, __USE_FORTIFY_LEVEL - 1,

| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

39 | __glibc_objsize (__s), __fmt,

| ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

40 | __va_arg_pack ());

| ~~~~~~~~~~~~~~~~~

HOSTLD scripts/kconfig/conf

configuration written to .config

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll .config

-rw-rw-r-- 1 rootroot rootroot 42065 10月 28 09:03 .config

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll

total 804

drwxrwxr-x 25 rootroot rootroot 4096 10月 28 09:03 ./

drwx------ 38 rootroot rootroot 4096 10月 28 09:02 ../

drwxrwxr-x 2 rootroot rootroot 4096 10月 23 15:32 api/

drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:32 arch/

-rwxrwxr-x 1 rootroot rootroot 349032 10月 23 15:59 bl31.elf*

drwxrwxr-x 181 rootroot rootroot 4096 10月 23 15:32 board/

-rw-rw-r-- 1 rootroot rootroot 610 10月 23 15:32 .checkpatch.conf

drwxrwxr-x 5 rootroot rootroot 12288 10月 28 09:02 cmd/

drwxrwxr-x 6 rootroot rootroot 12288 10月 28 09:02 common/

-rw-rw-r-- 1 rootroot rootroot 42065 10月 28 09:03 .config

-rw-rw-r-- 1 rootroot rootroot 2260 10月 23 15:32 config.mk

drwxrwxr-x 2 rootroot rootroot 69632 10月 23 15:43 configs/

drwxrwxr-x 2 rootroot rootroot 4096 10月 28 09:02 disk/

drwxrwxr-x 10 rootroot rootroot 12288 10月 23 15:32 doc/

drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:32 Documentation/

drwxrwxr-x 58 rootroot rootroot 4096 10月 28 09:02 drivers/

drwxrwxr-x 2 rootroot rootroot 4096 10月 28 09:02 dts/

drwxrwxr-x 2 rootroot rootroot 4096 10月 28 09:02 env/

drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 examples/

drwxrwxr-x 2 rootroot rootroot 4096 10月 23 15:59 fit/

drwxrwxr-x 12 rootroot rootroot 4096 10月 28 09:02 fs/

-rw-rw-r-- 1 rootroot rootroot 859 10月 23 15:32 .gitignore

drwxrwxr-x 32 rootroot rootroot 20480 10月 28 09:02 include/

-rw-rw-r-- 1 rootroot rootroot 1863 10月 23 15:32 Kbuild

-rw-rw-r-- 1 rootroot rootroot 16875 10月 23 15:32 Kconfig

drwxrwxr-x 15 rootroot rootroot 12288 10月 28 09:02 lib/

drwxrwxr-x 2 rootroot rootroot 4096 10月 23 15:32 Licenses/

-rw-rw-r-- 1 rootroot rootroot 1323 10月 23 15:32 .mailmap

-rw-rw-r-- 1 rootroot rootroot 14626 10月 23 15:32 MAINTAINERS

-rw-rw-r-- 1 rootroot rootroot 58294 10月 23 15:32 Makefile

-rwxrwxr-x 1 rootroot rootroot 21449 10月 23 15:32 make.sh*

drwxrwxr-x 2 rootroot rootroot 4096 10月 28 09:02 net/

drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:32 post/

-rw-rw-r-- 1 rootroot rootroot 34 10月 23 15:32 PREUPLOAD.cfg

-rw-rw-r-- 1 rootroot rootroot 187683 10月 23 15:32 README

drwxrwxr-x 6 rootroot rootroot 4096 10月 23 15:32 scripts/

-rw-rw-r-- 1 rootroot rootroot 17 10月 23 15:32 snapshot.commit

drwxrwxr-x 12 rootroot rootroot 4096 10月 28 09:02 test/

drwxrwxr-x 16 rootroot rootroot 4096 10月 28 09:02 tools/

-rw-rw-r-- 1 rootroot rootroot 11367 10月 23 15:32 .travis.yml

-rw-rw-r-- 1 rootroot rootroot 72 10月 23 15:32 usb_update.txt

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$

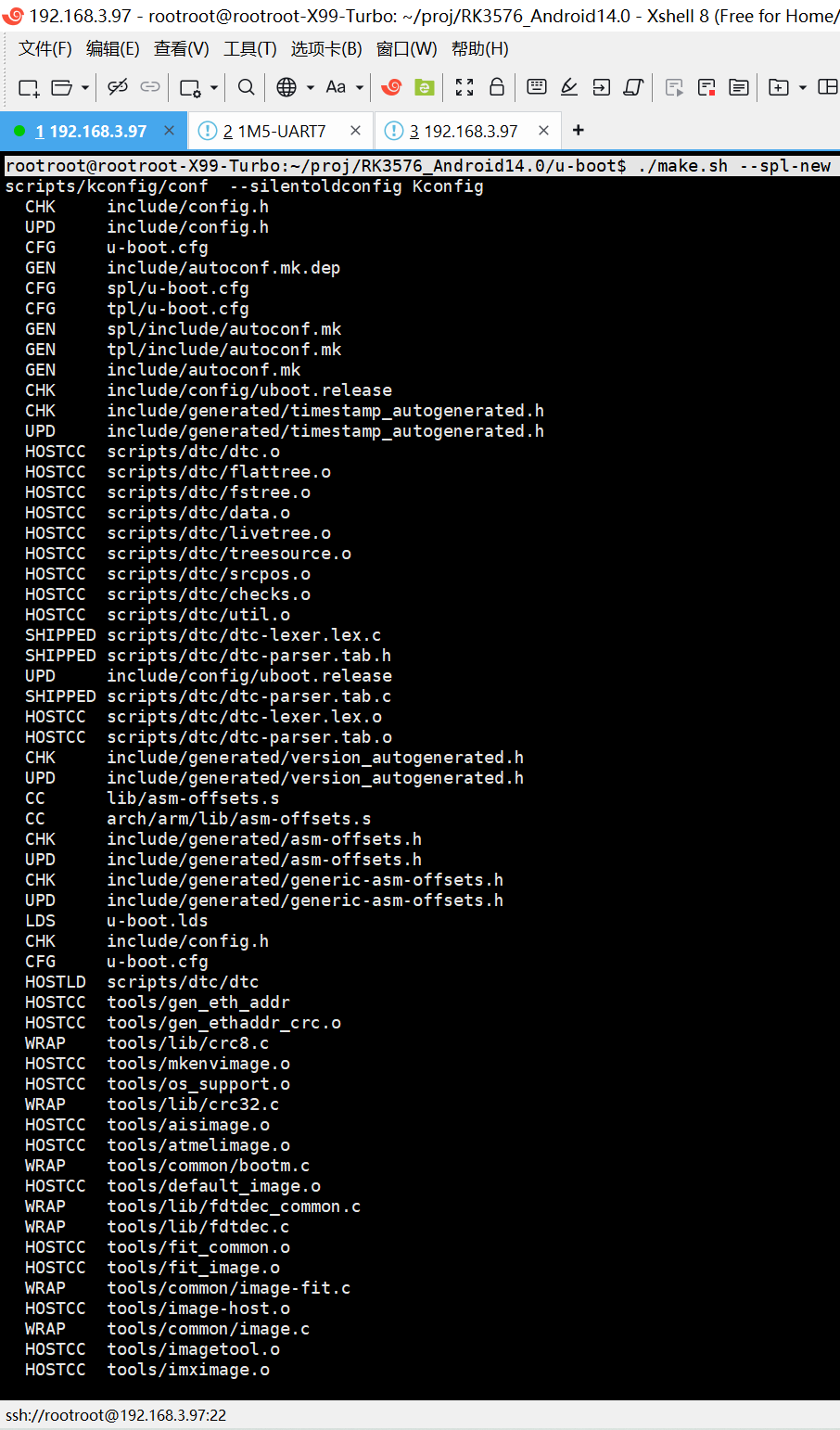

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ./make.sh --spl-new

scripts/kconfig/conf --silentoldconfig Kconfig

CHK include/config.h

UPD include/config.h

CFG u-boot.cfg

GEN include/autoconf.mk.dep

CFG spl/u-boot.cfg

CFG tpl/u-boot.cfg

GEN spl/include/autoconf.mk

GEN tpl/include/autoconf.mk

GEN include/autoconf.mk

CHK include/config/uboot.release

CHK include/generated/timestamp_autogenerated.h

UPD include/generated/timestamp_autogenerated.h

HOSTCC scripts/dtc/dtc.o

HOSTCC scripts/dtc/flattree.o

HOSTCC scripts/dtc/fstree.o

HOSTCC scripts/dtc/data.o

HOSTCC scripts/dtc/livetree.o

HOSTCC scripts/dtc/treesource.o

HOSTCC scripts/dtc/srcpos.o

HOSTCC scripts/dtc/checks.o

HOSTCC scripts/dtc/util.o

SHIPPED scripts/dtc/dtc-lexer.lex.c

SHIPPED scripts/dtc/dtc-parser.tab.h

UPD include/config/uboot.release

SHIPPED scripts/dtc/dtc-parser.tab.c

HOSTCC scripts/dtc/dtc-lexer.lex.o

HOSTCC scripts/dtc/dtc-parser.tab.o

CHK include/generated/version_autogenerated.h

UPD include/generated/version_autogenerated.h

CC lib/asm-offsets.s

CC arch/arm/lib/asm-offsets.s

CHK include/generated/asm-offsets.h

UPD include/generated/asm-offsets.h

CHK include/generated/generic-asm-offsets.h

UPD include/generated/generic-asm-offsets.h

LDS u-boot.lds

CHK include/config.h

CFG u-boot.cfg

HOSTLD scripts/dtc/dtc

HOSTCC tools/gen_eth_addr

HOSTCC tools/gen_ethaddr_crc.o

WRAP tools/lib/crc8.c

HOSTCC tools/mkenvimage.o

HOSTCC tools/os_support.o

WRAP tools/lib/crc32.c

HOSTCC tools/aisimage.o

HOSTCC tools/atmelimage.o

WRAP tools/common/bootm.c

HOSTCC tools/default_image.o

WRAP tools/lib/fdtdec_common.c

WRAP tools/lib/fdtdec.c

HOSTCC tools/fit_common.o

HOSTCC tools/fit_image.o

WRAP tools/common/image-fit.c

HOSTCC tools/image-host.o

WRAP tools/common/image.c

HOSTCC tools/imagetool.o

HOSTCC tools/imximage.o

HOSTCC tools/kwbimage.o

WRAP tools/lib/md5.c

HOSTCC tools/lpc32xximage.o

HOSTCC tools/mxsimage.o

HOSTCC tools/omapimage.o

HOSTCC tools/pblimage.o

HOSTCC tools/pbl_crc32.o

HOSTCC tools/vybridimage.o

WRAP tools/lib/rc4.c

HOSTCC tools/rkcommon.o

HOSTCC tools/rkimage.o

HOSTCC tools/rknand.o

HOSTCC tools/rksd.o

HOSTCC tools/rkspi.o

HOSTCC tools/socfpgaimage.o

WRAP tools/lib/sha1.c

WRAP tools/lib/sha256.c

WRAP tools/common/hash.c

HOSTCC tools/ublimage.o

HOSTCC tools/zynqimage.o

HOSTCC tools/libfdt/fdt.o

HOSTCC tools/libfdt/fdt_wip.o

HOSTCC tools/zynqmpimage.o

HOSTCC tools/libfdt/fdt_sw.o

HOSTCC tools/libfdt/fdt_rw.o

HOSTCC tools/libfdt/fdt_strerror.o

HOSTCC tools/libfdt/fdt_empty_tree.o

HOSTCC tools/libfdt/fdt_addresses.o

HOSTCC tools/libfdt/fdt_overlay.o

WRAP tools/lib/libfdt/fdt_ro.c

WRAP tools/lib/libfdt/fdt_region.c

HOSTCC tools/gpimage.o

HOSTCC tools/gpimage-common.o

HOSTCC tools/dumpimage.o

HOSTCC tools/mkimage.o

HOSTCC tools/rockchip/resource_tool.o

HOSTCC tools/rockchip/bmp2gray16.o

HOSTCC tools/proftool

HOSTCC tools/relocate-rela

HOSTCC tools/fdtgrep.o

HOSTCC tools/lib/crc8.o

HOSTCC tools/common/bootm.o

HOSTCC tools/lib/crc32.o

HOSTCC tools/lib/fdtdec_common.o

HOSTCC tools/lib/fdtdec.o

HOSTCC tools/common/image-fit.o

HOSTCC tools/common/image.o

HOSTCC tools/lib/md5.o

HOSTCC tools/lib/rc4.o

HOSTCC tools/lib/sha1.o

HOSTCC tools/lib/sha256.o

HOSTCC tools/common/hash.o

HOSTCC tools/lib/libfdt/fdt_ro.o

HOSTCC tools/lib/libfdt/fdt_region.o

tools/rockchip/bmp2gray16.c: In function 'usage':

tools/rockchip/bmp2gray16.c:121:18: warning: '%s' directive argument is not a nul-terminated string [-Wformat-overflow=]

121 | printf("Version %s (zwp@rock-chips.com)\n", version);

| ^~ ~~~~~~~

tools/rockchip/bmp2gray16.c:109:19: note: referenced argument declared here

109 | static const char version[4] = "1.00";

| ^~~~~~~

HOSTLD tools/mkenvimage

HOSTLD tools/gen_ethaddr_crc

HOSTLD tools/bmp2gray16

HOSTLD tools/fdtgrep

HOSTLD tools/dumpimage

HOSTLD tools/mkimage

HOSTLD tools/resource_tool

LD arch/arm/cpu/built-in.o

CC board/rockchip/evb_rk3576/evb_rk3576.o

CC arch/arm/cpu/armv8/cpu.o

CC arch/arm/cpu/armv8/generic_timer.o

CC arch/arm/cpu/armv8/cache_v8.o

AS arch/arm/lib/crt0_64.o

AS arch/arm/cpu/armv8/exceptions.o

AS arch/arm/lib/setjmp_aarch64.o

AS arch/arm/cpu/armv8/cache.o

CC disk/part.o

AS arch/arm/lib/relocate_64.o

AS arch/arm/cpu/armv8/tlb.o

AS arch/arm/cpu/armv8/transition.o

CC arch/arm/lib/bootm-fdt.o

CC arch/arm/lib/bootm.o

CC arch/arm/lib/zimage.o

CC arch/arm/mach-rockchip/fit_misc.o

CC disk/part_dos.o

CC disk/part_efi.o

CC arch/arm/lib/stack.o

AS arch/arm/lib/gic_64.o

CC arch/arm/lib/interrupts_64.o

CC arch/arm/cpu/armv8/fwcall.o

CC arch/arm/lib/stacktrace_64.o

LD drivers/cpu/built-in.o

LD drivers/dma/built-in.o

CC arch/arm/lib/sections.o

CC arch/arm/lib/cache.o

CC arch/arm/mach-rockchip/chip_info.o

AR arch/arm/lib/lib.a

CC arch/arm/lib/psci-dt.o

CC arch/arm/cpu/armv8/cpu-dt.o

AS arch/arm/mach-rockchip/lowlevel_init.o

AS arch/arm/cpu/armv8/smccc-call.o

CC arch/arm/mach-rockchip/boot_mode.o

CC arch/arm/cpu/armv8/../armv7/suspend.o

AS arch/arm/cpu/armv8/sleep.o

CC drivers/gpio/gpio-uclass.o

CC arch/arm/cpu/armv8/sha1_ce_glue.o

CC drivers/gpio/pca953x_gpio.o

AS arch/arm/cpu/armv8/sha1_ce_core.o

CC drivers/i2c/i2c-uclass.o

CC drivers/i2c/rk_i2c.o

CC arch/arm/cpu/armv8/sha256_ce_glue.o

AS arch/arm/cpu/armv8/sha256_ce_core.o

CC arch/arm/mach-rockchip/boot_rkimg.o

CC drivers/gpio/rk_gpio.o

CC arch/arm/mach-rockchip/board.o

AS arch/arm/cpu/armv8/start.o

CC arch/arm/mach-rockchip/iomem.o

CC arch/arm/mach-rockchip/memblk.o

LD drivers/mtd/onenand/built-in.o

CC arch/arm/mach-rockchip/hotkey.o

CC drivers/i2c/muxes/i2c-mux-uclass.o

CC arch/arm/mach-rockchip/kernel_dtb.o

CC arch/arm/mach-rockchip/fit.o

CC drivers/mtd/mtdcore.o

CC drivers/mtd/mtd_uboot.o

CC arch/arm/mach-rockchip/rockchip_smccc.o

CC drivers/mtd/spi/sf-uclass.o

CC drivers/mtd/spi/sf_probe.o

CC drivers/mtd/spi/spi-nor-ids.o

CC drivers/mtd/mtd_blk.o

CC drivers/mtd/mtd-uclass.o

CC drivers/mtd/spi/spi-nor-core.o

CC arch/arm/mach-rockchip/vendor.o

LD drivers/net/built-in.o

LD drivers/net/phy/built-in.o

CC drivers/mtd/spi/sf_mtd.o

CC arch/arm/mach-rockchip/vendor_misc.o

LD drivers/pci/built-in.o

CC arch/arm/mach-rockchip/resource_img.o

LD board/rockchip/evb_rk3576/built-in.o

CC drivers/mtd/nand/core.o

CC drivers/mtd/nand/bbt.o

CC arch/arm/mach-rockchip/param.o

CC arch/arm/mach-rockchip/sdram.o

LD arch/arm/lib/built-in.o

CC arch/arm/mach-rockchip/rk_atags.o

CC drivers/power/charge-display-uclass.o

CC drivers/power/charge_animation.o

LD drivers/power/battery/built-in.o

CC arch/arm/mach-rockchip/rk3576/syscon_rk3576.o

CC drivers/power/rockchip_pm.o

CC arch/arm/mach-rockchip/rk3576/rk3576.o

CC arch/arm/mach-rockchip/rk3576/clk_rk3576.o

LD drivers/power/domain/built-in.o

CC drivers/power/charge/bq25700_charger.o

CC drivers/power/charge/bq25890_charger.o

CC drivers/power/charge/sgm41542_charger.o

LD drivers/power/dvfs/built-in.o

CC common/main.o

CC drivers/adc/adc-uclass.o

CC common/exports.o

LD drivers/ata/built-in.o

CC common/init/board_init.o

CC drivers/adc/rockchip-saradc-v2.o

CC cmd/boot.o

CC cmd/bootm.o

CC drivers/power/fuel_gauge/fuel_gauge_uclass.o

CC drivers/block/blk-uclass.o

CC drivers/power/fuel_gauge/fg_cw201x.o

CC common/hash.o

CC drivers/power/fuel_gauge/fg_cw221x.o

LD drivers/power/io-domain/built-in.o

CC cmd/help.o

CC common/cli_hush.o

CC common/autoboot.o

CC common/board_f.o

CC cmd/version.o

LD drivers/i2c/muxes/built-in.o

LD drivers/dfu/built-in.o

CC cmd/blk_common.o

LD drivers/i2c/built-in.o

LD drivers/power/mfd/built-in.o

CC common/board_r.o

CC drivers/clk/clk-uclass.o

CC drivers/mtd/nand/spi/gigadevice.o

CC drivers/crypto/crypto-uclass.o

CC drivers/power/pmic/pmic-uclass.o

CC drivers/mtd/nand/spi/macronix.o

CC drivers/power/pmic/rk8xx.o

LD common/init/built-in.o

CC drivers/clk/clk_fixed_rate.o

CC cmd/blk.o

CC drivers/mtd/nand/spi/micron.o

CC drivers/crypto/fsl/sec.o

LD arch/arm/mach-rockchip/rk3576/built-in.o

CC drivers/firmware/firmware-uclass.o

CC drivers/firmware/psci.o

CC common/board_info.o

CC cmd/source.o

CC drivers/irq/irq-gic.o

CC drivers/clk/rockchip/clk_pll.o

CC drivers/input/key-uclass.o

LD drivers/clk/tegra/built-in.o

CC drivers/power/regulator/regulator-uclass.o

LD drivers/mailbox/built-in.o

CC drivers/irq/irq-gpio-v2.o

CC drivers/power/regulator/pwm_regulator.o

LD arch/arm/cpu/armv8/built-in.o

CC drivers/mtd/nand/spi/toshiba.o

CC drivers/irq/irq-generic.o

CC drivers/core/device.o

CC drivers/irq/irq-gpio-switch.o

CC drivers/power/regulator/fixed.o

CC drivers/serial/serial-uclass.o

CC drivers/firmware/scmi/scmi_agent-uclass.o

LD drivers/adc/built-in.o

CC drivers/firmware/scmi/smt.o

CC drivers/mtd/nand/spi/winbond.o

LD drivers/gpio/built-in.o

CC cmd/bdinfo.o

CC common/bootm.o

CC drivers/firmware/scmi/smccc_agent.o

CC drivers/power/regulator/gpio-regulator.o

CC drivers/clk/clk_scmi.o

CC drivers/power/regulator/rk8xx.o

LD drivers/memory/built-in.o

LD drivers/power/charge/built-in.o

LD drivers/crypto/fsl/built-in.o

CC drivers/core/fdtaddr.o

CC drivers/core/lists.o

CC cmd/boot_android.o

LD drivers/mtd/nand/nandcore.o

CC drivers/mtd/nand/spi/dosilicon.o

CC common/bootm_os.o

LD drivers/pcmcia/built-in.o

CC drivers/irq/virq.o

CC drivers/misc/misc-uclass.o

CC drivers/input/input.o

CC drivers/crypto/rsa_mod_exp/mod_exp_uclass.o

CC drivers/misc/misc_otp.o

LD drivers/phy/marvell/built-in.o

CC drivers/input/key_matrix.o

CC cmd/android.o

CC common/fdt_support.o

CC drivers/crypto/rockchip/crypto_v2.o

CC common/miiphyutil.o

CC drivers/serial/ns16550.o

CC drivers/clk/rockchip/clk_rk3576.o

CC drivers/mtd/nand/spi/esmt.o

CC drivers/mmc/mmc.o

LD drivers/power/built-in.o

CC drivers/mtd/nand/spi/xincun.o

CC drivers/phy/phy-uclass.o

CC drivers/core/root.o

CC drivers/mmc/mmc-uclass.o

CC drivers/pinctrl/pinctrl-uclass.o

LD drivers/power/fuel_gauge/built-in.o

CC drivers/crypto/rsa_mod_exp/mod_exp_sw.o

LD drivers/block/built-in.o

CC drivers/pinctrl/pinctrl-generic.o

CC drivers/spi/spi-uclass.o

CC drivers/misc/misc_decompress.o

LD drivers/pinctrl/nxp/built-in.o

CC drivers/core/uclass.o

LD drivers/firmware/scmi/built-in.o

LD drivers/usb/cdns3/built-in.o

CC drivers/spi/spi-mem.o

CC cmd/bootfit.o

LD arch/arm/mach-rockchip/built-in.o

CC drivers/input/rk8xx_pwrkey.o

CC drivers/misc/rockchip-otp.o

CC drivers/pinctrl/rockchip/pinctrl-rockchip-core.o

CC drivers/pinctrl/rockchip/pinctrl-rk3576.o

CC cmd/bootz.o

LD drivers/firmware/built-in.o

CC drivers/core/util.o

CC drivers/power/power_delivery/power_delivery_uclass.o

CC cmd/booti.o

CC common/usb.o

CC drivers/core/device-remove.o

CC drivers/pwm/pwm-uclass.o

CC common/usb_hub.o

CC common/usb_storage.o

CC drivers/mtd/nand/spi/xtx.o

LD drivers/mtd/spi/spi-nor.o

CC drivers/core/simple-bus.o

CC drivers/power/power_delivery/tcpm.o

CC drivers/misc/rockchip_decompress.o

LD drivers/mtd/spi/built-in.o

CC drivers/usb/common/common.o

CC drivers/power/power_delivery/fusb302.o

LD drivers/power/pmic/built-in.o

CC cmd/console.o

LD drivers/crypto/rsa_mod_exp/built-in.o

LD drivers/irq/built-in.o

CC cmd/charge.o

CC cmd/crypto_sum.o

CC drivers/pwm/rk_pwm.o

CC cmd/dtimg.o

CC drivers/usb/dwc3/core.o

CC drivers/input/adc_key.o

CC drivers/phy/phy-rockchip-inno-usb2.o

CC cmd/echo.o

CC drivers/spi/rockchip_sfc.o

CC drivers/power/power_delivery/tcpci.o

CC drivers/ram/ram-uclass.o

CC drivers/mmc/mmc_write.o

CC drivers/mtd/nand/spi/hyf.o

CC cmd/exit.o

LD drivers/usb/emul/built-in.o

CC cmd/ext4.o

LD disk/built-in.o

CC cmd/ext2.o

CC drivers/mmc/dw_mmc.o

CC drivers/core/dump.o

CC drivers/phy/phy-rockchip-samsung-hdptx.o

CC cmd/fat.o

CC drivers/core/regmap.o

CC drivers/crypto/rockchip/crypto_hash_cache.o

CC drivers/ram/rockchip/sdram_rk3576.o

CC drivers/mmc/rockchip_dw_mmc.o

CC drivers/pinctrl/pinctrl-rockchip.o

CC drivers/crypto/rockchip/crypto_v2_pka.o

CC drivers/power/power_delivery/tcpci_husb311.o

CC drivers/crypto/rockchip/crypto_v2_util.o

CC drivers/phy/phy-rockchip-usbdp.o

CC common/iomux.o

CC drivers/reset/reset-uclass.o

CC cmd/fdt.o

CC cmd/fs.o

CC drivers/mtd/nand/spi/fmsh.o

LD drivers/usb/common/built-in.o

CC drivers/reset/reset-rockchip.o

LD drivers/usb/eth/built-in.o

LD drivers/input/built-in.o

CC cmd/gpio.o

CC drivers/mtd/nand/spi/foresee.o

LD drivers/serial/built-in.o

CC drivers/usb/dwc3/gadget.o

LD drivers/pwm/built-in.o

CC drivers/rng/rng-uclass.o

CC common/splash.o

LD drivers/misc/built-in.o

CC drivers/phy/phy-rockchip-naneng-combphy.o

CC drivers/rng/rockchip_rng.o

CC drivers/rng/rockchip_rand.o

CC cmd/load.o

LD drivers/ram/rockchip/built-in.o

CC drivers/core/syscon-uclass.o

CC common/menu.o

CC cmd/download.o

CC drivers/usb/gadget/epautoconf.o

LD drivers/ram/built-in.o

CC drivers/core/of_access.o

CC drivers/mmc/rpmb.o

CC drivers/usb/gadget/udc/udc-core.o

CC cmd/mem.o

LD drivers/pinctrl/rockchip/built-in.o

CC drivers/usb/gadget/udc/udc-uclass.o

CC drivers/core/of_addr.o

CC drivers/core/read.o

CC drivers/mmc/sdhci.o

CC drivers/core/of_extra.o

CC drivers/core/ofnode.o

CC drivers/mmc/rockchip_sdhci.o

CC drivers/mtd/nand/spi/biwin.o

CC drivers/rtc/date.o

CC common/cli_readline.o

CC drivers/usb/gadget/config.o

CC drivers/core/read_extra.o

CC drivers/mtd/nand/spi/etron.o

CC drivers/mtd/nand/spi/jsc.o

CC cmd/mii.o

LD drivers/power/regulator/built-in.o

CC drivers/usb/gadget/usbstring.o

CC drivers/usb/gadget/g_dnl.o

LD drivers/reset/built-in.o

CC cmd/mmc.o

CC drivers/usb/dwc3/ep0.o

CC drivers/usb/gadget/f_mass_storage.o

CC common/cli_simple.o

LD drivers/spi/built-in.o

CC drivers/usb/gadget/f_fastboot.o

CC cmd/mtd_blk.o

CC drivers/usb/dwc3/dwc3-generic.o

LD drivers/rtc/built-in.o

CC common/edid.o

CC cmd/net.o

LD drivers/rng/built-in.o

CC drivers/scsi/scsi-uclass.o

CC drivers/scsi/scsi.o

CC cmd/part.o

LD drivers/usb/gadget/udc/built-in.o

CC common/bouncebuf.o

CC common/console.o

CC drivers/mtd/nand/spi/silicongo.o

CC drivers/mtd/nand/spi/unim.o

CC common/dlmalloc.o

CC drivers/mtd/nand/spi/skyhigh.o

CC drivers/usb/host/usb-uclass.o

CC common/malloc_simple.o

CC drivers/mtd/nand/spi/gsto.o

CC drivers/usb/host/ohci-hcd.o

LD drivers/soc/built-in.o

CC common/image.o

CC drivers/usb/host/ohci-generic.o

CC drivers/mtd/nand/spi/core.o

CC cmd/pcmcia.o

LD drivers/usb/musb/built-in.o

LD drivers/sound/built-in.o

CC cmd/pinmux.o

LD drivers/spmi/built-in.o

CC common/image-android.o

LD drivers/usb/phy/built-in.o

CC common/android_bootloader.o

CC drivers/usb/host/ehci-hcd.o

LD drivers/usb/ulpi/built-in.o

LD drivers/clk/rockchip/built-in.o

CC cmd/pxe.o

LD drivers/usb/dwc3/dwc3.o

CC cmd/rockusb.o

CC drivers/usb/host/ehci-generic.o

CC common/image-fdt.o

CC drivers/usb/host/xhci.o

LD drivers/thermal/built-in.o

LD drivers/clk/built-in.o

LD drivers/tpm/built-in.o

CC drivers/sysreset/sysreset-uclass.o

CC common/image-fit.o

CC drivers/sysreset/sysreset-syscon-reboot.o

CC cmd/sf.o

CC common/memsize.o

CC env/common.o

CC cmd/scsi.o

CC drivers/sysreset/sysreset_psci.o

LD drivers/watchdog/built-in.o

LD drivers/usb/musb-new/built-in.o

CC fs/fs.o

CC drivers/sysreset/sysreset_rockchip.o

CC cmd/disk.o

CC drivers/ufs/ufs.o

CC drivers/usb/host/xhci-mem.o

CC env/env.o

LD drivers/crypto/rockchip/built-in.o

CC drivers/ufs/ufs-uclass.o

CC drivers/ufs/ufs-rockchip.o

CC drivers/usb/host/xhci-ring.o

LD drivers/crypto/built-in.o

CC drivers/usb/host/xhci-dwc3.o

CC env/attr.o

CC drivers/video/display-uclass.o

LD drivers/scsi/built-in.o

CC drivers/video/backlight-uclass.o

LD drivers/phy/built-in.o

LD drivers/mmc/built-in.o

CC drivers/ufs/ufs-rockchip-usbplug.o

CC common/stdio.o

CC common/image-android-dt.o

CC drivers/video/panel-uclass.o

CC cmd/spi.o

CC drivers/video/simple_panel.o

CC fs/ext4/ext4fs.o

CC drivers/video/video-uclass.o

CC fs/fs_internal.o

LD drivers/sysreset/built-in.o

CC fs/ext4/ext4_common.o

CC fs/fat/fat_write.o

CC env/callback.o

CC common/image-sparse.o

CC env/flags.o

CC fs/ext4/dev.o

LD drivers/pinctrl/built-in.o

CC cmd/test.o

CC env/nowhere.o

CC common/fb_mmc.o

CC drivers/video/vidconsole-uclass.o

CC cmd/ufs.o

CC drivers/video/video_bmp.o

CC cmd/usb.o

CC drivers/video/pwm_backlight.o

LD drivers/core/built-in.o

CC drivers/video/console_normal.o

CC common/fb_common.o

CC cmd/fastboot.o

CC drivers/video/bridge/video-bridge-uclass.o

CC common/cli.o

CC common/command.o

CC cmd/usb_mass_storage.o

LD drivers/video/sunxi/built-in.o

CC net/checksum.o

LD test/built-in.o

CC cmd/gpt.o

CC net/arp.o

CC cmd/optee.o

CC cmd/rkimgtest.o

CC net/bootp.o

CC net/eth_legacy.o

CC net/eth_common.o

CC common/s_record.o

CC test/dm/cmd_dm.o

CC net/net.o

CC net/nfs.o

CC cmd/atags.o

CC common/write_keybox.o

CC common/keymaster.o

CC common/attestation_key.o

LD env/built-in.o

LD drivers/video/bridge/built-in.o

CC cmd/nvedit.o

CC common/id_attestation.o

CC net/ping.o

CC net/tftp.o

CC drivers/video/drm/drm_modes.o

CC drivers/video/drm/rockchip_display.o

CC drivers/video/drm/rockchip_display_helper.o

CC drivers/video/drm/rockchip_crtc.o

CC drivers/video/drm/rockchip_phy.o

LD test/dm/built-in.o

CC drivers/video/drm/rockchip_bridge.o

CC drivers/video/drm/rockchip_vop.o

CC drivers/video/drm/rockchip_vop_reg.o

CC drivers/video/drm/rockchip_vop2.o

CC drivers/video/drm/bmp_helper.o

CC drivers/video/drm/rockchip_connector.o

LD drivers/power/power_delivery/built-in.o

CC lib/avb/libavb_atx/avb_atx_validate.o

LD fs/ext4/built-in.o

CC drivers/video/drm/rockchip_post_csc.o

CC drivers/video/drm/libnsbmp.o

CC drivers/video/drm/drm_mipi_dsi.o

CC lib/avb/rk_avb_user/rk_avb_ops_user.o

CC lib/avb/libavb_user/avb_ops_user.o

CC drivers/video/drm/drm_dsc.o

CC lib/avb/libavb_user/avb_user_verification.o

CC lib/avb/rk_avb_user/rk_ab_ops_user.o

CC drivers/video/drm/drm_dp_helper.o

CC lib/avb/libavb_user/avb_user_verity.o

CC lib/libxbc/libxbc.o

CC lib/rsa/rsa-mod-exp.o

LD drivers/usb/dwc3/built-in.o

CC drivers/video/drm/dw_mipi_dsi2.o

CC drivers/video/drm/rockchip_dw_hdmi_qp.o

CC lib/of_live.o

LD drivers/mtd/nand/spi/spinand.o

CC lib/zlib/zlib.o

CC lib/libfdt/fdt.o

CC lib/libfdt/fdt_wip.o

CC lib/charset.o

CC drivers/video/drm/dw_hdmi_qp.o

LD drivers/mtd/nand/spi/built-in.o

CC drivers/video/drm/phy-rockchip-samsung-hdptx-hdmi.o

CC lib/optee_clientApi/OpteeClientMem.o

CC drivers/video/drm/analogix_dp.o

CC lib/crc7.o

LD drivers/mtd/nand/built-in.o

CC lib/optee_clientApi/OpteeClientApiLib.o

CC lib/crc8.o

CC drivers/video/drm/analogix_dp_reg.o

CC lib/libfdt/fdt_strerror.o

LD drivers/mtd/built-in.o

CC lib/avb/libavb/avb_chain_partition_descriptor.o

CC lib/libfdt/fdt_sw.o

CC drivers/video/drm/dw-dp.o

CC drivers/video/drm/rockchip_rgb.o

LD drivers/ufs/built-in.o

CC lib/optee_clientApi/OpteeClientInterface.o

CC lib/crc16.o

CC drivers/video/drm/rockchip_panel.o

CC lib/libfdt/fdt_rw.o

CC lib/avb/libavb/avb_cmdline.o

LD net/built-in.o

CC drivers/video/drm/samsung_mipi_dcphy.o

LD lib/libxbc/built-in.o

CC lib/optee_clientApi/OpteeClientSMC.o

CC lib/avb/libavb/avb_crypto.o

CC lib/avb/libavb/avb_crc32.o

CC lib/optee_clientApi/OpteeClientRPC.o

LD drivers/usb/host/built-in.o

CC lib/avb/libavb/avb_descriptor.o

CC lib/optee_clientApi/OpteeClientLoadTa.o

LD lib/rsa/built-in.o

CC lib/errno_str.o

AS lib/optee_clientApi/tee_smc-arm64.o

CC lib/libfdt/fdt_empty_tree.o

CC lib/fdtdec_common.o

CC lib/initcall.o

CC lib/libfdt/fdt_addresses.o

CC lib/optee_clientApi/OpteeClientRkFs_common.o

CC lib/avb/libavb/avb_footer.o

CC lib/libfdt/fdt_overlay.o

CC lib/optee_clientApi/OpteeClientRkNewFs_v1.o

CC lib/lmb.o

CC lib/libfdt/fdt_ro.o

CC lib/optee_clientApi/OpteeClientRkNewFs_v2.o

CC lib/avb/libavb/avb_hash_descriptor.o

CC lib/sysmem.o

LD lib/avb/libavb_user/built-in.o

CC lib/avb/libavb/avb_hashtree_descriptor.o

CC lib/libfdt/fdt_region.o

CC lib/bidram.o

CC lib/avb/libavb/avb_kernel_cmdline_descriptor.o

CC lib/avb/libavb/avb_property_descriptor.o

CC lib/ldiv.o

CC lib/avb/libavb/avb_rsa.o

CC lib/avb/libavb/avb_sha256.o

CC lib/lz4_wrapper.o

CC lib/avb/libavb/avb_sha512.o

CC lib/avb/libavb/avb_sysdeps_posix.o

LD lib/avb/libavb_atx/built-in.o

LD drivers/usb/gadget/built-in.o

CC lib/avb/libavb/avb_slot_verify.o

CC lib/net_utils.o

CC lib/avb/libavb/avb_util.o

CC lib/qsort.o

LD cmd/built-in.o

CC lib/avb/libavb/avb_vbmeta_image.o

CC lib/rc4.o

CC lib/sha256.o

CC lib/avb/libavb/avb_version.o

CC lib/list_sort.o

CC lib/sha1.o

LD lib/avb/rk_avb_user/built-in.o

CC lib/gunzip.o

CC lib/rational.o

CC lib/fdtdec.o

CC lib/abuf.o

CC lib/hashtable.o

CC lib/errno.o

CC lib/display_options.o

CC lib/crc32.o

CC lib/ctype.o

CC lib/div64.o

CC lib/hang.o

CC lib/linux_compat.o

CC lib/linux_string.o

CC lib/membuff.o

CC lib/slre.o

CC lib/string.o

CC lib/stdlib.o

CC lib/tables_csum.o

CC lib/time.o

CC lib/hexdump.o

CC lib/uuid.o

CC lib/vsprintf.o

CC lib/panic.o

CC lib/strto.o

CC lib/strmhz.o

LD fs/fat/built-in.o

LD fs/built-in.o

LD lib/libfdt/built-in.o

LD lib/optee_clientApi/built-in.o

LD lib/avb/libavb/built-in.o

LD lib/zlib/built-in.o

LD common/built-in.o

LD lib/built-in.o

LD drivers/video/drm/built-in.o

LD drivers/video/built-in.o

LD drivers/built-in.o

CC examples/standalone/stubs.o

CC examples/standalone/hello_world.o

LD examples/standalone/libstubs.o

LD examples/standalone/hello_world

OBJCOPY examples/standalone/hello_world.srec

OBJCOPY examples/standalone/hello_world.bin

LD u-boot

OBJCOPY u-boot.srec

OBJCOPY u-boot-nodtb.bin

SYM u-boot.sym

DTC arch/arm/dts/rk3036-sdk.dtb

DTC arch/arm/dts/rk3066a-mk808.dtb

DTC arch/arm/dts/rk3126-evb.dtb

DTC arch/arm/dts/rk3128-evb.dtb

DTC arch/arm/dts/rk3188-radxarock.dtb

DTC arch/arm/dts/rk3288-evb.dtb

DTC arch/arm/dts/rk3288-fennec.dtb

DTC arch/arm/dts/rk3288-firefly.dtb

DTC arch/arm/dts/rk3288-miqi.dtb

DTC arch/arm/dts/rk3288-phycore-rdk.dtb

DTC arch/arm/dts/rk3288-popmetal.dtb

DTC arch/arm/dts/rk3288-rock2-square.dtb

DTC arch/arm/dts/rk3288-tinker.dtb

DTC arch/arm/dts/rk3288-veyron-jerry.dtb

DTC arch/arm/dts/rk3288-veyron-mickey.dtb

DTC arch/arm/dts/rk3288-veyron-minnie.dtb

DTC arch/arm/dts/rk3288-vyasa.dtb

DTC arch/arm/dts/rk3308-evb.dtb

DTC arch/arm/dts/rk3328-evb.dtb

DTC arch/arm/dts/rk3368-lion.dtb

DTC arch/arm/dts/rk3368-sheep.dtb

DTC arch/arm/dts/rk3368-geekbox.dtb

start= $(/home/rootroot/proj/RK3576_Android14.0/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-6.3.1-2017.05-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu-nm u-boot \| grep __rel_dyn_start \| cut -f 1 -d ' '); end=$ (/home/rootroot/proj/RK3576_Android14.0/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-6.3.1-2017.05-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu-nm u-boot | grep __rel_dyn_end | cut -f 1 -d ' '); tools/relocate-rela u-boot-nodtb.bin 0x40200000 $start$ end

DTC arch/arm/dts/rk3368-px5-evb.dtb

DTC arch/arm/dts/rk3399-evb.dtb

DTC arch/arm/dts/rk3399-firefly.dtb

DTC arch/arm/dts/rk3399-puma-ddr1333.dtb

DTC arch/arm/dts/rk3399-puma-ddr1600.dtb

DTC arch/arm/dts/rk3399-puma-ddr1866.dtb

DTC arch/arm/dts/rv1106-evb.dtb

DTC arch/arm/dts/rv1106-evb2.dtb

DTC arch/arm/dts/rv1108-evb.dtb

DTC arch/arm/dts/rk3576-evb.dtb

FDTGREP dts/dt.dtb

FDTGREP dts/dt-spl.dtb

FDTGREP dts/dt-tpl.dtb

CAT u-boot-dtb.bin

MKIMAGE u-boot.img

COPY u-boot.dtb

MKIMAGE u-boot-dtb.img

COPY u-boot.bin

ALIGN u-boot.bin

LD spl/arch/arm/cpu/built-in.o

CC spl/board/rockchip/evb_rk3576/evb_rk3576.o

CC spl/common/init/board_init.o

CC spl/cmd/nvedit.o

LD spl/dts/built-in.o

CC spl/env/common.o

CC spl/env/env.o

CC spl/fs/fs_internal.o

CC spl/disk/part.o

CC spl/disk/part_efi.o

CC spl/common/spl/spl_fit.o

CC spl/common/spl/spl_mmc.o

CC spl/common/spl/spl.o

LD tpl/arch/arm/cpu/built-in.o

CC spl/arch/arm/mach-rockchip/fit_misc.o

CC spl/common/spl/spl_mtd_blk.o

CC tpl/common/init/board_init.o

CC spl/arch/arm/mach-rockchip/spl_boot_mode.o

CC spl/arch/arm/cpu/armv8/cpu.o

CC spl/common/spl/spl_atf.o

LDS spl/u-boot-spl.lds

CC spl/arch/arm/mach-rockchip/param.o

CC spl/common/spl/spl_ab.o

CC spl/arch/arm/cpu/armv8/cache_v8.o

CC spl/arch/arm/mach-rockchip/sdram.o

CC tpl/disk/part.o

CC spl/arch/arm/cpu/armv8/generic_timer.o

CC spl/common/spl/spl_ufs.o

COPY spl/u-boot-spl.dtb

CC spl/arch/arm/mach-rockchip/bootrom.o

CC tpl/board/rockchip/evb_rk3576/evb_rk3576.o

CC tpl/fs/fs_internal.o

CC spl/arch/arm/mach-rockchip/spl.o

CC spl/arch/arm/mach-rockchip/spl-boot-order.o

CC spl/arch/arm/mach-rockchip/rk_atags.o

AS spl/arch/arm/cpu/armv8/exceptions.o

CC spl/common/common_fit.o

LD tpl/dts/built-in.o

CC tpl/arch/arm/mach-rockchip/param.o

AS spl/arch/arm/cpu/armv8/cache.o

CC spl/common/fdt_support.o

CC tpl/arch/arm/mach-rockchip/sdram.o

AS spl/arch/arm/cpu/armv8/tlb.o

CC spl/common/bouncebuf.o

CC spl/arch/arm/mach-rockchip/rk3576/syscon_rk3576.o

CC tpl/arch/arm/mach-rockchip/bootrom.o

CC tpl/arch/arm/cpu/armv8/cpu.o

AS spl/arch/arm/lib/crt0_64.o

AS spl/arch/arm/lib/setjmp_aarch64.o

CC spl/common/console.o

CC tpl/arch/arm/mach-rockchip/tpl.o

CC tpl/arch/arm/mach-rockchip/rk3576/rk3576.o

LD spl/common/init/built-in.o

LD tpl/common/init/built-in.o

CC tpl/arch/arm/mach-rockchip/rk_atags.o

CC tpl/arch/arm/mach-rockchip/rk3576/clk_rk3576.o

CC spl/arch/arm/mach-rockchip/rk3576/rk3576.o

LD tpl/board/rockchip/evb_rk3576/built-in.o

AS spl/arch/arm/cpu/armv8/transition.o

CC tpl/drivers/ram/rockchip/sdram_rk3576.o

AS spl/arch/arm/lib/relocate_64.o

CC tpl/arch/arm/cpu/armv8/generic_timer.o

LDS tpl/u-boot-spl.lds

CC spl/common/dlmalloc.o

CC spl/common/malloc_simple.o

LD tpl/fs/built-in.o

CC spl/common/image.o

CC tpl/arch/arm/cpu/armv8/cache_v8.o

CC spl/arch/arm/lib/bootm-fdt.o

CC spl/common/image-fdt.o

AS tpl/arch/arm/lib/crt0_64.o

LD spl/board/rockchip/evb_rk3576/built-in.o

AS tpl/arch/arm/lib/setjmp_aarch64.o

LD spl/fs/built-in.o

CC spl/arch/arm/mach-rockchip/rk3576/clk_rk3576.o

CC spl/arch/arm/cpu/armv8/fwcall.o

CC spl/arch/arm/lib/bootm.o

CC spl/arch/arm/cpu/armv8/cpu-dt.o

CC spl/arch/arm/lib/zimage.o

CC spl/common/image-fit.o

CC tpl/arch/arm/lib/spl.o

AS tpl/arch/arm/cpu/armv8/exceptions.o

CC tpl/drivers/serial/serial-uclass.o

CC spl/arch/arm/lib/sections.o

CC spl/arch/arm/lib/stack.o

AS tpl/arch/arm/cpu/armv8/cache.o

AS spl/arch/arm/cpu/armv8/smccc-call.o

CC tpl/drivers/serial/ns16550.o

CC spl/common/memsize.o

CC spl/arch/arm/cpu/armv8/sha1_ce_glue.o

LD tpl/drivers/ram/rockchip/built-in.o

CC tpl/arch/arm/lib/zimage.o

AS tpl/arch/arm/cpu/armv8/tlb.o

LD tpl/drivers/ram/built-in.o

CC spl/common/stdio.o

AS tpl/arch/arm/cpu/armv8/transition.o

LD spl/env/built-in.o

AS spl/arch/arm/cpu/armv8/sha1_ce_core.o

CC spl/common/image-android-dt.o

CC spl/lib/avb/rk_avb_user/rk_avb_ops_user.o

CC spl/arch/arm/cpu/armv8/sha256_ce_glue.o

AS spl/arch/arm/lib/gic_64.o

CC spl/arch/arm/lib/interrupts_64.o

CC tpl/arch/arm/lib/bootm-fdt.o

CC spl/arch/arm/lib/stacktrace_64.o

CC spl/lib/libxbc/libxbc.o

AS spl/arch/arm/cpu/armv8/sha256_ce_core.o

CC spl/arch/arm/lib/cache.o

CC tpl/arch/arm/cpu/armv8/fwcall.o

CC spl/lib/avb/rk_avb_user/rk_ab_ops_user.o

AS spl/arch/arm/cpu/armv8/start.o

LD tpl/arch/arm/mach-rockchip/rk3576/built-in.o

LD spl/cmd/built-in.o

CC tpl/arch/arm/lib/sections.o

CC spl/lib/libfdt/fdt.o

CC spl/common/cli.o

CC spl/arch/arm/lib/psci-dt.o

AR spl/arch/arm/lib/lib.a

CC tpl/arch/arm/cpu/armv8/cpu-dt.o

CC spl/common/command.o

LD spl/drivers/ata/built-in.o

CC spl/lib/rsa/rsa-mod-exp.o

CC spl/lib/libfdt/fdt_wip.o

CC spl/lib/libfdt/fdt_strerror.o

LD spl/arch/arm/mach-rockchip/rk3576/built-in.o

CC spl/common/s_record.o

CC spl/drivers/block/blk-uclass.o

AS tpl/arch/arm/cpu/armv8/smccc-call.o

CC spl/lib/sha1.o

LD tpl/arch/arm/mach-rockchip/built-in.o

CC tpl/arch/arm/lib/stack.o

CC spl/lib/zlib/zlib.o

LD spl/arch/arm/mach-rockchip/built-in.o

CC spl/lib/sha256.o

CC spl/lib/libfdt/fdt_sw.o

CC tpl/arch/arm/cpu/armv8/sha1_ce_glue.o

AS tpl/arch/arm/cpu/armv8/sha1_ce_core.o

AS tpl/arch/arm/lib/gic_64.o

CC spl/drivers/firmware/firmware-uclass.o

CC spl/drivers/firmware/psci.o

CC tpl/arch/arm/lib/interrupts_64.o

CC tpl/arch/arm/cpu/armv8/sha256_ce_glue.o

LD spl/lib/libxbc/built-in.o

CC spl/lib/gunzip.o

CC spl/drivers/clk/clk-uclass.o

CC spl/lib/libfdt/fdt_rw.o

LD spl/common/spl/built-in.o

LD tpl/disk/built-in.o

CC spl/lib/libfdt/fdt_empty_tree.o

AS tpl/arch/arm/cpu/armv8/sha256_ce_core.o

AS tpl/arch/arm/cpu/armv8/start.o

CC spl/drivers/clk/clk_fixed_rate.o

CC spl/lib/fdtdec_common.o

CC spl/lib/fdtdec.o

CC spl/lib/charset.o

CC spl/lib/libfdt/fdt_addresses.o

LD spl/arch/arm/cpu/armv8/built-in.o

CC spl/drivers/core/device.o

CC spl/lib/abuf.o

CC spl/drivers/gpio/gpio-uclass.o

CC spl/drivers/crypto/crypto-uclass.o

CC spl/drivers/clk/rockchip/clk_pll.o

CC spl/lib/hashtable.o

CC spl/drivers/gpio/pca953x_gpio.o

CC spl/drivers/clk/rockchip/clk_rk3576.o

CC spl/lib/errno.o

CC spl/drivers/i2c/i2c-uclass.o

CC spl/lib/display_options.o

LD spl/arch/arm/lib/built-in.o

CC tpl/arch/arm/lib/stacktrace_64.o

CC spl/drivers/gpio/rk_gpio.o

CC spl/drivers/crypto/fsl/sec.o

CC spl/lib/libfdt/fdt_overlay.o

LD spl/drivers/clk/tegra/built-in.o

LD spl/lib/rsa/built-in.o

CC spl/lib/crc32.o

CC spl/drivers/core/fdtaddr.o

CC spl/drivers/core/lists.o

CC spl/lib/libfdt/fdt_ro.o

CC spl/drivers/misc/misc-uclass.o

CC spl/drivers/mmc/mmc.o

CC spl/lib/ctype.o

LD spl/drivers/firmware/built-in.o

LD tpl/arch/arm/cpu/armv8/built-in.o

CC spl/drivers/misc/misc_otp.o

CC spl/drivers/crypto/rockchip/crypto_v2.o

CC spl/drivers/i2c/rk_i2c.o

CC spl/drivers/misc/misc_decompress.o

CC spl/drivers/crypto/rsa_mod_exp/mod_exp_uclass.o

CC spl/drivers/crypto/rsa_mod_exp/mod_exp_sw.o

CC spl/drivers/mtd/spi/sf-uclass.o

CC spl/drivers/crypto/rockchip/crypto_hash_cache.o

CC spl/drivers/mtd/mtdcore.o

CC spl/drivers/crypto/rockchip/crypto_v2_pka.o

CC spl/drivers/ram/ram-uclass.o

CC tpl/arch/arm/lib/cache.o

LD spl/drivers/i2c/muxes/built-in.o

CC spl/drivers/crypto/rockchip/crypto_v2_util.o

CC spl/drivers/pinctrl/pinctrl-uclass.o

CC tpl/arch/arm/lib/psci-dt.o

AR tpl/arch/arm/lib/lib.a

LD spl/drivers/crypto/fsl/built-in.o

LD spl/lib/avb/rk_avb_user/built-in.o

CC spl/lib/libfdt/fdt_region.o

CC spl/drivers/pinctrl/pinctrl-generic.o

CC spl/drivers/mtd/spi/sf_probe.o

CC spl/lib/div64.o

CC spl/drivers/core/root.o

LD tpl/drivers/serial/built-in.o

CC spl/drivers/mtd/spi/spi-nor-ids.o

CC spl/lib/hang.o

CC spl/drivers/misc/rockchip-otp.o

CC spl/drivers/core/uclass.o

LD tpl/drivers/built-in.o

CC spl/drivers/ram/rockchip/sdram_rk3576.o

LD spl/drivers/block/built-in.o

CC spl/lib/linux_compat.o

CC spl/drivers/reset/reset-uclass.o

CC spl/drivers/core/util.o

AS spl/drivers/misc/rk3576-secure-otp.o

LD spl/drivers/pinctrl/nxp/built-in.o

CC spl/drivers/mmc/mmc-uclass.o

CC spl/drivers/mtd/mtd_uboot.o

CC spl/drivers/misc/rockchip_decompress.o

CC spl/drivers/mtd/mtd-uclass.o

CC spl/drivers/core/simple-bus.o

CC spl/drivers/mtd/mtd_blk.o

LD spl/disk/built-in.o

CC spl/drivers/mmc/mmc_write.o

CC spl/drivers/core/dump.o

CC spl/drivers/pinctrl/pinctrl-rockchip.o

CC spl/drivers/mmc/dw_mmc.o

LD tpl/arch/arm/lib/built-in.o

CC spl/drivers/pinctrl/rockchip/pinctrl-rockchip-core.o

LD spl/drivers/crypto/rsa_mod_exp/built-in.o

CC spl/drivers/mtd/spi/spi-nor-core.o

CC spl/drivers/reset/reset-rockchip.o

CC spl/drivers/mtd/spi/sf_mtd.o

CC spl/drivers/core/regmap.o

CC spl/lib/linux_string.o

CC spl/drivers/pinctrl/rockchip/pinctrl-rk3576.o

CC spl/drivers/mtd/nand/core.o

CC spl/drivers/scsi/scsi-uclass.o

LD spl/drivers/ram/rockchip/built-in.o

CC spl/drivers/mtd/nand/bbt.o

CC spl/lib/membuff.o

LD spl/common/built-in.o

LD spl/drivers/ram/built-in.o

CC spl/drivers/mmc/rockchip_dw_mmc.o

CC spl/drivers/core/syscon-uclass.o

CC spl/lib/slre.o

CC spl/drivers/mmc/rpmb.o

CC spl/drivers/mmc/sdhci.o

CC spl/lib/string.o

CC spl/drivers/mmc/rockchip_sdhci.o

LD spl/drivers/i2c/built-in.o

CC spl/drivers/core/of_access.o

CC spl/drivers/core/of_addr.o

CC spl/lib/stdlib.o

CC spl/drivers/core/read.o

CC spl/drivers/scsi/scsi.o

CC spl/drivers/serial/serial-uclass.o

CC spl/drivers/serial/ns16550.o

CC spl/drivers/core/of_extra.o

CC spl/lib/tables_csum.o

CC spl/drivers/spi/spi-uclass.o

CC spl/lib/time.o

CC spl/drivers/spi/spi-mem.o

CC spl/lib/hexdump.o

CC spl/drivers/sysreset/sysreset-uclass.o

CC spl/lib/uuid.o

CC spl/drivers/core/ofnode.o

CC spl/lib/tiny-printf.o

CC spl/drivers/sysreset/sysreset_rockchip.o

LD spl/drivers/reset/built-in.o

CC spl/drivers/spi/rockchip_sfc.o

CC spl/drivers/core/read_extra.o

CC spl/lib/panic.o

LD spl/lib/libfdt/built-in.o

LD spl/drivers/misc/built-in.o

CC spl/lib/strto.o

CC spl/drivers/ufs/ufs.o

LD tpl/u-boot-tpl

LD spl/drivers/clk/rockchip/built-in.o

CC spl/drivers/ufs/ufs-uclass.o

CC spl/drivers/ufs/ufs-rockchip.o

CC spl/drivers/ufs/ufs-rockchip-usbplug.o

CC spl/drivers/mtd/nand/spi/gigadevice.o

LD spl/drivers/clk/built-in.o

CC spl/drivers/mtd/nand/spi/macronix.o

CC spl/drivers/mtd/nand/spi/micron.o

OBJCOPY tpl/u-boot-tpl-nodtb.bin

CC spl/drivers/mtd/nand/spi/toshiba.o

CC spl/drivers/mtd/nand/spi/winbond.o

LD spl/drivers/gpio/built-in.o

CC spl/drivers/mtd/nand/spi/dosilicon.o

COPY tpl/u-boot-tpl.bin

CC spl/drivers/mtd/nand/spi/esmt.o

CC spl/drivers/mtd/nand/spi/xincun.o

LD spl/drivers/sysreset/built-in.o

CC spl/drivers/mtd/nand/spi/xtx.o

CC spl/drivers/mtd/nand/spi/hyf.o

CC spl/drivers/mtd/nand/spi/fmsh.o

CC spl/drivers/mtd/nand/spi/foresee.o

CC spl/drivers/mtd/nand/spi/biwin.o

CC spl/drivers/mtd/nand/spi/etron.o

CC spl/drivers/mtd/nand/spi/jsc.o

CC spl/drivers/mtd/nand/spi/silicongo.o

LD spl/drivers/pinctrl/rockchip/built-in.o

CC spl/drivers/mtd/nand/spi/unim.o

CC spl/drivers/mtd/nand/spi/skyhigh.o

CC spl/drivers/mtd/nand/spi/gsto.o

CC spl/drivers/mtd/nand/spi/core.o

LD spl/drivers/mtd/nand/nandcore.o

LD spl/drivers/crypto/rockchip/built-in.o

LD spl/drivers/crypto/built-in.o

LD spl/drivers/mtd/spi/spi-nor.o

LD spl/drivers/mtd/spi/built-in.o

LD spl/drivers/scsi/built-in.o

LD spl/drivers/mmc/built-in.o

LD spl/drivers/serial/built-in.o

LD spl/lib/zlib/built-in.o

LD spl/lib/built-in.o

LD spl/drivers/spi/built-in.o

LD spl/drivers/pinctrl/built-in.o

LD spl/drivers/core/built-in.o

LD spl/drivers/ufs/built-in.o

LD spl/drivers/mtd/nand/spi/spinand.o

LD spl/drivers/mtd/nand/spi/built-in.o

LD spl/drivers/mtd/nand/built-in.o

LD spl/drivers/mtd/built-in.o

LD spl/drivers/built-in.o

LD spl/u-boot-spl

OBJCOPY spl/u-boot-spl-nodtb.bin

CAT spl/u-boot-spl-dtb.bin

COPY spl/u-boot-spl.bin

CFGCHK u-boot.cfg

SEC=1

pack u-boot.itb okay! Input: /home/rootroot/proj/RK3576_Android14.0/rkbin/RKTRUST/RK3576TRUST.ini

FIT description: FIT Image with ATF/OP-TEE/U-Boot/MCU

Created: Tue Oct 28 09:03:58 2025

Image 0 (uboot)

Description: U-Boot

Created: Tue Oct 28 09:03:58 2025

Type: Standalone Program

Compression: uncompressed

Data Size: 1331616 Bytes = 1300.41 KiB = 1.27 MiB

Architecture: AArch64

Load Address: 0x40200000

Entry Point: unavailable

Hash algo: sha256

Hash value: 9d13a3c602acca91946d2d477d00c012c16adbcf006bd199ed7a0166322ee6f3

Image 1 (atf-1)

Description: ARM Trusted Firmware

Created: Tue Oct 28 09:03:58 2025

Type: Firmware

Compression: uncompressed

Data Size: 184640 Bytes = 180.31 KiB = 0.18 MiB

Architecture: AArch64

Load Address: 0x40040000

Hash algo: sha256

Hash value: 1c50b242b2c19722003b1e7423fff432c6450d6341b8cb7f3bf0ca5fdbf9ce07

Image 2 (atf-2)

Description: ARM Trusted Firmware

Created: Tue Oct 28 09:03:58 2025

Type: Firmware

Compression: uncompressed

Data Size: 20480 Bytes = 20.00 KiB = 0.02 MiB

Architecture: AArch64

Load Address: 0x400f0000

Hash algo: sha256

Hash value: 8afb712810e97fe9069131cc996ff8e4dcc98e8dea0f75895e23cf5b29692524

Image 3 (atf-3)

Description: ARM Trusted Firmware

Created: Tue Oct 28 09:03:58 2025

Type: Firmware

Compression: uncompressed

Data Size: 16384 Bytes = 16.00 KiB = 0.02 MiB

Architecture: AArch64

Load Address: 0x3fe70000

Hash algo: sha256

Hash value: 3af1bf762b5e866cc0ba28720cd2e51f5b105aaa23df29b886e2f1fad5ec9f1f

Image 4 (optee)

Description: OP-TEE

Created: Tue Oct 28 09:03:58 2025

Type: Firmware

Compression: uncompressed

Data Size: 428360 Bytes = 418.32 KiB = 0.41 MiB

Architecture: AArch64

Load Address: 0x48400000

Hash algo: sha256

Hash value: 010f86355ada5f4c24ff1334cab2341c05d9fbfd07a6ca1d3bef52bd4c1bf005

Image 5 (fdt)

Description: U-Boot dtb

Created: Tue Oct 28 09:03:58 2025

Type: Flat Device Tree

Compression: uncompressed

Data Size: 9326 Bytes = 9.11 KiB = 0.01 MiB

Architecture: AArch64

Hash algo: sha256

Hash value: 673916e062f91b50e0437addd72cd465060defa26563ec62b27ab435313c1010

Default Configuration: 'conf'

Configuration 0 (conf)

Description: rk3576-evb

Kernel: unavailable

Firmware: atf-1

FDT: fdt

Loadables: uboot

atf-2

atf-3

optee

********boot_merger ver 1.35********

Info:Pack loader ok.

creating new idblock from loader...

idblock binary saving at rk3576_idblock_v1.09.107.img

pack loader(SPL) okay! Input: /home/rootroot/proj/RK3576_Android14.0/rkbin/RKBOOT/RK3576MINIALL.ini

/home/rootroot/proj/RK3576_Android14.0/u-boot

pack loader with new: spl/u-boot-spl.bin

Image(no-signed, version=0): uboot.img (FIT with uboot, trust...) is ready

Image(no-signed): rk3576_idblock_v1.09.107.img (with spl, ddr...) is ready

pack uboot.img okay! Input: /home/rootroot/proj/RK3576_Android14.0/rkbin/RKTRUST/RK3576TRUST.ini

Platform RK3576 is build OK, with exist .config

/home/rootroot/proj/RK3576_Android14.0/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-6.3.1-2017.05-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu-

2025年 10月 28日星期二 09:03:58 CST

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ ll

total 28264

drwxrwxr-x 27 rootroot rootroot 4096 10月 28 09:03 ./

drwx------ 38 rootroot rootroot 4096 10月 28 09:02 ../

drwxrwxr-x 2 rootroot rootroot 4096 10月 23 15:32 api/

drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:32 arch/

-rw-rw-r-- 1 rootroot rootroot 16384 10月 28 09:03 bl31_0x3fe70000.bin

-rw-rw-r-- 1 rootroot rootroot 184640 10月 28 09:03 bl31_0x40040000.bin

-rw-rw-r-- 1 rootroot rootroot 20480 10月 28 09:03 bl31_0x400f0000.bin

-rw-rw-r-- 1 rootroot rootroot 349032 10月 28 09:03 bl31.elf

drwxrwxr-x 181 rootroot rootroot 4096 10月 23 15:32 board/

-rw-rw-r-- 1 rootroot rootroot 610 10月 23 15:32 .checkpatch.conf

drwxrwxr-x 5 rootroot rootroot 12288 10月 28 09:03 cmd/

drwxrwxr-x 6 rootroot rootroot 12288 10月 28 09:03 common/

-rw-rw-r-- 1 rootroot rootroot 42065 10月 28 09:03 .config

-rw-rw-r-- 1 rootroot rootroot 2260 10月 23 15:32 config.mk

drwxrwxr-x 2 rootroot rootroot 69632 10月 23 15:43 configs/

drwxrwxr-x 2 rootroot rootroot 4096 10月 28 09:03 disk/

drwxrwxr-x 10 rootroot rootroot 12288 10月 23 15:32 doc/

drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:32 Documentation/

drwxrwxr-x 58 rootroot rootroot 4096 10月 28 09:03 drivers/

drwxrwxr-x 2 rootroot rootroot 4096 10月 28 09:03 dts/

drwxrwxr-x 2 rootroot rootroot 4096 10月 28 09:03 env/

drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 examples/

drwxrwxr-x 2 rootroot rootroot 4096 10月 28 09:03 fit/

drwxrwxr-x 12 rootroot rootroot 4096 10月 28 09:03 fs/

-rw-rw-r-- 1 rootroot rootroot 859 10月 23 15:32 .gitignore

drwxrwxr-x 34 rootroot rootroot 20480 10月 28 09:03 include/

-rw-rw-r-- 1 rootroot rootroot 1863 10月 23 15:32 Kbuild

-rw-rw-r-- 1 rootroot rootroot 16875 10月 23 15:32 Kconfig

drwxrwxr-x 15 rootroot rootroot 12288 10月 28 09:03 lib/

drwxrwxr-x 2 rootroot rootroot 4096 10月 23 15:32 Licenses/

-rw-rw-r-- 1 rootroot rootroot 1323 10月 23 15:32 .mailmap

-rw-rw-r-- 1 rootroot rootroot 14626 10月 23 15:32 MAINTAINERS

-rw-rw-r-- 1 rootroot rootroot 58294 10月 23 15:32 Makefile

-rwxrwxr-x 1 rootroot rootroot 21449 10月 23 15:32 make.sh*

drwxrwxr-x 2 rootroot rootroot 4096 10月 28 09:03 net/

drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:32 post/

-rw-rw-r-- 1 rootroot rootroot 34 10月 23 15:32 PREUPLOAD.cfg

-rw-rw-r-- 1 rootroot rootroot 187683 10月 23 15:32 README

-rw-rw-r-- 1 rootroot rootroot 348160 10月 28 09:03 rk3576_idblock_v1.09.107.img

-rw-rw-r-- 1 rootroot rootroot 774649 10月 28 09:03 rk3576_spl_loader_v1.09.107.bin

drwxrwxr-x 6 rootroot rootroot 4096 10月 23 15:32 scripts/

-rw-rw-r-- 1 rootroot rootroot 17 10月 23 15:32 snapshot.commit

drwxrwxr-x 13 rootroot rootroot 4096 10月 28 09:03 spl/

-rw-rw-r-- 1 rootroot rootroot 220543 10月 28 09:03 System.map

-rw-rw-r-- 1 rootroot rootroot 428360 10月 28 09:03 tee.bin

drwxrwxr-x 12 rootroot rootroot 4096 10月 28 09:03 test/

drwxrwxr-x 18 rootroot rootroot 4096 10月 28 09:03 tools/

drwxrwxr-x 10 rootroot rootroot 4096 10月 28 09:03 tpl/

-rw-rw-r-- 1 rootroot rootroot 11367 10月 23 15:32 .travis.yml

-rwxrwxr-x 1 rootroot rootroot 12442904 10月 28 09:03 u-boot*

-rw-rw-r-- 1 rootroot rootroot 1340944 10月 28 09:03 u-boot.bin

-rw-rw-r-- 1 rootroot rootroot 46 10月 28 09:03 .u-boot.bin.cmd

-rw-rw-r-- 1 rootroot rootroot 19110 10月 28 09:03 u-boot.cfg

-rw-rw-r-- 1 rootroot rootroot 12263 10月 28 09:03 u-boot.cfg.configs

-rw-rw-r-- 1 rootroot rootroot 1825 10月 28 09:03 .u-boot.cmd

-rw-rw-r-- 1 rootroot rootroot 9326 10月 28 09:03 u-boot.dtb

-rw-rw-r-- 1 rootroot rootroot 1340942 10月 28 09:03 u-boot-dtb.bin

-rw-rw-r-- 1 rootroot rootroot 71 10月 28 09:03 .u-boot-dtb.bin.cmd

-rw-rw-r-- 1 rootroot rootroot 226 10月 28 09:03 .u-boot-dtb.img.cmd

-rw-rw-r-- 1 rootroot rootroot 4194304 10月 28 09:03 uboot.img

-rw-rw-r-- 1 rootroot rootroot 218 10月 28 09:03 .u-boot.img.cmd

-rw-rw-r-- 1 rootroot rootroot 1304 10月 28 09:03 u-boot.lds

-rw-rw-r-- 1 rootroot rootroot 7574 10月 28 09:03 .u-boot.lds.cmd

-rw-rw-r-- 1 rootroot rootroot 1046650 10月 28 09:03 u-boot.map

-rwxrwxr-x 1 rootroot rootroot 1331616 10月 28 09:03 u-boot-nodtb.bin*

-rw-rw-r-- 1 rootroot rootroot 357 10月 28 09:03 .u-boot-nodtb.bin.cmd

-rwxrwxr-x 1 rootroot rootroot 3994962 10月 28 09:03 u-boot.srec*

-rw-rw-r-- 1 rootroot rootroot 344 10月 28 09:03 .u-boot.srec.cmd

-rw-rw-r-- 1 rootroot rootroot 420902 10月 28 09:03 u-boot.sym

-rw-rw-r-- 1 rootroot rootroot 192 10月 28 09:03 .u-boot.sym.cmd

-rw-rw-r-- 1 rootroot rootroot 72 10月 23 15:32 usb_update.txt

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0/u-boot$ cd ..

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ll

total 42636

drwx------ 38 rootroot rootroot 4096 10月 28 09:02 ./

drwx------ 5 rootroot rootroot 4096 10月 24 11:21 ../

lrwxrwxrwx 1 rootroot rootroot 19 10月 23 15:22 Android.bp -> build/soong/root.bp

drwxrwxr-x 37 rootroot rootroot 4096 10月 23 15:22 art/

drwxrwxr-x 14 rootroot rootroot 4096 10月 23 15:22 bionic/

drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 bootable/

lrwxrwxrwx 1 rootroot rootroot 26 10月 23 15:22 bootstrap.bash -> build/soong/bootstrap.bash*

drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:22 build/

lrwxrwxrwx 1 rootroot rootroot 23 10月 23 15:22 BUILD -> build/bazel/bazel.BUILD

lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 build.sh -> device/rockchip/common/build/rockchip/build.sh*

lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:22 .classpath -> device/rockchip/common/.classpath*

lrwxrwxrwx 1 rootroot rootroot 46 10月 23 15:22 Copyright_Statement.pdf -> device/rockchip/common/Copyright_Statement.pdf*

drwxrwxr-x 13 rootroot rootroot 4096 10月 23 15:22 cts/

drwxrwxr-x 7 rootroot rootroot 4096 10月 23 15:22 dalvik/

drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 developers/

drwxrwxr-x 22 rootroot rootroot 4096 10月 23 15:22 development/

drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 device/

drwxrwxr-x 407 rootroot rootroot 12288 10月 23 15:24 external/

drwxrwxr-x 3 rootroot rootroot 4096 10月 23 15:43 FFTools/

drwxrwxr-x 16 rootroot rootroot 4096 10月 23 15:24 frameworks/

-rw-rw-r-- 1 rootroot rootroot 433 10月 23 15:22 .gitignore

drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:24 hardware/

lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:24 javaenv.sh -> device/rockchip/common/javaenv.sh

drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 kernel/

drwxrwxr-x 27 rootroot rootroot 4096 10月 23 16:10 kernel-6.1/

drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:25 libcore/

drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 libnativehelper/

drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 mkcombinedroot/

lrwxrwxrwx 1 rootroot rootroot 36 10月 23 15:25 mkimage_ab.sh -> device/rockchip/common/mkimage_ab.sh*

lrwxrwxrwx 1 rootroot rootroot 33 10月 23 15:25 mkimage.sh -> device/rockchip/common/mkimage.sh*

drwxrwxr-x 14 rootroot rootroot 4096 10月 23 21:13 out/

drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:25 packages/

drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:25 pdk/

drwxrwxr-x 10 rootroot rootroot 4096 10月 23 15:25 platform_testing/

drwxrwxr-x 32 rootroot rootroot 4096 10月 23 15:32 prebuilts/

-rwxrwxr-x 1 rootroot rootroot 519 10月 23 15:32 restore_patches.sh*

-rwx------ 1 rootroot rootroot 17710739 10月 23 11:45 rk3576-android14.0-bundle.7z*

-rwx------ 1 rootroot rootroot 63 10月 23 11:45 rk3576-android14.0-bundle.7z.md5sum*

drwxrwxr-x 10 rootroot rootroot 4096 10月 28 09:03 rkbin/

-rwx------ 1 rootroot rootroot 25769275 10月 28 09:01 rkbin1buildroot.tgz*

drwxrwxr-x 9 rootroot rootroot 4096 10月 23 15:59 rkbin2/

drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:22 RKDocs/

drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 rkst/

drwxrwxr-x 5 rootroot rootroot 4096 10月 23 15:22 RKTools/

drwxrwxr-x 3 rootroot rootroot 4096 10月 27 20:36 rockdev/

drwxrwxr-x 20 rootroot rootroot 4096 10月 23 15:32 sdk/

drwxrwxr-x 47 rootroot rootroot 4096 10月 23 15:32 system/

drwxrwxr-x 12 rootroot rootroot 4096 10月 23 15:32 test/

drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 toolchain/

drwxrwxr-x 25 rootroot rootroot 4096 10月 23 15:32 tools/

drwxrwxr-x 27 rootroot rootroot 4096 10月 28 09:03 u-boot/

drwxrwxr-x 4 rootroot rootroot 4096 10月 23 15:32 vendor/

lrwxrwxrwx 1 rootroot rootroot 27 10月 23 15:22 WORKSPACE -> build/bazel/bazel.WORKSPACE

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$

rootroot@rootroot-X99-Turbo:~/proj/RK3576_Android14.0$ ./FFTools/mkupdate/mkupdate.sh -l rk3576_firefly_aio_3576q38-userdebug

will build update.img

-------------------KERNEL_VERSION:6.1

-------------------KERNEL_DTS:rk3576-firefly-aio-3576q38

============================================

PLATFORM_VERSION_CODENAME=REL

PLATFORM_VERSION=14

PRODUCT_INCLUDE_TAGS=com.android.mainline

TARGET_PRODUCT=rk3576_firefly_aio_3576q38

TARGET_BUILD_VARIANT=userdebug

TARGET_ARCH=arm64

TARGET_ARCH_VARIANT=armv8-a

TARGET_CPU_VARIANT=generic

TARGET_2ND_ARCH=arm

TARGET_2ND_ARCH_VARIANT=armv8-a

TARGET_2ND_CPU_VARIANT=generic

HOST_OS=linux

HOST_OS_EXTRA=Linux-5.15.0-131-generic-x86_64-Ubuntu-20.04.6-LTS

HOST_CROSS_OS=windows

BUILD_ID=UQ1A.240205.004.B1

OUT_DIR=out

============================================

package resoure.img with charger images

Pack ./tools/images/ & ../kernel-6.1/resource.img to resource.img ...

Unpacking old image(../kernel-6.1/resource.img):

rk-kernel.dtb battery_1.bmp battery_2.bmp battery_3.bmp battery_4.bmp battery_5.bmp battery_fail.bmp logo.bmp logo_kernel.bmp battery_0.bmp 10

Pack to resource.img successed!

Packed resources:

rk-kernel.dtb battery_1.bmp battery_2.bmp battery_3.bmp battery_4.bmp battery_5.bmp battery_fail.bmp logo.bmp logo_kernel.bmp battery_0.bmp 10

./resource.img with battery images is ready

/home/rootroot/proj/RK3576_Android14.0

============================================

PLATFORM_VERSION_CODENAME=REL

PLATFORM_VERSION=14

PRODUCT_INCLUDE_TAGS=com.android.mainline

TARGET_PRODUCT=rk3576_firefly_aio_3576q38

TARGET_BUILD_VARIANT=userdebug

TARGET_ARCH=arm64

TARGET_ARCH_VARIANT=armv8-a

TARGET_CPU_VARIANT=generic

TARGET_2ND_ARCH=arm

TARGET_2ND_ARCH_VARIANT=armv8-a

TARGET_2ND_CPU_VARIANT=generic

HOST_OS=linux

HOST_OS_EXTRA=Linux-5.15.0-131-generic-x86_64-Ubuntu-20.04.6-LTS

HOST_CROSS_OS=windows

BUILD_ID=UQ1A.240205.004.B1

OUT_DIR=out

============================================

100% 2/2\] Creating Bazel symlink forest audioflinger want to conditional Compile devicefactory want to conditional Compile hw_output_defaults want to conditional Compile libaudioclient want to conditional Compile libaudiohal want to conditional Compile libeptz want to conditional Compile libgralloc_priv want to conditional Compile libmpimmz conditional Compile libpq want to conditional Compile librga want to conditional Compile librkvt_win want to conditional Compile librockx want to conditional Compile pq_init want to conditional Compile Rockchip conditional compile rockit want to conditional Compile cc_rockit_hw_service want to conditional Compile tvinput want to conditional Compile $(shell date +%y%m%d%H%M) was changed, regenerating... $(shell date +%y%m%d%H%M) was changed, regenerating... \[100% 3/3\] initializing build system ... device/rockchip/common/prebuild.mk:2: warning: Generating manifest snapshot at out/commit_id.xml... device/rockchip/common/prebuild.mk:3: warning: You can disable this by removing this and setting BOARD_RECORD_COMMIT_ID := false in BoardConfig.mk \[ 3% 9/243\] including build/make/target/board/Android.mk ... build fstab file with device/rockchip/common/scripts/fstab_tools/fstab.in.... rebuilding dtbo image with device/rockchip/rk3576/rk3576_firefly_aio_3576q38/dt-overlay.in.... build parameter.txt with device/rockchip/common/scripts/parameter_tools/parameter.in.... \[ 19% 48/243\] including external/rk_tee_user/v2/Android.mk ... 'building rk_tee_user v2' $LOCAL_SRC_FILES = host/supp_plugin/test_supp_plugin.c \[ 46% 112/243\] including hardware/rockchip/camera_engine_rkisp/Android.mk ... TARGET_BOARD_PLATFORM=rk3576 \[ 99% 242/243\] finishing build rules ... build/make/core/main.mk:1267: warning: PRODUCT_REMOVE_PACKAGES = ninja: no work to do. #### build completed successfully (03:04 (mm:ss)) #### ============================================ PLATFORM_VERSION_CODENAME=REL PLATFORM_VERSION=14 PRODUCT_INCLUDE_TAGS=com.android.mainline TARGET_PRODUCT=rk3576_firefly_aio_3576q38 TARGET_BUILD_VARIANT=userdebug TARGET_ARCH=arm64 TARGET_ARCH_VARIANT=armv8-a TARGET_CPU_VARIANT=generic TARGET_2ND_ARCH=arm TARGET_2ND_ARCH_VARIANT=armv8-a TARGET_2ND_CPU_VARIANT=generic HOST_OS=linux HOST_OS_EXTRA=Linux-5.15.0-131-generic-x86_64-Ubuntu-20.04.6-LTS HOST_CROSS_OS=windows BUILD_ID=UQ1A.240205.004.B1 OUT_DIR=out ============================================ $(shell date +%y%m%d%H%M) was changed, regenerating... $(shell date +%y%m%d%H%M) was changed, regenerating... \[100% 1/1\] initializing build system ... device/rockchip/common/prebuild.mk:2: warning: Generating manifest snapshot at out/commit_id.xml... device/rockchip/common/prebuild.mk:3: warning: You can disable this by removing this and setting BOARD_RECORD_COMMIT_ID := false in BoardConfig.mk \[ 2% 7/241\] including build/make/target/board/Android.mk ... build fstab file with device/rockchip/common/scripts/fstab_tools/fstab.in.... rebuilding dtbo image with device/rockchip/rk3576/rk3576_firefly_aio_3576q38/dt-overlay.in.... build parameter.txt with device/rockchip/common/scripts/parameter_tools/parameter.in.... \[ 19% 46/241\] including external/rk_tee_user/v2/Android.mk ... 'building rk_tee_user v2' $LOCAL_SRC_FILES = host/supp_plugin/test_supp_plugin.c \[ 45% 110/241\] including hardware/rockchip/camera_engine_rkisp/Android.mk ... TARGET_BOARD_PLATFORM=rk3576 \[ 99% 240/241\] finishing build rules ... build/make/core/main.mk:1267: warning: PRODUCT_REMOVE_PACKAGES = ninja: no work to do. #### build completed successfully (03:00 (mm:ss)) #### make and copy android images TARGET_PRODUCT=rk3576_firefly_aio_3576q38 TARGET_BASE_PARAMETER_IMAGE==device/rockchip/common/baseparameter/v2.0/baseparameter.img TARGET_AUTO_PQ_IMAGE== HIGH_RELIABLE_RECOVERY_OTA= BOARD_AVB_ENABLE=false system filesysystem is ext4 create dtbo.img... done. create rockdev/Image-rk3576_firefly_aio_3576q38/resource.img... done. skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/init_boot.img skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/pvmfw.img create rockdev/Image-rk3576_firefly_aio_3576q38/boot.img... done. create rockdev/Image-rk3576_firefly_aio_3576q38/boot-debug.img... done. skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/vendor_boot.img skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/vendor_boot-debug.img create rockdev/Image-rk3576_firefly_aio_3576q38/recovery.img... done. create rockdev/Image-rk3576_firefly_aio_3576q38/super.img... done. skip copy images: /home/rootroot/proj/RK3576_Android14.0/out/target/product/rk3576_firefly_aio_3576q38/userdata.img create vbmeta.img... BOARD_AVB_ENABLE is false, use default vbmeta.img create misc.img.... done. create uboot.img... make oem images... u-boot/trust.img not fount! Please make it from u-boot first! create loader... create config.cfg... create baseparameter...done. Make image ok! Make update.img packing update.img with Image -RK3576 regenernate package-file-tmp... start to make update.img... Android Firmware Package Tool v2.2 ------ PACKAGE ------ Add file: ./package-file package-file,Add file: ./package-file done,offset=0x800,size=0x2ac,userspace=0x1 Add file: ./Image/MiniLoaderAll.bin bootloader,Add file: ./Image/MiniLoaderAll.bin done,offset=0x1000,size=0xbd1f9,userspace=0x17b Add file: ./Image/parameter.txt parameter,Add file: ./Image/parameter.txt done,offset=0xbe800,size=0x2cc,userspace=0x1,flash_address=0x00000000 Add file: ./Image/uboot.img uboot,Add file: ./Image/uboot.img done,offset=0xbf000,size=0x400000,userspace=0x800,flash_address=0x00004000 Add file: ./Image/misc.img misc,Add file: ./Image/misc.img done,offset=0x4bf000,size=0xc000,userspace=0x18,flash_address=0x00008000 Add file: ./Image/dtbo.img dtbo,Add file: ./Image/dtbo.img done,offset=0x4cb000,size=0x400000,userspace=0x800,flash_address=0x0000a000 Add file: ./Image/vbmeta.img vbmeta,Add file: ./Image/vbmeta.img done,offset=0x8cb000,size=0x1000,userspace=0x2,flash_address=0x0000c000 Add file: ./Image/boot.img boot,Add file: ./Image/boot.img done,offset=0x8cc000,size=0x272f800,userspace=0x4e5f,flash_address=0x0000c800 Add file: ./Image/recovery.img recovery,Add file: ./Image/recovery.img done,offset=0x2ffb800,size=0x5e2d800,userspace=0xbc5b,flash_address=0x0002c800 Add file: ./Image/baseparameter.img baseparameter,Add file: ./Image/baseparameter.img done,offset=0x8e29000,size=0x100000,userspace=0x200,flash_address=0x001fcc00 Add file: ./Image/super.img super,Add file: ./Image/super.img done,offset=0x8f29000,size=0x6de71a98,userspace=0xdbce4,flash_address=0x001fd400 Add file: ./Image/oem.img oem,Add file: ./Image/oem.img done,offset=0x76d9b000,size=0xa3013c,userspace=0x1461,flash_address=0x00811400 Add CRC... Make firmware OK! ------ OK ------ \*\*\*\*\*\*\*\*rkImageMaker ver 2.23\*\*\*\*\*\*\*\* Generating new image, please wait... Writing head info... Writing boot file... Writing firmware... Generating MD5 data... MD5 data generated successfully! New image generated successfully! Making update.img OK. Make update image ok! /home/rootroot/proj/RK3576_Android14.0 rename rockdev/Image-rk3576_firefly_aio_3576q38/update.img to rockdev/Image-rk3576_firefly_aio_3576q38/AIO-3576Q38_Android14_HDMI_251028.img rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ rootroot@rootroot-X99-Turbo:\~/proj/RK3576_Android14.0$ \[END\] 2025/10/28 10:42:02
