20251029让AIO-3576Q38开发板适配Rockchip的原厂Android14之后配置为禁止锁屏

2025/10/29 15:31

缘起：拿到了一份三手的Rockchip原厂的Android14的SDK。

撸起袖子干吧！

计划：前期直接使用AIO-3576Q38开发板的Android14的DTS。

【前期有GPIO扩展芯片PCA9555芯片的编译问题，我直接关闭了！后期熟悉一下它】

然后加入：禁止锁屏的功能。不过原厂的SDK打印DEBUG巨多！

最开始，是找DeepSeek问的。白忙活了一下午！

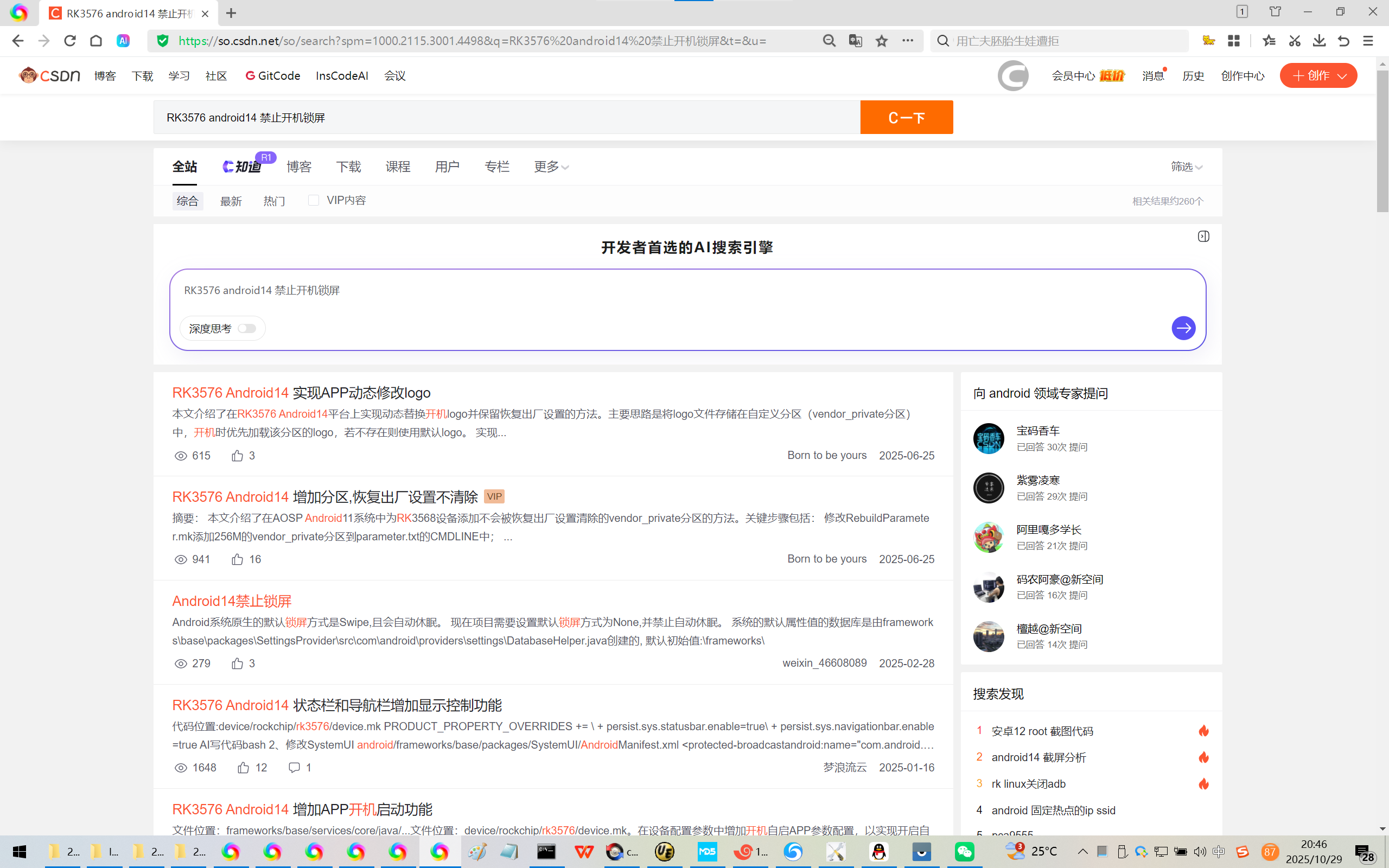

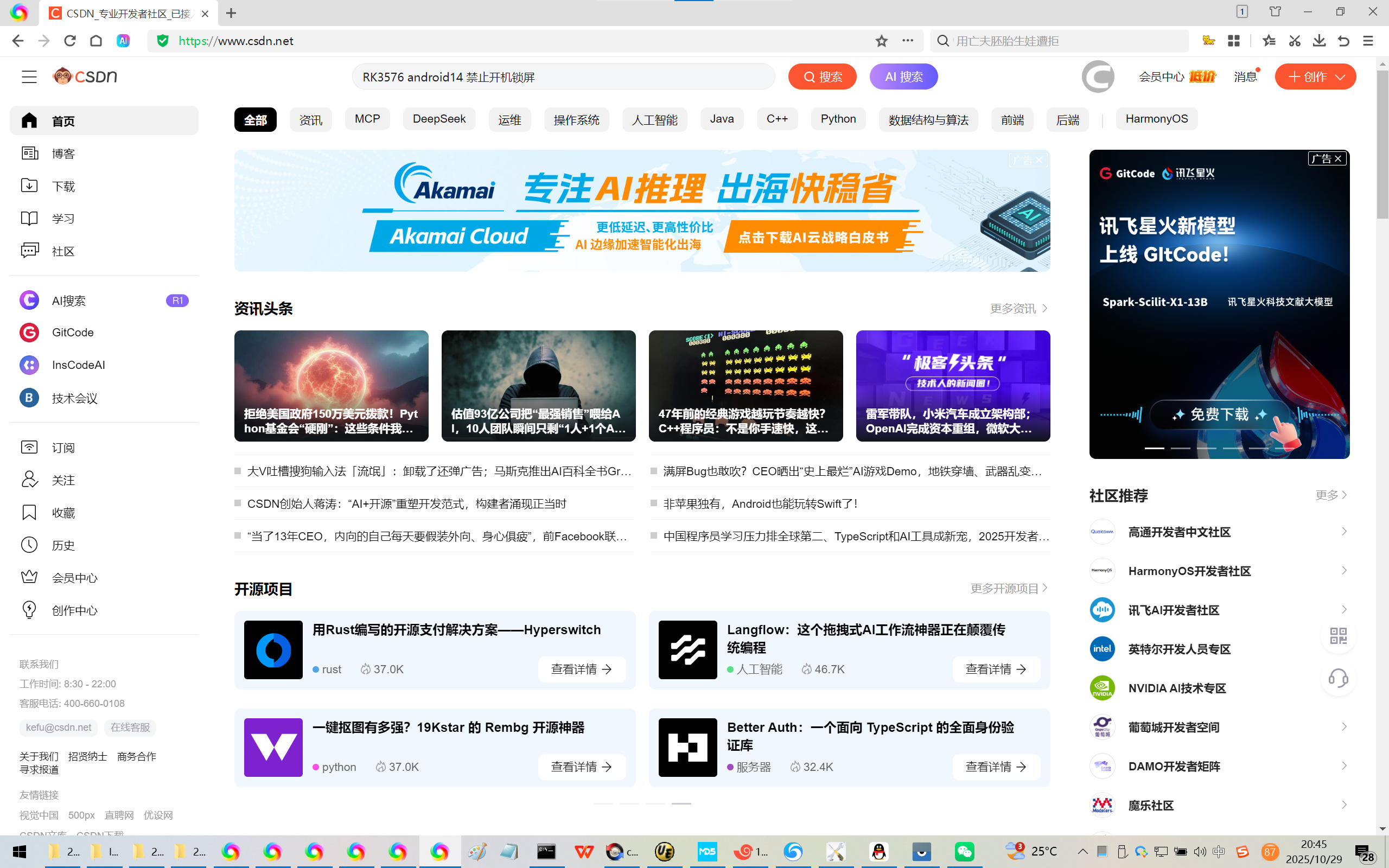

CSDN搜索：RK3576 android14 禁止开机锁屏

对AIO-3576Q38开发板的WIFI模块AP6256进行性能摸底，那就跑半小时的iperf3了！

【一般性测试/非精确】实测网速【平均值】：87.8 Mbits/sec

编译firefly的AIO-3576Q38开发板的Android14。

开动！

https://www.t-firefly.com/doc/download/320.html

AIO-3576C

源代码

https://pan.baidu.com/s/1mGkGxlxodHedXJZqLKRRRg?pwd=1234

Android14.0 bundle

提取码：1234

https://wiki.t-firefly.com/zh_CN/AIO-3576Q38/android_compile_android14.0_firmware.html

AIO-3576Q38

编译 Android14.0 固件

3.1. 下载 Android14.0 SDK

SDK 源码与 bundle 压缩包均存放在云盘中。如有需要请联系商务： sales@t-firefly.com

https://blog.csdn.net/weixin_46608089/article/details/145927551?ops_request_misc=\&request_id=\&biz_id=102\&utm_term=RK3576 android14 禁止开机锁屏\&utm_medium=distribute.pc_search_result.none-task-blog-2\~all\~sobaiduweb\~default-0-145927551.142\^v102\^pc_search_result_base8\&spm=1018.2226.3001.4187

【RK3576的】Android14禁止锁屏

https://blog.csdn.net/weixin_46608089/article/details/145927551

From 5d3fa84892230bb9b349e3015b106400904246aa Mon Sep 17 00:00:00 2001
From: Tovi <1040180344@qq.com>
Date: Tue, 24 Dec 2024 20:36:14 +0800
Subject: [PATCH] =?UTF-8?q?=E7=A6=81=E6=AD=A2=E9=94=81=E5=B1=8F?=
MIME-Version: 1.0
Content-Type: text/plain; charset=UTF-8
Content-Transfer-Encoding: 8bit

.../base/packages/SettingsProvider/res/values/defaults.xml | 2 +-
.../base/packages/SettingsProvider/res/values/defaults.xml | 4 ++--
device/rockchip/rk3576/rk3576_u/rk3576_u.mk | 1 +
3 files changed, 4 insertions(+), 3 deletions(-)

diff --git a/device/rockchip/common/overlay_go/frameworks/base/packages/SettingsProvider/res/values/defaults.xml b/device/rockchip/common/overlay_go/frameworks/base/packages/SettingsProvider/res/values/defaults.xml
index d1abd4dbc22..80edbb2b67a 100755
--- a/device/rockchip/common/overlay_go/frameworks/base/packages/SettingsProvider/res/values/defaults.xml
+++ b/device/rockchip/common/overlay_go/frameworks/base/packages/SettingsProvider/res/values/defaults.xml
@@ -17,7 +17,7 @@
*/
-->
<resources>

<integer name="def_screen_off_timeout">60000</integer>

<integer name="def_screen_off_timeout">0x7fffffff</integer>

<resources>

<integer name="def_screen_off_timeout">60000</integer>

<integer name="def_screen_off_timeout">0x7fffffff</integer>
<!-- Initial value for the Settings.Secure.IMMERSIVE_MODE_CONFIRMATIONS setting,
which is a comma separated list of packages that no longer need confirmation
for immersive mode.
@@ -25,7 +25,7 @@
<string name="def_immersive_mode_confirmations" translatable="false">confirmed</string>
<bool name="def_bluetooth_on">false</bool>
<bool name="def_accelerometer_rotation">false</bool>

<bool name="def_lockscreen_disabled">true</bool>
<!-- 0 == Always sleep
1 == Do not sleep when plugged in
2 == Never sleep
diff --git a/device/rockchip/rk3576/rk3576_u/rk3576_u.mk b/device/rockchip/rk3576/rk3576_u/rk3576_u.mk
index 5149f0cbb83..9cd816998dd 100755
--- a/device/rockchip/rk3576/rk3576_u/rk3576_u.mk
+++ b/device/rockchip/rk3576/rk3576_u/rk3576_u.mk
@@ -44,3 +44,4 @@ PRODUCT_PROPERTY_OVERRIDES += persist.wifi.sleep.delay.ms=0
PRODUCT_PROPERTY_OVERRIDES += persist.bt.power.down=true
PRODUCT_PROPERTY_OVERRIDES += vendor.hwc.device.primary=DSI
PRODUCT_PROPERTY_OVERRIDES += vendor.hwc.device.extend=HDMI-A,eDP
+PRODUCT_SYSTEM_EXT_PROPERTIES += ro.lockscreen.disable.default=true
\ No newline at end of file
--
2.17.1

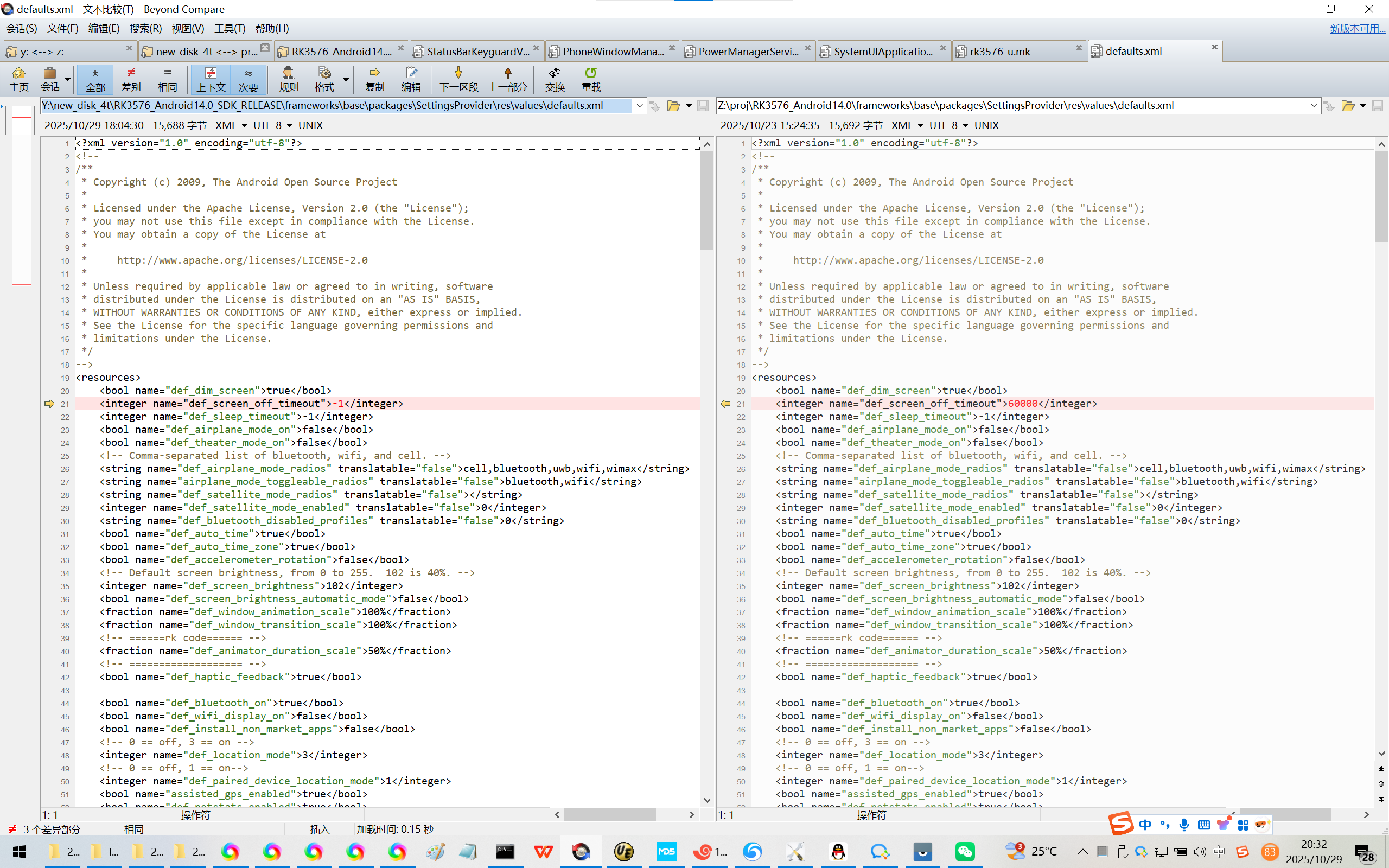

1、

Z:\proj\RK3576_Android14.0\frameworks\base\packages\SettingsProvider\res\values\defaults.xml

Y:\new_disk_4t\RK3576_Android14.0_SDK_RELEASE\frameworks\base\packages\SettingsProvider\res\values\defaults.xml

修改为：

一般为：

<bool name="def_dim_screen">true</bool>
<integer name="def_screen_off_timeout">0x7fffffff</integer>

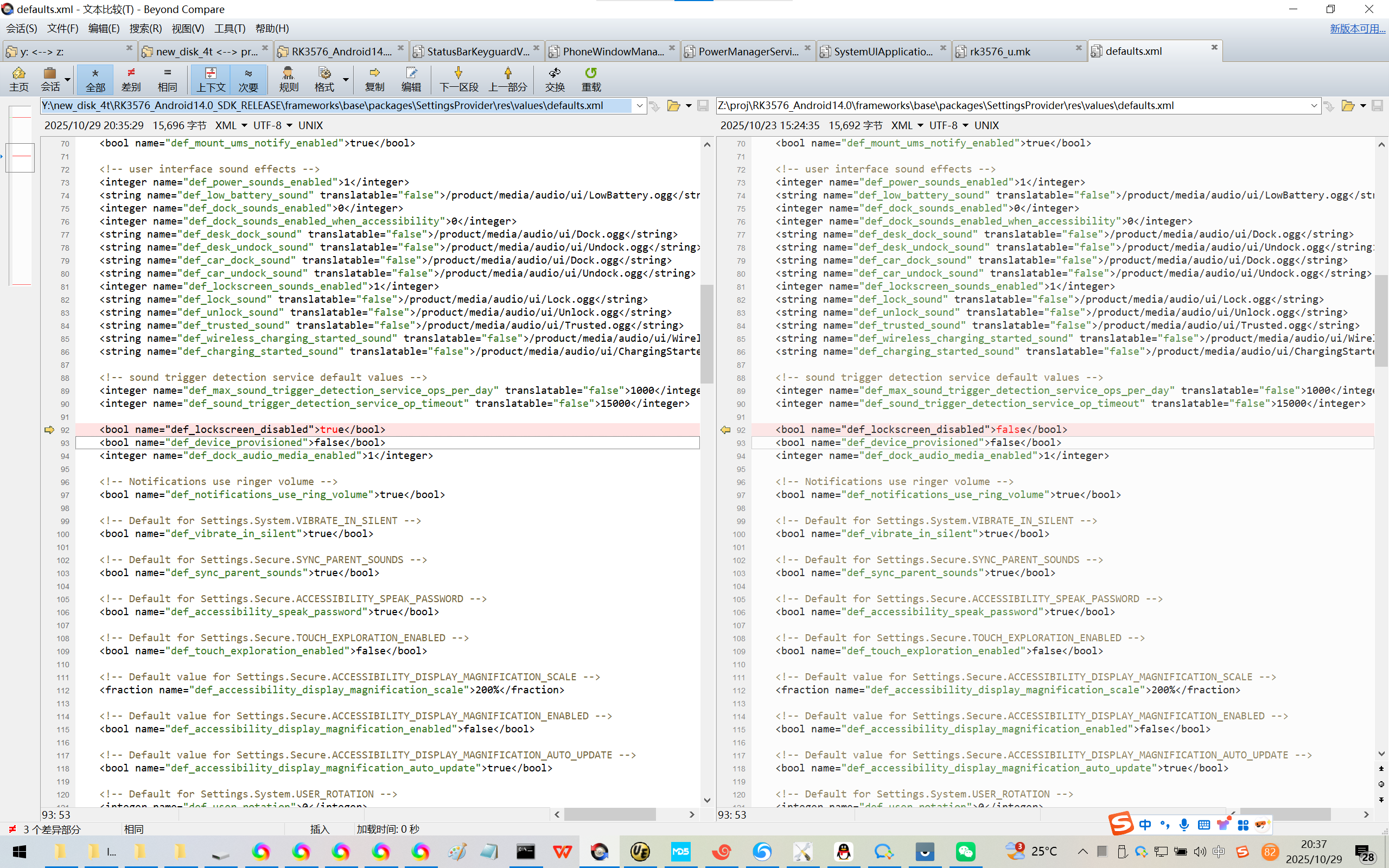

2、

Z:\proj\RK3576_Android14.0\frameworks\base\packages\SettingsProvider\res\values\defaults.xml

Y:\new_disk_4t\RK3576_Android14.0_SDK_RELEASE\frameworks\base\packages\SettingsProvider\res\values\defaults.xml

<bool name="def_lockscreen_disabled">false</bool>

<bool name="def_device_provisioned">false</bool>

修改为：
<bool name="def_lockscreen_disabled">true</bool>

<bool name="def_device_provisioned">false</bool>

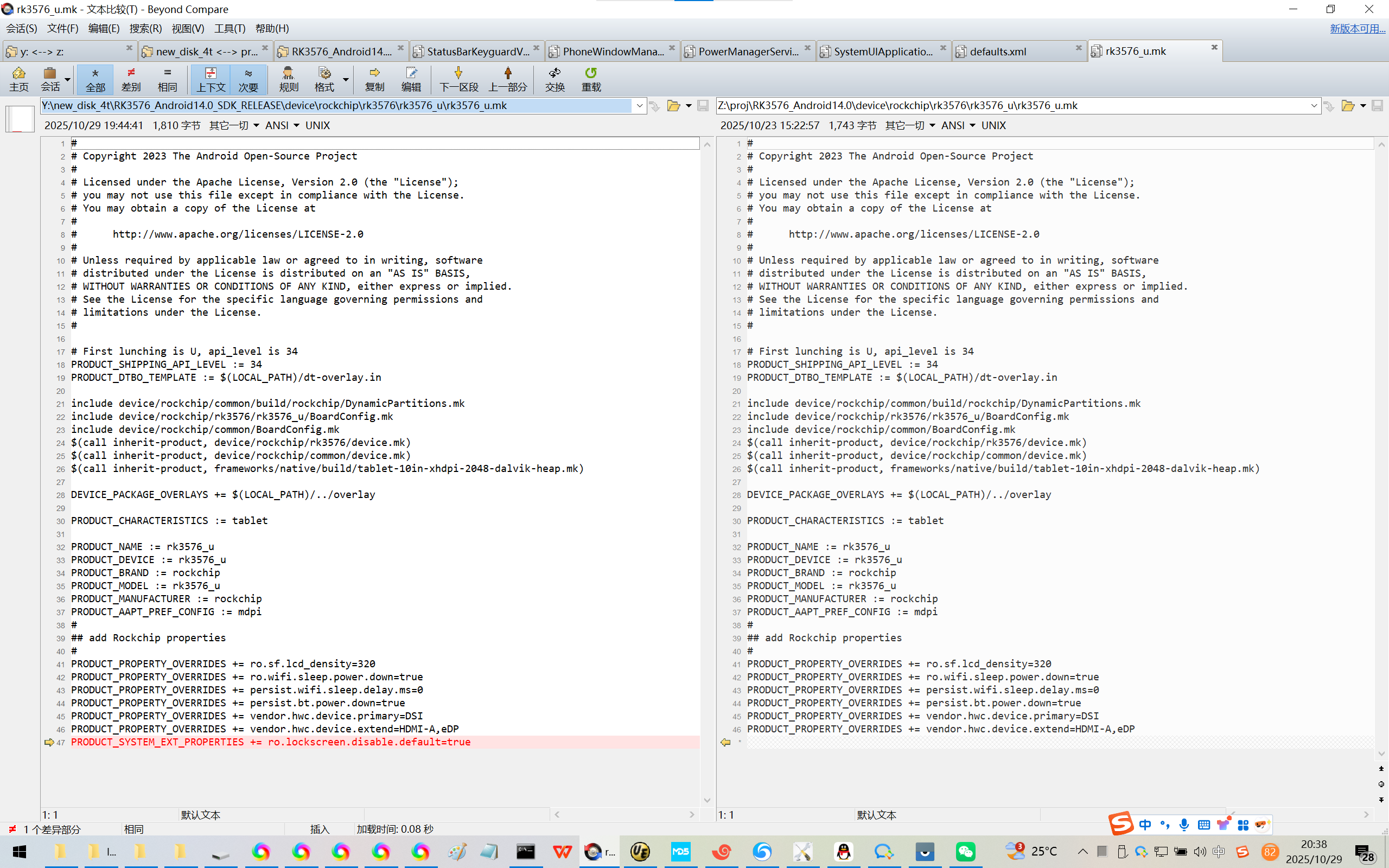

3、

Z:\proj\RK3576_Android14.0\device\rockchip\rk3576\rk3576_u\rk3576_u.mk

Y:\new_disk_4t\RK3576_Android14.0_SDK_RELEASE\device\rockchip\rk3576\rk3576_u\rk3576_u.mk

add Rockchip properties

PRODUCT_PROPERTY_OVERRIDES += ro.sf.lcd_density=320

PRODUCT_PROPERTY_OVERRIDES += ro.wifi.sleep.power.down=true

PRODUCT_PROPERTY_OVERRIDES += persist.wifi.sleep.delay.ms=0

PRODUCT_PROPERTY_OVERRIDES += persist.bt.power.down=true

PRODUCT_PROPERTY_OVERRIDES += vendor.hwc.device.primary=DSI

PRODUCT_PROPERTY_OVERRIDES += vendor.hwc.device.extend=HDMI-A,eDP
PRODUCT_SYSTEM_EXT_PROPERTIES += ro.lockscreen.disable.default=true

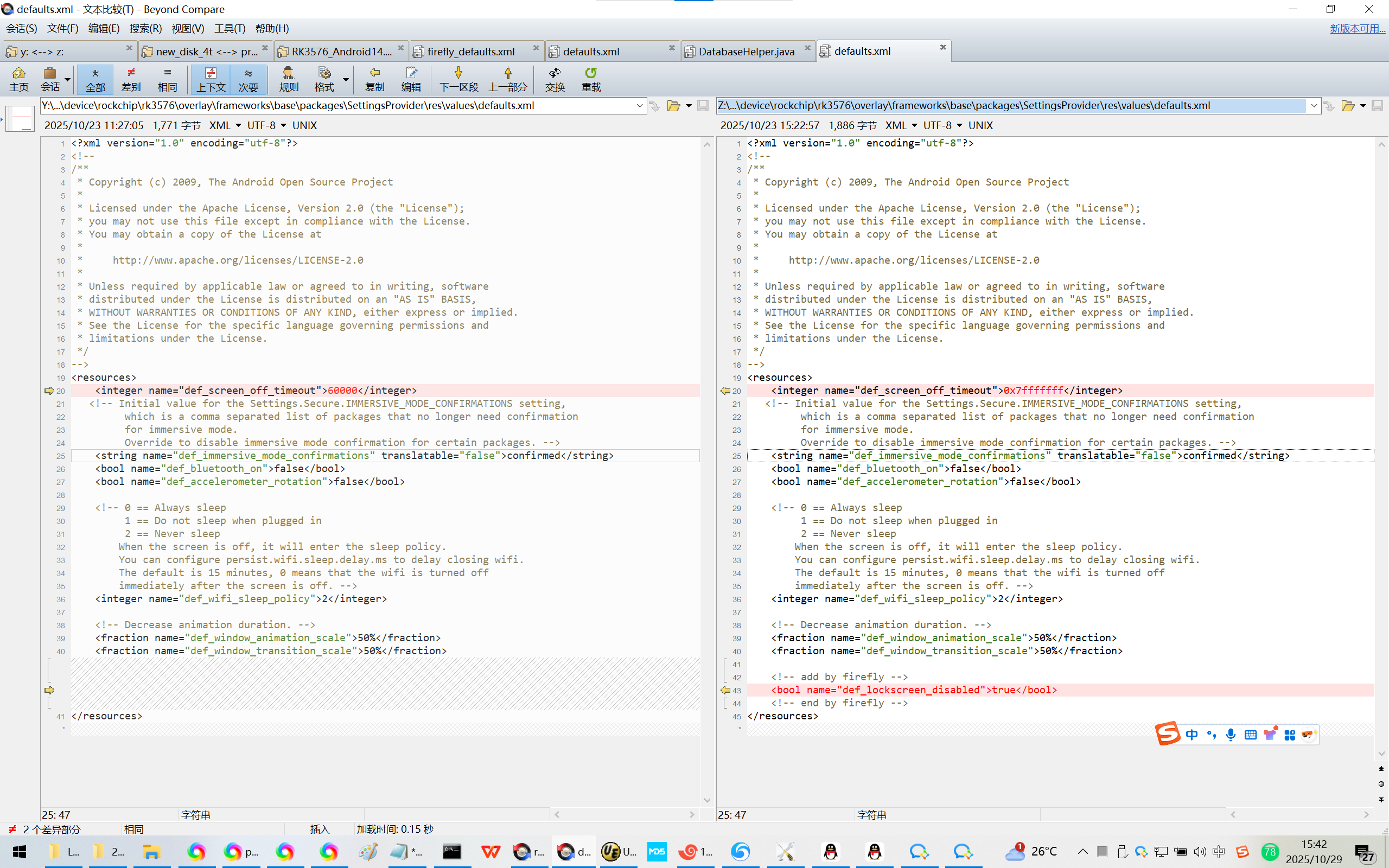

4、【可选修改】

Y:\new_disk_4t\RK3576_Android14.0_SDK_RELEASE\device\rockchip\rk3576\overlay\frameworks\base\packages\SettingsProvider\res\values\defaults.xml

Z:\proj\RK3576_Android14.0\device\rockchip\rk3576\overlay\frameworks\base\packages\SettingsProvider\res\values\defaults.xml

<?xml version="1.0" encoding="utf-8"?>

<!--

/**

* Licensed under the Apache License, Version 2.0 (the "License");

* you may not use this file except in compliance with the License.

* You may obtain a copy of the License at

* http://www.apache.org/licenses/LICENSE-2.0

* Unless required by applicable law or agreed to in writing, software

* distributed under the License is distributed on an "AS IS" BASIS,

* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

* See the License for the specific language governing permissions and

* limitations under the License.

-->

<!-- Initial value for the Settings.Secure.IMMERSIVE_MODE_CONFIRMATIONS setting,

which is a comma separated list of packages that no longer need confirmation

for immersive mode.

Override to disable immersive mode confirmation for certain packages. -->

<string name="def_immersive_mode_confirmations" translatable="false">confirmed</string>

<bool name="def_bluetooth_on">false</bool>

<bool name="def_accelerometer_rotation">false</bool>

<!-- 0 == Always sleep

1 == Do not sleep when plugged in

2 == Never sleep

When the screen is off, it will enter the sleep policy.

You can configure persist.wifi.sleep.delay.ms to delay closing wifi.

The default is 15 minutes, 0 means that the wifi is turned off

immediately after the screen is off. -->

</resources>

修改为：

<?xml version="1.0" encoding="utf-8"?>

<!--

/**

* Licensed under the Apache License, Version 2.0 (the "License");

* you may not use this file except in compliance with the License.

* You may obtain a copy of the License at

* http://www.apache.org/licenses/LICENSE-2.0

* Unless required by applicable law or agreed to in writing, software

* distributed under the License is distributed on an "AS IS" BASIS,

* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

* See the License for the specific language governing permissions and

* limitations under the License.

-->

<resources>
<integer name="def_screen_off_timeout">0x7fffffff</integer>

<!-- Initial value for the Settings.Secure.IMMERSIVE_MODE_CONFIRMATIONS setting,

which is a comma separated list of packages that no longer need confirmation

for immersive mode.

Override to disable immersive mode confirmation for certain packages. -->

<string name="def_immersive_mode_confirmations" translatable="false">confirmed</string>

<bool name="def_bluetooth_on">false</bool>

<bool name="def_accelerometer_rotation">false</bool>

<!-- 0 == Always sleep

1 == Do not sleep when plugged in

2 == Never sleep

When the screen is off, it will enter the sleep policy.

You can configure persist.wifi.sleep.delay.ms to delay closing wifi.

The default is 15 minutes, 0 means that the wifi is turned off

immediately after the screen is off. -->

<bool name="def_lockscreen_disabled">true</bool>

</resources>

5、【可选修改】

https://blog.csdn.net/hedalei/article/details/143489026?spm=1001.2101.3001.6650.17\&utm_medium=distribute.pc_relevant.none-task-blog-2~default~BlogCommendFromBaidu~Rate-17-143489026-blog-124823691.235^v43^pc_blog_bottom_relevance_base5\&depth_1-utm_source=distribute.pc_relevant.none-task-blog-2~default~BlogCommendFromBaidu~Rate-17-143489026-blog-124823691.235^v43^pc_blog_bottom_relevance_base5\&utm_relevant_index=21

android14修改默认锁屏方式为无

https://blog.csdn.net/hedalei/article/details/143489026

android14修改默认休眠时间为永不休眠后，依然会很快就会息屏进入休眠。后面发现系统默认的锁屏方式为滑动解锁。开机后出现的就是滑动解锁的界面。解锁后或者设置系统锁屏方式为无以后，就不会再休眠了。

系统中frameworks/base/packages/SettingsProvider/res/values/defaults.xml修改<bool name="def_lockscreen_disabled">true</bool>来禁止锁屏，系统默认还是不能够让锁屏方式变成无的。

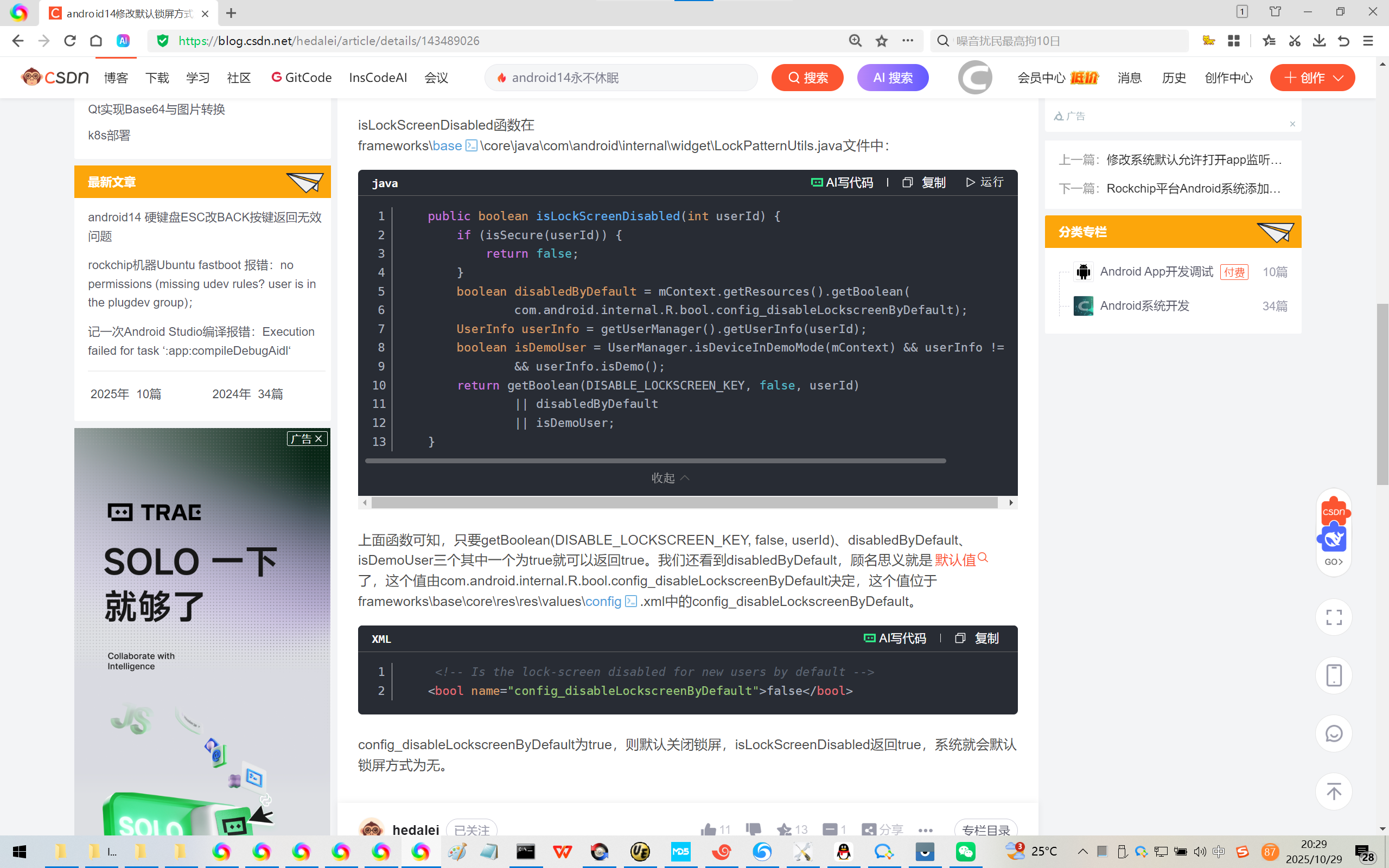

上面函数可知，只要getBoolean(DISABLE_LOCKSCREEN_KEY, false, userId)、disabledByDefault、isDemoUser三个其中一个为true就可以返回true。我们还看到disabledByDefault，顾名思义就是默认值了，这个值由com.android.internal.R.bool.config_disableLockscreenByDefault决定，这个值位于frameworks\base\core\res\res\values\config.xml中的config_disableLockscreenByDefault。

<bool name="config_disableLockscreenByDefault">false</bool>

AI写代码

XML

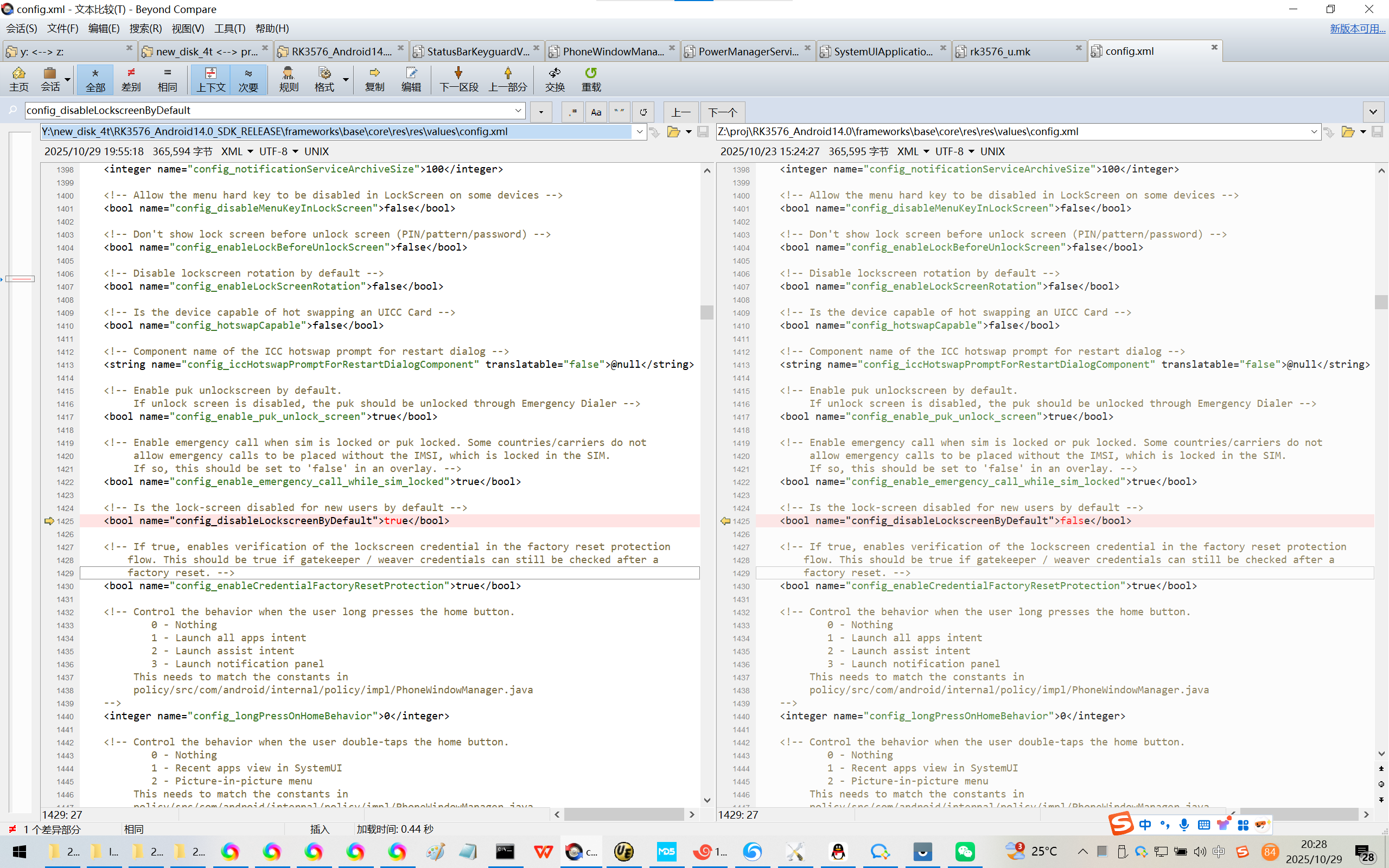

config_disableLockscreenByDefault为true，则默认关闭锁屏，isLockScreenDisabled返回true，系统就会默认锁屏方式为无。

<bool name="config_disableLockscreenByDefault">false</bool>

修改为：

<bool name="config_disableLockscreenByDefault">true</bool>
