Design Compiler：Guide Hierarchical Map(GHM) Flow

相关阅读

Design Compilerhttps://blog.csdn.net/weixin_45791458/category_12738116.html?spm=1001.2014.3001.5482

---

当Design Compiler与Formality在逻辑层次推断（包括多级展开、参数化展开等）上存在差异时，可能导致SVF文件中的guide命令被错误应用，从而造成验证失败。为了解决这个问题，Design Compiler在2018版本推出了Guide Hierarchical Map(GHM) Flow，并新增了hdlin_enable_hier_map变量和set_verification_top命令。

下面给出了Flow示意图和参考脚本。

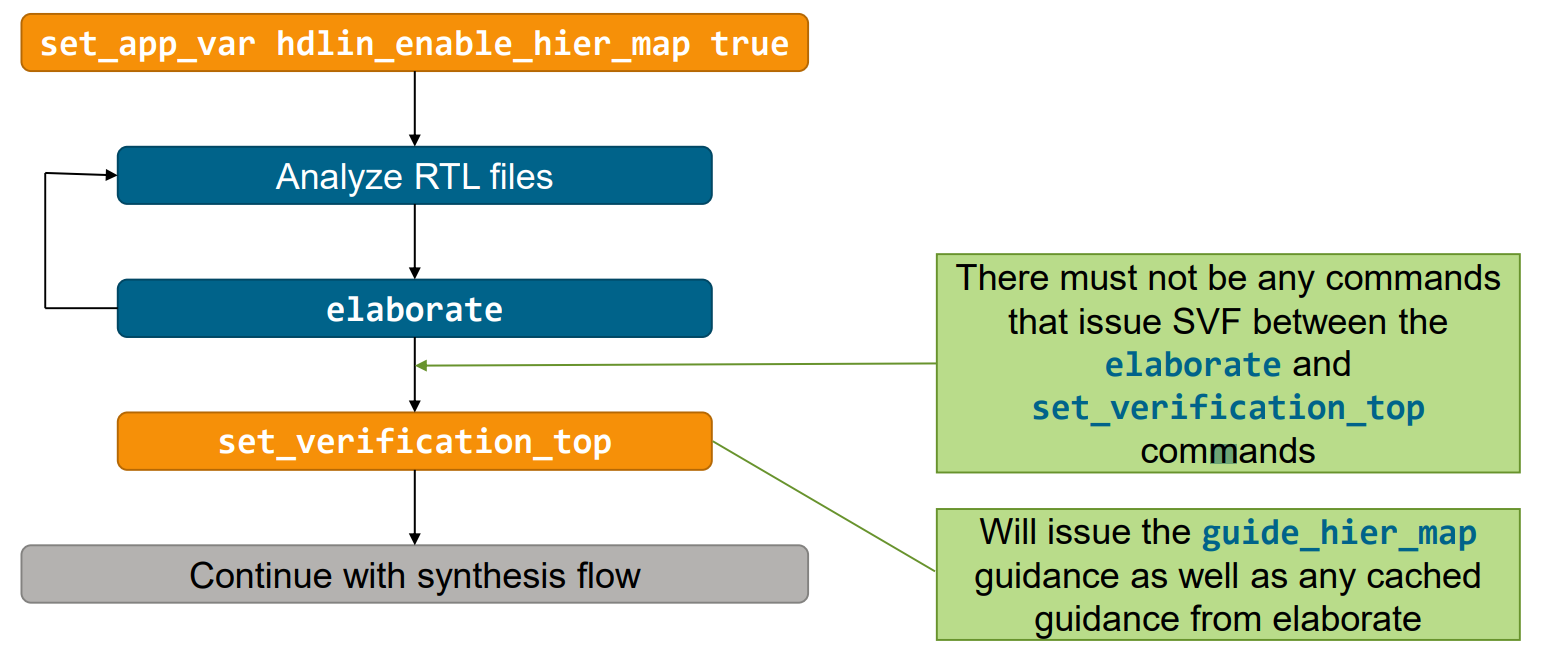

图1 Guide Hierarchical Map Flow

# specify SVF output file
set_svf ./guidance/top.svf

# read design files
set_app_var hdlin_enable_hier_map true
analyze -format sverilog {sub.sv top.sv}
elaborate top

# issue this command after reading last RTL file
# (and before other commands that can modify hierarchy)
set_verification_top

# apply SDC, UPF, hierarchy manipulation, perform synthesis...

hdlin_enable_hier_map变量需要在任何设计读取命令（如analyze、elaborate、read_file等）前设置，以表示开启GHM Flow，此时读取设计过程中HDL Compiler将不会生成通常的guide_instance_map命令。

set_verification_top命令需要在最后一条读取命令后，且任何会引起设计变更的命令（如ungroup、group、uniquify、compile_ultra命令）以及停止SVF记录前执行，否则会出现以下这些错误。

Error: Design modification detected prior to set_verification_top command. (GHM-003)
Error: You must run the set_verification_top command first. (GHM-004)
Error: The SVF guidance information written so far is incomplete and should not be used. (GHM-007)

当使用set_verification_top命令时，将会把展开过程中产生的guide_hier_map命令记录在SVF文件中，并作为逻辑层次结构的基线，而后续逻辑层次结构的变化将会以常规的guide_instance_map命令记录。

hdlin_enable_hier_map变量的默认值为false是为了向后兼容，建议在新设计中始终使用GHM Flow。

下面将以一个例子，说明GHM Flow的使用过程。

module bottom #(
    parameter WIDTH = 8
)(
    input  wire                 clk,
    input  wire                 rst_n,
    input  wire [WIDTH-1:0]     d,
    input  wire                 we,
    output reg  [WIDTH-1:0]     q
);
    always @(posedge clk or negedge rst_n) begin
        if (!rst_n)
            q <= {WIDTH{1'b0}};
        else if (we)
            q <= d;
    end
endmodule

module middle #(
    parameter WIDTH = 8,
    parameter STEP  = 1
)(
    input  wire                 clk,
    input  wire                 rst_n,
    input  wire                 en,
    output wire [WIDTH-1:0]     count
);

    wire [WIDTH-1:0] count_next;
    wire [WIDTH-1:0] count_q;

    assign count_next = en ? (count_q + STEP[WIDTH-1:0]) : count_q;

    bottom #(
        .WIDTH (WIDTH)
    ) u_bottom (
        .clk (clk),
        .rst_n (rst_n),
        .d (count_next),
        .we (1'b1),
        .q (count_q)
    );

    assign count = count_q;
endmodule

module top (
    input  wire         clk,
    input  wire         rst_n,
    input  wire         en8,
    input  wire         en16,
    output wire [7:0]   count8,
    output wire [15:0]  count16
);

    middle #(
        .WIDTH (8),
        .STEP  (1)
    ) u_middle_8 (
        .clk   (clk),
        .rst_n (rst_n),
        .en    (en8),
        .count (count8)
    );

    middle #(
        .WIDTH (16),
        .STEP  (4)
    ) u_middle_16 (
        .clk   (clk),
        .rst_n (rst_n),
        .en    (en16),
        .count (count16)
    );
endmodule

如果不使用GHM Flow进行设计读取，此时对应的SVF文件内容如下所示。

set_svf normal.svf
analyze -format verilog top.v
elaborate top
set_svf -off

##################################################################################
# Copyright 2002-2025 Synopsys, Inc.  All rights reserved.
# This Synopsys product and all associated documentation and files are
# proprietary to Synopsys, Inc. and may only be used pursuant to the terms
# and conditions of a written license agreement with Synopsys, Inc. All other
# use, reproduction, modification, or distribution of the Synopsys product or
# the associated documentation or files is strictly prohibited.
##################################################################################


## SVF file read: /home/zhangchen/GHM/normal.svf

guide \
  -tool { Design Compiler } \
  -version { W-2024.09-SP2 built Nov 28, 2024 } \
  -SVF { 21.230 } \
  -timestamp { Tue Dec  2 21:17:52 2025 }

## Operation Id: 1
guide_environment \
  { { dc_product_version W-2024.09-SP2 } \
    { dc_product_build_date { Nov 28, 2024 } } \
    { bus_dimension_separator_style ][ } \
    { bus_extraction_style %s\[%d:%d\] } \
    { bus_multiple_separator_style , } \
    { bus_naming_style %s[%d] } \
    { bus_range_separator_style : } \
    { dc_allow_rtl_pg false } \
    { hdlin_allow_4state_parameters TRUE } \
    { hdlin_unified_rtl_read FALSE } \
    { hdlin_enable_hier_naming FALSE } \
    { hdlin_enable_upf_compatible_naming FALSE } \
    { hdlin_vhdl_preserve_case FALSE } \
    { hdlin_generate_naming_style %s_%d } \
    { hdlin_generate_separator_style _ } \
    { hdlin_infer_enumerated_types FALSE } \
    { hdlin_interface_port_downto FALSE } \
    { hdlin_optimize_enum_types FALSE } \
    { hdlin_preserve_sequential none } \
    { hdlin_sverilog_std 2017 } \
    { hdlin_sv_packages dont_chain } \
    { hdlin_sv_union_member_naming FALSE } \
    { hdlin_vhdl_std 2008 } \
    { hdlin_vrlg_std 2005 } \
    { hdlin_v2005_replication_semantics TRUE } \
    { hdlin_while_loop_iterations 4096 } \
    { hdlin_enable_verilog_configurations_canonical TRUE } \
    { hdlin_enable_verilog_configurations_array_n_block TRUE } \
    { hdlin_enable_persistent_macros FALSE } \
    { hdlin_persistent_macros_filename syn_auto_generated_macro_file.sv } \
    { link_portname_allow_period_to_match_underscore false } \
    { link_portname_allow_square_bracket_to_match_underscore false } \
    { port_complement_naming_style %s_BAR } \
    { simplified_verification_mode FALSE } \
    { template_naming_style %s_%p } \
    { template_parameter_style %s%d } \
    { template_separator_style _ } \
    { upf_iso_filter_elements_with_applies_to ENABLE } \
    { upf_isols_allow_instances_in_elements true } \
    { link_library {  * your_library.db  } } \
    { target_library your_library.db } \
    { search_path { . /opt/Synopsys/syn/W-2024.09-SP2/libraries/syn /opt/Synopsys/syn/W-2024.09-SP2/dw/syn_ver /opt/Synopsys/syn/W-2024.09-SP2/dw/sim_ver } } \
    { hdlin_fmsvf_enable_div_by_pow2 true } \
    { synopsys_root /opt/Synopsys/syn/W-2024.09-SP2 } \
    { cwd /home/zhangchen/GHM } \
    { analyze { -format verilog -library WORK top.v } } \
    { compile_seqmap_propagate_high_effort true } }

## Operation Id: 2
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 3
guide_file_info \
  -file { ./top.v } \
  -cksum_file { Svf1/checksums/25669_9b0654e05f9f6592a5b167ac15eee5d9.cksum } \
  -language { svfFileInfoLangVerilog } \
  -nameID { 25669 } \
  -cksum { 9b0654e05f9f6592a5b167ac15eee5d9 } \
  -version { 21.230 }

## Operation Id: 4
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

## Operation Id: 5
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 6
guide_instance_map \
  -design { top } \
  -instance { u_middle_8 } \
  -linked { middle_WIDTH8_STEP1 }

## Operation Id: 7
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

## Operation Id: 8
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 9
guide_instance_map \
  -design { top } \
  -instance { u_middle_16 } \
  -linked { middle_WIDTH16_STEP4 }

## Operation Id: 10
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

## Operation Id: 11
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 12
guide_instance_map \
  -design { middle_WIDTH8_STEP1 } \
  -instance { u_bottom } \
  -linked { bottom_WIDTH8 }

## Operation Id: 13
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

## Operation Id: 14
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 15
guide_instance_map \
  -design { middle_WIDTH16_STEP4 } \
  -instance { u_bottom } \
  -linked { bottom_WIDTH16 }

## Operation Id: 16
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

## Operation Id: 17
guide_environment \
  { { elaborate { -library WORK top } } \
    { current_design top } \
    { compile_seqmap_propagate_high_effort true } }

setup

如果使用GHM Flow进行设计读取，此时对应的SVF文件内容如下所示。

set_svf GHM.svf
set_app_var hdlin_enable_hier_map true
analyze -format verilog top.v
elaborate top
set_verification_top
set_svf -off



##################################################################################
# Copyright 2002-2025 Synopsys, Inc.  All rights reserved.
# This Synopsys product and all associated documentation and files are
# proprietary to Synopsys, Inc. and may only be used pursuant to the terms
# and conditions of a written license agreement with Synopsys, Inc. All other
# use, reproduction, modification, or distribution of the Synopsys product or
# the associated documentation or files is strictly prohibited.
##################################################################################


## SVF file read: /home/zhangchen/GHM/GHM.svf

guide \
  -tool { Design Compiler } \
  -version { W-2024.09-SP2 built Nov 28, 2024 } \
  -SVF { 21.230 } \
  -timestamp { Tue Dec  2 21:23:55 2025 }

## Operation Id: 1
guide_environment \
  { { dc_product_version W-2024.09-SP2 } \
    { dc_product_build_date { Nov 28, 2024 } } \
    { bus_dimension_separator_style ][ } \
    { bus_extraction_style %s\[%d:%d\] } \
    { bus_multiple_separator_style , } \
    { bus_naming_style %s[%d] } \
    { bus_range_separator_style : } \
    { dc_allow_rtl_pg false } \
    { hdlin_allow_4state_parameters TRUE } \
    { hdlin_unified_rtl_read FALSE } \
    { hdlin_enable_hier_naming FALSE } \
    { hdlin_enable_upf_compatible_naming FALSE } \
    { hdlin_vhdl_preserve_case FALSE } \
    { hdlin_generate_naming_style %s_%d } \
    { hdlin_generate_separator_style _ } \
    { hdlin_infer_enumerated_types FALSE } \
    { hdlin_interface_port_downto FALSE } \
    { hdlin_optimize_enum_types FALSE } \
    { hdlin_preserve_sequential none } \
    { hdlin_sverilog_std 2017 } \
    { hdlin_sv_packages dont_chain } \
    { hdlin_sv_union_member_naming FALSE } \
    { hdlin_vhdl_std 2008 } \
    { hdlin_vrlg_std 2005 } \
    { hdlin_v2005_replication_semantics TRUE } \
    { hdlin_while_loop_iterations 4096 } \
    { hdlin_enable_verilog_configurations_canonical TRUE } \
    { hdlin_enable_verilog_configurations_array_n_block TRUE } \
    { hdlin_enable_persistent_macros FALSE } \
    { hdlin_persistent_macros_filename syn_auto_generated_macro_file.sv } \
    { link_portname_allow_period_to_match_underscore false } \
    { link_portname_allow_square_bracket_to_match_underscore false } \
    { port_complement_naming_style %s_BAR } \
    { simplified_verification_mode FALSE } \
    { template_naming_style %s_%p } \
    { template_parameter_style %s%d } \
    { template_separator_style _ } \
    { upf_iso_filter_elements_with_applies_to ENABLE } \
    { upf_isols_allow_instances_in_elements true } \
    { link_library {  * your_library.db  } } \
    { target_library your_library.db } \
    { search_path { . /opt/Synopsys/syn/W-2024.09-SP2/libraries/syn /opt/Synopsys/syn/W-2024.09-SP2/dw/syn_ver /opt/Synopsys/syn/W-2024.09-SP2/dw/sim_ver } } \
    { hdlin_fmsvf_enable_div_by_pow2 true } \
    { synopsys_root /opt/Synopsys/syn/W-2024.09-SP2 } \
    { cwd /home/zhangchen/GHM } \
    { analyze { -format verilog -library WORK top.v } } \
    { elaborate { -library WORK top } } \
    { current_design top } \
    { compile_seqmap_propagate_high_effort true } }

## Operation Id: 2
guide_hier_map \
  -design { top } \
  -cells { u_middle_16 } \
  -linked { middle_WIDTH16_STEP4 }

## Operation Id: 3
guide_hier_map \
  -design { top } \
  -cells { u_middle_8 } \
  -linked { middle_WIDTH8_STEP1 }

## Operation Id: 4
guide_hier_map \
  -design { middle_WIDTH16_STEP4 } \
  -cells { u_bottom } \
  -linked { bottom_WIDTH16 }

## Operation Id: 5
guide_hier_map \
  -design { middle_WIDTH8_STEP1 } \
  -cells { u_bottom } \
  -linked { bottom_WIDTH8 }

## Operation Id: 6
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 7
guide_file_info \
  -file { ./top.v } \
  -cksum_file { Svf1/checksums/25669_9b0654e05f9f6592a5b167ac15eee5d9.cksum } \
  -language { svfFileInfoLangVerilog } \
  -nameID { 25669 } \
  -cksum { 9b0654e05f9f6592a5b167ac15eee5d9 } \
  -version { 21.230 }

## Operation Id: 8
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

## Operation Id: 9
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 10
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

## Operation Id: 11
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 12
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

## Operation Id: 13
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 14
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

## Operation Id: 15
guide_mark \
  -type { svfMarkTypeBegin } \
  -phase { svfMarkPhasePresto }

## Operation Id: 16
guide_mark \
  -type { svfMarkTypeEnd } \
  -phase { svfMarkPhasePresto }

setup
