泛微OA集成档案信息包生成

RS-02 信息封包

前言

|--------------------|
| 完成表单结构内容改造后加密传输信息包 |

背景介绍

OA系统相关流程归档后触发接口，发送流程信息至档案系统。相关流程信息附件，审批表单统一压缩

一、资源

|---------------------------------|-------------------------------------|-----------------------|
| |-------------| | 依据业务系统接口方案 | | |---------------| | 截止时间 25.10.30 | | |--------| | 责任人窦硕 | |

当前实现功能

获取用户流程附件，流程审批表单并存储固定路径

测试接口（接口标识：TsetAattachment）

请求数据：

|--------------------------------------------------------------------------------|
| SQL { "request": { "requestId": "80258835", "deptCode": "", "deptName": "" } } |

二、计划

|----------------|---------|---------|---------------------------------------------------------------|
| 是否完成 | 版本号 | 责任人 | 内容概述 |
| Y(10.16前) | 已实现内容总结 | 窦硕 | 前台表单改造实现++++机构名称++++获取，正则校验，附件类型检验测试。后台接口捞取文档附件，获取审批表单并进行存储 |
| Y（10.16-10.21） | 接口方案解析 | 窦硕，张田 | 说明文件（txt）/目录文件（xml）/ 元数据（xml）文件中相关字段解析 |
| Y(10.18-10.26) | OA接口联调 | 窦硕 | 已实现内容接口输出参数为封包接口输入参数，需调试 |
| Y 10.24-10.26 | 编码与测试 | 窦硕 | 相关文件生成，文件压缩，加密 |

三、实施进展

0. 进度

OA接口联调测试 11.14

接口方案解析 11.10

编码与测试 11.14

业务，技术解耦 11.18

OA接口联调（10.18）

接口标识：ArchivalInformationPackage (接口名称集成信息封包V2)

要实现生成信息包，需现有接口（deptCodeFetcher-获取主数据部门编码）出参作为新接口入参进行联调

现有接口（deptCodeFetcher）出参提供流程表单id，流程创建人所在部门主数据编码与部门名

集成信息封包接口（接口标识 IntegratedInformationPacket）请求参数：

|---------------------------------------------------------------------------------|
| JSON { "request": { "requestId": "80258835", "deptCode": "", "deptName": "" } } |

接口方案解析（10.18）

需求目标：按业务系统接口方案生成指定格式文件包（档案文件+说明文件）

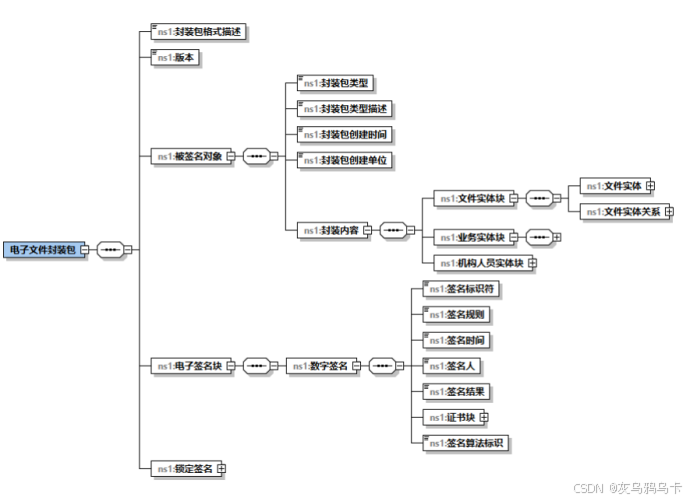

归档信息包结构（来源：《业务系统接口方案》）：

| 信息架构外侧2（说明文件.txt;目录文件.xml）,内侧1（元数据.xml）

信息包生成过程

四、编码与测试

0. class_20251024071544主方法

主方法统一入口为 Map execute(Map<String,Object> params)

校验参数是否为空，deptName,deptCode为主数据http接口获取，后期考虑优化未获取处理方式

信息包存储位置：

realtivePath：文件夹存储路径 : /app/weaver/ecology/ArchivesFiles/ + 文件夹名；

信息包生成过程：

获取流程信息

GET Information from mode table by requestid ：通过requestid获取流程信息

流程已统一归集到建模表uf_archiveAccept汇总，表存有流程requestid等信息

getArchiveData 方法获取流程相关信息存入map，（包含附件信息，相关流程，全宗信息等）如下：

|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| Java // 附件 annex 正文 mainText 发文稿纸 fwgz input parameter ：requestid，get mode data and convert some data public static Map<String, String> getArchiveData(String requestid,String tablename) { String sql = "select * from "+ tablename+" where processID='" + requestid + "'"; RecordSet rs = new RecordSet(); rs.executeQuery(sql); Map<String, String> map = new HashMap<>(); if (rs.next()) { map.put("fondsNumber", Util.null2String (rs.getString("fondsNumber"))); map.put("fondsUnit", Util.null2String (rs.getString("fondsUnit"))); map.put("processName", Util.null2String (rs.getString("processName")));// 流程名称 map.put("tableName", Util.null2String (rs.getString("tableName"))); // 表单名称 // map.put("subcompanyName", Util.null2String(rs.getString("subcompanyName")));//机构名称 map.put("textNumber", Util.null2String (rs.getString("textNumber"))); map.put("tieleName", Util.null2String (rs.getString("tieleName"))); map.put("fwb", Util.null2String (rs.getString("fwb")));// 责任者 map.put("issueDate", Util.null2String (rs.getString("issueDate").replaceAll("-", ""))); map.put("secretClass", Util.null2String (rs.getString("secretClass"))); map.put("secretPeriod", Util.null2String (rs.getString("secretPeriod"))); map.put("nd",Util.null2String (rs.getString("nd"))); //年度 map.put("annex",Util.null2String (rs.getString("annex"))); map.put("mainText",Util.null2String (rs.getString("mainText"))); map.put("fwgz",Util.null2String (rs.getString("fwgz")));//发文稿纸 map.put("draft",Util.null2String (rs.getString("draft")));//底稿 map.put("drafter",Util.null2String (rs.getString("drafter")));//拟稿人 map.put("xglc",Util.null2String (rs.getString("xglc")));//相关流程 map.put("modedatacreatedate",Util.null2String ( rs.getString("modedatacreatedate").replaceAll("-", "") ) );//建模接收日期 } String originRelatedRequestids = map.get("xglc"); String originFondsNumber = map.get("fondsNumber"); String originFondsUnit = map.get("fondsUnit"); // esb generate subcompanyName(机构名称),fondsNumber（全宗号）；fondsUnit（全宗单位）;--->fwb(责任者)； RecordSet fetchDataRs = new RecordSet(); String getSubcompanyNameSql ="select get_subcompany_path(subcompanyid1)||get_department_path(departmentid) as name from hrmresource where id=?" ; fetchDataRs.executeQuery(getSubcompanyNameSql,map.get("drafter")) ; if(fetchDataRs.next()){ map.put("subcompanyName", Util.null2String (fetchDataRs.getString("name")) ); map.put("originSubcompanyName", Util.null2String (fetchDataRs.getString("name")) ); } String[] subcompanyNamesArray = map.get("subcompanyName").split("/"); // 机构名称数组 //机构名称数组存储人员所在部门全路径，全宗映射list存储所有全宗对应分部名； String allFondsMapping = "select subcompanyname from hrmsubcompany where id in (select OAMapping from uf_FondsInformation )"; RecordSet FondsMappingDataRs = new RecordSet(); FondsMappingDataRs.executeQuery(allFondsMapping); List<String> fondsMappingNamesList = new ArrayList<>(); Map<String,String> fondsContent = new HashMap<>() ; while(FondsMappingDataRs.next()){ String subcompanyName = FondsMappingDataRs.getString("subcompanyname"); // 将值添加到 List 中 fondsMappingNamesList.add(subcompanyName); } // 机构名称数组从后向前遍历与全宗映射list匹配，否则返回空值-->全宗名对应映射分部名 String fondsMappingName = matchFondsFromPath (subcompanyNamesArray, fondsMappingNamesList); // 从全宗映射表按全宗映射分部名查找全宗号,按全宗号查询全宗单位 String fondsNumberMatchSql="select fondsNumber from uf_FondsInformation where OAMapping = (select id from hrmsubcompany where subcompanyname like ?)"; if (!fondsMappingName.isEmpty()) { RecordSet FondsNumberDataRs = new RecordSet(); FondsNumberDataRs.executeQuery(fondsNumberMatchSql,fondsMappingName); String fondsNumber = "origin fondsNumber"; String fondsUnit = "origin fondsUnit" ; if(FondsNumberDataRs.next()){ fondsNumber =Util.null2String (FondsNumberDataRs.getString("fondsNumber")); fondsUnit =lookupFondsNameByNumber ( fondsNumber) ; map.put("fondsNumber",fondsNumber ); map.put("fondsUnit", (fondsUnit) ); } } else{ map.put("fondsNumber", "-1"); map.put("fondsUnit", "人员所在机构不存在全宗名; 机构名称： "+String.join ("/", subcompanyNamesArray)+" OA全宗信息："+fondsMappingNamesList.toString()); } // 获取当前行的 subcompanyname 列的值,并机构名称字符正则处理， String subcompanyname = pickAllChineseNamesJoined (map.get("originSubcompanyName")); map.put("subcompanyName",subcompanyname); // 此处进行策略模式改造 // 005 发文审批流程 ;004 集团公司外部文件呈批流程：全宗名，责任者保留流程原始表单值 if(map.get("tableName").equals("formtable_main_3981")||map.get("tableName").equals("formtable_main_4041")){ map.put("fondsUnit", Util.null2String (originFondsUnit)); map.put("fondsNumber", Util.null2String (originFondsNumber)); map.put("fwb", Util.null2String (rs.getString("fwb")));// 责任者保留原值 } else{ // 通用流程变更全宗单位为按全宗号从表uf_FondsInformation 筛分出的全宗名 map.put("fwb", Util.null2String (map.get("fondsUnit") ));// 责任者 } /** * nd->年度 ; issueDate -> 成文日期 processName->005 发文审批流程签发日期文本（YYYYMMDD）写入建模成文日期与年度；其他通用流程需要进行归档日期赋值给成文日期，同时计算年度（均为数字，不含"-"） * The common process ,the field issueDate is come from process process end time(YYYYMMDD); * Judge process (common or 005 发文审批流程),if field issueDate is "",change issueDate ,nd value by modedatacreatedate * issueDate.trim().length<1; -> map.put("issueDate",map.get("modedatacreatedate") ); map.put("nd",map.get("modedatacreatedate").); */ // issueDate 成文日期是否为空 boolean isIssueDateEmpty = Optional.ofNullable (map.get("issueDate")) .map(String::isEmpty) .orElse(true); String computeValue ="成文日期，年度非空值均为归档日期计算获取"; if( isIssueDateEmpty ) { //!map.get("processName").equals("005 发文审批流程") // the workflow is not 005 ,nd,issudate value recover by modedatacreatedate String createdate = map.get("modedatacreatedate"); if(createdate.length()>4){ map.put("nd", createdate.substring(0,4) ); //年度 map.put("issueDate",createdate ); computeValue = createdate+"****"+createdate.substring(0,4); } } map.put("computeValue",computeValue); // workflowForm : get workflow docid from docdetail by requestid(docdetail.fromworkflow) String workflowSql = "select id from docdetail where fromworkflow='" + requestid + "'"; rs.executeQuery(workflowSql); if (rs.next()) { map.put("workflowForm", Util.null2String (rs.getString("ID"))); } // 相关流程字段通过 requestid数组获取对应 docid数组字符串（后期使用split转换） String xglc = map.get("xglc"); String relatedSql = "select id from docdetail where fromworkflow in(" + xglc + ")"; if (xglc == null || xglc.trim().isEmpty()){ map.put("xglc", ""); }else{ map.put("xglc", ""); StringBuilder result = new StringBuilder(); rs.executeQuery(relatedSql); while (rs.next()) { if (result.length() > 0) { result.append(","); } result.append(rs.getString("id")); } map.put("xglc", result.toString()); } return map; } |

005 发文审批流程 ;004 集团公司外部文件呈批流程：全宗名，责任者保留流程原始表单值，其他流程通过计算获取全宗名/全宗号，责任者，成文日期，

获取非结构文件信息

获取非结构化文件信息：附件 annex 正文 mainText 发文稿纸 fwgz；005发文流程包含字段底稿，正文与红文；最后需要将这些文件与审批流程表单，相关流程表单一同存储到originPath路径下requestid文件夹中(e.g. /app/weaver/ecology/ArchivesFiles/1765258897516/80397321) ; get files about appendixfiles,others files(底稿+红文),workflow file(docdetail); and storage to originPath,requestidPath

使用 storageAppendixFiles方法，输入底稿，发文稿纸，相关流程，附件，呈批流程内容返回list存储该非结构化数据相关描述信息（文件名（服务器不支持中文字符集，需转译），大小，格式，SM3签名，生成位置等）。

这个方法参考了AI进行了部分代码生成，后续需追踪

生成外层描述文件

touch new simple txt,xml files(说明文件.txt 目录文件.xml) including files information (name,varity)

生成 requestid命名文件夹外层的描述性文件： 说明文件.txt 与目录文件.xml ，代码如下：

文件元数据.xml 生成

touch new metaData xml file (文件元数据.xml), including SM3 -《文件元数据.xml》

对于 2. 中生成的非结构化文件，将其描述信息写入 文件元数据.xml 中

addSignatureToXml 方法实现将文件元数据.xml 上半部分所有内容作为字符串对应的sm3签名写入文件特定位置中

generateMetadataXml 方法实现生成除addSignatureToXml外其他位置xml内容。该方法输入的list为第二步生成

文件元数据.xml格式如下

压缩文件

compress by unicode convert with memory to refuse linux Chinese charactor erro

压缩以上生成的文件生成以requestid命名的压缩包，同时生成压缩包对应的sm3签名（sysPackageDigest ）。

补充

|-----------------------------------------------|
| 当前服务器不支持中文字符集，获取到的文件含有中文会直接变为乱码，需要先转译为Unicode |

|---------------------------------------------------------------------------------------------------------------------------|
| �� UNICODE 编码字符集不能包含一些特殊类型字符（非U+007F U+0000到U+001F 平面的BMP），不能包含特殊字符+,.[]!"#$%&'()*:;<=>?@\^`{}|~/ 中文字符、标点 |

|-----------------------------|
| Unicode超过一定长度会报错，包含特定字符也会报错 |

在生成文件的过程中要把文件名转译，截取后生成 安全的短文件名：

其中相关方法实现将特殊字符串替换为下划线，同时截取短的文件名。代码如下：

在第二步获取非结构文件信息的过程中，相关附件等文件就已经被捞取出来，根据docid->imagefileid 捞取文件：

五、合同类流程技术储备

|-----------------------------------------------------------|
| 前期通过使用流程存为文档的方式，将流程requestid转为docid后查询对应imagefileid获取流程表单 |

|---------------------------------------------------------------------------------------------------------------------------------------------------------|
| �� 可以根据网上一些参考内容直接通过requestid获取流程审批表单；流程包含有相关流程类似字段，相关流程仍包含相关流程与附件形成树或者图类似的数据结构，以上旧有的方法已不能满足当前需求，需要参照泛微一些源码方法进行改造后实现通过输入requestid获取该流程相关资源（相关流程，文档，附件） |

5.1 直接通过requestid获取流程

mu注意：代码中第97行需要将流程申请人（或者节点中的人）id作为参数传入

userManager.getUserByUserIdAndLoginType(29623, "1");

|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| Java package com.weaver.esb.package_20250916083918; import com.api.doc.detail.util.DecodeUtil; import com.api.doc.detail.util.PdfConvertUtil; import com.cloudstore.dev.util.FileUtils; import com.github.junrar.Archive; import com.github.junrar.exception.RarException; import com.github.junrar.rarfile.FileHeader; import com.lowagie.text.Document; import com.lowagie.text.pdf.PdfCopy; import com.lowagie.text.pdf.PdfImportedPage; import com.lowagie.text.pdf.PdfReader; import com.weaver.general.BaseBean; import net.sf.json.JSONArray; import net.sf.json.JSONObject; import weaver.conn.RecordSet; import weaver.docs.docs.DocImageManager; import weaver.docs.docs.DocManager; import weaver.docs.docs.DocViewer; import weaver.docs.webservices.DocInfo; import weaver.docs.webservices.DocServiceImpl; import weaver.file.FileSecurityUtil; import weaver.file.ImageFileManager; import weaver.general.GCONST; import weaver.general.StaticObj; import weaver.general.Util; import weaver.hrm.User; import weaver.system.SystemComInfo; import com.engine.common.util.ServiceUtil; import com.engine.workflow.service.HtmlToPdfService; import com.engine.workflow.service.impl.HtmlToPdfServiceImpl; import weaver.file.FileUpload; import weaver.hrm.UserManager; import weaver.integration.logging.Logger; import weaver.integration.logging.LoggerFactory; import weaver.wechat.util.Utils; import weaver.workflow.workflow.WorkflowConfigComInfo; import java.io.*; import java.nio.charset.StandardCharsets; import java.nio.file.*; import java.text.SimpleDateFormat; import java.util.*; import java.util.zip.ZipEntry; import java.util.zip.ZipInputStream; public class class_20250916083918 { BaseBean baseBean = new BaseBean(); /** * @param: param(Map collections) * 参数名称不能包含特殊字符+,.[]!"#$%&'()*:;<=>?@\^`{}|~/ 中文字符、标点 U+007F U+0000到U+001F */ public Map execute(Map<String, Object> params) { Map<String, String> ret = new HashMap<>(); try { // 2. 参数校验 if (params == null || params.isEmpty()) { ret.put("code", "400"); ret.put("message", "esb_20250916083918 params can not be null"); baseBean.writeLog(ret.toString()); return ret; } } catch (Exception e) { ret.put("code", "500"); ret.put("message", "esb_20250916083918 exception : " + e.getMessage()); e.printStackTrace(); } String requestid = Utils.null2String(params.get("requestid")); String filePath = Utils.null2String(params.get("filePath")); String pdfImageFileid = getwfPDF(requestid, true, "0").get("pdf").toString(); String message = getwfPDF(requestid, true, "0").toString(); getImageFiles(pdfImageFileid,filePath,ret); ret.put("code", "200"); ret.put("message", message); return ret; } /** * @param requestid * @param isKeepsign 是否需要签字意见 * @param onlyHtml ： 0 只转pdf ； 1只转html ； 2 都转 * @return */ public Map getwfPDF(String requestid, boolean isKeepsign, String onlyHtml) { String keepsign = "1"; if (isKeepsign) { keepsign = "1"; } UserManager userManager = new UserManager(); User user = userManager.getUserByUserIdAndLoginType(29623, "1"); HashMap hashMap = new HashMap(); hashMap.put("requestid", requestid); hashMap.put("limitauth", "0"); //0 只转pdf 1只转html 2 都转 hashMap.put("onlyHtml", onlyHtml); hashMap.put("keepsign", keepsign); Map<String,String> filemap = null; try { baseBean.writeLog( "表单转PDF参数:" + JSONObject.fromObject(hashMap).toString()); filemap = this.getFileId(hashMap, user); baseBean.writeLog( "表单转PDF结果:" + JSONObject.fromObject(filemap).toString()); } catch (Exception e) { baseBean.writeLog("表单转PDF异常:" + e.getMessage().toString()); } return filemap; } public String getFileSavePath() { SystemComInfo systemComInfo = new SystemComInfo(); String createDir = FileUpload.getCreateDir(systemComInfo.getFilesystem()); createDir = createDir.replace("\\", "/"); if (createDir.endsWith("/")) { createDir = createDir.substring(0, createDir.length() - 1); } return createDir; } public Map<String, String> getFileId(Map<String, Object> hashMap, User user) { HashMap returnMap = new HashMap(); hashMap.put("path", this.getFileSavePath()); hashMap.put("isTest", "1"); this.injectuseWk(hashMap); HtmlToPdfService htmlToPdfService = (HtmlToPdfService) ServiceUtil.getService(HtmlToPdfServiceImpl.class, user); Object o = htmlToPdfService != null ? htmlToPdfService.getFormDatas(hashMap) : new HashMap(); String path = Util.null2String(((Map) o).get("path")); String onlyHtml = Util.null2String(hashMap.get("onlyHtml")); String filename; String filePath; String fileid; //只转为pdf if (onlyHtml.equals("0")) { filename = Util.null2String(((Map) o).get("filename")); filePath = path + File.separator + filename; fileid = this.saveAsFile(filePath, filename); if (!"".equals(fileid)) { returnMap.put("pdf", fileid); } } //转为html else if (onlyHtml.equals("1")) { filename = Util.null2String(((Map) o).get("filename")); filePath = path + File.separator + filename; fileid = this.saveAsFile(filePath, filename); if (!"".equals(fileid)) { returnMap.put("html", fileid); } } //既要转pdf又要转html else if (onlyHtml.equals("2")) { filename = Util.null2String(((Map) o).get("pdffilename")); filePath = Util.null2String(((Map) o).get("htmlfilename")); fileid = path + File.separator + filename; String htmlFullPath = path + File.separator + filePath; String pdf_id = this.saveAsFile(fileid, filename); String htmlfileid = this.saveAsFile(htmlFullPath, filePath); if (!"".equals(pdf_id)) { returnMap.put("pdf", pdf_id); } if (!"".equals(htmlfileid)) { returnMap.put("html", htmlfileid); } } return returnMap; } public String saveAsFile(String filepath, String filename) { FileInputStream fileInputStream = null; byte[] bytes = null; File file = new File(filepath); if (file.exists()) { try { fileInputStream = new FileInputStream(file); bytes = new byte[(int) file.length()]; fileInputStream.read(bytes); fileInputStream.close(); } catch (Exception e) { e.printStackTrace(); } } ImageFileManager imageFileManager = new ImageFileManager(); imageFileManager.setComefrom("WorkflowToDoc"); imageFileManager.setData(bytes); imageFileManager.setImagFileName(filename); int imageFileid = imageFileManager.saveImageFile(); if (imageFileid <= 0) { baseBean.writeLog( "保存离线HTML/PDF文件失败"); return ""; } else { FileSecurityUtil.deleteFile(file); return imageFileid + ""; } } private void injectuseWk(Map<String, Object> map) { if (!map.containsKey("useWk")) { WorkflowConfigComInfo workflowConfigComInfo = new WorkflowConfigComInfo(); String usewk = workflowConfigComInfo.getValue("htmltopdf_usewk"); map.put("useWk", usewk); } } // getImageFiles: get files by imagefileid,and storage to imagefilenameDestination public static void getImageFiles(String imagefileid,String imagefilenameDestination,Map ret){ try { String decodeimagefileid = Util.null2String(DecodeUtil.decodeByImageFileIdByTianyu(Integer.parseInt(imagefileid))); InputStream inputStream = ImageFileManager.getInputStreamById(Integer.parseInt(decodeimagefileid)); try (OutputStream outputStream = Files.newOutputStream(Paths.get(imagefilenameDestination), StandardOpenOption.CREATE, StandardOpenOption.TRUNCATE_EXISTING)) { // 创建缓冲区提高复制效率 byte[] buffer = new byte[8192]; // 8KB缓冲区 int bytesRead; // 读取输入流并写入输出流 while ((bytesRead = inputStream.read(buffer)) != -1) { outputStream.write(buffer, 0, bytesRead); } ret.put("fileMessage", "file success write: " + imagefilenameDestination); } catch (IOException e) { ret.put("code", "500"); ret.put("fileMessageErro", "write file fail: " + e.getMessage()); // baseBean.writeLog(ret.toString()) ; e.printStackTrace(); throw new RuntimeException("cannot write file: " + imagefilenameDestination, e); } finally { // 确保输入流关闭 try { if (inputStream != null) { inputStream.close(); } } catch (IOException e) { ret.put("code", "500"); ret.put("fileMessageErro", "fail close inputstream: " + e.getMessage()); // baseBean.writeLog(ret.toString()) ; } } } catch (NumberFormatException e) { ret.put("code", "503"); ret.put("message", " :FILE GET ERRO: "+e); // baseBean.writeLog(ret.toString()) ; throw new RuntimeException(e); } } } |

5.2 流程相关资源获取

获取流程相关资源方式获取流程附件，相关流程审批表单；输入流程requestid与人员userid

文档标识符文档的ID；文档主从声明（从requestID获取）；计算机文件名；计算机文件大小；签名时间；签名结果（SM3计算）

|----------|------------------------|---------------------------|-----------|
| | 主要信息 | 关键结论 | 截图或视频 |
| 竞品1 | <锁定签名> | 先不传，后期联系契约锁集成人员处理 | |
| 来源 | <全宗名称> | 数据映射 | |
| | <电子文件号> | SourceID | |
| | <年度>归档年度-范围文件</年度> | | |
| | <题名>-范围文件</题名> | | |
| | 内容描述 | 表单字段填,新增流程名称字段；sourceid字段 | |
| <形式特征> | <载体类型>电子</载体类型> | 其他同级字段空置 | |
| | <文档主从声明>正文 | 见范围文件产生文件材料字段（附件1） | |
| | <信息系统描述>OA | | |
| | <业务实体>？？？ | </业务实体块> <机构人员实体块> | |
| | | | |
| | | | |
| | | | |
| | | | |
| | | | |

六、合同封包改造

接口交互

|--------|
| 接口数据交互 |

流程审批表附件文件与信息从前一个接口(ArchiveStorageAddress)获取 ;

其他附件（底稿，套红，其他附件）文件从建模表单获取(IntegratedInformationPacket) ;

接口1 ArchiveStorageAddress 档案存储地址

输入：（流程id 与接收流程数据建模表名）

|----------------------------------------------------------------------------------|
| Java { "request": { "requestid": "79990511", "tableName": "uf_archiveAccept" } } |

响应：（流程id，生成服务器路径与接收流程数据建模表名）

|------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| JSON { "code": "200", "message": { "requestId": "79990511", "originPath": "/app/weaver/ecology/ArchivesFiles/1762131884504", "tableName": "uf_archiveAccept" } } |

接口2 集成信息封包V2
ArchivalInformationPackage

输入

|---------------------------------------------------------------------------------------------------------------------------------------------------------|
| JavaScript { "request": { "requestId": "79990511", "originPath": "/app/weaver/ecology/ArchivesFiles/1761635297804", "tableName": "uf_archiveAccept" } } |

输出：

七、数据交互

|---------|
| 接口间数据依赖 |

workflowInfo： requestId：tempPath：

nodeMap ：-> nodeWorkflowMap（流程审批表单）

|-----------------------------|-----------------------------------------------------|
| 接口名 | 参数说明 |
| TsetAattachment | 输入param ：requestid，fj 输出param：code， message->JSON: |
| IntegratedInformationPacket | TsetAattachment 输出参数获取； |
| | |

八、待完成点

|-------------------|----------------------|---------------------|
| 名 | 说明 | 备注 |
| Unicode转码-Y | 泛微厂商确认无问题，待测试 | 已完成 |
| 天喻加密压缩包 -Y | 完成 | OA侧完成天喻加密功能，后期启用OBS |
| 文件名获取使用split分割 -Y | 泛微建议使用indexof(".")获取 | 已变更 |
| 附件为空如何处理 -Y | 已处理 | |

|---|
| |

重构接口1，接口入参/出参确认；

附件/审批流捞取/正文/底稿

附件空值问题

简单文件生成（说明文件.txt 目录文件.xml）

循环生成文档dom（元数据.xml）

SM3 加密字符串/文档

标准字符串转Map等？

内存压缩规避外存不支持中文字符集

接口1 实现输入requestid,生成指定位置文件夹路径，将路径，requestID传输到接口2

接口2 实现通过requestID

获取 fj dg zw（附件，正文，底稿）字段内容和流程审批文件PDF

按相关文件内容，生成xml

待改进

|--------------------------------|
| 递归/BSF 获取流程中相关流程信息，包含流程审批表单，附件 |

|-----------------------------------------------|--------------------------------------------------------------|-----------------------------------------------------------------|
| |----------| | 获取流程审批表单 | * 直接通过requestid获取流程 | |----------| | 获取流程相关资源 | * 相关流程 * 文档 * 附件 | |----------| | 数据库SQL分析 | * 机构名称获取函数执行 * 后期切换达梦函数失效风险 |
