华为设备配置练习（六）AC 配置

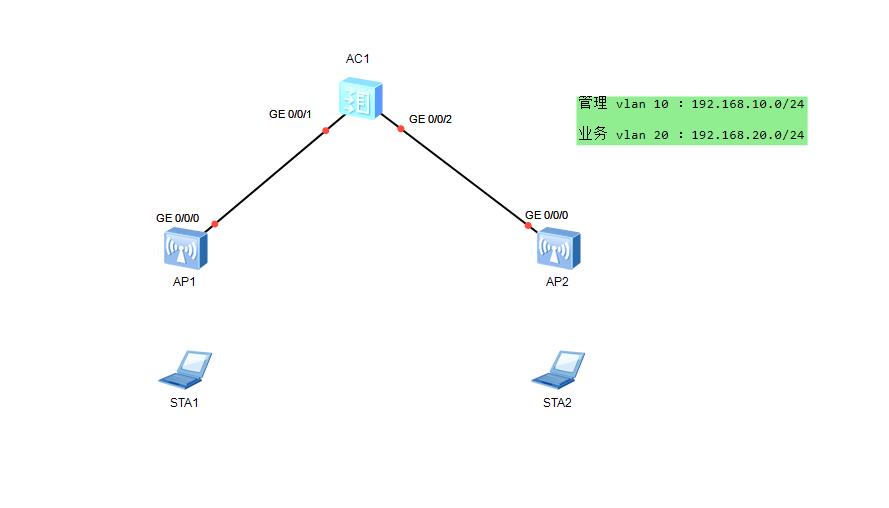

一、网络拓扑
二、基础配置
<AC6605>system-view #进入系统视图
[AC6605]sysname AC1 #修改设备名字
[AC1]vlan batch 10 20
[AC1]port-group group-member g0/0/1 to g0/0/24 #设置端口组
[AC1-port-group]port link-type trunk #设置端口链路类型
[AC1-port-group]port trunk allow-pass vlan 10 20 #设置端口通过的vlan
[AC1-port-group]port trunk pvid vlan 10 #设置pvid为管理vlan
[AC1]interface vlanif10
[AC1-Vlanif10]ip address 192.168.10.1 24 #配置ac管理地址
[AC1-Vlanif10]quit
[AC1]interface vlanif20
[AC1-Vlanif20]ip address 192.168.20.1 24 #配置业务vlan网关地址
[AC1-Vlanif20]quit三、DHCP 配置
[AC1]dhcp enabl #开启DHCP
[AC1]ip pool vlan10
[AC1-ip-pool-vlan10]network 192.168.10.0 mask 24 #配置管理vlan地址池
[AC1-ip-pool-vlan10]gateway-list 192.168.10.1
[AC1-ip-pool-vlan10]option 43 sub-option 3 ascii 192.168.10.1 #配置option 43指向AC IP地址
[AC1-ip-pool-vlan10]quit
[AC1]ip pool vlan20
AC1-ip-pool-vlan20]network 192.168.20.0 mask 24 #配置业务vlan地址池
[AC1-ip-pool-vlan20]gateway-list 192.168.20.1
[AC1-ip-pool-vlan20]dns-list 114.114.114.114
[AC1-ip-pool-vlan20]quit
[AC1]interface vlanif 10
[AC1-Vlanif10]dhcp select global
[AC1-Vlanif10]quit
[AC1]interface vlanif 20
[AC1-Vlanif20]dhcp select global
[AC1-Vlanif20]quit四、capwap隧道配置
[AC1]capwap source interface vlanif 10 #建立隧道五、WLAN业务配置
[AC1]wlan #进入WLAN视图
[AC1-wlan-view]security-profile name wpa2-psk #配置安全模板
[AC1-wlan-sec-prof-wpa2-psk]security wpa2 psk pass-phrase huawei123 aes #配置加密方式和认证密码
[AC1-wlan-sec-prof-wpa2-psk]quit
[AC1-wlan-view]ssid-profile name office-ssid #配置ssid模板
[AC1-wlan-ssid-prof-office-ssid]ssid ceshi
[AC1-wlan-ssid-prof-office-ssid]quit
[AC1-wlan-view]vap-profile name office-vap #配置vap模板
[AC1-wlan-vap-prof-office-vap]service-vlan vlan-id 20
[AC1-wlan-vap-prof-office-vap]security-profile wpa2-psk
[AC1-wlan-vap-prof-office-vap]ssid-profile office-ssid
[AC1-wlan-vap-prof-office-vap]quit
[AC1-wlan-view]ap-group name group1 #创建ap组并并引用模板
[AC1-wlan-ap-group-group1]vap-profile office-vap wlan 1 radio all
[AC1-wlan-ap-group-group1]quit六、AP上线配置
[AC1-wlan-view]ap auth-mode no-auth #配置ap上线模式
[AC1-wlan-view]dis ap all #查看ap是否上线
Info: This operation may take a few seconds. Please wait for a moment.done.
Total AP information:
nor : normal [2]
--------------------------------------------------------------------------------
---------------------
ID MAC Name Group IP Type State
STA Uptime
--------------------------------------------------------------------------------
---------------------
0 00e0-fc0e-76f0 00e0-fc0e-76f0 default 192.168.10.128 AP6050DN nor
0 4S
1 00e0-fcf2-3b00 00e0-fcf2-3b00 default 192.168.10.2 AP6050DN nor
0 4S
--------------------------------------------------------------------------------
---------------------
Total: 2七、将AP加入AP组
[AC1-wlan-view]ap-id 0 #将ap加入ap组
[AC1-wlan-ap-0]ap-name ap1
[AC1-wlan-ap-0]ap-group group1
Warning: This operation may cause AP reset. If the country code changes, it will
clear channel, power and antenna gain configurations of the radio, Whether to c
ontinue? [Y/N]:y
Info: This operation may take a few seconds. Please wait for a moment.. done.
[AC1-wlan-ap-0]quit
[AC1-wlan-view]ap-id 1
[AC1-wlan-ap-1]ap-name ap2
[AC1-wlan-ap-1]ap-group group1
Warning: This operation may cause AP reset. If the country code changes, it will
clear channel, power and antenna gain configurations of the radio, Whether to c
ontinue? [Y/N]:y

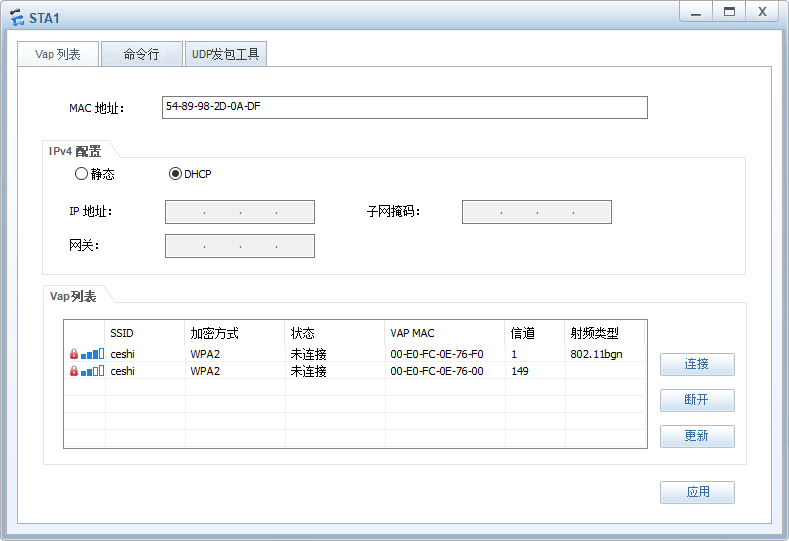

Info: This operation may take a few seconds. Please wait for a moment.. done.
