wifi:三个步骤 getting_started
partitions.csv
Name, Type, SubType, Offset, Size, Flags
Note: if you have increased the bootloader size, make sure to update the offsets to avoid overlap
nvs, data, nvs, , 0x4000,
otadata, data, ota, , 0x2000,
phy_init, data, phy, , 0x1000,
Original App Section
ota_0, app, ota_0, , 1800K,
New App Section
ota_1, app, ota_1, , 1800K,

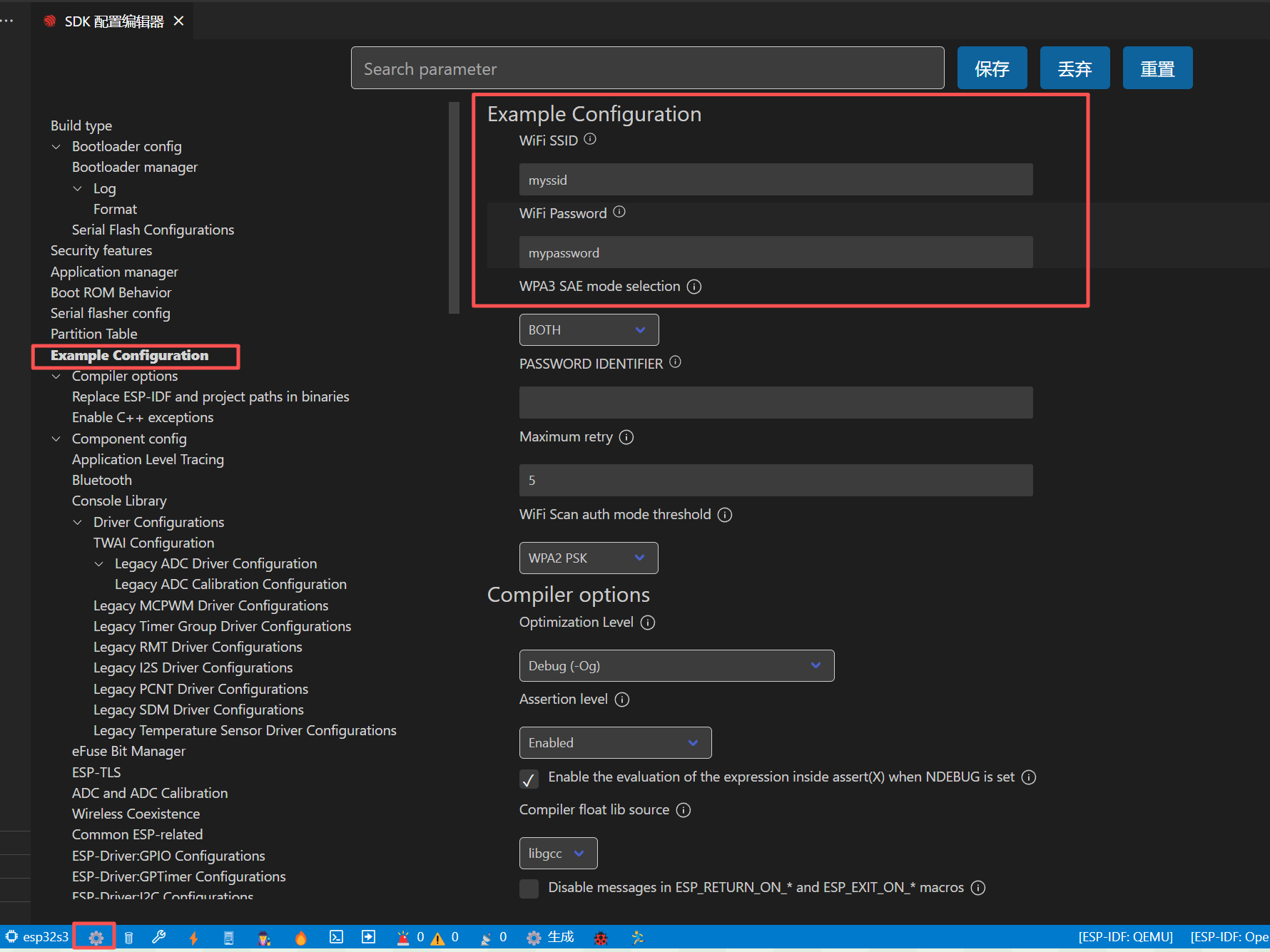

Kconfig.projbuildmenu "*****(自行取名) Configuration"
config ESP_WIFI_SSID
string "WiFi SSID"
default "myssid"
help
SSID (network name) for the example to connect to.
config ESP_WIFI_PASSWORD
string "WiFi Password"
default "mypassword"
help
WiFi password (WPA or WPA2) for the example to use.
choice ESP_WIFI_SAE_MODE
prompt "WPA3 SAE mode selection"
default ESP_WPA3_SAE_PWE_BOTH
help
Select mode for SAE as Hunt and Peck, H2E or both.
config ESP_WPA3_SAE_PWE_HUNT_AND_PECK
bool "HUNT AND PECK"
config ESP_WPA3_SAE_PWE_HASH_TO_ELEMENT
bool "H2E"
config ESP_WPA3_SAE_PWE_BOTH
bool "BOTH"
endchoice
config ESP_WIFI_PW_ID
string "PASSWORD IDENTIFIER"
depends on ESP_WPA3_SAE_PWE_HASH_TO_ELEMENT|| ESP_WPA3_SAE_PWE_BOTH
default ""
help
password identifier for SAE H2E
config ESP_MAXIMUM_RETRY
int "Maximum retry"
default 5
help
Set the Maximum retry to avoid station reconnecting to the AP unlimited when the AP is really inexistent.
choice ESP_WIFI_SCAN_AUTH_MODE_THRESHOLD
prompt "WiFi Scan auth mode threshold"
default ESP_WIFI_AUTH_WPA2_PSK
help
The weakest authmode to accept in the scan mode.
This value defaults to ESP_WIFI_AUTH_WPA2_PSK incase password is present and ESP_WIFI_AUTH_OPEN is used.
Please select ESP_WIFI_AUTH_WEP/ESP_WIFI_AUTH_WPA_PSK incase AP is operating in WEP/WPA mode.
config ESP_WIFI_AUTH_OPEN
bool "OPEN"
config ESP_WIFI_AUTH_WEP
bool "WEP"
config ESP_WIFI_AUTH_WPA_PSK
bool "WPA PSK"
config ESP_WIFI_AUTH_WPA2_PSK
bool "WPA2 PSK"
config ESP_WIFI_AUTH_WPA_WPA2_PSK
bool "WPA/WPA2 PSK"
config ESP_WIFI_AUTH_WPA3_PSK
bool "WPA3 PSK"
config ESP_WIFI_AUTH_WPA2_WPA3_PSK
bool "WPA2/WPA3 PSK"
config ESP_WIFI_AUTH_WAPI_PSK
bool "WAPI PSK"
endchoice
endmenu

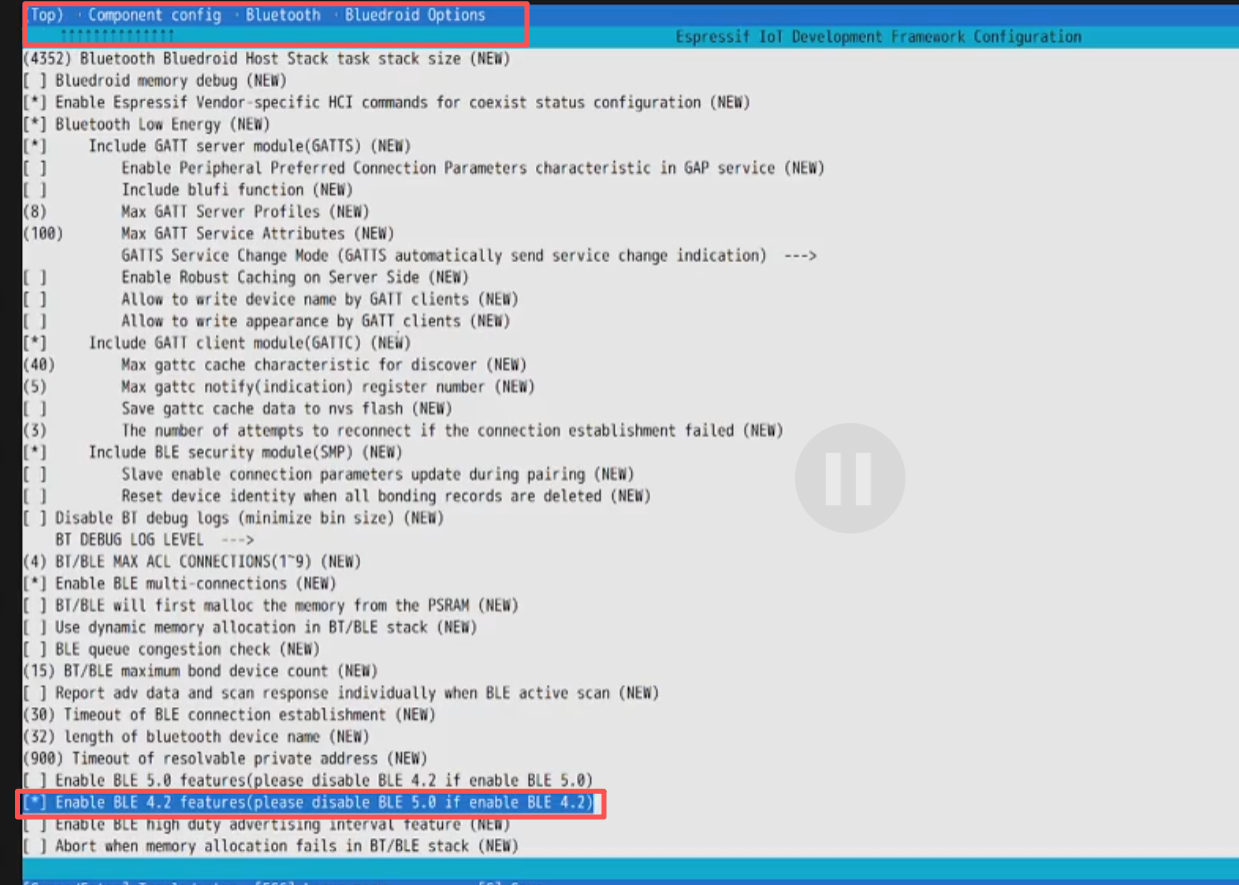

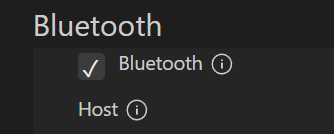

蓝牙：

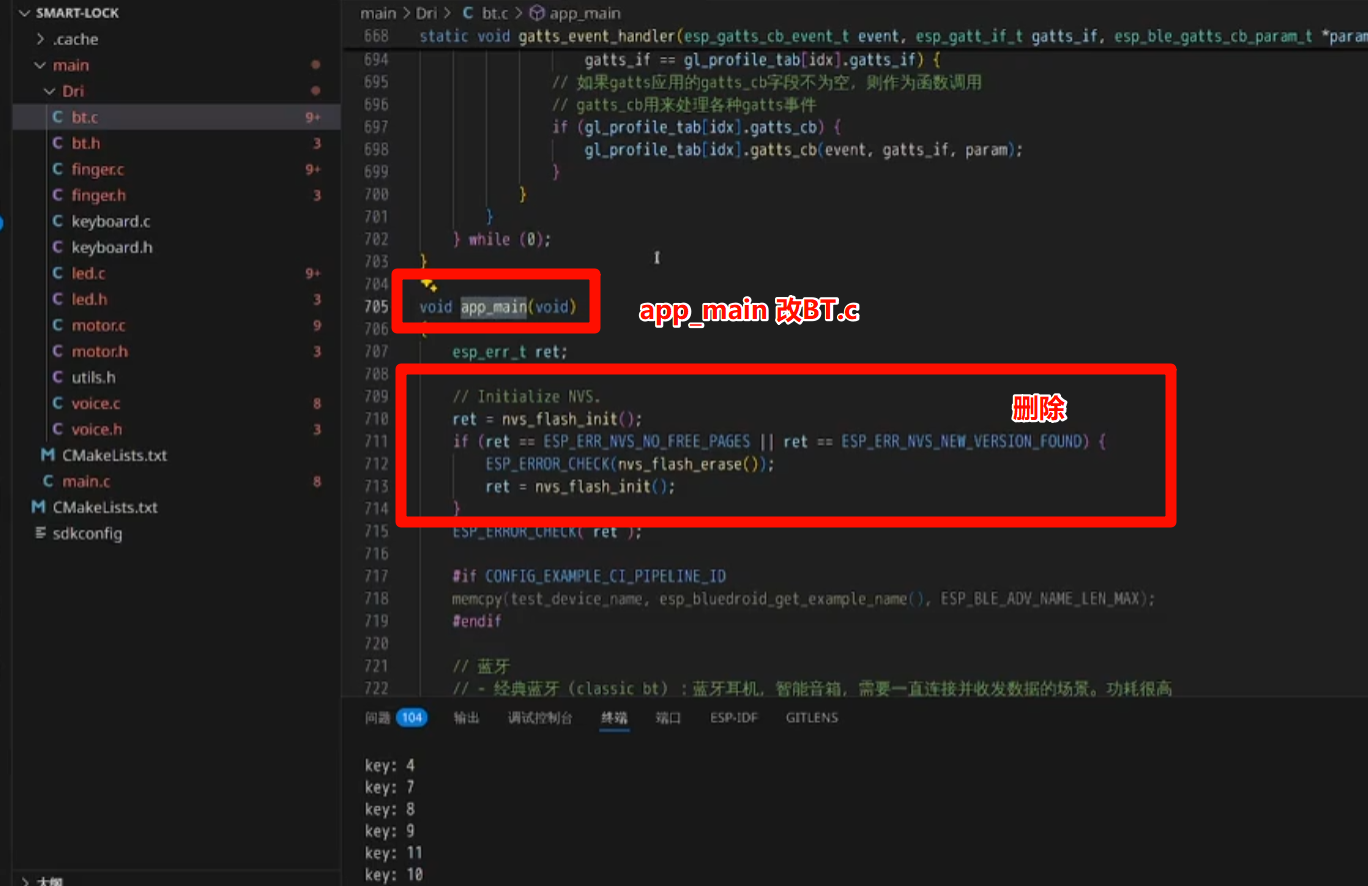

gatt_server
