微信小程序树形选择组件
一、介绍
目前支持式三级：例如省市区，有些着急，递归组件后续在进行研究修改
一切还要从PC的一张图说起，老板也想让小程序这样选择，我一个后端，一直扒拉组件，就是没找到，然后只能跟AI合作开发一个了（小程序这个写的组件，直接复制引入就行）

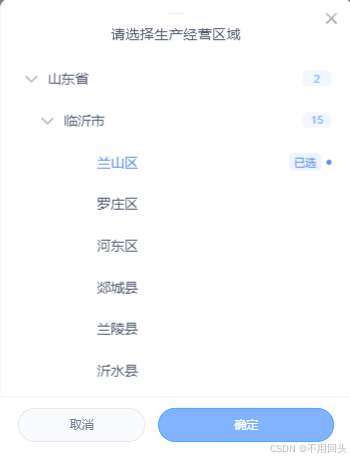

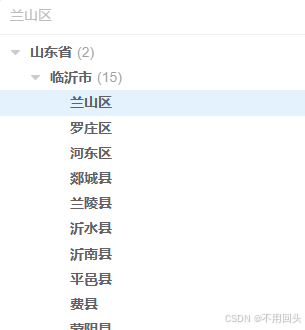

| PC | 小程序 |
|---|
|
u-popup组件地址：https://uviewui.com/components/popup.html
二、代码
1、主文件
主文件调用选择组件,form是要传给后台的对象，
placeholder是显示的提示，deptOptions是传给组件的树形结构(具体需要的参数格式见组件formatData方法)，handleDeptConfirm是确认方法deptOptions需要一个value（参数值），text（显示文本），children（子集）
value支持传入--->id,value,key
text支持传入--->label，text,name

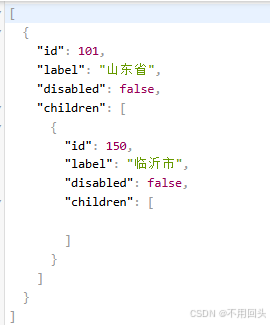

children支持传入--->children，sub例如：
[{"id":101,"label":"山东省","disabled":false,"children":[{"id":150,"label":"临沂市","disabled":false,"children":[]}]}]
bash
<dept-selector v-model="form.deptId" placeholder="请选择生产经营区域" :tree-data="deptOptions" @confirm="handleDeptConfirm" />
bash
methods: {
// 获取下拉数据
getOptions() {
// 获取区域树数据（我这是调用的接口进行赋值）
deptTreeSelect().then(response => {
// 如果数据格式不满足需要进行修改，可以从下面进行修改传入，也可以修改组件==》formatData方法
// const formatData = (list) => {
// if (!Array.isArray(list)) return [];
// return list.map(item => ({
// value: item.id + '',
// text: item.label || '',
// children: formatData(item.children)
// }));
// };
// this.deptOptions = formatData(response.data);
this.deptOptions = response.data;
});
},
// 区域选择组件
handleDeptConfirm(res) {
// 组件确认赋值
this.form.deptId = res.value
},
}2、调用组件
目前支持式三级：例如省市区
bash
<template>
<view class="dept-selector-container">
<!-- 输入框部分 -->
<view class="custom-picker-input" @click="handleInputClick">
<text class="picker-text" :class="{'placeholder': !displayText}">
{{ displayText || placeholder }}
</text>
<u-icon name="arrow-down" size="18" color="#A0AEC0" class="input-arrow"></u-icon>
</view>
<!-- 弹窗部分 -->
<u-popup :show="showPicker" mode="bottom" round="24" @close="handleClose" :closeOnClickOverlay="true"
bgColor="rgba(0,0,0,0.3)">
<view class="custom-picker-popup">
<view class="popup-header">
<view class="header-line"></view>
<text class="picker-title">{{ title }}</text>
</view>
<scroll-view class="picker-content" scroll-y @touchmove.stop>
<view class="dept-tree">
<!-- 加载中状态 -->
<view v-if="isLoading" class="loading-state">
<view class="loading-icon"></view>
<text class="loading-text">加载中...</text>
</view>
<!-- 空状态 -->
<view v-else-if="!formattedTreeData.length" class="empty-tree">
<u-icon name="file-text" size="60" color="#CBD5E1" class="empty-icon"></u-icon>
<text class="empty-text">{{ emptyText }}</text>
</view>
<!-- 树节点容器 -->
<view v-else class="dept-children">
<view v-for="node in formattedTreeData" :key="node.value" class="child-item">
<view class="child-item-wrap" @click="handleNodeClick(node)">
<!-- 展开/收起按钮 -->
<view class="expand-btn-wrap" @click.stop="toggleNodeExpand(node.value)"
v-if="node.hasChildren">
<u-icon :name="isNodeExpanded(node.value) ? 'arrow-down' : 'arrow-right'"
size="18" color="#94A3B8" class="expand-icon" />
</view>
<view class="expand-btn-placeholder" v-else></view>
<!-- 节点内容 -->
<view class="node-content">
<text class="child-name"
:class="{'selected': selectedNode && selectedNode.value === node.value}">
{{ node.text }}
</text>
<view class="node-meta">
<text v-if="node.hasChildren"
class="child-count">{{ node.children.length }}</text>
<text v-if="selectedNode && selectedNode.value === node.value"
class="selected-badge">已选</text>
</view>
</view>
</view>
<!-- 渲染子节点（一级） -->
<view v-if="isNodeExpanded(node.value) && node.children.length"
class="dept-children level-1">
<view v-for="child in node.children" :key="child.value" class="child-item">
<view class="child-item-wrap" @click="handleNodeClick(child)">
<view class="expand-btn-wrap" @click.stop="toggleNodeExpand(child.value)"
v-if="child.hasChildren">
<u-icon
:name="isNodeExpanded(child.value) ? 'arrow-down' : 'arrow-right'"
size="18" color="#94A3B8" class="expand-icon" />
</view>
<view class="expand-btn-placeholder" v-else></view>
<view class="node-content">
<text class="child-name"
:class="{'selected': selectedNode && selectedNode.value === child.value}">
{{ child.text }}
</text>
<view class="node-meta">
<text v-if="child.hasChildren"
class="child-count">{{ child.children.length }}</text>
<text v-if="selectedNode && selectedNode.value === child.value"
class="selected-badge">已选</text>
</view>
</view>
</view>
<!-- 渲染子节点（二级） -->
<view v-if="isNodeExpanded(child.value) && child.children.length"
class="dept-children level-2">
<view v-for="subChild in child.children" :key="subChild.value"
class="child-item">
<view class="child-item-wrap" @click="handleNodeClick(subChild)">
<view class="expand-btn-placeholder"></view>
<view class="node-content">
<text class="child-name"
:class="{'selected': selectedNode && selectedNode.value === subChild.value}">
{{ subChild.text }}
</text>
<view class="node-meta">
<text
v-if="selectedNode && selectedNode.value === subChild.value"
class="selected-badge">已选</text>
</view>
</view>
</view>
</view>
</view>
</view>
</view>
</view>
</view>
</view>
</scroll-view>
<view class="picker-footer">
<view class="footer-actions">
<u-button type="default" text="取消" @click="handleCancel" shape="circle"
customStyle="width: 40%;background: #F8FAFC;color: #718096;border: 1px solid #E2E8F0;"></u-button>
<u-button type="primary" text="确定" @click="handleConfirm" shape="circle"
customStyle="width: 55%;background: #81B3FF;" :disabled="!selectedNode"></u-button>
</view>
</view>
</view>
</u-popup>
</view>
</template>
<script>
export default {
name: 'deptSelector',
props: {
// 选中的值
value: {
type: [String, Number, Boolean],
default: ''
},
// 显示的选中文本
selectedText: {
type: String,
default: ''
},
// 输入框占位符
placeholder: {
type: String,
default: '请选择生产经营区域'
},
// 弹窗标题
title: {
type: String,
default: '请选择生产经营区域'
},
// 空数据提示文本
emptyText: {
type: String,
default: '暂无区域数据'
},
// 树形数据源
treeData: {
type: Array,
default: () => []
},
// 显示连接符
connect: {
type: String,
default: ' '
}
},
data() {
return {
showPicker: false,
selectedNode: null, // 当前选中的节点对象
formattedTreeData: [], // 格式化后的树形数据
isLoading: false,
expandedNodes: [], // 已展开节点的value数组
treeDataCache: null, // 原始数据缓存
tempSelectedNode: null, // 临时选中节点（避免取消时残留）
}
},
computed: {
// 计算显示文本
displayText() {
if (this.selectedText) return this.selectedText;
if (!this.selectedNode) return '';
// 查找节点路径
const result = this.findNodeAndPath(this.selectedNode.value, this.formattedTreeData);
return result ? result.path.map(item => item.text).join(this.connect) : this.selectedNode.text;
}
},
watch: {
// 监听value属性变化
value: {
immediate: true,
handler(newVal) {
const stringValue = this.safeToString(newVal);
if (stringValue !== (this.selectedNode ? this.selectedNode.value : '')) {
this.updateSelectedNode(stringValue);
}
}
},
// 监听treeData变化
treeData: {
immediate: true,
deep: true,
async handler(newVal) {
// 浅对比+长度判断
const isDataChanged = !this.treeDataCache ||
newVal.length !== this.treeDataCache.length ||
newVal.some((item, idx) => item.id !== this.treeDataCache[idx]?.id);
if (isDataChanged) {
await this.loadTreeData();
this.treeDataCache = JSON.parse(JSON.stringify(newVal));
}
}
},
// 监听selectedText变化，确保displayText实时更新
selectedText: {
immediate: true,
handler() {
// 触发computed重新计算
this.$forceUpdate();
}
}
},
methods: {
// 输入框点击事件
async handleInputClick() {
this.showPicker = true;
// 缓存当前选中状态，取消时恢复
this.tempSelectedNode = this.selectedNode ? {
...this.selectedNode
} : null;
// 如果还没有加载数据，则加载
if (!this.formattedTreeData.length && !this.isLoading) {
await this.loadTreeData();
}
},
// 安全转换为字符串
safeToString(value) {
if (value === undefined || value === null) return '';
// 布尔值特殊处理：避免false转为"false"
if (typeof value === 'boolean') return value ? 'true' : '';
return String(value);
},
// 加载树数据
async loadTreeData() {
this.isLoading = true;
try {
if (!this.treeData || !Array.isArray(this.treeData)) {
this.formattedTreeData = [];
return;
}
this.formattedTreeData = this.formatData(this.treeData);
// 如果有初始值，设置选中节点
if (this.value) {
this.updateSelectedNode(this.safeToString(this.value));
}
} catch (error) {
this.formattedTreeData = [];
uni.showToast({
title: "加载区域数据失败，请稍后重试",
icon: 'none',
duration: 2000
});
} finally {
this.isLoading = false;
}
},
// 格式化数据
formatData(data) {
if (!Array.isArray(data)) return [];
return data.map(item => {
const value = String(item.id || item.value || item.key ||
`temp_${Date.now()}_${Math.random().toString(36).slice(2)}`);
return {
value,
text: item.label || item.text || item.name || '未知区域',
children: this.formatData(item.children || item.sub || []),
hasChildren: (item.children || item.sub || []).length > 0
};
});
},
// 更新选中节点
updateSelectedNode(value) {
if (!value || !this.formattedTreeData.length) {
this.selectedNode = null;
return;
}
const result = this.findNodeAndPath(value, this.formattedTreeData);
if (result) {
this.selectedNode = result.node;
// 自动展开父节点
result.path.forEach(item => {
if (item.hasChildren && !this.expandedNodes.includes(item.value)) {
this.expandedNodes.push(item.value);
}
});
} else {
this.selectedNode = null;
}
},
// 查找节点和路径
findNodeAndPath(deptId, treeData, path = [], depth = 0) {
// 防止递归栈溢出，限制最大深度5
if (depth >= 5) return null;
for (const node of treeData) {
if (String(node.value) === String(deptId)) {
return {
node,
path: [...path, node]
};
}
if (node.hasChildren && node.children.length) {
const found = this.findNodeAndPath(deptId, node.children, [...path, node], depth + 1);
if (found) return found;
}
}
return null;
},
// 检查节点是否已展开
isNodeExpanded(nodeValue) {
return this.expandedNodes.includes(nodeValue);
},
// 切换节点展开/收起
toggleNodeExpand(nodeValue) {
const index = this.expandedNodes.indexOf(nodeValue);
if (index > -1) {
this.expandedNodes.splice(index, 1);
} else {
this.expandedNodes.push(nodeValue);
}
},
// 节点点击事件
handleNodeClick(node) {
this.selectedNode = node;
},
// 关闭弹窗（清理临时状态）
handleClose() {
this.showPicker = false;
this.selectedNode = this.tempSelectedNode;
this.tempSelectedNode = null;
},
// 取消选择（恢复原状态）
handleCancel() {
this.selectedNode = this.tempSelectedNode;
this.tempSelectedNode = null;
this.showPicker = false;
},
// 确认选择
handleConfirm() {
if (!this.selectedNode) {
uni.showToast({
title: "请选择生产经营区域",
icon: 'none',
duration: 2000
});
return;
}
this.$emit('confirm', {
value: this.selectedNode.value,
text: this.displayText,
node: this.selectedNode
});
this.tempSelectedNode = null;
this.showPicker = false;
}
}
}
</script>
<style lang="scss" scoped>
.dept-selector-container {
position: relative;
width: 100%;
}
.custom-picker-input {
background-color: #FAFBFC;
border-radius: 12rpx;
border: 1.5rpx solid #E9EDF3;
padding: 24rpx 28rpx;
height: auto;
min-height: 96rpx;
display: flex;
align-items: center;
justify-content: space-between;
width: 100%;
box-sizing: border-box;
transition: all 0.25s ease;
cursor: pointer;
&:active {
background-color: #F5F7FA;
border-color: #D1DBE8;
}
}
.picker-text {
font-size: 30rpx;
color: #4A5568;
flex: 1;
overflow: hidden;
text-overflow: ellipsis;
white-space: nowrap;
font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', sans-serif;
&.placeholder {
color: #A0AEC0;
}
}
.input-arrow {
transition: transform 0.3s ease;
margin-left: 12rpx;
}
.custom-picker-popup {
width: 100%;
background: #FFFFFF;
border-radius: 24rpx 24rpx 0 0;
position: relative;
overflow: hidden;
&::before {
content: '';
position: absolute;
top: 0;
left: 0;
right: 0;
height: 60rpx;
background: linear-gradient(180deg, rgba(255, 255, 255, 0.95) 0%, transparent 100%);
z-index: 1;
}
.popup-header {
padding: 32rpx 36rpx 24rpx;
text-align: center;
position: relative;
background: #FFFFFF;
.header-line {
width: 36rpx;
height: 4rpx;
background: #D8E0EB;
border-radius: 2rpx;
margin: 0 auto 20rpx;
opacity: 0.6;
}
.picker-title {
font-size: 32rpx;
font-weight: 500;
color: #4A5568;
font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', sans-serif;
}
}
.picker-content {
max-height: 60vh;
min-height: 300rpx;
padding: 10rpx 20rpx 20rpx;
position: relative;
z-index: 2;
.loading-state {
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
padding: 80rpx 0;
.loading-icon {
width: 36rpx;
height: 36rpx;
border: 3rpx solid #F0F4F8;
border-top-color: #81B3FF;
border-radius: 50%;
animation: loading 1s ease-in-out infinite;
}
.loading-text {
font-size: 28rpx;
color: #A0AEC0;
margin-top: 16rpx;
}
}
.empty-tree {
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
padding: 100rpx 0;
.empty-icon {
opacity: 0.5;
margin-bottom: 16rpx;
}
.empty-text {
font-size: 28rpx;
color: #CBD5E1;
}
}
.dept-children {
width: 100%;
&.level-1 {
padding-left: 36rpx;
}
&.level-2 {
padding-left: 72rpx;
}
.child-item {
width: 100%;
.child-item-wrap {
display: flex;
align-items: center;
padding: 20rpx 24rpx;
width: 100%;
box-sizing: border-box;
border-radius: 8rpx;
cursor: pointer;
margin: 2rpx 0;
&:active {
background-color: #F7F9FC;
}
}
.expand-btn-wrap {
display: flex;
align-items: center;
justify-content: center;
width: 48rpx;
height: 48rpx;
margin-right: 12rpx;
cursor: pointer;
border-radius: 8rpx;
position: relative;
&::before {
content: '';
position: absolute;
top: -8rpx;
left: -8rpx;
right: -8rpx;
bottom: -8rpx;
}
&:active {
background-color: #F0F4F8;
}
}
.expand-btn-placeholder {
width: 48rpx;
height: 48rpx;
margin-right: 12rpx;
}
.node-content {
flex: 1;
display: flex;
align-items: center;
justify-content: space-between;
}
.child-name {
font-size: 30rpx;
color: #4A5568;
font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', sans-serif;
line-height: 1.4;
&.selected {
color: #5B8DF5;
font-weight: 500;
}
}
.node-meta {
display: flex;
gap: 12rpx;
align-items: center;
.child-count {
font-size: 24rpx;
color: #81B3FF;
background: rgba(129, 179, 255, 0.1);
padding: 4rpx 12rpx;
border-radius: 12rpx;
min-width: 40rpx;
text-align: center;
font-weight: 500;
}
.selected-badge {
font-size: 24rpx;
color: #5B8DF5;
background: rgba(91, 141, 245, 0.1);
padding: 4rpx 12rpx;
border-radius: 12rpx;
font-weight: 500;
}
}
.expand-icon {
transition: transform 0.3s ease;
&[name="arrow-down"] {
transform: rotate(0deg);
}
&[name="arrow-right"] {
transform: rotate(-90deg);
}
}
}
}
}
.picker-footer {
padding: 24rpx 36rpx 40rpx;
position: relative;
z-index: 3;
background: #FFFFFF;
border-top: 1rpx solid #F0F4F8;
.footer-actions {
display: flex;
justify-content: space-between;
gap: 20rpx;
.u-button {
height: 88rpx;
font-size: 30rpx;
font-weight: 500;
transition: all 0.2s ease;
&[type="default"] {
&:active {
background: #F0F4F8 !important;
transform: scale(0.98);
}
}
&[type="primary"] {
&:active {
opacity: 0.9;
transform: scale(0.98);
}
}
}
}
}
}
// 移出scoped，解决动画失效问题
@keyframes loading {
0% {
transform: rotate(0deg);
}
100% {
transform: rotate(360deg);
}
}
</style>
