【flowable专栏】网关类型

小菜鸡ps2025-12-29 16:18

1.排他网关（Exclusive Gateway）

这个可以说是我们最最最常用的一个网关了，实际上可以理解为if-else。

常见场景：金额报销

注意：条件可以有多个，但是为true的情况必须要有且只能有一个，否则会报错。

建议：添加一个默认的路径，防止全false的情况。

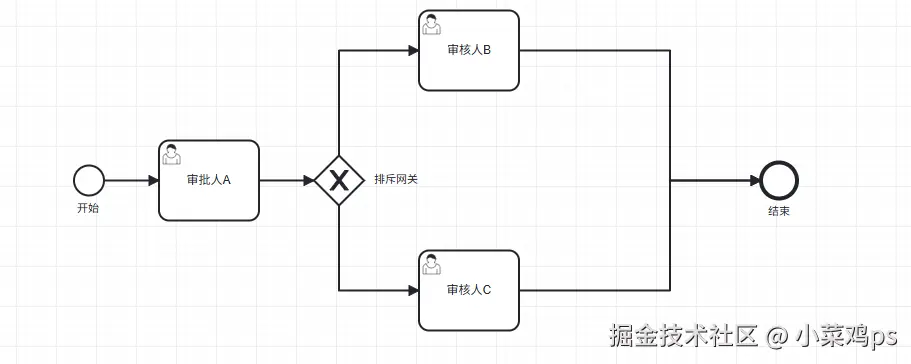

例子：

xml 复制代码
<process id="flow_fxbn4kjb" name="flow_mdrr27se">
    <startEvent id="start_event" name="开始">
      <outgoing>Flow_0dso2ii</outgoing>
    </startEvent>
    <userTask id="Activity_1b7dkwh" name="审批人A">
      <incoming>Flow_0dso2ii</incoming>
      <outgoing>Flow_1h46vbf</outgoing>
    </userTask>
    <sequenceFlow id="Flow_0dso2ii" sourceRef="start_event" targetRef="Activity_1b7dkwh" />
    <exclusiveGateway id="Gateway_0gs8sp7" name="排斥网关">
      <incoming>Flow_1h46vbf</incoming>
      <outgoing>Flow_09abes7</outgoing>
      <outgoing>Flow_0xb14rh</outgoing>
    </exclusiveGateway>
    <sequenceFlow id="Flow_1h46vbf" sourceRef="Activity_1b7dkwh" targetRef="Gateway_0gs8sp7" />
    <userTask id="Activity_1ugsmv9" name="审核人B">
      <incoming>Flow_09abes7</incoming>
      <outgoing>Flow_0guuy54</outgoing>
    </userTask>
    <sequenceFlow id="Flow_09abes7" sourceRef="Gateway_0gs8sp7" targetRef="Activity_1ugsmv9">
      <conditionExpression xsi:type="tFormalExpression">${amount &amp;lt; 1000}</conditionExpression>
    </sequenceFlow>
    <userTask id="Activity_1g0kati" name="审核人C">
      <incoming>Flow_0xb14rh</incoming>
      <outgoing>Flow_17yxqht</outgoing>
    </userTask>
    <sequenceFlow id="Flow_0xb14rh" sourceRef="Gateway_0gs8sp7" targetRef="Activity_1g0kati">
      <conditionExpression xsi:type="tFormalExpression">${amount &amp;gt;= 1000}</conditionExpression>
    </sequenceFlow>
    <endEvent id="Event_00bedoo" name="结束">
      <incoming>Flow_0guuy54</incoming>
      <incoming>Flow_17yxqht</incoming>
    </endEvent>
    <sequenceFlow id="Flow_0guuy54" sourceRef="Activity_1ugsmv9" targetRef="Event_00bedoo" />
    <sequenceFlow id="Flow_17yxqht" sourceRef="Activity_1g0kati" targetRef="Event_00bedoo" />
  </process>

2.并行网关（Parallel Gateway）

简单来说，就是先分叉再相聚，所有路线一起走，最后等待全部到齐再往后走。

ps:不是说一定要有一个分叉和聚合得并行网关，但是更推荐这样。

并行网关机制：内置计数器，等所有分支都到达才放行一次。

下面分几种情况分析：

不用网关，汇聚点是任务节点，会执行多次，按照先后顺序。

排斥网关，无计数器，每条分支到达都判断条件，满足即放行 → 后续可能执行多次。

唯一可用场景：后续节点是无状态通知（发邮件、发短信），重复执行无影响。

包容网关，内置活跃分支计数器，等所有活跃分支到达才放行一次，可模拟并行网关。但 性能略差（包容网关计算更复杂），无实际收益。

事件网关,只能聚合捕获事件，谁先到谁走，其他事件自动失效。

适用场景：B 和 C 谁先完成，就走谁的后续逻辑，互斥，不汇总。

总的来说，最好还是按照规范来，这样才是最好的实现方案。

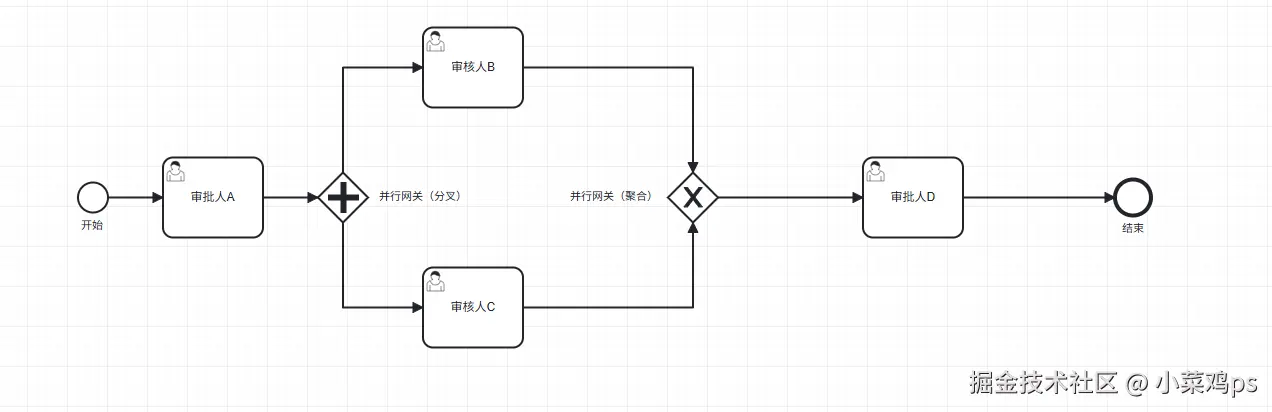

例子：

xml 复制代码
<process id="flow_fxbn4kjb" name="flow_mdrr27se">
    <startEvent id="start_event" name="开始">
      <outgoing>Flow_0dso2ii</outgoing>
    </startEvent>
    <userTask id="Activity_1b7dkwh" name="审批人A">
      <incoming>Flow_0dso2ii</incoming>
      <outgoing>Flow_1h46vbf</outgoing>
    </userTask>
    <sequenceFlow id="Flow_0dso2ii" sourceRef="start_event" targetRef="Activity_1b7dkwh" />
    <sequenceFlow id="Flow_1h46vbf" sourceRef="Activity_1b7dkwh" targetRef="Gateway_0gs8sp7" />
    <userTask id="Activity_1ugsmv9" name="审核人B">
      <incoming>Flow_09abes7</incoming>
      <outgoing>Flow_1xq7lef</outgoing>
    </userTask>
    <sequenceFlow id="Flow_09abes7" sourceRef="Gateway_0gs8sp7" targetRef="Activity_1ugsmv9" />
    <userTask id="Activity_1g0kati" name="审核人C">
      <incoming>Flow_0xb14rh</incoming>
      <outgoing>Flow_1yb8tzu</outgoing>
    </userTask>
    <sequenceFlow id="Flow_0xb14rh" sourceRef="Gateway_0gs8sp7" targetRef="Activity_1g0kati" />
    <parallelGateway id="Gateway_0gs8sp7" name="并行网关（分叉）">
      <incoming>Flow_1h46vbf</incoming>
      <outgoing>Flow_09abes7</outgoing>
      <outgoing>Flow_0xb14rh</outgoing>
    </parallelGateway>
    <exclusiveGateway id="Gateway_0rgnps9" name="并行网关（聚合）">
      <incoming>Flow_1xq7lef</incoming>
      <incoming>Flow_1yb8tzu</incoming>
      <outgoing>Flow_0ue04bt</outgoing>
    </exclusiveGateway>
    <sequenceFlow id="Flow_1xq7lef" sourceRef="Activity_1ugsmv9" targetRef="Gateway_0rgnps9" />
    <sequenceFlow id="Flow_1yb8tzu" sourceRef="Activity_1g0kati" targetRef="Gateway_0rgnps9" />
    <userTask id="Activity_1bmja5f" name="审批人D">
      <incoming>Flow_0ue04bt</incoming>
      <outgoing>Flow_1mgv6yk</outgoing>
    </userTask>
    <sequenceFlow id="Flow_0ue04bt" sourceRef="Gateway_0rgnps9" targetRef="Activity_1bmja5f" />
    <endEvent id="Event_10q405i" name="结束">
      <incoming>Flow_1mgv6yk</incoming>
    </endEvent>
    <sequenceFlow id="Flow_1mgv6yk" sourceRef="Activity_1bmja5f" targetRef="Event_10q405i" />
  </process>

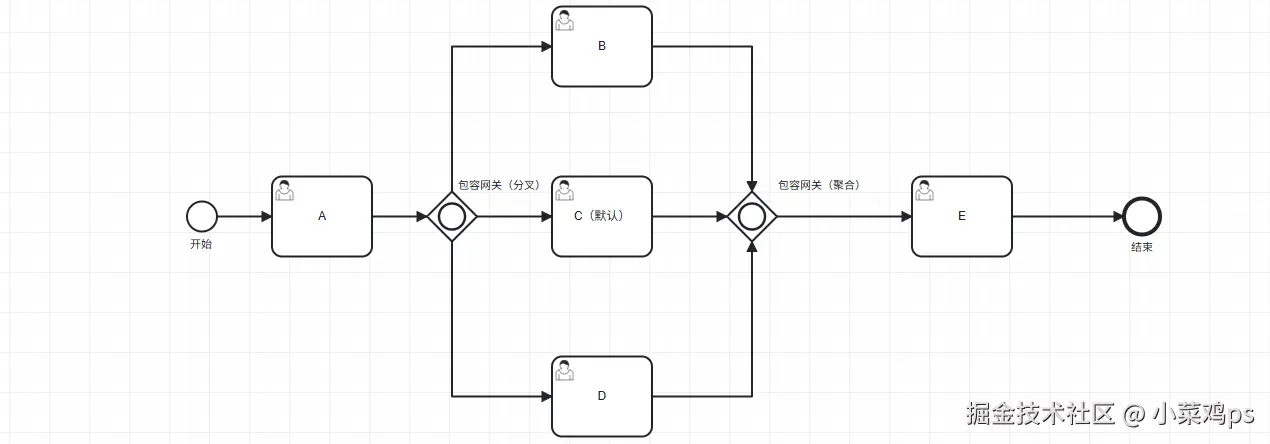

3.包容网关（Inclusive Gateway）

简单来说，就是符合条件的都一起走，最后等待所有活跃分支聚合再往后走。

ps：聚合网关会自动统计实际走了几条，无需手动维护计数器。

部分代码：

复制代码
    <startEvent id="start_event" name="开始">
      <outgoing>Flow_1v1pr17</outgoing>
    </startEvent>
    <userTask id="Activity_0u17ax3" name="A">
      <incoming>Flow_1v1pr17</incoming>
      <outgoing>Flow_1t6ea6k</outgoing>
    </userTask>
    <sequenceFlow id="Flow_1v1pr17" sourceRef="start_event" targetRef="Activity_0u17ax3" />
    <sequenceFlow id="Flow_1t6ea6k" sourceRef="Activity_0u17ax3" targetRef="Gateway_0dxg1cd" />
    <inclusiveGateway id="Gateway_0dxg1cd" name="包容网关（分叉）">
      <incoming>Flow_1t6ea6k</incoming>
      <outgoing>Flow_1bg6ule</outgoing>
      <outgoing>Flow_1fu8vbk</outgoing>
      <outgoing>Flow_1rtdmr0</outgoing>
    </inclusiveGateway>
    <userTask id="Activity_0pk0yx4" name="B">
      <incoming>Flow_1bg6ule</incoming>
      <outgoing>Flow_03pazic</outgoing>
    </userTask>
    <sequenceFlow id="Flow_1bg6ule" sourceRef="Gateway_0dxg1cd" targetRef="Activity_0pk0yx4">
      <conditionExpression xsi:type="tFormalExpression">${num &amp;gt; 100}</conditionExpression>
    </sequenceFlow>
    <userTask id="Activity_11j4upm" name="C">
      <incoming>Flow_1fu8vbk</incoming>
      <outgoing>Flow_1wa18oz</outgoing>
    </userTask>
    <sequenceFlow id="Flow_1fu8vbk" sourceRef="Gateway_0dxg1cd" targetRef="Activity_11j4upm">
      <conditionExpression xsi:type="tFormalExpression">${num &amp;le; 0}</conditionExpression>
    </sequenceFlow>
    <userTask id="Activity_0578vsx" name="D">
      <incoming>Flow_1rtdmr0</incoming>
      <outgoing>Flow_03k6sdm</outgoing>
    </userTask>
    <sequenceFlow id="Flow_1rtdmr0" sourceRef="Gateway_0dxg1cd" targetRef="Activity_0578vsx">
      <conditionExpression xsi:type="tFormalExpression">${num &amp;lt; 100}</conditionExpression>
    </sequenceFlow>
    <sequenceFlow id="Flow_1wa18oz" sourceRef="Activity_11j4upm" targetRef="Gateway_05le2zp" />
    <inclusiveGateway id="Gateway_05le2zp" name="包容网关（聚合）">
      <incoming>Flow_1wa18oz</incoming>
      <incoming>Flow_03pazic</incoming>
      <incoming>Flow_03k6sdm</incoming>
      <outgoing>Flow_1i51oo7</outgoing>
    </inclusiveGateway>
    <sequenceFlow id="Flow_03pazic" sourceRef="Activity_0pk0yx4" targetRef="Gateway_05le2zp" />
    <sequenceFlow id="Flow_03k6sdm" sourceRef="Activity_0578vsx" targetRef="Gateway_05le2zp" />
    <userTask id="Activity_0jpa4wc" name="E">
      <incoming>Flow_1i51oo7</incoming>
      <outgoing>Flow_1wtf8oo</outgoing>
    </userTask>
    <sequenceFlow id="Flow_1i51oo7" sourceRef="Gateway_05le2zp" targetRef="Activity_0jpa4wc" />
    <endEvent id="Event_1eisxie" name="结束">
      <incoming>Flow_1wtf8oo</incoming>
    </endEvent>
    <sequenceFlow id="Flow_1wtf8oo" sourceRef="Activity_0jpa4wc" targetRef="Event_1eisxie" />
  </process>

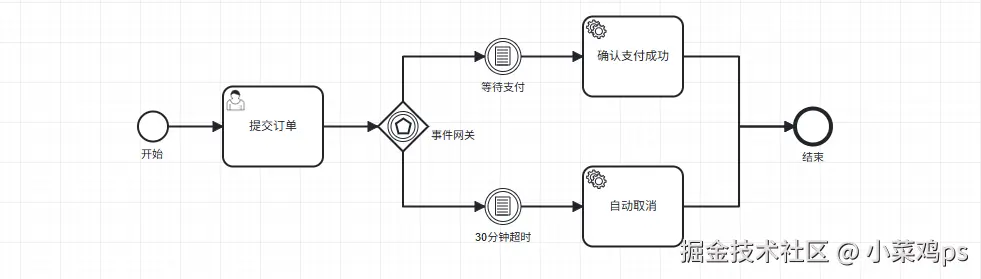

4.事件网关（Event-Based Gateway）

简单来说，就是谁先发生就谁生效，其他事件不生效。

注意:

A 事件网关后只能跟捕获事件（）

B 一旦某个事件触发，其他事件自动失效

C 不能与 userTask 直连。

部分代码：

xml 复制代码
<process id="orderPayment" name="订单支付处理" isExecutable="true">
    <startEvent id="start"/>
    <sequenceFlow sourceRef="start" targetRef="apply"/>

    <!-- 2. 用户下单 -->
    <userTask id="apply" name="提交订单" flowable:assignee="${userId}"/>
    <sequenceFlow sourceRef="apply" targetRef="eventGate"/>

    <!-- 3. 事件网关：等待第一个发生的事件 -->
    <eventBasedGateway id="eventGate"/>
    <sequenceFlow sourceRef="eventGate" targetRef="waitPayment"/>
    <sequenceFlow sourceRef="eventGate" targetRef="waitTimeout"/>

    <!-- 4. 消息事件：等待支付回调 -->
    <intermediateCatchEvent id="waitPayment" name="等待支付">
      <messageEventDefinition messageRef="msgPaymentSuccess"/>
    </intermediateCatchEvent>
    <sequenceFlow sourceRef="waitPayment" targetRef="confirmPayment"/>
    <serviceTask id="confirmPayment" name="确认支付成功"
                 flowable:delegateExpression="${confirmPaymentDelegate}"/>
    <sequenceFlow sourceRef="confirmPayment" targetRef="end1"/>
    <endEvent id="end1"/>

    <!-- 5. 定时器事件：30分钟超时 -->
    <intermediateCatchEvent id="waitTimeout" name="30分钟超时">
      <timerEventDefinition>
        <timeDuration>PT30M</timeDuration>
      </timerEventDefinition>
    </intermediateCatchEvent>
    <sequenceFlow sourceRef="waitTimeout" targetRef="autoCancel"/>
    <serviceTask id="autoCancel" name="自动取消订单"
                 flowable:delegateExpression="${cancelOrderDelegate}"/>
    <sequenceFlow sourceRef="autoCancel" targetRef="end2"/>
    <endEvent id="end2"/>
  </process>

5.小结

排他 = if-else

并行 = fork-join

包容 = if-else 且 可以多条 true

事件 = 等谁先发生（只能连捕获）
