背景需求：

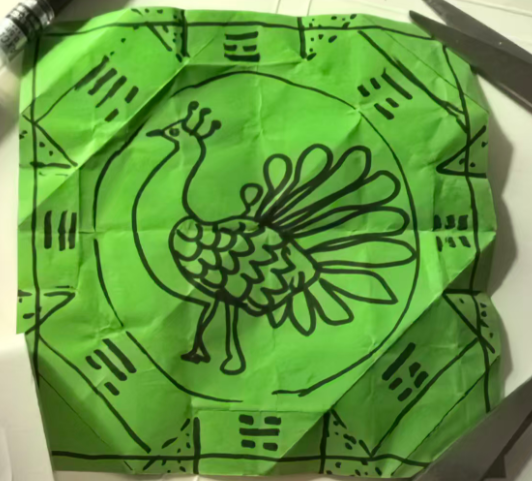

去年中2班做了圆镜和方形，幼儿裁剪和绘画图案。
【教学类-70-03】20241121中2班幼儿制作"圆镜和方镜"（适配5CM圆镜）通义万相花边图案
https://mp.csdn.net/mp_blog/creation/editor/143951841

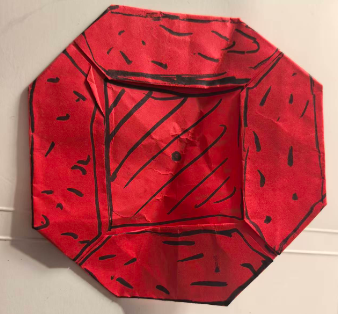

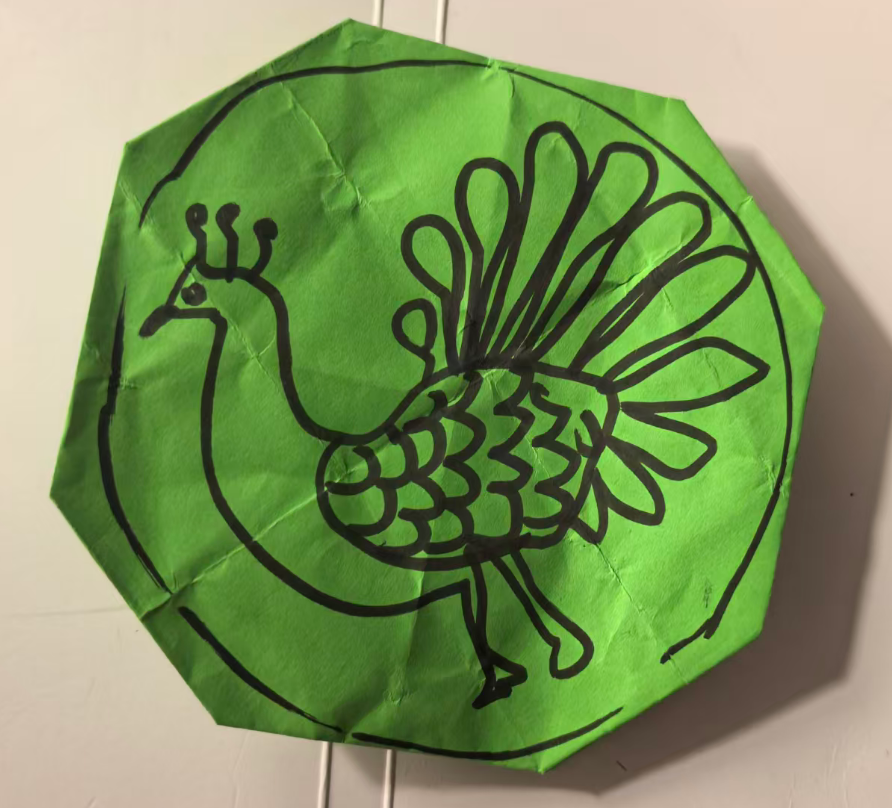

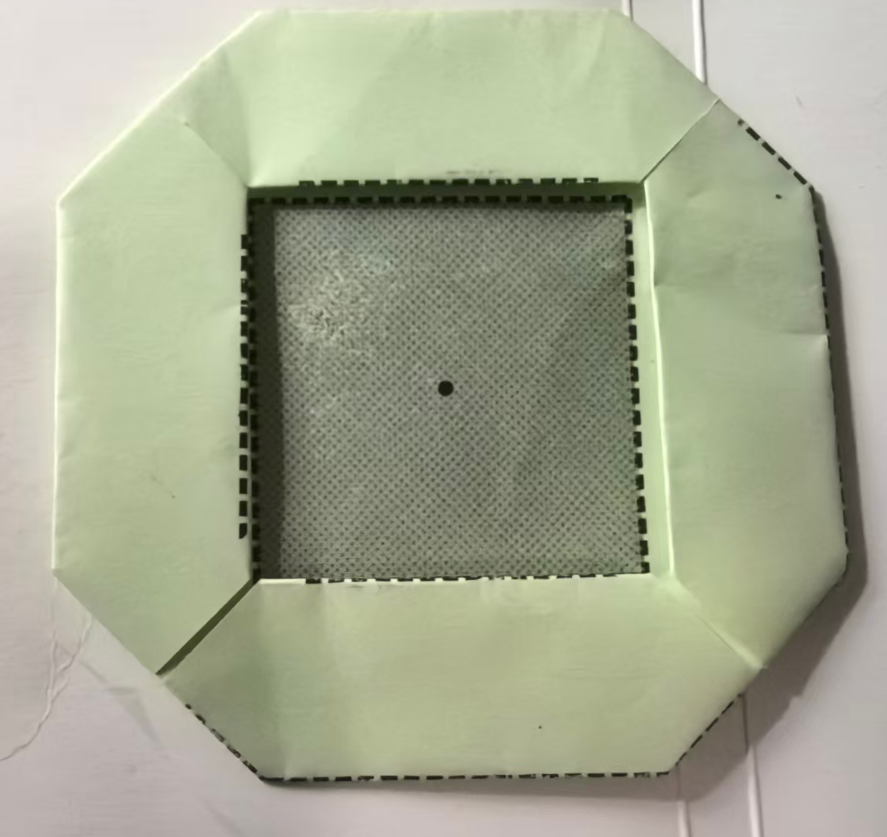

但是今年我们是小2班，幼儿不适合集体用剪刀，所以我想用手工纸15CM，做一个八边形的镜子。

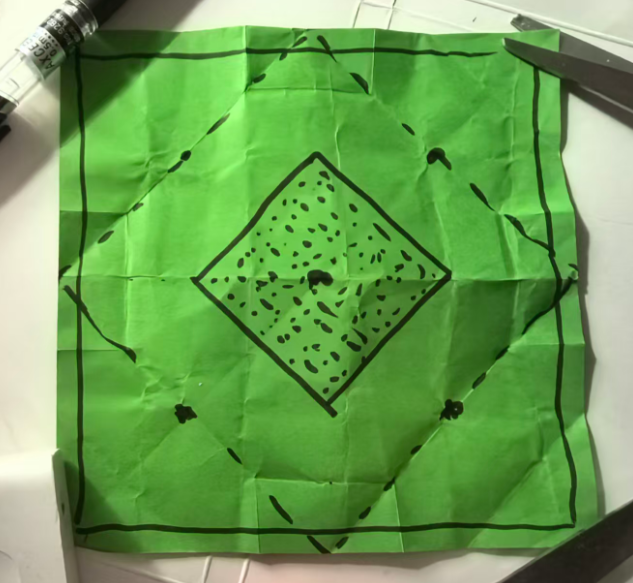

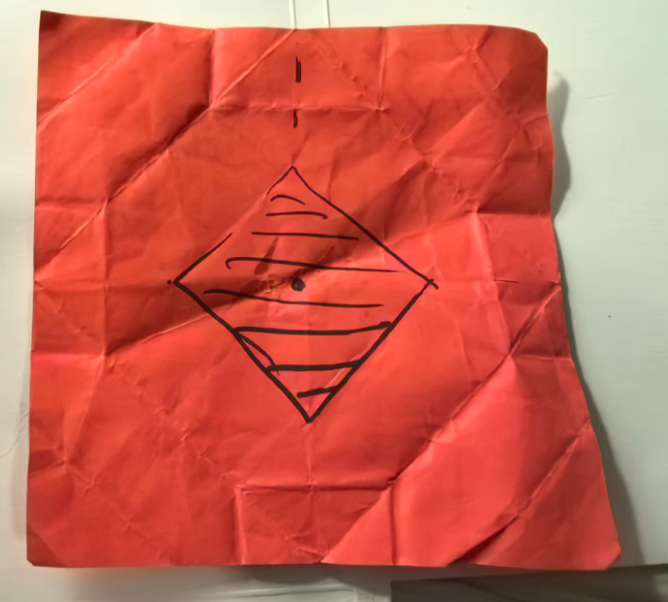

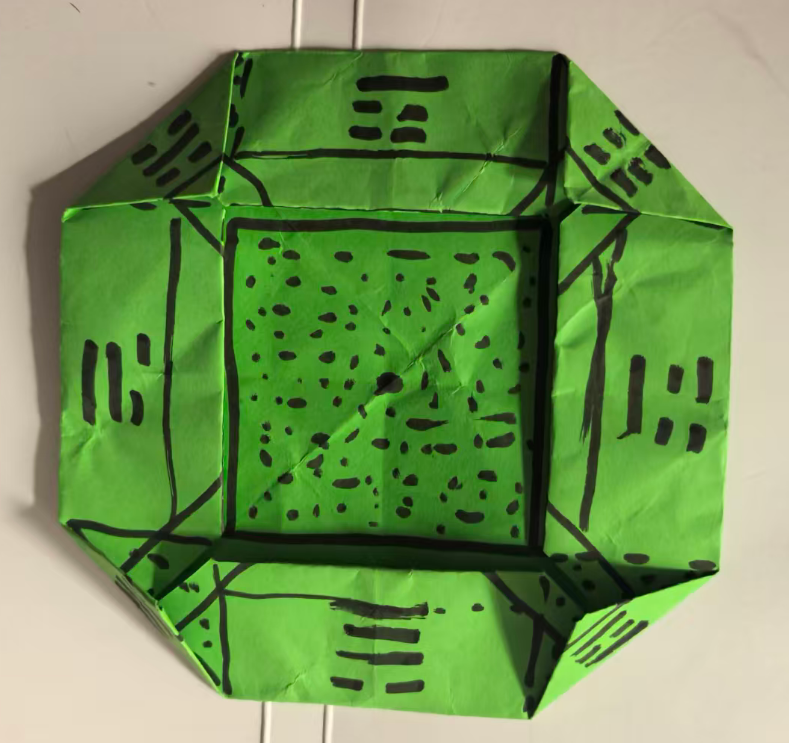

一、图纸设计
代码过程
第1稿图纸
python
复制代码
'''
折纸镜子（相框样式）正面1.0
Deepseek，豆包，阿夏
20251220
'''
from PIL import Image, ImageDraw
# 创建白色背景图片
image_size = 1500
image = Image.new('RGB', (image_size, image_size), 'white')
draw = ImageDraw.Draw(image)
# 定义菱形的四个顶点（都在四边中点）
points = [
(image_size // 2, 0), # 上中点
(image_size, image_size // 2), # 右中点
(image_size // 2, image_size), # 下中点
(0, image_size // 2) # 左中点
]
line_width = 10
dash_pattern = [20, 10] # [实线长度, 间隔长度]
gray_color = (192, 192, 192) # 灰色
# 绘制菱形的四条虚线边
def draw_dashed_polygon(draw, points, width, pattern):
"""绘制虚线多边形"""
# 将点列表闭合（添加第一个点到末尾）
closed_points = points + [points[0]]
for i in range(len(points)):
start = closed_points[i]
end = closed_points[i+1]
# 计算线段长度
dx = end[0] - start[0]
dy = end[1] - start[1]
length = ((dx**2 + dy**2) ** 0.5)
if length == 0:
continue
# 单位向量
ux = dx / length
uy = dy / length
# 虚线模式：实线 + 间隔
dash_on, dash_off = pattern
dash_length = dash_on + dash_off
# 绘制虚线
current = 0
while current < length:
# 实线段起点
dash_start_x = start[0] + ux * current
dash_start_y = start[1] + uy * current
# 实线段终点
dash_end = min(current + dash_on, length)
dash_end_x = start[0] + ux * dash_end
dash_end_y = start[1] + uy * dash_end
# 绘制实线段
draw.line([(dash_start_x, dash_start_y),
(dash_end_x, dash_end_y)],
fill='black', width=width)
current += dash_length
# 1. 首先绘制原始菱形
draw_dashed_polygon(draw, points, line_width, dash_pattern)
# 2. 计算四条新连接线的端点
# 顶部边线左1/4点：从左上角(0,0)到右上角(image_size,0)的1/4处
top_left_quarter = (image_size * 1 // 4, 0)
# 左侧边线顶1/4点：从左上角(0,0)到左下角(0,image_size)的1/4处
left_top_quarter = (0, image_size * 1 // 4)
# 顶部边线右1/4点：从左上角(0,0)到右上角(image_size,0)的3/4处
top_right_quarter = (image_size * 3 // 4, 0)
# 右侧边线顶1/4点：从右上角(image_size,0)到右下角(image_size,image_size)的1/4处
right_top_quarter = (image_size, image_size * 1 // 4)
# 右侧边线底1/4点：从右上角(image_size,0)到右下角(image_size,image_size)的3/4处
right_bottom_quarter = (image_size, image_size * 3 // 4)
# 底部边线右1/4点：从左下角(0,image_size)到右下角(image_size,image_size)的3/4处
bottom_right_quarter = (image_size * 3 // 4, image_size)
# 底部边线左1/4点：从左下角(0,image_size)到右下角(image_size,image_size)的1/4处
bottom_left_quarter = (image_size * 1 // 4, image_size)
# 左侧边线底1/4点：从左上角(0,0)到左下角(0,image_size)的3/4处
left_bottom_quarter = (0, image_size * 3 // 4)
# 3. 绘制四条新的连接线
new_lines = [
# 顶部边线左1/4点与左侧边线顶1/4点连接
(top_left_quarter, left_top_quarter),
# 顶部边线右1/4点与右侧边线顶1/4点连接
(top_right_quarter, right_top_quarter),
# 右侧边线底1/4点与底部边线右1/4点连接
(right_bottom_quarter, bottom_right_quarter),
# 底部边线左1/4点与左侧边线底1/4点连接
(bottom_left_quarter, left_bottom_quarter),
]
# 绘制新的连接线
def draw_dashed_line(draw, start, end, width, pattern):
"""绘制虚线线段"""
# 计算线段长度
dx = end[0] - start[0]
dy = end[1] - start[1]
length = ((dx**2 + dy**2) ** 0.5)
if length == 0:
return
# 单位向量
ux = dx / length
uy = dy / length
# 虚线模式：实线 + 间隔
dash_on, dash_off = pattern
dash_length = dash_on + dash_off
# 绘制虚线
current = 0
while current < length:
# 实线段起点
dash_start_x = start[0] + ux * current
dash_start_y = start[1] + uy * current
# 实线段终点
dash_end = min(current + dash_on, length)
dash_end_x = start[0] + ux * dash_end
dash_end_y = start[1] + uy * dash_end
# 绘制实线段
draw.line([(dash_start_x, dash_start_y),
(dash_end_x, dash_end_y)],
fill='black', width=width)
current += dash_length
# 绘制四条新的连接线
for start, end in new_lines:
draw_dashed_line(draw, start, end, line_width, dash_pattern)
# 5. 在中间位置画一个小菱形
# 计算小菱形的尺寸：顶点距离顶部大约是1/4的边长的宽度
# 假设小菱形与大菱形相似，且顶点到中心点的距离是大菱形的1/4
# 计算大菱形的中心点（图片中心）
center_x = image_size // 2
center_y = image_size // 2
# 大菱形的顶点到中心的垂直距离（上顶点到中心的距离）
large_vertical_distance = image_size // 2
# 小菱形的顶点到中心的垂直距离：1/4边长宽度
small_vertical_distance = image_size // 4 # 1500/4 = 375
# 小菱形的顶点到中心的水平距离（保持菱形形状）
small_horizontal_distance = small_vertical_distance
# 计算小菱形的四个顶点
small_diamond_points = [
(center_x, center_y - small_vertical_distance), # 上顶点
(center_x + small_horizontal_distance, center_y), # 右顶点
(center_x, center_y + small_vertical_distance), # 下顶点
(center_x - small_horizontal_distance, center_y) # 左顶点
]
# 先填充小菱形为灰色
draw.polygon(small_diamond_points, fill=gray_color, outline=None)
# 绘制小菱形边框（同样使用虚线）
draw_dashed_polygon(draw, small_diamond_points, line_width, dash_pattern)
# 6. 在小菱形内部绘制点点点（黑色圆点）
# 设置点点的参数
dot_radius = 3 # 点点的半径
dot_spacing = 10 # 点与点之间的间距
# 计算小菱形的边界
small_diamond_left = center_x - small_horizontal_distance
small_diamond_right = center_x + small_horizontal_distance
small_diamond_top = center_y - small_vertical_distance
small_diamond_bottom = center_y + small_vertical_distance
# 创建判断点是否在菱形内的函数
def is_point_in_diamond(x, y, center_x, center_y, h_dist, v_dist):
"""判断点(x,y)是否在菱形内"""
# 菱形的数学方程：|x - center_x|/h_dist + |y - center_y|/v_dist <= 1
return (abs(x - center_x) / h_dist + abs(y - center_y) / v_dist) <= 1
# 在菱形内均匀绘制点点
for x in range(int(small_diamond_left), int(small_diamond_right), dot_spacing):
for y in range(int(small_diamond_top), int(small_diamond_bottom), dot_spacing):
# 检查点是否在菱形内
if is_point_in_diamond(x, y, center_x, center_y, small_horizontal_distance, small_vertical_distance):
# 计算圆点的边界框
dot_left = x - dot_radius
dot_top = y - dot_radius
dot_right = x + dot_radius
dot_bottom = y + dot_radius
# 绘制黑色圆点
draw.ellipse([dot_left, dot_top, dot_right, dot_bottom], fill='black', outline=None)
# 7. 在画布中心位置画一个20磅的黑色圆点（在点点的上面）
center_dot_radius = 10 # 中心圆点的半径
# 计算圆点的边界框
left = center_x - center_dot_radius
top = center_y - center_dot_radius
right = center_x + center_dot_radius
bottom = center_y + center_dot_radius
# 绘制黑色实心圆点（在最上层）
draw.ellipse([left, top, right, bottom], fill='black', outline=None)
print(f"中心圆点信息:")
print(f" 中心坐标: ({center_x}, {center_y})")
print(f" 圆点直径: {center_dot_radius * 2}像素")
print(f"\n小菱形信息:")
print(f" 中心点: ({center_x}, {center_y})")
print(f" 填充颜色: RGB{gray_color}")
print(f" 顶点到中心垂直距离: {small_vertical_distance}像素")
print(f" 顶点到中心水平距离: {small_horizontal_distance}像素")
print(f" 点点参数: 半径{dot_radius}像素, 间距{dot_spacing}像素")
print(f" 上顶点坐标: {small_diamond_points[0]}")
print(f" 右顶点坐标: {small_diamond_points[1]}")
print(f" 下顶点坐标: {small_diamond_points[2]}")
print(f" 左顶点坐标: {small_diamond_points[3]}")
# 保存图片
output_path = r'C:\Users\jg2yXRZ\OneDrive\桌面\20251215 手工纸镜子\正面1.0.png'
image.save(output_path)
print(f"\n已创建图片: {output_path}")
print(f"图片尺寸: {image_size} x {image_size}")
print(f"菱形线宽: {line_width}像素")
print(f"中心圆点直径: {center_dot_radius * 2}像素")
print(f"虚线模式: 实线{dash_pattern[0]}像素 + 间隔{dash_pattern[1]}像素")
print(f"小菱形点点: 半径{dot_radius}像素, 间距{dot_spacing}像素")
# 显示图片
image.show()

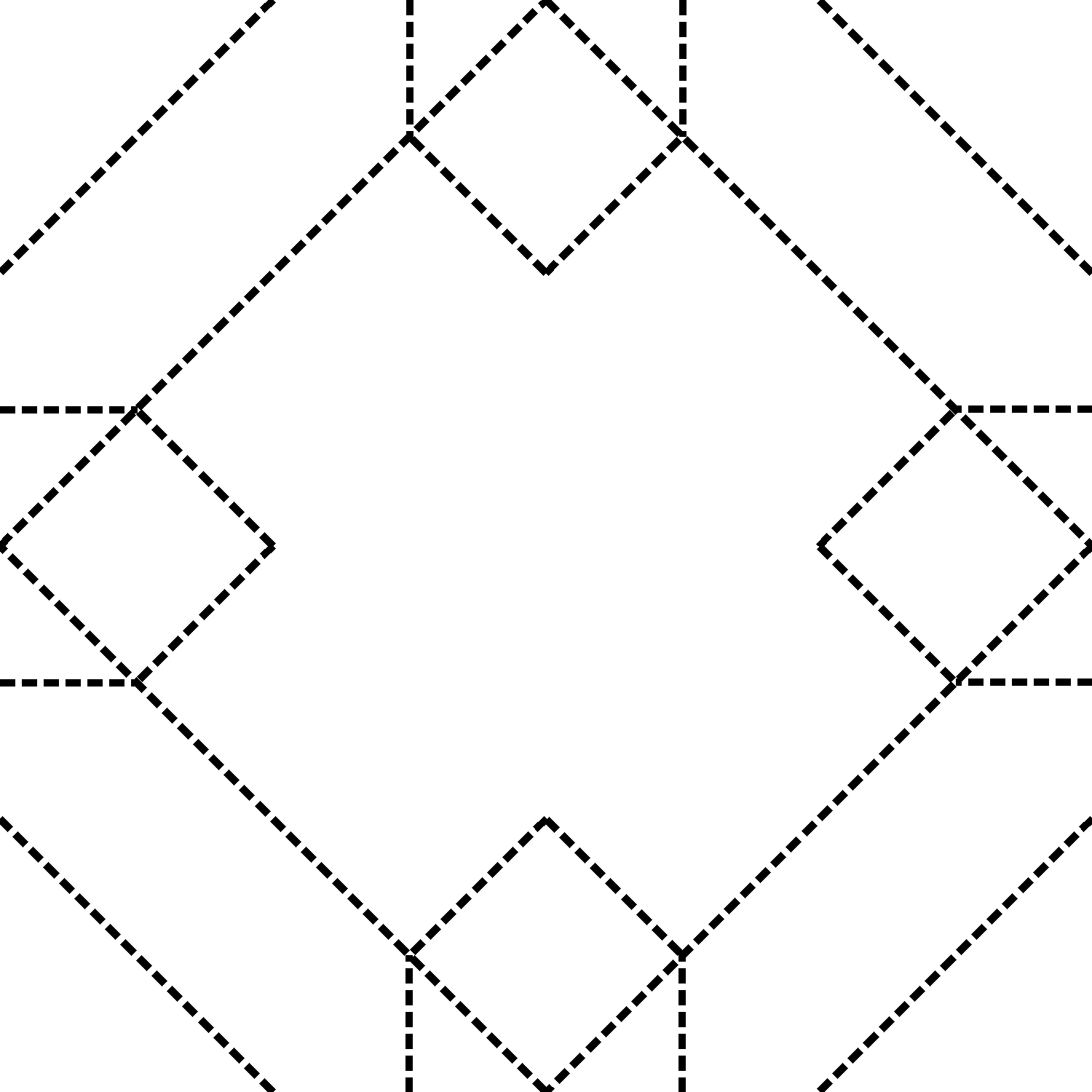

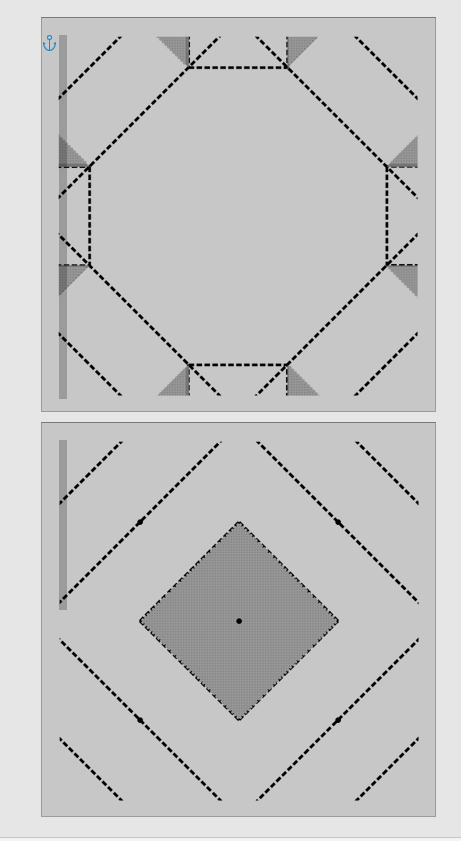

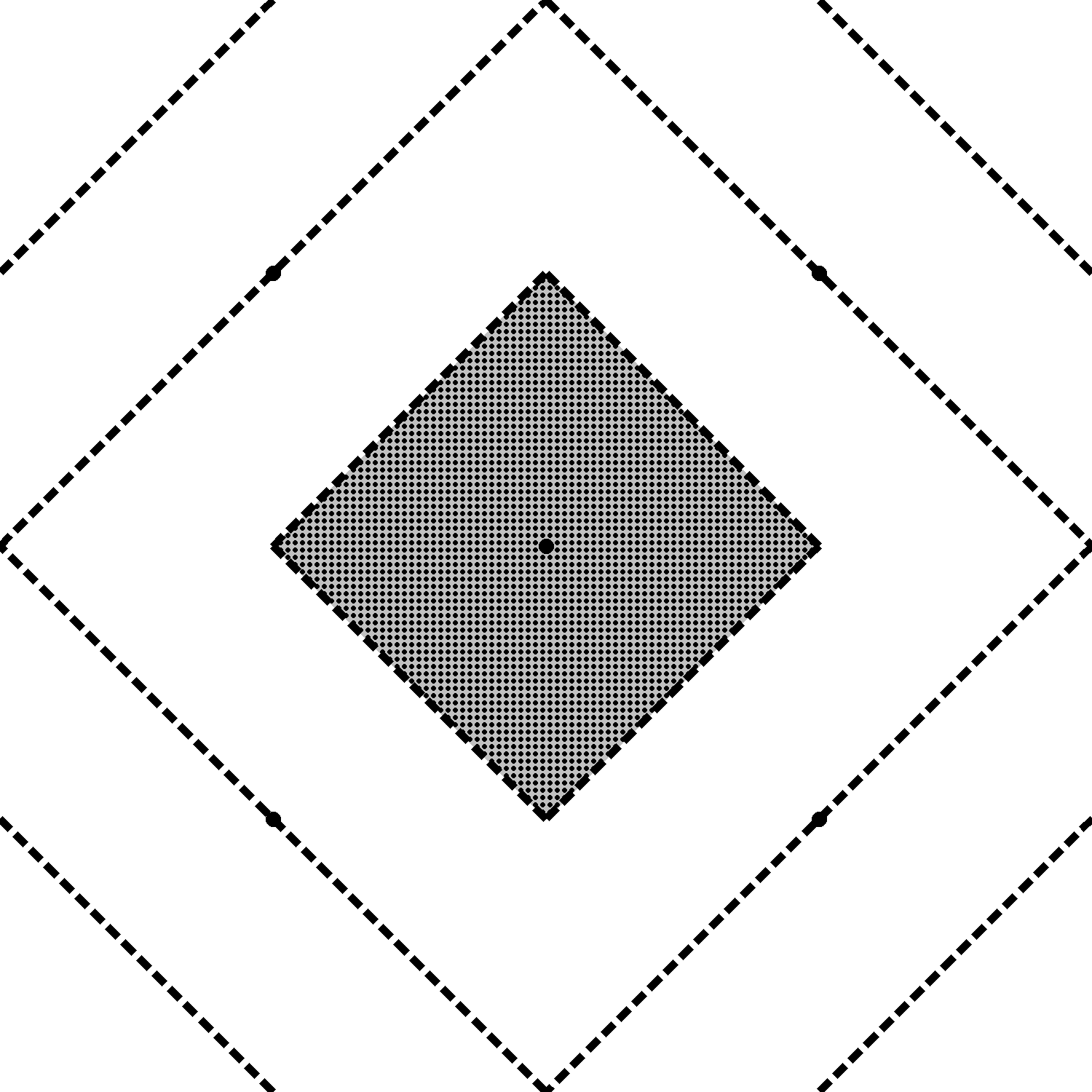

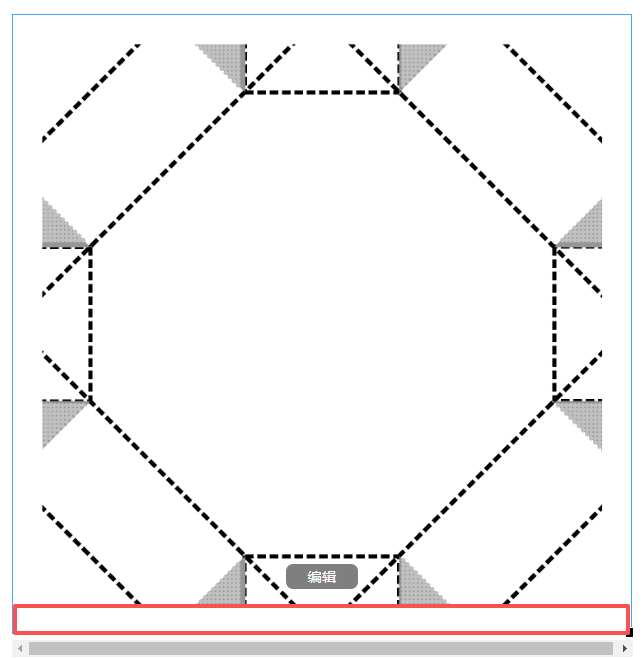

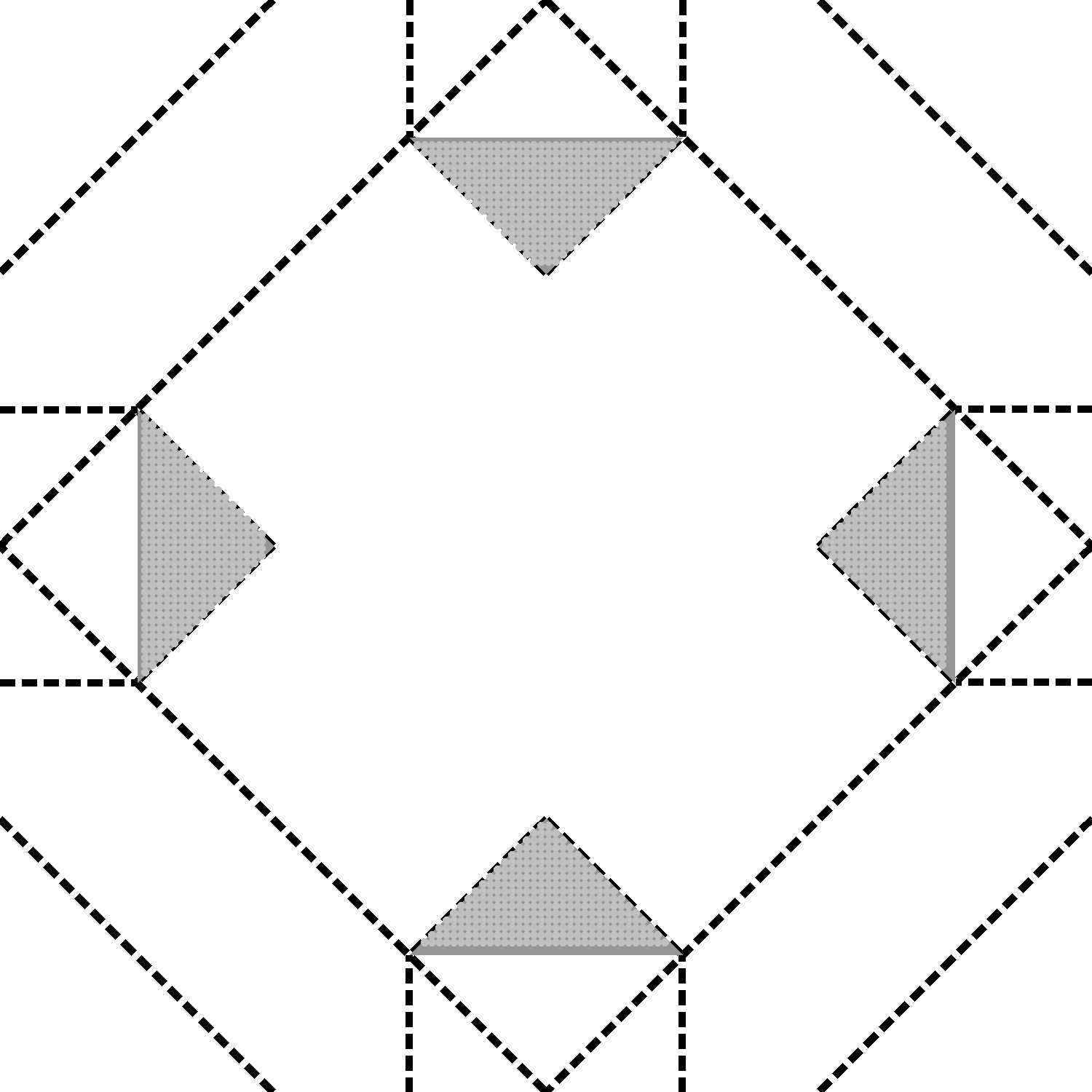

正面1.0

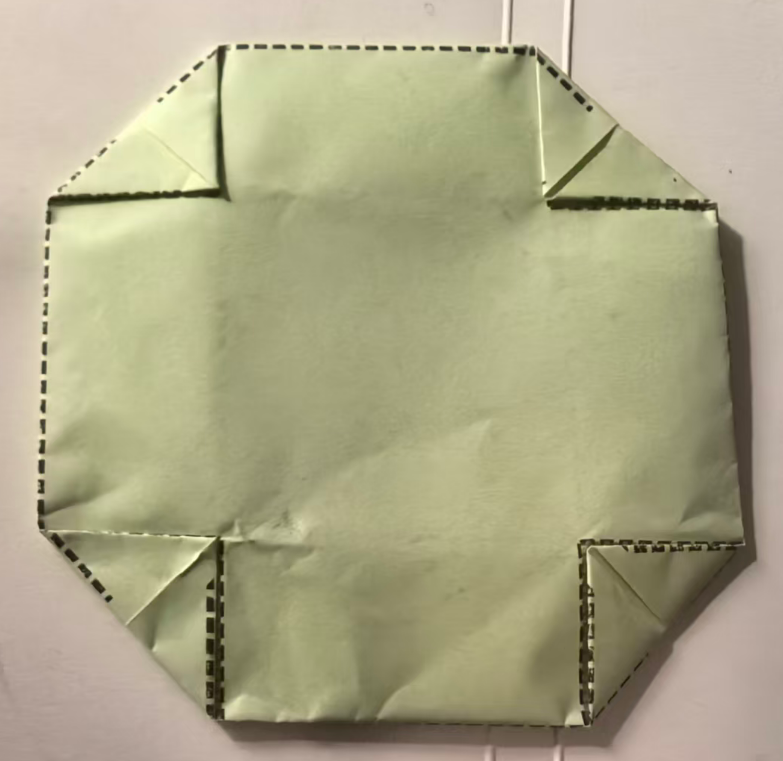

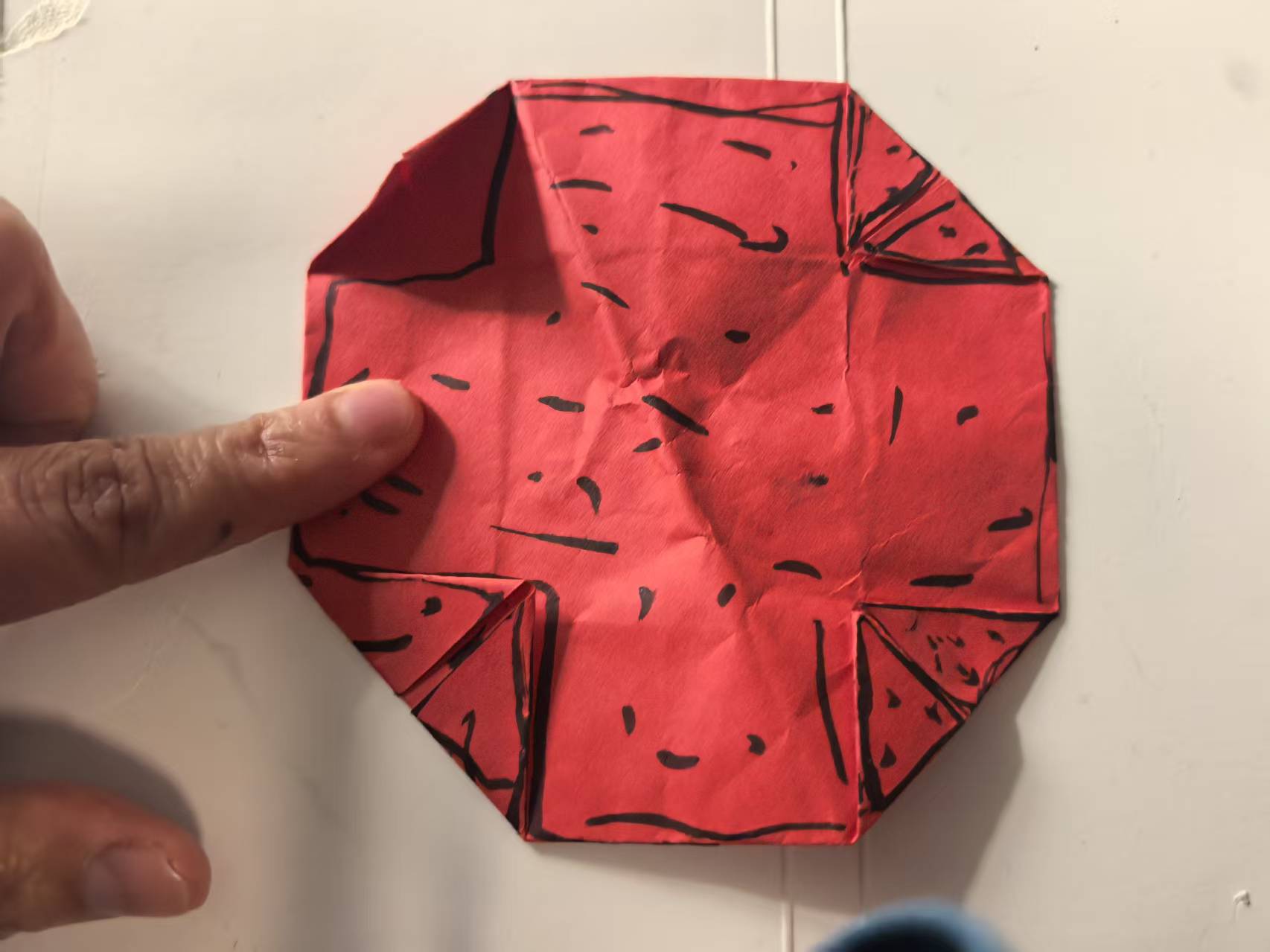

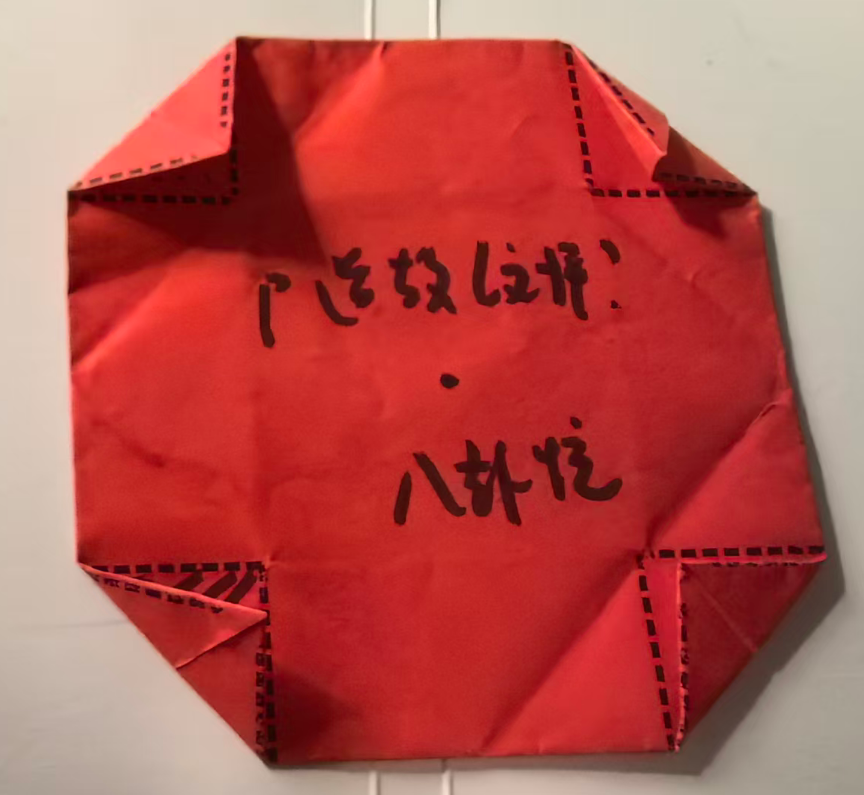

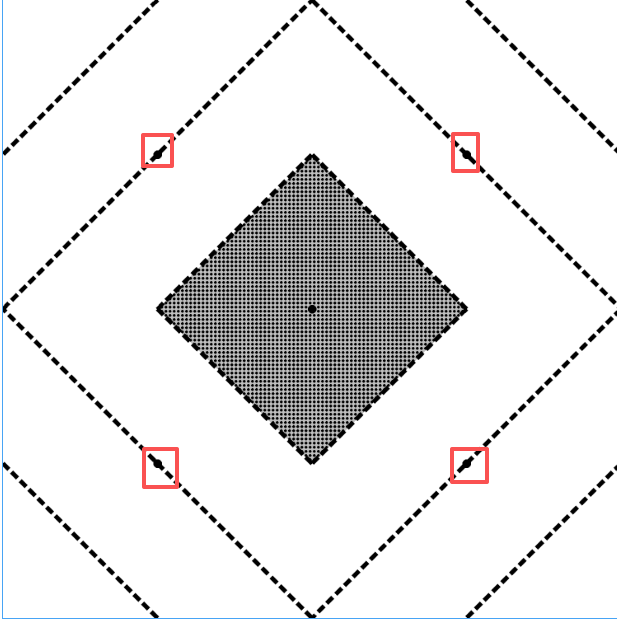

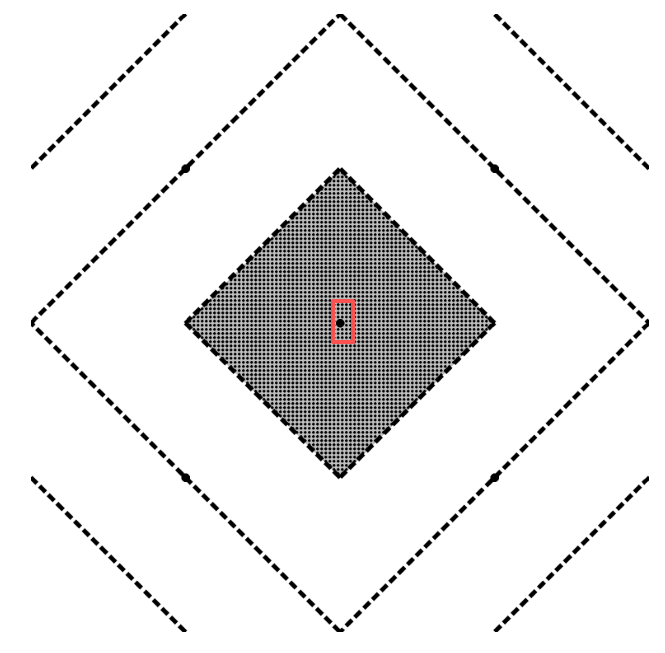

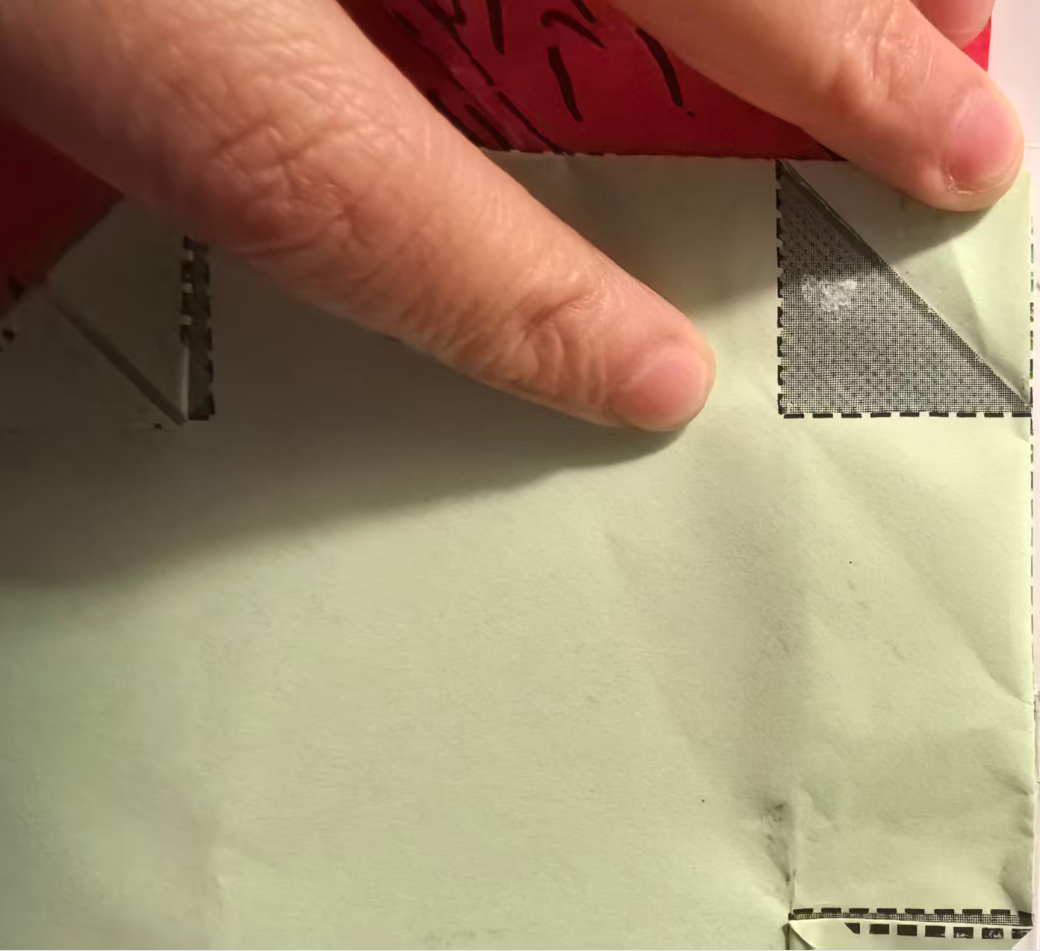

问题：大菱形每条边需要一个中间的点，便于纸张四个角对位折小小三角形。
