在北京大学老师（https://bonany.cc/）的网页课堂上学习了模拟阵列verilog模型(https://bonany.gitlab.io/pis/)。
此模型结合了传统存储器功能和存内计算（Computing-in-Memory, CIM）功能。
阵列模型
核心代码
verilog
//==================================================================================================
// Filename : Basic_GeMM_CIM.v
// Created On : 2022-10-07 08:17:17
// Last Modified : 2022-12-27 11:05:50
// Revision :
// Author : Bonan Yan
// Company : Peking University
// Email : bonanyan@pku.edu.cn
//
// Description :
//
//
//==================================================================================================
module Basic_GeMM_CIM (
//output
q,
cim_out0,
cim_out1,
cim_out2,
cim_out3,
cim_out4,
cim_out5,
cim_out6,
cim_out7,
//input
clk,
a,
cs,
web,
cimeb,
d,
cim_in0,
cim_in1,
cim_in2,
cim_in3
);
//Need to define the address map first and
//change all of the following parameter accordingly
parameter
DATA_WIDTH = 8, // unit: bit
ADDR_WIDTH = 10, // unit: bit
ADC_PRECISION = 6, // unit: bit
CIM_INPUT_PRECISION = 4, // unit: bit
CIM_INPUT_PARALLELISM = 4, // unit: 1 (quantity)
CIM_OUTPUT_PARALLELISM = 8; // unit: 1 (quantity)
//--------------Generated Parameters-----------------------
parameter
RAM_DEPTH = 1 << ADDR_WIDTH;
//--------------Input Ports-----------------------
input clk; //clk input
input [ADDR_WIDTH-1:0] a; //address, both effective in memory mode & CIM mode
input cs; //overall enable, chip select
input web; //write enable, low active
input cimeb; //CIM enable, low active
input [DATA_WIDTH-1:0] d; //memory mode input data
input [CIM_INPUT_PRECISION-1:0] cim_in0, cim_in1, cim_in2, cim_in3;
//--------------Output Ports-----------------------
output reg [DATA_WIDTH-1:0] q; //memory mode output data
output [ADC_PRECISION-1:0] cim_out0, cim_out1, cim_out2, cim_out3, cim_out4, cim_out5, cim_out6, cim_out7;
reg [ADC_PRECISION-1:0] cim_out0_tmp, cim_out1_tmp, cim_out2_tmp, cim_out3_tmp, cim_out4_tmp, cim_out5_tmp, cim_out6_tmp, cim_out7_tmp;
//--------------Internal variables----------------
reg [DATA_WIDTH-1:0] mem [0:RAM_DEPTH-1];
//--------------Code Starts Here------------------
// Memory Write Block
// Write Operation : When we = 1, cs = 1
always @ (posedge clk)
begin : MEM_WRITE
if ( cs && !web ) begin
mem[a] = d;
end
end
// Memory Read Block
// Read Operation : When we = 0, oe = 1, cs = 1
always @ (posedge clk)
begin : MEM_READ
if (cs && web) begin
if(cimeb) begin
q = mem[a];
end else begin
// enter cim mode
cim_out0_tmp = cim_in0 * mem[{2'b00,a[7:5],3'd0,a[1:0]}]
+ cim_in1 * mem[{2'b01,a[7:5],3'd0,a[1:0]}]
+ cim_in2 * mem[{2'b10,a[7:5],3'd0,a[1:0]}]
+ cim_in3 * mem[{2'b11,a[7:5],3'd0,a[1:0]}];
cim_out1_tmp = cim_in0 * mem[{2'b00,a[7:5],3'd1,a[1:0]}]
+ cim_in1 * mem[{2'b01,a[7:5],3'd1,a[1:0]}]
+ cim_in2 * mem[{2'b10,a[7:5],3'd1,a[1:0]}]
+ cim_in3 * mem[{2'b11,a[7:5],3'd1,a[1:0]}];
cim_out2_tmp = cim_in0 * mem[{2'b00,a[7:5],3'd2,a[1:0]}]
+ cim_in1 * mem[{2'b01,a[7:5],3'd2,a[1:0]}]
+ cim_in2 * mem[{2'b10,a[7:5],3'd2,a[1:0]}]
+ cim_in3 * mem[{2'b11,a[7:5],3'd2,a[1:0]}];
cim_out3_tmp = cim_in0 * mem[{2'b00,a[7:5],3'd3,a[1:0]}]
+ cim_in1 * mem[{2'b01,a[7:5],3'd3,a[1:0]}]
+ cim_in2 * mem[{2'b10,a[7:5],3'd3,a[1:0]}]
+ cim_in3 * mem[{2'b11,a[7:5],3'd3,a[1:0]}];
cim_out4_tmp = cim_in0 * mem[{2'b00,a[7:5],3'd4,a[1:0]}]
+ cim_in1 * mem[{2'b01,a[7:5],3'd4,a[1:0]}]
+ cim_in2 * mem[{2'b10,a[7:5],3'd4,a[1:0]}]
+ cim_in3 * mem[{2'b11,a[7:5],3'd4,a[1:0]}];
cim_out5_tmp = cim_in0 * mem[{2'b00,a[7:5],3'd5,a[1:0]}]
+ cim_in1 * mem[{2'b01,a[7:5],3'd5,a[1:0]}]
+ cim_in2 * mem[{2'b10,a[7:5],3'd5,a[1:0]}]
+ cim_in3 * mem[{2'b11,a[7:5],3'd5,a[1:0]}];
cim_out6_tmp = cim_in0 * mem[{2'b00,a[7:5],3'd6,a[1:0]}]
+ cim_in1 * mem[{2'b01,a[7:5],3'd6,a[1:0]}]
+ cim_in2 * mem[{2'b10,a[7:5],3'd6,a[1:0]}]
+ cim_in3 * mem[{2'b11,a[7:5],3'd6,a[1:0]}];
cim_out7_tmp = cim_in0 * mem[{2'b00,a[7:5],3'd7,a[1:0]}]
+ cim_in1 * mem[{2'b01,a[7:5],3'd7,a[1:0]}]
+ cim_in2 * mem[{2'b10,a[7:5],3'd7,a[1:0]}]
+ cim_in3 * mem[{2'b11,a[7:5],3'd7,a[1:0]}];
end
end
end
assign cim_out0 = cim_out0_tmp[13:13-ADC_PRECISION+1];
assign cim_out1 = cim_out1_tmp[13:13-ADC_PRECISION+1];
assign cim_out2 = cim_out2_tmp[13:13-ADC_PRECISION+1];
assign cim_out3 = cim_out3_tmp[13:13-ADC_PRECISION+1];
assign cim_out4 = cim_out4_tmp[13:13-ADC_PRECISION+1];
assign cim_out5 = cim_out5_tmp[13:13-ADC_PRECISION+1];
assign cim_out6 = cim_out6_tmp[13:13-ADC_PRECISION+1];
assign cim_out7 = cim_out7_tmp[13:13-ADC_PRECISION+1];
endmodule // Basic_GeMM_CIM工作模式
- 传统存储模式
当 cimeb = 1（高电平）时：
写操作：cs=1 & web=0，将数据d写入地址a
读操作：cs=1 & web=1，从地址a读出数据到q
- CIM模式
当 cimeb = 0（低电平）且 cs=1 & web=1 时：执行 4×8 矩阵乘法
存储布局
mem[地址] = {bank_select[1:0], a[7:5], column[2:0], a[1:0]}
- bank_select[1:0] → 选择输入通道（0~3对应4个输入）
- a[7:5] → 选择行（共8行）
- a[1:0] → 选择权重组内的偏置
- column[2:0] → 选择输出列（0~7对应8个输出）
输出精度
乘法：4位输入 × 8位权重 = 12位中间结果
累加：4个12位数相加 → 最大14位结果
精度截取：从14位中取高6位作为最终输出（[13:8]）
权值格式
对于地址 a = {2'b00, row[2:0], col[2:0], bias[1:0]}：
-
权重矩阵按列存储，每列4个权重
-
8个输出通道对应8列
-
每个权重是8位精度
Wavedrom波形图
方法一（本人执行时存在问题）：参考链接：https://zhuanlan.zhihu.com/p/6522936430

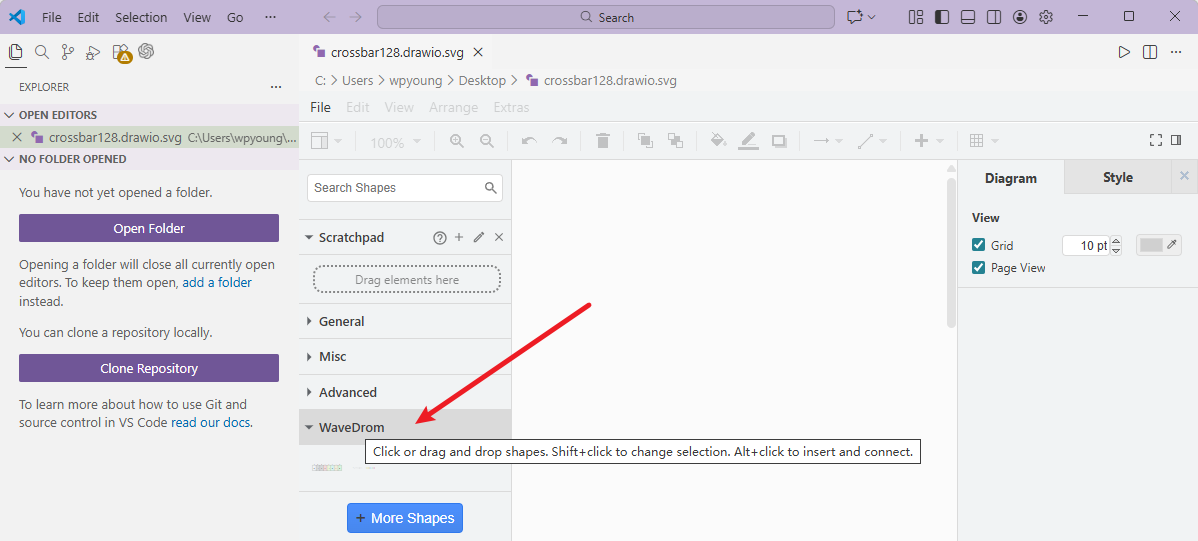

VScode + drawio Integration插件+drawio wavedrom插件
但是最后无法拖动？

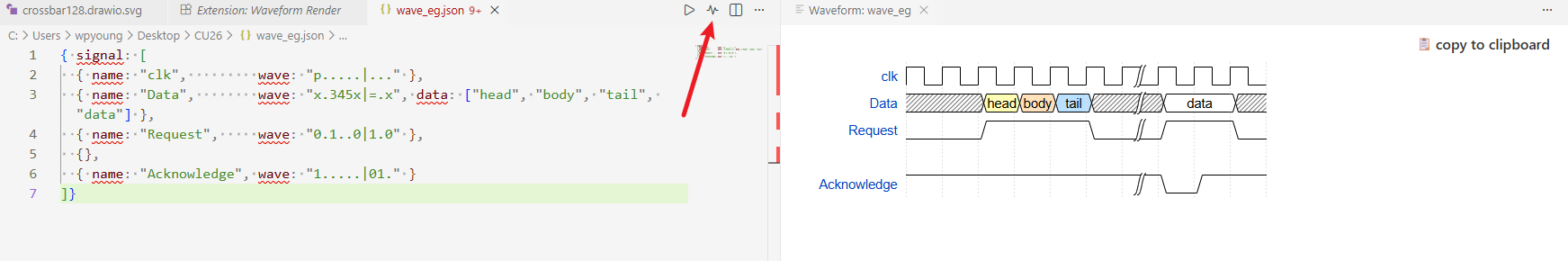

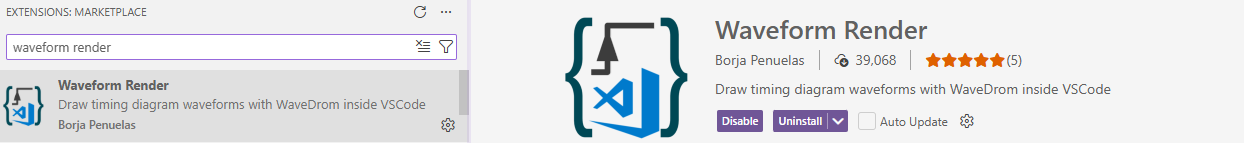

方法二：使用Waveform render插件也可画图
使用说明
p - 脉冲（高低电平）
n - 负脉冲（低高电平）
0 - 低电平
1 - 高电平
. - 保持之前状态
x - 不定态
z - 高阻态
= - 数据总线值

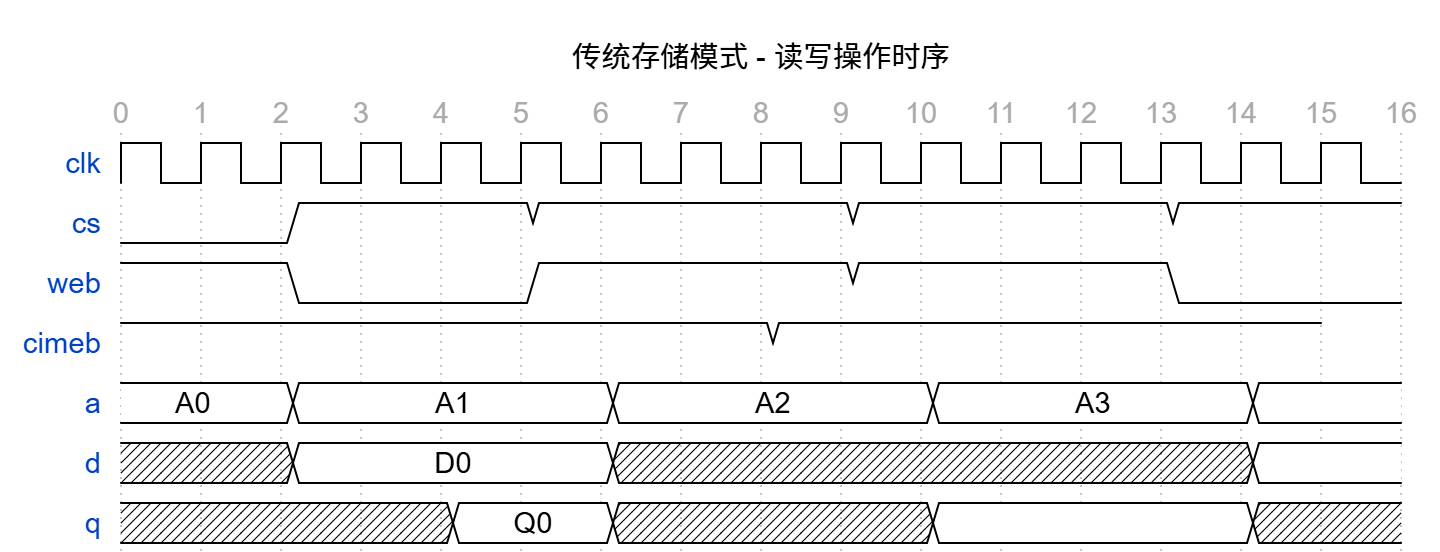

示例
给出json文件的代码如下：
javascript
{
"signal": [
{ "name": "clk", "wave": "p...p...p...p..." },
{ "name": "cs", "wave": "0.1..1...1...1.." },
{ "name": "web", "wave": "1.0..1...1...0.." },
{ "name": "cimeb", "wave": "1.......1......" },
{ "name": "a", "wave": "=.=...=...=...=.", "data": ["A0", "A1", "A2", "A3"] },
{ "name": "d", "wave": "x.=...x...x...=.", "data": ["D0", "", "", "D3"] },
{ "name": "q", "wave": "x...=.x...=...x.", "data": ["Q0", "", "Q2", ""] }
],
"head": {
"text": "传统存储模式 - 读写操作时序",
"tick": 0
}
}

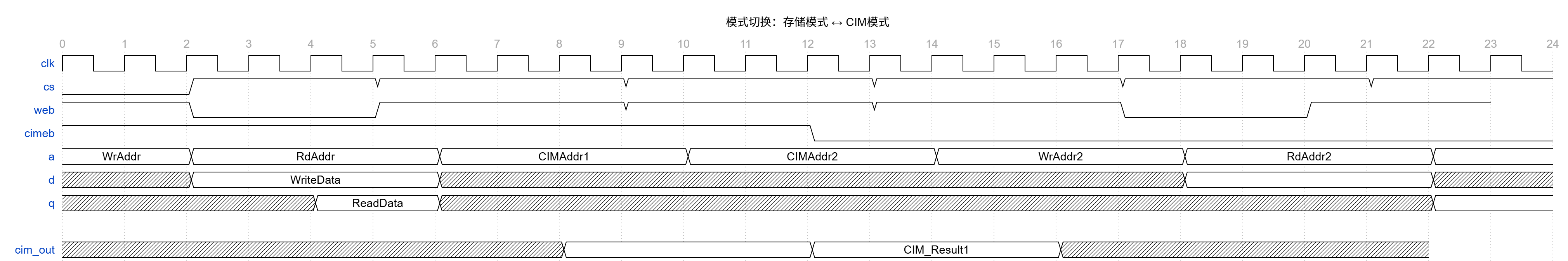

javascript
{
"signal": [
{ "name": "clk", "wave": "p...p...p...p...p...p..." },
{ "name": "cs", "wave": "0.1..1...1...1...1...1.." },
{ "name": "web", "wave": "1.0..1...1...1...0..1.." },
{ "name": "cimeb", "wave": "1...........0..........." },
{ "name": "a", "wave": "=.=...=...=...=...=...=.",
"data": ["WrAddr", "RdAddr", "CIMAddr1", "CIMAddr2", "WrAddr2", "RdAddr2"] },
{ "name": "d", "wave": "x.=...x...x...x...=...x.",
"data": ["WriteData", "", "", "", "WriteData2", ""] },
{ "name": "q", "wave": "x...=.x...x...x...x...=.",
"data": ["ReadData", "", "", "", "", "ReadData2"] },
{},
{ "name": "cim_out", "wave": "x.......=...=...x.....",
"data": ["", "CIM_Result1", "CIM_Result2", ""] }
],
"config": { "hscale": 2 },
"head": {
"text": "模式切换：存储模式 ↔ CIM模式",
"tick": 0
}
}
javascript
{
"signal": [
{ "name": "clk", "wave": "p..p..p..p.." },
{ "name": "cimeb", "wave": "1...0.....1." },
{ "name": "CIM计算", "wave": "0..1........", "period": 2 }
],
"foot": {
"text": "Tsetup: 2ns, Thold: 1ns, Tcalc: 3周期",
"tick": 0
}
}
javascript
{

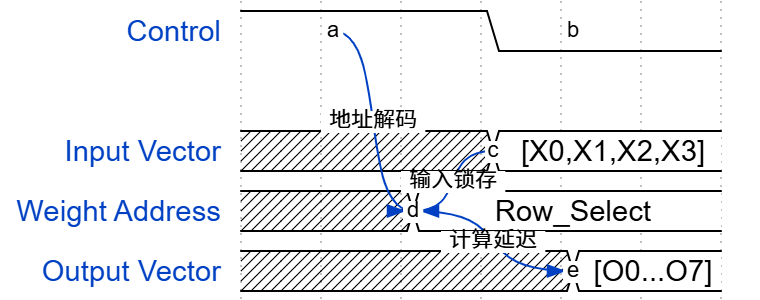

"signal": [
{ "name": "Control", "wave": "1..0..", "node": ".a..b." },
{},
{ "name": "Input Vector", "wave": "x..=..",
"data": ["[X0,X1,X2,X3]"], "node": "...c" },
{ "name": "Weight Address", "wave": "x.=...",
"data": ["Row_Select"], "node": "..d" },
{ "name": "Output Vector", "wave": "x...=.",
"data": ["[O0...O7]"], "node": "....e" }
],
"edge": [
"a~>d 地址解码",
"c~>d 输入锁存",
"d~>e 计算延迟"
]
}
