分享 vue 表格 vxe-table 如何实现透视表拖拽对数据进行分组汇总，金额合计、平均值等的使用方式,通过 custom-config.allowGroup 启用分组拖拽功能

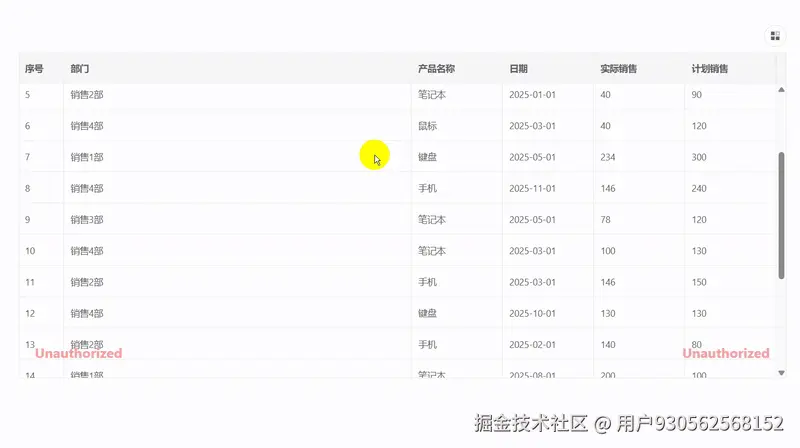

拖拽列进行数据分组后自动汇总
通过拖拽列到聚合列表，自动对数据进行合计汇总。设置 custom-config.allowGroup 和 custom-config.allowValues 启用拖拽功能
html
<template>
<div>
<vxe-grid v-bind="gridOptions"></vxe-grid>
</div>
</template>
<script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
height: 600,
border: true,
showOverflow: true,
aggregateConfig: {},
columnConfig: {
resizable: true
},
customConfig: {
allowGroup: true,
allowValues: true
},
toolbarConfig: {
custom: true
},
columns: [
{ type: 'seq', width: 70 },
{ field: 'department', title: '部门', minWidth: 200, rowGroupNode: true },
{ field: 'name', title: '产品名称', width: 140 },
{ field: 'date', title: '日期', width: 140 },
{ field: 'actualAmount', title: '实际销售', width: 140 },
{ field: 'plannedAmount', title: '计划销售', width: 140 }
],
data: [
{ id: 10001, name: '笔记本', department: '销售1部', actualAmount: 80, plannedAmount: 100, date: '2025-02-01' },
{ id: 10002, name: '手机', department: '销售3部', actualAmount: 140, plannedAmount: 120, date: '2025-01-01' },
{ id: 10003, name: '键盘', department: '销售2部', actualAmount: 220, plannedAmount: 200, date: '2025-05-01' },
{ id: 10004, name: '鼠标', department: '销售1部', actualAmount: 110, plannedAmount: 140, date: '2025-01-01' },
{ id: 10005, name: '笔记本', department: '销售2部', actualAmount: 40, plannedAmount: 90, date: '2025-01-01' },
{ id: 10006, name: '鼠标', department: '销售4部', actualAmount: 40, plannedAmount: 120, date: '2025-03-01' },
{ id: 10007, name: '键盘', department: '销售1部', actualAmount: 234, plannedAmount: 300, date: '2025-05-01' },
{ id: 10008, name: '手机', department: '销售4部', actualAmount: 146, plannedAmount: 240, date: '2025-11-01' },
{ id: 10009, name: '笔记本', department: '销售3部', actualAmount: 78, plannedAmount: 120, date: '2025-05-01' },
{ id: 10010, name: '笔记本', department: '销售4部', actualAmount: 100, plannedAmount: 130, date: '2025-03-01' },
{ id: 10011, name: '手机', department: '销售2部', actualAmount: 146, plannedAmount: 150, date: '2025-03-01' },
{ id: 10012, name: '键盘', department: '销售4部', actualAmount: 130, plannedAmount: 130, date: '2025-10-01' },
{ id: 10013, name: '手机', department: '销售2部', actualAmount: 140, plannedAmount: 80, date: '2025-02-01' },
{ id: 10014, name: '笔记本', department: '销售1部', actualAmount: 200, plannedAmount: 100, date: '2025-08-01' },
{ id: 10015, name: '键盘', department: '销售3部', actualAmount: 320, plannedAmount: 300, date: '2025-05-01' },
{ id: 10016, name: '笔记本', department: '销售4部', actualAmount: 380, plannedAmount: 400, date: '2025-10-01' },
{ id: 10017, name: '鼠标', department: '销售1部', actualAmount: 34, plannedAmount: 200, date: '2025-12-01' },
{ id: 10018, name: '键盘', department: '销售4部', actualAmount: 100, plannedAmount: 150, date: '2025-10-01' },
{ id: 10019, name: '鼠标', department: '销售3部', actualAmount: 90, plannedAmount: 120, date: '2025-02-01' },
{ id: 10020, name: '手机', department: '销售2部', actualAmount: 40, plannedAmount: 50, date: '2025-03-01' }
]
})
</script>同时支持对分组后的数据进行排序
对数据进行汇总后，支持对汇总及子项进行排序
html
<template>
<div>
<vxe-grid v-bind="gridOptions"></vxe-grid>
</div>
</template>
<script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
height: 600,
showOverflow: true,
aggregateConfig: {
groupFields: ['department'],
mode: 'default' // 通过 rowGroupNode 指定字段来展示层级关系
},
columnConfig: {
resizable: true
},
customConfig: {
allowGroup: true, // 允许自定义聚合分组配置
allowValues: true // 允许自定义聚合函数配置
},
toolbarConfig: {
custom: true
},
columns: [
{ type: 'seq', width: 70 },
{ field: 'department', title: '部门', minWidth: 200, rowGroupNode: true },
{ field: 'name', title: '产品名称', width: 140 },
{ field: 'date', title: '日期', width: 140 },
{ field: 'actualAmount', title: '实际销售', width: 140, aggFunc: 'sum', sortable: true },
{ field: 'plannedAmount', title: '计划销售', width: 140, aggFunc: 'sum', sortable: true }
],
data: [
{ id: 10001, name: '笔记本', department: '销售1部', actualAmount: 80, plannedAmount: 100, date: '2025-02-01' },
{ id: 10002, name: '手机', department: '销售3部', actualAmount: 140, plannedAmount: 120, date: '2025-01-01' },
{ id: 10003, name: '键盘', department: '销售2部', actualAmount: 220, plannedAmount: 200, date: '2025-05-01' },
{ id: 10004, name: '鼠标', department: '销售1部', actualAmount: 110, plannedAmount: 140, date: '2025-01-01' },
{ id: 10005, name: '笔记本', department: '销售2部', actualAmount: 40, plannedAmount: 90, date: '2025-01-01' },
{ id: 10006, name: '鼠标', department: '销售4部', actualAmount: 40, plannedAmount: 120, date: '2025-03-01' },
{ id: 10007, name: '键盘', department: '销售1部', actualAmount: 234, plannedAmount: 300, date: '2025-05-01' },
{ id: 10008, name: '手机', department: '销售4部', actualAmount: 146, plannedAmount: 240, date: '2025-11-01' },
{ id: 10009, name: '笔记本', department: '销售3部', actualAmount: 78, plannedAmount: 120, date: '2025-05-01' },
{ id: 10010, name: '笔记本', department: '销售4部', actualAmount: 100, plannedAmount: 130, date: '2025-03-01' },
{ id: 10011, name: '手机', department: '销售2部', actualAmount: 146, plannedAmount: 150, date: '2025-03-01' },
{ id: 10012, name: '键盘', department: '销售4部', actualAmount: 130, plannedAmount: 130, date: '2025-10-01' },
{ id: 10013, name: '手机', department: '销售2部', actualAmount: 140, plannedAmount: 80, date: '2025-02-01' },
{ id: 10014, name: '笔记本', department: '销售1部', actualAmount: 200, plannedAmount: 100, date: '2025-08-01' },
{ id: 10015, name: '键盘', department: '销售3部', actualAmount: 320, plannedAmount: 300, date: '2025-05-01' },
{ id: 10016, name: '笔记本', department: '销售4部', actualAmount: 380, plannedAmount: 400, date: '2025-10-01' },
{ id: 10017, name: '鼠标', department: '销售1部', actualAmount: 34, plannedAmount: 200, date: '2025-12-01' },
{ id: 10018, name: '键盘', department: '销售4部', actualAmount: 100, plannedAmount: 150, date: '2025-10-01' },
{ id: 10019, name: '鼠标', department: '销售3部', actualAmount: 90, plannedAmount: 120, date: '2025-02-01' },
{ id: 10020, name: '手机', department: '销售2部', actualAmount: 40, plannedAmount: 50, date: '2025-03-01' }
]
})
</script>
