Flutter跨平台三方库url_launcher在鸿蒙中的使用指南

📋 项目概述

本文档详细介绍如何在 HarmonyOS 平台上使用 Flutter 框架集成 url_launcher 插件,实现网页、邮件、电话、短信、地图等多种链接类型的打开功能。通过实际开发案例,展示从插件配置到功能实现的完整流程,并记录开发过程中遇到的问题及解决方案。本项目构建了一个现代化的链接快速启动器应用,采用 Material Design 3 设计规范,提供了流畅的用户体验和丰富的交互功能。

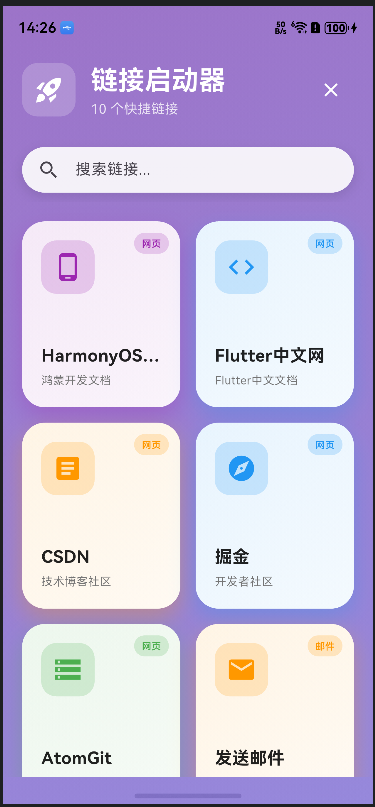

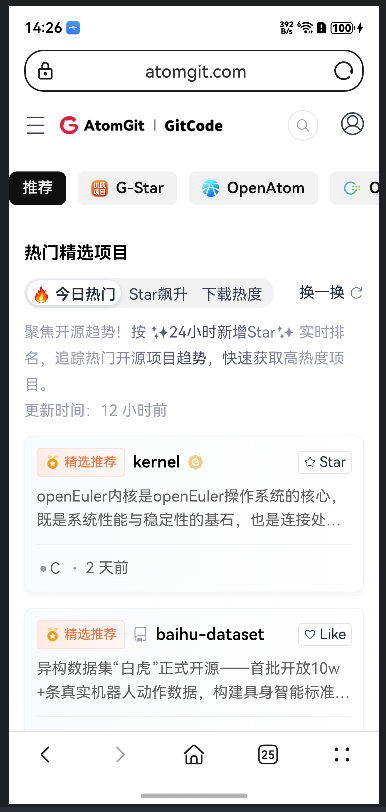

运行截图说明:本文档中的代码已在 HarmonyOS 设备上实际运行测试,功能正常运行。建议读者在阅读时结合实际操作,以获得更好的学习效果。

🎯 项目目标

  • ✅ 在 HarmonyOS 平台上集成 url_launcher 插件
  • ✅ 实现网页链接打开功能
  • ✅ 实现邮件链接打开功能
  • ✅ 实现电话链接打开功能
  • ✅ 实现短信链接打开功能
  • ✅ 实现地图链接打开功能
  • ✅ 构建美观的 Material Design 3 风格UI
  • ✅ 实现搜索功能和流畅动画效果
  • ✅ 处理平台兼容性和权限配置

🛠️ 技术栈

  • 开发框架: Flutter 3.6.2+
  • 三方库 : url_launcher (OpenHarmony TPC 适配版本)
  • UI 框架: Material Design 3
  • 目标平台: HarmonyOS (OpenHarmony)
  • 开发工具: DevEco Studio / VS Code

📦 一、项目初始化

1.1 创建 Flutter 项目

bash 复制代码
flutter create --platforms=ohos url_launcher_demo
cd url_launcher_demo

1.2 配置依赖

pubspec.yaml 中添加 url_launcher 依赖:

yaml 复制代码
dependencies:
  flutter:
    sdk: flutter
  cupertino_icons: ^1.0.8
  url_launcher:
    git:
      url: https://atomgit.com/openharmony-tpc/flutter_packages.git
      path: packages/url_launcher/url_launcher
      ref: br_url_launcher-v6.3.0_ohos

重要说明

  • 必须使用 OpenHarmony TPC 提供的适配版本,pub.dev 上的官方版本不支持 HarmonyOS 平台
  • 需要指定正确的分支引用 br_url_launcher-v6.3.0_ohos

1.3 安装依赖

bash 复制代码
flutter pub get

🔐 二、权限配置

2.1 添加网络权限

ohos/entry/src/main/module.json5 中添加权限配置:

json5 复制代码
{
  "module": {
    "requestPermissions": [
      {
        "name": "ohos.permission.INTERNET",
        "reason": "$string:network_reason",
        "usedScene": {
          "abilities": ["EntryAbility"],
          "when": "inuse"
        }
      }
    ]
  }
}

2.2 添加权限说明

ohos/entry/src/main/resources/base/element/string.json 中添加权限说明:

json 复制代码
{
  "string": [
    {
      "name": "network_reason",
      "value": "Network access for launching URLs"
    }
  ]
}

ohos/entry/src/main/resources/zh_CN/element/string.json 中添加中文说明:

json 复制代码
{
  "string": [
    {
      "name": "network_reason",
      "value": "使用网络以打开链接"
    }
  ]
}

注意url_launcher 插件本身只需要网络权限即可。对于电话、短信等功能,HarmonyOS系统会自动处理,无需额外权限配置。

💻 三、核心功能实现

3.1 导入必要的包

dart 复制代码
import 'package:flutter/material.dart';
import 'package:url_launcher/url_launcher.dart';
import 'dart:math' as math;

注意dart:math 包在动态渐变背景中会用到,如果不需要可以省略。

3.2 定义链接类型枚举

dart 复制代码
enum LinkType {
  website,  // 网页
  email,    // 邮件
  phone,    // 电话
  sms,      // 短信
  map,      // 地图
}

3.3 创建链接数据模型

dart 复制代码
class LinkItem {
  final String title;
  final String subtitle;
  final String url;
  final LinkType type;
  final IconData icon;
  final Color color;

  LinkItem({
    required this.title,
    required this.subtitle,
    required this.url,
    required this.type,
    required this.icon,
    required this.color,
  });
}

3.4 实现链接打开功能

核心的链接打开函数:

dart 复制代码
Future<void> _launchURL(LinkItem item) async {
  final Uri uri = Uri.parse(item.url);
  try {
    // 检查是否可以打开该URL
    if (await canLaunchUrl(uri)) {
      // 打开URL,使用外部应用模式
      await launchUrl(
        uri,
        mode: LaunchMode.externalApplication,
      );

      // 显示成功提示
      if (mounted) {
        ScaffoldMessenger.of(context).showSnackBar(
          SnackBar(
            content: Row(
              children: [
                Icon(item.icon, color: Colors.white),
                const SizedBox(width: 8),
                Text('正在打开: ${item.title}'),
              ],
            ),
            backgroundColor: item.color,
            behavior: SnackBarBehavior.floating,
            duration: const Duration(seconds: 2),
          ),
        );
      }
    } else {
      throw '无法打开此链接';
    }
  } catch (e) {
    // 错误处理
    if (mounted) {
      ScaffoldMessenger.of(context).showSnackBar(
        SnackBar(
          content: Text('打开失败: $e'),
          backgroundColor: Colors.red,
          behavior: SnackBarBehavior.floating,
        ),
      );
    }
  }
}

完整示例 :这个函数应该在 State 类中定义,并且需要确保 context 可用。完整的类结构如下:

dart 复制代码
class LinkLauncherPage extends StatefulWidget {
  const LinkLauncherPage({super.key});

  @override
  State<LinkLauncherPage> createState() => _LinkLauncherPageState();
}

class _LinkLauncherPageState extends State<LinkLauncherPage> {
  // ... 其他代码

  Future<void> _launchURL(LinkItem item) async {
    // ... 上面的代码
  }
}

关键技术点

  1. canLaunchUrl():检查URL是否可以打开,避免不必要的错误
  2. launchUrl():打开URL的核心函数
  3. LaunchMode.externalApplication:使用外部应用打开,确保在浏览器或其他应用中打开

3.5 不同链接类型的URL格式

网页链接
dart 复制代码
LinkItem(
  title: 'HarmonyOS开发者',
  subtitle: '鸿蒙开发文档',
  url: 'https://developer.harmonyos.com',
  type: LinkType.website,
  icon: Icons.phone_android,
  color: Colors.purple,
)

LinkItem(
  title: 'Flutter中文网',
  subtitle: 'Flutter中文文档',
  url: 'https://flutter.cn',
  type: LinkType.website,
  icon: Icons.code,
  color: Colors.blue,
)

LinkItem(
  title: 'CSDN',
  subtitle: '技术博客社区',
  url: 'https://www.csdn.net',
  type: LinkType.website,
  icon: Icons.article,
  color: Colors.orange,
)

LinkItem(
  title: '掘金',
  subtitle: '开发者社区',
  url: 'https://juejin.cn',
  type: LinkType.website,
  icon: Icons.explore,
  color: Colors.blue,
)
邮件链接
dart 复制代码
LinkItem(
  title: '发送邮件',
  subtitle: '联系开发者',
  url: 'mailto:support@example.com?subject=Hello&body=Hi there!',
  type: LinkType.email,
  icon: Icons.email,
  color: Colors.orange,
)

邮件URL参数说明

  • mailto::邮件协议前缀
  • support@example.com:收件人邮箱
  • subject=Hello:邮件主题(可选)
  • body=Hi there!:邮件正文(可选)
电话链接
dart 复制代码
LinkItem(
  title: '拨打电话',
  subtitle: '客服热线',
  url: 'tel:+8613800138000',
  type: LinkType.phone,
  icon: Icons.phone,
  color: Colors.green,
)

电话URL格式说明

  • tel::电话协议前缀
  • +8613800138000:电话号码(建议使用国际格式)
短信链接
dart 复制代码
LinkItem(
  title: '发送短信',
  subtitle: '短信联系',
  url: 'sms:+8613800138000?body=Hello',
  type: LinkType.sms,
  icon: Icons.message,
  color: Colors.teal,
)

短信URL参数说明

  • sms::短信协议前缀
  • +8613800138000:电话号码
  • body=Hello:短信内容(可选)
地图链接
dart 复制代码
LinkItem(
  title: '打开地图',
  subtitle: '查看位置',
  url: 'https://uri.amap.com/marker?position=116.397128,39.916527&name=北京',
  type: LinkType.map,
  icon: Icons.map,
  color: Colors.red,
)

地图URL格式说明

  • 高德地图 (推荐):https://uri.amap.com/marker?position=经度,纬度&name=位置名称
  • 需要根据目标平台选择合适的地图服务

3.6 LaunchMode 模式说明

launchUrl() 函数支持多种打开模式:

dart 复制代码
await launchUrl(
  uri,
  mode: LaunchMode.platformDefault,  // 平台默认模式
);

await launchUrl(
  uri,
  mode: LaunchMode.inAppWebView,     // 应用内WebView打开
);

await launchUrl(
  uri,
  mode: LaunchMode.externalApplication, // 外部应用打开(推荐)
);

await launchUrl(
  uri,
  mode: LaunchMode.externalNonBrowserApplication, // 外部非浏览器应用打开
);

模式选择建议

  • LaunchMode.externalApplication:推荐用于网页链接,在系统默认浏览器中打开
  • LaunchMode.inAppWebView:适用于需要在应用内打开网页的场景
  • LaunchMode.platformDefault:让系统决定打开方式

🎨 四、UI设计实现

4.1 动态渐变背景

使用 AnimationController 创建持续变化的渐变背景:

dart 复制代码
class _LinkLauncherPageState extends State<LinkLauncherPage>
    with TickerProviderStateMixin {
  late AnimationController _backgroundController;

  @override
  void initState() {
    super.initState();
    _backgroundController = AnimationController(
      vsync: this,
      duration: const Duration(seconds: 20),
    )..repeat();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: AnimatedBuilder(
        animation: _backgroundController,
        builder: (context, child) {
          return Container(
            decoration: BoxDecoration(
              gradient: LinearGradient(
                begin: Alignment.topLeft,
                end: Alignment.bottomRight,
                colors: [
                  Color.lerp(
                    Colors.deepPurple.shade300,
                    Colors.pink.shade300,
                    (_backgroundController.value * 2) % 1,
                  )!,
                  Color.lerp(
                    Colors.blue.shade300,
                    Colors.purple.shade300,
                    (_backgroundController.value * 2 + 0.5) % 1,
                  )!,
                ],
              ),
            ),
            child: child,
          );
        },
        child: SafeArea(
          child: Column(
            children: [
              // ... 其他内容
            ],
          ),
        ),
      ),
    );
  }

  @override
  void dispose() {
    _backgroundController.dispose();
    super.dispose();
  }
}

4.2 链接卡片设计

创建美观的链接卡片组件:

dart 复制代码
class _LinkCard extends StatefulWidget {
  final LinkItem link;
  final VoidCallback onTap;

  const _LinkCard({
    required this.link,
    required this.onTap,
  });

  @override
  State<_LinkCard> createState() => _LinkCardState();
}

class _LinkCardState extends State<_LinkCard>
    with SingleTickerProviderStateMixin {
  late AnimationController _controller;

  @override
  void initState() {
    super.initState();
    _controller = AnimationController(
      vsync: this,
      duration: const Duration(milliseconds: 200),
    );
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return GestureDetector(
      onTapDown: (_) => _controller.forward(),
      onTapUp: (_) {
        _controller.reverse();
        widget.onTap();
      },
      onTapCancel: () => _controller.reverse(),
      child: AnimatedBuilder(
        animation: _controller,
        builder: (context, child) {
          return Transform.scale(
            scale: 1.0 - (_controller.value * 0.05),
            child: Container(
              decoration: BoxDecoration(
                color: Colors.white,
                borderRadius: BorderRadius.circular(24),
                boxShadow: [
                  BoxShadow(
                    color: widget.link.color.withOpacity(0.3),
                    blurRadius: 20,
                    offset: const Offset(0, 10),
                  ),
                ],
              ),
              child: ClipRRect(
                borderRadius: BorderRadius.circular(24),
                child: Stack(
                  children: [
                    // 渐变背景
                    Positioned.fill(
                      child: Container(
                        decoration: BoxDecoration(
                          gradient: LinearGradient(
                            begin: Alignment.topLeft,
                            end: Alignment.bottomRight,
                            colors: [
                              widget.link.color.withOpacity(0.1),
                              widget.link.color.withOpacity(0.05),
                            ],
                          ),
                        ),
                      ),
                    ),
                    // 卡片内容
                    Padding(
                      padding: const EdgeInsets.all(20.0),
                      child: Column(
                        crossAxisAlignment: CrossAxisAlignment.start,
                        mainAxisAlignment: MainAxisAlignment.spaceBetween,
                        children: [
                          // 图标
                          Container(
                            padding: const EdgeInsets.all(12),
                            decoration: BoxDecoration(
                              color: widget.link.color.withOpacity(0.2),
                              borderRadius: BorderRadius.circular(16),
                            ),
                            child: Icon(
                              widget.link.icon,
                              color: widget.link.color,
                              size: 32,
                            ),
                          ),
                          // 文字信息
                          Column(
                            crossAxisAlignment: CrossAxisAlignment.start,
                            children: [
                              Text(
                                widget.link.title,
                                style: const TextStyle(
                                  fontSize: 18,
                                  fontWeight: FontWeight.bold,
                                  color: Colors.black87,
                                ),
                              ),
                              const SizedBox(height: 4),
                              Text(
                                widget.link.subtitle,
                                style: TextStyle(
                                  fontSize: 12,
                                  color: Colors.grey.shade600,
                                ),
                              ),
                            ],
                          ),
                        ],
                      ),
                    ),
                    // 类型标签
                    Positioned(
                      top: 12,
                      right: 12,
                      child: Container(
                        padding: const EdgeInsets.symmetric(
                          horizontal: 8,
                          vertical: 4,
                        ),
                        decoration: BoxDecoration(
                          color: widget.link.color.withOpacity(0.2),
                          borderRadius: BorderRadius.circular(12),
                        ),
                        child: Text(
                          _getTypeLabel(widget.link.type),
                          style: TextStyle(
                            fontSize: 10,
                            color: widget.link.color,
                            fontWeight: FontWeight.w600,
                          ),
                        ),
                      ),
                    ),
                  ],
                ),
              ),
            ),
          );
        },
      ),
    );
  }

  String _getTypeLabel(LinkType type) {
    switch (type) {
      case LinkType.website:
        return '网页';
      case LinkType.email:
        return '邮件';
      case LinkType.phone:
        return '电话';
      case LinkType.sms:
        return '短信';
      case LinkType.map:
        return '地图';
    }
  }
}

4.3 搜索功能实现

实现实时搜索过滤功能:

dart 复制代码
class _LinkLauncherPageState extends State<LinkLauncherPage>
    with TickerProviderStateMixin {
  final TextEditingController _searchTextController = TextEditingController();
  final List<LinkItem> _allLinks = [];
  List<LinkItem> _filteredLinks = [];
  bool _isSearching = false;
  late AnimationController _searchController;

  @override
  void initState() {
    super.initState();
    _searchController = AnimationController(
      vsync: this,
      duration: const Duration(milliseconds: 300),
    );
    // 初始化链接列表
    _initializeLinks();
    _filteredLinks = _allLinks;
  }

  void _initializeLinks() {
    // 初始化链接列表的代码
    // ... 添加链接项
  }

  void _filterLinks(String query) {
    setState(() {
      if (query.isEmpty) {
        _filteredLinks = _allLinks;
      } else {
        _filteredLinks = _allLinks
            .where((link) =>
                link.title.toLowerCase().contains(query.toLowerCase()) ||
                link.subtitle.toLowerCase().contains(query.toLowerCase()))
            .toList();
      }
    });
  }

  void _toggleSearch() {
    setState(() {
      _isSearching = !_isSearching;
      if (_isSearching) {
        _searchController.forward();
        _searchTextController.clear();
        _filteredLinks = _allLinks;
      } else {
        _searchController.reverse();
        _searchTextController.clear();
        _filteredLinks = _allLinks;
      }
    });
  }

  Widget _buildSearchBar() {
    return AnimatedBuilder(
      animation: _searchController,
      builder: (context, child) {
        return SizeTransition(
          sizeFactor: _searchController,
          axis: Axis.vertical,
          child: Container(
            margin: const EdgeInsets.symmetric(horizontal: 20, vertical: 10),
            padding: const EdgeInsets.symmetric(horizontal: 16),
            decoration: BoxDecoration(
              color: Colors.white.withOpacity(0.9),
              borderRadius: BorderRadius.circular(24),
              boxShadow: [
                BoxShadow(
                  color: Colors.black.withOpacity(0.1),
                  blurRadius: 10,
                  offset: const Offset(0, 4),
                ),
              ],
            ),
            child: TextField(
              controller: _searchTextController,
              decoration: const InputDecoration(
                hintText: '搜索链接...',
                border: InputBorder.none,
                icon: Icon(Icons.search),
              ),
              onChanged: _filterLinks,
            ),
          ),
        );
      },
    );
  }

  @override
  void dispose() {
    _searchController.dispose();
    _searchTextController.dispose();
    super.dispose();
  }
}

⚠️ 五、常见问题与解决方案

5.1 链接无法打开

问题 :调用 launchUrl() 后链接无法打开

解决方案

  1. 检查URL格式:确保URL格式正确

    dart 复制代码
    // 正确
    'https://developer.harmonyos.com'
    'https://flutter.cn'
    'mailto:support@example.com'
    'tel:+8613800138000'

    // 错误
    'flutter.cn'  // 缺少协议前缀
    'support@example.com'  // 缺少mailto:前缀
  2. 使用 canLaunchUrl() 检查

    dart 复制代码
    if (await canLaunchUrl(uri)) {
      await launchUrl(uri);
    } else {
      // 处理无法打开的情况
    }
  3. 检查权限配置 :确保在 module.json5 中配置了网络权限

5.2 邮件链接不工作

问题:点击邮件链接后没有反应

解决方案

  1. 检查设备上是否安装邮件应用:HarmonyOS需要系统中有邮件应用才能打开mailto链接

  2. 使用正确的URL格式

    dart 复制代码
    // 正确格式
    'mailto:support@example.com?subject=Hello&body=Hi'

    // URL编码特殊字符
    'mailto:support@example.com?subject=Hello%20World&body=Hi%20there'

5.3 电话和短信链接不工作

问题:电话和短信链接无法打开

解决方案

  1. 使用正确的电话号码格式

    dart 复制代码
    // 推荐使用国际格式
    'tel:+8613800138000'
    'sms:+8613800138000'

    // 也可以使用本地格式(但可能在某些地区不工作)
    'tel:13800138000'
  2. 检查设备功能:确保设备支持电话和短信功能(模拟器可能不支持)

5.4 网页在应用内打开而不是浏览器

问题:网页链接在应用内WebView打开,而不是系统浏览器

解决方案

使用 LaunchMode.externalApplication 模式:

dart 复制代码
await launchUrl(
  uri,
  mode: LaunchMode.externalApplication,  // 强制使用外部应用
);

5.5 权限被拒绝

问题:应用请求网络权限被用户拒绝

解决方案

  1. 添加权限说明 :在 module.json5 中添加 reason 字段说明权限用途

  2. 处理权限拒绝情况

    dart 复制代码
    try {
      await launchUrl(uri);
    } catch (e) {
      // 显示友好的错误提示
      ScaffoldMessenger.of(context).showSnackBar(
        SnackBar(
          content: Text('无法打开链接,请检查网络权限'),
        ),
      );
    }

5.6 MissingPluginException 错误和模块导入问题

问题1 :运行时出现 MissingPluginException: No implementation found for method launchUrl on channel plugins.flutter.io/url_launcher

问题2 :编译时出现 Cannot find module 'url_launcher_ohos' or its corresponding type declarations

解决方案

这是 HarmonyOS 平台上最常见的问题,原因是插件没有正确注册到原生平台。需要完成以下步骤:

  1. 在 pubspec.yaml 中添加 url_launcher_ohos 依赖

    由于 url_launcher 主包的 pubspec.yaml 中没有声明 ohos 平台支持,需要显式添加 url_launcher_ohos 依赖:

    yaml 复制代码
    dependencies:
      flutter:
        sdk: flutter
      url_launcher:
        git:
          url: https://atomgit.com/openharmony-tpc/flutter_packages.git
          path: packages/url_launcher/url_launcher
          ref: br_url_launcher-v6.3.0_ohos
      # 必须显式添加 url_launcher_ohos 依赖
      url_launcher_ohos:
        git:
          url: https://atomgit.com/openharmony-tpc/flutter_packages.git
          path: packages/url_launcher/url_launcher_ohos
          ref: br_url_launcher-v6.3.0_ohos
  2. 修复插件注册文件(使用相对路径)

    打开 ohos/entry/src/main/ets/plugins/GeneratedPluginRegistrant.ets,使用相对路径导入插件:

    typescript 复制代码
    import { FlutterEngine, Log } from '@ohos/flutter_ohos';
    // 注意:由于 ohpm install 会删除符号链接,这里使用相对路径导入插件
    // 路径从 .flutter-plugins 文件中获取的实际路径计算得出
    import UrlLauncherPlugin from '../../../../../../../../../.pub-cache/git/flutter_packages-6650f9f07d6d38dc7f2b088c637e47f75ceeb59b/packages/url_launcher/url_launcher_ohos/ohos/index';

    const TAG = "GeneratedPluginRegistrant";

    export class GeneratedPluginRegistrant {
      static registerWith(flutterEngine: FlutterEngine) {
        try {
          flutterEngine.getPlugins()?.add(new UrlLauncherPlugin());
        } catch (e) {
          Log.e(
            TAG,
            "Tried to register plugins with FlutterEngine ("
              + flutterEngine
              + ") failed.");
          Log.e(TAG, "Received exception while registering", e);
        }
      }
    }

    重要 :相对路径中的 git hash (6650f9f07d6d38dc7f2b088c637e47f75ceeb59b) 可能会变化。如果路径不正确,可以通过以下步骤获取:

    a. 获取插件实际路径:

    bash 复制代码
    cat .flutter-plugins | grep url_launcher_ohos

    b. 计算相对路径(使用 Python):

    python 复制代码
    import os
    plugins_dir = 'ohos/entry/src/main/ets/plugins'
    # 替换为实际的插件路径
    plugin_path = '/Users/你的用户名/.pub-cache/git/flutter_packages-xxx/packages/url_launcher/url_launcher_ohos/ohos'
    rel_path = os.path.relpath(os.path.abspath(plugin_path), os.path.abspath(plugins_dir))
    print(rel_path)
  3. 重新构建项目

    bash 复制代码
    flutter clean
    flutter pub get
    cd ohos/entry && ohpm install
  4. 验证配置

    检查 .flutter-plugins 文件是否包含 url_launcher_ohos

    bash 复制代码
    cat .flutter-plugins | grep url_launcher_ohos

    如果输出为空,说明依赖没有正确添加,需要重新执行步骤1。

重要提示

  • GeneratedPluginRegistrant.ets 文件虽然标记为自动生成,但在 HarmonyOS 平台上,如果插件没有自动注册,需要手动添加注册代码。
  • 由于 ohpm install 会删除符号链接,使用相对路径导入是最可靠的方法。
  • 如果 git hash 变化,需要更新相对路径。
  • 相对路径中的 ../../../../../../../../../ 是从 plugins 目录到项目根目录的相对路径。

5.7 "Launch in app" 功能不支持

问题:文档中提到 "The 'Launch in app' feature is not supported. Please use the modified feature through native application configuration."

说明

这个提示表示 LaunchMode.inAppWebView 模式在 HarmonyOS 平台上不支持。这意味着:

  1. 不支持的模式

    • LaunchMode.inAppWebView:无法在应用内使用 WebView 打开链接
  2. 支持的模式

    • LaunchMode.externalApplication:在外部应用(如浏览器)中打开(推荐
    • LaunchMode.platformDefault:使用平台默认方式打开
    • LaunchMode.externalNonBrowserApplication:在外部非浏览器应用中打开
  3. 推荐做法

    在 HarmonyOS 平台上,始终使用 LaunchMode.externalApplication

    dart 复制代码
    await launchUrl(
      uri,
      mode: LaunchMode.externalApplication,  // 推荐使用此模式
    );

    这样可以确保链接在系统默认浏览器或其他应用中正确打开。

  4. 如果需要应用内打开网页

    如果确实需要在应用内打开网页,可以考虑:

    • 使用 webview_flutter 插件(如果支持 HarmonyOS)
    • 使用 flutter_inappwebview 插件(如果支持 HarmonyOS)
    • 或者使用 HarmonyOS 原生的 WebView 组件

📝 六、最佳实践总结

6.1 URL格式规范

  1. 网页链接:始终使用完整的URL,包含协议(http://或https://)
  2. 邮件链接 :使用 mailto: 前缀,参数使用URL编码
  3. 电话链接:推荐使用国际格式(+国家代码+号码)
  4. 短信链接 :使用 sms: 前缀,电话号码格式同电话链接

6.2 错误处理

  1. 始终检查URL是否可以打开 :使用 canLaunchUrl() 检查
  2. 提供友好的错误提示:使用SnackBar显示错误信息
  3. 处理异常情况:使用try-catch捕获异常

6.3 用户体验优化

  1. 显示加载状态:打开链接时显示提示信息
  2. 提供视觉反馈:使用动画和颜色变化提供反馈
  3. 错误恢复:提供重试机制或替代方案

6.4 性能优化

  1. 避免频繁调用 :不要在循环中频繁调用 launchUrl()
  2. 使用异步处理 :确保使用 await 等待操作完成
  3. 内存管理:及时释放控制器和监听器

🔗 七、相关资源

🌐 社区支持

欢迎加入开源鸿蒙跨平台社区,与其他开发者交流学习,共同推进鸿蒙跨平台生态建设:

开源鸿蒙跨平台社区https://openharmonycrossplatform.csdn.net

在这里你可以:

  • 📚 获取最新的跨平台开发技术文档
  • 💬 与其他开发者交流开发经验
  • 🐛 反馈问题和建议
  • 🎯 参与开源项目贡献
  • 📖 学习更多跨平台开发最佳实践

📄 八、完整代码示例

以下是一个最小化的完整示例,可以直接复制使用:

dart 复制代码
import 'package:flutter/material.dart';
import 'package:url_launcher/url_launcher.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'URL Launcher Demo',
      theme: ThemeData(useMaterial3: true),
      home: const LinkLauncherPage(),
    );
  }
}

class LinkLauncherPage extends StatefulWidget {
  const LinkLauncherPage({super.key});

  @override
  State<LinkLauncherPage> createState() => _LinkLauncherPageState();
}

class _LinkLauncherPageState extends State<LinkLauncherPage> {
  Future<void> _launchURL(String url) async {
    final Uri uri = Uri.parse(url);
    try {
      if (await canLaunchUrl(uri)) {
        await launchUrl(
          uri,
          mode: LaunchMode.externalApplication,
        );
      } else {
        if (mounted) {
          ScaffoldMessenger.of(context).showSnackBar(
            const SnackBar(content: Text('无法打开此链接')),
          );
        }
      }
    } catch (e) {
      if (mounted) {
        ScaffoldMessenger.of(context).showSnackBar(
          SnackBar(content: Text('打开失败: $e')),
        );
      }
    }
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('链接启动器')),
      body: ListView(
        padding: const EdgeInsets.all(16),
        children: [
          ListTile(
            leading: const Icon(Icons.language),
            title: const Text('打开网页'),
            subtitle: const Text('https://developer.harmonyos.com'),
            onTap: () => _launchURL('https://developer.harmonyos.com'),
          ),
          ListTile(
            leading: const Icon(Icons.email),
            title: const Text('发送邮件'),
            subtitle: const Text('mailto:example@example.com'),
            onTap: () => _launchURL('mailto:example@example.com'),
          ),
          ListTile(
            leading: const Icon(Icons.phone),
            title: const Text('拨打电话'),
            subtitle: const Text('tel:+8613800138000'),
            onTap: () => _launchURL('tel:+8613800138000'),
          ),
          ListTile(
            leading: const Icon(Icons.message),
            title: const Text('发送短信'),
            subtitle: const Text('sms:+8613800138000'),
            onTap: () => _launchURL('sms:+8613800138000'),
          ),
        ],
      ),
    );
  }
}

使用说明

  1. 将上述代码保存到 lib/main.dart 文件中
  2. 确保 pubspec.yaml 中已添加 url_launcher 依赖
  3. 运行 flutter pub get 安装依赖
  4. 运行 flutter run 启动应用

🌐 社区支持

欢迎加入开源鸿蒙跨平台社区,与其他开发者交流学习,共同推进鸿蒙跨平台生态建设:

开源鸿蒙跨平台社区https://openharmonycrossplatform.csdn.net

在这里你可以:

  • 📚 获取最新的跨平台开发技术文档
  • 💬 与其他开发者交流开发经验
  • 🐛 反馈问题和建议
  • 🎯 参与开源项目贡献
  • 📖 学习更多跨平台开发最佳实践

享受你的链接启动开发之旅! 🚀✨

相关推荐
小雨青年2 小时前
鸿蒙 HarmonyOS 6 | 逻辑核心 (04):原生网络库 RCP 高性能实战
网络·华为·harmonyos
哈哈你是真的厉害2 小时前
React Native 鸿蒙跨平台开发:Tag 标签详解实战
华为·harmonyos·reactnative
阿钱真强道2 小时前
04 ubuntu20下 OpenHarmony-3.0-LTS qemu mps2-an386 运行 liteos_m
linux·嵌入式硬件·ubuntu·harmonyos
奋斗的小青年!!2 小时前
Flutter跨平台开发适配鸿蒙:骨架屏,让加载不那么“煎熬“
flutter·harmonyos·鸿蒙
小雨青年2 小时前
鸿蒙 HarmonyOS 6 | 逻辑核心 (03):网络通信——Axios 封装、拦截器设计与泛型接口处理
华为·harmonyos
hahjee2 小时前
Flutter跨平台三方库local_auth在鸿蒙中的使用指南
flutter·华为·harmonyos
kirk_wang3 小时前
Flutter艺术探索-Flutter热重载与热重启原理
flutter·移动开发·flutter教程·移动开发教程
kirk_wang13 小时前
Flutter艺术探索-Flutter调试工具:DevTools使用指南
flutter·移动开发·flutter教程·移动开发教程
小雨下雨的雨14 小时前
Flutter 框架跨平台鸿蒙开发 —— SingleChildScrollView 控件之长内容滚动艺术
flutter·ui·华为·harmonyos·鸿蒙
