一、前言
在前面的文章中，我们已经从源码层面分析了 Tomcat 的启动流程、请求处理模型，以及 Spring Boot 是如何在嵌入式 Tomcat 场景下完成 Servlet 和 Filter 注册的。
在此基础上，一个自然的问题是： 像 Spring Security 这样的安全框架，是如何介入 Tomcat 的 Filter 链，并在请求到达业务代码之前完成认证和鉴权的？
本文将以 Tomcat 的 Filter 机制为起点，结合 Spring Security 的启动流程，深入分析 Spring Security 的 Filter 是如何被创建、注册到 Tomcat 中的，以及一次请求是如何在 Security FilterChain 中流转的。
二、DelegatingFilterProxy注册到Tomcat和Spring Security启动源码
在Springboot自动配置类中org.springframework.boot.autoconfigure.security.servlet.SecurityFilterAutoConfiguration，注入了这样一个 bean对象,代码如下:
@Bean
@ConditionalOnBean(name = DEFAULT_FILTER_NAME)
public DelegatingFilterProxyRegistrationBean securityFilterChainRegistration(
SecurityProperties securityProperties) {
DelegatingFilterProxyRegistrationBean registration = new DelegatingFilterProxyRegistrationBean(
DEFAULT_FILTER_NAME);
registration.setOrder(securityProperties.getFilter().getOrder());
registration.setDispatcherTypes(getDispatcherTypes(securityProperties));
return registration;
}可以看出它注入到容器的条件是需要存在一个名称为springSecurityFilterChain的Bean,那么先来看这个bean是在哪里注入的那,它是在配置类org.springframework.security.config.annotation.web.configuration.WebSecurityConfiguration中通@Bean方式注入的，源码如下:
@Bean(name = AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
public Filter springSecurityFilterChain() throws Exception {
boolean hasFilterChain = !this.securityFilterChains.isEmpty();
if (!hasFilterChain) {
this.webSecurity.addSecurityFilterChainBuilder(() -> {
this.httpSecurity.authorizeHttpRequests((authorize) -> authorize.anyRequest().authenticated());
this.httpSecurity.formLogin(Customizer.withDefaults());
this.httpSecurity.httpBasic(Customizer.withDefaults());
return this.httpSecurity.build();
});
}
for (SecurityFilterChain securityFilterChain : this.securityFilterChains) {
this.webSecurity.addSecurityFilterChainBuilder(() -> securityFilterChain);
}
for (WebSecurityCustomizer customizer : this.webSecurityCustomizers) {
customizer.customize(this.webSecurity);
}
return this.webSecurity.build();
}指定bean的名称是springSecurityFilterChain,其中securityFilterChains是通过依赖注入进来的，代码如下:
@Autowired(required = false)
void setFilterChains(List<SecurityFilterChain> securityFilterChains) {
this.securityFilterChains = securityFilterChains;
}最终返回的是一个FilterChainProxy对象，它实现了Filter对象，虽然它实现了Filter对象，但是它没有加入到Tomcat的容器中，真正加入Tomcat的Filter是DelegatingFilterProxyRegistrationBean代表的Filter，原理就是它实现了ServletContextInitializer接口，上文我分析了SpringBoot嵌入Tomcat原理并加入Servlet和Filter逻辑可知会调用DelegatingFilterProxyRegistrationBean的getFilter方法把DelegatingFilterProxy类加入到Tomcat的容器中， 它同样实现了Filter接口，它的源码如下:
public DelegatingFilterProxy getFilter() {
return new DelegatingFilterProxy(this.targetBeanName, getWebApplicationContext()) {
@Override
protected void initFilterBean() throws ServletException {
// Don't initialize filter bean on init()
}
};
}而DelegatingFilterProxy持有Spring容器中的name名称是springSecurityFilterChain所代表的FilterChainProxy对象，这样就把Tomcat容器和Spring容器关联起来了，如果有请求先是被Tomcat注册的Filter类DelegatingFilterProxy处理，然后可以把请求转发给FilterChainProxy处理，这个主要大前提理解了就能捋顺后面的处理逻辑了。
上面说到FilterChainProxy会自动调用setFilterChains方法注入一个集合对象List<SecurityFilterChain>，这个可以在自己项目中自定义。
我的项目配置SecurityFilterChain是如下这样的：
@Bean
protected SecurityFilterChain filterChain(HttpSecurity httpSecurity) throws Exception {
httpSecurity
.cors(Customizer.withDefaults())
.csrf(AbstractHttpConfigurer::disable)
.sessionManagement(c -> c.sessionCreationPolicy(SessionCreationPolicy.STATELESS))
.headers(c -> c.frameOptions(HeadersConfigurer.FrameOptionsConfig::disable))
.exceptionHandling(c -> c.authenticationEntryPoint(authenticationEntryPoint)
.accessDeniedHandler(accessDeniedHandler));
Multimap<HttpMethod, String> permitAllUrls = getPermitAllUrlsFromAnnotations();
httpSecurity
.authorizeHttpRequests(c -> c
.requestMatchers(HttpMethod.GET, "/*.html", "/*.html", "/*.css", "/*.js").permitAll()
.requestMatchers(HttpMethod.GET, permitAllUrls.get(HttpMethod.GET).toArray(new String[0])).permitAll()
.requestMatchers(HttpMethod.POST, permitAllUrls.get(HttpMethod.POST).toArray(new String[0])).permitAll()
.requestMatchers(HttpMethod.PUT, permitAllUrls.get(HttpMethod.PUT).toArray(new String[0])).permitAll()
.requestMatchers(HttpMethod.DELETE, permitAllUrls.get(HttpMethod.DELETE).toArray(new String[0])).permitAll()
.requestMatchers(HttpMethod.HEAD, permitAllUrls.get(HttpMethod.HEAD).toArray(new String[0])).permitAll()
.requestMatchers(HttpMethod.PATCH, permitAllUrls.get(HttpMethod.PATCH).toArray(new String[0])).permitAll()
.requestMatchers(securityProperties.getPermitAllUrls().toArray(new String[0])).permitAll()
.requestMatchers(buildAppApi("/**")).permitAll()
//老系统请求得接口放行
.requestMatchers("/admin-api/medica/unified-entrance/getPageContractList").permitAll()
)
.authorizeHttpRequests(c -> authorizeRequestsCustomizers.forEach(customizer -> customizer.customize(c)))
.authorizeHttpRequests(c -> c.anyRequest().authenticated());
httpSecurity.addFilterBefore(authenticationTokenFilter, UsernamePasswordAuthenticationFilter.class);
return httpSecurity.build();
}其中HttpSecurity对象也是通过自动配置类配置好的，这里我就不详细讲解这个配置了。
我挑一些重点得说执行这段代码exceptionHandling(c -> c.authenticationEntryPoint(authenticationEntryPoint),exceptionHandling的方法签名如下:
public HttpSecurity exceptionHandling(
Customizer<ExceptionHandlingConfigurer<HttpSecurity>> exceptionHandlingCustomizer) throws Exception {
exceptionHandlingCustomizer.customize(getOrApply(new ExceptionHandlingConfigurer<>()));
return HttpSecurity.this;
}Customizer里面的customize方法接收一个对象进行处理，它的方法签名是这样的,void customize(T t),最终调用的是ExceptionHandlingConfigurer的authenticationEntryPoint方法，该方法源码如下:
public ExceptionHandlingConfigurer<H> authenticationEntryPoint(AuthenticationEntryPoint authenticationEntryPoint) {
this.authenticationEntryPoint = authenticationEntryPoint;
return this;
}最终把AuthenticationEntryPoint对象设置到ExceptionHandlingConfigurer的成员属性上，AuthenticationEntryPoint主要是处理用户没登录时候返回给前端的处理逻辑，例如我这个项目就是在用户没登录时候返回给用户404提示。
public void commence(HttpServletRequest request, HttpServletResponse response, AuthenticationException e) {
log.debug("[commence][访问 URL({}) 时，没有z登录]", request.getRequestURI(), e);
ServletUtils.writeJSON(response, CommonResult.error(UNAUTHORIZED));
}调用authorizeHttpRequests方法往HttpSecurity对象添加一个AuthorizeHttpRequestsConfigurer对象，在实例化AuthorizationManagerRequestMatcherRegistry对象过程中初始化一个AuthorizationManagerRequestMatcherRegistry成员变量，传入到Lambda的对象就是AuthorizationManagerRequestMatcherRegistry对象，然后调用该对象的requestMatchers方法
调用Multimap<HttpMethod, String> permitAllUrls = getPermitAllUrlsFromAnnotations();获取所有标有PermitAll注解的方法,以key为请求方法，value 是所有标有PermitAll注解的方法url路径，接着调用.requestMatchers(HttpMethod.GET, permitAllUrls.get(HttpMethod.GET).toArray(new String[0])).permitAll()。 先看requestMatchers方法源码如下:
public C requestMatchers(HttpMethod method, String... patterns) {
if (!mvcPresent) {
return requestMatchers(RequestMatchers.antMatchersAsArray(method, patterns));
}
if (!(this.context instanceof WebApplicationContext)) {
return requestMatchers(RequestMatchers.antMatchersAsArray(method, patterns));
}
WebApplicationContext context = (WebApplicationContext) this.context;
ServletContext servletContext = context.getServletContext();
if (servletContext == null) {
return requestMatchers(RequestMatchers.antMatchersAsArray(method, patterns));
}
boolean isProgrammaticApiAvailable = isProgrammaticApiAvailable(servletContext);
List<RequestMatcher> matchers = new ArrayList<>();
for (String pattern : patterns) {
AntPathRequestMatcher ant = new AntPathRequestMatcher(pattern, (method != null) ? method.name() : null);
MvcRequestMatcher mvc = createMvcMatchers(method, pattern).get(0);
if (isProgrammaticApiAvailable) {
matchers.add(resolve(ant, mvc, servletContext));
}
else {
matchers.add(new DeferredRequestMatcher(() -> resolve(ant, mvc, servletContext), mvc, ant));
}
}
return requestMatchers(matchers.toArray(new RequestMatcher[0]));
}如果mvcPresent是false说明是非Web环境直接用Ant风格匹配url,不是WebApplicationContext也用Ant风格匹配url,servletContext如果为空说明 Tomcat 还没 fully ready，不能立刻用 MVC，isProgrammaticApiAvailable判断当前Spring MVC 的 HandlerMappingIntrospector 是否已经可安全使用，如果是调用
if (isProgrammaticApiAvailable) {
matchers.add(resolve(ant, mvc, servletContext));
}调用resolve方法看当前环境能否用mvc,如果能优先使用否则使用Ant,如果isProgrammaticApiAvailable是false执行以下代码:
matchers.add(new DeferredRequestMatcher(() -> resolve(ant, mvc, servletContext), mvc, ant));创建一个DeferredRequestMatcher对象，意思是现在不决定用 Ant 还是 MVC，等"第一次请求来时"再决定 最后调用requestMatchers(matchers.toArray(new RequestMatcher[0]))最后返回new AuthorizedUrl(requestMatchers),AuthorizedUrl包装了RequestMatcher对象 requestMatchers方法执行返回以后会调用permitAll方法，该方法源码如下:
public AuthorizationManagerRequestMatcherRegistry permitAll() {
return access(permitAllAuthorizationManager);
}其中permitAllAuthorizationManager是一个Lambda表达式，它的声明是这样的：static final AuthorizationManager<RequestAuthorizationContext> permitAllAuthorizationManager = (a, o) -> new AuthorizationDecision(true);可以看出它返回一个true对象的AuthorizationDecision代表不拦截，这个在分析请求时候就可以看到它的用处。
再来看看access方法源码:
public AuthorizationManagerRequestMatcherRegistry access(
AuthorizationManager<RequestAuthorizationContext> manager) {
Assert.notNull(manager, "manager cannot be null");
return AuthorizeHttpRequestsConfigurer.this.addMapping(this.matchers, manager);
}可以看出是调用它的外部类对象AuthorizeHttpRequestsConfigurer的addMapping方法，该方法源码如下:
private AuthorizationManagerRequestMatcherRegistry addMapping(List<? extends RequestMatcher> matchers,
AuthorizationManager<RequestAuthorizationContext> manager) {
for (RequestMatcher matcher : matchers) {
this.registry.addMapping(matcher, manager);
}
return this.registry;
}又调用它的成员变量AuthorizationManagerRequestMatcherRegistry的addMapping方法，它的方法源码如下:
private void addMapping(RequestMatcher matcher, AuthorizationManager<RequestAuthorizationContext> manager) {
this.unmappedMatchers = null;
this.managerBuilder.add(matcher, manager);
this.mappingCount++;
}在这里又调用了成员变量RequestMatcherDelegatingAuthorizationManager.Builder的add方法，该方法源码如下:
public Builder add(RequestMatcher matcher, AuthorizationManager<RequestAuthorizationContext> manager) {
Assert.state(!this.anyRequestConfigured, "Can't add mappings after anyRequest");
Assert.notNull(matcher, "matcher cannot be null");
Assert.notNull(manager, "manager cannot be null");
this.mappings.add(new RequestMatcherEntry<>(matcher, manager));
return this;
}最终把matcher对象和manager对象封装为RequestMatcherEntry对象添加到List<RequestMatcherEntry<AuthorizationManager>>成员属性上。
接着调用authorizeHttpRequests(c -> c.anyRequest().authenticated())方法，anyRequest方法的源码如下:
public C anyRequest() {
Assert.state(!this.anyRequestConfigured, "Can't configure anyRequest after itself");
C configurer = requestMatchers(ANY_REQUEST);
this.anyRequestConfigured = true;
return configurer;
}其中ANY_REQUEST的实现是AnyRequestMatcher，它代表的是匹配任意路径，然后调用authenticated方法，它的方法源码如下:
public AuthorizationManagerRequestMatcherRegistry authenticated() {
return access(AuthenticatedAuthorizationManager.authenticated());
}AuthenticatedAuthorizationManager.authenticated()对象的实现是AuthenticatedAuthorizationManager，它与permitAll代表的Manager不同，它是需要校验是否有认证信息的 这个在请求时候在做具体分析，最终还是调用AuthorizationManagerRequestMatcherRegistry.access方法把AnyRequestMatcher、AuthenticatedAuthorizationManager放到List<RequestMatcherEntry<AuthorizationManager>>成员属性上 最后调用httpSecurity.build()方法，该方法源码如下:
protected final O doBuild() throws Exception {
synchronized (this.configurers) {
this.buildState = BuildState.INITIALIZING;
beforeInit();
init();
this.buildState = BuildState.CONFIGURING;
beforeConfigure();
configure();
this.buildState = BuildState.BUILDING;
O result = performBuild();
this.buildState = BuildState.BUILT;
return result;
}
}通过遍历SecurityConfigurer的config方法往httpSecurity添加一些Filter,这里就分析几个主要的SecurityConfigurer，先来看一下 ExceptionHandlingConfigurer的configure方法，该方法源码如下:
public void configure(H http) {
AuthenticationEntryPoint entryPoint = getAuthenticationEntryPoint(http);
ExceptionTranslationFilter exceptionTranslationFilter = new ExceptionTranslationFilter(entryPoint,
getRequestCache(http));
AccessDeniedHandler deniedHandler = getAccessDeniedHandler(http);
exceptionTranslationFilter.setAccessDeniedHandler(deniedHandler);
exceptionTranslationFilter.setSecurityContextHolderStrategy(getSecurityContextHolderStrategy());
exceptionTranslationFilter = postProcess(exceptionTranslationFilter);
http.addFilter(exceptionTranslationFilter);
}可以看出手动创建一个ExceptionTranslationFilter对象并设置一些成员属性比如AuthenticationEntryPoint，然后添加到httpSecurity上, ExceptionTranslationFilter 是 Spring Security 中"安全异常的统一翻译器",专门捕获 AuthenticationException 和 AccessDeniedException异常并将其转换为登录跳转、401 或 403 响应
再来看一下AuthorizeHttpRequestsConfigurer的configure方法源码:
public void configure(H http) {
AuthorizationManager<HttpServletRequest> authorizationManager = this.registry.createAuthorizationManager();
AuthorizationFilter authorizationFilter = new AuthorizationFilter(authorizationManager);
authorizationFilter.setAuthorizationEventPublisher(this.publisher);
authorizationFilter.setShouldFilterAllDispatcherTypes(this.registry.shouldFilterAllDispatcherTypes);
authorizationFilter.setSecurityContextHolderStrategy(getSecurityContextHolderStrategy());
http.addFilter(postProcess(authorizationFilter));
}先调用AuthorizationManagerRequestMatcherRegistry对象的createAuthorizationManager方法，该方法主要是创建一个RequestMatcherDelegatingAuthorizationManager对象并把List<RequestMatcherEntry<AuthorizationManager>> mappings对象 传递给它的成员变量。
最终再创建一个ObservationAuthorizationManager对象里面包装RequestMatcherDelegatingAuthorizationManager对象，这两个类都是实现了AuthorizationManager类，它们是组合关系，真正实现的逻辑在于RequestMatcherDelegatingAuthorizationManager对象。
接着创建AuthorizationFilter对象，它是一个Filter对象，把ObservationAuthorizationManager传递给它的成员变量，调用getSecurityContextHolderStrategy方法获取SecurityContextHolderStrategy对象，它的实现是TransmittableThreadLocalSecurityContextHolderStrategy，这个类是我项目自定义的类，它里面的ThreadLocal实现是阿里巴巴的 TransmittableThreadLocal，这个类可以不同线程池中持有某个资源，比如认证信息，把TransmittableThreadLocalSecurityContextHolderStrategy也设置到Filter对象成员属性上,最后把AuthorizationFilter 添加到HttpSecurity上。
再来看一下AnonymousConfigurer的方法源码，它的源码处理逻辑是在init和configure里面都有，下面分别贴出源码:
public void init(H http) {
if (this.authenticationProvider == null) {
this.authenticationProvider = new AnonymousAuthenticationProvider(getKey());
}
if (this.authenticationFilter == null) {
this.authenticationFilter = new AnonymousAuthenticationFilter(getKey(), this.principal, this.authorities);
this.authenticationFilter.setSecurityContextHolderStrategy(getSecurityContextHolderStrategy());
}
this.authenticationFilter.setSecurityContextHolderStrategy(getSecurityContextHolderStrategy());
this.authenticationProvider = postProcess(this.authenticationProvider);
http.authenticationProvider(this.authenticationProvider);
}
public void configure(H http) {
this.authenticationFilter.afterPropertiesSet();
http.addFilter(this.authenticationFilter);
}主要是实例化一个AnonymousAuthenticationFilter对象，设置成员属性principal为anonymousUser、List authorities为ROLE_ANONYMOUS、设置SecurityContextHolderStrategy然后把这个Filter添加到 HttpSecurity中，这个Filter主要作用是即使没登陆也放个Authentication认证对象，后面请求我会具体分析。
好到这里开始执行doBuild方法里面的performBuild，该方法源码如下:
protected DefaultSecurityFilterChain performBuild() {
this.filters.sort(OrderComparator.INSTANCE);
List<Filter> sortedFilters = new ArrayList<>(this.filters.size());
for (Filter filter : this.filters) {
sortedFilters.add(((OrderedFilter) filter).filter);
}
return new DefaultSecurityFilterChain(this.requestMatcher, sortedFilters);

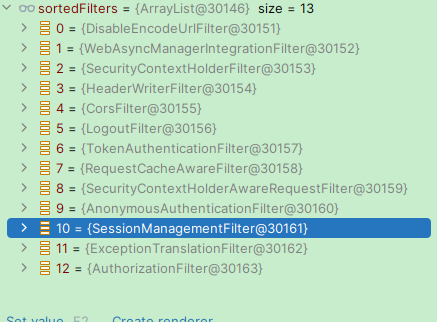

}主要是给Filter进行排序，order小的Filter在最前面，最后创建一个DefaultSecurityFilterChain对象传入AnyRequestMatcher、排好序的Filter集合返回DefaultSecurityFilterChain。 我的项目中Filter集合主要有这些，其中TokenAuthenticationFilter是我自定义的Filter用于添加认证信息的。
三、Spring Security请求源码分析
首先我这个项目请求先经过我自定义的TokenAuthenticationFilter，我是通过校验请求传递的Token去查询Redis里面是否有有效token如果有构造一个LoginUser对象，然后创建一个 UsernamePasswordAuthenticationToken对象，代码如下:
private static Authentication buildAuthentication(LoginUser loginUser, HttpServletRequest request) {
UsernamePasswordAuthenticationToken authenticationToken = new UsernamePasswordAuthenticationToken(
loginUser, null, Collections.emptyList());
authenticationToken.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));
return authenticationToken;
}然后调用SecurityContextHolder.getContext().setAuthentication(authentication)方法把UsernamePasswordAuthenticationToken放到ThreadLocal中，前面说过这个ThreadLocal的实现是 阿里巴巴的TransmittableThreadLocal，可以在多个线程之间共享资源，这是用户正确登录的情况下，如果用户没有登录就不设置这个，那么ThreadLocal里面就没有认证信息，下面 看AnonymousAuthenticationFilter是如何处理这两种不同情况的,它的doFilter源码如下:
@Override
public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain)
throws IOException, ServletException {
Supplier<SecurityContext> deferredContext = this.securityContextHolderStrategy.getDeferredContext();
this.securityContextHolderStrategy
.setDeferredContext(defaultWithAnonymous((HttpServletRequest) req, deferredContext));
chain.doFilter(req, res);
}声明一个Supplier表达式，它的实现是如下:
public SecurityContext getContext() {
SecurityContext ctx = CONTEXT_HOLDER.get();
if (ctx == null) {
ctx = createEmptyContext();
CONTEXT_HOLDER.set(ctx);
}
return ctx;
}从ThreadLocal中取出SecurityContext,如果当前用户已经登录那ctx指定不为空直接返回，如果没登录就调用createEmptyContext创建一个SecurityContextImpl对象然后设置到 ThreadLocal中。
接着调用defaultWithAnonymous方法该方法源码如下:
private SecurityContext defaultWithAnonymous(HttpServletRequest request, SecurityContext currentContext) {
Authentication currentAuthentication = currentContext.getAuthentication();
if (currentAuthentication == null) {
Authentication anonymous = createAuthentication(request);
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.of(() -> "Set SecurityContextHolder to " + anonymous));
}
else {
this.logger.debug("Set SecurityContextHolder to anonymous SecurityContext");
}
SecurityContext anonymousContext = this.securityContextHolderStrategy.createEmptyContext();
anonymousContext.setAuthentication(anonymous);
return anonymousContext;
}
else {
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.of(() -> "Did not set SecurityContextHolder since already authenticated "
+ currentAuthentication));
}
}
return currentContext;
}判断SecurityContext中是否有Authentication对象，如果有的话就是前面的Filter已经设置了我上面说的登录场景，对象是UsernamePasswordAuthenticationToken，那么就直接返回， 如果没有登录调用createAuthentication方法创建一个AnonymousAuthenticationToken对象，源码如下:
protected Authentication createAuthentication(HttpServletRequest request) {
AnonymousAuthenticationToken token = new AnonymousAuthenticationToken(this.key, this.principal,
this.authorities);
token.setDetails(this.authenticationDetailsSource.buildDetails(request));
return token;
}然后把创建好的AnonymousAuthenticationToken对象设置到SecurityContext中相当于设置到ThreadLocal中。 继续执行到AuthorizationFilter的doFilter方法，该方法源码如下:
public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain chain)
throws ServletException, IOException {
HttpServletRequest request = (HttpServletRequest) servletRequest;
HttpServletResponse response = (HttpServletResponse) servletResponse;
if (this.observeOncePerRequest && isApplied(request)) {
chain.doFilter(request, response);
return;
}
if (skipDispatch(request)) {
chain.doFilter(request, response);
return;
}
String alreadyFilteredAttributeName = getAlreadyFilteredAttributeName();
request.setAttribute(alreadyFilteredAttributeName, Boolean.TRUE);
try {
AuthorizationDecision decision = this.authorizationManager.check(this::getAuthentication, request);
this.eventPublisher.publishAuthorizationEvent(this::getAuthentication, request, decision);
if (decision != null && !decision.isGranted()) {
throw new AccessDeniedException("Access Denied");
}
chain.doFilter(request, response);
}
finally {
request.removeAttribute(alreadyFilteredAttributeName);
}
}这里主要调用了AuthorizationManager的check方法，它的实现类上面我说过是ObservationAuthorizationManager对象，它的源码如下:
public AuthorizationDecision check(Supplier<Authentication> authentication, T object) {
AuthorizationObservationContext<T> context = new AuthorizationObservationContext<>(object);
Supplier<Authentication> wrapped = () -> {
context.setAuthentication(authentication.get());
return context.getAuthentication();
};
Observation observation = Observation.createNotStarted(this.convention, () -> context, this.registry).start();
try (Observation.Scope scope = observation.openScope()) {
AuthorizationDecision decision = this.delegate.check(wrapped, object);
context.setDecision(decision);
if (decision != null && !decision.isGranted()) {
observation.error(new AccessDeniedException(
this.messages.getMessage("AbstractAccessDecisionManager.accessDenied", "Access Denied")));
}
return decision;
}
catch (Throwable ex) {
observation.error(ex);
throw ex;
}
finally {
observation.stop();
}
}这里面又调用了delegate.check方法，这个delegate的实现是前面说的RequestMatcherDelegatingAuthorizationManager对象，Supplier authentication这是存储在 ThreadLocal中的Authentication对象，RequestMatcherDelegatingAuthorizationManager对象的check方法源码如下:
public AuthorizationDecision check(Supplier<Authentication> authentication, HttpServletRequest request) {
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.format("Authorizing %s", request));
}
for (RequestMatcherEntry<AuthorizationManager<RequestAuthorizationContext>> mapping : this.mappings) {
RequestMatcher matcher = mapping.getRequestMatcher();
MatchResult matchResult = matcher.matcher(request);
if (matchResult.isMatch()) {
AuthorizationManager<RequestAuthorizationContext> manager = mapping.getEntry();
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.format("Checking authorization on %s using %s", request, manager));
}
return manager.check(authentication,
new RequestAuthorizationContext(request, matchResult.getVariables()));
}
}
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.of(() -> "Denying request since did not find matching RequestMatcher"));
}
return DENY;
}根据请求的url路径匹配AuthorizationManager，前面分析过对于PermitAll修饰的注册的是这样一个Lambda表达式 AuthorizationManager<RequestAuthorizationContext> permitAllAuthorizationManager = (a, o) -> new AuthorizationDecision(true)，对于需要认证的是注册的是AuthenticatedAuthorizationManager,现在分别分析它两的不同之处 先看AuthenticatedAuthorizationManager,它的check源码如下:
public AuthorizationDecision check(Supplier<Authentication> authentication, T object) {
boolean granted = this.authorizationStrategy.isGranted(authentication.get());
return new AuthorizationDecision(granted);
}调用AuthenticatedAuthorizationStrategy对象isGranted方法，该方法源码如下:
public boolean isAnonymous(Authentication authentication) {
if ((this.anonymousClass == null) || (authentication == null)) {
return false;
}
return this.anonymousClass.isAssignableFrom(authentication.getClass());
}判断当前认证信息的Token是不是AnonymousAuthenticationToken如果是说明需要认证的url是没有登录的，返回new AuthorizationDecision(granted)对象，其中granted值是false,如果登录了granted值是true, 根据这个值判断是否抛出认证失败异常，如果认证失败抛出AccessDeniedException异常，ExceptionTranslationFilter会捕获异常信息然后调用上面注册的AuthenticationEntryPoint对象的commence方法返回给前端一个登录异常提示。
四、结束语
通过对 Spring Security 启动和请求流程的分析可以看到，安全框架并不是绕过 Tomcat 实现权限控制，而是严格建立在 Servlet Filter 机制 之上。
Spring Security 在容器启动阶段完成 FilterChain 的构建，并通过标准扩展点将其注册到 Tomcat 的 Filter 链中；在请求阶段，则通过一层层 Security Filter 对请求进行拦截和处理。
当从容器视角重新审视 Spring Security 时，那些看似复杂的安全流程，其实只是一次次标准的 Filter 调用而已。
