智能问数系统（二）：数据分析师Python

智能问数系统（二）：数据分析师Python

文章目录

• 智能问数系统（二）：数据分析师Python
• • 摘要
  • Python代码生成
  • Python脚本执行
  • • Docker执行
    • Local
    • AI模拟
  • Python总结分析
  • 总结

摘要

• 由于SQL（Structured Query Language）本质上是为数据检索和关系运算设计的，虽然 SQL 支持 SUM, AVG, COUNT 等基本聚合，但对于复杂的统计分析，SQL 的表达力有限，SQL 返回的是平铺的二维表（Rows & Columns）
• 比如我们通过Text-to-SQL把自然语言：统计分析2025年6月分的每个产品的销售额 转换为如下的SQL语句：

select `order_items`.`product_id`, `order_items`.`order_id`, `products`.`name`, `order_items`.`quantity`, `order_items`.`unit_price`
from `orders` join `order_items` on `orders`.`id` = `order_items`.`order_id` join `products` on `order_items`.`product_id` = `products`.`id`
where `orders`.`order_date` >= '2025-06-01' and `orders`.`order_date` <= '2025-06-30' and `orders`.`status` = 'completed';

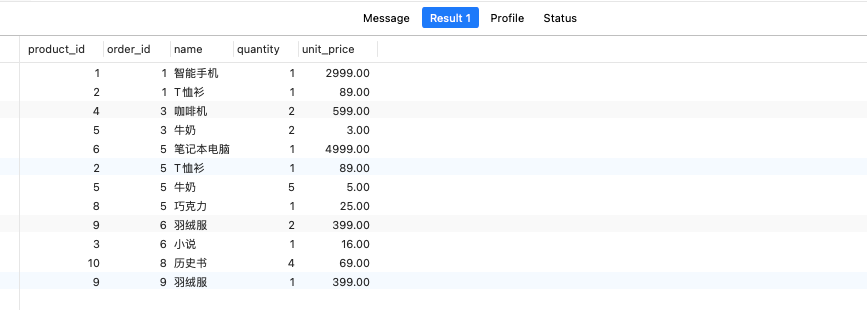

• SQL执行结果如下，下面数据直接平铺展示不能体现数据的价值，因此我们可以通过Python的Pandas库对数据进行技术分析体现数据的价值。

Python代码生成

• 我们可以通过提示词（提供示例）来让LLM来生成可执行的Python代码：ChatClientRequest

# ROLE: 专业Python数据分析工程师

你是一个专业的Python数据分析工程师，你的任务是根据用户提供的自然语言分析需求、数据库表结构和SQL查询结果样例，编写一段**可直接运行的无状态Python脚本**。

**核心要求**：生成的代码必须满足：
① 输入SQL结果JSON → ② 执行分析 → ③ 输出JSON结果 的完整闭环。
④ 异常时通过stderr提供可调试的完整堆栈信息。

# 示例输出

假设用户需求是"统计每个渠道的线索数量和转化率"，生成的代码可能如下：

```python
import sys
import json
import traceback
import pandas as pd

try:
    # 从stdin读取输入数据
    input_data = json.load(sys.stdin)

    # 转换为DataFrame
    df = pd.DataFrame(input_data)

    # 自动类型推断：将字符串形式的数值转换为实际数值类型
    for col in df.columns:
        df[col] = pd.to_numeric(df[col], errors='ignore')

    # 动态分析逻辑
    result = {
        "channel_stats": []
    }

    # 计算每个渠道的线索数量和转化率
    if "channel" in df.columns and "conversion" in df.columns:
        grouped = df.groupby("channel").agg(
            lead_count=("conversion", "size"),
            conversion_rate=("conversion", "mean")
        ).reset_index()

        result["channel_stats"] = grouped.to_dict(orient="records")

    # 输出结果为JSON对象
    print(json.dumps(result, ensure_ascii=False))

except Exception:
    # 捕获异常并输出堆栈信息到stderr
    traceback.print_exc(file=sys.stderr)
    sys.exit(1)
```

=== 上下文信息 ===

【表结构】

```
{"name":"saa_data_agent","table":[{"name":"products","description":"商品表","column":[{"name":"stock","description":"商品库存数量","enumeration":0,"type":"number","data":["100","500","200"]},{"name":"name","description":"商品名称","enumeration":0,"type":"text","data":["智能手机","T恤衫","小说"]},{"name":"price","description":"商品单价","enumeration":0,"type":"number","data":["2999.00","89.00","39.00"]},{"name":"id","description":"商品ID，主键自增","enumeration":0,"type":"number","data":["1","2","3"]},{"name":"created_at","description":"商品上架时间","enumeration":0,"type":"datetime","data":["2026-01-12 09:27:11"]}],"primaryKeys":["id"]},{"name":"order_items","description":"订单明细表","column":[{"name":"product_id","description":"商品ID","enumeration":0,"type":"number","data":["1","2","3"]},{"name":"id","description":"订单明细ID，主键自增","enumeration":0,"type":"number","data":["1","2","3"]},{"name":"order_id","description":"订单ID","enumeration":0,"type":"number","data":["1","2","3"]},{"name":"quantity","description":"购买数量","enumeration":0,"type":"number","data":["1","2"]},{"name":"unit_price","description":"下单时商品单价","enumeration":0,"type":"number","data":["2999.00","89.00","39.00"]}],"primaryKeys":["id"]},{"name":"orders","description":"订单表","column":[{"name":"status","description":"订单状态（pending/completed/cancelled等）","enumeration":0,"type":"text","data":["completed","pending","cancelled"]},{"name":"order_date","description":"下单时间","enumeration":0,"type":"datetime","data":["2025-06-01 10:10:00","2025-06-02 09:23:00","2025-06-03 13:45:00"]},{"name":"user_id","description":"下单用户ID","enumeration":0,"type":"number","data":["1","2","3"]},{"name":"id","description":"订单ID，主键自增","enumeration":0,"type":"number","data":["1","2","3"]},{"name":"total_amount","description":"订单总金额","enumeration":0,"type":"number","data":["3088.00","39.00","1204.00"]}],"primaryKeys":["id"]}],"foreignKeys":["order_items.order_id=orders.id","product_categories.category_id=categories.id","orders.user_id=users.id","product_categories.product_id=products.id","order_items.product_id=products.id","orders.user_id=users.id"]}
```

【输入样例】

```json
[{"quantity":"1","product_id":"1","name":"智能手机","unit_price":"2999.00"},{"quantity":"1","product_id":"2","name":"T恤衫","unit_price":"89.00"},{"quantity":"2","product_id":"4","name":"咖啡机","unit_price":"599.00"},{"quantity":"2","product_id":"5","name":"牛奶","unit_price":"3.00"},{"quantity":"1","product_id":"6","name":"笔记本电脑","unit_price":"4999.00"}]
```

【方案指导】

```json
{"instruction":"读取上一步的查询结果，计算每个产品的销售额（销售额 = unit_price * quantity），按 product_id 和商品名称分组进行汇总，并生成销售额从高到低的排序列表，同时绘制前10名产品的销售额柱状图。"}
```

---

=== 用户输入 ===

接下来是用户的需求：统计分析2025年6月（2025-06-01至2025-06-30）每个产品的销售额

• LLM的response响应text对应的python脚本如下：

import sys
import json
import traceback
import pandas as pd

try:
    # 从stdin读取输入数据
    input_data = json.load(sys.stdin)

    # 转换为DataFrame
    df = pd.DataFrame(input_data)

    # 自动类型推断：将字符串形式的数值转换为实际数值类型
    for col in df.columns:
        df[col] = pd.to_numeric(df[col], errors='ignore')

    # 检查是否包含必要字段，若不包含则尝试从orders和order_items关联分析
    if "order_date" in df.columns:
        # 筛选2025年6月的数据（2025-06-01 至 2025-06-30）
        df["order_date"] = pd.to_datetime(df["order_date"])
        start_date = pd.Timestamp("2025-06-01")
        end_date = pd.Timestamp("2025-06-30 23:59:59")
        filtered_df = df[(df["order_date"] >= start_date) & (df["order_date"] <= end_date)]
    else:
        # 如果没有order_date，假定输入已经是6月的订单明细（如order_items join products）
        filtered_df = df.copy()

    # 计算每个产品的销售额：unit_price * quantity
    if all(col in filtered_df.columns for col in ["unit_price", "quantity", "product_id"]):
        filtered_df["sales"] = filtered_df["unit_price"] * filtered_df["quantity"]

        # 按 product_id 和商品名称（如果有name字段）分组汇总销售额
        group_cols = ["product_id"]
        if "name" in filtered_df.columns:
            group_cols.append("name")

        sales_summary = filtered_df.groupby(group_cols)["sales"].sum().reset_index()

        # 排序：按销售额从高到低
        sales_summary = sales_summary.sort_values(by="sales", ascending=False).reset_index(drop=True)

        # 生成结果列表
        result = {
            "product_sales": sales_summary.to_dict(orient="records")
        }
    else:
        # 缺少关键字段时返回空结果
        result = {
            "product_sales": [],
            "error": "Missing required fields: 'unit_price', 'quantity', or 'product_id'"
        }

    # 输出结果为JSON对象
    print(json.dumps(result, ensure_ascii=False))

except Exception:
    # 捕获异常并输出堆栈信息到stderr
    traceback.print_exc(file=sys.stderr)
    sys.exit(1)

Python脚本执行

• Python脚步执行的三种方式
  • Docker：通过Docker容器的方式运（生产环境推荐Docker）
  • Local ：使用本地Python3 环境运行代码的实现类，要求本地的Python3 需要有pandas等数据分析库。（本地测试）
  • AI模拟 ：使用AI 模拟运行Python 代码（便于在无Docker环境测试）

Docker执行

• 核心思想是："主机负责调度，容器负责执行，文件系统作为通信桥梁"

protected TaskResponse execTaskInContainer(TaskRequest request, String containerId) {
		// 该目录将用于 与容器共享文件
		Path tempDir = this.containerTempPath.get(containerId);
		if (tempDir == null) {
			log.error("Container '{}' does not exist work dir", containerId);
			return TaskResponse.exception("Container '" + containerId + "' does not exist work dir");
		}

  	// 写入Py代码和标准输入
		try {
			Files.write(tempDir.resolve("script.py"),
					StringUtils.hasText(request.code()) ? request.code().getBytes() : "".getBytes());
			Files.write(tempDir.resolve("requirements.txt"),
					StringUtils.hasText(request.requirement()) ? request.requirement().getBytes() : "".getBytes());
			Files.write(tempDir.resolve("input_data.txt"),
					StringUtils.hasText(request.input()) ? request.input().getBytes() : "".getBytes());
			Files.write(tempDir.resolve("stdout.txt"), "".getBytes());
			Files.write(tempDir.resolve("stderr.txt"), "".getBytes());
		}
		catch (Exception e) {
			return TaskResponse.exception(e.getMessage());
		}

		try {
			// 启动容器执行
			dockerClient.startContainerCmd(containerId).exec();
			dockerClient.waitContainerCmd(containerId)
				.start()
				.awaitCompletion(this.properties.getContainerTimeout(), TimeUnit.SECONDS);

			// 读取stdout和stderr
			String stdout = Files.readString(tempDir.resolve("stdout.txt"));
			String stderr = Files.readString(tempDir.resolve("stderr.txt"));

			// 返回结果
			InspectContainerResponse inspectResponse = dockerClient.inspectContainerCmd(containerId).exec();
			int exitCode = Objects.requireNonNull(inspectResponse.getState().getExitCodeLong()).intValue();
			if (exitCode != 0) {
				return TaskResponse.failure(stdout, stderr);
			}
			return TaskResponse.success(stdout);
		}
		catch (Exception e) {
			log.error("Error when creating container in docker: {}", e.getMessage());
			return TaskResponse.exception(e.getMessage());
		}
	}

Local

@Override
	protected TaskResponse execTaskInContainer(TaskRequest request, String containerId) {
    // 获取隔离目录
		Path container = this.containers.get(containerId);

		// 写入Py代码和标准输入
		Path scriptFile = container.resolve("script.py");
		Path stdinFile = container.resolve("stdin.txt");
		Path requirementFile = container.resolve("requirements.txt");
		try {
			Files.write(scriptFile, Optional.ofNullable(request.code()).orElse("").getBytes());
			Files.write(stdinFile, Optional.ofNullable(request.input()).orElse("").getBytes());
			Files.write(requirementFile, Optional.ofNullable(request.requirement()).orElse("").getBytes());
		}
		catch (Exception e) {
			log.error("Create temp file failed: {}", e.getMessage(), e);
			return TaskResponse.exception(e.getMessage());
		}

		// 如果有requirements，则先安装依赖
		if (this.checkProgramExists(pipNames) != null && StringUtils.hasText(request.requirement())) {
			//删除了
		}

		// 运行Python代码
		Process process = null;
		try {
			ProcessBuilder pb = new ProcessBuilder(this.checkProgramExists(pythonNames),
					scriptFile.toAbsolutePath().toString());
			pb.directory(container.toFile());
			pb.redirectInput(stdinFile.toFile());
			process = pb.start();

			// 读取stdout和stderr
			StringWriter stdoutWriter = new StringWriter();
			StringWriter stderrWriter = new StringWriter();
			try (BufferedReader stdoutReader = new BufferedReader(new InputStreamReader(process.getInputStream()));
					BufferedReader stderrReader = new BufferedReader(new InputStreamReader(process.getErrorStream()))) {
				CompletableFuture<Void> stdoutFuture = CompletableFuture.runAsync(() -> {
					stdoutReader.transferTo(stdoutWriter);
				});
				CompletableFuture<Void> stderrFuture = CompletableFuture.runAsync(() -> {
					stderrReader.transferTo(stderrWriter);
				});

				// 等待进程完成，带超时限制
				boolean completed = process.waitFor(this.parseToMilliseconds(this.properties.getCodeTimeout()),
						TimeUnit.MILLISECONDS);
				// 等待输出读取完成，给输出读取额外2秒时间
				CompletableFuture.allOf(stdoutFuture, stderrFuture).get(2, TimeUnit.SECONDS);
			}
			// 返回结果
			int exitCode = process.exitValue();
			String stdout = stdoutWriter.toString();
			String stderr = stderrWriter.toString();
			if (exitCode != 0) {
				return TaskResponse.failure(stdout, stderr);
			}
			else {
				return TaskResponse.success(stdout);
			}

		}
		catch (Exception e) {
			log.error("Python execution failed: {}", e.getMessage(), e);
			return TaskResponse.exception(e.getMessage());
		}
		finally {
			if (process != null && process.isAlive()) {
				process.destroyForcibly();
			}
		}
	}

AI模拟

• 通过调用LLM进行模拟执行

@Override
	public TaskResponse runTask(TaskRequest request) {
		String userPrompt = String.format("""
				【代码】
				```python
				%s
				```
				【标准输入】
				```json
				%s
				```
				""", request.code(), request.input());
		String output = llmService.toStringFlux(llmService.call(SYSTEM_PROMPT, userPrompt))
			.collect(StringBuilder::new, StringBuilder::append)
			.map(StringBuilder::toString)
			.block();
		return TaskResponse.success(output);
	}

Python总结分析

• Python执行输出结果

{"product_sales":[{"product_id":6,"name":"笔记本电脑","sales":4999.0},{"product_id":1,"name":"智能手机","sales":2999.0},{"product_id":4,"name":"咖啡机","sales":1198.0},{"product_id":9,"name":"羽绒服","sales":1197.0},{"product_id":10,"name":"历史书","sales":276.0},{"product_id":2,"name":"T恤衫","sales":178.0},{"product_id":5,"name":"牛奶","sales":31.0},{"product_id":8,"name":"巧克力","sales":25.0},{"product_id":3,"name":"小说","sales":16.0}]}

• 对于Python执行输出结果可以再通过LLM进行分析总结

# ROLE: 数据分析报告撰写专家

你是一位专业的数据分析报告撰写专家，擅长将复杂的数据分析结果转化为清晰、准确、易懂的自然语言总结。

你的任务是根据用户的原始查询需求和Python脚本的分析输出结果，生成一段**结构清晰、语言简洁、内容准确**的总结性描述。

---

### 输入信息

【用户原始查询】
统计分析2025年6月（2025-06-01至2025-06-30）每个产品的销售额

【Python分析结果】
{"product_sales":[{"product_id":6,"name":"笔记本电脑","sales":4999.0},{"product_id":1,"name":"智能手机","sales":2999.0},{"product_id":4,"name":"咖啡机","sales":1198.0},{"product_id":9,"name":"羽绒服","sales":1197.0},{"product_id":10,"name":"历史书","sales":276.0},{"product_id":2,"name":"T恤衫","sales":178.0},{"product_id":5,"name":"牛奶","sales":31.0},{"product_id":8,"name":"巧克力","sales":25.0},{"product_id":3,"name":"小说","sales":16.0}]}

---

### 输出模板

请根据以下模板生成总结内容：

```text
[总结内容]
```

请根据以上规则生成符合要求的总结内容：

• 最终分析结果

2025年6月，笔记本电脑销售额为4999.0元，位居第一；智能手机销售额为2999.0元，排名第二；咖啡机销售额为1198.0元，位列第三。其他产品销售额依次为羽绒服1197.0元、历史书276.0元、T恤衫178.0元、牛奶31.0元、巧克力25.0元、小说16.0元。

总结

• 可以防止 Token 溢出： SQL 可能返回上万条结果，直接塞给 LLM 会导致上下文溢出且费用昂贵。Python 可以对数据进行采样、分桶（Binning）或特征提取，将"脱水"后的精简摘要发给 LLM。
• 异常检测： Python 脚本可以快速扫描结果集中的离群值（Outliers）或空值，并在分析报告中自动标注异常。
• 通过 Schema 增强 确保取数准确，通过 Python 脚本 确保分析深度，最后通过 LLM 总结 确保回复质量
