HarmonyOS6 - 鸿蒙AI人脸比对实战案例

HarmonyOS6 - 鸿蒙AI人脸比对实战案例

开发环境为：

开发工具：DevEco Studio 6.0.1 Release

API版本是：API21

本文所有代码都已使用模拟器测试成功！

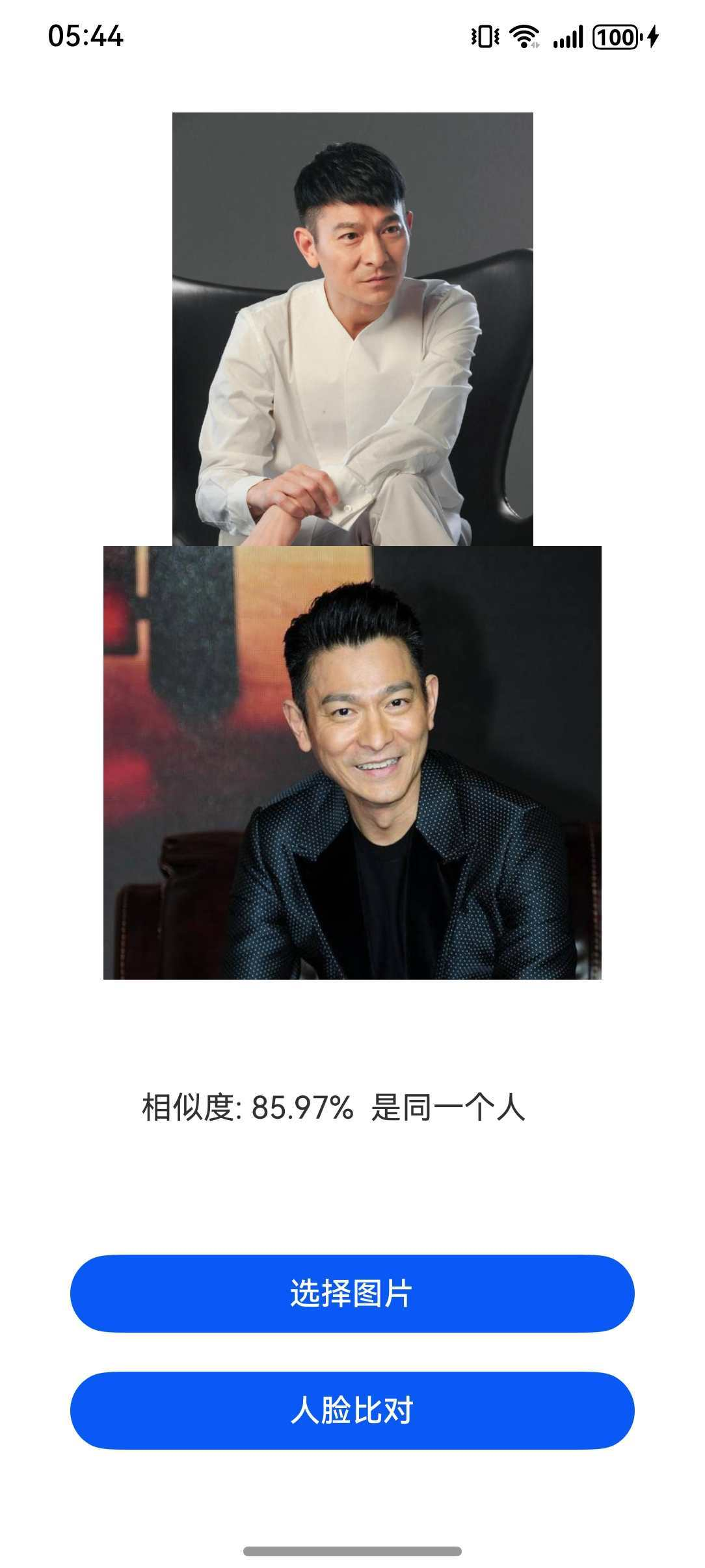

1. 效果

2. 需求

1. 点击【选择图片】按钮，弹出图库选择框，从图库选择两张人脸照
2. 选择的人脸照显示到页面上
3. 点击【人脸对比】按钮，对比两张人脸照的相似度，并给出结果，是否是同一个人

3. 分析

针对以上需求，开发思路录下：

1. 页面需要有两个按钮：选择图片和人脸对比
2. 需要有拉起图库选择的操作，并且可以同时选择两张图片
3. 需要使用到【faceComparator】人脸比对模块
4. 显示比对结果到页面上

4. 开发

根据以上需求，参考官网对【faceComparator】人脸比对模块的介绍，我们开始编码

页面代码如下：

import { faceComparator } from '@kit.CoreVisionKit';
import { image } from '@kit.ImageKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { fileIo } from '@kit.CoreFileKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';

const TAG: string = "FaceCompareSample";

/**
 * 案例：AI人脸比对
 */
@Entry
@Component
struct Page14 {
  @State chooseImage: PixelMap | undefined = undefined
  @State chooseImage1: PixelMap | undefined = undefined
  @State dataValues: string = ''

  async aboutToAppear(): Promise<void> {
    const initResult = await faceComparator.init();
    hilog.info(0x0000, TAG, `Face comparator initialization result:${initResult}`);
  }

  async aboutToDisappear(): Promise<void> {
    await faceComparator.release();
    hilog.info(0x0000, TAG, 'Face comparator released successfully');
  }

  build() {
    Column() {
      Image(this.chooseImage)
        .objectFit(ImageFit.Fill)
        .height('30%')
        .accessibilityDescription("默认图片1")
      Image(this.chooseImage1)
        .objectFit(ImageFit.Fill)
        .height('30%')
        .accessibilityDescription("默认图片2")
      Text(this.dataValues)
        .copyOption(CopyOptions.LocalDevice)
        .height('15%')
        .margin(10)
        .width('60%')
      Button('选择图片')
        .type(ButtonType.Capsule)
        .fontColor(Color.White)
        .alignSelf(ItemAlign.Center)
        .width('80%')
        .margin(10)
        .onClick(() => {
          // 拉起图库
          void this.selectImage()
        })
      Button('人脸比对')
        .type(ButtonType.Capsule)
        .fontColor(Color.White)
        .alignSelf(ItemAlign.Center)
        .width('80%')
        .margin(10)
        .onClick(() => {
          if (!this.chooseImage || !this.chooseImage1) {
            hilog.error(0x0000, TAG, "Failed to choose image");
            return;
          }
          // 调用人脸比对接口
          let visionInfo: faceComparator.VisionInfo = {
            pixelMap: this.chooseImage,
          };
          let visionInfo1: faceComparator.VisionInfo = {
            pixelMap: this.chooseImage1,
          };
          faceComparator.compareFaces(visionInfo, visionInfo1)
            .then((data: faceComparator.FaceCompareResult) => {
              let faceString = "degree of similarity: " + this.toPercentage(data.similarity) +
                ((data.isSamePerson) ? ". is" : ". no") + " same person";
              hilog.info(0x0000, TAG, "faceString data is " + faceString);
              this.dataValues = faceString;
            })
            .catch((error: BusinessError) => {
              hilog.error(0x0000, TAG, `Face comparison failed. Code: ${error.code}, message: ${error.message}`);
              this.dataValues = `Error: ${error.message}`;
            });
        })
    }
    .width('100%')
    .height('100%')
    .justifyContent(FlexAlign.Center)
  }

  private toPercentage(num: number): string {
    return `${(num * 100).toFixed(2)}%`;
  }

  private async selectImage() {
    let uri = await this.openPhoto()
    if (uri === undefined) {
      hilog.error(0x0000, TAG, "Failed to get two image uris.");
    }
    this.loadImage(uri);
  }

  private async openPhoto(): Promise<string[]> {
    return new Promise<string[]>((resolve, reject) => {
      let photoPicker: photoAccessHelper.PhotoViewPicker = new photoAccessHelper.PhotoViewPicker();
      photoPicker.select({
        MIMEType: photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE,
        maxSelectNumber: 2
      }).then(res => {
        resolve(res.photoUris);
      }).catch((err: BusinessError) => {
        hilog.error(0x0000, TAG, `Failed to get photo image uris. code: ${err.code}, message: ${err.message}`);
        reject();
      });
    });
  }

  private loadImage(names: string[]) {
    setTimeout(async () => {
      let imageSource: image.ImageSource | undefined = undefined;
      let fileSource: fileIo.File
      try {
        fileSource = await fileIo.open(names[0], fileIo.OpenMode.READ_ONLY);
        imageSource = image.createImageSource(fileSource.fd);
        this.chooseImage = await imageSource.createPixelMap();
      } catch (error) {
        hilog.error(0x0000, TAG, `Failed to open file. Error: ${error}`);
      }
      try {
        fileSource = await fileIo.open(names[1], fileIo.OpenMode.READ_ONLY);
        imageSource = image.createImageSource(fileSource.fd);
        this.chooseImage1 = await imageSource.createPixelMap();
        await fileIo.close(fileSource);
      } catch (error) {
        hilog.error(0x0000, TAG, `Failed to open the second file. Error: ${error}`);
      }
    }, 100
    )
  }
}

解读：

1. openPhoto函数为拉起图库选择框，供用户选择图片
2. 选完图片后，将两张图片的数据交给loadImage函数处理，生成对应的PixelMap类型的视觉信息
3. faceComparator.compareFaces函数主要是做比对功能，得到比对结果

最后

• 希望本文对你有所帮助！
• 本人如有任何错误或不当之处，请留言指出，谢谢！
