Spring AI + MCP：从入门到实战
一、什么是MCP？
MCP（Model Context Protocol，模型上下文协议）是由Anthropic推出的一种开放协议，旨在解决AI助手与外部数据源和工具之间的连接问题。MCP定义了一套标准化的通信机制，使得AI应用能够安全、高效地访问外部资源。

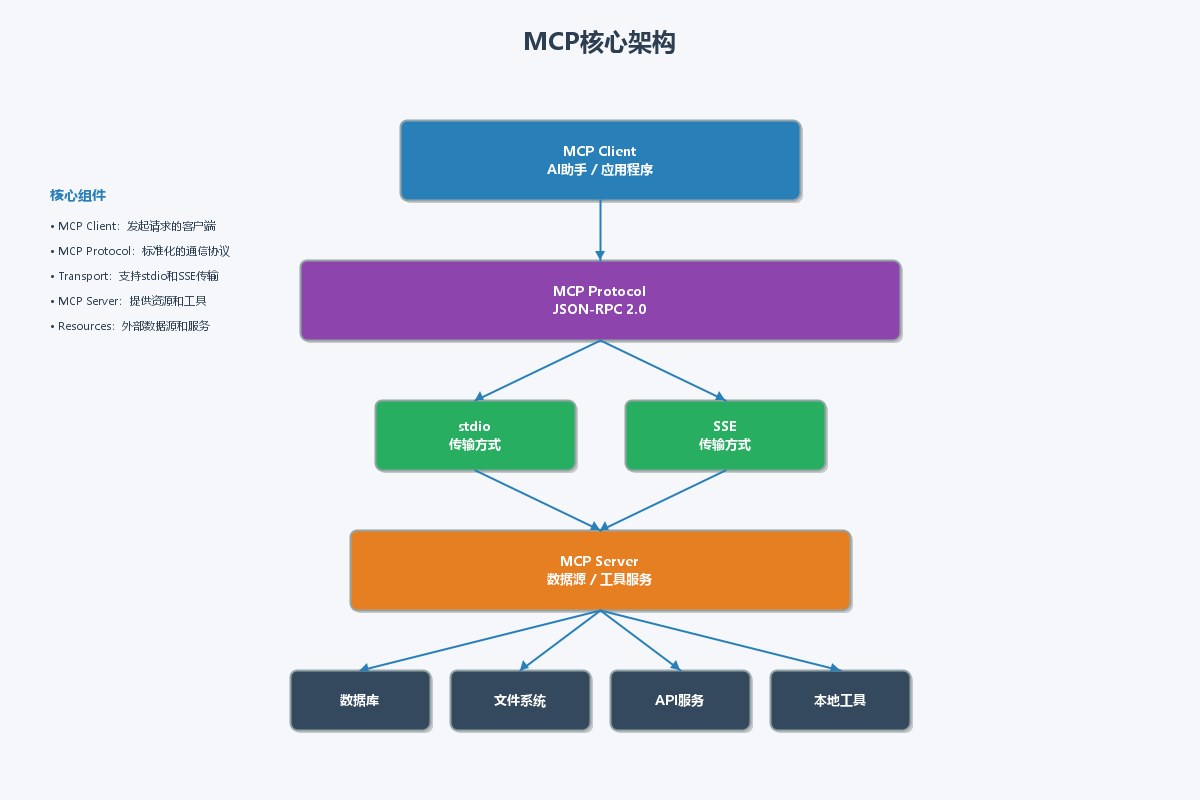

1.1 MCP核心概念
MCP协议主要包含三个核心角色：
- MCP Client（客户端） ：发起请求的应用程序，通常是AI助手或应用
- MCP Server（服务端） ：提供资源和工具的服务，封装了数据访问逻辑
- Host（宿主） ：运行MCP客户端的应用程序

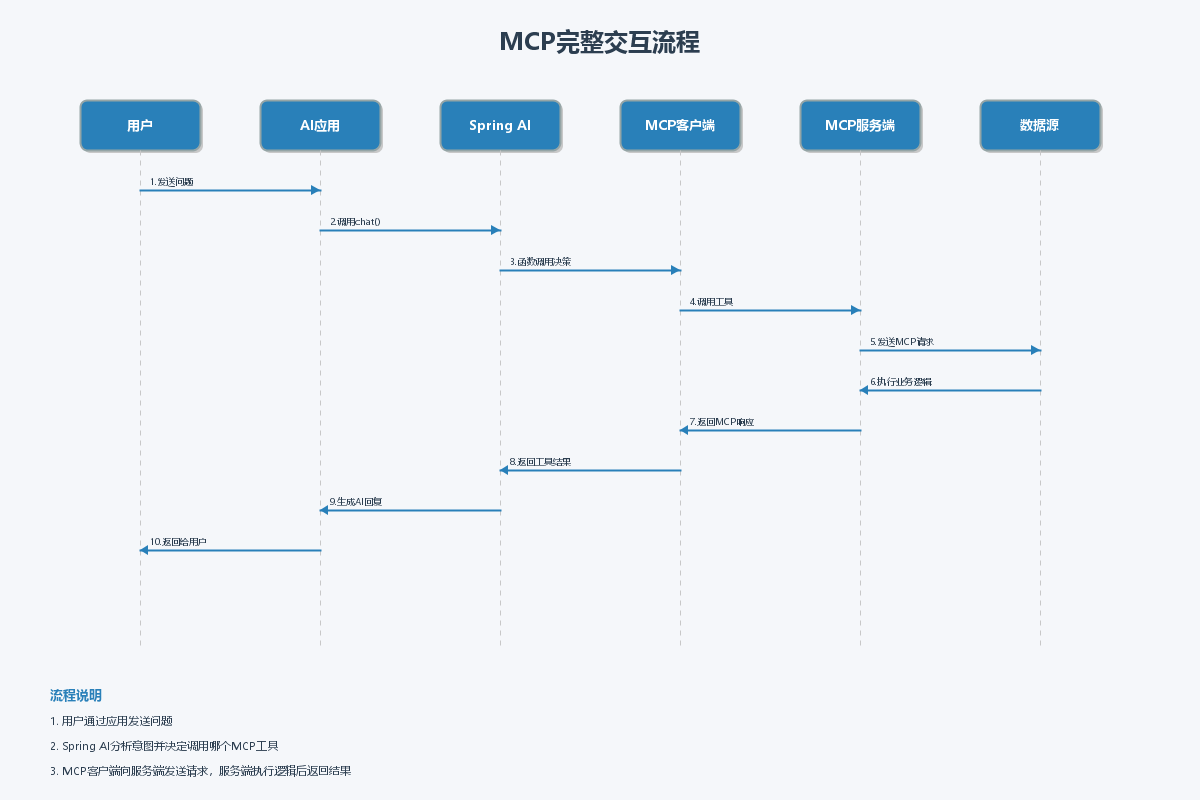

1.2 MCP工作原理
MCP使用JSON-RPC 2.0协议进行通信，支持两种传输方式：
- stdio（标准输入输出） ：适用于本地进程间通信
- SSE（Server-Sent Events） ：适用于基于HTTP的远程通信
1.3 为什么选择MCP？
- 标准化接口：统一的协议，降低集成复杂度
- 安全性：清晰的权限控制机制
- 可扩展性：支持自定义资源和工具
- 跨平台：语言无关的协议标准
二、环境搭建
2.1 Maven依赖配置
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>3.2.5</version>
<relativePath/>
</parent>
<groupId>com.example</groupId>
<artifactId>mcp-demo</artifactId>
<version>1.0.0</version>
<name>MCP Demo Project</name>
<description>Spring AI + MCP Integration Demo</description>
<properties>
<java.version>17</java.version>
<spring-ai.version>1.0.0-M4</spring-ai.version>
</properties>
<dependencies>
<!-- Spring Boot Web -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- Spring AI OpenAI -->
<dependency>
<groupId>org.springframework.ai</groupId>
<artifactId>spring-ai-openai-spring-boot-starter</artifactId>
</dependency>
<!-- MCP SDK -->
<dependency>
<groupId>org.anthropic</groupId>
<artifactId>mcp-sdk</artifactId>
<version>0.1.0</version>
</dependency>
<!-- JSON处理 -->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
</dependency>
<!-- Lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
<!-- 测试依赖 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.junit.jupiter</groupId>
<artifactId>junit-jupiter</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.ai</groupId>
<artifactId>spring-ai-bom</artifactId>
<version>${spring-ai.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
<repositories>
<repository>
<id>spring-milestones</id>
<name>Spring Milestones</name>
<url>https://repo.spring.io/milestone</url>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
</repositories>
</project>2.2 配置文件
# application.yml
spring:
application:
name: mcp-demo
ai:
openai:
api-key: ${OPENAI_API_KEY:sk-your-api-key}
chat:
options:
model: gpt-4
temperature: 0.7
server:
port: 8080
mcp:
server:
name: demo-mcp-server
version: 1.0.0
client:
timeout: 30000
logging:
level:
com.example.mcp: DEBUG
org.springframework.ai: DEBUG三、MCP服务端实现

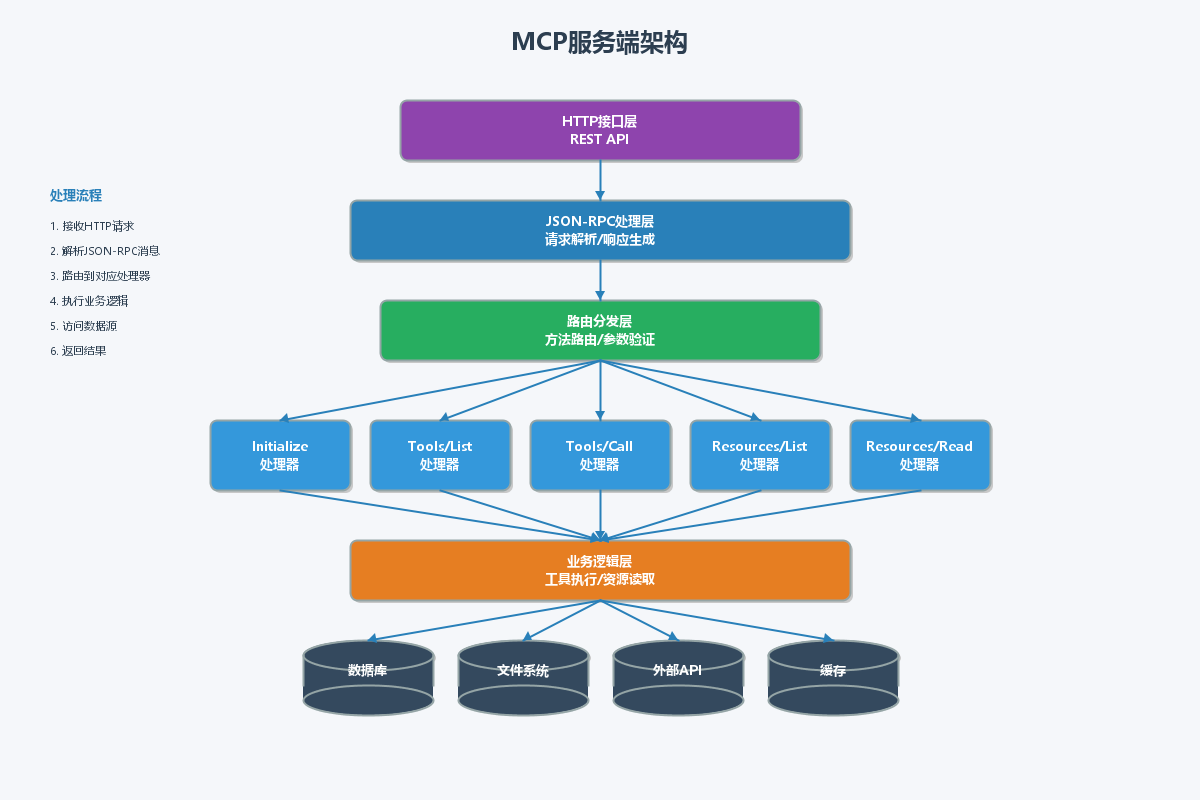

3.1 MCP服务端核心接口
MCP服务端需要实现以下核心功能：
3.2 实现MCP服务端
package com.example.mcp.server;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;
import java.util.*;
/**
* MCP服务端核心实现
*/
@Slf4j
@Component
public class McpServer {
private final ObjectMapper objectMapper = new ObjectMapper();
private final Map<String, McpTool> tools = new HashMap<>();
private final Map<String, McpResource> resources = new HashMap<>();
public McpServer() {
initializeTools();
initializeResources();
}
/**
* 初始化可用工具
*/
private void initializeTools() {
// 用户查询工具
tools.put("query_user", McpTool.builder()
.name("query_user")
.description("根据用户ID查询用户信息")
.inputSchema(Map.of(
"type", "object",
"properties", Map.of(
"userId", Map.of(
"type", "string",
"description", "用户ID"
)
),
"required", List.of("userId")
))
.build());
// 数据分析工具
tools.put("analyze_data", McpTool.builder()
.name("analyze_data")
.description("分析业务数据并生成报告")
.inputSchema(Map.of(
"type", "object",
"properties", Map.of(
"dataType", Map.of(
"type", "string",
"description", "数据类型",
"enum", List.of("sales", "traffic", "user")
),
"dateRange", Map.of(
"type", "object",
"description", "日期范围",
"properties", Map.of(
"start", Map.of("type", "string", "format", "date"),
"end", Map.of("type", "string", "format", "date")
)
)
),
"required", List.of("dataType")
))
.build());
// 文件操作工具
tools.put("read_file", McpTool.builder()
.name("read_file")
.description("读取文件内容")
.inputSchema(Map.of(
"type", "object",
"properties", Map.of(
"filePath", Map.of(
"type", "string",
"description", "文件路径"
)
),
"required", List.of("filePath")
))
.build());
log.info("Initialized {} tools", tools.size());
}
/**
* 初始化可用资源
*/
private void initializeResources() {
// 用户列表资源
resources.put("user://list", McpResource.builder()
.uri("user://list")
.name("用户列表")
.description("系统中的所有用户列表")
.mimeType("application/json")
.build());
// 系统配置资源
resources.put("config://system", McpResource.builder()
.uri("config://system")
.name("系统配置")
.description("系统级别的配置信息")
.mimeType("application/json")
.build());
log.info("Initialized {} resources", resources.size());
}
/**
* 处理MCP请求
*/
public String handleRequest(String requestJson) {
try {
JsonNode root = objectMapper.readTree(requestJson);
String method = root.get("method").asText();
log.debug("Handling MCP request: {}", method);
return switch (method) {
case "initialize" -> handleInitialize(root);
case "tools/list" -> handleListTools();
case "tools/call" -> handleCallTool(root);
case "resources/list" -> handleListResources();
case "resources/read" -> handleReadResource(root);
default -> createErrorResponse(-32601, "Method not found: " + method);
};
} catch (Exception e) {
log.error("Error handling MCP request", e);
return createErrorResponse(-32603, "Internal error: " + e.getMessage());
}
}
/**
* 处理初始化请求
*/
private String handleInitialize(JsonNode request) {
Map<String, Object> result = new HashMap<>();
result.put("protocolVersion", "2024-11-05");
result.put("serverInfo", Map.of(
"name", "demo-mcp-server",
"version", "1.0.0"
));
result.put("capabilities", Map.of(
"tools", Map.of(),
"resources", Map.of()
));
return createSuccessResponse(request, result);
}
/**
* 处理工具列表请求
*/
private String handleListTools() {
List<Map<String, Object>> toolList = new ArrayList<>();
for (McpTool tool : tools.values()) {
Map<String, Object> toolInfo = new HashMap<>();
toolInfo.put("name", tool.getName());
toolInfo.put("description", tool.getDescription());
toolInfo.put("inputSchema", tool.getInputSchema());
toolList.add(toolInfo);
}
Map<String, Object> result = new HashMap<>();
result.put("tools", toolList);
return createSuccessResponse(null, result);
}
/**
* 处理工具调用请求
*/
private String handleCallTool(JsonNode request) throws JsonProcessingException {
String toolName = request.get("params").get("name").asText();
Map<String, Object> arguments = objectMapper.convertValue(
request.get("params").get("arguments"),
Map.class
);
log.info("Calling tool: {} with arguments: {}", toolName, arguments);
Map<String, Object> result = executeTool(toolName, arguments);
return createSuccessResponse(request, result);
}
/**
* 执行工具逻辑
*/
private Map<String, Object> executeTool(String toolName, Map<String, Object> arguments) {
return switch (toolName) {
case "query_user" -> executeQueryUser(arguments);
case "analyze_data" -> executeAnalyzeData(arguments);
case "read_file" -> executeReadFile(arguments);
default -> Map.of("error", "Unknown tool: " + toolName);
};
}
/**
* 查询用户工具实现
*/
private Map<String, Object> executeQueryUser(Map<String, Object> arguments) {
String userId = (String) arguments.get("userId");
// 模拟数据库查询
Map<String, Object> user = new HashMap<>();
user.put("id", userId);
user.put("name", "张三");
user.put("email", "zhangsan@example.com");
user.put("role", "管理员");
user.put("status", "活跃");
user.put("createdAt", "2024-01-15T10:30:00Z");
return Map.of(
"success", true,
"data", user
);
}
/**
* 数据分析工具实现
*/
private Map<String, Object> executeAnalyzeData(Map<String, Object> arguments) {
String dataType = (String) arguments.get("dataType");
// 模拟数据分析
Map<String, Object> analysis = new HashMap<>();
analysis.put("dataType", dataType);
analysis.put("totalRecords", 15420);
analysis.put("growth", "+23.5%");
analysis.put("trend", "上升");
// 详细数据
List<Map<String, Object>> details = new ArrayList<>();
for (int i = 0; i < 7; i++) {
Map<String, Object> dayData = new HashMap<>();
dayData.put("date", "2024-01-" + (15 + i));
dayData.put("value", 1000 + (int)(Math.random() * 500));
details.add(dayData);
}
analysis.put("details", details);
return Map.of(
"success", true,
"analysis", analysis
);
}
/**
* 读取文件工具实现
*/
private Map<String, Object> executeReadFile(Map<String, Object> arguments) {
String filePath = (String) arguments.get("filePath");
// 模拟文件读取
return Map.of(
"success", true,
"content", "文件内容示例：\n这是从 " + filePath + " 读取的内容。\n" +
"在实际应用中，这里应该返回真实的文件内容。",
"lineCount", 2
);
}
/**
* 处理资源列表请求
*/
private String handleListResources() {
List<Map<String, Object>> resourceList = new ArrayList<>();
for (McpResource resource : resources.values()) {
Map<String, Object> resourceInfo = new HashMap<>();
resourceInfo.put("uri", resource.getUri());
resourceInfo.put("name", resource.getName());
resourceInfo.put("description", resource.getDescription());
resourceInfo.put("mimeType", resource.getMimeType());
resourceList.add(resourceInfo);
}
Map<String, Object> result = new HashMap<>();
result.put("resources", resourceList);
return createSuccessResponse(null, result);
}
/**
* 处理资源读取请求
*/
private String handleReadResource(JsonNode request) {
String uri = request.get("params").get("uri").asText();
McpResource resource = resources.get(uri);
if (resource == null) {
return createErrorResponse(-32602, "Resource not found: " + uri);
}
// 模拟资源内容
String content = switch (uri) {
case "user://list" -> """
{
"users": [
{"id": "1", "name": "张三", "email": "zhangsan@example.com"},
{"id": "2", "name": "李四", "email": "lisi@example.com"},
{"id": "3", "name": "王五", "email": "wangwu@example.com"}
],
"total": 3
}
""";
case "config://system" -> """
{
"appName": "MCP Demo",
"version": "1.0.0",
"environment": "production",
"features": ["mcp", "ai", "analytics"]
}
""";
default -> "{}";
};
Map<String, Object> result = new HashMap<>();
result.put("contents", List.of(Map.of(
"uri", uri,
"mimeType", resource.getMimeType(),
"text", content
)));
return createSuccessResponse(request, result);
}
/**
* 创建成功响应
*/
private String createSuccessResponse(JsonNode request, Map<String, Object> result) {
Map<String, Object> response = new HashMap<>();
response.put("jsonrpc", "2.0");
if (request != null && request.has("id")) {
response.put("id", request.get("id"));
}
response.put("result", result);
try {
return objectMapper.writeValueAsString(response);
} catch (JsonProcessingException e) {
return "{"error":"Failed to serialize response"}";
}
}
/**
* 创建错误响应
*/
private String createErrorResponse(int code, String message) {
Map<String, Object> response = new HashMap<>();
response.put("jsonrpc", "2.0");
response.put("error", Map.of(
"code", code,
"message", message
));
response.put("id", null);
try {
return objectMapper.writeValueAsString(response);
} catch (JsonProcessingException e) {
return "{"error":"Failed to serialize error"}";
}
}
}3.3 MCP数据模型
package com.example.mcp.server;
import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.util.Map;
/**
* MCP工具定义
*/
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class McpTool {
private String name;
private String description;
private Map<String, Object> inputSchema;
}
/**
* MCP资源定义
*/
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
class McpResource {
private String uri;
private String name;
private String description;
private String mimeType;
}3.4 MCP服务端HTTP接口
package com.example.mcp.controller;
import com.example.mcp.server.McpServer;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.*;
/**
* MCP服务端HTTP接口
*/
@Slf4j
@RestController
@RequestMapping("/mcp")
@RequiredArgsConstructor
public class McpController {
private final McpServer mcpServer;
/**
* 处理MCP请求
*/
@PostMapping
public String handleMcpRequest(@RequestBody String request) {
log.info("Received MCP request: {}", request);
String response = mcpServer.handleRequest(request);
log.info("Sending MCP response: {}", response);
return response;
}
/**
* 健康检查
*/
@GetMapping("/health")
public Map<String, String> health() {
return Map.of("status", "healthy", "service", "mcp-server");
}
}四、MCP客户端实现

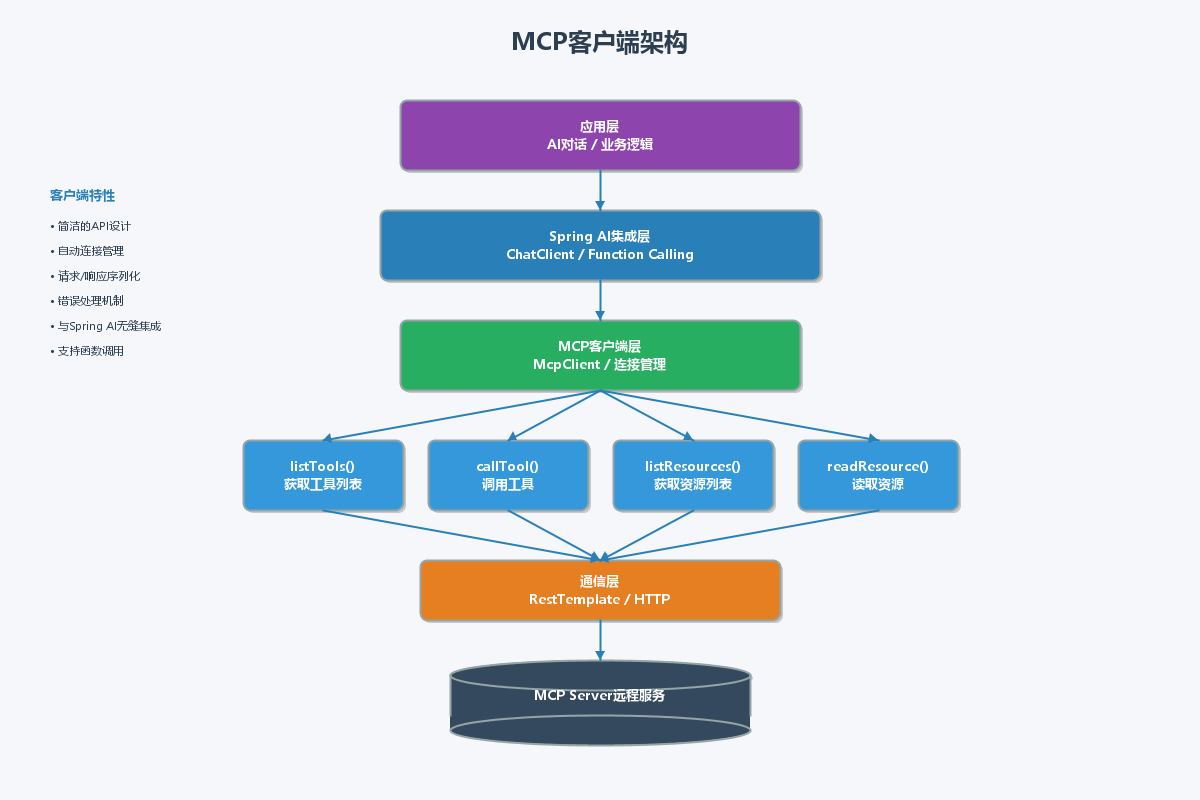

4.1 MCP客户端架构
MCP客户端负责与MCP服务端通信，并向应用层提供简洁的API。
4.2 实现MCP客户端
package com.example.mcp.client;
import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;
import lombok.extern.slf4j.Slf4j;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.MediaType;
import org.springframework.stereotype.Component;
import org.springframework.web.client.RestTemplate;
import java.util.*;
/**
* MCP客户端实现
*/
@Slf4j
@Component
public class McpClient {
private final ObjectMapper objectMapper = new ObjectMapper();
private final RestTemplate restTemplate = new RestTemplate();
private final String serverUrl;
private long requestId = 0;
public McpClient(String serverUrl) {
this.serverUrl = serverUrl;
}
/**
* 初始化连接
*/
public void initialize() {
Map<String, Object> params = new HashMap<>();
params.put("protocolVersion", "2024-11-05");
params.put("capabilities", Map.of(
"roots", Map.of("listChanged", true),
"sampling", Map.of()
));
JsonNode response = sendRequest("initialize", params);
log.info("MCP client initialized: {}", response);
}
/**
* 获取可用工具列表
*/
public List<McpClientTool> listTools() {
JsonNode response = sendRequest("tools/list", null);
JsonNode toolsArray = response.get("result").get("tools");
List<McpClientTool> tools = new ArrayList<>();
for (JsonNode toolNode : toolsArray) {
McpClientTool tool = new McpClientTool(
toolNode.get("name").asText(),
toolNode.get("description").asText(),
toolNode.get("inputSchema").toString()
);
tools.add(tool);
}
log.info("Retrieved {} tools from MCP server", tools.size());
return tools;
}
/**
* 调用工具
*/
public Map<String, Object> callTool(String toolName, Map<String, Object> arguments) {
Map<String, Object> params = new HashMap<>();
params.put("name", toolName);
params.put("arguments", arguments);
JsonNode response = sendRequest("tools/call", params);
JsonNode resultNode = response.get("result");
return objectMapper.convertValue(resultNode, Map.class);
}
/**
* 获取可用资源列表
*/
public List<McpClientResource> listResources() {
JsonNode response = sendRequest("resources/list", null);
JsonNode resourcesArray = response.get("result").get("resources");
List<McpClientResource> resources = new ArrayList<>();
for (JsonNode resourceNode : resourcesArray) {
McpClientResource resource = new McpClientResource(
resourceNode.get("uri").asText(),
resourceNode.get("name").asText(),
resourceNode.get("description").asText(),
resourceNode.get("mimeType").asText()
);
resources.add(resource);
}
log.info("Retrieved {} resources from MCP server", resources.size());
return resources;
}
/**
* 读取资源
*/
public String readResource(String uri) {
Map<String, Object> params = new HashMap<>();
params.put("uri", uri);
JsonNode response = sendRequest("resources/read", params);
JsonNode contentsArray = response.get("result").get("contents");
if (contentsArray != null && contentsArray.size() > 0) {
return contentsArray.get(0).get("text").asText();
}
return null;
}
/**
* 发送JSON-RPC请求
*/
private JsonNode sendRequest(String method, Map<String, Object> params) {
try {
Map<String, Object> request = new HashMap<>();
request.put("jsonrpc", "2.0");
request.put("id", ++requestId);
request.put("method", method);
if (params != null) {
request.put("params", params);
}
String requestJson = objectMapper.writeValueAsString(request);
HttpHeaders headers = new HttpHeaders();
headers.setContentType(MediaType.APPLICATION_JSON);
HttpEntity<String> entity = new HttpEntity<>(requestJson, headers);
String responseJson = restTemplate.postForObject(
serverUrl, entity, String.class
);
log.debug("MCP request: {}", requestJson);
log.debug("MCP response: {}", responseJson);
return objectMapper.readTree(responseJson);
} catch (Exception e) {
log.error("Error sending MCP request", e);
throw new RuntimeException("MCP request failed: " + e.getMessage(), e);
}
}
/**
* 客户端工具定义
*/
public record McpClientTool(String name, String description, String inputSchema) {}
/**
* 客户端资源定义
*/
public record McpClientResource(String uri, String name, String description, String mimeType) {}
}4.3 MCP客户端配置
package com.example.mcp.config;
import com.example.mcp.client.McpClient;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* MCP客户端配置
*/
@Configuration
public class McpClientConfig {
@Value("${mcp.server.url:http://localhost:8080/mcp}")
private String serverUrl;
@Bean
public McpClient mcpClient() {
McpClient client = new McpClient(serverUrl);
client.initialize();
return client;
}
}五、Spring AI集成
5.1 创建MCP函数调用
package com.example.mcp.ai;
import com.example.mcp.client.McpClient;
import com.fasterxml.jackson.databind.ObjectMapper;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Description;
import org.springframework.stereotype.Component;
import java.util.Map;
import java.util.function.Function;
/**
* MCP工具函数，供Spring AI调用
*/
@Slf4j
@Component
@RequiredArgsConstructor
public class McpFunction {
private final McpClient mcpClient;
private final ObjectMapper objectMapper = new ObjectMapper();
/**
* 查询用户信息
*/
@Description("根据用户ID查询用户详细信息，包括姓名、邮箱、角色等")
public Function<String, String> queryUser() {
return userId -> {
log.info("AI调用queryUser工具，参数: {}", userId);
Map<String, Object> arguments = Map.of("userId", userId);
Map<String, Object> result = mcpClient.callTool("query_user", arguments);
return formatResult("查询用户", result);
};
}
/**
* 分析数据
*/
@Description("分析业务数据并生成分析报告，支持销售、流量、用户等数据类型")
public Function<String, String> analyzeData() {
return dataTypeJson -> {
log.info("AI调用analyzeData工具，参数: {}", dataTypeJson);
try {
@SuppressWarnings("unchecked")
Map<String, Object> arguments = objectMapper.readValue(dataTypeJson, Map.class);
Map<String, Object> result = mcpClient.callTool("analyze_data", arguments);
return formatResult("数据分析", result);
} catch (Exception e) {
log.error("数据分析失败", e);
return "数据分析失败: " + e.getMessage();
}
};
}
/**
* 读取文件
*/
@Description("读取指定路径的文件内容")
public Function<String, String> readFile() {
return filePath -> {
log.info("AI调用readFile工具，参数: {}", filePath);
Map<String, Object> arguments = Map.of("filePath", filePath);
Map<String, Object> result = mcpClient.callTool("read_file", arguments);
return formatResult("读取文件", result);
};
}
/**
* 获取系统资源
*/
@Description("获取系统配置和资源信息")
public Function<String, String> getSystemResource() {
return uri -> {
log.info("AI调用getSystemResource工具，参数: {}", uri);
String content = mcpClient.readResource(uri);
if (content != null) {
return String.format("资源 %s 的内容:\n%s", uri, content);
}
return "未找到资源: " + uri;
};
}
/**
* 格式化结果
*/
private String formatResult(String operation, Map<String, Object> result) {
if (Boolean.TRUE.equals(result.get("success"))) {
return String.format("%s成功:\n%s", operation,
result.get("data") != null ? result.get("data") : result.get("content"));
} else {
return String.format("%s失败: %s", operation, result.get("error"));
}
}
}5.2 AI服务实现
package com.example.mcp.service;
import com.example.mcp.ai.McpFunction;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.client.advisor.MessageChatMemoryAdvisor;
import org.springframework.ai.chat.memory.ChatMemory;
import org.springframework.ai.chat.memory.InMemoryChatMemory;
import org.springframework.stereotype.Service;
/**
* AI对话服务
*/
@Slf4j
@Service
@RequiredArgsConstructor
public class AiChatService {
private final ChatClient.Builder chatClientBuilder;
private final McpFunction mcpFunction;
private final ChatMemory chatMemory = new InMemoryChatMemory();
/**
* 处理用户消息
*/
public String chat(String userId, String message) {
log.info("用户 {} 发送消息: {}", userId, message);
// 创建带记忆和工具调用的ChatClient
ChatClient chatClient = chatClientBuilder
.defaultAdvisors(new MessageChatMemoryAdvisor(chatMemory))
.defaultFunctions(
mcpFunction.queryUser(),
mcpFunction.analyzeData(),
mcpFunction.readFile(),
mcpFunction.getSystemResource()
)
.build();
String response = chatClient.prompt()
.user(message)
.call()
.content();
log.info("AI回复: {}", response);
return response;
}
/**
* 清除对话历史
*/
public void clearHistory(String userId) {
chatMemory.clear(userId);
log.info("已清除用户 {} 的对话历史", userId);
}
}5.3 ChatClient配置
package com.example.mcp.config;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.openai.OpenAiChatModel;
import org.springframework.context.annotation.Configuration;
/**
* ChatClient配置
*/
@Configuration
public class ChatClientConfig {
public ChatClient.Builder chatClientBuilder(OpenAiChatModel model) {
return ChatClient.builder(model);
}
}六、生产环境实战案例

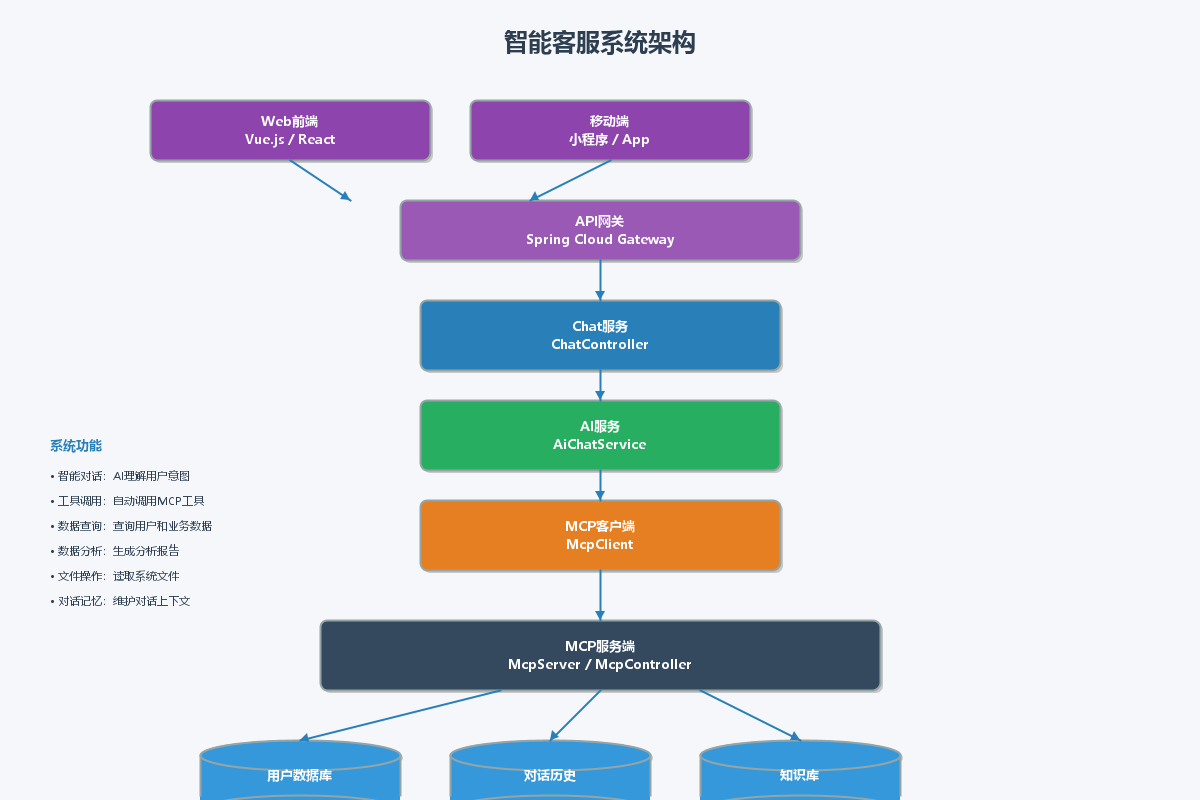

6.1 智能客服系统
下面是一个完整的智能客服系统实现，展示如何使用Spring AI + MCP构建实际应用。
6.2 客服控制器
package com.example.mcp.controller;
import com.example.mcp.service.AiChatService;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.*;
import java.util.Map;
/**
* 智能客服控制器
*/
@Slf4j
@RestController
@RequestMapping("/api/chat")
@RequiredArgsConstructor
public class ChatController {
private final AiChatService aiChatService;
/**
* 发送消息
*/
@PostMapping("/send")
public Map<String, Object> sendMessage(@RequestBody Map<String, String> request) {
String userId = request.get("userId");
String message = request.get("message");
if (userId == null || message == null) {
return Map.of("success", false, "error", "userId和message不能为空");
}
try {
String response = aiChatService.chat(userId, message);
return Map.of(
"success", true,
"response", response,
"timestamp", System.currentTimeMillis()
);
} catch (Exception e) {
log.error("处理消息失败", e);
return Map.of("success", false, "error", e.getMessage());
}
}
/**
* 清除历史
*/
@PostMapping("/clear")
public Map<String, Object> clearHistory(@RequestBody Map<String, String> request) {
String userId = request.get("userId");
aiChatService.clearHistory(userId);
return Map.of("success", true, "message", "对话历史已清除");
}
}七、MCP通信流程
7.1 完整的交互流程
7.2 消息格式示例
// 客户端请求示例
{
"jsonrpc": "2.0",
"id": 1,
"method": "tools/call",
"params": {
"name": "query_user",
"arguments": {
"userId": "12345"
}
}
}
// 服务端响应示例
{
"jsonrpc": "2.0",
"id": 1,
"result": {
"success": true,
"data": {
"id": "12345",
"name": "张三",
"email": "zhangsan@example.com",
"role": "管理员"
}
}
}八、测试与调试
8.1 单元测试
package com.example.mcp.server;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import static org.junit.jupiter.api.Assertions.*;
/**
* MCP服务端测试
*/
class McpServerTest {
private McpServer mcpServer;
@BeforeEach
void setUp() {
mcpServer = new McpServer();
}
@Test
void testInitialize() {
String request = "{"jsonrpc":"2.0","id":1,"method":"initialize","params":{}}";
String response = mcpServer.handleRequest(request);
assertNotNull(response);
assertTrue(response.contains(""serverInfo""));
assertTrue(response.contains("demo-mcp-server"));
}
@Test
void testListTools() {
String request = "{"jsonrpc":"2.0","id":2,"method":"tools/list"}";
String response = mcpServer.handleRequest(request);
assertNotNull(response);
assertTrue(response.contains("query_user"));
assertTrue(response.contains("analyze_data"));
assertTrue(response.contains("read_file"));
}
@Test
void testCallTool() {
String request = "{"jsonrpc":"2.0","id":3,"method":"tools/call","params":{" +
""name":"query_user"," +
""arguments":{"userId":"123"}" +
"}}";
String response = mcpServer.handleRequest(request);
assertNotNull(response);
assertTrue(response.contains(""success":true"));
assertTrue(response.contains("张三"));
}
@Test
void testListResources() {
String request = "{"jsonrpc":"2.0","id":4,"method":"resources/list"}";
String response = mcpServer.handleRequest(request);
assertNotNull(response);
assertTrue(response.contains("user://list"));
assertTrue(response.contains("config://system"));
}
@Test
void testReadResource() {
String request = "{"jsonrpc":"2.0","id":5,"method":"resources/read"," +
""params":{"uri":"user://list"}}";
String response = mcpServer.handleRequest(request);
assertNotNull(response);
assertTrue(response.contains("users"));
}
}8.2 客户端测试
package com.example.mcp.client;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.mockserver.integration.ClientAndServer;
import org.mockserver.model.HttpRequest;
import org.mockserver.model.HttpResponse;
import static org.junit.jupiter.api.Assertions.*;
import static org.mockserver.model.JsonBody.json;
/**
* MCP客户端测试
*/
class McpClientTest {
private ClientAndServer mockServer;
private McpClient mcpClient;
@BeforeEach
void setUp() {
mockServer = ClientAndServer.startLocal(1080);
mcpClient = new McpClient("http://localhost:1080/mcp");
}
@Test
void testListTools() {
// 模拟服务端响应
mockServer.when(HttpRequest.request()
.withMethod("POST")
.withPath("/mcp"))
.respond(HttpResponse.response()
.withBody("{"jsonrpc":"2.0","id":1," +
""result":{"tools":[{" +
""name":"test_tool"," +
""description":"测试工具"," +
""inputSchema":{"type":"object"}" +
"]}}"));
var tools = mcpClient.listTools();
assertNotNull(tools);
assertEquals(1, tools.size());
assertEquals("test_tool", tools.get(0).name());
}
@Test
void testCallTool() {
mockServer.when(HttpRequest.request()
.withMethod("POST")
.withPath("/mcp"))
.respond(HttpResponse.response()
.withBody("{"jsonrpc":"2.0","id":2," +
""result":{"success":true,"data":{"result":"test"}}}"));
var result = mcpClient.callTool("test_tool", Map.of("param", "value"));
assertNotNull(result);
assertTrue((Boolean) result.get("success"));
}
@Test
void testReadResource() {
mockServer.when(HttpRequest.request()
.withMethod("POST")
.withPath("/mcp"))
.respond(HttpResponse.response()
.withBody("{"jsonrpc":"2.0","id":3," +
""result":{"contents":[{" +
""uri":"test://resource"," +
""text":"resource content"}]}}"));
String content = mcpClient.readResource("test://resource");
assertNotNull(content);
assertEquals("resource content", content);
}

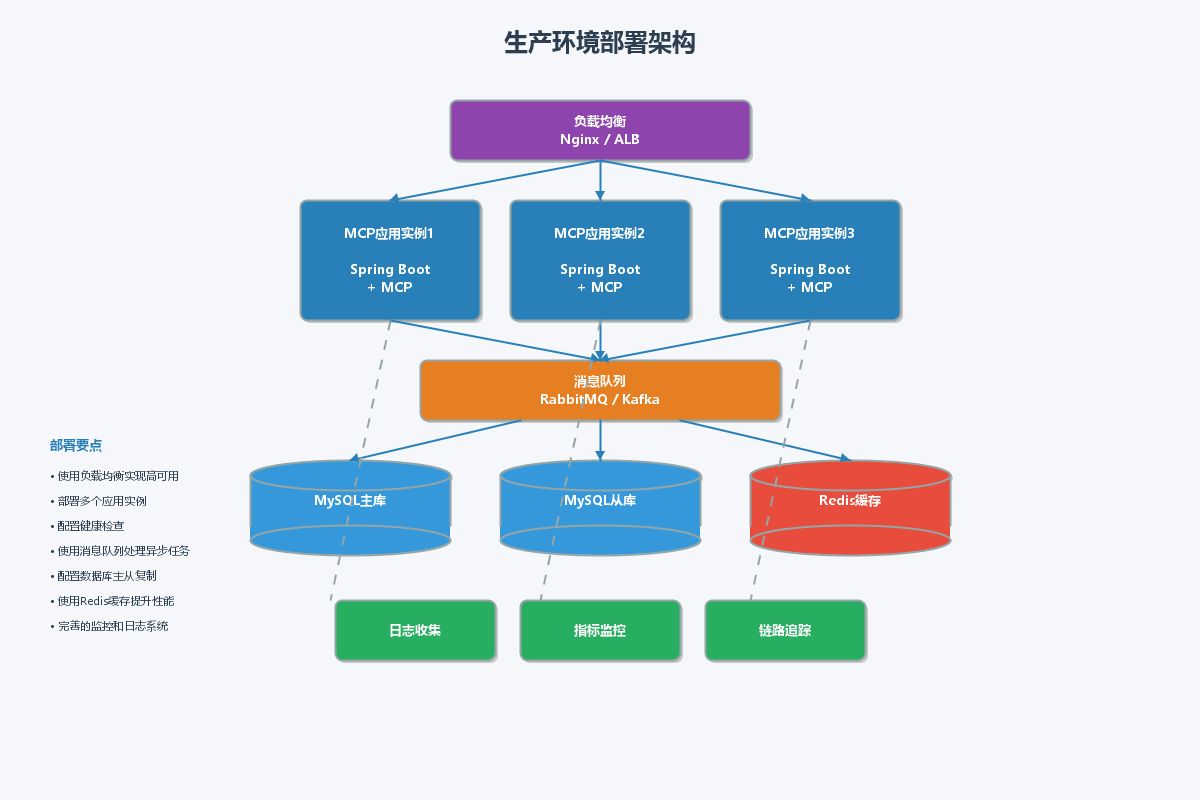

}九、部署架构
9.1
9.2 Docker部署
# Dockerfile
FROM openjdk:17-slim
WORKDIR /app
COPY target/mcp-demo-1.0.0.jar app.jar
EXPOSE 8080
ENTRYPOINT ["java", "-jar", "app.jar"]
# docker-compose.yml
version: '3.8'
services:
mcp-demo:
build: .
ports:
- "8080:8080"
environment:
- OPENAI_API_KEY=${OPENAI_API_KEY}
- SPRING_PROFILES_ACTIVE=production
restart: unless-stopped十、总结
Spring AI + MCP为构建AI应用提供了强大的基础设施。随着AI技术的不断发展，MCP协议将成为连接AI应用和外部服务的重要标准。建议持续关注MCP生态的发展，积极探索更多的应用场景。
