基于AQS实现的ReentrantLock
这里的源码用的Java8版本
lock方法

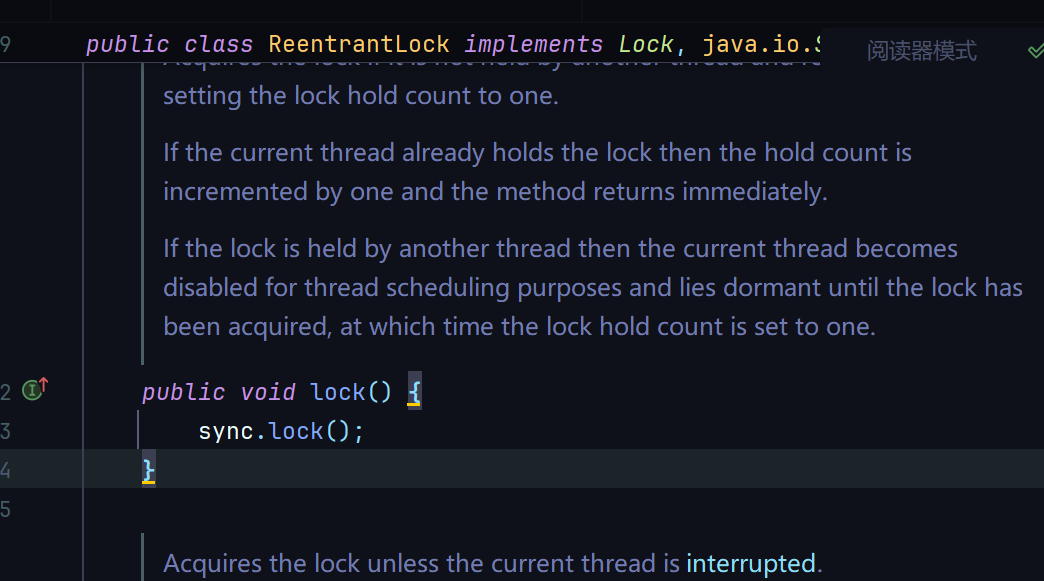

当ReentrantLock类的实例对象尝试获取锁的时候，调用lock方法，
会进入sync的lock方法，其中Sync是ReentrantLock的一个内部类，ReentrantLock构造方法会默认使用非公平锁NonfairSync，这个类是继承于Sync的
java
final void lock() {
if (!initialTryLock())
acquire(1);
}
// 其中Sync的initialTryLock是抽象方法，需要看非公平锁实现方法!TIP
在这里是第一次尝试获取锁
由于ReentrantLock是个可重入锁，判断里有重入的判断
java
final boolean initialTryLock() {
Thread current = Thread.currentThread();
// 获取当前线程的对象
if (compareAndSetState(0, 1)) { // first attempt is unguarded
// 用CAS比较state状态是否为0（无人持有锁），如果是，就转为1（获取到锁）
setExclusiveOwnerThread(current);
// 将当前进程设置为拥有锁的线程
return true;
} else if (getExclusiveOwnerThread() == current) {
// 当前线程为拥有锁的线程（重复获取），重入
int c = getState() + 1;
if (c < 0) // overflow
// 负数，state是个int类型数据，超出可能导致溢出变为负数
throw new Error("Maximum lock count exceeded");
setState(c);
// 设置新的state
return true;
} else
// 已有线程占锁，返回为false
return false;
}然后开始调用acquire方法，传入1
java
public final void acquire(int arg) {
if (!tryAcquire(arg) &&
acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
selfInterrupt();
}调用tryAcquire()方法，其中tryAcquire()方法是一个只有抛出异常的方法，需要重写，我们看非公平锁的写法
!TIP
这是第二次获取锁
java
protected final boolean tryAcquire(int acquires) {
if (getState() == 0 && !hasQueuedPredecessors() &&
compareAndSetState(0, acquires)) {
setExclusiveOwnerThread(Thread.currentThread());
return true;
}
return false;
}这里，如果state是0，即没有线程占用锁的情况下getState() == 0这个为真!hasQueuedPredecessors()执行这个方法，这个方法会检查是否已经出现了等待队列
java
public final boolean hasQueuedPredecessors() {
Thread first = null; Node h, s;
if ((h = head) != null && ((s = h.next) == null ||
(first = s.waiter) == null ||
s.prev == null))
first = getFirstQueuedThread(); // retry via getFirstQueuedThread
return first != null && first != Thread.currentThread();
}当未出现 同步队列/阻塞队列 ，或者当前线程是队列的第一个时，执行compareAndSetState(0, acquires)，第二次尝试获取锁，如果成功，返回真
否则返回假，执行acquireQueued(addWaiter(Node.EXCLUSIVE), arg))
java
private Node addWaiter(Node mode) {
Node node = new Node(Thread.currentThread(), mode);
// Try the fast path of enq; backup to full enq on failure
Node pred = tail;
if (pred != null) {
node.prev = pred;
if (compareAndSetTail(pred, node)) {
// 尝试加入队尾
pred.next = node;
return node;
}
}
enq(node);
return node;
}Node是双向队列：阻塞队列一个节点，是为了保证原子化所以包装起来的
如果tail尾指针指向的节点不为空，则设置新生成的为尾指针指向的
否则（阻塞队列为空），调用enq函数
java
private Node enq(final Node node) {
for (;;) {
Node t = tail;
if (t == null) { // Must initialize
if (compareAndSetHead(new Node()))
// 使用CAS，防止多线程同时创建头节点，所以本质上还是需要抢入队顺序
tail = head;
// 初始化头节点，并将尾指针指向头节点
} else {
node.prev = t;
if (compareAndSetTail(t, node)) {
// 判断t是否为尾节点，如果有线程更快的改掉尾节点，那么修改失败，
// 重新进入for循环
t.next = node;
return t;
// 修改成功
}
}
}
}!TIP
这是第三次尝试获取锁
java
final boolean acquireQueued(final Node node, int arg) {
boolean failed = true;
try {
boolean interrupted = false;
for (;;) {
final Node p = node.predecessor();
// 获取node的前一个节点，如果前一个节点是头节点（当前节点是第一个）
// 执行tryAcquire(arg)，执行第三次尝试获取锁
if (p == head && tryAcquire(arg)) {
// 获取锁成功，出队
setHead(node);// 将node设为头节点
p.next = null; // help GC
failed = false;
return interrupted;
}
if (shouldParkAfterFailedAcquire(p, node) &&
parkAndCheckInterrupt())
interrupted = true;
}
} finally {
if (failed)
cancelAcquire(node);
}
}如果第三次尝试获取锁失败了，会调用shouldParkAfterFailedAcquire()方法，将node的前一个节点传入（node一直都是加入的节点）
java
private static boolean shouldParkAfterFailedAcquire(Node pred, Node node) {
int ws = pred.waitStatus;
if (ws == Node.SIGNAL)
// 确认前面的节点处于SIGNAL状态，即确认前面的节点会叫醒自己
/*
* This node has already set status asking a release
* to signal it, so it can safely park.
*/
return true;
if (ws > 0) {
/*
* Predecessor was cancelled. Skip over predecessors and
* indicate retry.
*/
do {
node.prev = pred = pred.prev;
} while (pred.waitStatus > 0);
// Node里面仅有一个大于零的状态，即1取消状态，也就是说当前任务被取消了
// 持续循环值找到不再取消的节点
pred.next = node;
} else {
// 将前一个节点用CAS转为Node.SIGNAL状态-1，返回为false
/*
* waitStatus must be 0 or PROPAGATE. Indicate that we
* need a signal, but don't park yet. Caller will need to
* retry to make sure it cannot acquire before parking.
*/
compareAndSetWaitStatus(pred, ws, Node.SIGNAL);
}
return false;
}这里插一嘴，Node节点有一些状态，来体现其的任务状态，如前面传入的就是独占队列，
addWaiter(Node.EXCLUSIVE)
javastatic final class Node { /** Marker to indicate a node is waiting in shared mode */ static final Node SHARED = new Node(); // 共享队列 /** Marker to indicate a node is waiting in exclusive mode */ static final Node EXCLUSIVE = null; // 独占队列 /** waitStatus value to indicate thread has cancelled */// 取消 static final int CANCELLED = 1; // 已被取消 /** waitStatus value to indicate successor's thread needs unparking */ static final int SIGNAL = -1; // 表示next节点已经park，需要被唤醒 /** waitStatus value to indicate thread is waiting on condition */ static final int CONDITION = -2; /** * waitStatus value to indicate the next acquireShared should * unconditionally propagate */ // 共享状态 static final int PROPAGATE = -3;
java
if (shouldParkAfterFailedAcquire(p, node) &&
parkAndCheckInterrupt())
interrupted = true;如果前一个节点的waitState是0，会被CAS转为-1，然后返回false，进而不会执行parkAndCheckInterrupt()，继续for的无限循环，这里有可能出现第四次尝试
如果前一个节点的waitState是-1,该函数返回一个true，也就可以继续执行parkAndCheckInterrupt()
java
private final boolean parkAndCheckInterrupt() {
LockSupport.park(this);
return Thread.interrupted();
}当前线程进入park状态
至此我们完成了这个的lock过程
unlock方法
unlock()也是公平锁以及非公平锁都有的方法，同样继承了Sync
java
public void unlock() {
sync.release(1);
}Sync的release方法
java
public final boolean release(int arg) {
if (tryRelease(arg)) {
Node h = head;
if (h != null && h.waitStatus != 0)
unparkSuccessor(h);
return true;
}
return false;
}首先尝试tryRelease方法
java
protected final boolean tryRelease(int releases) {
int c = getState() - releases;
if (Thread.currentThread() != getExclusiveOwnerThread())
throw new IllegalMonitorStateException();
boolean free = false;
if (c == 0) {
free = true;
setExclusiveOwnerThread(null);
}
setState(c);
return free;
}如果成功醒过来，该线程依然处于一种park的位置上，即parkAndCheckInterrupt这个方法上，这个方法返回是否被中断ReentrantLock这个锁仅获取中断信息，而不会做出任何操作
java
final boolean acquireQueued(final Node node, int arg) {
boolean failed = true;
try {
boolean interrupted = false;
for (;;) {
final Node p = node.predecessor();
if (p == head && tryAcquire(arg)) {
setHead(node);
p.next = null; // help GC
failed = false;
return interrupted;
}
if (shouldParkAfterFailedAcquire(p, node) &&
parkAndCheckInterrupt())
interrupted = true;
}
} finally {
if (failed)
cancelAcquire(node);
}
}苏醒过来之后，继续for循环，尝试获取锁，失败之后会接着park，成功就会获取锁，并返回中断状态，在acquire中决定自我中断
java
final boolean nonfairTryAcquire(int acquires) {
final Thread current = Thread.currentThread();
int c = getState();
if (c == 0) {
if (compareAndSetState(0, acquires)) {
setExclusiveOwnerThread(current);
return true;
}
}
else if (current == getExclusiveOwnerThread()) {
int nextc = c + acquires;
if (nextc < 0) // overflow
throw new Error("Maximum lock count exceeded");
setState(nextc);
return true;
}
return false;
}并将setExclusiveOwnerThread传入当前线程，返回为真，因此在TryRelease方法里的Thread.currentThread() != getExclusiveOwnerThread()一定为假，不会抛出异常，并设置free为false，当c也就是资源的state如果是0
java
if (c == 0) {
free = true;
setExclusiveOwnerThread(null);
}
setState(c);
return free;c如果是0，即没有线程占用资源，setExclusiveOwnerThread将锁的线程设置为空，如果不为0，也就是重入锁仅仅解锁一次，c依然存在多个，设置c为新的state值，然会free值（资源锁的使用情况）
java
public final boolean release(int arg) {
if (tryRelease(arg)) {
Node h = head;
if (h != null && h.waitStatus != 0)
unparkSuccessor(h);
return true;
}
return false;
}
java
private void unparkSuccessor(Node node) {
/*
* If status is negative (i.e., possibly needing signal) try
* to clear in anticipation of signalling. It is OK if this
* fails or if status is changed by waiting thread.
*/
int ws = node.waitStatus;
if (ws < 0)
compareAndSetWaitStatus(node, ws, 0);
/*
* Thread to unpark is held in successor, which is normally
* just the next node. But if cancelled or apparently null,
* traverse backwards from tail to find the actual
* non-cancelled successor.
*/
Node s = node.next;、
// 如果下一个节点的状态为取消或者为空，从后向前找最后一个满足条件的，赋值为s
if (s == null || s.waitStatus > 0) {
s = null;
for (Node t = tail; t != null && t != node; t = t.prev)
if (t.waitStatus <= 0)
s = t;
}
// s不为空的话作为下一个被唤醒的节点，尝试唤醒
if (s != null)
LockSupport.unpark(s.thread);
}此时，当前节点为头节点，调用unparkSuccessor()方法，获取头节点的下一个节点
